Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#7914) — 630 parça

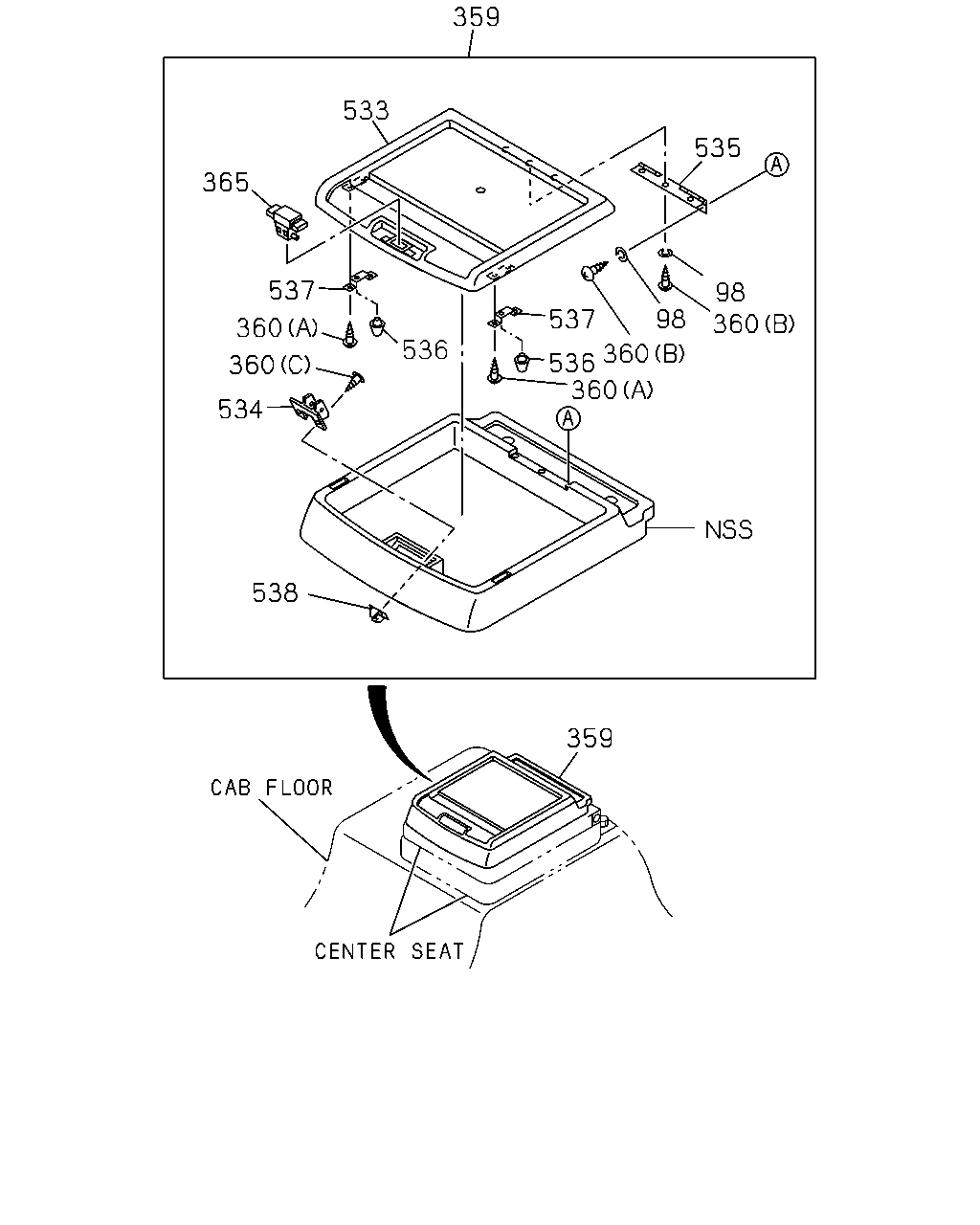

359 533 535 365 537 98 360 98 537 360 536 360 536 360 360 534 538 359

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
98	WASHER; HINGE ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	9905-0003	●	●
98	WASHER; HINGE ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	0004-0301	●
98	WASHER; HINGE VINYL SEAT<A83> ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	0004-0301		●
98	WASHER; HINGE ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	0302-0310	●		●
98	WASHER; HINGE VINYL SEAT<A83> ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	0302-0310		●
98	WASHER; HINGE ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	0311-	●	●	●
359	BOX; PARCEL FABRIC SEAT W/RECL<SFQ>	1-72538-275-0	01	1	0004-0211		●
359	BOX; PARCEL	1-72538-275-4	01	1	0212-0301	●	●
359	BOX; PARCEL	1-72538-275-4	01	1	0302-	●	●	●
359	BOX; PARCEL	1-72538-157-2	01	1	9905-0003	●	●
359	BOX; PARCEL	1-72538-157-2	01	1	0004-0211	●
359	BOX; PARCEL VINYL SEAT<A83>	1-72538-157-2	01	1	0004-0211		●
360	SCREW; PARCEL FABRIC SEAT W/RECL<SFQ> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	08	1	0004-0310		●
360	SCREW; PARCEL FABRIC SEAT W/RECL<SFQ> (C) M5X20	9-09829-324-1	02	1	0004-0211		●
360	SCREW; PARCEL FABRIC SEAT W/RECL<SFQ> (C) M5X20	9-09829-324-1	01	1	0212-0310		●
360	SCREW; PARCEL (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	9905-0301	●	●
360	SCREW; PARCEL (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	0302-	●	●	●
360	SCREW; PARCEL (B) M4X16	0-70080-416-0	06	1	9905-0301	●	●
360	SCREW; PARCEL (B) M4X16	0-70080-416-0	06	1	0302-	●	●	●
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	9905-0003	●	●
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0004-0301	●
360	SCREW; PARCEL VINYL SEAT<A83> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0004-0301		●
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0302-0310	●		●
360	SCREW; PARCEL VINYL SEAT<A83> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0302-0310		●
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	05	1	0311-	●	●	●
365	LOCK ASM; SEAT	1-72538-180-0	01	1	9905-0301	●	●
365	LOCK ASM; SEAT	1-72538-180-0	01	1	0302-	●	●	●
533	LID; PARCEL BOX	1-72538-194-2	01	1	9905-0301	●	●
533	LID; PARCEL BOX	1-72538-194-2	01	1	0302-0310	●	●	●
533	LID; PARCEL BOX	1-72538-277-1	01	1	0311-	●	●	●
534	STRIKER; PARCEL BOX	1-72538-181-0	01	1	9905-0301	●	●
534	STRIKER; PARCEL BOX	1-72538-181-0	01	1	0302-	●	●	●
535	HINGE; PARCEL BOX	1-72447-391-1	01	1	9905-0301	●	●
535	HINGE; PARCEL BOX	1-72447-391-1	01	1	0302-	●	●	●
536	RUBBER; CUSHION	5-09983-002-1	02	1	9905-0301	●	●
536	RUBBER; CUSHION	5-09983-002-1	02	1	0302-	●	●	●
537	BRACKET; RUBBER	1-72548-057-1	02	1	9905-0301	●	●
537	BRACKET; RUBBER	1-72548-057-1	02	1	0302-	●	●	●
538	GROMMET; SCREW	1-09983-165-0	02	1	9905-0301	●	●
538	GROMMET; SCREW	1-09983-165-0	02	1	0302-	●	●	●

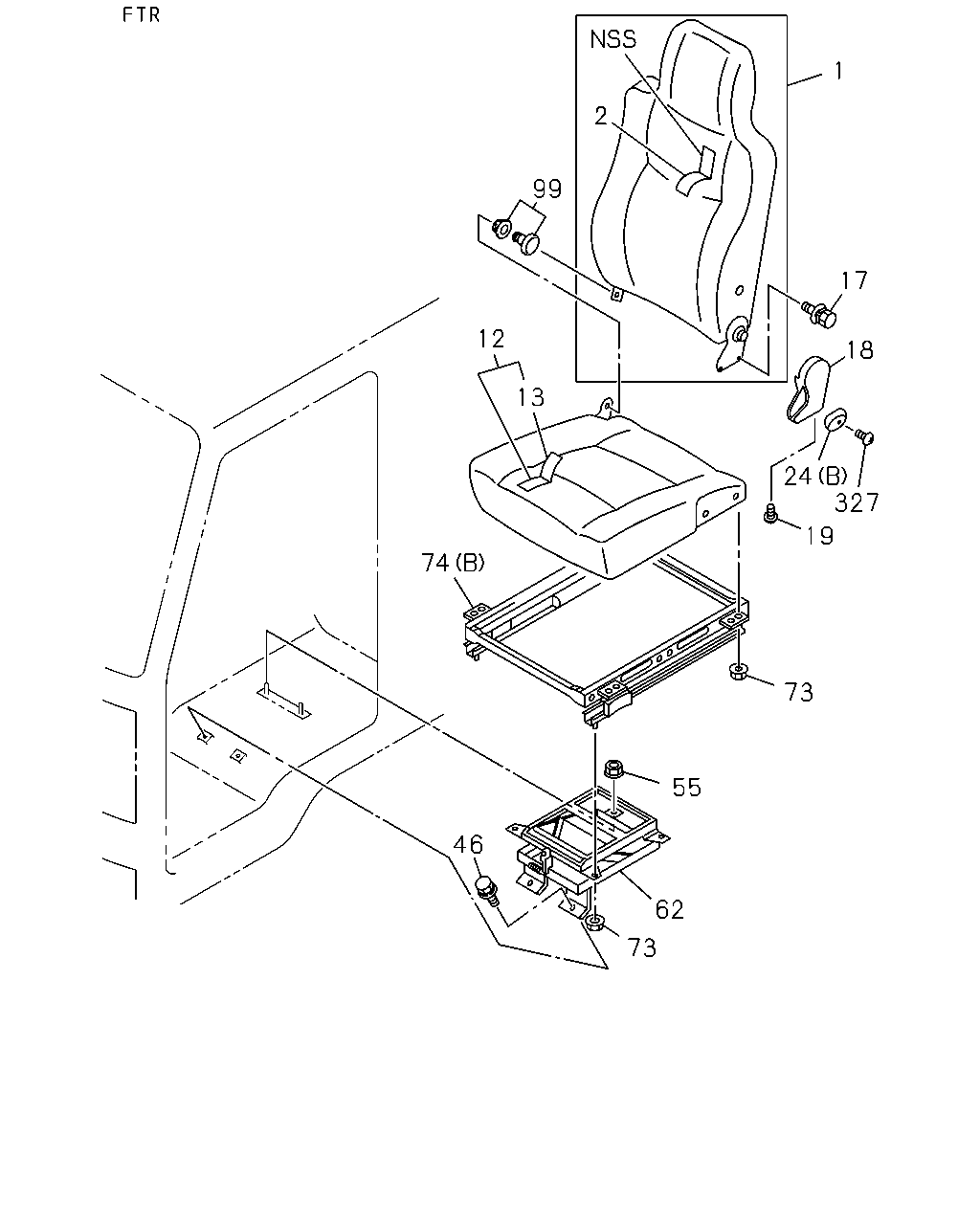

1 2 99 17 12 18 13 24 327 19 74 73 55 46 62 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BACK ASM; SEAT	1-75026-102-0	01	1	9905-9905	●
1	BACK ASM; SEAT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75026-102-0	01	1	9905-9905		●
1	BACK ASM; SEAT	1-75026-239-0	01	1	9906-0003	●
1	BACK ASM; SEAT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75026-239-0	01	1	9906-0003		●
1	BACK ASM; SEAT	1-75026-735-0	01	1	0004-0105	●
1	BACK ASM; SEAT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75026-735-0	01	1	0004-0105		●
1	BACK ASM; SEAT	1-75208-074-1	01	1	0106-0301	●
1	BACK ASM; SEAT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75208-074-1	01	1	0106-0301		●
1	BACK ASM; SEAT	1-75208-074-3	01	1	0302-	●		●
1	BACK ASM; SEAT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75208-074-3	01	1	0302-		●
1	BACK ASM; SEAT AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75026-226-0	01	1	9905-0003		●
1	BACK ASM; SEAT AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75026-734-0	01	1	0004-0105		●
1	BACK ASM; SEAT AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75208-073-2	01	1	0106-		●
2	COVER; TRIM,FRT SEAT,BACK	1-75116-411-0	01	1	9905-9905	●
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75116-411-0	01	1	9905-9905		●
2	COVER; TRIM,FRT SEAT,BACK	1-75116-460-0	01	1	9906-0003	●
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75116-460-0	01	1	9906-0003		●
2	COVER; TRIM,FRT SEAT,BACK	1-75116-592-0	01	1	0004-0301	●
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75116-592-0	01	1	0004-0301		●
2	COVER; TRIM,FRT SEAT,BACK	1-75116-592-1	01	1	0302-	●		●
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75116-592-1	01	1	0302-		●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75116-452-0	01	1	9905-0003		●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75116-708-1	01	1	0004-		●
12	CUSHION; SEAT,FRT	1-75026-097-1	01	1	9905-9905	●
12	CUSHION; SEAT,FRT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75026-097-1	01	1	9905-9905		●
12	CUSHION; SEAT,FRT	1-75026-376-0	01	1	9906-0003	●
12	CUSHION; SEAT,FRT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75026-376-0	01	1	9906-0003		●
12	CUSHION; SEAT,FRT	1-75026-701-0	01	1	0004-0301	●
12	CUSHION; SEAT,FRT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75026-701-0	01	1	0004-0301		●
12	CUSHION; SEAT,FRT	1-75026-701-1	01	1	0302-	●		●
12	CUSHION; SEAT,FRT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75026-701-1	01	1	0302-		●
12	CUSHION; SEAT,FRT AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75026-225-0	01	1	9905-9905		●
12	CUSHION; SEAT,FRT AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75026-262-0	01	1	9906-9909		●
12	CUSHION; SEAT,FRT AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75026-375-0	01	1	9910-0003		●
12	CUSHION; SEAT,FRT AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75026-697-3	01	1	0004-		●
13	COVER; TRIM,FRT SEAT,CUSHION	1-75116-406-1	01	1	9905-9905	●
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75116-406-1	01	1	9905-9905		●
13	COVER; TRIM,FRT SEAT,CUSHION	1-75116-494-0	01	1	9906-0003	●
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75116-494-0	01	1	9906-0003		●
13	COVER; TRIM,FRT SEAT,CUSHION	1-75116-689-0	01	1	0004-0301	●
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75116-689-0	01	1	0004-0301		●
13	COVER; TRIM,FRT SEAT,CUSHION	1-75116-689-1	01	1	0302-	●		●
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75116-689-1	01	1	0302-		●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75116-449-0	01	1	9905-9905		●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75116-461-0	01	1	9906-9909		●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75116-493-0	01	1	9910-0003		●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75116-685-1	01	1	0004-		●
17	BOLT; RECLINING M8X18	8-94279-109-1	02	1	9905-0003	●	●
17	BOLT; RECLINING M8X20	8-97255-906-0	02	1	0004-0301	●	●
17	BOLT; RECLINING M8X20	8-97255-906-0	02	1	0302-	●	●	●
18	COVER; RECLINING DARK GRAY	8-97859-018-0	01	1	9905-0301	●	●
18	COVER; RECLINING DARK GRAY	8-97859-018-0	01	1	0302-	●	●	●
19	SCREW; COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9905-0301	●	●
19	SCREW; COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0302-	●	●	●
24	KNOB; RECLINING,FRT,SEAT (B) DARK GRAY	8-97859-019-0	01	1	9905-0301	●	●
24	KNOB; RECLINING,FRT,SEAT (B) DARK GRAY	8-97859-019-0	01	1	0302-	●	●	●
24	KNOB; RECLINING,FRT,SEAT (A) DARK GRAY	8-97867-021-0	01	1	9905-0301	●	●
24	KNOB; RECLINING,FRT,SEAT (A) DARK GRAY	8-97867-021-0	01	1	0302-	●	●	●
46	BOLT; STAND TO FLOOR M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	9905-0301	●	●
46	BOLT; STAND TO FLOOR M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0302-	●	●	●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	1-09984-153-0	02	1	9905-0301	●	●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	1-09984-153-0	02	1	0302-	●	●	●
62	DAMPER ASM; SEAT SUSP AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75538-194-0	01	1	9905-9905		●
62	DAMPER ASM; SEAT SUSP AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75538-185-4	01	1	9906-0301		●
62	DAMPER ASM; SEAT SUSP AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75538-185-7	01	1	0302-		●
62	DAMPER ASM; SEAT SUSP	1-75538-185-7	01	1	0302-			●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	8-94279-518-0	08	1	9905-0003	●	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	08	1	0004-0301	●	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	08	1	0302-0501	●	●	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	08	1	0502-	●
73	NUT; ADJ,HEIGHT CONT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	1-75538-207-0	08	1	0502-		●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	8-94279-518-0	04	1	9905-0003	●	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0004-0301	●	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0302-	●	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT (B)	1-75518-283-3	01	1	0302-			●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> (A)	1-75518-300-0	01	1	9905-9909		●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> (A)	1-75518-318-1	01	1	9910-0102		●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> (A)	1-75518-331-3	01	1	0103-		●
99	BUSHING; SEAT BACK	8-97854-087-0	01	1	9905-0301	●	●
99	BUSHING; SEAT BACK	8-97854-087-0	01	1	0302-	●	●	●
327	CLIP; COVER M4X6	8-97042-273-0	01	1	0302-			●
327	CLIP; COVER AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-09987-273-0	01	1	9905-		●

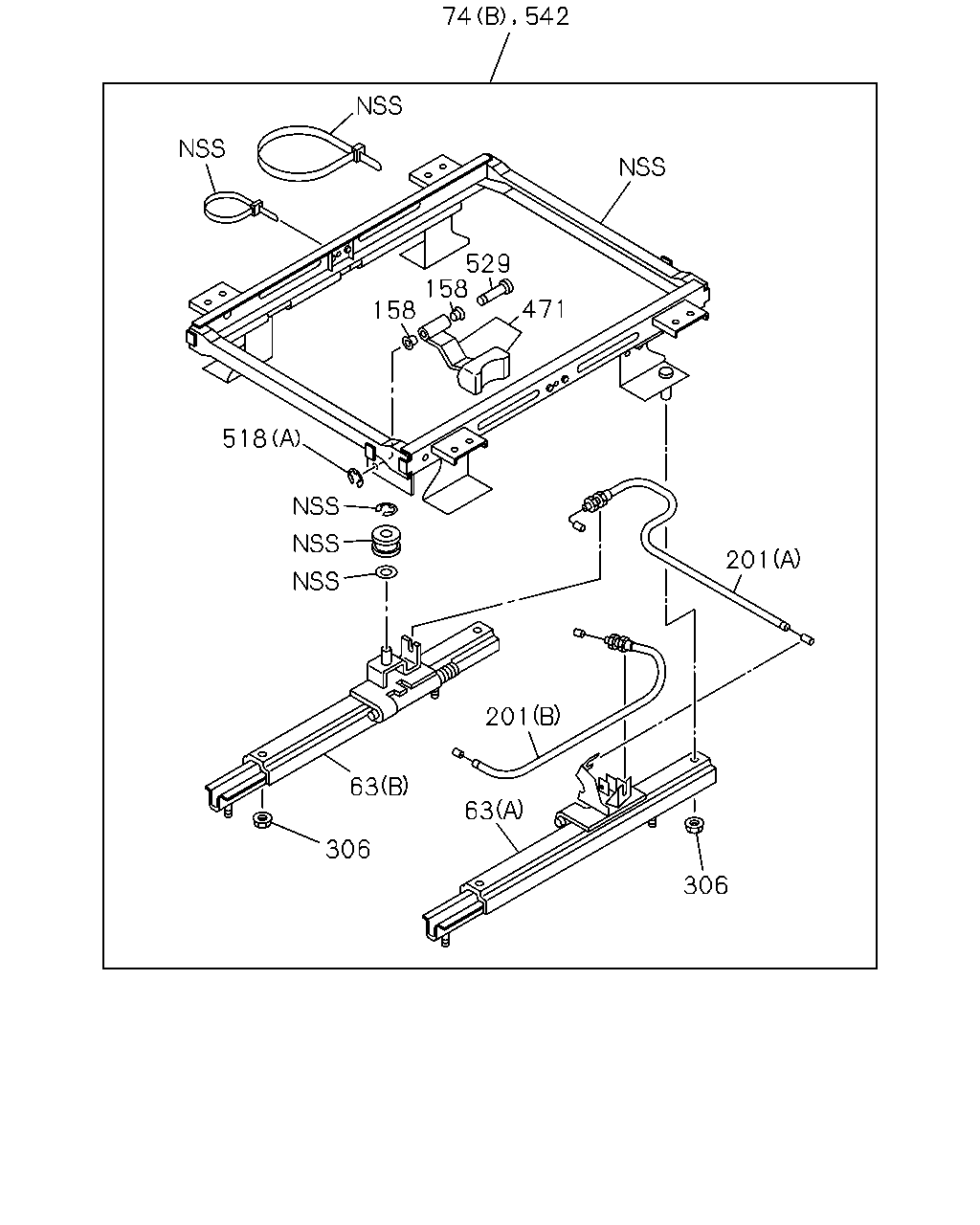

529 158 471 158 518 201 201 63 63 306 306 74 542

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
63	ADJUSTER; SEAT SLIDE (A)	1-75518-295-1	01	1	9906-0301	●
63	ADJUSTER; SEAT SLIDE VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A)	1-75518-295-1	01	1	9906-0301		●
63	ADJUSTER; SEAT SLIDE (A)	1-75518-295-1	01	1	0302-	●		●
63	ADJUSTER; SEAT SLIDE VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A)	1-75518-295-1	01	1	0302-		●
63	ADJUSTER; SEAT SLIDE (A)	1-75518-295-0	01	1	9905-9905	●	●
63	ADJUSTER; SEAT SLIDE AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> (A)	1-75518-295-0	01	1	9906-9909		●
63	ADJUSTER; SEAT SLIDE AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> (A)	1-75518-324-0	01	1	9910-		●
63	ADJUSTER; SEAT SLIDE AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> (B)	1-75518-226-0	01	1	9905-9909		●
63	ADJUSTER; SEAT SLIDE (B)	1-75518-227-1	01	1	9910-0301	●	●
63	ADJUSTER; SEAT SLIDE (B)	1-75518-227-1	01	1	0302-	●	●	●
63	ADJUSTER; SEAT SLIDE (B)	1-75518-227-1	01	1	9905-9909	●
63	ADJUSTER; SEAT SLIDE VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B)	1-75518-227-1	01	1	9905-9909		●
74	ADJUSTER; FRT SEAT,HEIGHT CONT (B)	1-75518-283-3	01	1	0302-			●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> (A)	1-75518-300-0	01	1	9905-9909		●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> (A)	1-75518-318-1	01	1	9910-0102		●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> (A)	1-75518-331-3	01	1	0103-		●
158	BUSHING; LINK ARM	1-75518-209-0	02	1	9905-0301	●	●
158	BUSHING; LINK ARM	1-75518-209-0	02	1	0302-	●	●	●
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	9905-0301	●	●
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	0302-	●	●	●
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	9905-0301	●	●
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	0302-	●	●	●
306	NUT; SEAT ADJ M8 FLANGE	1-75538-207-0	12	1	0502-			●
306	NUT; SEAT ADJ M8 FLANGE	8-94279-518-0	04	1	9910-0003	●
306	NUT; SEAT ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	8-94279-518-0	04	1	9910-0003		●
306	NUT; SEAT ADJ M8 FLANGE	1-75538-207-0	04	1	0004-0301	●
306	NUT; SEAT ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	1-75538-207-0	04	1	0004-0301		●
306	NUT; SEAT ADJ M8 FLANGE	1-75538-207-0	04	1	0302-0501	●		●
306	NUT; SEAT ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	1-75538-207-0	04	1	0302-0501		●
306	NUT; SEAT ADJ M8 FLANGE	1-75538-207-0	04	1	0502-	●
306	NUT; SEAT ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	1-75538-207-0	04	1	0502-		●
306	NUT; SEAT ADJ M8 FLANGE	8-94279-518-0	04	1	9905-9905	●	●
306	NUT; SEAT ADJ AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> M8 FLANGE	8-94279-518-0	06	1	9905-0003		●
306	NUT; SEAT ADJ AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> M8 FLANGE	1-75538-207-0	06	1	0004-0501		●
306	NUT; SEAT ADJ AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> M8 FLANGE	1-75538-207-0	14	1	0502-		●
471	LEVER; SEAT ADJ	1-75518-290-0	01	1	9905-0301	●	●
471	LEVER; SEAT ADJ	1-75518-290-0	01	1	0302-	●	●	●
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	9905-0301	●	●
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	0302-	●	●	●
518	NUT; TILT ADJ AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> (B)	1-75518-264-0	04	1	9905-		●
518	NUT; TILT ADJ AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> (D)	5-09984-020-0	02	1	9905-		●
518	NUT; TILT ADJ AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> (C) M8 FLANGE	8-94152-886-0	04	1	9905-		●
529	PIN; LINK	1-75518-262-0	01	1	9905-0301	●	●
529	PIN; LINK	1-75518-262-0	01	1	0302-	●	●	●
542	ADJUSTER ASM; SEAT SLIDE	1-75518-283-3	01	1	9905-	●
542	ADJUSTER ASM; SEAT SLIDE VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75518-283-3	01	1	9905-		●

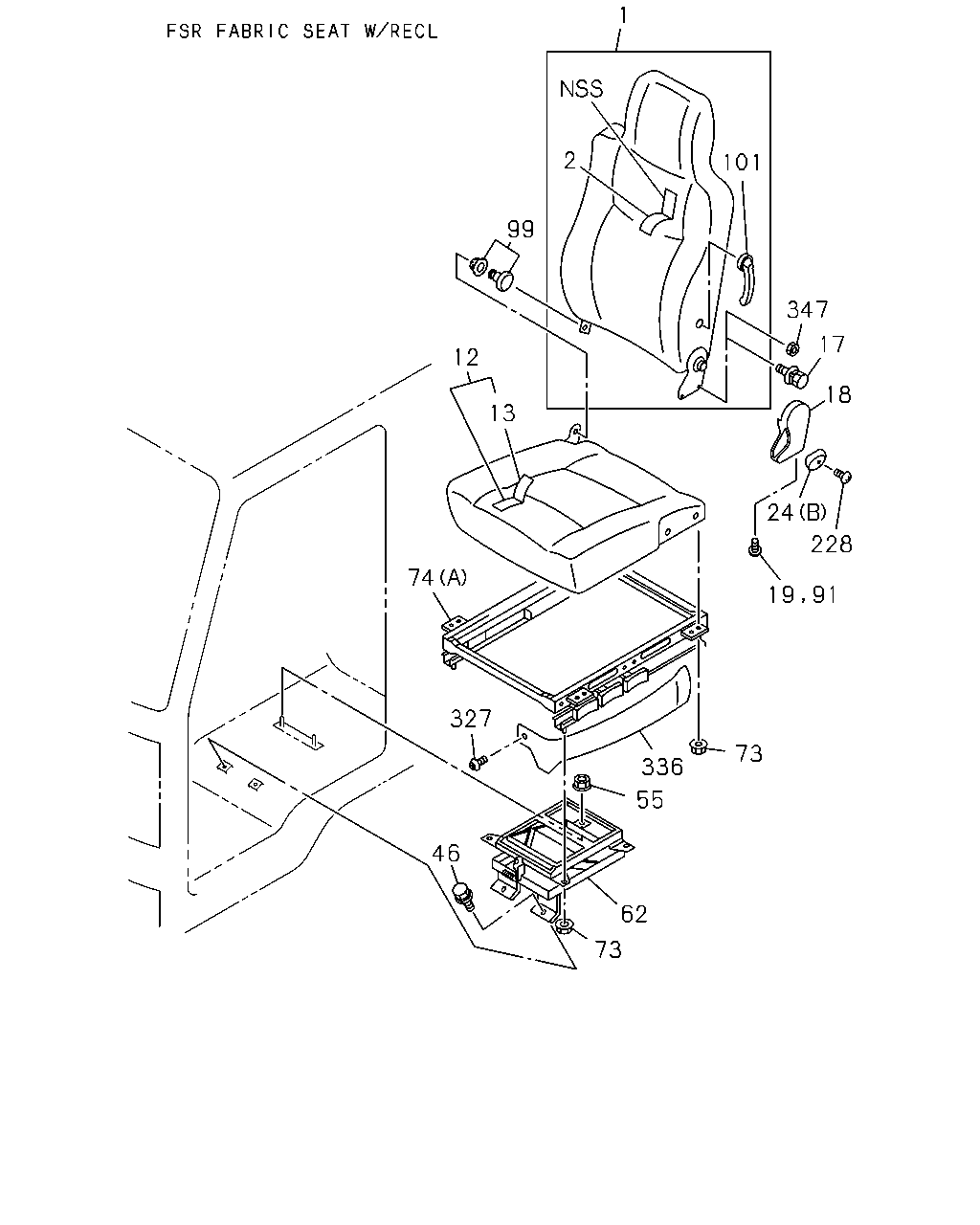

1 2 101 99 347 17 12 18 13 24 228 74 327 73 336 55 46 62 73 19 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BACK ASM; SEAT	1-75026-102-0	01	1	9905-9905	●
1	BACK ASM; SEAT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75026-102-0	01	1	9905-9905		●
1	BACK ASM; SEAT	1-75026-239-0	01	1	9906-0003	●

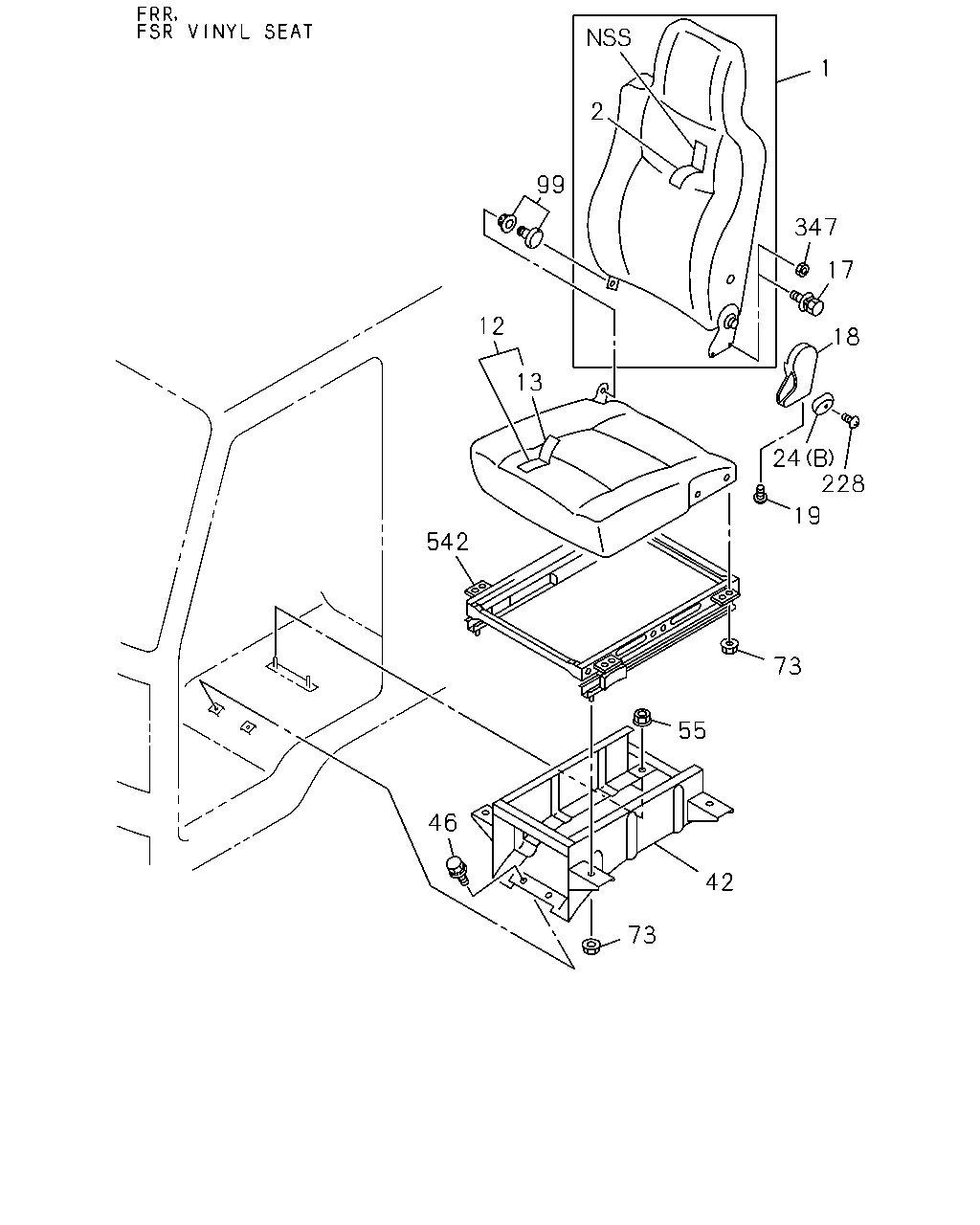

1	BACK ASM; SEAT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75026-239-0	01	1	9906-0003		●
1	BACK ASM; SEAT	1-75026-735-0	01	1	0004-0105	●
1	BACK ASM; SEAT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75026-735-0	01	1	0004-0105		●
1	BACK ASM; SEAT	1-75208-074-1	01	1	0106-0301	●
1	BACK ASM; SEAT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75208-074-1	01	1	0106-0301		●
1	BACK ASM; SEAT	1-75208-074-3	01	1	0302-	●		●
1	BACK ASM; SEAT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75208-074-3	01	1	0302-		●
1	BACK ASM; SEAT AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75026-226-0	01	1	9905-0003		●
1	BACK ASM; SEAT AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75026-734-0	01	1	0004-0105		●
1	BACK ASM; SEAT AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75208-073-2	01	1	0106-		●
2	COVER; TRIM,FRT SEAT,BACK	1-75116-411-0	01	1	9905-9905	●
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75116-411-0	01	1	9905-9905		●
2	COVER; TRIM,FRT SEAT,BACK	1-75116-460-0	01	1	9906-0003	●
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75116-460-0	01	1	9906-0003		●
2	COVER; TRIM,FRT SEAT,BACK	1-75116-592-0	01	1	0004-0301	●
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75116-592-0	01	1	0004-0301		●
2	COVER; TRIM,FRT SEAT,BACK	1-75116-592-1	01	1	0302-	●		●
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75116-592-1	01	1	0302-		●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75116-452-0	01	1	9905-0003		●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75116-708-1	01	1	0004-		●
12	CUSHION; SEAT,FRT	1-75026-097-1	01	1	9905-9905	●
12	CUSHION; SEAT,FRT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75026-097-1	01	1	9905-9905		●
12	CUSHION; SEAT,FRT	1-75026-376-0	01	1	9906-0003	●
12	CUSHION; SEAT,FRT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75026-376-0	01	1	9906-0003		●
12	CUSHION; SEAT,FRT	1-75026-701-0	01	1	0004-0301	●
12	CUSHION; SEAT,FRT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75026-701-0	01	1	0004-0301		●
12	CUSHION; SEAT,FRT	1-75026-701-1	01	1	0302-	●		●
12	CUSHION; SEAT,FRT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75026-701-1	01	1	0302-		●
12	CUSHION; SEAT,FRT AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75026-225-0	01	1	9905-9905		●
12	CUSHION; SEAT,FRT AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75026-262-0	01	1	9906-9909		●
12	CUSHION; SEAT,FRT AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75026-375-0	01	1	9910-0003		●
12	CUSHION; SEAT,FRT AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75026-697-3	01	1	0004-		●
13	COVER; TRIM,FRT SEAT,CUSHION	1-75116-406-1	01	1	9905-9905	●
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75116-406-1	01	1	9905-9905		●
13	COVER; TRIM,FRT SEAT,CUSHION	1-75116-494-0	01	1	9906-0003	●
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75116-494-0	01	1	9906-0003		●
13	COVER; TRIM,FRT SEAT,CUSHION	1-75116-689-0	01	1	0004-0301	●
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75116-689-0	01	1	0004-0301		●
13	COVER; TRIM,FRT SEAT,CUSHION	1-75116-689-1	01	1	0302-	●		●
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75116-689-1	01	1	0302-		●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75116-449-0	01	1	9905-9905		●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75116-461-0	01	1	9906-9909		●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75116-493-0	01	1	9910-0003		●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75116-685-1	01	1	0004-		●
17	BOLT; RECLINING M8X18	8-94279-109-1	02	1	9905-0003	●	●
17	BOLT; RECLINING M8X20	8-97255-906-0	02	1	0004-0301	●	●
17	BOLT; RECLINING M8X20	8-97255-906-0	02	1	0302-	●	●	●
18	COVER; RECLINING DARK GRAY	8-97859-018-0	01	1	9905-0301	●	●
18	COVER; RECLINING DARK GRAY	8-97859-018-0	01	1	0302-	●	●	●
19	SCREW; COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9905-0301	●	●
19	SCREW; COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0302-	●	●	●
24	KNOB; RECLINING,FRT,SEAT (B) DARK GRAY	8-97859-019-0	01	1	9905-0301	●	●
24	KNOB; RECLINING,FRT,SEAT (B) DARK GRAY	8-97859-019-0	01	1	0302-	●	●	●
24	KNOB; RECLINING,FRT,SEAT (A) DARK GRAY	8-97867-021-0	01	1	9905-0301	●	●
24	KNOB; RECLINING,FRT,SEAT (A) DARK GRAY	8-97867-021-0	01	1	0302-	●	●	●
46	BOLT; STAND TO FLOOR M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	9905-0301	●	●
46	BOLT; STAND TO FLOOR M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0302-	●	●	●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	1-09984-153-0	02	1	9905-0301	●	●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	1-09984-153-0	02	1	0302-	●	●	●
62	DAMPER ASM; SEAT SUSP AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75538-194-0	01	1	9905-9905		●
62	DAMPER ASM; SEAT SUSP AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75538-185-4	01	1	9906-0301		●
62	DAMPER ASM; SEAT SUSP AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75538-185-7	01	1	0302-		●
62	DAMPER ASM; SEAT SUSP	1-75538-185-7	01	1	0302-			●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	8-94279-518-0	08	1	9905-0003	●	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	08	1	0004-0301	●	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	08	1	0302-0501	●	●	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	08	1	0502-	●
73	NUT; ADJ,HEIGHT CONT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	1-75538-207-0	08	1	0502-		●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	8-94279-518-0	04	1	9905-0003	●	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0004-0301	●	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0302-	●	●	●

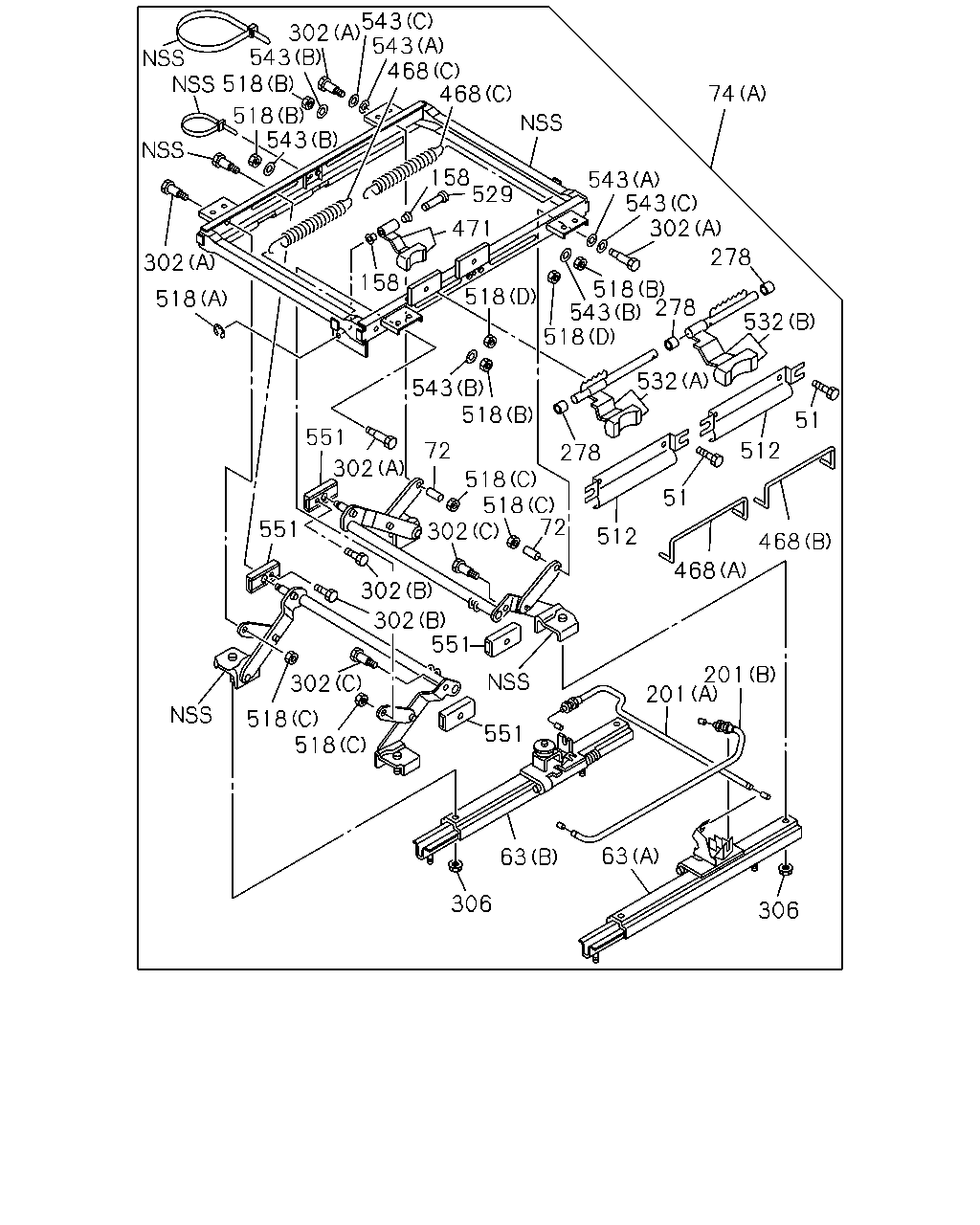

74	ADJUSTER; FRT SEAT,HEIGHT CONT (B)	1-75518-283-3	01	1	0302-			●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> (A)	1-75518-300-0	01	1	9905-9909		●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> (A)	1-75518-318-1	01	1	9910-0102		●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> (A)	1-75518-331-3	01	1	0103-		●
91	SCREW; SEAT ADJ COVER AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	9905-		●
99	BUSHING; SEAT BACK	8-97854-087-0	01	1	9905-0301	●	●
99	BUSHING; SEAT BACK	8-97854-087-0	01	1	0302-	●	●	●
101	LEVER ASM; LUMBAR AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	5-75190-138-0	01	1	9905-		●
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	9905-0301	●	●
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	9905-0301	●	●
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0302-	●	●	●
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0302-	●	●
327	CLIP; COVER M4X6	8-97042-273-0	01	1	0302-			●
327	CLIP; COVER AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-09987-273-0	01	1	9905-		●
336	COVER; DRIVER SEAT AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75518-313-0	01	1	9905-		●
347	NUT; RECLINING ADJ M8 FLANGE	8-94279-518-0	02	1	9905-9905	●	●
347	NUT; RECLINING ADJ M8 FLANGE	8-94279-518-0	02	1	9905-9905	●	●

506 360 175 176 188 16 189 359 188 403 179 182 403

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	ADJUSTER ASM; RECLINING FABRIC SEAT W/RECL<SFQ>	1-75418-062-0	01	1	0004-0211		●
16	ADJUSTER ASM; RECLINING	1-75418-062-1	01	1	0212-0301	●	●
16	ADJUSTER ASM; RECLINING	1-75418-062-1	01	1	0302-	●	●	●
16	ADJUSTER ASM; RECLINING	1-75418-061-0	01	1	9905-0003	●	●
16	ADJUSTER ASM; RECLINING	1-75418-061-0	01	1	0004-0211	●
16	ADJUSTER ASM; RECLINING VINYL SEAT<A83>	1-75418-061-0	01	1	0004-0211		●
175	BACK ASM; PASSENGER CENTER SEAT	1-75026-114-0	01	1	9905-0003	●
175	BACK ASM; PASSENGER CENTER SEAT VINYL SEAT<A83>	1-75026-114-0	01	1	9905-0003		●
175	BACK ASM; PASSENGER CENTER SEAT	1-75026-856-3	01	1	0004-0301	●
175	BACK ASM; PASSENGER CENTER SEAT VINYL SEAT<A83>	1-75026-856-3	01	1	0004-0301		●
175	BACK ASM; PASSENGER CENTER SEAT	1-75026-856-3	01	1	0302-	●		●
175	BACK ASM; PASSENGER CENTER SEAT VINYL SEAT<A83>	1-75026-856-3	01	1	0302-		●
175	BACK ASM; PASSENGER CENTER SEAT FABRIC SEAT W/RECL<SFQ>	1-75026-113-0	01	1	9905-0003		●
175	BACK ASM; PASSENGER CENTER SEAT FABRIC SEAT W/RECL<SFQ>	1-75026-854-3	01	1	0004-		●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK	1-75116-424-0	01	1	9905-0003	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK VINYL SEAT<A83>	1-75116-424-0	01	1	9905-0003		●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK	1-75116-710-1	01	1	0004-0301	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK VINYL SEAT<A83>	1-75116-710-1	01	1	0004-0301		●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK	1-75116-710-1	01	1	0302-	●		●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK VINYL SEAT<A83>	1-75116-710-1	01	1	0302-		●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK FABRIC SEAT W/RECL<SFQ>	1-75116-423-0	01	1	9905-0003		●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK FABRIC SEAT W/RECL<SFQ>	1-75116-650-1	01	1	0004-		●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH	1-75116-451-0	01	1	9905-0003	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH VINYL SEAT<A83>	1-75116-451-0	01	1	9905-0003		●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH	1-75116-692-1	01	1	0004-0301	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH VINYL SEAT<A83>	1-75116-692-1	01	1	0004-0301		●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH	1-75116-692-1	01	1	0302-	●		●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH VINYL SEAT<A83>	1-75116-692-1	01	1	0302-		●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH FABRIC SEAT W/RECL<SFQ>	1-75116-450-0	01	1	9905-0003		●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH FABRIC SEAT W/RECL<SFQ>	1-75116-693-1	01	1	0004-		●
182	CUSHION ASM; CENTER SEAT	1-75026-230-0	01	1	9905-0003	●
182	CUSHION ASM; CENTER SEAT VINYL SEAT<A83>	1-75026-230-0	01	1	9905-0003		●
182	CUSHION ASM; CENTER SEAT	1-75026-841-3	01	1	0004-0301	●
182	CUSHION ASM; CENTER SEAT VINYL SEAT<A83>	1-75026-841-3	01	1	0004-0301		●
182	CUSHION ASM; CENTER SEAT	1-75026-841-3	01	1	0302-	●		●
182	CUSHION ASM; CENTER SEAT VINYL SEAT<A83>	1-75026-841-3	01	1	0302-		●
182	CUSHION ASM; CENTER SEAT FABRIC SEAT W/RECL<SFQ>	1-75026-229-0	01	1	9905-0003		●
182	CUSHION ASM; CENTER SEAT FABRIC SEAT W/RECL<SFQ>	1-75026-842-3	01	1	0004-		●
188	BOLT; BACK TO CUSHION M10X16 FLANGE	1-75198-053-0	04	1	9905-0301	●	●
188	BOLT; BACK TO CUSHION M10X16 FLANGE	1-75198-053-0	04	1	0302-	●	●	●
189	BUSHING; HINGE,CENTER SEAT BACK	8-97854-900-0	01	1	9905-0301	●	●
189	BUSHING; HINGE,CENTER SEAT BACK	8-97854-900-0	01	1	0302-	●	●	●
359	BOX; PARCEL FABRIC SEAT W/RECL<SFQ>	1-72538-275-0	01	1	0004-0211		●
359	BOX; PARCEL	1-72538-275-4	01	1	0212-0301	●	●
359	BOX; PARCEL	1-72538-275-4	01	1	0302-	●	●	●
359	BOX; PARCEL	1-72538-157-2	01	1	9905-0003	●	●
359	BOX; PARCEL	1-72538-157-2	01	1	0004-0211	●
359	BOX; PARCEL VINYL SEAT<A83>	1-72538-157-2	01	1	0004-0211		●
360	SCREW; PARCEL FABRIC SEAT W/RECL<SFQ> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	08	1	0004-0310		●
360	SCREW; PARCEL FABRIC SEAT W/RECL<SFQ> (C) M5X20	9-09829-324-1	02	1	0004-0211		●
360	SCREW; PARCEL FABRIC SEAT W/RECL<SFQ> (C) M5X20	9-09829-324-1	01	1	0212-0310		●
360	SCREW; PARCEL (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	9905-0301	●	●
360	SCREW; PARCEL (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	0302-	●	●	●
360	SCREW; PARCEL (B) M4X16	0-70080-416-0	06	1	9905-0301	●	●
360	SCREW; PARCEL (B) M4X16	0-70080-416-0	06	1	0302-	●	●	●
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	9905-0003	●	●
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0004-0301	●
360	SCREW; PARCEL VINYL SEAT<A83> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0004-0301		●
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0302-0310	●		●
360	SCREW; PARCEL VINYL SEAT<A83> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0302-0310		●
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	05	1	0311-	●	●	●
403	NUT; CENTER SEAT M8 FLANGE	8-94279-518-0	04	1	9905-0301	●	●
403	NUT; CENTER SEAT M8 FLANGE	8-94279-518-0	04	1	0302-0312	●	●	●
403	NUT; CENTER SEAT M8 FLANGE	1-75538-207-0	04	1	0401-	●	●	●
506	CAP; PARCEL BOX FABRIC SEAT W/RECL<SFQ>	1-09983-180-0	04	1	0004-0211		●
506	CAP; PARCEL BOX	1-09983-180-3	04	1	0212-0301	●	●
506	CAP; PARCEL BOX	1-09983-180-3	04	1	0302-	●	●	●
506	CAP; PARCEL BOX	1-09983-164-0	04	1	9905-0003	●	●
506	CAP; PARCEL BOX	1-09983-164-0	04	1	0004-0211	●
506	CAP; PARCEL BOX VINYL SEAT<A83>	1-09983-164-0	04	1	0004-0211		●

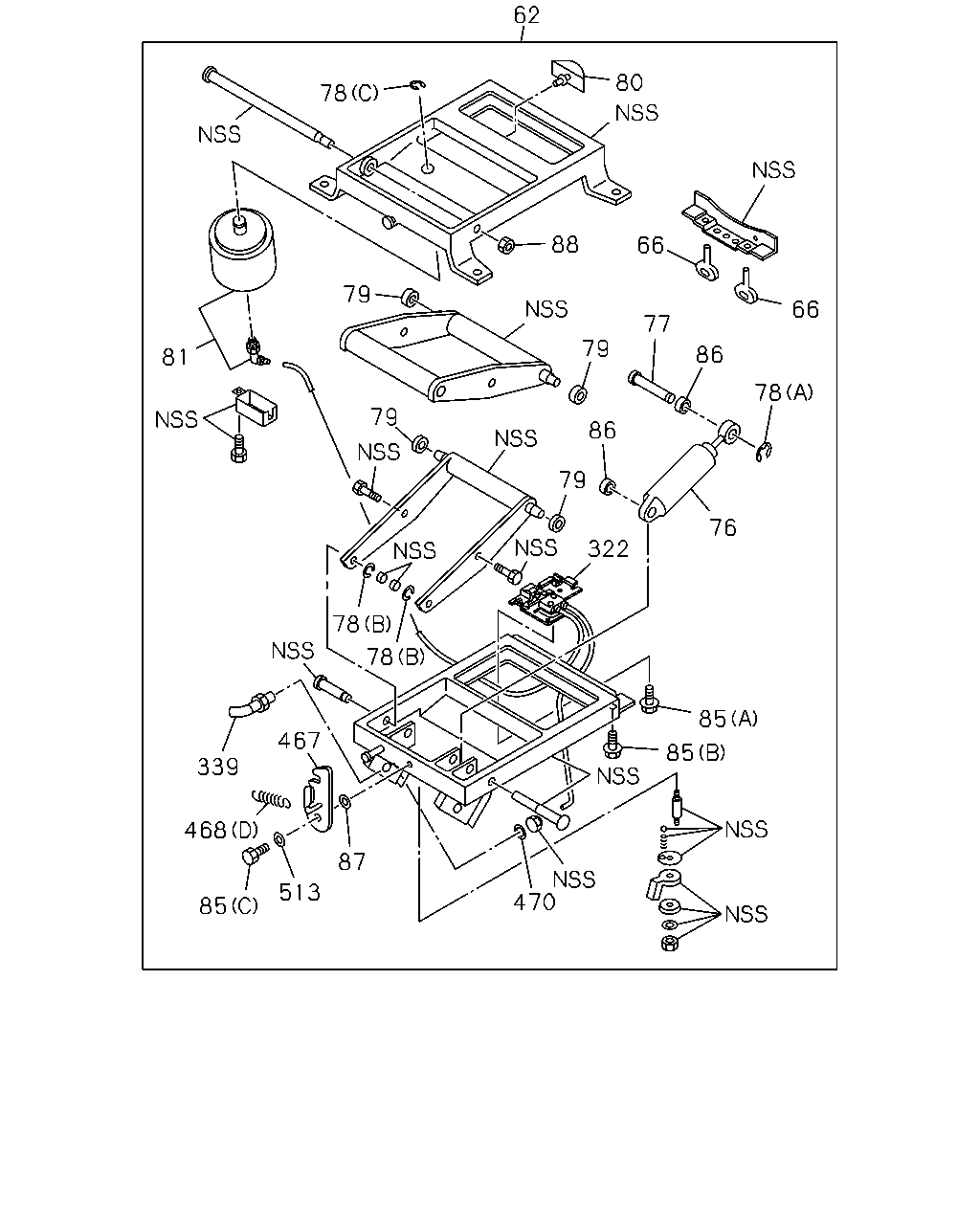

62 80 78 88 66 79 66 77 79 86 81 78 79 86 79 76 322 78 78 85 467 85 339 468 87 470 513 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C
62	DAMPER ASM; SEAT SUSP AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75538-194-0	01	1	9905-9905	●
62	DAMPER ASM; SEAT SUSP AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75538-185-4	01	1	9906-0301	●
62	DAMPER ASM; SEAT SUSP AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75538-185-7	01	1	0302-	●
62	DAMPER ASM; SEAT SUSP	1-75538-185-7	01	1	0302-		●
66	RUBBER; LWR STOPPER AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75538-145-0	02	1	9905-0301	●
66	RUBBER; LWR STOPPER AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75538-145-0	02	1	0302-	●
66	RUBBER; LWR STOPPER	1-75538-145-0	02	1	0302-		●
76	DAMPER; AIR SUSP AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75538-139-0	01	1	9905-0301	●
76	DAMPER; AIR SUSP AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75538-139-0	01	1	0302-	●
76	DAMPER; AIR SUSP	1-75538-139-0	01	1	0302-		●
77	PIN; DAMPER AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75538-138-2	01	1	9905-0301	●
77	PIN; DAMPER AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75538-138-2	01	1	0302-	●
77	PIN; DAMPER	1-75538-138-2	01	1	0302-		●
78	RING; SNAP AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> (A) ID=8	9-09185-408-0	01	1	9905-0301	●
78	RING; SNAP AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> (A) ID=8	9-09185-408-0	01	1	0302-	●
78	RING; SNAP (A) ID=8	9-09185-408-0	01	1	0302-		●
78	RING; SNAP AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> (B) ID=10	9-09185-410-0	02	1	9905-0301	●
78	RING; SNAP AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> (B) ID=10	9-09185-410-0	02	1	0302-0406	●
78	RING; SNAP (B) ID=10	9-09185-410-0	02	1	0302-0406		●
78	RING; SNAP AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> (C) ID=15	9-09185-415-0	01	1	9905-0301	●
78	RING; SNAP AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> (C) ID=15	9-09185-415-0	01	1	0302-	●
78	RING; SNAP (C) ID=15	9-09185-415-0	01	1	0302-		●
79	ROLLER ASM; AIR SUSP AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75538-159-0	04	1	9905-0301	●
79	ROLLER ASM; AIR SUSP AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75538-159-0	04	1	0302-	●
79	ROLLER ASM; AIR SUSP	1-75538-159-0	04	1	0302-		●
80	RUBBER; STOPPER AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-09987-123-0	01	1	9905-0301	●
80	RUBBER; STOPPER AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-09987-123-0	01	1	0302-	●
80	RUBBER; STOPPER	1-09987-123-0	01	1	0302-		●
81	SPRING; AIR AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75538-151-1	01	1	9905-0301	●
81	SPRING; AIR AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75538-151-2	01	1	0302-	●
81	SPRING; AIR	1-75538-151-2	01	1	0302-		●
85	BOLT; AIR SUSP AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> (A) M6X12 W/LK WASHER	0-50040-612-0	02	1	9905-0102	●
85	BOLT; AIR SUSP AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> (A)	1-75538-208-0	02	1	0103-0301	●
85	BOLT; AIR SUSP AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> (A)	1-75538-208-0	02	1	0302-	●
85	BOLT; AIR SUSP (A)	1-75538-208-0	02	1	0302-		●
85	BOLT; AIR SUSP AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> (B) M8X20 W/LK&PL WASHER	0-50140-820-0	03	1	9905-0003	●
85	BOLT; AIR SUSP AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	0004-0301	●
85	BOLT; AIR SUSP AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	0302-	●
85	BOLT; AIR SUSP (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	0302-		●
85	BOLT; AIR SUSP AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> (C)	1-09980-577-0	01	1	9905-0301	●
85	BOLT; AIR SUSP AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> (C)	1-09980-577-0	01	1	0302-	●
85	BOLT; AIR SUSP (C)	1-09980-577-0	01	1	0302-		●
86	BUSHING; GUIDE AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	9905-0301	●
86	BUSHING; GUIDE AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	0302-	●
86	BUSHING; GUIDE OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	0302-		●
87	WASHER; AIR SUSP AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> ID=8.2	9-09150-508-0	01	1	9905-0301	●
87	WASHER; AIR SUSP AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> ID=8.2	9-09150-508-0	01	1	0302-	●
87	WASHER; AIR SUSP ID=8.2	9-09150-508-0	01	1	0302-		●
88	NUT; AIR SUSP AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75537-273-1	01	1	9905-0301	●
88	NUT; AIR SUSP AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75537-273-1	01	1	0302-	●
88	NUT; AIR SUSP	1-75537-273-1	01	1	0302-		●
322	VALVE; AIR SPRING AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75538-187-2	01	1	9905-0301	●
322	VALVE; AIR SPRING AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75538-187-2	01	1	0302-	●
322	VALVE; AIR SPRING	1-75538-187-2	01	1	0302-		●
339	UNION; DRIVER SEAT AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75538-131-1	01	1	9905-0301	●
339	UNION; DRIVER SEAT AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75538-131-3	01	1	0302-	●
339	UNION; DRIVER SEAT	1-75538-131-3	01	1	0302-		●
467	LEVER; LOCK AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75538-134-0	01	1	9905-0301	●
467	LEVER; LOCK AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75538-134-0	01	1	0302-	●
467	LEVER; LOCK	1-75538-134-0	01	1	0302-		●
468	SPRING; RETURN AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> (A)	1-75518-206-0	01	1	9905-	●
468	SPRING; RETURN AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> (B)	1-75518-207-0	01	1	9905-	●
468	SPRING; RETURN AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> (C)	1-75518-208-0	02	1	9905-	●
468	SPRING; RETURN AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> (D)	1-75538-132-0	01	1	9905-0301	●
468	SPRING; RETURN AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> (D)	1-75538-132-0	01	1	0302-	●
468	SPRING; RETURN (D)	1-75538-132-0	01	1	0302-		●
470	CLIP; HOSE AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75538-137-0	01	1	9905-0301	●
470	CLIP; HOSE AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75538-137-0	01	1	0302-	●
470	CLIP; HOSE	1-75538-137-0	01	1	0302-		●
513	SPACER; LEVER AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75538-133-0	01	1	9905-0301	●
513	SPACER; LEVER AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75538-133-0	01	1	0302-	●
513	SPACER; LEVER	1-75538-133-0	01	1	0302-		●

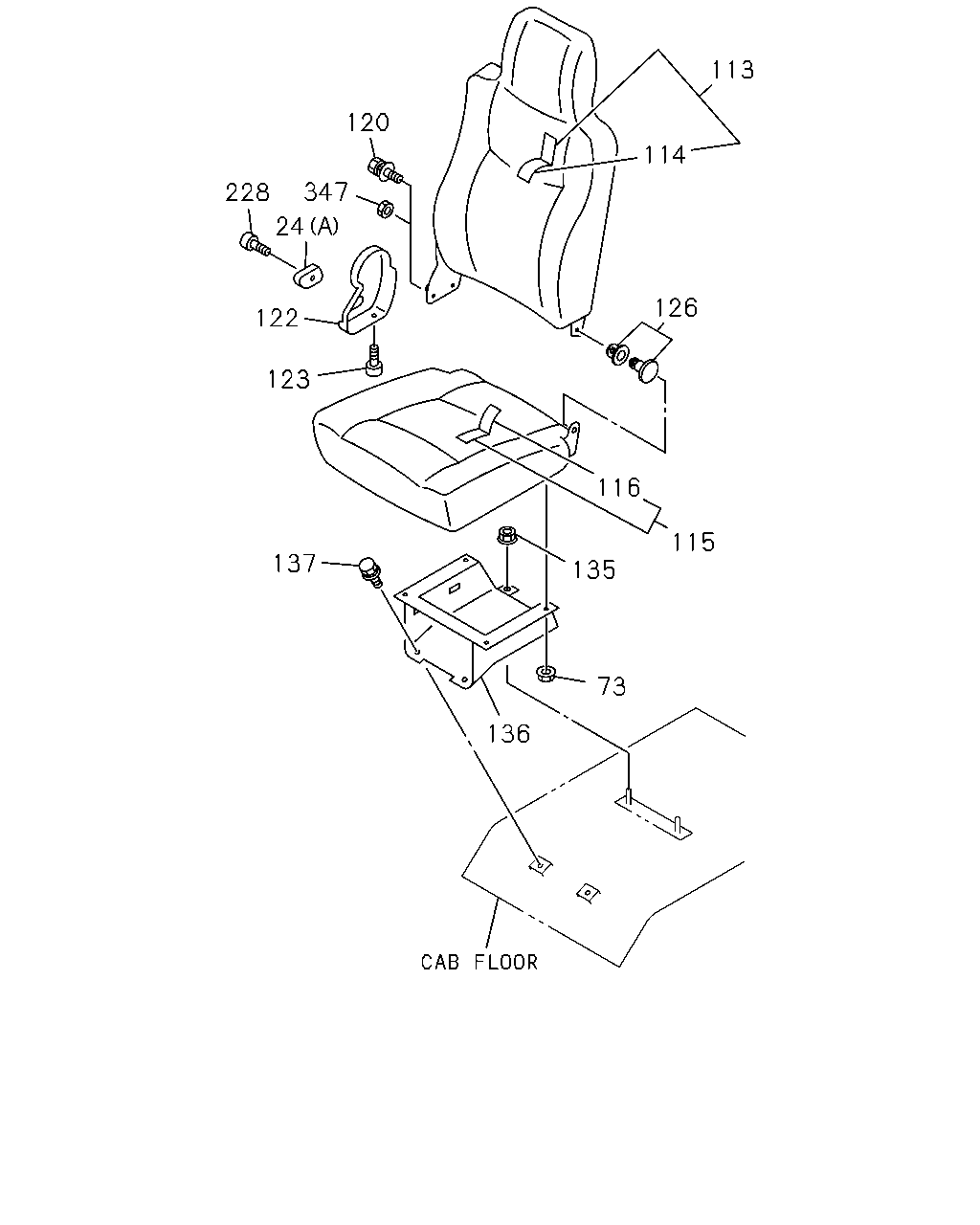

113 120 114 347 228 24 126 122 123 116 115 137 135 73 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	KNOB; RECLINING,FRT,SEAT (B) DARK GRAY	8-97859-019-0	01	1	9905-0301	●	●
24	KNOB; RECLINING,FRT,SEAT (B) DARK GRAY	8-97859-019-0	01	1	0302-	●	●	●
24	KNOB; RECLINING,FRT,SEAT (A) DARK GRAY	8-97867-021-0	01	1	9905-0301	●	●
24	KNOB; RECLINING,FRT,SEAT (A) DARK GRAY	8-97867-021-0	01	1	0302-	●	●	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	8-94279-518-0	08	1	9905-0003	●	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	08	1	0004-0301	●	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	08	1	0302-0501	●	●	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	08	1	0502-	●
73	NUT; ADJ,HEIGHT CONT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	1-75538-207-0	08	1	0502-		●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	8-94279-518-0	04	1	9905-0003	●	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0004-0301	●	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0302-	●	●	●
113	BACK ASM; SEAT	1-75026-222-0	01	1	9905-0003	●
113	BACK ASM; SEAT VINYL SEAT<A83>	1-75026-222-0	01	1	9905-0003		●
113	BACK ASM; SEAT	1-75026-728-0	01	1	0004-0105	●
113	BACK ASM; SEAT VINYL SEAT<A83>	1-75026-728-0	01	1	0004-0105		●
113	BACK ASM; SEAT	1-75208-067-3	01	1	0106-0301	●
113	BACK ASM; SEAT VINYL SEAT<A83>	1-75208-067-3	01	1	0106-0301		●
113	BACK ASM; SEAT	1-75208-067-3	01	1	0302-	●		●
113	BACK ASM; SEAT VINYL SEAT<A83>	1-75208-067-3	01	1	0302-		●
113	BACK ASM; SEAT FABRIC SEAT W/RECL<SFQ>	1-75026-119-0	01	1	9905-0003		●
113	BACK ASM; SEAT FABRIC SEAT W/RECL<SFQ>	1-75026-723-0	01	1	0004-0105		●
113	BACK ASM; SEAT FABRIC SEAT W/RECL<SFQ>	1-75208-062-3	01	1	0106-		●
114	COVER; TRIM,PASSENGER SEAT,BACK	1-75116-447-0	01	1	9905-0003	●
114	COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT<A83>	1-75116-447-0	01	1	9905-0003		●
114	COVER; TRIM,PASSENGER SEAT,BACK	1-75116-702-1	01	1	0004-0301	●
114	COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT<A83>	1-75116-702-1	01	1	0004-0301		●
114	COVER; TRIM,PASSENGER SEAT,BACK	1-75116-702-1	01	1	0302-	●		●
114	COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT<A83>	1-75116-702-1	01	1	0302-		●
114	COVER; TRIM,PASSENGER SEAT,BACK FABRIC SEAT W/RECL<SFQ>	1-75116-431-0	01	1	9905-0003		●
114	COVER; TRIM,PASSENGER SEAT,BACK FABRIC SEAT W/RECL<SFQ>	1-75116-602-1	01	1	0004-		●
115	CUSHION ASM; PASSENGER SEAT	1-75026-220-0	01	1	9905-9905	●
115	CUSHION ASM; PASSENGER SEAT VINYL SEAT<A83>	1-75026-220-0	01	1	9905-9905		●
115	CUSHION ASM; PASSENGER SEAT	1-75026-377-0	01	1	9906-0003	●
115	CUSHION ASM; PASSENGER SEAT VINYL SEAT<A83>	1-75026-377-0	01	1	9906-0003		●
115	CUSHION ASM; PASSENGER SEAT	1-75026-692-1	01	1	0004-0301	●
115	CUSHION ASM; PASSENGER SEAT VINYL SEAT<A83>	1-75026-692-1	01	1	0004-0301		●
115	CUSHION ASM; PASSENGER SEAT	1-75026-692-1	01	1	0302-	●		●
115	CUSHION ASM; PASSENGER SEAT VINYL SEAT<A83>	1-75026-692-1	01	1	0302-		●
115	CUSHION ASM; PASSENGER SEAT FABRIC SEAT W/RECL<SFQ>	1-75026-118-1	01	1	9905-9905		●
115	CUSHION ASM; PASSENGER SEAT FABRIC SEAT W/RECL<SFQ>	1-75026-378-0	01	1	9906-0003		●
115	CUSHION ASM; PASSENGER SEAT FABRIC SEAT W/RECL<SFQ>	1-75026-698-1	01	1	0004-		●
116	COVER; TRIM,PASSENGER SEAT,CUSHION	1-75116-446-0	01	1	9905-9905	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION VINYL SEAT<A83>	1-75116-446-0	01	1	9905-9905		●
116	COVER; TRIM,PASSENGER SEAT,CUSHION	1-75116-495-0	01	1	9906-0003	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION VINYL SEAT<A83>	1-75116-495-0	01	1	9906-0003		●
116	COVER; TRIM,PASSENGER SEAT,CUSHION	1-75116-680-1	01	1	0004-0301	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION VINYL SEAT<A83>	1-75116-680-1	01	1	0004-0301		●
116	COVER; TRIM,PASSENGER SEAT,CUSHION	1-75116-680-1	01	1	0302-	●		●
116	COVER; TRIM,PASSENGER SEAT,CUSHION VINYL SEAT<A83>	1-75116-680-1	01	1	0302-		●
116	COVER; TRIM,PASSENGER SEAT,CUSHION FABRIC SEAT W/RECL<SFQ>	1-75116-430-1	01	1	9905-9905		●
116	COVER; TRIM,PASSENGER SEAT,CUSHION FABRIC SEAT W/RECL<SFQ>	1-75116-496-0	01	1	9906-0003		●
116	COVER; TRIM,PASSENGER SEAT,CUSHION FABRIC SEAT W/RECL<SFQ>	1-75116-686-1	01	1	0004-		●
120	BOLT; RECLINING ADJ M8X18	8-94279-109-1	02	1	9905-0003	●	●
120	BOLT; RECLINING ADJ M8X20	8-97255-906-0	02	1	0004-0301	●	●
120	BOLT; RECLINING ADJ M8X20	8-97255-906-0	02	1	0302-	●	●	●
122	COVER; ADJ,RECLINING DARK GRAY	8-97867-020-0	01	1	9905-0301	●	●
122	COVER; ADJ,RECLINING DARK GRAY	8-97867-020-0	01	1	0302-	●	●	●
123	SCREW; COVER,RECLINING M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9905-0301	●	●
123	SCREW; COVER,RECLINING M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0302-	●	●	●
126	BUSHING; HINGE,RECLINING	8-97854-087-0	01	1	9905-0301	●	●
126	BUSHING; HINGE,RECLINING	8-97854-087-0	01	1	0302-	●	●	●
135	NUT; SEAT STAND M10 FLANGE	1-09984-153-0	02	1	9905-0301	●	●
135	NUT; SEAT STAND M10 FLANGE	1-09984-153-0	02	1	0302-	●	●	●
136	STAND; PASSENGER SEAT	1-75558-521-0	01	1	9905-9905	●
136	STAND; PASSENGER SEAT VINYL SEAT<A83>	1-75558-521-0	01	1	9905-9905		●
136	STAND; PASSENGER SEAT FABRIC SEAT W/RECL<SFQ>	1-75558-550-3	01	1	9905-9905		●
136	STAND; PASSENGER SEAT	1-75558-582-4	01	1	9906-0301	●	●
136	STAND; PASSENGER SEAT	1-75558-582-4	01	1	0302-	●	●	●
137	BOLT; STAND M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	9905-0301	●	●
137	BOLT; STAND M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0302-	●	●	●
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	9905-0301	●	●
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	9905-0301	●	●
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0302-	●	●	●
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0302-	●	●
347	NUT; RECLINING ADJ M8 FLANGE	8-94279-518-0	02	1	9905-9905	●	●
347	NUT; RECLINING ADJ M8 FLANGE	8-94279-518-0	02	1	9905-9905	●	●

1 2 99 347 17 12 18 13 24 228 19 542 73 55 46 42 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BACK ASM; SEAT	1-75026-102-0	01	1	9905-9905	●
1	BACK ASM; SEAT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75026-102-0	01	1	9905-9905		●
1	BACK ASM; SEAT	1-75026-239-0	01	1	9906-0003	●
1	BACK ASM; SEAT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75026-239-0	01	1	9906-0003		●
1	BACK ASM; SEAT	1-75026-735-0	01	1	0004-0105	●
1	BACK ASM; SEAT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75026-735-0	01	1	0004-0105		●
1	BACK ASM; SEAT	1-75208-074-1	01	1	0106-0301	●
1	BACK ASM; SEAT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75208-074-1	01	1	0106-0301		●
1	BACK ASM; SEAT	1-75208-074-3	01	1	0302-	●		●
1	BACK ASM; SEAT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75208-074-3	01	1	0302-		●
1	BACK ASM; SEAT AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75026-226-0	01	1	9905-0003		●
1	BACK ASM; SEAT AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75026-734-0	01	1	0004-0105		●
1	BACK ASM; SEAT AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75208-073-2	01	1	0106-		●
2	COVER; TRIM,FRT SEAT,BACK	1-75116-411-0	01	1	9905-9905	●
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75116-411-0	01	1	9905-9905		●
2	COVER; TRIM,FRT SEAT,BACK	1-75116-460-0	01	1	9906-0003	●
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75116-460-0	01	1	9906-0003		●
2	COVER; TRIM,FRT SEAT,BACK	1-75116-592-0	01	1	0004-0301	●
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75116-592-0	01	1	0004-0301		●
2	COVER; TRIM,FRT SEAT,BACK	1-75116-592-1	01	1	0302-	●		●
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75116-592-1	01	1	0302-		●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75116-452-0	01	1	9905-0003		●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75116-708-1	01	1	0004-		●
12	CUSHION; SEAT,FRT	1-75026-097-1	01	1	9905-9905	●
12	CUSHION; SEAT,FRT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75026-097-1	01	1	9905-9905		●
12	CUSHION; SEAT,FRT	1-75026-376-0	01	1	9906-0003	●
12	CUSHION; SEAT,FRT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75026-376-0	01	1	9906-0003		●
12	CUSHION; SEAT,FRT	1-75026-701-0	01	1	0004-0301	●
12	CUSHION; SEAT,FRT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75026-701-0	01	1	0004-0301		●
12	CUSHION; SEAT,FRT	1-75026-701-1	01	1	0302-	●		●
12	CUSHION; SEAT,FRT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75026-701-1	01	1	0302-		●
12	CUSHION; SEAT,FRT AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75026-225-0	01	1	9905-9905		●
12	CUSHION; SEAT,FRT AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75026-262-0	01	1	9906-9909		●
12	CUSHION; SEAT,FRT AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75026-375-0	01	1	9910-0003		●
12	CUSHION; SEAT,FRT AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75026-697-3	01	1	0004-		●
13	COVER; TRIM,FRT SEAT,CUSHION	1-75116-406-1	01	1	9905-9905	●
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75116-406-1	01	1	9905-9905		●
13	COVER; TRIM,FRT SEAT,CUSHION	1-75116-494-0	01	1	9906-0003	●
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75116-494-0	01	1	9906-0003		●
13	COVER; TRIM,FRT SEAT,CUSHION	1-75116-689-0	01	1	0004-0301	●
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75116-689-0	01	1	0004-0301		●
13	COVER; TRIM,FRT SEAT,CUSHION	1-75116-689-1	01	1	0302-	●		●
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75116-689-1	01	1	0302-		●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75116-449-0	01	1	9905-9905		●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75116-461-0	01	1	9906-9909		●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75116-493-0	01	1	9910-0003		●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75116-685-1	01	1	0004-		●
17	BOLT; RECLINING M8X18	8-94279-109-1	02	1	9905-0003	●	●
17	BOLT; RECLINING M8X20	8-97255-906-0	02	1	0004-0301	●	●
17	BOLT; RECLINING M8X20	8-97255-906-0	02	1	0302-	●	●	●
18	COVER; RECLINING DARK GRAY	8-97859-018-0	01	1	9905-0301	●	●
18	COVER; RECLINING DARK GRAY	8-97859-018-0	01	1	0302-	●	●	●
19	SCREW; COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9905-0301	●	●
19	SCREW; COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0302-	●	●	●
24	KNOB; RECLINING,FRT,SEAT (B) DARK GRAY	8-97859-019-0	01	1	9905-0301	●	●
24	KNOB; RECLINING,FRT,SEAT (B) DARK GRAY	8-97859-019-0	01	1	0302-	●	●	●
24	KNOB; RECLINING,FRT,SEAT (A) DARK GRAY	8-97867-021-0	01	1	9905-0301	●	●
24	KNOB; RECLINING,FRT,SEAT (A) DARK GRAY	8-97867-021-0	01	1	0302-	●	●	●
42	STAND; DRIVER SEAT	1-75558-491-4	01	1	9905-0003	●
42	STAND; DRIVER SEAT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75558-491-4	01	1	9905-0003		●
42	STAND; DRIVER SEAT	1-75558-604-1	01	1	0004-	●
42	STAND; DRIVER SEAT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75558-604-1	01	1	0004-		●
46	BOLT; STAND TO FLOOR M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	9905-0301	●	●
46	BOLT; STAND TO FLOOR M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0302-	●	●	●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	1-09984-153-0	02	1	9905-0301	●	●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	1-09984-153-0	02	1	0302-	●	●	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	8-94279-518-0	08	1	9905-0003	●	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	08	1	0004-0301	●	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	08	1	0302-0501	●	●	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	08	1	0502-	●
73	NUT; ADJ,HEIGHT CONT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	1-75538-207-0	08	1	0502-		●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	8-94279-518-0	04	1	9905-0003	●	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0004-0301	●	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0302-	●	●	●
99	BUSHING; SEAT BACK	8-97854-087-0	01	1	9905-0301	●	●
99	BUSHING; SEAT BACK	8-97854-087-0	01	1	0302-	●	●	●
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	9905-0301	●	●
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	9905-0301	●	●
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0302-	●	●	●
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0302-	●	●
347	NUT; RECLINING ADJ M8 FLANGE	8-94279-518-0	02	1	9905-9905	●	●
347	NUT; RECLINING ADJ M8 FLANGE	8-94279-518-0	02	1	9905-9905	●	●
542	ADJUSTER ASM; SEAT SLIDE	1-75518-283-3	01	1	9905-	●
542	ADJUSTER ASM; SEAT SLIDE VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	1-75518-283-3	01	1	9905-		●

543 543 468 468 302 543 74 518 543 158 529 543 543 302 471 278 302 158 518 278 543 518 518 518 532 543 518 532 51 278 551 72 512 302 518 518 302 51 551 512 468 468 302 302 551 201 201 302 518 518 551 63 63 306 306 518 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
51	SCREW; COVER AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> M6X12 W/LK WASHER	9-03910-612-0	04	1	9905-0102		●
51	SCREW; COVER AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75518-325-1	04	1	0103-		●
63	ADJUSTER; SEAT SLIDE (A)	1-75518-295-1	01	1	9906-0301	●
63	ADJUSTER; SEAT SLIDE VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A)	1-75518-295-1	01	1	9906-0301		●
63	ADJUSTER; SEAT SLIDE (A)	1-75518-295-1	01	1	0302-	●		●
63	ADJUSTER; SEAT SLIDE VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A)	1-75518-295-1	01	1	0302-		●
63	ADJUSTER; SEAT SLIDE (A)	1-75518-295-0	01	1	9905-9905	●	●
63	ADJUSTER; SEAT SLIDE AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> (A)	1-75518-295-0	01	1	9906-9909		●
63	ADJUSTER; SEAT SLIDE AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> (A)	1-75518-324-0	01	1	9910-		●
63	ADJUSTER; SEAT SLIDE AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> (B)	1-75518-226-0	01	1	9905-9909		●
63	ADJUSTER; SEAT SLIDE (B)	1-75518-227-1	01	1	9910-0301	●	●
63	ADJUSTER; SEAT SLIDE (B)	1-75518-227-1	01	1	0302-	●	●	●
63	ADJUSTER; SEAT SLIDE (B)	1-75518-227-1	01	1	9905-9909	●
63	ADJUSTER; SEAT SLIDE VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B)	1-75518-227-1	01	1	9905-9909		●
72	SPACER; SEAT ADJ AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75518-269-0	02	1	9905-0102		●
72	SPACER; SEAT ADJ AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75518-334-1	02	1	0103-		●
74	ADJUSTER; FRT SEAT,HEIGHT CONT (B)	1-75518-283-3	01	1	0302-			●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> (A)	1-75518-300-0	01	1	9905-9909		●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> (A)	1-75518-318-1	01	1	9910-0102		●
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> (A)	1-75518-331-3	01	1	0103-		●
158	BUSHING; LINK ARM	1-75518-209-0	02	1	9905-0301	●	●
158	BUSHING; LINK ARM	1-75518-209-0	02	1	0302-	●	●	●
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	9905-0301	●	●
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	0302-	●	●	●
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	9905-0301	●	●
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	0302-	●	●	●
278	COLLAR; FRT SEAT AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75518-244-0	03	1	9905-		●
302	BOLT; ADJ,HEIGHT CONT AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> (C)	1-75518-266-2	02	1	9905-		●
302	BOLT; ADJ,HEIGHT CONT AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> (A)	1-75518-270-1	04	1	9905-		●
302	BOLT; ADJ,HEIGHT CONT AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> (B)	1-75518-271-1	02	1	9905-0102		●
302	BOLT; ADJ,HEIGHT CONT AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> (B)	1-75518-336-1	02	1	0103-		●
306	NUT; SEAT ADJ M8 FLANGE	1-75538-207-0	12	1	0502-			●
306	NUT; SEAT ADJ M8 FLANGE	8-94279-518-0	04	1	9910-0003	●
306	NUT; SEAT ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	8-94279-518-0	04	1	9910-0003		●
306	NUT; SEAT ADJ M8 FLANGE	1-75538-207-0	04	1	0004-0301	●
306	NUT; SEAT ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	1-75538-207-0	04	1	0004-0301		●
306	NUT; SEAT ADJ M8 FLANGE	1-75538-207-0	04	1	0302-0501	●		●
306	NUT; SEAT ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	1-75538-207-0	04	1	0302-0501		●
306	NUT; SEAT ADJ M8 FLANGE	1-75538-207-0	04	1	0502-	●
306	NUT; SEAT ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	1-75538-207-0	04	1	0502-		●
306	NUT; SEAT ADJ M8 FLANGE	8-94279-518-0	04	1	9905-9905	●	●
306	NUT; SEAT ADJ AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> M8 FLANGE	8-94279-518-0	06	1	9905-0003		●
306	NUT; SEAT ADJ AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> M8 FLANGE	1-75538-207-0	06	1	0004-0501		●
306	NUT; SEAT ADJ AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> M8 FLANGE	1-75538-207-0	14	1	0502-		●
468	SPRING; RETURN AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> (A)	1-75518-206-0	01	1	9905-		●
468	SPRING; RETURN AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> (B)	1-75518-207-0	01	1	9905-		●
468	SPRING; RETURN AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> (C)	1-75518-208-0	02	1	9905-		●
468	SPRING; RETURN AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> (D)	1-75538-132-0	01	1	9905-0301		●
468	SPRING; RETURN AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> (D)	1-75538-132-0	01	1	0302-		●
468	SPRING; RETURN (D)	1-75538-132-0	01	1	0302-			●
471	LEVER; SEAT ADJ	1-75518-290-0	01	1	9905-0301	●	●
471	LEVER; SEAT ADJ	1-75518-290-0	01	1	0302-	●	●	●
512	COVER; LEVER AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75518-245-1	02	1	9905-		●
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	9905-0301	●	●
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	0302-	●	●	●
518	NUT; TILT ADJ AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> (B)	1-75518-264-0	04	1	9905-		●
518	NUT; TILT ADJ AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> (D)	5-09984-020-0	02	1	9905-		●
518	NUT; TILT ADJ AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> (C) M8 FLANGE	8-94152-886-0	04	1	9905-		●
529	PIN; LINK	1-75518-262-0	01	1	9905-0301	●	●
529	PIN; LINK	1-75518-262-0	01	1	0302-	●	●	●
532	LEVER ASM; TILT AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> (A)	1-75518-221-0	01	1	9905-		●
532	LEVER ASM; TILT AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> (B)	1-75518-222-1	01	1	9905-		●
543	WASHER; HEIGHT ADJUSTER AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> (B) ID=6.4	9-09160-506-0	04	1	9905-0105		●
543	WASHER; HEIGHT ADJUSTER AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> (B) ID=8.4	9-09160-508-0	04	1	0106-		●
543	WASHER; HEIGHT ADJUSTER AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> (A) ID=10.5	9-09164-510-0	02	1	9905-0102		●
543	WASHER; HEIGHT ADJUSTER AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> (C)	1-75518-335-0	02	1	0103-		●
543	WASHER; HEIGHT ADJUSTER AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ> (A)	1-75518-337-0	02	1	0103-0406		●
551	SLIDER; HEIGHT ADJ AIR SUSP D/SEAT<A56> FABRIC SEAT W/RECL<SFQ>	1-75518-265-0	04	1	9905-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
