◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10808 - FRR-G/FSR/FTR TAIWAN ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#7913) — 33 parça
çizim 26768
307 306 315 242 351 100
BalonParca AdiParca NoAdetTipApplied Date A B C
100 RUBBER; CONSOLE,FRT 8-97535-034-0 01 1 9905-0301 ● ●
100 RUBBER; CONSOLE,FRT 8-97535-034-0 01 1 0302- ● ● ●
242 TRAY ASM; CTR CONSOLE 8-97535-029-0 01 1 9905-0301 ● ●
242 TRAY ASM; CTR CONSOLE 8-97535-029-0 01 1 0302- ● ● ●
306 SCREW; TRAY
M6X24 W/LK&PL WASHER 		8-94279-404-0 03 1 9905-0202 ● ●
306 SCREW; TRAY
M6X20 W/LK&PL WASHER 		8-94279-403-0 03 1 0203-0301 ● ●
306 SCREW; TRAY
M6X20 W/LK&PL WASHER 		8-94279-403-0 03 1 0302- ● ● ●
307 COVER; HOLE,CTR CONSOLE 1-76337-461-0 02 1 9905-0301 ● ●
307 COVER; HOLE,CTR CONSOLE 1-76337-461-0 02 1 0302- ● ● ●
315 COVER; HOLE,SW
EXC. PTO CONT<SV6> (A) 		1-82359-069-2 01 1 9905-0301 ●
315 COVER; HOLE,SW
EXC. PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> (A) 		1-82359-069-2 01 1 9905-0301 ●
315 COVER; HOLE,SW
EXC. PTO CONT<SV6> (A) 		1-82359-069-2 01 1 0302- ●
315 COVER; HOLE,SW
EXC. PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> (A) 		1-82359-069-2 01 1 0302- ●
315 COVER; HOLE,SW
PTO CONT<SV6> (A) 		1-82359-069-2 01 1 0302- ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 07 1 9905-0301 ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 07 1 0302- ● ● ●
315 COVER; HOLE,SW
(B) 		8-97043-732-1 04 1 9905-0301 ● ●
315 COVER; HOLE,SW
(B) 		8-97043-732-1 04 1 0302- ● ● ●
315 COVER; HOLE,SW
MAP LAMP<C85> (A) 		1-82359-069-2 02 1 9905- ●
351 COVER; HOLE CONSENT 8-97535-037-0 01 1 9905-0301 ● ●
351 COVER; HOLE CONSENT 8-97535-037-0 01 1 0302- ● ● ●

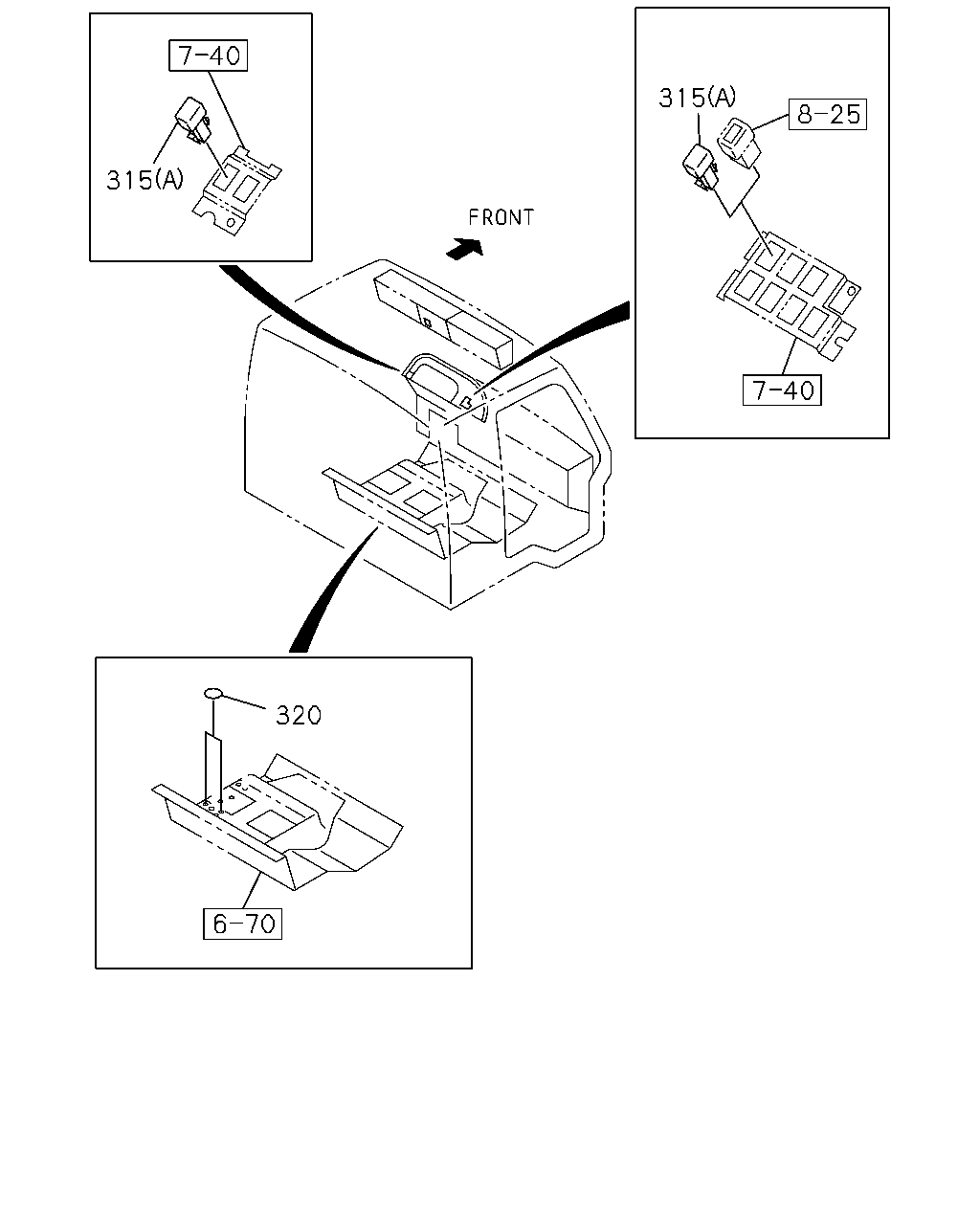

çizim 99478
315 315 320
BalonParca AdiParca NoAdetTipApplied Date A B C
315 COVER; HOLE,SW
EXC. PTO CONT<SV6> (A) 		1-82359-069-2 01 1 9905-0301 ●
315 COVER; HOLE,SW
EXC. PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> (A) 		1-82359-069-2 01 1 9905-0301 ●
315 COVER; HOLE,SW
EXC. PTO CONT<SV6> (A) 		1-82359-069-2 01 1 0302- ●
315 COVER; HOLE,SW
EXC. PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> (A) 		1-82359-069-2 01 1 0302- ●
315 COVER; HOLE,SW
PTO CONT<SV6> (A) 		1-82359-069-2 01 1 0302- ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 07 1 9905-0301 ● ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 07 1 0302- ● ● ●
315 COVER; HOLE,SW
(B) 		8-97043-732-1 04 1 9905-0301 ● ●
315 COVER; HOLE,SW
(B) 		8-97043-732-1 04 1 0302- ● ● ●
315 COVER; HOLE,SW
MAP LAMP<C85> (A) 		1-82359-069-2 02 1 9905- ●
320 SEAL; HOLE,TRAY
OD=25 BLACK 		1-76798-019-0 04 1 9905-0301 ● ●
320 SEAL; HOLE,TRAY
OD=25 BLACK 		1-76798-019-0 04 1 0302- ● ● ●
