4-60 — REAR SUSPENSION (#79125) — 246 parça

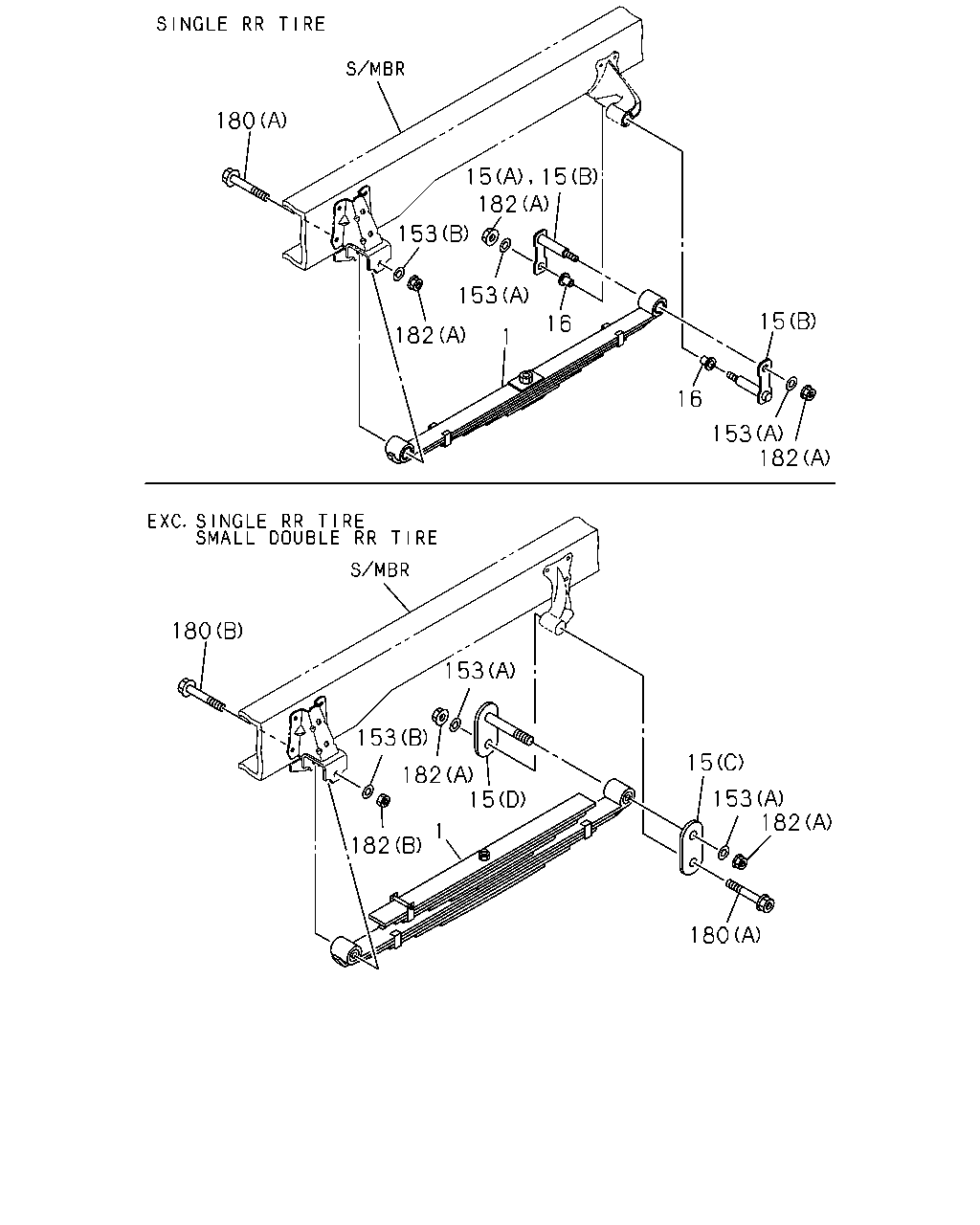

180 15 182 15 153 153 15 16 182 1 16 153 182 180 153 153 15 182 15 153 182 1 182 180

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. SAUDI ARABIA EQUIPMENT(GH3),RR BODY FLAT BED(RS6),DUMP CHASSIS(V4D) 10-LEAF	8-98318-051-0	02	1	1506-	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. TURKEY EQUIPMENT(B11) G.V.W. 3.5-4.0TON(RPQ) REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> EXC. RR BODY FLAT BED(RS6),SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 10-LEAF	8-98022-373-0	02	1	1012-1505		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. SAUDI ARABIA EQUIPMENT(GH3),RR BODY FLAT BED(RS6),DUMP CHASSIS(V4D) 10-LEAF	8-98022-373-0	02	1	1012-1505	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.5-6.0TON(RPU) RR BODY FLAT BED(RS6) REAR WIDE TREAD(V4T) EXC. SAUDI ARABIA EQUIPMENT(GH3),DUMP CHASSIS(V4D) 10-LEAF	8-98022-373-0	02	1	1012-1505	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. SAUDI ARABIA EQUIPMENT(GH3) 10-LEAF	8-98022-373-0	02	1	1012-1505			●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. TURKEY EQUIPMENT(B11) G.V.W. 3.5-4.0TON(RPQ) REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> EXC. RR BODY FLAT BED(RS6),SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 10-LEAF	8-98022-373-0	02	1	1506-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. SAUDI ARABIA EQUIPMENT(GH3), STABILIZER REAR<GN1>,RR BODY FLAT BED(RS6),DU MP CHASSIS(V4D) 10-LEAF	8-98022-373-0	02	1	1506-	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.5-6.0TON(RPU) RR BODY FLAT BED(RS6) REAR WIDE TREAD(V4T) EXC. SAUDI ARABIA EQUIPMENT(GH3), STABILIZER REAR<GN1>,DUMP CHASSIS(V4D) 10-LEAF	8-98022-373-0	02	1	1506-	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. SAUDI ARABIA EQUIPMENT(GH3) 10-LEAF	8-98022-373-0	02	1	1506-			●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) EXC. TURKEY EQUIPMENT(B11),RR BODY FLATBED(RS6),FULL FLATLOW<6GL> 3-LEAF	8-98001-543-1	02	1	1012-1301		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP) RR BODY FLAT BED(RS6) SINGLE RR TIRE(6TD) EXC. TURKEY EQUIPMENT(B11),FULL FLATLOW<6GL> 3-LEAF	8-98001-543-1	02	1	1012-1301		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 3-LEAF	8-98001-543-1	02	1	1012-1301				●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP) SINGLE RR TIRE(6TD) EXC. TURKEY EQUIPMENT(B11),FULL FLATLOW<6GL> 3-LEAF	8-98001-543-1	02	1	1302-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 3-LEAF	8-98001-543-1	02	1	1302-				●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP) RR BODY FLAT BED(RS6) SMALL DOUBLE RR TIRE(6YE) EXC. TURKEY EQUIPMENT(B11),FULL FLATLOW<6GL> 3-LEAF	8-98001-548-1	02	1	1012-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.5-4.0TON(RPQ) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> EXC. RR BODY FLAT BED(RS6),REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD),SMALL DOUB LE RR TIRE(6YE) 5-LEAF	8-98048-271-0	02	1	1012-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. TURKEY EQUIPMENT(B11),RR BODY FLATBED(RS6),FULL FLATLOW<6GL> 5-LEAF	8-98001-551-1	02	1	1012-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(GH3) G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. DUMP CHASSIS(V4D) 6-LEAF	8-98001-652-0	02	1	1012-1308	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(GH3) 6-LEAF	8-98001-652-0	02	1	1012-1308			●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(GH3) G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. DUMP CHASSIS(V4D) 6-LEAF	8-98100-522-0	02	1	1309-1505	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(GH3) 6-LEAF	8-98100-522-0	02	1	1309-1505			●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(GH3) G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. STABILIZER REAR<GN1>,DUMP CHASSIS(V4D) 6-LEAF	8-98100-522-0	02	1	1506-	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(GH3) 6-LEAF	8-98100-522-0	02	1	1506-			●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.5-6.0TON(RPU) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> EXC. RR BODY FLAT BED(RS6),REAR WIDE TREAD(V4T) 4-LEAF	8-98032-760-0	02	1	1012-1407	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(GH3) G.V.W. 5.5-6.0TON(RPU) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> EXC. RR BODY FLAT BED(RS6),REAR WIDE TREAD(V4T) 4-LEAF	8-98032-760-0	02	1	1408-1409	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> EXC. SAUDI ARABIA EQUIPMENT(GH3),RR BODY FLAT BED(RS6),REAR WIDE TREAD(V4T) 4-LEAF	8-98032-760-0	02	1	1408-1409	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.5-6.0TON(RPU) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> EXC. RR BODY FLAT BED(RS6),REAR WIDE TREAD(V4T) 4-LEAF	8-98032-760-0	02	1	1410-1505	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.5-6.0TON(RPU) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> EXC. STABILIZER REAR<GN1>,RR BODY FLAT BED(RS6),REAR WIDE TREAD(V4T) 4-LEAF	8-98032-760-0	02	1	1506-	●
15	07.523 SHACKLE; RR SPR G.V.W. 3.0-3.5TON(RPP) SMALL DOUBLE RR TIRE(6YE) (E)	8-97169-264-0	02	1	1012-		●
15	07.523 SHACKLE; RR SPR SINGLE RR TIRE(6TD) (B)	8-94113-322-3	02	1	1012-		●
15	07.523 SHACKLE; RR SPR G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) (B)	8-94113-322-3	02	1	1012-		●
15	07.523 SHACKLE; RR SPR (B)	8-94113-322-3	02	1	1012-				●
15	07.523 SHACKLE; RR SPR (B)	8-94113-322-3	02	1	1012-				●
15	07.523 SHACKLE; RR SPR G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) (A)	8-97033-966-1	02	1	1012-		●
15	07.523 SHACKLE; RR SPR SMALL DOUBLE RR TIRE(6YE) (F)	8-97162-959-0	02	1	1012-		●
15	07.523 SHACKLE; RR SPR EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (C)	8-94118-511-3	02	1	1012-		●
15	07.523 SHACKLE; RR SPR (C)	8-94118-511-3	02	1	1012-	●		●
15	07.523 SHACKLE; RR SPR EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (D)	8-97360-011-0	02	1	1012-		●
15	07.523 SHACKLE; RR SPR (D)	8-97360-011-0	02	1	1012-	●		●
16	07.524 BUSHING; SHACKLE,RR SPR SINGLE RR TIRE(6TD)	8-94113-323-2	04	1	1012-		●
16	07.524 BUSHING; SHACKLE,RR SPR G.V.W. 3.0-3.5TON(RPP) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE)	8-94113-323-2	04	1	1012-		●
16	07.524 BUSHING; SHACKLE,RR SPR G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD)	8-94113-323-2	04	1	1012-		●
16	07.524 BUSHING; SHACKLE,RR SPR	8-94113-323-2	04	1	1012-				●
16	07.524 BUSHING; SHACKLE,RR SPR	8-94113-323-2	04	1	1012-				●
16	07.524 BUSHING; SHACKLE,RR SPR SMALL DOUBLE RR TIRE(6YE)	8-97166-028-0	04	1	1012-		●
16	07.524 BUSHING; SHACKLE,RR SPR SINGLE RR TIRE(6TD) BEST VALUE PARTS	5-87610-160-0	04	1	1012-		●
16	07.524 BUSHING; SHACKLE,RR SPR G.V.W. 3.0-3.5TON(RPP) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) BEST VALUE PARTS	5-87610-160-0	04	1	1012-		●
16	07.524 BUSHING; SHACKLE,RR SPR G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) BEST VALUE PARTS	5-87610-160-0	04	1	1012-		●
16	07.524 BUSHING; SHACKLE,RR SPR BEST VALUE PARTS	5-87610-160-0	04	1	1012-				●
16	07.524 BUSHING; SHACKLE,RR SPR BEST VALUE PARTS	5-87610-160-0	04	1	1012-				●
153	07.529 WASHER; PL,SPRING PIN KD PREPARATORY PACK<6HF> 07.427 (A) ID=16.5	8-98011-489-0	04	1	1012-	●	●	●	●
153	07.529 WASHER; PL,SPRING PIN KD PREPARATORY PACK<6HF> SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 07.427 (B) ID=16.5	8-98011-489-0	02	1	1012-		●
153	07.529 WASHER; PL,SPRING PIN KD PREPARATORY PACK<6HF> 07.427 (B) ID=16.5	8-98011-489-0	02	1	1012-				●
153	07.529 WASHER; PL,SPRING PIN EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) ID=19	8-97360-119-0	02	1	1012-		●
153	07.529 WASHER; PL,SPRING PIN (B) ID=19	8-97360-119-0	02	1	1012-	●		●
180	07.529 PIN; RR SPR KD PREPARATORY PACK<6HF> 07.427 (A) M16X122	8-98011-487-0	02	1	1012-	●	●	●	●
180	07.529 PIN; RR SPR KD PREPARATORY PACK<6HF> EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) M18X130	8-98011-488-0	02	1	1012-		●
180	07.529 PIN; RR SPR KD PREPARATORY PACK<6HF> (B) M18X130	8-98011-488-0	02	1	1012-	●		●
180	07.529 PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 FLANGE	8-97360-110-0	02	1	1012-	●	●	●	●
180	07.529 PIN; RR SPR EXC. KD PREPARATORY PACK<6HF>,SINGLE RRTIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) M18X130 FLANGE	8-97360-112-0	02	1	1012-		●
180	07.529 PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE	8-97360-112-0	02	1	1012-	●		●
182	07.529 NUT; PIN,RR SPR KD PREPARATORY PACK<6HF> 06.509 (A) M16	0-91110-516-0	04	1	1012-	●	●	●	●
182	07.529 NUT; PIN,RR SPR KD PREPARATORY PACK<6HF> SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 06.509 (A) M16	0-91110-516-0	02	1	1012-		●
182	07.529 NUT; PIN,RR SPR KD PREPARATORY PACK<6HF> 06.509 (A) M16	0-91110-516-0	02	1	1012-				●
182	07.529 NUT; PIN,RR SPR SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE	8-97360-125-0	02	1	1012-		●
182	07.529 NUT; PIN,RR SPR EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE	8-97360-125-0	02	1	1012-				●
182	07.529 NUT; PIN,RR SPR EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE	8-97360-125-0	04	1	1012-	●	●	●	●
182	07.529 NUT; PIN,RR SPR EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) M18	0-91110-518-0	02	1	1012-		●
182	07.529 NUT; PIN,RR SPR (B) M18	0-91110-518-0	02	1	1012-	●		●

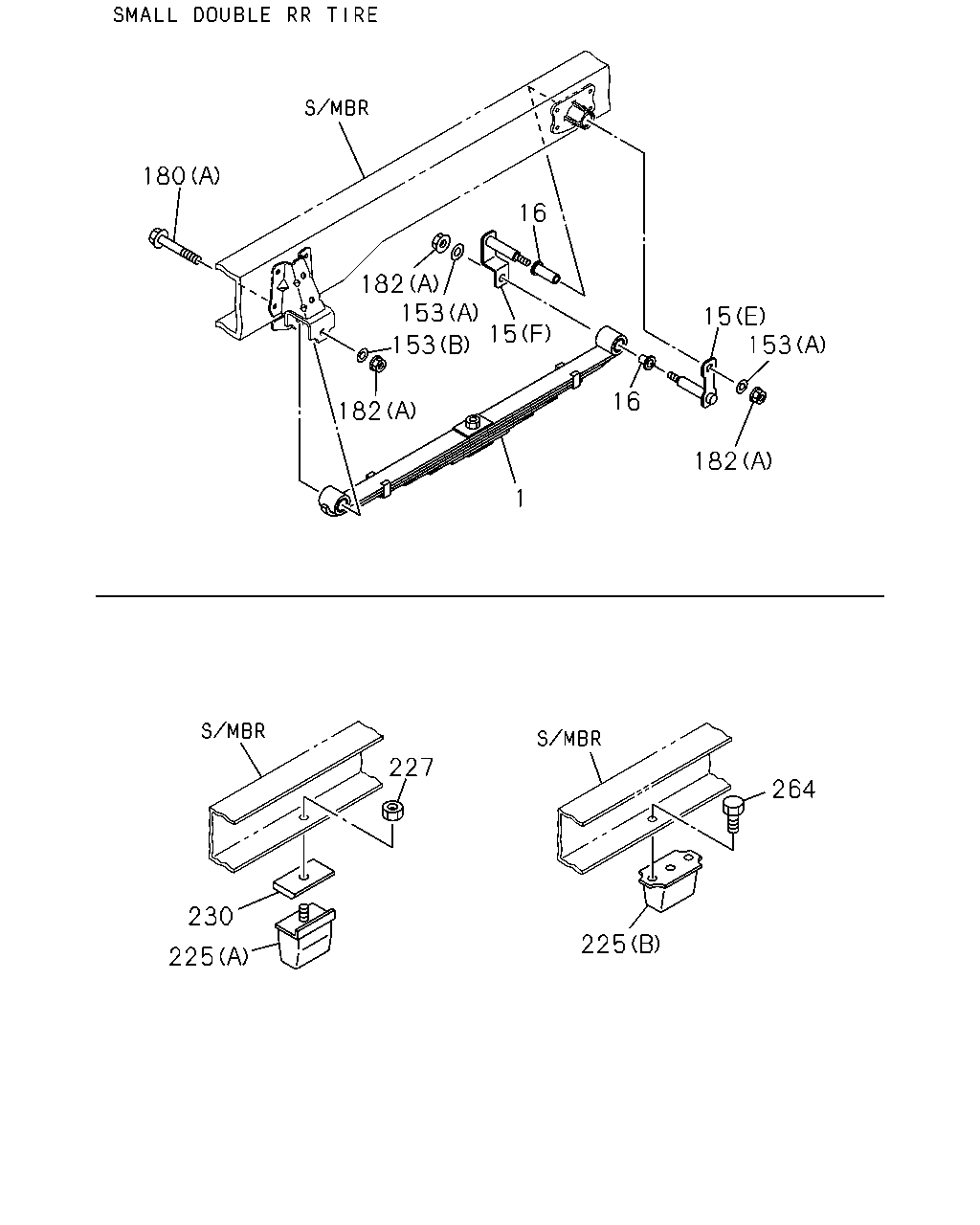

180 16 182 153 15 153 15 15 16 182 182 1 227 264 230 225 225

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. SAUDI ARABIA EQUIPMENT(GH3),RR BODY FLAT BED(RS6),DUMP CHASSIS(V4D) 10-LEAF	8-98318-051-0	02	1	1506-	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. TURKEY EQUIPMENT(B11) G.V.W. 3.5-4.0TON(RPQ) REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> EXC. RR BODY FLAT BED(RS6),SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 10-LEAF	8-98022-373-0	02	1	1012-1505		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. SAUDI ARABIA EQUIPMENT(GH3),RR BODY FLAT BED(RS6),DUMP CHASSIS(V4D) 10-LEAF	8-98022-373-0	02	1	1012-1505	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.5-6.0TON(RPU) RR BODY FLAT BED(RS6) REAR WIDE TREAD(V4T) EXC. SAUDI ARABIA EQUIPMENT(GH3),DUMP CHASSIS(V4D) 10-LEAF	8-98022-373-0	02	1	1012-1505	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. SAUDI ARABIA EQUIPMENT(GH3) 10-LEAF	8-98022-373-0	02	1	1012-1505			●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. TURKEY EQUIPMENT(B11) G.V.W. 3.5-4.0TON(RPQ) REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> EXC. RR BODY FLAT BED(RS6),SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 10-LEAF	8-98022-373-0	02	1	1506-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. SAUDI ARABIA EQUIPMENT(GH3), STABILIZER REAR<GN1>,RR BODY FLAT BED(RS6),DU MP CHASSIS(V4D) 10-LEAF	8-98022-373-0	02	1	1506-	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.5-6.0TON(RPU) RR BODY FLAT BED(RS6) REAR WIDE TREAD(V4T) EXC. SAUDI ARABIA EQUIPMENT(GH3), STABILIZER REAR<GN1>,DUMP CHASSIS(V4D) 10-LEAF	8-98022-373-0	02	1	1506-	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. SAUDI ARABIA EQUIPMENT(GH3) 10-LEAF	8-98022-373-0	02	1	1506-			●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) EXC. TURKEY EQUIPMENT(B11),RR BODY FLATBED(RS6),FULL FLATLOW<6GL> 3-LEAF	8-98001-543-1	02	1	1012-1301		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP) RR BODY FLAT BED(RS6) SINGLE RR TIRE(6TD) EXC. TURKEY EQUIPMENT(B11),FULL FLATLOW<6GL> 3-LEAF	8-98001-543-1	02	1	1012-1301		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 3-LEAF	8-98001-543-1	02	1	1012-1301				●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP) SINGLE RR TIRE(6TD) EXC. TURKEY EQUIPMENT(B11),FULL FLATLOW<6GL> 3-LEAF	8-98001-543-1	02	1	1302-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 3-LEAF	8-98001-543-1	02	1	1302-				●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP) RR BODY FLAT BED(RS6) SMALL DOUBLE RR TIRE(6YE) EXC. TURKEY EQUIPMENT(B11),FULL FLATLOW<6GL> 3-LEAF	8-98001-548-1	02	1	1012-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.5-4.0TON(RPQ) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> EXC. RR BODY FLAT BED(RS6),REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD),SMALL DOUB LE RR TIRE(6YE) 5-LEAF	8-98048-271-0	02	1	1012-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. TURKEY EQUIPMENT(B11),RR BODY FLATBED(RS6),FULL FLATLOW<6GL> 5-LEAF	8-98001-551-1	02	1	1012-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(GH3) G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. DUMP CHASSIS(V4D) 6-LEAF	8-98001-652-0	02	1	1012-1308	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(GH3) 6-LEAF	8-98001-652-0	02	1	1012-1308			●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(GH3) G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. DUMP CHASSIS(V4D) 6-LEAF	8-98100-522-0	02	1	1309-1505	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(GH3) 6-LEAF	8-98100-522-0	02	1	1309-1505			●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(GH3) G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. STABILIZER REAR<GN1>,DUMP CHASSIS(V4D) 6-LEAF	8-98100-522-0	02	1	1506-	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(GH3) 6-LEAF	8-98100-522-0	02	1	1506-			●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.5-6.0TON(RPU) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> EXC. RR BODY FLAT BED(RS6),REAR WIDE TREAD(V4T) 4-LEAF	8-98032-760-0	02	1	1012-1407	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(GH3) G.V.W. 5.5-6.0TON(RPU) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> EXC. RR BODY FLAT BED(RS6),REAR WIDE TREAD(V4T) 4-LEAF	8-98032-760-0	02	1	1408-1409	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> EXC. SAUDI ARABIA EQUIPMENT(GH3),RR BODY FLAT BED(RS6),REAR WIDE TREAD(V4T) 4-LEAF	8-98032-760-0	02	1	1408-1409	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.5-6.0TON(RPU) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> EXC. RR BODY FLAT BED(RS6),REAR WIDE TREAD(V4T) 4-LEAF	8-98032-760-0	02	1	1410-1505	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.5-6.0TON(RPU) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> EXC. STABILIZER REAR<GN1>,RR BODY FLAT BED(RS6),REAR WIDE TREAD(V4T) 4-LEAF	8-98032-760-0	02	1	1506-	●
15	07.523 SHACKLE; RR SPR G.V.W. 3.0-3.5TON(RPP) SMALL DOUBLE RR TIRE(6YE) (E)	8-97169-264-0	02	1	1012-		●
15	07.523 SHACKLE; RR SPR SINGLE RR TIRE(6TD) (B)	8-94113-322-3	02	1	1012-		●
15	07.523 SHACKLE; RR SPR G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) (B)	8-94113-322-3	02	1	1012-		●
15	07.523 SHACKLE; RR SPR (B)	8-94113-322-3	02	1	1012-				●
15	07.523 SHACKLE; RR SPR (B)	8-94113-322-3	02	1	1012-				●
15	07.523 SHACKLE; RR SPR G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) (A)	8-97033-966-1	02	1	1012-		●
15	07.523 SHACKLE; RR SPR SMALL DOUBLE RR TIRE(6YE) (F)	8-97162-959-0	02	1	1012-		●
15	07.523 SHACKLE; RR SPR EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (C)	8-94118-511-3	02	1	1012-		●
15	07.523 SHACKLE; RR SPR (C)	8-94118-511-3	02	1	1012-	●		●
15	07.523 SHACKLE; RR SPR EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (D)	8-97360-011-0	02	1	1012-		●
15	07.523 SHACKLE; RR SPR (D)	8-97360-011-0	02	1	1012-	●		●
16	07.524 BUSHING; SHACKLE,RR SPR SINGLE RR TIRE(6TD)	8-94113-323-2	04	1	1012-		●
16	07.524 BUSHING; SHACKLE,RR SPR G.V.W. 3.0-3.5TON(RPP) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE)	8-94113-323-2	04	1	1012-		●
16	07.524 BUSHING; SHACKLE,RR SPR G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD)	8-94113-323-2	04	1	1012-		●
16	07.524 BUSHING; SHACKLE,RR SPR	8-94113-323-2	04	1	1012-				●
16	07.524 BUSHING; SHACKLE,RR SPR	8-94113-323-2	04	1	1012-				●
16	07.524 BUSHING; SHACKLE,RR SPR SMALL DOUBLE RR TIRE(6YE)	8-97166-028-0	04	1	1012-		●
16	07.524 BUSHING; SHACKLE,RR SPR SINGLE RR TIRE(6TD) BEST VALUE PARTS	5-87610-160-0	04	1	1012-		●
16	07.524 BUSHING; SHACKLE,RR SPR G.V.W. 3.0-3.5TON(RPP) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) BEST VALUE PARTS	5-87610-160-0	04	1	1012-		●
16	07.524 BUSHING; SHACKLE,RR SPR G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) BEST VALUE PARTS	5-87610-160-0	04	1	1012-		●
16	07.524 BUSHING; SHACKLE,RR SPR BEST VALUE PARTS	5-87610-160-0	04	1	1012-				●
16	07.524 BUSHING; SHACKLE,RR SPR BEST VALUE PARTS	5-87610-160-0	04	1	1012-				●
153	07.529 WASHER; PL,SPRING PIN KD PREPARATORY PACK<6HF> 07.427 (A) ID=16.5	8-98011-489-0	04	1	1012-	●	●	●	●
153	07.529 WASHER; PL,SPRING PIN KD PREPARATORY PACK<6HF> SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 07.427 (B) ID=16.5	8-98011-489-0	02	1	1012-		●
153	07.529 WASHER; PL,SPRING PIN KD PREPARATORY PACK<6HF> 07.427 (B) ID=16.5	8-98011-489-0	02	1	1012-				●
153	07.529 WASHER; PL,SPRING PIN EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) ID=19	8-97360-119-0	02	1	1012-		●
153	07.529 WASHER; PL,SPRING PIN (B) ID=19	8-97360-119-0	02	1	1012-	●		●
180	07.529 PIN; RR SPR KD PREPARATORY PACK<6HF> 07.427 (A) M16X122	8-98011-487-0	02	1	1012-	●	●	●	●
180	07.529 PIN; RR SPR KD PREPARATORY PACK<6HF> EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) M18X130	8-98011-488-0	02	1	1012-		●
180	07.529 PIN; RR SPR KD PREPARATORY PACK<6HF> (B) M18X130	8-98011-488-0	02	1	1012-	●		●
180	07.529 PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 FLANGE	8-97360-110-0	02	1	1012-	●	●	●	●
180	07.529 PIN; RR SPR EXC. KD PREPARATORY PACK<6HF>,SINGLE RRTIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) M18X130 FLANGE	8-97360-112-0	02	1	1012-		●
180	07.529 PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE	8-97360-112-0	02	1	1012-	●		●
182	07.529 NUT; PIN,RR SPR KD PREPARATORY PACK<6HF> 06.509 (A) M16	0-91110-516-0	04	1	1012-	●	●	●	●
182	07.529 NUT; PIN,RR SPR KD PREPARATORY PACK<6HF> SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 06.509 (A) M16	0-91110-516-0	02	1	1012-		●
182	07.529 NUT; PIN,RR SPR KD PREPARATORY PACK<6HF> 06.509 (A) M16	0-91110-516-0	02	1	1012-				●
182	07.529 NUT; PIN,RR SPR SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE	8-97360-125-0	02	1	1012-		●
182	07.529 NUT; PIN,RR SPR EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE	8-97360-125-0	02	1	1012-				●
182	07.529 NUT; PIN,RR SPR EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE	8-97360-125-0	04	1	1012-	●	●	●	●
182	07.529 NUT; PIN,RR SPR EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) M18	0-91110-518-0	02	1	1012-		●
182	07.529 NUT; PIN,RR SPR (B) M18	0-91110-518-0	02	1	1012-	●		●
225	07.535 RUBBER; CUSHION,RR SPR TURKEY EQUIPMENT(B11) G.V.W. 3.5-4.0TON(RPQ) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE (6YE) (A)	8-98021-554-0	02	1	1012-		●
225	07.535 RUBBER; CUSHION,RR SPR G.V.W. 3.5-4.0TON(RPQ) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (A)	8-98021-554-0	02	1	1012-		●
225	07.535 RUBBER; CUSHION,RR SPR SAUDI ARABIA EQUIPMENT(GH3) G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. FRAME-KICK UP<7EW> (A)	8-98021-554-0	02	1	1012-	●
225	07.535 RUBBER; CUSHION,RR SPR G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. SAUDI ARABIA EQUIPMENT(GH3), FRAME-KICK UP<7EW> (A)	8-98021-554-0	02	1	1012-	●
225	07.535 RUBBER; CUSHION,RR SPR (A)	8-98021-554-0	02	1	1012-			●
225	07.535 RUBBER; CUSHION,RR SPR G.V.W. 3.0-3.5TON(RPP) SMALL DOUBLE RR TIRE(6YE) EXC. TURKEY EQUIPMENT(B11),REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-94258-734-2	02	1	1012-1103		●
225	07.535 RUBBER; CUSHION,RR SPR G.V.W. 3.0-3.5TON(RPP) SMALL DOUBLE RR TIRE(6YE) EXC. TURKEY EQUIPMENT(B11),REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-98187-341-0	02	1	1104-		●
225	07.535 RUBBER; CUSHION,RR SPR G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. TURKEY EQUIPMENT(B11),REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-98002-085-1	02	1	1012-1301		●
225	07.535 RUBBER; CUSHION,RR SPR (A)	8-98002-085-1	02	1	1012-1301				●
225	07.535 RUBBER; CUSHION,RR SPR G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. TURKEY EQUIPMENT(B11),REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-98002-085-1	02	1	1302-		●
225	07.535 RUBBER; CUSHION,RR SPR (A)	8-98002-085-1	02	1	1302-				●
225	07.535 RUBBER; CUSHION,RR SPR G.V.W. 5.5-6.0TON(RPU) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> EXC. REAR WIDE TREAD(V4T) (B)	8-97035-815-1	02	1	1012-1407	●
225	07.535 RUBBER; CUSHION,RR SPR SAUDI ARABIA EQUIPMENT(GH3) G.V.W. 5.5-6.0TON(RPU) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> EXC. REAR WIDE TREAD(V4T) (B)	8-97035-815-1	02	1	1408-1409	●
225	07.535 RUBBER; CUSHION,RR SPR G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> EXC. SAUDI ARABIA EQUIPMENT(GH3),REAR WIDE TREAD(V4T) (B)	8-97035-815-1	02	1	1408-1409	●
225	07.535 RUBBER; CUSHION,RR SPR G.V.W. 5.5-6.0TON(RPU) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> EXC. REAR WIDE TREAD(V4T) (B)	8-97035-815-1	02	1	1410-	●
227	07.535 NUT; CUSHION RUBBER 02.042 M12 FLANGE	0-91180-112-0	02	1	1012-		●	●	●
227	07.535 NUT; CUSHION RUBBER EXC. FRAME-KICK UP<7EW> 02.042 M12 FLANGE	0-91180-112-0	02	1	1012-	●
230	07.518 SPACER; CUSHION RUBBER G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD)	8-97136-853-0	02	1	1012-		●
230	07.518 SPACER; CUSHION RUBBER REAR WIDE TREAD(V4T)	8-97136-852-0	02	1	1012-	●	●
230	07.518 SPACER; CUSHION RUBBER	8-97136-852-0	02	1	1012-			●
264	07.529 BOLT; CUSHION RUBBER TO BRKT FRAME-KICK UP<7EW> 00.029 M10X25 FLANGE	0-28651-025-0	04	1	1012-	●

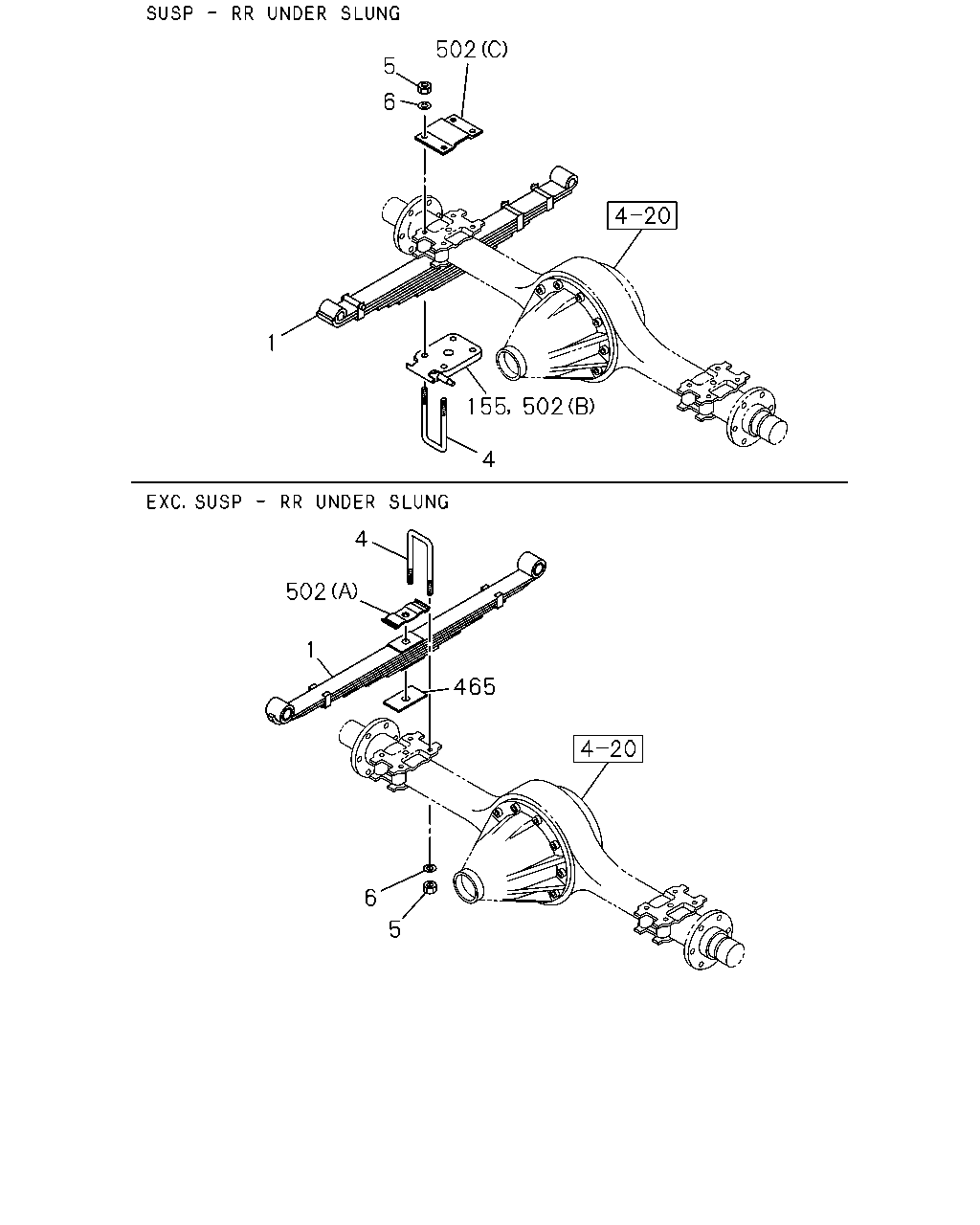

502 5 6 1 155 502 4 4 502 1 465 6 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. SAUDI ARABIA EQUIPMENT(GH3),RR BODY FLAT BED(RS6),DUMP CHASSIS(V4D) 10-LEAF	8-98318-051-0	02	1	1506-	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. TURKEY EQUIPMENT(B11) G.V.W. 3.5-4.0TON(RPQ) REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> EXC. RR BODY FLAT BED(RS6),SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 10-LEAF	8-98022-373-0	02	1	1012-1505		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. SAUDI ARABIA EQUIPMENT(GH3),RR BODY FLAT BED(RS6),DUMP CHASSIS(V4D) 10-LEAF	8-98022-373-0	02	1	1012-1505	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.5-6.0TON(RPU) RR BODY FLAT BED(RS6) REAR WIDE TREAD(V4T) EXC. SAUDI ARABIA EQUIPMENT(GH3),DUMP CHASSIS(V4D) 10-LEAF	8-98022-373-0	02	1	1012-1505	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. SAUDI ARABIA EQUIPMENT(GH3) 10-LEAF	8-98022-373-0	02	1	1012-1505			●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. TURKEY EQUIPMENT(B11) G.V.W. 3.5-4.0TON(RPQ) REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> EXC. RR BODY FLAT BED(RS6),SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 10-LEAF	8-98022-373-0	02	1	1506-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. SAUDI ARABIA EQUIPMENT(GH3), STABILIZER REAR<GN1>,RR BODY FLAT BED(RS6),DU MP CHASSIS(V4D) 10-LEAF	8-98022-373-0	02	1	1506-	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.5-6.0TON(RPU) RR BODY FLAT BED(RS6) REAR WIDE TREAD(V4T) EXC. SAUDI ARABIA EQUIPMENT(GH3), STABILIZER REAR<GN1>,DUMP CHASSIS(V4D) 10-LEAF	8-98022-373-0	02	1	1506-	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. SAUDI ARABIA EQUIPMENT(GH3) 10-LEAF	8-98022-373-0	02	1	1506-			●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) EXC. TURKEY EQUIPMENT(B11),RR BODY FLATBED(RS6),FULL FLATLOW<6GL> 3-LEAF	8-98001-543-1	02	1	1012-1301		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP) RR BODY FLAT BED(RS6) SINGLE RR TIRE(6TD) EXC. TURKEY EQUIPMENT(B11),FULL FLATLOW<6GL> 3-LEAF	8-98001-543-1	02	1	1012-1301		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 3-LEAF	8-98001-543-1	02	1	1012-1301				●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP) SINGLE RR TIRE(6TD) EXC. TURKEY EQUIPMENT(B11),FULL FLATLOW<6GL> 3-LEAF	8-98001-543-1	02	1	1302-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 3-LEAF	8-98001-543-1	02	1	1302-				●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP) RR BODY FLAT BED(RS6) SMALL DOUBLE RR TIRE(6YE) EXC. TURKEY EQUIPMENT(B11),FULL FLATLOW<6GL> 3-LEAF	8-98001-548-1	02	1	1012-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.5-4.0TON(RPQ) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> EXC. RR BODY FLAT BED(RS6),REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD),SMALL DOUB LE RR TIRE(6YE) 5-LEAF	8-98048-271-0	02	1	1012-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. TURKEY EQUIPMENT(B11),RR BODY FLATBED(RS6),FULL FLATLOW<6GL> 5-LEAF	8-98001-551-1	02	1	1012-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(GH3) G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. DUMP CHASSIS(V4D) 6-LEAF	8-98001-652-0	02	1	1012-1308	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(GH3) 6-LEAF	8-98001-652-0	02	1	1012-1308			●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(GH3) G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. DUMP CHASSIS(V4D) 6-LEAF	8-98100-522-0	02	1	1309-1505	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(GH3) 6-LEAF	8-98100-522-0	02	1	1309-1505			●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(GH3) G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. STABILIZER REAR<GN1>,DUMP CHASSIS(V4D) 6-LEAF	8-98100-522-0	02	1	1506-	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(GH3) 6-LEAF	8-98100-522-0	02	1	1506-			●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.5-6.0TON(RPU) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> EXC. RR BODY FLAT BED(RS6),REAR WIDE TREAD(V4T) 4-LEAF	8-98032-760-0	02	1	1012-1407	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(GH3) G.V.W. 5.5-6.0TON(RPU) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> EXC. RR BODY FLAT BED(RS6),REAR WIDE TREAD(V4T) 4-LEAF	8-98032-760-0	02	1	1408-1409	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> EXC. SAUDI ARABIA EQUIPMENT(GH3),RR BODY FLAT BED(RS6),REAR WIDE TREAD(V4T) 4-LEAF	8-98032-760-0	02	1	1408-1409	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.5-6.0TON(RPU) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> EXC. RR BODY FLAT BED(RS6),REAR WIDE TREAD(V4T) 4-LEAF	8-98032-760-0	02	1	1410-1505	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.5-6.0TON(RPU) DUMP CHASSIS(V4D) FRAME-KICK UP<7EW> EXC. STABILIZER REAR<GN1>,RR BODY FLAT BED(RS6),REAR WIDE TREAD(V4T) 4-LEAF	8-98032-760-0	02	1	1506-	●
4	07.516 U-BOLT; RR SPR STABILIZER REAR<GN1> G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. SAUDI ARABIA EQUIPMENT(GH3) L=275	8-94127-924-3	04	1	1506-	●
4	07.516 U-BOLT; RR SPR SAUDI ARABIA EQUIPMENT(GH3) G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) L=235	8-94127-920-3	04	1	1309-1505	●
4	07.516 U-BOLT; RR SPR SAUDI ARABIA EQUIPMENT(GH3) L=235	8-94127-920-3	04	1	1309-1505			●
4	07.516 U-BOLT; RR SPR SAUDI ARABIA EQUIPMENT(GH3) G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. STABILIZER REAR<GN1> L=235	8-94127-920-3	04	1	1506-	●
4	07.516 U-BOLT; RR SPR SAUDI ARABIA EQUIPMENT(GH3) L=235	8-94127-920-3	04	1	1506-			●
4	07.516 U-BOLT; RR SPR TURKEY EQUIPMENT(B11) G.V.W. 3.5-4.0TON(RPQ) REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) L=265	8-94127-923-3	04	1	1012-1505		●
4	07.516 U-BOLT; RR SPR G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. SAUDI ARABIA EQUIPMENT(GH3) L=265	8-94127-923-3	04	1	1012-1505	●
4	07.516 U-BOLT; RR SPR EXC. SAUDI ARABIA EQUIPMENT(GH3) L=265	8-94127-923-3	04	1	1012-1505			●
4	07.516 U-BOLT; RR SPR TURKEY EQUIPMENT(B11) G.V.W. 3.5-4.0TON(RPQ) REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) L=265	8-94127-923-3	04	1	1506-		●
4	07.516 U-BOLT; RR SPR G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. SAUDI ARABIA EQUIPMENT(GH3), STABILIZER REAR<GN1> L=265	8-94127-923-3	04	1	1506-	●
4	07.516 U-BOLT; RR SPR EXC. SAUDI ARABIA EQUIPMENT(GH3) L=265	8-94127-923-3	04	1	1506-			●
4	07.516 U-BOLT; RR SPR G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) EXC. TURKEY EQUIPMENT(B11) L=205	8-94127-917-3	04	1	1012-1301		●
4	07.516 U-BOLT; RR SPR G.V.W. 3.0-3.5TON(RPP) SMALL DOUBLE RR TIRE(6YE) EXC. TURKEY EQUIPMENT(B11) L=205	8-94127-917-3	04	1	1012-1301		●
4	07.516 U-BOLT; RR SPR L=205	8-94127-917-3	04	1	1012-1301				●
4	07.516 U-BOLT; RR SPR G.V.W. 3.0-3.5TON(RPP) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) EXC. TURKEY EQUIPMENT(B11) L=205	8-94127-917-3	04	1	1302-		●
4	07.516 U-BOLT; RR SPR L=205	8-94127-917-3	04	1	1302-				●
4	07.516 U-BOLT; RR SPR G.V.W. 3.5-4.0TON(RPQ) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) L=235	8-97262-039-0	04	1	1012-		●
4	07.516 U-BOLT; RR SPR G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. TURKEY EQUIPMENT(B11) L=245	8-94127-921-3	04	1	1012-1308		●
4	07.516 U-BOLT; RR SPR SAUDI ARABIA EQUIPMENT(GH3) G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) L=245	8-94127-921-3	04	1	1012-1308	●
4	07.516 U-BOLT; RR SPR SAUDI ARABIA EQUIPMENT(GH3) L=245	8-94127-921-3	04	1	1012-1308			●
4	07.516 U-BOLT; RR SPR G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. TURKEY EQUIPMENT(B11) L=245	8-94127-921-3	04	1	1309-		●
4	07.516 U-BOLT; RR SPR G.V.W. 5.5-6.0TON(RPU) FRAME-KICK UP<7EW> EXC. REAR WIDE TREAD(V4T) L=255	8-94127-922-3	04	1	1012-1407	●
4	07.516 U-BOLT; RR SPR SAUDI ARABIA EQUIPMENT(GH3) G.V.W. 5.5-6.0TON(RPU) FRAME-KICK UP<7EW> EXC. REAR WIDE TREAD(V4T) L=255	8-94127-922-3	04	1	1408-1409	●
4	07.516 U-BOLT; RR SPR G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) FRAME-KICK UP<7EW> EXC. SAUDI ARABIA EQUIPMENT(GH3),REAR WIDE TREAD(V4T) L=255	8-94127-922-3	04	1	1408-1409	●
4	07.516 U-BOLT; RR SPR G.V.W. 5.5-6.0TON(RPU) FRAME-KICK UP<7EW> EXC. REAR WIDE TREAD(V4T) L=255	8-94127-922-3	04	1	1410-1505	●
4	07.516 U-BOLT; RR SPR G.V.W. 5.5-6.0TON(RPU) FRAME-KICK UP<7EW> EXC. STABILIZER REAR<GN1>,REAR WIDE TREAD(V4T) L=255	8-94127-922-3	04	1	1506-	●
5	07.529 NUT; U-BOLT,RR SPR 07.417 M16	8-97360-121-0	08	1	1012-	●	●	●	●
6	07.516 WASHER; PL,U-BOLT ID=16.4	8-97360-118-0	08	1	1012-	●	●	●	●
155	07.380 BRACKET; S/ABS SINGLE RR TIRE(6TD)	8-94128-360-4	01	1	1012-		●
155	07.380 BRACKET; S/ABS	8-94128-360-4	01	1	1012-				●
155	07.380 BRACKET; S/ABS SINGLE RR TIRE(6TD)	8-94128-361-4	01	1	1012-		●
155	07.380 BRACKET; S/ABS	8-94128-361-4	01	1	1012-				●
465	07.518 SHIM; ADJ RR BODY FLAT BED(RS6)	8-97072-589-0	AR	1	1012-	●	●	●	●
502	07.506 CLAMP; RR LEAF SPR REAR AXLE HEAVY DUTY 292MM(G73) REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 07.518 (A) L=130 T=4.5	8-94119-069-2	02	1	1012-		●
502	07.506 CLAMP; RR LEAF SPR SINGLE RR TIRE(6TD) 07.518 (A) L=130 T=4.5	8-94119-069-2	02	1	1012-		●
502	07.506 CLAMP; RR LEAF SPR REAR WIDE TREAD(V4T) 07.518 (A) L=130 T=4.5	8-94119-069-2	02	1	1012-	●
502	07.506 CLAMP; RR LEAF SPR 07.518 (A) L=130 T=4.5	8-94119-069-2	02	1	1012-			●	●
502	07.506 CLAMP; RR LEAF SPR SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> (B)	8-94113-325-2	01	1	1012-		●
502	07.506 CLAMP; RR LEAF SPR SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> (B)	8-94113-326-2	01	1	1012-		●
502	07.506 CLAMP; RR LEAF SPR SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> (C) L=176 T=8	8-97136-907-0	02	1	1012-		●
502	07.506 CLAMP; RR LEAF SPR SMALL DOUBLE RR TIRE(6YE) 07.518 (A) L=130 T=6	8-94165-555-1	02	1	1012-		●
502	07.506 CLAMP; RR LEAF SPR FRAME-KICK UP<7EW> 07.518 (A) L=130 T=6	8-94165-555-1	02	1	1012-	●
502	07.506 CLAMP; RR LEAF SPR FRAME-KICK UP<7EW> 07.380 (B)	8-94128-362-3	01	1	1012-	●
502	07.506 CLAMP; RR LEAF SPR FRAME-KICK UP<7EW> 07.380 (B)	8-94128-363-3	01	1	1012-	●

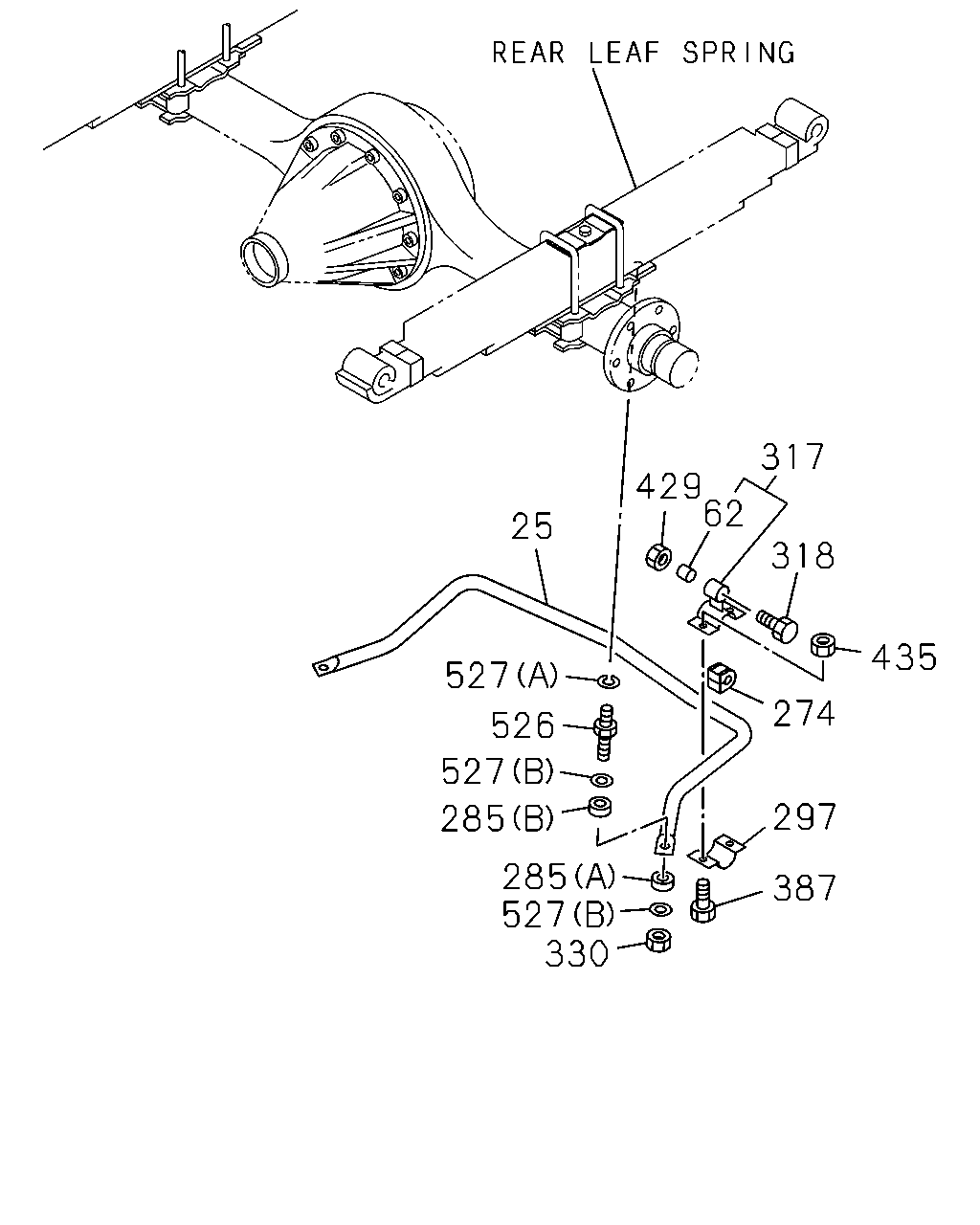

297 387 435 274 318 317 62 429 25 527 526 527 285 285 527 330

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
25	07.241 BAR ASM; STAB,RR SUSP STABILIZER REAR<GN1> REAR WIDE TREAD(V4T)	8-97043-370-1	01	1	1506-	●
62	07.243 BUSHING; LINK ROD STABILIZER REAR<GN1>	8-97239-911-0	02	1	1506-	●
274	07.243 BUSHING; RR STAB BAR TO LINK STABILIZER REAR<GN1>	8-94433-867-0	02	1	1506-	●
285	07.243 BUSHING; STAB BAR TO RR AXLE STABILIZER REAR<GN1> (A) L=18	8-97089-556-0	02	1	1506-	●
285	07.243 BUSHING; STAB BAR TO RR AXLE STABILIZER REAR<GN1> (B) L=29	8-97089-557-0	02	1	1506-	●
297	07.242 CAP; STAB BAR STABILIZER REAR<GN1>	8-94178-430-2	02	1	1506-	●
317	07.240 ROD LINK ASM; STABILIZER,RR STABILIZER REAR<GN1>	8-97239-907-0	02	1	1506-	●
318	07.242 BOLT; LINK ROD STABILIZER REAR<GN1> M14X70 FLANGE	0-28851-470-0	02	1	1506-	●
330	07.242 NUT; STAB STABILIZER REAR<GN1> M12 LOCK NUT	0-91370-012-0	02	1	1506-	●
387	07.242 BOLT; CAP FIX,STAB BAR STABILIZER REAR<GN1> 00.029 M10X25 FLANGE	0-28651-025-0	04	1	1506-	●
429	07.242 NUT; LINK STABILIZER REAR<GN1> 06.174 M14 FLANGE	8-97360-124-0	02	1	1506-	●
435	07.242 NUT; CAP STABILIZER REAR<GN1> 03.162 M10 FLANGE	0-91180-110-0	04	1	1506-	●
526	07.535 STUD; STABILIZER STABILIZER REAR<GN1> 07.242	8-97360-120-0	02	1	1506-	●
527	07.242 WASHER; STABILIZER STABILIZER REAR<GN1> 05.605 (A) ID=14.2	0-91510-514-0	02	1	1506-	●
527	07.242 WASHER; STABILIZER STABILIZER REAR<GN1> (B) ID=12.5	8-97360-055-0	04	1	1506-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
