7-43 — SUN VISOR AND ASSIST GRIP (#7912) — 175 parça

24 26 24 14 24 33 24 26 121 14 33 34 121 23 23 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
14	SCREW; BRKT M6X24 W/LK&PL WASHER	8-94279-404-0	02	1	9905-0301	●
14	SCREW; BRKT LOW ROOF<6XQ> M6X24 W/LK&PL WASHER	8-94279-404-0	02	1	9905-0301		●
14	SCREW; BRKT M6X24 W/LK&PL WASHER	8-94279-404-0	02	1	0302-	●		●
14	SCREW; BRKT LOW ROOF<6XQ> M6X24 W/LK&PL WASHER	8-94279-404-0	02	1	0302-		●
23	SUN VISOR	1-73138-156-1	01	1	9911-0301	●
23	SUN VISOR SUN VISOR PASS<D20>	1-73138-156-1	01	1	9911-0301		●
23	SUN VISOR	1-73138-156-1	01	1	0302-	●		●
23	SUN VISOR SUN VISOR PASS<D20>	1-73138-156-1	01	1	0302-		●
23	SUN VISOR	1-73138-157-1	01	1	9905-0301	●	●
23	SUN VISOR	1-73138-157-1	01	1	0302-	●	●	●
24	BRACKET; SUN VISOR (B)	1-73138-145-0	02	1	9905-0301	●
24	BRACKET; SUN VISOR LOW ROOF<6XQ> (B)	1-73138-145-0	02	1	9905-0301		●
24	BRACKET; SUN VISOR (B)	1-73138-145-0	02	1	0302-	●		●
24	BRACKET; SUN VISOR LOW ROOF<6XQ> (B)	1-73138-145-0	02	1	0302-		●
24	BRACKET; SUN VISOR (A)	1-73138-144-1	01	1	9905-0301	●
24	BRACKET; SUN VISOR LOW ROOF<6XQ> (A)	1-73138-144-1	01	1	9905-0301		●
24	BRACKET; SUN VISOR (A)	1-73138-144-1	01	1	0302-	●		●
24	BRACKET; SUN VISOR LOW ROOF<6XQ> (A)	1-73138-144-1	01	1	0302-		●
24	BRACKET; SUN VISOR (A)	1-73138-143-1	01	1	9905-0301	●
24	BRACKET; SUN VISOR LOW ROOF<6XQ> (A)	1-73138-143-1	01	1	9905-0301		●
24	BRACKET; SUN VISOR (A)	1-73138-143-1	01	1	0302-	●		●
24	BRACKET; SUN VISOR LOW ROOF<6XQ> (A)	1-73138-143-1	01	1	0302-		●
26	HOLDER; SUN VISOR	1-73137-175-0	02	1	9905-0301	●	●
26	HOLDER; SUN VISOR	1-73137-175-0	02	1	0302-	●	●	●
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70580-420-0	02	1	0102-0301	●
33	SCREW; HOLDER,SUN VISOR LOW ROOF<6XQ> M4X20 TAPPING OVAL-HEAD	0-70580-420-0	02	1	0102-0301		●
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70580-420-0	02	1	0302-0603	●		●
33	SCREW; HOLDER,SUN VISOR LOW ROOF<6XQ> M4X20 TAPPING OVAL-HEAD	0-70580-420-0	02	1	0302-0603		●
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70540-420-0	02	1	0604-	●		●
33	SCREW; HOLDER,SUN VISOR LOW ROOF<6XQ> M4X20 TAPPING OVAL-HEAD	0-70540-420-0	02	1	0604-		●
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	9905-0101	●	●
33	SCREW; HOLDER,SUN VISOR HIGH ROOF<S2F> M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	0102-0603		●
33	SCREW; HOLDER,SUN VISOR HIGH ROOF<S2F> M4X16 TAPPING OVAL-HEAD	0-70540-416-0	02	1	0604-		●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	02	1	9905-9910	●	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	02	1	9911-0301	●	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	02	1	9911-0301	●
34	SCREW; SUN VISOR SUN VISOR PASS<D20> M6X25	1-09981-441-0	02	1	9911-0301		●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	02	1	0302-	●	●	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	02	1	0302-	●		●
34	SCREW; SUN VISOR SUN VISOR PASS<D20> M6X25	1-09981-441-0	02	1	0302-		●
121	SCREW; BRKT,SUN VISOR M6X24 W/LK&PL WASHER	8-94279-404-0	02	1	9905-0301	●
121	SCREW; BRKT,SUN VISOR LOW ROOF<6XQ> M6X24 W/LK&PL WASHER	8-94279-404-0	02	1	9905-0301		●
121	SCREW; BRKT,SUN VISOR M6X24 W/LK&PL WASHER	8-94279-404-0	02	1	0302-	●		●
121	SCREW; BRKT,SUN VISOR LOW ROOF<6XQ> M6X24 W/LK&PL WASHER	8-94279-404-0	02	1	0302-		●

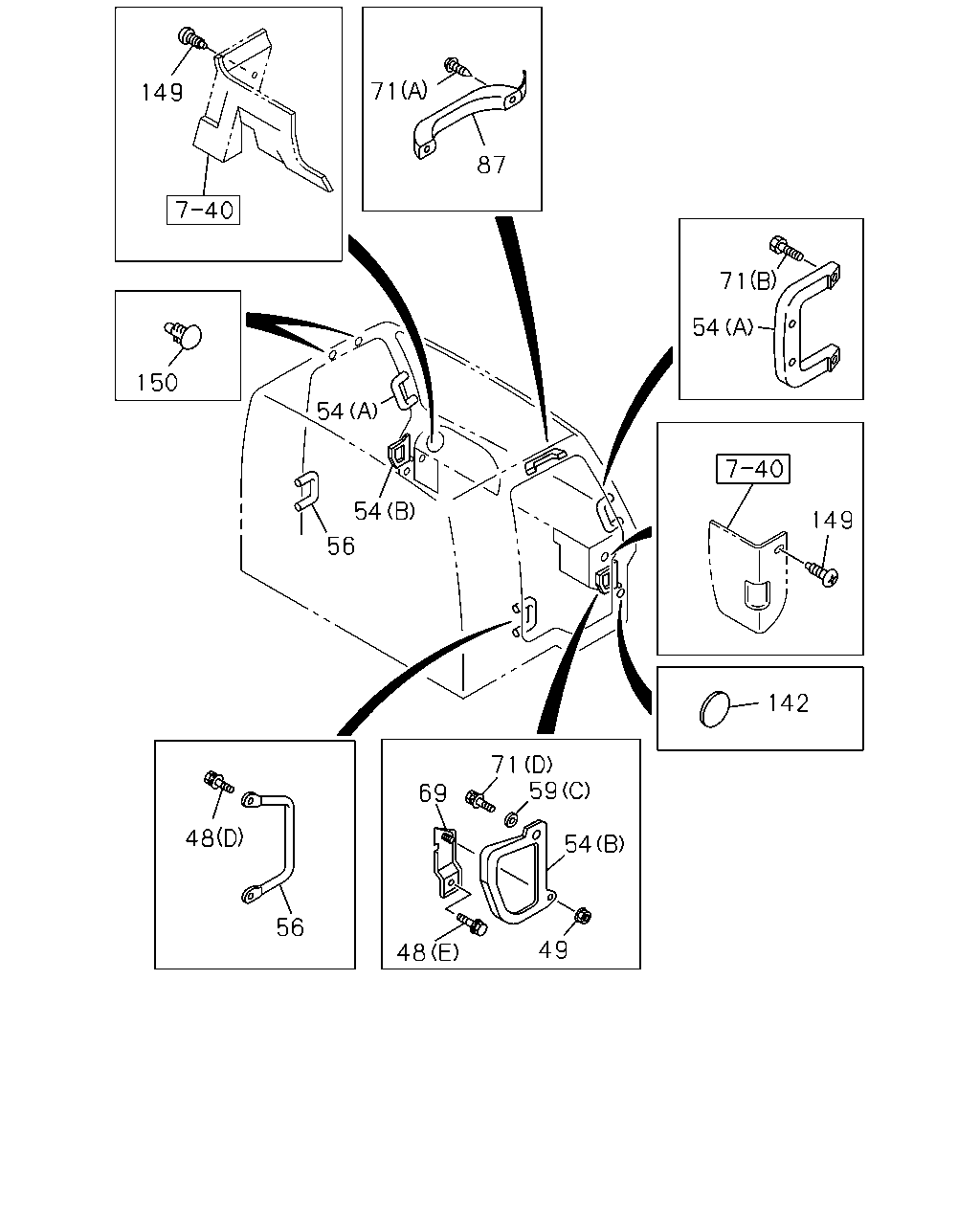

71 149 87 71 54 150 54 54 149 56 142 71 59 69 48 54 56 49 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	9905-0301	●	●
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	0302-0411	●	●	●
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	0412-	●	●	●
48	BOLT; ASSIST GRIP (C) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	9905-0301	●	●
48	BOLT; ASSIST GRIP (C) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0302-	●	●	●
48	BOLT; ASSIST GRIP (D) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	9905-0301		●
48	BOLT; ASSIST GRIP (D) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0302-		●	●
48	BOLT; ASSIST GRIP (E) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9905-0301		●
48	BOLT; ASSIST GRIP (E) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0302-		●	●
48	BOLT; ASSIST GRIP HIGH ROOF<S2F> (A) M6X33.5 W/LK&PL WASHER	1-09980-613-1	02	1	9905-		●
49	NUT; ASSIST GRIP M6 FLANGE	0-91150-106-0	02	1	9905-0301		●
49	NUT; ASSIST GRIP M6 FLANGE	0-91150-106-0	02	1	0302-0602		●	●
49	NUT; ASSIST GRIP M6 FLANGE	0-91180-106-0	02	1	0603-		●	●
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73618-158-2	02	1	9905-0211	●	●
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73618-185-1	02	1	0212-0301	●	●
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73618-185-1	02	1	0302-	●	●	●
54	GRIP; ASSIST,QUARTER SIDE (B)	1-73617-564-1	01	1	9905-0301		●
54	GRIP; ASSIST,QUARTER SIDE (B)	1-73617-564-1	01	1	0302-		●	●
54	GRIP; ASSIST,QUARTER SIDE (B)	1-73617-563-1	01	1	9905-0301		●
54	GRIP; ASSIST,QUARTER SIDE (B)	1-73617-563-1	01	1	0302-		●	●
56	GRIP; ASSIST,SIDE SILL	1-73617-062-5	02	1	9905-0301		●
56	GRIP; ASSIST,SIDE SILL	1-73617-062-5	02	1	0302-0402		●	●
56	GRIP; ASSIST,SIDE SILL	1-73617-570-0	02	1	0403-		●	●
59	COVER; ASSIST GRIP (A)	1-71998-789-2	02	1	9905-0301	●	●
59	COVER; ASSIST GRIP (A)	1-71998-789-2	02	1	0302-	●	●	●
59	COVER; ASSIST GRIP (B)	1-71998-790-2	02	1	9905-0301	●	●
59	COVER; ASSIST GRIP (B)	1-71998-790-2	02	1	0302-	●	●	●
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	9905-0301		●
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0302-		●	●
69	BRACKET; ASSIST GRIP	1-73618-178-2	01	1	9905-0301		●
69	BRACKET; ASSIST GRIP	1-73618-178-2	01	1	0302-		●	●
69	BRACKET; ASSIST GRIP	1-73618-181-1	01	1	9905-0301		●
69	BRACKET; ASSIST GRIP	1-73618-181-1	01	1	0302-		●	●
71	SCREW (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	9905-0301	●	●
71	SCREW (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	0302-0310	●	●	●
71	SCREW (A) M6X30 W/LK WASHER	5-09981-064-0	02	1	0311-	●	●	●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-509-0	04	1	9905-0211	●	●
71	SCREW (B) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0212-0301	●	●
71	SCREW (B) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0302-	●	●	●
71	SCREW (D) M6X20 W/LK&PL WASHER	1-09981-073-0	02	1	9905-0301		●
71	SCREW (D) M6X20 W/LK&PL WASHER	1-09981-073-0	02	1	0302-		●	●
71	SCREW HIGH ROOF<S2F> (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	9905-		●
87	GRIP; ASSIST,CANT RAIL SIDE DARK GRAY	8-97098-476-2	01	1	9905-0301	●	●
87	GRIP; ASSIST,CANT RAIL SIDE DARK GRAY	8-97098-476-2	01	1	0302-	●	●	●
142	SEAL; ASSIST GRIP OD=25 BLACK	1-76798-019-0	02	1	9905-	●	●
142	SEAL; ASSIST GRIP OD=25 BLACK	1-76798-019-0	02	1	9905-	●
149	SCREW; ASSIST GRIP HOLE M6X16	8-94479-534-0	02	1	9905-0302	●
149	SCREW; ASSIST GRIP HOLE M6X12	8-97094-854-0	02	1	0303-	●
150	CLIP; ASSIST GRIP HOLE OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	9905-0301	●	●
150	CLIP; ASSIST GRIP HOLE OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0302-	●	●	●

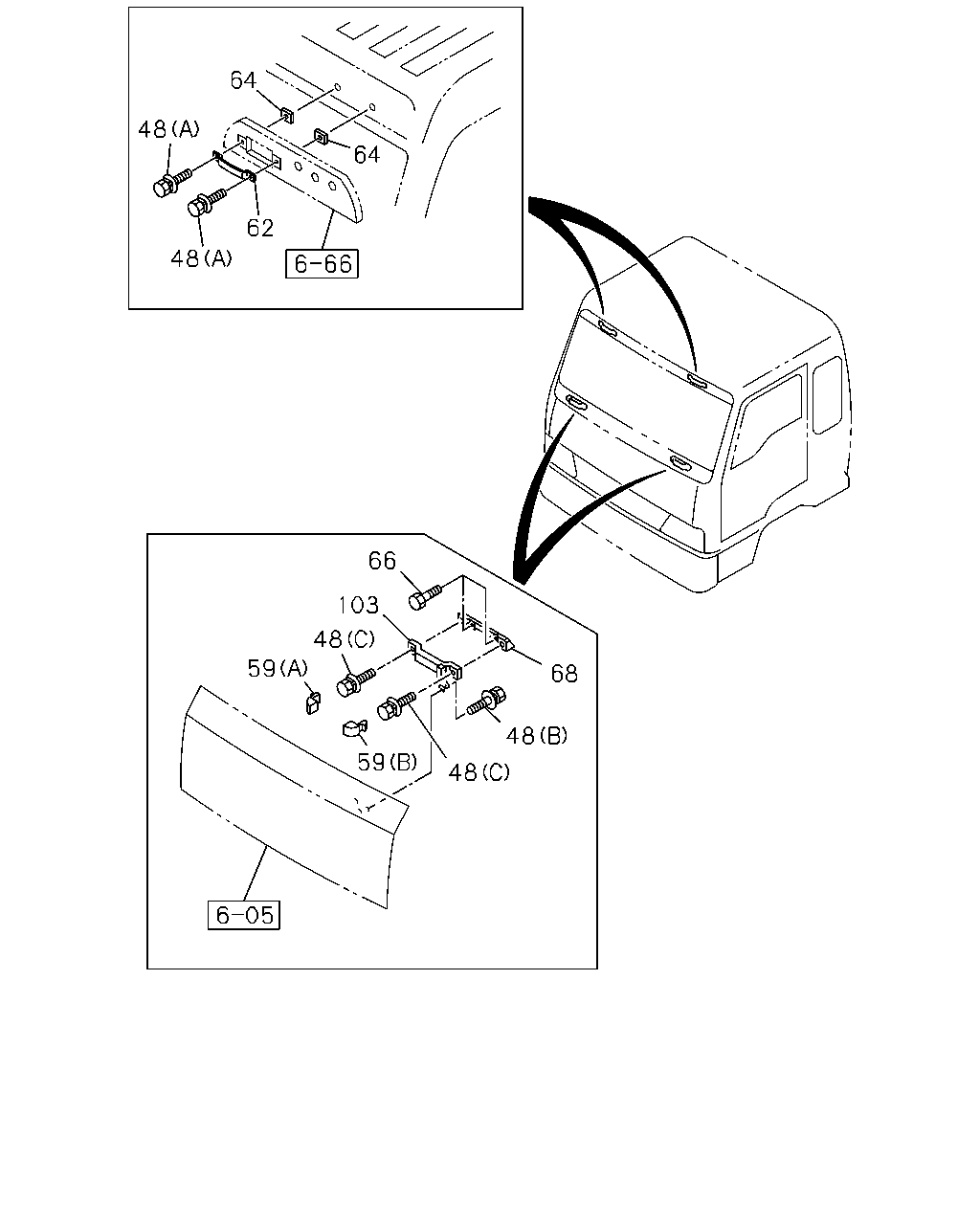

64 48 64 62 48 66 103 48 59 68 48 59 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	9905-0301	●	●
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	0302-0411	●	●	●
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	0412-	●	●	●
48	BOLT; ASSIST GRIP (C) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	9905-0301	●	●
48	BOLT; ASSIST GRIP (C) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0302-	●	●	●
48	BOLT; ASSIST GRIP (D) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	9905-0301		●
48	BOLT; ASSIST GRIP (D) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0302-		●	●
48	BOLT; ASSIST GRIP (E) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9905-0301		●
48	BOLT; ASSIST GRIP (E) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0302-		●	●
48	BOLT; ASSIST GRIP HIGH ROOF<S2F> (A) M6X33.5 W/LK&PL WASHER	1-09980-613-1	02	1	9905-		●
59	COVER; ASSIST GRIP (A)	1-71998-789-2	02	1	9905-0301	●	●
59	COVER; ASSIST GRIP (A)	1-71998-789-2	02	1	0302-	●	●	●
59	COVER; ASSIST GRIP (B)	1-71998-790-2	02	1	9905-0301	●	●
59	COVER; ASSIST GRIP (B)	1-71998-790-2	02	1	0302-	●	●	●
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	9905-0301		●
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0302-		●	●
62	GRIP; ASSIST,ROOF PANEL HIGH ROOF<S2F>	1-71907-492-0	01	1	9905-		●
64	SHEET; ASSIST GRIP HIGH ROOF<S2F> 25X25	8-94272-533-0	04	1	9905-		●
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	9905-0301	●	●
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	0302-	●	●	●
68	BRACKET; ASSIST GRIP,FRT PANEL	1-65580-203-0	02	1	9905-0301	●	●
68	BRACKET; ASSIST GRIP,FRT PANEL	1-65580-203-0	02	1	0302-	●	●	●
103	GRIP; ASSIST,FRT PNL	1-71998-792-2	01	1	9905-0301	●	●
103	GRIP; ASSIST,FRT PNL	1-71998-792-2	01	1	0302-	●	●	●
103	GRIP; ASSIST,FRT PNL	1-71998-791-2	01	1	9905-0301	●	●
103	GRIP; ASSIST,FRT PNL	1-71998-791-2	01	1	0302-	●	●	●

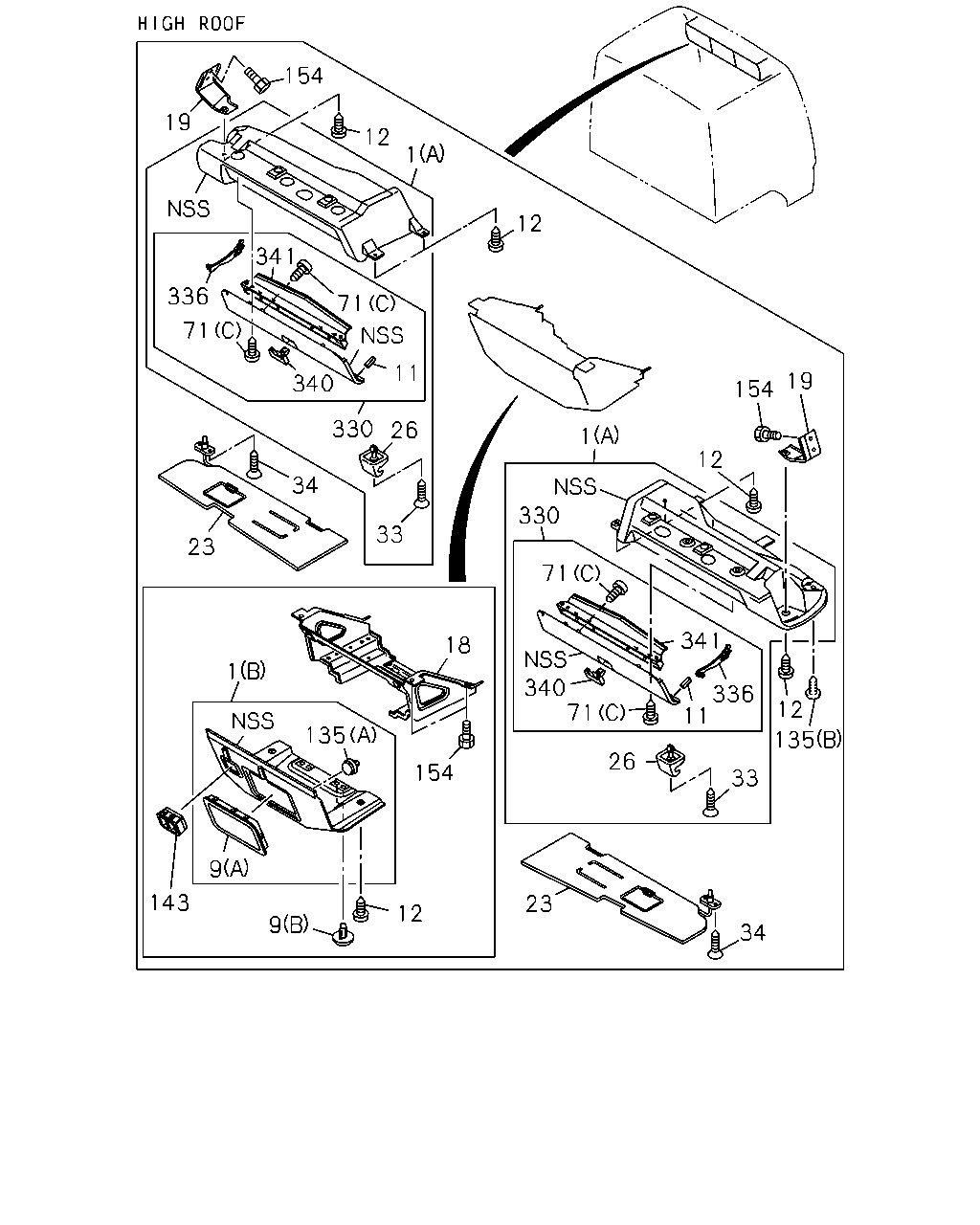

154 19 12 1 12 341 336 71 71 11 19 340 154 330 26 1 12 34 330 33 23 71 341 18 340 71 1 336 11 12 135 135 26 154 33 9 143 23 12 9 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (B)	1-72448-702-0	01	1	9905-		●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (A)	1-72448-665-0	01	1	9905-0003		●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (A)	1-73318-691-0	01	1	0004-		●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (A)	1-72448-664-0	01	1	9905-0003		●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (A)	1-73318-690-0	01	1	0004-		●
9	COVER; HOLE,HEADER SHELF CENTER HIGH ROOF<S2F> (A)	1-72448-547-2	01	1	9905-		●
9	COVER; HOLE,HEADER SHELF CENTER HIGH ROOF<S2F> (B) OD=6 L=17 DARK GRAY	1-73996-128-1	02	1	9905-9908		●
9	COVER; HOLE,HEADER SHELF CENTER HIGH ROOF<S2F> (B) OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	9909-		●
11	CAP; HEADER SHELF HIGH ROOF<S2F>	8-94270-538-0	04	1	9905-		●
12	SCREW; HEADER SHELF HIGH ROOF<S2F> M6X24 W/LK&PL WASHER	8-94279-404-0	12	1	9905-		●
18	SUPPORT; HEADER SHELF CENTER HIGH ROOF<S2F>	1-72448-636-1	01	1	9905-		●
19	SUPPORT ASM; HEADER SHELF HIGH ROOF<S2F>	1-72448-324-1	01	1	9905-		●
19	SUPPORT ASM; HEADER SHELF HIGH ROOF<S2F>	1-72448-323-1	01	1	9905-		●
23	SUN VISOR	1-73138-156-1	01	1	9911-0301	●
23	SUN VISOR SUN VISOR PASS<D20>	1-73138-156-1	01	1	9911-0301		●
23	SUN VISOR	1-73138-156-1	01	1	0302-	●		●
23	SUN VISOR SUN VISOR PASS<D20>	1-73138-156-1	01	1	0302-		●
23	SUN VISOR	1-73138-157-1	01	1	9905-0301	●	●
23	SUN VISOR	1-73138-157-1	01	1	0302-	●	●	●
26	HOLDER; SUN VISOR	1-73137-175-0	02	1	9905-0301	●	●
26	HOLDER; SUN VISOR	1-73137-175-0	02	1	0302-	●	●	●
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70580-420-0	02	1	0102-0301	●
33	SCREW; HOLDER,SUN VISOR LOW ROOF<6XQ> M4X20 TAPPING OVAL-HEAD	0-70580-420-0	02	1	0102-0301		●
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70580-420-0	02	1	0302-0603	●		●
33	SCREW; HOLDER,SUN VISOR LOW ROOF<6XQ> M4X20 TAPPING OVAL-HEAD	0-70580-420-0	02	1	0302-0603		●
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70540-420-0	02	1	0604-	●		●
33	SCREW; HOLDER,SUN VISOR LOW ROOF<6XQ> M4X20 TAPPING OVAL-HEAD	0-70540-420-0	02	1	0604-		●
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	9905-0101	●	●
33	SCREW; HOLDER,SUN VISOR HIGH ROOF<S2F> M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	0102-0603		●
33	SCREW; HOLDER,SUN VISOR HIGH ROOF<S2F> M4X16 TAPPING OVAL-HEAD	0-70540-416-0	02	1	0604-		●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	02	1	9905-9910	●	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	02	1	9911-0301	●	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	02	1	9911-0301	●
34	SCREW; SUN VISOR SUN VISOR PASS<D20> M6X25	1-09981-441-0	02	1	9911-0301		●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	02	1	0302-	●	●	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	02	1	0302-	●		●
34	SCREW; SUN VISOR SUN VISOR PASS<D20> M6X25	1-09981-441-0	02	1	0302-		●
71	SCREW (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	9905-0301	●	●
71	SCREW (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	0302-0310	●	●	●
71	SCREW (A) M6X30 W/LK WASHER	5-09981-064-0	02	1	0311-	●	●	●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-509-0	04	1	9905-0211	●	●
71	SCREW (B) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0212-0301	●	●
71	SCREW (B) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0302-	●	●	●
71	SCREW (D) M6X20 W/LK&PL WASHER	1-09981-073-0	02	1	9905-0301		●
71	SCREW (D) M6X20 W/LK&PL WASHER	1-09981-073-0	02	1	0302-		●	●
71	SCREW HIGH ROOF<S2F> (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	9905-		●
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (B) D6X23 DARK GRAY	1-09987-238-0	02	1	9905-0209		●
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (B) D6X23 BLACK	1-09987-114-0	02	1	0210-		●
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (A) OD=7.9 BLACK	8-94279-974-1	03	1	9905-		●
143	BEZEL HIGH ROOF<S2F>	1-72448-532-0	01	1	9905-		●
154	BOLT; SUPPORT HIGH ROOF<S2F> M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	9905-		●
330	LID; HEADER SHELF HIGH ROOF<S2F>	1-72448-679-0	02	1	9905-		●
336	STAY; LID HIGH ROOF<S2F>	1-72448-379-3	04	1	9905-		●
340	LOCK; HEADER SHELF HIGH ROOF<S2F>	1-72448-376-0	02	1	9905-		●
341	HINGE; LID,HEADER SHELF HIGH ROOF<S2F>	1-72448-403-1	02	1	9905-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
