◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51282 - NLR/NMR 55,85(LHD) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-33 - STEERING LINKAGE ▶
4-33 — STEERING LINKAGE (#79116) — 41 parça

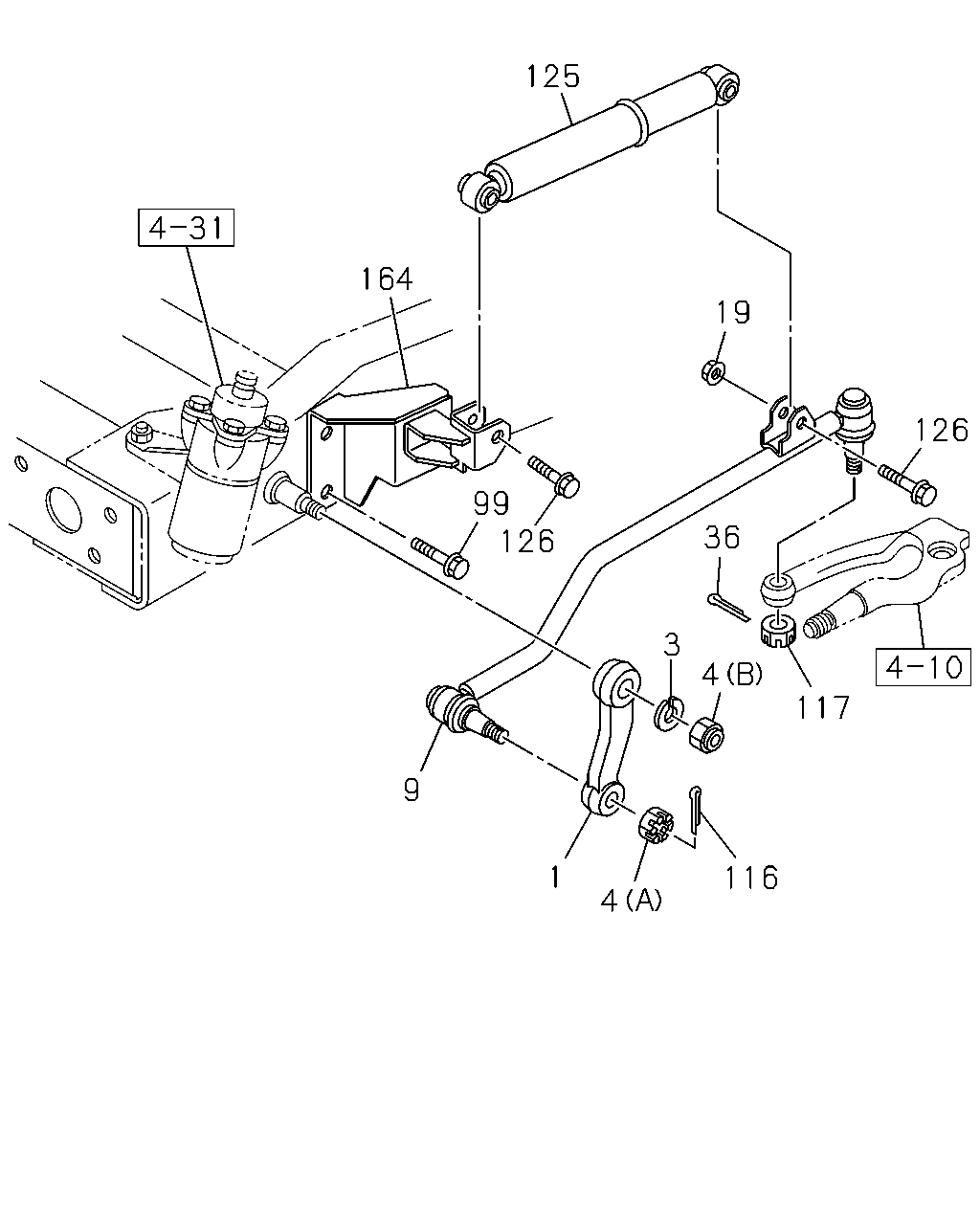

çizim 123877
125 164 19 126 99 126 36 3 4 117 9 1 116 4
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 06.859 ARM; PITMAN,STRG
G.V.W. 3.0-3.5TON(RPP) EXC. COLOMBIA EQUIPMENT(CB7) 		8-98177-880-0 01 1 1012-1012 ●
1 06.859 ARM; PITMAN,STRG
G.V.W. 3.0-3.5TON(RPP) COLOMBIA EQUIPMENT(CB7) 		8-97109-289-1 01 1 1012-1012 ●
1 06.859 ARM; PITMAN,STRG
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) 		8-97109-289-1 01 1 1012-1012 ●
1 06.859 ARM; PITMAN,STRG 8-97109-289-1 01 1 1012-1012 ● ● ●
1 06.859 ARM; PITMAN,STRG 8-97109-289-1 01 1 1012- ● ● ● ●
3 06.861 WASHER; LK,PITMAN ARM
ID=22.5 		0-91510-622-0 01 1 1012- ● ● ● ●
4 06.861 NUT; PITMAN ARM
G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) 06.174 (A) M18 SLOTTED 		8-97245-632-0 01 1 1012-1012 ●
4 06.861 NUT; PITMAN ARM
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) 06.174 (A) M18 SLOTTED 		8-97245-632-0 01 1 1012-1012 ●
4 06.861 NUT; PITMAN ARM
06.174 (A) M18 SLOTTED 		8-97245-632-0 01 1 1012-1012 ● ●
4 06.861 NUT; PITMAN ARM
06.174 (A) M18 SLOTTED 		8-97245-632-0 01 1 1012- ● ● ● ●
4 06.861 NUT; PITMAN ARM
(B) M22 		0-91111-522-0 01 1 1012- ● ● ● ●
9 06.870 LINK; DRAG
G.V.W. 3.0-3.5TON(RPP) COLOMBIA EQUIPMENT(CB7) 		8-98022-072-0 01 1 1012-1012 ●
9 06.870 LINK; DRAG
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) 		8-98022-072-0 01 1 1012-1012 ●
9 06.870 LINK; DRAG 8-98022-072-0 01 1 1012-1012 ● ● ●
9 06.870 LINK; DRAG 8-98022-072-1 01 1 1012- ● ● ● ●
9 06.870 LINK; DRAG
G.V.W. 3.0-3.5TON(RPP) EXC. COLOMBIA EQUIPMENT(CB7) 		8-98170-605-0 01 1 1012-1012 ●
19 06.865 NUT; PITMAN ARM,STOPPER
G.V.W. 3.0-3.5TON(RPP) COLOMBIA EQUIPMENT(CB7) 04.085 M10 FLANGE 		0-91180-210-0 01 1 1012-1012 ●
19 06.865 NUT; PITMAN ARM,STOPPER
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) 04.085 M10 FLANGE 		0-91180-210-0 01 1 1012-1012 ●
19 06.865 NUT; PITMAN ARM,STOPPER
04.085 M10 FLANGE 		0-91180-210-0 01 1 1012-1012 ● ● ●
19 06.865 NUT; PITMAN ARM,STOPPER
04.085 M10 FLANGE 		0-91180-210-0 01 1 1012-1203 ● ● ● ●
19 06.865 NUT; PITMAN ARM,STOPPER
03.162 M10 FLANGE 		0-91180-110-0 01 1 1204- ● ● ● ●
36 06.881 PIN; SPLIT,DRAG LINK
L=19 		8-98098-024-0 01 1 1012- ● ● ● ●
99 06.896 BOLT; BRKT
G.V.W. 3.0-3.5TON(RPP) COLOMBIA EQUIPMENT(CB7) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1012-1012 ●
99 06.896 BOLT; BRKT
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1012-1012 ●
99 06.896 BOLT; BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1012-1012 ● ● ●
99 06.896 BOLT; BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1012- ● ● ● ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) 06.881 L=19 		8-97349-766-0 01 1 1012-1012 ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) 06.881 L=19 		8-97349-766-0 01 1 1012-1012 ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
06.881 L=19 		8-97349-766-0 01 1 1012-1012 ● ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
06.881 L=19 		8-97349-766-0 01 1 1012- ● ● ● ●
117 06.233 NUT; DRAG LINK
06.174 M18 SLOTTED 		8-97245-632-0 01 1 1012- ● ● ● ●
125 06.865 DAMPER; STEERING
G.V.W. 3.0-3.5TON(RPP) COLOMBIA EQUIPMENT(CB7) 		8-98046-741-2 01 1 1012-1012 ●
125 06.865 DAMPER; STEERING
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) 		8-98046-741-2 01 1 1012-1012 ●
125 06.865 DAMPER; STEERING 8-98046-741-2 01 1 1012-1012 ● ● ●
125 06.865 DAMPER; STEERING 8-98046-741-2 01 1 1012- ● ● ● ●
126 06.865 BOLT; STRG DAMPER TO RELAY LEVER
00.685 M10X45 FLANGE 		0-28051-045-0 02 1 1012-1012 ● ● ● ●
126 06.865 BOLT; STRG DAMPER TO RELAY LEVER
00.685 M10X45 FLANGE 		0-28051-045-0 02 1 1012- ● ● ● ●
164 06.896 BRACKET; STEERING DAMPER
G.V.W. 3.0-3.5TON(RPP) COLOMBIA EQUIPMENT(CB7) 		8-98072-797-0 01 1 1012-1012 ●
164 06.896 BRACKET; STEERING DAMPER
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) 		8-98072-797-0 01 1 1012-1012 ●
164 06.896 BRACKET; STEERING DAMPER 8-98072-797-0 01 1 1012-1012 ● ● ●
164 06.896 BRACKET; STEERING DAMPER 8-98072-797-0 01 1 1012- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
