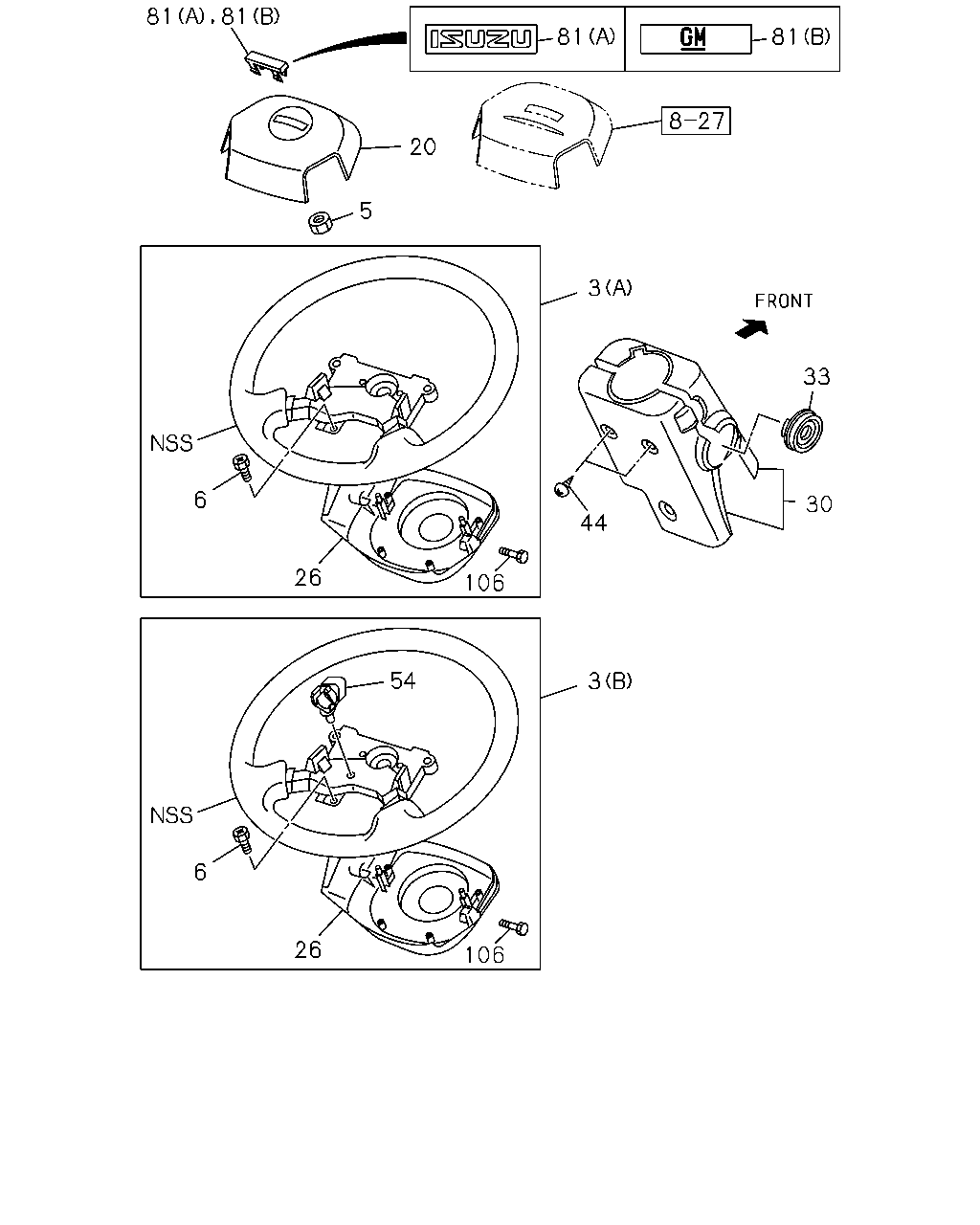

4-30 — STEERING WHEEL AND COWL (#79114) — 47 parça

81 81 5 20 81 81 3 33 30 44 3 106 26 6 54 106 26 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
3	06.513 WHEEL; STRG AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY	8-97421-977-0	01	1	1012-1210	●
3	06.513 WHEEL; STRG AIR BAG DRIVER<AJ3> (A) DARK GRAY	8-97421-977-0	01	1	1012-1210		●
3	06.513 WHEEL; STRG AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) DARK GRAY	8-97423-997-0	01	1	1211-1406	●
3	06.513 WHEEL; STRG AIR BAG DRIVER<AJ3> (B) DARK GRAY	8-97423-997-0	01	1	1211-1406		●
3	06.513 WHEEL; STRG AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) DARK GRAY	8-97423-997-0	01	1	1407-	●	●
3	06.513 WHEEL; STRG EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (A) DARK GRAY	8-97412-556-1	01	1	1012-1406	●
3	06.513 WHEEL; STRG EXC. AIR BAG DRIVER<AJ3> (A) DARK GRAY	8-97412-556-1	01	1	1012-1406		●
3	06.513 WHEEL; STRG (A) DARK GRAY	8-97412-556-1	01	1	1012-1406			●	●
3	06.513 WHEEL; STRG EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (A) DARK GRAY	8-97412-556-1	01	1	1407-	●	●
3	06.513 WHEEL; STRG (A) DARK GRAY	8-97412-556-1	01	1	1407-			●	●
5	06.515 NUT; STRG WHEEL TO SHAFT M14	0-91111-514-0	01	1	1012-	●	●	●	●
6	02.820 SCREW; HORN SPR CONTACT M4X12	8-97167-588-0	04	1	1012-	●	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> DARK GRAY	8-97405-985-1	01	1	1012-1306	●
20	06.512 SHROUD; PAD,STRG WHEEL EXC. AIR BAG DRIVER<AJ3> DARK GRAY	8-97405-985-1	01	1	1012-1306		●
20	06.512 SHROUD; PAD,STRG WHEEL DARK GRAY	8-97405-985-1	01	1	1012-1306			●	●
20	06.512 SHROUD; PAD,STRG WHEEL CHEVROLET BRAND<RWE>,GM BRAND<X61>, ISUZU BRAND<7WL> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> DARK GRAY	8-97405-985-1	01	1	1307-1406	●
20	06.512 SHROUD; PAD,STRG WHEEL CHEVROLET BRAND<RWE>,GM BRAND<X61>, ISUZU BRAND<7WL> EXC. AIR BAG DRIVER<AJ3> DARK GRAY	8-97405-985-1	01	1	1307-1406		●
20	06.512 SHROUD; PAD,STRG WHEEL CHEVROLET BRAND<RWE>,GM BRAND<X61>, ISUZU BRAND<7WL> DARK GRAY	8-97405-985-1	01	1	1307-1406			●	●
20	06.512 SHROUD; PAD,STRG WHEEL CHEVROLET BRAND<RWE>,GM BRAND<X61>, ISUZU BRAND<7WL> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> DARK GRAY	8-97405-985-1	01	1	1407-	●	●
20	06.512 SHROUD; PAD,STRG WHEEL CHEVROLET BRAND<RWE>,GM BRAND<X61>, ISUZU BRAND<7WL> DARK GRAY	8-97405-985-1	01	1	1407-			●	●
26	06.514 COVER; STRG WHEEL,LWR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY	8-97421-978-0	01	1	1012-1406	●
26	06.514 COVER; STRG WHEEL,LWR AIR BAG DRIVER<AJ3> DARK GRAY	8-97421-978-0	01	1	1012-1406		●
26	06.514 COVER; STRG WHEEL,LWR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY	8-97421-978-0	01	1	1407-	●	●
26	06.514 COVER; STRG WHEEL,LWR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> DARK GRAY	8-97409-275-2	01	1	1012-1406	●
26	06.514 COVER; STRG WHEEL,LWR EXC. AIR BAG DRIVER<AJ3> DARK GRAY	8-97409-275-2	01	1	1012-1406		●
26	06.514 COVER; STRG WHEEL,LWR DARK GRAY	8-97409-275-2	01	1	1012-1406			●	●
26	06.514 COVER; STRG WHEEL,LWR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> DARK GRAY	8-97409-275-2	01	1	1407-	●	●
26	06.514 COVER; STRG WHEEL,LWR DARK GRAY	8-97409-275-2	01	1	1407-			●	●
30	06.518 COWL; STEERING DARK GRAY	8-97405-356-5	01	1	1012-1110	●	●	●	●
30	06.518 COWL; STEERING DARK GRAY	8-97418-761-1	01	1	1111-	●	●	●	●
33	06.518 COVER; STRG COWL EXC. IMMOBILIZER SYSTEM(7KC) DARK GRAY	8-97409-495-0	01	1	1012-	●
33	06.518 COVER; STRG COWL DARK GRAY	8-97409-495-0	01	1	1012-		●	●	●
44	06.514 SCREW; STRG COWL M5X12	0-38050-512-0	03	1	1012-	●	●	●	●
54	02.559 CLIP; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98165-703-0	01	1	1211-1406	●
54	02.559 CLIP; HARNESS AIR BAG DRIVER<AJ3>	8-98165-703-0	01	1	1211-1406		●
54	02.559 CLIP; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98165-703-0	01	1	1407-	●	●
81	02.820 EMBLEM; STRG WHEEL ISUZU BRAND<7WL> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (A) DARK GRAY	8-97405-986-0	01	1	1012-1406	●
81	02.820 EMBLEM; STRG WHEEL ISUZU BRAND<7WL> EXC. AIR BAG DRIVER<AJ3> (A) DARK GRAY	8-97405-986-0	01	1	1012-1406		●
81	02.820 EMBLEM; STRG WHEEL ISUZU BRAND<7WL> (A) DARK GRAY	8-97405-986-0	01	1	1012-1406			●	●
81	02.820 EMBLEM; STRG WHEEL ISUZU BRAND<7WL> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (A) DARK GRAY	8-97405-986-0	01	1	1407-	●	●
81	02.820 EMBLEM; STRG WHEEL ISUZU BRAND<7WL> (A) DARK GRAY	8-97405-986-0	01	1	1407-			●	●
81	02.820 EMBLEM; STRG WHEEL EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,ISUZU BRAND<7WL> (B) DARK GRAY	8-97405-987-0	01	1	1012-1406	●
81	02.820 EMBLEM; STRG WHEEL EXC. AIR BAG DRIVER<AJ3>,ISUZU BRAND<7WL> (B) DARK GRAY	8-97405-987-0	01	1	1012-1406		●
81	02.820 EMBLEM; STRG WHEEL EXC. ISUZU BRAND<7WL> (B) DARK GRAY	8-97405-987-0	01	1	1012-1406			●	●
81	02.820 EMBLEM; STRG WHEEL EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,ISUZU BRAND<7WL> (B) DARK GRAY	8-97405-987-0	01	1	1407-	●	●
81	02.820 EMBLEM; STRG WHEEL EXC. ISUZU BRAND<7WL> (B) DARK GRAY	8-97405-987-0	01	1	1407-			●	●
106	05.453 BOLT; TORX	8-98231-397-0	02	1	1012-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
