Sayfa 4-25 - Isuzu EPC

4-25 — REAR FINAL DRIVE (#79113) — 314 parça

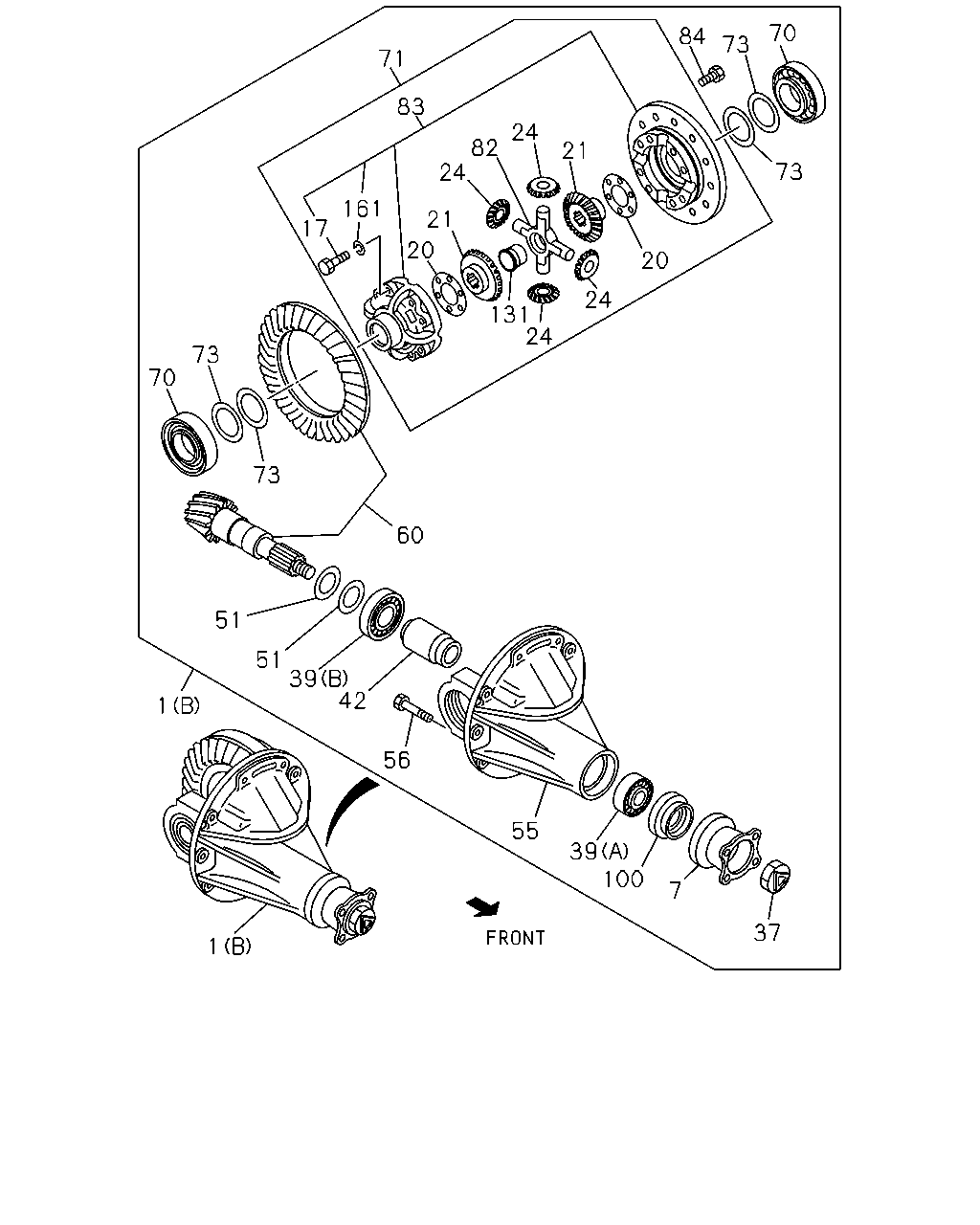

70 84 73 71 83 24 82 24 21 73 161 21 17 20 20 24 131 24 73 70 73 60 51 51 39 42 1 56 55 39 100 7 37 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/10(GT5) EXC. SINGLE RR TIRE(6TD) (A) 41/10	8-98015-135-0	01	1	1012-	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/9(HC6) (A) 41/9	8-98015-137-0	01	1	1012-	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1) (A) 41/8	8-98015-139-0	01	1	1012-	●	●	●
1	05.505 DRIVE ASM; FINAL,RR (A) 41/8	8-98015-139-0	01	1	1012-				●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/9(S2J) (A) 43/9	8-98015-138-0	01	1	1012-1408	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/9(S2J) (A) 43/9	8-98015-138-0	01	1	1409-	●	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) (A) 39/7	8-98015-145-0	01	1	1012-1308	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) (A) 41/7	8-98015-146-0	01	1	1012-	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 43/11(GNA) SMALL DOUBLE RR TIRE(6YE) (B) 43/11	8-97035-400-0	01	1	1012-	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/7(GV1) (B) 39/7	8-97367-501-0	01	1	1012-	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 41/8(RU1) (B) 41/8	8-97080-668-0	01	1	1012-	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/8(RV9) G.V.W. 3.0-3.5TON(RPP) SINGLE RR TIRE(6TD) EXC. COLOMBIA EQUIPMENT(CB7) (B) 39/8	8-97367-500-0	01	1	1012-1012	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/8(RV9) (B) 39/8	8-97367-499-0	01	1	1012-	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7(GV1) (A) 39/7	8-98015-141-0	01	1	1012-		●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/8(R40) (A) 43/8	8-98015-140-0	01	1	1012-		●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/7(R41) (A) 41/7	8-98015-142-0	01	1	1012-		●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/7(R42) G.V.W. 5.5-6.0TON(RPU) (A) 43/7	8-98015-143-0	01	1	1012-		●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/7(R42) G.V.W. 5.0-5.5TON(RPT) (A) 43/7	8-98015-147-0	01	1	1012-		●
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41)	8-94426-787-4	01	1	1012-1308	●
7	05.545 FLANGE; FINAL FINAL GEAR RATIO 43/7(R42) G.V.W. 5.0-5.5TON(RPT)	8-94426-787-4	01	1	1012-1308		●
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41)	8-94426-787-4	01	1	1309-	●
7	05.545 FLANGE; FINAL FINAL GEAR RATIO 43/7(R42) G.V.W. 5.0-5.5TON(RPT)	8-94426-787-4	01	1	1309-		●
7	05.545 FLANGE; FINAL REAR AXLE STANDARD 244MM(R39)	8-97075-216-3	01	1	1012-	●
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J)	8-94477-723-4	01	1	1012-	●
7	05.545 FLANGE; FINAL FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL GEAR RATIO 41/7(R41)	8-94477-723-4	01	1	1012-		●
7	05.545 FLANGE; FINAL FINAL GEAR RATIO 43/7(R42) G.V.W. 5.5-6.0TON(RPU)	8-94477-723-4	01	1	1012-		●
7	05.545 FLANGE; FINAL	8-94477-723-4	01	1	1012-			●	●
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE STANDARD 244MM(R39) 05.650 M12X58	8-97314-497-0	08	1	1012-	●
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) M10X75 FLANGE	8-97232-161-0	12	1	1012-	●
17	05.510 BOLT; DIFF CAGE SETTING M10X75 FLANGE	8-97232-161-0	12	1	1012-		●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE STANDARD 244MM(R39) T=1.00	9-41562-602-0	02	1	1012-	●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) T=1.40	9-41562-601-0	02	1	1012-	●
20	05.543 WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	1012-		●	●	●
21	05.528 GEAR; SIDE,DIFF REAR AXLE STANDARD 244MM(R39) Z=18	8-97226-764-0	02	1	1012-1105	●
21	05.528 GEAR; SIDE,DIFF REAR AXLE STANDARD 244MM(R39) Z=18	8-98190-383-1	02	1	1106-	●
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 292MM(G73) 05.515 Z=20	8-97362-599-1	02	1	1012-	●
21	05.528 GEAR; SIDE,DIFF 05.515 Z=20	8-97362-599-1	02	1	1012-		●	●	●
24	05.526 GEAR; PINION,DIFF REAR AXLE STANDARD 244MM(R39) Z=10	8-97226-762-0	04	1	1012-1105	●
24	05.526 GEAR; PINION,DIFF REAR AXLE STANDARD 244MM(R39) Z=10	8-98186-829-0	04	1	1106-	●
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 292MM(G73) Z=10	8-98015-202-0	04	1	1012-	●
24	05.526 GEAR; PINION,DIFF Z=10	8-98015-202-0	04	1	1012-		●	●	●
37	05.595 NUT; DRIVING PINION REAR AXLE STANDARD 244MM(R39) M24 FLANGE	8-94376-261-1	01	1	1012-	●
37	05.595 NUT; DRIVING PINION REAR AXLE HEAVY DUTY 292MM(G73) M24 FLANGE	8-94329-526-1	01	1	1012-	●
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	1012-		●	●	●
39	05.484 BEARING; FINAL PINION REAR AXLE STANDARD 244MM(R39) (A) NSK	9-00093-078-0	01	1	1012-	●
39	05.484 BEARING; FINAL PINION REAR AXLE STANDARD 244MM(R39) 05.447 (B) JTEKT	9-00093-079-1	01	1	1012-	●
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE STANDARD 244MM(R39) L=53.35	9-41219-634-1	01	1	1012-	●
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 292MM(G73) L=19.6	9-41219-603-1	01	1	1012-	●
42	05.453 COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	1012-		●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) OD=89.5 T=2.12	9-41219-608-0	01	1	1012-	●
51	05.586 SHIM; PINION,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) OD=89.5 T=2.16	9-41219-610-0	01	1	1012-	●
51	05.586 SHIM; PINION,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) OD=89.5 T=2.20	9-41219-612-0	01	1	1012-	●
51	05.586 SHIM; PINION,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) OD=89.5 T=2.24	9-41219-614-0	01	1	1012-	●
51	05.586 SHIM; PINION,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) OD=89.5 T=2.28	9-41219-616-0	01	1	1012-	●
51	05.586 SHIM; PINION,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) OD=89.5 T=2.32	9-41219-618-0	01	1	1012-	●
51	05.586 SHIM; PINION,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) OD=89.5 T=2.36	9-41219-620-0	01	1	1012-	●
51	05.586 SHIM; PINION,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) OD=89.5 T=2.40	9-41219-622-0	01	1	1012-	●
51	05.586 SHIM; PINION,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) OD=89.5 T=2.44	9-41219-624-0	01	1	1012-	●
51	05.586 SHIM; PINION,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) OD=89.5 T=2.48	9-41219-626-0	01	1	1012-	●
51	05.586 SHIM; PINION,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) OD=89.5 T=2.52	9-41219-628-0	01	1	1012-	●
51	05.586 SHIM; PINION,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) OD=89.5 T=2.56	9-41219-630-0	01	1	1012-	●
55	05.505 CARRIER; DIFF REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 43/11(GNA) SMALL DOUBLE RR TIRE(6YE)	8-97078-154-2	01	1	1012-	●
55	05.505 CARRIER; DIFF REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD)	8-94376-227-3	01	1	1012-	●
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 292MM(G73)	8-97307-760-0	01	1	1012-	●
55	05.505 CARRIER; DIFF	8-97307-760-0	01	1	1012-		●	●	●
56	05.506 BOLT; BRG CAP 05.387 M14X80	8-94365-377-3	04	1	1012-	●	●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) 41/7	8-97319-161-0	01	1	1407-	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-97319-161-0	01	1	1407-		●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/10(GT5) EXC. SINGLE RR TIRE(6TD) 41/10	8-97319-153-0	01	1	1012-1311	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/10(GT5) EXC. SINGLE RR TIRE(6TD) 41/10	8-98092-055-0	01	1	1312-	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/9(HC6) 41/9	8-97319-156-0	01	1	1012-1311	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/9(HC6) 41/9	8-98092-049-0	01	1	1312-	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1) 41/8	8-97319-158-0	01	1	1012-	●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 41/8	8-97319-158-0	01	1	1012-				●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/9(S2J) 43/9	8-97319-157-0	01	1	1012-1408	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/9(S2J) 43/9	8-97319-157-0	01	1	1409-	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) 39/7	8-97319-160-0	01	1	1012-1308	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 39/7(GV1) 39/7	8-97319-160-0	01	1	1012-1308		●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 39/7(GV1) 39/7	8-97319-160-0	01	1	1309-		●	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) 41/7	8-97319-161-0	01	1	1012-1201	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-97319-161-0	01	1	1012-1201		●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) 41/7	8-98092-031-1	01	1	1202-	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-98092-031-1	01	1	1202-		●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 43/11(GNA) SMALL DOUBLE RR TIRE(6YE) 43/11	8-97035-428-0	01	1	1012-	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/7(GV1) 39/7	8-97035-433-0	01	1	1012-	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 41/8(RU1) 41/8	8-97076-962-0	01	1	1012-	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/8(RV9) G.V.W. 3.0-3.5TON(RPP) SINGLE RR TIRE(6TD) EXC. COLOMBIA EQUIPMENT(CB7) 39/8	8-97035-431-0	01	1	1012-1012	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/8(RV9) 39/8	8-97035-431-0	01	1	1012-	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/8(R40) 43/8	8-97319-159-0	01	1	1012-		●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/7(R42) 43/7	8-97320-103-0	01	1	1012-		●
70	05.536 BEARING; DIFF CAGE REAR AXLE STANDARD 244MM(R39) JTEKT	8-98003-043-0	02	1	1012-	●
70	05.536 BEARING; DIFF CAGE REAR AXLE STANDARD 244MM(R39) NSK	9-00032-211-0	02	1	1012-	●
70	05.536 BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) NSK	9-00093-602-0	02	1	1012-	●
70	05.536 BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	1012-		●	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/9(S2J)	8-98015-181-1	01	1	1012-1408	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/9(S2J)	8-98015-181-1	01	1	1409-	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 43/9(S2J)	8-98015-181-1	01	1	1409-		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 41/7(R41)	8-98015-182-1	01	1	1012-1308	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	8-98015-182-1	01	1	1012-1308		●	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 41/7(R41)	8-98015-182-1	01	1	1309-1406	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	8-98015-182-1	01	1	1309-1406		●	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 41/7(R41)	8-98015-182-1	01	1	1407-	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL GEAR RATIO 41/7(R41),FINAL GEA R RATIO 43/7(R42)	8-98015-182-1	01	1	1407-		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	8-98015-182-1	01	1	1407-			●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 43/11(GNA) SMALL DOUBLE RR TIRE(6YE)	8-97228-311-0	01	1	1012-1105	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 43/11(GNA) SMALL DOUBLE RR TIRE(6YE)	8-98191-998-1	01	1	1106-	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD)	8-97228-309-0	01	1	1012-1012	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) G.V.W. 3.0-3.5TON(RPP) COLOMBIA EQUIPMENT(CB7) SINGLE RR TIRE(6TD)	8-97228-309-0	01	1	1012-1012	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD)	8-97228-309-0	01	1	1012-1105	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) 05.453	8-98191-996-1	01	1	1106-	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/8(RV9) G.V.W. 3.0-3.5TON(RPP) SINGLE RR TIRE(6TD) EXC. COLOMBIA EQUIPMENT(CB7)	8-97228-310-0	01	1	1012-1012	●
73	05.537 SHIM; DIFF SIDE BRG REAR AXLE STANDARD 244MM(R39) T=0.50	9-41519-009-0	AR	1	1012-	●
73	05.537 SHIM; DIFF SIDE BRG REAR AXLE STANDARD 244MM(R39) T=0.25	9-41519-010-0	AR	1	1012-	●
73	05.537 SHIM; DIFF SIDE BRG REAR AXLE STANDARD 244MM(R39) T=0.30	9-41519-601-0	AR	1	1012-	●
73	05.537 SHIM; DIFF SIDE BRG REAR AXLE STANDARD 244MM(R39) T=0.35	9-41519-602-0	AR	1	1012-	●
82	05.517 SPIDER; DIFF PINION REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 43/11(GNA),FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1)	9-41521-611-0	01	1	1012-1012	●
82	05.517 SPIDER; DIFF PINION REAR AXLE STANDARD 244MM(R39)	9-41521-611-0	01	1	1012-	●
82	05.517 SPIDER; DIFF PINION REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/8(RV9) G.V.W. 3.0-3.5TON(RPP) SINGLE RR TIRE(6TD) EXC. COLOMBIA EQUIPMENT(CB7)	5-41521-006-0	01	1	1012-1012	●
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.520	5-41521-008-0	01	1	1012-	●
82	05.517 SPIDER; DIFF PINION 05.520	5-41521-008-0	01	1	1012-		●	●	●
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/9(S2J)	8-97319-398-1	01	1	1012-1408	●
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/9(S2J)	8-97319-398-1	01	1	1409-	●
83	05.510 CAGE ASM; DIFF FINAL GEAR RATIO 43/9(S2J)	8-97319-398-1	01	1	1409-		●
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/9(S2J)	8-97388-898-0	01	1	1508-	●
83	05.510 CAGE ASM; DIFF FINAL GEAR RATIO 43/9(S2J)	8-97388-898-0	01	1	1508-		●
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 41/7(R41)	8-97319-396-1	01	1	1012-1308	●
83	05.510 CAGE ASM; DIFF	8-97319-396-1	01	1	1012-1308		●	●	●
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 41/7(R41)	8-97319-396-1	01	1	1309-1406	●
83	05.510 CAGE ASM; DIFF	8-97319-396-1	01	1	1309-1406		●	●	●
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 41/7(R41)	8-97319-396-1	01	1	1407-	●
83	05.510 CAGE ASM; DIFF FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL GEAR RATIO 41/7(R41),FINAL GEA R RATIO 43/7(R42)	8-97319-396-1	01	1	1407-		●
83	05.510 CAGE ASM; DIFF	8-97319-396-1	01	1	1407-			●	●
83	05.510 CAGE ASM; DIFF REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 43/11(GNA) SMALL DOUBLE RR TIRE(6YE)	5-41510-012-0	01	1	1012-	●
83	05.510 CAGE ASM; DIFF REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD)	9-41510-610-0	01	1	1012-	●
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 43/11(GNA) SMALL DOUBLE RR TIRE(6YE) M12X22	9-09600-066-3	12	1	1012-	●
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) M12X25	9-09606-505-2	12	1	1012-	●
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) M14X25	8-97318-938-1	12	1	1012-	●
84	05.531 BOLT; FINAL DRIVE GEAR M14X25	8-97318-938-1	12	1	1012-		●	●	●
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE STANDARD 244MM(R39) NOK	8-97328-648-0	01	1	1012-	●
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) OD=103	8-94408-083-0	01	1	1012-	●
100	05.469 SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	1012-		●	●	●
131	05.510 PIECE; THRUST,DIFF BOX REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/8(RV9) G.V.W. 3.0-3.5TON(RPP) SINGLE RR TIRE(6TD) EXC. COLOMBIA EQUIPMENT(CB7)	5-41525-002-0	01	1	1012-1012	●
161	05.506 WASHER; LK REAR AXLE STANDARD 244MM(R39) 00.002 ID=12.2	0-91510-612-0	08	1	1012-	●

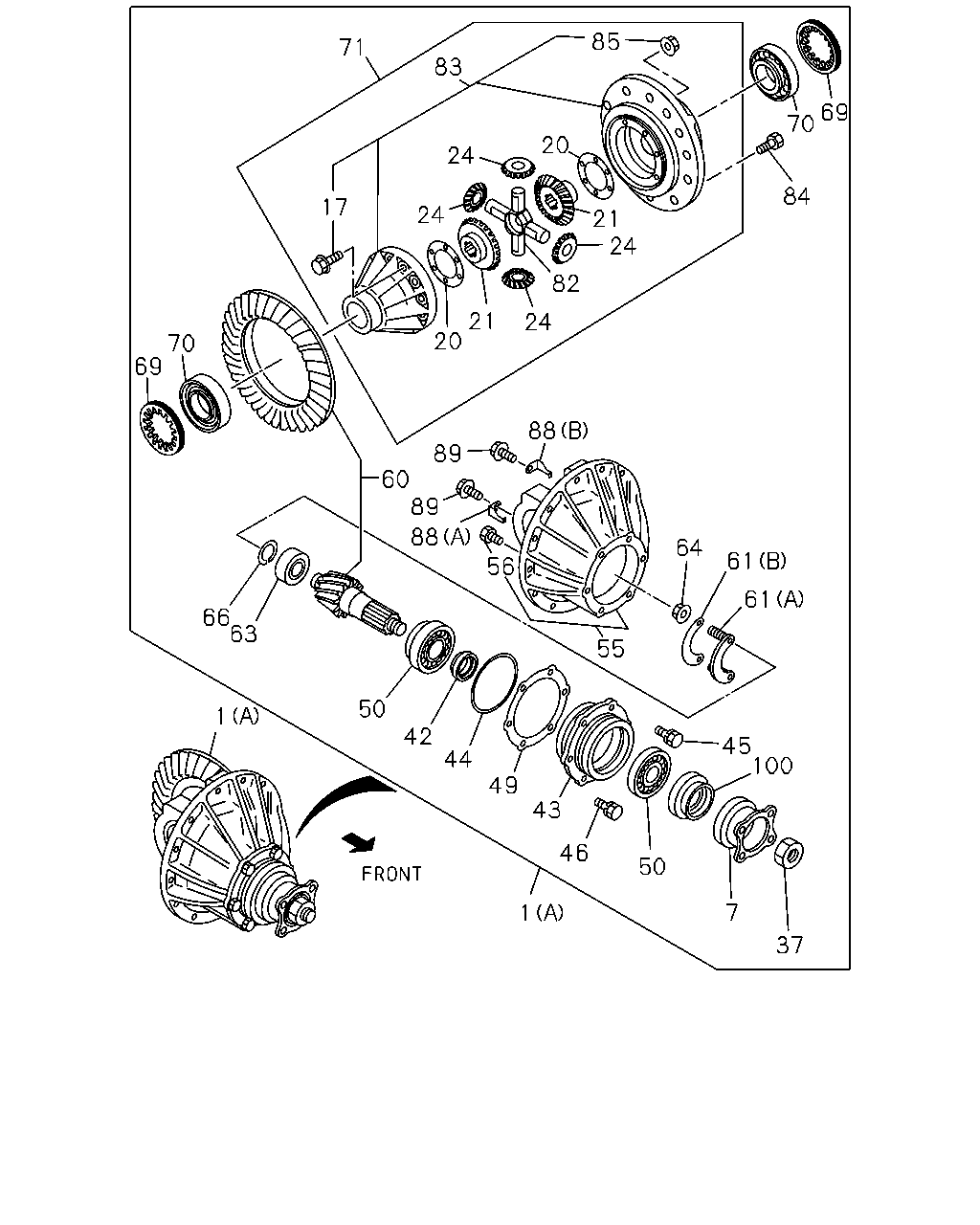

85 71 83 69 70 20 24 84 17 24 21 24 82 21 20 24 70 69 88 89 60 89 88 64 61 56 61 66 63 55 50 1 42 45 100 44 49 43 46 50 7 1 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/10(GT5) EXC. SINGLE RR TIRE(6TD) (A) 41/10	8-98015-135-0	01	1	1012-	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/9(HC6) (A) 41/9	8-98015-137-0	01	1	1012-	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1) (A) 41/8	8-98015-139-0	01	1	1012-	●	●	●
1	05.505 DRIVE ASM; FINAL,RR (A) 41/8	8-98015-139-0	01	1	1012-				●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/9(S2J) (A) 43/9	8-98015-138-0	01	1	1012-1408	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/9(S2J) (A) 43/9	8-98015-138-0	01	1	1409-	●	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) (A) 39/7	8-98015-145-0	01	1	1012-1308	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) (A) 41/7	8-98015-146-0	01	1	1012-	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 43/11(GNA) SMALL DOUBLE RR TIRE(6YE) (B) 43/11	8-97035-400-0	01	1	1012-	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/7(GV1) (B) 39/7	8-97367-501-0	01	1	1012-	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 41/8(RU1) (B) 41/8	8-97080-668-0	01	1	1012-	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/8(RV9) G.V.W. 3.0-3.5TON(RPP) SINGLE RR TIRE(6TD) EXC. COLOMBIA EQUIPMENT(CB7) (B) 39/8	8-97367-500-0	01	1	1012-1012	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/8(RV9) (B) 39/8	8-97367-499-0	01	1	1012-	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7(GV1) (A) 39/7	8-98015-141-0	01	1	1012-		●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/8(R40) (A) 43/8	8-98015-140-0	01	1	1012-		●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/7(R41) (A) 41/7	8-98015-142-0	01	1	1012-		●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/7(R42) G.V.W. 5.5-6.0TON(RPU) (A) 43/7	8-98015-143-0	01	1	1012-		●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/7(R42) G.V.W. 5.0-5.5TON(RPT) (A) 43/7	8-98015-147-0	01	1	1012-		●
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/7(R41)	8-94426-787-4	01	1	1012-1308	●
7	05.545 FLANGE; FINAL FINAL GEAR RATIO 43/7(R42) G.V.W. 5.0-5.5TON(RPT)	8-94426-787-4	01	1	1012-1308		●
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41)	8-94426-787-4	01	1	1309-	●
7	05.545 FLANGE; FINAL FINAL GEAR RATIO 43/7(R42) G.V.W. 5.0-5.5TON(RPT)	8-94426-787-4	01	1	1309-		●
7	05.545 FLANGE; FINAL REAR AXLE STANDARD 244MM(R39)	8-97075-216-3	01	1	1012-	●
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J)	8-94477-723-4	01	1	1012-	●
7	05.545 FLANGE; FINAL FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL GEAR RATIO 41/7(R41)	8-94477-723-4	01	1	1012-		●
7	05.545 FLANGE; FINAL FINAL GEAR RATIO 43/7(R42) G.V.W. 5.5-6.0TON(RPU)	8-94477-723-4	01	1	1012-		●
7	05.545 FLANGE; FINAL	8-94477-723-4	01	1	1012-			●	●
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE STANDARD 244MM(R39) 05.650 M12X58	8-97314-497-0	08	1	1012-	●
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) M10X75 FLANGE	8-97232-161-0	12	1	1012-	●
17	05.510 BOLT; DIFF CAGE SETTING M10X75 FLANGE	8-97232-161-0	12	1	1012-		●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE STANDARD 244MM(R39) T=1.00	9-41562-602-0	02	1	1012-	●
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) T=1.40	9-41562-601-0	02	1	1012-	●
20	05.543 WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	1012-		●	●	●
21	05.528 GEAR; SIDE,DIFF REAR AXLE STANDARD 244MM(R39) Z=18	8-97226-764-0	02	1	1012-1105	●
21	05.528 GEAR; SIDE,DIFF REAR AXLE STANDARD 244MM(R39) Z=18	8-98190-383-1	02	1	1106-	●
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 292MM(G73) 05.515 Z=20	8-97362-599-1	02	1	1012-	●
21	05.528 GEAR; SIDE,DIFF 05.515 Z=20	8-97362-599-1	02	1	1012-		●	●	●
24	05.526 GEAR; PINION,DIFF REAR AXLE STANDARD 244MM(R39) Z=10	8-97226-762-0	04	1	1012-1105	●
24	05.526 GEAR; PINION,DIFF REAR AXLE STANDARD 244MM(R39) Z=10	8-98186-829-0	04	1	1106-	●
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 292MM(G73) Z=10	8-98015-202-0	04	1	1012-	●
24	05.526 GEAR; PINION,DIFF Z=10	8-98015-202-0	04	1	1012-		●	●	●
37	05.595 NUT; DRIVING PINION REAR AXLE STANDARD 244MM(R39) M24 FLANGE	8-94376-261-1	01	1	1012-	●
37	05.595 NUT; DRIVING PINION REAR AXLE HEAVY DUTY 292MM(G73) M24 FLANGE	8-94329-526-1	01	1	1012-	●
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	1012-		●	●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE STANDARD 244MM(R39) L=53.35	9-41219-634-1	01	1	1012-	●
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 292MM(G73) L=19.6	9-41219-603-1	01	1	1012-	●
42	05.453 COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	1012-		●	●	●
43	05.453 CAGE; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73)	8-94400-890-0	01	1	1012-	●
43	05.453 CAGE; FINAL PINION	8-94400-890-0	01	1	1012-		●	●	●
44	05.476 GASKET; PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) 05.458	9-09720-505-0	01	1	1012-	●
44	05.476 GASKET; PINION CAGE 05.458	9-09720-505-0	01	1	1012-		●	●	●
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) M12X38 W/LK WASHER	0-50551-238-0	05	1	1012-1311	●
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50551-238-0	05	1	1012-1311		●	●	●
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) M12X38 W/LK WASHER	8-98221-264-0	05	1	1312-	●
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	8-98221-264-0	05	1	1312-		●	●	●
46	05.453 BOLT REAR AXLE HEAVY DUTY 292MM(G73) M14X35 W/LK WASHER	0-50551-435-0	01	1	1012-	●
46	05.453 BOLT M14X35 W/LK WASHER	0-50551-435-0	01	1	1012-		●	●	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.10	8-94401-335-0	AR	1	1012-	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	1012-		●	●	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.12	8-94401-336-0	AR	1	1012-	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	1012-		●	●	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.14	8-94401-337-0	AR	1	1012-	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	1012-		●	●	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.16	8-94401-338-0	AR	1	1012-	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	1012-		●	●	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.18	8-94401-339-0	AR	1	1012-	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	1012-		●	●	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.20	8-94401-340-0	AR	1	1012-	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	1012-		●	●	●
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.484 JTEKT	5-09812-062-1	02	1	1012-	●
50	05.447 BEARING; FINAL PINION 05.484 JTEKT	5-09812-062-1	02	1	1012-		●	●	●
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.484 NSK	5-09812-063-0	02	1	1012-	●
50	05.447 BEARING; FINAL PINION 05.484 NSK	5-09812-063-0	02	1	1012-		●	●	●
55	05.505 CARRIER; DIFF REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 43/11(GNA) SMALL DOUBLE RR TIRE(6YE)	8-97078-154-2	01	1	1012-	●
55	05.505 CARRIER; DIFF REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD)	8-94376-227-3	01	1	1012-	●
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 292MM(G73)	8-97307-760-0	01	1	1012-	●
55	05.505 CARRIER; DIFF	8-97307-760-0	01	1	1012-		●	●	●
56	05.506 BOLT; BRG CAP 05.387 M14X80	8-94365-377-3	04	1	1012-	●	●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) 41/7	8-97319-161-0	01	1	1407-	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-97319-161-0	01	1	1407-		●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/10(GT5) EXC. SINGLE RR TIRE(6TD) 41/10	8-97319-153-0	01	1	1012-1311	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/10(GT5) EXC. SINGLE RR TIRE(6TD) 41/10	8-98092-055-0	01	1	1312-	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/9(HC6) 41/9	8-97319-156-0	01	1	1012-1311	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/9(HC6) 41/9	8-98092-049-0	01	1	1312-	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1) 41/8	8-97319-158-0	01	1	1012-	●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR 41/8	8-97319-158-0	01	1	1012-				●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/9(S2J) 43/9	8-97319-157-0	01	1	1012-1408	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/9(S2J) 43/9	8-97319-157-0	01	1	1409-	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) 39/7	8-97319-160-0	01	1	1012-1308	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 39/7(GV1) 39/7	8-97319-160-0	01	1	1012-1308		●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 39/7(GV1) 39/7	8-97319-160-0	01	1	1309-		●	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) 41/7	8-97319-161-0	01	1	1012-1201	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-97319-161-0	01	1	1012-1201		●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) 41/7	8-98092-031-1	01	1	1202-	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-98092-031-1	01	1	1202-		●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 43/11(GNA) SMALL DOUBLE RR TIRE(6YE) 43/11	8-97035-428-0	01	1	1012-	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/7(GV1) 39/7	8-97035-433-0	01	1	1012-	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 41/8(RU1) 41/8	8-97076-962-0	01	1	1012-	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/8(RV9) G.V.W. 3.0-3.5TON(RPP) SINGLE RR TIRE(6TD) EXC. COLOMBIA EQUIPMENT(CB7) 39/8	8-97035-431-0	01	1	1012-1012	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/8(RV9) 39/8	8-97035-431-0	01	1	1012-	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/8(R40) 43/8	8-97319-159-0	01	1	1012-		●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/7(R42) 43/7	8-97320-103-0	01	1	1012-		●
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (A) W/STUD	5-41227-001-0	01	1	1012-	●
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	1012-		●	●	●
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (B)	9-41227-601-0	01	1	1012-	●
61	05.476 RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	1012-		●	●	●
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) NSK	5-09810-008-1	01	1	1012-	●
63	05.447 BEARING; PINION PILOT NSK	5-09810-008-1	01	1	1012-		●	●	●
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) JTEKT	8-97107-548-0	01	1	1012-	●
63	05.447 BEARING; PINION PILOT JTEKT	8-97107-548-0	01	1	1012-		●	●	●
64	05.476 NUT; RET REAR AXLE HEAVY DUTY 292MM(G73) 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-	●
64	05.476 NUT; RET 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-		●	●	●
66	05.476 RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 292MM(G73)	9-09752-002-0	01	1	1012-	●
66	05.476 RING; SNAP,PILOT BRG	9-09752-002-0	01	1	1012-		●	●	●
69	05.506 NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) M110 H=10	5-41121-001-0	02	1	1012-	●
69	05.506 NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	1012-		●	●	●
70	05.536 BEARING; DIFF CAGE REAR AXLE STANDARD 244MM(R39) JTEKT	8-98003-043-0	02	1	1012-	●
70	05.536 BEARING; DIFF CAGE REAR AXLE STANDARD 244MM(R39) NSK	9-00032-211-0	02	1	1012-	●
70	05.536 BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) NSK	9-00093-602-0	02	1	1012-	●
70	05.536 BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	1012-		●	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/9(S2J)	8-98015-181-1	01	1	1012-1408	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/9(S2J)	8-98015-181-1	01	1	1409-	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 43/9(S2J)	8-98015-181-1	01	1	1409-		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 41/7(R41)	8-98015-182-1	01	1	1012-1308	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	8-98015-182-1	01	1	1012-1308		●	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 41/7(R41)	8-98015-182-1	01	1	1309-1406	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	8-98015-182-1	01	1	1309-1406		●	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 41/7(R41)	8-98015-182-1	01	1	1407-	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL GEAR RATIO 41/7(R41),FINAL GEA R RATIO 43/7(R42)	8-98015-182-1	01	1	1407-		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	8-98015-182-1	01	1	1407-			●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 43/11(GNA) SMALL DOUBLE RR TIRE(6YE)	8-97228-311-0	01	1	1012-1105	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 43/11(GNA) SMALL DOUBLE RR TIRE(6YE)	8-98191-998-1	01	1	1106-	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD)	8-97228-309-0	01	1	1012-1012	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) G.V.W. 3.0-3.5TON(RPP) COLOMBIA EQUIPMENT(CB7) SINGLE RR TIRE(6TD)	8-97228-309-0	01	1	1012-1012	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD)	8-97228-309-0	01	1	1012-1105	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) 05.453	8-98191-996-1	01	1	1106-	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/8(RV9) G.V.W. 3.0-3.5TON(RPP) SINGLE RR TIRE(6TD) EXC. COLOMBIA EQUIPMENT(CB7)	8-97228-310-0	01	1	1012-1012	●
82	05.517 SPIDER; DIFF PINION REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 43/11(GNA),FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1)	9-41521-611-0	01	1	1012-1012	●
82	05.517 SPIDER; DIFF PINION REAR AXLE STANDARD 244MM(R39)	9-41521-611-0	01	1	1012-	●
82	05.517 SPIDER; DIFF PINION REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 39/8(RV9) G.V.W. 3.0-3.5TON(RPP) SINGLE RR TIRE(6TD) EXC. COLOMBIA EQUIPMENT(CB7)	5-41521-006-0	01	1	1012-1012	●
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.520	5-41521-008-0	01	1	1012-	●
82	05.517 SPIDER; DIFF PINION 05.520	5-41521-008-0	01	1	1012-		●	●	●
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/9(S2J)	8-97319-398-1	01	1	1012-1408	●
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/9(S2J)	8-97319-398-1	01	1	1409-	●
83	05.510 CAGE ASM; DIFF FINAL GEAR RATIO 43/9(S2J)	8-97319-398-1	01	1	1409-		●
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/9(S2J)	8-97388-898-0	01	1	1508-	●
83	05.510 CAGE ASM; DIFF FINAL GEAR RATIO 43/9(S2J)	8-97388-898-0	01	1	1508-		●
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 41/7(R41)	8-97319-396-1	01	1	1012-1308	●
83	05.510 CAGE ASM; DIFF	8-97319-396-1	01	1	1012-1308		●	●	●
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 41/7(R41)	8-97319-396-1	01	1	1309-1406	●
83	05.510 CAGE ASM; DIFF	8-97319-396-1	01	1	1309-1406		●	●	●
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 41/7(R41)	8-97319-396-1	01	1	1407-	●
83	05.510 CAGE ASM; DIFF FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/8(R40),FINAL GEAR RATIO 41/7(R41),FINAL GEA R RATIO 43/7(R42)	8-97319-396-1	01	1	1407-		●
83	05.510 CAGE ASM; DIFF	8-97319-396-1	01	1	1407-			●	●
83	05.510 CAGE ASM; DIFF REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 43/11(GNA) SMALL DOUBLE RR TIRE(6YE)	5-41510-012-0	01	1	1012-	●
83	05.510 CAGE ASM; DIFF REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD)	9-41510-610-0	01	1	1012-	●
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE STANDARD 244MM(R39) FINAL GEAR RATIO 43/11(GNA) SMALL DOUBLE RR TIRE(6YE) M12X22	9-09600-066-3	12	1	1012-	●
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE STANDARD 244MM(R39) SINGLE RR TIRE(6TD) M12X25	9-09606-505-2	12	1	1012-	●
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) M14X25	8-97318-938-1	12	1	1012-	●
84	05.531 BOLT; FINAL DRIVE GEAR M14X25	8-97318-938-1	12	1	1012-		●	●	●
85	05.510 NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) 04.085 M10 FLANGE	0-91180-210-0	12	1	1012-	●
85	05.510 NUT; DIFF CAGE SETTING 04.085 M10 FLANGE	0-91180-210-0	12	1	1012-		●	●	●
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (A)	8-97027-281-0	AR	1	1012-	●
88	05.506 PLATE; LK,ADJ NUT (A)	8-97027-281-0	AR	1	1012-		●	●	●
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (B)	8-97027-282-0	AR	1	1012-	●
88	05.506 PLATE; LK,ADJ NUT (B)	8-97027-282-0	AR	1	1012-		●	●	●
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 292MM(G73) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1012-	●
89	05.506 BOLT; LK PLATE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1012-		●	●	●
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE STANDARD 244MM(R39) NOK	8-97328-648-0	01	1	1012-	●
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) OD=103	8-94408-083-0	01	1	1012-	●
100	05.469 SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	1012-		●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
