4-10 — FRONT AXLE (#79110) — 148 parça

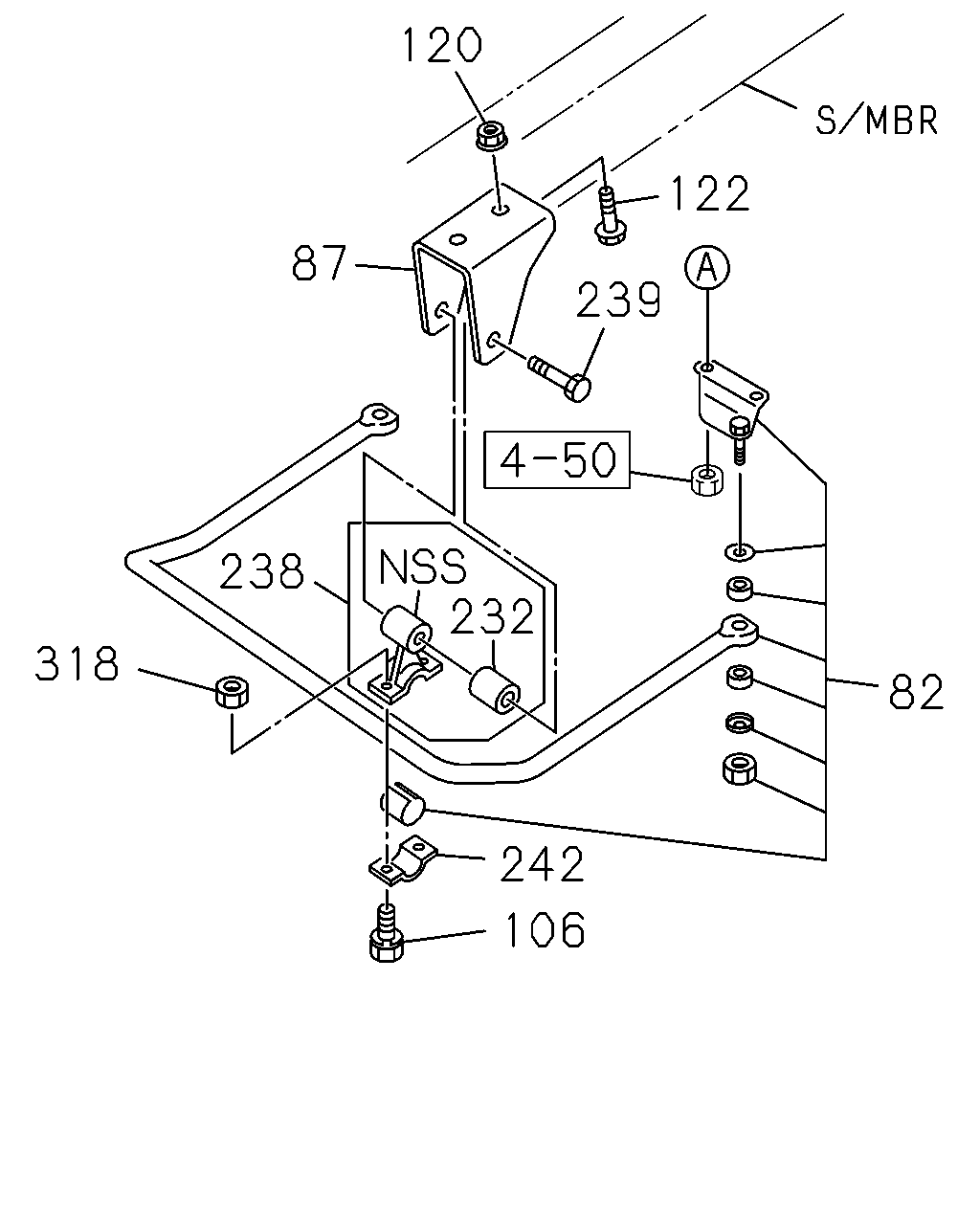

çizim 190798
120 122 87 239 232 238 318 82 242 106
BalonParca AdiParca NoAdetTipApplied Date A B C D
82 07.241 BAR; STAB,FRT SUSP
FRONT STABILIZER SHAFT<F59> 		8-98002-084-2 01 1 1012- ● ● ●
87 07.242 BRACKET; STABILIZER
FRONT STABILIZER SHAFT<F59> 		8-98051-506-0 01 1 1012- ● ● ●
87 07.242 BRACKET; STABILIZER
FRONT STABILIZER SHAFT<F59> 		8-98051-507-0 01 1 1012- ● ● ●
106 06.216 BOLT; CAP FIX
FRONT STABILIZER SHAFT<F59> 00.029 M10X25 FLANGE 		0-28651-025-0 04 1 1012- ● ● ●
120 06.308 NUT; STAB BAR BRKT
FRONT STABILIZER SHAFT<F59> 05.816 M12 FLANGE 		0-91180-212-0 04 1 1012- ● ● ●
122 07.242 BOLT; BRKT
FRONT STABILIZER SHAFT<F59> 06.509 M12X30 FLANGE 		0-28661-230-0 04 1 1012- ● ● ●
232 07.243 BUSHING; LINK ROD
FRONT STABILIZER SHAFT<F59> 		8-97239-911-0 02 1 1012- ● ● ●
238 07.240 ROD LINK ASM; STABILIZER,FRT
FRONT STABILIZER SHAFT<F59> 		8-97239-908-0 02 1 1012- ● ● ●
239 07.242 BOLT; LINK ROD
FRONT STABILIZER SHAFT<F59> M14X70 FLANGE 		0-28851-470-0 02 1 1012- ● ● ●
242 07.242 CAP; LINK ROD
FRONT STABILIZER SHAFT<F59> 		8-94178-430-2 02 1 1012- ● ● ●
318 07.242 NUT; CAP FIX
FRONT STABILIZER SHAFT<F59> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1012- ● ● ●

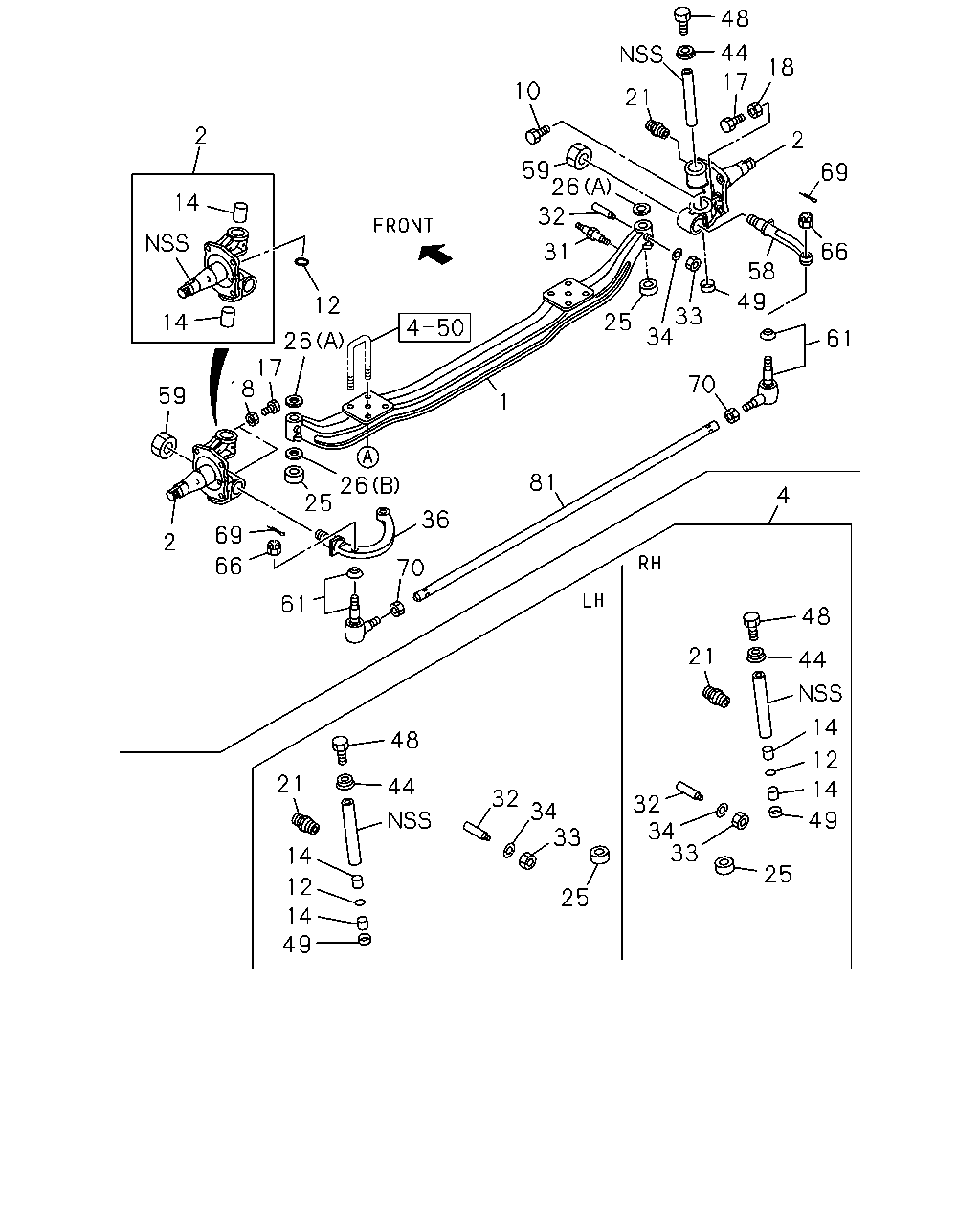

çizim 190799
48 44 17 18 10 21 2 2 59 26 32 69 14 31 66 58 49 12 33 34 25 14 61 26 17 18 70 59 1 81 26 25 4 36 69 2 66 70 61 48 21 44 14 48 12 21 44 14 32 32 34 33 34 33 49 14 25 12 25 14 49
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 06.008 AXLE; FRT
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.00 R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) 		8-97262-000-2 01 1 1012-1012 ●
1 06.008 AXLE; FRT 8-97262-000-2 01 1 1012-1012 ● ● ●
1 06.008 AXLE; FRT 8-97262-000-4 01 1 1012- ● ● ● ●
1 06.008 AXLE; FRT
FRT&RR 7-15-8 15X5.5F-30(BVT),FRT 185/80R15X5.5K-30 RR 175R14X4.5J-100(CSP), FRT&RR 6.5R-15-10 DISC 5.50FX15-30(CVY),F RT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX1 3-98(22V) 		8-94113-402-7 01 1 1012-1012 ●
2 06.020 KNUCKLE; FRT AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98009-776-1 01 1 1408- ●
2 06.020 KNUCKLE; FRT AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98009-778-1 01 1 1408- ●
2 06.020 KNUCKLE; FRT AXLE
G.V.W. 5.5-6.0TON(RPU) BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97261-549-1 01 1 1302-1406 ●
2 06.020 KNUCKLE; FRT AXLE
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97261-549-1 01 1 1302-1406 ●
2 06.020 KNUCKLE; FRT AXLE
G.V.W. 5.5-6.0TON(RPU) BRAKE SYSTEM HEAVY DUTY VAR2<WG3> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97261-549-2 01 1 1407- ●
2 06.020 KNUCKLE; FRT AXLE
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97261-549-2 01 1 1407- ●
2 06.020 KNUCKLE; FRT AXLE
G.V.W. 5.5-6.0TON(RPU) BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97261-550-1 01 1 1302-1406 ●
2 06.020 KNUCKLE; FRT AXLE
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97261-550-1 01 1 1302-1406 ●
2 06.020 KNUCKLE; FRT AXLE
G.V.W. 5.5-6.0TON(RPU) BRAKE SYSTEM HEAVY DUTY VAR2<WG3> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97261-550-2 01 1 1407- ●
2 06.020 KNUCKLE; FRT AXLE
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97261-550-2 01 1 1407- ●
2 06.020 KNUCKLE; FRT AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.00 R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) 		8-97261-545-1 01 1 1012-1012 ●
2 06.020 KNUCKLE; FRT AXLE 8-97261-545-1 01 1 1012-1012 ● ● ●
2 06.020 KNUCKLE; FRT AXLE 8-97261-545-1 01 1 1012-1301 ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE 8-97261-545-1 01 1 1302-1406 ● ●
2 06.020 KNUCKLE; FRT AXLE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97261-545-1 01 1 1302-1406 ● ●
2 06.020 KNUCKLE; FRT AXLE
G.V.W. 5.0-5.5TON(RPT) BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97261-545-1 01 1 1302-1406 ●
2 06.020 KNUCKLE; FRT AXLE 8-97261-545-2 01 1 1407- ● ●
2 06.020 KNUCKLE; FRT AXLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRAKESYSTEM HEAVY DUTY VAR2<WG3> 		8-97261-545-2 01 1 1407- ● ●
2 06.020 KNUCKLE; FRT AXLE
G.V.W. 5.0-5.5TON(RPT) BRAKE SYSTEM HEAVY DUTY VAR2<WG3> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97261-545-2 01 1 1407- ●
2 06.020 KNUCKLE; FRT AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.00 R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) 		8-97261-546-1 01 1 1012-1012 ●
2 06.020 KNUCKLE; FRT AXLE 8-97261-546-1 01 1 1012-1012 ● ● ●
2 06.020 KNUCKLE; FRT AXLE 8-97261-546-1 01 1 1012-1301 ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE 8-97261-546-1 01 1 1302-1406 ● ●
2 06.020 KNUCKLE; FRT AXLE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97261-546-1 01 1 1302-1406 ● ●
2 06.020 KNUCKLE; FRT AXLE
G.V.W. 5.0-5.5TON(RPT) BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97261-546-1 01 1 1302-1406 ●
2 06.020 KNUCKLE; FRT AXLE 8-97261-546-2 01 1 1407- ● ●
2 06.020 KNUCKLE; FRT AXLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRAKESYSTEM HEAVY DUTY VAR2<WG3> 		8-97261-546-2 01 1 1407- ● ●
2 06.020 KNUCKLE; FRT AXLE
G.V.W. 5.0-5.5TON(RPT) BRAKE SYSTEM HEAVY DUTY VAR2<WG3> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97261-546-2 01 1 1407- ●
2 06.020 KNUCKLE; FRT AXLE
FRT&RR 7-15-8 15X5.5F-30(BVT),FRT 185/80R15X5.5K-30 RR 175R14X4.5J-100(CSP), FRT&RR 6.5R-15-10 DISC 5.50FX15-30(CVY),F RT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX1 3-98(22V) 		8-97261-537-0 01 1 1012-1012 ●
2 06.020 KNUCKLE; FRT AXLE
FRT&RR 7-15-8 15X5.5F-30(BVT),FRT 185/80R15X5.5K-30 RR 175R14X4.5J-100(CSP), FRT&RR 6.5R-15-10 DISC 5.50FX15-30(CVY),F RT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX1 3-98(22V) 		8-97261-538-0 01 1 1012-1012 ●
4 06.203 KING PIN KIT
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.00 R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) 		5-87832-220-1 01 1 1012-1012 ●
4 06.203 KING PIN KIT 5-87832-220-1 01 1 1012-1012 ● ● ●
4 06.203 KING PIN KIT 5-87832-220-2 01 1 1012- ● ● ● ●
4 06.203 KING PIN KIT
FRT&RR 7-15-8 15X5.5F-30(BVT),FRT 185/80R15X5.5K-30 RR 175R14X4.5J-100(CSP), FRT&RR 6.5R-15-10 DISC 5.50FX15-30(CVY),F RT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX1 3-98(22V) 		5-87832-208-1 01 1 1012-1012 ●
10 06.009 PLUG; PLATE,KNUCKLE 8-97360-117-0 01 1 1012- ● ● ● ●
12 06.021 GASKET; KNUCKLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.00 R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) 		8-98084-500-0 02 1 1012-1012 ●
12 06.021 GASKET; KNUCKLE 8-98084-500-0 02 1 1012-1012 ● ● ●
12 06.021 GASKET; KNUCKLE 8-98084-500-0 02 1 1012- ● ● ● ●
12 06.021 GASKET; KNUCKLE
FRT&RR 7-15-8 15X5.5F-30(BVT),FRT 185/80R15X5.5K-30 RR 175R14X4.5J-100(CSP), FRT&RR 6.5R-15-10 DISC 5.50FX15-30(CVY),F RT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX1 3-98(22V) 		9-09561-225-0 02 1 1012-1012 ●
14 06.021 BUSHING; KING PIN
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.00 R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) DAIDO WO/NOTCH 		8-94107-672-3 04 1 1012-1012 ●
14 06.021 BUSHING; KING PIN
DAIDO WO/NOTCH 		8-94107-672-3 04 1 1012-1012 ● ● ●
14 06.021 BUSHING; KING PIN
DAIDO WO/NOTCH 		8-94107-672-3 04 1 1012- ● ● ● ●
14 06.021 BUSHING; KING PIN
FRT&RR 7-15-8 15X5.5F-30(BVT),FRT 185/80R15X5.5K-30 RR 175R14X4.5J-100(CSP), FRT&RR 6.5R-15-10 DISC 5.50FX15-30(CVY),F RT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX1 3-98(22V) 		8-94102-046-3 04 1 1012-1012 ●
17 06.009 BOLT; STOPPER KNUCKLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 7-15-8 15X5.5F-30(BVT), FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-2 5(CTQ),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.00R-15-10 D ISC 5.50FX15-170(CUT) M12X24 EYE-BOLT 		8-97360-059-0 03 1 1012-1012 ●
17 06.009 BOLT; STOPPER KNUCKLE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116. 5(CSA),FRT&RR 195/85R16 RIB 16X5.5J-116.5 SILVER(CUC),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) M12X24 EYE-BOLT 		8-97360-059-0 03 1 1012-1012 ● ●
17 06.009 BOLT; STOPPER KNUCKLE
M12X24 EYE-BOLT 		8-97360-059-0 03 1 1012-1012 ●
17 06.009 BOLT; STOPPER KNUCKLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.00 R-15-10 DISC 5.50FX15-170(CUT) M12X24 EYE-BOLT 		8-97360-059-0 03 1 1012-1012 ●
17 06.009 BOLT; STOPPER KNUCKLE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116. 5(CSA),FRT&RR 195/85R16 RIB 16X5.5J-116.5 SILVER(CUC),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) M12X24 EYE-BOLT 		8-97360-059-0 03 1 1012-1012 ● ●
17 06.009 BOLT; STOPPER KNUCKLE
M12X24 EYE-BOLT 		8-97360-059-0 03 1 1012-1012 ●
17 06.009 BOLT; STOPPER KNUCKLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),F6.5R-15-10,R155R-13-8 F5.5FX15-25,R4JX13-98(CUL),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ) ,FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT) M12X24 EYE-BOLT 		8-97360-059-0 03 1 1101- ●
17 06.009 BOLT; STOPPER KNUCKLE
FRT&RR TIRE 195/85R16 DISC 16-5.5J-116. 5(CSA),FRT&RR 195/85R16 RIB 16X5.5J-116.5 SILVER(CUC),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) M12X24 EYE-BOLT 		8-97360-059-0 03 1 1101- ● ●
17 06.009 BOLT; STOPPER KNUCKLE
M12X24 EYE-BOLT 		8-97360-059-0 03 1 1101- ●
17 06.009 BOLT; STOPPER KNUCKLE
FRT 185/80R15X5.5K-30 RR 175R14X4.5J-10 0(CSP),FRT&RR 6.5R-15-10 DISC 5.50FX15-30(CVY),FRT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX13-98(22V) 		8-98014-904-0 03 1 1012-1012 ●
17 06.009 BOLT; STOPPER KNUCKLE
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) M12X27.5 		8-98016-968-0 03 1 1012- ●
17 06.009 BOLT; STOPPER KNUCKLE
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN),FRT&RR 205/85R16 RIB 16X5.5J-116.5 SILVER(CUA),FRT&RR 7.00R-16-10 R/L DISC5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5 .5F-115(07H) M12X27.5 		8-98016-968-0 03 1 1012- ● ●
18 06.216 NUT; STOPPER BOLT,KNUCKLE
04.439 M12 		0-91111-512-0 03 1 1012- ● ● ● ●
21 06.166 NIPPLE; GREASE,KING PIN
05.601 M6 STRAIGHT 		0-90301-406-0 04 1 1012- ● ● ● ●
25 06.210 BEARING; THRUST,KING PIN
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.00 R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) 06.021 OD=54 ID=30.2 T=13.8 		8-94248-883-2 01 1 1012-1012 ●
25 06.210 BEARING; THRUST,KING PIN
06.021 OD=54 ID=30.2 T=13.8 		8-94248-883-2 01 1 1012-1012 ● ● ●
25 06.210 BEARING; THRUST,KING PIN
06.021 OD=54 ID=30.2 T=13.8 		8-94248-883-3 01 1 1012- ● ● ● ●
25 06.210 BEARING; THRUST,KING PIN
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.00 R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) OD=51.6 ID=30.5 T=15.6 		8-97141-943-0 01 1 1012-1012 ●
25 06.210 BEARING; THRUST,KING PIN
OD=51.6 ID=30.5 T=15.6 		8-97141-943-0 01 1 1012-1012 ● ● ●
25 06.210 BEARING; THRUST,KING PIN
OD=51.6 ID=30.5 T=15.6 		8-97141-943-1 01 1 1012- ● ● ● ●
25 06.210 BEARING; THRUST,KING PIN
FRT&RR 7-15-8 15X5.5F-30(BVT),FRT 185/80R15X5.5K-30 RR 175R14X4.5J-100(CSP), FRT&RR 6.5R-15-10 DISC 5.50FX15-30(CVY),F RT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX1 3-98(22V) 		8-94162-578-1 02 1 1012-1012 ●
26 06.022 SHIM; KING PIN,BRG
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.00 R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) (A) T=0.50 		8-94162-574-0 AR 1 1012-1012 ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.50 		8-94162-574-0 AR 1 1012-1012 ● ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.50 		8-94162-574-0 AR 1 1012- ● ● ● ●
26 06.022 SHIM; KING PIN,BRG
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.00 R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) (A) T=0.55 		8-94162-575-0 AR 1 1012-1012 ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.55 		8-94162-575-0 AR 1 1012-1012 ● ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.55 		8-94162-575-0 AR 1 1012- ● ● ● ●
26 06.022 SHIM; KING PIN,BRG
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.00 R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) (A) T=0.60 		8-94162-576-0 AR 1 1012-1012 ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.60 		8-94162-576-0 AR 1 1012-1012 ● ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.60 		8-94162-576-0 AR 1 1012- ● ● ● ●
26 06.022 SHIM; KING PIN,BRG
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.00 R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) (A) T=0.65 		8-94162-577-0 AR 1 1012-1012 ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.65 		8-94162-577-0 AR 1 1012-1012 ● ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.65 		8-94162-577-0 AR 1 1012- ● ● ● ●
26 06.022 SHIM; KING PIN,BRG
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.00 R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) 05.460 (B) T=1.95 		8-94168-490-0 01 1 1012-1012 ●
26 06.022 SHIM; KING PIN,BRG
05.460 (B) T=1.95 		8-94168-490-0 01 1 1012-1012 ● ● ●
26 06.022 SHIM; KING PIN,BRG
05.460 (B) T=1.95 		8-94168-490-0 01 1 1012- ● ● ● ●
26 06.022 SHIM; KING PIN,BRG
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.00 R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) (A) T=0.70 		8-94174-352-0 AR 1 1012-1012 ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.70 		8-94174-352-0 AR 1 1012-1012 ● ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.70 		8-94174-352-0 AR 1 1012- ● ● ● ●
26 06.022 SHIM; KING PIN,BRG
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.00 R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) (A) T=0.80 		8-94174-354-0 AR 1 1012-1012 ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.80 		8-94174-354-0 AR 1 1012-1012 ● ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.80 		8-94174-354-0 AR 1 1012- ● ● ● ●
26 06.022 SHIM; KING PIN,BRG
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.00 R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) (A) T=0.90 		8-94174-356-0 AR 1 1012-1012 ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.90 		8-94174-356-0 AR 1 1012-1012 ● ● ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.90 		8-94174-356-0 AR 1 1012- ● ● ● ●
26 06.022 SHIM; KING PIN,BRG
FRT&RR 7-15-8 15X5.5F-30(BVT),FRT 185/80R15X5.5K-30 RR 175R14X4.5J-100(CSP), FRT&RR 6.5R-15-10 DISC 5.50FX15-30(CVY),F RT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX1 3-98(22V) 06.225 (A) T=0.50 		8-94162-570-0 AR 1 1012-1012 ●
26 06.022 SHIM; KING PIN,BRG
FRT&RR 7-15-8 15X5.5F-30(BVT),FRT 185/80R15X5.5K-30 RR 175R14X4.5J-100(CSP), FRT&RR 6.5R-15-10 DISC 5.50FX15-30(CVY),F RT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX1 3-98(22V) 06.225 (A) T=0.55 		8-94162-571-0 AR 1 1012-1012 ●
26 06.022 SHIM; KING PIN,BRG
FRT&RR 7-15-8 15X5.5F-30(BVT),FRT 185/80R15X5.5K-30 RR 175R14X4.5J-100(CSP), FRT&RR 6.5R-15-10 DISC 5.50FX15-30(CVY),F RT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX1 3-98(22V) 06.225 (A) T=0.60 		8-94162-572-0 AR 1 1012-1012 ●
26 06.022 SHIM; KING PIN,BRG
FRT&RR 7-15-8 15X5.5F-30(BVT),FRT 185/80R15X5.5K-30 RR 175R14X4.5J-100(CSP), FRT&RR 6.5R-15-10 DISC 5.50FX15-30(CVY),F RT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX1 3-98(22V) 06.225 (A) T=0.65 		8-94162-573-0 AR 1 1012-1012 ●
26 06.022 SHIM; KING PIN,BRG
FRT&RR 7-15-8 15X5.5F-30(BVT),FRT 185/80R15X5.5K-30 RR 175R14X4.5J-100(CSP), FRT&RR 6.5R-15-10 DISC 5.50FX15-30(CVY),F RT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX1 3-98(22V) 06.225 (A) T=0.70 		8-94174-347-0 AR 1 1012-1012 ●
26 06.022 SHIM; KING PIN,BRG
FRT&RR 7-15-8 15X5.5F-30(BVT),FRT 185/80R15X5.5K-30 RR 175R14X4.5J-100(CSP), FRT&RR 6.5R-15-10 DISC 5.50FX15-30(CVY),F RT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX1 3-98(22V) 06.225 (A) T=0.80 		8-94174-349-0 AR 1 1012-1012 ●
26 06.022 SHIM; KING PIN,BRG
FRT&RR 7-15-8 15X5.5F-30(BVT),FRT 185/80R15X5.5K-30 RR 175R14X4.5J-100(CSP), FRT&RR 6.5R-15-10 DISC 5.50FX15-30(CVY),F RT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX1 3-98(22V) 06.225 (A) T=0.90 		8-94174-351-0 AR 1 1012-1012 ●
31 07.347 PIN; S/ABS,LWR
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.00 R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) 		8-97141-944-0 02 1 1012-1012 ●
31 07.347 PIN; S/ABS,LWR 8-97141-944-0 02 1 1012-1012 ● ● ●
31 07.347 PIN; S/ABS,LWR 8-97141-944-0 02 1 1012- ● ● ● ●
31 07.347 PIN; S/ABS,LWR
FRT&RR 7-15-8 15X5.5F-30(BVT),FRT 185/80R15X5.5K-30 RR 175R14X4.5J-100(CSP), FRT&RR 6.5R-15-10 DISC 5.50FX15-30(CVY),F RT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX1 3-98(22V) 		8-94249-010-1 02 1 1012-1012 ●
32 06.216 BOLT; KEY,KING PIN 8-97141-945-2 02 1 1012- ● ● ● ●
33 06.216 NUT; KEY BOLT
00.833 M10 		0-91110-510-0 02 1 1012- ● ● ● ●
34 06.216 WASHER; LK,KEY BOLT
06.606 ID=10.2 		0-91510-510-0 02 1 1012- ● ● ● ●
36 06.103 ARM; KNUCKLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.00 R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) 		8-97168-291-4 01 1 1012-1012 ●
36 06.103 ARM; KNUCKLE 8-97168-291-4 01 1 1012-1012 ● ● ●
36 06.103 ARM; KNUCKLE 8-97168-291-5 01 1 1012- ● ● ● ●
36 06.103 ARM; KNUCKLE
FRT&RR 7-15-8 15X5.5F-30(BVT),FRT 185/80R15X5.5K-30 RR 175R14X4.5J-100(CSP), FRT&RR 6.5R-15-10 DISC 5.50FX15-30(CVY),F RT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX1 3-98(22V) 		8-97070-139-4 01 1 1012-1012 ●
44 06.225 COVER; KING PIN
OD=36 		8-97360-023-0 02 1 1012- ● ● ● ●
48 06.225 BOLT; COVER
M10X12 FLANGE 		0-28051-012-0 02 1 1012- ● ● ● ●
49 06.225 CAP; KNUCKLE 8-97360-024-0 02 1 1012- ● ● ● ●
58 06.103 ARM; TIE ROD
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.00 R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) 		8-97168-292-0 01 1 1012-1012 ●
58 06.103 ARM; TIE ROD 8-97168-292-0 01 1 1012-1012 ● ● ●
58 06.103 ARM; TIE ROD 8-97168-292-1 01 1 1012- ● ● ● ●
58 06.103 ARM; TIE ROD
FRT&RR 7-15-8 15X5.5F-30(BVT),FRT 185/80R15X5.5K-30 RR 175R14X4.5J-100(CSP), FRT&RR 6.5R-15-10 DISC 5.50FX15-30(CVY),F RT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX1 3-98(22V) 		8-97032-913-0 01 1 1012-1012 ●
59 06.104 NUT; TIE ROD ARM 8-97360-123-0 02 1 1012- ● ● ● ●
61 06.233 ROD END; TIE ROD
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.00 R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) 		8-97142-100-1 01 1 1012-1012 ●
61 06.233 ROD END; TIE ROD 8-97142-100-1 01 1 1012-1012 ● ● ●
61 06.233 ROD END; TIE ROD 8-97142-100-1 01 1 1012-1309 ● ● ● ●
61 06.233 ROD END; TIE ROD 8-97107-348-2 01 1 1310- ● ● ● ●
61 06.233 ROD END; TIE ROD
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.00 R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) 		8-97142-101-1 01 1 1012-1012 ●
61 06.233 ROD END; TIE ROD 8-97142-101-1 01 1 1012-1012 ● ● ●
61 06.233 ROD END; TIE ROD 8-97142-101-1 01 1 1012-1309 ● ● ● ●
61 06.233 ROD END; TIE ROD 8-97107-349-2 01 1 1310- ● ● ● ●
61 06.233 ROD END; TIE ROD
FRT&RR 7-15-8 15X5.5F-30(BVT),FRT 185/80R15X5.5K-30 RR 175R14X4.5J-100(CSP), FRT&RR 6.5R-15-10 DISC 5.50FX15-30(CVY),F RT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX1 3-98(22V) 		8-97107-348-2 01 1 1012-1012 ●
61 06.233 ROD END; TIE ROD
FRT&RR 7-15-8 15X5.5F-30(BVT),FRT 185/80R15X5.5K-30 RR 175R14X4.5J-100(CSP), FRT&RR 6.5R-15-10 DISC 5.50FX15-30(CVY),F RT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX1 3-98(22V) 		8-97107-349-2 01 1 1012-1012 ●
66 06.234 NUT; TIE ROD END
M16 SLOTTED 		0-91116-516-0 02 1 1012-1204 ● ● ● ●
66 06.234 NUT; TIE ROD END
06.216 M16 SLOTTED 		8-98049-689-0 02 1 1205- ● ● ● ●
69 06.255 PIN; SPLIT,TIE ROD END
OD=3.7 L=20 		0-81124-020-0 02 1 1012- ● ● ● ●
70 06.234 NUT; TIE ROD END
M20 LH THREAD 		8-94254-726-0 01 1 1012- ● ● ● ●
70 06.234 NUT; TIE ROD END
M20 RH THREAD 		8-98043-530-0 01 1 1012- ● ● ● ●
81 06.230 ROD; TIE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.00 R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) 		8-97142-024-0 01 1 1012-1012 ●
81 06.230 ROD; TIE 8-97142-024-0 01 1 1012-1012 ● ● ●
81 06.230 ROD; TIE 8-97142-024-0 01 1 1012- ● ● ● ●
81 06.230 ROD; TIE
FRT&RR 7-15-8 15X5.5F-30(BVT),FRT 185/80R15X5.5K-30 RR 175R14X4.5J-100(CSP), FRT&RR 6.5R-15-10 DISC 5.50FX15-30(CVY),F RT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX1 3-98(22V) 		8-97061-866-0 01 1 1012-1012 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
