◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10808 - FRR-G/FSR/FTR TAIWAN ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#7911) — 164 parça

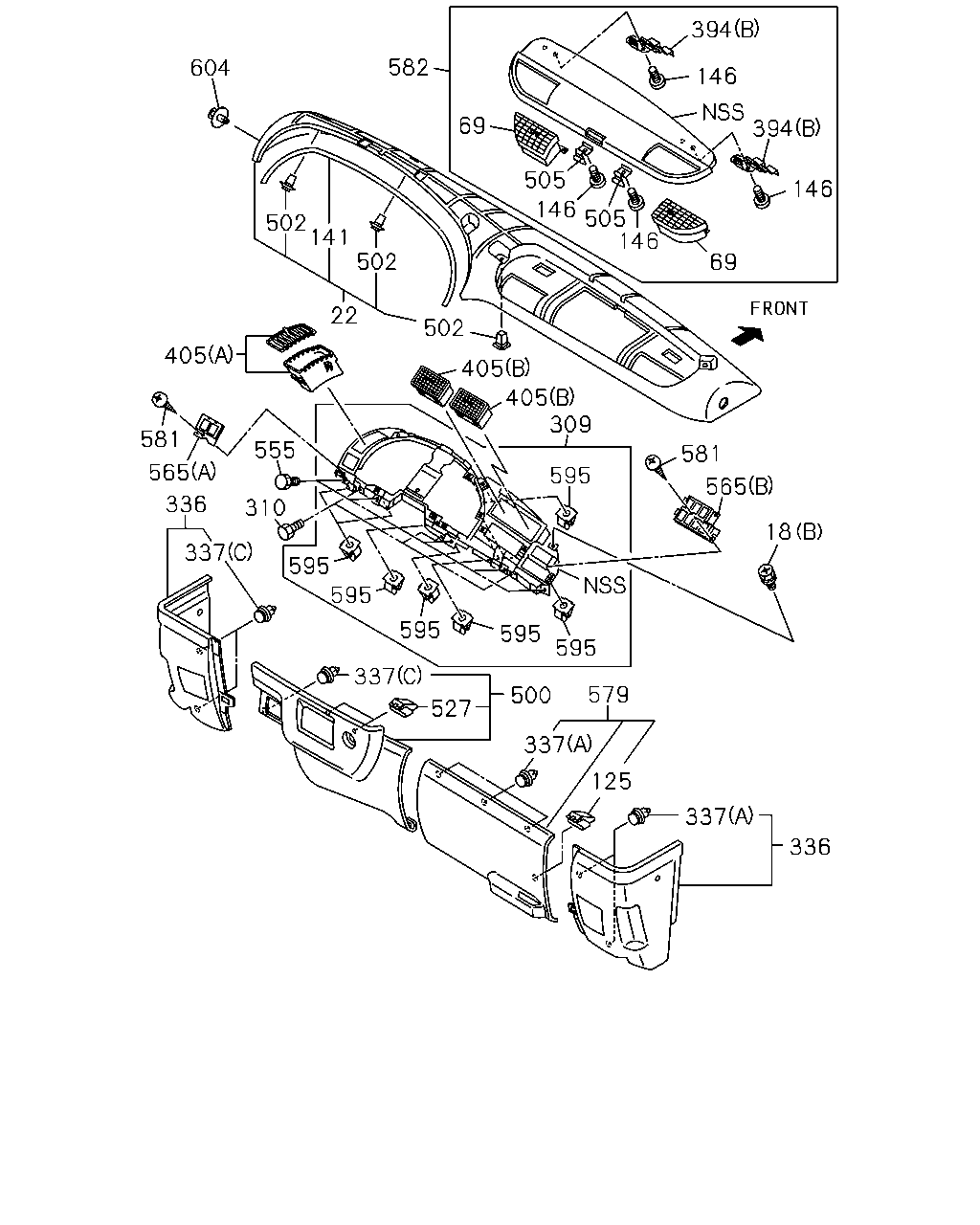

çizim 99477
394 582 604 146 394 69 505 146 146 505 146 502 141 502 69 22 502 405 405 405 309 555 581 581 565 595 565 336 310 18 337 595 595 595 595 595 337 579 500 527 337 125 337 336
BalonParca AdiParca NoAdetTipApplied Date A B C
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 09 1 9905-0301 ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 09 1 0302- ● ● ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9905-0301 ● ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0302- ● ● ●
22 PAD; INST 1-72318-435-3 01 1 9905-0301 ● ●
22 PAD; INST 1-72318-435-3 01 1 0302- ● ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76368-029-5 01 1 9905-0301 ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76368-029-5 01 1 0302- ● ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76368-028-5 01 1 9905-0301 ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76368-028-5 01 1 0302- ● ● ●
125 CLIP; INST PANEL 8-97217-066-0 17 1 9905-0009 ● ●
125 CLIP; INST PANEL 8-97217-066-0 09 1 0010-0301 ● ●
125 CLIP; INST PANEL 8-97217-066-0 09 1 0302- ● ● ●
141 PROTECTOR; EDGE 1-72318-430-0 01 1 9905-0301 ● ●
141 PROTECTOR; EDGE 1-72318-430-0 01 1 0302- ● ● ●
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 9905-0301 ● ●
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 0302- ● ● ●
309 PANEL; SW,INST 1-72418-018-3 01 1 9905-0301 ● ●
309 PANEL; SW,INST 1-72418-018-3 01 1 0302- ● ● ●
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9905-0301 ● ●
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0302- ● ● ●
336 COVER; INST PANEL SIDE 1-72438-194-0 01 1 9905-0301 ● ●
336 COVER; INST PANEL SIDE 1-72438-194-0 01 1 0302- ● ● ●
336 COVER; INST PANEL SIDE 1-72438-193-0 01 1 9905-0301 ● ●
336 COVER; INST PANEL SIDE 1-72438-193-0 01 1 0302- ● ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 9905-0301 ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 0302- ● ● ●
337 FASTENER; COVER
(C) 		1-72438-137-0 06 1 9905-0301 ● ●
337 FASTENER; COVER
(C) 		1-72438-137-0 06 1 0302- ● ● ●
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 9905-0301 ● ●
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 0302- ● ● ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 9905-0301 ● ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 0302- ● ● ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 9905-0301 ● ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0302-0407 ● ● ●
394 HOLDER; PANEL
(B) 		1-72558-048-0 02 1 0408- ● ● ●
405 GRILLE ASM; METER VENT
(A) 		1-76368-062-0 01 1 9905-0301 ● ●
405 GRILLE ASM; METER VENT
(A) 		1-76368-062-0 01 1 0302- ● ● ●
405 GRILLE ASM; METER VENT
(B) BLACK 		8-94333-730-4 02 1 9905-0301 ● ●
405 GRILLE ASM; METER VENT
(B) BLACK 		8-94333-730-4 02 1 0302- ● ● ●
500 CLUSTER; INST CENTER 1-72438-192-1 01 1 9905-0301 ● ●
500 CLUSTER; INST CENTER 1-72438-192-1 01 1 0302- ● ● ●
502 GROMMET; SCREW,CENTER,CLUSTER 8-94279-084-2 04 1 9905-0301 ● ●
502 GROMMET; SCREW,CENTER,CLUSTER 8-94279-084-2 04 1 0302- ● ● ●
505 LOCK; LID 1-72558-024-2 02 1 9905-0301 ● ●
505 LOCK; LID 1-72558-024-2 02 1 0302- ● ● ●
527 CLIP; INST CLUSTER 8-97217-066-0 04 1 9905-0301 ● ●
527 CLIP; INST CLUSTER 8-97217-066-0 04 1 0302- ● ● ●
555 BOLT; PAD
M10X25 FLANGE 		0-28281-025-0 07 1 9905-0301 ● ●
555 BOLT; PAD
M10X25 FLANGE 		0-28281-025-0 07 1 0302-0512 ● ● ●
555 BOLT; PAD
M10X25 FLANGE 		0-28251-025-0 07 1 0601-0604 ● ● ●
555 BOLT; PAD
M10X25 FLANGE 		8-98041-453-0 07 1 0605- ● ● ●
555 BOLT; PAD
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9905-0301 ● ●
555 BOLT; PAD
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0302- ● ● ●
565 BEZEL; SW PANEL
(A) 		1-72418-021-1 01 1 9905-0301 ● ●
565 BEZEL; SW PANEL
(A) 		1-72418-021-1 01 1 0302- ● ● ●
565 BEZEL; SW PANEL
(B) 		1-72418-020-1 01 1 9905-0301 ● ●
565 BEZEL; SW PANEL
(B) 		1-72418-020-1 01 1 0302- ● ● ●
579 COVER; INST PNL 1-72438-195-1 01 1 9905-0301 ● ●
579 COVER; INST PNL 1-72438-195-1 01 1 0302- ● ● ●
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 9905-0301 ● ●
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0302-0604 ● ● ●
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605- ● ● ●
582 LID; FUSE & RELAY 1-72548-146-1 01 1 9905-0301 ● ●
582 LID; FUSE & RELAY 1-72548-146-1 01 1 0302- ● ● ●
595 NUT; HOOK 1-72418-013-0 10 1 9905-0301 ● ●
595 NUT; HOOK 1-72418-013-0 10 1 0302- ● ● ●
604 CLIP; INST PAD 1-09983-123-0 01 1 9905-0301 ● ●
604 CLIP; INST PAD 1-09983-123-0 01 1 0302- ● ● ●

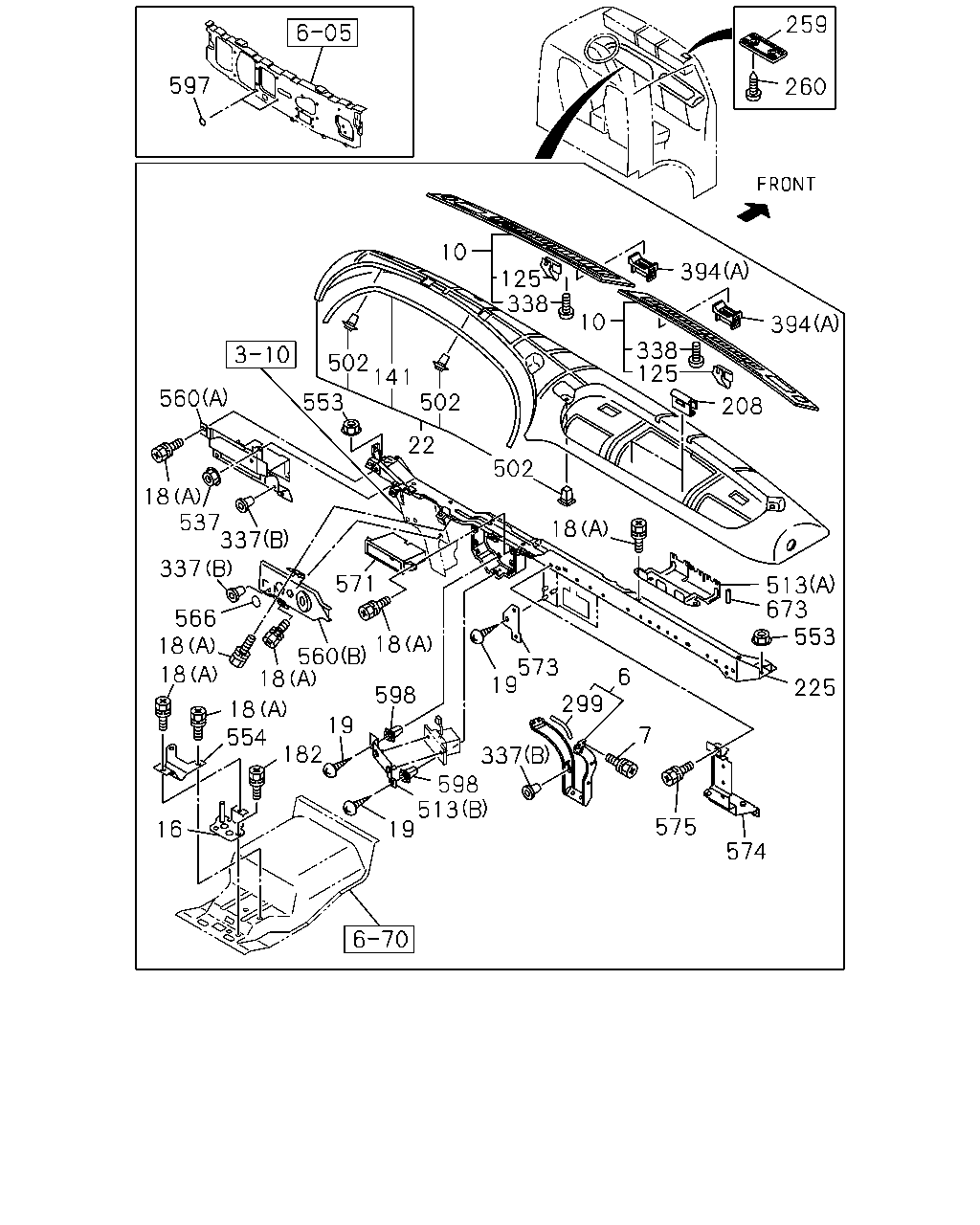

çizim 99480
259 597 260 10 394 125 338 10 394 338 125 141 560 553 502 208 22 18 537 337 337 502 18 571 513 673 553 566 18 18 560 18 573 19 18 6 225 598 299 18 554 19 7 182 337 598 513 19 575 16 574 502
BalonParca AdiParca NoAdetTipApplied Date A B C
6 SUPPORT; INST PANEL 1-65681-035-6 01 1 9905-0301 ● ●
6 SUPPORT; INST PANEL 1-65681-035-6 01 1 0302- ● ● ●
7 BOLT; SUPPORT,INST PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 9905-0301 ● ●
7 BOLT; SUPPORT,INST PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0302- ● ● ●
10 PANEL ASM; GARNISH
W/SPEAKER NET 		1-72437-601-6 01 1 9905-0301 ● ●
10 PANEL ASM; GARNISH
W/SPEAKER NET 		1-72437-601-6 01 1 0302- ● ● ●
10 PANEL ASM; GARNISH
W/SPEAKER NET 		1-72437-600-7 01 1 9905-0301 ● ●
10 PANEL ASM; GARNISH
W/SPEAKER NET 		1-72437-600-7 01 1 0302- ● ● ●
16 BRACKET; INST PNL 1-79738-802-1 01 1 9905-0301 ● ●
16 BRACKET; INST PNL 1-79738-802-1 01 1 0302- ● ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 09 1 9905-0301 ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 09 1 0302- ● ● ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9905-0301 ● ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0302- ● ● ●
19 SCREW; BRKT
M5X14 		8-94279-325-0 02 1 9905-0301 ● ●
19 SCREW; BRKT
PTO CONT<SV6> M5X14 		8-94279-325-0 02 1 9905-0301 ●
19 SCREW; BRKT
PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> M5X14 		8-94279-325-0 02 1 9905-0301 ●
19 SCREW; BRKT
M5X14 		8-94279-325-0 02 1 0302- ● ● ●
19 SCREW; BRKT
PTO CONT<SV6> M5X14 		8-94279-325-0 02 1 0302- ● ●
19 SCREW; BRKT
PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> M5X14 		8-94279-325-0 02 1 0302- ●
22 PAD; INST 1-72318-435-3 01 1 9905-0301 ● ●
22 PAD; INST 1-72318-435-3 01 1 0302- ● ● ●
125 CLIP; INST PANEL 8-97217-066-0 17 1 9905-0009 ● ●
125 CLIP; INST PANEL 8-97217-066-0 09 1 0010-0301 ● ●
125 CLIP; INST PANEL 8-97217-066-0 09 1 0302- ● ● ●
141 PROTECTOR; EDGE 1-72318-430-0 01 1 9905-0301 ● ●
141 PROTECTOR; EDGE 1-72318-430-0 01 1 0302- ● ● ●
182 BOLT; BRKT,INST PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9905-0301 ● ●
182 BOLT; BRKT,INST PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0302- ● ● ●
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 9905-0301 ● ●
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 0302- ● ● ●
225 FRAME; FACIA 1-65681-028-8 01 1 9905-0301 ● ●
225 FRAME; FACIA 1-65681-028-8 01 1 0302- ● ● ●
259 PLATE; STUFF,SUN VISOR 1-73317-410-0 01 1 9905-9910 ● ●
259 PLATE; STUFF,SUN VISOR
EXC. SUN VISOR PASS<D20> 		1-73317-410-0 01 1 9911- ●
260 SCREW; STUFF PLATE
M6X25 		1-09981-441-0 02 1 9905-9910 ● ●
260 SCREW; STUFF PLATE
EXC. SUN VISOR PASS<D20> M6X25 		1-09981-441-0 02 1 9911- ●
299 FINISHER; STAY,INST CENTER
L=150 SERVICED BY L=190 		1-71998-300-0 01 1 0006-0301 ● ●
299 FINISHER; STAY,INST CENTER
L=150 SERVICED BY L=190 		1-71998-300-0 01 1 0302- ● ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 9905-0301 ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 0302- ● ● ●
337 FASTENER; COVER
(C) 		1-72438-137-0 06 1 9905-0301 ● ●
337 FASTENER; COVER
(C) 		1-72438-137-0 06 1 0302- ● ● ●
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 9905-0301 ● ●
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 0302- ● ● ●
338 SCREW; COVER
M5X14 		8-94279-325-0 10 1 9905-0208 ● ●
338 SCREW; COVER
M5X14 		8-94148-576-1 10 1 0209-0301 ● ●
338 SCREW; COVER
M5X14 		8-94148-576-1 10 1 0302-0309 ● ● ●
338 SCREW; COVER
M5X14 		8-94279-325-0 10 1 0310- ● ● ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 9905-0301 ● ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 0302- ● ● ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 9905-0301 ● ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0302-0407 ● ● ●
394 HOLDER; PANEL
(B) 		1-72558-048-0 02 1 0408- ● ● ●
502 GROMMET; SCREW,CENTER,CLUSTER 8-94279-084-2 04 1 9905-0301 ● ●
502 GROMMET; SCREW,CENTER,CLUSTER 8-94279-084-2 04 1 0302- ● ● ●
513 BRACKET; RELAY
PTO CONT<SV6> (B) 		1-73908-043-1 01 1 9905-0301 ●
513 BRACKET; RELAY
PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> (B) 		1-73908-043-1 01 1 9905-0301 ●
513 BRACKET; RELAY
PTO CONT<SV6> (B) 		1-73908-043-1 01 1 0302- ● ●
513 BRACKET; RELAY
PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> (B) 		1-73908-043-1 01 1 0302- ●
513 BRACKET; RELAY
(A) 		8-97865-168-3 01 1 9905-0301 ● ●
513 BRACKET; RELAY
(A) 		8-97865-168-3 01 1 0302- ● ● ●
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 9905-0301 ● ●
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 0302-0602 ● ● ●
537 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0603- ● ● ●
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 9905-0301 ● ●
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 0302-0602 ● ● ●
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ● ●
554 BRACKET; CENTER BEZEL 1-65681-039-2 01 1 9905-0301 ● ●
554 BRACKET; CENTER BEZEL 1-65681-039-2 01 1 0302- ● ● ●
560 BRACKET
(A) 		1-65681-045-6 01 1 9905-0301 ● ●
560 BRACKET
(A) 		1-65681-045-6 01 1 0302- ● ● ●
560 BRACKET
(B) 		1-65681-043-2 01 1 9905-0301 ● ●
560 BRACKET
(B) 		1-65681-043-2 01 1 0302- ● ● ●
566 PLUG; HOLE
OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 9905-0301 ● ●
566 PLUG; HOLE
OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0302- ● ● ●
571 BEZEL; POCKET 1-72438-151-1 01 1 9905-0110 ● ●
571 BEZEL; POCKET 1-72438-151-1 01 1 9905-0110 ● ●
571 BEZEL; POCKET 1-72438-151-3 02 1 0111-0301 ● ●
571 BEZEL; POCKET 1-72438-151-3 02 1 0302- ● ● ●
573 BRACKET; PANEL,RELAY BOX 1-73908-023-2 01 1 9905-0301 ● ●
573 BRACKET; PANEL,RELAY BOX 1-73908-023-2 01 1 0302- ● ● ●
574 PANEL; RELAY BOX 1-73908-058-7 01 1 9905-0301 ● ●
574 PANEL; RELAY BOX 1-73908-058-7 01 1 0302- ● ● ●
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9905-0301 ● ●
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0302- ● ● ●
597 SEAL; HOLE,DASH
OD=16 BLACK 		1-76798-037-0 02 1 0104-0301 ● ●
597 SEAL; HOLE,DASH
OD=16 BLACK 		1-76798-037-0 02 1 0302- ● ● ●
598 GROMMET; SCREW
PTO CONT<SV6> 		8-94279-084-2 02 1 9905-0301 ●
598 GROMMET; SCREW
PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> 		8-94279-084-2 02 1 9905-0301 ●
598 GROMMET; SCREW
PTO CONT<SV6> 		8-94279-084-2 02 1 0302- ● ●
598 GROMMET; SCREW
PTO CONT AIR LINK TYPE<SEC>,PTO CONT<SV6> 		8-94279-084-2 02 1 0302- ●
673 FINISHER; BRKT,RELAY
L=30 		8-94273-221-0 01 1 0006-0009 ● ●
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0010-0301 ● ●
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0302- ● ● ●
