3-55 — BRAKE PIPING; OIL,REAR (#79106) — 133 parça

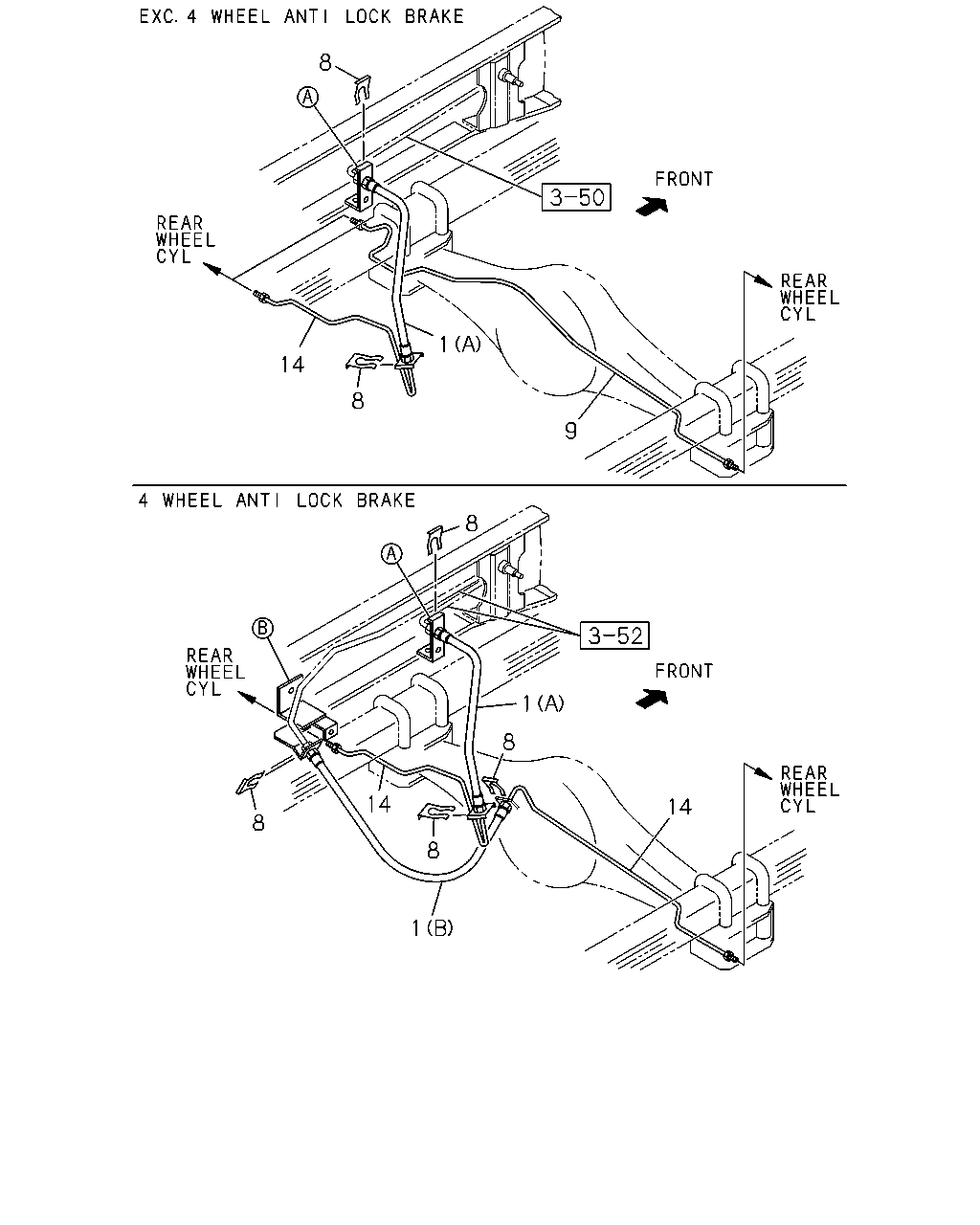

çizim 119737
8 14 8 1 9 8 1 8 14 8 14 8 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) L=430 		8-97077-458-0 01 1 1407- ●
1 04.680 HOSE; FLEX,RR BRK
(A) L=370 		8-97035-574-0 01 1 1012- ● ● ● ●
8 04.686 CLIP; RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97360-054-0 04 1 1407- ●
8 04.686 CLIP; RR BRK 8-97360-054-0 02 1 1012-1406 ● ● ● ●
8 04.686 CLIP; RR BRK 8-97360-054-0 02 1 1407- ● ● ●
8 04.686 CLIP; RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97360-054-0 02 1 1407- ●
9 04.685 PIPE; BRK,RR AXLE
G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) BRAKE SYSTEM HEAVY DUTY VAR2<WG3> EXC. DUMP CHASSIS(V4D) 		8-98021-870-0 01 1 1302-1406 ●
9 04.685 PIPE; BRK,RR AXLE
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-98021-870-0 01 1 1302-1406 ●
9 04.685 PIPE; BRK,RR AXLE
G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) BRAKE SYSTEM HEAVY DUTY VAR2<WG3> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DUMP CHASSIS(V4D) 		8-98021-870-0 01 1 1407-1407 ●
9 04.685 PIPE; BRK,RR AXLE
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-98021-870-0 01 1 1407-1407 ●
9 04.685 PIPE; BRK,RR AXLE
ALGERIA EQUIPMENT(WN1) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DUMP CHASSIS(V4D) 		8-98021-870-0 01 1 1408-1503 ●
9 04.685 PIPE; BRK,RR AXLE
G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) BRAKE SYSTEM HEAVY DUTY VAR2<WG3> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DUMP CHASSIS(V4D),ALGERIA EQUIPMENT(WN1) 		8-98021-870-0 01 1 1408-1503 ●
9 04.685 PIPE; BRK,RR AXLE
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-98021-870-0 01 1 1408-1503 ●
9 04.685 PIPE; BRK,RR AXLE
UZBEKISTAN EQUIPMENT(JCW),ALGERIA EQUIPMENT(WN1) G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DUMP CHASSIS(V4D) 		8-98021-870-0 01 1 1504- ●
9 04.685 PIPE; BRK,RR AXLE
G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) BRAKE SYSTEM HEAVY DUTY VAR2<WG3> EXC. UZBEKISTAN EQUIPMENT(JCW),4 WHEEL ANTI LOCK BRAKE<JE5>,DUMP CHASSIS(V4D), ALGERIA EQUIPMENT(WN1) 		8-98021-870-0 01 1 1504- ●
9 04.685 PIPE; BRK,RR AXLE
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-98021-870-0 01 1 1504- ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) COLOMBIA EQUIPMENT(CB7) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> 		8-98021-864-0 01 1 1012-1012 ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. COLOMBIA EQUIPMENT(CB7),REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> 		8-98021-864-0 01 1 1012-1012 ●
9 04.685 PIPE; BRK,RR AXLE 8-98021-864-0 01 1 1012-1012 ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> 		8-98021-864-0 01 1 1012-1308 ●
9 04.685 PIPE; BRK,RR AXLE 8-98021-864-0 01 1 1012-1308 ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> 		8-98021-864-0 01 1 1309- ●
9 04.685 PIPE; BRK,RR AXLE 8-98021-864-0 01 1 1309- ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 3.0-3.5TON(RPP) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 		8-98034-198-0 01 1 1012-1308 ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 3.5-4.0TON(RPQ) REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE (6YE) 		8-98045-395-0 01 1 1012-1308 ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 		8-98045-395-0 01 1 1309- ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 3.5-4.0TON(RPQ) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> EXC. REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 		8-98045-394-0 01 1 1012-1308 ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> EXC. REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 		8-98045-394-0 01 1 1309- ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE STANDARD 244MM(R39) COLOMBIA EQUIPMENT(CB7) G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> 		8-97089-922-0 01 1 1012-1012 ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE STANDARD 244MM(R39) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. COLOMBIA EQUIPMENT(CB7),REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> 		8-97089-922-0 01 1 1012-1012 ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE STANDARD 244MM(R39) G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> 		8-97089-922-0 01 1 1012-1302 ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE STANDARD 244MM(R39) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> 		8-97089-922-0 01 1 1303-1308 ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE STANDARD 244MM(R39) G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> 		8-97089-922-0 01 1 1309- ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE STANDARD 244MM(R39) G.V.W. 3.0-3.5TON(RPP) SINGLE RR TIRE(6TD) EXC. COLOMBIA EQUIPMENT(CB7),REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> 		8-97035-850-0 01 1 1012-1012 ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE STANDARD 244MM(R39) G.V.W. 3.0-3.5TON(RPP) SINGLE RR TIRE(6TD) EXC. COLOMBIA EQUIPMENT(CB7),REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> 		8-97105-827-0 01 1 1012-1012 ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE STANDARD 244MM(R39) G.V.W. 3.0-3.5TON(RPP) SMALL DOUBLE RR TIRE(6YE) EXC. COLOMBIA EQUIPMENT(CB7),REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> 		8-98039-610-0 01 1 1012-1012 ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE STANDARD 244MM(R39) G.V.W. 3.0-3.5TON(RPP) SMALL DOUBLE RR TIRE(6YE) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> 		8-98039-610-0 01 1 1012- ●
9 04.685 PIPE; BRK,RR AXLE
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH> 		8-98067-256-0 01 1 1012-1301 ●
9 04.685 PIPE; BRK,RR AXLE
G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) BRK WHL LK CONT LSPV<6PH> EXC. DUMP CHASSIS(V4D) 		8-98067-256-0 01 1 1012-1301 ●
9 04.685 PIPE; BRK,RR AXLE 8-98067-256-0 01 1 1012-1301 ●
9 04.685 PIPE; BRK,RR AXLE
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. DUMP CHASSIS(V4D),BRAKE SYSTEM HEAVY DUTY VAR2<WG3>,BRK WHL LK CONT LSPV<6PH> 		8-98067-256-0 01 1 1302-1302 ●
9 04.685 PIPE; BRK,RR AXLE
G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) BRK WHL LK CONT LSPV<6PH> EXC. DUMP CHASSIS(V4D),BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-98067-256-0 01 1 1302-1302 ●
9 04.685 PIPE; BRK,RR AXLE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-98067-256-0 01 1 1302-1302 ●
9 04.685 PIPE; BRK,RR AXLE
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. DUMP CHASSIS(V4D),BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-98067-256-0 01 1 1303-1308 ●
9 04.685 PIPE; BRK,RR AXLE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-98067-256-0 01 1 1303-1308 ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) REAR WIDE TREAD(V4T) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 		8-98067-256-0 01 1 1309-1406 ●
9 04.685 PIPE; BRK,RR AXLE
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. DUMP CHASSIS(V4D),BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-98067-256-0 01 1 1309-1406 ●
9 04.685 PIPE; BRK,RR AXLE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-98067-256-0 01 1 1309-1406 ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) REAR WIDE TREAD(V4T) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 		8-98067-256-0 01 1 1407-1407 ●
9 04.685 PIPE; BRK,RR AXLE
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DUMP CHASSIS(V4D),BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-98067-256-0 01 1 1407-1407 ●
9 04.685 PIPE; BRK,RR AXLE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-98067-256-0 01 1 1407-1407 ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) REAR WIDE TREAD(V4T) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 		8-98067-256-0 01 1 1408-1503 ●
9 04.685 PIPE; BRK,RR AXLE
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DUMP CHASSIS(V4D),BRAKE SYSTEM HEAVY DUTY VAR2<WG3>,ALGERIA EQUIPMENT(WN1) 		8-98067-256-0 01 1 1408-1503 ●
9 04.685 PIPE; BRK,RR AXLE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-98067-256-0 01 1 1408-1503 ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) REAR WIDE TREAD(V4T) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 		8-98067-256-0 01 1 1504- ●
9 04.685 PIPE; BRK,RR AXLE
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. UZBEKISTAN EQUIPMENT(JCW),4 WHEEL ANTI LOCK BRAKE<JE5>,DUMP CHASSIS(V4D), BRAKE SYSTEM HEAVY DUTY VAR2<WG3>, ALGERIA EQUIPMENT(WN1) 		8-98067-256-0 01 1 1504- ●
9 04.685 PIPE; BRK,RR AXLE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-98067-256-0 01 1 1504- ●
9 04.685 PIPE; BRK,RR AXLE
G.V.W. 5.5-6.0TON(RPU) DUMP CHASSIS(V4D) EXC. REAR WIDE TREAD(V4T),BRK WHL LK CONT LSPV<6PH> 		8-98021-868-0 01 1 1012-1301 ●
9 04.685 PIPE; BRK,RR AXLE
G.V.W. 5.5-6.0TON(RPU) DUMP CHASSIS(V4D) EXC. REAR WIDE TREAD(V4T),BRAKE SYSTEM HEAVY DUTY VAR2<WG3>,BRK WHL LK CONT LSPV<6PH> 		8-98021-868-0 01 1 1302-1308 ●
9 04.685 PIPE; BRK,RR AXLE
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) DUMP CHASSIS(V4D) EXC. REAR WIDE TREAD(V4T),BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-98021-868-0 01 1 1309-1406 ●
9 04.685 PIPE; BRK,RR AXLE
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) DUMP CHASSIS(V4D) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,REAR WIDE TREAD(V4T),BRAKE SYSTEM HEAVY DUTYVAR2<WG3> 		8-98021-868-0 01 1 1407-1407 ●
9 04.685 PIPE; BRK,RR AXLE
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) DUMP CHASSIS(V4D) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,REAR WIDE TREAD(V4T),BRAKE SYSTEM HEAVY DUTYVAR2<WG3>,ALGERIA EQUIPMENT(WN1) 		8-98021-868-0 01 1 1408-1503 ●
9 04.685 PIPE; BRK,RR AXLE
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) DUMP CHASSIS(V4D) EXC. UZBEKISTAN EQUIPMENT(JCW),4 WHEEL ANTI LOCK BRAKE<JE5>,REAR WIDE TREAD(V4T),BRAKE SYSTEM HEAVY DUTY VAR2<WG3>,AL GERIA EQUIPMENT(WN1) 		8-98021-868-0 01 1 1504- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) BRAKE SYSTEM HEAVY DUTY VAR2<WG3> EXC. DUMP CHASSIS(V4D) 		8-98021-879-0 01 1 1407-1407 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
ALGERIA EQUIPMENT(WN1) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. DUMP CHASSIS(V4D) 		8-98021-879-0 01 1 1408-1503 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) BRAKE SYSTEM HEAVY DUTY VAR2<WG3> EXC. DUMP CHASSIS(V4D),ALGERIA EQUIPMENT(WN1) 		8-98021-879-0 01 1 1408-1503 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
UZBEKISTAN EQUIPMENT(JCW),ALGERIA EQUIPMENT(WN1) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. DUMP CHASSIS(V4D) 		8-98021-879-0 01 1 1504- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) BRAKE SYSTEM HEAVY DUTY VAR2<WG3> EXC. UZBEKISTAN EQUIPMENT(JCW),DUMP CHASSIS(V4D),ALGERIA EQUIPMENT(WN1) 		8-98021-879-0 01 1 1504- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU) DUMP CHASSIS(V4D) BRAKE SYSTEM HEAVY DUTY VAR2<WG3> EXC. REAR WIDE TREAD(V4T),ALGERIA EQUIPMENT(WN1) 		8-98034-196-0 01 1 1408-1503 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
ALGERIA EQUIPMENT(WN1) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) DUMP CHASSIS(V4D) EXC. REAR WIDE TREAD(V4T) 		8-98034-196-0 01 1 1408-1503 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
UZBEKISTAN EQUIPMENT(JCW),ALGERIA EQUIPMENT(WN1) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) DUMP CHASSIS(V4D) EXC. REAR WIDE TREAD(V4T) 		8-98034-196-0 01 1 1504- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU) DUMP CHASSIS(V4D) BRAKE SYSTEM HEAVY DUTY VAR2<WG3> EXC. UZBEKISTAN EQUIPMENT(JCW),REAR WIDE TREAD(V4T),ALGERIA EQUIPMENT(WN1) 		8-98034-196-0 01 1 1504- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
ALGERIA EQUIPMENT(WN1) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.0-5.5TON(RPT) DUMP CHASSIS(V4D) EXC. REAR WIDE TREAD(V4T),BRK WHL LK CONT LSPV<6PH> 		8-98034-194-0 01 1 1408-1408 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
ALGERIA EQUIPMENT(WN1) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU) DUMP CHASSIS(V4D) EXC. REAR WIDE TREAD(V4T),BRK WHL LK CONT LSPV<6PH> 		8-98034-194-0 01 1 1409-1503 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
UZBEKISTAN EQUIPMENT(JCW),ALGERIA EQUIPMENT(WN1) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.5-6.0TON(RPU) DUMP CHASSIS(V4D) EXC. REAR WIDE TREAD(V4T),BRK WHL LK CONT LSPV<6PH> 		8-98034-194-0 01 1 1504- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
ALGERIA EQUIPMENT(WN1) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH> 		8-98021-871-0 01 1 1408-1408 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
ALGERIA EQUIPMENT(WN1) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH> 		8-98021-871-0 01 1 1409-1503 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
UZBEKISTAN EQUIPMENT(JCW),ALGERIA EQUIPMENT(WN1) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH> 		8-98021-871-0 01 1 1504- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) COLOMBIA EQUIPMENT(CB7) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> 		8-98021-860-0 01 1 1012-1012 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. COLOMBIA EQUIPMENT(CB7),REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> 		8-98021-860-0 01 1 1012-1012 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98021-860-0 01 1 1012-1012 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> 		8-98021-860-0 01 1 1012- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98021-860-0 01 1 1012- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 3.5-4.0TON(RPQ) REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE (6YE) 		8-98021-869-0 01 1 1012-1301 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH> 		8-98021-869-0 01 1 1012-1301 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) BRK WHL LK CONT LSPV<6PH> EXC. DUMP CHASSIS(V4D) 		8-98021-869-0 01 1 1012-1301 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98021-869-0 01 1 1012-1301 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 3.5-4.0TON(RPQ) REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE (6YE) 		8-98021-869-0 01 1 1302-1302 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. DUMP CHASSIS(V4D),BRAKE SYSTEM HEAVY DUTY VAR2<WG3>,BRK WHL LK CONT LSPV<6PH> 		8-98021-869-0 01 1 1302-1302 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) BRAKE SYSTEM HEAVY DUTY VAR2<WG3> EXC. DUMP CHASSIS(V4D),BRK WHL LK CONT LSPV<6PH> 		8-98021-869-0 01 1 1302-1302 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) BRK WHL LK CONT LSPV<6PH> EXC. DUMP CHASSIS(V4D) 		8-98021-869-0 01 1 1302-1302 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98021-869-0 01 1 1302-1302 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 3.5-4.0TON(RPQ) REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE (6YE) 		8-98021-869-0 01 1 1303-1406 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) BRAKE SYSTEM HEAVY DUTY VAR2<WG3> EXC. DUMP CHASSIS(V4D) 		8-98021-869-0 01 1 1303-1406 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. DUMP CHASSIS(V4D),BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-98021-869-0 01 1 1303-1406 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98021-869-0 01 1 1303-1406 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 3.5-4.0TON(RPQ) REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE (6YE) 		8-98021-869-0 01 1 1407-1407 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) BRAKE SYSTEM HEAVY DUTY VAR2<WG3> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DUMP CHASSIS(V4D) 		8-98021-869-0 01 1 1407-1407 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DUMP CHASSIS(V4D),BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-98021-869-0 01 1 1407-1407 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98021-869-0 01 1 1407-1407 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 3.5-4.0TON(RPQ) REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE (6YE) 		8-98021-869-0 01 1 1408-1503 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
ALGERIA EQUIPMENT(WN1) G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DUMP CHASSIS(V4D) 		8-98021-869-0 01 1 1408-1503 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DUMP CHASSIS(V4D),BRAKE SYSTEM HEAVY DUTY VAR2<WG3>,ALGERIA EQUIPMENT(WN1) 		8-98021-869-0 01 1 1408-1503 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) BRAKE SYSTEM HEAVY DUTY VAR2<WG3> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DUMP CHASSIS(V4D),ALGERIA EQUIPMENT(WN1) 		8-98021-869-0 01 1 1408-1503 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98021-869-0 01 1 1408-1503 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 3.5-4.0TON(RPQ) REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE (6YE) 		8-98021-869-0 01 1 1504- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
UZBEKISTAN EQUIPMENT(JCW),ALGERIA EQUIPMENT(WN1) G.V.W. 5.0-5.5TON(RPT) REAR WIDE TREAD(V4T) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,DUMP CHASSIS(V4D) 		8-98021-869-0 01 1 1504- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) EXC. UZBEKISTAN EQUIPMENT(JCW),4 WHEEL ANTI LOCK BRAKE<JE5>,DUMP CHASSIS(V4D), BRAKE SYSTEM HEAVY DUTY VAR2<WG3>, ALGERIA EQUIPMENT(WN1) 		8-98021-869-0 01 1 1504- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 5.5-6.0TON(RPU) REAR WIDE TREAD(V4T) BRAKE SYSTEM HEAVY DUTY VAR2<WG3> EXC. UZBEKISTAN EQUIPMENT(JCW),4 WHEEL ANTI LOCK BRAKE<JE5>,DUMP CHASSIS(V4D), ALGERIA EQUIPMENT(WN1) 		8-98021-869-0 01 1 1504- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98021-869-0 01 1 1504- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 3.5-4.0TON(RPQ) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> EXC. REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 		8-98034-192-0 01 1 1012- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE STANDARD 244MM(R39) COLOMBIA EQUIPMENT(CB7) G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> 		8-98039-608-0 01 1 1012-1012 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE STANDARD 244MM(R39) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. COLOMBIA EQUIPMENT(CB7),REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> 		8-98039-608-0 01 1 1012-1012 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE STANDARD 244MM(R39) G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> 		8-98039-608-0 01 1 1012-1302 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE STANDARD 244MM(R39) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> 		8-98039-608-0 01 1 1303- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE STANDARD 244MM(R39) G.V.W. 3.0-3.5TON(RPP) SMALL DOUBLE RR TIRE(6YE) EXC. COLOMBIA EQUIPMENT(CB7),REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> 		8-98039-607-0 01 1 1012-1012 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE STANDARD 244MM(R39) G.V.W. 3.0-3.5TON(RPP) SMALL DOUBLE RR TIRE(6YE) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG<V4U> 		8-98039-607-0 01 1 1012- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 5.5-6.0TON(RPU) DUMP CHASSIS(V4D) EXC. REAR WIDE TREAD(V4T),BRK WHL LK CONT LSPV<6PH> 		8-98021-867-0 01 1 1012-1301 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 5.5-6.0TON(RPU) DUMP CHASSIS(V4D) EXC. REAR WIDE TREAD(V4T),BRAKE SYSTEM HEAVY DUTY VAR2<WG3>,BRK WHL LK CONT LSPV<6PH> 		8-98021-867-0 01 1 1302-1406 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 5.5-6.0TON(RPU) DUMP CHASSIS(V4D) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,REAR WIDE TREAD(V4T),BRAKE SYSTEM HEAVY DUTYVAR2<WG3>,BRK WHL LK CONT LSPV<6PH> 		8-98021-867-0 01 1 1407-1407 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 5.5-6.0TON(RPU) DUMP CHASSIS(V4D) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,REAR WIDE TREAD(V4T),BRAKE SYSTEM HEAVY DUTYVAR2<WG3>,ALGERIA EQUIPMENT(WN1),BRK W HL LK CONT LSPV<6PH> 		8-98021-867-0 01 1 1408-1503 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 5.5-6.0TON(RPU) DUMP CHASSIS(V4D) EXC. UZBEKISTAN EQUIPMENT(JCW),4 WHEEL ANTI LOCK BRAKE<JE5>,REAR WIDE TREAD(V4T),BRAKE SYSTEM HEAVY DUTY VAR2<WG3>,AL GERIA EQUIPMENT(WN1),BRK WHL LK CONT LSPV<6PH> 		8-98021-867-0 01 1 1504- ●
çizim 467178
25 3 3 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> (C) 		8-98153-296-0 01 1 1407- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) 		8-97251-436-0 01 1 1012- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(B) 		8-97251-436-0 01 1 1012- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (A) 		8-97205-198-0 01 1 1012- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
EXC. FRAME-KICK UP<7EW> (A) 		8-97205-198-0 01 1 1012- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-198-0 01 1 1012- ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 1012-1406 ● ● ● ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 1012-1406 ● ●
25 04.686 CONNECTOR
BRK WHL LK CONT LSPV<6PH> M10 STRAIGHT 		0-92107-005-0 01 1 1012-1406 ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 1407- ● ● ● ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 1407- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
