◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51282 - NLR/NMR 55,85(LHD) ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#79105) — 233 parça

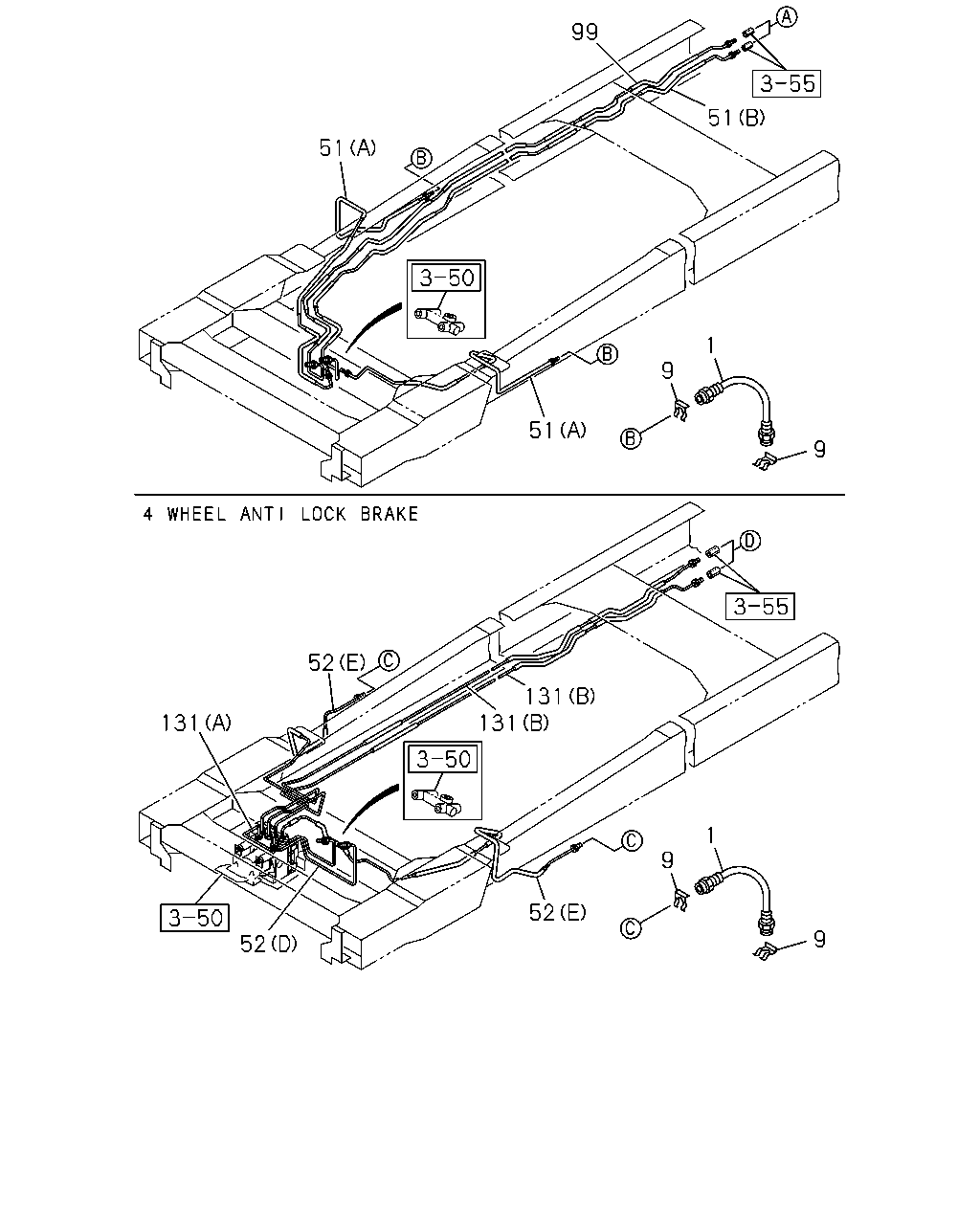

çizim 119767
99 51 51 51 9 1 9 131 131 52 131 52 52 1 9 9
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.680 HOSE; FLEX,FRT BRK
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) 		8-97042-976-0 02 1 1012-1012 ●
1 04.680 HOSE; FLEX,FRT BRK
COLOMBIA EQUIPMENT(CB7) G.V.W. 3.0-3.5TON(RPP) 		8-97042-976-0 02 1 1012-1012 ●
1 04.680 HOSE; FLEX,FRT BRK 8-97042-976-0 02 1 1012-1012 ● ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-97042-976-0 02 1 1012- ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
G.V.W. 3.0-3.5TON(RPP) EXC. COLOMBIA EQUIPMENT(CB7) L=310 		8-97035-063-1 02 1 1012-1012 ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1012- ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1012- ● ● ● ●
51 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME-KICK UP<7EW> (A) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98179-882-0 01 1 1407- ●
51 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME-KICK UP<7EW> (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98179-883-0 01 1 1407- ●
51 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> (A) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98012-844-1 01 1 1407- ●
51 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98012-845-1 01 1 1407- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,RR RH 2WAY TO 2WAY,REAR 		8-98061-505-0 01 1 1407- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,RR LH 2WAY TO 2WAY,REAR 		8-98061-506-0 01 1 1407- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 2WAY TO 2WAY 		8-98061-507-0 01 1 1407- ●
51 04.685 PIPE; BRK
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1012-1301 ●
51 04.685 PIPE; BRK
AIR BAG DRIVER<AJ3> BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (B) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1012-1301 ●
51 04.685 PIPE; BRK
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1302-1309 ●
51 04.685 PIPE; BRK
AIR BAG DRIVER<AJ3> BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (B) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1302-1309 ●
51 04.685 PIPE; BRK
BRK WHL LK CONT LSPV<6PH> HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,FRAME-KICK UP<7EW> (B) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1302-1309 ●
51 04.685 PIPE; BRK
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1310-1406 ●
51 04.685 PIPE; BRK
HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (B) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1310-1406 ●
51 04.685 PIPE; BRK
AIR BAG DRIVER<AJ3> BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (B) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1310-1406 ●
51 04.685 PIPE; BRK
BRK WHL LK CONT LSPV<6PH> HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,FRAME-KICK UP<7EW> (B) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1310-1406 ●
51 04.685 PIPE; BRK
(B) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1310-1406 ●
51 04.685 PIPE; BRK
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1407- ●
51 04.685 PIPE; BRK
HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (B) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1407- ●
51 04.685 PIPE; BRK
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (B) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1407- ●
51 04.685 PIPE; BRK
BRK WHL LK CONT LSPV<6PH> HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRAME-KICK UP<7EW> (B) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1407- ●
51 04.685 PIPE; BRK
(B) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1407- ●
51 04.685 PIPE; BRK
(A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98054-530-0 01 1 1012-1406 ● ● ● ●
51 04.685 PIPE; BRK
(A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98054-530-0 01 1 1407- ● ● ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98054-530-0 01 1 1407- ●
51 04.685 PIPE; BRK
(A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98054-531-1 01 1 1012-1406 ● ● ● ●
51 04.685 PIPE; BRK
(A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98054-531-1 01 1 1407- ● ● ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98054-531-1 01 1 1407- ●
51 04.685 PIPE; BRK
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (B) 5/6WAY TO 2WAY,FRONT 		8-98139-680-0 01 1 1012-1301 ●
51 04.685 PIPE; BRK
BRK WHL LK CONT LSPV<6PH> EXC. AIR BAG DRIVER<AJ3>,FRAME-KICK UP<7EW> (B) 5/6WAY TO 2WAY,FRONT 		8-98139-680-0 01 1 1012-1301 ●
51 04.685 PIPE; BRK
(B) 5/6WAY TO 2WAY,FRONT 		8-98139-680-0 01 1 1012-1301 ●
51 04.685 PIPE; BRK
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (B) 5/6WAY TO 2WAY,FRONT 		8-98139-680-0 01 1 1302-1309 ●
51 04.685 PIPE; BRK
BRK WHL LK CONT LSPV<6PH> EXC. AIR BAG DRIVER<AJ3>,HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (B) 5/6WAY TO 2WAY,FRONT 		8-98139-680-0 01 1 1302-1309 ●
51 04.685 PIPE; BRK
(B) 5/6WAY TO 2WAY,FRONT 		8-98139-680-0 01 1 1302-1309 ●
51 04.685 PIPE; BRK
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> (B) 5/6WAY TO 2WAY,FRONT 		8-98139-680-0 01 1 1310-1406 ●
51 04.685 PIPE; BRK
BRK WHL LK CONT LSPV<6PH> EXC. AIR BAG DRIVER<AJ3>,HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (B) 5/6WAY TO 2WAY,FRONT 		8-98139-680-0 01 1 1310-1406 ●
51 04.685 PIPE; BRK
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> (B) 5/6WAY TO 2WAY,FRONT 		8-98139-680-0 01 1 1407- ●
51 04.685 PIPE; BRK
BRK WHL LK CONT LSPV<6PH> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> ,FRAME-KICK UP<7EW> (B) 5/6WAY TO 2WAY,FRONT 		8-98139-680-0 01 1 1407- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> ALGERIA EQUIPMENT(WN1) (E) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98285-757-0 01 1 1407-1503 ●
52 04.685 PIPE; BRK
UZBEKISTAN EQUIPMENT(JCW),ALGERIA EQUIPMENT(WN1) 4 WHEEL ANTI LOCK BRAKE<JE5> (E) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98285-757-0 01 1 1504- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> ALGERIA EQUIPMENT(WN1) (E) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98285-765-0 01 1 1407-1503 ●
52 04.685 PIPE; BRK
UZBEKISTAN EQUIPMENT(JCW),ALGERIA EQUIPMENT(WN1) 4 WHEEL ANTI LOCK BRAKE<JE5> (E) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98285-765-0 01 1 1504- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> ALGERIA EQUIPMENT(WN1) (D) 4WAY TO HU,FRONT 		8-98254-349-0 01 1 1407-1503 ●
52 04.685 PIPE; BRK
UZBEKISTAN EQUIPMENT(JCW),ALGERIA EQUIPMENT(WN1) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 4WAY TO HU,FRONT 		8-98254-349-0 01 1 1504- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ALGERIA EQUIPMENT(WN1),FRAME-KICK UP<7EW> (D) 4WAY TO HU,FRONT 		8-97389-368-1 01 1 1407-1503 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. UZBEKISTAN EQUIPMENT(JCW),ALGERIA EQUIPMENT(WN1),FRAME-KICK UP<7EW> (D) 4WAY TO HU,FRONT 		8-97389-368-1 01 1 1504- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ALGERIA EQUIPMENT(WN1),FRAME-KICK UP<7EW> (E) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98054-660-0 01 1 1407-1503 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. UZBEKISTAN EQUIPMENT(JCW),ALGERIA EQUIPMENT(WN1),FRAME-KICK UP<7EW> (E) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98054-660-0 01 1 1504- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ALGERIA EQUIPMENT(WN1),FRAME-KICK UP<7EW> (E) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98054-661-0 01 1 1407-1503 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. UZBEKISTAN EQUIPMENT(JCW),ALGERIA EQUIPMENT(WN1),FRAME-KICK UP<7EW> (E) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98054-661-0 01 1 1504- ●
52 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) 2WAY TO LSPV,FRONT 		8-98039-554-0 01 1 1012- ●
52 04.685 PIPE; BRK
(B) 2WAY TO LSPV,FRONT 		8-98039-554-0 01 1 1012- ●
52 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (A) 2WAY TO LSPV,REAR 		8-98113-417-0 01 1 1012- ●
52 04.685 PIPE; BRK
(A) 2WAY TO LSPV,REAR 		8-98113-417-0 01 1 1012- ●
52 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) 2WAY TO LSPV,FRONT 		8-97389-446-1 01 1 1012- ●
52 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (B) 2WAY TO LSPV,FRONT 		8-97389-446-1 01 1 1012- ●
52 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (A) 2WAY TO LSPV,REAR 		8-98113-418-0 01 1 1012- ●
52 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (A) 2WAY TO LSPV,REAR 		8-98113-418-0 01 1 1012- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) 2WAY TO LSPV,FRONT 		8-97389-449-1 01 1 1012- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (B) 2WAY TO LSPV,FRONT 		8-97389-449-1 01 1 1012- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (A) 2WAY TO LSPV,REAR 		8-98113-419-0 01 1 1012- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (A) 2WAY TO LSPV,REAR 		8-98113-419-0 01 1 1012- ●
52 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> (C) 2WAY TO REAR 		8-98063-432-0 01 1 1012-1406 ●
52 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> (C) 2WAY TO REAR 		8-98063-432-0 01 1 1407- ●
52 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) EXC. BRK WHL LK CONT LSPV<6PH>, FRAME-KICK UP<7EW> (C) 2WAY TO REAR 		8-98054-694-0 01 1 1012-1406 ●
52 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH>,FRAME-KICK UP<7EW> (C) 2WAY TO REAR 		8-98054-694-0 01 1 1407- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. BRK WHL LK CONT LSPV<6PH>, FRAME-KICK UP<7EW> (C) 2WAY TO REAR 		8-98054-696-0 01 1 1012-1406 ●
52 04.685 PIPE; BRK
(C) 2WAY TO REAR 		8-98054-696-0 01 1 1012-1406 ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH>,FRAME-KICK UP<7EW> (C) 2WAY TO REAR 		8-98054-696-0 01 1 1407- ●
52 04.685 PIPE; BRK
(C) 2WAY TO REAR 		8-98054-696-0 01 1 1407- ●
99 04.686 PIPE ASM; 4/5/6 WAY
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98051-512-1 01 1 1012-1205 ●
99 04.686 PIPE ASM; 4/5/6 WAY
AIR BAG DRIVER<AJ3> EXC. FRAME-KICK UP<7EW> 		8-98051-512-1 01 1 1012-1205 ●
99 04.686 PIPE ASM; 4/5/6 WAY
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98051-512-1 01 1 1206-1309 ●
99 04.686 PIPE ASM; 4/5/6 WAY
AIR BAG DRIVER<AJ3> EXC. FRAME-KICK UP<7EW> 		8-98051-512-1 01 1 1206-1309 ●
99 04.686 PIPE ASM; 4/5/6 WAY
HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,FRAME-KICK UP<7EW> 		8-98051-512-1 01 1 1206-1309 ●
99 04.686 PIPE ASM; 4/5/6 WAY
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98051-512-1 01 1 1310-1406 ●
99 04.686 PIPE ASM; 4/5/6 WAY
HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 		8-98051-512-1 01 1 1310-1406 ●
99 04.686 PIPE ASM; 4/5/6 WAY
AIR BAG DRIVER<AJ3> EXC. FRAME-KICK UP<7EW> 		8-98051-512-1 01 1 1310-1406 ●
99 04.686 PIPE ASM; 4/5/6 WAY
HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,FRAME-KICK UP<7EW> 		8-98051-512-1 01 1 1310-1406 ●
99 04.686 PIPE ASM; 4/5/6 WAY 8-98051-512-1 01 1 1310-1406 ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98051-512-1 01 1 1407- ●
99 04.686 PIPE ASM; 4/5/6 WAY
HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 		8-98051-512-1 01 1 1407- ●
99 04.686 PIPE ASM; 4/5/6 WAY
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME-KICK UP<7EW> 		8-98051-512-1 01 1 1407- ●
99 04.686 PIPE ASM; 4/5/6 WAY
HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,4 WHEEL ANTI LOCK BRA KE<JE5>,FRAME-KICK UP<7EW> 		8-98051-512-1 01 1 1407- ●
99 04.686 PIPE ASM; 4/5/6 WAY 8-98051-512-1 01 1 1407- ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 		8-98131-078-0 01 1 1012-1205 ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. AIR BAG DRIVER<AJ3>,FRAME-KICK UP<7EW> 		8-98131-078-0 01 1 1012-1205 ●
99 04.686 PIPE ASM; 4/5/6 WAY 8-98131-078-0 01 1 1012-1205 ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 		8-98131-078-0 01 1 1206-1309 ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. AIR BAG DRIVER<AJ3>,HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98131-078-0 01 1 1206-1309 ●
99 04.686 PIPE ASM; 4/5/6 WAY 8-98131-078-0 01 1 1206-1309 ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> 		8-98131-078-0 01 1 1310-1406 ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. AIR BAG DRIVER<AJ3>,HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98131-078-0 01 1 1310-1406 ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> 		8-98131-078-0 01 1 1407- ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,4 WHEEL ANTI LOCK BRA KE<JE5>,HEAVY DUTY FRAME<6WB>, FRAME-KICK UP<7EW> 		8-98131-078-0 01 1 1407- ●
99 04.686 PIPE ASM; 4/5/6 WAY
FRAME-KICK UP<7EW> 		8-98063-431-0 01 1 1012-1406 ●
99 04.686 PIPE ASM; 4/5/6 WAY
FRAME-KICK UP<7EW> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98063-431-0 01 1 1407- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> ALGERIA EQUIPMENT(WN1) FRAME-KICK UP<7EW> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-98285-766-0 01 1 1407- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> ALGERIA EQUIPMENT(WN1) FRAME-KICK UP<7EW> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-98285-767-0 01 1 1407- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> ALGERIA EQUIPMENT(WN1) EXC. FRAME-KICK UP<7EW> (B) BRAKE SYSTEM,RR LH 		8-98206-257-0 01 1 1407-1503 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> ALGERIA EQUIPMENT(WN1) HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRAME-KICK UP<7EW> (B) BRAKE SYSTEM,RR LH 		8-98206-257-0 01 1 1407-1503 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> UZBEKISTAN EQUIPMENT(JCW),ALGERIA EQUIPMENT(WN1) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> (B) BRAKE SYSTEM,RR LH 		8-98206-257-0 01 1 1504- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
UZBEKISTAN EQUIPMENT(JCW),ALGERIA EQUIPMENT(WN1) 4 WHEEL ANTI LOCK BRAKE<JE5> HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRAME-KICK UP<7EW> (B) BRAKE SYSTEM,RR LH 		8-98206-257-0 01 1 1504- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> ALGERIA EQUIPMENT(WN1) EXC. FRAME-KICK UP<7EW> (B) BRAKE SYSTEM,RR RH 		8-98206-258-0 01 1 1407-1503 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> ALGERIA EQUIPMENT(WN1) HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRAME-KICK UP<7EW> (B) BRAKE SYSTEM,RR RH 		8-98206-258-0 01 1 1407-1503 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> UZBEKISTAN EQUIPMENT(JCW),ALGERIA EQUIPMENT(WN1) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> (B) BRAKE SYSTEM,RR RH 		8-98206-258-0 01 1 1504- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
UZBEKISTAN EQUIPMENT(JCW),ALGERIA EQUIPMENT(WN1) 4 WHEEL ANTI LOCK BRAKE<JE5> HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRAME-KICK UP<7EW> (B) BRAKE SYSTEM,RR RH 		8-98206-258-0 01 1 1504- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ALGERIA EQUIPMENT(WN1),FRAME-KICK UP<7EW> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-97389-417-1 01 1 1407-1503 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,ALGERIA EQUIPMENT(WN1),FRAME-KICK UP<7EW> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-97389-417-1 01 1 1407-1503 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. UZBEKISTAN EQUIPMENT(JCW),ALGERIA EQUIPMENT(WN1),FRAME-KICK UP<7EW> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-97389-417-1 01 1 1504- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,UZBEKISTAN EQUIPMENT(JCW),ALGERIA EQUIPMENT(WN1), FRAME-KICKUP<7EW> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-97389-417-1 01 1 1504- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ALGERIA EQUIPMENT(WN1),FRAME-KICK UP<7EW> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-97389-422-1 01 1 1407-1503 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,ALGERIA EQUIPMENT(WN1),FRAME-KICK UP<7EW> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-97389-422-1 01 1 1407-1503 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. UZBEKISTAN EQUIPMENT(JCW),ALGERIA EQUIPMENT(WN1),FRAME-KICK UP<7EW> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-97389-422-1 01 1 1504- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,UZBEKISTAN EQUIPMENT(JCW),ALGERIA EQUIPMENT(WN1), FRAME-KICKUP<7EW> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-97389-422-1 01 1 1504- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> ALGERIA EQUIPMENT(WN1) (A) 4WAY TO HU,REAR 		8-98254-348-0 01 1 1407-1503 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
UZBEKISTAN EQUIPMENT(JCW),ALGERIA EQUIPMENT(WN1) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 4WAY TO HU,REAR 		8-98254-348-0 01 1 1504- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> ,FRAME-KICK UP<7EW> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-98140-423-0 01 1 1407- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> ,FRAME-KICK UP<7EW> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-98187-028-0 01 1 1407- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ALGERIA EQUIPMENT(WN1),FRAME-KICK UP<7EW> (A) 4WAY TO HU,REAR 		8-97389-371-0 01 1 1407-1503 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. UZBEKISTAN EQUIPMENT(JCW),ALGERIA EQUIPMENT(WN1),FRAME-KICK UP<7EW> (A) 4WAY TO HU,REAR 		8-97389-371-0 01 1 1504- ●

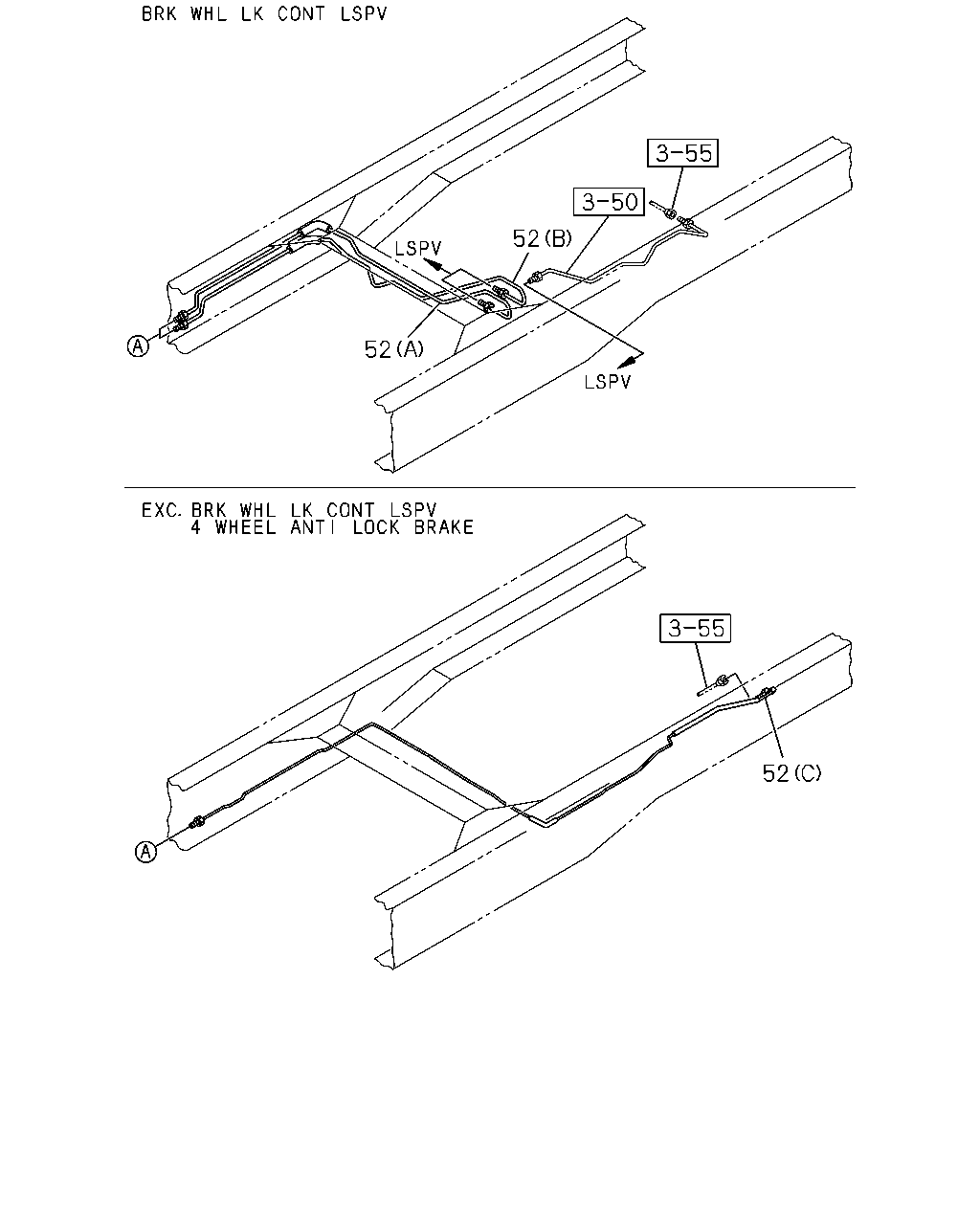

çizim 190792
52 52 52
BalonParca AdiParca NoAdetTipApplied Date A B C D
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> ALGERIA EQUIPMENT(WN1) (E) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98285-757-0 01 1 1407-1503 ●
52 04.685 PIPE; BRK
UZBEKISTAN EQUIPMENT(JCW),ALGERIA EQUIPMENT(WN1) 4 WHEEL ANTI LOCK BRAKE<JE5> (E) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98285-757-0 01 1 1504- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> ALGERIA EQUIPMENT(WN1) (E) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98285-765-0 01 1 1407-1503 ●
52 04.685 PIPE; BRK
UZBEKISTAN EQUIPMENT(JCW),ALGERIA EQUIPMENT(WN1) 4 WHEEL ANTI LOCK BRAKE<JE5> (E) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98285-765-0 01 1 1504- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> ALGERIA EQUIPMENT(WN1) (D) 4WAY TO HU,FRONT 		8-98254-349-0 01 1 1407-1503 ●
52 04.685 PIPE; BRK
UZBEKISTAN EQUIPMENT(JCW),ALGERIA EQUIPMENT(WN1) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 4WAY TO HU,FRONT 		8-98254-349-0 01 1 1504- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ALGERIA EQUIPMENT(WN1),FRAME-KICK UP<7EW> (D) 4WAY TO HU,FRONT 		8-97389-368-1 01 1 1407-1503 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. UZBEKISTAN EQUIPMENT(JCW),ALGERIA EQUIPMENT(WN1),FRAME-KICK UP<7EW> (D) 4WAY TO HU,FRONT 		8-97389-368-1 01 1 1504- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ALGERIA EQUIPMENT(WN1),FRAME-KICK UP<7EW> (E) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98054-660-0 01 1 1407-1503 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. UZBEKISTAN EQUIPMENT(JCW),ALGERIA EQUIPMENT(WN1),FRAME-KICK UP<7EW> (E) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98054-660-0 01 1 1504- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ALGERIA EQUIPMENT(WN1),FRAME-KICK UP<7EW> (E) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98054-661-0 01 1 1407-1503 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. UZBEKISTAN EQUIPMENT(JCW),ALGERIA EQUIPMENT(WN1),FRAME-KICK UP<7EW> (E) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98054-661-0 01 1 1504- ●
52 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) 2WAY TO LSPV,FRONT 		8-98039-554-0 01 1 1012- ●
52 04.685 PIPE; BRK
(B) 2WAY TO LSPV,FRONT 		8-98039-554-0 01 1 1012- ●
52 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (A) 2WAY TO LSPV,REAR 		8-98113-417-0 01 1 1012- ●
52 04.685 PIPE; BRK
(A) 2WAY TO LSPV,REAR 		8-98113-417-0 01 1 1012- ●
52 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) 2WAY TO LSPV,FRONT 		8-97389-446-1 01 1 1012- ●
52 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (B) 2WAY TO LSPV,FRONT 		8-97389-446-1 01 1 1012- ●
52 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (A) 2WAY TO LSPV,REAR 		8-98113-418-0 01 1 1012- ●
52 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (A) 2WAY TO LSPV,REAR 		8-98113-418-0 01 1 1012- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) 2WAY TO LSPV,FRONT 		8-97389-449-1 01 1 1012- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (B) 2WAY TO LSPV,FRONT 		8-97389-449-1 01 1 1012- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (A) 2WAY TO LSPV,REAR 		8-98113-419-0 01 1 1012- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (A) 2WAY TO LSPV,REAR 		8-98113-419-0 01 1 1012- ●
52 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> (C) 2WAY TO REAR 		8-98063-432-0 01 1 1012-1406 ●
52 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> (C) 2WAY TO REAR 		8-98063-432-0 01 1 1407- ●
52 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) EXC. BRK WHL LK CONT LSPV<6PH>, FRAME-KICK UP<7EW> (C) 2WAY TO REAR 		8-98054-694-0 01 1 1012-1406 ●
52 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH>,FRAME-KICK UP<7EW> (C) 2WAY TO REAR 		8-98054-694-0 01 1 1407- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. BRK WHL LK CONT LSPV<6PH>, FRAME-KICK UP<7EW> (C) 2WAY TO REAR 		8-98054-696-0 01 1 1012-1406 ●
52 04.685 PIPE; BRK
(C) 2WAY TO REAR 		8-98054-696-0 01 1 1012-1406 ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH>,FRAME-KICK UP<7EW> (C) 2WAY TO REAR 		8-98054-696-0 01 1 1407- ●
52 04.685 PIPE; BRK
(C) 2WAY TO REAR 		8-98054-696-0 01 1 1407- ●

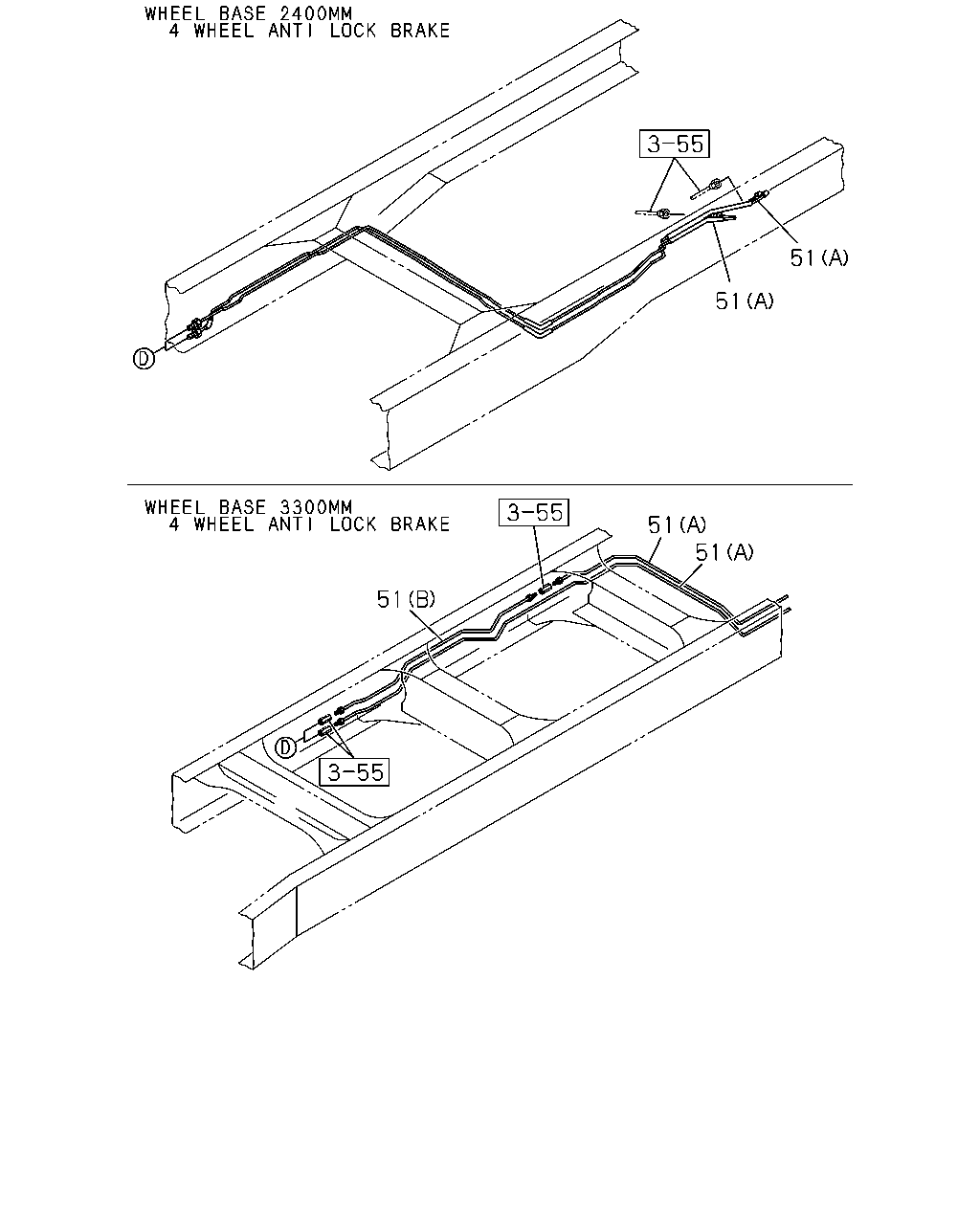

çizim 190795
51 51 51 51 51
BalonParca AdiParca NoAdetTipApplied Date A B C D
51 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME-KICK UP<7EW> (A) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98179-882-0 01 1 1407- ●
51 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME-KICK UP<7EW> (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98179-883-0 01 1 1407- ●
51 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> (A) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98012-844-1 01 1 1407- ●
51 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME-KICK UP<7EW> (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98012-845-1 01 1 1407- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,RR RH 2WAY TO 2WAY,REAR 		8-98061-505-0 01 1 1407- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,RR LH 2WAY TO 2WAY,REAR 		8-98061-506-0 01 1 1407- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 2WAY TO 2WAY 		8-98061-507-0 01 1 1407- ●
51 04.685 PIPE; BRK
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1012-1301 ●
51 04.685 PIPE; BRK
AIR BAG DRIVER<AJ3> BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (B) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1012-1301 ●
51 04.685 PIPE; BRK
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1302-1309 ●
51 04.685 PIPE; BRK
AIR BAG DRIVER<AJ3> BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (B) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1302-1309 ●
51 04.685 PIPE; BRK
BRK WHL LK CONT LSPV<6PH> HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,FRAME-KICK UP<7EW> (B) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1302-1309 ●
51 04.685 PIPE; BRK
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1310-1406 ●
51 04.685 PIPE; BRK
HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (B) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1310-1406 ●
51 04.685 PIPE; BRK
AIR BAG DRIVER<AJ3> BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (B) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1310-1406 ●
51 04.685 PIPE; BRK
BRK WHL LK CONT LSPV<6PH> HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,FRAME-KICK UP<7EW> (B) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1310-1406 ●
51 04.685 PIPE; BRK
(B) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1310-1406 ●
51 04.685 PIPE; BRK
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1407- ●
51 04.685 PIPE; BRK
HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (B) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1407- ●
51 04.685 PIPE; BRK
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (B) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1407- ●
51 04.685 PIPE; BRK
BRK WHL LK CONT LSPV<6PH> HEAVY DUTY FRAME<6WB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRAME-KICK UP<7EW> (B) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1407- ●
51 04.685 PIPE; BRK
(B) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1407- ●
51 04.685 PIPE; BRK
(A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98054-530-0 01 1 1012-1406 ● ● ● ●
51 04.685 PIPE; BRK
(A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98054-530-0 01 1 1407- ● ● ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98054-530-0 01 1 1407- ●
51 04.685 PIPE; BRK
(A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98054-531-1 01 1 1012-1406 ● ● ● ●
51 04.685 PIPE; BRK
(A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98054-531-1 01 1 1407- ● ● ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98054-531-1 01 1 1407- ●
51 04.685 PIPE; BRK
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (B) 5/6WAY TO 2WAY,FRONT 		8-98139-680-0 01 1 1012-1301 ●
51 04.685 PIPE; BRK
BRK WHL LK CONT LSPV<6PH> EXC. AIR BAG DRIVER<AJ3>,FRAME-KICK UP<7EW> (B) 5/6WAY TO 2WAY,FRONT 		8-98139-680-0 01 1 1012-1301 ●
51 04.685 PIPE; BRK
(B) 5/6WAY TO 2WAY,FRONT 		8-98139-680-0 01 1 1012-1301 ●
51 04.685 PIPE; BRK
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (B) 5/6WAY TO 2WAY,FRONT 		8-98139-680-0 01 1 1302-1309 ●
51 04.685 PIPE; BRK
BRK WHL LK CONT LSPV<6PH> EXC. AIR BAG DRIVER<AJ3>,HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (B) 5/6WAY TO 2WAY,FRONT 		8-98139-680-0 01 1 1302-1309 ●
51 04.685 PIPE; BRK
(B) 5/6WAY TO 2WAY,FRONT 		8-98139-680-0 01 1 1302-1309 ●
51 04.685 PIPE; BRK
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> (B) 5/6WAY TO 2WAY,FRONT 		8-98139-680-0 01 1 1310-1406 ●
51 04.685 PIPE; BRK
BRK WHL LK CONT LSPV<6PH> EXC. AIR BAG DRIVER<AJ3>,HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (B) 5/6WAY TO 2WAY,FRONT 		8-98139-680-0 01 1 1310-1406 ●
51 04.685 PIPE; BRK
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> (B) 5/6WAY TO 2WAY,FRONT 		8-98139-680-0 01 1 1407- ●
51 04.685 PIPE; BRK
BRK WHL LK CONT LSPV<6PH> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> ,FRAME-KICK UP<7EW> (B) 5/6WAY TO 2WAY,FRONT 		8-98139-680-0 01 1 1407- ●

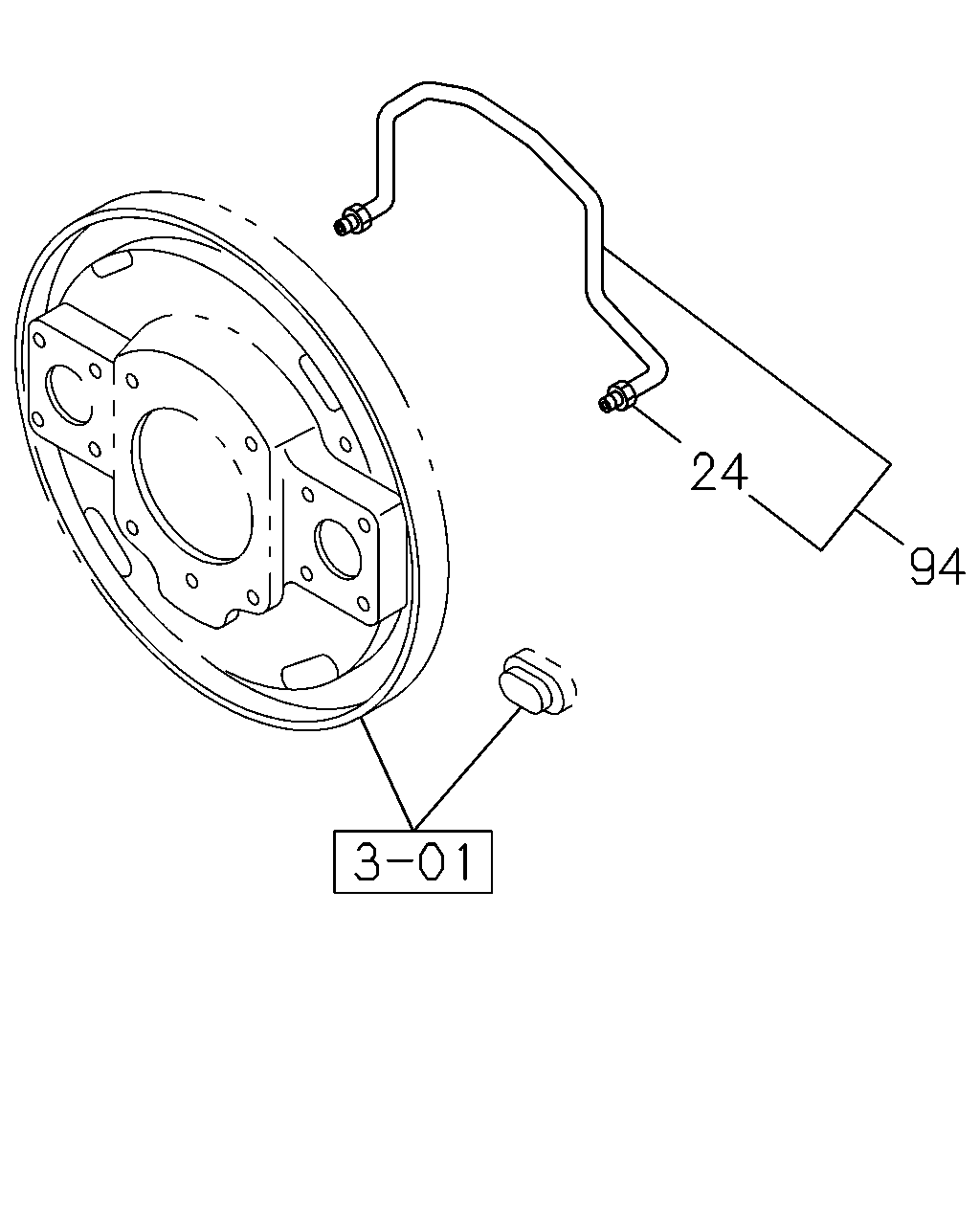

çizim 467180
24 94
BalonParca AdiParca NoAdetTipApplied Date A B C D
24 04.686 NUT; UNION,OIL PIPE 0-92107-605-0 02 1 1012-1301 ● ● ● ●
24 04.686 NUT; UNION,OIL PIPE
EXC. TURKEY EQUIPMENT(B11) 		0-92107-605-0 02 1 1302-1406 ●
24 04.686 NUT; UNION,OIL PIPE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		0-92107-605-0 02 1 1302-1406 ● ●
24 04.686 NUT; UNION,OIL PIPE
G.V.W. 5.0-5.5TON(RPT) BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		0-92107-605-0 02 1 1302-1406 ●
24 04.686 NUT; UNION,OIL PIPE 0-92107-605-0 02 1 1302-1406 ●
24 04.686 NUT; UNION,OIL PIPE
EXC. TURKEY EQUIPMENT(B11) 		0-92107-605-0 02 1 1407- ●
24 04.686 NUT; UNION,OIL PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRAKESYSTEM HEAVY DUTY VAR2<WG3> 		0-92107-605-0 02 1 1407- ● ●
24 04.686 NUT; UNION,OIL PIPE
G.V.W. 5.0-5.5TON(RPT) BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		0-92107-605-0 02 1 1407- ●
24 04.686 NUT; UNION,OIL PIPE 0-92107-605-0 02 1 1407- ●
94 04.685 PIPE; BRK,W/C TO W/C
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) 		8-97019-222-0 01 1 1012-1012 ●
94 04.685 PIPE; BRK,W/C TO W/C
COLOMBIA EQUIPMENT(CB7) G.V.W. 3.0-3.5TON(RPP) 		8-97019-222-0 01 1 1012-1012 ●
94 04.685 PIPE; BRK,W/C TO W/C 8-97019-222-0 01 1 1012-1012 ● ● ●
94 04.685 PIPE; BRK,W/C TO W/C 8-97019-222-0 01 1 1012-1301 ● ● ● ●
94 04.685 PIPE; BRK,W/C TO W/C
EXC. TURKEY EQUIPMENT(B11) 		8-97019-222-0 01 1 1302-1406 ●
94 04.685 PIPE; BRK,W/C TO W/C
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97019-222-0 01 1 1302-1406 ● ●
94 04.685 PIPE; BRK,W/C TO W/C
G.V.W. 5.0-5.5TON(RPT) BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97019-222-0 01 1 1302-1406 ●
94 04.685 PIPE; BRK,W/C TO W/C 8-97019-222-0 01 1 1302-1406 ●
94 04.685 PIPE; BRK,W/C TO W/C
EXC. TURKEY EQUIPMENT(B11) 		8-97019-222-0 01 1 1407- ●
94 04.685 PIPE; BRK,W/C TO W/C
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRAKESYSTEM HEAVY DUTY VAR2<WG3> 		8-97019-222-0 01 1 1407- ● ●
94 04.685 PIPE; BRK,W/C TO W/C
G.V.W. 5.0-5.5TON(RPT) BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97019-222-0 01 1 1407- ●
94 04.685 PIPE; BRK,W/C TO W/C 8-97019-222-0 01 1 1407- ●
94 04.685 PIPE; BRK,W/C TO W/C
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR) 		8-97019-223-0 01 1 1012-1012 ●
94 04.685 PIPE; BRK,W/C TO W/C
COLOMBIA EQUIPMENT(CB7) G.V.W. 3.0-3.5TON(RPP) 		8-97019-223-0 01 1 1012-1012 ●
94 04.685 PIPE; BRK,W/C TO W/C 8-97019-223-0 01 1 1012-1012 ● ● ●
94 04.685 PIPE; BRK,W/C TO W/C 8-97019-223-0 01 1 1012-1301 ● ● ● ●
94 04.685 PIPE; BRK,W/C TO W/C
EXC. TURKEY EQUIPMENT(B11) 		8-97019-223-0 01 1 1302-1406 ●
94 04.685 PIPE; BRK,W/C TO W/C
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97019-223-0 01 1 1302-1406 ● ●
94 04.685 PIPE; BRK,W/C TO W/C
G.V.W. 5.0-5.5TON(RPT) BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97019-223-0 01 1 1302-1406 ●
94 04.685 PIPE; BRK,W/C TO W/C 8-97019-223-0 01 1 1302-1406 ●
94 04.685 PIPE; BRK,W/C TO W/C
EXC. TURKEY EQUIPMENT(B11) 		8-97019-223-0 01 1 1407- ●
94 04.685 PIPE; BRK,W/C TO W/C
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRAKESYSTEM HEAVY DUTY VAR2<WG3> 		8-97019-223-0 01 1 1407- ● ●
94 04.685 PIPE; BRK,W/C TO W/C
G.V.W. 5.0-5.5TON(RPT) BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97019-223-0 01 1 1407- ●
94 04.685 PIPE; BRK,W/C TO W/C 8-97019-223-0 01 1 1407- ●
94 04.685 PIPE; BRK,W/C TO W/C
G.V.W. 3.0-3.5TON(RPP) EXC. COLOMBIA EQUIPMENT(CB7) 		8-97081-151-0 01 1 1012-1012 ●
94 04.685 PIPE; BRK,W/C TO W/C
G.V.W. 3.0-3.5TON(RPP) EXC. COLOMBIA EQUIPMENT(CB7) 		8-97081-184-0 01 1 1012-1012 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
