Sayfa 3-50 - Isuzu EPC

3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#79104) — 138 parça

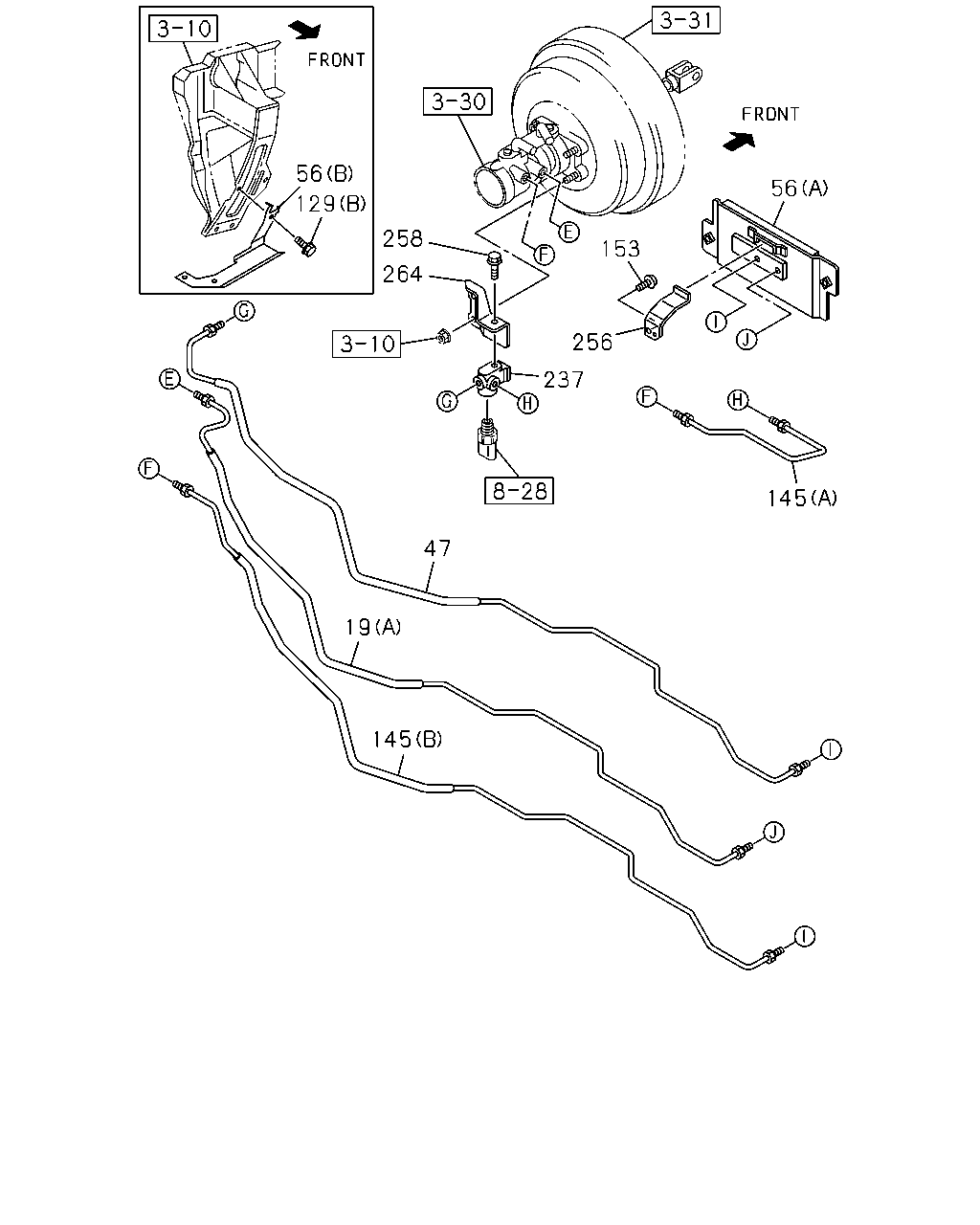

56 153 256 237 145 145 19 47 264 258 129 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-98047-210-2	02	1	1012-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98097-183-1	01	1	1012-	●	●	●	●
47	04.685 PIPE; OIL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98099-807-0	01	1	1407-1407		●
47	04.685 PIPE; OIL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ALGERIA EQUIPMENT(WN1)	8-98099-807-0	01	1	1408-1503		●
47	04.685 PIPE; OIL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. UZBEKISTAN EQUIPMENT(JCW),ALGERIA EQUIPMENT(WN1)	8-98099-807-0	01	1	1504-		●
56	04.686 BRACKET; UNION,BRK (B)	8-98097-178-1	01	1	1012-	●	●	●	●
56	04.686 BRACKET; UNION,BRK (A)	8-98154-268-1	01	1	1012-	●	●	●	●
129	04.710 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1012-	●	●	●	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1012-	●	●	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (A) L=247	8-98133-410-0	01	1	1407-1407		●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ALGERIA EQUIPMENT(WN1) (A) L=247	8-98133-410-0	01	1	1408-1503		●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. UZBEKISTAN EQUIPMENT(JCW),ALGERIA EQUIPMENT(WN1) (A) L=247	8-98133-410-0	01	1	1504-		●
145	04.685 PIPE; BRK,METERING VLV TO UNION (B)	8-98097-179-1	01	1	1012-1406	●	●	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION (B)	8-98097-179-1	01	1	1407-1407	●		●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98097-179-1	01	1	1407-1407		●
145	04.685 PIPE; BRK,METERING VLV TO UNION (B)	8-98097-179-1	01	1	1408-1503	●		●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> ALGERIA EQUIPMENT(WN1) (B)	8-98097-179-1	01	1	1408-1503		●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ALGERIA EQUIPMENT(WN1) (B)	8-98097-179-1	01	1	1408-1503		●
145	04.685 PIPE; BRK,METERING VLV TO UNION (B)	8-98097-179-1	01	1	1504-	●		●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION UZBEKISTAN EQUIPMENT(JCW),ALGERIA EQUIPMENT(WN1) (B)	8-98097-179-1	01	1	1504-		●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. UZBEKISTAN EQUIPMENT(JCW),4 WHEEL ANTI LOCK BRAKE<JE5>,ALGERIA EQUIPMENT(WN1) (B)	8-98097-179-1	01	1	1504-		●
153	04.730 SCREW; BRKT FIX FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	1012-	●	●	●	●
237	04.840 CONNECTOR; MODULATOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98111-748-1	01	1	1407-1407		●
237	04.840 CONNECTOR; MODULATOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ALGERIA EQUIPMENT(WN1)	8-98111-748-1	01	1	1408-1503		●
237	04.840 CONNECTOR; MODULATOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. UZBEKISTAN EQUIPMENT(JCW),ALGERIA EQUIPMENT(WN1)	8-98111-748-1	01	1	1504-		●
256	04.840 BRACKET; BRK PIPE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98163-521-0	01	1	1012-	●	●	●	●
258	04.730 BOLT; PIPE,BRK 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1407-1407		●
258	04.730 BOLT; PIPE,BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ALGERIA EQUIPMENT(WN1) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1408-1503		●
258	04.730 BOLT; PIPE,BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. UZBEKISTAN EQUIPMENT(JCW),ALGERIA EQUIPMENT(WN1) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1504-		●
264	04.681 BRACKET; SENSOR,PRESSURE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97387-683-2	01	1	1407-1407		●
264	04.681 BRACKET; SENSOR,PRESSURE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ALGERIA EQUIPMENT(WN1)	8-97387-683-2	01	1	1408-1503		●
264	04.681 BRACKET; SENSOR,PRESSURE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. UZBEKISTAN EQUIPMENT(JCW),ALGERIA EQUIPMENT(WN1)	8-97387-683-2	01	1	1504-		●

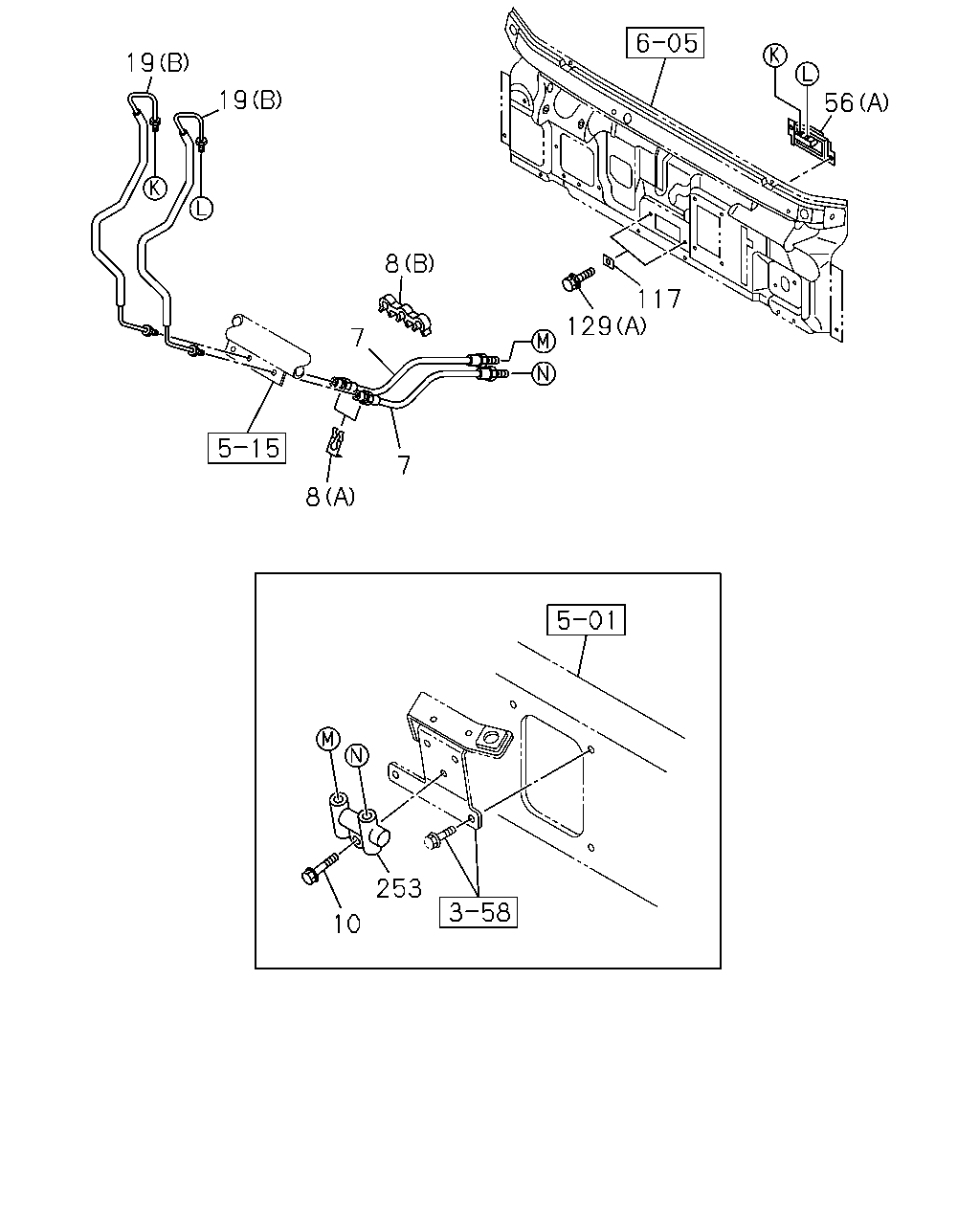

19 19 56 117 129 8 7 7 8 10 253

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
7	04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT	8-98033-732-0	02	1	1012-	●	●	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE (A)	8-97365-304-0	02	1	1012-	●	●	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE (B)	8-98056-614-0	01	1	1012-	●	●	●	●
10	04.686 BOLT; JOINT 00.685 M6X40 FLANGE	0-28650-640-0	01	1	1012-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-98047-210-2	02	1	1012-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98097-183-1	01	1	1012-	●	●	●	●
56	04.686 BRACKET; UNION,BRK (B)	8-98097-178-1	01	1	1012-	●	●	●	●
56	04.686 BRACKET; UNION,BRK (A)	8-98154-268-1	01	1	1012-	●	●	●	●
117	04.686 SEAL; UNION,BRK PIPE JOINT 08.845	8-97856-616-0	02	1	1012-	●	●	●	●
129	04.710 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1012-	●	●	●	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1012-	●	●	●	●
253	04.840 JOINT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97038-940-1	01	1	1407-		●
253	04.840 JOINT 04.686	8-97120-033-2	01	1	1012-1406	●		●
253	04.840 JOINT BRK WHL LK CONT LSPV<6PH> 04.686	8-97120-033-2	01	1	1012-1406		●
253	04.840 JOINT 04.686	8-97120-033-2	01	1	1407-	●		●
253	04.840 JOINT BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.686	8-97120-033-2	01	1	1407-		●
253	04.840 JOINT EXC. BRK WHL LK CONT LSPV<6PH> 04.686	5-47456-009-1	01	1	1012-1406		●
253	04.840 JOINT 04.686	5-47456-009-1	01	1	1012-1406				●
253	04.840 JOINT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> 04.686	5-47456-009-1	01	1	1407-		●
253	04.840 JOINT 04.686	5-47456-009-1	01	1	1407-				●

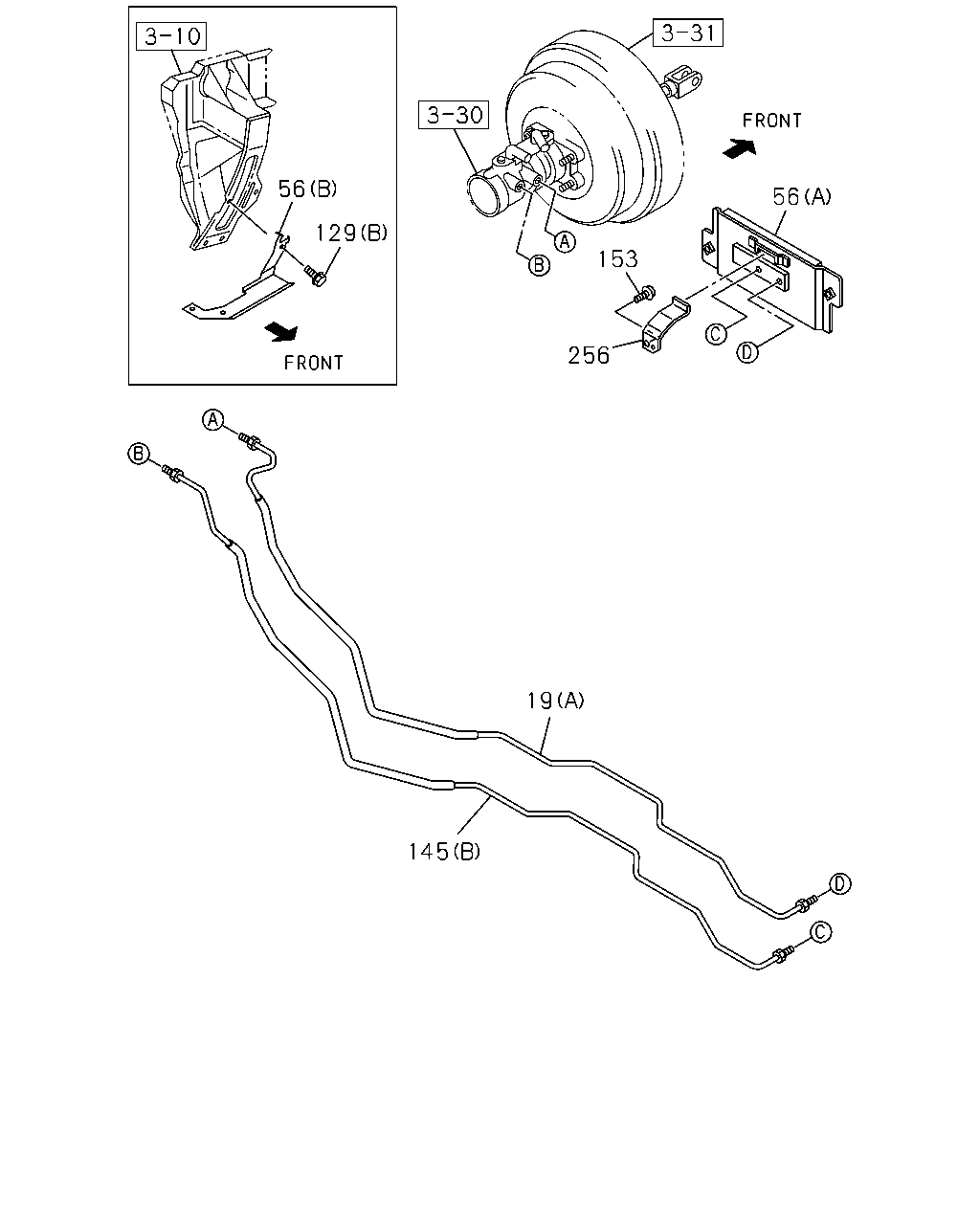

153 256 56 56 129 19 145

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-98047-210-2	02	1	1012-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98097-183-1	01	1	1012-	●	●	●	●
56	04.686 BRACKET; UNION,BRK (B)	8-98097-178-1	01	1	1012-	●	●	●	●
56	04.686 BRACKET; UNION,BRK (A)	8-98154-268-1	01	1	1012-	●	●	●	●
129	04.710 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1012-	●	●	●	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1012-	●	●	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (A) L=247	8-98133-410-0	01	1	1407-1407		●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ALGERIA EQUIPMENT(WN1) (A) L=247	8-98133-410-0	01	1	1408-1503		●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. UZBEKISTAN EQUIPMENT(JCW),ALGERIA EQUIPMENT(WN1) (A) L=247	8-98133-410-0	01	1	1504-		●
145	04.685 PIPE; BRK,METERING VLV TO UNION (B)	8-98097-179-1	01	1	1012-1406	●	●	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION (B)	8-98097-179-1	01	1	1407-1407	●		●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98097-179-1	01	1	1407-1407		●
145	04.685 PIPE; BRK,METERING VLV TO UNION (B)	8-98097-179-1	01	1	1408-1503	●		●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> ALGERIA EQUIPMENT(WN1) (B)	8-98097-179-1	01	1	1408-1503		●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ALGERIA EQUIPMENT(WN1) (B)	8-98097-179-1	01	1	1408-1503		●
145	04.685 PIPE; BRK,METERING VLV TO UNION (B)	8-98097-179-1	01	1	1504-	●		●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION UZBEKISTAN EQUIPMENT(JCW),ALGERIA EQUIPMENT(WN1) (B)	8-98097-179-1	01	1	1504-		●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. UZBEKISTAN EQUIPMENT(JCW),4 WHEEL ANTI LOCK BRAKE<JE5>,ALGERIA EQUIPMENT(WN1) (B)	8-98097-179-1	01	1	1504-		●
153	04.730 SCREW; BRKT FIX FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	1012-	●	●	●	●
256	04.840 BRACKET; BRK PIPE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98163-521-0	01	1	1012-	●	●	●	●

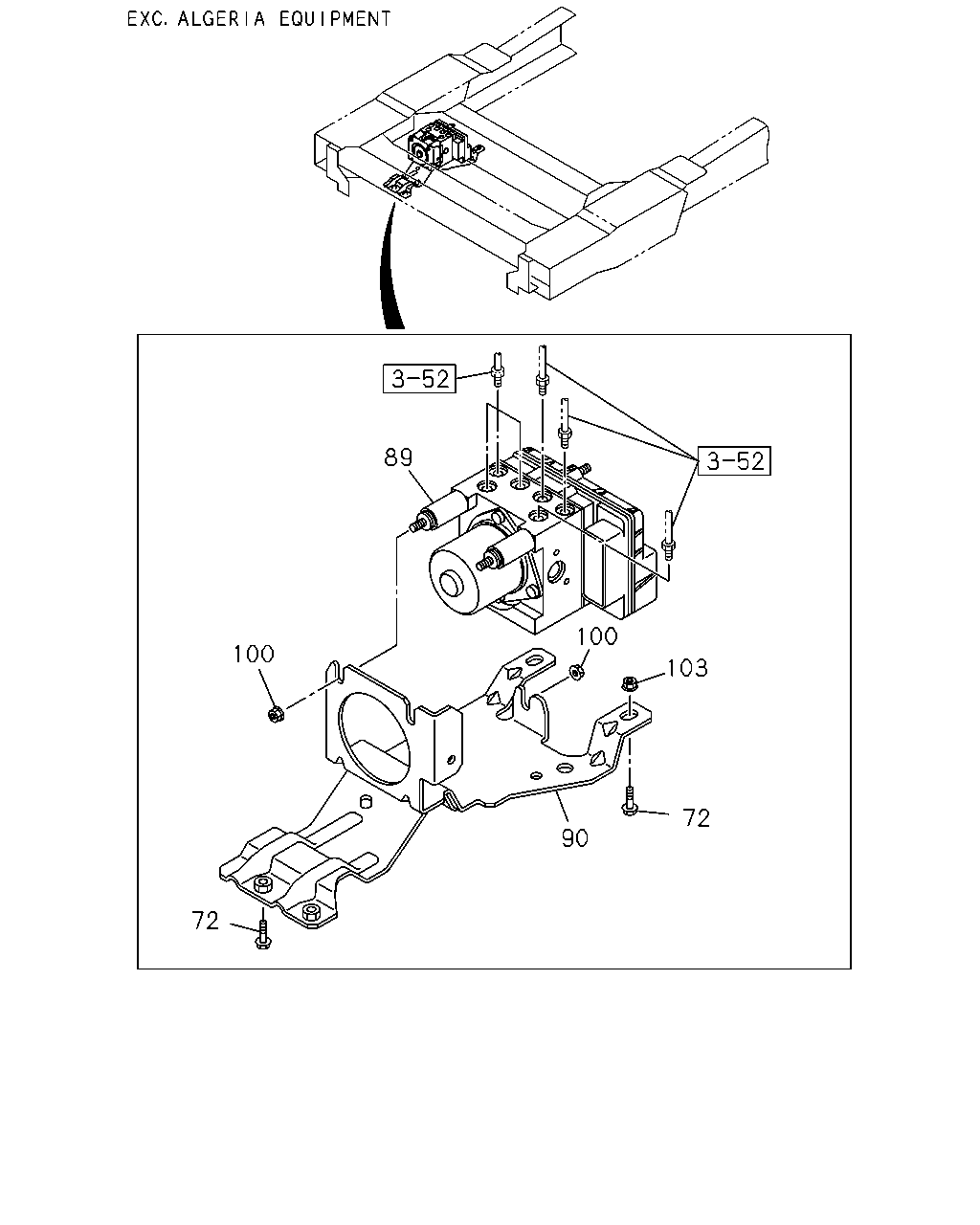

89 100 72 100 103 72 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
72	04.686 BOLT; BRKT TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1407-	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98158-006-1	01	1	1407-1409	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ALGERIA EQUIPMENT(WN1)	8-98158-006-1	01	1	1410-1503	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. UZBEKISTAN EQUIPMENT(JCW),ALGERIA EQUIPMENT(WN1)	8-98158-006-1	01	1	1504-	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> ALGERIA EQUIPMENT(WN1) THROTTLE CONTROL SYSTEM<6XH>	8-98296-680-0	01	1	1410-1503	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4JJ1-TCC ENG(RDU) UZBEKISTAN EQUIPMENT(JCW),ALGERIA EQUIPMENT(WN1) 4 WHEEL ANTI LOCK BRAKE<JE5> THROTTLE CONTROL SYSTEM<6XH>	8-98296-680-0	01	1	1504-	●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97386-355-0	01	1	1407-1407	●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ALGERIA EQUIPMENT(WN1)	8-97386-355-0	01	1	1408-1503	●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. UZBEKISTAN EQUIPMENT(JCW),ALGERIA EQUIPMENT(WN1)	8-97386-355-0	01	1	1504-	●
100	04.730 NUT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE	0-91180-108-0	03	1	1407-1407	●
100	04.730 NUT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ALGERIA EQUIPMENT(WN1) 01.062 M8 FLANGE	0-91180-108-0	03	1	1408-1503	●
100	04.730 NUT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. UZBEKISTAN EQUIPMENT(JCW),ALGERIA EQUIPMENT(WN1) 01.062 M8 FLANGE	0-91180-108-0	03	1	1504-	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 01.062 M8 FLANGE	0-91180-108-0	02	1	1407-	●

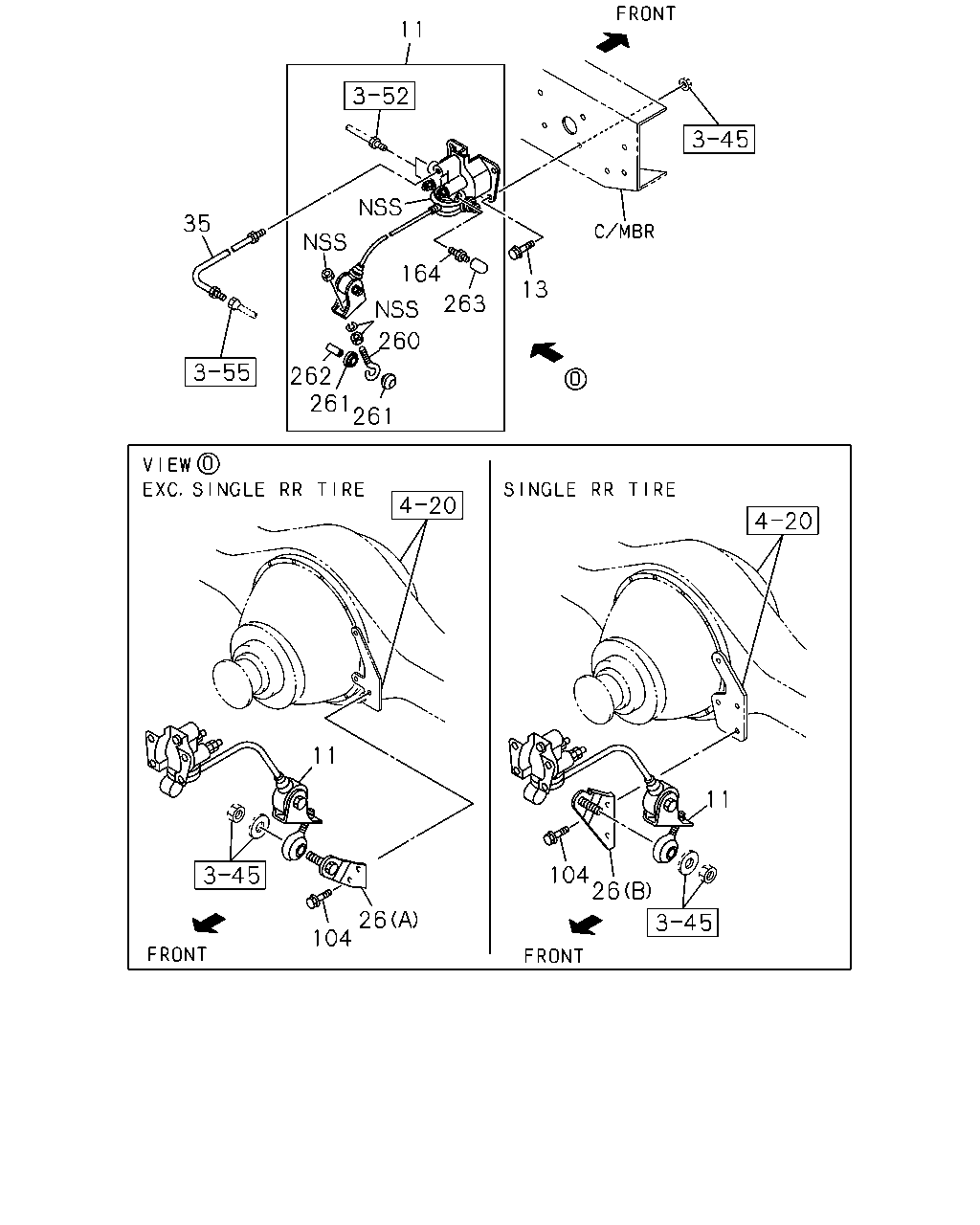

11 35 164 13 263 260 262 261 261 11 104 26 11 104 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
11	04.686 VALVE; BRK CONT SINGLE RR TIRE(6TD) 04.730	8-94368-455-2	01	1	1012-	●
11	04.686 VALVE; BRK CONT 04.730	8-94368-455-2	01	1	1012-			●
11	04.686 VALVE; BRK CONT EXC. SINGLE RR TIRE(6TD) 04.730	8-97070-721-0	01	1	1012-	●
11	04.686 VALVE; BRK CONT BRK WHL LK CONT LSPV<6PH> 04.730	8-97070-721-0	01	1	1012-		●
13	04.686 BOLT; VLV TO BRKT 02.343 M8X16 FLANGE	0-28050-816-0	04	1	1012-	●		●
13	04.686 BOLT; VLV TO BRKT BRK WHL LK CONT LSPV<6PH> 02.343 M8X16 FLANGE	0-28050-816-0	04	1	1012-		●
26	04.730 BRACKET; PROPORTIONING VLV SMALL DOUBLE RR TIRE(6YE) (A)	8-98029-821-0	01	1	1012-	●
26	04.730 BRACKET; PROPORTIONING VLV REAR AXLE HEAVY DUTY 292MM(G73) EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (A)	8-98029-821-0	01	1	1012-	●
26	04.730 BRACKET; PROPORTIONING VLV BRK WHL LK CONT LSPV<6PH> (A)	8-98029-821-0	01	1	1012-		●
26	04.730 BRACKET; PROPORTIONING VLV SINGLE RR TIRE(6TD) (B)	8-98029-822-0	01	1	1012-	●
26	04.730 BRACKET; PROPORTIONING VLV (B)	8-98029-822-0	01	1	1012-			●
35	04.685 PIPE; BRK,VLV TO RR AXLE SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE)	8-98064-716-0	01	1	1012-	●
35	04.685 PIPE; BRK,VLV TO RR AXLE	8-98064-716-0	01	1	1012-			●
35	04.685 PIPE; BRK,VLV TO RR AXLE EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE)	8-97389-540-0	01	1	1012-	●
35	04.685 PIPE; BRK,VLV TO RR AXLE BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW>	8-97389-540-0	01	1	1012-		●
104	04.730 BOLT; BRKT TO BODY 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1012-	●		●
104	04.730 BOLT; BRKT TO BODY BRK WHL LK CONT LSPV<6PH> 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1012-		●
164	04.730 SCREW; BLEEDER 04.685	8-97093-663-0	01	1	1012-	●		●
164	04.730 SCREW; BLEEDER BRK WHL LK CONT LSPV<6PH> 04.685	8-97093-663-0	01	1	1012-		●
260	04.685 SHACKLE; LSPV 04.710	8-97173-366-0	01	1	1012-	●		●
260	04.685 SHACKLE; LSPV BRK WHL LK CONT LSPV<6PH> 04.710	8-97173-366-0	01	1	1012-		●
261	04.685 BUSHING; LSPV 04.710	8-97145-631-0	02	1	1012-	●		●
261	04.685 BUSHING; LSPV BRK WHL LK CONT LSPV<6PH> 04.710	8-97145-631-0	02	1	1012-		●
262	04.685 COLLAR; LSPV 04.710	8-97139-186-0	01	1	1012-	●		●
262	04.685 COLLAR; LSPV BRK WHL LK CONT LSPV<6PH> 04.710	8-97139-186-0	01	1	1012-		●
263	04.685 CAP; BLEEDER	8-97093-662-0	01	1	1012-	●		●
263	04.685 CAP; BLEEDER BRK WHL LK CONT LSPV<6PH>	8-97093-662-0	01	1	1012-		●

35 130 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
35	04.685 PIPE; BRK,VLV TO RR AXLE SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE)	8-98064-716-0	01	1	1012-	●
35	04.685 PIPE; BRK,VLV TO RR AXLE	8-98064-716-0	01	1	1012-			●
35	04.685 PIPE; BRK,VLV TO RR AXLE EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE)	8-97389-540-0	01	1	1012-	●
35	04.685 PIPE; BRK,VLV TO RR AXLE BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW>	8-97389-540-0	01	1	1012-		●
130	04.686 BRACKET; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97080-060-2	02	1	1407-1407		●
130	04.686 BRACKET; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> REAR WIDE TREAD(V4T) EXC. FRAME-KICK UP<7EW>	8-97080-060-2	02	1	1408-1511		●
130	04.686 BRACKET; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME-KICK UP<7EW> EXC. REAR WIDE TREAD(V4T)	8-97080-060-2	02	1	1408-1511		●
130	04.686 BRACKET; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97080-060-2	02	1	1512-		●
131	04.710 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1407-1407		●
131	04.710 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> REAR WIDE TREAD(V4T) EXC. FRAME-KICK UP<7EW> 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1408-1511		●
131	04.710 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME-KICK UP<7EW> EXC. REAR WIDE TREAD(V4T) 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1408-1511		●
131	04.710 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1512-		●

89 179 94 197 184 72 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
72	04.686 BOLT; BRKT TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1407-	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98158-006-1	01	1	1407-1409	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ALGERIA EQUIPMENT(WN1)	8-98158-006-1	01	1	1410-1503	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. UZBEKISTAN EQUIPMENT(JCW),ALGERIA EQUIPMENT(WN1)	8-98158-006-1	01	1	1504-	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4JJ1-TCC ENG(RDU) 4 WHEEL ANTI LOCK BRAKE<JE5> ALGERIA EQUIPMENT(WN1) THROTTLE CONTROL SYSTEM<6XH>	8-98296-680-0	01	1	1410-1503	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4JJ1-TCC ENG(RDU) UZBEKISTAN EQUIPMENT(JCW),ALGERIA EQUIPMENT(WN1) 4 WHEEL ANTI LOCK BRAKE<JE5> THROTTLE CONTROL SYSTEM<6XH>	8-98296-680-0	01	1	1504-	●
94	04.730 BRACKET; ABS CONT UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> ALGERIA EQUIPMENT(WN1)	8-98131-871-2	01	1	1408-1503	●
94	04.730 BRACKET; ABS CONT UNIT UZBEKISTAN EQUIPMENT(JCW),ALGERIA EQUIPMENT(WN1)	8-98131-871-2	01	1	1504-	●
179	04.685 SPACER; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> ALGERIA EQUIPMENT(WN1)	8-98130-134-0	03	1	1408-1503	●
179	04.685 SPACER; BRKT UZBEKISTAN EQUIPMENT(JCW),ALGERIA EQUIPMENT(WN1)	8-98130-134-0	03	1	1504-	●
184	04.681 BOLT; CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> ALGERIA EQUIPMENT(WN1) M6X27 W/PL WASHER	8-98131-461-0	03	1	1408-1503	●
184	04.681 BOLT; CLIP UZBEKISTAN EQUIPMENT(JCW),ALGERIA EQUIPMENT(WN1) M6X27 W/PL WASHER	8-98131-461-0	03	1	1504-	●
197	04.730 RUBBER; DAMPER 4 WHEEL ANTI LOCK BRAKE<JE5> ALGERIA EQUIPMENT(WN1)	8-98130-133-0	03	1	1408-1503	●
197	04.730 RUBBER; DAMPER UZBEKISTAN EQUIPMENT(JCW),ALGERIA EQUIPMENT(WN1)	8-98130-133-0	03	1	1504-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
