◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51282 - NLR/NMR 55,85(LHD) ▶ 3 - Brakes, Brake System ▶ 3-30 - BRAKE MASTER CYLINDER ▶
3-30 — BRAKE MASTER CYLINDER (#79101) — 194 parça

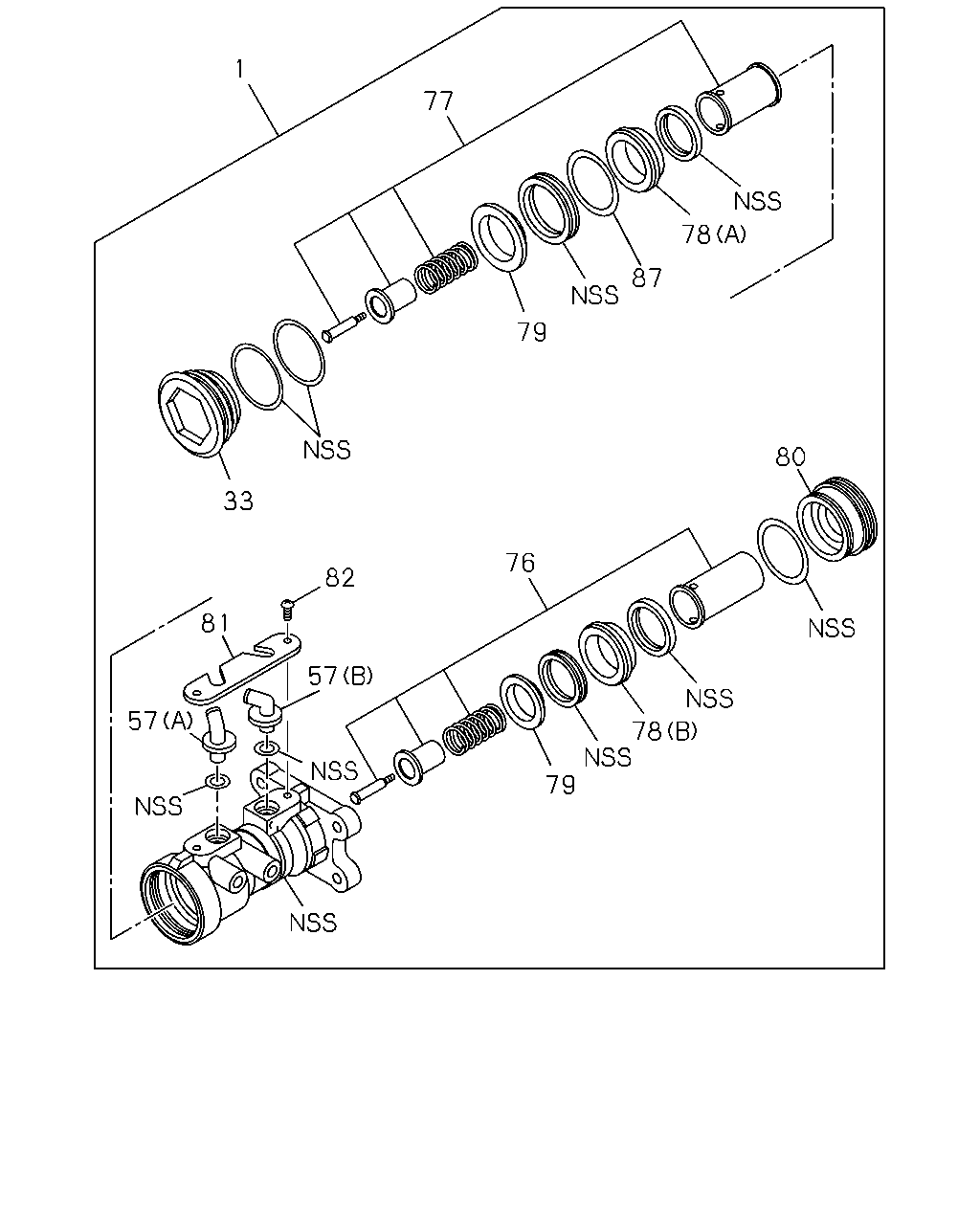

çizim 117167
1 77 78 87 79 80 33 76 82 81 57 57 78 79
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.650 CYLINDER ASM; BRK MASTER
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-98032-602-0 01 1 1302- ● ●
1 04.650 CYLINDER ASM; BRK MASTER
TURKEY EQUIPMENT(B11) 		8-98093-122-0 01 1 1012-1406 ●
1 04.650 CYLINDER ASM; BRK MASTER
TURKEY EQUIPMENT(B11) 		8-98093-122-0 01 1 1407-1503 ●
1 04.650 CYLINDER ASM; BRK MASTER
ALGERIA EQUIPMENT(WN1) 		8-98093-122-0 01 1 1407-1503 ●
1 04.650 CYLINDER ASM; BRK MASTER
TURKEY EQUIPMENT(B11) 		8-98093-122-0 01 1 1504- ●
1 04.650 CYLINDER ASM; BRK MASTER
UZBEKISTAN EQUIPMENT(JCW),ALGERIA EQUIPMENT(WN1) 		8-98093-122-0 01 1 1504- ●
1 04.650 CYLINDER ASM; BRK MASTER
EXC. TURKEY EQUIPMENT(B11) 		8-98032-617-0 01 1 1012-1301 ●
1 04.650 CYLINDER ASM; BRK MASTER 8-98032-617-0 01 1 1012-1301 ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
EXC. TURKEY EQUIPMENT(B11) 		8-98032-617-0 01 1 1302-1406 ●
1 04.650 CYLINDER ASM; BRK MASTER
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-98032-617-0 01 1 1302-1406 ● ●
1 04.650 CYLINDER ASM; BRK MASTER 8-98032-617-0 01 1 1302-1406 ●
1 04.650 CYLINDER ASM; BRK MASTER
EXC. TURKEY EQUIPMENT(B11) 		8-98032-617-0 01 1 1407-1503 ●
1 04.650 CYLINDER ASM; BRK MASTER
SAUDI ARABIA EQUIPMENT(GH3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-98032-617-0 01 1 1407-1503 ● ●
1 04.650 CYLINDER ASM; BRK MASTER
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3>, ALGERIA EQUIPMENT(WN1) 		8-98032-617-0 01 1 1407-1503 ● ●
1 04.650 CYLINDER ASM; BRK MASTER 8-98032-617-0 01 1 1407-1503 ●
1 04.650 CYLINDER ASM; BRK MASTER
EXC. TURKEY EQUIPMENT(B11) 		8-98032-617-0 01 1 1504- ●
1 04.650 CYLINDER ASM; BRK MASTER
SAUDI ARABIA EQUIPMENT(GH3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-98032-617-0 01 1 1504- ● ●
1 04.650 CYLINDER ASM; BRK MASTER
EXC. UZBEKISTAN EQUIPMENT(JCW),BRAKE SYSTEM HEAVY DUTY VAR2<WG3>,ALGERIA EQUIPMENT(WN1) 		8-98032-617-0 01 1 1504- ● ●
1 04.650 CYLINDER ASM; BRK MASTER 8-98032-617-0 01 1 1504- ●
33 04.661 PLUG; END,M/CYL
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97186-697-0 01 1 1302- ● ●
33 04.661 PLUG; END,M/CYL
TURKEY EQUIPMENT(B11) 		8-97186-698-0 01 1 1012-1406 ●
33 04.661 PLUG; END,M/CYL
TURKEY EQUIPMENT(B11) 		8-97186-698-0 01 1 1407-1503 ●
33 04.661 PLUG; END,M/CYL
ALGERIA EQUIPMENT(WN1) 		8-97186-698-0 01 1 1407-1503 ●
33 04.661 PLUG; END,M/CYL
TURKEY EQUIPMENT(B11) 		8-97186-698-0 01 1 1504- ●
33 04.661 PLUG; END,M/CYL
UZBEKISTAN EQUIPMENT(JCW),ALGERIA EQUIPMENT(WN1) 		8-97186-698-0 01 1 1504- ●
33 04.661 PLUG; END,M/CYL
EXC. TURKEY EQUIPMENT(B11) 		8-97186-696-0 01 1 1012-1301 ●
33 04.661 PLUG; END,M/CYL 8-97186-696-0 01 1 1012-1301 ● ● ●
33 04.661 PLUG; END,M/CYL
EXC. TURKEY EQUIPMENT(B11) 		8-97186-696-0 01 1 1302-1406 ●
33 04.661 PLUG; END,M/CYL
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97186-696-0 01 1 1302-1406 ● ●
33 04.661 PLUG; END,M/CYL 8-97186-696-0 01 1 1302-1406 ●
33 04.661 PLUG; END,M/CYL
EXC. TURKEY EQUIPMENT(B11) 		8-97186-696-0 01 1 1407-1503 ●
33 04.661 PLUG; END,M/CYL
SAUDI ARABIA EQUIPMENT(GH3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97186-696-0 01 1 1407-1503 ● ●
33 04.661 PLUG; END,M/CYL
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3>, ALGERIA EQUIPMENT(WN1) 		8-97186-696-0 01 1 1407-1503 ● ●
33 04.661 PLUG; END,M/CYL 8-97186-696-0 01 1 1407-1503 ●
33 04.661 PLUG; END,M/CYL
EXC. TURKEY EQUIPMENT(B11) 		8-97186-696-0 01 1 1504- ●
33 04.661 PLUG; END,M/CYL
SAUDI ARABIA EQUIPMENT(GH3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97186-696-0 01 1 1504- ● ●
33 04.661 PLUG; END,M/CYL
EXC. UZBEKISTAN EQUIPMENT(JCW),BRAKE SYSTEM HEAVY DUTY VAR2<WG3>,ALGERIA EQUIPMENT(WN1) 		8-97186-696-0 01 1 1504- ● ●
33 04.661 PLUG; END,M/CYL 8-97186-696-0 01 1 1504- ●
57 04.651 NIPPLE; BRK M/CYL
(A) 		8-97130-441-0 01 1 1012- ● ● ● ●
57 04.651 NIPPLE; BRK M/CYL
(B) 		8-97130-442-0 01 1 1012- ● ● ● ●
76 04.653 PISTON ASM; PRIMARY
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97224-643-0 01 1 1302- ● ●
76 04.653 PISTON ASM; PRIMARY
TURKEY EQUIPMENT(B11) 		8-97224-639-0 01 1 1012-1406 ●
76 04.653 PISTON ASM; PRIMARY
TURKEY EQUIPMENT(B11) 		8-97224-639-0 01 1 1407-1503 ●
76 04.653 PISTON ASM; PRIMARY
ALGERIA EQUIPMENT(WN1) 		8-97224-639-0 01 1 1407-1503 ●
76 04.653 PISTON ASM; PRIMARY
TURKEY EQUIPMENT(B11) 		8-97224-639-0 01 1 1504- ●
76 04.653 PISTON ASM; PRIMARY
UZBEKISTAN EQUIPMENT(JCW),ALGERIA EQUIPMENT(WN1) 		8-97224-639-0 01 1 1504- ●
76 04.653 PISTON ASM; PRIMARY
EXC. TURKEY EQUIPMENT(B11) 		8-97224-636-0 01 1 1012-1301 ●
76 04.653 PISTON ASM; PRIMARY 8-97224-636-0 01 1 1012-1301 ● ● ●
76 04.653 PISTON ASM; PRIMARY
EXC. TURKEY EQUIPMENT(B11) 		8-97224-636-0 01 1 1302-1406 ●
76 04.653 PISTON ASM; PRIMARY
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97224-636-0 01 1 1302-1406 ● ●
76 04.653 PISTON ASM; PRIMARY 8-97224-636-0 01 1 1302-1406 ●
76 04.653 PISTON ASM; PRIMARY
EXC. TURKEY EQUIPMENT(B11) 		8-97224-636-0 01 1 1407-1503 ●
76 04.653 PISTON ASM; PRIMARY
SAUDI ARABIA EQUIPMENT(GH3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97224-636-0 01 1 1407-1503 ● ●
76 04.653 PISTON ASM; PRIMARY
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3>, ALGERIA EQUIPMENT(WN1) 		8-97224-636-0 01 1 1407-1503 ● ●
76 04.653 PISTON ASM; PRIMARY 8-97224-636-0 01 1 1407-1503 ●
76 04.653 PISTON ASM; PRIMARY
EXC. TURKEY EQUIPMENT(B11) 		8-97224-636-0 01 1 1504- ●
76 04.653 PISTON ASM; PRIMARY
SAUDI ARABIA EQUIPMENT(GH3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97224-636-0 01 1 1504- ● ●
76 04.653 PISTON ASM; PRIMARY
EXC. UZBEKISTAN EQUIPMENT(JCW),BRAKE SYSTEM HEAVY DUTY VAR2<WG3>,ALGERIA EQUIPMENT(WN1) 		8-97224-636-0 01 1 1504- ● ●
76 04.653 PISTON ASM; PRIMARY 8-97224-636-0 01 1 1504- ●
77 04.653 PISTON ASM; SECONDARY
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97224-642-0 01 1 1302- ● ●
77 04.653 PISTON ASM; SECONDARY
TURKEY EQUIPMENT(B11) 		8-97224-637-0 01 1 1012-1406 ●
77 04.653 PISTON ASM; SECONDARY
TURKEY EQUIPMENT(B11) 		8-97224-637-0 01 1 1407-1503 ●
77 04.653 PISTON ASM; SECONDARY
ALGERIA EQUIPMENT(WN1) 		8-97224-637-0 01 1 1407-1503 ●
77 04.653 PISTON ASM; SECONDARY
TURKEY EQUIPMENT(B11) 		8-97224-637-0 01 1 1504- ●
77 04.653 PISTON ASM; SECONDARY
UZBEKISTAN EQUIPMENT(JCW),ALGERIA EQUIPMENT(WN1) 		8-97224-637-0 01 1 1504- ●
77 04.653 PISTON ASM; SECONDARY
EXC. TURKEY EQUIPMENT(B11) 		8-97224-635-0 01 1 1012-1301 ●
77 04.653 PISTON ASM; SECONDARY 8-97224-635-0 01 1 1012-1301 ● ● ●
77 04.653 PISTON ASM; SECONDARY
EXC. TURKEY EQUIPMENT(B11) 		8-97224-635-0 01 1 1302-1406 ●
77 04.653 PISTON ASM; SECONDARY
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97224-635-0 01 1 1302-1406 ● ●
77 04.653 PISTON ASM; SECONDARY 8-97224-635-0 01 1 1302-1406 ●
77 04.653 PISTON ASM; SECONDARY
EXC. TURKEY EQUIPMENT(B11) 		8-97224-635-0 01 1 1407-1503 ●
77 04.653 PISTON ASM; SECONDARY
SAUDI ARABIA EQUIPMENT(GH3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97224-635-0 01 1 1407-1503 ● ●
77 04.653 PISTON ASM; SECONDARY
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3>, ALGERIA EQUIPMENT(WN1) 		8-97224-635-0 01 1 1407-1503 ● ●
77 04.653 PISTON ASM; SECONDARY 8-97224-635-0 01 1 1407-1503 ●
77 04.653 PISTON ASM; SECONDARY
EXC. TURKEY EQUIPMENT(B11) 		8-97224-635-0 01 1 1504- ●
77 04.653 PISTON ASM; SECONDARY
SAUDI ARABIA EQUIPMENT(GH3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97224-635-0 01 1 1504- ● ●
77 04.653 PISTON ASM; SECONDARY
EXC. UZBEKISTAN EQUIPMENT(JCW),BRAKE SYSTEM HEAVY DUTY VAR2<WG3>,ALGERIA EQUIPMENT(WN1) 		8-97224-635-0 01 1 1504- ● ●
77 04.653 PISTON ASM; SECONDARY 8-97224-635-0 01 1 1504- ●
78 04.651 BUSHING; MASTER CYL
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> (A) 		8-97130-455-0 01 1 1302- ● ●
78 04.651 BUSHING; MASTER CYL
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> (B) 		8-97217-312-0 01 1 1302- ● ●
78 04.651 BUSHING; MASTER CYL
TURKEY EQUIPMENT(B11) (A) 		8-97141-410-0 01 1 1012-1406 ●
78 04.651 BUSHING; MASTER CYL
TURKEY EQUIPMENT(B11) (A) 		8-97141-410-0 01 1 1407-1503 ●
78 04.651 BUSHING; MASTER CYL
ALGERIA EQUIPMENT(WN1) (A) 		8-97141-410-0 01 1 1407-1503 ●
78 04.651 BUSHING; MASTER CYL
TURKEY EQUIPMENT(B11) (A) 		8-97141-410-0 01 1 1504- ●
78 04.651 BUSHING; MASTER CYL
UZBEKISTAN EQUIPMENT(JCW),ALGERIA EQUIPMENT(WN1) (A) 		8-97141-410-0 01 1 1504- ●
78 04.651 BUSHING; MASTER CYL
TURKEY EQUIPMENT(B11) (B) 		8-97217-830-0 01 1 1012-1406 ●
78 04.651 BUSHING; MASTER CYL
TURKEY EQUIPMENT(B11) (B) 		8-97217-830-0 01 1 1407-1503 ●
78 04.651 BUSHING; MASTER CYL
ALGERIA EQUIPMENT(WN1) (B) 		8-97217-830-0 01 1 1407-1503 ●
78 04.651 BUSHING; MASTER CYL
TURKEY EQUIPMENT(B11) (B) 		8-97217-830-0 01 1 1504- ●
78 04.651 BUSHING; MASTER CYL
UZBEKISTAN EQUIPMENT(JCW),ALGERIA EQUIPMENT(WN1) (B) 		8-97217-830-0 01 1 1504- ●
78 04.651 BUSHING; MASTER CYL
EXC. TURKEY EQUIPMENT(B11) (A) 		8-97130-454-0 01 1 1012-1301 ●
78 04.651 BUSHING; MASTER CYL
(A) 		8-97130-454-0 01 1 1012-1301 ● ● ●
78 04.651 BUSHING; MASTER CYL
EXC. TURKEY EQUIPMENT(B11) (A) 		8-97130-454-0 01 1 1302-1406 ●
78 04.651 BUSHING; MASTER CYL
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> (A) 		8-97130-454-0 01 1 1302-1406 ● ●
78 04.651 BUSHING; MASTER CYL
(A) 		8-97130-454-0 01 1 1302-1406 ●
78 04.651 BUSHING; MASTER CYL
EXC. TURKEY EQUIPMENT(B11) (A) 		8-97130-454-0 01 1 1407-1503 ●
78 04.651 BUSHING; MASTER CYL
SAUDI ARABIA EQUIPMENT(GH3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> (A) 		8-97130-454-0 01 1 1407-1503 ● ●
78 04.651 BUSHING; MASTER CYL
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3>, ALGERIA EQUIPMENT(WN1) (A) 		8-97130-454-0 01 1 1407-1503 ● ●
78 04.651 BUSHING; MASTER CYL
(A) 		8-97130-454-0 01 1 1407-1503 ●
78 04.651 BUSHING; MASTER CYL
EXC. TURKEY EQUIPMENT(B11) (A) 		8-97130-454-0 01 1 1504- ●
78 04.651 BUSHING; MASTER CYL
SAUDI ARABIA EQUIPMENT(GH3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> (A) 		8-97130-454-0 01 1 1504- ● ●
78 04.651 BUSHING; MASTER CYL
EXC. UZBEKISTAN EQUIPMENT(JCW),BRAKE SYSTEM HEAVY DUTY VAR2<WG3>,ALGERIA EQUIPMENT(WN1) (A) 		8-97130-454-0 01 1 1504- ● ●
78 04.651 BUSHING; MASTER CYL
(A) 		8-97130-454-0 01 1 1504- ●
78 04.651 BUSHING; MASTER CYL
EXC. TURKEY EQUIPMENT(B11) (B) 		8-97217-310-0 01 1 1012-1301 ●
78 04.651 BUSHING; MASTER CYL
(B) 		8-97217-310-0 01 1 1012-1301 ● ● ●
78 04.651 BUSHING; MASTER CYL
EXC. TURKEY EQUIPMENT(B11) (B) 		8-97217-310-0 01 1 1302-1406 ●
78 04.651 BUSHING; MASTER CYL
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> (B) 		8-97217-310-0 01 1 1302-1406 ● ●
78 04.651 BUSHING; MASTER CYL
(B) 		8-97217-310-0 01 1 1302-1406 ●
78 04.651 BUSHING; MASTER CYL
EXC. TURKEY EQUIPMENT(B11) (B) 		8-97217-310-0 01 1 1407-1503 ●
78 04.651 BUSHING; MASTER CYL
SAUDI ARABIA EQUIPMENT(GH3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> (B) 		8-97217-310-0 01 1 1407-1503 ● ●
78 04.651 BUSHING; MASTER CYL
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3>, ALGERIA EQUIPMENT(WN1) (B) 		8-97217-310-0 01 1 1407-1503 ● ●
78 04.651 BUSHING; MASTER CYL
(B) 		8-97217-310-0 01 1 1407-1503 ●
78 04.651 BUSHING; MASTER CYL
EXC. TURKEY EQUIPMENT(B11) (B) 		8-97217-310-0 01 1 1504- ●
78 04.651 BUSHING; MASTER CYL
SAUDI ARABIA EQUIPMENT(GH3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> (B) 		8-97217-310-0 01 1 1504- ● ●
78 04.651 BUSHING; MASTER CYL
EXC. UZBEKISTAN EQUIPMENT(JCW),BRAKE SYSTEM HEAVY DUTY VAR2<WG3>,ALGERIA EQUIPMENT(WN1) (B) 		8-97217-310-0 01 1 1504- ● ●
78 04.651 BUSHING; MASTER CYL
(B) 		8-97217-310-0 01 1 1504- ●
79 04.651 SUPPORTER; CUP
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97130-463-0 02 1 1302- ● ●
79 04.651 SUPPORTER; CUP
TURKEY EQUIPMENT(B11) 		8-97141-417-0 02 1 1012-1406 ●
79 04.651 SUPPORTER; CUP
TURKEY EQUIPMENT(B11) 		8-97141-417-0 02 1 1407-1503 ●
79 04.651 SUPPORTER; CUP
ALGERIA EQUIPMENT(WN1) 		8-97141-417-0 02 1 1407-1503 ●
79 04.651 SUPPORTER; CUP
TURKEY EQUIPMENT(B11) 		8-97141-417-0 02 1 1504- ●
79 04.651 SUPPORTER; CUP
UZBEKISTAN EQUIPMENT(JCW),ALGERIA EQUIPMENT(WN1) 		8-97141-417-0 02 1 1504- ●
79 04.651 SUPPORTER; CUP
EXC. TURKEY EQUIPMENT(B11) 		8-97130-462-0 02 1 1012-1301 ●
79 04.651 SUPPORTER; CUP 8-97130-462-0 02 1 1012-1301 ● ● ●
79 04.651 SUPPORTER; CUP
EXC. TURKEY EQUIPMENT(B11) 		8-97130-462-0 02 1 1302-1406 ●
79 04.651 SUPPORTER; CUP
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97130-462-0 02 1 1302-1406 ● ●
79 04.651 SUPPORTER; CUP 8-97130-462-0 02 1 1302-1406 ●
79 04.651 SUPPORTER; CUP
EXC. TURKEY EQUIPMENT(B11) 		8-97130-462-0 02 1 1407-1503 ●
79 04.651 SUPPORTER; CUP
SAUDI ARABIA EQUIPMENT(GH3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97130-462-0 02 1 1407-1503 ● ●
79 04.651 SUPPORTER; CUP
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3>, ALGERIA EQUIPMENT(WN1) 		8-97130-462-0 02 1 1407-1503 ● ●
79 04.651 SUPPORTER; CUP 8-97130-462-0 02 1 1407-1503 ●
79 04.651 SUPPORTER; CUP
EXC. TURKEY EQUIPMENT(B11) 		8-97130-462-0 02 1 1504- ●
79 04.651 SUPPORTER; CUP
SAUDI ARABIA EQUIPMENT(GH3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97130-462-0 02 1 1504- ● ●
79 04.651 SUPPORTER; CUP
EXC. UZBEKISTAN EQUIPMENT(JCW),BRAKE SYSTEM HEAVY DUTY VAR2<WG3>,ALGERIA EQUIPMENT(WN1) 		8-97130-462-0 02 1 1504- ● ●
79 04.651 SUPPORTER; CUP 8-97130-462-0 02 1 1504- ●
80 04.651 COVER; MASTER CYL
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97130-449-0 01 1 1302- ● ●
80 04.651 COVER; MASTER CYL
TURKEY EQUIPMENT(B11) 		8-97141-404-0 01 1 1012-1406 ●
80 04.651 COVER; MASTER CYL
TURKEY EQUIPMENT(B11) 		8-97141-404-0 01 1 1407-1503 ●
80 04.651 COVER; MASTER CYL
ALGERIA EQUIPMENT(WN1) 		8-97141-404-0 01 1 1407-1503 ●
80 04.651 COVER; MASTER CYL
TURKEY EQUIPMENT(B11) 		8-97141-404-0 01 1 1504- ●
80 04.651 COVER; MASTER CYL
UZBEKISTAN EQUIPMENT(JCW),ALGERIA EQUIPMENT(WN1) 		8-97141-404-0 01 1 1504- ●
80 04.651 COVER; MASTER CYL
EXC. TURKEY EQUIPMENT(B11) 		8-97130-448-0 01 1 1012-1301 ●
80 04.651 COVER; MASTER CYL 8-97130-448-0 01 1 1012-1301 ● ● ●
80 04.651 COVER; MASTER CYL
EXC. TURKEY EQUIPMENT(B11) 		8-97130-448-0 01 1 1302-1406 ●
80 04.651 COVER; MASTER CYL
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97130-448-0 01 1 1302-1406 ● ●
80 04.651 COVER; MASTER CYL 8-97130-448-0 01 1 1302-1406 ●
80 04.651 COVER; MASTER CYL
EXC. TURKEY EQUIPMENT(B11) 		8-97130-448-0 01 1 1407-1503 ●
80 04.651 COVER; MASTER CYL
SAUDI ARABIA EQUIPMENT(GH3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97130-448-0 01 1 1407-1503 ● ●
80 04.651 COVER; MASTER CYL
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3>, ALGERIA EQUIPMENT(WN1) 		8-97130-448-0 01 1 1407-1503 ● ●
80 04.651 COVER; MASTER CYL 8-97130-448-0 01 1 1407-1503 ●
80 04.651 COVER; MASTER CYL
EXC. TURKEY EQUIPMENT(B11) 		8-97130-448-0 01 1 1504- ●
80 04.651 COVER; MASTER CYL
SAUDI ARABIA EQUIPMENT(GH3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97130-448-0 01 1 1504- ● ●
80 04.651 COVER; MASTER CYL
EXC. UZBEKISTAN EQUIPMENT(JCW),BRAKE SYSTEM HEAVY DUTY VAR2<WG3>,ALGERIA EQUIPMENT(WN1) 		8-97130-448-0 01 1 1504- ● ●
80 04.651 COVER; MASTER CYL 8-97130-448-0 01 1 1504- ●
81 04.651 HOLDER; NIPPLE 8-97315-168-0 01 1 1012- ● ● ● ●
82 04.651 SCREW; HOLDER 8-97130-446-0 02 1 1012- ● ● ● ●
87 04.662 SPACER; CUP
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97130-459-0 01 1 1302- ● ●
87 04.662 SPACER; CUP
TURKEY EQUIPMENT(B11) 		8-97141-413-0 01 1 1012-1406 ●
87 04.662 SPACER; CUP
TURKEY EQUIPMENT(B11) 		8-97141-413-0 01 1 1407-1503 ●
87 04.662 SPACER; CUP
ALGERIA EQUIPMENT(WN1) 		8-97141-413-0 01 1 1407-1503 ●
87 04.662 SPACER; CUP
TURKEY EQUIPMENT(B11) 		8-97141-413-0 01 1 1504- ●
87 04.662 SPACER; CUP
UZBEKISTAN EQUIPMENT(JCW),ALGERIA EQUIPMENT(WN1) 		8-97141-413-0 01 1 1504- ●
87 04.662 SPACER; CUP
EXC. TURKEY EQUIPMENT(B11) 		8-97130-458-0 01 1 1012-1301 ●
87 04.662 SPACER; CUP 8-97130-458-0 01 1 1012-1301 ● ● ●
87 04.662 SPACER; CUP
EXC. TURKEY EQUIPMENT(B11) 		8-97130-458-0 01 1 1302-1406 ●
87 04.662 SPACER; CUP
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97130-458-0 01 1 1302-1406 ● ●
87 04.662 SPACER; CUP 8-97130-458-0 01 1 1302-1406 ●
87 04.662 SPACER; CUP
EXC. TURKEY EQUIPMENT(B11) 		8-97130-458-0 01 1 1407-1503 ●
87 04.662 SPACER; CUP
SAUDI ARABIA EQUIPMENT(GH3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97130-458-0 01 1 1407-1503 ● ●
87 04.662 SPACER; CUP
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3>, ALGERIA EQUIPMENT(WN1) 		8-97130-458-0 01 1 1407-1503 ● ●
87 04.662 SPACER; CUP 8-97130-458-0 01 1 1407-1503 ●
87 04.662 SPACER; CUP
EXC. TURKEY EQUIPMENT(B11) 		8-97130-458-0 01 1 1504- ●
87 04.662 SPACER; CUP
SAUDI ARABIA EQUIPMENT(GH3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97130-458-0 01 1 1504- ● ●
87 04.662 SPACER; CUP
EXC. UZBEKISTAN EQUIPMENT(JCW),BRAKE SYSTEM HEAVY DUTY VAR2<WG3>,ALGERIA EQUIPMENT(WN1) 		8-97130-458-0 01 1 1504- ● ●
87 04.662 SPACER; CUP 8-97130-458-0 01 1 1504- ●

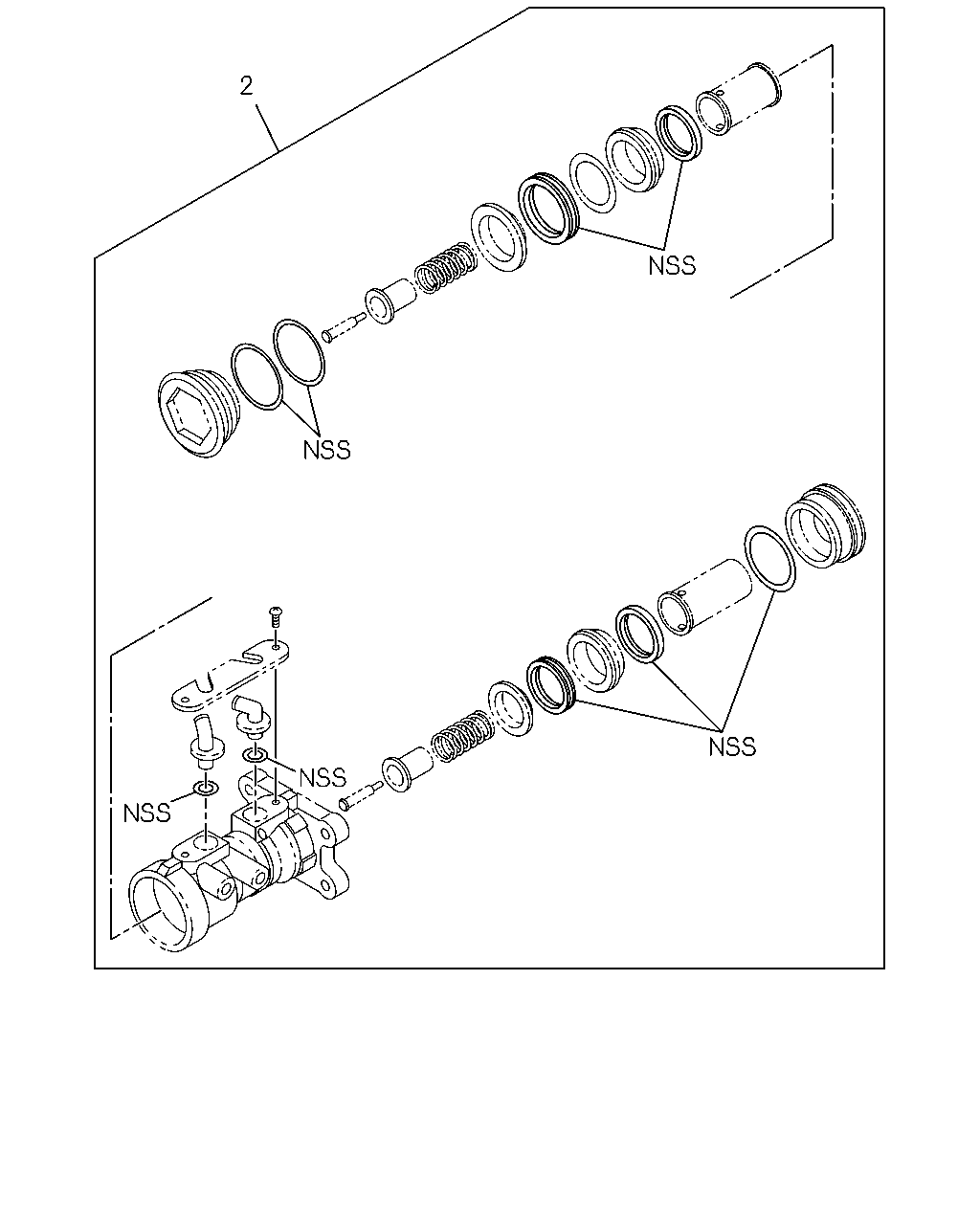

çizim 190793
2
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 04.649 REPAIR KIT; BRK,M/CYL
BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97130-471-0 01 1 1302- ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
TURKEY EQUIPMENT(B11) 		8-97141-423-0 01 1 1012-1406 ●
2 04.649 REPAIR KIT; BRK,M/CYL
TURKEY EQUIPMENT(B11) 		8-97141-423-0 01 1 1407-1503 ●
2 04.649 REPAIR KIT; BRK,M/CYL
ALGERIA EQUIPMENT(WN1) 		8-97141-423-0 01 1 1407-1503 ●
2 04.649 REPAIR KIT; BRK,M/CYL
TURKEY EQUIPMENT(B11) 		8-97141-423-0 01 1 1504- ●
2 04.649 REPAIR KIT; BRK,M/CYL
UZBEKISTAN EQUIPMENT(JCW),ALGERIA EQUIPMENT(WN1) 		8-97141-423-0 01 1 1504- ●
2 04.649 REPAIR KIT; BRK,M/CYL
EXC. TURKEY EQUIPMENT(B11) 		8-97130-470-0 01 1 1012-1301 ●
2 04.649 REPAIR KIT; BRK,M/CYL 8-97130-470-0 01 1 1012-1301 ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
EXC. TURKEY EQUIPMENT(B11) 		8-97130-470-0 01 1 1302-1406 ●
2 04.649 REPAIR KIT; BRK,M/CYL
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97130-470-0 01 1 1302-1406 ● ●
2 04.649 REPAIR KIT; BRK,M/CYL 8-97130-470-0 01 1 1302-1406 ●
2 04.649 REPAIR KIT; BRK,M/CYL
EXC. TURKEY EQUIPMENT(B11) 		8-97130-470-0 01 1 1407-1503 ●
2 04.649 REPAIR KIT; BRK,M/CYL
SAUDI ARABIA EQUIPMENT(GH3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97130-470-0 01 1 1407-1503 ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3>, ALGERIA EQUIPMENT(WN1) 		8-97130-470-0 01 1 1407-1503 ● ●
2 04.649 REPAIR KIT; BRK,M/CYL 8-97130-470-0 01 1 1407-1503 ●
2 04.649 REPAIR KIT; BRK,M/CYL
EXC. TURKEY EQUIPMENT(B11) 		8-97130-470-0 01 1 1504- ●
2 04.649 REPAIR KIT; BRK,M/CYL
SAUDI ARABIA EQUIPMENT(GH3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2<WG3> 		8-97130-470-0 01 1 1504- ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
EXC. UZBEKISTAN EQUIPMENT(JCW),BRAKE SYSTEM HEAVY DUTY VAR2<WG3>,ALGERIA EQUIPMENT(WN1) 		8-97130-470-0 01 1 1504- ● ●
2 04.649 REPAIR KIT; BRK,M/CYL 8-97130-470-0 01 1 1504- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
