◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51282 - NLR/NMR 55,85(LHD) ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#79099) — 298 parça

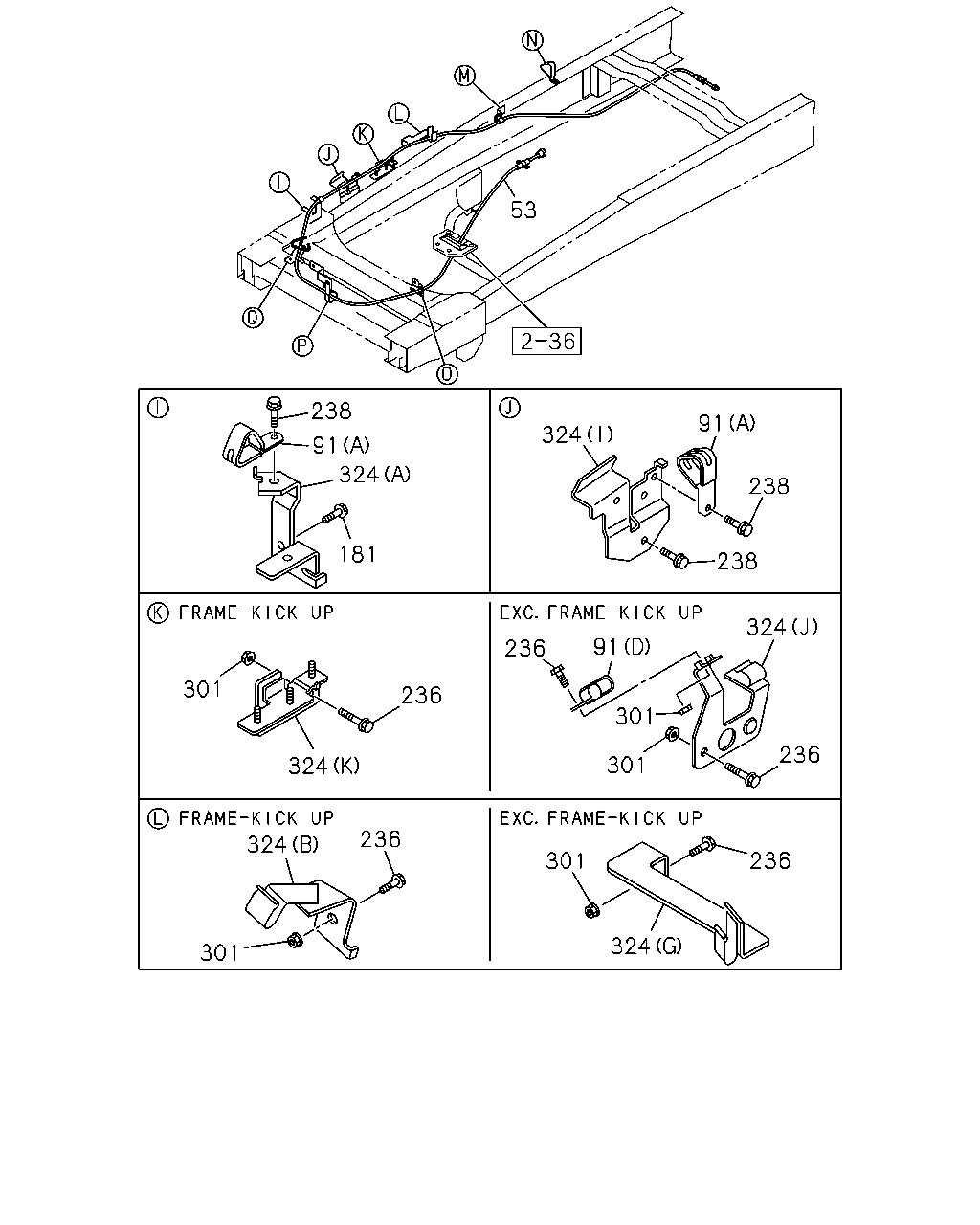

çizim 115473
53 238 91 324 91 324 238 181 238 324 91 236 301 236 301 236 301 324 324 236 236 301 324 301
BalonParca AdiParca NoAdetTipApplied Date A B C D
53 04.779 CABLE; PARK BRK,FRT LWR
4JB1-TC ENG(RDT),4JB1 ENG(RLF) HEAVY DUTY FRAME<6WB> 		8-98255-955-0 01 1 1312- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JB1 ENG(RLF) HEAVY DUTY FRAME<6WB> 		8-98255-955-0 01 1 1312- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) 		8-98051-572-4 01 1 1012- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) 		8-98051-572-4 01 1 1012- ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HG1-T ENG(RDP) M/T MYY5T(RSM) 		8-98105-154-2 01 1 1012- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HG1 ENG(RJH) M/T MYY5T(RSM) 		8-98105-154-2 01 1 1012- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JB1-TC ENG(RDT),4JB1 ENG(RLF) M/T MSB5M(RM5),M/T MSB5S(R45) 		8-98070-096-6 01 1 1012-1205 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JB1 ENG(RLF) M/T MSB5M(RM5) EXC. FRAME-KICK UP<7EW> 		8-98070-096-6 01 1 1012-1205 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JB1-TC ENG(RDT),4JB1 ENG(RLF) M/T MSB5M(RM5),M/T MSB5S(R45) 		8-98222-722-0 01 1 1206-1311 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JB1 ENG(RLF) M/T MSB5M(RM5) EXC. FRAME-KICK UP<7EW> 		8-98222-722-0 01 1 1206-1311 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. HEAVY DUTY FRAME<6WB> 		8-98222-722-0 01 1 1312- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JB1 ENG(RLF) EXC. HEAVY DUTY FRAME<6WB> 		8-98222-722-0 01 1 1312- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCC ENG(RDU) M/T MYY6S(RST) 		8-98057-112-4 01 1 1012- ●
91 04.785 CLIP; PARKING BRK CABLE
4HG1-T ENG(RDP) (D) 		8-98009-406-0 01 1 1012- ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 03 1 1012- ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH) 04.047 (B) 		8-97039-295-0 01 1 1012- ●
91 04.785 CLIP; PARKING BRK CABLE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) 04.047 (C) 		8-97036-332-1 01 1 1012- ●
91 04.785 CLIP; PARKING BRK CABLE
4JB1 ENG(RLF) 04.047 (C) 		8-97036-332-1 01 1 1012- ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1012- ● ● ● ●
181 04.785 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HG1-T ENG(RDP), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
181 04.785 BOLT; BRKT
4HG1-T ENG(RDP),4HG1 ENG(RJH) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
181 04.785 BOLT; BRKT
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) MANUAL STEERING<N51> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
181 04.785 BOLT; BRKT
4JB1-TC ENG(RDT),4JB1 ENG(RLF) MANUAL STEERING<N51> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
181 04.785 BOLT; BRKT
4JB1-TC ENG(RDT),4JB1 ENG(RLF) MANUAL STEERING<N51> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
236 04.785 BOLT; BRKT TO FRAME
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ● ● ●
236 04.785 BOLT; BRKT TO FRAME
EXC. FRAME-KICK UP<7EW> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ● ● ●
236 04.785 BOLT; BRKT TO FRAME
FRAME-KICK UP<7EW> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1012- ●
238 04.785 BOLT; CLIP TO BRKT
4JJ1-TCS ENG(LFB),4HG1-T ENG(RDP), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1012-1012 ● ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1012-1012 ● ●
238 04.785 BOLT; CLIP TO BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU), 4HG1 ENG(RJH) 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1101- ● ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1101- ● ●
238 04.785 BOLT; CLIP TO BRKT
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4JB1 ENG(RLF) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1012- ●
238 04.785 BOLT; CLIP TO BRKT
4JB1 ENG(RLF) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1012- ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
4JJ1-TCS ENG(LFB),4HG1-T ENG(RDP), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ● ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
4JB1-TC ENG(RDT),4JB1 ENG(RLF) MANUAL STEERING<N51> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) MANUAL STEERING<N51> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ●
324 04.785 BRACKET
ALGERIA EQUIPMENT(WN1) FRAME-KICK UP<7EW> (B) 		8-98292-263-0 01 1 1409- ●
324 04.785 BRACKET
4JB1-TC ENG(RDT),4JB1 ENG(RLF) HEAVY DUTY FRAME<6WB> (N) 		8-98064-280-1 01 1 1312- ●
324 04.785 BRACKET
4JB1 ENG(RLF) HEAVY DUTY FRAME<6WB> (N) 		8-98064-280-1 01 1 1312- ●
324 04.785 BRACKET
4HG1-T ENG(RDP) MANUAL STEERING<N51> (J) 		8-98180-815-0 01 1 1012- ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB),4HG1-T ENG(RDP), 4JJ1-TCC ENG(RDU) (A) 		8-98003-642-1 01 1 1012- ●
324 04.785 BRACKET
4JB1-TC ENG(RDT),4JB1 ENG(RLF) MANUAL STEERING<N51> (A) 		8-98003-642-1 01 1 1012- ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) (A) 		8-98003-642-1 01 1 1012- ●
324 04.785 BRACKET
4JB1 ENG(RLF) MANUAL STEERING<N51> (A) 		8-98003-642-1 01 1 1012- ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU) (A) 		8-98003-642-1 01 1 1012- ● ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (C) 		8-98026-099-2 01 1 1012- ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU) EXC. FRAME-KICK UP<7EW> (C) 		8-98026-099-2 01 1 1012- ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU) (C) 		8-98026-099-2 01 1 1012- ● ●
324 04.785 BRACKET
4HG1-T ENG(RDP) (I) 		8-98100-180-1 01 1 1012- ●
324 04.785 BRACKET
4HG1 ENG(RJH) (I) 		8-98100-180-1 01 1 1012- ●
324 04.785 BRACKET
4HG1-T ENG(RDP) (G) 		8-98038-563-0 01 1 1012- ●
324 04.785 BRACKET
4HG1 ENG(RJH) EXC. FRAME-KICK UP<7EW> (G) 		8-98038-563-0 01 1 1012- ●
324 04.785 BRACKET
4JB1-TC ENG(RDT),4JB1 ENG(RLF) (H) 		8-98106-757-1 01 1 1012-1212 ●
324 04.785 BRACKET
4JB1 ENG(RLF) EXC. FRAME-KICK UP<7EW> (H) 		8-98106-757-1 01 1 1012-1212 ●
324 04.785 BRACKET
4JB1-TC ENG(RDT),4JB1 ENG(RLF) (H) 		8-98106-757-1 01 1 1301-1311 ●
324 04.785 BRACKET
4JB1 ENG(RLF) (H) 		8-98106-757-1 01 1 1301-1311 ●
324 04.785 BRACKET
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. HEAVY DUTY FRAME<6WB> (H) 		8-98106-757-1 01 1 1312- ●
324 04.785 BRACKET
4JB1 ENG(RLF) EXC. HEAVY DUTY FRAME<6WB> (H) 		8-98106-757-1 01 1 1312- ●
324 04.785 BRACKET
4JB1-TC ENG(RDT),4JB1 ENG(RLF) MANUAL STEERING<N51> (L) 		8-98164-288-0 01 1 1012- ●
324 04.785 BRACKET
4JB1 ENG(RLF) MANUAL STEERING<N51> (L) 		8-98164-288-0 01 1 1012- ●
324 04.785 BRACKET
4JB1-TC ENG(RDT),4JB1 ENG(RLF) MANUAL STEERING<N51> (M) 		8-98164-289-0 01 1 1012- ●
324 04.785 BRACKET
4JB1 ENG(RLF) MANUAL STEERING<N51> (M) 		8-98164-289-0 01 1 1012- ●
324 04.785 BRACKET
(D) 		8-98047-573-0 01 1 1012- ● ● ● ●
324 04.785 BRACKET
(E) 		8-98047-575-1 01 1 1012- ● ● ● ●
324 04.785 BRACKET
(F) 		8-98116-060-0 01 1 1012- ● ● ● ●
324 04.785 BRACKET
4HG1 ENG(RJH) MANUAL STEERING<N51> (K) 		8-98164-344-0 01 1 1012- ●
324 04.785 BRACKET
FRAME-KICK UP<7EW> (B) 		8-98063-429-0 01 1 1012-1408 ●
324 04.785 BRACKET
FRAME-KICK UP<7EW> EXC. ALGERIA EQUIPMENT(WN1) (B) 		8-98063-429-0 01 1 1409- ●
çizim 115541
235 235 237 85 225 225 85 238 91 237 324 324 238 238 91 238 324
BalonParca AdiParca NoAdetTipApplied Date A B C D
85 04.785 CLIP; BRKT
ID=14.5 L=20 		1-09701-012-0 01 1 1012- ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
4HG1-T ENG(RDP) (D) 		8-98009-406-0 01 1 1012- ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 03 1 1012- ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH) 04.047 (B) 		8-97039-295-0 01 1 1012- ●
91 04.785 CLIP; PARKING BRK CABLE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) 04.047 (C) 		8-97036-332-1 01 1 1012- ●
91 04.785 CLIP; PARKING BRK CABLE
4JB1 ENG(RLF) 04.047 (C) 		8-97036-332-1 01 1 1012- ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ● ● ●
225 04.785 NUT; CABLE CLIP
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4JB1-TC ENG(RDT),4JB1 ENG(RLF) HEAVY DUTY FRAME<6WB> (D) 		8-98255-956-0 01 1 1312- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4JB1 ENG(RLF) HEAVY DUTY FRAME<6WB> (D) 		8-98255-956-0 01 1 1312- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MSB5M(RM5),M/T MSB5S(R45) (C) 		8-98106-619-1 01 1 1012-1212 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MSB5M(RM5) EXC. FRAME-KICK UP<7EW> (C) 		8-98106-619-1 01 1 1012-1212 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4JB1-TC ENG(RDT),4JB1 ENG(RLF) (C) 		8-98106-619-1 01 1 1301-1311 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4JB1 ENG(RLF) (C) 		8-98106-619-1 01 1 1301-1311 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. HEAVY DUTY FRAME<6WB> (C) 		8-98106-619-1 01 1 1312- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4JB1 ENG(RLF) EXC. HEAVY DUTY FRAME<6WB> (C) 		8-98106-619-1 01 1 1312- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY5T(RSM) (A) 		8-98034-352-0 01 1 1012- ● ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY5T(RSM),M/T MYY6S(RST) EXC. FRAME-KICK UP<7EW> (A) 		8-98034-352-0 01 1 1012- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
FRAME-KICK UP<7EW> (B) 		8-98013-968-0 01 1 1012- ●
237 04.785 NUT; BRKT TO FRAME
4JJ1-TCS ENG(LFB),4HG1-T ENG(RDP), 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
237 04.785 NUT; BRKT TO FRAME
4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) EXC. FRAME-KICK UP<7EW> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
237 04.785 NUT; BRKT TO FRAME
4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ●
237 04.785 NUT; BRKT TO FRAME
4JB1-TC ENG(RDT),4JB1 ENG(RLF) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1012- ●
237 04.785 NUT; BRKT TO FRAME
4JB1 ENG(RLF) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1012- ●
238 04.785 BOLT; CLIP TO BRKT
4JJ1-TCS ENG(LFB),4HG1-T ENG(RDP), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1012-1012 ● ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1012-1012 ● ●
238 04.785 BOLT; CLIP TO BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU), 4HG1 ENG(RJH) 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1101- ● ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1101- ● ●
238 04.785 BOLT; CLIP TO BRKT
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4JB1 ENG(RLF) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1012- ●
238 04.785 BOLT; CLIP TO BRKT
4JB1 ENG(RLF) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1012- ●
324 04.785 BRACKET
ALGERIA EQUIPMENT(WN1) FRAME-KICK UP<7EW> (B) 		8-98292-263-0 01 1 1409- ●
324 04.785 BRACKET
4JB1-TC ENG(RDT),4JB1 ENG(RLF) HEAVY DUTY FRAME<6WB> (N) 		8-98064-280-1 01 1 1312- ●
324 04.785 BRACKET
4JB1 ENG(RLF) HEAVY DUTY FRAME<6WB> (N) 		8-98064-280-1 01 1 1312- ●
324 04.785 BRACKET
4HG1-T ENG(RDP) MANUAL STEERING<N51> (J) 		8-98180-815-0 01 1 1012- ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB),4HG1-T ENG(RDP), 4JJ1-TCC ENG(RDU) (A) 		8-98003-642-1 01 1 1012- ●
324 04.785 BRACKET
4JB1-TC ENG(RDT),4JB1 ENG(RLF) MANUAL STEERING<N51> (A) 		8-98003-642-1 01 1 1012- ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) (A) 		8-98003-642-1 01 1 1012- ●
324 04.785 BRACKET
4JB1 ENG(RLF) MANUAL STEERING<N51> (A) 		8-98003-642-1 01 1 1012- ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU) (A) 		8-98003-642-1 01 1 1012- ● ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (C) 		8-98026-099-2 01 1 1012- ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU) EXC. FRAME-KICK UP<7EW> (C) 		8-98026-099-2 01 1 1012- ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU) (C) 		8-98026-099-2 01 1 1012- ● ●
324 04.785 BRACKET
4HG1-T ENG(RDP) (I) 		8-98100-180-1 01 1 1012- ●
324 04.785 BRACKET
4HG1 ENG(RJH) (I) 		8-98100-180-1 01 1 1012- ●
324 04.785 BRACKET
4HG1-T ENG(RDP) (G) 		8-98038-563-0 01 1 1012- ●
324 04.785 BRACKET
4HG1 ENG(RJH) EXC. FRAME-KICK UP<7EW> (G) 		8-98038-563-0 01 1 1012- ●
324 04.785 BRACKET
4JB1-TC ENG(RDT),4JB1 ENG(RLF) (H) 		8-98106-757-1 01 1 1012-1212 ●
324 04.785 BRACKET
4JB1 ENG(RLF) EXC. FRAME-KICK UP<7EW> (H) 		8-98106-757-1 01 1 1012-1212 ●
324 04.785 BRACKET
4JB1-TC ENG(RDT),4JB1 ENG(RLF) (H) 		8-98106-757-1 01 1 1301-1311 ●
324 04.785 BRACKET
4JB1 ENG(RLF) (H) 		8-98106-757-1 01 1 1301-1311 ●
324 04.785 BRACKET
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. HEAVY DUTY FRAME<6WB> (H) 		8-98106-757-1 01 1 1312- ●
324 04.785 BRACKET
4JB1 ENG(RLF) EXC. HEAVY DUTY FRAME<6WB> (H) 		8-98106-757-1 01 1 1312- ●
324 04.785 BRACKET
4JB1-TC ENG(RDT),4JB1 ENG(RLF) MANUAL STEERING<N51> (L) 		8-98164-288-0 01 1 1012- ●
324 04.785 BRACKET
4JB1 ENG(RLF) MANUAL STEERING<N51> (L) 		8-98164-288-0 01 1 1012- ●
324 04.785 BRACKET
4JB1-TC ENG(RDT),4JB1 ENG(RLF) MANUAL STEERING<N51> (M) 		8-98164-289-0 01 1 1012- ●
324 04.785 BRACKET
4JB1 ENG(RLF) MANUAL STEERING<N51> (M) 		8-98164-289-0 01 1 1012- ●
324 04.785 BRACKET
(D) 		8-98047-573-0 01 1 1012- ● ● ● ●
324 04.785 BRACKET
(E) 		8-98047-575-1 01 1 1012- ● ● ● ●
324 04.785 BRACKET
(F) 		8-98116-060-0 01 1 1012- ● ● ● ●
324 04.785 BRACKET
4HG1 ENG(RJH) MANUAL STEERING<N51> (K) 		8-98164-344-0 01 1 1012- ●
324 04.785 BRACKET
FRAME-KICK UP<7EW> (B) 		8-98063-429-0 01 1 1012-1408 ●
324 04.785 BRACKET
FRAME-KICK UP<7EW> EXC. ALGERIA EQUIPMENT(WN1) (B) 		8-98063-429-0 01 1 1409- ●

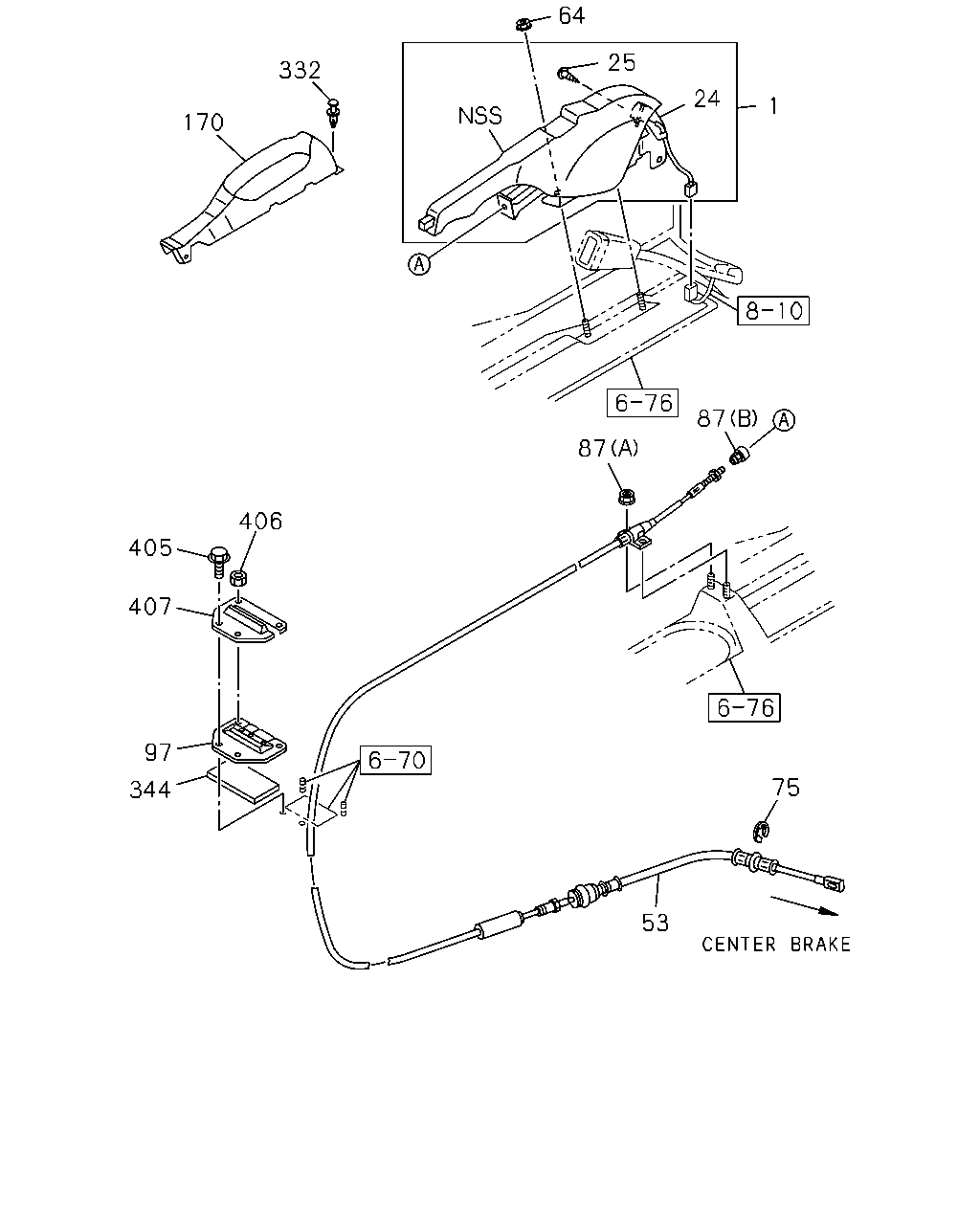

çizim 115571
64 25 332 24 1 170 87 87 406 405 407 97 75 344 53
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97406-006-0 01 1 1012-1303 ● ● ● ●
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97426-514-0 01 1 1304- ● ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-97995-828-1 01 1 1012-1303 ● ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-98238-611-0 01 1 1304- ● ● ● ●
25 04.589 SCREW; SW,PARKING BRK 8-98152-463-0 01 1 1012- ● ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JB1-TC ENG(RDT),4JB1 ENG(RLF) HEAVY DUTY FRAME<6WB> 		8-98255-955-0 01 1 1312- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JB1 ENG(RLF) HEAVY DUTY FRAME<6WB> 		8-98255-955-0 01 1 1312- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) 		8-98051-572-4 01 1 1012- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) 		8-98051-572-4 01 1 1012- ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HG1-T ENG(RDP) M/T MYY5T(RSM) 		8-98105-154-2 01 1 1012- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HG1 ENG(RJH) M/T MYY5T(RSM) 		8-98105-154-2 01 1 1012- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JB1-TC ENG(RDT),4JB1 ENG(RLF) M/T MSB5M(RM5),M/T MSB5S(R45) 		8-98070-096-6 01 1 1012-1205 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JB1 ENG(RLF) M/T MSB5M(RM5) EXC. FRAME-KICK UP<7EW> 		8-98070-096-6 01 1 1012-1205 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JB1-TC ENG(RDT),4JB1 ENG(RLF) M/T MSB5M(RM5),M/T MSB5S(R45) 		8-98222-722-0 01 1 1206-1311 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JB1 ENG(RLF) M/T MSB5M(RM5) EXC. FRAME-KICK UP<7EW> 		8-98222-722-0 01 1 1206-1311 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. HEAVY DUTY FRAME<6WB> 		8-98222-722-0 01 1 1312- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JB1 ENG(RLF) EXC. HEAVY DUTY FRAME<6WB> 		8-98222-722-0 01 1 1312- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCC ENG(RDU) M/T MYY6S(RST) 		8-98057-112-4 01 1 1012- ●
64 04.595 NUT; PARKING BRK
16.682 M8 LOCK NUT FLANGE 		0-91380-008-0 02 1 1012- ● ● ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
ID=12 		0-91805-512-0 01 1 1012- ● ● ● ●
87 04.785 NUT
01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 1012- ● ● ● ●
87 04.785 NUT
(B) M6 		8-98034-313-1 01 1 1012- ● ● ● ●
97 04.785 GROMMET; PARKING BRK CABLE
04.010 		8-97091-890-0 01 1 1012- ● ● ● ●
170 04.595 COVER; PARKING BRK LEVER
GRAY 		8-97411-674-1 01 1 1012- ● ● ● ●
332 04.785 CLIP; COVER
GRAY 		8-97406-171-0 01 1 1012- ● ● ● ●
344 04.595 GASKET; DASH LWR
MANUAL TILT CAB<RWZ> 04.047 		8-97096-753-0 01 1 1012- ● ●
405 04.785 BOLT; GROMMET
00.785 M6X20 FLANGE 		0-28450-620-0 02 1 1012- ● ● ● ●
406 04.785 NUT; GROMMET
01.062 M6 FLANGE 		0-91180-106-0 02 1 1012- ● ● ● ●
407 04.785 RETAINER; GROMMET
04.047 		1-33657-674-0 01 1 1012- ● ● ● ●

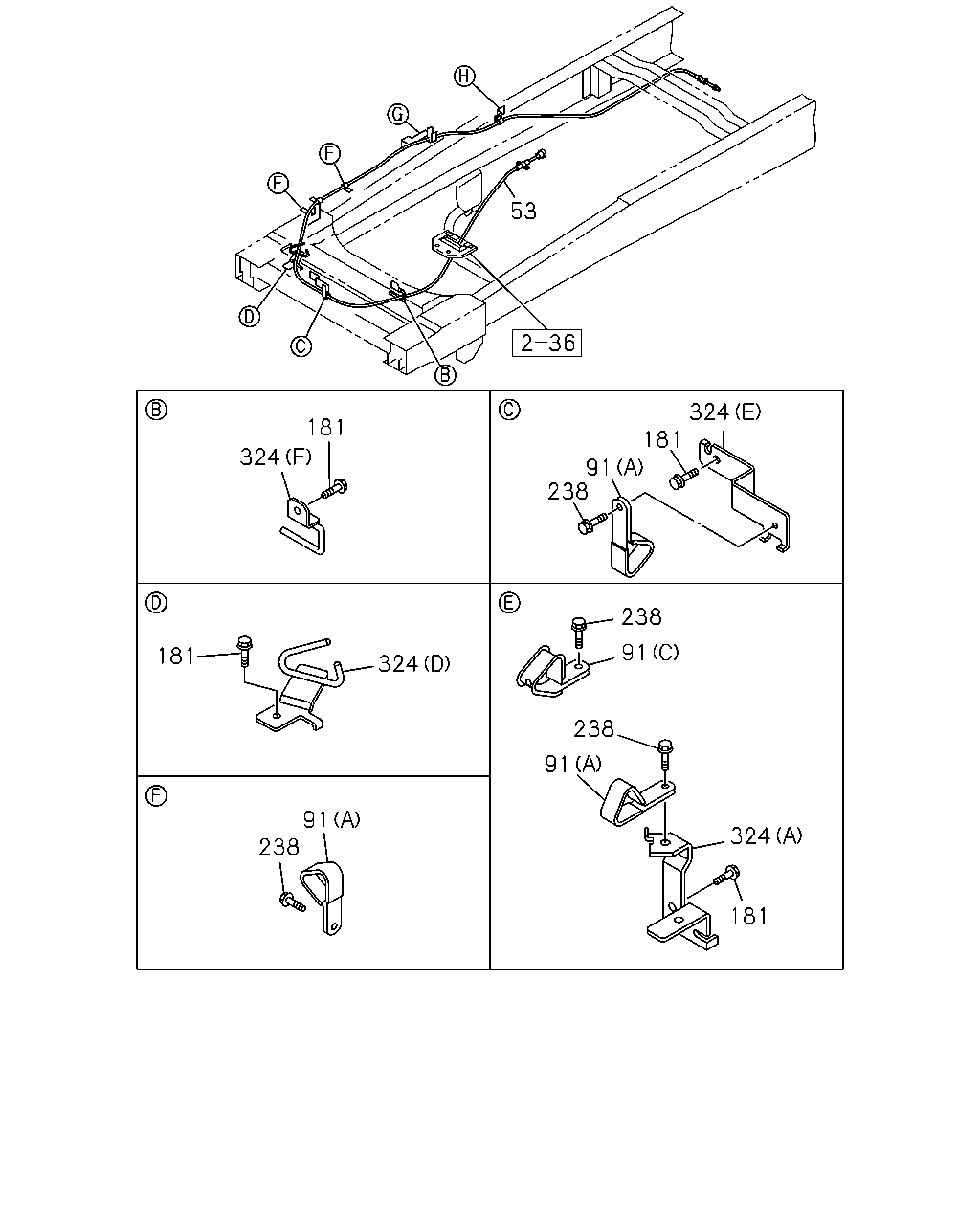

çizim 115652
53 324 181 181 324 91 238 238 91 181 324 238 91 91 238 324 181
BalonParca AdiParca NoAdetTipApplied Date A B C D
53 04.779 CABLE; PARK BRK,FRT LWR
4JB1-TC ENG(RDT),4JB1 ENG(RLF) HEAVY DUTY FRAME<6WB> 		8-98255-955-0 01 1 1312- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JB1 ENG(RLF) HEAVY DUTY FRAME<6WB> 		8-98255-955-0 01 1 1312- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) 		8-98051-572-4 01 1 1012- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) 		8-98051-572-4 01 1 1012- ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HG1-T ENG(RDP) M/T MYY5T(RSM) 		8-98105-154-2 01 1 1012- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HG1 ENG(RJH) M/T MYY5T(RSM) 		8-98105-154-2 01 1 1012- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JB1-TC ENG(RDT),4JB1 ENG(RLF) M/T MSB5M(RM5),M/T MSB5S(R45) 		8-98070-096-6 01 1 1012-1205 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JB1 ENG(RLF) M/T MSB5M(RM5) EXC. FRAME-KICK UP<7EW> 		8-98070-096-6 01 1 1012-1205 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JB1-TC ENG(RDT),4JB1 ENG(RLF) M/T MSB5M(RM5),M/T MSB5S(R45) 		8-98222-722-0 01 1 1206-1311 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JB1 ENG(RLF) M/T MSB5M(RM5) EXC. FRAME-KICK UP<7EW> 		8-98222-722-0 01 1 1206-1311 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. HEAVY DUTY FRAME<6WB> 		8-98222-722-0 01 1 1312- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JB1 ENG(RLF) EXC. HEAVY DUTY FRAME<6WB> 		8-98222-722-0 01 1 1312- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCC ENG(RDU) M/T MYY6S(RST) 		8-98057-112-4 01 1 1012- ●
91 04.785 CLIP; PARKING BRK CABLE
4HG1-T ENG(RDP) (D) 		8-98009-406-0 01 1 1012- ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 03 1 1012- ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH) 04.047 (B) 		8-97039-295-0 01 1 1012- ●
91 04.785 CLIP; PARKING BRK CABLE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) 04.047 (C) 		8-97036-332-1 01 1 1012- ●
91 04.785 CLIP; PARKING BRK CABLE
4JB1 ENG(RLF) 04.047 (C) 		8-97036-332-1 01 1 1012- ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1012- ● ● ● ●
181 04.785 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HG1-T ENG(RDP), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
181 04.785 BOLT; BRKT
4HG1-T ENG(RDP),4HG1 ENG(RJH) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
181 04.785 BOLT; BRKT
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) MANUAL STEERING<N51> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
181 04.785 BOLT; BRKT
4JB1-TC ENG(RDT),4JB1 ENG(RLF) MANUAL STEERING<N51> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
181 04.785 BOLT; BRKT
4JB1-TC ENG(RDT),4JB1 ENG(RLF) MANUAL STEERING<N51> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
238 04.785 BOLT; CLIP TO BRKT
4JJ1-TCS ENG(LFB),4HG1-T ENG(RDP), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1012-1012 ● ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1012-1012 ● ●
238 04.785 BOLT; CLIP TO BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU), 4HG1 ENG(RJH) 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1101- ● ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1101- ● ●
238 04.785 BOLT; CLIP TO BRKT
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4JB1 ENG(RLF) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1012- ●
238 04.785 BOLT; CLIP TO BRKT
4JB1 ENG(RLF) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1012- ●
324 04.785 BRACKET
ALGERIA EQUIPMENT(WN1) FRAME-KICK UP<7EW> (B) 		8-98292-263-0 01 1 1409- ●
324 04.785 BRACKET
4JB1-TC ENG(RDT),4JB1 ENG(RLF) HEAVY DUTY FRAME<6WB> (N) 		8-98064-280-1 01 1 1312- ●
324 04.785 BRACKET
4JB1 ENG(RLF) HEAVY DUTY FRAME<6WB> (N) 		8-98064-280-1 01 1 1312- ●
324 04.785 BRACKET
4HG1-T ENG(RDP) MANUAL STEERING<N51> (J) 		8-98180-815-0 01 1 1012- ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB),4HG1-T ENG(RDP), 4JJ1-TCC ENG(RDU) (A) 		8-98003-642-1 01 1 1012- ●
324 04.785 BRACKET
4JB1-TC ENG(RDT),4JB1 ENG(RLF) MANUAL STEERING<N51> (A) 		8-98003-642-1 01 1 1012- ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) (A) 		8-98003-642-1 01 1 1012- ●
324 04.785 BRACKET
4JB1 ENG(RLF) MANUAL STEERING<N51> (A) 		8-98003-642-1 01 1 1012- ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU) (A) 		8-98003-642-1 01 1 1012- ● ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (C) 		8-98026-099-2 01 1 1012- ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU) EXC. FRAME-KICK UP<7EW> (C) 		8-98026-099-2 01 1 1012- ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU) (C) 		8-98026-099-2 01 1 1012- ● ●
324 04.785 BRACKET
4HG1-T ENG(RDP) (I) 		8-98100-180-1 01 1 1012- ●
324 04.785 BRACKET
4HG1 ENG(RJH) (I) 		8-98100-180-1 01 1 1012- ●
324 04.785 BRACKET
4HG1-T ENG(RDP) (G) 		8-98038-563-0 01 1 1012- ●
324 04.785 BRACKET
4HG1 ENG(RJH) EXC. FRAME-KICK UP<7EW> (G) 		8-98038-563-0 01 1 1012- ●
324 04.785 BRACKET
4JB1-TC ENG(RDT),4JB1 ENG(RLF) (H) 		8-98106-757-1 01 1 1012-1212 ●
324 04.785 BRACKET
4JB1 ENG(RLF) EXC. FRAME-KICK UP<7EW> (H) 		8-98106-757-1 01 1 1012-1212 ●
324 04.785 BRACKET
4JB1-TC ENG(RDT),4JB1 ENG(RLF) (H) 		8-98106-757-1 01 1 1301-1311 ●
324 04.785 BRACKET
4JB1 ENG(RLF) (H) 		8-98106-757-1 01 1 1301-1311 ●
324 04.785 BRACKET
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. HEAVY DUTY FRAME<6WB> (H) 		8-98106-757-1 01 1 1312- ●
324 04.785 BRACKET
4JB1 ENG(RLF) EXC. HEAVY DUTY FRAME<6WB> (H) 		8-98106-757-1 01 1 1312- ●
324 04.785 BRACKET
4JB1-TC ENG(RDT),4JB1 ENG(RLF) MANUAL STEERING<N51> (L) 		8-98164-288-0 01 1 1012- ●
324 04.785 BRACKET
4JB1 ENG(RLF) MANUAL STEERING<N51> (L) 		8-98164-288-0 01 1 1012- ●
324 04.785 BRACKET
4JB1-TC ENG(RDT),4JB1 ENG(RLF) MANUAL STEERING<N51> (M) 		8-98164-289-0 01 1 1012- ●
324 04.785 BRACKET
4JB1 ENG(RLF) MANUAL STEERING<N51> (M) 		8-98164-289-0 01 1 1012- ●
324 04.785 BRACKET
(D) 		8-98047-573-0 01 1 1012- ● ● ● ●
324 04.785 BRACKET
(E) 		8-98047-575-1 01 1 1012- ● ● ● ●
324 04.785 BRACKET
(F) 		8-98116-060-0 01 1 1012- ● ● ● ●
324 04.785 BRACKET
4HG1 ENG(RJH) MANUAL STEERING<N51> (K) 		8-98164-344-0 01 1 1012- ●
324 04.785 BRACKET
FRAME-KICK UP<7EW> (B) 		8-98063-429-0 01 1 1012-1408 ●
324 04.785 BRACKET
FRAME-KICK UP<7EW> EXC. ALGERIA EQUIPMENT(WN1) (B) 		8-98063-429-0 01 1 1409- ●

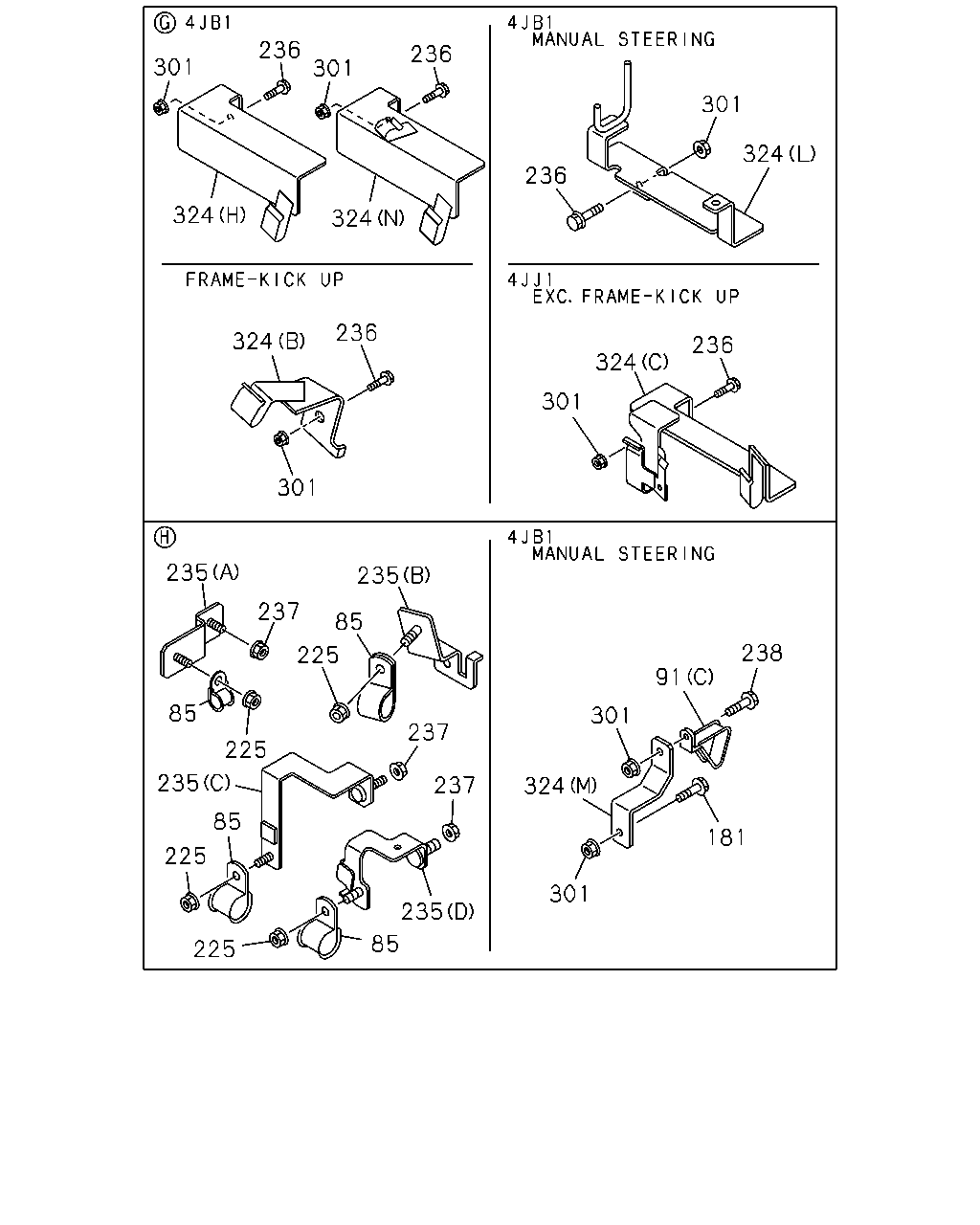

çizim 115653
301 236 301 236 324 324 324 236 301 301 324 236 324 301 236 235 237 235 85 225 237 237 235 85 225 225 235 85 225 85 324 301 238 91 181 301
BalonParca AdiParca NoAdetTipApplied Date A B C D
85 04.785 CLIP; BRKT
ID=14.5 L=20 		1-09701-012-0 01 1 1012- ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
4HG1-T ENG(RDP) (D) 		8-98009-406-0 01 1 1012- ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 03 1 1012- ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH) 04.047 (B) 		8-97039-295-0 01 1 1012- ●
91 04.785 CLIP; PARKING BRK CABLE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) 04.047 (C) 		8-97036-332-1 01 1 1012- ●
91 04.785 CLIP; PARKING BRK CABLE
4JB1 ENG(RLF) 04.047 (C) 		8-97036-332-1 01 1 1012- ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1012- ● ● ● ●
181 04.785 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HG1-T ENG(RDP), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
181 04.785 BOLT; BRKT
4HG1-T ENG(RDP),4HG1 ENG(RJH) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
181 04.785 BOLT; BRKT
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) MANUAL STEERING<N51> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
181 04.785 BOLT; BRKT
4JB1-TC ENG(RDT),4JB1 ENG(RLF) MANUAL STEERING<N51> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
181 04.785 BOLT; BRKT
4JB1-TC ENG(RDT),4JB1 ENG(RLF) MANUAL STEERING<N51> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ● ● ●
225 04.785 NUT; CABLE CLIP
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4JB1-TC ENG(RDT),4JB1 ENG(RLF) HEAVY DUTY FRAME<6WB> (D) 		8-98255-956-0 01 1 1312- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4JB1 ENG(RLF) HEAVY DUTY FRAME<6WB> (D) 		8-98255-956-0 01 1 1312- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MSB5M(RM5),M/T MSB5S(R45) (C) 		8-98106-619-1 01 1 1012-1212 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MSB5M(RM5) EXC. FRAME-KICK UP<7EW> (C) 		8-98106-619-1 01 1 1012-1212 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4JB1-TC ENG(RDT),4JB1 ENG(RLF) (C) 		8-98106-619-1 01 1 1301-1311 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4JB1 ENG(RLF) (C) 		8-98106-619-1 01 1 1301-1311 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. HEAVY DUTY FRAME<6WB> (C) 		8-98106-619-1 01 1 1312- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4JB1 ENG(RLF) EXC. HEAVY DUTY FRAME<6WB> (C) 		8-98106-619-1 01 1 1312- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY5T(RSM) (A) 		8-98034-352-0 01 1 1012- ● ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY5T(RSM),M/T MYY6S(RST) EXC. FRAME-KICK UP<7EW> (A) 		8-98034-352-0 01 1 1012- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
FRAME-KICK UP<7EW> (B) 		8-98013-968-0 01 1 1012- ●
236 04.785 BOLT; BRKT TO FRAME
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ● ● ●
236 04.785 BOLT; BRKT TO FRAME
EXC. FRAME-KICK UP<7EW> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ● ● ●
236 04.785 BOLT; BRKT TO FRAME
FRAME-KICK UP<7EW> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1012- ●
237 04.785 NUT; BRKT TO FRAME
4JJ1-TCS ENG(LFB),4HG1-T ENG(RDP), 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
237 04.785 NUT; BRKT TO FRAME
4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) EXC. FRAME-KICK UP<7EW> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
237 04.785 NUT; BRKT TO FRAME
4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ●
237 04.785 NUT; BRKT TO FRAME
4JB1-TC ENG(RDT),4JB1 ENG(RLF) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1012- ●
237 04.785 NUT; BRKT TO FRAME
4JB1 ENG(RLF) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1012- ●
238 04.785 BOLT; CLIP TO BRKT
4JJ1-TCS ENG(LFB),4HG1-T ENG(RDP), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1012-1012 ● ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1012-1012 ● ●
238 04.785 BOLT; CLIP TO BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU), 4HG1 ENG(RJH) 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1101- ● ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1101- ● ●
238 04.785 BOLT; CLIP TO BRKT
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4JB1 ENG(RLF) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1012- ●
238 04.785 BOLT; CLIP TO BRKT
4JB1 ENG(RLF) 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1012- ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
4JJ1-TCS ENG(LFB),4HG1-T ENG(RDP), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ● ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
4JB1-TC ENG(RDT),4JB1 ENG(RLF) MANUAL STEERING<N51> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) MANUAL STEERING<N51> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ●
324 04.785 BRACKET
ALGERIA EQUIPMENT(WN1) FRAME-KICK UP<7EW> (B) 		8-98292-263-0 01 1 1409- ●
324 04.785 BRACKET
4JB1-TC ENG(RDT),4JB1 ENG(RLF) HEAVY DUTY FRAME<6WB> (N) 		8-98064-280-1 01 1 1312- ●
324 04.785 BRACKET
4JB1 ENG(RLF) HEAVY DUTY FRAME<6WB> (N) 		8-98064-280-1 01 1 1312- ●
324 04.785 BRACKET
4HG1-T ENG(RDP) MANUAL STEERING<N51> (J) 		8-98180-815-0 01 1 1012- ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB),4HG1-T ENG(RDP), 4JJ1-TCC ENG(RDU) (A) 		8-98003-642-1 01 1 1012- ●
324 04.785 BRACKET
4JB1-TC ENG(RDT),4JB1 ENG(RLF) MANUAL STEERING<N51> (A) 		8-98003-642-1 01 1 1012- ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) (A) 		8-98003-642-1 01 1 1012- ●
324 04.785 BRACKET
4JB1 ENG(RLF) MANUAL STEERING<N51> (A) 		8-98003-642-1 01 1 1012- ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU) (A) 		8-98003-642-1 01 1 1012- ● ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (C) 		8-98026-099-2 01 1 1012- ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU) EXC. FRAME-KICK UP<7EW> (C) 		8-98026-099-2 01 1 1012- ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU) (C) 		8-98026-099-2 01 1 1012- ● ●
324 04.785 BRACKET
4HG1-T ENG(RDP) (I) 		8-98100-180-1 01 1 1012- ●
324 04.785 BRACKET
4HG1 ENG(RJH) (I) 		8-98100-180-1 01 1 1012- ●
324 04.785 BRACKET
4HG1-T ENG(RDP) (G) 		8-98038-563-0 01 1 1012- ●
324 04.785 BRACKET
4HG1 ENG(RJH) EXC. FRAME-KICK UP<7EW> (G) 		8-98038-563-0 01 1 1012- ●
324 04.785 BRACKET
4JB1-TC ENG(RDT),4JB1 ENG(RLF) (H) 		8-98106-757-1 01 1 1012-1212 ●
324 04.785 BRACKET
4JB1 ENG(RLF) EXC. FRAME-KICK UP<7EW> (H) 		8-98106-757-1 01 1 1012-1212 ●
324 04.785 BRACKET
4JB1-TC ENG(RDT),4JB1 ENG(RLF) (H) 		8-98106-757-1 01 1 1301-1311 ●
324 04.785 BRACKET
4JB1 ENG(RLF) (H) 		8-98106-757-1 01 1 1301-1311 ●
324 04.785 BRACKET
4JB1-TC ENG(RDT),4JB1 ENG(RLF) EXC. HEAVY DUTY FRAME<6WB> (H) 		8-98106-757-1 01 1 1312- ●
324 04.785 BRACKET
4JB1 ENG(RLF) EXC. HEAVY DUTY FRAME<6WB> (H) 		8-98106-757-1 01 1 1312- ●
324 04.785 BRACKET
4JB1-TC ENG(RDT),4JB1 ENG(RLF) MANUAL STEERING<N51> (L) 		8-98164-288-0 01 1 1012- ●
324 04.785 BRACKET
4JB1 ENG(RLF) MANUAL STEERING<N51> (L) 		8-98164-288-0 01 1 1012- ●
324 04.785 BRACKET
4JB1-TC ENG(RDT),4JB1 ENG(RLF) MANUAL STEERING<N51> (M) 		8-98164-289-0 01 1 1012- ●
324 04.785 BRACKET
4JB1 ENG(RLF) MANUAL STEERING<N51> (M) 		8-98164-289-0 01 1 1012- ●
324 04.785 BRACKET
(D) 		8-98047-573-0 01 1 1012- ● ● ● ●
324 04.785 BRACKET
(E) 		8-98047-575-1 01 1 1012- ● ● ● ●
324 04.785 BRACKET
(F) 		8-98116-060-0 01 1 1012- ● ● ● ●
324 04.785 BRACKET
4HG1 ENG(RJH) MANUAL STEERING<N51> (K) 		8-98164-344-0 01 1 1012- ●
324 04.785 BRACKET
FRAME-KICK UP<7EW> (B) 		8-98063-429-0 01 1 1012-1408 ●
324 04.785 BRACKET
FRAME-KICK UP<7EW> EXC. ALGERIA EQUIPMENT(WN1) (B) 		8-98063-429-0 01 1 1409- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
