3-08 — PARKING BRAKE (#79097) — 107 parça

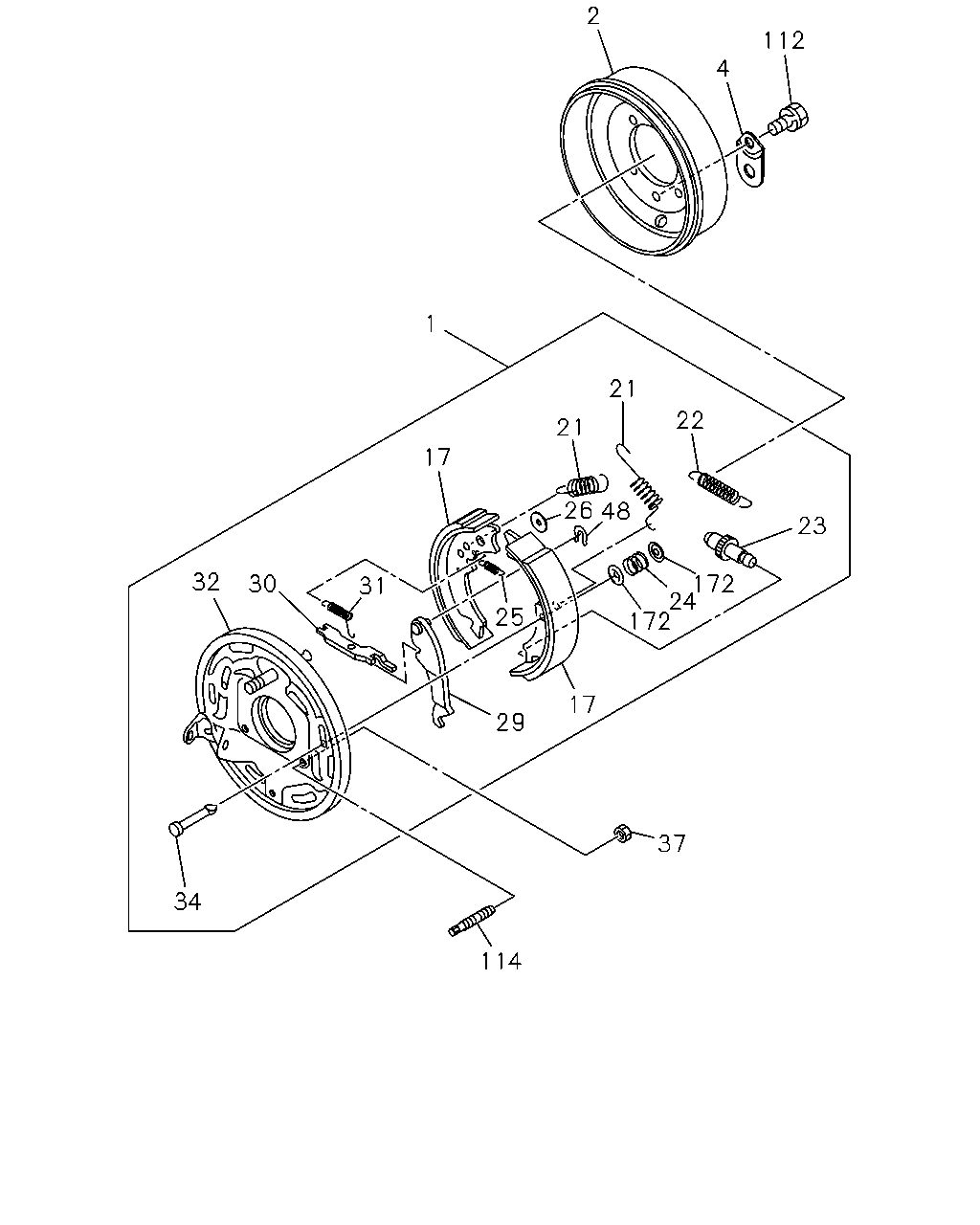

2 112 4 1 21 22 21 17 23 32 31 30 172 24 172 25 17 29 37 34 114 26 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	05.610 BRAKE ASM; CENTER,PARKING M/T MSB5M(RM5),M/T MSB5S(R45)	8-97034-553-2	01	1	1012-	●	●
1	05.610 BRAKE ASM; CENTER,PARKING M/T MYY5T(RSM),M/T MYY6S(RST)	8-98029-922-0	01	1	1012-	●	●
1	05.610 BRAKE ASM; CENTER,PARKING	8-98029-922-0	01	1	1012-			●	●
2	05.605 DRUM; PARKING BRK M/T MSB5M(RM5),M/T MSB5S(R45)	5-46210-005-3	01	1	1012-	●	●
2	05.605 DRUM; PARKING BRK M/T MYY5T(RSM),M/T MYY6S(RST)	8-97033-989-1	01	1	1012-	●	●
2	05.605 DRUM; PARKING BRK	8-97033-989-1	01	1	1012-			●	●
4	05.606 COVER; ADJ HOLE M/T MSB5M(RM5),M/T MSB5S(R45)	5-42319-003-0	01	1	1012-	●	●
4	05.606 COVER; ADJ HOLE M/T MYY5T(RSM),M/T MYY6S(RST)	8-98029-820-0	01	1	1012-	●	●
4	05.606 COVER; ADJ HOLE	8-98029-820-0	01	1	1012-			●	●
17	05.606 SHOE; PARKING BRK M/T MSB5M(RM5),M/T MSB5S(R45)	8-97042-933-1	02	1	1012-	●	●
17	05.606 SHOE; PARKING BRK M/T MYY5T(RSM),M/T MYY6S(RST)	8-97020-250-2	02	1	1012-	●	●
17	05.606 SHOE; PARKING BRK	8-97020-250-2	02	1	1012-			●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MSB5M(RM5),M/T MSB5S(R45)	9-09942-552-1	01	1	1012-	●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MYY5T(RSM),M/T MYY6S(RST) 05.605	8-94132-157-0	02	1	1012-	●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE 05.605	8-94132-157-0	02	1	1012-			●	●
22	05.606 SPRING; ADJ SCREW,PARKING BRK M/T MSB5M(RM5),M/T MSB5S(R45)	9-09942-340-1	01	1	1012-	●	●
22	05.606 SPRING; ADJ SCREW,PARKING BRK M/T MYY5T(RSM),M/T MYY6S(RST) 05.605	8-94107-618-0	01	1	1012-	●	●
22	05.606 SPRING; ADJ SCREW,PARKING BRK 05.605	8-94107-618-0	01	1	1012-			●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MSB5M(RM5),M/T MSB5S(R45)	5-47165-025-0	01	1	1012-	●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MYY5T(RSM),M/T MYY6S(RST)	8-98043-954-0	01	1	1012-	●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE	8-98043-954-0	01	1	1012-			●	●
24	05.605 SPRING; BRK SHOE M/T MSB5M(RM5),M/T MSB5S(R45)	9-09941-062-1	02	1	1012-	●	●
24	05.605 SPRING; BRK SHOE M/T MYY5T(RSM),M/T MYY6S(RST)	8-94132-155-1	02	1	1012-	●	●
24	05.605 SPRING; BRK SHOE	8-94132-155-1	02	1	1012-			●	●
25	05.605 SPRING; SHOE ALIGNMENT M/T MYY5T(RSM),M/T MYY6S(RST)	8-94132-156-0	01	1	1012-	●	●
25	05.605 SPRING; SHOE ALIGNMENT	8-94132-156-0	01	1	1012-			●	●
26	05.605 PLATE; SHOE GUIDE M/T MYY5T(RSM),M/T MYY6S(RST)	8-98043-959-0	01	1	1012-	●	●
26	05.605 PLATE; SHOE GUIDE	8-98043-959-0	01	1	1012-			●	●
29	04.591 LEVER; PARKING BRK M/T MSB5M(RM5),M/T MSB5S(R45)	8-94128-765-0	01	1	1012-	●	●
29	04.591 LEVER; PARKING BRK M/T MYY5T(RSM),M/T MYY6S(RST)	8-98043-949-0	01	1	1012-	●	●
29	04.591 LEVER; PARKING BRK	8-98043-949-0	01	1	1012-			●	●
30	05.605 STRUT; PARKING BRK M/T MSB5M(RM5),M/T MSB5S(R45)	5-46251-007-0	01	1	1012-	●	●
30	05.605 STRUT; PARKING BRK M/T MYY5T(RSM),M/T MYY6S(RST)	8-98043-953-0	01	1	1012-	●	●
30	05.605 STRUT; PARKING BRK	8-98043-953-0	01	1	1012-			●	●
31	05.605 SPRING; SHOE TO STRUT M/T MSB5M(RM5),M/T MSB5S(R45) 05.606	9-09942-521-1	01	1	1012-	●	●
31	05.605 SPRING; SHOE TO STRUT M/T MYY5T(RSM),M/T MYY6S(RST)	8-94132-158-0	01	1	1012-	●	●
31	05.605 SPRING; SHOE TO STRUT	8-94132-158-0	01	1	1012-			●	●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MSB5M(RM5),M/T MSB5S(R45)	9-46213-601-2	01	1	1012-	●	●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MYY5T(RSM),M/T MYY6S(RST)	8-97308-176-0	01	1	1012-	●	●
32	05.610 PLATE; SUPPORT,PARKING BRK	8-97308-176-0	01	1	1012-			●	●
34	05.605 PIN; BRK SHOE M/T MSB5M(RM5),M/T MSB5S(R45) 05.043	9-47162-034-0	02	1	1012-	●	●
34	05.605 PIN; BRK SHOE M/T MYY5T(RSM),M/T MYY6S(RST)	8-98043-955-0	02	1	1012-	●	●
34	05.605 PIN; BRK SHOE	8-98043-955-0	02	1	1012-			●	●
37	05.610 NUT; SUPPORT PLATE M/T MSB5M(RM5),M/T MSB5S(R45) M12	8-97033-122-0	01	1	1012-	●	●
37	05.610 NUT; SUPPORT PLATE M/T MYY5T(RSM),M/T MYY6S(RST) M12 LOCK NUT	8-98029-927-0	04	1	1012-	●	●
37	05.610 NUT; SUPPORT PLATE M12 LOCK NUT	8-98029-927-0	04	1	1012-			●	●
48	05.605 RETAINER; PIN,PARKING BRK M/T MSB5M(RM5),M/T MSB5S(R45) 05.158	9-46349-005-1	01	1	1012-	●	●
48	05.605 RETAINER; PIN,PARKING BRK M/T MYY5T(RSM),M/T MYY6S(RST)	8-98043-958-0	01	1	1012-	●	●
48	05.605 RETAINER; PIN,PARKING BRK	8-98043-958-0	01	1	1012-			●	●
112	05.606 BOLT; COVER TO BRK DRUM 00.662 M6X16 W/LK WASHER	0-50540-616-0	01	1	1012-	●	●	●	●
114	05.605 STUD; SUPPORT PLATE M/T MYY5T(RSM),M/T MYY6S(RST)	8-98029-929-0	04	1	1012-	●	●
114	05.605 STUD; SUPPORT PLATE	8-98029-929-0	04	1	1012-			●	●
172	05.605 CUP; SHOE HOLD M/T MSB5M(RM5),M/T MSB5S(R45)	8-94378-404-0	04	1	1012-	●	●
172	05.605 CUP; SHOE HOLD M/T MYY5T(RSM),M/T MYY6S(RST)	8-98043-956-0	04	1	1012-	●	●
172	05.605 CUP; SHOE HOLD	8-98043-956-0	04	1	1012-			●	●

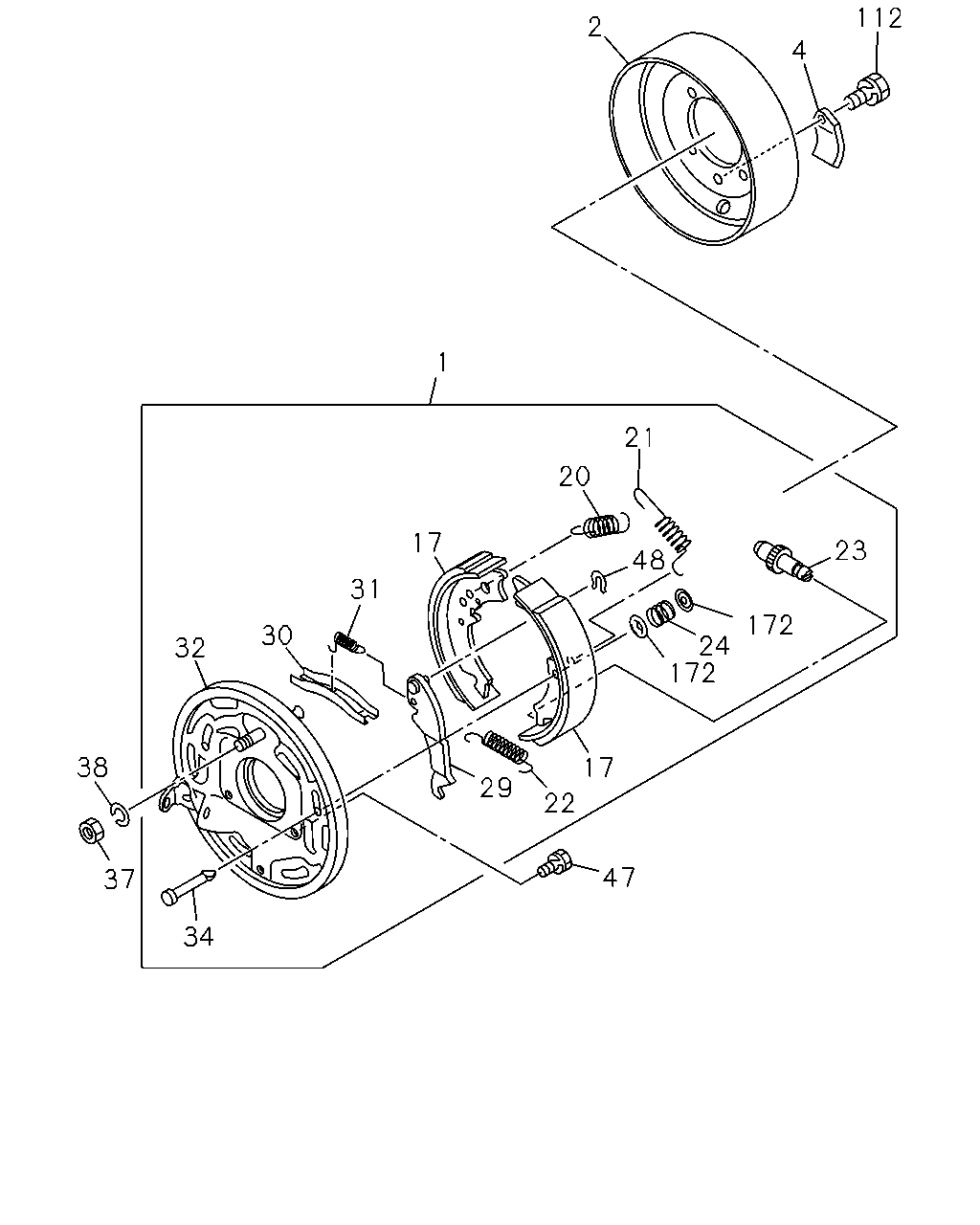

112 2 4 1 21 20 17 23 48 31 172 30 24 172 32 38 17 29 22 47 37 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	05.610 BRAKE ASM; CENTER,PARKING M/T MSB5M(RM5),M/T MSB5S(R45)	8-97034-553-2	01	1	1012-	●	●
1	05.610 BRAKE ASM; CENTER,PARKING M/T MYY5T(RSM),M/T MYY6S(RST)	8-98029-922-0	01	1	1012-	●	●
1	05.610 BRAKE ASM; CENTER,PARKING	8-98029-922-0	01	1	1012-			●	●
2	05.605 DRUM; PARKING BRK M/T MSB5M(RM5),M/T MSB5S(R45)	5-46210-005-3	01	1	1012-	●	●
2	05.605 DRUM; PARKING BRK M/T MYY5T(RSM),M/T MYY6S(RST)	8-97033-989-1	01	1	1012-	●	●
2	05.605 DRUM; PARKING BRK	8-97033-989-1	01	1	1012-			●	●
4	05.606 COVER; ADJ HOLE M/T MSB5M(RM5),M/T MSB5S(R45)	5-42319-003-0	01	1	1012-	●	●
4	05.606 COVER; ADJ HOLE M/T MYY5T(RSM),M/T MYY6S(RST)	8-98029-820-0	01	1	1012-	●	●
4	05.606 COVER; ADJ HOLE	8-98029-820-0	01	1	1012-			●	●
17	05.606 SHOE; PARKING BRK M/T MSB5M(RM5),M/T MSB5S(R45)	8-97042-933-1	02	1	1012-	●	●
17	05.606 SHOE; PARKING BRK M/T MYY5T(RSM),M/T MYY6S(RST)	8-97020-250-2	02	1	1012-	●	●
17	05.606 SHOE; PARKING BRK	8-97020-250-2	02	1	1012-			●	●
20	05.606 SPRING; RETURN,SECONDARY,PARKING M/T MSB5M(RM5),M/T MSB5S(R45)	9-09942-553-1	01	1	1012-	●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MSB5M(RM5),M/T MSB5S(R45)	9-09942-552-1	01	1	1012-	●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MYY5T(RSM),M/T MYY6S(RST) 05.605	8-94132-157-0	02	1	1012-	●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE 05.605	8-94132-157-0	02	1	1012-			●	●
22	05.606 SPRING; ADJ SCREW,PARKING BRK M/T MSB5M(RM5),M/T MSB5S(R45)	9-09942-340-1	01	1	1012-	●	●
22	05.606 SPRING; ADJ SCREW,PARKING BRK M/T MYY5T(RSM),M/T MYY6S(RST) 05.605	8-94107-618-0	01	1	1012-	●	●
22	05.606 SPRING; ADJ SCREW,PARKING BRK 05.605	8-94107-618-0	01	1	1012-			●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MSB5M(RM5),M/T MSB5S(R45)	5-47165-025-0	01	1	1012-	●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MYY5T(RSM),M/T MYY6S(RST)	8-98043-954-0	01	1	1012-	●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE	8-98043-954-0	01	1	1012-			●	●
24	05.605 SPRING; BRK SHOE M/T MSB5M(RM5),M/T MSB5S(R45)	9-09941-062-1	02	1	1012-	●	●
24	05.605 SPRING; BRK SHOE M/T MYY5T(RSM),M/T MYY6S(RST)	8-94132-155-1	02	1	1012-	●	●
24	05.605 SPRING; BRK SHOE	8-94132-155-1	02	1	1012-			●	●
29	04.591 LEVER; PARKING BRK M/T MSB5M(RM5),M/T MSB5S(R45)	8-94128-765-0	01	1	1012-	●	●
29	04.591 LEVER; PARKING BRK M/T MYY5T(RSM),M/T MYY6S(RST)	8-98043-949-0	01	1	1012-	●	●
29	04.591 LEVER; PARKING BRK	8-98043-949-0	01	1	1012-			●	●
30	05.605 STRUT; PARKING BRK M/T MSB5M(RM5),M/T MSB5S(R45)	5-46251-007-0	01	1	1012-	●	●
30	05.605 STRUT; PARKING BRK M/T MYY5T(RSM),M/T MYY6S(RST)	8-98043-953-0	01	1	1012-	●	●
30	05.605 STRUT; PARKING BRK	8-98043-953-0	01	1	1012-			●	●
31	05.605 SPRING; SHOE TO STRUT M/T MSB5M(RM5),M/T MSB5S(R45) 05.606	9-09942-521-1	01	1	1012-	●	●
31	05.605 SPRING; SHOE TO STRUT M/T MYY5T(RSM),M/T MYY6S(RST)	8-94132-158-0	01	1	1012-	●	●
31	05.605 SPRING; SHOE TO STRUT	8-94132-158-0	01	1	1012-			●	●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MSB5M(RM5),M/T MSB5S(R45)	9-46213-601-2	01	1	1012-	●	●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MYY5T(RSM),M/T MYY6S(RST)	8-97308-176-0	01	1	1012-	●	●
32	05.610 PLATE; SUPPORT,PARKING BRK	8-97308-176-0	01	1	1012-			●	●
34	05.605 PIN; BRK SHOE M/T MSB5M(RM5),M/T MSB5S(R45) 05.043	9-47162-034-0	02	1	1012-	●	●
34	05.605 PIN; BRK SHOE M/T MYY5T(RSM),M/T MYY6S(RST)	8-98043-955-0	02	1	1012-	●	●
34	05.605 PIN; BRK SHOE	8-98043-955-0	02	1	1012-			●	●
37	05.610 NUT; SUPPORT PLATE M/T MSB5M(RM5),M/T MSB5S(R45) M12	8-97033-122-0	01	1	1012-	●	●
37	05.610 NUT; SUPPORT PLATE M/T MYY5T(RSM),M/T MYY6S(RST) M12 LOCK NUT	8-98029-927-0	04	1	1012-	●	●
37	05.610 NUT; SUPPORT PLATE M12 LOCK NUT	8-98029-927-0	04	1	1012-			●	●
38	05.610 WASHER; LK,SUPPORT PLATE M/T MSB5M(RM5),M/T MSB5S(R45) 02.559 ID=8.2	0-91510-808-0	02	1	1012-	●	●
47	05.610 BOLT; SUPPORT PLATE M/T MSB5M(RM5),M/T MSB5S(R45)	8-98073-190-0	02	1	1012-	●	●
48	05.605 RETAINER; PIN,PARKING BRK M/T MSB5M(RM5),M/T MSB5S(R45) 05.158	9-46349-005-1	01	1	1012-	●	●
48	05.605 RETAINER; PIN,PARKING BRK M/T MYY5T(RSM),M/T MYY6S(RST)	8-98043-958-0	01	1	1012-	●	●
48	05.605 RETAINER; PIN,PARKING BRK	8-98043-958-0	01	1	1012-			●	●
112	05.606 BOLT; COVER TO BRK DRUM 00.662 M6X16 W/LK WASHER	0-50540-616-0	01	1	1012-	●	●	●	●
172	05.605 CUP; SHOE HOLD M/T MSB5M(RM5),M/T MSB5S(R45)	8-94378-404-0	04	1	1012-	●	●
172	05.605 CUP; SHOE HOLD M/T MYY5T(RSM),M/T MYY6S(RST)	8-98043-956-0	04	1	1012-	●	●
172	05.605 CUP; SHOE HOLD	8-98043-956-0	04	1	1012-			●	●
