2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#79092) — 67 parça

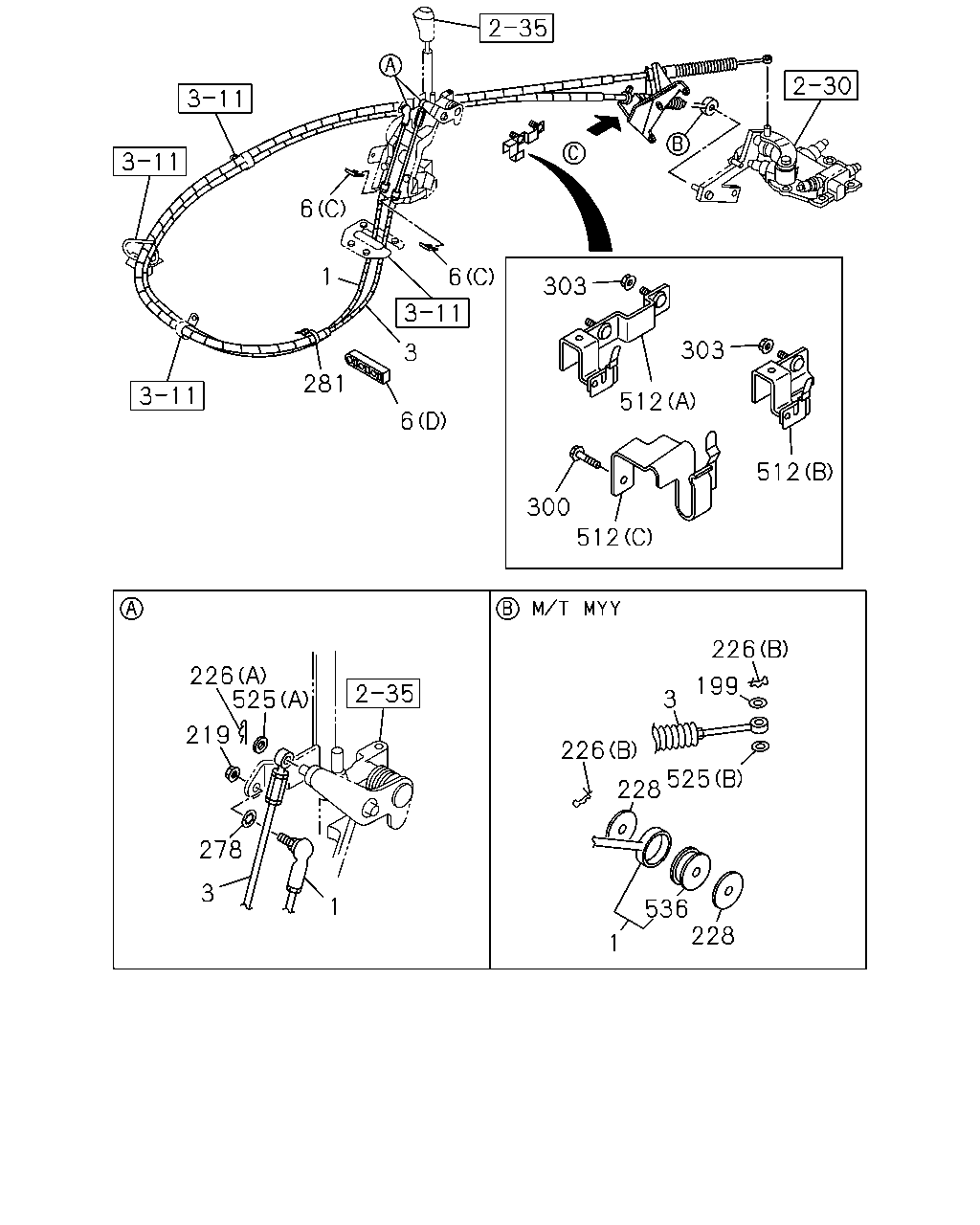

çizim 113827
6 1 6 303 303 3 281 512 6 512 300 512 226 226 525 199 3 219 226 525 228 278 3 1 536 228 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.854 CABLE; SHIFT,TRANS CONT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) L=3035 		8-98146-825-1 01 1 1012- ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HG1-T ENG(RDP) 		8-98164-350-0 01 1 1012- ●
1 00.854 CABLE; SHIFT,TRANS CONT 8-98146-827-0 01 1 1012- ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HG1 ENG(RJH) 		8-98146-830-1 01 1 1012- ●
3 00.852 CABLE; SELECT,TRANS CONT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) L=3120 		8-98021-700-2 01 1 1012- ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4HG1-T ENG(RDP) 		8-98164-365-0 01 1 1012- ●
3 00.852 CABLE; SELECT,TRANS CONT 8-98038-456-0 01 1 1012- ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4HG1 ENG(RJH) 		8-98099-698-2 01 1 1012- ●
6 04.047 CLIP; CABLE
(B) ID=19.2 		8-97211-011-0 02 1 1012- ● ●
6 04.047 CLIP; CABLE
00.854 (A) ID=22.2 		1-09701-209-1 01 1 1012- ● ●
6 04.047 CLIP; CABLE
(B) ID=19.2 		8-97211-011-0 01 1 1012- ● ●
6 04.047 CLIP; CABLE
(C) 		8-97011-448-0 02 1 1012- ● ● ● ●
6 04.047 CLIP; CABLE
EXC. MANUAL TILT CAB<RWZ> 04.008 (D) 		8-97093-491-1 01 1 1012- ● ● ● ●
199 04.012 WASHER; PL,SELECT
03.417 ID=8.4 OD=16 		0-91610-508-0 01 1 1012- ● ● ● ●
219 04.047 NUT; FLANGE,SHAFT CABLE
04.037 M8 T=8.0 		8-94363-045-0 01 1 1012- ● ● ● ●
226 04.047 PIN; SHIFT CABLE
00.833 (A) L=27.7 		8-94111-137-0 01 1 1012- ● ● ● ●
226 04.047 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 02 1 1012- ● ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
ID=8.2 OD=40 		8-97182-975-0 02 1 1012- ● ● ● ●
278 00.854 WASHER; LK,SHIFT WIRE
ID=8.4 TOOTH LK INT 		0-91541-208-0 01 1 1012- ● ● ● ●
281 04.042 CLIP; BAND
03.162 L=140 		5-09707-031-1 01 1 1012- ● ● ● ●
300 00.854 BOLT; CLIP
4JJ1-TCC ENG(RDU) FRAME-KICK UP<7EW> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
303 00.855 NUT; CLIP
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ●
512 04.012 GUIDE; CABLE,GEAR CONT
4JJ1-TCC ENG(RDU) EXC. FRAME-KICK UP<7EW> (A) 		8-98111-916-0 01 1 1012- ● ●
512 04.012 GUIDE; CABLE,GEAR CONT
4JJ1-TCS ENG(LFB) (A) 		8-98111-916-0 01 1 1012- ●
512 04.012 GUIDE; CABLE,GEAR CONT
4JJ1-TCC ENG(RDU) FRAME-KICK UP<7EW> (C) 		8-98032-833-1 01 1 1012- ● ●
512 04.012 GUIDE; CABLE,GEAR CONT
4JJ1-TCC ENG(RDU) FRAME-KICK UP<7EW> (B) 		8-98032-835-1 01 1 1012- ● ●
525 04.047 WASHER; SHIFT CABLE
06.056 (A) ID=8.4 OD=16 		0-91614-508-0 01 1 1012- ● ● ● ●
525 04.047 WASHER; SHIFT CABLE
00.854 (B) ID=8.4 OD=14 		5-09550-002-0 01 1 1012- ● ● ● ●
536 00.854 DAMPER; CABLE
4JJ1-TCS ENG(LFB),4JB1-TC ENG(RDT), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4JB1 ENG(RLF) 		8-98097-681-0 01 1 1012- ● ● ● ●
çizim 113898
6 6 3 1 282 22 226 178 247 249 112 228 6 536 77 288 228 1 407 283 422 457 112 283 51 112 282 357 457 113 114
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.854 CABLE; SHIFT,TRANS CONT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) L=3035 		8-98146-825-1 01 1 1012- ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HG1-T ENG(RDP) 		8-98164-350-0 01 1 1012- ●
1 00.854 CABLE; SHIFT,TRANS CONT 8-98146-827-0 01 1 1012- ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
4HG1 ENG(RJH) 		8-98146-830-1 01 1 1012- ●
3 00.852 CABLE; SELECT,TRANS CONT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) L=3120 		8-98021-700-2 01 1 1012- ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4HG1-T ENG(RDP) 		8-98164-365-0 01 1 1012- ●
3 00.852 CABLE; SELECT,TRANS CONT 8-98038-456-0 01 1 1012- ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4HG1 ENG(RJH) 		8-98099-698-2 01 1 1012- ●
6 04.047 CLIP; CABLE
(B) ID=19.2 		8-97211-011-0 02 1 1012- ● ●
6 04.047 CLIP; CABLE
00.854 (A) ID=22.2 		1-09701-209-1 01 1 1012- ● ●
6 04.047 CLIP; CABLE
(B) ID=19.2 		8-97211-011-0 01 1 1012- ● ●
6 04.047 CLIP; CABLE
(C) 		8-97011-448-0 02 1 1012- ● ● ● ●
6 04.047 CLIP; CABLE
EXC. MANUAL TILT CAB<RWZ> 04.008 (D) 		8-97093-491-1 01 1 1012- ● ● ● ●
22 04.035 ROD; CONT,SHIFT 8-97134-286-1 01 1 1012- ● ●
51 04.010 BRACKET; GEAR CONT 8-97029-286-0 01 1 1012-1210 ● ●
51 04.010 BRACKET; GEAR CONT 8-98189-335-1 01 1 1211- ● ●
77 04.037 NUT; LK,BALL JOINT,CONT ROD 8-97358-973-0 01 1 1012- ● ●
112 04.046 BUSHING; RELAY LEVER
(B) 		8-97085-157-0 01 1 1012- ● ●
112 04.046 BUSHING; RELAY LEVER
(A) 		8-97174-057-0 02 1 1012- ● ●
113 04.046 WASHER; RELAY LEVER
ID=10.5 OD=22 T=1.6 		0-91610-610-0 01 1 1012- ● ●
114 04.037 NUT; RELAY LEVER
03.162 M10 FLANGE 		0-91180-110-0 01 1 1012- ● ●
178 04.040 JOINT; BALL,LINK ROD
04.037 L=45.5 		1-09760-118-1 01 1 1012- ● ●
226 04.047 PIN; SHIFT CABLE
00.833 (A) L=27.7 		8-94111-137-0 01 1 1012- ● ● ● ●
226 04.047 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 02 1 1012- ● ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
ID=8.2 OD=40 		8-97182-975-0 02 1 1012- ● ● ● ●
247 04.010 PIN; CONT ROD TO LEVER 8-97373-728-0 01 1 1012- ● ●
249 04.010 WASHER; RUBBER,CONT ROD TO LEVER
04.037 ID=8.5 T=1.5 		9-09851-889-0 01 1 1012- ● ●
282 04.010 BRACKET; TRANS SIDE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97350-449-0 01 1 1012- ● ●
282 04.010 BRACKET; TRANS SIDE
4HG1-T ENG(RDP),4HG1 ENG(RJH) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97311-441-1 01 1 1012- ● ●
282 04.010 BRACKET; TRANS SIDE 8-97034-142-1 01 1 1012- ● ●
283 04.037 BOLT; RELAY LEVER
00.029 (A) M10X25 FLANGE 		0-28651-025-0 01 1 1012- ● ●
283 04.037 BOLT; RELAY LEVER
02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 1012- ● ●
288 04.047 WASHER; CABLE TO RELAY LEVER 8-97373-819-0 01 1 1012- ● ●
357 04.010 BRACKET; RELAY LEVER 8-97182-166-0 01 1 1012- ● ●
407 04.030 LEVER; RELAY,SHIFT 8-97174-055-2 01 1 1012- ● ●
422 04.032 NUT; CONT ROD TO LEVER
04.047 		8-97373-729-0 01 1 1012- ● ●
457 04.010 GASKET
ID=13.8 		9-09561-114-0 02 1 1012- ● ●
536 00.854 DAMPER; CABLE
4JJ1-TCS ENG(LFB),4JB1-TC ENG(RDT), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4JB1 ENG(RLF) 		8-98097-681-0 01 1 1012- ● ● ● ●
