2-30 — GEAR SHIFTER AND QUADRANT BOX (#79090) — 188 parça

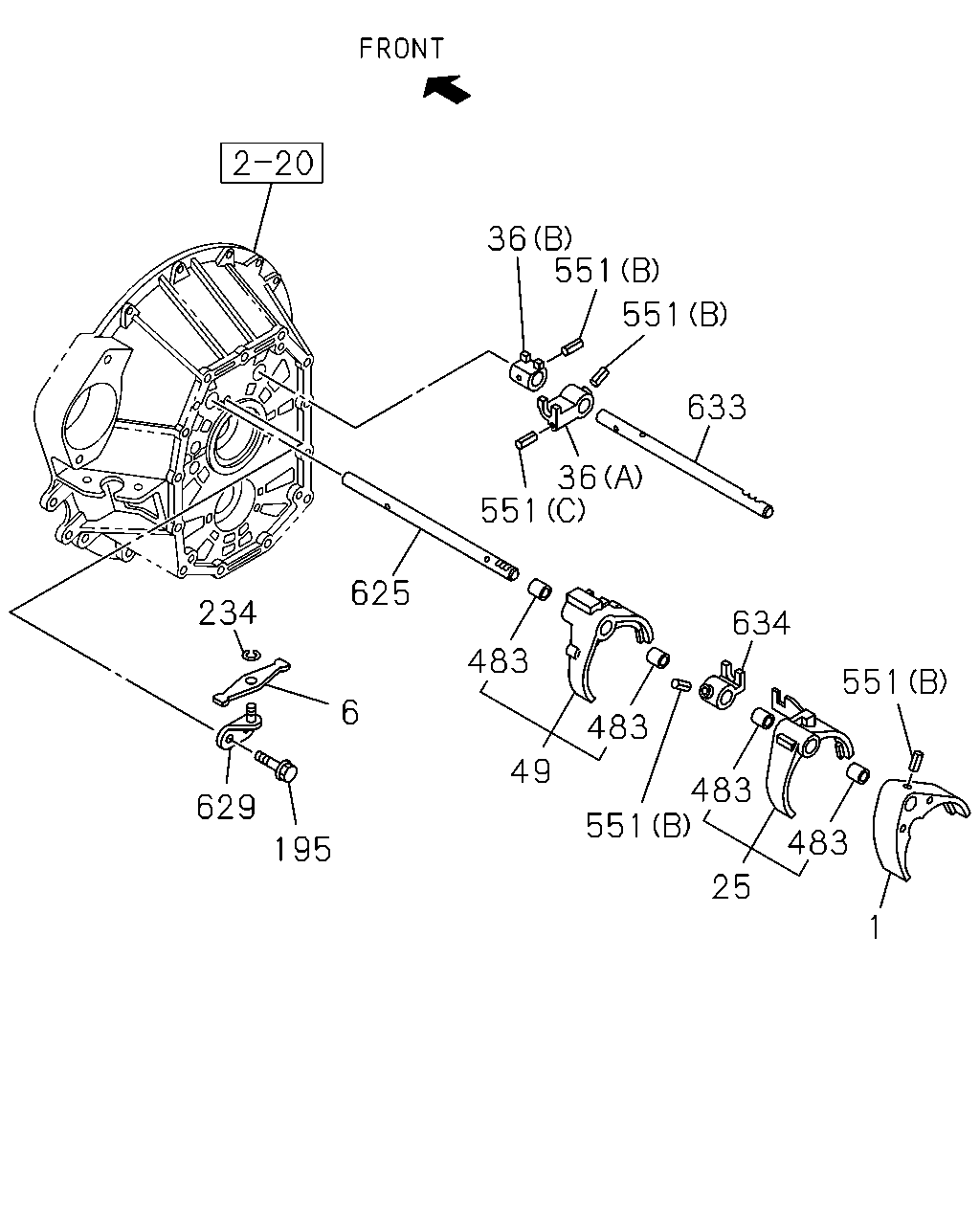

çizim 113323
36 551 551 633 36 551 625 234 634 483 551 6 483 49 483 551 629 483 195 25 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.302 ARM; SHIFT,1ST & REV 8-97241-320-2 01 1 1012- ● ●
6 04.302 LEVER; RELAY 8-97241-344-0 01 1 1012- ●
25 04.302 ARM; SHIFT,2ND & 3RD 8-97362-731-2 01 1 1012-1407 ● ●
25 04.302 ARM; SHIFT,2ND & 3RD 8-98255-926-1 01 1 1408- ● ●
36 04.303 BLOCK; SHIFT,4TH & 5TH
(A) 		8-97241-329-1 01 1 1012- ●
36 04.303 BLOCK; SHIFT,4TH & 5TH
(B) 		8-97241-330-0 01 1 1012- ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97258-716-0 01 1 1012- ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97362-732-1 01 1 1012- ●
195 04.105 BOLT
M10X28 FLANGE REAMER 		8-97365-375-0 02 1 1012- ● ●
234 04.311 RING; SNAP
04.307 ID=12 		8-94460-357-0 01 1 1012- ●
234 04.311 RING; SNAP
ID=16.5 		0-91800-618-0 01 1 1012- ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 02 1 1012- ● ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 02 1 1012- ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 04 1 1012- ● ●
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1012- ● ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1012- ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 01 1 1012- ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 8-97362-741-0 01 1 1012- ● ●
629 04.555 BRIDGE; LEVER 8-97237-107-1 01 1 1012- ●
629 04.555 BRIDGE; LEVER 8-97241-345-1 01 1 1012- ●
633 04.309 ROD; GEAR SHIFT,4TH,5TH 8-97362-743-0 01 1 1012- ●
634 04.303 BLOCK; SHIFT,LOW,REV 8-97241-327-1 01 1 1012- ●

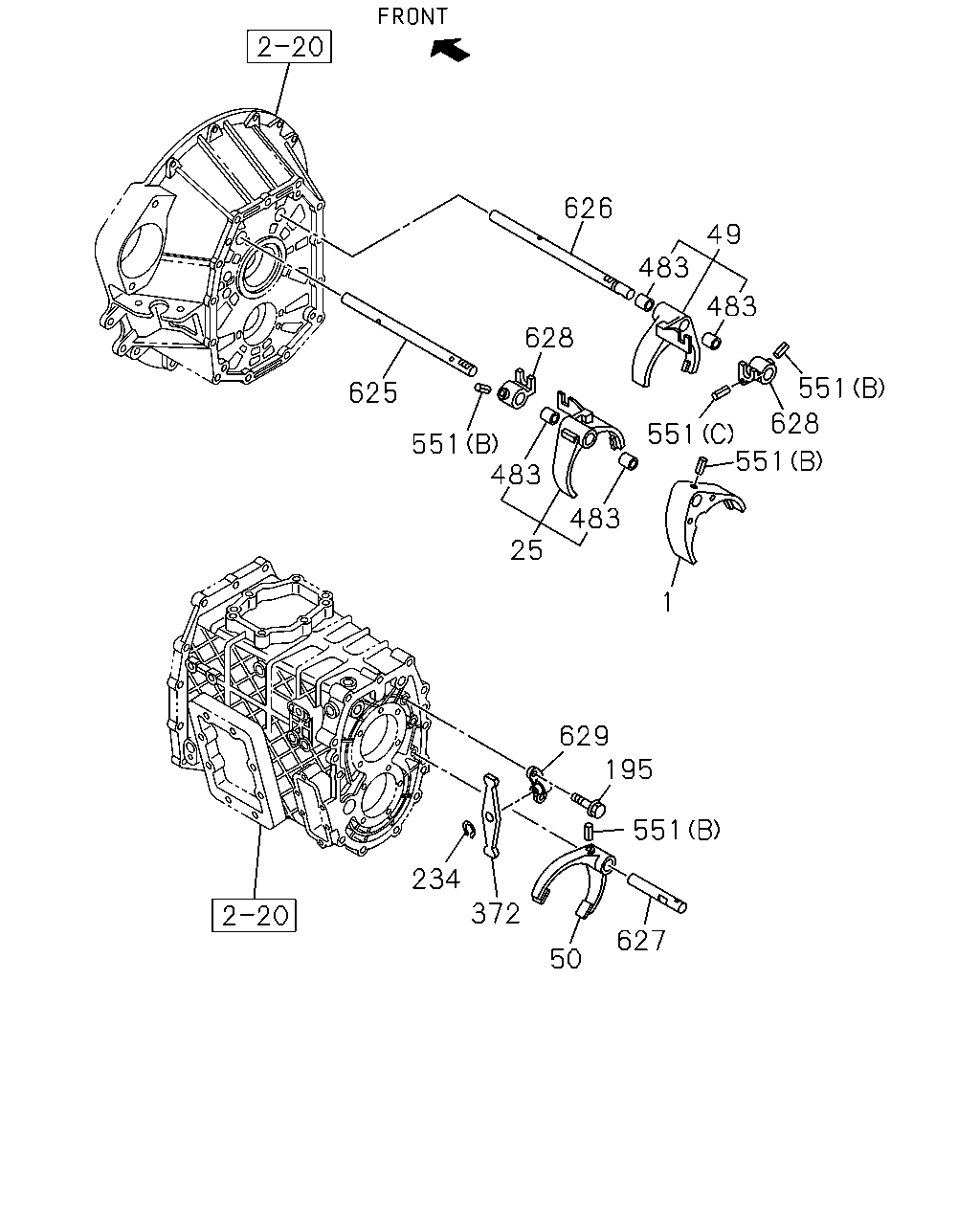

çizim 113353
626 49 483 483 628 551 625 628 551 551 551 483 483 25 1 629 195 551 234 372 627 50
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.302 ARM; SHIFT,1ST & REV 8-97241-320-2 01 1 1012- ● ●
25 04.302 ARM; SHIFT,2ND & 3RD 8-97362-731-2 01 1 1012-1407 ● ●
25 04.302 ARM; SHIFT,2ND & 3RD 8-98255-926-1 01 1 1408- ● ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97258-716-0 01 1 1012- ●
49 04.302 ARM; SHIFT,4TH & 5TH 8-97362-732-1 01 1 1012- ●
50 04.302 ARM; SHIFT,6TH 8-97241-325-1 01 1 1012- ●
195 04.105 BOLT
M10X28 FLANGE REAMER 		8-97365-375-0 02 1 1012- ● ●
234 04.311 RING; SNAP
04.307 ID=12 		8-94460-357-0 01 1 1012- ●
234 04.311 RING; SNAP
ID=16.5 		0-91800-618-0 01 1 1012- ●
372 04.302 LEVER; RELAY,6TH 8-97241-343-0 01 1 1012- ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 02 1 1012- ● ●
483 04.419 BUSHING; SHIFT ARM
00.683 		8-97241-326-2 02 1 1012- ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 04 1 1012- ● ●
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1012- ● ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1012- ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 01 1 1012- ●
625 04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 8-97362-741-0 01 1 1012- ● ●
626 04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH 8-97366-024-1 01 1 1012- ●
627 04.309 ROD; GEAR SHIFT,6TH SUB 8-98119-293-0 01 1 1012- ●
628 04.303 BLOCK; SHIFT,LOW,REV & 6TH 8-97241-327-1 02 1 1012- ●
629 04.555 BRIDGE; LEVER 8-97237-107-1 01 1 1012- ●
629 04.555 BRIDGE; LEVER 8-97241-345-1 01 1 1012- ●

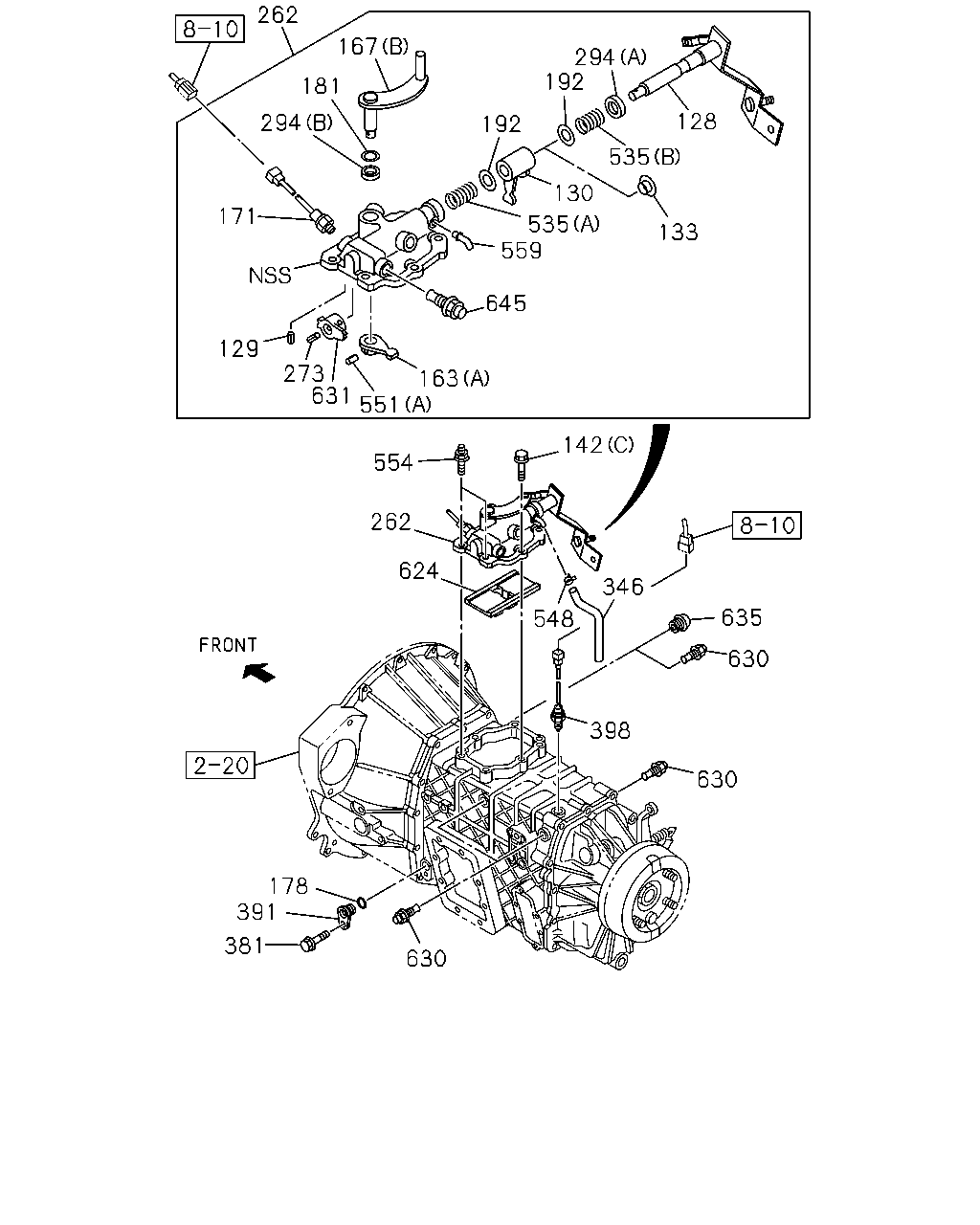

çizim 190781
262 167 181 294 171 129 273 631 551 163 645 559 535 130 192 133 535 128 192 294 142 346 635 630 398 630 630 381 391 178 548 624 262 554
BalonParca AdiParca NoAdetTipApplied Date A B C D
128 04.030 LEVER; SHIFT,EXTERNAL 8-97305-725-0 01 1 1012- ●
128 04.030 LEVER; SHIFT,EXTERNAL 8-97363-226-0 01 1 1012- ●
129 04.027 PIN; SPR,SHIFT
L=30 OD=4 		1-09748-031-0 01 1 1012- ● ●
130 04.302 LEVER; SHIFT,INTERNAL 8-97306-647-0 01 1 1012- ● ●
130 04.302 LEVER; SHIFT,INTERNAL 8-94105-141-2 01 1 1012-1210 ● ●
130 04.302 LEVER; SHIFT,INTERNAL 8-98190-340-0 01 1 1211- ● ●
133 04.027 SEAT; SPR 8-97305-667-0 01 1 1012- ●
142 04.012 BOLT; QUAD BOX
04.356 (C) M8X22 FLANGE 		8-97365-376-0 04 1 1012- ● ●
142 04.012 BOLT; QUAD BOX
04.105 (A) M8X25 		8-94128-786-0 08 1 1012-1210 ● ●
142 04.012 BOLT; QUAD BOX
03.275 (A) M8X25 FLANGE 		0-28050-825-0 08 1 1211- ● ●
142 04.012 BOLT; QUAD BOX
04.105 (B) M8X30 		8-97029-705-0 02 1 1012-1210 ● ●
142 04.012 BOLT; QUAD BOX
00.206 (B) M8X30 FLANGE 		0-28050-830-0 02 1 1211- ● ●
163 04.302 LEVER; SELECT,INTERNAL
(A) 		8-97305-663-0 01 1 1012- ● ●
163 04.302 LEVER; SELECT,INTERNAL
(B) 		8-94159-268-1 01 1 1012-1210 ● ●
163 04.302 LEVER; SELECT,INTERNAL
(B) 		8-98190-302-0 01 1 1211- ● ●
167 04.302 LEVER; SELECT,EXTERNAL
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (B) 		8-98039-436-0 01 1 1012- ● ●
167 04.302 LEVER; SELECT,EXTERNAL
4HG1-T ENG(RDP),4HG1 ENG(RJH) (B) 		8-98039-434-0 01 1 1012- ●
167 04.302 LEVER; SELECT,EXTERNAL
(A) 		8-97035-560-1 01 1 1012-1210 ● ●
167 04.302 LEVER; SELECT,EXTERNAL
(A) 		8-98190-276-0 01 1 1211- ● ●
171 04.054 SWITCH; NEUTRAL
02.698 		8-98023-050-0 01 1 1012-1312 ● ●
171 04.054 SWITCH; NEUTRAL 8-98242-172-1 01 1 1401-1509 ● ●
171 04.054 SWITCH; NEUTRAL 8-98324-878-0 01 1 1510- ● ●
171 04.054 SWITCH; NEUTRAL
EXHAUST BRAKE<NF8> 		8-98112-227-0 01 1 1012-1210 ● ●
171 04.054 SWITCH; NEUTRAL
EXHAUST BRAKE<NF8> 		8-98190-415-0 01 1 1211- ● ●
178 04.307 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		9-09567-113-0 01 1 1012- ● ●
181 04.302 WASHER; PL,SELECT LEVER 8-97367-327-0 01 1 1012- ● ●
192 04.309 WASHER; PL 8-97305-661-0 01 1 1012- ●
192 04.309 WASHER; PL 8-97305-661-0 02 1 1012- ●
262 04.105 BOX ASM; SHIFT CONT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 		8-97362-753-2 01 1 1012-1312 ●
262 04.105 BOX ASM; SHIFT CONT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 		8-98241-002-2 01 1 1401- ●
262 04.105 BOX ASM; SHIFT CONT
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		8-97362-750-2 01 1 1012-1312 ●
262 04.105 BOX ASM; SHIFT CONT
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		8-98240-999-2 01 1 1401- ●
262 04.105 BOX ASM; SHIFT CONT 8-98021-591-1 01 1 1012-1312 ●
262 04.105 BOX ASM; SHIFT CONT 8-98240-993-2 01 1 1401- ●
273 04.309 PIN; SPR,STOPPER
04.307 D=4.2 L=25 		8-97103-142-0 01 1 1012- ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (B) 		8-97305-662-0 01 1 1012- ● ●
294 04.107 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (A) 		8-97363-225-0 01 1 1012- ● ●
346 04.545 HOSE; AIR 8-97309-855-0 01 1 1012- ● ●
381 04.105 BOLT
02.343 M6X16 FLANGE 		0-28650-616-0 01 1 1012- ● ●
391 04.104 PLUG; SW HOLE 8-97300-273-1 01 1 1012- ● ●
398 02.698 SWITCH; REV LAMP
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 		8-98186-003-0 01 1 1107-1311 ● ●
398 02.698 SWITCH; REV LAMP
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 		8-98256-418-0 01 1 1312- ● ●
398 02.698 SWITCH; REV LAMP 8-98023-050-0 01 1 1012-1106 ● ●
398 02.698 SWITCH; REV LAMP
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		8-98023-050-0 01 1 1107-1312 ●
398 02.698 SWITCH; REV LAMP
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		8-98242-173-1 01 1 1401- ●
398 02.698 SWITCH; REV LAMP 8-98112-229-0 01 1 1012-1210 ● ●
398 02.698 SWITCH; REV LAMP 8-98190-417-0 01 1 1211- ● ●
535 04.302 SPRING; LEVER
(A) 		8-97323-771-0 01 1 1012- ●
535 04.302 SPRING; LEVER
(B) 		8-97323-772-0 01 1 1012- ●
535 04.302 SPRING; LEVER
(A) 		8-97305-659-0 01 1 1012- ●
535 04.302 SPRING; LEVER
(B) 		8-97305-660-0 01 1 1012- ●
548 04.457 CLIP; HOSE
03.278 		8-97031-674-0 01 1 1012- ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 04 1 1012- ● ●
551 04.303 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1012- ● ●
551 04.303 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1012- ● ●
551 04.303 PIN; SPRING
04.302 (B) L=32 		8-97011-596-2 01 1 1012- ●
554 04.302 STUD; CONT BOX
M8X15,M8X25 L=49 		8-97365-378-0 02 1 1012- ● ●
559 04.302 PIPE; BREATHER
04.510 		8-97358-318-0 01 1 1012- ● ●
624 04.105 PLATE; INTER LOCK 8-97241-317-3 01 1 1012- ● ●
630 04.307 DETENT ASM 8-98019-536-0 03 1 1012- ●
630 04.307 DETENT ASM 8-98019-536-0 04 1 1012- ●
631 04.105 STOPPER; SPRING 8-97305-666-0 01 1 1012- ● ●
635 04.309 PLUG; DETENT
00.206 		8-97380-892-0 01 1 1012- ●
645 04.311 DETENT ASM
04.307 		8-98019-536-0 01 1 1012- ● ●

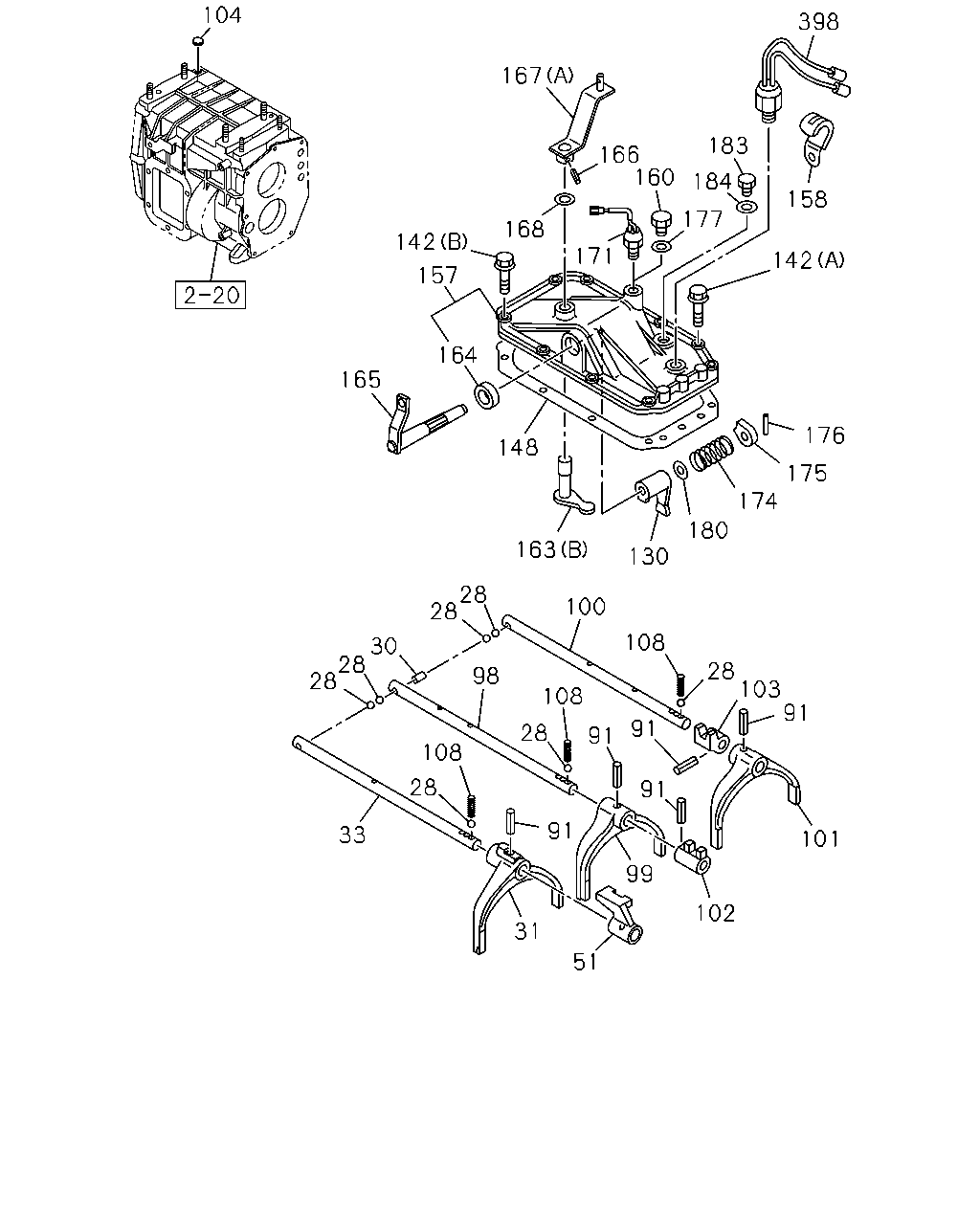

çizim 190786
104 167 166 160 183 398 158 184 177 142 171 168 142 157 165 164 148 176 175 174 180 130 163 28 28 30 28 28 100 108 28 103 91 101 102 51 31 99 91 91 91 108 98 28 108 28 33 91
BalonParca AdiParca NoAdetTipApplied Date A B C D
28 04.311 BALL; INTER LK 9-00097-010-0 07 1 1012- ● ●
30 04.307 PIN; INTER LK
04.311 		5-33534-001-0 01 1 1012-1210 ● ●
30 04.307 PIN; INTER LK 8-98189-971-0 01 1 1211- ● ●
31 04.302 ARM; SHIFT,LOW & 2ND 8-97011-365-1 01 1 1012-1210 ● ●
31 04.302 ARM; SHIFT,LOW & 2ND 8-98190-300-0 01 1 1211- ● ●
33 04.309 ROD; SHIFT,LOW & 2ND 8-97011-370-1 01 1 1012-1210 ● ●
33 04.309 ROD; SHIFT,LOW & 2ND 8-98188-591-0 01 1 1211- ● ●
51 04.303 BLOCK; SHIFT,1ST & 2ND 8-97022-837-2 01 1 1012-1210 ● ●
51 04.303 BLOCK; SHIFT,1ST & 2ND 8-98188-589-0 01 1 1211- ● ●
91 04.302 PIN; SPR,SHIFT ARM
04.303 L=25 OD=5 		8-94135-771-0 06 1 1012-1210 ● ●
91 04.302 PIN; SPR,SHIFT ARM
04.303 L=25 OD=5 		1-09748-032-0 06 1 1211- ● ●
98 04.309 ROD; SHIFT,TOP & 3RD 8-97011-371-1 01 1 1012-1210 ● ●
98 04.309 ROD; SHIFT,TOP & 3RD 8-98188-590-0 01 1 1211- ● ●
99 04.302 ARM; SHIFT,4TH & 3RD 8-97011-366-1 01 1 1012-1210 ● ●
99 04.302 ARM; SHIFT,4TH & 3RD 8-98190-301-0 01 1 1211- ● ●
100 04.309 ROD; SHIFT,REV & 5TH 8-94316-923-0 01 1 1012-1210 ● ●
100 04.309 ROD; SHIFT,REV & 5TH 8-98188-592-0 01 1 1211- ● ●
101 04.302 ARM; SHIFT,REV & 5TH 8-97107-545-0 01 1 1012-1210 ● ●
101 04.302 ARM; SHIFT,REV & 5TH 8-98190-303-0 01 1 1211- ● ●
102 04.303 BLOCK; SHIFT,3RD & 4TH 8-97017-573-1 01 1 1012-1210 ● ●
102 04.303 BLOCK; SHIFT,3RD & 4TH 8-98188-588-0 01 1 1211- ● ●
103 04.303 BLOCK; SHIFT,REV TO OD 8-94135-719-4 01 1 1012-1210 ● ●
103 04.303 BLOCK; SHIFT,REV TO OD 8-98188-587-0 01 1 1211- ● ●
104 04.311 PLUG; PLATE
04.105 OD=16 		9-09201-316-0 01 1 1012-1210 ● ●
104 04.311 PLUG; PLATE
OD=16 		0-92001-416-0 01 1 1211- ● ●
108 04.311 SPRING; LOCK BALL
OD=6.8 L=31.6 		9-09740-114-0 03 1 1012-1210 ● ●
108 04.311 SPRING; LOCK BALL
OD=6.8 L=31.6 		8-98188-917-0 03 1 1211- ● ●
130 04.302 LEVER; SHIFT,INTERNAL 8-97306-647-0 01 1 1012- ● ●
130 04.302 LEVER; SHIFT,INTERNAL 8-94105-141-2 01 1 1012-1210 ● ●
130 04.302 LEVER; SHIFT,INTERNAL 8-98190-340-0 01 1 1211- ● ●
142 04.012 BOLT; QUAD BOX
04.356 (C) M8X22 FLANGE 		8-97365-376-0 04 1 1012- ● ●
142 04.012 BOLT; QUAD BOX
04.105 (A) M8X25 		8-94128-786-0 08 1 1012-1210 ● ●
142 04.012 BOLT; QUAD BOX
03.275 (A) M8X25 FLANGE 		0-28050-825-0 08 1 1211- ● ●
142 04.012 BOLT; QUAD BOX
04.105 (B) M8X30 		8-97029-705-0 02 1 1012-1210 ● ●
142 04.012 BOLT; QUAD BOX
00.206 (B) M8X30 FLANGE 		0-28050-830-0 02 1 1211- ● ●
148 04.015 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 04.012 		8-94257-162-0 01 1 1012-1210 ● ●
148 04.015 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-98189-273-0 01 1 1211- ● ●
157 04.105 BOX; QUAD,TRANS 8-94340-145-0 01 1 1012-1210 ● ●
157 04.105 BOX; QUAD,TRANS 8-98190-265-0 01 1 1211- ● ●
158 04.105 CLIP; HARNESS
03.671 ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 1012- ● ●
160 04.105 PLUG; BLIND
EXC. EXHAUST BRAKE<NF8> M14X9 		8-98042-944-0 01 1 1012- ● ●
163 04.302 LEVER; SELECT,INTERNAL
(A) 		8-97305-663-0 01 1 1012- ● ●
163 04.302 LEVER; SELECT,INTERNAL
(B) 		8-94159-268-1 01 1 1012-1210 ● ●
163 04.302 LEVER; SELECT,INTERNAL
(B) 		8-98190-302-0 01 1 1211- ● ●
164 04.105 SEAL; OIL,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). OD=27 		8-97304-068-0 02 1 1012- ● ●
165 04.302 LEVER; SHIFT 8-97036-221-0 01 1 1012-1210 ● ●
165 04.302 LEVER; SHIFT 8-98190-282-0 01 1 1211- ● ●
166 04.302 PIN; SPR,SELECT LEVER
04.303 L=25 OD=5 		8-94135-771-0 01 1 1012-1210 ● ●
166 04.302 PIN; SPR,SELECT LEVER
04.303 L=25 OD=5 		1-09748-032-0 01 1 1211- ● ●
167 04.302 LEVER; SELECT,EXTERNAL
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (B) 		8-98039-436-0 01 1 1012- ● ●
167 04.302 LEVER; SELECT,EXTERNAL
4HG1-T ENG(RDP),4HG1 ENG(RJH) (B) 		8-98039-434-0 01 1 1012- ●
167 04.302 LEVER; SELECT,EXTERNAL
(A) 		8-97035-560-1 01 1 1012-1210 ● ●
167 04.302 LEVER; SELECT,EXTERNAL
(A) 		8-98190-276-0 01 1 1211- ● ●
168 04.302 WASHER; LK,SELECT LEVER 8-94249-250-1 01 1 1012-1210 ● ●
168 04.302 WASHER; LK,SELECT LEVER 8-98190-433-0 01 1 1211- ● ●
171 04.054 SWITCH; NEUTRAL
02.698 		8-98023-050-0 01 1 1012-1312 ● ●
171 04.054 SWITCH; NEUTRAL 8-98242-172-1 01 1 1401-1509 ● ●
171 04.054 SWITCH; NEUTRAL 8-98324-878-0 01 1 1510- ● ●
171 04.054 SWITCH; NEUTRAL
EXHAUST BRAKE<NF8> 		8-98112-227-0 01 1 1012-1210 ● ●
171 04.054 SWITCH; NEUTRAL
EXHAUST BRAKE<NF8> 		8-98190-415-0 01 1 1211- ● ●
174 04.307 SPRING; REV 8-97031-927-0 01 1 1012-1210 ● ●
174 04.307 SPRING; REV 8-98190-419-0 01 1 1211- ● ●
175 04.302 RING; STOPPER,SHIFT LEVER 8-94249-048-2 01 1 1012-1210 ● ●
175 04.302 RING; STOPPER,SHIFT LEVER 8-98190-338-0 01 1 1211- ● ●
176 04.302 PIN; SPR,STOPPER
04.555 L=30 OD=4 		9-09678-549-0 02 1 1012-1210 ● ●
176 04.302 PIN; SPR,STOPPER
04.027 L=30 OD=4 		1-09748-031-0 02 1 1211- ● ●
177 04.105 GASKET; CONT BOX
ALSO INCLUDED IN GASKET SET(M/T). EXC. EXHAUST BRAKE<NF8> 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 1012- ● ●
180 04.302 WASHER; REV STOP SPRING
04.307 		8-94249-244-0 01 1 1012-1210 ● ●
180 04.302 WASHER; REV STOP SPRING 8-98190-423-0 01 1 1211- ● ●
183 04.105 PLUG; SCREW,OIL FILTER
M18 		8-94337-946-1 01 1 1012-1210 ● ●
183 04.105 PLUG; SCREW,OIL FILTER
M18 		8-98190-432-0 01 1 1211- ● ●
184 04.105 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). 04.422 ID=15.3 		8-94336-511-0 01 1 1012-1210 ● ●
184 04.105 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=15.5 		8-98189-969-0 01 1 1211- ● ●
398 02.698 SWITCH; REV LAMP
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 		8-98186-003-0 01 1 1107-1311 ● ●
398 02.698 SWITCH; REV LAMP
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 		8-98256-418-0 01 1 1312- ● ●
398 02.698 SWITCH; REV LAMP 8-98023-050-0 01 1 1012-1106 ● ●
398 02.698 SWITCH; REV LAMP
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		8-98023-050-0 01 1 1107-1312 ●
398 02.698 SWITCH; REV LAMP
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		8-98242-173-1 01 1 1401- ●
398 02.698 SWITCH; REV LAMP 8-98112-229-0 01 1 1012-1210 ● ●
398 02.698 SWITCH; REV LAMP 8-98190-417-0 01 1 1211- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
