7-20 — MIRROR AND MIRROR STAY (#7909) — 192 parça

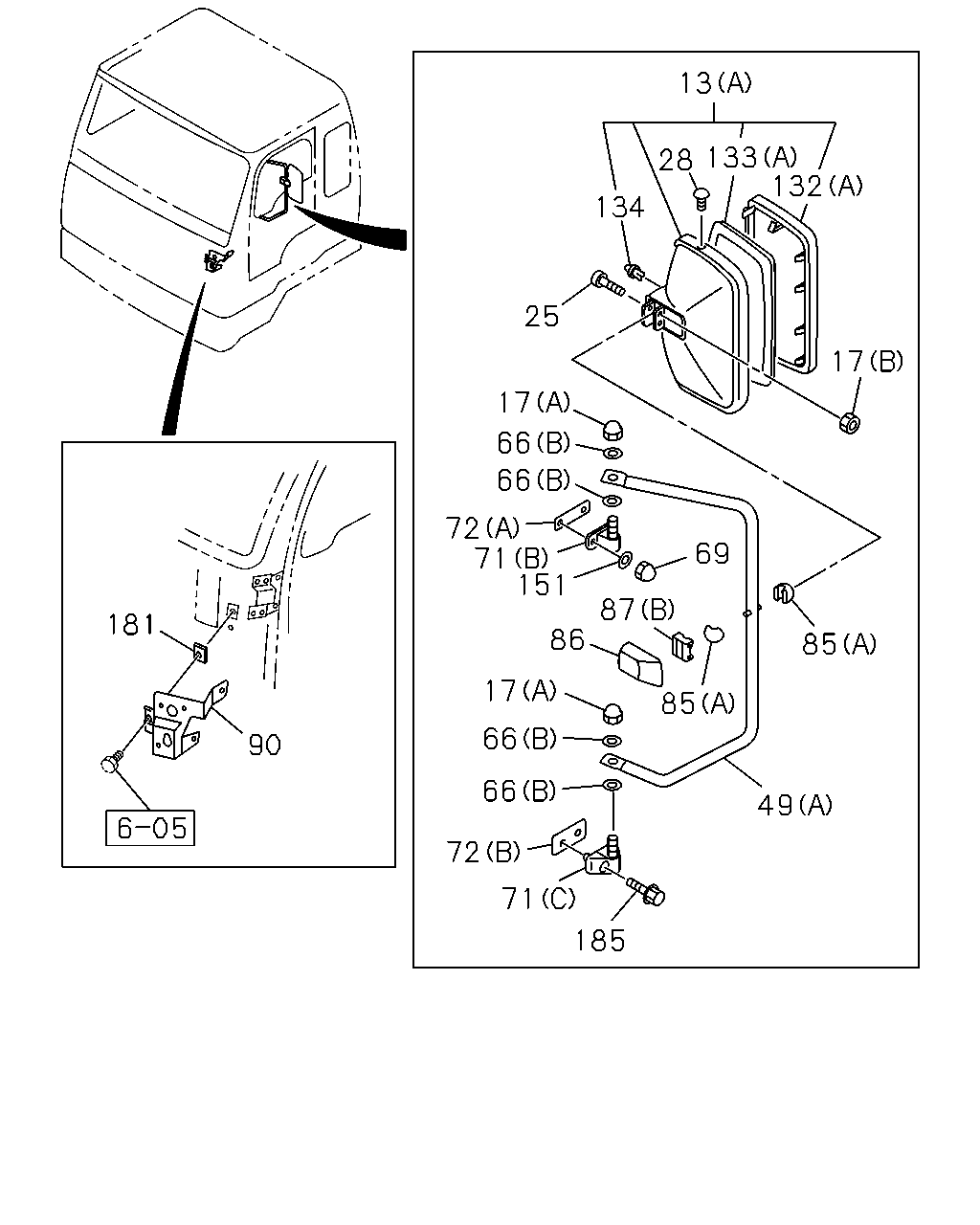

çizim 26789
13 133 132 28 134 25 17 17 66 66 72 71 151 69 87 181 86 85 17 85 66 90 66 49 72 71 185
BalonParca AdiParca NoAdetTipApplied Date A B C
13 MIRROR ASM; OUTSIDE RR VIEW
(A) 		1-71737-918-3 01 1 9905-0301 ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
(A) 		1-71737-918-3 01 1 0302- ● ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
(B) 		1-71737-917-3 01 1 9905-0301 ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
(B) 		1-71737-917-3 01 1 0302- ● ● ●
17 NUT; CAP,MIRROR STAY
(A) M10 		1-09984-183-0 04 1 9905-0208 ● ●
17 NUT; CAP,MIRROR STAY
(A) M10 		1-09984-134-0 04 1 0209-0301 ● ●
17 NUT; CAP,MIRROR STAY
(A) M10 		1-09984-134-0 04 1 0302- ● ● ●
17 NUT; CAP,MIRROR STAY
(B) M5 		1-09984-124-0 02 1 9905-9906 ● ●
17 NUT; CAP,MIRROR STAY
(B) M5 		1-09984-124-0 08 1 9907-0301 ● ●
17 NUT; CAP,MIRROR STAY
(B) M5 		1-09984-124-0 08 1 0302- ● ● ●
17 NUT; CAP,MIRROR STAY
(B) M5 		1-09984-124-0 06 1 9905-9906 ● ●
25 SCREW; OUTSIDE MIRROR
M5X50 		1-09981-444-0 02 1 9905-9906 ● ●
25 SCREW; OUTSIDE MIRROR
M5X50 		1-09981-444-0 02 1 9905-9906 ● ●
25 SCREW; OUTSIDE MIRROR
M5X50 		1-09981-444-0 04 1 9907-0301 ● ●
25 SCREW; OUTSIDE MIRROR
M5X50 		1-09981-444-0 04 1 0302-0404 ● ● ●
25 SCREW; OUTSIDE MIRROR 1-09981-541-0 04 1 0405- ● ● ●
28 GROMMET; UNDER MIRROR
BLACK 		1-71737-678-0 01 1 9905-9906 ● ●
28 GROMMET; UNDER MIRROR
BLACK 		1-71737-678-0 03 1 9907-9910 ● ●
28 GROMMET; UNDER MIRROR
BLACK 		1-71737-678-0 02 1 9905-9906 ● ●
49 STAY; MIRROR SIDE
(B) 		1-71798-762-0 01 1 9905-9906 ●
49 STAY; MIRROR SIDE
(B) 		1-71798-762-2 01 1 9907-0301 ● ●
49 STAY; MIRROR SIDE
(B) 		1-71798-762-2 01 1 0302- ● ● ●
49 STAY; MIRROR SIDE
(A) 		1-71798-491-3 01 1 9905-0301 ● ●
49 STAY; MIRROR SIDE
(A) 		1-71798-491-3 01 1 0302- ● ● ●
49 STAY; MIRROR SIDE
(B) 		1-71798-493-2 01 1 9905-9906 ●
66 WASHER; PL
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 08 1 9905-0301 ● ●
66 WASHER; PL
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 08 1 0302- ● ● ●
66 WASHER; PL
(A) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 02 1 9905-0301 ● ●
66 WASHER; PL
(A) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 02 1 0302- ● ● ●
69 NUT; CAP
M8 		1-09984-187-0 02 1 9905-0301 ● ●
69 NUT; CAP
M8 		1-09984-187-0 02 1 0302- ● ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 9905-0301 ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 0302- ● ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		1-71798-486-2 01 1 9905-0301 ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		1-71798-486-2 01 1 0302- ● ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		1-71798-580-3 01 1 9905-0301 ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		1-71798-580-3 01 1 0302- ● ● ●
72 SHEET
(C) ID=8.5 T=3 OD=30 		1-71736-247-0 02 1 9905-0301 ●
72 SHEET
LOW ROOF<6XQ> (C) ID=8.5 T=3 OD=30 		1-71736-247-0 02 1 9905-0301 ●
72 SHEET
(C) ID=8.5 T=3 OD=30 		1-71736-247-0 02 1 0302- ● ●
72 SHEET
LOW ROOF<6XQ> (C) ID=8.5 T=3 OD=30 		1-71736-247-0 02 1 0302- ●
72 SHEET
(A) 		1-71798-487-3 01 1 9905-0301 ● ●
72 SHEET
(A) 		1-71798-487-3 01 1 0302- ● ● ●
72 SHEET
(B) 		1-71798-488-1 01 1 9905-0301 ● ●
72 SHEET
(B) 		1-71798-488-1 01 1 0302- ● ● ●
85 PIVOT; MAIN MIRROR
(A) ID=19.1 		1-71737-633-2 02 1 9905-0301 ● ●
85 PIVOT; MAIN MIRROR
(A) ID=19.1 		1-71737-633-2 02 1 0302- ● ● ●
85 PIVOT; MAIN MIRROR
(B) ID=22.2 		1-71736-489-2 02 1 9905-0301 ● ●
85 PIVOT; MAIN MIRROR
(B) ID=22.2 		1-71736-489-2 02 1 0302- ● ● ●
86 COVER; STAY,OUTSIDE MIRROR
BLACK 		1-71737-760-0 01 1 9905-9906 ● ●
86 COVER; STAY,OUTSIDE MIRROR
BLACK 		1-71737-760-0 01 1 9905-9906 ● ●
86 COVER; STAY,OUTSIDE MIRROR
BLACK 		1-71737-760-1 02 1 9907-0301 ● ●
86 COVER; STAY,OUTSIDE MIRROR
BLACK 		1-71737-760-1 02 1 0302- ● ● ●
87 SPACER
(B) 		1-71737-704-0 01 1 9905-9906 ● ●
87 SPACER
(B) 		1-71737-704-0 01 1 9905-9906 ● ●
87 SPACER
(B) 		1-71737-704-0 02 1 9907-0301 ● ●
87 SPACER
(B) 		1-71737-704-0 02 1 0302- ● ● ●
87 SPACER
(A) 		1-71737-646-2 02 1 9905-0301 ● ●
87 SPACER
(A) 		1-71737-646-2 02 1 0302- ● ● ●
90 BRACKET; MIRROR STAY 1-71798-829-1 01 1 9905-0301 ● ●
90 BRACKET; MIRROR STAY 1-71798-829-1 01 1 0302- ● ● ●
90 BRACKET; MIRROR STAY 1-71798-828-1 01 1 9905-0301 ● ●
90 BRACKET; MIRROR STAY 1-71798-828-1 01 1 0302- ● ● ●
132 RING; MIRROR
(A) 		1-71737-934-0 01 1 9905-0301 ● ●
132 RING; MIRROR
(A) 		1-71737-934-0 01 1 0302- ● ● ●
132 RING; MIRROR
(B) 		1-71737-933-0 01 1 9905-0301 ● ●
132 RING; MIRROR
(B) 		1-71737-933-0 01 1 0302- ● ● ●
132 RING; MIRROR
(C) 		1-71737-935-0 01 1 9905-0301 ● ●
132 RING; MIRROR
(C) 		1-71737-935-0 01 1 0302- ● ● ●
133 LENS; MIRROR,OUTSIDE
(A) 		1-71737-927-0 01 1 9905-0301 ● ●
133 LENS; MIRROR,OUTSIDE
(A) 		1-71737-927-0 01 1 0302- ● ● ●
133 LENS; MIRROR,OUTSIDE
(B) 		1-71737-926-0 01 1 9905-0301 ● ●
133 LENS; MIRROR,OUTSIDE
(B) 		1-71737-926-0 01 1 0302- ● ● ●
134 CLIP; MIRROR LENS 1-71737-936-0 01 1 9905-9906 ● ●
134 CLIP; MIRROR LENS 1-71737-936-0 03 1 9907-0301 ● ●
134 CLIP; MIRROR LENS 1-71737-936-0 03 1 0302- ● ● ●
134 CLIP; MIRROR LENS 1-71737-936-0 02 1 9905-9906 ● ●
151 WASHER; PL,MIRROR
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 02 1 9905-0301 ● ●
151 WASHER; PL,MIRROR
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 02 1 0302- ● ● ●
181 SEAL; BRKT
25X25 		8-94272-533-0 02 1 9905-0301 ● ●
181 SEAL; BRKT
25X25 		8-94272-533-0 02 1 0302- ● ● ●
185 BOLT; BRKT
M8X35 FLANGE 		0-28690-835-0 02 1 9905-0301 ● ●
185 BOLT; BRKT
M8X35 FLANGE 		0-28690-835-0 02 1 0302-0512 ● ● ●
185 BOLT; BRKT
M8X35 FLANGE 		0-28660-835-0 02 1 0601-0605 ● ● ●
185 BOLT; BRKT
M8X35 FLANGE 		8-98046-876-0 02 1 0606- ● ● ●
çizim 26891
2 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 MIRROR; ROOM 1-73117-033-1 01 1 9905-0301 ● ●
1 MIRROR; ROOM 1-73117-033-1 01 1 0302- ● ● ●
2 SCREW; MIRROR TO BODY
M6X25 		1-09981-441-0 02 1 9905-9906 ● ●
2 SCREW; MIRROR TO BODY
M6X20 		1-09981-310-0 02 1 9907-0301 ● ●
2 SCREW; MIRROR TO BODY
M6X20 		1-09981-310-0 02 1 0302- ● ● ●

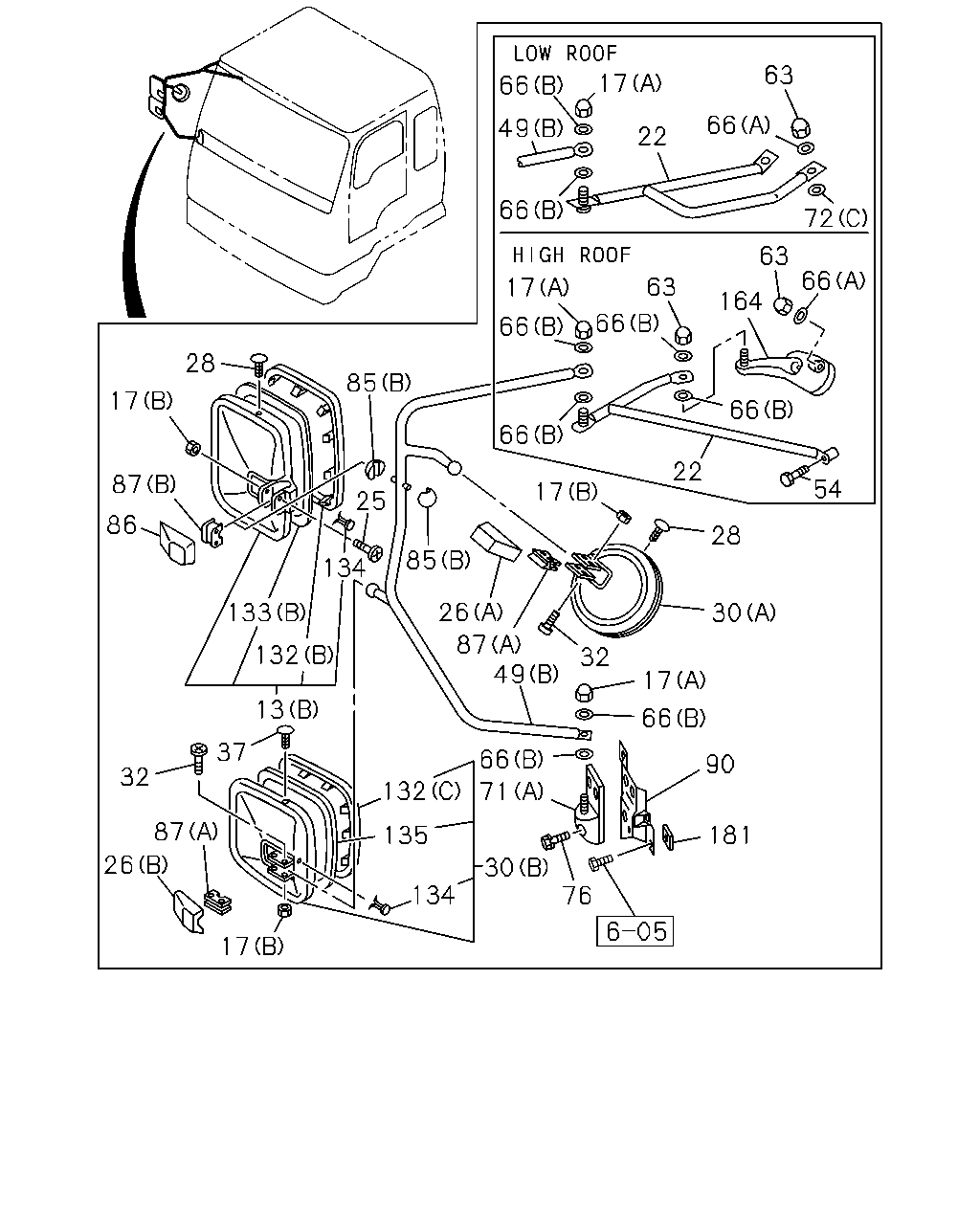

çizim 99474
63 17 66 66 49 22 66 72 63 66 63 17 164 66 66 28 85 17 66 66 22 87 54 17 25 86 28 134 85 26 133 30 87 49 132 32 17 13 66 37 66 90 32 132 71 87 181 135 26 30 134 76 17
BalonParca AdiParca NoAdetTipApplied Date A B C
13 MIRROR ASM; OUTSIDE RR VIEW
(A) 		1-71737-918-3 01 1 9905-0301 ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
(A) 		1-71737-918-3 01 1 0302- ● ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
(B) 		1-71737-917-3 01 1 9905-0301 ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
(B) 		1-71737-917-3 01 1 0302- ● ● ●
17 NUT; CAP,MIRROR STAY
(A) M10 		1-09984-183-0 04 1 9905-0208 ● ●
17 NUT; CAP,MIRROR STAY
(A) M10 		1-09984-134-0 04 1 0209-0301 ● ●
17 NUT; CAP,MIRROR STAY
(A) M10 		1-09984-134-0 04 1 0302- ● ● ●
17 NUT; CAP,MIRROR STAY
(B) M5 		1-09984-124-0 02 1 9905-9906 ● ●
17 NUT; CAP,MIRROR STAY
(B) M5 		1-09984-124-0 08 1 9907-0301 ● ●
17 NUT; CAP,MIRROR STAY
(B) M5 		1-09984-124-0 08 1 0302- ● ● ●
17 NUT; CAP,MIRROR STAY
(B) M5 		1-09984-124-0 06 1 9905-9906 ● ●
22 STAY; OUTSIDE MIRROR 1-71798-627-1 01 1 9905-0301 ●
22 STAY; OUTSIDE MIRROR
LOW ROOF<6XQ> 		1-71798-627-1 01 1 9905-0301 ●
22 STAY; OUTSIDE MIRROR 1-71798-627-1 01 1 0302- ● ●
22 STAY; OUTSIDE MIRROR
LOW ROOF<6XQ> 		1-71798-627-1 01 1 0302- ●
22 STAY; OUTSIDE MIRROR
HIGH ROOF<S2F> 		1-71798-582-4 01 1 9905- ●
25 SCREW; OUTSIDE MIRROR
M5X50 		1-09981-444-0 02 1 9905-9906 ● ●
25 SCREW; OUTSIDE MIRROR
M5X50 		1-09981-444-0 02 1 9905-9906 ● ●
25 SCREW; OUTSIDE MIRROR
M5X50 		1-09981-444-0 04 1 9907-0301 ● ●
25 SCREW; OUTSIDE MIRROR
M5X50 		1-09981-444-0 04 1 0302-0404 ● ● ●
25 SCREW; OUTSIDE MIRROR 1-09981-541-0 04 1 0405- ● ● ●
26 COVER; OUTSIDE MIRROR
(A) BLACK 		1-71737-649-1 01 1 9905-0301 ● ●
26 COVER; OUTSIDE MIRROR
(A) BLACK 		1-71737-649-1 01 1 0302- ● ● ●
26 COVER; OUTSIDE MIRROR
(B) BLACK 		1-71737-652-1 01 1 9905-0301 ● ●
26 COVER; OUTSIDE MIRROR
(B) BLACK 		1-71737-652-1 01 1 0302- ● ● ●
28 GROMMET; UNDER MIRROR
BLACK 		1-71737-678-0 01 1 9905-9906 ● ●
28 GROMMET; UNDER MIRROR
BLACK 		1-71737-678-0 03 1 9907-9910 ● ●
28 GROMMET; UNDER MIRROR
BLACK 		1-71737-678-0 02 1 9905-9906 ● ●
30 MIRROR; UNDER
(A) 		1-71798-591-1 01 1 9905-0301 ● ●
30 MIRROR; UNDER
(A) 		1-71798-591-1 01 1 0302- ● ● ●
30 MIRROR; UNDER
(B) 		1-71798-592-1 01 1 9905-0301 ● ●
30 MIRROR; UNDER
(B) 		1-71798-592-1 01 1 0302- ● ● ●
32 SCREW; UNDER MIRROR
M5X40 W/PL WASHER 		1-71737-797-0 04 1 9905-0301 ● ●
32 SCREW; UNDER MIRROR
M5X40 W/PL WASHER 		1-71737-797-0 04 1 0302- ● ● ●
37 GASKET; SIDE UNDER MIRROR
BLACK 		1-71737-678-0 01 1 9905-9910 ● ●
49 STAY; MIRROR SIDE
(B) 		1-71798-762-0 01 1 9905-9906 ●
49 STAY; MIRROR SIDE
(B) 		1-71798-762-2 01 1 9907-0301 ● ●
49 STAY; MIRROR SIDE
(B) 		1-71798-762-2 01 1 0302- ● ● ●
49 STAY; MIRROR SIDE
(A) 		1-71798-491-3 01 1 9905-0301 ● ●
49 STAY; MIRROR SIDE
(A) 		1-71798-491-3 01 1 0302- ● ● ●
49 STAY; MIRROR SIDE
(B) 		1-71798-493-2 01 1 9905-9906 ●
54 BOLT; STAY
HIGH ROOF<S2F> M6X40 LK&PL WASHER 		8-94279-215-0 02 1 0209- ●
63 NUT; STAY
M8 		1-09984-187-0 02 1 9905-0301 ● ●
63 NUT; STAY
M8 		1-09984-187-0 02 1 0302- ● ● ●
63 NUT; STAY
M8 		1-71707-105-0 02 1 0004-0005 ● ●
66 WASHER; PL
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 08 1 9905-0301 ● ●
66 WASHER; PL
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 08 1 0302- ● ● ●
66 WASHER; PL
(A) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 02 1 9905-0301 ● ●
66 WASHER; PL
(A) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 02 1 0302- ● ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 9905-0301 ● ●
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 0302- ● ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		1-71798-486-2 01 1 9905-0301 ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		1-71798-486-2 01 1 0302- ● ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		1-71798-580-3 01 1 9905-0301 ● ●
71 BRACKET; OUTSIDE MIRROR
(A) 		1-71798-580-3 01 1 0302- ● ● ●
72 SHEET
(C) ID=8.5 T=3 OD=30 		1-71736-247-0 02 1 9905-0301 ●
72 SHEET
LOW ROOF<6XQ> (C) ID=8.5 T=3 OD=30 		1-71736-247-0 02 1 9905-0301 ●
72 SHEET
(C) ID=8.5 T=3 OD=30 		1-71736-247-0 02 1 0302- ● ●
72 SHEET
LOW ROOF<6XQ> (C) ID=8.5 T=3 OD=30 		1-71736-247-0 02 1 0302- ●
72 SHEET
(A) 		1-71798-487-3 01 1 9905-0301 ● ●
72 SHEET
(A) 		1-71798-487-3 01 1 0302- ● ● ●
72 SHEET
(B) 		1-71798-488-1 01 1 9905-0301 ● ●
72 SHEET
(B) 		1-71798-488-1 01 1 0302- ● ● ●
76 BOLT; STAY BRKT
M8X30 W/LK WASHER 		8-94279-183-1 03 1 9905-0301 ● ●
76 BOLT; STAY BRKT
M8X30 W/LK WASHER 		8-94279-183-1 03 1 0302- ● ● ●
85 PIVOT; MAIN MIRROR
(A) ID=19.1 		1-71737-633-2 02 1 9905-0301 ● ●
85 PIVOT; MAIN MIRROR
(A) ID=19.1 		1-71737-633-2 02 1 0302- ● ● ●
85 PIVOT; MAIN MIRROR
(B) ID=22.2 		1-71736-489-2 02 1 9905-0301 ● ●
85 PIVOT; MAIN MIRROR
(B) ID=22.2 		1-71736-489-2 02 1 0302- ● ● ●
86 COVER; STAY,OUTSIDE MIRROR
BLACK 		1-71737-760-0 01 1 9905-9906 ● ●
86 COVER; STAY,OUTSIDE MIRROR
BLACK 		1-71737-760-0 01 1 9905-9906 ● ●
86 COVER; STAY,OUTSIDE MIRROR
BLACK 		1-71737-760-1 02 1 9907-0301 ● ●
86 COVER; STAY,OUTSIDE MIRROR
BLACK 		1-71737-760-1 02 1 0302- ● ● ●
87 SPACER
(B) 		1-71737-704-0 01 1 9905-9906 ● ●
87 SPACER
(B) 		1-71737-704-0 01 1 9905-9906 ● ●
87 SPACER
(B) 		1-71737-704-0 02 1 9907-0301 ● ●
87 SPACER
(B) 		1-71737-704-0 02 1 0302- ● ● ●
87 SPACER
(A) 		1-71737-646-2 02 1 9905-0301 ● ●
87 SPACER
(A) 		1-71737-646-2 02 1 0302- ● ● ●
90 BRACKET; MIRROR STAY 1-71798-829-1 01 1 9905-0301 ● ●
90 BRACKET; MIRROR STAY 1-71798-829-1 01 1 0302- ● ● ●
90 BRACKET; MIRROR STAY 1-71798-828-1 01 1 9905-0301 ● ●
90 BRACKET; MIRROR STAY 1-71798-828-1 01 1 0302- ● ● ●
132 RING; MIRROR
(A) 		1-71737-934-0 01 1 9905-0301 ● ●
132 RING; MIRROR
(A) 		1-71737-934-0 01 1 0302- ● ● ●
132 RING; MIRROR
(B) 		1-71737-933-0 01 1 9905-0301 ● ●
132 RING; MIRROR
(B) 		1-71737-933-0 01 1 0302- ● ● ●
132 RING; MIRROR
(C) 		1-71737-935-0 01 1 9905-0301 ● ●
132 RING; MIRROR
(C) 		1-71737-935-0 01 1 0302- ● ● ●
133 LENS; MIRROR,OUTSIDE
(A) 		1-71737-927-0 01 1 9905-0301 ● ●
133 LENS; MIRROR,OUTSIDE
(A) 		1-71737-927-0 01 1 0302- ● ● ●
133 LENS; MIRROR,OUTSIDE
(B) 		1-71737-926-0 01 1 9905-0301 ● ●
133 LENS; MIRROR,OUTSIDE
(B) 		1-71737-926-0 01 1 0302- ● ● ●
134 CLIP; MIRROR LENS 1-71737-936-0 01 1 9905-9906 ● ●
134 CLIP; MIRROR LENS 1-71737-936-0 03 1 9907-0301 ● ●
134 CLIP; MIRROR LENS 1-71737-936-0 03 1 0302- ● ● ●
134 CLIP; MIRROR LENS 1-71737-936-0 02 1 9905-9906 ● ●
135 LENS; MIRROR,SIDE UNDER 1-71737-929-0 01 1 9905-0301 ● ●
135 LENS; MIRROR,SIDE UNDER 1-71737-929-0 01 1 0302- ● ● ●
164 STAY; ROOF
HIGH ROOF<S2F> 		1-71798-300-5 01 1 9905- ●
181 SEAL; BRKT
25X25 		8-94272-533-0 02 1 9905-0301 ● ●
181 SEAL; BRKT
25X25 		8-94272-533-0 02 1 0302- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
