Sayfa 2-20 - Isuzu EPC

2-20 — MANUAL TRANSMISSION ASM AND CASE (#79087) — 210 parça

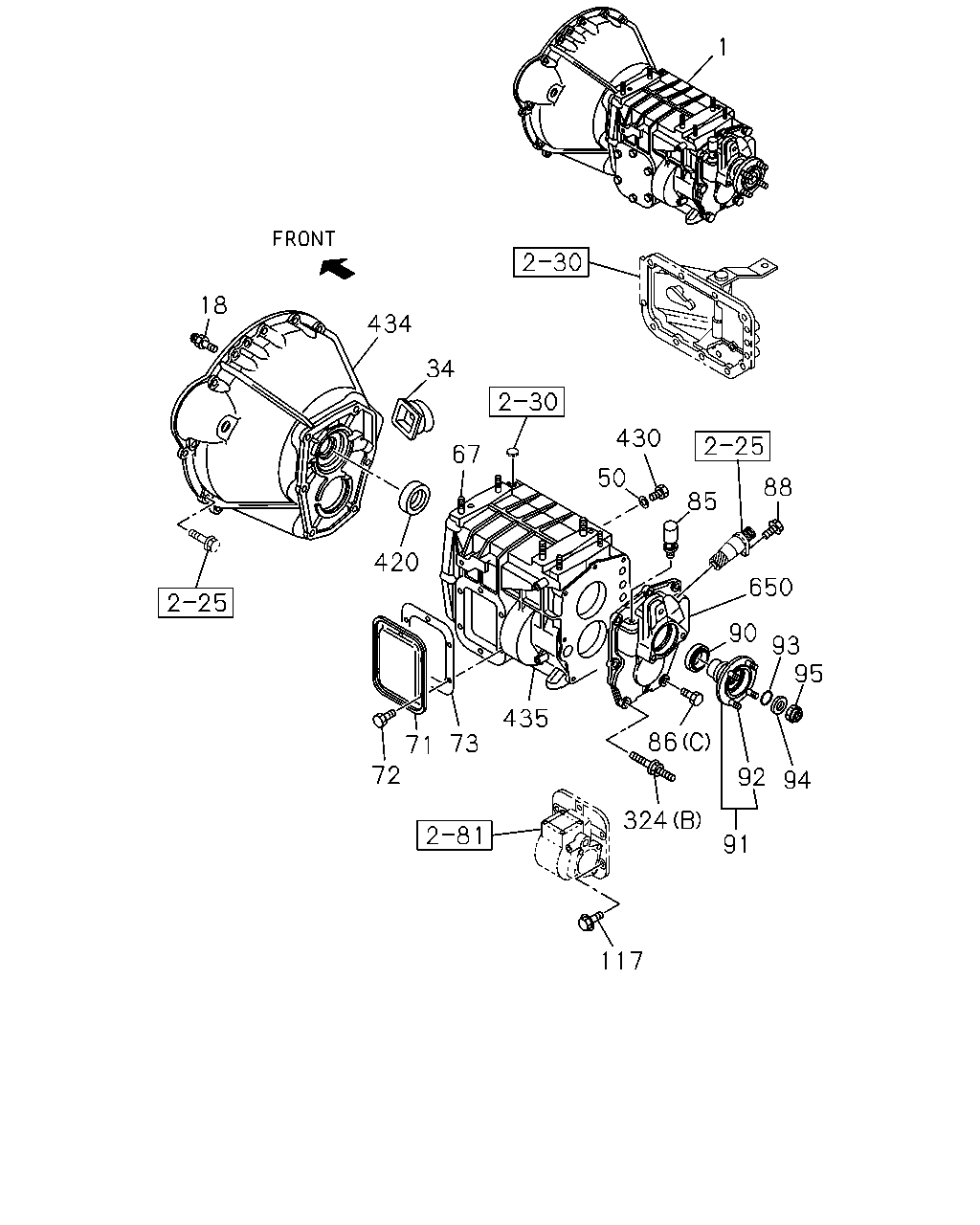

1 18 434 34 430 67 50 88 85 420 650 90 93 95 435 86 73 71 72 92 94 324 91 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98067-623-0	01	1	1012-1301	●
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98067-623-0	01	1	1302-	●
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO T/MSIDE DIRECT PUMP(8KZ)	8-98067-623-0	01	1	1012-1301	●
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC),PTO T/M SIDE DIRECT PU MP(8KZ)	8-98067-623-0	01	1	1302-	●
1	04.003 TRANSMISSION ASM; MANUAL 4HG1-T ENG(RDP),4HG1 ENG(RJH) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98067-718-0	01	1	1012-1106	●
1	04.003 TRANSMISSION ASM; MANUAL 4HG1-T ENG(RDP),4HG1 ENG(RJH) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-415-0	01	1	1107-1301	●
1	04.003 TRANSMISSION ASM; MANUAL 4HG1-T ENG(RDP),4HG1 ENG(RJH) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98187-415-0	01	1	1302-	●
1	04.003 TRANSMISSION ASM; MANUAL 4HG1-T ENG(RDP),4HG1 ENG(RJH) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO T/MSIDE DIRECT PUMP(8KZ)	8-98067-718-0	01	1	1012-1106	●
1	04.003 TRANSMISSION ASM; MANUAL 4HG1-T ENG(RDP),4HG1 ENG(RJH) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO T/MSIDE DIRECT PUMP(8KZ)	8-98187-415-0	01	1	1107-1301	●
1	04.003 TRANSMISSION ASM; MANUAL 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC),PTO T/M SIDE DIRECT PU MP(8KZ)	8-98187-415-0	01	1	1302-	●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-98119-555-0	01	1	1012-1210		●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-98203-874-0	01	1	1211-		●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8>	8-98119-556-0	01	1	1012-1210		●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8>	8-98203-875-0	01	1	1211-		●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-98119-551-0	01	1	1012-1210			●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-98203-870-0	01	1	1211-			●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8>	8-98119-552-0	01	1	1012-1210			●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8>	8-98203-871-0	01	1	1211-			●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1 ENG(RLF) EXHAUST BRAKE<NF8>	8-98119-553-0	01	1	1012-1210		●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1 ENG(RLF) EXHAUST BRAKE<NF8>	8-98203-872-0	01	1	1211-		●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8>	8-98119-554-0	01	1	1012-1210		●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8>	8-98203-873-0	01	1	1211-		●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1 ENG(RLF) EXHAUST BRAKE<NF8>	8-98119-549-0	01	1	1012-1210			●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1 ENG(RLF) EXHAUST BRAKE<NF8>	8-98203-868-0	01	1	1211-			●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8>	8-98119-550-0	01	1	1012-1210			●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8>	8-98203-869-0	01	1	1211-			●
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ)	8-98067-623-0	01	1	1012-1301	●
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ)	8-98067-623-0	01	1	1302-	●
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98067-656-0	01	1	1012-1301				●
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98067-656-0	01	1	1302-				●
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO T/MSIDE DIRECT PUMP(8KZ)	8-98067-656-0	01	1	1012-1301				●
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1-TCC ENG(RDU) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC),PTO T/M SIDE DIRECT PU MP(8KZ)	8-98067-656-0	01	1	1302-				●
1	04.003 TRANSMISSION ASM; MANUAL 4HG1 ENG(RJH) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ)	8-98067-718-0	01	1	1012-1106	●
1	04.003 TRANSMISSION ASM; MANUAL 4HG1 ENG(RJH) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ)	8-98187-415-0	01	1	1107-1301	●
1	04.003 TRANSMISSION ASM; MANUAL 4HG1 ENG(RJH) PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ)	8-98187-415-0	01	1	1302-	●
18	00.683 SUPPORT; DRAW LEVER L=47.5	8-97225-469-1	01	1	1012-1210		●	●
18	00.683 SUPPORT; DRAW LEVER L=47.5	8-98189-389-0	01	1	1211-		●	●
34	00.686 COVER; DUST,SHIFT FORK	8-97034-880-0	01	1	1012-1210		●	●
34	00.686 COVER; DUST,SHIFT FORK	8-98190-416-0	01	1	1211-		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1012-	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 04.422 ID=15.3	8-94336-511-0	01	1	1012-1210		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=15.5	8-98189-969-0	01	1	1211-		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1012-				●
67	04.105 STUD; CASE TRANS	9-09631-004-0	06	1	1012-1210		●	●
67	04.105 STUD; CASE TRANS	8-98189-390-0	06	1	1211-		●	●
71	04.439 COVER; SIDE,TRANS CASE EXC. PTO TRANSMISSION SIDE(V66),PTO T/MSIDE DIRECT PUMP(8KZ)	8-97252-625-0	01	1	1012-1301	●			●
71	04.439 COVER; SIDE,TRANS CASE EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC),PTO T/M SIDE DIRECT PUMP(8KZ)	8-97252-625-0	01	1	1302-	●			●
71	04.439 COVER; SIDE,TRANS CASE	9-33141-601-2	01	1	1012-1210		●	●
71	04.439 COVER; SIDE,TRANS CASE	8-98189-244-0	01	1	1211-		●	●
72	04.439 BOLT; SIDE COVER 04.105 M10X12 FLANGE	8-94128-791-0	06	1	1012-1210		●	●
72	04.439 BOLT; SIDE COVER 06.225 M10X12 FLANGE	0-28051-012-0	06	1	1211-		●	●
72	04.439 BOLT; SIDE COVER EXC. PTO TRANSMISSION SIDE(V66),PTO T/MSIDE DIRECT PUMP(8KZ) 00.206 M10X20 FLANGE	8-98014-142-0	06	1	1012-1301	●			●
72	04.439 BOLT; SIDE COVER EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC),PTO T/M SIDE DIRECT PUMP(8KZ) 00.206 M10X20 FLANGE	8-98014-142-0	06	1	1302-	●			●
73	04.109 GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	9-33142-601-0	01	1	1012-1210		●	●
73	04.109 GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-98189-272-0	01	1	1211-		●	●
85	04.104 BREATHER; RR COVER	8-97165-939-0	01	1	1012-1210		●	●
85	04.104 BREATHER; RR COVER	8-98189-454-0	01	1	1211-		●	●
86	04.317 BOLT; RR COVER 09.171 (A) M10X40 FLANGE	0-28151-040-0	09	1	1406-				●
86	04.317 BOLT; RR COVER 09.171 (A) M10X40 FLANGE	0-28151-040-0	10	1	1012-1405	●			●
86	04.317 BOLT; RR COVER 09.171 (A) M10X40 FLANGE	0-28151-040-0	10	1	1406-	●
86	04.317 BOLT; RR COVER 04.510 (B) M10X40 FLANGE	8-97365-377-0	02	1	1012-	●			●
86	04.317 BOLT; RR COVER 04.105 (C) M8X25	8-94128-786-0	04	1	1012-1210		●	●
86	04.317 BOLT; RR COVER 03.275 (C) M8X25 FLANGE	0-28050-825-0	04	1	1211-		●	●
88	04.338 SCREW; SPEEDOMETER BUSHING M8X12	8-94128-785-0	01	1	1012-1210		●	●
88	04.338 SCREW; SPEEDOMETER BUSHING 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1211-		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-552-1	01	1	1012-	●			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97257-296-0	01	1	1012-1210		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-98189-443-0	01	1	1211-		●	●
91	05.605 DRIVER; COUPLING	8-97207-215-0	01	1	1012-1210		●	●
91	05.605 DRIVER; COUPLING	8-98190-298-0	01	1	1211-		●	●
92	05.605 BOLT; COUPLING DRIVER M10X33	8-97109-696-1	04	1	1012-1210		●	●
92	05.605 BOLT; COUPLING DRIVER M10X33	8-98189-989-0	04	1	1211-		●	●
93	05.595 GASKET; COUPLING DRIVER ALSO INCLUDED IN GASKET SET(M/T).	8-94178-725-0	01	1	1012-1210		●	●
93	05.595 GASKET; COUPLING DRIVER ALSO INCLUDED IN GASKET SET(M/T).	8-98189-967-0	01	1	1211-		●	●
94	05.595 WASHER; COUPLING DRIVER	8-94249-240-0	01	1	1012-1210		●	●
94	05.595 WASHER; COUPLING DRIVER	8-98189-951-0	01	1	1211-		●	●
95	05.595 NUT; MAINSHAFT 04.162 M24 FLANGE	8-97087-750-0	01	1	1012-1210		●	●
95	05.595 NUT; MAINSHAFT M24 FLANGE	8-98189-932-0	01	1	1211-		●	●
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) 00.780 M10X30 FLANGE	0-28751-030-0	03	1	1012-1107	●			●
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) 00.780 M10X30 FLANGE	0-28751-030-0	02	1	1108-1301	●			●
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 00.780 M10X30 FLANGE	0-28751-030-0	02	1	1302-	●			●
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) 05.601 M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	1012-1301		●	●
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 05.601 M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	1302-		●	●
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) 17.208 M10X35 W/LK&PL WASHER	0-50641-035-0	02	1	1012-1301		●	●
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 17.208 M10X35 W/LK&PL WASHER	0-50641-035-0	02	1	1302-		●	●
117	04.439 BOLT; PTO FIX PTO T/M SIDE DIRECT PUMP(8KZ) 00.780 M10X30 FLANGE	0-28751-030-0	06	1	1012-1301	●
117	04.439 BOLT; PTO FIX PTO T/M SIDE DIRECT PUMP(8KZ) PTO MANUAL CONTROL(6WC) 00.780 M10X30 FLANGE	0-28751-030-0	06	1	1302-	●
324	04.319 STUD; RR COVER 04.510 (A) M10X15,M10X40 L=65	8-97365-379-0	02	1	1406-				●
324	04.319 STUD; RR COVER 04.510 (A) M10X15,M10X40 L=65	8-97365-379-0	01	1	1012-1405	●			●
324	04.319 STUD; RR COVER 04.510 (A) M10X15,M10X40 L=65	8-97365-379-0	01	1	1406-	●
324	04.319 STUD; RR COVER (B)	8-97320-356-0	03	1	1012-1210		●	●
324	04.319 STUD; RR COVER (B)	8-98189-391-0	03	1	1211-		●	●
420	04.354 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-94326-441-0	01	1	1012-1210		●	●
420	04.354 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-98189-424-0	01	1	1211-		●	●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	1012-	●
430	04.105 PLUG; OIL DRAIN	8-94336-512-1	01	1	1012-1210		●	●
430	04.105 PLUG; OIL DRAIN	8-98190-430-0	01	1	1211-		●	●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	02	1	1012-				●
434	00.683 HOUSING; CLU	8-97237-099-5	01	1	1012-	●			●
434	00.683 HOUSING; CLU 4JB1-TC ENG(RDT)	8-97204-108-0	01	1	1012-		●	●
434	00.683 HOUSING; CLU 4JB1 ENG(RLF)	8-97174-084-0	01	1	1012-		●	●
435	04.103 CASE; TRANS	8-97379-375-0	01	1	1012-	●
435	04.103 CASE; TRANS	8-97373-564-0	01	1	1012-		●	●
435	04.103 CASE; TRANS	8-97379-374-0	01	1	1012-				●
650	04.317 COVER; RR	8-97174-087-0	01	1	1012-		●	●

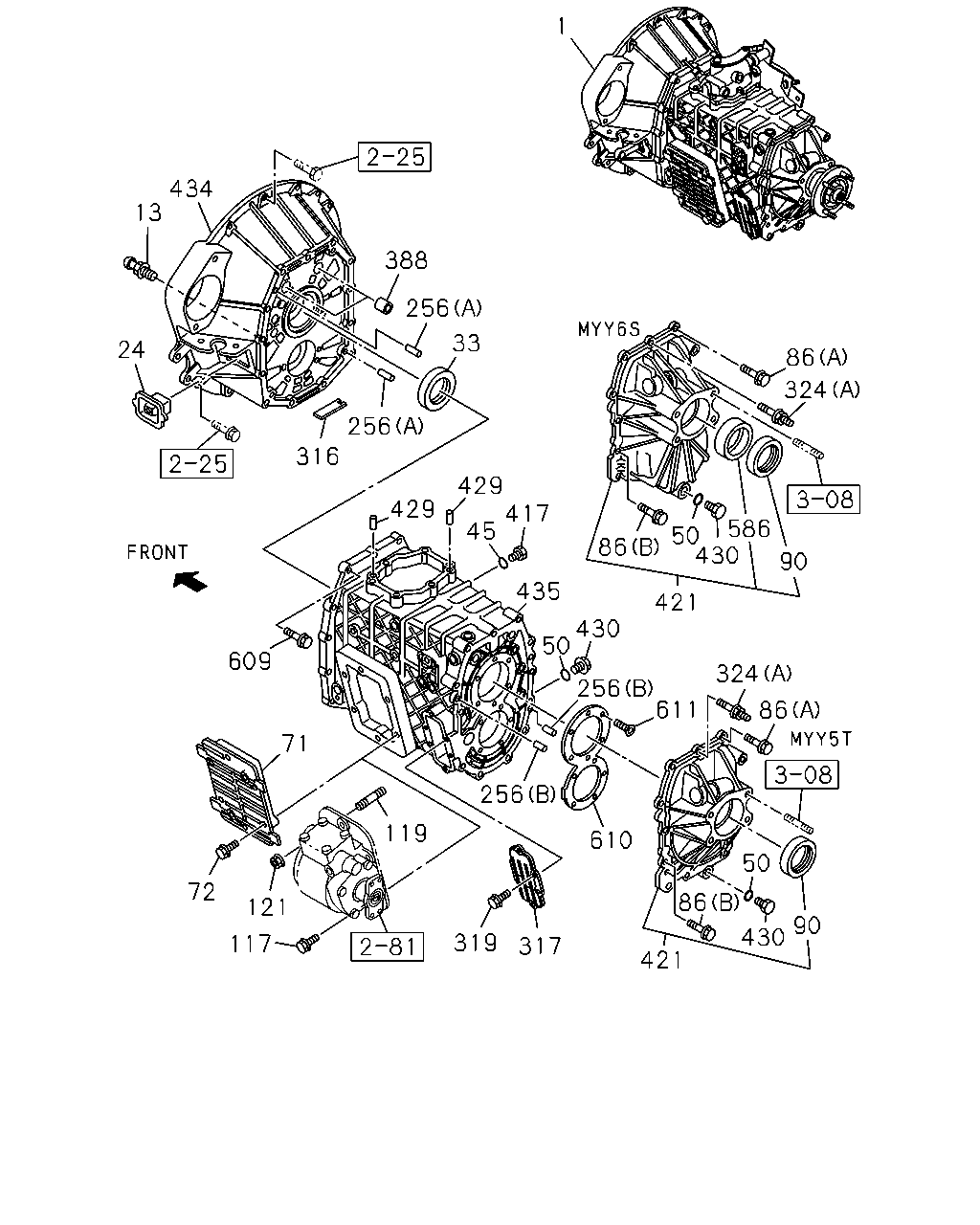

1 434 13 388 256 33 24 86 324 256 316 429 417 45 429 586 50 430 86 90 435 421 430 50 609 324 256 611 256 86 71 119 610 50 86 72 121 90 430 319 117 317 421

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98067-623-0	01	1	1012-1301	●
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98067-623-0	01	1	1302-	●
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO T/MSIDE DIRECT PUMP(8KZ)	8-98067-623-0	01	1	1012-1301	●
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC),PTO T/M SIDE DIRECT PU MP(8KZ)	8-98067-623-0	01	1	1302-	●
1	04.003 TRANSMISSION ASM; MANUAL 4HG1-T ENG(RDP),4HG1 ENG(RJH) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98067-718-0	01	1	1012-1106	●
1	04.003 TRANSMISSION ASM; MANUAL 4HG1-T ENG(RDP),4HG1 ENG(RJH) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-415-0	01	1	1107-1301	●
1	04.003 TRANSMISSION ASM; MANUAL 4HG1-T ENG(RDP),4HG1 ENG(RJH) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98187-415-0	01	1	1302-	●
1	04.003 TRANSMISSION ASM; MANUAL 4HG1-T ENG(RDP),4HG1 ENG(RJH) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO T/MSIDE DIRECT PUMP(8KZ)	8-98067-718-0	01	1	1012-1106	●
1	04.003 TRANSMISSION ASM; MANUAL 4HG1-T ENG(RDP),4HG1 ENG(RJH) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO T/MSIDE DIRECT PUMP(8KZ)	8-98187-415-0	01	1	1107-1301	●
1	04.003 TRANSMISSION ASM; MANUAL 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC),PTO T/M SIDE DIRECT PU MP(8KZ)	8-98187-415-0	01	1	1302-	●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-98119-555-0	01	1	1012-1210		●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-98203-874-0	01	1	1211-		●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8>	8-98119-556-0	01	1	1012-1210		●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8>	8-98203-875-0	01	1	1211-		●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-98119-551-0	01	1	1012-1210			●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-98203-870-0	01	1	1211-			●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8>	8-98119-552-0	01	1	1012-1210			●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8>	8-98203-871-0	01	1	1211-			●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1 ENG(RLF) EXHAUST BRAKE<NF8>	8-98119-553-0	01	1	1012-1210		●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1 ENG(RLF) EXHAUST BRAKE<NF8>	8-98203-872-0	01	1	1211-		●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8>	8-98119-554-0	01	1	1012-1210		●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8>	8-98203-873-0	01	1	1211-		●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1 ENG(RLF) EXHAUST BRAKE<NF8>	8-98119-549-0	01	1	1012-1210			●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1 ENG(RLF) EXHAUST BRAKE<NF8>	8-98203-868-0	01	1	1211-			●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8>	8-98119-550-0	01	1	1012-1210			●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8>	8-98203-869-0	01	1	1211-			●
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ)	8-98067-623-0	01	1	1012-1301	●
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ)	8-98067-623-0	01	1	1302-	●
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98067-656-0	01	1	1012-1301				●
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98067-656-0	01	1	1302-				●
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO T/MSIDE DIRECT PUMP(8KZ)	8-98067-656-0	01	1	1012-1301				●
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1-TCC ENG(RDU) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC),PTO T/M SIDE DIRECT PU MP(8KZ)	8-98067-656-0	01	1	1302-				●
1	04.003 TRANSMISSION ASM; MANUAL 4HG1 ENG(RJH) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ)	8-98067-718-0	01	1	1012-1106	●
1	04.003 TRANSMISSION ASM; MANUAL 4HG1 ENG(RJH) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ)	8-98187-415-0	01	1	1107-1301	●
1	04.003 TRANSMISSION ASM; MANUAL 4HG1 ENG(RJH) PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ)	8-98187-415-0	01	1	1302-	●
13	04.302 SUPPORT; SHIFT FORK	8-97255-384-1	01	1	1012-	●			●
24	00.797 COVER; CHECK HOLE,DUST	8-97255-201-0	01	1	1012-	●			●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	1012-	●			●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1012-	●			●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1012-	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 04.422 ID=15.3	8-94336-511-0	01	1	1012-1210		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=15.5	8-98189-969-0	01	1	1211-		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1012-				●
71	04.439 COVER; SIDE,TRANS CASE EXC. PTO TRANSMISSION SIDE(V66),PTO T/MSIDE DIRECT PUMP(8KZ)	8-97252-625-0	01	1	1012-1301	●			●
71	04.439 COVER; SIDE,TRANS CASE EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC),PTO T/M SIDE DIRECT PUMP(8KZ)	8-97252-625-0	01	1	1302-	●			●
71	04.439 COVER; SIDE,TRANS CASE	9-33141-601-2	01	1	1012-1210		●	●
71	04.439 COVER; SIDE,TRANS CASE	8-98189-244-0	01	1	1211-		●	●
72	04.439 BOLT; SIDE COVER 04.105 M10X12 FLANGE	8-94128-791-0	06	1	1012-1210		●	●
72	04.439 BOLT; SIDE COVER 06.225 M10X12 FLANGE	0-28051-012-0	06	1	1211-		●	●
72	04.439 BOLT; SIDE COVER EXC. PTO TRANSMISSION SIDE(V66),PTO T/MSIDE DIRECT PUMP(8KZ) 00.206 M10X20 FLANGE	8-98014-142-0	06	1	1012-1301	●			●
72	04.439 BOLT; SIDE COVER EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC),PTO T/M SIDE DIRECT PUMP(8KZ) 00.206 M10X20 FLANGE	8-98014-142-0	06	1	1302-	●			●
86	04.317 BOLT; RR COVER 09.171 (A) M10X40 FLANGE	0-28151-040-0	09	1	1406-				●
86	04.317 BOLT; RR COVER 09.171 (A) M10X40 FLANGE	0-28151-040-0	10	1	1012-1405	●			●
86	04.317 BOLT; RR COVER 09.171 (A) M10X40 FLANGE	0-28151-040-0	10	1	1406-	●
86	04.317 BOLT; RR COVER 04.510 (B) M10X40 FLANGE	8-97365-377-0	02	1	1012-	●			●
86	04.317 BOLT; RR COVER 04.105 (C) M8X25	8-94128-786-0	04	1	1012-1210		●	●
86	04.317 BOLT; RR COVER 03.275 (C) M8X25 FLANGE	0-28050-825-0	04	1	1211-		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-552-1	01	1	1012-	●			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97257-296-0	01	1	1012-1210		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-98189-443-0	01	1	1211-		●	●
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) 00.780 M10X30 FLANGE	0-28751-030-0	03	1	1012-1107	●			●
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) 00.780 M10X30 FLANGE	0-28751-030-0	02	1	1108-1301	●			●
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 00.780 M10X30 FLANGE	0-28751-030-0	02	1	1302-	●			●
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) 05.601 M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	1012-1301		●	●
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 05.601 M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	1302-		●	●
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) 17.208 M10X35 W/LK&PL WASHER	0-50641-035-0	02	1	1012-1301		●	●
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 17.208 M10X35 W/LK&PL WASHER	0-50641-035-0	02	1	1302-		●	●
117	04.439 BOLT; PTO FIX PTO T/M SIDE DIRECT PUMP(8KZ) 00.780 M10X30 FLANGE	0-28751-030-0	06	1	1012-1301	●
117	04.439 BOLT; PTO FIX PTO T/M SIDE DIRECT PUMP(8KZ) PTO MANUAL CONTROL(6WC) 00.780 M10X30 FLANGE	0-28751-030-0	06	1	1302-	●
119	04.439 STUD; PTO FIX PTO TRANSMISSION SIDE(V66) 03.403 M10X30 L=45	0-44011-030-0	02	1	1108-1301	●			●
119	04.439 STUD; PTO FIX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 03.403 M10X30 L=45	0-44011-030-0	02	1	1302-	●			●
119	04.439 STUD; PTO FIX PTO TRANSMISSION SIDE(V66) 03.342 M10X25 L=40	0-44011-025-0	03	1	1012-1107	●			●
119	04.439 STUD; PTO FIX PTO TRANSMISSION SIDE(V66) 03.342 M10X25 L=40	0-44011-025-0	02	1	1108-1301	●			●
119	04.439 STUD; PTO FIX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 03.342 M10X25 L=40	0-44011-025-0	02	1	1302-	●			●
121	04.439 NUT; PTO FIX PTO TRANSMISSION SIDE(V66) 04.085 M10 FLANGE	0-91180-210-0	04	1	1012-1301	●			●
121	04.439 NUT; PTO FIX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 04.085 M10 FLANGE	0-91180-210-0	04	1	1302-	●			●
256	04.317 PIN; KNOCK 04.510 (A) OD=10 L=20	8-97135-423-0	02	1	1012-	●			●
256	04.317 PIN; KNOCK 00.862 (B) ID=6 L=12	9-08160-612-0	02	1	1012-	●			●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	1012-	●			●
317	04.109 COVER; CASE	8-97252-626-0	01	1	1012-	●			●
319	04.109 BOLT; COVER 04.338 M8X20 FLANGE	0-28050-820-0	06	1	1012-	●			●
324	04.319 STUD; RR COVER 04.510 (A) M10X15,M10X40 L=65	8-97365-379-0	02	1	1406-				●
324	04.319 STUD; RR COVER 04.510 (A) M10X15,M10X40 L=65	8-97365-379-0	01	1	1012-1405	●			●
324	04.319 STUD; RR COVER 04.510 (A) M10X15,M10X40 L=65	8-97365-379-0	01	1	1406-	●
324	04.319 STUD; RR COVER (B)	8-97320-356-0	03	1	1012-1210		●	●
324	04.319 STUD; RR COVER (B)	8-98189-391-0	03	1	1211-		●	●
388	00.683 BUSHING; CLU HSG	8-97241-326-2	02	1	1012-	●			●
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1012-	●			●
421	04.317 COVER; RR,TRANS	8-98020-029-0	01	1	1012-	●
421	04.317 COVER; RR,TRANS	8-98020-028-0	01	1	1012-				●
429	04.105 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	02	1	1012-	●			●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	1012-	●
430	04.105 PLUG; OIL DRAIN	8-94336-512-1	01	1	1012-1210		●	●
430	04.105 PLUG; OIL DRAIN	8-98190-430-0	01	1	1211-		●	●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	02	1	1012-				●
434	00.683 HOUSING; CLU	8-97237-099-5	01	1	1012-	●			●
434	00.683 HOUSING; CLU 4JB1-TC ENG(RDT)	8-97204-108-0	01	1	1012-		●	●
434	00.683 HOUSING; CLU 4JB1 ENG(RLF)	8-97174-084-0	01	1	1012-		●	●
435	04.103 CASE; TRANS	8-97379-375-0	01	1	1012-	●
435	04.103 CASE; TRANS	8-97373-564-0	01	1	1012-		●	●
435	04.103 CASE; TRANS	8-97379-374-0	01	1	1012-				●
586	00.683 BEARING; NEEDLE	8-97253-109-0	01	1	1012-				●
609	04.104 BOLT; HSG TO CASE 09.171 M10X40 FLANGE	0-28151-040-0	13	1	1012-	●			●
610	04.412 RETAINER; BRG	8-97241-315-1	01	1	1012-	●			●
611	04.104 SCREW M10X27 TORQUES	8-97365-354-0	11	1	1012-	●			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
