◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51282 - NLR/NMR 55,85(LHD) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05 - CLUTCH PIPING ▶
2-05 — CLUTCH PIPING (#79082) — 86 parça

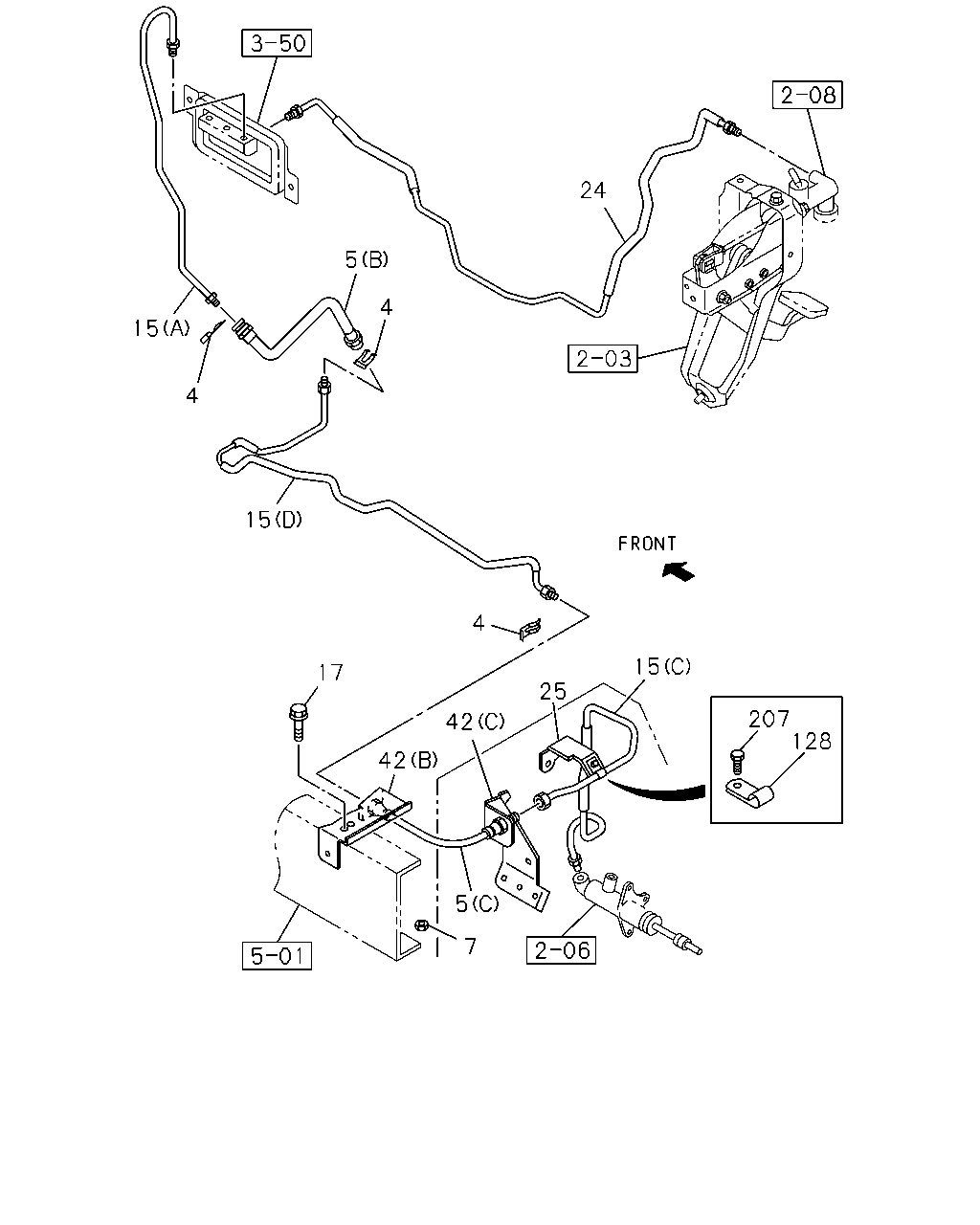

çizim 102394
24 5 4 15 4 15 4 15 17 25 207 128 42 42 5 7
BalonParca AdiParca NoAdetTipApplied Date A B C D
4 00.785 CLIP; FLEX HOSE,CLU CONT
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.681 		8-97365-304-0 01 1 1012- ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4JB1-TC ENG(RDT),4JB1 ENG(RLF) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.681 		8-97365-304-0 01 1 1012- ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
04.681 		8-97365-304-0 02 1 1012- ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) CLUTCH SYSTEM AUTO ADJUSTER<8BG> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98098-575-1 01 1 1012- ●
5 00.785 HOSE; FLEX,CLU PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-98077-611-2 01 1 1012- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (D) 		8-97168-853-0 01 1 1012- ●
5 00.785 HOSE; FLEX,CLU PIPE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (C) 		8-94374-552-1 01 1 1012- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98083-907-0 01 1 1012- ● ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4HG1-T ENG(RDP), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1012- ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4JB1-TC ENG(RDT),4JB1 ENG(RLF) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98180-401-0 01 1 1012- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98051-538-0 01 1 1012- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4HG1-T ENG(RDP),4HG1 ENG(RJH) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98100-031-2 01 1 1012- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98066-115-1 01 1 1012- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-98047-211-1 01 1 1012- ● ● ● ●
17 00.785 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HG1-T ENG(RDP), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1012- ● ●
17 00.785 BOLT; BRKT
4JB1-TC ENG(RDT),4JB1 ENG(RLF) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) 		8-98099-806-2 01 1 1012-1504 ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) 		8-98250-075-0 01 1 1505- ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T) 		8-98097-187-1 01 1 1012-1504 ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T) 		8-98250-071-0 01 1 1505- ● ● ● ●
25 00.785 BRACKET; OIL PIPE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97013-211-1 01 1 1012- ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98041-335-1 01 1 1012- ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4HG1-T ENG(RDP),4HG1 ENG(RJH) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98094-498-0 01 1 1012- ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4JB1-TC ENG(RDT),4JB1 ENG(RLF) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98101-027-0 01 1 1012- ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4JB1-TC ENG(RDT),4JB1 ENG(RLF) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98167-235-0 01 1 1012- ● ●
128 00.785 CLIP; AIR PIPE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=7 L=16 		0-95234-622-0 02 1 1012- ● ●
207 00.785 BOLT; CLIP
4JB1-TC ENG(RDT),4JB1 ENG(RLF) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M6X12 FLANGE 		0-28050-612-0 02 1 1012- ● ●

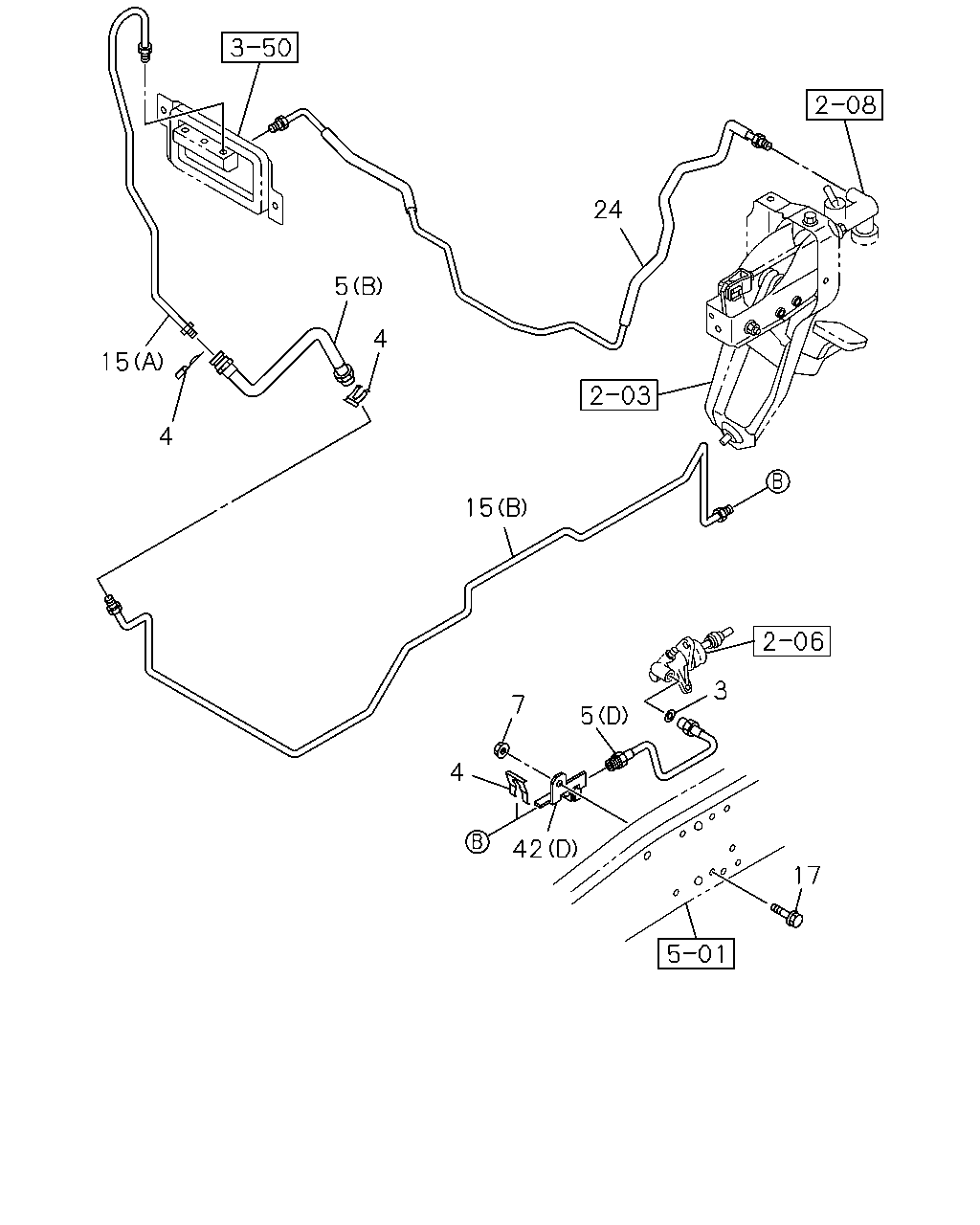

çizim 102459
24 5 4 15 4 15 3 7 5 4 42 17
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 00.785 GASKET; FLEX HOSE,CLU
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1012- ● ●
3 00.785 GASKET; FLEX HOSE,CLU
4HG1-T ENG(RDP),4HG1 ENG(RJH) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		9-09920-873-1 01 1 1012- ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.681 		8-97365-304-0 01 1 1012- ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4JB1-TC ENG(RDT),4JB1 ENG(RLF) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.681 		8-97365-304-0 01 1 1012- ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
04.681 		8-97365-304-0 02 1 1012- ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) CLUTCH SYSTEM AUTO ADJUSTER<8BG> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98098-575-1 01 1 1012- ●
5 00.785 HOSE; FLEX,CLU PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-98077-611-2 01 1 1012- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (D) 		8-97168-853-0 01 1 1012- ●
5 00.785 HOSE; FLEX,CLU PIPE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (C) 		8-94374-552-1 01 1 1012- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98083-907-0 01 1 1012- ● ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4HG1-T ENG(RDP), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1012- ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4JB1-TC ENG(RDT),4JB1 ENG(RLF) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98180-401-0 01 1 1012- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98051-538-0 01 1 1012- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4HG1-T ENG(RDP),4HG1 ENG(RJH) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98100-031-2 01 1 1012- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98066-115-1 01 1 1012- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-98047-211-1 01 1 1012- ● ● ● ●
17 00.785 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HG1-T ENG(RDP), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1012- ● ●
17 00.785 BOLT; BRKT
4JB1-TC ENG(RDT),4JB1 ENG(RLF) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) 		8-98099-806-2 01 1 1012-1504 ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) 		8-98250-075-0 01 1 1505- ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T) 		8-98097-187-1 01 1 1012-1504 ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T) 		8-98250-071-0 01 1 1505- ● ● ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98041-335-1 01 1 1012- ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4HG1-T ENG(RDP),4HG1 ENG(RJH) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98094-498-0 01 1 1012- ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4JB1-TC ENG(RDT),4JB1 ENG(RLF) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98101-027-0 01 1 1012- ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4JB1-TC ENG(RDT),4JB1 ENG(RLF) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98167-235-0 01 1 1012- ● ●

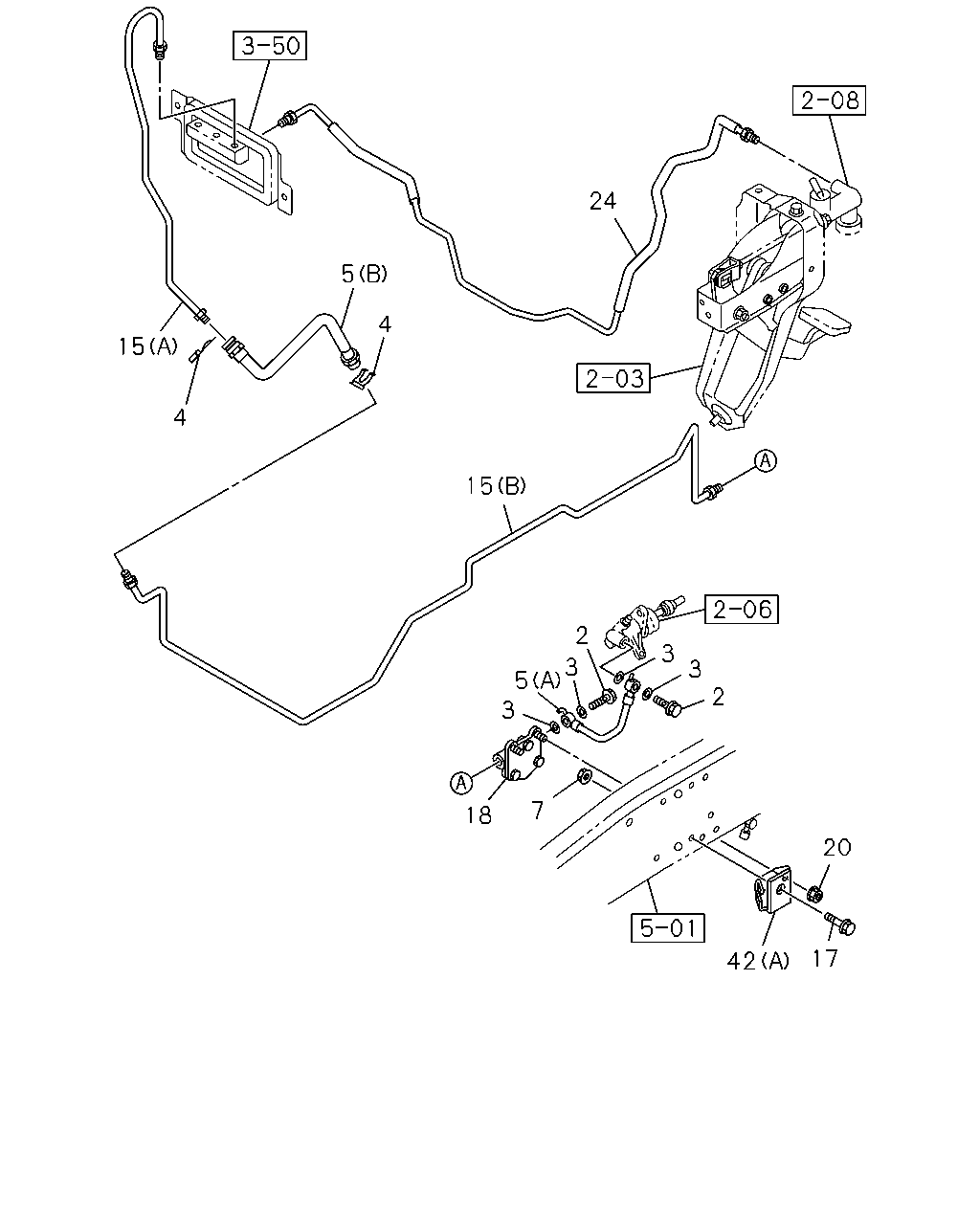

çizim 102498
24 5 4 15 4 15 2 3 3 3 2 5 3 7 18 20 17 42
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 00.782 BOLT; EYE,SLAVE CYL
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.681 M10X22 		8-98014-005-0 02 1 1012- ● ●
3 00.785 GASKET; FLEX HOSE,CLU
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1012- ● ●
3 00.785 GASKET; FLEX HOSE,CLU
4HG1-T ENG(RDP),4HG1 ENG(RJH) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		9-09920-873-1 01 1 1012- ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4JB1 ENG(RLF) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.681 		8-97365-304-0 01 1 1012- ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
4JB1-TC ENG(RDT),4JB1 ENG(RLF) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.681 		8-97365-304-0 01 1 1012- ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
04.681 		8-97365-304-0 02 1 1012- ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) CLUTCH SYSTEM AUTO ADJUSTER<8BG> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98098-575-1 01 1 1012- ●
5 00.785 HOSE; FLEX,CLU PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (A) 		8-98077-611-2 01 1 1012- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HG1-T ENG(RDP),4HG1 ENG(RJH) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (D) 		8-97168-853-0 01 1 1012- ●
5 00.785 HOSE; FLEX,CLU PIPE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CLUTCH SYSTEM AUTO ADJUSTER<8BG> (C) 		8-94374-552-1 01 1 1012- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98083-907-0 01 1 1012- ● ● ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4HG1-T ENG(RDP), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1012- ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4JB1-TC ENG(RDT),4JB1 ENG(RLF) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98180-401-0 01 1 1012- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98051-538-0 01 1 1012- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4HG1-T ENG(RDP),4HG1 ENG(RJH) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98100-031-2 01 1 1012- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
4JB1-TC ENG(RDT),4JB1 ENG(RLF) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98066-115-1 01 1 1012- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-98047-211-1 01 1 1012- ● ● ● ●
17 00.785 BOLT; BRKT
4JJ1-TCS ENG(LFB),4HG1-T ENG(RDP), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1012- ● ●
17 00.785 BOLT; BRKT
4JB1-TC ENG(RDT),4JB1 ENG(RLF) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
18 00.830 DAMPER ASM; CLU OIL
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98077-610-1 01 1 1012- ● ●
20 00.837 NUT; CLU OIL DAMPER
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) 		8-98099-806-2 01 1 1012-1504 ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) 		8-98250-075-0 01 1 1505- ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T) 		8-98097-187-1 01 1 1012-1504 ● ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T) 		8-98250-071-0 01 1 1505- ● ● ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98041-335-1 01 1 1012- ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4HG1-T ENG(RDP),4HG1 ENG(RJH) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98094-498-0 01 1 1012- ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4JB1-TC ENG(RDT),4JB1 ENG(RLF) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98101-027-0 01 1 1012- ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
4JB1-TC ENG(RDT),4JB1 ENG(RLF) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98167-235-0 01 1 1012- ● ●
çizim 190775
183
BalonParca AdiParca NoAdetTipApplied Date A B C D
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) 		8-98047-185-0 01 1 1012- ● ● ● ●
