◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10808 - FRR-G/FSR/FTR TAIWAN ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#7908) — 17 parça

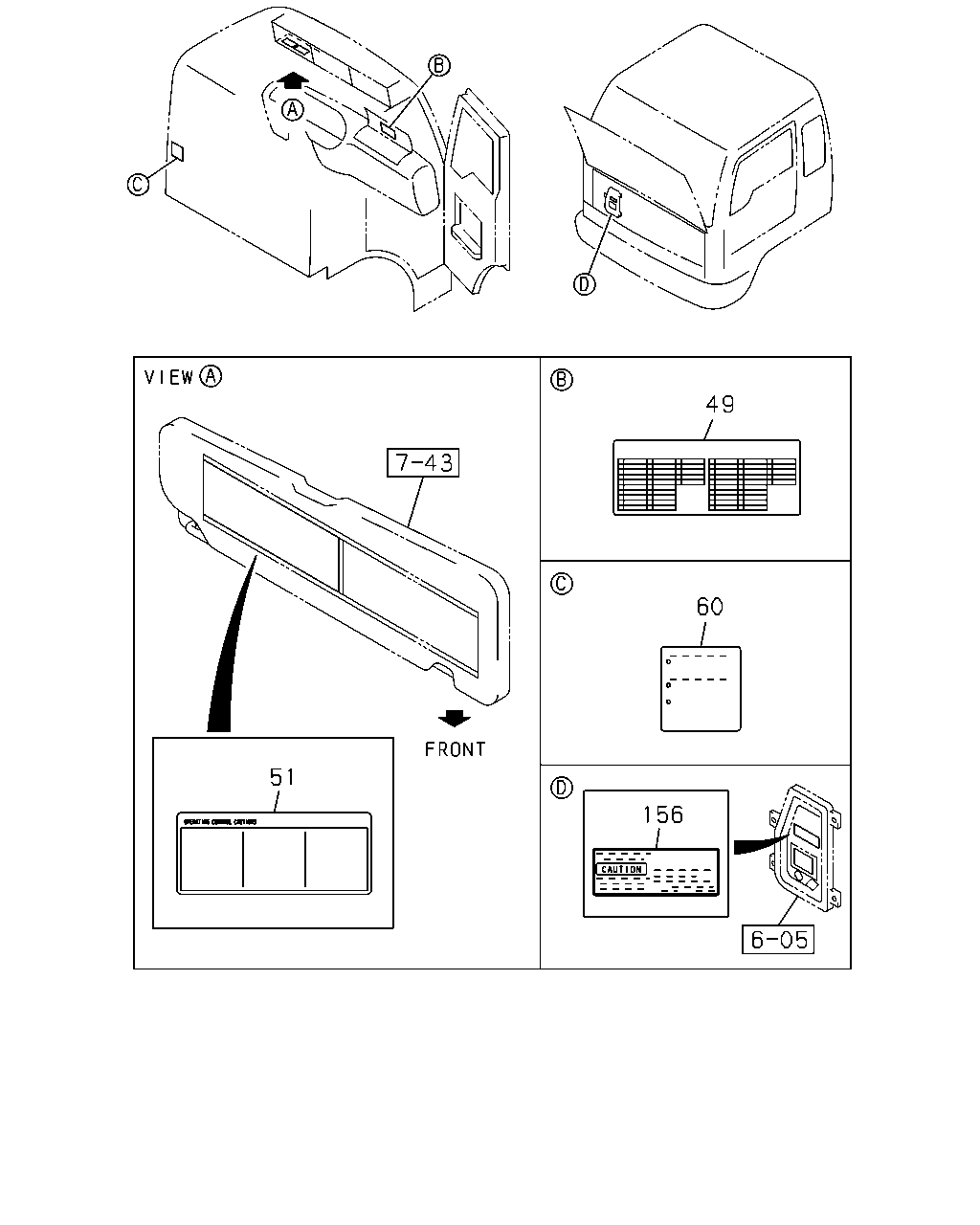

çizim 26998
49 60 51 156
BalonParca AdiParca NoAdetTipApplied Date A B C
49 PLATE; CAUTION,FUSE BOX 1-85878-093-0 01 1 9905-0003 ● ●
49 PLATE; CAUTION,FUSE BOX 1-85878-093-0 01 1 0004-0109 ●
49 PLATE; CAUTION,FUSE BOX
EXC. POWER WINDOW<A30> 		1-85878-093-0 01 1 0004-0109 ●
49 PLATE; CAUTION,FUSE BOX
POWER WINDOW<A30> 		1-85878-292-0 01 1 0004-0109 ●
49 PLATE; CAUTION,FUSE BOX 1-85878-292-0 01 1 0110-0301 ● ●
49 PLATE; CAUTION,FUSE BOX 1-85878-292-0 01 1 0302- ● ● ●
51 PLATE; CAUTION,WARNING 1-85880-707-1 01 1 9905-0301 ● ●
51 PLATE; CAUTION,WARNING 1-85880-707-1 01 1 0302- ● ● ●
60 PLATE; CAUTION,CAB TILT 1-85883-169-0 01 1 9905-0301 ● ●
60 PLATE; CAUTION,CAB TILT 1-85883-169-0 01 1 0302- ● ● ●
156 PLATE; CAUTION,A/C 8-97065-990-0 01 1 9905- ● ●
çizim 99421
4
BalonParca AdiParca NoAdetTipApplied Date A B C
4 LABEL; ENG MAINTENANCE 8-94391-524-0 01 1 9905-0301 ● ●
4 LABEL; ENG MAINTENANCE 8-94391-524-0 01 1 0302- ● ● ●

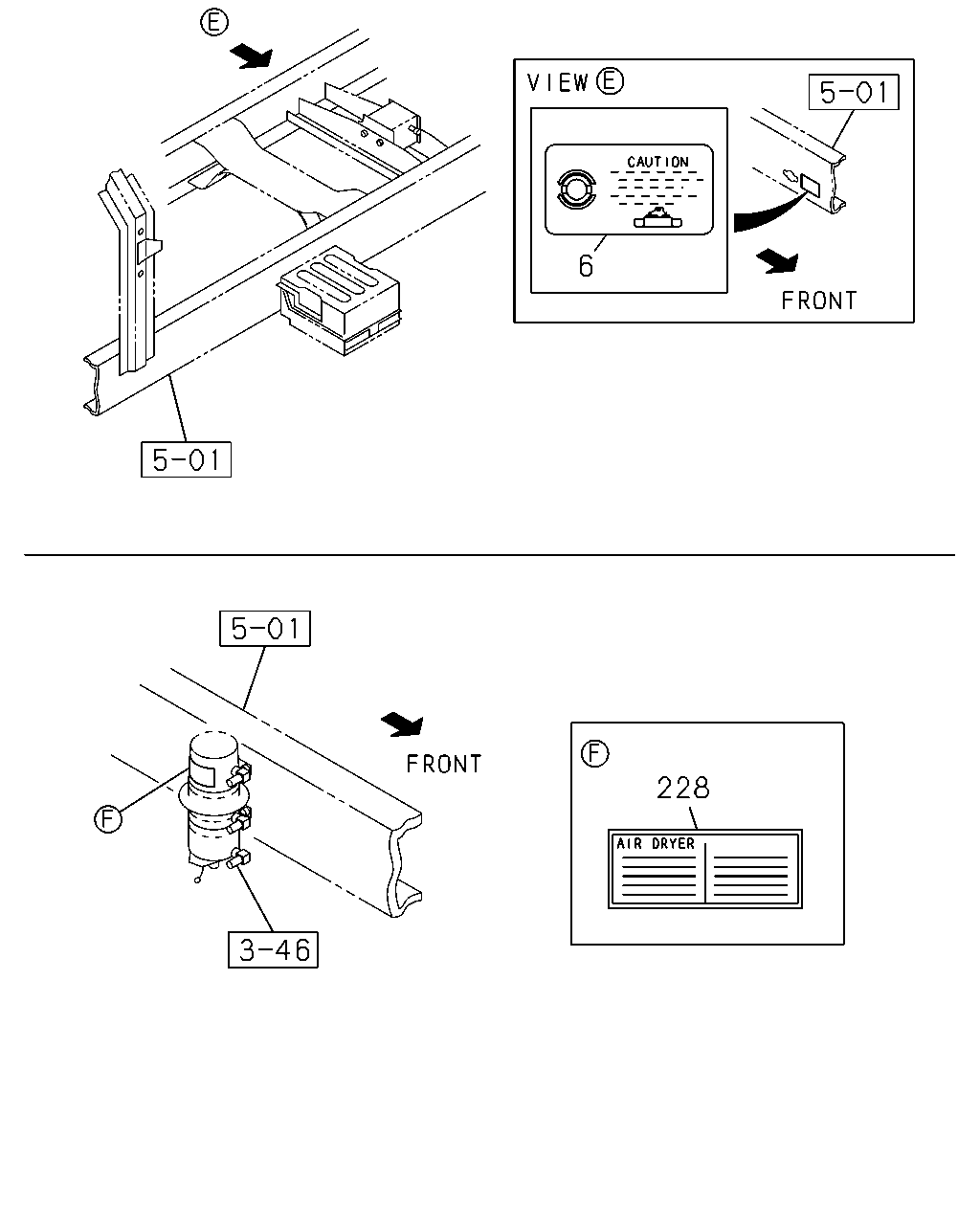

çizim 99479
6 228
BalonParca AdiParca NoAdetTipApplied Date A B C
6 PLATE; CAUTION,SPARE TIRE 1-53639-004-0 01 1 9905-0301 ● ●
6 PLATE; CAUTION,SPARE TIRE 1-53639-004-0 01 1 0302- ● ● ●
228 PLATE; CAUTION,AIR DRYER 1-48199-325-0 01 1 9905-0301 ● ●
228 PLATE; CAUTION,AIR DRYER 1-48199-325-0 01 1 0302- ● ● ●
