Sayfa 1-56 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51282 - NLR/NMR 55,85(LHD) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-56 - EXHAUST BRAKE SYSTEM ▶

1-56 — EXHAUST BRAKE SYSTEM (#79079) — 109 parça

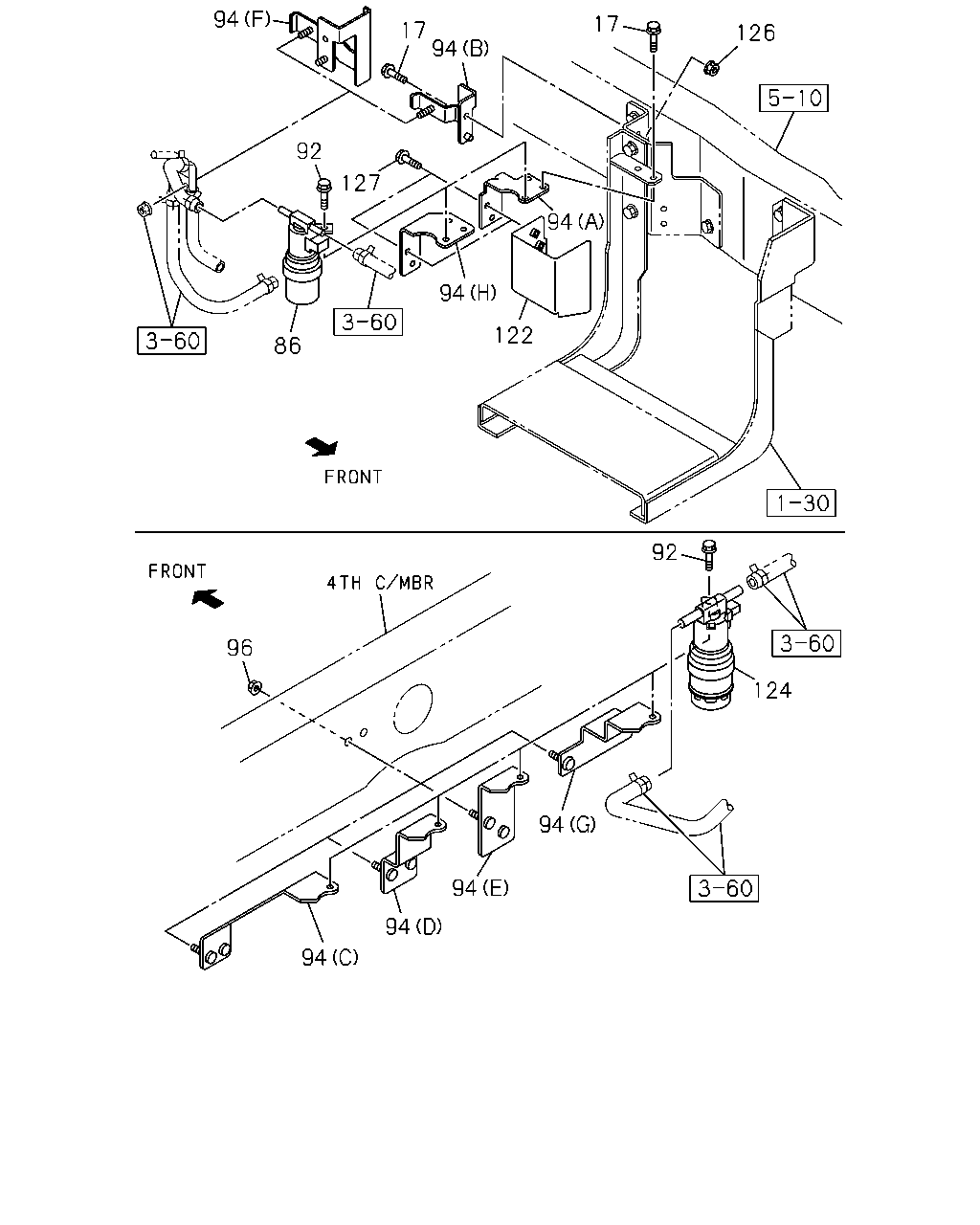

94 17 17 94 126 92 127 94 94 122 86 92 96 124 94 94 94 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
17	03.634 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JB1-TC ENG(RDT), 4JJ1-TCC ENG(RDU),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1012-	●
17	03.634 BOLT; BRKT 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1012-		●
17	03.634 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-	●
17	03.634 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-	●
17	03.634 BOLT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-		●
17	03.634 BOLT; BRKT 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-		●
17	03.634 BOLT; BRKT 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-		●
86	03.636 VALVE; MAG,EXH BRK EXHAUST BRAKE<NF8> VOLTAGE 12V<TRQ>	8-97328-577-0	01	1	1012-	●	●
86	03.636 VALVE; MAG,EXH BRK EXHAUST BRAKE<NF8> EXC. VOLTAGE 12V<TRQ>	8-98043-344-0	01	1	1012-	●	●
86	03.636 VALVE; MAG,EXH BRK	8-98043-344-0	01	1	1012-			●	●
92	08.900 BOLT; MAG VLV EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-	●	●
92	08.900 BOLT; MAG VLV CATALYSIS CONTROL WITH DPD(8JM) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-	●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-			●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98039-762-1	01	1	1012-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98039-761-2	01	1	1012-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) CATALYSIS CONTROL WITH DPD(8JM) (G)	8-98064-722-0	01	1	1012-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4HG1-T ENG(RDP) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> (G)	8-98064-722-0	01	1	1012-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD(8JM) (E)	8-98039-764-1	01	1	1012-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> (E)	8-98039-764-1	01	1	1012-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB),4JB1-TC ENG(RDT), 4JJ1-TCC ENG(RDU),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> (A)	8-98042-145-2	01	1	1012-1206	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> (A)	8-98042-145-2	01	1	1012-1206		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB),4JB1-TC ENG(RDT), 4JJ1-TCC ENG(RDU),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> (H)	8-98211-757-1	01	1	1207-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> (H)	8-98211-757-1	01	1	1207-		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> (B)	8-98042-694-2	01	1	1012-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-694-2	01	1	1012-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (B)	8-98042-694-2	01	1	1012-		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0), FRAME-KICK UP<7EW> (B)	8-98042-694-2	01	1	1012-		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (B)	8-98042-694-2	01	1	1012-		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> EXC. POOR QUALITY DIESEL FUEL(KF0) (F)	8-98094-951-0	01	1	1012-		●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●
122	03.640 PROTECTOR; MAG VLV 4JJ1-TCS ENG(LFB),4JB1-TC ENG(RDT), 4JJ1-TCC ENG(RDU),4JB1 ENG(RLF) EXHAUST BRAKE<NF8>	8-98098-564-0	01	1	1012-	●
122	03.640 PROTECTOR; MAG VLV 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4JB1 ENG(RLF) EXHAUST BRAKE<NF8>	8-98098-564-0	01	1	1012-		●
124	03.636 VALVE; MAG,DPD EXH THROTTLE CATALYSIS CONTROL WITH DPD(8JM) EXC. VOLTAGE 12V<TRQ>	8-98043-344-0	01	1	1012-	●
126	03.634 NUT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●
126	03.634 NUT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●
126	03.634 NUT; BRKT 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) EXHAUST BRAKE<NF8> 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-		●
126	03.634 NUT; BRKT 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. POOR QUALITY DIESEL FUEL(KF0) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-		●
126	03.634 NUT; BRKT 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-		●
126	03.634 NUT; BRKT 4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●
127	04.902 BOLT; PROTECTOR 4JJ1-TCS ENG(LFB),4JB1-TC ENG(RDT), 4JJ1-TCC ENG(RDU),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1012-	●
127	04.902 BOLT; PROTECTOR 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1012-		●

1 1 5 7 5 8 8 8 1 5 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) (B) REAR	8-97384-098-2	01	1	1012-1012	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) (B) REAR	8-98167-677-1	01	1	1101-1310	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) (B) REAR	8-98258-268-0	01	1	1311-	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) (A) FRONT	8-98068-178-1	01	1	1012-1212	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) (A) FRONT	8-98227-170-0	01	1	1301-	●
1	03.632 BRAKE UNIT; EXH 4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> (F)	8-97287-193-2	01	1	1012-1404	●
1	03.632 BRAKE UNIT; EXH 4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> (F)	8-98268-705-0	01	1	1405-	●
1	03.632 BRAKE UNIT; EXH 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (D)	8-98072-102-0	01	1	1012-	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCC ENG(RDU) (C)	8-98033-200-1	01	1	1012-	●	●	●	●
1	03.632 BRAKE UNIT; EXH 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> (E)	8-98173-244-0	01	1	1012-	●	●
1	03.632 BRAKE UNIT; EXH 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (G)	8-98108-289-1	01	1	1012-		●
5	03.634 GASKET; EXH BRAKE UNIT 4JJ1-TCS ENG(LFB) 03.611 ID=64	8-97373-108-0	02	1	1012-	●
5	03.634 GASKET; EXH BRAKE UNIT 4JJ1-TCC ENG(RDU) ID=54	8-94328-354-0	02	1	1012-	●	●	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> ID=54	8-94328-354-0	02	1	1012-	●
5	03.634 GASKET; EXH BRAKE UNIT 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> ID=54	8-94328-354-0	02	1	1012-		●
7	03.632 WASHER; EXH BRAKE UNIT FIX 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 03.613 ID=10.5	5-09500-013-0	04	1	1012-	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1012-	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4HG1-T ENG(RDP),4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1012-	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JJ1-TCC ENG(RDU) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1012-		●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1012-		●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 03.613 M10 H=18	9-09640-014-0	04	1	1012-	●	●

1 8 5 5 8 5 1 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) (B) REAR	8-97384-098-2	01	1	1012-1012	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) (B) REAR	8-98167-677-1	01	1	1101-1310	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) (B) REAR	8-98258-268-0	01	1	1311-	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) (A) FRONT	8-98068-178-1	01	1	1012-1212	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) (A) FRONT	8-98227-170-0	01	1	1301-	●
1	03.632 BRAKE UNIT; EXH 4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> (F)	8-97287-193-2	01	1	1012-1404	●
1	03.632 BRAKE UNIT; EXH 4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> (F)	8-98268-705-0	01	1	1405-	●
1	03.632 BRAKE UNIT; EXH 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (D)	8-98072-102-0	01	1	1012-	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCC ENG(RDU) (C)	8-98033-200-1	01	1	1012-	●	●	●	●
1	03.632 BRAKE UNIT; EXH 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> (E)	8-98173-244-0	01	1	1012-	●	●
1	03.632 BRAKE UNIT; EXH 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (G)	8-98108-289-1	01	1	1012-		●
5	03.634 GASKET; EXH BRAKE UNIT 4JJ1-TCS ENG(LFB) 03.611 ID=64	8-97373-108-0	02	1	1012-	●
5	03.634 GASKET; EXH BRAKE UNIT 4JJ1-TCC ENG(RDU) ID=54	8-94328-354-0	02	1	1012-	●	●	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> ID=54	8-94328-354-0	02	1	1012-	●
5	03.634 GASKET; EXH BRAKE UNIT 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> ID=54	8-94328-354-0	02	1	1012-		●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1012-	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4HG1-T ENG(RDP),4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1012-	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JJ1-TCC ENG(RDU) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1012-		●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1012-		●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 03.613 M10 H=18	9-09640-014-0	04	1	1012-	●	●

78 125 78 125

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A

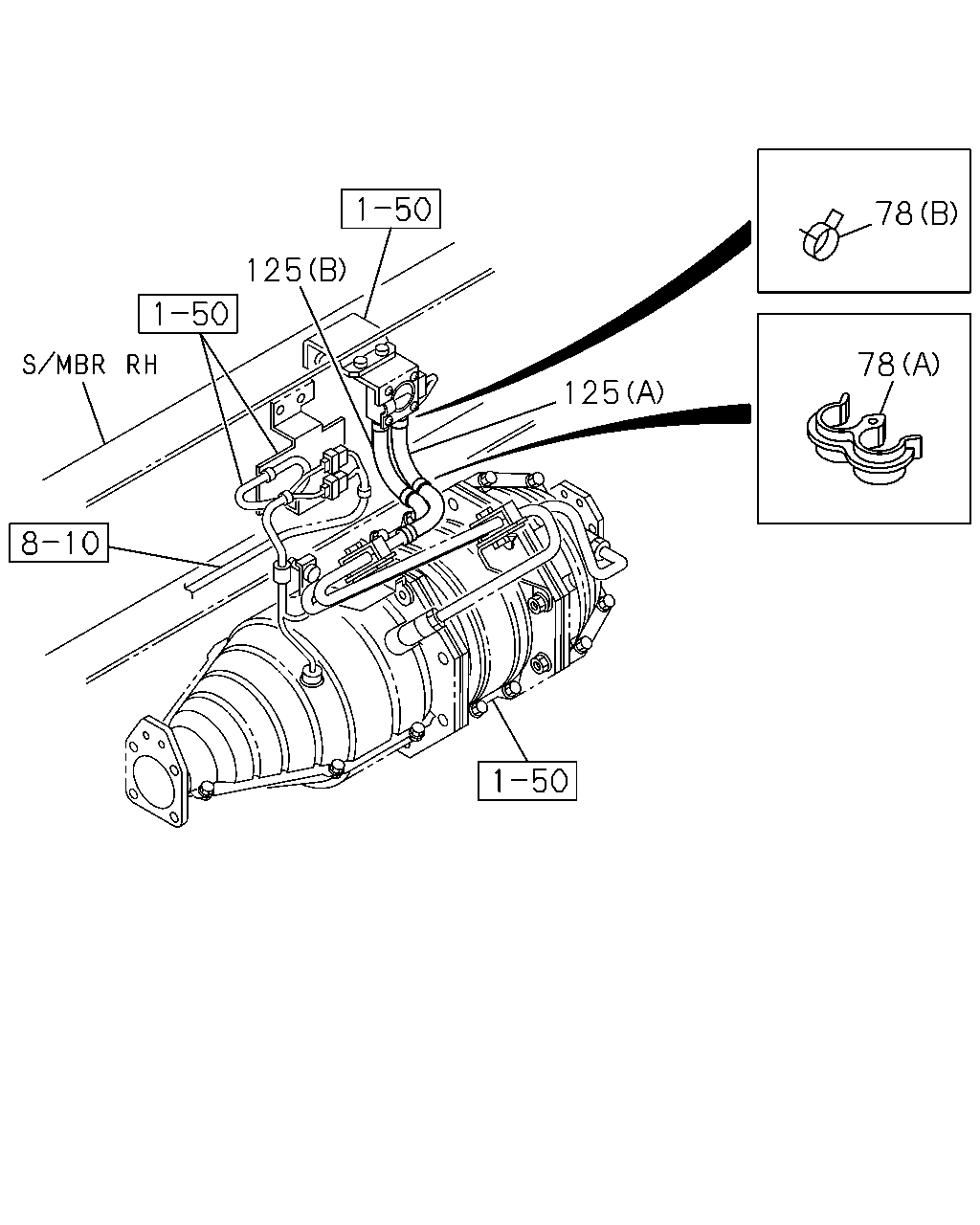

78	03.636 CLIP; HOSE 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (A)	8-97173-119-0	01	1	1012-	●
78	03.636 CLIP; HOSE 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=13	8-97329-627-0	04	1	1012-	●
125	03.630 HOSE; DPD 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) (A) FRONT L=90	8-98029-399-0	01	1	1012-	●
125	03.630 HOSE; DPD 4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD(8JM) (B) REAR L=110	8-98029-400-0	01	1	1012-	●

1 8 5 5 1 10 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) (B) REAR	8-97384-098-2	01	1	1012-1012	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) (B) REAR	8-98167-677-1	01	1	1101-1310	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) (B) REAR	8-98258-268-0	01	1	1311-	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) (A) FRONT	8-98068-178-1	01	1	1012-1212	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) (A) FRONT	8-98227-170-0	01	1	1301-	●
1	03.632 BRAKE UNIT; EXH 4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> (F)	8-97287-193-2	01	1	1012-1404	●
1	03.632 BRAKE UNIT; EXH 4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> (F)	8-98268-705-0	01	1	1405-	●
1	03.632 BRAKE UNIT; EXH 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (D)	8-98072-102-0	01	1	1012-	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCC ENG(RDU) (C)	8-98033-200-1	01	1	1012-	●	●	●	●
1	03.632 BRAKE UNIT; EXH 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> (E)	8-98173-244-0	01	1	1012-	●	●
1	03.632 BRAKE UNIT; EXH 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (G)	8-98108-289-1	01	1	1012-		●
5	03.634 GASKET; EXH BRAKE UNIT 4JJ1-TCS ENG(LFB) 03.611 ID=64	8-97373-108-0	02	1	1012-	●
5	03.634 GASKET; EXH BRAKE UNIT 4JJ1-TCC ENG(RDU) ID=54	8-94328-354-0	02	1	1012-	●	●	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> ID=54	8-94328-354-0	02	1	1012-	●
5	03.634 GASKET; EXH BRAKE UNIT 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> ID=54	8-94328-354-0	02	1	1012-		●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1012-	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4HG1-T ENG(RDP),4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1012-	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JJ1-TCC ENG(RDU) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1012-		●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1012-		●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 03.613 M10 H=18	9-09640-014-0	04	1	1012-	●	●
10	03.634 NUT; BRKT,EXH BRAKE 4JJ1-TCS ENG(LFB) IDENTIFICATION LABEL FOR KD<6UT> 03.613 (B) M8	1-09400-118-1	04	1	1204-	●
10	03.634 NUT; BRKT,EXH BRAKE 4JJ1-TCS ENG(LFB) 03.417 (A) M8 W/LK WASHER	8-97581-234-0	04	1	1012-1203	●
10	03.634 NUT; BRKT,EXH BRAKE 4JJ1-TCS ENG(LFB) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.417 (A) M8 W/LK WASHER	8-97581-234-0	04	1	1204-	●
