Sayfa 1-40 - Isuzu EPC

1-40 — FUEL TANK (#79074) — 148 parça

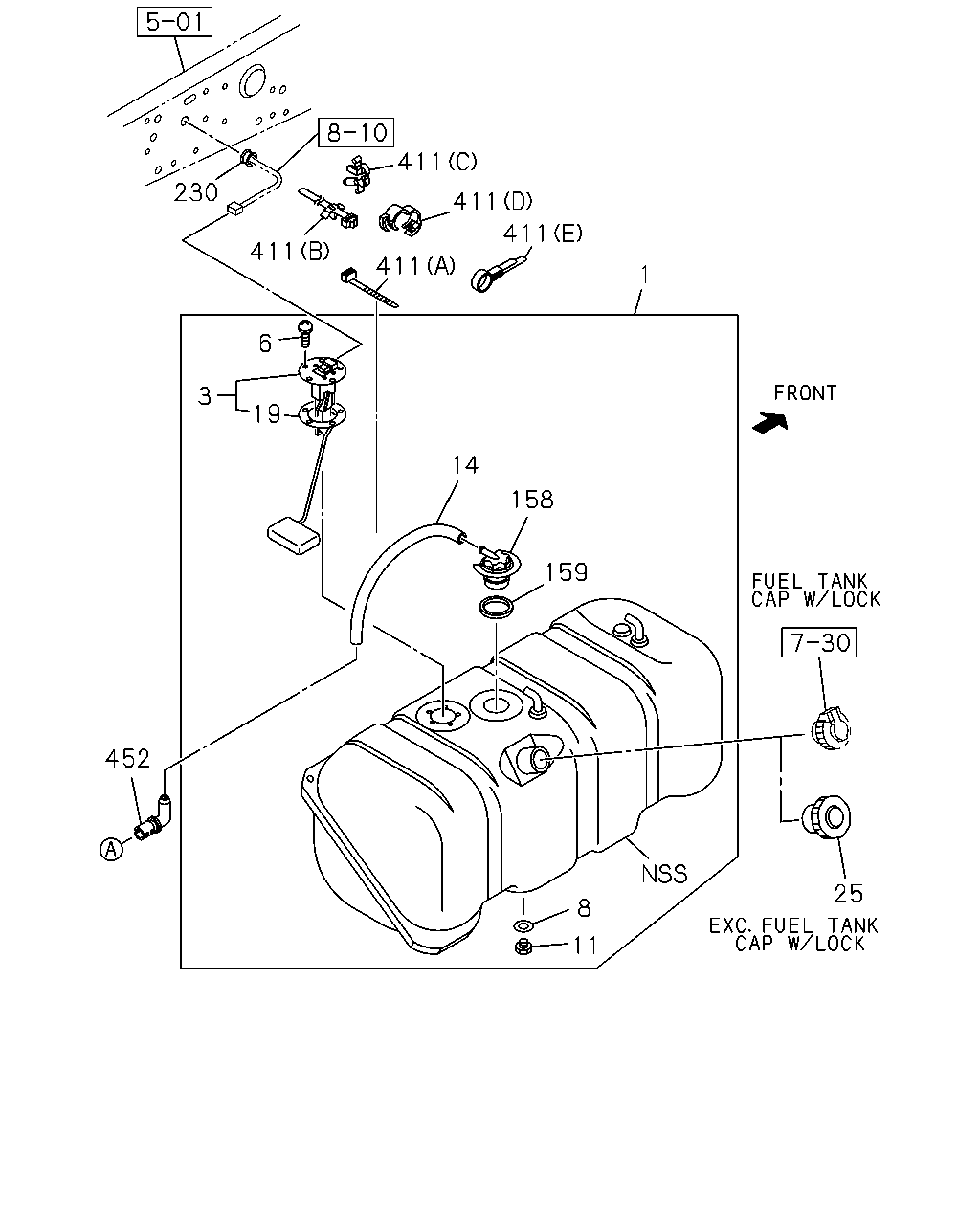

411 230 411 411 411 411 1 6 3 19 14 158 159 452 25 8 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.001 TANK; FUEL TURKEY EQUIPMENT(B11) FUEL TANK 100 LITTER<N02> 1003X348X375 100L	8-98104-008-4	01	1	1012-	●
1	03.001 TANK; FUEL TURKEY EQUIPMENT(B11) FUEL TANK 75 LITTER<7GX> 756X375X375 70L	8-98104-005-4	01	1	1012-	●
1	03.001 TANK; FUEL FUEL TANK 100 LITTER<N02> EXC. TURKEY EQUIPMENT(B11) 1003X375X380 100L	8-98021-295-6	01	1	1012-	●
1	03.001 TANK; FUEL FUEL TANK 100 LITTER<N02> 1003X375X380 100L	8-98021-295-6	01	1	1012-		●
1	03.001 TANK; FUEL FUEL TANK 63L<6EF> 756X375X323 63L	8-98021-293-4	01	1	1012-1205	●
1	03.001 TANK; FUEL 756X375X323 63L	8-98021-293-4	01	1	1012-1205			●
1	03.001 TANK; FUEL FUEL TANK 63L<6EF> 756X375X323 63L	8-98218-966-1	01	1	1206-	●
1	03.001 TANK; FUEL 756X375X323 63L	8-98218-966-1	01	1	1206-			●
1	03.001 TANK; FUEL FUEL TANK 75 LITTER<7GX> EXC. TURKEY EQUIPMENT(B11) 756X375X375 75L	8-98021-294-5	01	1	1012-	●
1	03.001 TANK; FUEL FUEL TANK 75 LITTER<7GX> 756X375X375 75L	8-98021-294-5	01	1	1012-		●
1	03.001 TANK; FUEL 756X375X375 75L	8-98021-294-5	01	1	1012-				●
3	03.107 UNIT; FUEL TANK,SUB TURKEY EQUIPMENT(B11) FUEL TANK 100 LITTER<N02>	8-98113-178-0	01	1	1012-	●
3	03.107 UNIT; FUEL TANK,SUB TURKEY EQUIPMENT(B11) FUEL TANK 75 LITTER<7GX>	8-98113-177-0	01	1	1012-	●
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 100 LITTER<N02> EXC. TURKEY EQUIPMENT(B11)	8-98056-704-0	01	1	1012-	●
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 100 LITTER<N02>	8-98056-704-0	01	1	1012-		●
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 63L<6EF>	8-98056-702-0	01	1	1012-1205	●
3	03.107 UNIT; FUEL TANK,SUB	8-98056-702-0	01	1	1012-1205			●
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 63L<6EF>	8-98213-753-0	01	1	1206-	●
3	03.107 UNIT; FUEL TANK,SUB	8-98213-753-0	01	1	1206-			●
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 75 LITTER<7GX> EXC. TURKEY EQUIPMENT(B11)	8-98056-703-0	01	1	1012-	●
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 75 LITTER<7GX>	8-98056-703-0	01	1	1012-		●
3	03.107 UNIT; FUEL TANK,SUB	8-98056-703-0	01	1	1012-				●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN M5X12 W/LK WASHER	0-36220-512-0	05	1	1012-	●	●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 08.955 ID=8.2 OD=17	9-09572-008-0	01	1	1012-	●	●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1012-	●	●	●	●
14	03.163 HOSE; BREATHER,OUTLET FUEL TANK 100 LITTER<N02> L=420	8-98157-809-0	01	1	1012-	●	●
14	03.163 HOSE; BREATHER,OUTLET FUEL TANK 63L<6EF>,FUEL TANK 75 LITTER<7GX> L=320	8-98157-805-0	01	1	1012-	●
14	03.163 HOSE; BREATHER,OUTLET FUEL TANK 75 LITTER<7GX> L=320	8-98157-805-0	01	1	1012-		●
14	03.163 HOSE; BREATHER,OUTLET L=320	8-98157-805-0	01	1	1012-			●	●
19	03.112 GASKET; FUEL TANK UNIT TURKEY EQUIPMENT(B11) FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> ID=42 OD=71	5-83148-001-0	01	1	1012-	●
19	03.112 GASKET; FUEL TANK UNIT FUEL TANK 63L<6EF>	8-98051-797-0	01	1	1012-	●
19	03.112 GASKET; FUEL TANK UNIT FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> EXC. TURKEY EQUIPMENT(B11)	8-98051-797-0	01	1	1012-	●
19	03.112 GASKET; FUEL TANK UNIT	8-98051-797-0	01	1	1012-		●	●	●
25	03.028 CAP; FILLER,FUEL TANK FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX> EXC. FUEL TANK CAP W/LOCK<N05>	8-97387-179-0	01	1	1012-	●	●
25	03.028 CAP; FILLER,FUEL TANK EXC. FUEL TANK CAP W/LOCK<N05>	8-97387-179-0	01	1	1012-				●
158	03.164 VALVE; ROLL OVER & FLOAT	8-97179-645-0	01	1	1012-	●	●	●	●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE	8-97326-488-0	01	1	1012-	●	●	●	●
230	03.115 GROMMET; HARNESS,FUEL TANK UNIT FRAME-KICK UP<7EW> 04.866 ID=24 OD=30 T=20	1-09332-096-0	01	1	1012-		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4JJ1-TCS ENG(LFB),4HG1-T ENG(RDP), 4JJ1-TCC ENG(RDU) (B) L=170.3	1-09987-182-0	01	1	1012-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4JJ1-TCC ENG(RDU) EXC. FRAME-KICK UP<7EW> (B) L=170.3	1-09987-182-0	01	1	1012-		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) (B) L=170.3	1-09987-182-0	01	1	1012-		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4HG1-T ENG(RDP) 06.525 (C) ID=5-12 L=18	1-09709-287-0	01	1	1012-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) ID=20	8-94241-972-0	02	1	1012-1012	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=20	8-94241-972-0	02	1	1012-1012	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (D) ID=20	8-94241-972-0	02	1	1012-1012	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> (D) ID=20	8-94241-972-0	02	1	1012-1012		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. FRAME-KICK UP<7EW> (D) ID=20	8-94241-972-0	02	1	1101-1409	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) IDENTIFICATION LABEL FOR KD<6UT> EXC. FRAME-KICK UP<7EW> (D) ID=20	8-94241-972-0	02	1	1101-1409	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (D) ID=20	8-94241-972-0	02	1	1101-1409		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (D) ID=20	8-94241-972-0	02	1	1410-1503	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) ID=20	8-94241-972-0	02	1	1410-1503	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=20	8-94241-972-0	02	1	1410-1503	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. ALGERIA EQUIPMENT(WN1),FRAME-KICK UP<7EW> (D) ID=20	8-94241-972-0	02	1	1410-1503		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) IDENTIFICATION LABEL FOR KD<6UT> EXC. ALGERIA EQUIPMENT(WN1),FRAME-KICK UP<7EW> (D) ID=20	8-94241-972-0	02	1	1410-1503		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (D) ID=20	8-94241-972-0	02	1	1410-1503		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (D) ID=20	8-94241-972-0	02	1	1504-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) ID=20	8-94241-972-0	02	1	1504-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=20	8-94241-972-0	02	1	1504-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. UZBEKISTAN EQUIPMENT(JCW),ALGERIA EQUIPMENT(WN1),FRAME-KICK UP<7EW> (D) ID=20	8-94241-972-0	02	1	1504-		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) IDENTIFICATION LABEL FOR KD<6UT> EXC. UZBEKISTAN EQUIPMENT(JCW),ALGERIA EQUIPMENT(WN1),FRAME-KICK UP<7EW> (D) ID=20	8-94241-972-0	02	1	1504-		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (D) ID=20	8-94241-972-0	02	1	1504-		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4JB1-TC ENG(RDT),4JB1 ENG(RLF) 02.557 (E) ID=10	5-09700-318-0	01	1	1012-	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=20	8-94241-972-0	01	1	1012-1409	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> (D) ID=20	8-94241-972-0	01	1	1012-1409	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> (D) ID=20	8-94241-972-0	01	1	1012-1409		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> (D) ID=20	8-94241-972-0	01	1	1410-1503	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=20	8-94241-972-0	01	1	1410-1503	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) ALGERIA EQUIPMENT(WN1) EXC. FRAME-KICK UP<7EW> (D) ID=20	8-94241-972-0	01	1	1410-1503		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. ALGERIA EQUIPMENT(WN1), IDENTIFICATION LABEL FOR KD<6UT> (D) ID=20	8-94241-972-0	01	1	1410-1503		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> (D) ID=20	8-94241-972-0	01	1	1410-1503		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> (D) ID=20	8-94241-972-0	01	1	1504-	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=20	8-94241-972-0	01	1	1504-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) UZBEKISTAN EQUIPMENT(JCW),ALGERIA EQUIPMENT(WN1) EXC. FRAME-KICK UP<7EW> (D) ID=20	8-94241-972-0	01	1	1504-		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) UZBEKISTAN EQUIPMENT(JCW) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=20	8-94241-972-0	01	1	1504-		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. ALGERIA EQUIPMENT(WN1), IDENTIFICATION LABEL FOR KD<6UT> (D) ID=20	8-94241-972-0	01	1	1504-		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> (D) ID=20	8-94241-972-0	01	1	1504-		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 03.162 (A) L=140	5-09707-031-1	02	1	1012-	●			●
411	02.559 CLIP; FUEL TANK UNIT HARNESS EXC. FRAME-KICK UP<7EW> 03.162 (A) L=140	5-09707-031-1	02	1	1012-		●
411	02.559 CLIP; FUEL TANK UNIT HARNESS FRAME-KICK UP<7EW> 03.162 (A) L=140	5-09707-031-1	01	1	1012-		●
452	03.028 BREATHER; FUEL TANK	8-97357-261-0	01	1	1012-	●	●	●	●

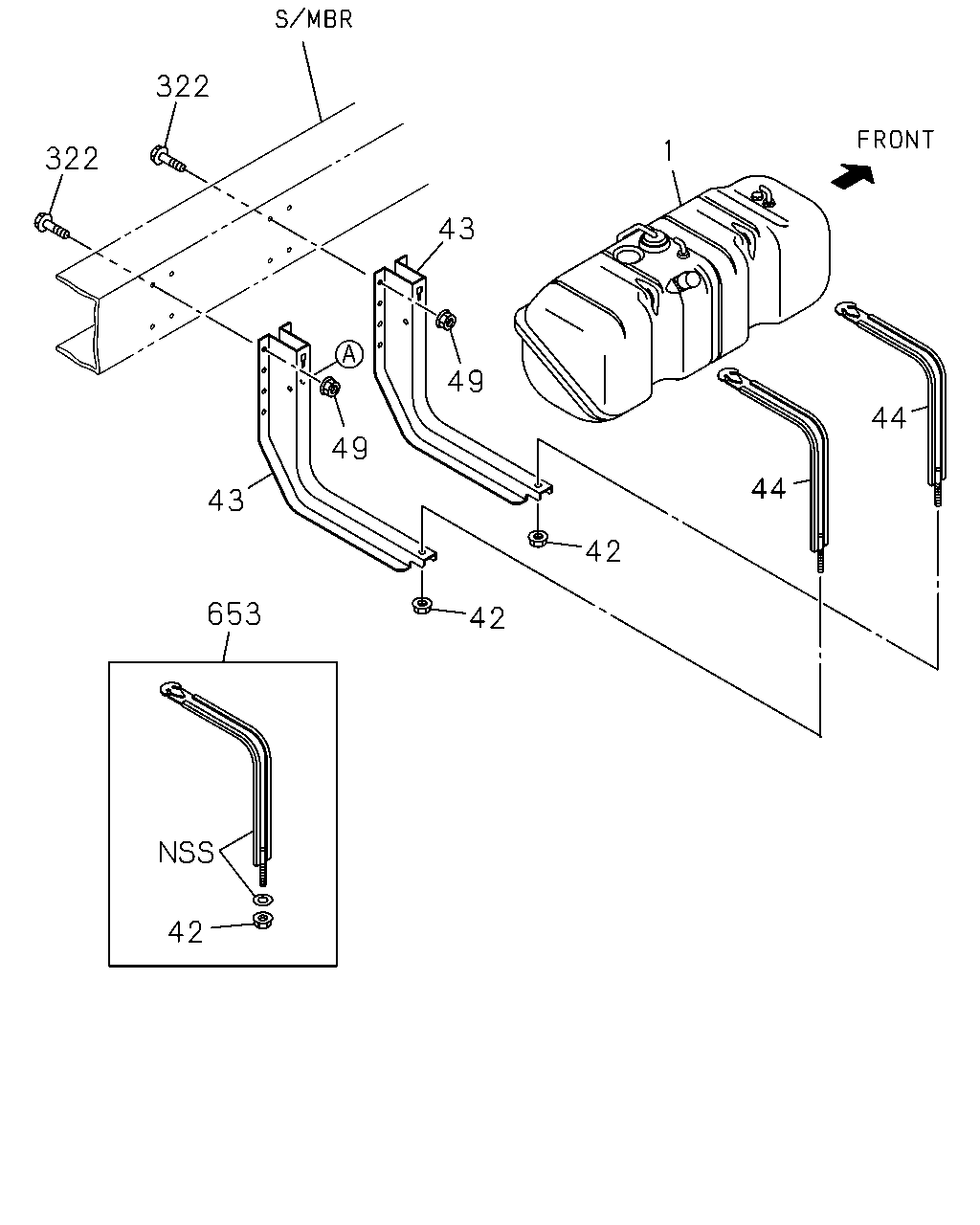

322 322 43 49 49 43 1 44 44 42 42 653 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.001 TANK; FUEL TURKEY EQUIPMENT(B11) FUEL TANK 100 LITTER<N02> 1003X348X375 100L	8-98104-008-4	01	1	1012-	●
1	03.001 TANK; FUEL TURKEY EQUIPMENT(B11) FUEL TANK 75 LITTER<7GX> 756X375X375 70L	8-98104-005-4	01	1	1012-	●
1	03.001 TANK; FUEL FUEL TANK 100 LITTER<N02> EXC. TURKEY EQUIPMENT(B11) 1003X375X380 100L	8-98021-295-6	01	1	1012-	●
1	03.001 TANK; FUEL FUEL TANK 100 LITTER<N02> 1003X375X380 100L	8-98021-295-6	01	1	1012-		●
1	03.001 TANK; FUEL FUEL TANK 63L<6EF> 756X375X323 63L	8-98021-293-4	01	1	1012-1205	●
1	03.001 TANK; FUEL 756X375X323 63L	8-98021-293-4	01	1	1012-1205			●
1	03.001 TANK; FUEL FUEL TANK 63L<6EF> 756X375X323 63L	8-98218-966-1	01	1	1206-	●
1	03.001 TANK; FUEL 756X375X323 63L	8-98218-966-1	01	1	1206-			●
1	03.001 TANK; FUEL FUEL TANK 75 LITTER<7GX> EXC. TURKEY EQUIPMENT(B11) 756X375X375 75L	8-98021-294-5	01	1	1012-	●
1	03.001 TANK; FUEL FUEL TANK 75 LITTER<7GX> 756X375X375 75L	8-98021-294-5	01	1	1012-		●
1	03.001 TANK; FUEL 756X375X375 75L	8-98021-294-5	01	1	1012-				●
42	03.023 NUT; SUPPORT BELT M8 FLANGE	9-09130-408-0	02	1	1012-	●	●	●	●
43	03.015 BRACKET; FUEL TANK 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FUEL TANK 75 LITTER<7GX> EXC. FRAME-KICK UP<7EW> FRONT	8-97384-056-1	01	1	1012-1406	●	●
43	03.015 BRACKET; FUEL TANK 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FUEL TANK 100 LITTER<N02> EXC. FRAME-KICK UP<7EW> FRONT	8-97384-056-1	01	1	1012-1406	●	●
43	03.015 BRACKET; FUEL TANK WHEEL BASE 2400MM(24W) FUEL TANK 75 LITTER<7GX> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRAME-KICK UP<7EW> FRONT	8-97384-056-1	01	1	1012-1406	●	●
43	03.015 BRACKET; FUEL TANK FRONT	8-97384-056-1	01	1	1012-1406				●
43	03.015 BRACKET; FUEL TANK 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FUEL TANK 75 LITTER<7GX>	8-97384-056-1	01	1	1407-	●
43	03.015 BRACKET; FUEL TANK 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FUEL TANK 100 LITTER<N02>	8-97384-056-1	01	1	1407-	●
43	03.015 BRACKET; FUEL TANK WHEEL BASE 2400MM(24W) FUEL TANK 75 LITTER<7GX> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-97384-056-1	01	1	1407-	●
43	03.015 BRACKET; FUEL TANK 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FUEL TANK 75 LITTER<7GX> EXC. FRAME-KICK UP<7EW>	8-97384-056-1	01	1	1407-		●
43	03.015 BRACKET; FUEL TANK 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FUEL TANK 100 LITTER<N02> EXC. FRAME-KICK UP<7EW>	8-97384-056-1	01	1	1407-		●
43	03.015 BRACKET; FUEL TANK WHEEL BASE 2400MM(24W) FUEL TANK 75 LITTER<7GX> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRAME-KICK UP<7EW>	8-97384-056-1	01	1	1407-		●
43	03.015 BRACKET; FUEL TANK 4JJ1-TCC ENG(RDU)	8-97384-056-1	01	1	1407-				●
43	03.015 BRACKET; FUEL TANK 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FUEL TANK 75 LITTER<7GX> EXC. FRAME-KICK UP<7EW> REAR	8-97384-081-1	01	1	1012-1406	●	●
43	03.015 BRACKET; FUEL TANK 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FUEL TANK 100 LITTER<N02> EXC. FRAME-KICK UP<7EW> REAR	8-97384-081-1	01	1	1012-1406	●	●
43	03.015 BRACKET; FUEL TANK WHEEL BASE 2400MM(24W) FUEL TANK 75 LITTER<7GX> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRAME-KICK UP<7EW> REAR	8-97384-081-1	01	1	1012-1406	●	●
43	03.015 BRACKET; FUEL TANK REAR	8-97384-081-1	01	1	1012-1406				●
43	03.015 BRACKET; FUEL TANK 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FUEL TANK 75 LITTER<7GX>	8-97384-081-1	01	1	1407-	●
43	03.015 BRACKET; FUEL TANK 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FUEL TANK 100 LITTER<N02>	8-97384-081-1	01	1	1407-	●
43	03.015 BRACKET; FUEL TANK WHEEL BASE 2400MM(24W) FUEL TANK 75 LITTER<7GX> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-97384-081-1	01	1	1407-	●
43	03.015 BRACKET; FUEL TANK 4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FUEL TANK 75 LITTER<7GX> EXC. FRAME-KICK UP<7EW>	8-97384-081-1	01	1	1407-		●
43	03.015 BRACKET; FUEL TANK 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FUEL TANK 100 LITTER<N02> EXC. FRAME-KICK UP<7EW>	8-97384-081-1	01	1	1407-		●
43	03.015 BRACKET; FUEL TANK WHEEL BASE 2400MM(24W) FUEL TANK 75 LITTER<7GX> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRAME-KICK UP<7EW>	8-97384-081-1	01	1	1407-		●
43	03.015 BRACKET; FUEL TANK 4JJ1-TCC ENG(RDU)	8-97384-081-1	01	1	1407-				●
43	03.015 BRACKET; FUEL TANK WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> FRONT	8-98061-738-1	01	1	1012-1406	●
43	03.015 BRACKET; FUEL TANK WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> EXC. AIR BAG DRIVER<AJ3>,FRAME-KICK UP<7EW> FRONT	8-98061-738-1	01	1	1012-1406		●
43	03.015 BRACKET; FUEL TANK WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98061-738-1	01	1	1407-	●
43	03.015 BRACKET; FUEL TANK WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRAME-KICK UP<7EW>	8-98061-738-1	01	1	1407-		●
43	03.015 BRACKET; FUEL TANK WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> REAR	8-98061-739-1	01	1	1012-1406	●
43	03.015 BRACKET; FUEL TANK WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> EXC. AIR BAG DRIVER<AJ3>,FRAME-KICK UP<7EW> REAR	8-98061-739-1	01	1	1012-1406		●
43	03.015 BRACKET; FUEL TANK WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98061-739-1	01	1	1407-	●
43	03.015 BRACKET; FUEL TANK WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRAME-KICK UP<7EW>	8-98061-739-1	01	1	1407-		●
43	03.015 BRACKET; FUEL TANK FUEL TANK 63L<6EF> REAR	8-97384-061-2	01	1	1012-	●
43	03.015 BRACKET; FUEL TANK FUEL TANK 63L<6EF> FRONT	8-97384-055-1	01	1	1012-	●
43	03.015 BRACKET; FUEL TANK FRONT	8-97384-055-1	01	1	1012-			●
43	03.015 BRACKET; FUEL TANK FRAME-KICK UP<7EW> FUEL TANK 75 LITTER<7GX>	8-97308-627-1	02	1	1012-		●
43	03.015 BRACKET; FUEL TANK REAR	8-98055-905-2	01	1	1012-			●
44	03.023 BAND; FUEL TANK FUEL TANK 63L<6EF> L=613	8-97169-230-2	02	1	1012-1312	●
44	03.023 BAND; FUEL TANK L=613	8-97169-230-2	02	1	1012-1312			●
44	03.023 BAND; FUEL TANK FUEL TANK 63L<6EF> L=613	8-98245-202-0	02	1	1401-	●
44	03.023 BAND; FUEL TANK L=613	8-98245-202-0	02	1	1401-			●
49	03.023 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	08	1	1012-	●		●	●
49	03.023 NUT; BRKT EXC. FRAME-KICK UP<7EW> 04.085 M10 FLANGE	0-91180-210-0	08	1	1012-		●
322	03.895 BOLT; BRKT FIX 4JJ1-TCC ENG(RDU),4JB1 ENG(RLF) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 07.068 M10X30 FLANGE	0-28661-030-0	08	1	1012-	●	●
322	03.895 BOLT; BRKT FIX WHEEL BASE 2400MM(24W) EXC. REAR WIDE TREAD(V4T) 07.068 M10X30 FLANGE	0-28661-030-0	08	1	1012-	●	●
322	03.895 BOLT; BRKT FIX WHEEL BASE 3300MM(33W) 07.068 M10X30 FLANGE	0-28661-030-0	08	1	1012-	●	●
322	03.895 BOLT; BRKT FIX 07.068 M10X30 FLANGE	0-28661-030-0	08	1	1012-			●	●
322	03.895 BOLT; BRKT FIX 4HG1 ENG(RJH) WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 07.068 M10X30 FLANGE	0-28661-030-0	06	1	1012-		●
653	03.022 BAND KIT; FUEL TANK FUEL TANK 100 LITTER<N02>,FUEL TANK 75 LITTER<7GX>	5-87411-970-0	02	1	1012-	●	●
653	03.022 BAND KIT; FUEL TANK	5-87411-970-0	02	1	1012-				●

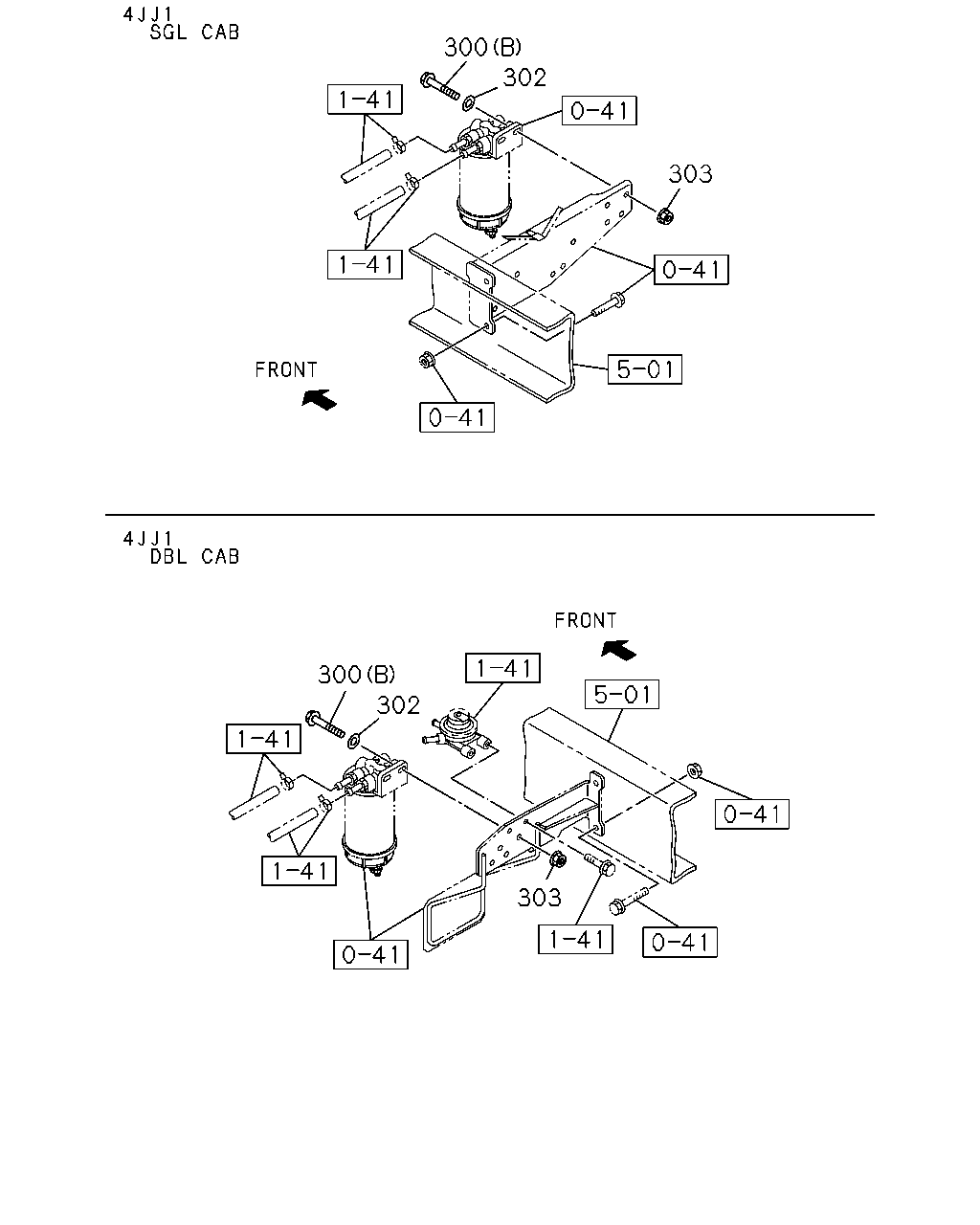

300 302 303 300 302 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
300	03.162 BOLT; BRKT TO BODY 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1012-	●	●	●	●
300	03.162 BOLT; BRKT TO BODY 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) 03.613 (B) M10X40 FLANGE	0-28651-040-0	02	1	1012-	●	●	●	●
300	03.162 BOLT; BRKT TO BODY 4HG1 ENG(RJH) 01.531 (C) M8X20 FLANGE	0-28650-820-0	02	1	1012-		●
302	03.162 WASHER; PL,SEDIMENTER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) 04.085 ID=10.5 OD=26	0-91614-710-0	02	1	1012-	●	●	●	●
303	03.162 NUT; SEDIMENTER BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) M10 FLANGE	0-91180-110-0	02	1	1012-	●	●	●	●

300 300

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
300	03.162 BOLT; BRKT TO BODY 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1012-	●	●	●	●
300	03.162 BOLT; BRKT TO BODY 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) 03.613 (B) M10X40 FLANGE	0-28651-040-0	02	1	1012-	●	●	●	●
300	03.162 BOLT; BRKT TO BODY 4HG1 ENG(RJH) 01.531 (C) M8X20 FLANGE	0-28650-820-0	02	1	1012-		●
