Sayfa 1-31 - Isuzu EPC

1-31 — AIR DUCT (#79072) — 573 parça

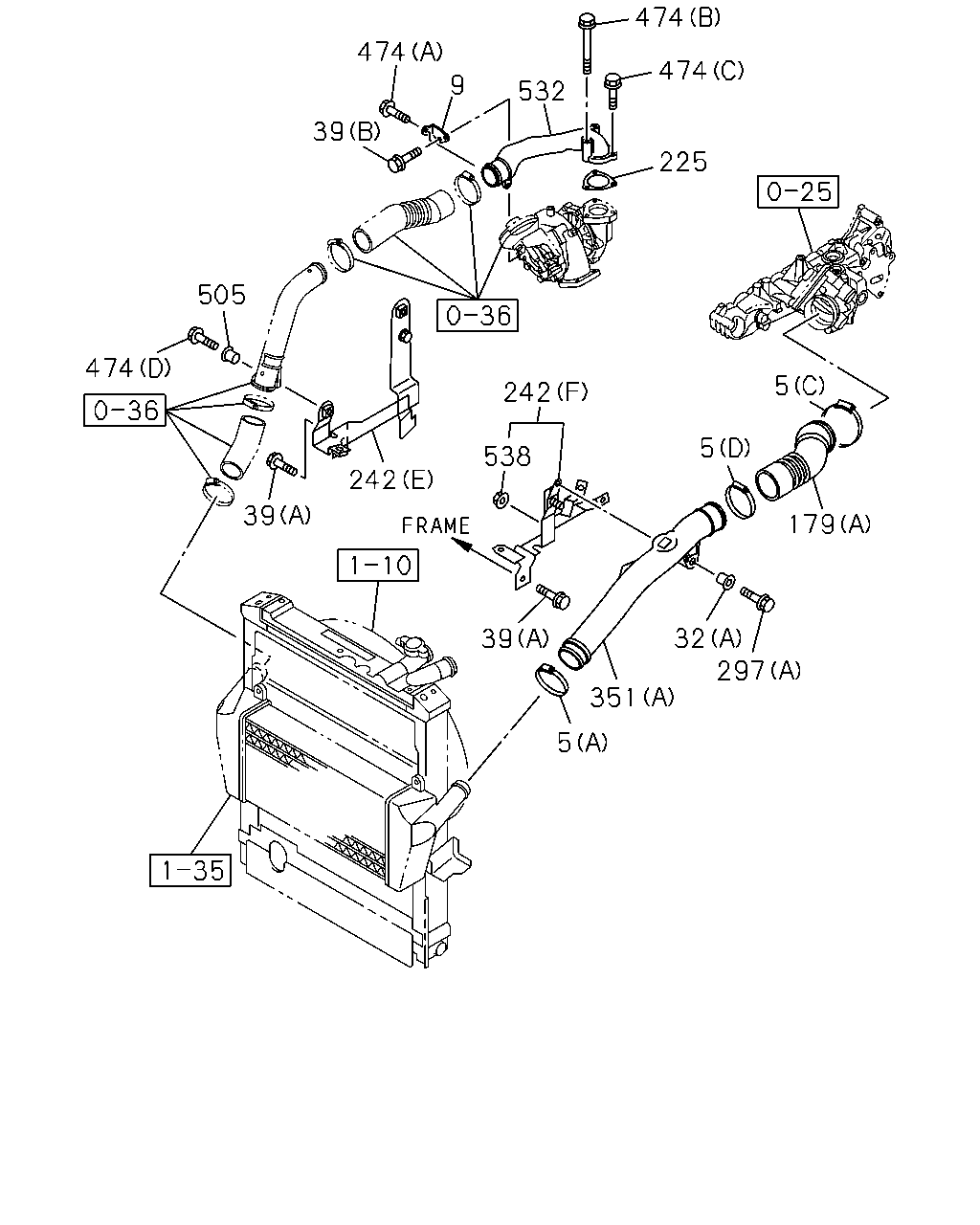

474 9 532 474 39 474 225 505 474 39 242 538 242 5 5 179 32 351 297 5 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
5	03.407 CLIP; AIR DUCT (B) ID=127	1-14239-263-0	01	1	1012-	●	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	01	1	1012-	●	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1012-	●	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1012-	●	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1012-	●	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	01	1	1012-	●	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1012-	●	●	●	●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> 03.417 (H) ID=40-50	8-98133-347-0	02	1	1012-	●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> (G) ID=55-75	8-98133-349-0	02	1	1012-	●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	02	1	1012-	●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (H) ID=44-60	8-94175-940-0	02	1	1012-	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (F) ID=117	9-09915-075-1	01	1	1012-			●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (E) D=101.6	9-09915-502-1	01	1	1012-			●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	03	1	1012-			●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	03	1	1012-			●	●
9	03.417 BRACKET; INT PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98009-086-0	01	1	1012-	●	●	●	●
32	03.417 RUBBER; AIR DUCT MTG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.265 (A) OD=23	8-97105-689-6	01	1	1012-	●	●	●	●
32	03.417 RUBBER; AIR DUCT MTG 4JB1-TC ENG(RDT) (B)	8-98036-826-0	01	1	1012-1106	●
32	03.417 RUBBER; AIR DUCT MTG 4JB1-TC ENG(RDT) (B)	8-97081-886-0	01	1	1107-	●
39	03.417 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.403 (A) M8X30 FLANGE	0-28650-830-0	02	1	1012-	●	●	●	●
39	03.417 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.613 (B) M8X14 FLANGE	8-97378-075-0	01	1	1012-	●	●	●	●
39	03.417 BOLT; BRKT 4JB1-TC ENG(RDT) 03.403 (A) M8X30 FLANGE	0-28650-830-0	01	1	1012-	●
179	03.417 HOSE; AIR INT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A)	8-98050-920-2	01	1	1012-	●	●	●	●
179	03.417 HOSE; AIR INT 4JB1-TC ENG(RDT) (B)	8-97228-658-2	01	1	1012-	●
179	03.417 HOSE; AIR INT 4JB1-TC ENG(RDT) (C)	8-98069-637-1	01	1	1012-	●
225	03.417 GASKET; AIR PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.270 ID=47	8-97202-328-1	01	1	1012-	●	●	●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98067-764-1	01	1	1012-	●	●
242	03.417 BRACKET; AIR DUCT (C)	8-98067-765-1	01	1	1012-	●	●
242	03.417 BRACKET; AIR DUCT (D)	8-98067-766-1	01	1	1012-	●	●
242	03.417 BRACKET; AIR DUCT MANUAL STEERING<N51> (A)	8-98166-944-1	01	1	1012-	●	●
242	03.417 BRACKET; AIR DUCT EXC. MANUAL STEERING<N51> (A)	8-98067-767-4	01	1	1012-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (E)	8-98079-905-2	01	1	1012-	●	●	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (F)	8-98108-313-1	01	1	1012-	●	●	●	●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (K)	8-98072-277-1	01	1	1012-	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (I)	8-98055-243-1	01	1	1012-			●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (G)	8-98055-246-2	01	1	1012-			●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (H)	8-98055-247-1	01	1	1012-			●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (J)	8-98066-918-1	01	1	1012-			●	●
297	03.417 BOLT; DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.060 (A) M8X35 FLANGE	0-28650-835-0	01	1	1012-	●	●	●	●
297	03.417 BOLT; DUCT 4JJ1-TCC ENG(RDU) 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	1012-			●	●
351	03.407 DUCT; AIR (B)	8-98115-594-0	01	1	1012-	●	●
351	03.407 DUCT; AIR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.417 (A)	8-98067-267-0	01	1	1012-	●	●	●	●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) (C)	8-98072-163-1	01	1	1012-			●	●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) (D)	8-98136-042-0	01	1	1012-			●	●
474	03.417 BOLT; PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (B) M6X70 FLANGE	0-28050-670-0	02	1	1012-	●	●	●	●
474	03.417 BOLT; PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1012-	●	●	●	●
474	03.417 BOLT; PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.680 (C) M6X30 FLANGE	0-28650-630-0	01	1	1012-	●	●	●	●
474	03.417 BOLT; PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.060 (D) M8X35 FLANGE	0-28650-835-0	01	1	1012-	●	●	●	●
474	03.417 BOLT; PIPE 4JB1-TC ENG(RDT) 02.343 (E) M8X12 FLANGE	0-28050-812-0	02	1	1012-	●
474	03.417 BOLT; PIPE 4JB1-TC ENG(RDT) 06.225 (F) M10X12 FLANGE	0-28051-012-0	01	1	1012-	●
505	03.406 RUBBER; MTG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.265 OD=23	8-97105-689-6	01	1	1012-	●	●	●	●
532	03.417 PIPE; INTAKE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97385-203-1	01	1	1012-1303	●	●	●	●
532	03.417 PIPE; INTAKE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98237-771-1	01	1	1304-	●	●	●	●
538	03.417 NUT; PLATE,AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-	●	●	●	●

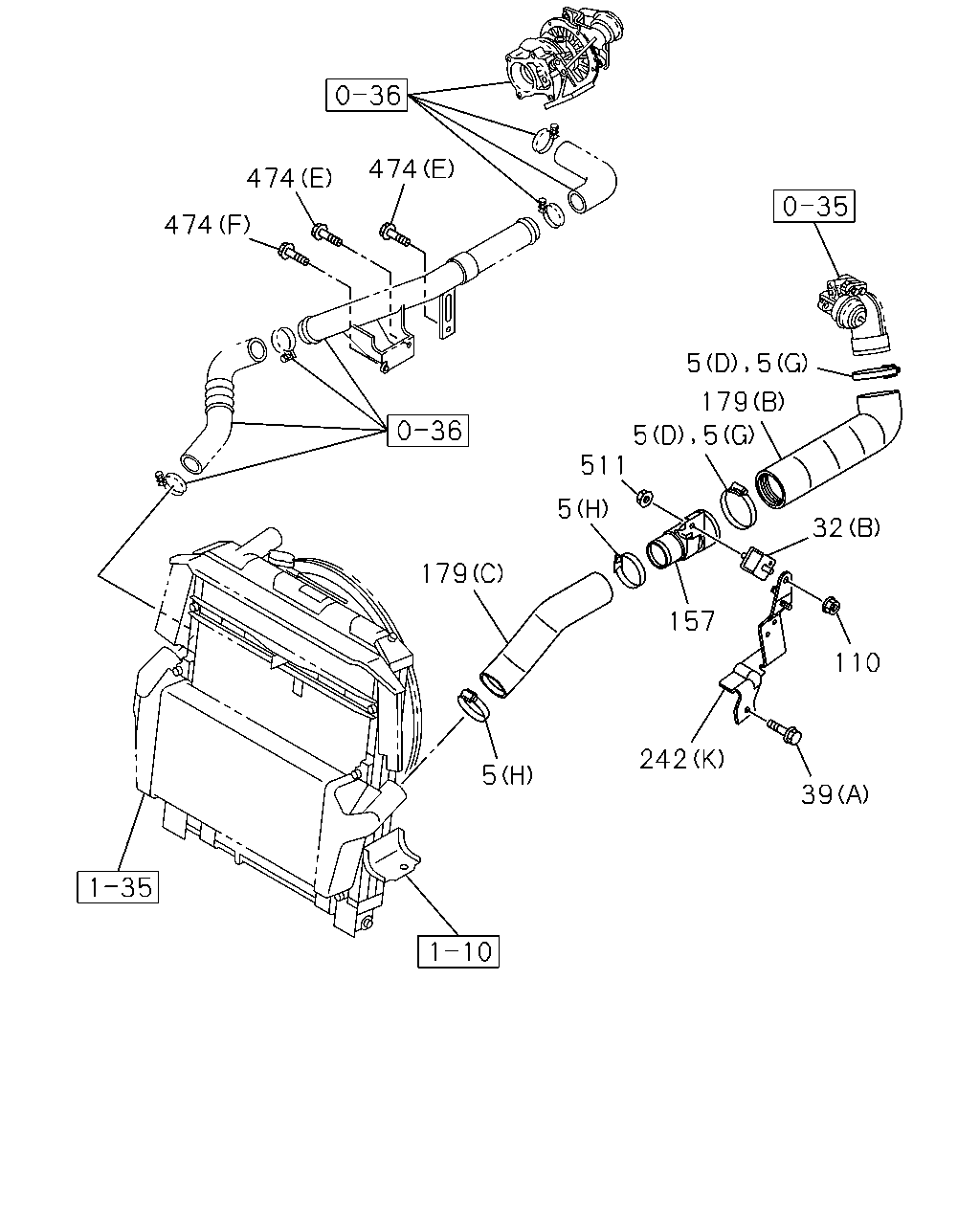

474 474 474 179 511 5 32 179 157 110 242 5 39 5 5 5 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
5	03.407 CLIP; AIR DUCT (B) ID=127	1-14239-263-0	01	1	1012-	●	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	01	1	1012-	●	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1012-	●	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1012-	●	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1012-	●	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	01	1	1012-	●	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1012-	●	●	●	●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> 03.417 (H) ID=40-50	8-98133-347-0	02	1	1012-	●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> (G) ID=55-75	8-98133-349-0	02	1	1012-	●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	02	1	1012-	●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (H) ID=44-60	8-94175-940-0	02	1	1012-	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (F) ID=117	9-09915-075-1	01	1	1012-			●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (E) D=101.6	9-09915-502-1	01	1	1012-			●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	03	1	1012-			●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	03	1	1012-			●	●
32	03.417 RUBBER; AIR DUCT MTG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.265 (A) OD=23	8-97105-689-6	01	1	1012-	●	●	●	●
32	03.417 RUBBER; AIR DUCT MTG 4JB1-TC ENG(RDT) (B)	8-98036-826-0	01	1	1012-1106	●
32	03.417 RUBBER; AIR DUCT MTG 4JB1-TC ENG(RDT) (B)	8-97081-886-0	01	1	1107-	●
39	03.417 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.403 (A) M8X30 FLANGE	0-28650-830-0	02	1	1012-	●	●	●	●
39	03.417 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.613 (B) M8X14 FLANGE	8-97378-075-0	01	1	1012-	●	●	●	●
39	03.417 BOLT; BRKT 4JB1-TC ENG(RDT) 03.403 (A) M8X30 FLANGE	0-28650-830-0	01	1	1012-	●
110	03.403 NUT; RUBBER MTG 4JB1-TC ENG(RDT) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●
157	03.417 PIPE; AIR 4JB1-TC ENG(RDT)	8-98072-276-0	01	1	1012-	●
179	03.417 HOSE; AIR INT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A)	8-98050-920-2	01	1	1012-	●	●	●	●
179	03.417 HOSE; AIR INT 4JB1-TC ENG(RDT) (B)	8-97228-658-2	01	1	1012-	●
179	03.417 HOSE; AIR INT 4JB1-TC ENG(RDT) (C)	8-98069-637-1	01	1	1012-	●
242	03.417 BRACKET; AIR DUCT (B)	8-98067-764-1	01	1	1012-	●	●
242	03.417 BRACKET; AIR DUCT (C)	8-98067-765-1	01	1	1012-	●	●
242	03.417 BRACKET; AIR DUCT (D)	8-98067-766-1	01	1	1012-	●	●
242	03.417 BRACKET; AIR DUCT MANUAL STEERING<N51> (A)	8-98166-944-1	01	1	1012-	●	●
242	03.417 BRACKET; AIR DUCT EXC. MANUAL STEERING<N51> (A)	8-98067-767-4	01	1	1012-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (E)	8-98079-905-2	01	1	1012-	●	●	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (F)	8-98108-313-1	01	1	1012-	●	●	●	●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (K)	8-98072-277-1	01	1	1012-	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (I)	8-98055-243-1	01	1	1012-			●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (G)	8-98055-246-2	01	1	1012-			●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (H)	8-98055-247-1	01	1	1012-			●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (J)	8-98066-918-1	01	1	1012-			●	●
474	03.417 BOLT; PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (B) M6X70 FLANGE	0-28050-670-0	02	1	1012-	●	●	●	●
474	03.417 BOLT; PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1012-	●	●	●	●
474	03.417 BOLT; PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.680 (C) M6X30 FLANGE	0-28650-630-0	01	1	1012-	●	●	●	●
474	03.417 BOLT; PIPE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.060 (D) M8X35 FLANGE	0-28650-835-0	01	1	1012-	●	●	●	●
474	03.417 BOLT; PIPE 4JB1-TC ENG(RDT) 02.343 (E) M8X12 FLANGE	0-28050-812-0	02	1	1012-	●
474	03.417 BOLT; PIPE 4JB1-TC ENG(RDT) 06.225 (F) M10X12 FLANGE	0-28051-012-0	01	1	1012-	●
511	03.417 NUT; PIPE 4JB1-TC ENG(RDT) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●

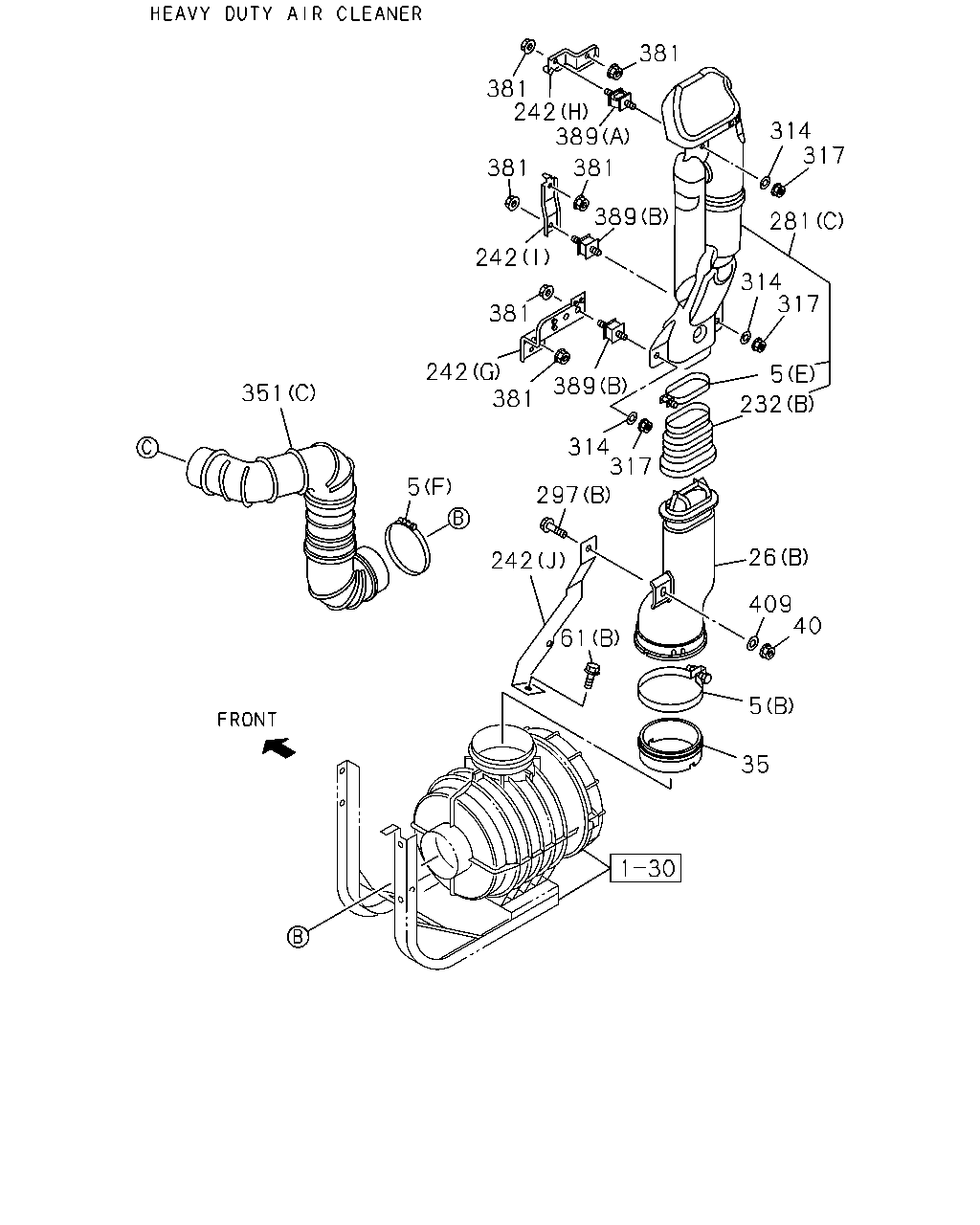

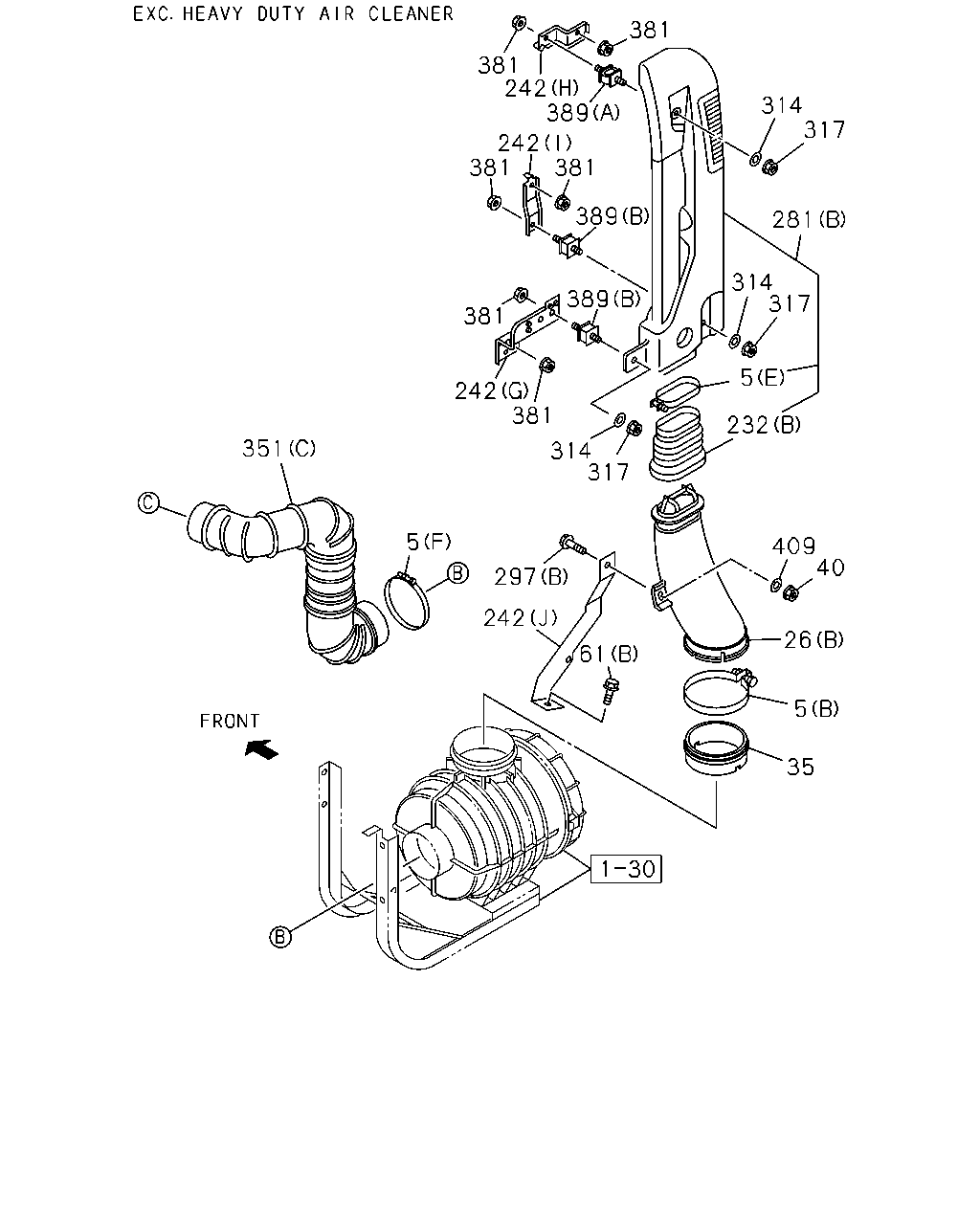

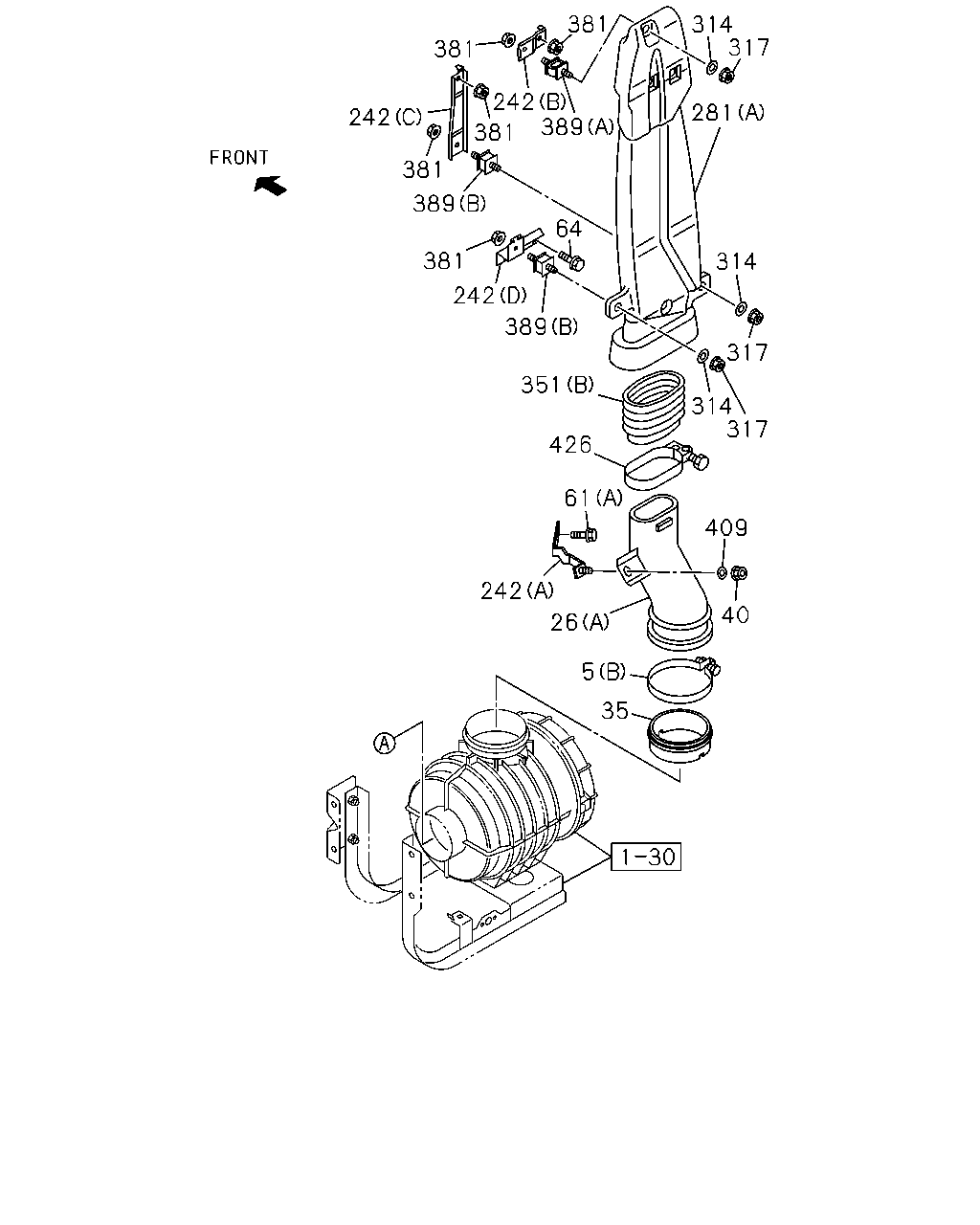

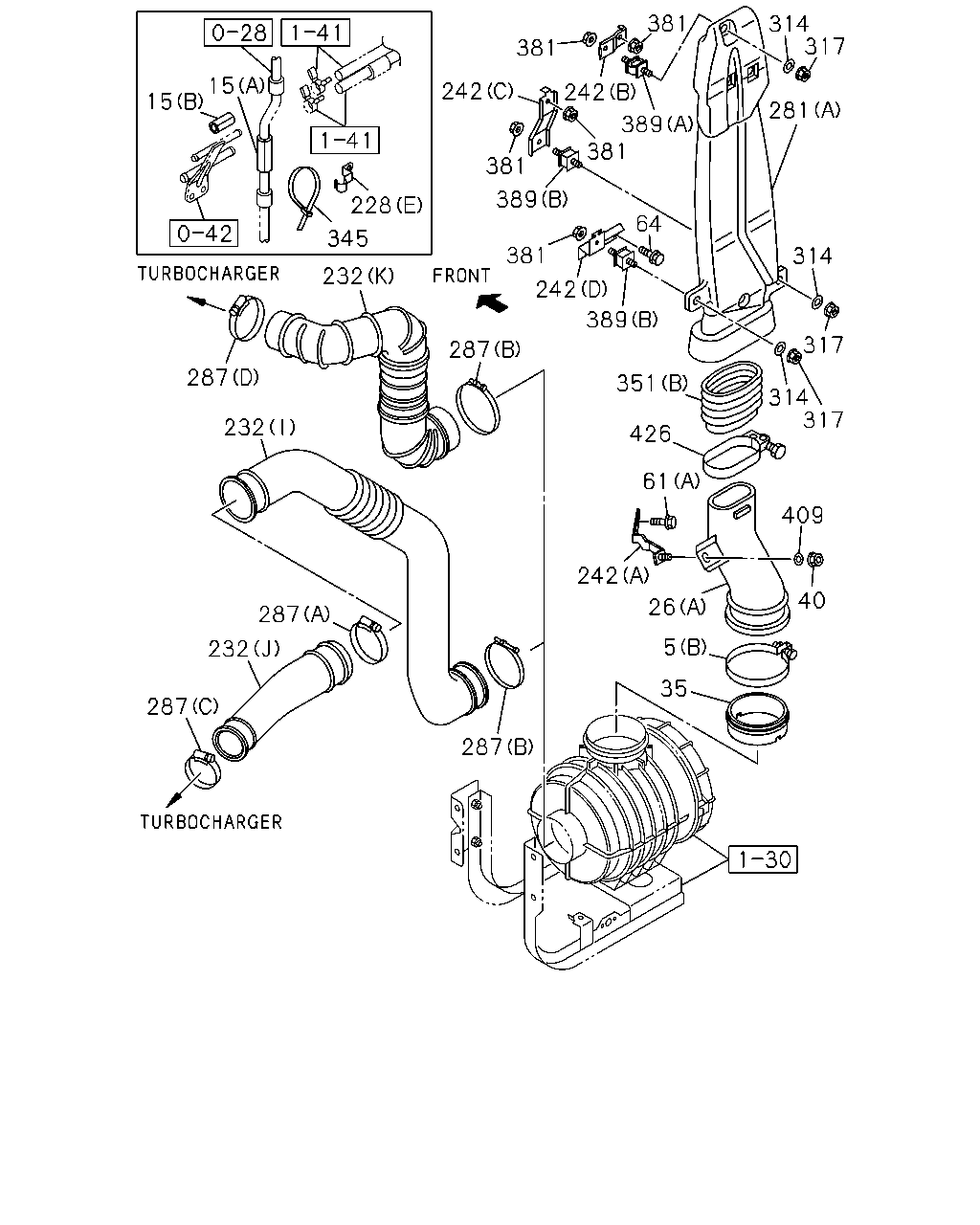

381 314 317 381 242 389 281 242 381 381 389 64 381 314 242 389 317 351 314 317 426 61 409 242 40 26 5 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
5	03.407 CLIP; AIR DUCT (B) ID=127	1-14239-263-0	01	1	1012-	●	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	01	1	1012-	●	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1012-	●	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1012-	●	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1012-	●	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	01	1	1012-	●	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1012-	●	●	●	●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> 03.417 (H) ID=40-50	8-98133-347-0	02	1	1012-	●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> (G) ID=55-75	8-98133-349-0	02	1	1012-	●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	02	1	1012-	●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (H) ID=44-60	8-94175-940-0	02	1	1012-	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (F) ID=117	9-09915-075-1	01	1	1012-			●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (E) D=101.6	9-09915-502-1	01	1	1012-			●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	03	1	1012-			●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	03	1	1012-			●	●
26	03.417 DUCT; AIR INT (A)	8-98023-339-0	01	1	1012-	●	●
26	03.417 DUCT; AIR INT 4JJ1-TCC ENG(RDU) (B)	8-98023-340-0	01	1	1012-			●	●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1012-	●	●	●	●
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-	●	●	●	●
61	03.417 BOLT; BRKT,AIR DUCT MANUAL STEERING<N51> 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1012-	●	●
61	03.417 BOLT; BRKT,AIR DUCT EXC. MANUAL STEERING<N51> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1012-	●	●
61	03.417 BOLT; BRKT,AIR DUCT 4JJ1-TCC ENG(RDU) 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	1012-			●	●
64	03.417 BOLT; BRKT,AIR DUCT M8X16	0-52000-816-0	01	1	1012-	●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98067-764-1	01	1	1012-	●	●
242	03.417 BRACKET; AIR DUCT (C)	8-98067-765-1	01	1	1012-	●	●
242	03.417 BRACKET; AIR DUCT (D)	8-98067-766-1	01	1	1012-	●	●
242	03.417 BRACKET; AIR DUCT MANUAL STEERING<N51> (A)	8-98166-944-1	01	1	1012-	●	●
242	03.417 BRACKET; AIR DUCT EXC. MANUAL STEERING<N51> (A)	8-98067-767-4	01	1	1012-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (E)	8-98079-905-2	01	1	1012-	●	●	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (F)	8-98108-313-1	01	1	1012-	●	●	●	●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (K)	8-98072-277-1	01	1	1012-	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (I)	8-98055-243-1	01	1	1012-			●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (G)	8-98055-246-2	01	1	1012-			●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (H)	8-98055-247-1	01	1	1012-			●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (J)	8-98066-918-1	01	1	1012-			●	●
281	03.417 DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER<K46> (A)	8-98101-994-2	01	1	1012-	●	●
281	03.417 DUCT; AIR,VERTICAL INT EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-97369-706-0	01	1	1012-	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JJ1-TCC ENG(RDU) HEAVY DUTY AIR CLEANER<K46> (C)	8-98101-995-5	01	1	1012-			●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JJ1-TCC ENG(RDU) EXC. HEAVY DUTY AIR CLEANER<K46> (B)	8-98061-757-2	01	1	1012-			●	●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1012-	●	●	●	●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1012-	●	●	●	●
351	03.407 DUCT; AIR (B)	8-98115-594-0	01	1	1012-	●	●
351	03.407 DUCT; AIR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.417 (A)	8-98067-267-0	01	1	1012-	●	●	●	●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) (C)	8-98072-163-1	01	1	1012-			●	●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) (D)	8-98136-042-0	01	1	1012-			●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	02	1	1012-	●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	03	1	1012-	●	●	●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	03	1	1012-			●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1012-	●	●	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1012-	●	●	●	●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1012-	●	●	●	●
426	03.417 CLIP; DUCT 03.407 D=101.6	9-09915-502-1	01	1	1012-	●	●

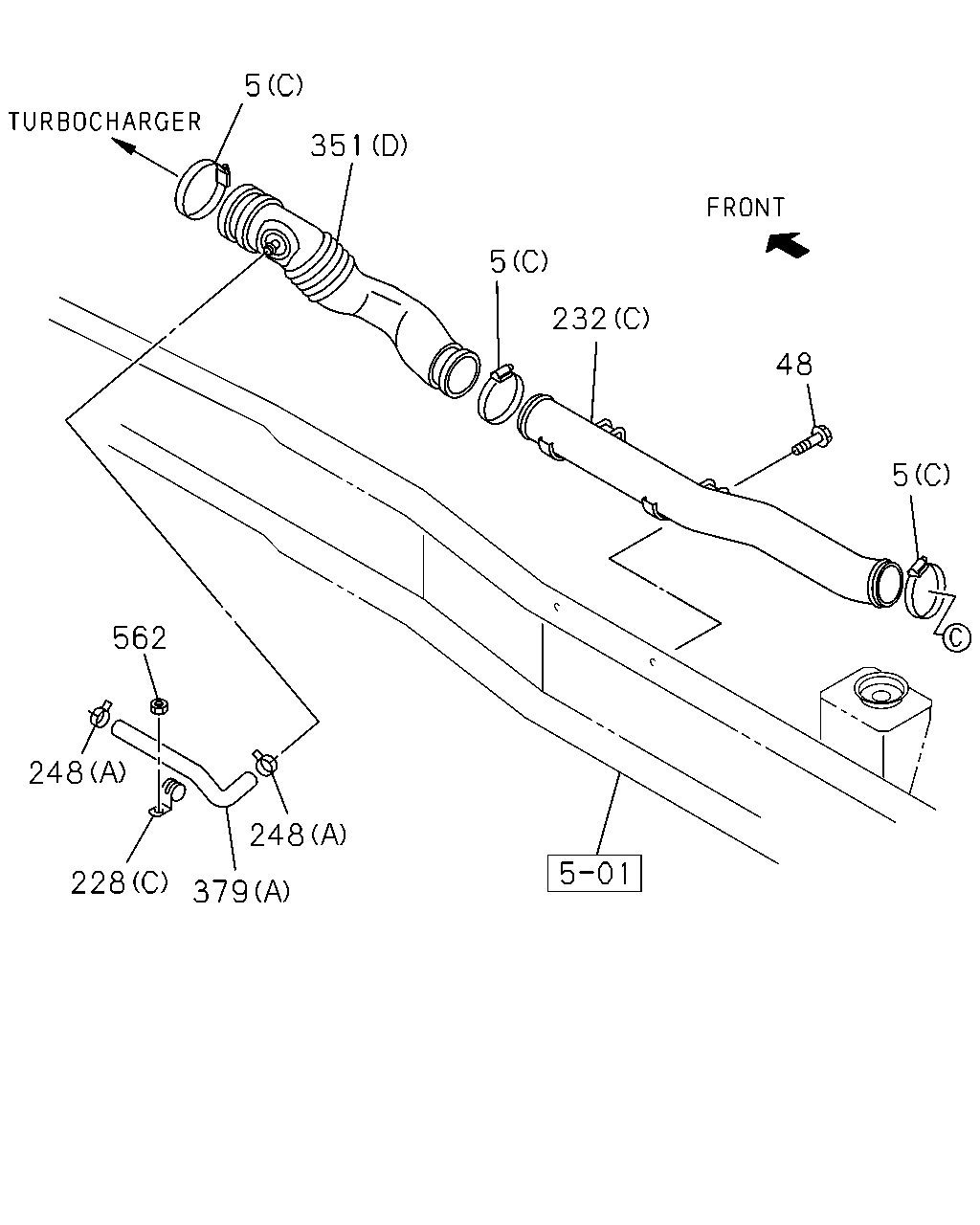

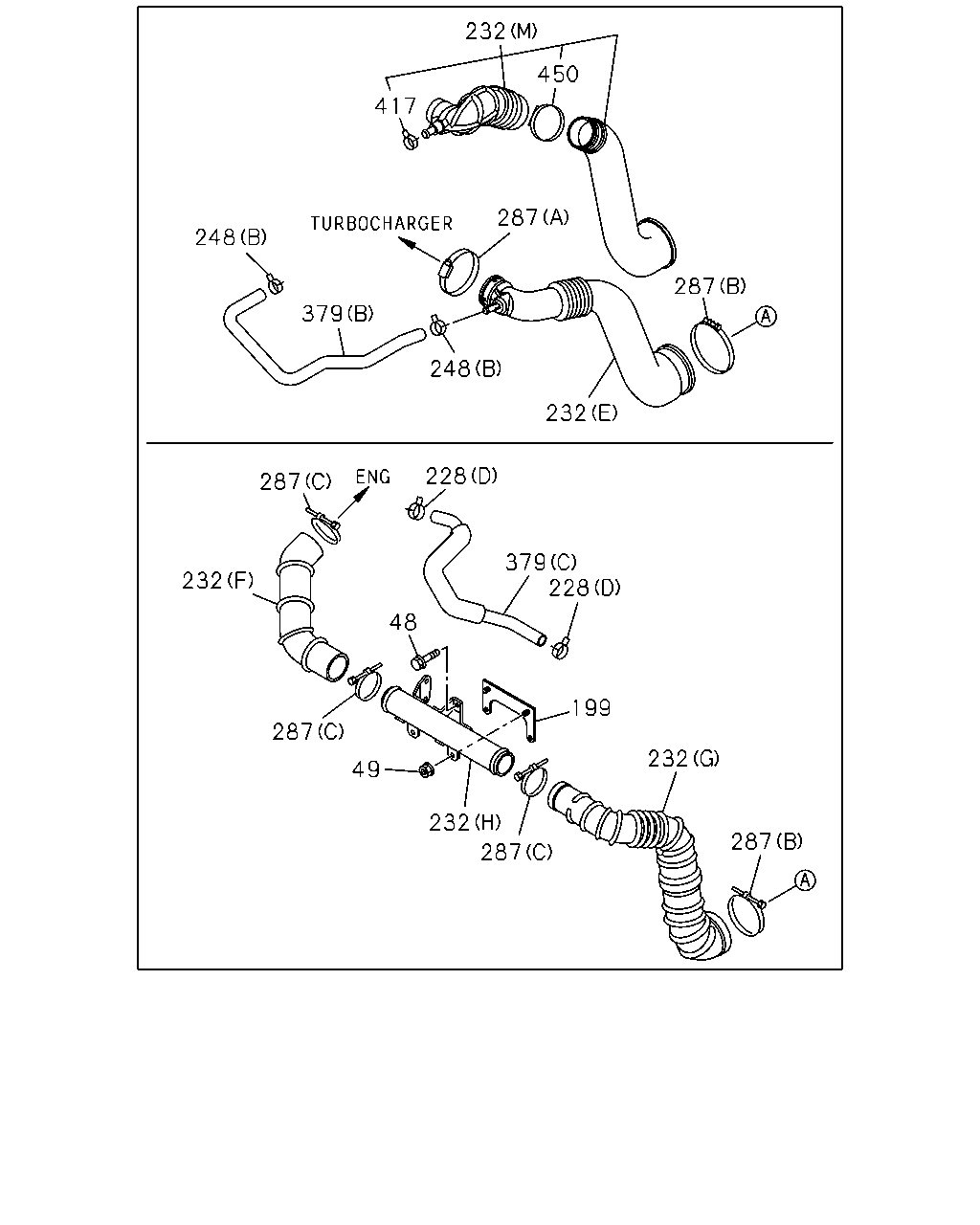

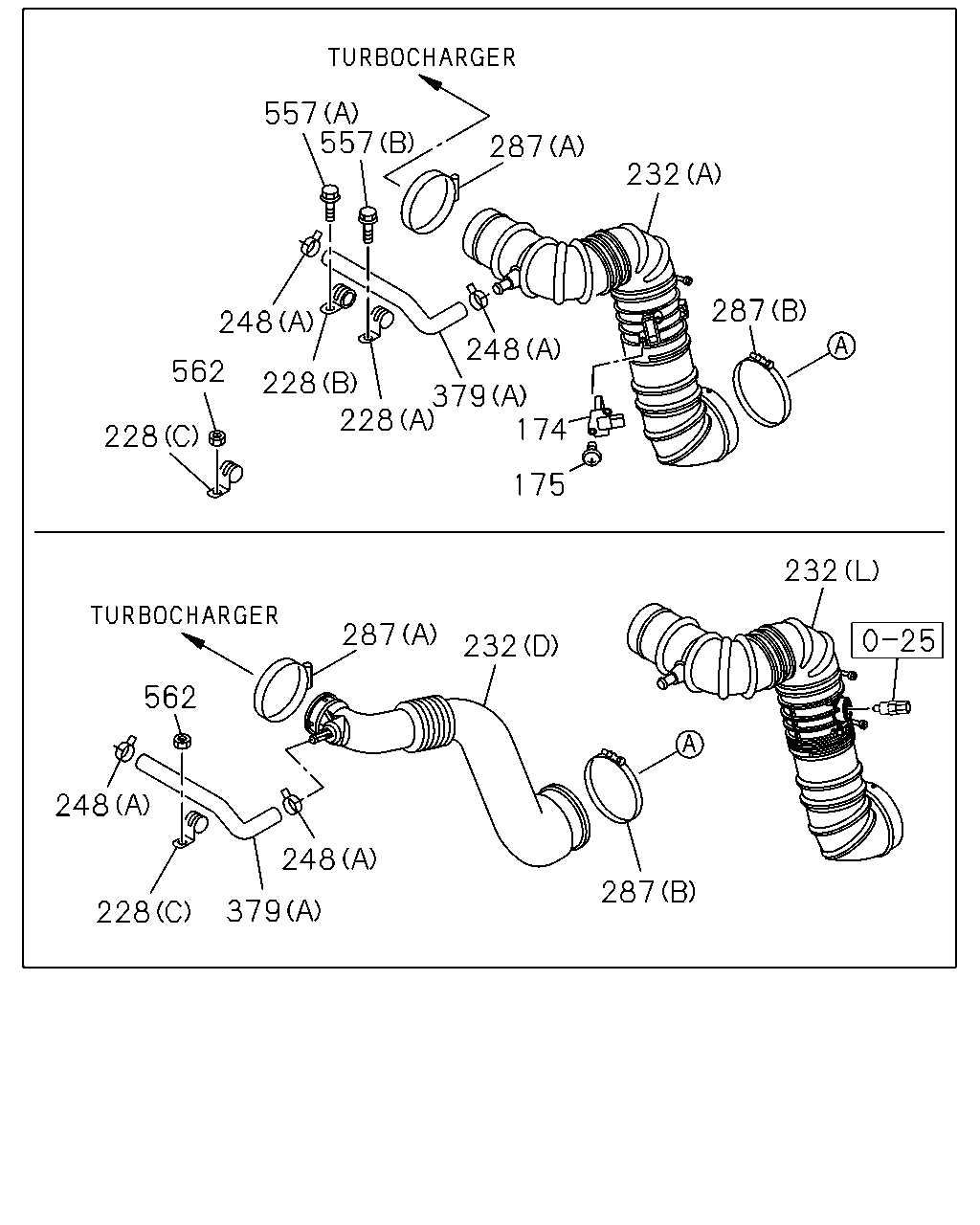

232 450 417 248 379 248 232 287 287 228 287 232 48 379 228 199 232 287 287 232 49 287

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
48	03.417 BOLT; AIR DUCT 4JB1 ENG(RLF) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1012-	●	●
48	03.417 BOLT; AIR DUCT 4JJ1-TCC ENG(RDU) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1012-			●	●
49	03.417 NUT; AIR DUCT 4JB1 ENG(RLF) 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-	●	●
199	03.417 BRACKET; PIPE 4JB1 ENG(RLF)	8-98166-945-0	01	1	1012-	●	●
228	03.278 CLIP; PCV HOSE 4HG1-T ENG(RDP) 03.417 (E)	8-97369-959-0	01	1	1107-	●
228	03.278 CLIP; PCV HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (C) ID=25 H=40 L=50	8-98073-275-0	01	1	1012-	●
228	03.278 CLIP; PCV HOSE 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (C) ID=25 H=40 L=50	8-98073-275-0	01	1	1012-		●
228	03.278 CLIP; PCV HOSE 4JJ1-TCC ENG(RDU) (C) ID=25 H=40 L=50	8-98073-275-0	01	1	1012-			●	●
228	03.278 CLIP; PCV HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (B) ID=22 L=22	8-98120-916-0	01	1	1012-	●
228	03.278 CLIP; PCV HOSE 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) (B) ID=22 L=22	8-98120-916-0	01	1	1012-		●
228	03.278 CLIP; PCV HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (A) ID=24.5 H=23 L=25	8-98149-024-0	01	1	1012-	●
228	03.278 CLIP; PCV HOSE 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) (A) ID=24.5 H=23 L=25	8-98149-024-0	01	1	1012-		●
228	03.278 CLIP; PCV HOSE 4JB1 ENG(RLF) 03.265 (D) ID=20.4	8-94121-113-0	02	1	1012-	●	●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (L)	8-98048-540-0	01	1	1012-1409	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. FRAME-KICK UP<7EW> (L)	8-98048-540-0	01	1	1012-1409		●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (L)	8-98269-834-0	01	1	1410-	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. FRAME-KICK UP<7EW> (L)	8-98269-834-0	01	1	1410-		●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO4 SPECIFICATION(NT4) (A)	8-98048-136-1	01	1	1012-1503	●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO4 SPECIFICATION(NT4) (A)	8-98290-770-0	01	1	1504-	●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP) (K)	8-98166-942-0	01	1	1012-	●
232	03.417 HOSE; CONN 4JB1-TC ENG(RDT) (E)	8-98069-040-2	01	1	1012-1509	●
232	03.417 HOSE; CONN 4JB1-TC ENG(RDT) (M)	8-98327-660-0	01	1	1510-	●
232	03.417 HOSE; CONN 4JB1 ENG(RLF) (F)	8-97107-173-1	01	1	1012-	●	●
232	03.417 HOSE; CONN 4JB1 ENG(RLF) (G)	8-98166-941-0	01	1	1012-	●	●
232	03.417 HOSE; CONN 4JB1 ENG(RLF) (H)	8-98170-481-1	01	1	1012-	●	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME-KICK UP<7EW> (D)	8-98067-737-0	01	1	1012-		●
232	03.417 HOSE; CONN 4HG1 ENG(RJH) (I)	8-98105-056-1	01	1	1012-		●
232	03.417 HOSE; CONN 4HG1 ENG(RJH) (J)	8-98131-538-1	01	1	1012-1405		●
232	03.417 HOSE; CONN 4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(GH3) (J)	8-98131-538-1	01	1	1406-		●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) (B)	8-98082-535-0	01	1	1012-1309			●	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) (B)	8-98231-785-0	01	1	1310-			●	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) (C)	8-98108-234-0	01	1	1012-			●	●
248	03.417 CLIP; RUBBER HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 08.846 (A) ID=21.7	8-97203-074-0	02	1	1012-	●	●	●	●
248	03.417 CLIP; RUBBER HOSE 4JB1-TC ENG(RDT) 03.265 (B) ID=20.4	8-94121-113-0	02	1	1012-	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4HG1-T ENG(RDP), 4JJ1-TCC ENG(RDU),4JB1 ENG(RLF) 03.407 (B) ID=117	9-09915-075-1	01	1	1012-	●	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU), 4HG1 ENG(RJH) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=65-85	8-98133-350-0	01	1	1012-	●	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU), 4HG1 ENG(RJH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=70-90	8-98122-372-0	01	1	1012-	●	●
287	03.417 CLIP; AIR DUCT 4HG1-T ENG(RDP) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (D) ID=55-75	8-98133-349-0	01	1	1012-	●
287	03.417 CLIP; AIR DUCT 4HG1-T ENG(RDP) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (D) ID=58-79	1-09707-136-0	01	1	1012-	●
287	03.417 CLIP; AIR DUCT 4JB1-TC ENG(RDT) 03.407 (B) ID=112	9-09915-074-1	01	1	1012-	●
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) 03.407 (B) ID=112	9-09915-074-1	01	1	1012-		●
287	03.417 CLIP; AIR DUCT 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> (A) ID=40-50	8-98133-347-0	01	1	1012-1405	●
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) IDENTIFICATION LABEL FOR KD<6UT> (A) ID=40-50	8-98133-347-0	01	1	1012-1405		●
287	03.417 CLIP; AIR DUCT 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> (A) ID=40-50	8-98133-347-0	01	1	1406-	●
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(GH3) IDENTIFICATION LABEL FOR KD<6UT> (A) ID=40-50	8-98133-347-0	01	1	1406-		●
287	03.417 CLIP; AIR DUCT 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (A) ID=44-60	8-94175-940-0	01	1	1012-1405	●
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (A) ID=44-60	8-94175-940-0	01	1	1012-1405		●
287	03.417 CLIP; AIR DUCT 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (A) ID=44-60	8-94175-940-0	01	1	1406-	●
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(GH3) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (A) ID=44-60	8-94175-940-0	01	1	1406-		●
287	03.417 CLIP; AIR DUCT 4JB1 ENG(RLF) 03.407 (C) ID=79	9-09915-734-1	03	1	1012-	●	●
379	03.675 HOSE; RUBBER 4JB1-TC ENG(RDT) (B)	8-98178-711-0	01	1	1012-	●
379	03.675 HOSE; RUBBER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (A)	8-98135-511-0	01	1	1012-	●
379	03.675 HOSE; RUBBER 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (A)	8-98135-511-0	01	1	1012-		●
379	03.675 HOSE; RUBBER 4JJ1-TCC ENG(RDU) (A)	8-98135-511-0	01	1	1012-			●	●
379	03.675 HOSE; RUBBER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 03.278 (A)	8-98045-343-0	01	1	1012-	●
379	03.675 HOSE; RUBBER 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) 03.278 (A)	8-98045-343-0	01	1	1012-		●
379	03.675 HOSE; RUBBER 4JB1 ENG(RLF) 03.265 (C)	8-97253-667-0	01	1	1012-	●	●
417	03.278 CLIP; WATER HOSE 4JB1-TC ENG(RDT) 08.846 ID=23	8-94382-402-0	01	1	1510-	●
450	03.417 CLAMP; HOSE 4JB1-TC ENG(RDT) 03.407 ID=65-85	8-98133-350-0	01	1	1510-	●

557 557 287 232 287 174 175 248 379 228 228 228 562 248 232 232 287 287 248 379 228 248 562

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
174	03.682 SENSOR; AIR FLOW CONT 4JJ1-TCS ENG(LFB)	8-97601-967-0	01	1	1012-	●
175	03.682 BOLT; AIR FLOW CONT SENSOR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO4 SPECIFICATION(NT4) 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1012-	●
228	03.278 CLIP; PCV HOSE 4HG1-T ENG(RDP) 03.417 (E)	8-97369-959-0	01	1	1107-	●
228	03.278 CLIP; PCV HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (C) ID=25 H=40 L=50	8-98073-275-0	01	1	1012-	●
228	03.278 CLIP; PCV HOSE 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (C) ID=25 H=40 L=50	8-98073-275-0	01	1	1012-		●
228	03.278 CLIP; PCV HOSE 4JJ1-TCC ENG(RDU) (C) ID=25 H=40 L=50	8-98073-275-0	01	1	1012-			●	●
228	03.278 CLIP; PCV HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (B) ID=22 L=22	8-98120-916-0	01	1	1012-	●
228	03.278 CLIP; PCV HOSE 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) (B) ID=22 L=22	8-98120-916-0	01	1	1012-		●
228	03.278 CLIP; PCV HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (A) ID=24.5 H=23 L=25	8-98149-024-0	01	1	1012-	●
228	03.278 CLIP; PCV HOSE 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) (A) ID=24.5 H=23 L=25	8-98149-024-0	01	1	1012-		●
228	03.278 CLIP; PCV HOSE 4JB1 ENG(RLF) 03.265 (D) ID=20.4	8-94121-113-0	02	1	1012-	●	●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (L)	8-98048-540-0	01	1	1012-1409	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. FRAME-KICK UP<7EW> (L)	8-98048-540-0	01	1	1012-1409		●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (L)	8-98269-834-0	01	1	1410-	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. FRAME-KICK UP<7EW> (L)	8-98269-834-0	01	1	1410-		●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO4 SPECIFICATION(NT4) (A)	8-98048-136-1	01	1	1012-1503	●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO4 SPECIFICATION(NT4) (A)	8-98290-770-0	01	1	1504-	●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP) (K)	8-98166-942-0	01	1	1012-	●
232	03.417 HOSE; CONN 4JB1-TC ENG(RDT) (E)	8-98069-040-2	01	1	1012-1509	●
232	03.417 HOSE; CONN 4JB1-TC ENG(RDT) (M)	8-98327-660-0	01	1	1510-	●
232	03.417 HOSE; CONN 4JB1 ENG(RLF) (F)	8-97107-173-1	01	1	1012-	●	●
232	03.417 HOSE; CONN 4JB1 ENG(RLF) (G)	8-98166-941-0	01	1	1012-	●	●
232	03.417 HOSE; CONN 4JB1 ENG(RLF) (H)	8-98170-481-1	01	1	1012-	●	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME-KICK UP<7EW> (D)	8-98067-737-0	01	1	1012-		●
232	03.417 HOSE; CONN 4HG1 ENG(RJH) (I)	8-98105-056-1	01	1	1012-		●
232	03.417 HOSE; CONN 4HG1 ENG(RJH) (J)	8-98131-538-1	01	1	1012-1405		●
232	03.417 HOSE; CONN 4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(GH3) (J)	8-98131-538-1	01	1	1406-		●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) (B)	8-98082-535-0	01	1	1012-1309			●	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) (B)	8-98231-785-0	01	1	1310-			●	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) (C)	8-98108-234-0	01	1	1012-			●	●
248	03.417 CLIP; RUBBER HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 08.846 (A) ID=21.7	8-97203-074-0	02	1	1012-	●	●	●	●
248	03.417 CLIP; RUBBER HOSE 4JB1-TC ENG(RDT) 03.265 (B) ID=20.4	8-94121-113-0	02	1	1012-	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4HG1-T ENG(RDP), 4JJ1-TCC ENG(RDU),4JB1 ENG(RLF) 03.407 (B) ID=117	9-09915-075-1	01	1	1012-	●	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU), 4HG1 ENG(RJH) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=65-85	8-98133-350-0	01	1	1012-	●	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU), 4HG1 ENG(RJH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=70-90	8-98122-372-0	01	1	1012-	●	●
287	03.417 CLIP; AIR DUCT 4HG1-T ENG(RDP) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (D) ID=55-75	8-98133-349-0	01	1	1012-	●
287	03.417 CLIP; AIR DUCT 4HG1-T ENG(RDP) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (D) ID=58-79	1-09707-136-0	01	1	1012-	●
287	03.417 CLIP; AIR DUCT 4JB1-TC ENG(RDT) 03.407 (B) ID=112	9-09915-074-1	01	1	1012-	●
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) 03.407 (B) ID=112	9-09915-074-1	01	1	1012-		●
287	03.417 CLIP; AIR DUCT 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> (A) ID=40-50	8-98133-347-0	01	1	1012-1405	●
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) IDENTIFICATION LABEL FOR KD<6UT> (A) ID=40-50	8-98133-347-0	01	1	1012-1405		●
287	03.417 CLIP; AIR DUCT 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> (A) ID=40-50	8-98133-347-0	01	1	1406-	●
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(GH3) IDENTIFICATION LABEL FOR KD<6UT> (A) ID=40-50	8-98133-347-0	01	1	1406-		●
287	03.417 CLIP; AIR DUCT 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (A) ID=44-60	8-94175-940-0	01	1	1012-1405	●
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (A) ID=44-60	8-94175-940-0	01	1	1012-1405		●
287	03.417 CLIP; AIR DUCT 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (A) ID=44-60	8-94175-940-0	01	1	1406-	●
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(GH3) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (A) ID=44-60	8-94175-940-0	01	1	1406-		●
287	03.417 CLIP; AIR DUCT 4JB1 ENG(RLF) 03.407 (C) ID=79	9-09915-734-1	03	1	1012-	●	●
379	03.675 HOSE; RUBBER 4JB1-TC ENG(RDT) (B)	8-98178-711-0	01	1	1012-	●
379	03.675 HOSE; RUBBER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (A)	8-98135-511-0	01	1	1012-	●
379	03.675 HOSE; RUBBER 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (A)	8-98135-511-0	01	1	1012-		●
379	03.675 HOSE; RUBBER 4JJ1-TCC ENG(RDU) (A)	8-98135-511-0	01	1	1012-			●	●
379	03.675 HOSE; RUBBER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 03.278 (A)	8-98045-343-0	01	1	1012-	●
379	03.675 HOSE; RUBBER 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) 03.278 (A)	8-98045-343-0	01	1	1012-		●
379	03.675 HOSE; RUBBER 4JB1 ENG(RLF) 03.265 (C)	8-97253-667-0	01	1	1012-	●	●
557	03.403 BOLT; HOSE CLIP 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 03.671 (A) M6X10 FLANGE	0-28050-610-0	01	1	1012-	●
557	03.403 BOLT; HOSE CLIP 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) 03.671 (A) M6X10 FLANGE	0-28050-610-0	01	1	1012-		●
557	03.403 BOLT; HOSE CLIP 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 03.330 (B) M8X12 HEX SOCKET	0-58330-812-0	01	1	1012-	●
557	03.403 BOLT; HOSE CLIP 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) 03.330 (B) M8X12 HEX SOCKET	0-58330-812-0	01	1	1012-		●
562	03.403 NUT; HOSE CLIP 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●
562	03.403 NUT; HOSE CLIP 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-		●
562	03.403 NUT; HOSE CLIP 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-			●	●

381 381 242 389 314 317 242 381 381 389 281 314 317 389 381 5 242 381 232 351 314 317 5 409 40 297 242 26 61 5 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
5	03.407 CLIP; AIR DUCT (B) ID=127	1-14239-263-0	01	1	1012-	●	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	01	1	1012-	●	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1012-	●	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1012-	●	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1012-	●	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	01	1	1012-	●	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1012-	●	●	●	●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> 03.417 (H) ID=40-50	8-98133-347-0	02	1	1012-	●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> (G) ID=55-75	8-98133-349-0	02	1	1012-	●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	02	1	1012-	●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (H) ID=44-60	8-94175-940-0	02	1	1012-	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (F) ID=117	9-09915-075-1	01	1	1012-			●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (E) D=101.6	9-09915-502-1	01	1	1012-			●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	03	1	1012-			●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	03	1	1012-			●	●
26	03.417 DUCT; AIR INT (A)	8-98023-339-0	01	1	1012-	●	●
26	03.417 DUCT; AIR INT 4JJ1-TCC ENG(RDU) (B)	8-98023-340-0	01	1	1012-			●	●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1012-	●	●	●	●
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-	●	●	●	●
61	03.417 BOLT; BRKT,AIR DUCT MANUAL STEERING<N51> 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1012-	●	●
61	03.417 BOLT; BRKT,AIR DUCT EXC. MANUAL STEERING<N51> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1012-	●	●
61	03.417 BOLT; BRKT,AIR DUCT 4JJ1-TCC ENG(RDU) 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	1012-			●	●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (L)	8-98048-540-0	01	1	1012-1409	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. FRAME-KICK UP<7EW> (L)	8-98048-540-0	01	1	1012-1409		●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (L)	8-98269-834-0	01	1	1410-	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. FRAME-KICK UP<7EW> (L)	8-98269-834-0	01	1	1410-		●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO4 SPECIFICATION(NT4) (A)	8-98048-136-1	01	1	1012-1503	●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO4 SPECIFICATION(NT4) (A)	8-98290-770-0	01	1	1504-	●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP) (K)	8-98166-942-0	01	1	1012-	●
232	03.417 HOSE; CONN 4JB1-TC ENG(RDT) (E)	8-98069-040-2	01	1	1012-1509	●
232	03.417 HOSE; CONN 4JB1-TC ENG(RDT) (M)	8-98327-660-0	01	1	1510-	●
232	03.417 HOSE; CONN 4JB1 ENG(RLF) (F)	8-97107-173-1	01	1	1012-	●	●
232	03.417 HOSE; CONN 4JB1 ENG(RLF) (G)	8-98166-941-0	01	1	1012-	●	●
232	03.417 HOSE; CONN 4JB1 ENG(RLF) (H)	8-98170-481-1	01	1	1012-	●	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME-KICK UP<7EW> (D)	8-98067-737-0	01	1	1012-		●
232	03.417 HOSE; CONN 4HG1 ENG(RJH) (I)	8-98105-056-1	01	1	1012-		●
232	03.417 HOSE; CONN 4HG1 ENG(RJH) (J)	8-98131-538-1	01	1	1012-1405		●
232	03.417 HOSE; CONN 4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(GH3) (J)	8-98131-538-1	01	1	1406-		●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) (B)	8-98082-535-0	01	1	1012-1309			●	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) (B)	8-98231-785-0	01	1	1310-			●	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) (C)	8-98108-234-0	01	1	1012-			●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98067-764-1	01	1	1012-	●	●
242	03.417 BRACKET; AIR DUCT (C)	8-98067-765-1	01	1	1012-	●	●
242	03.417 BRACKET; AIR DUCT (D)	8-98067-766-1	01	1	1012-	●	●
242	03.417 BRACKET; AIR DUCT MANUAL STEERING<N51> (A)	8-98166-944-1	01	1	1012-	●	●
242	03.417 BRACKET; AIR DUCT EXC. MANUAL STEERING<N51> (A)	8-98067-767-4	01	1	1012-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (E)	8-98079-905-2	01	1	1012-	●	●	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (F)	8-98108-313-1	01	1	1012-	●	●	●	●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (K)	8-98072-277-1	01	1	1012-	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (I)	8-98055-243-1	01	1	1012-			●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (G)	8-98055-246-2	01	1	1012-			●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (H)	8-98055-247-1	01	1	1012-			●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (J)	8-98066-918-1	01	1	1012-			●	●
281	03.417 DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER<K46> (A)	8-98101-994-2	01	1	1012-	●	●
281	03.417 DUCT; AIR,VERTICAL INT EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-97369-706-0	01	1	1012-	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JJ1-TCC ENG(RDU) HEAVY DUTY AIR CLEANER<K46> (C)	8-98101-995-5	01	1	1012-			●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JJ1-TCC ENG(RDU) EXC. HEAVY DUTY AIR CLEANER<K46> (B)	8-98061-757-2	01	1	1012-			●	●
297	03.417 BOLT; DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.060 (A) M8X35 FLANGE	0-28650-835-0	01	1	1012-	●	●	●	●
297	03.417 BOLT; DUCT 4JJ1-TCC ENG(RDU) 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	1012-			●	●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1012-	●	●	●	●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1012-	●	●	●	●
351	03.407 DUCT; AIR (B)	8-98115-594-0	01	1	1012-	●	●
351	03.407 DUCT; AIR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.417 (A)	8-98067-267-0	01	1	1012-	●	●	●	●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) (C)	8-98072-163-1	01	1	1012-			●	●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) (D)	8-98136-042-0	01	1	1012-			●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	02	1	1012-	●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	03	1	1012-	●	●	●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	03	1	1012-			●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1012-	●	●	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1012-	●	●	●	●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1012-	●	●	●	●

381 381 242 389 314 317 381 381 389 281 242 314 317 381 242 381 5 389 351 232 314 317 297 5 26 242 409 40 61 5 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
5	03.407 CLIP; AIR DUCT (B) ID=127	1-14239-263-0	01	1	1012-	●	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	01	1	1012-	●	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1012-	●	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1012-	●	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1012-	●	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	01	1	1012-	●	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1012-	●	●	●	●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> 03.417 (H) ID=40-50	8-98133-347-0	02	1	1012-	●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> (G) ID=55-75	8-98133-349-0	02	1	1012-	●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	02	1	1012-	●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (H) ID=44-60	8-94175-940-0	02	1	1012-	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (F) ID=117	9-09915-075-1	01	1	1012-			●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (E) D=101.6	9-09915-502-1	01	1	1012-			●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	03	1	1012-			●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	03	1	1012-			●	●
26	03.417 DUCT; AIR INT (A)	8-98023-339-0	01	1	1012-	●	●
26	03.417 DUCT; AIR INT 4JJ1-TCC ENG(RDU) (B)	8-98023-340-0	01	1	1012-			●	●
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-	●	●	●	●
61	03.417 BOLT; BRKT,AIR DUCT MANUAL STEERING<N51> 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1012-	●	●
61	03.417 BOLT; BRKT,AIR DUCT EXC. MANUAL STEERING<N51> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1012-	●	●
61	03.417 BOLT; BRKT,AIR DUCT 4JJ1-TCC ENG(RDU) 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	1012-			●	●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (L)	8-98048-540-0	01	1	1012-1409	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. FRAME-KICK UP<7EW> (L)	8-98048-540-0	01	1	1012-1409		●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (L)	8-98269-834-0	01	1	1410-	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. FRAME-KICK UP<7EW> (L)	8-98269-834-0	01	1	1410-		●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO4 SPECIFICATION(NT4) (A)	8-98048-136-1	01	1	1012-1503	●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO4 SPECIFICATION(NT4) (A)	8-98290-770-0	01	1	1504-	●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP) (K)	8-98166-942-0	01	1	1012-	●
232	03.417 HOSE; CONN 4JB1-TC ENG(RDT) (E)	8-98069-040-2	01	1	1012-1509	●
232	03.417 HOSE; CONN 4JB1-TC ENG(RDT) (M)	8-98327-660-0	01	1	1510-	●
232	03.417 HOSE; CONN 4JB1 ENG(RLF) (F)	8-97107-173-1	01	1	1012-	●	●
232	03.417 HOSE; CONN 4JB1 ENG(RLF) (G)	8-98166-941-0	01	1	1012-	●	●
232	03.417 HOSE; CONN 4JB1 ENG(RLF) (H)	8-98170-481-1	01	1	1012-	●	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME-KICK UP<7EW> (D)	8-98067-737-0	01	1	1012-		●
232	03.417 HOSE; CONN 4HG1 ENG(RJH) (I)	8-98105-056-1	01	1	1012-		●
232	03.417 HOSE; CONN 4HG1 ENG(RJH) (J)	8-98131-538-1	01	1	1012-1405		●
232	03.417 HOSE; CONN 4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(GH3) (J)	8-98131-538-1	01	1	1406-		●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) (B)	8-98082-535-0	01	1	1012-1309			●	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) (B)	8-98231-785-0	01	1	1310-			●	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) (C)	8-98108-234-0	01	1	1012-			●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98067-764-1	01	1	1012-	●	●
242	03.417 BRACKET; AIR DUCT (C)	8-98067-765-1	01	1	1012-	●	●
242	03.417 BRACKET; AIR DUCT (D)	8-98067-766-1	01	1	1012-	●	●
242	03.417 BRACKET; AIR DUCT MANUAL STEERING<N51> (A)	8-98166-944-1	01	1	1012-	●	●
242	03.417 BRACKET; AIR DUCT EXC. MANUAL STEERING<N51> (A)	8-98067-767-4	01	1	1012-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (E)	8-98079-905-2	01	1	1012-	●	●	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (F)	8-98108-313-1	01	1	1012-	●	●	●	●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (K)	8-98072-277-1	01	1	1012-	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (I)	8-98055-243-1	01	1	1012-			●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (G)	8-98055-246-2	01	1	1012-			●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (H)	8-98055-247-1	01	1	1012-			●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (J)	8-98066-918-1	01	1	1012-			●	●
281	03.417 DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER<K46> (A)	8-98101-994-2	01	1	1012-	●	●
281	03.417 DUCT; AIR,VERTICAL INT EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-97369-706-0	01	1	1012-	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JJ1-TCC ENG(RDU) HEAVY DUTY AIR CLEANER<K46> (C)	8-98101-995-5	01	1	1012-			●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JJ1-TCC ENG(RDU) EXC. HEAVY DUTY AIR CLEANER<K46> (B)	8-98061-757-2	01	1	1012-			●	●
297	03.417 BOLT; DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.060 (A) M8X35 FLANGE	0-28650-835-0	01	1	1012-	●	●	●	●
297	03.417 BOLT; DUCT 4JJ1-TCC ENG(RDU) 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	1012-			●	●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1012-	●	●	●	●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1012-	●	●	●	●
351	03.407 DUCT; AIR (B)	8-98115-594-0	01	1	1012-	●	●
351	03.407 DUCT; AIR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.417 (A)	8-98067-267-0	01	1	1012-	●	●	●	●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) (C)	8-98072-163-1	01	1	1012-			●	●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) (D)	8-98136-042-0	01	1	1012-			●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	02	1	1012-	●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	03	1	1012-	●	●	●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	03	1	1012-			●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1012-	●	●	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1012-	●	●	●	●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1012-	●	●	●	●

5 351 5 232 48 5 562 248 248 228 379

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
5	03.407 CLIP; AIR DUCT (B) ID=127	1-14239-263-0	01	1	1012-	●	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	01	1	1012-	●	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1012-	●	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1012-	●	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1012-	●	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	01	1	1012-	●	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1012-	●	●	●	●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> 03.417 (H) ID=40-50	8-98133-347-0	02	1	1012-	●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> (G) ID=55-75	8-98133-349-0	02	1	1012-	●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	02	1	1012-	●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (H) ID=44-60	8-94175-940-0	02	1	1012-	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (F) ID=117	9-09915-075-1	01	1	1012-			●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (E) D=101.6	9-09915-502-1	01	1	1012-			●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	03	1	1012-			●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	03	1	1012-			●	●
48	03.417 BOLT; AIR DUCT 4JB1 ENG(RLF) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1012-	●	●
48	03.417 BOLT; AIR DUCT 4JJ1-TCC ENG(RDU) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1012-			●	●
228	03.278 CLIP; PCV HOSE 4HG1-T ENG(RDP) 03.417 (E)	8-97369-959-0	01	1	1107-	●
228	03.278 CLIP; PCV HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (C) ID=25 H=40 L=50	8-98073-275-0	01	1	1012-	●
228	03.278 CLIP; PCV HOSE 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (C) ID=25 H=40 L=50	8-98073-275-0	01	1	1012-		●
228	03.278 CLIP; PCV HOSE 4JJ1-TCC ENG(RDU) (C) ID=25 H=40 L=50	8-98073-275-0	01	1	1012-			●	●
228	03.278 CLIP; PCV HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (B) ID=22 L=22	8-98120-916-0	01	1	1012-	●
228	03.278 CLIP; PCV HOSE 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) (B) ID=22 L=22	8-98120-916-0	01	1	1012-		●
228	03.278 CLIP; PCV HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (A) ID=24.5 H=23 L=25	8-98149-024-0	01	1	1012-	●
228	03.278 CLIP; PCV HOSE 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) (A) ID=24.5 H=23 L=25	8-98149-024-0	01	1	1012-		●
228	03.278 CLIP; PCV HOSE 4JB1 ENG(RLF) 03.265 (D) ID=20.4	8-94121-113-0	02	1	1012-	●	●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (L)	8-98048-540-0	01	1	1012-1409	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. FRAME-KICK UP<7EW> (L)	8-98048-540-0	01	1	1012-1409		●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (L)	8-98269-834-0	01	1	1410-	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. FRAME-KICK UP<7EW> (L)	8-98269-834-0	01	1	1410-		●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO4 SPECIFICATION(NT4) (A)	8-98048-136-1	01	1	1012-1503	●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO4 SPECIFICATION(NT4) (A)	8-98290-770-0	01	1	1504-	●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP) (K)	8-98166-942-0	01	1	1012-	●
232	03.417 HOSE; CONN 4JB1-TC ENG(RDT) (E)	8-98069-040-2	01	1	1012-1509	●
232	03.417 HOSE; CONN 4JB1-TC ENG(RDT) (M)	8-98327-660-0	01	1	1510-	●
232	03.417 HOSE; CONN 4JB1 ENG(RLF) (F)	8-97107-173-1	01	1	1012-	●	●
232	03.417 HOSE; CONN 4JB1 ENG(RLF) (G)	8-98166-941-0	01	1	1012-	●	●
232	03.417 HOSE; CONN 4JB1 ENG(RLF) (H)	8-98170-481-1	01	1	1012-	●	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME-KICK UP<7EW> (D)	8-98067-737-0	01	1	1012-		●
232	03.417 HOSE; CONN 4HG1 ENG(RJH) (I)	8-98105-056-1	01	1	1012-		●
232	03.417 HOSE; CONN 4HG1 ENG(RJH) (J)	8-98131-538-1	01	1	1012-1405		●
232	03.417 HOSE; CONN 4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(GH3) (J)	8-98131-538-1	01	1	1406-		●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) (B)	8-98082-535-0	01	1	1012-1309			●	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) (B)	8-98231-785-0	01	1	1310-			●	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) (C)	8-98108-234-0	01	1	1012-			●	●
248	03.417 CLIP; RUBBER HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 08.846 (A) ID=21.7	8-97203-074-0	02	1	1012-	●	●	●	●
248	03.417 CLIP; RUBBER HOSE 4JB1-TC ENG(RDT) 03.265 (B) ID=20.4	8-94121-113-0	02	1	1012-	●
351	03.407 DUCT; AIR (B)	8-98115-594-0	01	1	1012-	●	●
351	03.407 DUCT; AIR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.417 (A)	8-98067-267-0	01	1	1012-	●	●	●	●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) (C)	8-98072-163-1	01	1	1012-			●	●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) (D)	8-98136-042-0	01	1	1012-			●	●
379	03.675 HOSE; RUBBER 4JB1-TC ENG(RDT) (B)	8-98178-711-0	01	1	1012-	●
379	03.675 HOSE; RUBBER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (A)	8-98135-511-0	01	1	1012-	●
379	03.675 HOSE; RUBBER 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (A)	8-98135-511-0	01	1	1012-		●
379	03.675 HOSE; RUBBER 4JJ1-TCC ENG(RDU) (A)	8-98135-511-0	01	1	1012-			●	●
379	03.675 HOSE; RUBBER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 03.278 (A)	8-98045-343-0	01	1	1012-	●
379	03.675 HOSE; RUBBER 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) 03.278 (A)	8-98045-343-0	01	1	1012-		●
379	03.675 HOSE; RUBBER 4JB1 ENG(RLF) 03.265 (C)	8-97253-667-0	01	1	1012-	●	●
562	03.403 NUT; HOSE CLIP 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●
562	03.403 NUT; HOSE CLIP 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-		●
562	03.403 NUT; HOSE CLIP 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-			●	●

381 314 317 381 15 15 242 242 281 389 381 381 389 228 64 345 381 314 232 242 389 317 287 287 351 314 317 232 426 61 409 242 40 26 287 5 232 35 287 287

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
5	03.407 CLIP; AIR DUCT (B) ID=127	1-14239-263-0	01	1	1012-	●	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	01	1	1012-	●	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75	8-98133-349-0	01	1	1012-	●	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	01	1	1012-	●	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	01	1	1012-	●	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	01	1	1012-	●	●	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	01	1	1012-	●	●	●	●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> 03.417 (H) ID=40-50	8-98133-347-0	02	1	1012-	●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> (G) ID=55-75	8-98133-349-0	02	1	1012-	●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79	1-09707-136-0	02	1	1012-	●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (H) ID=44-60	8-94175-940-0	02	1	1012-	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (F) ID=117	9-09915-075-1	01	1	1012-			●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (E) D=101.6	9-09915-502-1	01	1	1012-			●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85	8-98133-350-0	03	1	1012-			●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90	8-98122-372-0	03	1	1012-			●	●
15	03.417 INSULATOR 4HG1-T ENG(RDP) (A) ID=23 OD=27 L=80	8-97608-976-0	01	1	1012-	●
15	03.417 INSULATOR 4HG1-T ENG(RDP) 02.530 (B) ID=12.5 OD=15.5 L=30	9-09714-002-0	01	1	1012-	●
26	03.417 DUCT; AIR INT (A)	8-98023-339-0	01	1	1012-	●	●
26	03.417 DUCT; AIR INT 4JJ1-TCC ENG(RDU) (B)	8-98023-340-0	01	1	1012-			●	●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1012-	●	●	●	●
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-	●	●	●	●
61	03.417 BOLT; BRKT,AIR DUCT MANUAL STEERING<N51> 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1012-	●	●
61	03.417 BOLT; BRKT,AIR DUCT EXC. MANUAL STEERING<N51> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1012-	●	●
61	03.417 BOLT; BRKT,AIR DUCT 4JJ1-TCC ENG(RDU) 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	1012-			●	●
64	03.417 BOLT; BRKT,AIR DUCT M8X16	0-52000-816-0	01	1	1012-	●	●
228	03.278 CLIP; PCV HOSE 4HG1-T ENG(RDP) 03.417 (E)	8-97369-959-0	01	1	1107-	●
228	03.278 CLIP; PCV HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (C) ID=25 H=40 L=50	8-98073-275-0	01	1	1012-	●
228	03.278 CLIP; PCV HOSE 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (C) ID=25 H=40 L=50	8-98073-275-0	01	1	1012-		●
228	03.278 CLIP; PCV HOSE 4JJ1-TCC ENG(RDU) (C) ID=25 H=40 L=50	8-98073-275-0	01	1	1012-			●	●
228	03.278 CLIP; PCV HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (B) ID=22 L=22	8-98120-916-0	01	1	1012-	●
228	03.278 CLIP; PCV HOSE 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) (B) ID=22 L=22	8-98120-916-0	01	1	1012-		●
228	03.278 CLIP; PCV HOSE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (A) ID=24.5 H=23 L=25	8-98149-024-0	01	1	1012-	●
228	03.278 CLIP; PCV HOSE 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) (A) ID=24.5 H=23 L=25	8-98149-024-0	01	1	1012-		●
228	03.278 CLIP; PCV HOSE 4JB1 ENG(RLF) 03.265 (D) ID=20.4	8-94121-113-0	02	1	1012-	●	●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (L)	8-98048-540-0	01	1	1012-1409	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. FRAME-KICK UP<7EW> (L)	8-98048-540-0	01	1	1012-1409		●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (L)	8-98269-834-0	01	1	1410-	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. FRAME-KICK UP<7EW> (L)	8-98269-834-0	01	1	1410-		●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO4 SPECIFICATION(NT4) (A)	8-98048-136-1	01	1	1012-1503	●
232	03.417 HOSE; CONN 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO4 SPECIFICATION(NT4) (A)	8-98290-770-0	01	1	1504-	●
232	03.417 HOSE; CONN 4HG1-T ENG(RDP) (K)	8-98166-942-0	01	1	1012-	●
232	03.417 HOSE; CONN 4JB1-TC ENG(RDT) (E)	8-98069-040-2	01	1	1012-1509	●
232	03.417 HOSE; CONN 4JB1-TC ENG(RDT) (M)	8-98327-660-0	01	1	1510-	●
232	03.417 HOSE; CONN 4JB1 ENG(RLF) (F)	8-97107-173-1	01	1	1012-	●	●
232	03.417 HOSE; CONN 4JB1 ENG(RLF) (G)	8-98166-941-0	01	1	1012-	●	●
232	03.417 HOSE; CONN 4JB1 ENG(RLF) (H)	8-98170-481-1	01	1	1012-	●	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME-KICK UP<7EW> (D)	8-98067-737-0	01	1	1012-		●
232	03.417 HOSE; CONN 4HG1 ENG(RJH) (I)	8-98105-056-1	01	1	1012-		●
232	03.417 HOSE; CONN 4HG1 ENG(RJH) (J)	8-98131-538-1	01	1	1012-1405		●
232	03.417 HOSE; CONN 4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(GH3) (J)	8-98131-538-1	01	1	1406-		●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) (B)	8-98082-535-0	01	1	1012-1309			●	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) (B)	8-98231-785-0	01	1	1310-			●	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) (C)	8-98108-234-0	01	1	1012-			●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98067-764-1	01	1	1012-	●	●
242	03.417 BRACKET; AIR DUCT (C)	8-98067-765-1	01	1	1012-	●	●
242	03.417 BRACKET; AIR DUCT (D)	8-98067-766-1	01	1	1012-	●	●
242	03.417 BRACKET; AIR DUCT MANUAL STEERING<N51> (A)	8-98166-944-1	01	1	1012-	●	●
242	03.417 BRACKET; AIR DUCT EXC. MANUAL STEERING<N51> (A)	8-98067-767-4	01	1	1012-	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (E)	8-98079-905-2	01	1	1012-	●	●	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (F)	8-98108-313-1	01	1	1012-	●	●	●	●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (K)	8-98072-277-1	01	1	1012-	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (I)	8-98055-243-1	01	1	1012-			●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (G)	8-98055-246-2	01	1	1012-			●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (H)	8-98055-247-1	01	1	1012-			●	●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (J)	8-98066-918-1	01	1	1012-			●	●
281	03.417 DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER<K46> (A)	8-98101-994-2	01	1	1012-	●	●
281	03.417 DUCT; AIR,VERTICAL INT EXC. HEAVY DUTY AIR CLEANER<K46> (A)	8-97369-706-0	01	1	1012-	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JJ1-TCC ENG(RDU) HEAVY DUTY AIR CLEANER<K46> (C)	8-98101-995-5	01	1	1012-			●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JJ1-TCC ENG(RDU) EXC. HEAVY DUTY AIR CLEANER<K46> (B)	8-98061-757-2	01	1	1012-			●	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4HG1-T ENG(RDP), 4JJ1-TCC ENG(RDU),4JB1 ENG(RLF) 03.407 (B) ID=117	9-09915-075-1	01	1	1012-	●	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU), 4HG1 ENG(RJH) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=65-85	8-98133-350-0	01	1	1012-	●	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU), 4HG1 ENG(RJH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=70-90	8-98122-372-0	01	1	1012-	●	●
287	03.417 CLIP; AIR DUCT 4HG1-T ENG(RDP) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (D) ID=55-75	8-98133-349-0	01	1	1012-	●
287	03.417 CLIP; AIR DUCT 4HG1-T ENG(RDP) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (D) ID=58-79	1-09707-136-0	01	1	1012-	●
287	03.417 CLIP; AIR DUCT 4JB1-TC ENG(RDT) 03.407 (B) ID=112	9-09915-074-1	01	1	1012-	●
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) 03.407 (B) ID=112	9-09915-074-1	01	1	1012-		●
287	03.417 CLIP; AIR DUCT 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> (A) ID=40-50	8-98133-347-0	01	1	1012-1405	●
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) IDENTIFICATION LABEL FOR KD<6UT> (A) ID=40-50	8-98133-347-0	01	1	1012-1405		●
287	03.417 CLIP; AIR DUCT 4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> (A) ID=40-50	8-98133-347-0	01	1	1406-	●
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(GH3) IDENTIFICATION LABEL FOR KD<6UT> (A) ID=40-50	8-98133-347-0	01	1	1406-		●
287	03.417 CLIP; AIR DUCT 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (A) ID=44-60	8-94175-940-0	01	1	1012-1405	●
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (A) ID=44-60	8-94175-940-0	01	1	1012-1405		●
287	03.417 CLIP; AIR DUCT 4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (A) ID=44-60	8-94175-940-0	01	1	1406-	●
287	03.417 CLIP; AIR DUCT 4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(GH3) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (A) ID=44-60	8-94175-940-0	01	1	1406-		●
287	03.417 CLIP; AIR DUCT 4JB1 ENG(RLF) 03.407 (C) ID=79	9-09915-734-1	03	1	1012-	●	●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1012-	●	●	●	●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1012-	●	●	●	●
345	03.417 CLIP; PCV HOSE 4HG1-T ENG(RDP) 02.559 L=250	5-09707-030-1	01	1	1012-	●
351	03.407 DUCT; AIR (B)	8-98115-594-0	01	1	1012-	●	●
351	03.407 DUCT; AIR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.417 (A)	8-98067-267-0	01	1	1012-	●	●	●	●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) (C)	8-98072-163-1	01	1	1012-			●	●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) (D)	8-98136-042-0	01	1	1012-			●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	02	1	1012-	●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	03	1	1012-	●	●	●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	03	1	1012-			●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1012-	●	●	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1012-	●	●	●	●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1012-	●	●	●	●
426	03.417 CLIP; DUCT 03.407 D=101.6	9-09915-502-1	01	1	1012-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
