◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51282 - NLR/NMR 55,85(LHD) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶

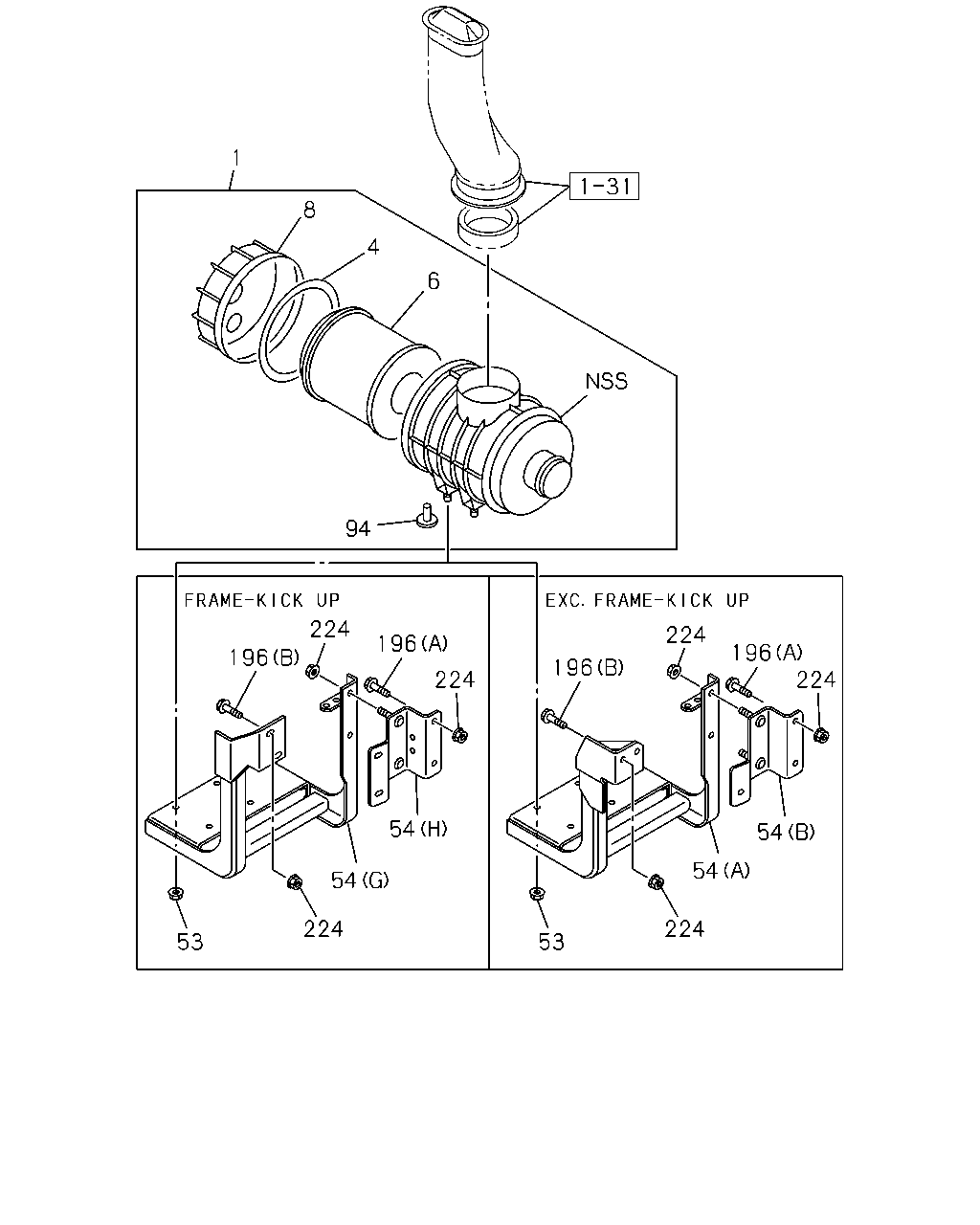

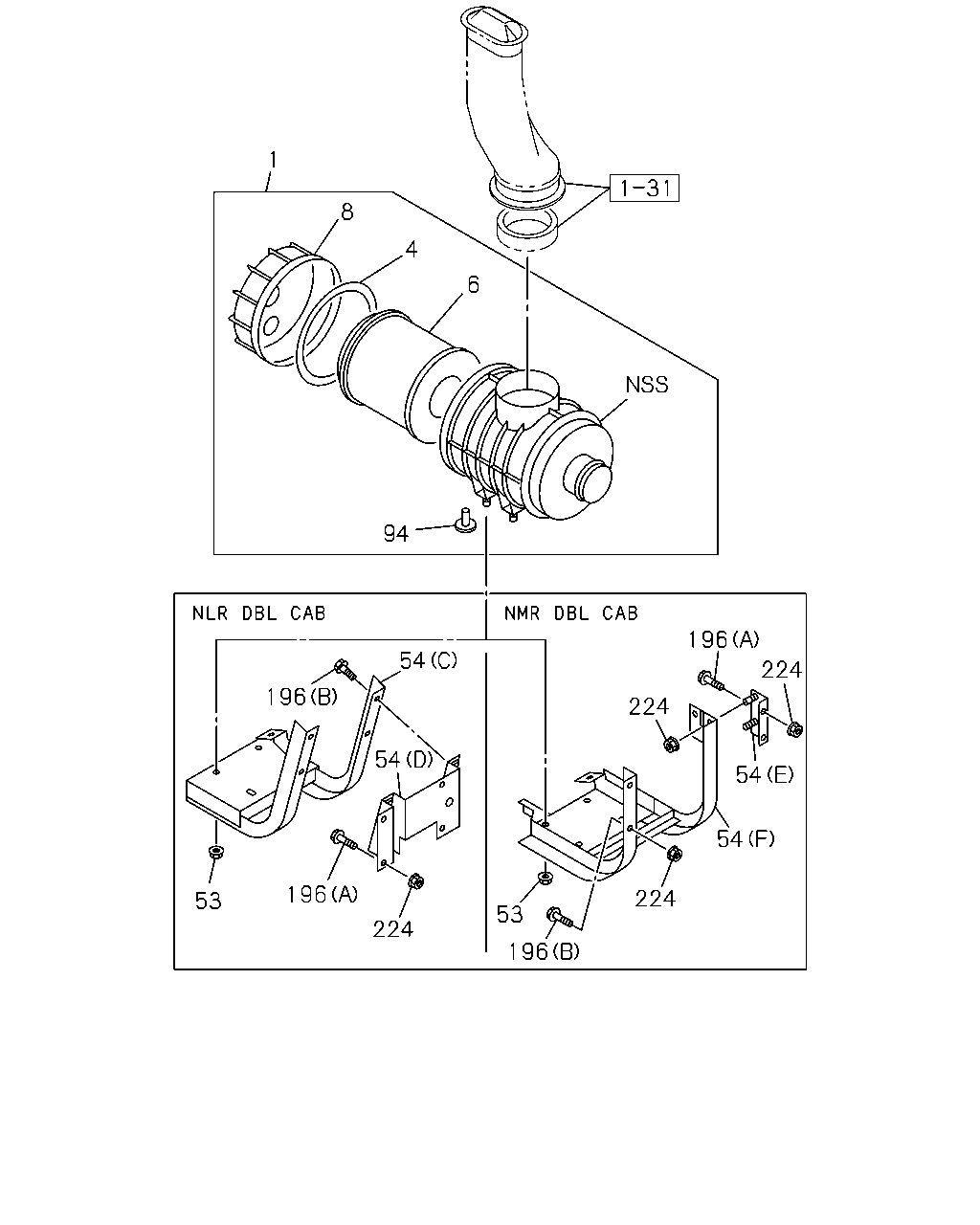

1-30 — AIR CLEANER (#79071) — 80 parça

1 8 4 6 94 224 224 196 196 224 196 196 224 54 54 54 54 224 224 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.402 CLEANER ASM; AIR 4HG1-T ENG(RDP)	8-98122-915-0	01	1	1012-1210	●
1	03.402 CLEANER ASM; AIR 4HG1 ENG(RJH)	8-98122-915-0	01	1	1012-1210		●
1	03.402 CLEANER ASM; AIR 4JJ1-TCS ENG(LFB),4JB1-TC ENG(RDT), 4JJ1-TCC ENG(RDU),4JB1 ENG(RLF)	8-98050-415-2	01	1	1012-1210	●	●	●	●
1	03.402 CLEANER ASM; AIR	8-98050-415-2	01	1	1211-	●	●	●	●
4	03.403 GASKET; COVER TO BODY	8-97352-113-0	01	1	1012-	●	●	●	●
6	03.410 FILTER; ACL	8-97062-294-0	01	1	1012-	●	●	●	●
6	03.410 FILTER; ACL BEST VALUE PARTS	5-87610-020-0	01	1	1012-	●	●	●	●
8	03.410 COVER ASM; ACL	8-98050-434-1	01	1	1012-	●	●	●	●
53	03.403 NUT; ACL 01.062 M8 FLANGE	0-91180-108-0	04	1	1012-	●	●	●	●
54	03.405 BRACKET; ACL 4HG1-T ENG(RDP) IDENTIFICATION LABEL FOR KD<6UT> (A)	8-98179-373-0	01	1	1012-	●
54	03.405 BRACKET; ACL 4JJ1-TCS ENG(LFB),4HG1-T ENG(RDP), 4JB1-TC ENG(RDT),4JJ1-TCC ENG(RDU),4JB1 ENG(RLF) (B)	8-98071-306-1	01	1	1012-	●
54	03.405 BRACKET; ACL 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. FRAME-KICK UP<7EW> (B)	8-98071-306-1	01	1	1012-		●
54	03.405 BRACKET; ACL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (A)	8-98067-768-2	01	1	1012-	●
54	03.405 BRACKET; ACL 4HG1-T ENG(RDP) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-98067-768-2	01	1	1012-	●
54	03.405 BRACKET; ACL 4JB1-TC ENG(RDT),4JB1 ENG(RLF) (A)	8-98067-768-2	01	1	1012-	●
54	03.405 BRACKET; ACL 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. FRAME-KICK UP<7EW> (A)	8-98067-768-2	01	1	1012-		●
54	03.405 BRACKET; ACL 4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. FRAME-KICK UP<7EW> (A)	8-98067-768-2	01	1	1012-		●
54	03.405 BRACKET; ACL 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4JB1 ENG(RLF) FRAME-KICK UP<7EW> (G)	8-98067-736-1	01	1	1012-		●
54	03.405 BRACKET; ACL 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4JB1 ENG(RLF) FRAME-KICK UP<7EW> (H)	8-98067-738-1	01	1	1012-		●
54	03.405 BRACKET; ACL 4JJ1-TCC ENG(RDU) (C)	8-98068-190-1	01	1	1012-			●
54	03.405 BRACKET; ACL 4JJ1-TCC ENG(RDU) (D)	8-98072-084-1	01	1	1012-			●
54	03.405 BRACKET; ACL 4JJ1-TCC ENG(RDU) (E)	8-98032-125-1	01	1	1012-				●
54	03.405 BRACKET; ACL 4JJ1-TCC ENG(RDU) (F)	8-98066-916-1	01	1	1012-				●
94	03.415 VALVE; VACUATOR	8-97093-694-0	01	1	1012-	●	●	●	●
196	03.417 BOLT; BRKT,ACL 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	1012-	●	●		●
196	03.417 BOLT; BRKT,ACL 4JJ1-TCS ENG(LFB),4HG1-T ENG(RDP), 4JB1-TC ENG(RDT),4JJ1-TCC ENG(RDU),4JB1 ENG(RLF) 00.029 (A) M10X30 FLANGE	0-28651-030-0	03	1	1012-	●
196	03.417 BOLT; BRKT,ACL 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. FRAME-KICK UP<7EW> 00.029 (A) M10X30 FLANGE	0-28651-030-0	03	1	1012-		●
196	03.417 BOLT; BRKT,ACL 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4JB1 ENG(RLF) FRAME-KICK UP<7EW> 00.029 (A) M10X30 FLANGE	0-28651-030-0	04	1	1012-		●
196	03.417 BOLT; BRKT,ACL 4JJ1-TCC ENG(RDU) 00.029 (A) M10X30 FLANGE	0-28651-030-0	04	1	1012-			●
196	03.417 BOLT; BRKT,ACL 4JJ1-TCC ENG(RDU) 02.277 (B) M10X35 FLANGE	0-28651-035-0	04	1	1012-			●
196	03.417 BOLT; BRKT,ACL 4JJ1-TCC ENG(RDU) 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1012-				●
224	03.407 NUT; BRKT 4JB1-TC ENG(RDT) HEAVY DUTY FRAME<6WB> 03.162 M10 FLANGE	0-91180-110-0	03	1	1312-	●
224	03.407 NUT; BRKT 4JJ1-TCS ENG(LFB),4HG1-T ENG(RDP), 4JB1-TC ENG(RDT),4JJ1-TCC ENG(RDU),4JB1 ENG(RLF) 03.162 M10 FLANGE	0-91180-110-0	05	1	1012-1311	●
224	03.407 NUT; BRKT 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. FRAME-KICK UP<7EW> 03.162 M10 FLANGE	0-91180-110-0	05	1	1012-1311		●
224	03.407 NUT; BRKT 4JJ1-TCS ENG(LFB),4HG1-T ENG(RDP), 4JJ1-TCC ENG(RDU),4JB1 ENG(RLF) 03.162 M10 FLANGE	0-91180-110-0	05	1	1312-	●
224	03.407 NUT; BRKT 4JB1-TC ENG(RDT) EXC. HEAVY DUTY FRAME<6WB> 03.162 M10 FLANGE	0-91180-110-0	05	1	1312-	●
224	03.407 NUT; BRKT 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. FRAME-KICK UP<7EW> 03.162 M10 FLANGE	0-91180-110-0	05	1	1312-		●
224	03.407 NUT; BRKT 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4JB1 ENG(RLF) FRAME-KICK UP<7EW> 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-		●
224	03.407 NUT; BRKT 4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	04	1	1012-			●
224	03.407 NUT; BRKT 4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	06	1	1012-				●

1 8 4 6 94 196 54 224 196 224 54 54 54 196 224 53 53 224 196

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.402 CLEANER ASM; AIR 4HG1-T ENG(RDP)	8-98122-915-0	01	1	1012-1210	●
1	03.402 CLEANER ASM; AIR 4HG1 ENG(RJH)	8-98122-915-0	01	1	1012-1210		●
1	03.402 CLEANER ASM; AIR 4JJ1-TCS ENG(LFB),4JB1-TC ENG(RDT), 4JJ1-TCC ENG(RDU),4JB1 ENG(RLF)	8-98050-415-2	01	1	1012-1210	●	●	●	●
1	03.402 CLEANER ASM; AIR	8-98050-415-2	01	1	1211-	●	●	●	●
4	03.403 GASKET; COVER TO BODY	8-97352-113-0	01	1	1012-	●	●	●	●
6	03.410 FILTER; ACL	8-97062-294-0	01	1	1012-	●	●	●	●
6	03.410 FILTER; ACL BEST VALUE PARTS	5-87610-020-0	01	1	1012-	●	●	●	●
8	03.410 COVER ASM; ACL	8-98050-434-1	01	1	1012-	●	●	●	●
53	03.403 NUT; ACL 01.062 M8 FLANGE	0-91180-108-0	04	1	1012-	●	●	●	●
54	03.405 BRACKET; ACL 4HG1-T ENG(RDP) IDENTIFICATION LABEL FOR KD<6UT> (A)	8-98179-373-0	01	1	1012-	●
54	03.405 BRACKET; ACL 4JJ1-TCS ENG(LFB),4HG1-T ENG(RDP), 4JB1-TC ENG(RDT),4JJ1-TCC ENG(RDU),4JB1 ENG(RLF) (B)	8-98071-306-1	01	1	1012-	●
54	03.405 BRACKET; ACL 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. FRAME-KICK UP<7EW> (B)	8-98071-306-1	01	1	1012-		●
54	03.405 BRACKET; ACL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (A)	8-98067-768-2	01	1	1012-	●
54	03.405 BRACKET; ACL 4HG1-T ENG(RDP) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-98067-768-2	01	1	1012-	●
54	03.405 BRACKET; ACL 4JB1-TC ENG(RDT),4JB1 ENG(RLF) (A)	8-98067-768-2	01	1	1012-	●
54	03.405 BRACKET; ACL 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. FRAME-KICK UP<7EW> (A)	8-98067-768-2	01	1	1012-		●
54	03.405 BRACKET; ACL 4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. FRAME-KICK UP<7EW> (A)	8-98067-768-2	01	1	1012-		●
54	03.405 BRACKET; ACL 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4JB1 ENG(RLF) FRAME-KICK UP<7EW> (G)	8-98067-736-1	01	1	1012-		●
54	03.405 BRACKET; ACL 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4JB1 ENG(RLF) FRAME-KICK UP<7EW> (H)	8-98067-738-1	01	1	1012-		●
54	03.405 BRACKET; ACL 4JJ1-TCC ENG(RDU) (C)	8-98068-190-1	01	1	1012-			●
54	03.405 BRACKET; ACL 4JJ1-TCC ENG(RDU) (D)	8-98072-084-1	01	1	1012-			●
54	03.405 BRACKET; ACL 4JJ1-TCC ENG(RDU) (E)	8-98032-125-1	01	1	1012-				●
54	03.405 BRACKET; ACL 4JJ1-TCC ENG(RDU) (F)	8-98066-916-1	01	1	1012-				●
94	03.415 VALVE; VACUATOR	8-97093-694-0	01	1	1012-	●	●	●	●
196	03.417 BOLT; BRKT,ACL 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	1012-	●	●		●
196	03.417 BOLT; BRKT,ACL 4JJ1-TCS ENG(LFB),4HG1-T ENG(RDP), 4JB1-TC ENG(RDT),4JJ1-TCC ENG(RDU),4JB1 ENG(RLF) 00.029 (A) M10X30 FLANGE	0-28651-030-0	03	1	1012-	●
196	03.417 BOLT; BRKT,ACL 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. FRAME-KICK UP<7EW> 00.029 (A) M10X30 FLANGE	0-28651-030-0	03	1	1012-		●
196	03.417 BOLT; BRKT,ACL 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4JB1 ENG(RLF) FRAME-KICK UP<7EW> 00.029 (A) M10X30 FLANGE	0-28651-030-0	04	1	1012-		●
196	03.417 BOLT; BRKT,ACL 4JJ1-TCC ENG(RDU) 00.029 (A) M10X30 FLANGE	0-28651-030-0	04	1	1012-			●
196	03.417 BOLT; BRKT,ACL 4JJ1-TCC ENG(RDU) 02.277 (B) M10X35 FLANGE	0-28651-035-0	04	1	1012-			●
196	03.417 BOLT; BRKT,ACL 4JJ1-TCC ENG(RDU) 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1012-				●
224	03.407 NUT; BRKT 4JB1-TC ENG(RDT) HEAVY DUTY FRAME<6WB> 03.162 M10 FLANGE	0-91180-110-0	03	1	1312-	●
224	03.407 NUT; BRKT 4JJ1-TCS ENG(LFB),4HG1-T ENG(RDP), 4JB1-TC ENG(RDT),4JJ1-TCC ENG(RDU),4JB1 ENG(RLF) 03.162 M10 FLANGE	0-91180-110-0	05	1	1012-1311	●
224	03.407 NUT; BRKT 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. FRAME-KICK UP<7EW> 03.162 M10 FLANGE	0-91180-110-0	05	1	1012-1311		●
224	03.407 NUT; BRKT 4JJ1-TCS ENG(LFB),4HG1-T ENG(RDP), 4JJ1-TCC ENG(RDU),4JB1 ENG(RLF) 03.162 M10 FLANGE	0-91180-110-0	05	1	1312-	●
224	03.407 NUT; BRKT 4JB1-TC ENG(RDT) EXC. HEAVY DUTY FRAME<6WB> 03.162 M10 FLANGE	0-91180-110-0	05	1	1312-	●
224	03.407 NUT; BRKT 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4JB1 ENG(RLF) EXC. FRAME-KICK UP<7EW> 03.162 M10 FLANGE	0-91180-110-0	05	1	1312-		●
224	03.407 NUT; BRKT 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4JB1 ENG(RLF) FRAME-KICK UP<7EW> 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-		●
224	03.407 NUT; BRKT 4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	04	1	1012-			●
224	03.407 NUT; BRKT 4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE	0-91180-110-0	06	1	1012-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
