Sayfa 1-10 - Isuzu EPC

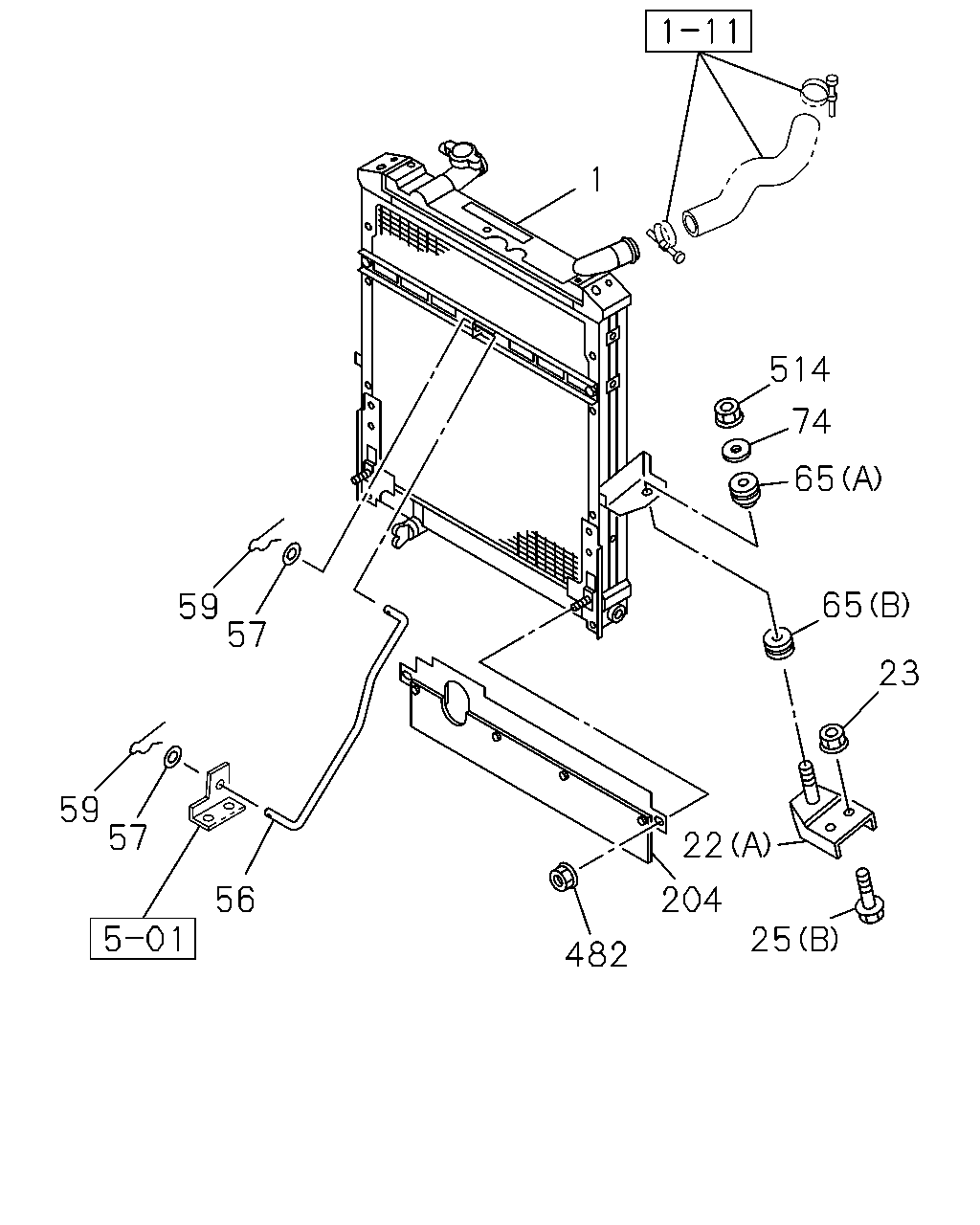

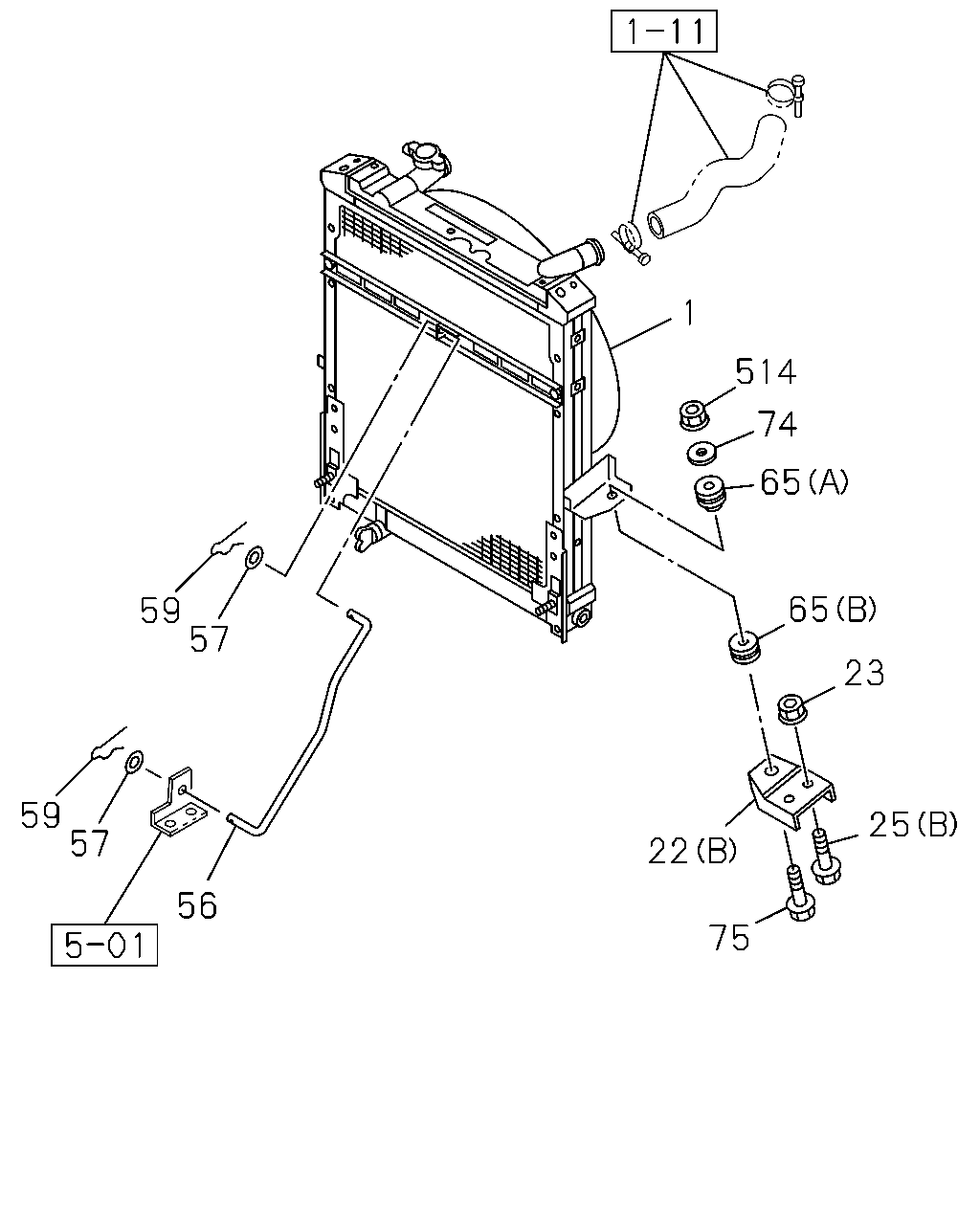

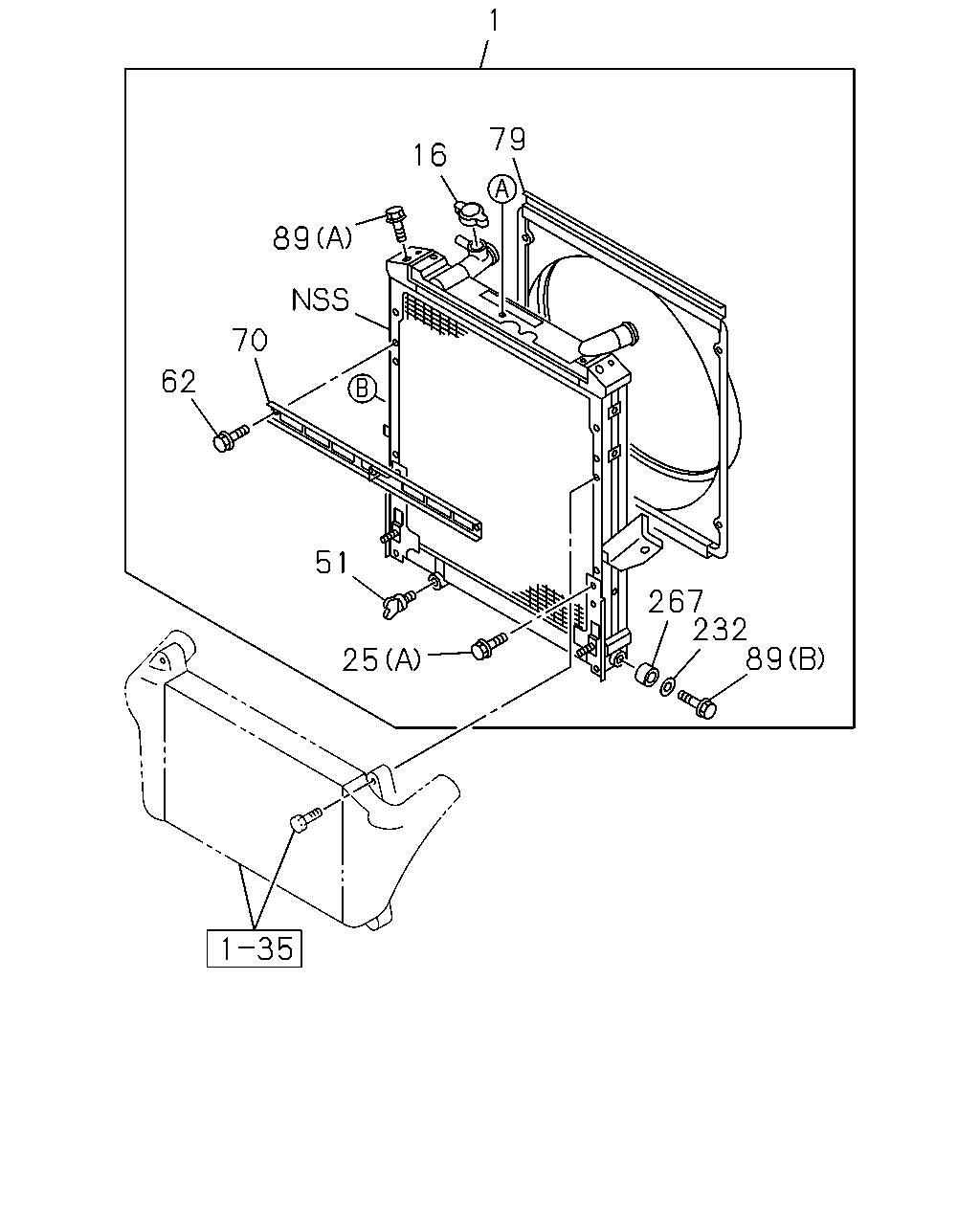

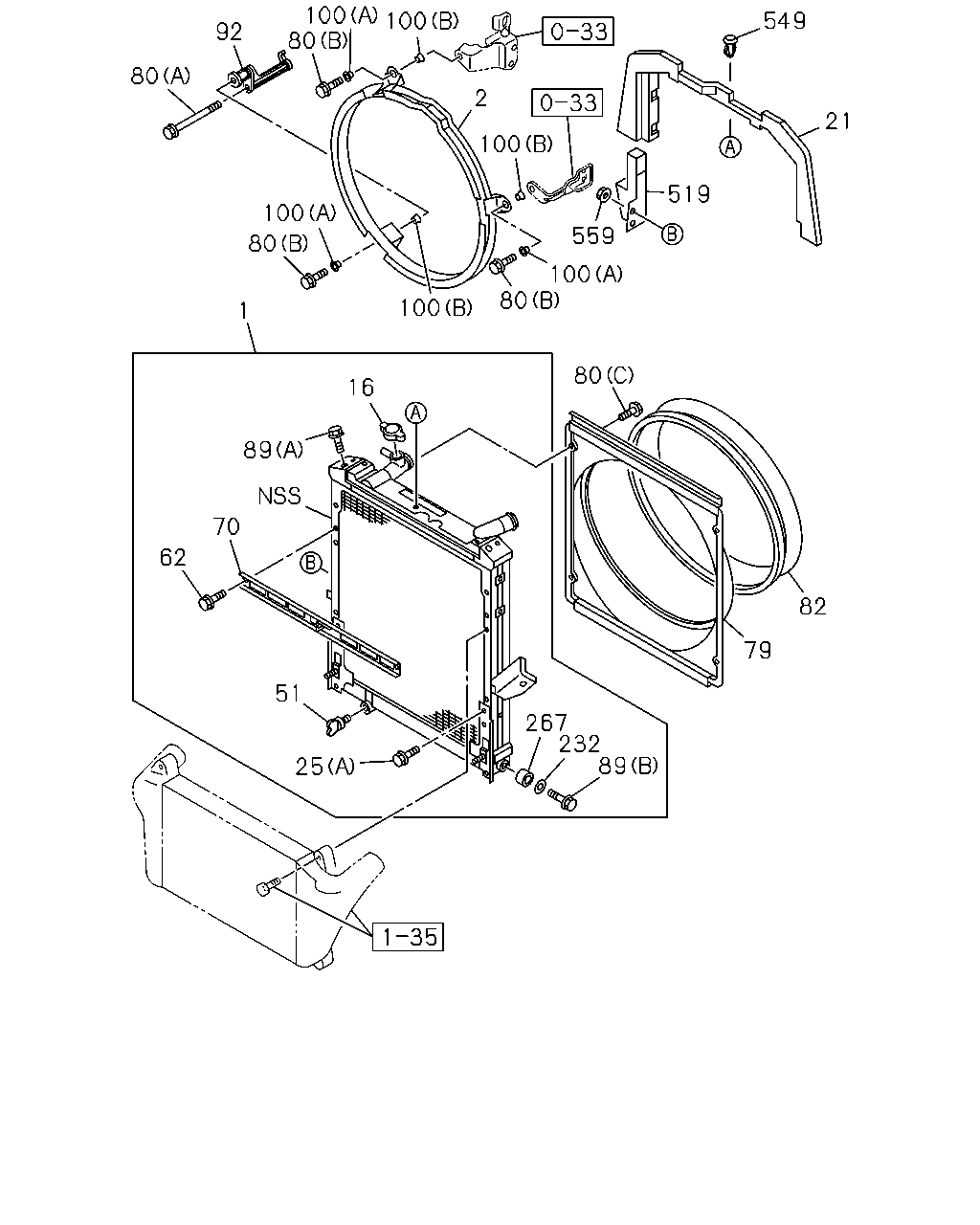

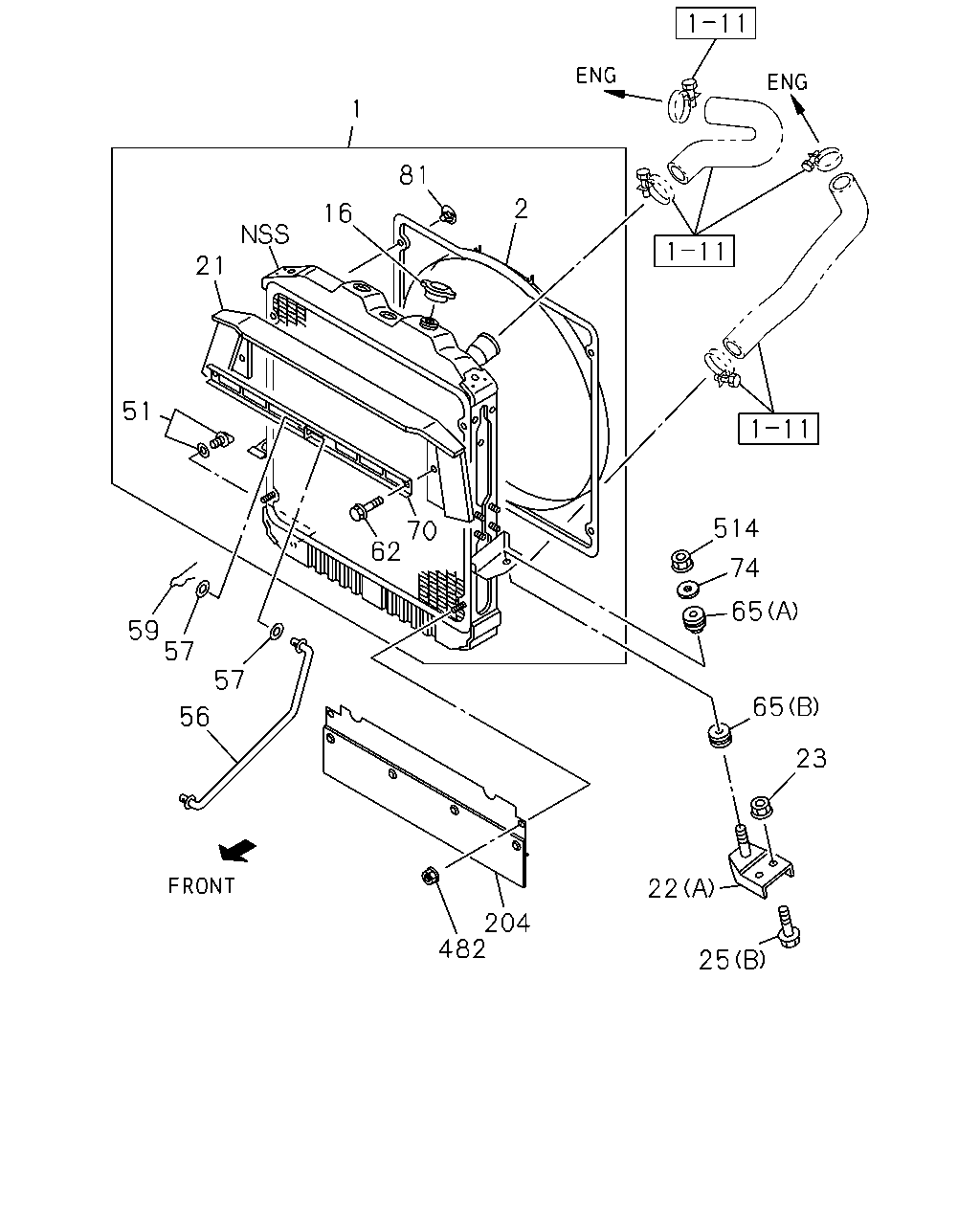

1-10 — RADIATOR (#79069) — 333 parça

1 514 65 65 23 22 204 482 25 56 57 59 59 57 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98172-906-0	01	1	1012-	●	●	●	●
1	01.219 RADIATOR ASM 4HG1-T ENG(RDP)	8-98172-912-0	01	1	1012-1201	●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH)	8-98172-912-0	01	1	1012-1201		●
1	01.219 RADIATOR ASM 4HG1-T ENG(RDP)	8-98095-586-2	01	1	1202-	●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH)	8-98095-586-2	01	1	1202-		●
1	01.219 RADIATOR ASM 4JB1-TC ENG(RDT)	8-98090-740-1	01	1	1012-1410	●
1	01.219 RADIATOR ASM 4JB1-TC ENG(RDT)	8-98259-937-0	01	1	1411-	●
1	01.219 RADIATOR ASM 4JB1 ENG(RLF)	8-98172-897-0	01	1	1012-	●	●
22	01.270 BRACKET; RAD MTG 4JJ1-TCS ENG(LFB),4HG1-T ENG(RDP), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) (A)	8-97383-951-0	01	1	1012-	●	●	●	●
22	01.270 BRACKET; RAD MTG 4JJ1-TCS ENG(LFB),4HG1-T ENG(RDP), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) (A)	8-97383-952-0	01	1	1012-	●	●	●	●
22	01.270 BRACKET; RAD MTG 4JB1-TC ENG(RDT),4JB1 ENG(RLF) (B)	8-98040-358-0	01	1	1012-	●	●
22	01.270 BRACKET; RAD MTG 4JB1-TC ENG(RDT),4JB1 ENG(RLF) (B)	8-98040-359-0	01	1	1012-	●	●
23	01.271 NUT; RAD MTG 03.162 M10 FLANGE	0-91180-110-0	04	1	1012-	●	●	●	●
25	01.271 BOLT; BRKT 4JB1-TC ENG(RDT) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1012-1012	●
25	01.271 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1012-1012	●
25	01.271 BOLT; BRKT 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1012-1012		●
25	01.271 BOLT; BRKT 4JJ1-TCC ENG(RDU) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1012-1012			●	●
25	01.271 BOLT; BRKT 4JB1-TC ENG(RDT) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1012-1408	●
25	01.271 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1012-1408	●
25	01.271 BOLT; BRKT 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. SAUDI ARABIA EQUIPMENT(GH3) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1012-1408		●
25	01.271 BOLT; BRKT 4JJ1-TCC ENG(RDU) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1012-1408			●
25	01.271 BOLT; BRKT 4JJ1-TCC ENG(RDU) EXC. SAUDI ARABIA EQUIPMENT(GH3) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1012-1408				●
25	01.271 BOLT; BRKT 4JB1-TC ENG(RDT) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1409-	●
25	01.271 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1409-	●
25	01.271 BOLT; BRKT 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. SAUDI ARABIA EQUIPMENT(GH3), ALGERIA EQUIPMENT(WN1) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1409-		●
25	01.271 BOLT; BRKT 4JJ1-TCC ENG(RDU) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1409-			●
25	01.271 BOLT; BRKT 4JJ1-TCC ENG(RDU) EXC. SAUDI ARABIA EQUIPMENT(GH3) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1409-				●
25	01.271 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	04	1	1012-	●	●	●	●
56	01.270 STAY; RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97383-947-1	01	1	1012-	●	●	●	●
56	01.270 STAY; RAD 4HG1-T ENG(RDP)	8-98095-570-0	01	1	1012-	●
56	01.270 STAY; RAD 4HG1 ENG(RJH)	8-98095-570-0	01	1	1012-		●
56	01.270 STAY; RAD 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	8-98039-485-0	01	1	1012-	●	●
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	02	1	1012-	●	●	●	●
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	02	1	1012-	●	●	●	●
65	01.271 INSULATOR; RAD 01.270 (A)	8-94249-346-0	02	1	1012-	●	●	●	●
65	01.271 INSULATOR; RAD 01.270 (B)	8-94249-347-0	02	1	1012-	●	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) ID=10.5	0-91610-710-0	01	1	1012-	●	●
74	01.270 WASHER; PL,CUSHION RUBBER ID=8.5 OD=36	8-97359-049-1	02	1	1012-	●	●	●	●
204	01.267 GUIDE ASM; AIR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97383-928-1	01	1	1012-	●	●	●	●
482	01.277 NUT; AIR GUIDE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●	●	●	●
514	01.276 NUT; RAD 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●	●	●	●

100 80 100 549 92 80 2 21 100 519 100 559 80 100 80 100 1 80 16 89 70 62 82 79 51 267 232 89 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98172-906-0	01	1	1012-	●	●	●	●
1	01.219 RADIATOR ASM 4HG1-T ENG(RDP)	8-98172-912-0	01	1	1012-1201	●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH)	8-98172-912-0	01	1	1012-1201		●
1	01.219 RADIATOR ASM 4HG1-T ENG(RDP)	8-98095-586-2	01	1	1202-	●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH)	8-98095-586-2	01	1	1202-		●
1	01.219 RADIATOR ASM 4JB1-TC ENG(RDT)	8-98090-740-1	01	1	1012-1410	●
1	01.219 RADIATOR ASM 4JB1-TC ENG(RDT)	8-98259-937-0	01	1	1411-	●
1	01.219 RADIATOR ASM 4JB1 ENG(RLF)	8-98172-897-0	01	1	1012-	●	●
2	01.277 GUIDE; FAN 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98054-659-0	01	1	1012-1409	●	●		●
2	01.277 GUIDE; FAN 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3)	8-98054-659-0	01	1	1410-	●	●
2	01.277 GUIDE; FAN 4JJ1-TCS ENG(LFB)	8-98054-659-0	01	1	1410-	●
2	01.277 GUIDE; FAN 4JJ1-TCC ENG(RDU) SAUDI ARABIA EQUIPMENT(GH3),ALGERIA EQUIPMENT(WN1) EXC. EURO3 SPECIFICATION(NT3)	8-98054-659-0	01	1	1410-		●
2	01.277 GUIDE; FAN 4JJ1-TCC ENG(RDU) SAUDI ARABIA EQUIPMENT(GH3)	8-98054-659-0	01	1	1410-				●
2	01.277 GUIDE; FAN 4HG1-T ENG(RDP)	8-98095-605-0	01	1	1012-	●
2	01.277 GUIDE; FAN 4HG1 ENG(RJH)	8-98095-605-0	01	1	1012-		●
16	01.203 CAP; RAD 4JJ1-TCS ENG(LFB),4HG1-T ENG(RDP), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH)	8-98096-226-0	01	1	1012-	●	●	●	●
16	01.203 CAP; RAD 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	8-97239-187-0	01	1	1012-	●	●
21	01.276 SEAL; RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98000-816-0	01	1	1012-	●	●	●	●
21	01.276 SEAL; RAD 4HG1-T ENG(RDP)	8-98095-607-0	01	1	1012-1201	●
21	01.276 SEAL; RAD 4HG1 ENG(RJH)	8-98095-607-0	01	1	1012-1201		●
25	01.271 BOLT; BRKT 4JB1-TC ENG(RDT) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1012-1012	●
25	01.271 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1012-1012	●
25	01.271 BOLT; BRKT 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1012-1012		●
25	01.271 BOLT; BRKT 4JJ1-TCC ENG(RDU) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1012-1012			●	●
25	01.271 BOLT; BRKT 4JB1-TC ENG(RDT) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1012-1408	●
25	01.271 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1012-1408	●
25	01.271 BOLT; BRKT 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. SAUDI ARABIA EQUIPMENT(GH3) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1012-1408		●
25	01.271 BOLT; BRKT 4JJ1-TCC ENG(RDU) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1012-1408			●
25	01.271 BOLT; BRKT 4JJ1-TCC ENG(RDU) EXC. SAUDI ARABIA EQUIPMENT(GH3) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1012-1408				●
25	01.271 BOLT; BRKT 4JB1-TC ENG(RDT) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1409-	●
25	01.271 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1409-	●
25	01.271 BOLT; BRKT 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. SAUDI ARABIA EQUIPMENT(GH3), ALGERIA EQUIPMENT(WN1) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1409-		●
25	01.271 BOLT; BRKT 4JJ1-TCC ENG(RDU) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1409-			●
25	01.271 BOLT; BRKT 4JJ1-TCC ENG(RDU) EXC. SAUDI ARABIA EQUIPMENT(GH3) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1409-				●
25	01.271 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	04	1	1012-	●	●	●	●
51	08.951 PLUG; DRAIN W/GASKET	8-97171-437-0	01	1	1012-	●	●	●	●
62	01.271 BOLT; STAY 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1012-	●	●	●	●
70	01.271 STAY; RAD	8-98018-940-0	01	1	1012-	●	●	●	●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2)	8-98172-923-0	01	1	1012-1012	●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2)	8-98172-923-0	01	1	1012-1012		●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU)	8-98172-923-0	01	1	1012-1012			●	●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2)	8-98172-923-0	01	1	1012-1408	●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-98172-923-0	01	1	1012-1408		●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU)	8-98172-923-0	01	1	1012-1408			●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU) EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-98172-923-0	01	1	1012-1408				●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2)	8-98172-923-0	01	1	1409-	●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. SAUDI ARABIA EQUIPMENT(GH3), ALGERIA EQUIPMENT(WN1)	8-98172-923-0	01	1	1409-		●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU)	8-98172-923-0	01	1	1409-			●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU) EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-98172-923-0	01	1	1409-				●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4)	8-97387-081-1	01	1	1012-1012	●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3)	8-97387-081-1	01	1	1012-1012		●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4)	8-97387-081-1	01	1	1012-1408	●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3)	8-97387-081-1	01	1	1012-1408		●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU) SAUDI ARABIA EQUIPMENT(GH3) EURO2 SPECIFICATION(NT2)	8-97387-081-1	01	1	1012-1408		●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU) SAUDI ARABIA EQUIPMENT(GH3)	8-97387-081-1	01	1	1012-1408				●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4)	8-97387-081-1	01	1	1409-1410	●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3)	8-97387-081-1	01	1	1409-1410		●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU) SAUDI ARABIA EQUIPMENT(GH3),ALGERIA EQUIPMENT(WN1) EURO2 SPECIFICATION(NT2)	8-97387-081-1	01	1	1409-1410		●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU) SAUDI ARABIA EQUIPMENT(GH3)	8-97387-081-1	01	1	1409-1410				●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4)	8-98234-712-0	01	1	1411-	●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3)	8-98234-712-0	01	1	1411-		●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU) SAUDI ARABIA EQUIPMENT(GH3),ALGERIA EQUIPMENT(WN1) EURO2 SPECIFICATION(NT2)	8-98234-712-0	01	1	1411-		●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU) SAUDI ARABIA EQUIPMENT(GH3)	8-98234-712-0	01	1	1411-				●
79	01.277 GUIDE; FAN,RAD 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	8-98090-742-0	01	1	1012-	●	●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (C) M6X12	8-98039-672-0	04	1	1411-	●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) (C) M6X12	8-98039-672-0	04	1	1411-		●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCC ENG(RDU) SAUDI ARABIA EQUIPMENT(GH3),ALGERIA EQUIPMENT(WN1) EURO2 SPECIFICATION(NT2) (C) M6X12	8-98039-672-0	04	1	1411-		●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCC ENG(RDU) SAUDI ARABIA EQUIPMENT(GH3) (C) M6X12	8-98039-672-0	04	1	1411-				●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.428 (A) M8X130 FLANGE	0-28055-813-0	01	1	1012-1409	●	●		●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) 01.428 (A) M8X130 FLANGE	0-28055-813-0	01	1	1410-	●	●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCS ENG(LFB) 01.428 (A) M8X130 FLANGE	0-28055-813-0	01	1	1410-	●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCC ENG(RDU) SAUDI ARABIA EQUIPMENT(GH3),ALGERIA EQUIPMENT(WN1) EXC. EURO3 SPECIFICATION(NT3) 01.428 (A) M8X130 FLANGE	0-28055-813-0	01	1	1410-		●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCC ENG(RDU) SAUDI ARABIA EQUIPMENT(GH3) 01.428 (A) M8X130 FLANGE	0-28055-813-0	01	1	1410-				●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.403 (B) M8X30 FLANGE	0-28650-830-0	03	1	1012-1409	●	●		●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) 03.403 (B) M8X30 FLANGE	0-28650-830-0	03	1	1410-	●	●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCS ENG(LFB) 03.403 (B) M8X30 FLANGE	0-28650-830-0	03	1	1410-	●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCC ENG(RDU) SAUDI ARABIA EQUIPMENT(GH3),ALGERIA EQUIPMENT(WN1) EXC. EURO3 SPECIFICATION(NT3) 03.403 (B) M8X30 FLANGE	0-28650-830-0	03	1	1410-		●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCC ENG(RDU) SAUDI ARABIA EQUIPMENT(GH3) 03.403 (B) M8X30 FLANGE	0-28650-830-0	03	1	1410-				●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (C) M6X12	8-98039-672-0	02	1	1012-1408	●	●	●	●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (C) M6X12	8-98039-672-0	02	1	1409-1410	●	●	●	●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (C) M6X12	8-98039-672-0	02	1	1411-	●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. SAUDI ARABIA EQUIPMENT(GH3), ALGERIA EQUIPMENT(WN1) (C) M6X12	8-98039-672-0	02	1	1411-		●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCC ENG(RDU) (C) M6X12	8-98039-672-0	02	1	1411-			●
80	01.277 BOLT; FAN GUIDE 4JJ1-TCC ENG(RDU) EXC. SAUDI ARABIA EQUIPMENT(GH3) (C) M6X12	8-98039-672-0	02	1	1411-				●
82	01.277 COVER; FAN,RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4)	8-97387-085-1	01	1	1012-1012	●
82	01.277 COVER; FAN,RAD 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3)	8-97387-085-1	01	1	1012-1012		●
82	01.277 COVER; FAN,RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4)	8-97387-085-1	01	1	1012-1408	●
82	01.277 COVER; FAN,RAD 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3)	8-97387-085-1	01	1	1012-1408		●
82	01.277 COVER; FAN,RAD 4JJ1-TCC ENG(RDU) SAUDI ARABIA EQUIPMENT(GH3) EURO2 SPECIFICATION(NT2)	8-97387-085-1	01	1	1012-1408		●
82	01.277 COVER; FAN,RAD 4JJ1-TCC ENG(RDU) SAUDI ARABIA EQUIPMENT(GH3)	8-97387-085-1	01	1	1012-1408				●
82	01.277 COVER; FAN,RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4)	8-97387-085-1	01	1	1409-	●
82	01.277 COVER; FAN,RAD 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3)	8-97387-085-1	01	1	1409-		●
82	01.277 COVER; FAN,RAD 4JJ1-TCC ENG(RDU) SAUDI ARABIA EQUIPMENT(GH3),ALGERIA EQUIPMENT(WN1) EURO2 SPECIFICATION(NT2)	8-97387-085-1	01	1	1409-		●
82	01.277 COVER; FAN,RAD 4JJ1-TCC ENG(RDU) SAUDI ARABIA EQUIPMENT(GH3)	8-97387-085-1	01	1	1409-				●
89	01.277 BOLT 4JJ1-TCS ENG(LFB),4JB1-TC ENG(RDT), 4JJ1-TCC ENG(RDU) 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1012-	●	●		●
89	01.277 BOLT 4JJ1-TCS ENG(LFB),4JB1-TC ENG(RDT), 4JJ1-TCC ENG(RDU) 01.271 (B) M8X25 W/PL WASHER	1-21469-153-0	02	1	1012-	●	●		●
92	01.277 BRACKET; FAN GUIDE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97381-550-1	01	1	1012-1303	●	●		●
92	01.277 BRACKET; FAN GUIDE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98237-770-0	01	1	1304-1409	●	●		●
92	01.277 BRACKET; FAN GUIDE 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3)	8-98237-770-0	01	1	1410-	●	●
92	01.277 BRACKET; FAN GUIDE 4JJ1-TCS ENG(LFB)	8-98237-770-0	01	1	1410-	●
92	01.277 BRACKET; FAN GUIDE 4JJ1-TCC ENG(RDU) SAUDI ARABIA EQUIPMENT(GH3),ALGERIA EQUIPMENT(WN1) EXC. EURO3 SPECIFICATION(NT3)	8-98237-770-0	01	1	1410-		●
92	01.277 BRACKET; FAN GUIDE 4JJ1-TCC ENG(RDU) SAUDI ARABIA EQUIPMENT(GH3)	8-98237-770-0	01	1	1410-				●
100	01.277 RUBBER; MTG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (B) OD=32	8-94395-766-0	03	1	1012-1409	●	●		●
100	01.277 RUBBER; MTG 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) (B) OD=32	8-94395-766-0	03	1	1410-	●	●
100	01.277 RUBBER; MTG 4JJ1-TCS ENG(LFB) (B) OD=32	8-94395-766-0	03	1	1410-	●
100	01.277 RUBBER; MTG 4JJ1-TCC ENG(RDU) SAUDI ARABIA EQUIPMENT(GH3),ALGERIA EQUIPMENT(WN1) EXC. EURO3 SPECIFICATION(NT3) (B) OD=32	8-94395-766-0	03	1	1410-		●
100	01.277 RUBBER; MTG 4JJ1-TCC ENG(RDU) SAUDI ARABIA EQUIPMENT(GH3) (B) OD=32	8-94395-766-0	03	1	1410-				●
100	01.277 RUBBER; MTG 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (A) OD=32	8-98058-502-1	03	1	1012-1409	●	●		●
100	01.277 RUBBER; MTG 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) (A) OD=32	8-98058-502-1	03	1	1410-	●	●
100	01.277 RUBBER; MTG 4JJ1-TCS ENG(LFB) (A) OD=32	8-98058-502-1	03	1	1410-	●
100	01.277 RUBBER; MTG 4JJ1-TCC ENG(RDU) SAUDI ARABIA EQUIPMENT(GH3),ALGERIA EQUIPMENT(WN1) EXC. EURO3 SPECIFICATION(NT3) (A) OD=32	8-98058-502-1	03	1	1410-		●
100	01.277 RUBBER; MTG 4JJ1-TCC ENG(RDU) SAUDI ARABIA EQUIPMENT(GH3) (A) OD=32	8-98058-502-1	03	1	1410-				●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4JB1-TC ENG(RDT)	8-98141-232-0	02	1	1411-	●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4)	8-98141-232-0	02	1	1411-	●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3)	8-98141-232-0	02	1	1411-		●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4JJ1-TCC ENG(RDU) SAUDI ARABIA EQUIPMENT(GH3),ALGERIA EQUIPMENT(WN1) EURO2 SPECIFICATION(NT2)	8-98141-232-0	02	1	1411-		●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4JJ1-TCC ENG(RDU) SAUDI ARABIA EQUIPMENT(GH3)	8-98141-232-0	02	1	1411-				●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4JJ1-TCS ENG(LFB),4JB1-TC ENG(RDT), 4JJ1-TCC ENG(RDU)	1-87410-723-0	02	1	1012-1410	●	●		●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2)	1-87410-723-0	02	1	1411-	●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. SAUDI ARABIA EQUIPMENT(GH3), ALGERIA EQUIPMENT(WN1)	1-87410-723-0	02	1	1411-		●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4JJ1-TCC ENG(RDU)	1-87410-723-0	02	1	1411-			●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4JJ1-TCC ENG(RDU) EXC. SAUDI ARABIA EQUIPMENT(GH3)	1-87410-723-0	02	1	1411-				●
267	01.277 RUBBER; CUSHION 4JJ1-TCS ENG(LFB),4JB1-TC ENG(RDT), 4JJ1-TCC ENG(RDU)	1-21467-023-0	02	1	1012-	●	●		●
519	01.276 SEAL; RAD SIDE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98038-591-0	01	1	1012-	●	●	●	●
549	03.438 CLIP; SEAL,RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.276	8-97228-568-0	05	1	1012-	●	●	●	●
559	01.276 NUT; RAD SIDE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-	●	●	●	●

1 514 74 65 65 59 57 23 59 57 25 22 56 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98172-906-0	01	1	1012-	●	●	●	●
1	01.219 RADIATOR ASM 4HG1-T ENG(RDP)	8-98172-912-0	01	1	1012-1201	●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH)	8-98172-912-0	01	1	1012-1201		●
1	01.219 RADIATOR ASM 4HG1-T ENG(RDP)	8-98095-586-2	01	1	1202-	●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH)	8-98095-586-2	01	1	1202-		●
1	01.219 RADIATOR ASM 4JB1-TC ENG(RDT)	8-98090-740-1	01	1	1012-1410	●
1	01.219 RADIATOR ASM 4JB1-TC ENG(RDT)	8-98259-937-0	01	1	1411-	●
1	01.219 RADIATOR ASM 4JB1 ENG(RLF)	8-98172-897-0	01	1	1012-	●	●
22	01.270 BRACKET; RAD MTG 4JJ1-TCS ENG(LFB),4HG1-T ENG(RDP), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) (A)	8-97383-951-0	01	1	1012-	●	●	●	●
22	01.270 BRACKET; RAD MTG 4JJ1-TCS ENG(LFB),4HG1-T ENG(RDP), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) (A)	8-97383-952-0	01	1	1012-	●	●	●	●
22	01.270 BRACKET; RAD MTG 4JB1-TC ENG(RDT),4JB1 ENG(RLF) (B)	8-98040-358-0	01	1	1012-	●	●
22	01.270 BRACKET; RAD MTG 4JB1-TC ENG(RDT),4JB1 ENG(RLF) (B)	8-98040-359-0	01	1	1012-	●	●
23	01.271 NUT; RAD MTG 03.162 M10 FLANGE	0-91180-110-0	04	1	1012-	●	●	●	●
25	01.271 BOLT; BRKT 4JB1-TC ENG(RDT) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1012-1012	●
25	01.271 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1012-1012	●
25	01.271 BOLT; BRKT 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1012-1012		●
25	01.271 BOLT; BRKT 4JJ1-TCC ENG(RDU) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1012-1012			●	●
25	01.271 BOLT; BRKT 4JB1-TC ENG(RDT) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1012-1408	●
25	01.271 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1012-1408	●
25	01.271 BOLT; BRKT 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. SAUDI ARABIA EQUIPMENT(GH3) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1012-1408		●
25	01.271 BOLT; BRKT 4JJ1-TCC ENG(RDU) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1012-1408			●
25	01.271 BOLT; BRKT 4JJ1-TCC ENG(RDU) EXC. SAUDI ARABIA EQUIPMENT(GH3) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1012-1408				●
25	01.271 BOLT; BRKT 4JB1-TC ENG(RDT) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1409-	●
25	01.271 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1409-	●
25	01.271 BOLT; BRKT 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. SAUDI ARABIA EQUIPMENT(GH3), ALGERIA EQUIPMENT(WN1) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1409-		●
25	01.271 BOLT; BRKT 4JJ1-TCC ENG(RDU) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1409-			●
25	01.271 BOLT; BRKT 4JJ1-TCC ENG(RDU) EXC. SAUDI ARABIA EQUIPMENT(GH3) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1409-				●
25	01.271 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	04	1	1012-	●	●	●	●
56	01.270 STAY; RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97383-947-1	01	1	1012-	●	●	●	●
56	01.270 STAY; RAD 4HG1-T ENG(RDP)	8-98095-570-0	01	1	1012-	●
56	01.270 STAY; RAD 4HG1 ENG(RJH)	8-98095-570-0	01	1	1012-		●
56	01.270 STAY; RAD 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	8-98039-485-0	01	1	1012-	●	●
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	02	1	1012-	●	●	●	●
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	02	1	1012-	●	●	●	●
65	01.271 INSULATOR; RAD 01.270 (A)	8-94249-346-0	02	1	1012-	●	●	●	●
65	01.271 INSULATOR; RAD 01.270 (B)	8-94249-347-0	02	1	1012-	●	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) ID=10.5	0-91610-710-0	01	1	1012-	●	●
74	01.270 WASHER; PL,CUSHION RUBBER ID=8.5 OD=36	8-97359-049-1	02	1	1012-	●	●	●	●
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 4JB1-TC ENG(RDT),4JB1 ENG(RLF) 01.274 M8X63	8-94249-446-0	01	1	1012-	●	●
514	01.276 NUT; RAD 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●	●	●	●

1 79 16 89 70 62 51 267 232 89 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98172-906-0	01	1	1012-	●	●	●	●
1	01.219 RADIATOR ASM 4HG1-T ENG(RDP)	8-98172-912-0	01	1	1012-1201	●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH)	8-98172-912-0	01	1	1012-1201		●
1	01.219 RADIATOR ASM 4HG1-T ENG(RDP)	8-98095-586-2	01	1	1202-	●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH)	8-98095-586-2	01	1	1202-		●
1	01.219 RADIATOR ASM 4JB1-TC ENG(RDT)	8-98090-740-1	01	1	1012-1410	●
1	01.219 RADIATOR ASM 4JB1-TC ENG(RDT)	8-98259-937-0	01	1	1411-	●
1	01.219 RADIATOR ASM 4JB1 ENG(RLF)	8-98172-897-0	01	1	1012-	●	●
16	01.203 CAP; RAD 4JJ1-TCS ENG(LFB),4HG1-T ENG(RDP), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH)	8-98096-226-0	01	1	1012-	●	●	●	●
16	01.203 CAP; RAD 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	8-97239-187-0	01	1	1012-	●	●
25	01.271 BOLT; BRKT 4JB1-TC ENG(RDT) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1012-1012	●
25	01.271 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1012-1012	●
25	01.271 BOLT; BRKT 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1012-1012		●
25	01.271 BOLT; BRKT 4JJ1-TCC ENG(RDU) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1012-1012			●	●
25	01.271 BOLT; BRKT 4JB1-TC ENG(RDT) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1012-1408	●
25	01.271 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1012-1408	●
25	01.271 BOLT; BRKT 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. SAUDI ARABIA EQUIPMENT(GH3) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1012-1408		●
25	01.271 BOLT; BRKT 4JJ1-TCC ENG(RDU) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1012-1408			●
25	01.271 BOLT; BRKT 4JJ1-TCC ENG(RDU) EXC. SAUDI ARABIA EQUIPMENT(GH3) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1012-1408				●
25	01.271 BOLT; BRKT 4JB1-TC ENG(RDT) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1409-	●
25	01.271 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1409-	●
25	01.271 BOLT; BRKT 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. SAUDI ARABIA EQUIPMENT(GH3), ALGERIA EQUIPMENT(WN1) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1409-		●
25	01.271 BOLT; BRKT 4JJ1-TCC ENG(RDU) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1409-			●
25	01.271 BOLT; BRKT 4JJ1-TCC ENG(RDU) EXC. SAUDI ARABIA EQUIPMENT(GH3) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1409-				●
25	01.271 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	04	1	1012-	●	●	●	●
51	08.951 PLUG; DRAIN W/GASKET	8-97171-437-0	01	1	1012-	●	●	●	●
62	01.271 BOLT; STAY 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1012-	●	●	●	●
70	01.271 STAY; RAD	8-98018-940-0	01	1	1012-	●	●	●	●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2)	8-98172-923-0	01	1	1012-1012	●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2)	8-98172-923-0	01	1	1012-1012		●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU)	8-98172-923-0	01	1	1012-1012			●	●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2)	8-98172-923-0	01	1	1012-1408	●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-98172-923-0	01	1	1012-1408		●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU)	8-98172-923-0	01	1	1012-1408			●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU) EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-98172-923-0	01	1	1012-1408				●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2)	8-98172-923-0	01	1	1409-	●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. SAUDI ARABIA EQUIPMENT(GH3), ALGERIA EQUIPMENT(WN1)	8-98172-923-0	01	1	1409-		●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU)	8-98172-923-0	01	1	1409-			●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU) EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-98172-923-0	01	1	1409-				●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4)	8-97387-081-1	01	1	1012-1012	●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3)	8-97387-081-1	01	1	1012-1012		●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4)	8-97387-081-1	01	1	1012-1408	●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3)	8-97387-081-1	01	1	1012-1408		●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU) SAUDI ARABIA EQUIPMENT(GH3) EURO2 SPECIFICATION(NT2)	8-97387-081-1	01	1	1012-1408		●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU) SAUDI ARABIA EQUIPMENT(GH3)	8-97387-081-1	01	1	1012-1408				●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4)	8-97387-081-1	01	1	1409-1410	●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3)	8-97387-081-1	01	1	1409-1410		●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU) SAUDI ARABIA EQUIPMENT(GH3),ALGERIA EQUIPMENT(WN1) EURO2 SPECIFICATION(NT2)	8-97387-081-1	01	1	1409-1410		●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU) SAUDI ARABIA EQUIPMENT(GH3)	8-97387-081-1	01	1	1409-1410				●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4)	8-98234-712-0	01	1	1411-	●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3)	8-98234-712-0	01	1	1411-		●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU) SAUDI ARABIA EQUIPMENT(GH3),ALGERIA EQUIPMENT(WN1) EURO2 SPECIFICATION(NT2)	8-98234-712-0	01	1	1411-		●
79	01.277 GUIDE; FAN,RAD 4JJ1-TCC ENG(RDU) SAUDI ARABIA EQUIPMENT(GH3)	8-98234-712-0	01	1	1411-				●
79	01.277 GUIDE; FAN,RAD 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	8-98090-742-0	01	1	1012-	●	●
89	01.277 BOLT 4JJ1-TCS ENG(LFB),4JB1-TC ENG(RDT), 4JJ1-TCC ENG(RDU) 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1012-	●	●		●
89	01.277 BOLT 4JJ1-TCS ENG(LFB),4JB1-TC ENG(RDT), 4JJ1-TCC ENG(RDU) 01.271 (B) M8X25 W/PL WASHER	1-21469-153-0	02	1	1012-	●	●		●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4JB1-TC ENG(RDT)	8-98141-232-0	02	1	1411-	●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4)	8-98141-232-0	02	1	1411-	●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3)	8-98141-232-0	02	1	1411-		●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4JJ1-TCC ENG(RDU) SAUDI ARABIA EQUIPMENT(GH3),ALGERIA EQUIPMENT(WN1) EURO2 SPECIFICATION(NT2)	8-98141-232-0	02	1	1411-		●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4JJ1-TCC ENG(RDU) SAUDI ARABIA EQUIPMENT(GH3)	8-98141-232-0	02	1	1411-				●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4JJ1-TCS ENG(LFB),4JB1-TC ENG(RDT), 4JJ1-TCC ENG(RDU)	1-87410-723-0	02	1	1012-1410	●	●		●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2)	1-87410-723-0	02	1	1411-	●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. SAUDI ARABIA EQUIPMENT(GH3), ALGERIA EQUIPMENT(WN1)	1-87410-723-0	02	1	1411-		●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4JJ1-TCC ENG(RDU)	1-87410-723-0	02	1	1411-			●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4JJ1-TCC ENG(RDU) EXC. SAUDI ARABIA EQUIPMENT(GH3)	1-87410-723-0	02	1	1411-				●
267	01.277 RUBBER; CUSHION 4JJ1-TCS ENG(LFB),4JB1-TC ENG(RDT), 4JJ1-TCC ENG(RDU)	1-21467-023-0	02	1	1012-	●	●		●

1 81 2 16 21 51 514 70 62 74 65 59 57 57 65 56 23 22 204 482 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.219 RADIATOR ASM 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98172-906-0	01	1	1012-	●	●	●	●
1	01.219 RADIATOR ASM 4HG1-T ENG(RDP)	8-98172-912-0	01	1	1012-1201	●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH)	8-98172-912-0	01	1	1012-1201		●
1	01.219 RADIATOR ASM 4HG1-T ENG(RDP)	8-98095-586-2	01	1	1202-	●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH)	8-98095-586-2	01	1	1202-		●
1	01.219 RADIATOR ASM 4JB1-TC ENG(RDT)	8-98090-740-1	01	1	1012-1410	●
1	01.219 RADIATOR ASM 4JB1-TC ENG(RDT)	8-98259-937-0	01	1	1411-	●
1	01.219 RADIATOR ASM 4JB1 ENG(RLF)	8-98172-897-0	01	1	1012-	●	●
2	01.277 GUIDE; FAN 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98054-659-0	01	1	1012-1409	●	●		●
2	01.277 GUIDE; FAN 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3)	8-98054-659-0	01	1	1410-	●	●
2	01.277 GUIDE; FAN 4JJ1-TCS ENG(LFB)	8-98054-659-0	01	1	1410-	●
2	01.277 GUIDE; FAN 4JJ1-TCC ENG(RDU) SAUDI ARABIA EQUIPMENT(GH3),ALGERIA EQUIPMENT(WN1) EXC. EURO3 SPECIFICATION(NT3)	8-98054-659-0	01	1	1410-		●
2	01.277 GUIDE; FAN 4JJ1-TCC ENG(RDU) SAUDI ARABIA EQUIPMENT(GH3)	8-98054-659-0	01	1	1410-				●
2	01.277 GUIDE; FAN 4HG1-T ENG(RDP)	8-98095-605-0	01	1	1012-	●
2	01.277 GUIDE; FAN 4HG1 ENG(RJH)	8-98095-605-0	01	1	1012-		●
16	01.203 CAP; RAD 4JJ1-TCS ENG(LFB),4HG1-T ENG(RDP), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH)	8-98096-226-0	01	1	1012-	●	●	●	●
16	01.203 CAP; RAD 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	8-97239-187-0	01	1	1012-	●	●
21	01.276 SEAL; RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-98000-816-0	01	1	1012-	●	●	●	●
21	01.276 SEAL; RAD 4HG1-T ENG(RDP)	8-98095-607-0	01	1	1012-1201	●
21	01.276 SEAL; RAD 4HG1 ENG(RJH)	8-98095-607-0	01	1	1012-1201		●
22	01.270 BRACKET; RAD MTG 4JJ1-TCS ENG(LFB),4HG1-T ENG(RDP), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) (A)	8-97383-951-0	01	1	1012-	●	●	●	●
22	01.270 BRACKET; RAD MTG 4JJ1-TCS ENG(LFB),4HG1-T ENG(RDP), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) (A)	8-97383-952-0	01	1	1012-	●	●	●	●
22	01.270 BRACKET; RAD MTG 4JB1-TC ENG(RDT),4JB1 ENG(RLF) (B)	8-98040-358-0	01	1	1012-	●	●
22	01.270 BRACKET; RAD MTG 4JB1-TC ENG(RDT),4JB1 ENG(RLF) (B)	8-98040-359-0	01	1	1012-	●	●
23	01.271 NUT; RAD MTG 03.162 M10 FLANGE	0-91180-110-0	04	1	1012-	●	●	●	●
25	01.271 BOLT; BRKT 4JB1-TC ENG(RDT) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1012-1012	●
25	01.271 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1012-1012	●
25	01.271 BOLT; BRKT 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1012-1012		●
25	01.271 BOLT; BRKT 4JJ1-TCC ENG(RDU) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1012-1012			●	●
25	01.271 BOLT; BRKT 4JB1-TC ENG(RDT) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1012-1408	●
25	01.271 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1012-1408	●
25	01.271 BOLT; BRKT 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. SAUDI ARABIA EQUIPMENT(GH3) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1012-1408		●
25	01.271 BOLT; BRKT 4JJ1-TCC ENG(RDU) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1012-1408			●
25	01.271 BOLT; BRKT 4JJ1-TCC ENG(RDU) EXC. SAUDI ARABIA EQUIPMENT(GH3) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1012-1408				●
25	01.271 BOLT; BRKT 4JB1-TC ENG(RDT) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1409-	●
25	01.271 BOLT; BRKT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1409-	●
25	01.271 BOLT; BRKT 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. SAUDI ARABIA EQUIPMENT(GH3), ALGERIA EQUIPMENT(WN1) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1409-		●
25	01.271 BOLT; BRKT 4JJ1-TCC ENG(RDU) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1409-			●
25	01.271 BOLT; BRKT 4JJ1-TCC ENG(RDU) EXC. SAUDI ARABIA EQUIPMENT(GH3) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1409-				●
25	01.271 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	04	1	1012-	●	●	●	●
51	08.951 PLUG; DRAIN W/GASKET	8-97171-437-0	01	1	1012-	●	●	●	●
56	01.270 STAY; RAD 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97383-947-1	01	1	1012-	●	●	●	●
56	01.270 STAY; RAD 4HG1-T ENG(RDP)	8-98095-570-0	01	1	1012-	●
56	01.270 STAY; RAD 4HG1 ENG(RJH)	8-98095-570-0	01	1	1012-		●
56	01.270 STAY; RAD 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	8-98039-485-0	01	1	1012-	●	●
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	02	1	1012-	●	●	●	●
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	02	1	1012-	●	●	●	●
62	01.271 BOLT; STAY 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1012-	●	●	●	●
65	01.271 INSULATOR; RAD 01.270 (A)	8-94249-346-0	02	1	1012-	●	●	●	●
65	01.271 INSULATOR; RAD 01.270 (B)	8-94249-347-0	02	1	1012-	●	●	●	●
70	01.271 STAY; RAD	8-98018-940-0	01	1	1012-	●	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 4JB1-TC ENG(RDT),4JB1 ENG(RLF) ID=10.5	0-91610-710-0	01	1	1012-	●	●
74	01.270 WASHER; PL,CUSHION RUBBER ID=8.5 OD=36	8-97359-049-1	02	1	1012-	●	●	●	●
81	01.277 SCREW; FAN GUIDE,RAD 4HG1-T ENG(RDP)	8-97088-810-0	04	1	1012-	●
81	01.277 SCREW; FAN GUIDE,RAD 4HG1 ENG(RJH)	8-97088-810-0	04	1	1012-		●
81	01.277 SCREW; FAN GUIDE,RAD 4JB1-TC ENG(RDT),4JB1 ENG(RLF)	8-97088-810-0	02	1	1012-	●	●
204	01.267 GUIDE ASM; AIR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97383-928-1	01	1	1012-	●	●	●	●
482	01.277 NUT; AIR GUIDE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●	●	●	●
514	01.276 NUT; RAD 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
