Sayfa 0-82 - Isuzu EPC

0-82 — BOOST COMPENSATOR; INJECTION GOVERNOR (#79063) — 218 parça

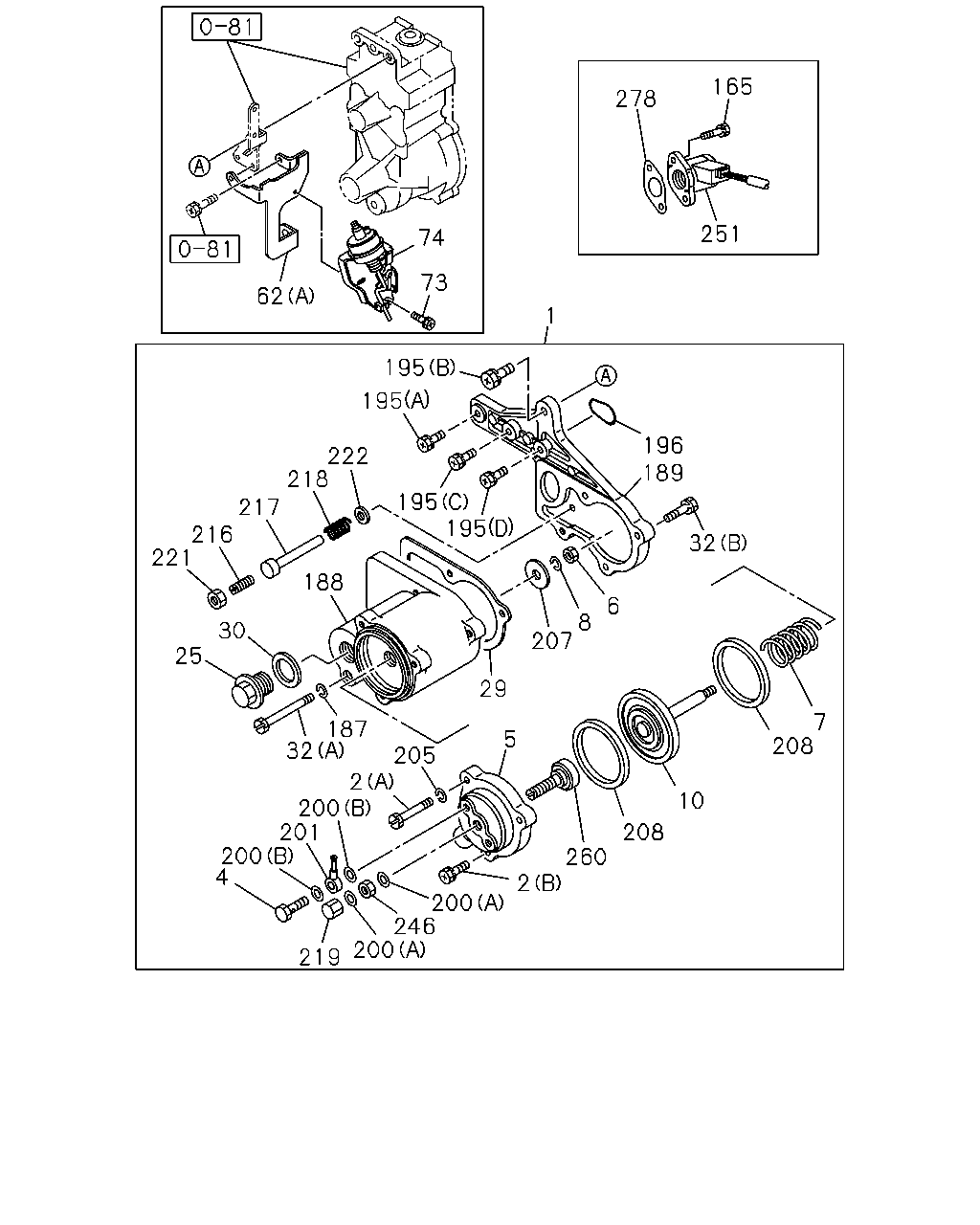

165 278 251 74 73 62 1 195 195 196 189 222 218 217 216 221 195 195 32 188 6 8 207 30 25 29 7 208 187 32 5 205 2 200 201 200 4 10 208 260 2 200 246 200 219

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.485 COMPENSATOR ASM; BOOST,INJ PUMP ASM PART: A = 8-97178-485-5, 97178485	8-97214-459-1	01	1	-
1	03.485 COMPENSATOR ASM; BOOST,INJ PUMP ASM PART: B = 8-97263-086-3, 97263086	8-97302-242-0	01	1	-
2	03.306 BOLT; COVER FIX,BOOST COMPENSATO (A) ASM PART: A = 8-97178-485-5, 97178485	1-15779-202-0	02	1	-
2	03.306 BOLT; COVER FIX,BOOST COMPENSATO 03.308, (D) ASM PART: B = 8-97263-086-3, 97263086	8-94313-264-0	02	1	-
2	03.306 BOLT; COVER FIX,BOOST COMPENSATO 03.308, (C) ASM PART: B = 8-97263-086-3, 97263086	8-94313-267-0	02	1	-
2	03.306 BOLT; COVER FIX,BOOST COMPENSATO 03.485, (B) ASM PART: A = 8-97178-485-5, 97178485	9-81325-187-0	01	1	-
4	03.485 BOLT; EYE,BOOST PIPE,COMPENSATOR ASM PART: A = 8-97178-485-5, 97178485	1-15729-325-0	01	1	-
5	03.306 COVER; HSG,BOOST COMPENSATOR,GOV ASM PART: A = 8-97178-485-5, 97178485	1-15619-283-0	01	1	-
5	03.306 COVER; HSG,BOOST COMPENSATOR,GOV ASM PART: B = 8-97263-086-3, 97263086	8-97214-503-0	01	1	-
6	03.320 NUT; DIAPH,BOOST COMPENSATOR 08.845 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97263-086-3, 97263086	9-88410-525-0	01	1	-
7	03.320 SPRING; DIAPH,BOOST COMPENSATOR ASM PART: A = 8-97178-485-5, 97178485	8-97085-017-0	01	1	-
7	03.320 SPRING; DIAPH,BOOST COMPENSATOR ASM PART: B = 8-97263-086-3, 97263086	8-97185-286-0	01	1	-
8	03.318 WASHER; LK,DIAPH,BOOST COMPENSAT 03.314 ASM PART: B = 8-97263-086-3, 97263086	8-94122-725-0	01	1	-
8	03.318 WASHER; LK,DIAPH,BOOST COMPENSAT 00.206, ID=6.1 ASM PART: A = 8-97178-485-5, 97178485	9-09150-506-0	01	1	-
10	03.320 DIAPHRAGM; BOOST COMPENSATOR,GOV ASM PART: A = 8-97178-485-5, 97178485	1-15712-004-0	01	1	-
10	03.320 DIAPHRAGM; BOOST COMPENSATOR,GOV 03.314 ASM PART: B = 8-97263-086-3, 97263086	8-94122-724-0	01	1	-
25	03.306 PLUG; HSG,BOOST COMPENSATOR ASM PART: A = 8-97178-485-5, 97178485	1-15729-254-0	01	1	-
25	03.306 PLUG; HSG,BOOST COMPENSATOR ASM PART: B = 8-97263-086-3, 97263086	8-97214-502-0	01	1	-
29	03.306 GASKET; HSG,BOOST COMPENSATOR ASM PART: A = 8-97178-485-5, 97178485	8-97085-018-0	01	1	-
29	03.306 GASKET; HSG,BOOST COMPENSATOR 03.308 ASM PART: B = 8-97263-086-3, 97263086	8-97136-413-0	01	1	-
30	03.306 GASKET; HSG PLUG,BOOST COMPENSAT ASM PART: A = 8-97178-485-5, 97178485	1-15729-850-0	01	1	-
30	03.306 GASKET; HSG PLUG,BOOST COMPENSAT ASM PART: B = 8-97263-086-3, 97263086	8-94144-588-0	01	1	-
32	03.485 BOLT; BOOST COMPENSATOR FIX,INJ (A) ASM PART: A = 8-97178-485-5, 97178485	1-15729-251-0	01	1	-
32	03.485 BOLT; BOOST COMPENSATOR FIX,INJ 03.330, (C) ASM PART: B = 8-97263-086-3, 97263086	8-94242-298-0	04	1	-
32	03.485 BOLT; BOOST COMPENSATOR FIX,INJ 03.306, (B) ASM PART: A = 8-97178-485-5, 97178485	9-88410-094-0	03	1	-
62	03.314 BRACKET; ACTUATOR (A) ASM PART: A = 8-97178-485-5, 97178485	8-97085-019-0	01	1	-
62	03.314 BRACKET; ACTUATOR (C) ASM PART: B = 8-97263-086-3, 97263086	8-97086-128-1	01	1	-
62	03.314 BRACKET; ACTUATOR (D) ASM PART: B = 8-97263-086-3, 97263086	8-97086-129-0	01	1	-
62	03.314 BRACKET; ACTUATOR (B) ASM PART: C = 8-97385-476-0, 97385476	8-97121-647-0	01	1	-
73	03.330 BOLT; ACTUATOR 03.314 ASM PART: A = 8-97178-485-5, 97178485, C = 8-97385-476-0, 97385476	8-94121-627-0	02	1	-
73	03.330 BOLT; ACTUATOR ASM PART: B = 8-97263-086-3, 97263086	8-97094-111-0	02	1	-
74	03.320 ACTUATOR ASM; FAST IDLE,A/C,INJ ASM PART: A = 8-97178-485-5, 97178485, C = 8-97385-476-0, 97385476	8-97037-274-4	01	1	-
74	03.320 ACTUATOR ASM; FAST IDLE,A/C,INJ ASM PART: B = 8-97263-086-3, 97263086	8-97086-134-0	01	1	-
165	03.320 BOLT; SENSOR ASM PART: A = 8-97178-485-5, 97178485, C = 8-97385-476-0, 97385476	1-83579-438-0	02	1	-
187	03.485 WASHER; LK,BOOST COMPENSATOR FIX 03.302 ASM PART: A = 8-97178-485-5, 97178485	8-94128-928-0	01	1	-
188	03.485 HOUSING; BOOST COMPENSATOR,INJ P ASM PART: A = 8-97178-485-5, 97178485	1-15721-163-0	01	1	-
189	03.485 SPACER; BOOST COMPENSATOR HSG ASM PART: A = 8-97178-485-5, 97178485	1-15729-851-0	01	1	-
195	03.306 BOLT; SPACER FIX,BOOST COMPENSAT 03.485, (C) ASM PART: A = 8-97178-485-5, 97178485	1-15729-242-0	01	1	-
195	03.306 BOLT; SPACER FIX,BOOST COMPENSAT (B), M8X30 ASM PART: A = 8-97178-485-5, 97178485	1-15729-243-0	01	1	-
195	03.306 BOLT; SPACER FIX,BOOST COMPENSAT (D) ASM PART: A = 8-97178-485-5, 97178485	9-81325-321-0	01	1	-
195	03.306 BOLT; SPACER FIX,BOOST COMPENSAT (A) ASM PART: A = 8-97178-485-5, 97178485	9-88410-094-0	01	1	-
196	03.306 GASKET; SPACER,BOOST COMPENSATOR 03.485 ASM PART: A = 8-97178-485-5, 97178485	8-94424-220-0	01	1	-
200	03.306 GASKET; EYE BOLT,BOOST COMPENSAT (B) ASM PART: A = 8-97178-485-5, 97178485	1-15729-849-0	02	1	-
200	03.306 GASKET; EYE BOLT,BOOST COMPENSAT (A) ASM PART: A = 8-97178-485-5, 97178485	1-15729-868-0	02	1	-
201	03.306 JOINT; HOSE 03.326 ASM PART: A = 8-97178-485-5, 97178485	8-94171-178-0	01	1	-
205	03.308 WASHER; LK,COVER FIX,BOOST COMPE 00.206, ID=6.1 ASM PART: A = 8-97178-485-5, 97178485	9-09150-506-0	02	1	-
207	03.320 DISC; DIAPH,BOOST COMPENSATOR ASM PART: A = 8-97178-485-5, 97178485	1-15729-248-0	01	1	-
208	03.320 GASKET; DIAPH,BOOST COMPENSATOR ASM PART: A = 8-97178-485-5, 97178485	1-15779-129-0	02	1	-
216	03.320 SCREW; ADJ,DIAPH,BOOST COMPENSAT ASM PART: A = 8-97178-485-5, 97178485	8-94171-179-0	01	1	-
216	03.320 SCREW; ADJ,DIAPH,BOOST COMPENSAT ASM PART: B = 8-97263-086-3, 97263086	8-97214-478-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=125.0 ASM PART: A = 8-97178-485-5, 97178485	1-15729-245-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR 03.308, L=127.5 ASM PART: A = 8-97178-485-5, 97178485	8-94172-282-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=128.0 ASM PART: A = 8-97178-485-5, 97178485	8-94172-283-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=127.0 ASM PART: A = 8-97178-485-5, 97178485	8-94172-284-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=126.0 ASM PART: A = 8-97178-485-5, 97178485	8-94172-285-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=129.0 ASM PART: A = 8-97178-485-5, 97178485	8-94172-286-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=128.5 ASM PART: A = 8-97178-485-5, 97178485	8-94172-287-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=125.5 ASM PART: A = 8-97178-485-5, 97178485	8-94172-288-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=126.5 ASM PART: A = 8-97178-485-5, 97178485	8-94172-289-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=119.5 ASM PART: A = 8-97178-485-5, 97178485	8-94172-290-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=120.0 ASM PART: A = 8-97178-485-5, 97178485	8-94172-291-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=120.5 ASM PART: A = 8-97178-485-5, 97178485	8-94172-292-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=121.0 ASM PART: A = 8-97178-485-5, 97178485	8-94172-293-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=121.5 ASM PART: A = 8-97178-485-5, 97178485	8-94172-294-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=122.0 ASM PART: A = 8-97178-485-5, 97178485	8-94172-295-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=122.5 ASM PART: A = 8-97178-485-5, 97178485	8-94172-296-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=123.0 ASM PART: A = 8-97178-485-5, 97178485	8-94172-297-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=123.5 ASM PART: A = 8-97178-485-5, 97178485	8-94172-298-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=129.5 ASM PART: A = 8-97178-485-5, 97178485	8-94443-435-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=130.0 ASM PART: A = 8-97178-485-5, 97178485	8-94443-436-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=130.5 ASM PART: A = 8-97178-485-5, 97178485	8-94443-437-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=131.0 ASM PART: A = 8-97178-485-5, 97178485	8-94443-438-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=131.5 ASM PART: A = 8-97178-485-5, 97178485	8-94443-439-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=132.0 ASM PART: A = 8-97178-485-5, 97178485	8-94443-440-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=132.5 ASM PART: A = 8-97178-485-5, 97178485	8-94443-441-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=133.0 ASM PART: A = 8-97178-485-5, 97178485	8-94443-442-0	01	1	-
217	03.320 ROD; PUSH,BOOST COMPENSATOR L=133.5 ASM PART: A = 8-97178-485-5, 97178485	8-94443-443-0	01	1	-
218	03.320 SPRING; PUSH ROD,BOOST COMPENSAT ASM PART: A = 8-97178-485-5, 97178485	8-94171-176-0	01	1	-
219	03.485 NUT; CAP,ADJ SCREW,BOOST COMPENS 03.330, CAP NUT ASM PART: A = 8-97178-485-5, 97178485	1-15729-093-0	01	1	-
221	03.330 NUT; ADJ SCREW LOCK,BOOST COMPEN 03.318 ASM PART: B = 8-97263-086-3, 97263086	1-15729-006-0	01	1	-
221	03.330 NUT; ADJ SCREW LOCK,BOOST COMPEN 08.845 ASM PART: A = 8-97178-485-5, 97178485	9-88410-525-0	01	1	-
222	03.330 WASHER; PUSH ROD,BOOST COMPENSAT 09.190 ASM PART: A = 8-97178-485-5, 97178485	1-83539-045-0	01	1	-
246	03.306 NUT; SET BOLT 08.845 ASM PART: A = 8-97178-485-5, 97178485	9-88410-525-0	01	1	-
251	03.320 SENSOR; RACK,GOV ASM PART: A = 8-97178-485-5, 97178485, C = 8-97385-476-0, 97385476	8-97129-636-0	01	1	-
260	03.320 SCREW; DIAPHRAGM ASM PART: A = 8-97178-485-5, 97178485	1-15729-386-0	01	1	-
278	03.320 GASKET; SENSOR ASM PART: A = 8-97178-485-5, 97178485, C = 8-97385-476-0, 97385476	8-97121-637-0	01	1	-

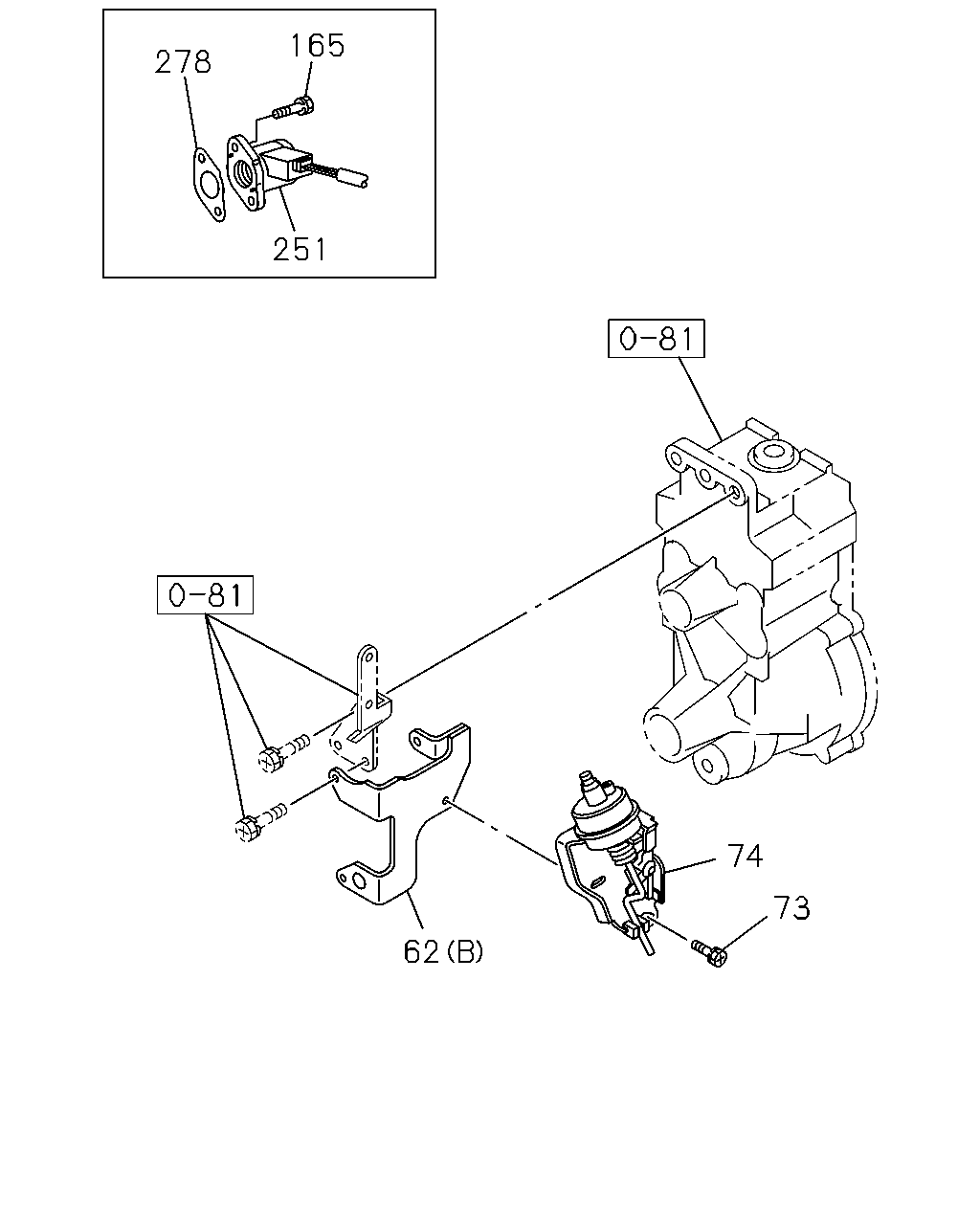

165 278 251 74 73 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
62	03.314 BRACKET; ACTUATOR (A) ASM PART: A = 8-97178-485-5, 97178485	8-97085-019-0	01	1	-
62	03.314 BRACKET; ACTUATOR (C) ASM PART: B = 8-97263-086-3, 97263086	8-97086-128-1	01	1	-
62	03.314 BRACKET; ACTUATOR (D) ASM PART: B = 8-97263-086-3, 97263086	8-97086-129-0	01	1	-
62	03.314 BRACKET; ACTUATOR (B) ASM PART: C = 8-97385-476-0, 97385476	8-97121-647-0	01	1	-
73	03.330 BOLT; ACTUATOR 03.314 ASM PART: A = 8-97178-485-5, 97178485, C = 8-97385-476-0, 97385476	8-94121-627-0	02	1	-
73	03.330 BOLT; ACTUATOR ASM PART: B = 8-97263-086-3, 97263086	8-97094-111-0	02	1	-
74	03.320 ACTUATOR ASM; FAST IDLE,A/C,INJ ASM PART: A = 8-97178-485-5, 97178485, C = 8-97385-476-0, 97385476	8-97037-274-4	01	1	-
74	03.320 ACTUATOR ASM; FAST IDLE,A/C,INJ ASM PART: B = 8-97263-086-3, 97263086	8-97086-134-0	01	1	-
165	03.320 BOLT; SENSOR ASM PART: A = 8-97178-485-5, 97178485, C = 8-97385-476-0, 97385476	1-83579-438-0	02	1	-
251	03.320 SENSOR; RACK,GOV ASM PART: A = 8-97178-485-5, 97178485, C = 8-97385-476-0, 97385476	8-97129-636-0	01	1	-
278	03.320 GASKET; SENSOR ASM PART: A = 8-97178-485-5, 97178485, C = 8-97385-476-0, 97385476	8-97121-637-0	01	1	-

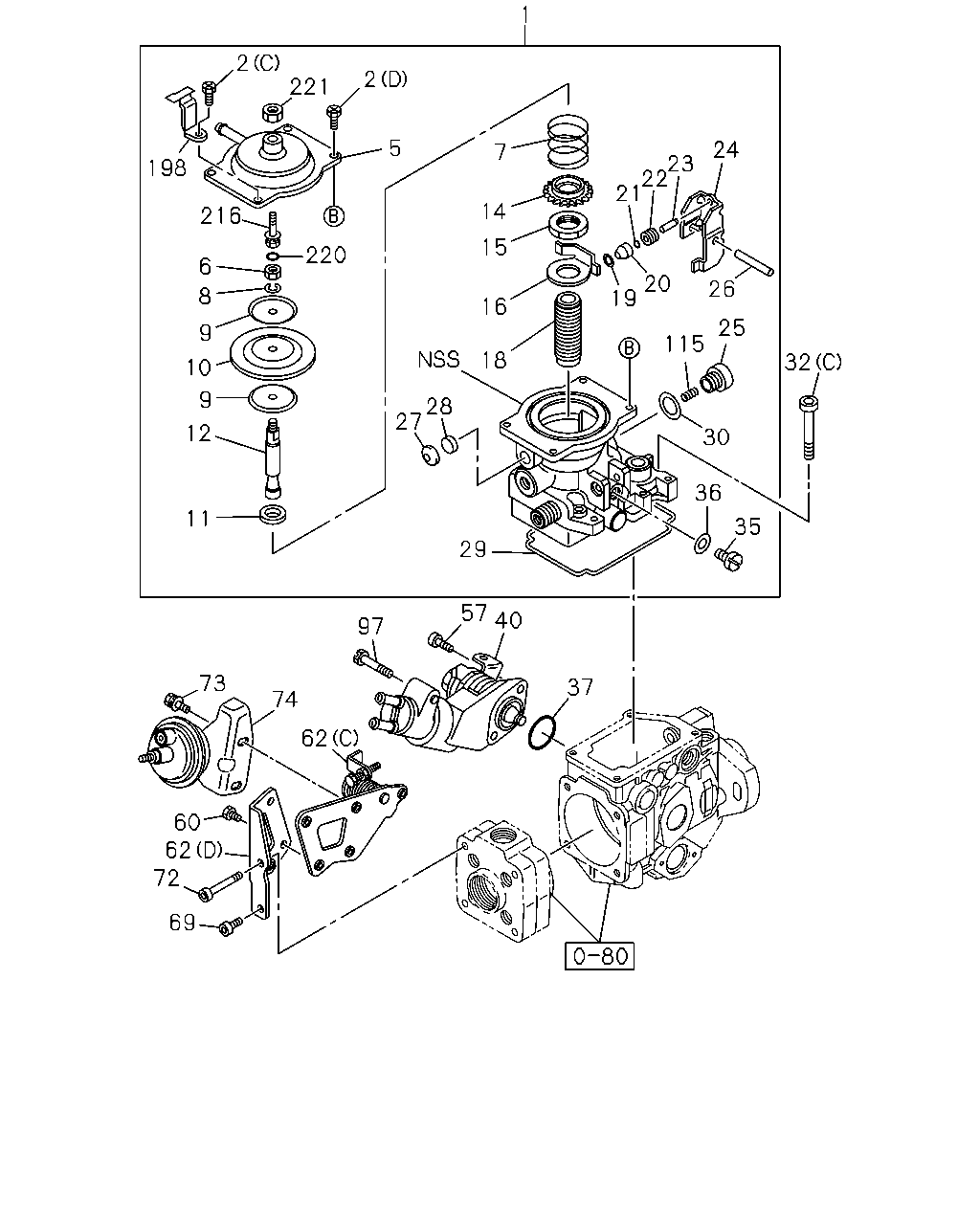

1 2 221 2 7 5 24 23 22 21 198 14 216 15 220 6 20 19 26 8 16 25 9 115 18 32 10 9 28 27 12 30 36 11 35 29 57 40 97 73 37 74 62 60 62 72 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.485 COMPENSATOR ASM; BOOST,INJ PUMP ASM PART: A = 8-97178-485-5, 97178485	8-97214-459-1	01	1	-
1	03.485 COMPENSATOR ASM; BOOST,INJ PUMP ASM PART: B = 8-97263-086-3, 97263086	8-97302-242-0	01	1	-
2	03.306 BOLT; COVER FIX,BOOST COMPENSATO (A) ASM PART: A = 8-97178-485-5, 97178485	1-15779-202-0	02	1	-
2	03.306 BOLT; COVER FIX,BOOST COMPENSATO 03.308, (D) ASM PART: B = 8-97263-086-3, 97263086	8-94313-264-0	02	1	-
2	03.306 BOLT; COVER FIX,BOOST COMPENSATO 03.308, (C) ASM PART: B = 8-97263-086-3, 97263086	8-94313-267-0	02	1	-
2	03.306 BOLT; COVER FIX,BOOST COMPENSATO 03.485, (B) ASM PART: A = 8-97178-485-5, 97178485	9-81325-187-0	01	1	-
5	03.306 COVER; HSG,BOOST COMPENSATOR,GOV ASM PART: A = 8-97178-485-5, 97178485	1-15619-283-0	01	1	-
5	03.306 COVER; HSG,BOOST COMPENSATOR,GOV ASM PART: B = 8-97263-086-3, 97263086	8-97214-503-0	01	1	-
6	03.320 NUT; DIAPH,BOOST COMPENSATOR 08.845 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97263-086-3, 97263086	9-88410-525-0	01	1	-
7	03.320 SPRING; DIAPH,BOOST COMPENSATOR ASM PART: A = 8-97178-485-5, 97178485	8-97085-017-0	01	1	-
7	03.320 SPRING; DIAPH,BOOST COMPENSATOR ASM PART: B = 8-97263-086-3, 97263086	8-97185-286-0	01	1	-
8	03.318 WASHER; LK,DIAPH,BOOST COMPENSAT 03.314 ASM PART: B = 8-97263-086-3, 97263086	8-94122-725-0	01	1	-
8	03.318 WASHER; LK,DIAPH,BOOST COMPENSAT 00.206, ID=6.1 ASM PART: A = 8-97178-485-5, 97178485	9-09150-506-0	01	1	-
9	03.318 PLATE; DIAPH,BOOST COMPENSATOR 03.314 ASM PART: B = 8-97263-086-3, 97263086	8-94122-723-0	02	1	-
10	03.320 DIAPHRAGM; BOOST COMPENSATOR,GOV ASM PART: A = 8-97178-485-5, 97178485	1-15712-004-0	01	1	-
10	03.320 DIAPHRAGM; BOOST COMPENSATOR,GOV 03.314 ASM PART: B = 8-97263-086-3, 97263086	8-94122-724-0	01	1	-
11	03.318 SPACER; DIAPH,BOOST COMPENSATOR L=3.70 ASM PART: B = 8-97263-086-3, 97263086	8-94122-729-0	01	1	-
11	03.318 SPACER; DIAPH,BOOST COMPENSATOR L=3.90 ASM PART: B = 8-97263-086-3, 97263086	8-94122-730-0	01	1	-
11	03.318 SPACER; DIAPH,BOOST COMPENSATOR L=4.10 ASM PART: B = 8-97263-086-3, 97263086	8-94122-731-0	01	1	-
11	03.318 SPACER; DIAPH,BOOST COMPENSATOR L=4.30 ASM PART: B = 8-97263-086-3, 97263086	8-94122-732-0	01	1	-
11	03.318 SPACER; DIAPH,BOOST COMPENSATOR L=4.50 ASM PART: B = 8-97263-086-3, 97263086	8-94122-733-0	01	1	-
11	03.318 SPACER; DIAPH,BOOST COMPENSATOR L=4.70 ASM PART: B = 8-97263-086-3, 97263086	8-94122-734-0	01	1	-
11	03.318 SPACER; DIAPH,BOOST COMPENSATOR L=4.90 ASM PART: B = 8-97263-086-3, 97263086	8-94122-735-0	01	1	-
11	03.318 SPACER; DIAPH,BOOST COMPENSATOR L=5.10 ASM PART: B = 8-97263-086-3, 97263086	8-94122-736-0	01	1	-
11	03.318 SPACER; DIAPH,BOOST COMPENSATOR L=5.30 ASM PART: B = 8-97263-086-3, 97263086	8-94122-737-0	01	1	-
11	03.318 SPACER; DIAPH,BOOST COMPENSATOR L=2.70 ASM PART: B = 8-97263-086-3, 97263086	8-94122-738-0	01	1	-
11	03.318 SPACER; DIAPH,BOOST COMPENSATOR L=2.90 ASM PART: B = 8-97263-086-3, 97263086	8-94122-739-0	01	1	-
11	03.318 SPACER; DIAPH,BOOST COMPENSATOR L=3.10 ASM PART: B = 8-97263-086-3, 97263086	8-94122-740-0	01	1	-
11	03.318 SPACER; DIAPH,BOOST COMPENSATOR L=3.30 ASM PART: B = 8-97263-086-3, 97263086	8-94122-741-0	01	1	-
11	03.318 SPACER; DIAPH,BOOST COMPENSATOR L=3.50 ASM PART: B = 8-97263-086-3, 97263086	8-94122-742-0	01	1	-
11	03.318 SPACER; DIAPH,BOOST COMPENSATOR L=2.80 ASM PART: B = 8-97263-086-3, 97263086	8-94122-743-0	01	1	-
11	03.318 SPACER; DIAPH,BOOST COMPENSATOR L=3.00 ASM PART: B = 8-97263-086-3, 97263086	8-94122-744-0	01	1	-
11	03.318 SPACER; DIAPH,BOOST COMPENSATOR L=3.20 ASM PART: B = 8-97263-086-3, 97263086	8-94122-745-0	01	1	-
11	03.318 SPACER; DIAPH,BOOST COMPENSATOR L=3.40 ASM PART: B = 8-97263-086-3, 97263086	8-94122-746-0	01	1	-
11	03.318 SPACER; DIAPH,BOOST COMPENSATOR L=3.60 ASM PART: B = 8-97263-086-3, 97263086	8-94122-747-0	01	1	-
11	03.318 SPACER; DIAPH,BOOST COMPENSATOR L=3.80 ASM PART: B = 8-97263-086-3, 97263086	8-94122-748-0	01	1	-
11	03.318 SPACER; DIAPH,BOOST COMPENSATOR L=4.00 ASM PART: B = 8-97263-086-3, 97263086	8-94122-749-0	01	1	-
11	03.318 SPACER; DIAPH,BOOST COMPENSATOR L=4.20 ASM PART: B = 8-97263-086-3, 97263086	8-94122-750-0	01	1	-
11	03.318 SPACER; DIAPH,BOOST COMPENSATOR L=4.40 ASM PART: B = 8-97263-086-3, 97263086	8-94122-751-0	01	1	-
11	03.318 SPACER; DIAPH,BOOST COMPENSATOR L=4.60 ASM PART: B = 8-97263-086-3, 97263086	8-94122-752-0	01	1	-
11	03.318 SPACER; DIAPH,BOOST COMPENSATOR L=4.80 ASM PART: B = 8-97263-086-3, 97263086	8-94122-753-0	01	1	-
11	03.318 SPACER; DIAPH,BOOST COMPENSATOR L=5.00 ASM PART: B = 8-97263-086-3, 97263086	8-94122-754-0	01	1	-
11	03.318 SPACER; DIAPH,BOOST COMPENSATOR L=5.20 ASM PART: B = 8-97263-086-3, 97263086	8-94122-755-0	01	1	-
11	03.318 SPACER; DIAPH,BOOST COMPENSATOR L=5.40 ASM PART: B = 8-97263-086-3, 97263086	8-94122-756-0	01	1	-
11	03.318 SPACER; DIAPH,BOOST COMPENSATOR L=5.50 ASM PART: B = 8-97263-086-3, 97263086	8-94122-757-0	01	1	-
11	03.318 SPACER; DIAPH,BOOST COMPENSATOR L=5.60 ASM PART: B = 8-97263-086-3, 97263086	8-94122-758-0	01	1	-
11	03.318 SPACER; DIAPH,BOOST COMPENSATOR L=1.80 ASM PART: B = 8-97263-086-3, 97263086	8-94169-510-0	01	1	-
11	03.318 SPACER; DIAPH,BOOST COMPENSATOR L=1.90 ASM PART: B = 8-97263-086-3, 97263086	8-94169-511-0	01	1	-
11	03.318 SPACER; DIAPH,BOOST COMPENSATOR L=2.00 ASM PART: B = 8-97263-086-3, 97263086	8-94169-512-0	01	1	-
11	03.318 SPACER; DIAPH,BOOST COMPENSATOR L=2.10 ASM PART: B = 8-97263-086-3, 97263086	8-94169-513-0	01	1	-
11	03.318 SPACER; DIAPH,BOOST COMPENSATOR L=2.20 ASM PART: B = 8-97263-086-3, 97263086	8-94169-514-0	01	1	-
11	03.318 SPACER; DIAPH,BOOST COMPENSATOR L=2.30 ASM PART: B = 8-97263-086-3, 97263086	8-94169-515-0	01	1	-
11	03.318 SPACER; DIAPH,BOOST COMPENSATOR L=2.40 ASM PART: B = 8-97263-086-3, 97263086	8-94169-516-0	01	1	-
11	03.318 SPACER; DIAPH,BOOST COMPENSATOR L=2.50 ASM PART: B = 8-97263-086-3, 97263086	8-94169-517-0	01	1	-
11	03.318 SPACER; DIAPH,BOOST COMPENSATOR L=2.60 ASM PART: B = 8-97263-086-3, 97263086	8-94169-518-0	01	1	-
11	03.318 SPACER; DIAPH,BOOST COMPENSATOR L=5.70 ASM PART: B = 8-97263-086-3, 97263086	8-97046-102-0	01	1	-
11	03.318 SPACER; DIAPH,BOOST COMPENSATOR L=5.80 ASM PART: B = 8-97263-086-3, 97263086	8-97046-103-0	01	1	-
11	03.318 SPACER; DIAPH,BOOST COMPENSATOR L=5.90 ASM PART: B = 8-97263-086-3, 97263086	8-97046-104-0	01	1	-
11	03.318 SPACER; DIAPH,BOOST COMPENSATOR L=6.00 ASM PART: B = 8-97263-086-3, 97263086	8-97046-105-0	01	1	-
11	03.318 SPACER; DIAPH,BOOST COMPENSATOR L=6.10 ASM PART: B = 8-97263-086-3, 97263086	8-97046-106-0	01	1	-
11	03.318 SPACER; DIAPH,BOOST COMPENSATOR L=6.20 ASM PART: B = 8-97263-086-3, 97263086	8-97046-107-0	01	1	-
11	03.318 SPACER; DIAPH,BOOST COMPENSATOR L=6.30 ASM PART: B = 8-97263-086-3, 97263086	8-97046-108-0	01	1	-
11	03.318 SPACER; DIAPH,BOOST COMPENSATOR L=6.40 ASM PART: B = 8-97263-086-3, 97263086	8-97046-109-0	01	1	-
11	03.318 SPACER; DIAPH,BOOST COMPENSATOR L=6.50 ASM PART: B = 8-97263-086-3, 97263086	8-97046-110-0	01	1	-
11	03.318 SPACER; DIAPH,BOOST COMPENSATOR L=6.60 ASM PART: B = 8-97263-086-3, 97263086	8-97046-111-0	01	1	-
11	03.318 SPACER; DIAPH,BOOST COMPENSATOR L=6.70 ASM PART: B = 8-97263-086-3, 97263086	8-97046-112-0	01	1	-
11	03.318 SPACER; DIAPH,BOOST COMPENSATOR L=6.80 ASM PART: B = 8-97263-086-3, 97263086	8-97046-113-0	01	1	-
11	03.318 SPACER; DIAPH,BOOST COMPENSATOR L=6.90 ASM PART: B = 8-97263-086-3, 97263086	8-97046-114-0	01	1	-
11	03.318 SPACER; DIAPH,BOOST COMPENSATOR L=7.00 ASM PART: B = 8-97263-086-3, 97263086	8-97046-115-0	01	1	-
11	03.318 SPACER; DIAPH,BOOST COMPENSATOR L=7.10 ASM PART: B = 8-97263-086-3, 97263086	8-97169-970-0	01	1	-
11	03.318 SPACER; DIAPH,BOOST COMPENSATOR L=7.20 ASM PART: B = 8-97263-086-3, 97263086	8-97169-971-0	01	1	-
11	03.318 SPACER; DIAPH,BOOST COMPENSATOR L=7.30 ASM PART: B = 8-97263-086-3, 97263086	8-97169-972-0	01	1	-
11	03.318 SPACER; DIAPH,BOOST COMPENSATOR L=7.40 ASM PART: B = 8-97263-086-3, 97263086	8-97169-973-0	01	1	-
11	03.318 SPACER; DIAPH,BOOST COMPENSATOR L=7.50 ASM PART: B = 8-97263-086-3, 97263086	8-97169-974-0	01	1	-
12	03.318 PIN; ADJ,DIAPH,BOOST COMPENSATOR ASM PART: B = 8-97263-086-3, 97263086	8-97120-314-0	01	1	-
14	03.318 NUT; DIAPH ADJ,BOOST COMPENSATOR ASM PART: B = 8-97263-086-3, 97263086	8-94122-726-0	01	1	-
15	03.320 NUT; BUSHING LK,BOOST COMPENSATO 03.318 ASM PART: B = 8-97263-086-3, 97263086	8-94122-720-0	01	1	-
16	03.330 PLATE; BUSHING,ADJ 03.314 ASM PART: B = 8-97263-086-3, 97263086	8-94122-719-0	01	1	-
18	03.320 BUSHING; ADJ PIN,BOOST COMPENSAT 03.314 ASM PART: B = 8-97263-086-3, 97263086	8-94151-391-0	01	1	-
19	03.320 GASKET; BUSHING,BOOST COMPENSATO 03.318 ASM PART: B = 8-97263-086-3, 97263086	8-94257-686-0	01	1	-
20	03.320 BUSHING; CONT PIN,BOOST COMPENSA ASM PART: B = 8-97263-086-3, 97263086	8-97218-966-0	01	1	-
21	03.320 GASKET; CONT PIN,BOOST COMPENSAT 03.318 ASM PART: B = 8-97263-086-3, 97263086	8-94257-684-0	01	1	-
22	03.320 NUT; BUSHING,CONT PIN,BOOST COMP 03.318 ASM PART: B = 8-97263-086-3, 97263086	8-94257-683-0	01	1	-
23	03.320 PIN; CONT,BOOST COMPENSATOR 03.318 ASM PART: B = 8-97263-086-3, 97263086	8-94151-392-0	01	1	-
24	03.320 LEVER; BOOST COMPENSATOR,GOV ASM PART: B = 8-97263-086-3, 97263086	8-97218-967-0	01	1	-
25	03.306 PLUG; HSG,BOOST COMPENSATOR ASM PART: A = 8-97178-485-5, 97178485	1-15729-254-0	01	1	-
25	03.306 PLUG; HSG,BOOST COMPENSATOR ASM PART: B = 8-97263-086-3, 97263086	8-97214-502-0	01	1	-
26	03.320 PIN; CONT LEVER,BOOST COMPENSATO 03.318 ASM PART: B = 8-97263-086-3, 97263086	8-94257-693-0	01	1	-
27	03.320 PLUG; ELEMENT 03.318 ASM PART: B = 8-97263-086-3, 97263086	8-94151-395-0	01	1	-
28	03.320 ELEMENT; BOOST COMPENSATOR 03.314 ASM PART: B = 8-97263-086-3, 97263086	8-94159-096-0	01	1	-
29	03.306 GASKET; HSG,BOOST COMPENSATOR ASM PART: A = 8-97178-485-5, 97178485	8-97085-018-0	01	1	-
29	03.306 GASKET; HSG,BOOST COMPENSATOR 03.308 ASM PART: B = 8-97263-086-3, 97263086	8-97136-413-0	01	1	-
30	03.306 GASKET; HSG PLUG,BOOST COMPENSAT ASM PART: A = 8-97178-485-5, 97178485	1-15729-850-0	01	1	-
30	03.306 GASKET; HSG PLUG,BOOST COMPENSAT ASM PART: B = 8-97263-086-3, 97263086	8-94144-588-0	01	1	-
32	03.485 BOLT; BOOST COMPENSATOR FIX,INJ (A) ASM PART: A = 8-97178-485-5, 97178485	1-15729-251-0	01	1	-
32	03.485 BOLT; BOOST COMPENSATOR FIX,INJ 03.330, (C) ASM PART: B = 8-97263-086-3, 97263086	8-94242-298-0	04	1	-
32	03.485 BOLT; BOOST COMPENSATOR FIX,INJ 03.306, (B) ASM PART: A = 8-97178-485-5, 97178485	9-88410-094-0	03	1	-
35	03.320 PLUG; CONT LEVER PIN,BOOST COMPE 03.318 ASM PART: B = 8-97263-086-3, 97263086	8-94257-694-0	02	1	-
36	03.320 GASKET; LEVER PIN,BOOST COMPENSA 09.170 ASM PART: B = 8-97263-086-3, 97263086	5-15729-099-0	02	1	-
37	03.306 GASKET; STARTING ADVANCER,INJ PU ASM PART: B = 8-97263-086-3, 97263086	8-94227-491-0	01	1	-
40	03.308 ADVANCER ASM; STARTING,GOV ASM PART: B = 8-97263-086-3, 97263086	8-97313-362-0	01	1	-
57	03.308 BOLT; START ADVANCE ASM PART: B = 8-97263-086-3, 97263086	1-15619-276-0	01	1	-
60	03.330 BOLT; BRKT 03.306 ASM PART: B = 8-97263-086-3, 97263086	8-94313-203-0	02	1	-
62	03.314 BRACKET; ACTUATOR (A) ASM PART: A = 8-97178-485-5, 97178485	8-97085-019-0	01	1	-
62	03.314 BRACKET; ACTUATOR (C) ASM PART: B = 8-97263-086-3, 97263086	8-97086-128-1	01	1	-
62	03.314 BRACKET; ACTUATOR (D) ASM PART: B = 8-97263-086-3, 97263086	8-97086-129-0	01	1	-
62	03.314 BRACKET; ACTUATOR (B) ASM PART: C = 8-97385-476-0, 97385476	8-97121-647-0	01	1	-
69	03.330 SCREW; BRKT,INJ PUMP ASM PART: B = 8-97263-086-3, 97263086	8-94325-497-0	01	1	-
72	03.330 BOLT; BRKT FIX,INJ PUMP ASM PART: B = 8-97263-086-3, 97263086	8-94242-278-0	01	1	-
73	03.330 BOLT; ACTUATOR 03.314 ASM PART: A = 8-97178-485-5, 97178485, C = 8-97385-476-0, 97385476	8-94121-627-0	02	1	-
73	03.330 BOLT; ACTUATOR ASM PART: B = 8-97263-086-3, 97263086	8-97094-111-0	02	1	-
74	03.320 ACTUATOR ASM; FAST IDLE,A/C,INJ ASM PART: A = 8-97178-485-5, 97178485, C = 8-97385-476-0, 97385476	8-97037-274-4	01	1	-
74	03.320 ACTUATOR ASM; FAST IDLE,A/C,INJ ASM PART: B = 8-97263-086-3, 97263086	8-97086-134-0	01	1	-
97	03.306 BOLT; PLATE,START ADVANCE ASM PART: B = 8-97263-086-3, 97263086	8-97218-972-0	01	1	-
115	03.308 SPRING; COMPENSATOR ASM PART: B = 8-97263-086-3, 97263086	8-97214-505-0	01	1	-
198	03.340 BRACKET; DIAPH ASM PART: B = 8-97263-086-3, 97263086	8-97214-507-0	01	1	-
216	03.320 SCREW; ADJ,DIAPH,BOOST COMPENSAT ASM PART: A = 8-97178-485-5, 97178485	8-94171-179-0	01	1	-
216	03.320 SCREW; ADJ,DIAPH,BOOST COMPENSAT ASM PART: B = 8-97263-086-3, 97263086	8-97214-478-0	01	1	-
220	03.308 GASKET; ADJ SCREW,BOOST COMPENSA ASM PART: B = 8-97263-086-3, 97263086	8-94122-761-0	01	1	-
221	03.330 NUT; ADJ SCREW LOCK,BOOST COMPEN 03.318 ASM PART: B = 8-97263-086-3, 97263086	1-15729-006-0	01	1	-
221	03.330 NUT; ADJ SCREW LOCK,BOOST COMPEN 08.845 ASM PART: A = 8-97178-485-5, 97178485	9-88410-525-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
