Isuzu WW
▶
TRUCKS
▶
FRR
▶
10808 - FRR-G/FSR/FTR TAIWAN
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-90 - REAR BUMPER
▶

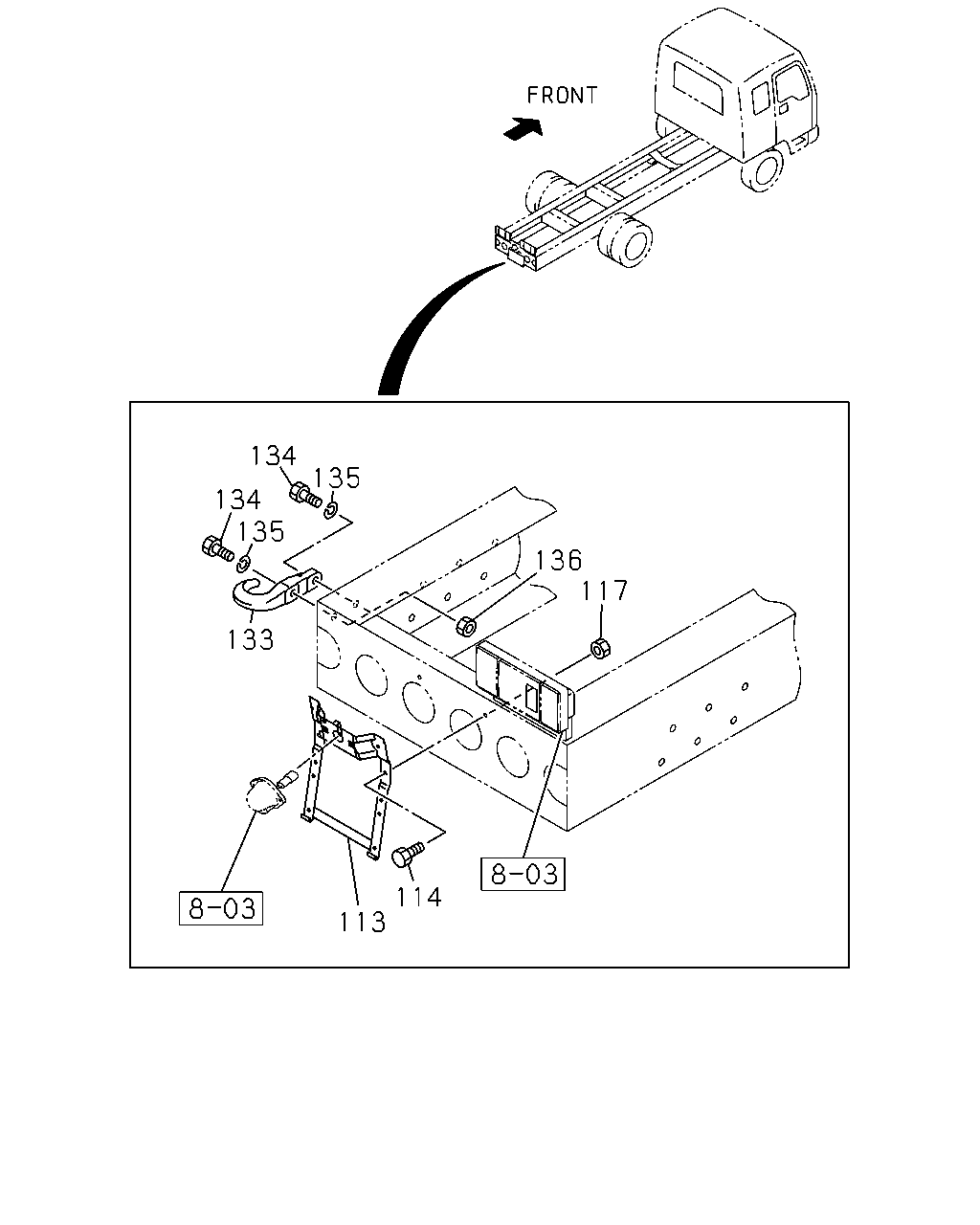

6-90 — REAR BUMPER
(#7906) — 26 parça
Tümü
A - FRR6MF
B - FSR6MF
C - FTR6MF
134
135
134
135
136
117
133
114
113
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
113
BRACKET; LICENSE PLATE
1-53485-065-0
01
1
9905-0301
●
●
113
BRACKET; LICENSE PLATE
1-53485-065-0
01
1
0302-0302
●
●
●
113
BRACKET; LICENSE PLATE
1-53485-074-0
01
1
0303-
●
●
●
114
BOLT; BRKT,LICENSE PLATE
M8X25 FLANGE
0-28680-825-0
02
1
9905-0301
●
●
114
BOLT; BRKT,LICENSE PLATE
M8X25 FLANGE
0-28680-825-0
02
1
0302-0512
●
●
●
114
BOLT; BRKT,LICENSE PLATE
M8X25 FLANGE
0-28650-825-0
02
1
0601-
●
●
●
117
NUT; BRKT
M8 FLANGE
0-91150-108-0
02
1
9905-0301
●
●
117
NUT; BRKT
M8 FLANGE
0-91150-108-0
02
1
0302-0602
●
●
●
117
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0603-
●
●
●
133
HOOK
1-57181-027-1
01
1
0302-
●
133
HOOK
1-57181-003-5
01
1
9905-
●
●
134
BOLT; HOOK
M16X50
0-20801-650-0
01
1
0302-0512
●
134
BOLT; HOOK
M16X50
0-20851-650-0
01
1
0601-
●
134
BOLT; HOOK
M16X70
0-10811-670-0
01
1
0302-0304
●
134
BOLT; HOOK
M16X60
0-10811-660-0
01
1
0305-0512
●
134
BOLT; HOOK
M16X60
0-10861-660-0
01
1
0601-
●
134
BOLT; HOOK
M14X50
0-10811-450-0
02
1
9905-0512
●
●
134
BOLT; HOOK
M14X50
0-10861-450-0
02
1
0601-
●
●
135
WASHER; LK,HOOK
ID=16.2
9-09150-516-0
02
1
0302-0603
●
135
WASHER; LK,HOOK
ID=16.2
0-91510-516-0
02
1
0604-
●
135
WASHER; LK,HOOK
ID=14.2
9-09150-514-0
02
1
9905-0603
●
●
135
WASHER; LK,HOOK
ID=14.2
0-91510-514-0
02
1
0604-
●
●
136
NUT; HOOK
M16
9-99110-516-0
02
1
0302-0512
●
136
NUT; HOOK
M16
0-91110-516-0
02
1
0601-
●
136
NUT; HOOK
M14
9-99110-414-0
02
1
9905-0512
●
●
136
NUT; HOOK
M14
0-91110-514-0
02
1
0601-
●
●
