0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#79058) — 130 parça

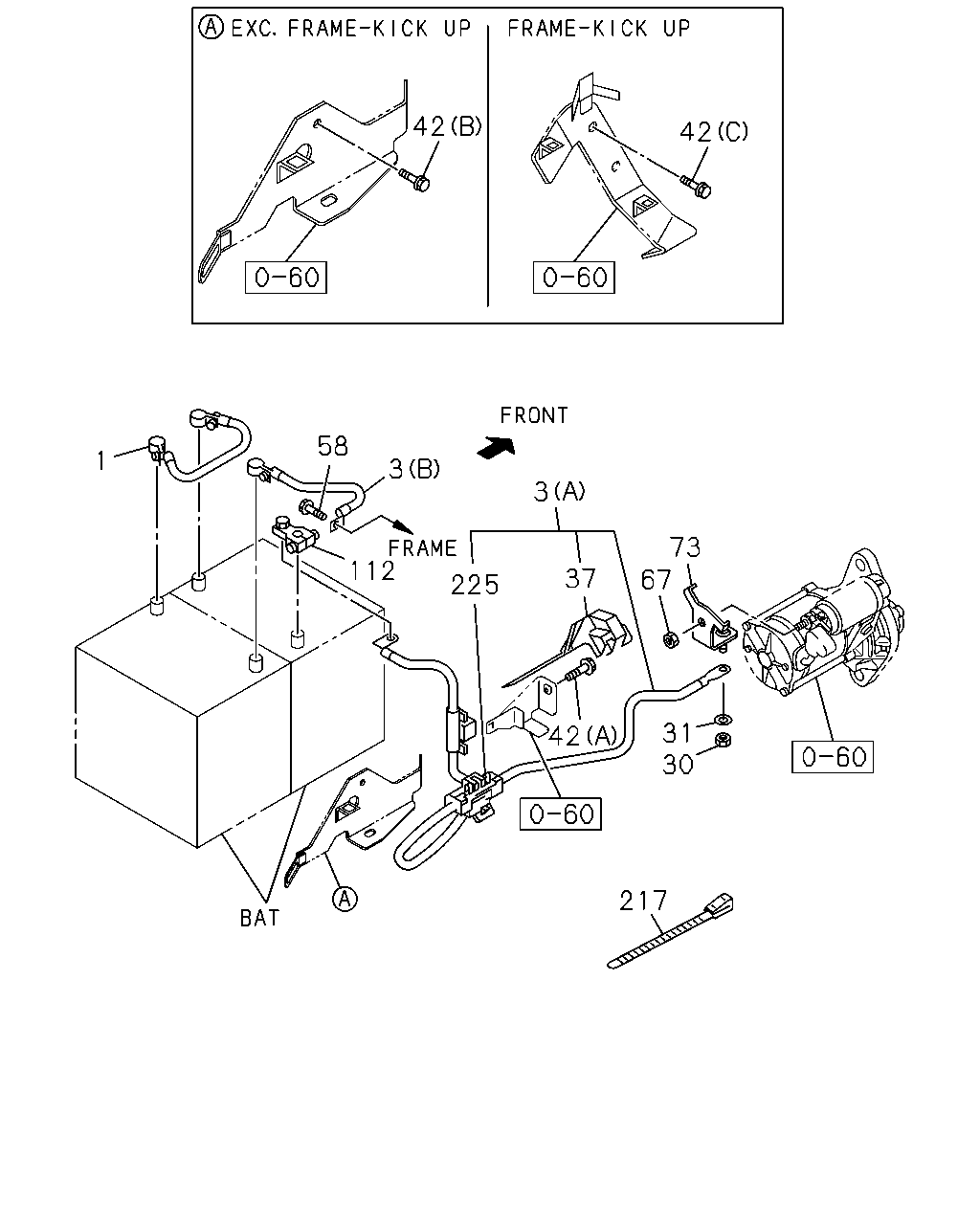

çizim 73226
37 3 67 73 31 30 217 42 225 112 3 58 42 42 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.341 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 1012- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
ALGERIA EQUIPMENT(WN1) FRAME-KICK UP<7EW> (A) 		8-98048-442-4 01 1 1407-1409 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
ALGERIA EQUIPMENT(WN1) FRAME-KICK UP<7EW> (A) 		8-98293-887-0 01 1 1410- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W) (A) 		8-98048-441-3 01 1 1012-1301 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
(B) L=200 		8-98056-337-1 01 1 1012- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (B) L=200 		8-98056-337-1 01 1 1012- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W) (B) L=200 		8-98056-337-1 01 1 1012- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) EXC. DUMP CHASSIS(V4D) (A) 		8-98048-439-3 01 1 1012-1012 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NM**W*) (A) 		8-98048-439-3 01 1 1012-1012 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) EXC. DUMP CHASSIS(V4D) (A) 		8-98048-439-3 01 1 1012-1409 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NM**W*) (A) 		8-98048-439-3 01 1 1012-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) EXC. DUMP CHASSIS(V4D) (A) 		8-98293-886-0 01 1 1410- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NM**W*) (A) 		8-98293-886-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (B) L=250 		8-98056-338-1 01 1 1012- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) (A) 		8-98131-620-0 01 1 1012-1301 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (A) 		8-98131-620-0 01 1 1012-1301 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) (A) 		8-98131-620-0 01 1 1302-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (A) 		8-98131-620-0 01 1 1302-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) (A) 		8-98294-685-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (A) 		8-98294-685-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
(C) 		8-98072-081-3 01 1 1012- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) EXC. FRAME-KICK UP<7EW> (D) 		8-98108-626-1 01 1 1012-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) EXC. FRAME-KICK UP<7EW> (D) 		8-98294-683-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FRAME-KICK UP<7EW> (A) 		8-98137-055-0 01 1 1012-1406 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FRAME-KICK UP<7EW> EXC. ALGERIA EQUIPMENT(WN1) (A) 		8-98137-055-0 01 1 1407-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FRAME-KICK UP<7EW> EXC. ALGERIA EQUIPMENT(WN1) (A) 		8-98294-686-0 01 1 1410- ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1012- ● ● ● ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 1012- ● ● ● ● ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) 		8-98042-507-0 01 1 1012-1012 ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE
DBL CAB(NM**W*) 		8-98042-507-0 01 1 1012-1012 ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) EXC. DUMP CHASSIS(V4D) 		8-98042-507-0 01 1 1012-1012 ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE
FRAME-KICK UP<7EW> 		8-98042-507-0 01 1 1012-1012 ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> 		8-98042-507-0 01 1 1012-1012 ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) EXC. DUMP CHASSIS(V4D) 		8-98042-507-0 01 1 1012- ● ● ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) 		8-98042-507-0 01 1 1012- ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE
SGL CAB(NM**S*) FRAME-KICK UP<7EW> 		8-98042-507-0 01 1 1012- ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE
DBL CAB(NM**W*) 		8-98042-507-0 01 1 1012- ●
37 02.343 CAP; TERMINAL,BATTERY CABLE
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> 		8-98042-507-0 01 1 1012- ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 1012-1301 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) 00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 1012-1301 ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
DBL CAB(NM**W*) 00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 1012-1301 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) 00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 1302- ● ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
DBL CAB(NM**W*) 00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 1302- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
EXC. FRAME-KICK UP<7EW> 02.500 (B) M6X16 FLANGE 		8-97329-599-0 01 1 1012- ● ● ● ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
FRAME-KICK UP<7EW> 06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 1012- ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1012- ● ● ● ● ● ●
67 02.183 NUT; BRKT
00.787 M10 		0-91111-510-0 01 1 1107- ● ●
73 02.333 BRACKET; BATTERY CABLE 8-98140-335-0 01 1 1107- ● ●
112 02.343 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 1012- ● ● ● ●
217 02.343 CLIP; BAND,CABLE
UZBEKISTAN EQUIPMENT(JCW) 03.162 L=140 		5-09707-031-1 01 1 1504- ●
225 02.343 BLOCK; TERMINAL
WHEEL BASE 3300MM(33W) 		8-98029-689-0 01 1 1012-1012 ● ●
225 02.343 BLOCK; TERMINAL
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) EXC. DUMP CHASSIS(V4D) 		8-98029-689-0 01 1 1012-1012 ● ●
225 02.343 BLOCK; TERMINAL
FRAME-KICK UP<7EW> 		8-98029-689-0 01 1 1012-1012 ● ●
225 02.343 BLOCK; TERMINAL
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> 		8-98029-689-0 01 1 1012-1012 ● ●
225 02.343 BLOCK; TERMINAL
SGL CAB(NM**S*) EXC. FRAME-KICK UP<7EW> 		8-98029-689-0 01 1 1012-1012 ●
225 02.343 BLOCK; TERMINAL
SGL CAB(NM**S*) 		8-98029-689-0 01 1 1012-1012 ●
225 02.343 BLOCK; TERMINAL
DBL CAB(NM**W*) FRAME-KICK UP<7EW> 		8-98029-689-0 01 1 1012-1012 ●
225 02.343 BLOCK; TERMINAL
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) EXC. DUMP CHASSIS(V4D) 		8-98029-689-0 01 1 1012-1409 ● ● ● ●
225 02.343 BLOCK; TERMINAL
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) 		8-98029-689-0 01 1 1012-1409 ● ●
225 02.343 BLOCK; TERMINAL
SGL CAB(NM**S*) FRAME-KICK UP<7EW> 		8-98029-689-0 01 1 1012-1409 ● ●
225 02.343 BLOCK; TERMINAL
DBL CAB(NM**W*) 		8-98029-689-0 01 1 1012-1409 ●
225 02.343 BLOCK; TERMINAL
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> 		8-98029-689-0 01 1 1012-1409 ● ●
225 02.343 BLOCK; TERMINAL
SGL CAB(NM**S*) EXC. FRAME-KICK UP<7EW> 		8-98029-689-0 01 1 1012-1409 ●
225 02.343 BLOCK; TERMINAL
SGL CAB(NM**S*) 		8-98029-689-0 01 1 1012-1409 ●
225 02.343 BLOCK; TERMINAL
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) EXC. DUMP CHASSIS(V4D) 		8-98294-524-0 01 1 1410- ● ● ● ●
225 02.343 BLOCK; TERMINAL
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) 		8-98294-524-0 01 1 1410- ● ●
225 02.343 BLOCK; TERMINAL
SGL CAB(NM**S*) FRAME-KICK UP<7EW> 		8-98294-524-0 01 1 1410- ● ●
225 02.343 BLOCK; TERMINAL
DBL CAB(NM**W*) 		8-98294-524-0 01 1 1410- ●
225 02.343 BLOCK; TERMINAL
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> 		8-98294-524-0 01 1 1410- ● ●
225 02.343 BLOCK; TERMINAL
SGL CAB(NM**S*) EXC. FRAME-KICK UP<7EW> 		8-98294-524-0 01 1 1410- ●
225 02.343 BLOCK; TERMINAL
SGL CAB(NM**S*) 		8-98294-524-0 01 1 1410- ●

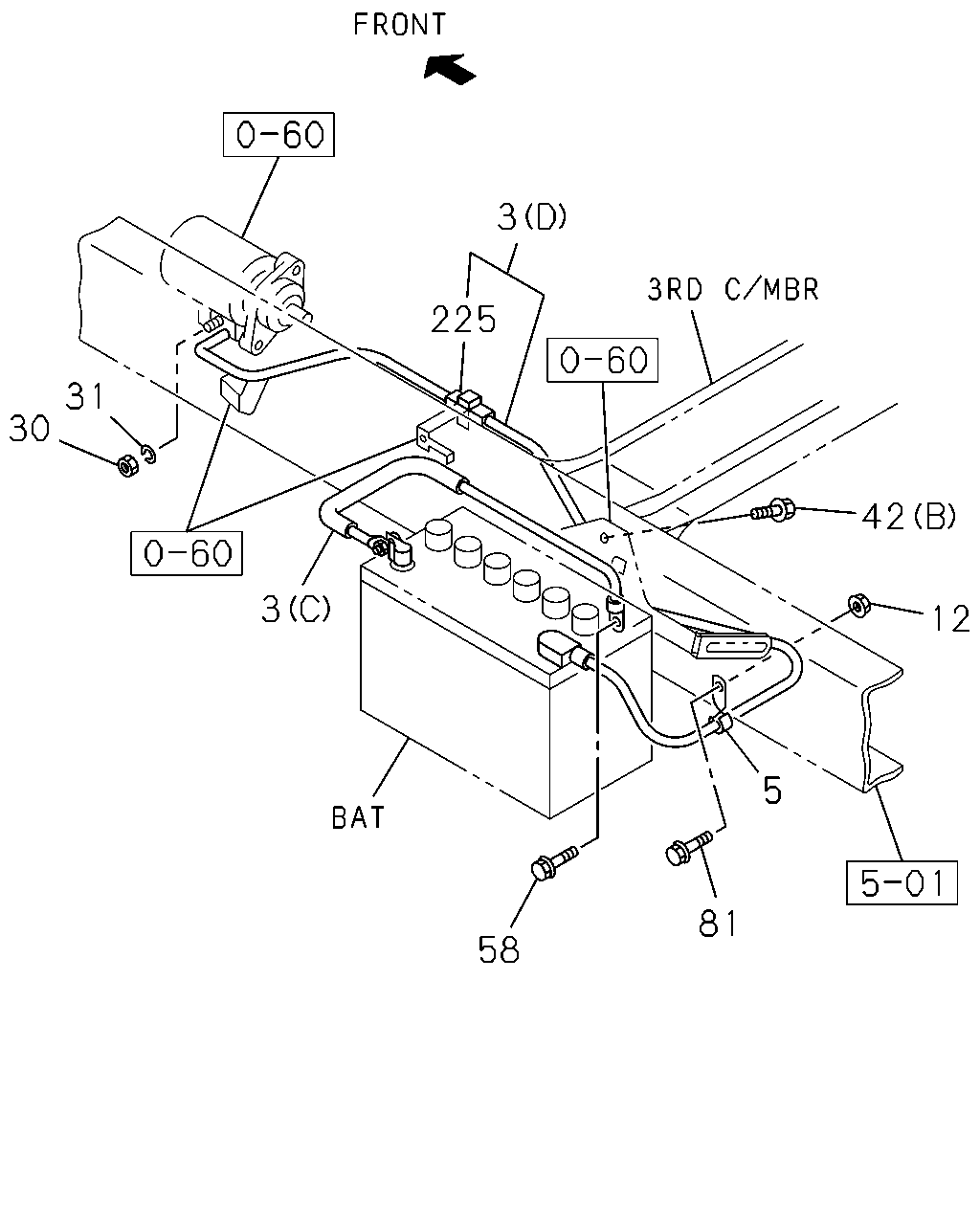

çizim 73629
3 225 31 30 42 3 12 5 81 58
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
ALGERIA EQUIPMENT(WN1) FRAME-KICK UP<7EW> (A) 		8-98048-442-4 01 1 1407-1409 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
ALGERIA EQUIPMENT(WN1) FRAME-KICK UP<7EW> (A) 		8-98293-887-0 01 1 1410- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W) (A) 		8-98048-441-3 01 1 1012-1301 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
(B) L=200 		8-98056-337-1 01 1 1012- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (B) L=200 		8-98056-337-1 01 1 1012- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W) (B) L=200 		8-98056-337-1 01 1 1012- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) EXC. DUMP CHASSIS(V4D) (A) 		8-98048-439-3 01 1 1012-1012 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NM**W*) (A) 		8-98048-439-3 01 1 1012-1012 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) EXC. DUMP CHASSIS(V4D) (A) 		8-98048-439-3 01 1 1012-1409 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NM**W*) (A) 		8-98048-439-3 01 1 1012-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) EXC. DUMP CHASSIS(V4D) (A) 		8-98293-886-0 01 1 1410- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB(NM**W*) (A) 		8-98293-886-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (B) L=250 		8-98056-338-1 01 1 1012- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) (A) 		8-98131-620-0 01 1 1012-1301 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (A) 		8-98131-620-0 01 1 1012-1301 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) (A) 		8-98131-620-0 01 1 1302-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (A) 		8-98131-620-0 01 1 1302-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) (A) 		8-98294-685-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (A) 		8-98294-685-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
(C) 		8-98072-081-3 01 1 1012- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) EXC. FRAME-KICK UP<7EW> (D) 		8-98108-626-1 01 1 1012-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB(NM**S*) EXC. FRAME-KICK UP<7EW> (D) 		8-98294-683-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FRAME-KICK UP<7EW> (A) 		8-98137-055-0 01 1 1012-1406 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FRAME-KICK UP<7EW> EXC. ALGERIA EQUIPMENT(WN1) (A) 		8-98137-055-0 01 1 1407-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FRAME-KICK UP<7EW> EXC. ALGERIA EQUIPMENT(WN1) (A) 		8-98294-686-0 01 1 1410- ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
ID=19 L=58 		1-09700-733-1 01 1 1012- ● ●
12 02.343 NUT; BATTERY CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1012- ● ● ● ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 1012- ● ● ● ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 1012-1301 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) 00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 1012-1301 ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
DBL CAB(NM**W*) 00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 1012-1301 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) 00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 1302- ● ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
DBL CAB(NM**W*) 00.685 (A) M6X25 FLANGE 		0-28650-625-0 01 1 1302- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
EXC. FRAME-KICK UP<7EW> 02.500 (B) M6X16 FLANGE 		8-97329-599-0 01 1 1012- ● ● ● ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
FRAME-KICK UP<7EW> 06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 1012- ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1012- ● ● ● ● ● ●
81 02.559 BOLT; BATTERY CABLE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
225 02.343 BLOCK; TERMINAL
WHEEL BASE 3300MM(33W) 		8-98029-689-0 01 1 1012-1012 ● ●
225 02.343 BLOCK; TERMINAL
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) EXC. DUMP CHASSIS(V4D) 		8-98029-689-0 01 1 1012-1012 ● ●
225 02.343 BLOCK; TERMINAL
FRAME-KICK UP<7EW> 		8-98029-689-0 01 1 1012-1012 ● ●
225 02.343 BLOCK; TERMINAL
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> 		8-98029-689-0 01 1 1012-1012 ● ●
225 02.343 BLOCK; TERMINAL
SGL CAB(NM**S*) EXC. FRAME-KICK UP<7EW> 		8-98029-689-0 01 1 1012-1012 ●
225 02.343 BLOCK; TERMINAL
SGL CAB(NM**S*) 		8-98029-689-0 01 1 1012-1012 ●
225 02.343 BLOCK; TERMINAL
DBL CAB(NM**W*) FRAME-KICK UP<7EW> 		8-98029-689-0 01 1 1012-1012 ●
225 02.343 BLOCK; TERMINAL
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) EXC. DUMP CHASSIS(V4D) 		8-98029-689-0 01 1 1012-1409 ● ● ● ●
225 02.343 BLOCK; TERMINAL
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) 		8-98029-689-0 01 1 1012-1409 ● ●
225 02.343 BLOCK; TERMINAL
SGL CAB(NM**S*) FRAME-KICK UP<7EW> 		8-98029-689-0 01 1 1012-1409 ● ●
225 02.343 BLOCK; TERMINAL
DBL CAB(NM**W*) 		8-98029-689-0 01 1 1012-1409 ●
225 02.343 BLOCK; TERMINAL
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> 		8-98029-689-0 01 1 1012-1409 ● ●
225 02.343 BLOCK; TERMINAL
SGL CAB(NM**S*) EXC. FRAME-KICK UP<7EW> 		8-98029-689-0 01 1 1012-1409 ●
225 02.343 BLOCK; TERMINAL
SGL CAB(NM**S*) 		8-98029-689-0 01 1 1012-1409 ●
225 02.343 BLOCK; TERMINAL
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) EXC. DUMP CHASSIS(V4D) 		8-98294-524-0 01 1 1410- ● ● ● ●
225 02.343 BLOCK; TERMINAL
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) 		8-98294-524-0 01 1 1410- ● ●
225 02.343 BLOCK; TERMINAL
SGL CAB(NM**S*) FRAME-KICK UP<7EW> 		8-98294-524-0 01 1 1410- ● ●
225 02.343 BLOCK; TERMINAL
DBL CAB(NM**W*) 		8-98294-524-0 01 1 1410- ●
225 02.343 BLOCK; TERMINAL
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> 		8-98294-524-0 01 1 1410- ● ●
225 02.343 BLOCK; TERMINAL
SGL CAB(NM**S*) EXC. FRAME-KICK UP<7EW> 		8-98294-524-0 01 1 1410- ●
225 02.343 BLOCK; TERMINAL
SGL CAB(NM**S*) 		8-98294-524-0 01 1 1410- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
