◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51282 - NLR/NMR 55,85(LHD) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#79057) — 261 parça

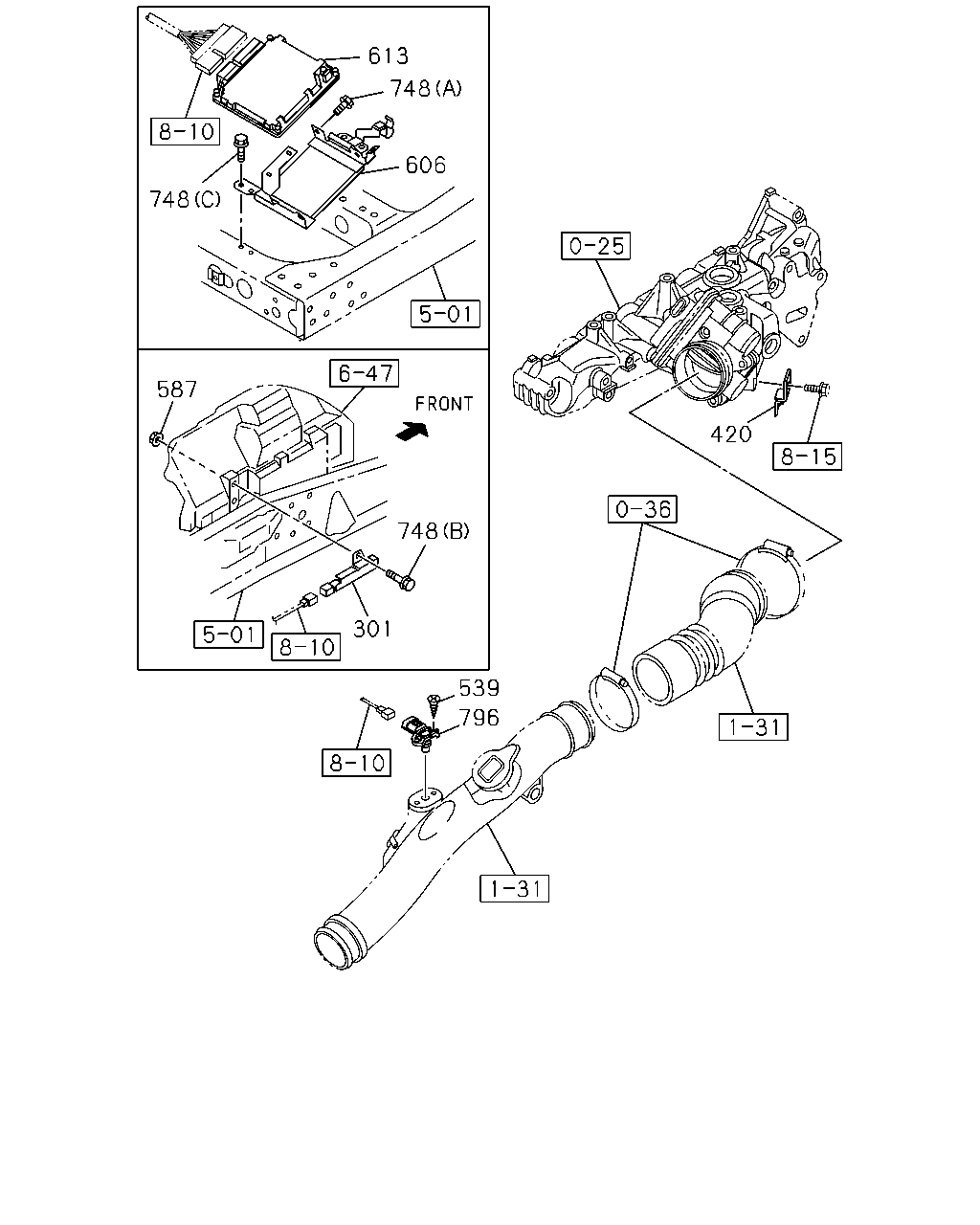

çizim 72803
613 748 606 748 587 420 748 301 539 796
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
301 02.510 RESISTOR; DROPPING 8-97357-613-0 01 1 1012- ●
420 02.183 BRACKET; HARNESS 8-98009-094-0 01 1 1012- ● ●
539 02.510 SCREW; SENSOR
M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1012- ● ●
587 03.671 NUT; RESISTOR & RELAY
04.115 M6 W/DISHED WASHER 		8-98029-921-0 02 1 1012-1301 ● ●
587 03.671 NUT; RESISTOR & RELAY
04.115 M6 W/DISHED WASHER 		8-98029-921-0 02 1 1302- ●
606 03.680 BRACKET; CONT UNIT 8-98011-948-3 01 1 1012- ●
606 03.680 BRACKET; CONT UNIT
SGL CAB(NM**S*) 		8-98011-948-3 01 1 1012- ●
606 03.680 BRACKET; CONT UNIT
DBL CAB(NM**W*) 		8-98038-714-3 01 1 1012- ●
613 03.670 CONTROL UNIT; ENG
M/T MYY5T(RSM) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2) ALGERIA EQUIPMENT(WN1) 		8-98298-415-0 01 1 1410-1503 ●
613 03.670 CONTROL UNIT; ENG
M/T MYY5T(RSM) UZBEKISTAN EQUIPMENT(JCW),ALGERIA EQUIPMENT(WN1) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2) 		8-98298-415-0 01 1 1504-1511 ●
613 03.670 CONTROL UNIT; ENG
M/T MYY5T(RSM) UZBEKISTAN EQUIPMENT(JCW),ALGERIA EQUIPMENT(WN1) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO2 SPECIFICATION(NT2) EXC. SPEED LIMITER 90KM(NMJ) 		8-98298-415-0 01 1 1512- ●
613 03.670 CONTROL UNIT; ENG
M/T MYY5T(RSM) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO3 SPECIFICATION(NT3) EXC. IMMOBILIZER SYSTEM(7KC) 		8-98173-934-0 01 1 1407-1511 ●
613 03.670 CONTROL UNIT; ENG
M/T MYY5T(RSM) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO3 SPECIFICATION(NT3) EXC. SPEED LIMITER 90KM(NMJ) 		8-98173-934-0 01 1 1512- ●
613 03.670 CONTROL UNIT; ENG
M/T MYY5T(RSM) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO3 SPECIFICATION(NT3) EXC. IMMOBILIZER SYSTEM(7KC) 		8-98191-759-0 01 1 1407-1511 ●
613 03.670 CONTROL UNIT; ENG
M/T MYY5T(RSM) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO3 SPECIFICATION(NT3) EXC. SPEED LIMITER 90KM(NMJ) 		8-98191-759-0 01 1 1512- ●
613 03.670 CONTROL UNIT; ENG
M/T MYY5T(RSM) EURO3 SPECIFICATION(NT3) EXC. IMMOBILIZER SYSTEM(7KC) 		8-98173-933-0 01 1 1012-1406 ●
613 03.670 CONTROL UNIT; ENG
M/T MYY5T(RSM) EURO3 SPECIFICATION(NT3) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC) 		8-98173-933-0 01 1 1407-1511 ●
613 03.670 CONTROL UNIT; ENG
M/T MYY5T(RSM) EURO3 SPECIFICATION(NT3) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, SPEED LIMITER 90KM(NMJ),IMMOBILIZER SYST EM(7KC) 		8-98173-933-0 01 1 1512- ●
613 03.670 CONTROL UNIT; ENG
M/T MYY5T(RSM) EURO4 SPECIFICATION(NT4) IMMOBILIZER SYSTEM(7KC) 		8-98070-433-9 01 1 1012- ●
613 03.670 CONTROL UNIT; ENG
M/T MYY5T(RSM) EURO4 SPECIFICATION(NT4) EXC. IMMOBILIZER SYSTEM(7KC) 		8-98070-434-9 01 1 1012- ●
613 03.670 CONTROL UNIT; ENG
M/T MYY5T(RSM),M/T MYY6S(RST) EURO2 SPECIFICATION(NT2) EXC. IMMOBILIZER SYSTEM(7KC) 		8-98066-050-5 01 1 1012-1111 ●
613 03.670 CONTROL UNIT; ENG
M/T MYY5T(RSM),M/T MYY6S(RST) EURO2 SPECIFICATION(NT2) EXC. IMMOBILIZER SYSTEM(7KC) 		8-98191-757-0 01 1 1112-1406 ●
613 03.670 CONTROL UNIT; ENG
M/T MYY5T(RSM),M/T MYY6S(RST) EURO2 SPECIFICATION(NT2) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC) 		8-98191-757-0 01 1 1407-1409 ●
613 03.670 CONTROL UNIT; ENG
M/T MYY5T(RSM),M/T MYY6S(RST) EURO2 SPECIFICATION(NT2) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, ALGERIA EQUIPMENT(WN1),IMMOBILIZER SYSTE M(7KC) 		8-98191-757-0 01 1 1410-1503 ●
613 03.670 CONTROL UNIT; ENG
M/T MYY5T(RSM),M/T MYY6S(RST) EURO2 SPECIFICATION(NT2) EXC. UZBEKISTAN EQUIPMENT(JCW),4 WHEEL ANTI LOCK BRAKE<JE5>,ALGERIA EQUIPM ENT(WN1),IMMOBILIZER SYSTEM(7KC) 		8-98191-757-0 01 1 1504-1511 ●
613 03.670 CONTROL UNIT; ENG
M/T MYY5T(RSM),M/T MYY6S(RST) EURO2 SPECIFICATION(NT2) EXC. UZBEKISTAN EQUIPMENT(JCW),4 WHEEL ANTI LOCK BRAKE<JE5>,SPEED LIMITER 90KM(NMJ),ALGERIA EQUIPMENT(WN1) 		8-98191-757-0 01 1 1512- ●
613 03.670 CONTROL UNIT; ENG
M/T MYY5T(RSM) EURO3 SPECIFICATION(NT3) EXC. IMMOBILIZER SYSTEM(7KC) 		8-98066-046-6 01 1 1012-1111 ●
613 03.670 CONTROL UNIT; ENG
M/T MYY5T(RSM) EURO3 SPECIFICATION(NT3) EXC. IMMOBILIZER SYSTEM(7KC) 		8-98191-758-1 01 1 1112-1406 ●
613 03.670 CONTROL UNIT; ENG
M/T MYY5T(RSM) EURO3 SPECIFICATION(NT3) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, IMMOBILIZER SYSTEM(7KC) 		8-98191-758-1 01 1 1407-1511 ●
613 03.670 CONTROL UNIT; ENG
M/T MYY5T(RSM) EURO3 SPECIFICATION(NT3) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, SPEED LIMITER 90KM(NMJ),IMMOBILIZER SYST EM(7KC) 		8-98191-758-1 01 1 1512- ●
748 02.500 BOLT; CONT UNIT
03.162 (A) M6X12 FLANGE 		0-28050-612-0 04 1 1012- ● ●
748 02.500 BOLT; CONT UNIT
03.162 (B) M6X20 FLANGE 		0-28650-620-0 02 1 1012-1301 ● ●
748 02.500 BOLT; CONT UNIT
03.162 (B) M6X20 FLANGE 		0-28650-620-0 02 1 1302- ●
748 02.500 BOLT; CONT UNIT
06.216 (C) M8X25 FLANGE 		0-28650-825-0 04 1 1012- ● ●
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 1012- ● ●

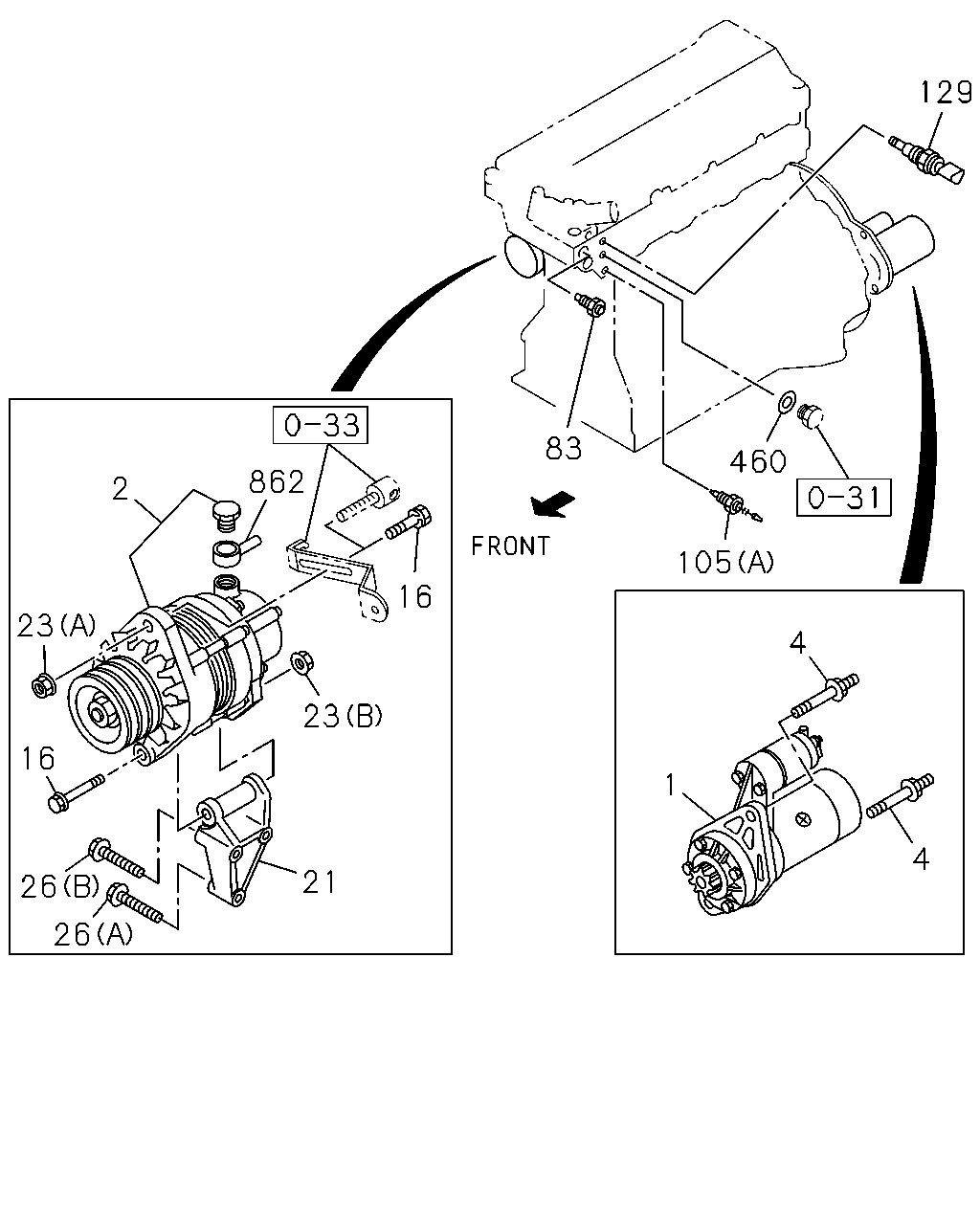

çizim 72871
129 83 460 862 2 105 16 23 4 23 16 1 4 21 26 26
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-98179-204-1 01 1 1012-1207 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-98222-021-0 01 1 1208-1310 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-98245-258-0 01 1 1311- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-98055-279-1 01 1 1012-1207 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1012-1207 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-98222-018-2 01 1 1208- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1208- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 1012- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A HITACHI 		8-97351-572-1 01 1 1012- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) 24V 80A HITACHI 		8-97351-574-1 01 1 1012- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A 		8-98029-887-2 01 1 1012- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) 24V 80A 		8-98029-889-2 01 1 1012- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-657-2 01 1 1012-1408 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A 		8-98284-007-0 01 1 1409-1505 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A 		8-98300-335-0 01 1 1506- ● ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 1012- ● ● ● ●
4 02.042 BOLT; STARTER
00.685 M12X80 FLANGE 		0-28051-280-0 02 1 1012- ● ●
16 02.277 BOLT; GEN
M10X133 		8-97146-998-0 01 1 1012- ● ●
16 02.277 BOLT; GEN
M10X120 FLANGE 		0-28056-012-0 01 1 1012- ● ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28056-013-0 01 1 1012- ● ●
21 02.277 BRACKET; GEN 8-97075-884-2 01 1 1012- ● ●
23 02.277 NUT; GEN
01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1012- ● ●
23 02.277 NUT; GEN
04.085 (B) M10 FLANGE 		0-91180-210-0 01 1 1012- ● ● ● ●
26 02.277 BOLT; GEN BRKT
02.042 (A) M10X50 FLANGE 		0-28151-050-0 01 1 1012- ● ●
26 02.277 BOLT; GEN BRKT
(B) M10X70 FLANGE 		0-28151-070-0 02 1 1012- ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 1012- ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 1012- ● ● ●
105 01.150 SWITCH; THERMO,QOS
(A) 		8-94121-152-1 01 1 1012- ●
105 01.150 SWITCH; THERMO,QOS
(A) 		8-94336-668-0 01 1 1012- ●
105 01.150 SWITCH; THERMO,QOS
(B) 		8-94457-511-0 01 1 1012- ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
HITACHI 		8-97167-008-0 01 1 1012- ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 1012- ● ● ●
460 02.363 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). 04.868 ID=16.2 		1-09630-086-0 01 1 1012- ●
862 02.313 CONNECTOR; GEN
GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 		8-97333-832-0 01 1 1012- ● ●

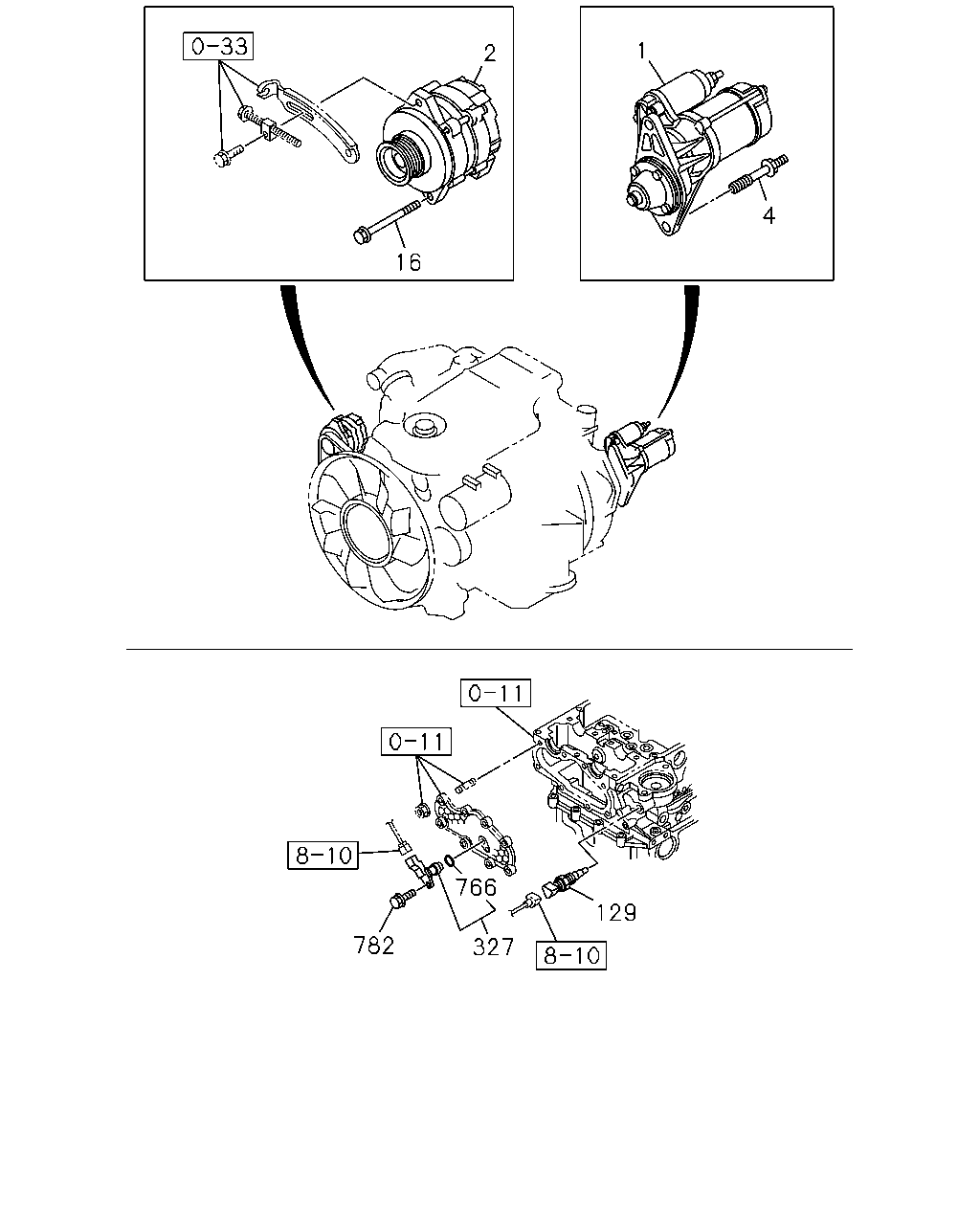

çizim 72891
1 2 4 16 766 129 782 327
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-98179-204-1 01 1 1012-1207 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-98222-021-0 01 1 1208-1310 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-98245-258-0 01 1 1311- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-98055-279-1 01 1 1012-1207 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1012-1207 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-98222-018-2 01 1 1208- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1208- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 1012- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A HITACHI 		8-97351-572-1 01 1 1012- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) 24V 80A HITACHI 		8-97351-574-1 01 1 1012- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A 		8-98029-887-2 01 1 1012- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) 24V 80A 		8-98029-889-2 01 1 1012- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-657-2 01 1 1012-1408 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A 		8-98284-007-0 01 1 1409-1505 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A 		8-98300-335-0 01 1 1506- ● ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 1012- ● ● ● ●
4 02.042 BOLT; STARTER
00.685 M12X80 FLANGE 		0-28051-280-0 02 1 1012- ● ●
16 02.277 BOLT; GEN
M10X133 		8-97146-998-0 01 1 1012- ● ●
16 02.277 BOLT; GEN
M10X120 FLANGE 		0-28056-012-0 01 1 1012- ● ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28056-013-0 01 1 1012- ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
HITACHI 		8-97167-008-0 01 1 1012- ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 1012- ● ● ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-97312-108-1 01 1 1012- ● ●
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 1012- ● ●
782 02.510 BOLT; SENSOR
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 1012- ● ●

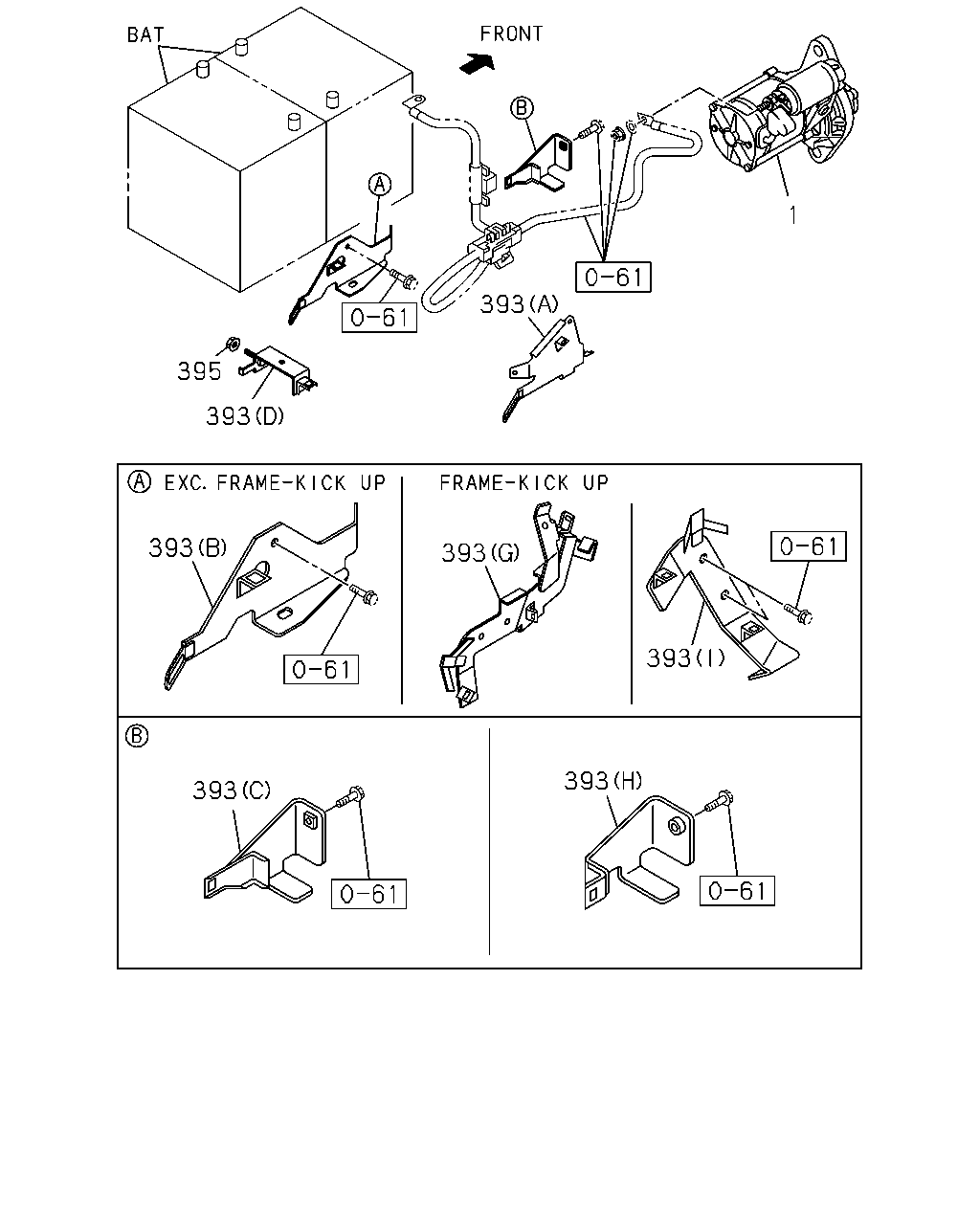

çizim 73063
393 395 393 393 393 393 393 393 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-98179-204-1 01 1 1012-1207 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-98222-021-0 01 1 1208-1310 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-98245-258-0 01 1 1311- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-98055-279-1 01 1 1012-1207 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1012-1207 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-98222-018-2 01 1 1208- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1208- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 1012- ● ●
393 02.343 BRACKET; HARNESS TO BODY
ALGERIA EQUIPMENT(WN1) FRAME-KICK UP<7EW> (I) 		8-98052-993-1 01 1 1407- ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-98124-190-0 01 1 1012- ●
393 02.343 BRACKET; HARNESS TO BODY
EXC. FRAME-KICK UP<7EW> (A) 		8-98124-190-0 01 1 1012- ●
393 02.343 BRACKET; HARNESS TO BODY
(C) 		8-98018-903-0 01 1 1012-1103 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) (C) 		8-98018-903-0 01 1 1012-1103 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NM**W*) (C) 		8-98018-903-0 01 1 1012-1103 ●
393 02.343 BRACKET; HARNESS TO BODY
(H) 		8-98123-872-0 01 1 1104-1301 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) (H) 		8-98123-872-0 01 1 1104-1301 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NM**W*) (H) 		8-98123-872-0 01 1 1104-1301 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) (H) 		8-98123-872-0 01 1 1302- ● ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NM**W*) (H) 		8-98123-872-0 01 1 1302- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) 02.483 (D) 		8-98018-251-1 01 1 1012-1308 ● ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
02.483 (D) 		8-98018-251-1 01 1 1012-1308 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) 02.483 (D) 		8-98018-251-1 01 1 1309-1311 ● ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> 02.483 (D) 		8-98018-251-1 01 1 1309-1311 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) 02.483 (D) 		8-98018-251-1 01 1 1312- ● ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
02.483 (D) 		8-98018-251-1 01 1 1312- ● ●
393 02.343 BRACKET; HARNESS TO BODY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME-KICK UP<7EW> (B) 		8-98028-601-3 01 1 1012- ● ●
393 02.343 BRACKET; HARNESS TO BODY
(E) 		8-97262-964-0 01 1 1012- ● ●
393 02.343 BRACKET; HARNESS TO BODY
(F) 		8-98092-304-2 01 1 1012- ● ●
393 02.343 BRACKET; HARNESS TO BODY
FRAME-KICK UP<7EW> (G) 		8-98131-967-0 01 1 1012-1103 ● ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
FRAME-KICK UP<7EW> (G) 		8-98137-320-0 01 1 1104-1406 ● ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
FRAME-KICK UP<7EW> EXC. ALGERIA EQUIPMENT(WN1) (G) 		8-98137-320-0 01 1 1407- ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ● ● ●
395 02.343 NUT; BRKT FIX
01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ●
çizim 73220
10 46
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
10 02.100 RELAY; STARTER
24V 50A 		8-97264-947-0 01 1 1012- ● ● ● ●
10 02.100 RELAY; STARTER
02.510 12V 80A 		8-97173-951-0 01 1 1012- ● ●
46 02.510 RELAY; GLOW PLUG
EXC. GLOW SYSTEM DELETE<7RK> 24V 50A 		8-97173-947-0 01 1 1012-1307 ● ● ● ●
46 02.510 RELAY; GLOW PLUG
EXC. GLOW SYSTEM DELETE<7RK> 24V 50A 		8-97173-947-0 01 1 1308- ● ● ●
46 02.510 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 1308- ●
46 02.510 RELAY; GLOW PLUG
EXC. GLOW SYSTEM DELETE<7RK> 12V 80A 		8-97173-951-0 01 1 1012- ● ●
çizim 73256
555 219 399 219 490 219 219 219 489 492 553 489
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
219 03.483 CLIP; ENG STOP CABLE
03.162 (A) ID=13-18 L=14.5 		1-09709-290-0 01 1 1012- ●
219 03.483 CLIP; ENG STOP CABLE
EXC. FRAME-KICK UP<7EW> 03.162 (A) ID=13-18 L=14.5 		1-09709-290-0 01 1 1012- ●
219 03.483 CLIP; ENG STOP CABLE
02.559 (C) ID=16 		8-97040-812-0 01 1 1012- ●
219 03.483 CLIP; ENG STOP CABLE
EXC. FRAME-KICK UP<7EW> 02.559 (C) ID=16 		8-97040-812-0 01 1 1012- ●
219 03.483 CLIP; ENG STOP CABLE
02.559 (B) T=4.5 & 9 		8-97371-947-0 01 1 1012- ●
219 03.483 CLIP; ENG STOP CABLE
EXC. FRAME-KICK UP<7EW> 02.559 (B) T=4.5 & 9 		8-97371-947-0 01 1 1012- ●
219 03.483 CLIP; ENG STOP CABLE
FRAME-KICK UP<7EW> 03.162 (A) ID=13-18 L=14.5 		1-09709-290-0 03 1 1012- ●
399 02.559 NUT; CLIP
03.162 M10 FLANGE 		0-91180-110-0 01 1 1012- ● ●
399 02.559 NUT; CLIP
EXC. FRAME-KICK UP<7EW> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1012- ● ●
489 03.483 BOLT; ENG STOPPER
00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1012- ●
489 03.483 BOLT; ENG STOPPER
EXC. FRAME-KICK UP<7EW> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1012- ●
489 03.483 BOLT; ENG STOPPER
FRAME-KICK UP<7EW> 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1012- ●
490 03.485 NUT; ENG STOP
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1012- ● ●
490 03.485 NUT; ENG STOP
03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 1012- ●
490 03.485 NUT; ENG STOP
EXC. FRAME-KICK UP<7EW> 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 1012- ●
492 03.483 BRACKET; ENG STOPPER
FRAME-KICK UP<7EW> 		8-98105-747-0 01 1 1012- ●
553 03.485 MOTOR ASM; ENG STOP 8-98100-511-4 01 1 1012- ●
553 03.485 MOTOR ASM; ENG STOP
EXC. FRAME-KICK UP<7EW> 		8-98100-511-4 01 1 1012- ●
553 03.485 MOTOR ASM; ENG STOP
FRAME-KICK UP<7EW> 		8-98100-512-5 01 1 1012- ●
555 03.485 BRACKET; ENG STOP
HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> (D) 		8-98220-961-0 01 1 1206-1206 ●
555 03.485 BRACKET; ENG STOP
HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> (D) 		8-98226-332-0 01 1 1207-1309 ●
555 03.485 BRACKET; ENG STOP
HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> (D) 		8-98226-332-0 01 1 1310-1411 ● ●
555 03.485 BRACKET; ENG STOP
(B) 		8-98124-697-0 01 1 1012- ●
555 03.485 BRACKET; ENG STOP
EXC. FRAME-KICK UP<7EW> (B) 		8-98124-697-0 01 1 1012- ●
555 03.485 BRACKET; ENG STOP
EXC. FRAME-KICK UP<7EW> (A) 		8-98124-696-0 01 1 1012-1205 ● ●
555 03.485 BRACKET; ENG STOP
EXC. HEAVY DUTY FRAME<6WB>, FRAME-KICKUP<7EW> (A) 		8-98124-696-0 01 1 1206-1411 ● ●
555 03.485 BRACKET; ENG STOP
EXC. FRAME-KICK UP<7EW> (E) 		8-98290-900-0 01 1 1412- ● ●
555 03.485 BRACKET; ENG STOP
FRAME-KICK UP<7EW> (C) 		8-98124-698-1 01 1 1012- ●
çizim 73382
130 132 641 643
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
130 02.510 CONTROLLER; EGR 8-98170-223-2 01 1 1012- ●
132 03.675 NUT; CONTROLLER
01.062 M6 FLANGE 		0-91180-106-0 02 1 1012- ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97361-318-3 01 1 1012- ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97361-317-3 01 1 1012- ● ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> 01.062 M6 FLANGE 		0-91180-106-0 02 1 1012-1509 ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1012-1509 ● ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> 01.062 M6 FLANGE 		0-91180-106-0 02 1 1510- ● ● ●

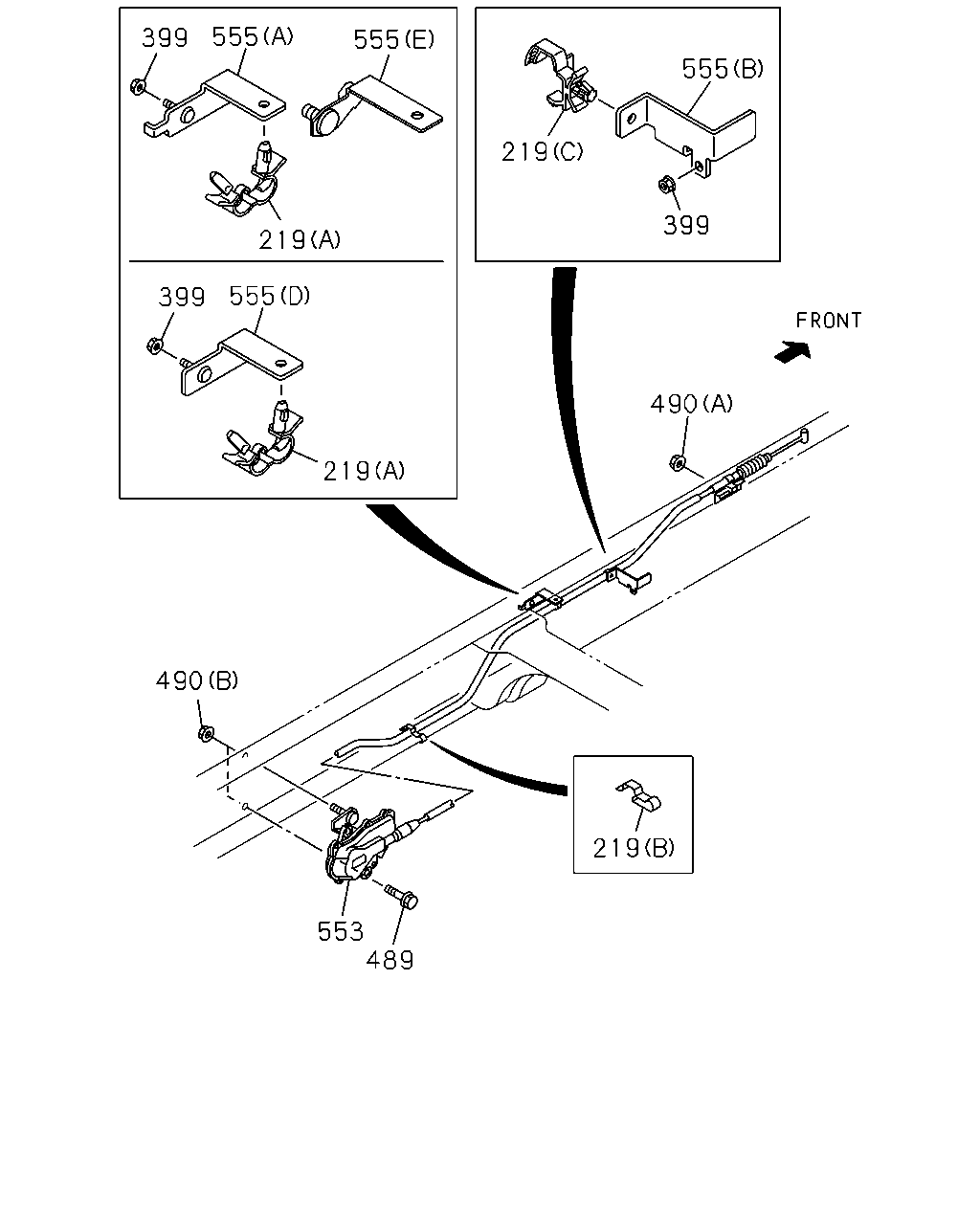

çizim 73500
489 553 490 219 555 399 490 399 219 555 555 555 399 219 219
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
219 03.483 CLIP; ENG STOP CABLE
03.162 (A) ID=13-18 L=14.5 		1-09709-290-0 01 1 1012- ●
219 03.483 CLIP; ENG STOP CABLE
EXC. FRAME-KICK UP<7EW> 03.162 (A) ID=13-18 L=14.5 		1-09709-290-0 01 1 1012- ●
219 03.483 CLIP; ENG STOP CABLE
02.559 (C) ID=16 		8-97040-812-0 01 1 1012- ●
219 03.483 CLIP; ENG STOP CABLE
EXC. FRAME-KICK UP<7EW> 02.559 (C) ID=16 		8-97040-812-0 01 1 1012- ●
219 03.483 CLIP; ENG STOP CABLE
02.559 (B) T=4.5 & 9 		8-97371-947-0 01 1 1012- ●
219 03.483 CLIP; ENG STOP CABLE
EXC. FRAME-KICK UP<7EW> 02.559 (B) T=4.5 & 9 		8-97371-947-0 01 1 1012- ●
219 03.483 CLIP; ENG STOP CABLE
FRAME-KICK UP<7EW> 03.162 (A) ID=13-18 L=14.5 		1-09709-290-0 03 1 1012- ●
399 02.559 NUT; CLIP
03.162 M10 FLANGE 		0-91180-110-0 01 1 1012- ● ●
399 02.559 NUT; CLIP
EXC. FRAME-KICK UP<7EW> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1012- ● ●
489 03.483 BOLT; ENG STOPPER
00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1012- ●
489 03.483 BOLT; ENG STOPPER
EXC. FRAME-KICK UP<7EW> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1012- ●
489 03.483 BOLT; ENG STOPPER
FRAME-KICK UP<7EW> 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1012- ●
490 03.485 NUT; ENG STOP
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1012- ● ●
490 03.485 NUT; ENG STOP
03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 1012- ●
490 03.485 NUT; ENG STOP
EXC. FRAME-KICK UP<7EW> 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 1012- ●
553 03.485 MOTOR ASM; ENG STOP 8-98100-511-4 01 1 1012- ●
553 03.485 MOTOR ASM; ENG STOP
EXC. FRAME-KICK UP<7EW> 		8-98100-511-4 01 1 1012- ●
553 03.485 MOTOR ASM; ENG STOP
FRAME-KICK UP<7EW> 		8-98100-512-5 01 1 1012- ●
555 03.485 BRACKET; ENG STOP
HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> (D) 		8-98220-961-0 01 1 1206-1206 ●
555 03.485 BRACKET; ENG STOP
HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> (D) 		8-98226-332-0 01 1 1207-1309 ●
555 03.485 BRACKET; ENG STOP
HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> (D) 		8-98226-332-0 01 1 1310-1411 ● ●
555 03.485 BRACKET; ENG STOP
(B) 		8-98124-697-0 01 1 1012- ●
555 03.485 BRACKET; ENG STOP
EXC. FRAME-KICK UP<7EW> (B) 		8-98124-697-0 01 1 1012- ●
555 03.485 BRACKET; ENG STOP
EXC. FRAME-KICK UP<7EW> (A) 		8-98124-696-0 01 1 1012-1205 ● ●
555 03.485 BRACKET; ENG STOP
EXC. HEAVY DUTY FRAME<6WB>, FRAME-KICKUP<7EW> (A) 		8-98124-696-0 01 1 1206-1411 ● ●
555 03.485 BRACKET; ENG STOP
EXC. FRAME-KICK UP<7EW> (E) 		8-98290-900-0 01 1 1412- ● ●
555 03.485 BRACKET; ENG STOP
FRAME-KICK UP<7EW> (C) 		8-98124-698-1 01 1 1012- ●
çizim 190844
897
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
897 02.510 DRM 8-98082-814-7 01 1 1012- ● ●

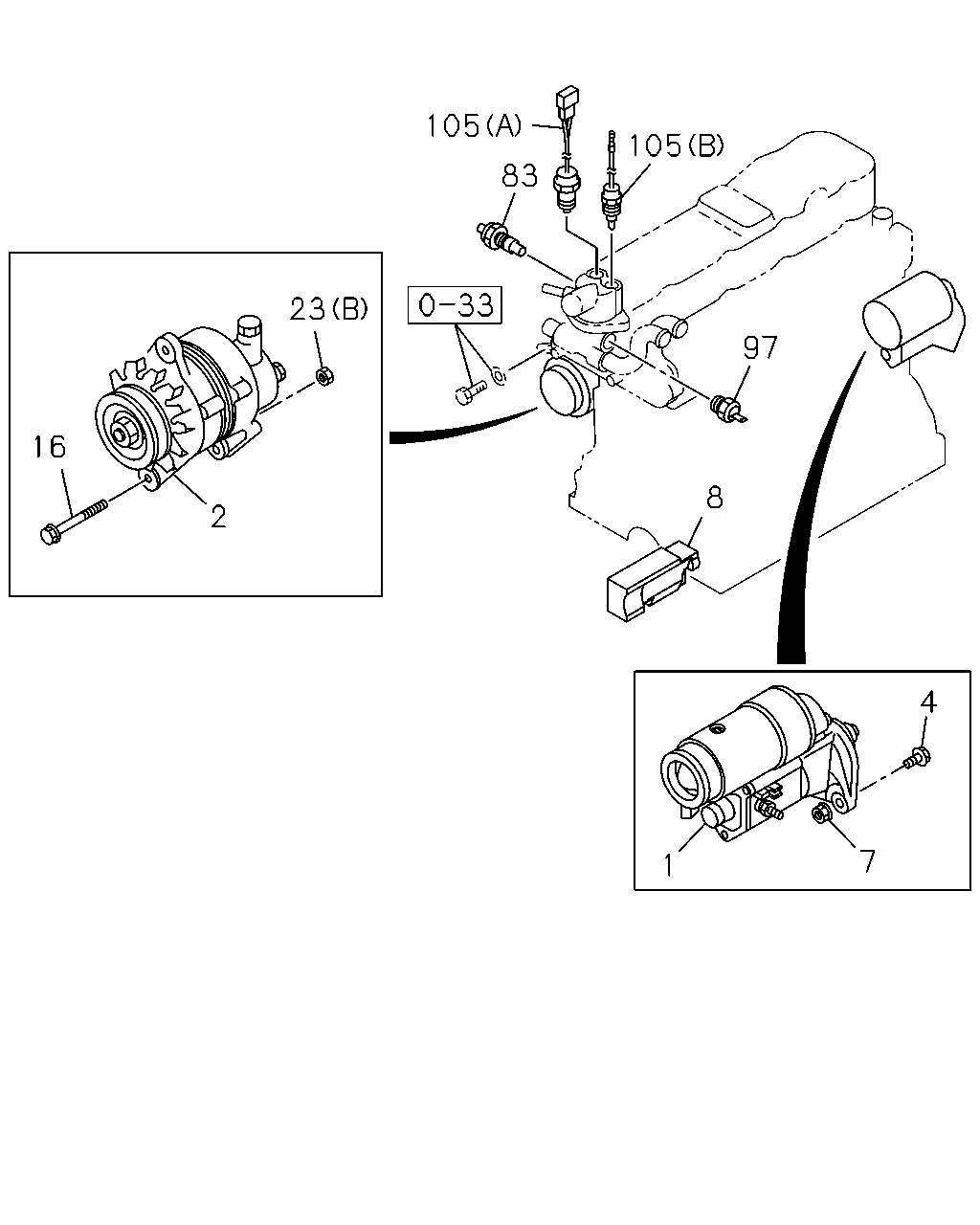

çizim 190847
105 105 83 23 97 16 8 2 4 7 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-98179-204-1 01 1 1012-1207 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-98222-021-0 01 1 1208-1310 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-98245-258-0 01 1 1311- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-98055-279-1 01 1 1012-1207 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1012-1207 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-98222-018-2 01 1 1208- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1208- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 1012- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A HITACHI 		8-97351-572-1 01 1 1012- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) 24V 80A HITACHI 		8-97351-574-1 01 1 1012- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A 		8-98029-887-2 01 1 1012- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) 24V 80A 		8-98029-889-2 01 1 1012- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-657-2 01 1 1012-1408 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A 		8-98284-007-0 01 1 1409-1505 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A 		8-98300-335-0 01 1 1506- ● ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 1012- ● ● ● ●
4 02.042 BOLT; STARTER
00.685 M12X80 FLANGE 		0-28051-280-0 02 1 1012- ● ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 1012- ● ●
8 02.042 SPACER; STARTER
NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97210-762-0 01 1 1012- ● ●
16 02.277 BOLT; GEN
M10X133 		8-97146-998-0 01 1 1012- ● ●
16 02.277 BOLT; GEN
M10X120 FLANGE 		0-28056-012-0 01 1 1012- ● ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28056-013-0 01 1 1012- ● ●
23 02.277 NUT; GEN
01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1012- ● ●
23 02.277 NUT; GEN
04.085 (B) M10 FLANGE 		0-91180-210-0 01 1 1012- ● ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 1012- ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 1012- ● ● ●
97 01.150 SWITCH; THERMO,EGR CONT 8-94368-591-0 01 1 1012-1012 ●
105 01.150 SWITCH; THERMO,QOS
(A) 		8-94121-152-1 01 1 1012- ●
105 01.150 SWITCH; THERMO,QOS
(A) 		8-94336-668-0 01 1 1012- ●
105 01.150 SWITCH; THERMO,QOS
(B) 		8-94457-511-0 01 1 1012- ● ●

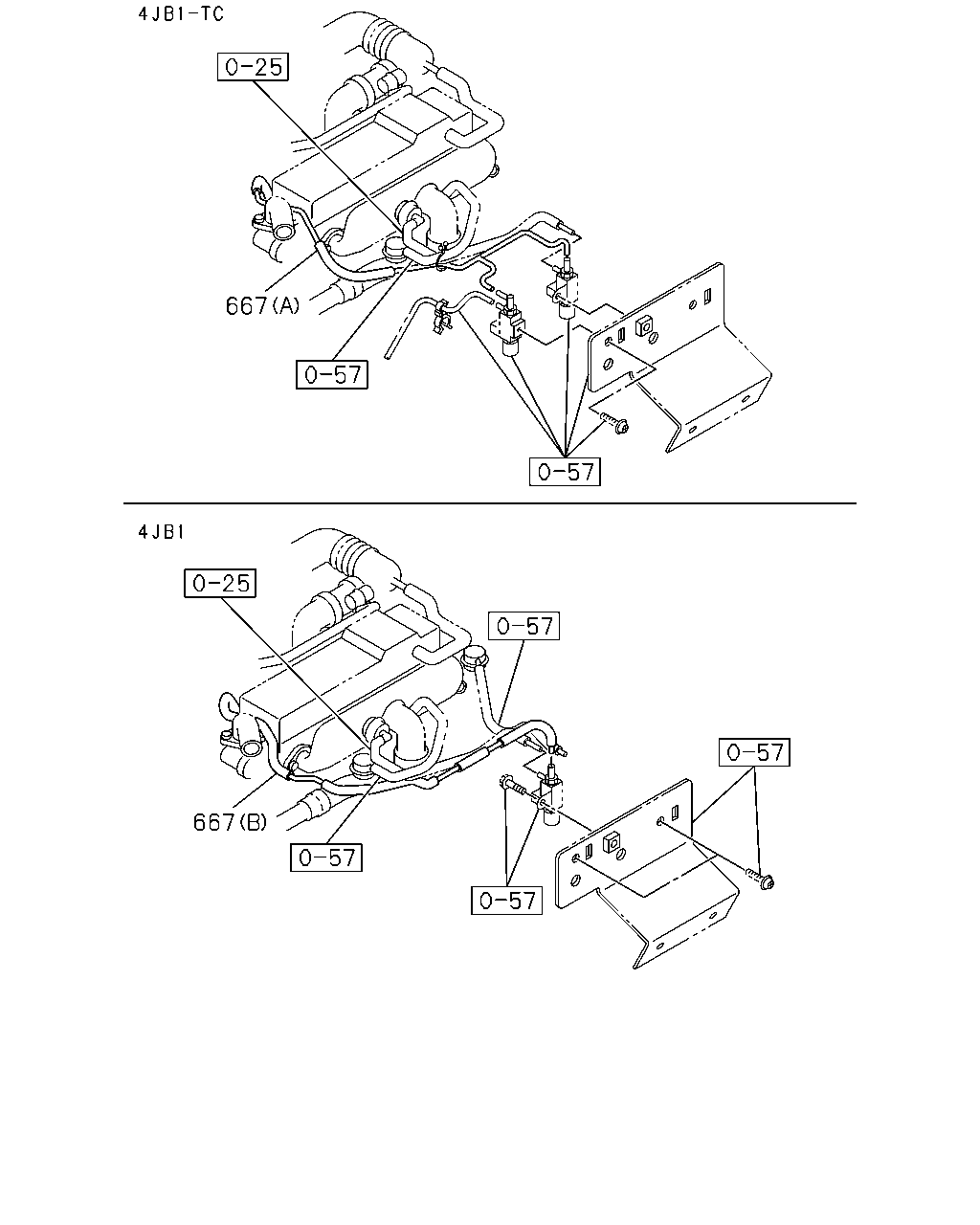

çizim 190848
667 667
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
667 03.280 HOSE; VAC,PUMP TO VSV
EXHAUST BRAKE<NF8> (B) 		8-98167-191-2 01 1 1012- ●
667 03.280 HOSE; VAC,PUMP TO VSV
(A) 		8-98088-020-2 01 1 1012- ●
çizim 190866
393 393 395 393
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
393 02.343 BRACKET; HARNESS TO BODY
ALGERIA EQUIPMENT(WN1) FRAME-KICK UP<7EW> (I) 		8-98052-993-1 01 1 1407- ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-98124-190-0 01 1 1012- ●
393 02.343 BRACKET; HARNESS TO BODY
EXC. FRAME-KICK UP<7EW> (A) 		8-98124-190-0 01 1 1012- ●
393 02.343 BRACKET; HARNESS TO BODY
(C) 		8-98018-903-0 01 1 1012-1103 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) (C) 		8-98018-903-0 01 1 1012-1103 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NM**W*) (C) 		8-98018-903-0 01 1 1012-1103 ●
393 02.343 BRACKET; HARNESS TO BODY
(H) 		8-98123-872-0 01 1 1104-1301 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) (H) 		8-98123-872-0 01 1 1104-1301 ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NM**W*) (H) 		8-98123-872-0 01 1 1104-1301 ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 2400MM(24W) (H) 		8-98123-872-0 01 1 1302- ● ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NM**W*) (H) 		8-98123-872-0 01 1 1302- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) 02.483 (D) 		8-98018-251-1 01 1 1012-1308 ● ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
02.483 (D) 		8-98018-251-1 01 1 1012-1308 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) 02.483 (D) 		8-98018-251-1 01 1 1309-1311 ● ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> 02.483 (D) 		8-98018-251-1 01 1 1309-1311 ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) 02.483 (D) 		8-98018-251-1 01 1 1312- ● ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
02.483 (D) 		8-98018-251-1 01 1 1312- ● ●
393 02.343 BRACKET; HARNESS TO BODY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME-KICK UP<7EW> (B) 		8-98028-601-3 01 1 1012- ● ●
393 02.343 BRACKET; HARNESS TO BODY
(E) 		8-97262-964-0 01 1 1012- ● ●
393 02.343 BRACKET; HARNESS TO BODY
(F) 		8-98092-304-2 01 1 1012- ● ●
393 02.343 BRACKET; HARNESS TO BODY
FRAME-KICK UP<7EW> (G) 		8-98131-967-0 01 1 1012-1103 ● ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
FRAME-KICK UP<7EW> (G) 		8-98137-320-0 01 1 1104-1406 ● ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
FRAME-KICK UP<7EW> EXC. ALGERIA EQUIPMENT(WN1) (G) 		8-98137-320-0 01 1 1407- ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NM**S*) WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ● ● ●
395 02.343 NUT; BRKT FIX
01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ●
çizim 190921
46 10 718
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
10 02.100 RELAY; STARTER
24V 50A 		8-97264-947-0 01 1 1012- ● ● ● ●
10 02.100 RELAY; STARTER
02.510 12V 80A 		8-97173-951-0 01 1 1012- ● ●
46 02.510 RELAY; GLOW PLUG
EXC. GLOW SYSTEM DELETE<7RK> 24V 50A 		8-97173-947-0 01 1 1012-1307 ● ● ● ●
46 02.510 RELAY; GLOW PLUG
EXC. GLOW SYSTEM DELETE<7RK> 24V 50A 		8-97173-947-0 01 1 1308- ● ● ●
46 02.510 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 1308- ●
46 02.510 RELAY; GLOW PLUG
EXC. GLOW SYSTEM DELETE<7RK> 12V 80A 		8-97173-951-0 01 1 1012- ● ●
718 02.483 RELAY; FUEL HTR
FUEL SEDIMENTER WITH HEATER<6HU> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ● ●
718 02.483 RELAY; FUEL HTR
FUEL SEDIMENTER WITH HEATER<6HU> 02.510 12V 20A 		8-97173-037-1 01 1 1012- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
