Sayfa 0-57 - Isuzu EPC

0-57 — EMISSION PIPING (#79056) — 301 parça

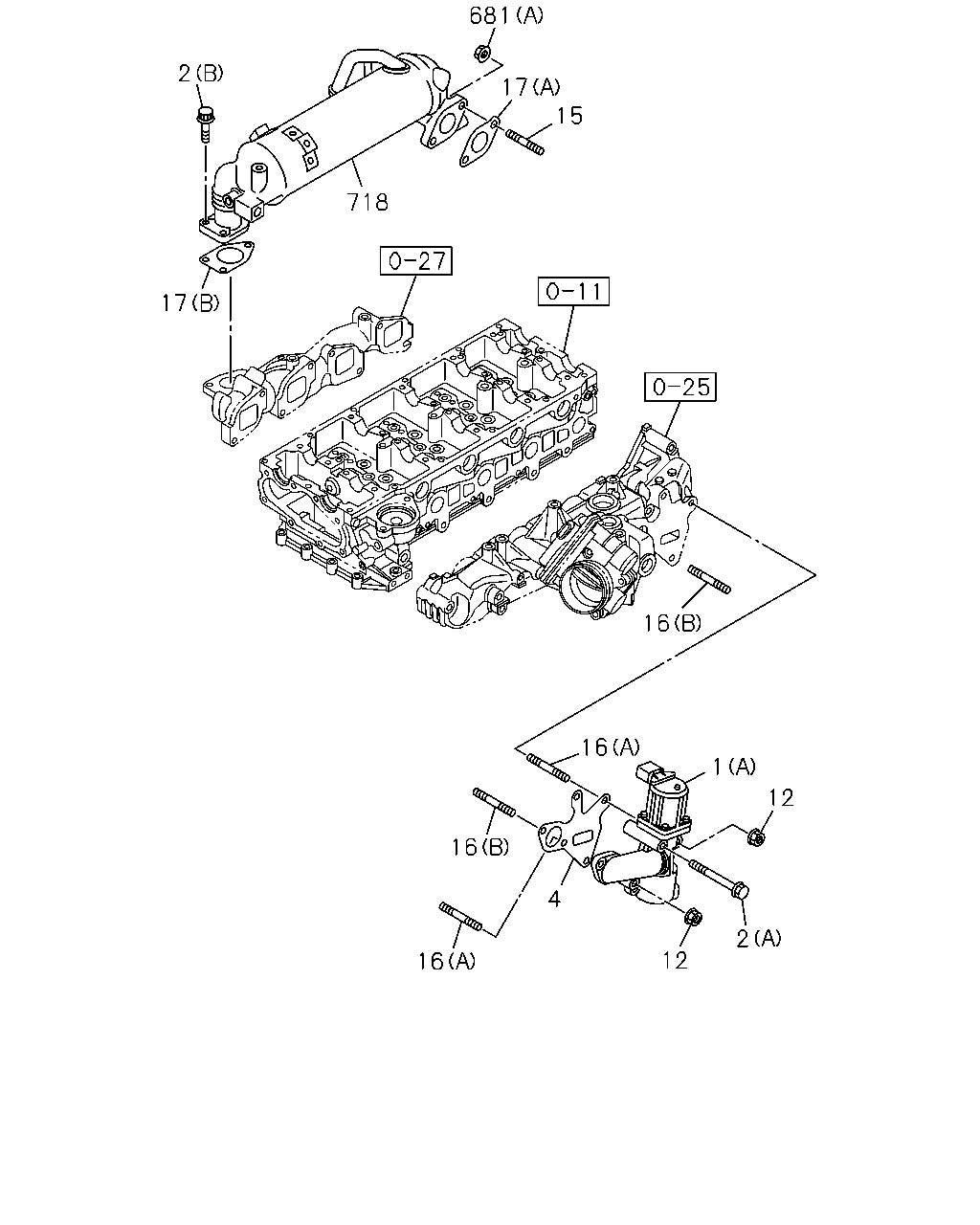

681 2 17 15 718 17 16 16 1 12 16 4 2 12 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.670 VALVE; EGR (B)	8-97115-533-3	01	1	1012-	●
1	03.670 VALVE; EGR (A)	8-97381-560-7	01	1	1012-1403		●
1	03.670 VALVE; EGR EURO3 SPECIFICATION(NT3) (A)	8-97381-560-7	01	1	1012-1403			●
1	03.670 VALVE; EGR (A)	8-98238-259-1	01	1	1404-		●
1	03.670 VALVE; EGR EURO3 SPECIFICATION(NT3) (A)	8-98238-259-1	01	1	1404-			●
2	03.670 BOLT; EGR VLV 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1012-	●
2	03.670 BOLT; EGR VLV 01.252 (A) M8X80 FLANGE	0-28050-880-0	01	1	1012-		●
2	03.670 BOLT; EGR VLV EURO3 SPECIFICATION(NT3) 01.252 (A) M8X80 FLANGE	0-28050-880-0	01	1	1012-			●
2	03.670 BOLT; EGR VLV 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	1012-		●
2	03.670 BOLT; EGR VLV EURO3 SPECIFICATION(NT3) 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	1012-			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-98094-528-0	02	1	1012-		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3)	8-98094-528-0	02	1	1012-			●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91180-208-0	04	1	1012-		●
12	03.671 NUT; EGR VLV EURO3 SPECIFICATION(NT3) 01.540 M8 FLANGE	0-91180-208-0	04	1	1012-			●
15	03.670 STUD; EGR PIPE 03.275 M8X25 L=37	0-41010-825-0	02	1	1012-		●
15	03.670 STUD; EGR PIPE EURO3 SPECIFICATION(NT3) 03.275 M8X25 L=37	0-41010-825-0	02	1	1012-			●
15	03.670 STUD; EGR PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	1012-				●
16	03.275 STUD; EGR VLV (B) M8X25 L=41	0-40210-825-0	02	1	1012-		●
16	03.275 STUD; EGR VLV EURO3 SPECIFICATION(NT3) (B) M8X25 L=41	0-40210-825-0	02	1	1012-			●
16	03.275 STUD; EGR VLV (A) M8X50 L=62	0-40210-850-0	02	1	1012-		●
16	03.275 STUD; EGR VLV EURO3 SPECIFICATION(NT3) (A) M8X50 L=62	0-40210-850-0	02	1	1012-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97113-023-0	01	1	1012-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97357-684-3	01	1	1012-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (A)	8-97357-684-3	01	1	1012-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-98017-551-0	01	1	1012-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (B)	8-98017-551-0	01	1	1012-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-97192-765-0	01	1	1012-				●
681	03.671 NUT; EGR PIPE 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1012-	●
681	03.671 NUT; EGR PIPE 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1012-		●		●
681	03.671 NUT; EGR PIPE EURO3 SPECIFICATION(NT3) 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1012-			●
718	03.337 COOLER; EGR	8-98164-570-1	01	1	1012-		●
718	03.337 COOLER; EGR EURO3 SPECIFICATION(NT3)	8-98164-570-1	01	1	1012-			●

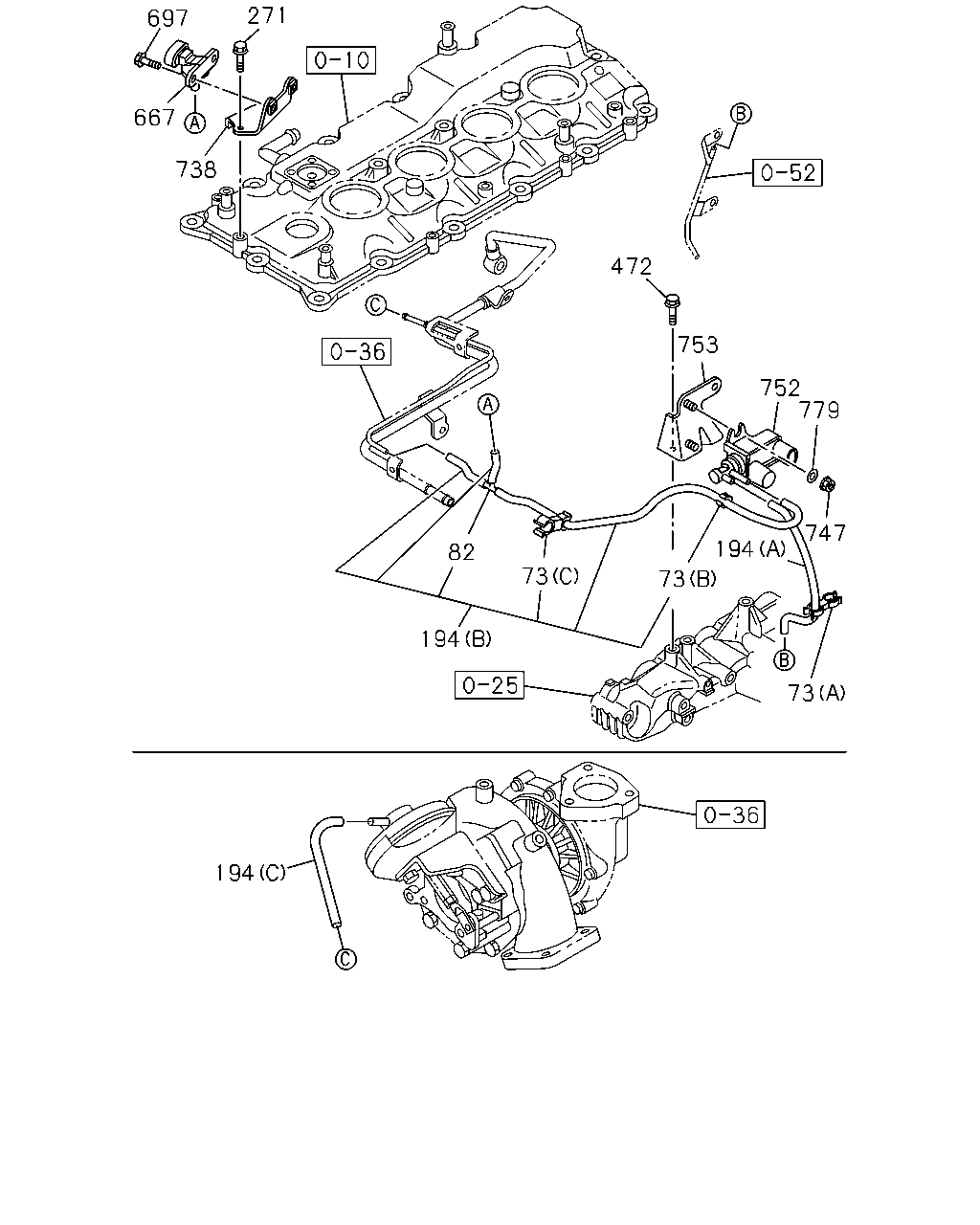

271 697 667 738 472 753 752 779 747 194 82 73 73 194 73 194

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	D	E	F
73	03.680 CLIP; VAC HOSE EXHAUST BRAKE<NF8> (D) L=350	8-97373-487-0	02	1	1012-				●
73	03.680 CLIP; VAC HOSE 00.854 (A) ID=11.8 & 7.5	1-09709-182-0	01	1	1012-		●
73	03.680 CLIP; VAC HOSE 04.342 (B) ID=8.3 & 10	8-94176-792-0	01	1	1012-		●
73	03.680 CLIP; VAC HOSE 03.162 (C) ID=13.2 & 7.5	8-94315-426-0	01	1	1012-		●	●
73	03.680 CLIP; VAC HOSE 01.540 (G) ID=30	8-94315-423-0	02	1	1012-			●
73	03.680 CLIP; VAC HOSE 03.278 (E) ID=37	8-94481-468-0	01	1	1012-			●
73	03.680 CLIP; VAC HOSE (F) ID=16.5 & 7	8-97226-171-0	01	1	1012-			●
82	03.680 JOINT; 3 WAY 3WAY	8-98045-385-0	01	1	1012-		●
194	03.675 HOSE; VAC 08.962 (D) L=40 SERVICED BY L=3000	0-04730-300-0	01	1	1012-	●
194	03.675 HOSE; VAC 08.962 (E) L=30 SERVICED BY L=3000	0-04730-300-0	01	1	1012-	●
194	03.675 HOSE; VAC AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (E) L=30 SERVICED BY L=3000	0-04730-300-0	01	1	1012-				●
194	03.675 HOSE; VAC 08.962 (F) L=50 SERVICED BY L=3000	0-04730-300-0	01	1	1012-	●
194	03.675 HOSE; VAC AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (F) L=50 SERVICED BY L=3000	0-04730-300-0	01	1	1012-				●
194	03.675 HOSE; VAC (A)	0-04420-270-0	01	1	1012-		●
194	03.675 HOSE; VAC (C)	8-98036-856-0	01	1	1012-		●
194	03.675 HOSE; VAC (B)	8-98085-688-0	01	1	1012-		●
194	03.675 HOSE; VAC (G)	8-97208-495-0	01	1	1012-			●
271	03.675 BOLT; BRKT 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1012-		●
472	03.671 BOLT; BRKT 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1012-		●
667	03.670 SENSOR; VAC	8-98044-520-0	01	1	1012-		●
697	03.680 BOLT; SENSOR 03.162 M6X20 FLANGE	0-28650-620-0	02	1	1012-		●
738	03.675 BRACKET; SENSOR,VAC	8-98044-607-0	01	1	1012-		●
747	03.671 NUT; VAC REG VALVE 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-		●
747	03.671 NUT; VAC REG VALVE 01.840 M8 W/DISHED WASHER	8-97329-625-0	01	1	1012-1012	●				●
747	03.671 NUT; VAC REG VALVE 01.840 M8 W/DISHED WASHER	8-97329-625-0	01	1	1101-1202	●
747	03.671 NUT; VAC REG VALVE EXHAUST BRAKE<NF8> 01.840 M8 W/DISHED WASHER	8-97329-625-0	01	1	1101-1202					●
747	03.671 NUT; VAC REG VALVE EXHAUST BRAKE<NF8> 01.840 M8 W/DISHED WASHER	8-97329-625-0	01	1	1203-					●
752	03.670 VALVE; EVRV	8-98116-259-0	01	1	1012-		●
752	03.670 VALVE; EVRV	8-94384-335-0	01	1	1012-			●
753	03.670 BRACKET; VALVE	8-97381-571-1	01	1	1012-		●
779	03.671 WASHER; VALVE 06.168 ID=8.4 OD=18	0-91610-608-0	02	1	1012-		●

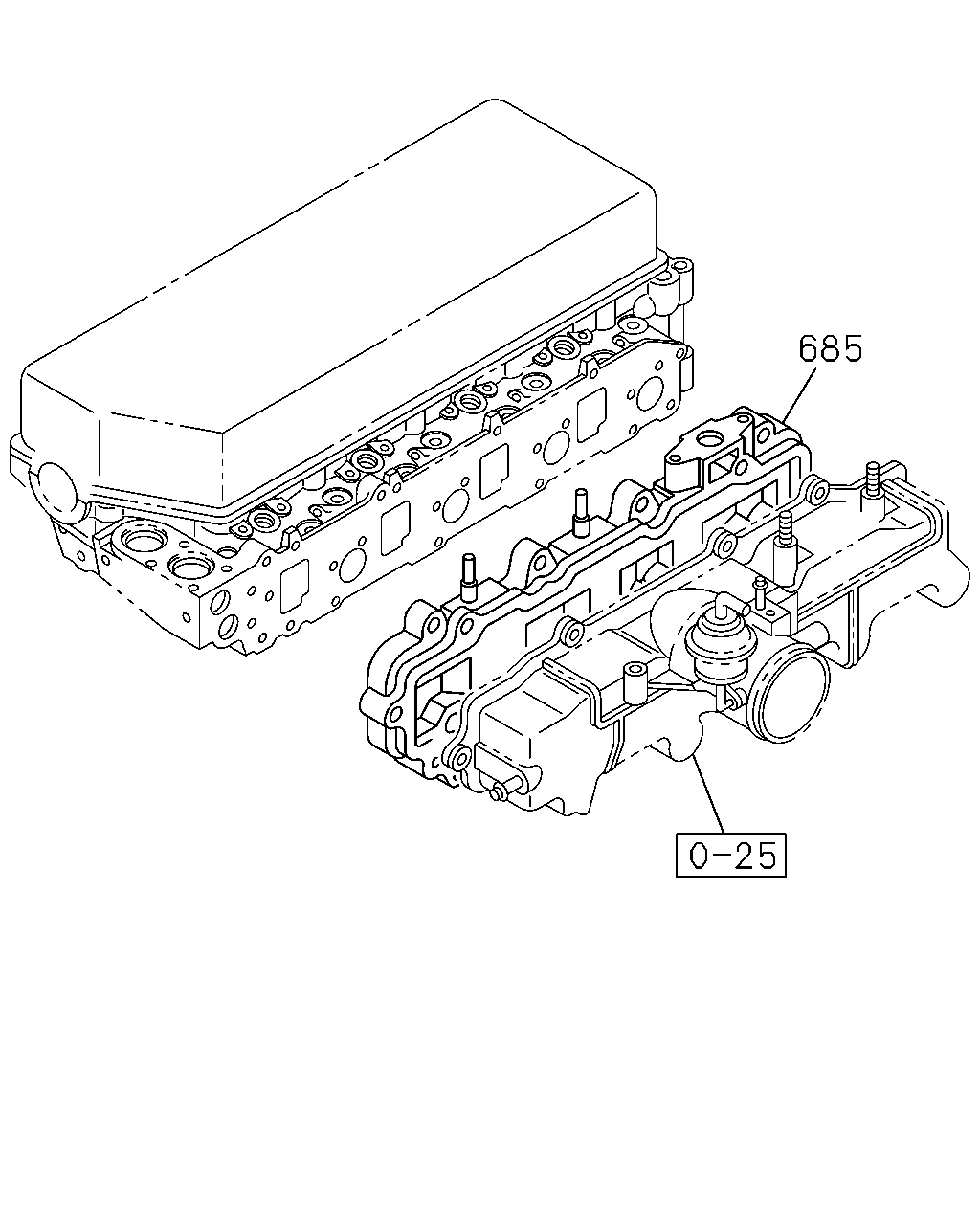

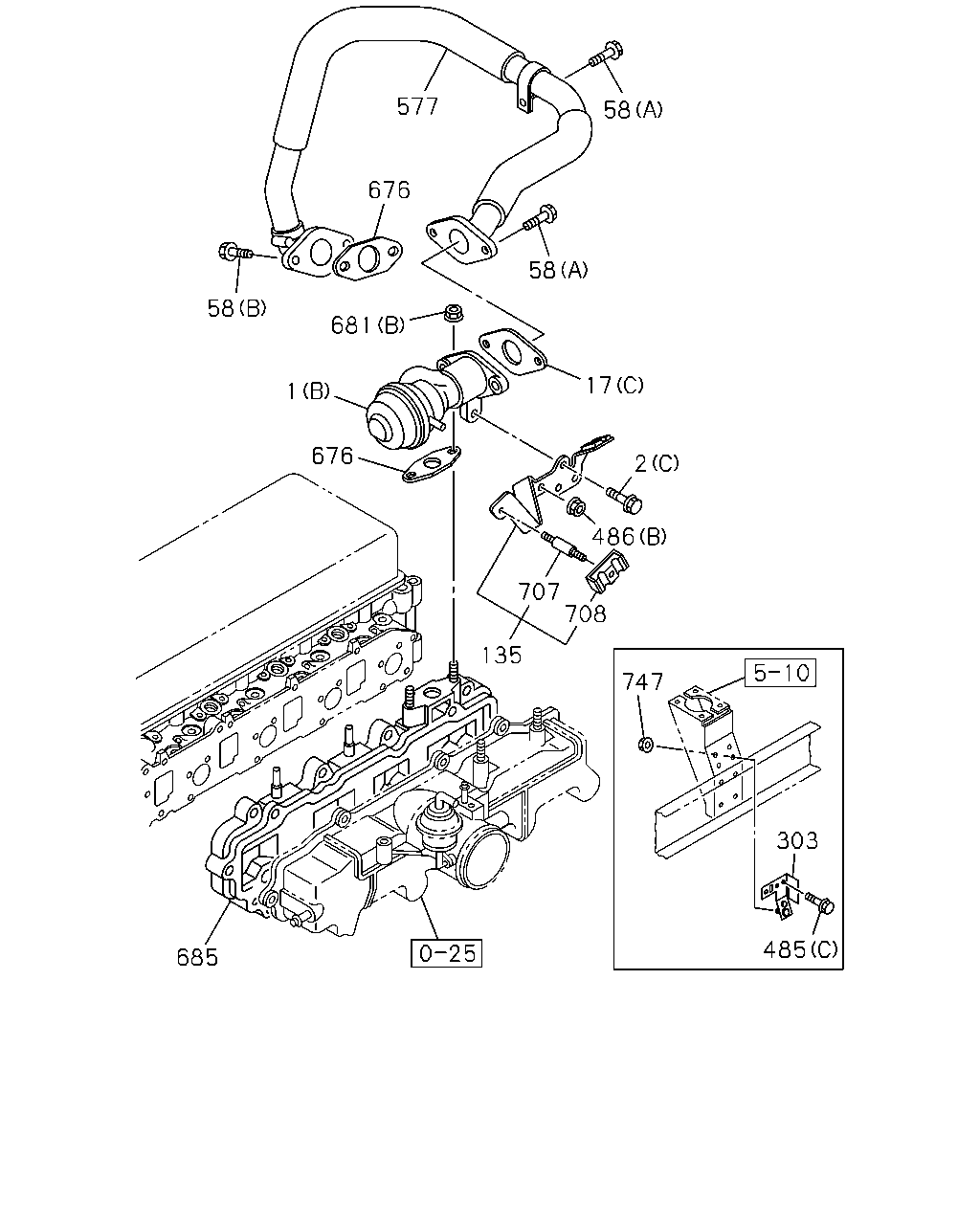

577 58 676 58 58 681 17 1 676 2 486 707 708 135 747 303 485 685

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.670 VALVE; EGR (B)	8-97115-533-3	01	1	1012-	●
1	03.670 VALVE; EGR (A)	8-97381-560-7	01	1	1012-1403		●
1	03.670 VALVE; EGR EURO3 SPECIFICATION(NT3) (A)	8-97381-560-7	01	1	1012-1403			●
1	03.670 VALVE; EGR (A)	8-98238-259-1	01	1	1404-		●
1	03.670 VALVE; EGR EURO3 SPECIFICATION(NT3) (A)	8-98238-259-1	01	1	1404-			●
2	03.670 BOLT; EGR VLV 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1012-	●
2	03.670 BOLT; EGR VLV 01.252 (A) M8X80 FLANGE	0-28050-880-0	01	1	1012-		●
2	03.670 BOLT; EGR VLV EURO3 SPECIFICATION(NT3) 01.252 (A) M8X80 FLANGE	0-28050-880-0	01	1	1012-			●
2	03.670 BOLT; EGR VLV 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	1012-		●
2	03.670 BOLT; EGR VLV EURO3 SPECIFICATION(NT3) 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	1012-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97113-023-0	01	1	1012-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97357-684-3	01	1	1012-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (A)	8-97357-684-3	01	1	1012-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-98017-551-0	01	1	1012-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (B)	8-98017-551-0	01	1	1012-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-97192-765-0	01	1	1012-				●
58	03.417 BOLT; PIPE 01.531 (A) M8X20 FLANGE	0-28650-820-0	03	1	1012-	●
58	03.417 BOLT; PIPE (B) M8X23 FLANGE	8-97378-077-0	02	1	1012-	●
135	03.680 BRACKET; EGR	8-97221-358-1	01	1	1012-	●
303	03.671 BRACKET; VAC SW EXHAUST BRAKE<NF8>	8-98122-539-0	01	1	1012-1202	●				●
303	03.671 BRACKET; VAC SW	8-98122-539-0	01	1	1203-	●
303	03.671 BRACKET; VAC SW EXHAUST BRAKE<NF8>	8-98122-539-0	01	1	1203-					●
303	03.671 BRACKET; VAC SW	8-98106-386-0	01	1	1012-				●
485	03.671 BOLT; VSV 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1012-1012	●					●
485	03.671 BOLT; VSV 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1101-1202	●
485	03.671 BOLT; VSV EXHAUST BRAKE<NF8> 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1101-1202						●
485	03.671 BOLT; VSV EXHAUST BRAKE<NF8> 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1203-						●
485	03.671 BOLT; VSV 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1012-				●
485	03.671 BOLT; VSV PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(CB7),VIETNAM EQUIPMENT(SGX) EURO2 SPECIFICATION(NT2) 03.680 (B) M5X10 W/LK+PL WASHER	0-36230-510-0	01	1	1012-1404				●
485	03.671 BOLT; VSV EURO1 SPECIFICATION(NT1) 03.680 (B) M5X10 W/LK+PL WASHER	0-36230-510-0	01	1	1012-1404				●
485	03.671 BOLT; VSV 03.680 (B) M5X10 W/LK+PL WASHER	0-36230-510-0	01	1	1405-				●
485	03.671 BOLT; VSV EURO2 SPECIFICATION(NT2) EXC. PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),VIETNAM EQUIPMENT(SGX) 03.680 (B) M5X10 W/LK+PL WASHER	0-36230-510-0	02	1	1012-1404				●
486	03.671 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1012-	●
486	03.671 NUT; BRKT EXHAUST BRAKE<NF8> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-1202	●				●
486	03.671 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1203-	●
486	03.671 NUT; BRKT EXHAUST BRAKE<NF8> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1203-					●
577	03.675 PIPE; AIR,EGR	8-97200-643-2	01	1	1012-	●
676	03.417 GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97146-683-0	02	1	1012-	●
681	03.671 NUT; EGR PIPE 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1012-	●
681	03.671 NUT; EGR PIPE 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1012-		●		●
681	03.671 NUT; EGR PIPE EURO3 SPECIFICATION(NT3) 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1012-			●
685	03.680 CASE; INLET,EGR	8-97146-872-1	01	1	1012-	●
685	03.680 CASE; INLET,EGR	8-97146-873-1	01	1	1012-					●
707	03.162 STUD; CLIP,INJ PIPE M6X25 L=36	8-97214-234-1	01	1	1012-	●
708	03.162 CLIP; PIPE,INJ	8-97213-481-0	01	1	1012-	●
747	03.671 NUT; VAC REG VALVE 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-		●
747	03.671 NUT; VAC REG VALVE 01.840 M8 W/DISHED WASHER	8-97329-625-0	01	1	1012-1012	●					●
747	03.671 NUT; VAC REG VALVE 01.840 M8 W/DISHED WASHER	8-97329-625-0	01	1	1101-1202	●
747	03.671 NUT; VAC REG VALVE EXHAUST BRAKE<NF8> 01.840 M8 W/DISHED WASHER	8-97329-625-0	01	1	1101-1202						●
747	03.671 NUT; VAC REG VALVE EXHAUST BRAKE<NF8> 01.840 M8 W/DISHED WASHER	8-97329-625-0	01	1	1203-						●

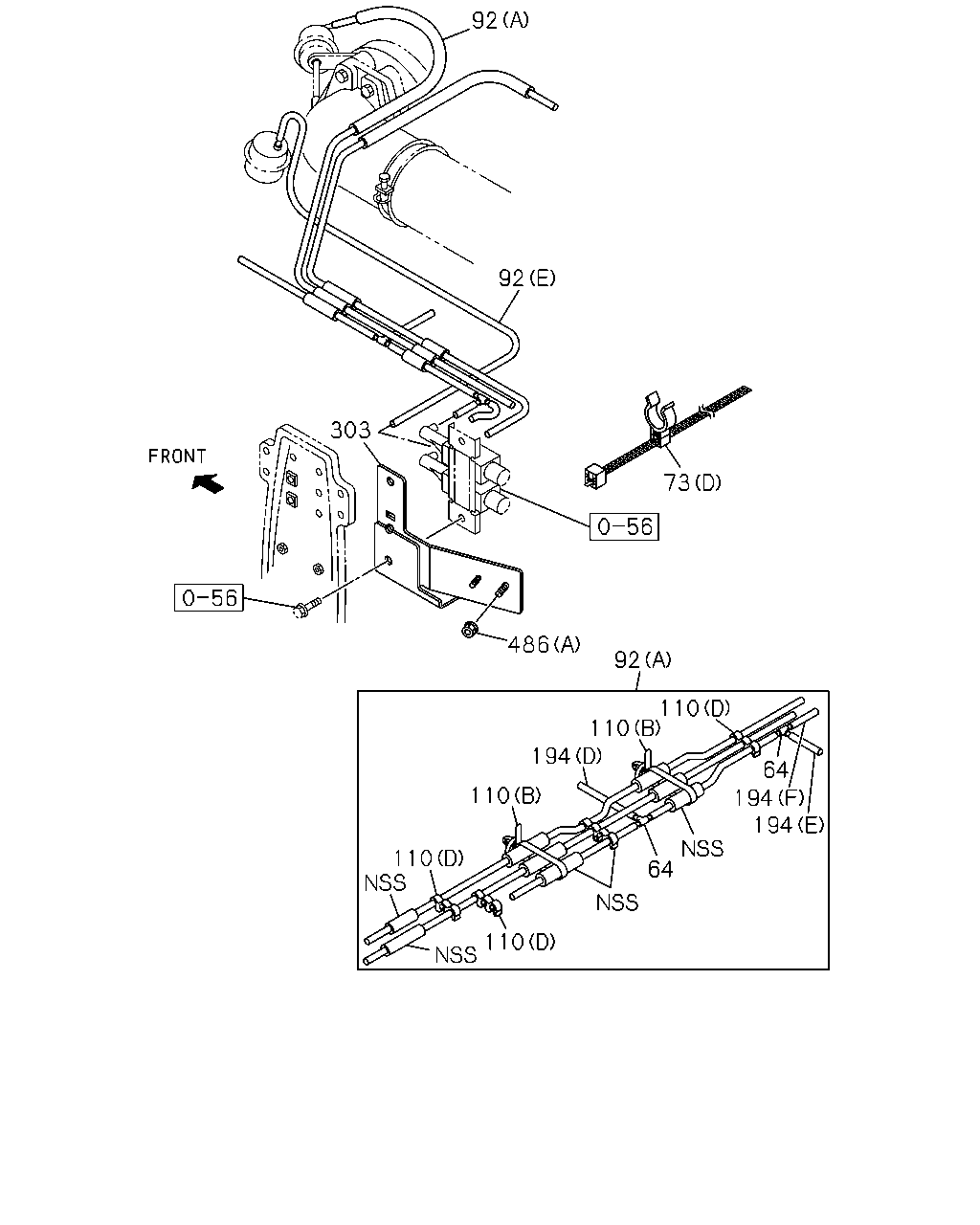

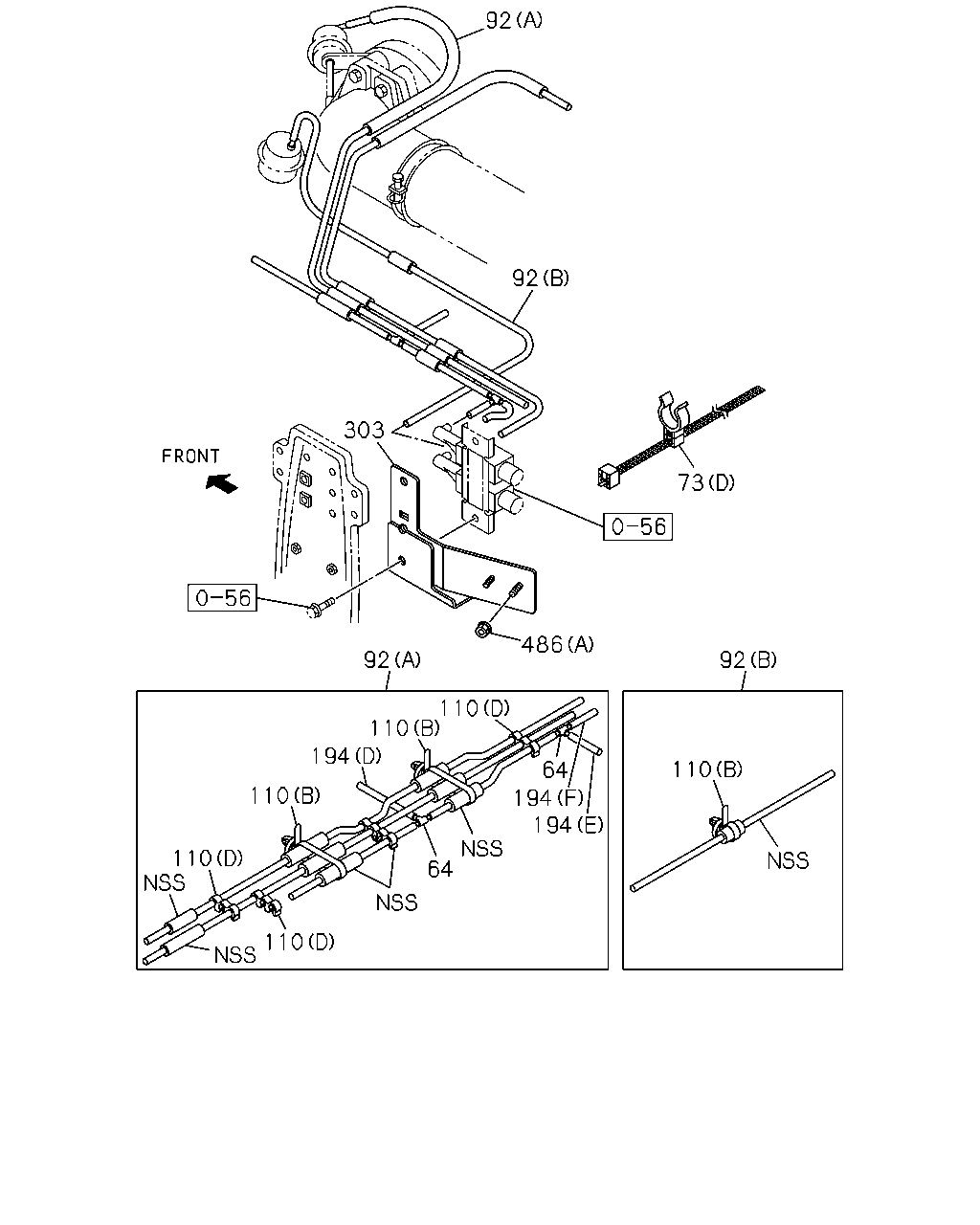

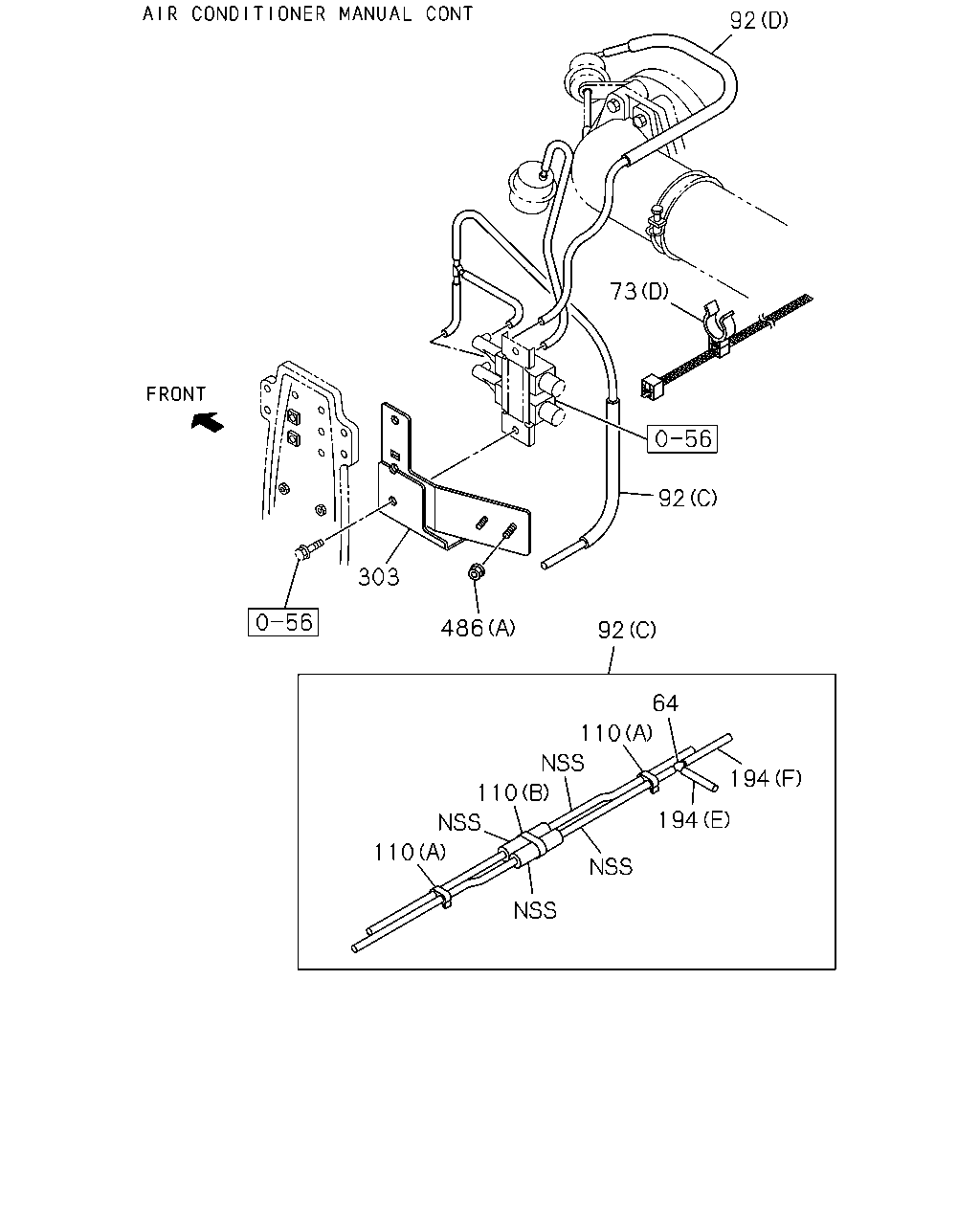

92 73 92 303 486 92 64 110 194 110 194 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	D	E
64	03.680 JOINT; 3 WAY,VAC 3WAY	8-94208-695-0	02	1	1012-	●
64	03.680 JOINT; 3 WAY,VAC AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 3WAY	8-94208-695-0	01	1	1012-				●
73	03.680 CLIP; VAC HOSE EXHAUST BRAKE<NF8> (D) L=350	8-97373-487-0	02	1	1012-				●
73	03.680 CLIP; VAC HOSE 00.854 (A) ID=11.8 & 7.5	1-09709-182-0	01	1	1012-		●
73	03.680 CLIP; VAC HOSE 04.342 (B) ID=8.3 & 10	8-94176-792-0	01	1	1012-		●
73	03.680 CLIP; VAC HOSE 03.162 (C) ID=13.2 & 7.5	8-94315-426-0	01	1	1012-		●	●
73	03.680 CLIP; VAC HOSE 01.540 (G) ID=30	8-94315-423-0	02	1	1012-			●
73	03.680 CLIP; VAC HOSE 03.278 (E) ID=37	8-94481-468-0	01	1	1012-			●
73	03.680 CLIP; VAC HOSE (F) ID=16.5 & 7	8-97226-171-0	01	1	1012-			●
92	03.675 HOSE; VAC,THROTTLE BODY (A)	8-98169-776-2	01	1	1012-	●
92	03.675 HOSE; VAC,THROTTLE BODY (B)	8-98169-837-1	01	1	1012-1012	●
92	03.675 HOSE; VAC,THROTTLE BODY 08.962 (E) L=150 SERVICED BY L=3000	0-04730-300-0	01	1	1101-	●
92	03.675 HOSE; VAC,THROTTLE BODY AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> (C)	8-98118-170-0	01	1	1012-				●
92	03.675 HOSE; VAC,THROTTLE BODY EXHAUST BRAKE<NF8> (D)	8-98132-327-1	01	1	1012-				●
110	03.671 CLIP; VAC HOSE 03.680 (D) ID=6.8 & 6.8 & 6.8	8-94208-734-0	03	1	1012-	●
110	03.671 CLIP; VAC HOSE 02.559 (B) L=109.5	8-97807-385-0	03	1	1012-1012	●
110	03.671 CLIP; VAC HOSE 02.559 (B) L=109.5	8-97807-385-0	02	1	1101-	●
110	03.671 CLIP; VAC HOSE AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 03.162 (A) ID=6.8X2	8-94126-636-0	02	1	1012-				●
110	03.671 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 03.680 (C) ID=7.5 & 7.5	8-97019-084-0	01	1	1012-				●
110	03.671 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 02.559 (B) L=109.5	8-97807-385-0	01	1	1012-				●
194	03.675 HOSE; VAC 08.962 (D) L=40 SERVICED BY L=3000	0-04730-300-0	01	1	1012-	●
194	03.675 HOSE; VAC 08.962 (E) L=30 SERVICED BY L=3000	0-04730-300-0	01	1	1012-	●
194	03.675 HOSE; VAC AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (E) L=30 SERVICED BY L=3000	0-04730-300-0	01	1	1012-				●
194	03.675 HOSE; VAC 08.962 (F) L=50 SERVICED BY L=3000	0-04730-300-0	01	1	1012-	●
194	03.675 HOSE; VAC AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (F) L=50 SERVICED BY L=3000	0-04730-300-0	01	1	1012-				●
194	03.675 HOSE; VAC (A)	0-04420-270-0	01	1	1012-		●
194	03.675 HOSE; VAC (C)	8-98036-856-0	01	1	1012-		●
194	03.675 HOSE; VAC (B)	8-98085-688-0	01	1	1012-		●
194	03.675 HOSE; VAC (G)	8-97208-495-0	01	1	1012-			●
303	03.671 BRACKET; VAC SW EXHAUST BRAKE<NF8>	8-98122-539-0	01	1	1012-1202	●			●
303	03.671 BRACKET; VAC SW	8-98122-539-0	01	1	1203-	●
303	03.671 BRACKET; VAC SW EXHAUST BRAKE<NF8>	8-98122-539-0	01	1	1203-				●
303	03.671 BRACKET; VAC SW	8-98106-386-0	01	1	1012-			●
486	03.671 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1012-	●
486	03.671 NUT; BRKT EXHAUST BRAKE<NF8> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-1202	●			●
486	03.671 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1203-	●
486	03.671 NUT; BRKT EXHAUST BRAKE<NF8> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1203-				●

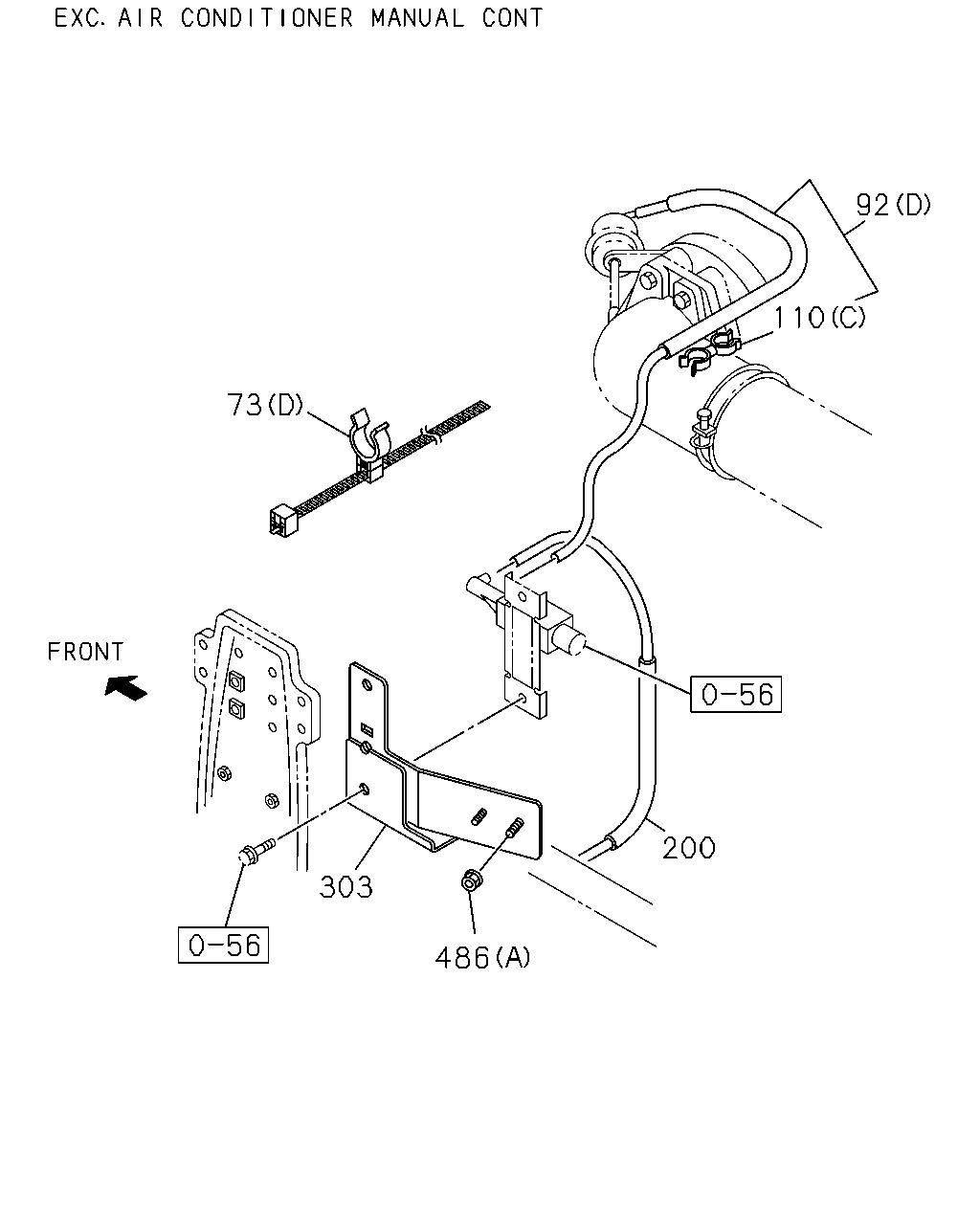

92 110 73 200 303 486

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	D	E
73	03.680 CLIP; VAC HOSE EXHAUST BRAKE<NF8> (D) L=350	8-97373-487-0	02	1	1012-				●
73	03.680 CLIP; VAC HOSE 00.854 (A) ID=11.8 & 7.5	1-09709-182-0	01	1	1012-		●
73	03.680 CLIP; VAC HOSE 04.342 (B) ID=8.3 & 10	8-94176-792-0	01	1	1012-		●
73	03.680 CLIP; VAC HOSE 03.162 (C) ID=13.2 & 7.5	8-94315-426-0	01	1	1012-		●	●
73	03.680 CLIP; VAC HOSE 01.540 (G) ID=30	8-94315-423-0	02	1	1012-			●
73	03.680 CLIP; VAC HOSE 03.278 (E) ID=37	8-94481-468-0	01	1	1012-			●
73	03.680 CLIP; VAC HOSE (F) ID=16.5 & 7	8-97226-171-0	01	1	1012-			●
92	03.675 HOSE; VAC,THROTTLE BODY (A)	8-98169-776-2	01	1	1012-	●
92	03.675 HOSE; VAC,THROTTLE BODY (B)	8-98169-837-1	01	1	1012-1012	●
92	03.675 HOSE; VAC,THROTTLE BODY 08.962 (E) L=150 SERVICED BY L=3000	0-04730-300-0	01	1	1101-	●
92	03.675 HOSE; VAC,THROTTLE BODY AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> (C)	8-98118-170-0	01	1	1012-				●
92	03.675 HOSE; VAC,THROTTLE BODY EXHAUST BRAKE<NF8> (D)	8-98132-327-1	01	1	1012-				●
110	03.671 CLIP; VAC HOSE 03.680 (D) ID=6.8 & 6.8 & 6.8	8-94208-734-0	03	1	1012-	●
110	03.671 CLIP; VAC HOSE 02.559 (B) L=109.5	8-97807-385-0	03	1	1012-1012	●
110	03.671 CLIP; VAC HOSE 02.559 (B) L=109.5	8-97807-385-0	02	1	1101-	●
110	03.671 CLIP; VAC HOSE AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 03.162 (A) ID=6.8X2	8-94126-636-0	02	1	1012-				●
110	03.671 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 03.680 (C) ID=7.5 & 7.5	8-97019-084-0	01	1	1012-				●
110	03.671 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 02.559 (B) L=109.5	8-97807-385-0	01	1	1012-				●
200	03.675 HOSE; VAC EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-98118-169-2	01	1	1012-				●
303	03.671 BRACKET; VAC SW EXHAUST BRAKE<NF8>	8-98122-539-0	01	1	1012-1202	●			●
303	03.671 BRACKET; VAC SW	8-98122-539-0	01	1	1203-	●
303	03.671 BRACKET; VAC SW EXHAUST BRAKE<NF8>	8-98122-539-0	01	1	1203-				●
303	03.671 BRACKET; VAC SW	8-98106-386-0	01	1	1012-			●
486	03.671 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1012-	●
486	03.671 NUT; BRKT EXHAUST BRAKE<NF8> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-1202	●			●
486	03.671 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1203-	●
486	03.671 NUT; BRKT EXHAUST BRAKE<NF8> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1203-				●

92 92 303 73 486 92 110 110 194 64 194 194 110 64 110 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	D	E
64	03.680 JOINT; 3 WAY,VAC 3WAY	8-94208-695-0	02	1	1012-	●
64	03.680 JOINT; 3 WAY,VAC AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 3WAY	8-94208-695-0	01	1	1012-				●
73	03.680 CLIP; VAC HOSE EXHAUST BRAKE<NF8> (D) L=350	8-97373-487-0	02	1	1012-				●
73	03.680 CLIP; VAC HOSE 00.854 (A) ID=11.8 & 7.5	1-09709-182-0	01	1	1012-		●
73	03.680 CLIP; VAC HOSE 04.342 (B) ID=8.3 & 10	8-94176-792-0	01	1	1012-		●
73	03.680 CLIP; VAC HOSE 03.162 (C) ID=13.2 & 7.5	8-94315-426-0	01	1	1012-		●	●
73	03.680 CLIP; VAC HOSE 01.540 (G) ID=30	8-94315-423-0	02	1	1012-			●
73	03.680 CLIP; VAC HOSE 03.278 (E) ID=37	8-94481-468-0	01	1	1012-			●
73	03.680 CLIP; VAC HOSE (F) ID=16.5 & 7	8-97226-171-0	01	1	1012-			●
92	03.675 HOSE; VAC,THROTTLE BODY (A)	8-98169-776-2	01	1	1012-	●
92	03.675 HOSE; VAC,THROTTLE BODY (B)	8-98169-837-1	01	1	1012-1012	●
92	03.675 HOSE; VAC,THROTTLE BODY 08.962 (E) L=150 SERVICED BY L=3000	0-04730-300-0	01	1	1101-	●
92	03.675 HOSE; VAC,THROTTLE BODY AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> (C)	8-98118-170-0	01	1	1012-				●
92	03.675 HOSE; VAC,THROTTLE BODY EXHAUST BRAKE<NF8> (D)	8-98132-327-1	01	1	1012-				●
110	03.671 CLIP; VAC HOSE 03.680 (D) ID=6.8 & 6.8 & 6.8	8-94208-734-0	03	1	1012-	●
110	03.671 CLIP; VAC HOSE 02.559 (B) L=109.5	8-97807-385-0	03	1	1012-1012	●
110	03.671 CLIP; VAC HOSE 02.559 (B) L=109.5	8-97807-385-0	02	1	1101-	●
110	03.671 CLIP; VAC HOSE AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 03.162 (A) ID=6.8X2	8-94126-636-0	02	1	1012-				●
110	03.671 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 03.680 (C) ID=7.5 & 7.5	8-97019-084-0	01	1	1012-				●
110	03.671 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 02.559 (B) L=109.5	8-97807-385-0	01	1	1012-				●
194	03.675 HOSE; VAC 08.962 (D) L=40 SERVICED BY L=3000	0-04730-300-0	01	1	1012-	●
194	03.675 HOSE; VAC 08.962 (E) L=30 SERVICED BY L=3000	0-04730-300-0	01	1	1012-	●
194	03.675 HOSE; VAC AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (E) L=30 SERVICED BY L=3000	0-04730-300-0	01	1	1012-				●
194	03.675 HOSE; VAC 08.962 (F) L=50 SERVICED BY L=3000	0-04730-300-0	01	1	1012-	●
194	03.675 HOSE; VAC AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (F) L=50 SERVICED BY L=3000	0-04730-300-0	01	1	1012-				●
194	03.675 HOSE; VAC (A)	0-04420-270-0	01	1	1012-		●
194	03.675 HOSE; VAC (C)	8-98036-856-0	01	1	1012-		●
194	03.675 HOSE; VAC (B)	8-98085-688-0	01	1	1012-		●
194	03.675 HOSE; VAC (G)	8-97208-495-0	01	1	1012-			●
303	03.671 BRACKET; VAC SW EXHAUST BRAKE<NF8>	8-98122-539-0	01	1	1012-1202	●			●
303	03.671 BRACKET; VAC SW	8-98122-539-0	01	1	1203-	●
303	03.671 BRACKET; VAC SW EXHAUST BRAKE<NF8>	8-98122-539-0	01	1	1203-				●
303	03.671 BRACKET; VAC SW	8-98106-386-0	01	1	1012-			●
486	03.671 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1012-	●
486	03.671 NUT; BRKT EXHAUST BRAKE<NF8> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-1202	●			●
486	03.671 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1203-	●
486	03.671 NUT; BRKT EXHAUST BRAKE<NF8> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1203-				●

303 485 740 73 198 73 752 485 198 73 194 73 73 252 138 194 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	D	E	F
73	03.680 CLIP; VAC HOSE EXHAUST BRAKE<NF8> (D) L=350	8-97373-487-0	02	1	1012-				●
73	03.680 CLIP; VAC HOSE 00.854 (A) ID=11.8 & 7.5	1-09709-182-0	01	1	1012-		●
73	03.680 CLIP; VAC HOSE 04.342 (B) ID=8.3 & 10	8-94176-792-0	01	1	1012-		●
73	03.680 CLIP; VAC HOSE 03.162 (C) ID=13.2 & 7.5	8-94315-426-0	01	1	1012-		●	●
73	03.680 CLIP; VAC HOSE 01.540 (G) ID=30	8-94315-423-0	02	1	1012-			●
73	03.680 CLIP; VAC HOSE 03.278 (E) ID=37	8-94481-468-0	01	1	1012-			●
73	03.680 CLIP; VAC HOSE (F) ID=16.5 & 7	8-97226-171-0	01	1	1012-			●
138	03.675 CLIP; BAND,VAC HOSE	8-98090-689-0	01	1	1012-			●
194	03.675 HOSE; VAC 08.962 (D) L=40 SERVICED BY L=3000	0-04730-300-0	01	1	1012-	●
194	03.675 HOSE; VAC 08.962 (E) L=30 SERVICED BY L=3000	0-04730-300-0	01	1	1012-	●
194	03.675 HOSE; VAC AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (E) L=30 SERVICED BY L=3000	0-04730-300-0	01	1	1012-				●
194	03.675 HOSE; VAC 08.962 (F) L=50 SERVICED BY L=3000	0-04730-300-0	01	1	1012-	●
194	03.675 HOSE; VAC AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (F) L=50 SERVICED BY L=3000	0-04730-300-0	01	1	1012-				●
194	03.675 HOSE; VAC (A)	0-04420-270-0	01	1	1012-		●
194	03.675 HOSE; VAC (C)	8-98036-856-0	01	1	1012-		●
194	03.675 HOSE; VAC (B)	8-98085-688-0	01	1	1012-		●
194	03.675 HOSE; VAC (G)	8-97208-495-0	01	1	1012-			●
198	03.675 HOSE; VAC,VSV L=300 SERVICED BY L=3000	0-04930-300-0	01	1	1012-			●
252	03.670 CAP; RUBBER,EGR VLV EURO2 SPECIFICATION(NT2) EXC. PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),VIETNAM EQUIPMENT(SGX) 04.931	8-97108-680-0	02	1	1012-			●
303	03.671 BRACKET; VAC SW EXHAUST BRAKE<NF8>	8-98122-539-0	01	1	1012-1202	●			●
303	03.671 BRACKET; VAC SW	8-98122-539-0	01	1	1203-	●
303	03.671 BRACKET; VAC SW EXHAUST BRAKE<NF8>	8-98122-539-0	01	1	1203-				●
303	03.671 BRACKET; VAC SW	8-98106-386-0	01	1	1012-			●
485	03.671 BOLT; VSV 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1012-1012	●				●
485	03.671 BOLT; VSV 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1101-1202	●
485	03.671 BOLT; VSV EXHAUST BRAKE<NF8> 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1101-1202					●
485	03.671 BOLT; VSV EXHAUST BRAKE<NF8> 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1203-					●
485	03.671 BOLT; VSV 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1012-			●
485	03.671 BOLT; VSV PHILIPPINE ISLANDS EQUIPMENT(B15), COLOMBIA EQUIPMENT(CB7),VIETNAM EQUIPMENT(SGX) EURO2 SPECIFICATION(NT2) 03.680 (B) M5X10 W/LK+PL WASHER	0-36230-510-0	01	1	1012-1404			●
485	03.671 BOLT; VSV EURO1 SPECIFICATION(NT1) 03.680 (B) M5X10 W/LK+PL WASHER	0-36230-510-0	01	1	1012-1404			●
485	03.671 BOLT; VSV 03.680 (B) M5X10 W/LK+PL WASHER	0-36230-510-0	01	1	1405-			●
485	03.671 BOLT; VSV EURO2 SPECIFICATION(NT2) EXC. PHILIPPINE ISLANDS EQUIPMENT(B15),COLOMBIA EQUIPMENT(CB7),VIETNAM EQUIPMENT(SGX) 03.680 (B) M5X10 W/LK+PL WASHER	0-36230-510-0	02	1	1012-1404			●
740	03.680 BOLT; VAC REG VALVE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1012-			●
752	03.670 VALVE; EVRV	8-98116-259-0	01	1	1012-		●
752	03.670 VALVE; EVRV	8-94384-335-0	01	1	1012-			●

92 92 303 73 486 92 92 110 110 194 110 64 194 194 110 64 110 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	D	E
64	03.680 JOINT; 3 WAY,VAC 3WAY	8-94208-695-0	02	1	1012-	●
64	03.680 JOINT; 3 WAY,VAC AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 3WAY	8-94208-695-0	01	1	1012-				●
73	03.680 CLIP; VAC HOSE EXHAUST BRAKE<NF8> (D) L=350	8-97373-487-0	02	1	1012-				●
73	03.680 CLIP; VAC HOSE 00.854 (A) ID=11.8 & 7.5	1-09709-182-0	01	1	1012-		●
73	03.680 CLIP; VAC HOSE 04.342 (B) ID=8.3 & 10	8-94176-792-0	01	1	1012-		●
73	03.680 CLIP; VAC HOSE 03.162 (C) ID=13.2 & 7.5	8-94315-426-0	01	1	1012-		●	●
73	03.680 CLIP; VAC HOSE 01.540 (G) ID=30	8-94315-423-0	02	1	1012-			●
73	03.680 CLIP; VAC HOSE 03.278 (E) ID=37	8-94481-468-0	01	1	1012-			●
73	03.680 CLIP; VAC HOSE (F) ID=16.5 & 7	8-97226-171-0	01	1	1012-			●
92	03.675 HOSE; VAC,THROTTLE BODY (A)	8-98169-776-2	01	1	1012-	●
92	03.675 HOSE; VAC,THROTTLE BODY (B)	8-98169-837-1	01	1	1012-1012	●
92	03.675 HOSE; VAC,THROTTLE BODY 08.962 (E) L=150 SERVICED BY L=3000	0-04730-300-0	01	1	1101-	●
92	03.675 HOSE; VAC,THROTTLE BODY AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> (C)	8-98118-170-0	01	1	1012-				●
92	03.675 HOSE; VAC,THROTTLE BODY EXHAUST BRAKE<NF8> (D)	8-98132-327-1	01	1	1012-				●
110	03.671 CLIP; VAC HOSE 03.680 (D) ID=6.8 & 6.8 & 6.8	8-94208-734-0	03	1	1012-	●
110	03.671 CLIP; VAC HOSE 02.559 (B) L=109.5	8-97807-385-0	03	1	1012-1012	●
110	03.671 CLIP; VAC HOSE 02.559 (B) L=109.5	8-97807-385-0	02	1	1101-	●
110	03.671 CLIP; VAC HOSE AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 03.162 (A) ID=6.8X2	8-94126-636-0	02	1	1012-				●
110	03.671 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 03.680 (C) ID=7.5 & 7.5	8-97019-084-0	01	1	1012-				●
110	03.671 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 02.559 (B) L=109.5	8-97807-385-0	01	1	1012-				●
194	03.675 HOSE; VAC 08.962 (D) L=40 SERVICED BY L=3000	0-04730-300-0	01	1	1012-	●
194	03.675 HOSE; VAC 08.962 (E) L=30 SERVICED BY L=3000	0-04730-300-0	01	1	1012-	●
194	03.675 HOSE; VAC AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (E) L=30 SERVICED BY L=3000	0-04730-300-0	01	1	1012-				●
194	03.675 HOSE; VAC 08.962 (F) L=50 SERVICED BY L=3000	0-04730-300-0	01	1	1012-	●
194	03.675 HOSE; VAC AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (F) L=50 SERVICED BY L=3000	0-04730-300-0	01	1	1012-				●
194	03.675 HOSE; VAC (A)	0-04420-270-0	01	1	1012-		●
194	03.675 HOSE; VAC (C)	8-98036-856-0	01	1	1012-		●
194	03.675 HOSE; VAC (B)	8-98085-688-0	01	1	1012-		●
194	03.675 HOSE; VAC (G)	8-97208-495-0	01	1	1012-			●
303	03.671 BRACKET; VAC SW EXHAUST BRAKE<NF8>	8-98122-539-0	01	1	1012-1202	●			●
303	03.671 BRACKET; VAC SW	8-98122-539-0	01	1	1203-	●
303	03.671 BRACKET; VAC SW EXHAUST BRAKE<NF8>	8-98122-539-0	01	1	1203-				●
303	03.671 BRACKET; VAC SW	8-98106-386-0	01	1	1012-			●
486	03.671 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1012-	●
486	03.671 NUT; BRKT EXHAUST BRAKE<NF8> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-1202	●			●
486	03.671 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1203-	●
486	03.671 NUT; BRKT EXHAUST BRAKE<NF8> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1203-				●

685

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
	685	03.680 CASE; INLET,EGR	8-97146-872-1	01	1	1012-	●
	685	03.680 CASE; INLET,EGR	8-97146-873-1	01	1	1012-					●

681 15 789 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
15	03.670 STUD; EGR PIPE 03.275 M8X25 L=37	0-41010-825-0	02	1	1012-		●
15	03.670 STUD; EGR PIPE EURO3 SPECIFICATION(NT3) 03.275 M8X25 L=37	0-41010-825-0	02	1	1012-			●
15	03.670 STUD; EGR PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	1012-				●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97113-023-0	01	1	1012-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97357-684-3	01	1	1012-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (A)	8-97357-684-3	01	1	1012-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-98017-551-0	01	1	1012-		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (B)	8-98017-551-0	01	1	1012-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-97192-765-0	01	1	1012-				●
681	03.671 NUT; EGR PIPE 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1012-	●
681	03.671 NUT; EGR PIPE 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1012-		●		●
681	03.671 NUT; EGR PIPE EURO3 SPECIFICATION(NT3) 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1012-			●
789	03.670 COVER; COOLER,EGR	8-98118-248-0	01	1	1012-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
