◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51282 - NLR/NMR 55,85(LHD) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-52 - OIL AND VACUUM PIPING; ENGINE ▶
0-52 — OIL AND VACUUM PIPING; ENGINE (#79054) — 385 parça
çizim 64596
202 89 46 86 202 89 202 83 202 46 27 340
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
27 01.531 BOLT; OIL PIPE FIX
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1012- ● ●
46 01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU
03.162 (B) M14X27 FLANGE 		1-09675-086-0 01 1 1012- ● ●
46 01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU
(A) M10X21 FLANGE 		8-97372-239-0 01 1 1012- ● ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-97228-671-0 01 1 1012- ● ●
86 01.519 PIPE; OIL,VAC PUMP RETURN
01.430 		8-94455-311-1 01 1 1012- ● ●
89 04.681 CLIP; VAC HOSE
03.280 ID=17.1 		8-94122-679-0 01 1 1012-1405 ● ●
89 04.681 CLIP; VAC HOSE
03.280 ID=17.1 		8-94122-679-0 01 1 1012-1405 ● ●
89 04.681 CLIP; VAC HOSE
NLR SGL CAB(NM**SE) 03.280 ID=17.1 		8-94122-679-0 01 1 1406- ●
89 04.681 CLIP; VAC HOSE
NLR SGL CAB(NM**SE) GLOW SYSTEM DELETE<7RK> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUD E COMPENSATOR(EE2),MANUAL STEERING<N51> 03.280 ID=17.1 		8-94122-679-0 01 1 1406- ●
89 04.681 CLIP; VAC HOSE
NLR SGL CAB(NM**SE) FAST GLOW SYSTEM<KM6> EXC. AIR CONDITIONER MANUAL CONT(C60) ,HIGH ALTITUDE COMPENSATOR(EE2), MANUAL STEERING<N51> 03.280 ID=17.1 		8-94122-679-0 01 1 1406- ●
89 04.681 CLIP; VAC HOSE
NMR SGL CAB(NM**SN) 03.280 ID=17.1 		8-94122-679-0 01 1 1406- ●
89 04.681 CLIP; VAC HOSE
NMR SGL CAB(NM**SN) SAUDI ARABIA EQUIPMENT(GH3) GLOW SYSTEM DELETE<7RK> ANTI EROSION SPEC(7XK) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUD E COMPENSATOR(EE2),EXHAUST BRAKE<NF8> ,MANUAL STEERING<N51> 03.280 ID=17.1 		8-94122-679-0 01 1 1406- ●
89 04.681 CLIP; VAC HOSE
NMR SGL CAB(NM**SN) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(GH3) FAST GLOW SYSTEM<KM6> EXHAUST BRAKE<NF8> ANTI EROSION SPEC(7XK) EXC. HIGH ALTITUDE COMPENSATOR(EE2), MANUAL STEERING<N51> 03.280 ID=17.1 		8-94122-679-0 01 1 1406- ●
89 04.681 CLIP; VAC HOSE
NMR SGL CAB(NM**SN) SAUDI ARABIA EQUIPMENT(GH3) FAST GLOW SYSTEM<KM6> ANTI EROSION SPEC(7XK) EXC. AIR CONDITIONER MANUAL CONT(C60) ,HIGH ALTITUDE COMPENSATOR(EE2), EXHAUST BRAKE<NF8>,MANUAL STEERING<N51> 03.280 ID=17.1 		8-94122-679-0 01 1 1406- ●
89 04.681 CLIP; VAC HOSE
NMR SGL CAB(NM**SN) SAUDI ARABIA EQUIPMENT(GH3) FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> EXHAUST BRAKE<NF8> ANTI EROSION SPEC(7XK) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUD E COMPENSATOR(EE2),MANUAL STEERING<N51> 03.280 ID=17.1 		8-94122-679-0 01 1 1406- ●
89 04.681 CLIP; VAC HOSE
NMR SGL CAB(NM**SN) HIGH ALTITUDE COMPENSATOR(EE2) SAUDI ARABIA EQUIPMENT(GH3) GLOW SYSTEM DELETE<7RK> ANTI EROSION SPEC(7XK) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),MANUAL STEER ING<N51> 03.280 ID=17.1 		8-94122-679-0 01 1 1406- ●
89 04.681 CLIP; VAC HOSE
NMR SGL CAB(NM**SN) HIGH ALTITUDE COMPENSATOR(EE2) SAUDI ARABIA EQUIPMENT(GH3) FAST GLOW SYSTEM<KM6> ANTI EROSION SPEC(7XK) EXC. AIR CONDITIONER MANUAL CONT(C60) ,MANUAL STEERING<N51> 03.280 ID=17.1 		8-94122-679-0 01 1 1406- ●
89 04.681 CLIP; VAC HOSE
NMR SGL CAB(NM**SN) AIR CONDITIONER MANUAL CONT(C60) FAST GLOW SYSTEM<KM6> EXHAUST BRAKE<NF8> EXC. COLOMBIA EQUIPMENT(CB7), AZERBAIJAN EQUIPMENT(CX0),HIGH ALTITUDE COMPE NSATOR(EE2),PERU EQUIPMENT(E07), SAUDIARABIA EQUIPMENT(GH3),CHILE EQUIPMEN T(KE1) 03.280 ID=17.1 		8-94122-679-0 01 1 1406- ●
89 04.681 CLIP; VAC HOSE
NMR SGL CAB(NM**SN) HEATER & DEFROSTER(C41) HIGH ALTITUDE COMPENSATOR(EE2) EXHAUST BRAKE<NF8> GLOW SYSTEM DELETE<7RK> EXC. COLOMBIA EQUIPMENT(CB7), AZERBAIJAN EQUIPMENT(CX0),PERU EQUIPMENT(E07) ,SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1) 03.280 ID=17.1 		8-94122-679-0 01 1 1406- ●
89 04.681 CLIP; VAC HOSE
NMR SGL CAB(NM**SN) HEATER & DEFROSTER(C41) FAST GLOW SYSTEM<KM6> EXHAUST BRAKE<NF8> EXC. COLOMBIA EQUIPMENT(CB7), AZERBAIJAN EQUIPMENT(CX0),PERU EQUIPMENT(E07) ,SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1) 03.280 ID=17.1 		8-94122-679-0 01 1 1406- ●
89 04.681 CLIP; VAC HOSE
NMR SGL CAB(NM**SN) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> GLOW SYSTEM DELETE<7RK> EXC. COLOMBIA EQUIPMENT(CB7), AZERBAIJAN EQUIPMENT(CX0),HIGH ALTITUDE COMPE NSATOR(EE2),PERU EQUIPMENT(E07), SAUDIARABIA EQUIPMENT(GH3),CHILE EQUIPMEN T(KE1) 03.280 ID=17.1 		8-94122-679-0 01 1 1406- ●
89 04.681 CLIP; VAC HOSE
NMR SGL CAB(NM**SN) EXHAUST BRAKE<NF8> FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> EXC. COLOMBIA EQUIPMENT(CB7), AZERBAIJAN EQUIPMENT(CX0),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,PERU EQUIPMENT(E07),SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1) 03.280 ID=17.1 		8-94122-679-0 01 1 1406- ●
89 04.681 CLIP; VAC HOSE 9-09520-835-0 01 1 1012- ●
202 01.531 GASKET; OIL PIPE
(A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 1012- ● ●
202 01.531 GASKET; OIL PIPE
03.163 (B) ID=14.2 OD=19.2 		1-09630-085-0 02 1 1012-1312 ● ●
202 01.531 GASKET; OIL PIPE
(B) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ● ●
340 03.280 HOSE; VAC PUMP,RETURN
04.681 		8-94339-073-3 01 1 1012- ● ●

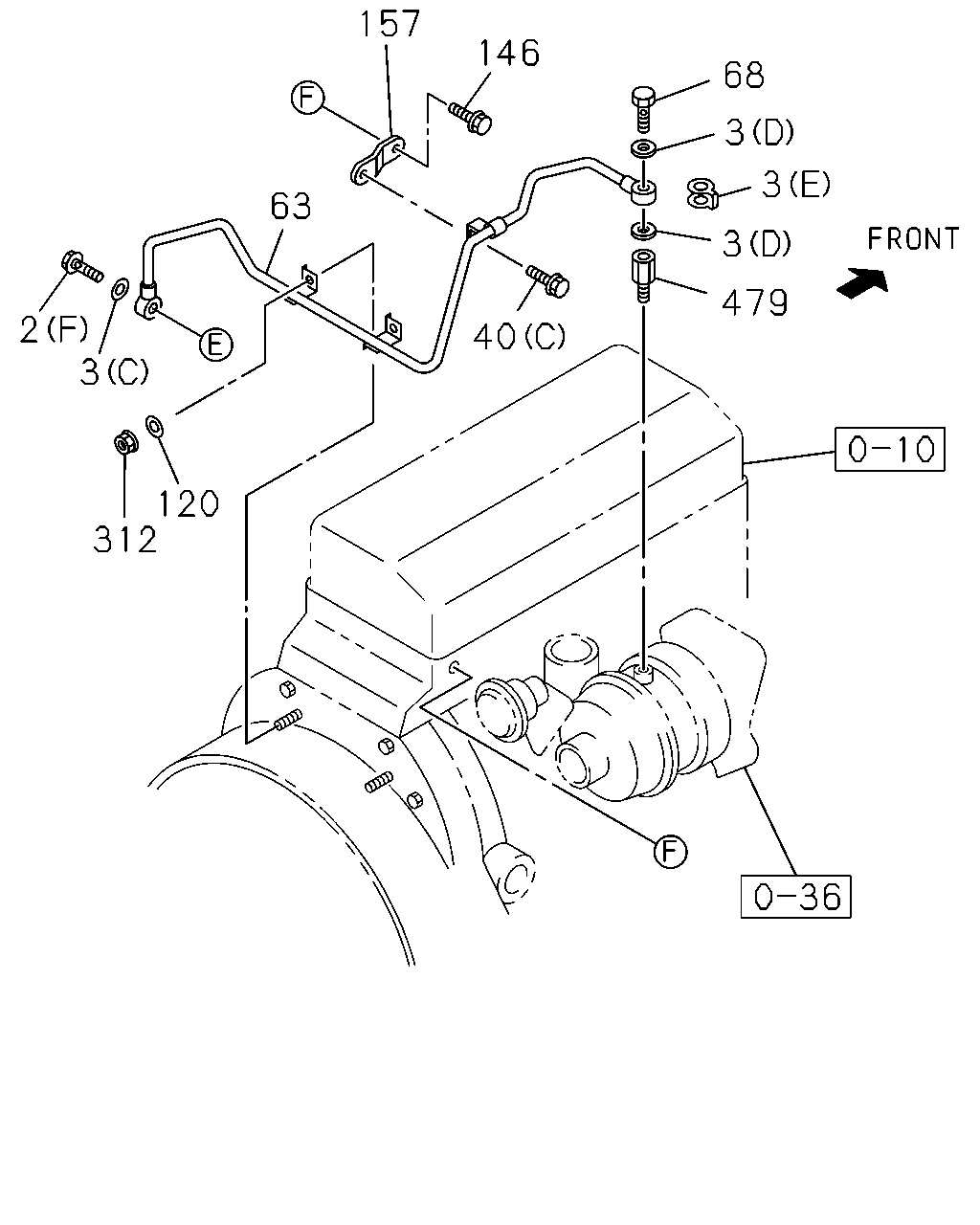

çizim 64599
68 3 3 479 40 146 157 63 3 2 120 312 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 01.531 BOLT; EYE,OIL PIPE
VIETNAM EQUIPMENT(CL0) (B) M8X20 EYE-BOLT 		8-97910-296-1 01 1 1105-1111 ●
2 01.531 BOLT; EYE,OIL PIPE
VIETNAM EQUIPMENT(CL0) (D) M10X24 		8-97944-505-1 01 1 1105- ●
2 01.531 BOLT; EYE,OIL PIPE
(F) M10X40 FLANGE 		8-97182-847-0 01 1 1012- ●
2 01.531 BOLT; EYE,OIL PIPE
03.162 (G) M10X21 FLANGE 		8-97372-238-0 02 1 1012- ●
2 01.531 BOLT; EYE,OIL PIPE
03.162 (A) M14X27 FLANGE 		1-09675-086-0 01 1 1012- ● ●
2 01.531 BOLT; EYE,OIL PIPE
(B) M8X20 EYE-BOLT 		5-09675-018-1 01 1 1012-1104 ● ●
2 01.531 BOLT; EYE,OIL PIPE
(B) M8X20 EYE-BOLT 		5-09675-018-1 01 1 1105-1111 ●
2 01.531 BOLT; EYE,OIL PIPE
EXC. VIETNAM EQUIPMENT(CL0) (B) M8X20 EYE-BOLT 		5-09675-018-1 01 1 1105-1111 ●
2 01.531 BOLT; EYE,OIL PIPE
(B) M8X20 EYE-BOLT 		5-09675-018-1 01 1 1112- ● ●
2 01.531 BOLT; EYE,OIL PIPE
(C) M10X27 FLANGE 		8-94443-535-0 01 1 1012- ● ●
2 01.531 BOLT; EYE,OIL PIPE
03.280 (D) M10X24 		9-09906-205-1 01 1 1012-1104 ● ● ●
2 01.531 BOLT; EYE,OIL PIPE
03.280 (D) M10X24 		9-09906-205-1 01 1 1105- ● ●
2 01.531 BOLT; EYE,OIL PIPE
EXC. VIETNAM EQUIPMENT(CL0) 03.280 (D) M10X24 		9-09906-205-1 01 1 1105- ●
2 01.531 BOLT; EYE,OIL PIPE
03.358 (E) M10X23 FLANGE 		8-94332-831-1 01 1 1012- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=10.2 OD=15.2 		1-09630-083-0 05 1 1012- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (D) ID=12.2 		9-09571-412-0 02 1 1012-1101 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=12.6 		8-97331-137-1 01 1 1102- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=10.2 OD=15.2 		1-09630-083-0 04 1 1012- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=10.2 OD=16.0 		9-09571-410-0 04 1 1012- ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=14.2 OD=20.0 		9-09571-414-0 02 1 1012- ●
40 01.531 BOLT; OIL PIPE
02.343 (C) M8X12 FLANGE 		0-28050-812-0 01 1 1012- ●
40 01.531 BOLT; OIL PIPE
03.162 (A) M6X12 FLANGE 		0-28050-612-0 01 1 1012- ● ●
40 01.531 BOLT; OIL PIPE
03.671 (B) M6X10 FLANGE 		0-28050-610-0 01 1 1012- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97372-936-2 01 1 1012- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97381-488-0 01 1 1012- ● ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97224-297-0 01 1 1012- ●
68 01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER
M12X28 FLANGE 		8-97166-518-1 01 1 1012- ●
120 01.531 WASHER; PL,PIPE FIX
03.706 ID=8.4 OD=26 		0-91614-808-0 02 1 1310- ●
146 01.531 BOLT; BRKT
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1012- ●
157 01.519 BRACKET; OIL PIPE 8-97181-586-0 01 1 1012- ●
157 01.519 BRACKET; OIL PIPE 8-98043-093-0 01 1 1012- ● ●
312 01.531 NUT; PIPE FIX
01.062 M8 FLANGE 		0-91180-108-0 02 1 1310- ●
312 01.531 NUT; PIPE FIX
04.634 M8 FLANGE 		8-97581-233-0 01 1 1012- ● ●
479 01.531 ADAPTER
01.800 		8-94436-891-0 01 1 1012- ●

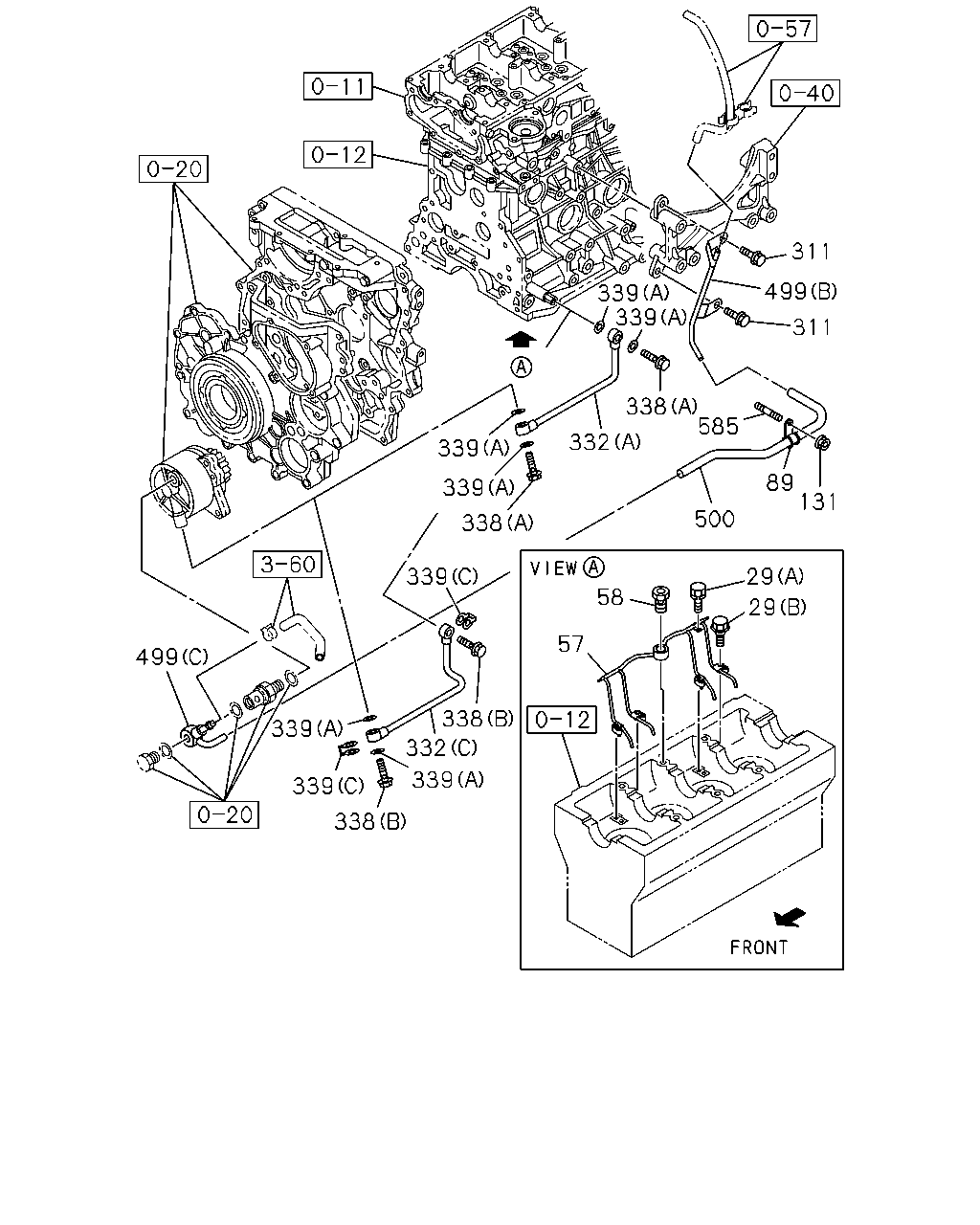

çizim 64742
311 499 311 131 89 585 500 29 29 58 57 332 338 339 339 339 339 338 339 338 332 339 338 339 339 499
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
29 01.531 BOLT; OIL PIPE,OIL JET
VIETNAM EQUIPMENT(CL0) (B) M6X20 FLANGE 		8-97380-673-1 04 1 1105- ●
29 01.531 BOLT; OIL PIPE,OIL JET
03.407 (A) M8X10 FLANGE 		0-28050-810-0 01 1 1012- ● ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
(B) M6X20 		8-97117-298-1 04 1 1012-1104 ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
(B) M6X20 		8-97117-298-1 04 1 1105- ●
29 01.531 BOLT; OIL PIPE,OIL JET
EXC. VIETNAM EQUIPMENT(CL0) (B) M6X20 		8-97117-298-1 04 1 1105- ●
29 01.531 BOLT; OIL PIPE,OIL JET
(C) M6X25 W/LK&PL WASHER 		0-50640-625-0 04 1 1012- ●
57 01.519 PIPE; OIL,OIL JET 8-97312-132-3 01 1 1012- ● ●
57 01.519 PIPE; OIL,OIL JET 8-94469-709-3 01 1 1012- ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO
VIETNAM EQUIPMENT(CL0) 		8-97379-464-0 01 1 1105- ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97239-048-1 01 1 1012-1104 ● ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97239-048-1 01 1 1105-1407 ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO
EXC. VIETNAM EQUIPMENT(CL0) 		8-97239-048-1 01 1 1105-1407 ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-98285-334-0 01 1 1408- ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO
EXC. VIETNAM EQUIPMENT(CL0) 		8-98285-334-0 01 1 1408- ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO
01.639 		8-97311-976-1 01 1 1012- ●
89 04.681 CLIP; VAC HOSE
03.280 ID=17.1 		8-94122-679-0 01 1 1012-1405 ● ●
89 04.681 CLIP; VAC HOSE
03.280 ID=17.1 		8-94122-679-0 01 1 1012-1405 ● ●
89 04.681 CLIP; VAC HOSE
NLR SGL CAB(NM**SE) 03.280 ID=17.1 		8-94122-679-0 01 1 1406- ●
89 04.681 CLIP; VAC HOSE
NLR SGL CAB(NM**SE) GLOW SYSTEM DELETE<7RK> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUD E COMPENSATOR(EE2),MANUAL STEERING<N51> 03.280 ID=17.1 		8-94122-679-0 01 1 1406- ●
89 04.681 CLIP; VAC HOSE
NLR SGL CAB(NM**SE) FAST GLOW SYSTEM<KM6> EXC. AIR CONDITIONER MANUAL CONT(C60) ,HIGH ALTITUDE COMPENSATOR(EE2), MANUAL STEERING<N51> 03.280 ID=17.1 		8-94122-679-0 01 1 1406- ●
89 04.681 CLIP; VAC HOSE
NMR SGL CAB(NM**SN) 03.280 ID=17.1 		8-94122-679-0 01 1 1406- ●
89 04.681 CLIP; VAC HOSE
NMR SGL CAB(NM**SN) SAUDI ARABIA EQUIPMENT(GH3) GLOW SYSTEM DELETE<7RK> ANTI EROSION SPEC(7XK) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUD E COMPENSATOR(EE2),EXHAUST BRAKE<NF8> ,MANUAL STEERING<N51> 03.280 ID=17.1 		8-94122-679-0 01 1 1406- ●
89 04.681 CLIP; VAC HOSE
NMR SGL CAB(NM**SN) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(GH3) FAST GLOW SYSTEM<KM6> EXHAUST BRAKE<NF8> ANTI EROSION SPEC(7XK) EXC. HIGH ALTITUDE COMPENSATOR(EE2), MANUAL STEERING<N51> 03.280 ID=17.1 		8-94122-679-0 01 1 1406- ●
89 04.681 CLIP; VAC HOSE
NMR SGL CAB(NM**SN) SAUDI ARABIA EQUIPMENT(GH3) FAST GLOW SYSTEM<KM6> ANTI EROSION SPEC(7XK) EXC. AIR CONDITIONER MANUAL CONT(C60) ,HIGH ALTITUDE COMPENSATOR(EE2), EXHAUST BRAKE<NF8>,MANUAL STEERING<N51> 03.280 ID=17.1 		8-94122-679-0 01 1 1406- ●
89 04.681 CLIP; VAC HOSE
NMR SGL CAB(NM**SN) SAUDI ARABIA EQUIPMENT(GH3) FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> EXHAUST BRAKE<NF8> ANTI EROSION SPEC(7XK) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUD E COMPENSATOR(EE2),MANUAL STEERING<N51> 03.280 ID=17.1 		8-94122-679-0 01 1 1406- ●
89 04.681 CLIP; VAC HOSE
NMR SGL CAB(NM**SN) HIGH ALTITUDE COMPENSATOR(EE2) SAUDI ARABIA EQUIPMENT(GH3) GLOW SYSTEM DELETE<7RK> ANTI EROSION SPEC(7XK) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),MANUAL STEER ING<N51> 03.280 ID=17.1 		8-94122-679-0 01 1 1406- ●
89 04.681 CLIP; VAC HOSE
NMR SGL CAB(NM**SN) HIGH ALTITUDE COMPENSATOR(EE2) SAUDI ARABIA EQUIPMENT(GH3) FAST GLOW SYSTEM<KM6> ANTI EROSION SPEC(7XK) EXC. AIR CONDITIONER MANUAL CONT(C60) ,MANUAL STEERING<N51> 03.280 ID=17.1 		8-94122-679-0 01 1 1406- ●
89 04.681 CLIP; VAC HOSE
NMR SGL CAB(NM**SN) AIR CONDITIONER MANUAL CONT(C60) FAST GLOW SYSTEM<KM6> EXHAUST BRAKE<NF8> EXC. COLOMBIA EQUIPMENT(CB7), AZERBAIJAN EQUIPMENT(CX0),HIGH ALTITUDE COMPE NSATOR(EE2),PERU EQUIPMENT(E07), SAUDIARABIA EQUIPMENT(GH3),CHILE EQUIPMEN T(KE1) 03.280 ID=17.1 		8-94122-679-0 01 1 1406- ●
89 04.681 CLIP; VAC HOSE
NMR SGL CAB(NM**SN) HEATER & DEFROSTER(C41) HIGH ALTITUDE COMPENSATOR(EE2) EXHAUST BRAKE<NF8> GLOW SYSTEM DELETE<7RK> EXC. COLOMBIA EQUIPMENT(CB7), AZERBAIJAN EQUIPMENT(CX0),PERU EQUIPMENT(E07) ,SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1) 03.280 ID=17.1 		8-94122-679-0 01 1 1406- ●
89 04.681 CLIP; VAC HOSE
NMR SGL CAB(NM**SN) HEATER & DEFROSTER(C41) FAST GLOW SYSTEM<KM6> EXHAUST BRAKE<NF8> EXC. COLOMBIA EQUIPMENT(CB7), AZERBAIJAN EQUIPMENT(CX0),PERU EQUIPMENT(E07) ,SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1) 03.280 ID=17.1 		8-94122-679-0 01 1 1406- ●
89 04.681 CLIP; VAC HOSE
NMR SGL CAB(NM**SN) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> GLOW SYSTEM DELETE<7RK> EXC. COLOMBIA EQUIPMENT(CB7), AZERBAIJAN EQUIPMENT(CX0),HIGH ALTITUDE COMPE NSATOR(EE2),PERU EQUIPMENT(E07), SAUDIARABIA EQUIPMENT(GH3),CHILE EQUIPMEN T(KE1) 03.280 ID=17.1 		8-94122-679-0 01 1 1406- ●
89 04.681 CLIP; VAC HOSE
NMR SGL CAB(NM**SN) EXHAUST BRAKE<NF8> FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> EXC. COLOMBIA EQUIPMENT(CB7), AZERBAIJAN EQUIPMENT(CX0),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,PERU EQUIPMENT(E07),SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1) 03.280 ID=17.1 		8-94122-679-0 01 1 1406- ●
89 04.681 CLIP; VAC HOSE 9-09520-835-0 01 1 1012- ●
131 01.531 NUT; UNION
06.164 M8 FLANGE 		5-09440-010-0 01 1 1012- ● ●
311 01.531 BOLT; PIPE FIX
03.162 M6X12 FLANGE 		0-28050-612-0 02 1 1012- ●
311 01.531 BOLT; PIPE FIX
00.662 M8X14 FLANGE 		0-28080-814-0 01 1 1012- ● ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
(C) 		8-98201-785-0 01 1 1301- ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
EXC. VIETNAM EQUIPMENT(CL0) (C) 		8-98201-785-0 01 1 1301- ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
(A) 		8-98038-929-0 01 1 1012-1212 ● ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
VIETNAM EQUIPMENT(CL0) (A) 		8-98038-929-0 01 1 1301- ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
(B) 		8-94443-644-1 01 1 1012- ● ●
338 01.531 BOLT; JOINT,OIL PIPE
VIETNAM EQUIPMENT(CL0) (B) M8X20 EYE-BOLT 		8-97910-296-1 02 1 1105- ●
338 01.531 BOLT; JOINT,OIL PIPE
(A) M8X20 EYE-BOLT 		5-09675-018-1 02 1 1012-1104 ● ●
338 01.531 BOLT; JOINT,OIL PIPE
(A) M8X20 EYE-BOLT 		5-09675-018-1 02 1 1105- ●
338 01.531 BOLT; JOINT,OIL PIPE
EXC. VIETNAM EQUIPMENT(CL0) (A) M8X20 EYE-BOLT 		5-09675-018-1 02 1 1105- ●
338 01.531 BOLT; JOINT,OIL PIPE
(A) M8X20 EYE-BOLT 		5-09675-018-1 01 1 1012- ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-98065-992-0 01 1 1301-1302 ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIETNAM EQUIPMENT(CL0) 03.332 (C) ID=8.3 OD=15.0 		8-98065-992-0 01 1 1301-1302 ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-98065-992-0 02 1 1303- ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIETNAM EQUIPMENT(CL0) 03.332 (C) ID=8.3 OD=15.0 		8-98065-992-0 02 1 1303- ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 04 1 1012-1212 ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). VIETNAM EQUIPMENT(CL0) 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 04 1 1301- ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 1012-1212 ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		9-09571-408-0 02 1 1301-1302 ● ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIETNAM EQUIPMENT(CL0) 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 1301-1302 ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 1303- ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 1012- ● ●
499 04.681 PIPE; VACUUM
(C) 		8-97381-661-3 01 1 1012- ●
499 04.681 PIPE; VACUUM
(B) 		8-97385-434-1 01 1 1012- ●
499 04.681 PIPE; VACUUM
(A) 		8-98027-553-0 01 1 1012- ●
500 04.681 HOSE; VACUUM 8-97369-587-1 01 1 1012- ●
585 01.531 STUD; CLIP
01.428 M8X18 L=30 		0-41010-818-0 01 1 1012- ● ●

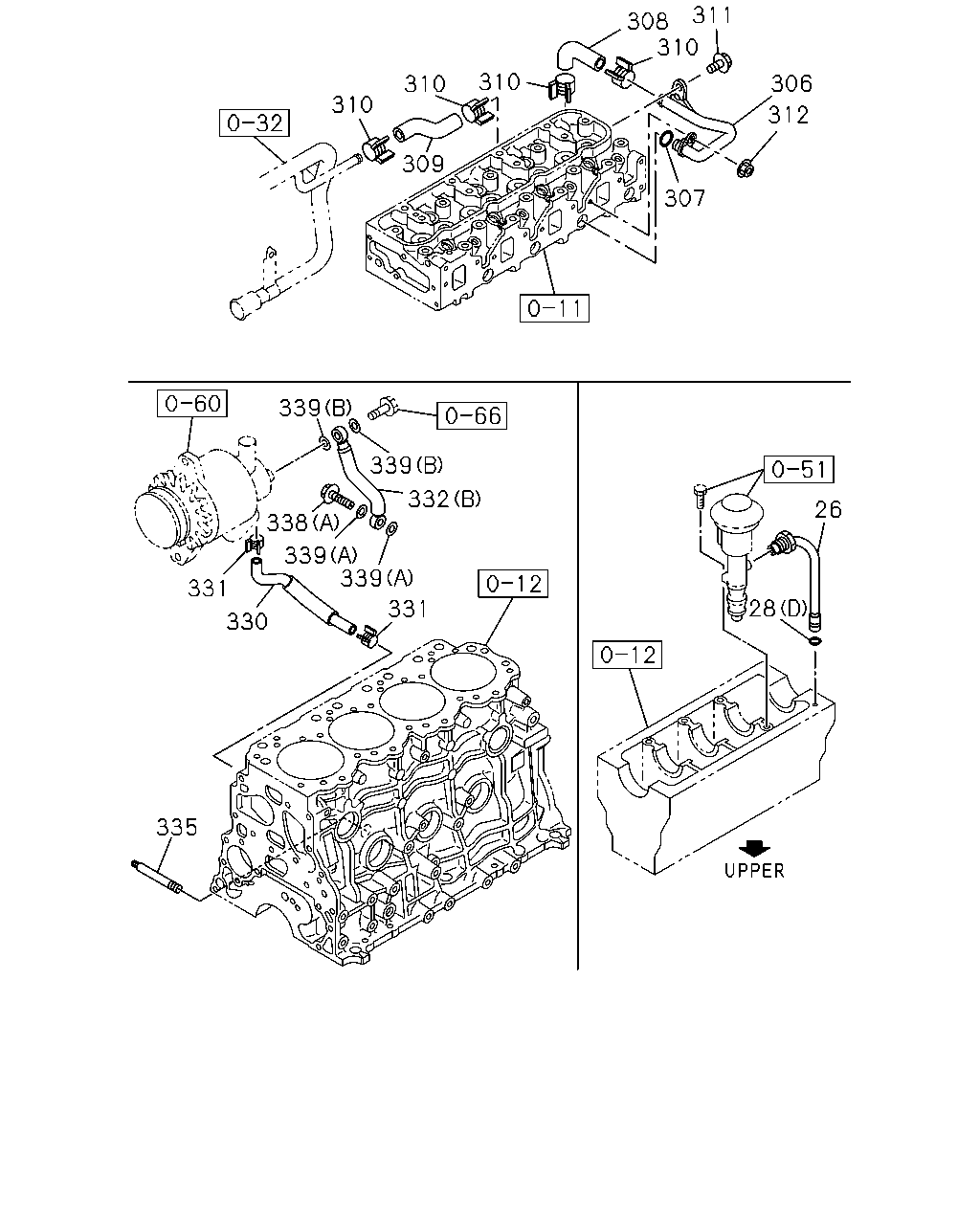

çizim 64767
26 28 332 339 339 338 339 339 331 330 331 335 309 310 310 310 308 310 311 306 312 307
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
26 01.519 PIPE; OIL,PUMP TO C/BL 8-97923-928-0 01 1 1012- ● ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 (C) ID=8.2 OD=13.2 		1-09630-082-0 01 1 1012- ● ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 (A) ID=8.2 		8-97251-046-0 02 1 1012- ● ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=20.0 		8-98113-762-0 01 1 1012- ● ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 (D) ID=11 		5-09623-002-0 02 1 1012- ● ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER 8-97225-604-1 01 1 1012- ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER 8-94450-627-1 01 1 1012- ●
307 01.531 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97264-168-0 01 1 1012- ● ●
308 01.540 HOSE; OIL COOLER FEED 8-94174-464-1 01 1 1012- ● ●
309 01.540 HOSE; OIL COOLER RETURN 8-97224-318-1 01 1 1012- ●
309 01.540 HOSE; OIL COOLER RETURN 8-97022-314-1 01 1 1012- ●
310 01.540 CLIP; WATER HOSE FIX
01.166 ID=20.8 		8-94125-862-1 04 1 1012- ● ●
311 01.531 BOLT; PIPE FIX
03.162 M6X12 FLANGE 		0-28050-612-0 02 1 1012- ●
311 01.531 BOLT; PIPE FIX
00.662 M8X14 FLANGE 		0-28080-814-0 01 1 1012- ● ●
312 01.531 NUT; PIPE FIX
01.062 M8 FLANGE 		0-91180-108-0 02 1 1310- ●
312 01.531 NUT; PIPE FIX
04.634 M8 FLANGE 		8-97581-233-0 01 1 1012- ● ●
330 03.278 HOSE; VAC PUMP,RETURN 8-98204-694-0 01 1 1112- ●
330 03.278 HOSE; VAC PUMP,RETURN 8-97073-920-2 01 1 1012-1111 ● ●
330 03.278 HOSE; VAC PUMP,RETURN 8-97073-920-2 01 1 1112- ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN 8-97108-102-0 02 1 1012- ● ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
(C) 		8-98201-785-0 01 1 1301- ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
EXC. VIETNAM EQUIPMENT(CL0) (C) 		8-98201-785-0 01 1 1301- ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
(A) 		8-98038-929-0 01 1 1012-1212 ● ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
VIETNAM EQUIPMENT(CL0) (A) 		8-98038-929-0 01 1 1301- ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
(B) 		8-94443-644-1 01 1 1012- ● ●
335 01.531 STOPPER; OIL PIPE 8-97203-568-0 01 1 1012- ● ●
338 01.531 BOLT; JOINT,OIL PIPE
VIETNAM EQUIPMENT(CL0) (B) M8X20 EYE-BOLT 		8-97910-296-1 02 1 1105- ●
338 01.531 BOLT; JOINT,OIL PIPE
(A) M8X20 EYE-BOLT 		5-09675-018-1 02 1 1012-1104 ● ●
338 01.531 BOLT; JOINT,OIL PIPE
(A) M8X20 EYE-BOLT 		5-09675-018-1 02 1 1105- ●
338 01.531 BOLT; JOINT,OIL PIPE
EXC. VIETNAM EQUIPMENT(CL0) (A) M8X20 EYE-BOLT 		5-09675-018-1 02 1 1105- ●
338 01.531 BOLT; JOINT,OIL PIPE
(A) M8X20 EYE-BOLT 		5-09675-018-1 01 1 1012- ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-98065-992-0 01 1 1301-1302 ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIETNAM EQUIPMENT(CL0) 03.332 (C) ID=8.3 OD=15.0 		8-98065-992-0 01 1 1301-1302 ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-98065-992-0 02 1 1303- ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIETNAM EQUIPMENT(CL0) 03.332 (C) ID=8.3 OD=15.0 		8-98065-992-0 02 1 1303- ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 04 1 1012-1212 ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). VIETNAM EQUIPMENT(CL0) 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 04 1 1301- ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 1012-1212 ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		9-09571-408-0 02 1 1301-1302 ● ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIETNAM EQUIPMENT(CL0) 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 1301-1302 ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 1303- ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 1012- ● ●
çizim 64797
3 3 3 1 2 3 2 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.519 PIPE; OIL,INJ PUMP TO C/BL 8-97200-615-4 01 1 1012- ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL 8-97093-547-1 01 1 1012- ●
2 01.531 BOLT; EYE,OIL PIPE
VIETNAM EQUIPMENT(CL0) (B) M8X20 EYE-BOLT 		8-97910-296-1 01 1 1105-1111 ●
2 01.531 BOLT; EYE,OIL PIPE
VIETNAM EQUIPMENT(CL0) (D) M10X24 		8-97944-505-1 01 1 1105- ●
2 01.531 BOLT; EYE,OIL PIPE
(F) M10X40 FLANGE 		8-97182-847-0 01 1 1012- ●
2 01.531 BOLT; EYE,OIL PIPE
03.162 (G) M10X21 FLANGE 		8-97372-238-0 02 1 1012- ●
2 01.531 BOLT; EYE,OIL PIPE
03.162 (A) M14X27 FLANGE 		1-09675-086-0 01 1 1012- ● ●
2 01.531 BOLT; EYE,OIL PIPE
(B) M8X20 EYE-BOLT 		5-09675-018-1 01 1 1012-1104 ● ●
2 01.531 BOLT; EYE,OIL PIPE
(B) M8X20 EYE-BOLT 		5-09675-018-1 01 1 1105-1111 ●
2 01.531 BOLT; EYE,OIL PIPE
EXC. VIETNAM EQUIPMENT(CL0) (B) M8X20 EYE-BOLT 		5-09675-018-1 01 1 1105-1111 ●
2 01.531 BOLT; EYE,OIL PIPE
(B) M8X20 EYE-BOLT 		5-09675-018-1 01 1 1112- ● ●
2 01.531 BOLT; EYE,OIL PIPE
(C) M10X27 FLANGE 		8-94443-535-0 01 1 1012- ● ●
2 01.531 BOLT; EYE,OIL PIPE
03.280 (D) M10X24 		9-09906-205-1 01 1 1012-1104 ● ● ●
2 01.531 BOLT; EYE,OIL PIPE
03.280 (D) M10X24 		9-09906-205-1 01 1 1105- ● ●
2 01.531 BOLT; EYE,OIL PIPE
EXC. VIETNAM EQUIPMENT(CL0) 03.280 (D) M10X24 		9-09906-205-1 01 1 1105- ●
2 01.531 BOLT; EYE,OIL PIPE
03.358 (E) M10X23 FLANGE 		8-94332-831-1 01 1 1012- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=10.2 OD=15.2 		1-09630-083-0 05 1 1012- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (D) ID=12.2 		9-09571-412-0 02 1 1012-1101 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=12.6 		8-97331-137-1 01 1 1102- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=10.2 OD=15.2 		1-09630-083-0 04 1 1012- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=10.2 OD=16.0 		9-09571-410-0 04 1 1012- ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=14.2 OD=20.0 		9-09571-414-0 02 1 1012- ●

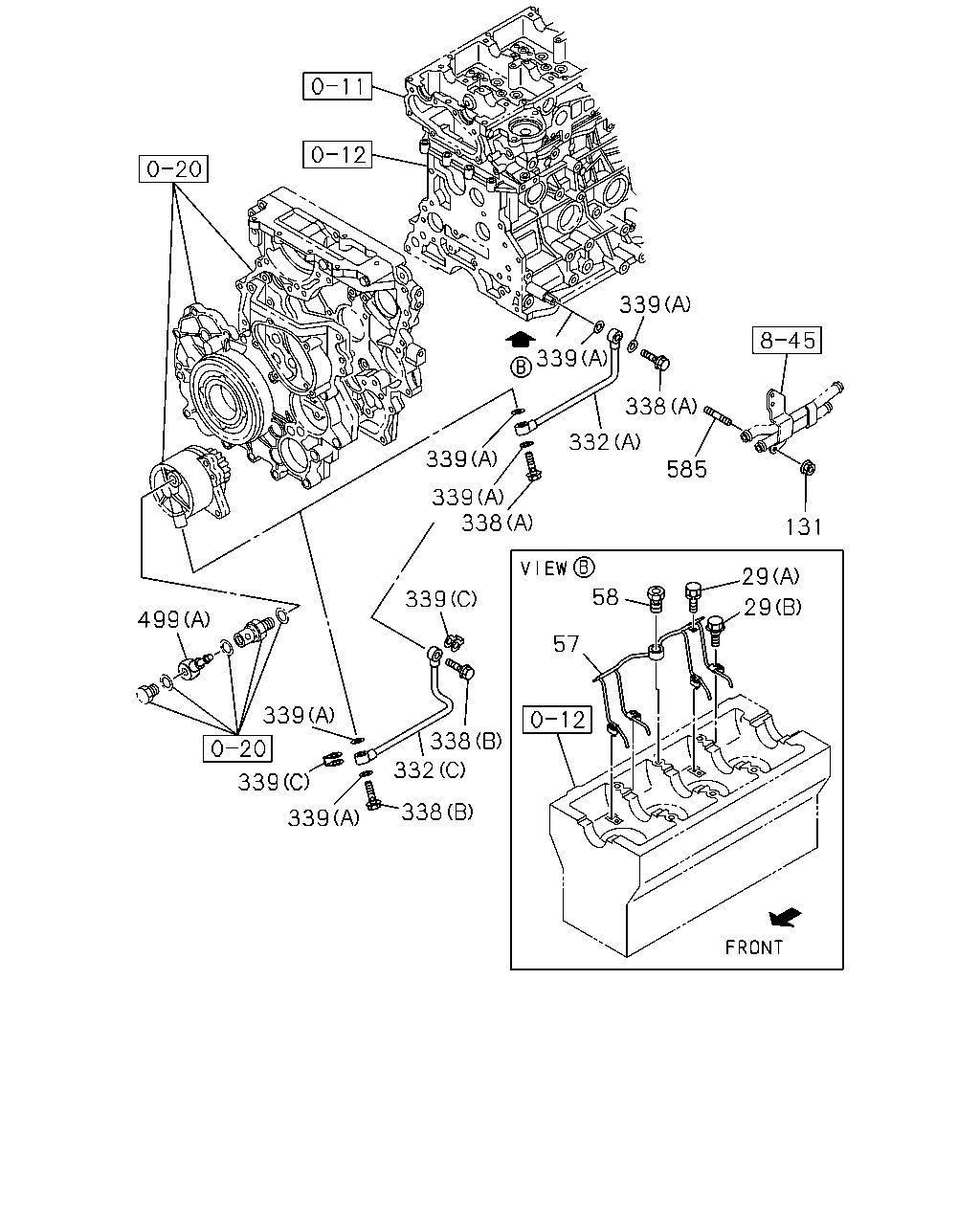

çizim 64887
339 339 338 332 585 131 29 29 57 58 338 332 338 339 338 339 339 339 339 339 499
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
29 01.531 BOLT; OIL PIPE,OIL JET
VIETNAM EQUIPMENT(CL0) (B) M6X20 FLANGE 		8-97380-673-1 04 1 1105- ●
29 01.531 BOLT; OIL PIPE,OIL JET
03.407 (A) M8X10 FLANGE 		0-28050-810-0 01 1 1012- ● ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
(B) M6X20 		8-97117-298-1 04 1 1012-1104 ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
(B) M6X20 		8-97117-298-1 04 1 1105- ●
29 01.531 BOLT; OIL PIPE,OIL JET
EXC. VIETNAM EQUIPMENT(CL0) (B) M6X20 		8-97117-298-1 04 1 1105- ●
29 01.531 BOLT; OIL PIPE,OIL JET
(C) M6X25 W/LK&PL WASHER 		0-50640-625-0 04 1 1012- ●
57 01.519 PIPE; OIL,OIL JET 8-97312-132-3 01 1 1012- ● ●
57 01.519 PIPE; OIL,OIL JET 8-94469-709-3 01 1 1012- ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO
VIETNAM EQUIPMENT(CL0) 		8-97379-464-0 01 1 1105- ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97239-048-1 01 1 1012-1104 ● ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97239-048-1 01 1 1105-1407 ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO
EXC. VIETNAM EQUIPMENT(CL0) 		8-97239-048-1 01 1 1105-1407 ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-98285-334-0 01 1 1408- ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO
EXC. VIETNAM EQUIPMENT(CL0) 		8-98285-334-0 01 1 1408- ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO
01.639 		8-97311-976-1 01 1 1012- ●
131 01.531 NUT; UNION
06.164 M8 FLANGE 		5-09440-010-0 01 1 1012- ● ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
(C) 		8-98201-785-0 01 1 1301- ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
EXC. VIETNAM EQUIPMENT(CL0) (C) 		8-98201-785-0 01 1 1301- ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
(A) 		8-98038-929-0 01 1 1012-1212 ● ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
VIETNAM EQUIPMENT(CL0) (A) 		8-98038-929-0 01 1 1301- ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
(B) 		8-94443-644-1 01 1 1012- ● ●
338 01.531 BOLT; JOINT,OIL PIPE
VIETNAM EQUIPMENT(CL0) (B) M8X20 EYE-BOLT 		8-97910-296-1 02 1 1105- ●
338 01.531 BOLT; JOINT,OIL PIPE
(A) M8X20 EYE-BOLT 		5-09675-018-1 02 1 1012-1104 ● ●
338 01.531 BOLT; JOINT,OIL PIPE
(A) M8X20 EYE-BOLT 		5-09675-018-1 02 1 1105- ●
338 01.531 BOLT; JOINT,OIL PIPE
EXC. VIETNAM EQUIPMENT(CL0) (A) M8X20 EYE-BOLT 		5-09675-018-1 02 1 1105- ●
338 01.531 BOLT; JOINT,OIL PIPE
(A) M8X20 EYE-BOLT 		5-09675-018-1 01 1 1012- ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-98065-992-0 01 1 1301-1302 ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIETNAM EQUIPMENT(CL0) 03.332 (C) ID=8.3 OD=15.0 		8-98065-992-0 01 1 1301-1302 ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-98065-992-0 02 1 1303- ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIETNAM EQUIPMENT(CL0) 03.332 (C) ID=8.3 OD=15.0 		8-98065-992-0 02 1 1303- ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 04 1 1012-1212 ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). VIETNAM EQUIPMENT(CL0) 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 04 1 1301- ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 1012-1212 ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		9-09571-408-0 02 1 1301-1302 ● ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIETNAM EQUIPMENT(CL0) 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 1301-1302 ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 1303- ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 1012- ● ●
499 04.681 PIPE; VACUUM
(C) 		8-97381-661-3 01 1 1012- ●
499 04.681 PIPE; VACUUM
(B) 		8-97385-434-1 01 1 1012- ●
499 04.681 PIPE; VACUUM
(A) 		8-98027-553-0 01 1 1012- ●
585 01.531 STUD; CLIP
01.428 M8X18 L=30 		0-41010-818-0 01 1 1012- ● ●

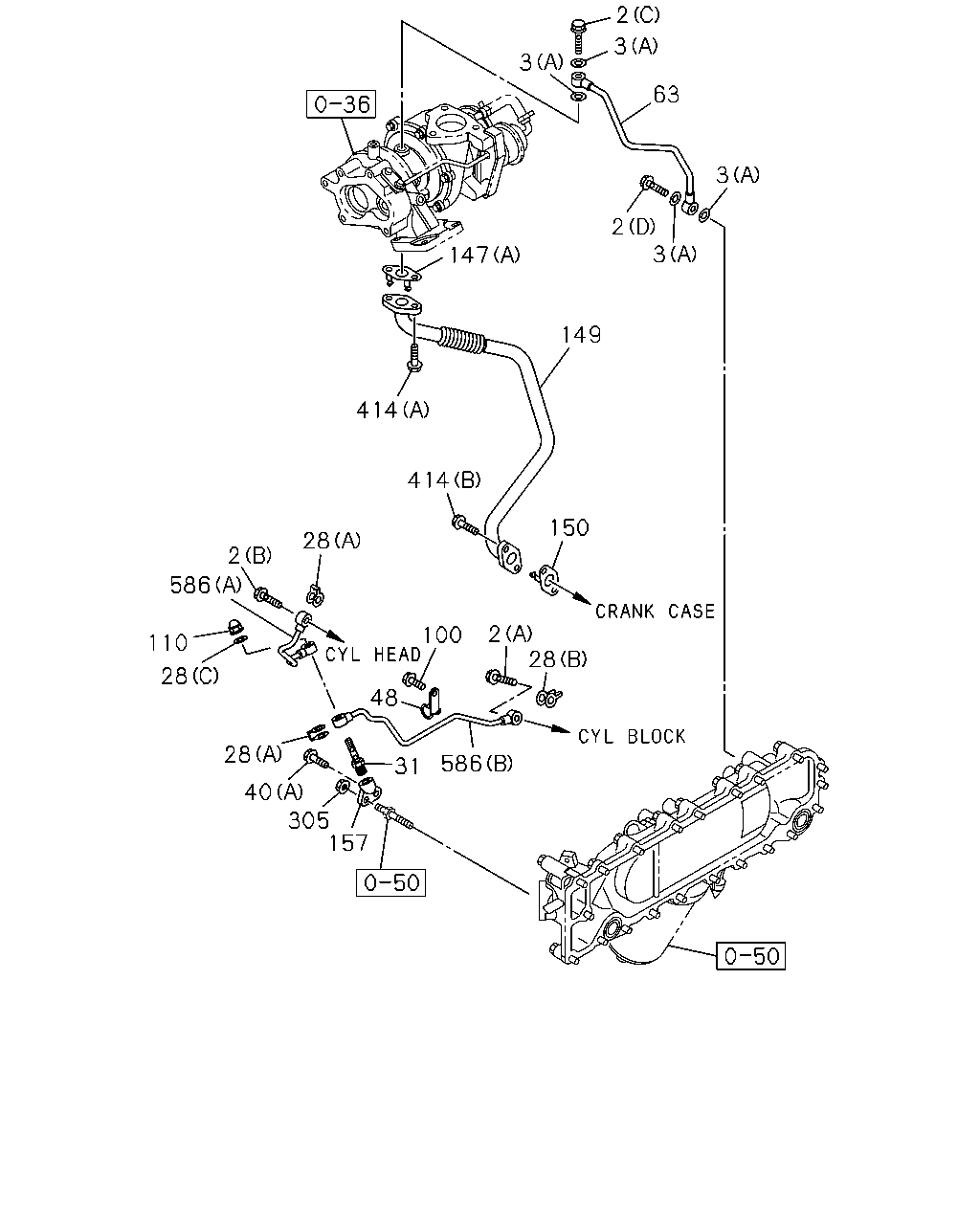

çizim 65033
2 3 3 63 3 2 3 147 149 414 414 150 28 2 586 2 28 100 110 28 48 28 586 31 40 305 157
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 01.531 BOLT; EYE,OIL PIPE
VIETNAM EQUIPMENT(CL0) (B) M8X20 EYE-BOLT 		8-97910-296-1 01 1 1105-1111 ●
2 01.531 BOLT; EYE,OIL PIPE
VIETNAM EQUIPMENT(CL0) (D) M10X24 		8-97944-505-1 01 1 1105- ●
2 01.531 BOLT; EYE,OIL PIPE
(F) M10X40 FLANGE 		8-97182-847-0 01 1 1012- ●
2 01.531 BOLT; EYE,OIL PIPE
03.162 (G) M10X21 FLANGE 		8-97372-238-0 02 1 1012- ●
2 01.531 BOLT; EYE,OIL PIPE
03.162 (A) M14X27 FLANGE 		1-09675-086-0 01 1 1012- ● ●
2 01.531 BOLT; EYE,OIL PIPE
(B) M8X20 EYE-BOLT 		5-09675-018-1 01 1 1012-1104 ● ●
2 01.531 BOLT; EYE,OIL PIPE
(B) M8X20 EYE-BOLT 		5-09675-018-1 01 1 1105-1111 ●
2 01.531 BOLT; EYE,OIL PIPE
EXC. VIETNAM EQUIPMENT(CL0) (B) M8X20 EYE-BOLT 		5-09675-018-1 01 1 1105-1111 ●
2 01.531 BOLT; EYE,OIL PIPE
(B) M8X20 EYE-BOLT 		5-09675-018-1 01 1 1112- ● ●
2 01.531 BOLT; EYE,OIL PIPE
(C) M10X27 FLANGE 		8-94443-535-0 01 1 1012- ● ●
2 01.531 BOLT; EYE,OIL PIPE
03.280 (D) M10X24 		9-09906-205-1 01 1 1012-1104 ● ● ●
2 01.531 BOLT; EYE,OIL PIPE
03.280 (D) M10X24 		9-09906-205-1 01 1 1105- ● ●
2 01.531 BOLT; EYE,OIL PIPE
EXC. VIETNAM EQUIPMENT(CL0) 03.280 (D) M10X24 		9-09906-205-1 01 1 1105- ●
2 01.531 BOLT; EYE,OIL PIPE
03.358 (E) M10X23 FLANGE 		8-94332-831-1 01 1 1012- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=10.2 OD=15.2 		1-09630-083-0 05 1 1012- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (D) ID=12.2 		9-09571-412-0 02 1 1012-1101 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=12.6 		8-97331-137-1 01 1 1102- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=10.2 OD=15.2 		1-09630-083-0 04 1 1012- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=10.2 OD=16.0 		9-09571-410-0 04 1 1012- ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=14.2 OD=20.0 		9-09571-414-0 02 1 1012- ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 (C) ID=8.2 OD=13.2 		1-09630-082-0 01 1 1012- ● ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 (A) ID=8.2 		8-97251-046-0 02 1 1012- ● ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=20.0 		8-98113-762-0 01 1 1012- ● ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 (D) ID=11 		5-09623-002-0 02 1 1012- ● ●
31 01.540 NIPPLE; OIL PIPE 8-98044-067-1 01 1 1012- ● ●
40 01.531 BOLT; OIL PIPE
02.343 (C) M8X12 FLANGE 		0-28050-812-0 01 1 1012- ●
40 01.531 BOLT; OIL PIPE
03.162 (A) M6X12 FLANGE 		0-28050-612-0 01 1 1012- ● ●
40 01.531 BOLT; OIL PIPE
03.671 (B) M6X10 FLANGE 		0-28050-610-0 01 1 1012- ●
48 01.531 CLIP; OIL PIPE
ID=7 L=28 		8-98121-233-0 01 1 1012- ● ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97372-936-2 01 1 1012- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97381-488-0 01 1 1012- ● ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97224-297-0 01 1 1012- ●
100 01.531 BOLT; CLIP
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1012- ● ●
110 01.531 NUT; CAP OIL PIPE
00.349 M8 CAP NUT FLANGE 		8-97372-242-0 01 1 1012-1309 ● ●
110 01.531 NUT; CAP OIL PIPE
M8 CAP NUT FLANGE 		8-98251-964-0 01 1 1310- ● ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). VIETNAM EQUIPMENT(CL0) (A) 		8-98132-017-0 01 1 1105- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=16 		8-98029-475-0 01 1 1012-1104 ● ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-98029-475-0 01 1 1105- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIETNAM EQUIPMENT(CL0) (A) ID=16 		8-98029-475-0 01 1 1105- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). 03.358 (B) 		8-94362-672-1 01 1 1012- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (C) ID=10.2 OD=16.0 		9-09571-410-0 02 1 1012- ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-97381-489-2 01 1 1012- ● ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-97192-313-0 01 1 1012- ●
150 01.531 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). VIETNAM EQUIPMENT(CL0) 		8-98132-018-1 01 1 1105-1111 ●
150 01.531 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-98029-476-0 01 1 1012-1104 ● ●
150 01.531 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-98029-476-0 01 1 1105-1111 ●
150 01.531 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIETNAM EQUIPMENT(CL0) 		8-98029-476-0 01 1 1105-1111 ●
150 01.531 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-98029-476-0 01 1 1112- ● ●
157 01.519 BRACKET; OIL PIPE 8-97181-586-0 01 1 1012- ●
157 01.519 BRACKET; OIL PIPE 8-98043-093-0 01 1 1012- ● ●
305 01.540 NUT; BRKT,OIL PIPE
01.062 M6 FLANGE 		0-91180-106-0 01 1 1012- ● ●
414 01.531 BOLT; OIL PIPE
03.342 (A) M6X18 HEX SOCKET 		0-58330-618-0 02 1 1012-1107 ● ●
414 01.531 BOLT; OIL PIPE
00.724 (A) M6X16 HEX SOCKET 		0-58330-616-0 02 1 1108- ● ●
414 01.531 BOLT; OIL PIPE
01.758 (B) M8X20 HEX SOCKET 		0-58330-820-0 02 1 1012- ● ●
414 01.531 BOLT; OIL PIPE
09.242 (C) M6X16 FLANGE 		0-28050-616-0 02 1 1012- ●
586 01.519 PIPE; OIL,TENSIONER
(A) 		8-98039-566-0 01 1 1012- ● ●
586 01.519 PIPE; OIL,TENSIONER
(B) 		8-98039-567-0 01 1 1012- ● ●

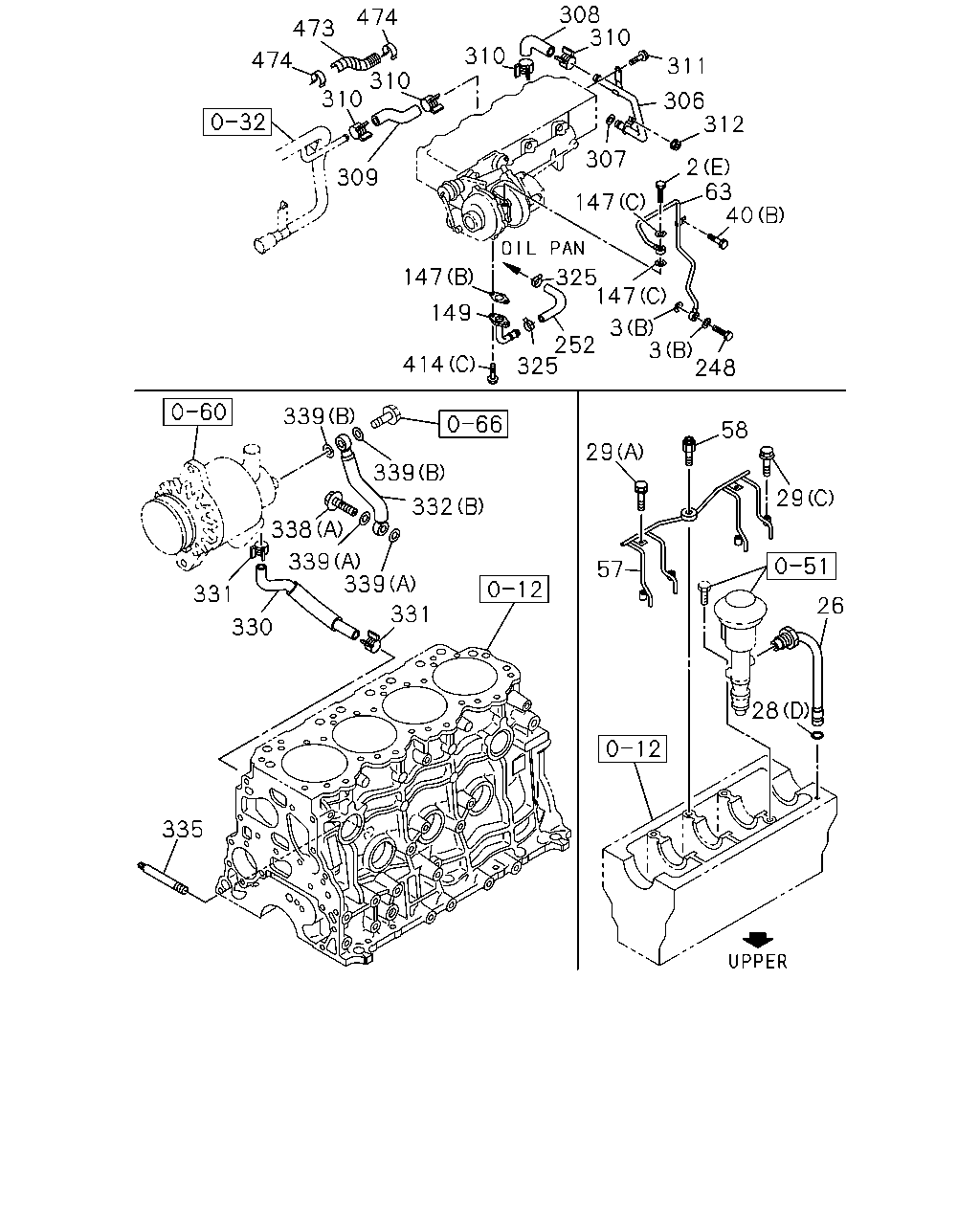

çizim 190845
331 330 335 331 338 339 339 332 339 339 29 58 29 57 26 28 248 3 3 147 325 252 325 414 149 147 147 40 63 2 312 306 311 307 310 308 310 310 310 309 474 473 474
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 01.531 BOLT; EYE,OIL PIPE
VIETNAM EQUIPMENT(CL0) (B) M8X20 EYE-BOLT 		8-97910-296-1 01 1 1105-1111 ●
2 01.531 BOLT; EYE,OIL PIPE
VIETNAM EQUIPMENT(CL0) (D) M10X24 		8-97944-505-1 01 1 1105- ●
2 01.531 BOLT; EYE,OIL PIPE
(F) M10X40 FLANGE 		8-97182-847-0 01 1 1012- ●
2 01.531 BOLT; EYE,OIL PIPE
03.162 (G) M10X21 FLANGE 		8-97372-238-0 02 1 1012- ●
2 01.531 BOLT; EYE,OIL PIPE
03.162 (A) M14X27 FLANGE 		1-09675-086-0 01 1 1012- ● ●
2 01.531 BOLT; EYE,OIL PIPE
(B) M8X20 EYE-BOLT 		5-09675-018-1 01 1 1012-1104 ● ●
2 01.531 BOLT; EYE,OIL PIPE
(B) M8X20 EYE-BOLT 		5-09675-018-1 01 1 1105-1111 ●
2 01.531 BOLT; EYE,OIL PIPE
EXC. VIETNAM EQUIPMENT(CL0) (B) M8X20 EYE-BOLT 		5-09675-018-1 01 1 1105-1111 ●
2 01.531 BOLT; EYE,OIL PIPE
(B) M8X20 EYE-BOLT 		5-09675-018-1 01 1 1112- ● ●
2 01.531 BOLT; EYE,OIL PIPE
(C) M10X27 FLANGE 		8-94443-535-0 01 1 1012- ● ●
2 01.531 BOLT; EYE,OIL PIPE
03.280 (D) M10X24 		9-09906-205-1 01 1 1012-1104 ● ● ●
2 01.531 BOLT; EYE,OIL PIPE
03.280 (D) M10X24 		9-09906-205-1 01 1 1105- ● ●
2 01.531 BOLT; EYE,OIL PIPE
EXC. VIETNAM EQUIPMENT(CL0) 03.280 (D) M10X24 		9-09906-205-1 01 1 1105- ●
2 01.531 BOLT; EYE,OIL PIPE
03.358 (E) M10X23 FLANGE 		8-94332-831-1 01 1 1012- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=10.2 OD=15.2 		1-09630-083-0 05 1 1012- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (D) ID=12.2 		9-09571-412-0 02 1 1012-1101 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=12.6 		8-97331-137-1 01 1 1102- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=10.2 OD=15.2 		1-09630-083-0 04 1 1012- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=10.2 OD=16.0 		9-09571-410-0 04 1 1012- ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=14.2 OD=20.0 		9-09571-414-0 02 1 1012- ●
26 01.519 PIPE; OIL,PUMP TO C/BL 8-97923-928-0 01 1 1012- ● ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 (C) ID=8.2 OD=13.2 		1-09630-082-0 01 1 1012- ● ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 (A) ID=8.2 		8-97251-046-0 02 1 1012- ● ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=20.0 		8-98113-762-0 01 1 1012- ● ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 (D) ID=11 		5-09623-002-0 02 1 1012- ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
VIETNAM EQUIPMENT(CL0) (B) M6X20 FLANGE 		8-97380-673-1 04 1 1105- ●
29 01.531 BOLT; OIL PIPE,OIL JET
03.407 (A) M8X10 FLANGE 		0-28050-810-0 01 1 1012- ● ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
(B) M6X20 		8-97117-298-1 04 1 1012-1104 ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
(B) M6X20 		8-97117-298-1 04 1 1105- ●
29 01.531 BOLT; OIL PIPE,OIL JET
EXC. VIETNAM EQUIPMENT(CL0) (B) M6X20 		8-97117-298-1 04 1 1105- ●
29 01.531 BOLT; OIL PIPE,OIL JET
(C) M6X25 W/LK&PL WASHER 		0-50640-625-0 04 1 1012- ●
40 01.531 BOLT; OIL PIPE
02.343 (C) M8X12 FLANGE 		0-28050-812-0 01 1 1012- ●
40 01.531 BOLT; OIL PIPE
03.162 (A) M6X12 FLANGE 		0-28050-612-0 01 1 1012- ● ●
40 01.531 BOLT; OIL PIPE
03.671 (B) M6X10 FLANGE 		0-28050-610-0 01 1 1012- ●
57 01.519 PIPE; OIL,OIL JET 8-97312-132-3 01 1 1012- ● ●
57 01.519 PIPE; OIL,OIL JET 8-94469-709-3 01 1 1012- ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO
VIETNAM EQUIPMENT(CL0) 		8-97379-464-0 01 1 1105- ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97239-048-1 01 1 1012-1104 ● ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97239-048-1 01 1 1105-1407 ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO
EXC. VIETNAM EQUIPMENT(CL0) 		8-97239-048-1 01 1 1105-1407 ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-98285-334-0 01 1 1408- ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO
EXC. VIETNAM EQUIPMENT(CL0) 		8-98285-334-0 01 1 1408- ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO
01.639 		8-97311-976-1 01 1 1012- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97372-936-2 01 1 1012- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97381-488-0 01 1 1012- ● ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97224-297-0 01 1 1012- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). VIETNAM EQUIPMENT(CL0) (A) 		8-98132-017-0 01 1 1105- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=16 		8-98029-475-0 01 1 1012-1104 ● ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-98029-475-0 01 1 1105- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIETNAM EQUIPMENT(CL0) (A) ID=16 		8-98029-475-0 01 1 1105- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). 03.358 (B) 		8-94362-672-1 01 1 1012- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (C) ID=10.2 OD=16.0 		9-09571-410-0 02 1 1012- ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-97381-489-2 01 1 1012- ● ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-97192-313-0 01 1 1012- ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
03.162 M14X27 FLANGE 		1-09675-086-0 01 1 1012- ●
252 01.855 HOSE; RUBBER,TURBOCHARGER RETURN 8-97176-141-0 01 1 1012- ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER 8-97225-604-1 01 1 1012- ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER 8-94450-627-1 01 1 1012- ●
307 01.531 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97264-168-0 01 1 1012- ● ●
308 01.540 HOSE; OIL COOLER FEED 8-94174-464-1 01 1 1012- ● ●
309 01.540 HOSE; OIL COOLER RETURN 8-97224-318-1 01 1 1012- ●
309 01.540 HOSE; OIL COOLER RETURN 8-97022-314-1 01 1 1012- ●
310 01.540 CLIP; WATER HOSE FIX
01.166 ID=20.8 		8-94125-862-1 04 1 1012- ● ●
311 01.531 BOLT; PIPE FIX
03.162 M6X12 FLANGE 		0-28050-612-0 02 1 1012- ●
311 01.531 BOLT; PIPE FIX
00.662 M8X14 FLANGE 		0-28080-814-0 01 1 1012- ● ●
312 01.531 NUT; PIPE FIX
01.062 M8 FLANGE 		0-91180-108-0 02 1 1310- ●
312 01.531 NUT; PIPE FIX
04.634 M8 FLANGE 		8-97581-233-0 01 1 1012- ● ●
325 01.519 CLIP; RUBBER HOSE,OIL RETURN
01.166 ID=20.8 		8-94125-862-1 02 1 1012- ●
330 03.278 HOSE; VAC PUMP,RETURN 8-98204-694-0 01 1 1112- ●
330 03.278 HOSE; VAC PUMP,RETURN 8-97073-920-2 01 1 1012-1111 ● ●
330 03.278 HOSE; VAC PUMP,RETURN 8-97073-920-2 01 1 1112- ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN 8-97108-102-0 02 1 1012- ● ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
(C) 		8-98201-785-0 01 1 1301- ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
EXC. VIETNAM EQUIPMENT(CL0) (C) 		8-98201-785-0 01 1 1301- ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
(A) 		8-98038-929-0 01 1 1012-1212 ● ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
VIETNAM EQUIPMENT(CL0) (A) 		8-98038-929-0 01 1 1301- ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP
(B) 		8-94443-644-1 01 1 1012- ● ●
335 01.531 STOPPER; OIL PIPE 8-97203-568-0 01 1 1012- ● ●
338 01.531 BOLT; JOINT,OIL PIPE
VIETNAM EQUIPMENT(CL0) (B) M8X20 EYE-BOLT 		8-97910-296-1 02 1 1105- ●
338 01.531 BOLT; JOINT,OIL PIPE
(A) M8X20 EYE-BOLT 		5-09675-018-1 02 1 1012-1104 ● ●
338 01.531 BOLT; JOINT,OIL PIPE
(A) M8X20 EYE-BOLT 		5-09675-018-1 02 1 1105- ●
338 01.531 BOLT; JOINT,OIL PIPE
EXC. VIETNAM EQUIPMENT(CL0) (A) M8X20 EYE-BOLT 		5-09675-018-1 02 1 1105- ●
338 01.531 BOLT; JOINT,OIL PIPE
(A) M8X20 EYE-BOLT 		5-09675-018-1 01 1 1012- ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-98065-992-0 01 1 1301-1302 ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIETNAM EQUIPMENT(CL0) 03.332 (C) ID=8.3 OD=15.0 		8-98065-992-0 01 1 1301-1302 ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-98065-992-0 02 1 1303- ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIETNAM EQUIPMENT(CL0) 03.332 (C) ID=8.3 OD=15.0 		8-98065-992-0 02 1 1303- ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 04 1 1012-1212 ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). VIETNAM EQUIPMENT(CL0) 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 04 1 1301- ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 1012-1212 ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		9-09571-408-0 02 1 1301-1302 ● ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIETNAM EQUIPMENT(CL0) 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 1301-1302 ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 1303- ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 1012- ● ●
414 01.531 BOLT; OIL PIPE
03.342 (A) M6X18 HEX SOCKET 		0-58330-618-0 02 1 1012-1107 ● ●
414 01.531 BOLT; OIL PIPE
00.724 (A) M6X16 HEX SOCKET 		0-58330-616-0 02 1 1108- ● ●
414 01.531 BOLT; OIL PIPE
01.758 (B) M8X20 HEX SOCKET 		0-58330-820-0 02 1 1012- ● ●
414 01.531 BOLT; OIL PIPE
09.242 (C) M6X16 FLANGE 		0-28050-616-0 02 1 1012- ●
473 01.540 INSULATOR; HOSE 8-97101-331-0 02 1 1012- ●
474 01.540 CLIP; INSULATOR 8-97101-337-0 04 1 1012- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
