◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 10808 - FRR-G/FSR/FTR TAIWAN ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-84 - BACK TRIM ▶
6-84 — BACK TRIM (#7905) — 13 parça

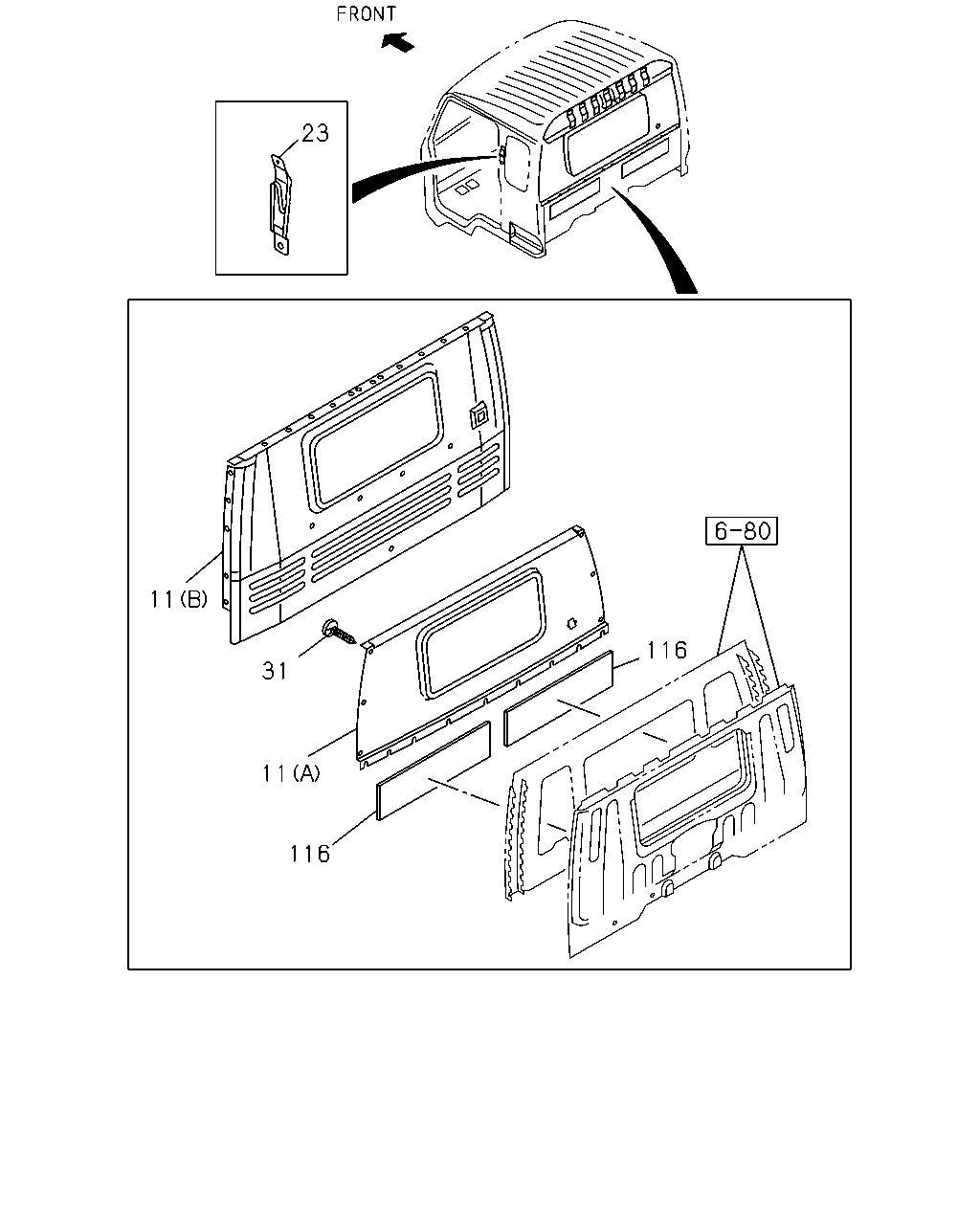

çizim 99473
23 11 116 31 11 116
BalonParca AdiParca NoAdetTipApplied Date A B C
11 TRIM; ROOM,BACK INNER
(A) 		1-73348-968-1 01 1 9905-0301 ●
11 TRIM; ROOM,BACK INNER
LOW ROOF<6XQ> (A) 		1-73348-968-1 01 1 9905-0301 ●
11 TRIM; ROOM,BACK INNER
(A) 		1-73348-968-1 01 1 0302- ● ●
11 TRIM; ROOM,BACK INNER
LOW ROOF<6XQ> (A) 		1-73348-968-1 01 1 0302- ●
11 TRIM; ROOM,BACK INNER
HIGH ROOF<S2F> (B) 		1-73348-942-3 01 1 9905- ●
23 FINISHER; BACK INNER PANEL 1-73347-789-1 01 1 9905-0301 ● ●
23 FINISHER; BACK INNER PANEL 1-73347-789-1 01 1 0302- ● ● ●
23 FINISHER; BACK INNER PANEL 1-73347-788-1 01 1 9905-0301 ● ●
23 FINISHER; BACK INNER PANEL 1-73347-788-1 01 1 0302- ● ● ●
31 CLIP; TRIM PAD
D6X23 LIGHT GRAY 		1-73318-629-0 27 1 9905-0301 ● ●
31 CLIP; TRIM PAD
D6X23 LIGHT GRAY 		1-73318-629-0 27 1 0302- ● ● ●
116 INSULATOR; BACK PANEL 1-73368-002-2 02 1 9905-0301 ● ●
116 INSULATOR; BACK PANEL 1-73368-002-2 02 1 0302- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
