Sayfa 0-36 - Isuzu EPC

0-36 — TURBOCHARGER SYSTEM (#79047) — 371 parça

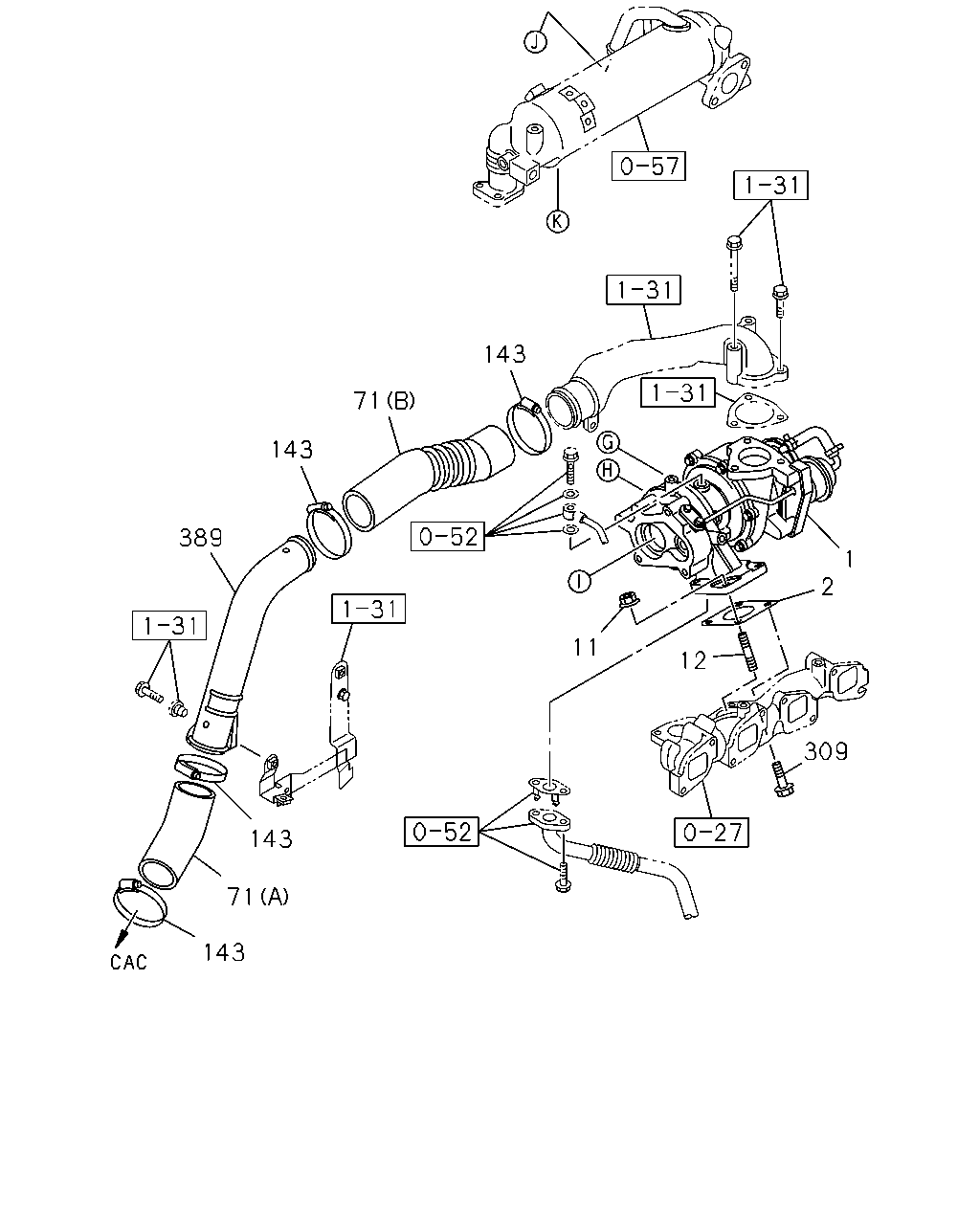

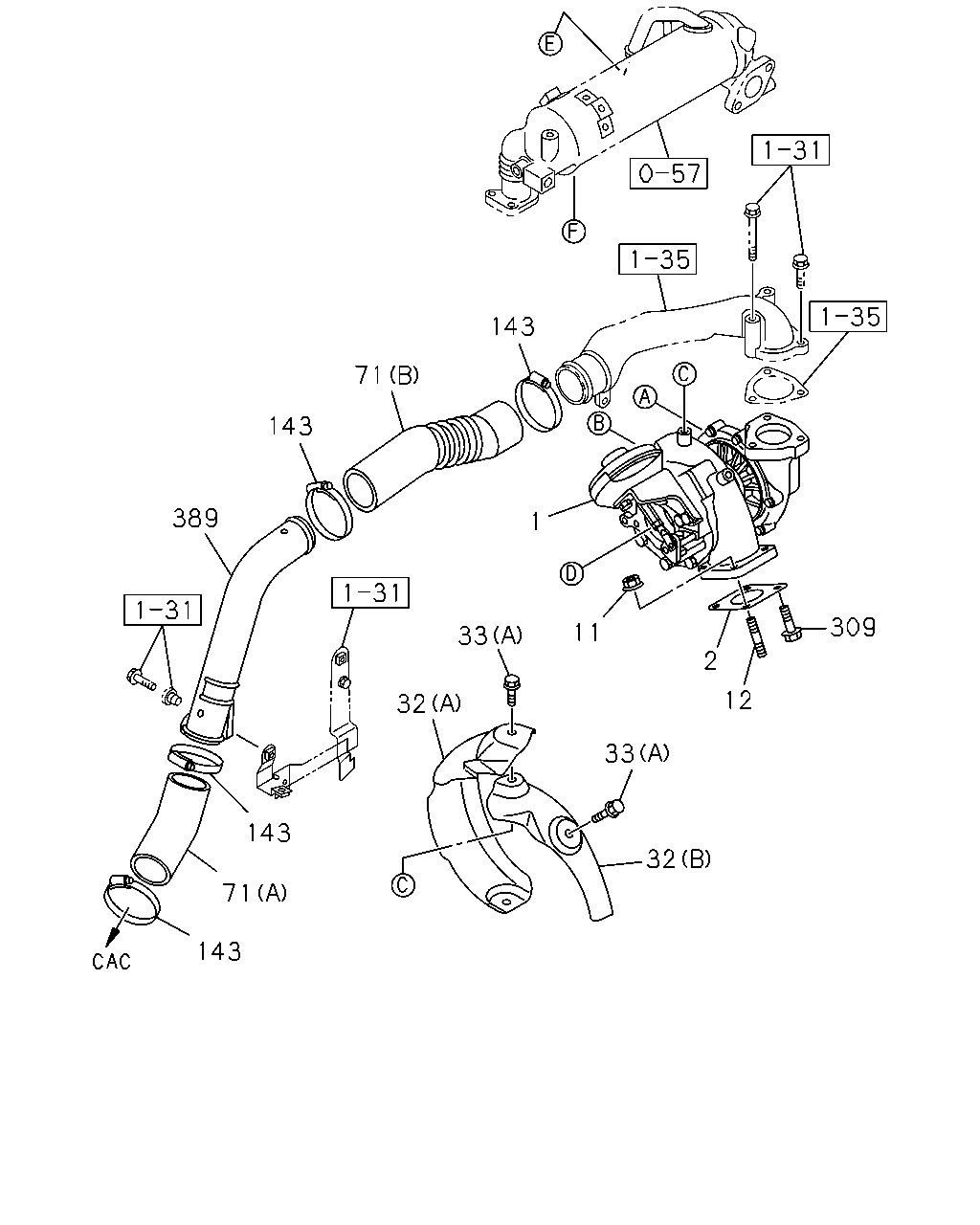

143 71 143 389 1 309 11 33 2 12 32 33 143 32 71 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97326-752-1	01	1	1012-	●
1	03.342 TURBOCHARGER ASM	8-97381-507-5	01	1	1012-		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97331-185-1	01	1	1012-			●
1	03.342 TURBOCHARGER ASM COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION(NT2) SEE FIG-NO 0-37 FOR COMPONENT.	8-98054-011-1	01	1	1012-1111				●
1	03.342 TURBOCHARGER ASM COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07) SEE FIG-NO 0-37 FOR COMPONENT.	8-98054-011-1	01	1	1112-				●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) EXC. COLOMBIA EQUIPMENT(CB7) SEE FIG-NO 0-37 FOR COMPONENT.	8-98097-686-1	01	1	1012-1409				●
1	03.342 TURBOCHARGER ASM VIETNAM EQUIPMENT(CL0) SEE FIG-NO 0-37 FOR COMPONENT.	8-98097-686-1	01	1	1410-				●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) EXC. COLOMBIA EQUIPMENT(CB7),VIETNAM EQUIPMENT(CL0) SEE FIG-NO 0-37 FOR COMPONENT.	8-98097-686-1	01	1	1410-				●
1	03.342 TURBOCHARGER ASM EURO3 SPECIFICATION(NT3) SEE FIG-NO 0-37 FOR COMPONENT.	8-98015-115-2	01	1	1012-1111				●
1	03.342 TURBOCHARGER ASM EURO3 SPECIFICATION(NT3) EXC. PERU EQUIPMENT(E07) SEE FIG-NO 0-37 FOR COMPONENT.	8-98015-115-2	01	1	1112-				●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD) VIETNAM EQUIPMENT(CL0)	8-97912-697-0	01	1	1105-				●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-94433-605-0	01	1	1012-1104		●		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-94433-605-0	01	1	1105-		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. VIETNAM EQUIPMENT(CL0)	8-94433-605-0	01	1	1105-				●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97315-266-0	01	1	1012-			●
11	03.342 NUT; TURBOCHARGER VIETNAM EQUIPMENT(CL0) M8 FLANGE	8-97379-384-0	02	1	1105-				●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	1012-1104		●		●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	1105-		●
11	03.342 NUT; TURBOCHARGER EXC. VIETNAM EQUIPMENT(CL0) 03.613 M8 FLANGE	8-97161-607-0	02	1	1105-				●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	1012-			●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	1012-		●		●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	1012-			●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-98034-990-3	01	1	1012-		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (B)	8-98034-991-1	01	1	1012-		●
33	03.342 BOLT; HEAT PROTECTOR 03.604 (D) M6X12 FLANGE	8-97108-669-0	04	1	1012-	●
33	03.342 BOLT; HEAT PROTECTOR 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	1012-		●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	1012-		●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (C) M8X12 FLANGE	0-28050-812-0	06	1	1012-				●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (A)	8-98036-513-2	01	1	1012-		●		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B)	8-98159-280-1	01	1	1012-		●		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO4 SPECIFICATION(NT4) (B)	8-98050-918-1	01	1	1012-		●		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (C)	8-97217-911-3	01	1	1012-			●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (D)	8-98069-636-0	01	1	1012-			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> ID=45-65	8-98133-348-0	04	1	1012-		●		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> ID=60-65	8-98096-418-0	04	1	1012-		●		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> 03.417 ID=40-50	8-98133-347-0	04	1	1012-			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 ID=44-60	8-94175-940-0	04	1	1012-			●
309	03.342 BOLT; TURBOCHARGER VIETNAM EQUIPMENT(CL0) 03.417 M8X28 FLANGE	8-98041-363-0	02	1	1105-				●
309	03.342 BOLT; TURBOCHARGER 03.417 M8X28 FLANGE	8-98043-528-0	02	1	1012-1104		●		●
309	03.342 BOLT; TURBOCHARGER 03.417 M8X28 FLANGE	8-98043-528-0	02	1	1105-		●
309	03.342 BOLT; TURBOCHARGER EXC. VIETNAM EQUIPMENT(CL0) 03.417 M8X28 FLANGE	8-98043-528-0	02	1	1105-				●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98038-996-1	01	1	1012-		●		●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC 03.417	8-97216-223-0	01	1	1012-			●

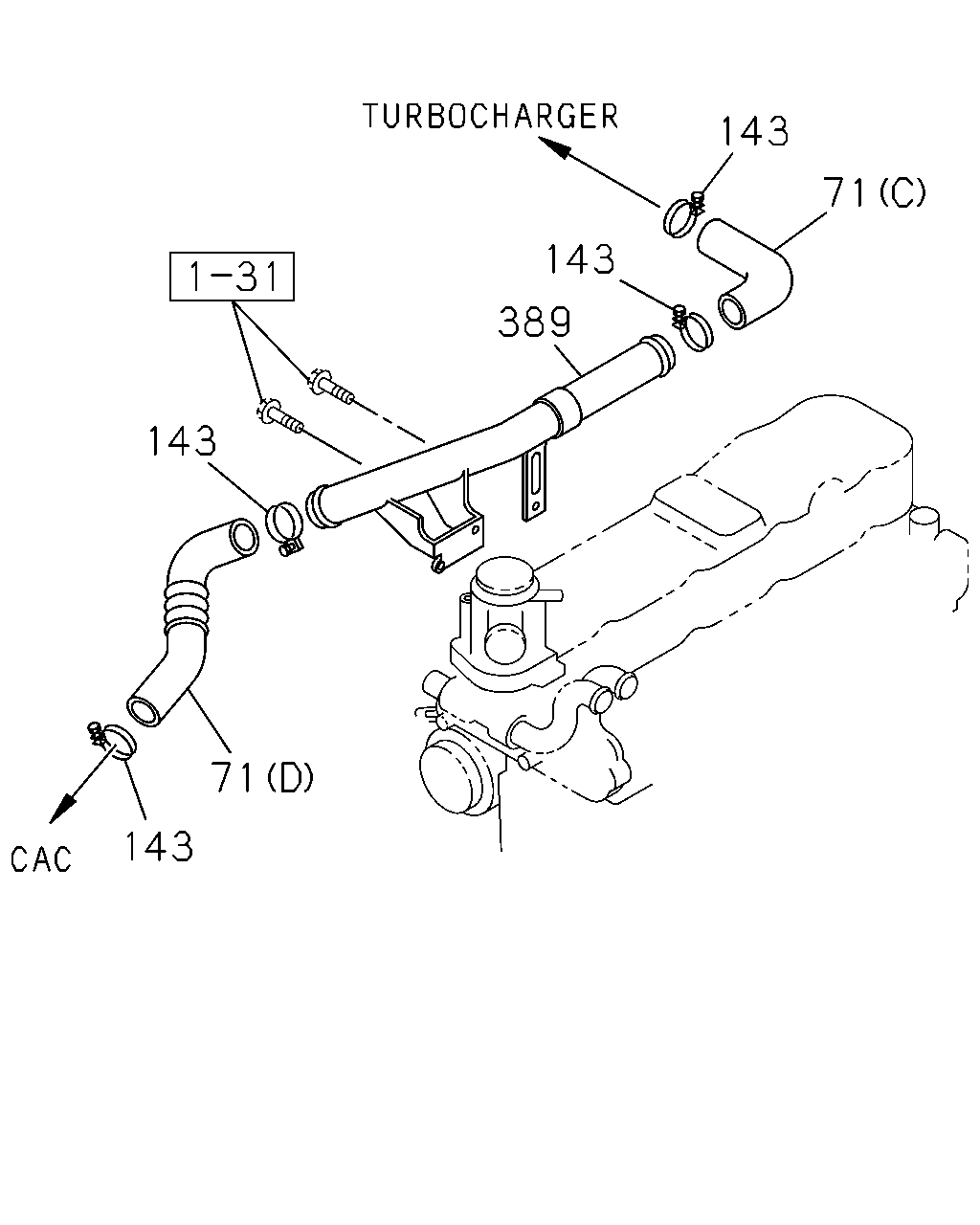

143 71 143 389 143 71 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	D
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (A)	8-98036-513-2	01	1	1012-	●		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B)	8-98159-280-1	01	1	1012-	●		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO4 SPECIFICATION(NT4) (B)	8-98050-918-1	01	1	1012-	●		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (C)	8-97217-911-3	01	1	1012-		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (D)	8-98069-636-0	01	1	1012-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> ID=45-65	8-98133-348-0	04	1	1012-	●		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> ID=60-65	8-98096-418-0	04	1	1012-	●		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> 03.417 ID=40-50	8-98133-347-0	04	1	1012-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 ID=44-60	8-94175-940-0	04	1	1012-		●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98038-996-1	01	1	1012-	●		●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC 03.417	8-97216-223-0	01	1	1012-		●

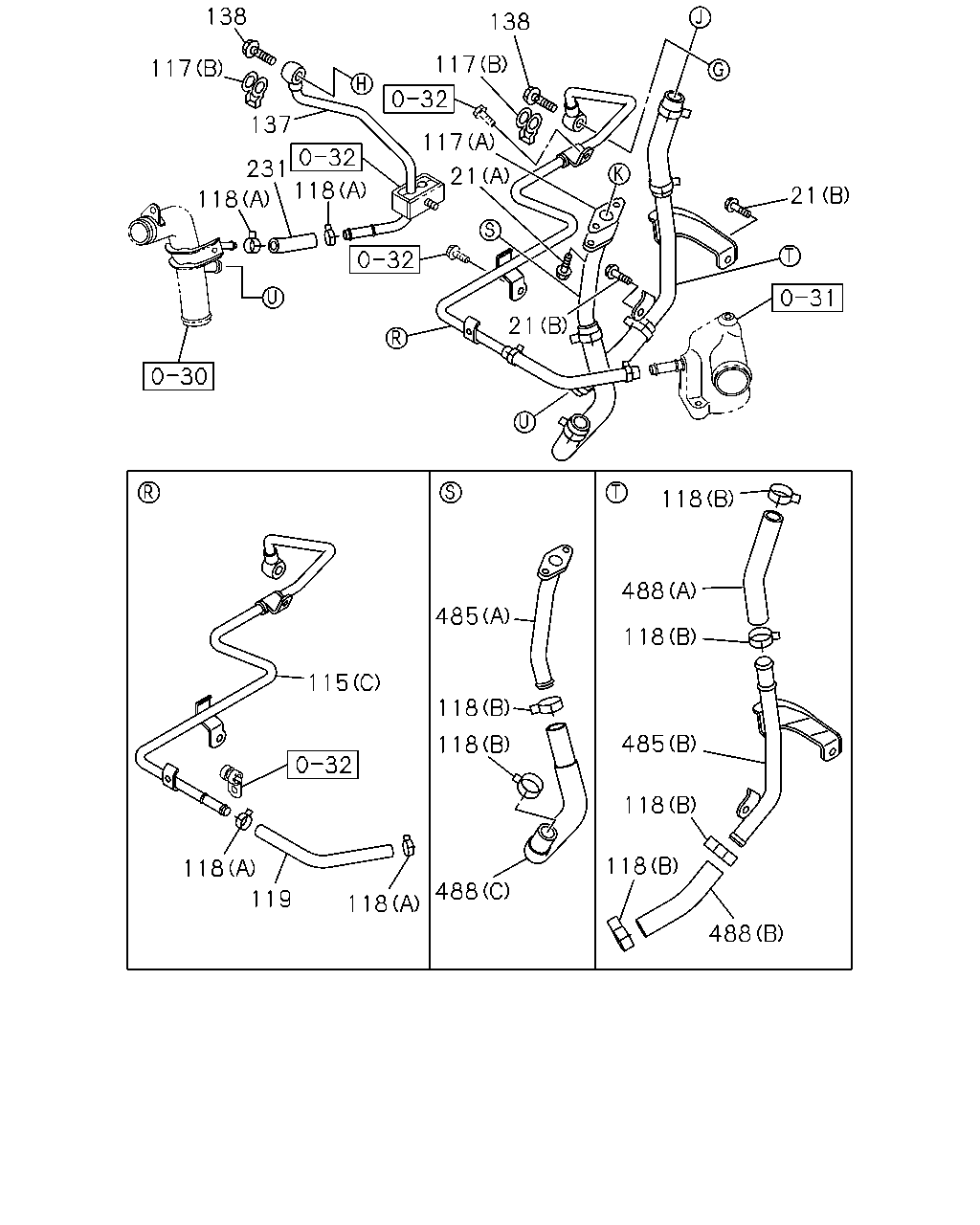

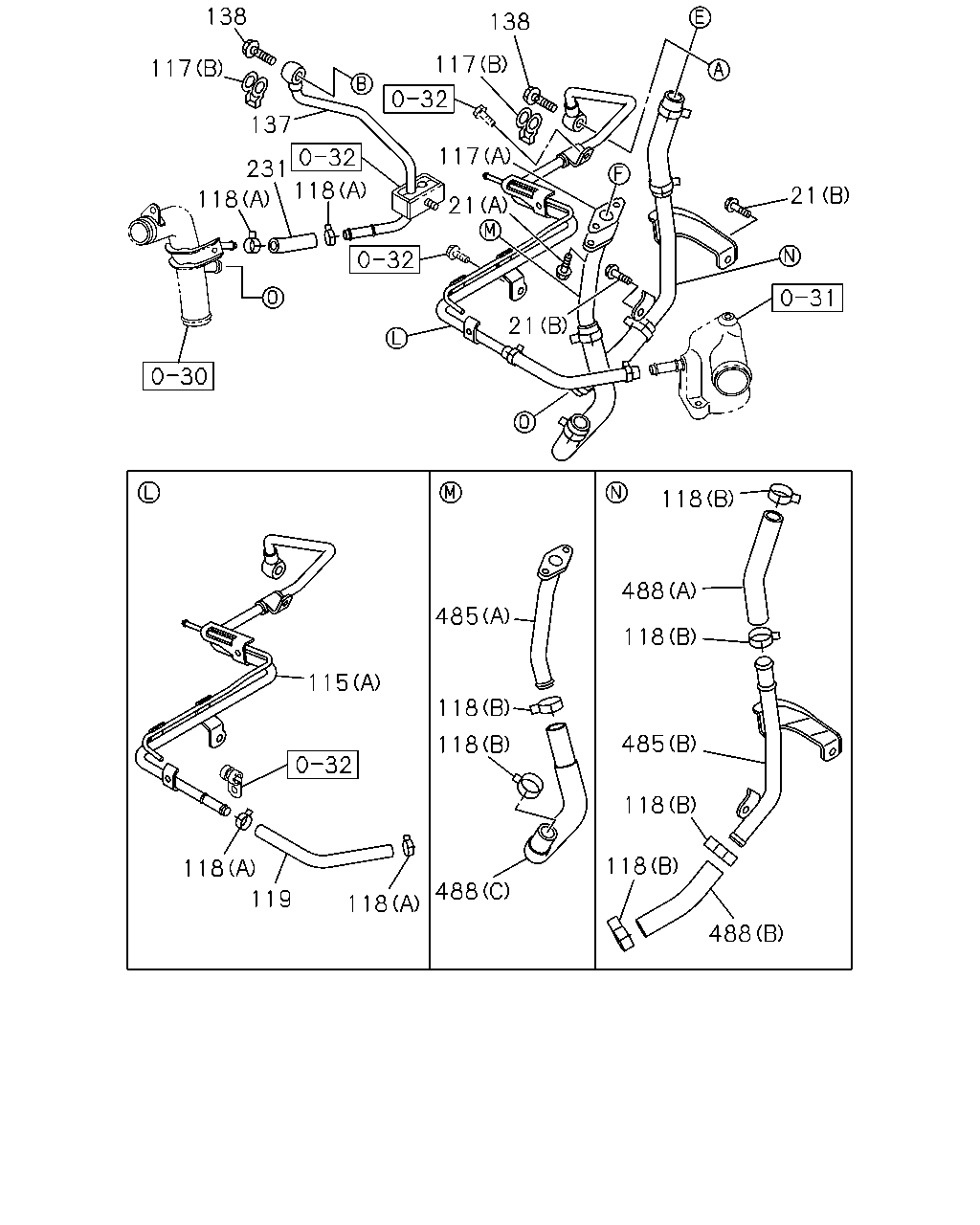

138 138 117 117 137 117 231 21 118 21 118 21 118 488 485 118 115 118 485 118 118 118 118 488 119 118 488

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1012-		●
21	03.358 BOLT; PIPE EURO3 SPECIFICATION(NT3) 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1012-				●
21	03.358 BOLT; PIPE 03.162 (A) M6X20 FLANGE	0-28650-620-0	02	1	1012-		●
21	03.358 BOLT; PIPE EURO3 SPECIFICATION(NT3) 03.162 (A) M6X20 FLANGE	0-28650-620-0	02	1	1012-				●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (D)	8-97210-077-2	01	1	1012-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (A)	8-98113-333-0	01	1	1012-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION(NT2) (B)	8-98113-710-0	01	1	1012-				●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO3 SPECIFICATION(NT3) (C)	8-98113-709-0	01	1	1012-				●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 (C) ID=14.2 OD=19.2	1-09630-085-0	04	1	1012-1312	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (C) ID=14.2 OD=20.0	9-09571-414-0	02	1	1012-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (B) ID=12.6	8-97331-137-1	02	1	1012-		●		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97262-117-0	01	1	1012-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) 01.531 (A)	8-97262-117-0	01	1	1012-				●
118	03.342 CLIP; WATER HOSE VIETNAM EQUIPMENT(CL0) (A) ID=12.8	8-97944-125-0	04	1	1201-				●
118	03.342 CLIP; WATER HOSE 03.162 (C) ID=15.5	8-94221-519-0	02	1	1012-	●
118	03.342 CLIP; WATER HOSE 01.153 (A) ID=12.8	8-94367-943-0	04	1	1012-1112		●		●
118	03.342 CLIP; WATER HOSE 01.153 (A) ID=12.8	8-94367-943-0	04	1	1201-		●
118	03.342 CLIP; WATER HOSE EXC. VIETNAM EQUIPMENT(CL0) 01.153 (A) ID=12.8	8-94367-943-0	04	1	1201-				●
118	03.342 CLIP; WATER HOSE 03.278 (B) ID=22	8-97359-141-0	06	1	1012-		●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) 03.278 (B) ID=22	8-97359-141-0	06	1	1012-				●
119	03.342 HOSE; WATER,TURBOCHARGER	8-98113-336-0	01	1	1012-		●		●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97229-036-0	01	1	1012-	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97381-650-0	01	1	1012-		●		●
138	03.342 BOLT; EYE,WATER PIPE 01.531 M12X24 EYE-BOLT	1-09675-081-0	02	1	1012-		●		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	1012-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98030-402-0	01	1	1012-		●		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97212-155-0	01	1	1012-			●
485	01.097 PIPE; WATER EGR (A)	8-97381-651-0	01	1	1012-		●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (A)	8-97381-651-0	01	1	1012-				●
485	01.097 PIPE; WATER EGR (B)	8-97381-652-0	01	1	1012-		●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (B)	8-97381-652-0	01	1	1012-				●
488	03.163 HOSE; RUBBER 01.540 (A) L=110 SERVICED BY L=3000	0-03566-300-0	01	1	1012-		●
488	03.163 HOSE; RUBBER EURO3 SPECIFICATION(NT3) 01.540 (A) L=110 SERVICED BY L=3000	0-03566-300-0	01	1	1012-				●
488	03.163 HOSE; RUBBER (B) L=120 SERVICED BY L=3000	0-03666-300-0	01	1	1012-		●
488	03.163 HOSE; RUBBER EURO3 SPECIFICATION(NT3) (B) L=120 SERVICED BY L=3000	0-03666-300-0	01	1	1012-				●
488	03.163 HOSE; RUBBER (C)	8-98015-118-0	01	1	1012-		●
488	03.163 HOSE; RUBBER EURO3 SPECIFICATION(NT3) (C)	8-98015-118-0	01	1	1012-				●
488	03.163 HOSE; RUBBER EURO2 SPECIFICATION(NT2) (D)	8-98066-091-0	01	1	1012-				●

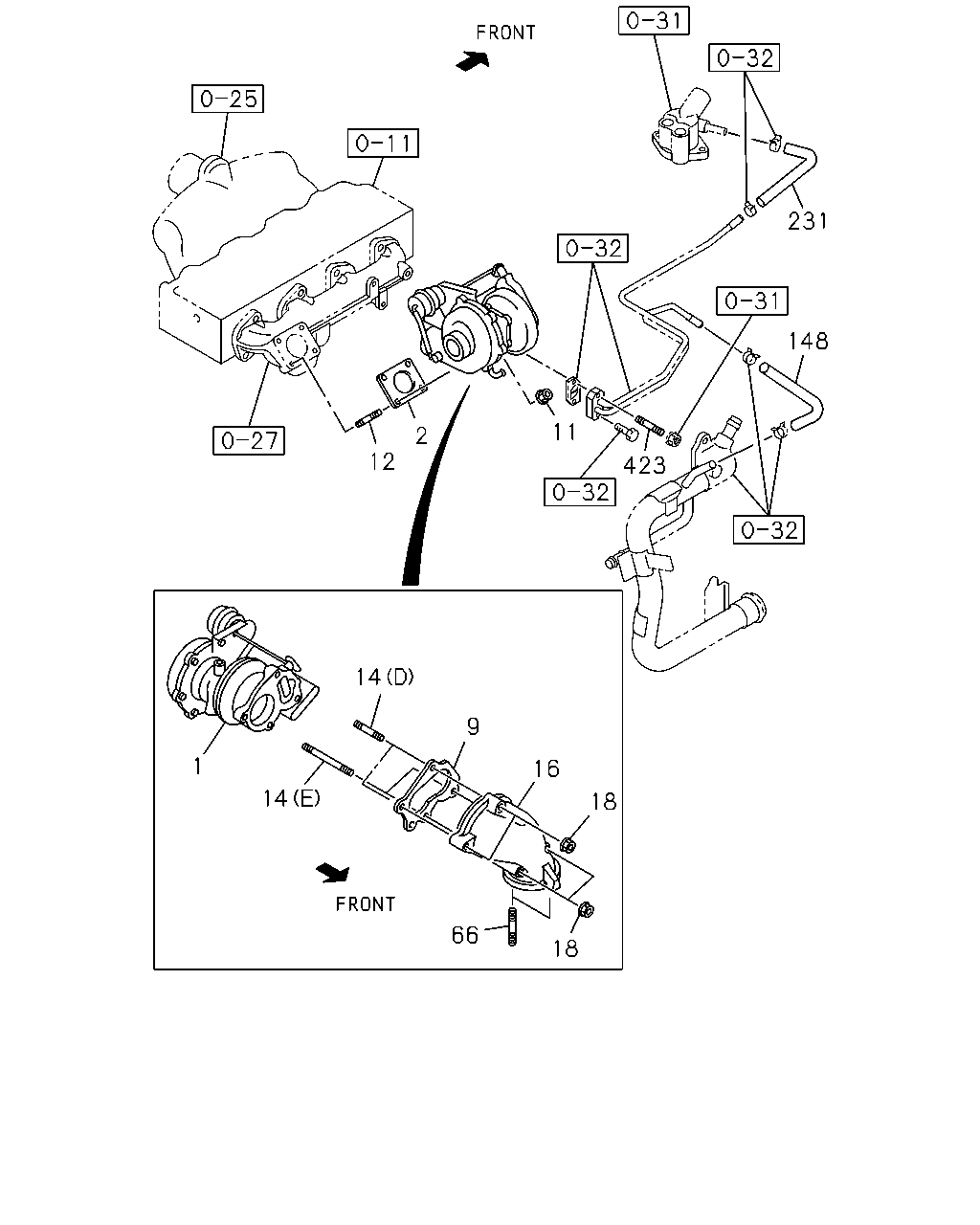

231 148 11 2 423 12 14 9 1 16 14 18 66 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97326-752-1	01	1	1012-	●
1	03.342 TURBOCHARGER ASM	8-97381-507-5	01	1	1012-		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97331-185-1	01	1	1012-			●
1	03.342 TURBOCHARGER ASM COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION(NT2) SEE FIG-NO 0-37 FOR COMPONENT.	8-98054-011-1	01	1	1012-1111				●
1	03.342 TURBOCHARGER ASM COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07) SEE FIG-NO 0-37 FOR COMPONENT.	8-98054-011-1	01	1	1112-				●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) EXC. COLOMBIA EQUIPMENT(CB7) SEE FIG-NO 0-37 FOR COMPONENT.	8-98097-686-1	01	1	1012-1409				●
1	03.342 TURBOCHARGER ASM VIETNAM EQUIPMENT(CL0) SEE FIG-NO 0-37 FOR COMPONENT.	8-98097-686-1	01	1	1410-				●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) EXC. COLOMBIA EQUIPMENT(CB7),VIETNAM EQUIPMENT(CL0) SEE FIG-NO 0-37 FOR COMPONENT.	8-98097-686-1	01	1	1410-				●
1	03.342 TURBOCHARGER ASM EURO3 SPECIFICATION(NT3) SEE FIG-NO 0-37 FOR COMPONENT.	8-98015-115-2	01	1	1012-1111				●
1	03.342 TURBOCHARGER ASM EURO3 SPECIFICATION(NT3) EXC. PERU EQUIPMENT(E07) SEE FIG-NO 0-37 FOR COMPONENT.	8-98015-115-2	01	1	1112-				●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD) VIETNAM EQUIPMENT(CL0)	8-97912-697-0	01	1	1105-				●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-94433-605-0	01	1	1012-1104		●		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-94433-605-0	01	1	1105-		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. VIETNAM EQUIPMENT(CL0)	8-94433-605-0	01	1	1105-				●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97315-266-0	01	1	1012-			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98015-116-1	02	1	1012-1104				●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. VIETNAM EQUIPMENT(CL0)	8-98015-116-1	02	1	1105-				●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) VIETNAM EQUIPMENT(CL0)	8-98015-116-3	01	1	1105-				●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97039-777-1	01	1	1012-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 03.611	8-98011-532-0	01	1	1012-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97139-726-0	01	1	1012-			●
11	03.342 NUT; TURBOCHARGER VIETNAM EQUIPMENT(CL0) M8 FLANGE	8-97379-384-0	02	1	1105-				●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	1012-1104		●		●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	1105-		●
11	03.342 NUT; TURBOCHARGER EXC. VIETNAM EQUIPMENT(CL0) 03.613 M8 FLANGE	8-97161-607-0	02	1	1105-				●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	1012-			●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	1012-		●		●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	1012-			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (C) M8X94 L=108	8-97019-477-0	02	1	1012-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	1012-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1012-		●		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (D) M8X43 L=54	8-97378-067-0	02	1	1012-			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (E) M8X126 L=137	8-97378-069-0	02	1	1012-			●
16	03.609 ADAPTER; EXH PIPE	8-97178-487-3	01	1	1012-	●
16	03.609 ADAPTER; EXH PIPE	8-98147-897-1	01	1	1012-		●
16	03.609 ADAPTER; EXH PIPE	8-97192-332-0	01	1	1012-			●
16	03.609 ADAPTER; EXH PIPE	8-98012-735-4	01	1	1012-				●
18	03.613 NUT; EXH PIPE VIETNAM EQUIPMENT(CL0) 03.342 M8 FLANGE	8-97379-384-0	02	1	1105-				●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	02	1	1012-1104		●		●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	02	1	1105-		●
18	03.613 NUT; EXH PIPE EXC. VIETNAM EQUIPMENT(CL0) M8 FLANGE	8-97161-607-0	02	1	1105-				●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	1012-			●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	1012-	●
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	1012-		●		●
66	03.342 STUD; EXH PIPE 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	1012-			●
148	03.417 HOSE; TURBOCHARGER,INL 01.097 L=180 SERVICED BY L=3000	0-03559-300-0	01	1	1012-			●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	1012-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98030-402-0	01	1	1012-		●		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97212-155-0	01	1	1012-			●
423	03.373 STUD; WATER PIPE 01.652 M6X20 L=28	0-41010-620-0	01	1	1012-			●
423	03.373 STUD; WATER PIPE EURO2 SPECIFICATION(NT2) 00.206 M6X16 L=25	0-41010-616-0	01	1	1012-				●

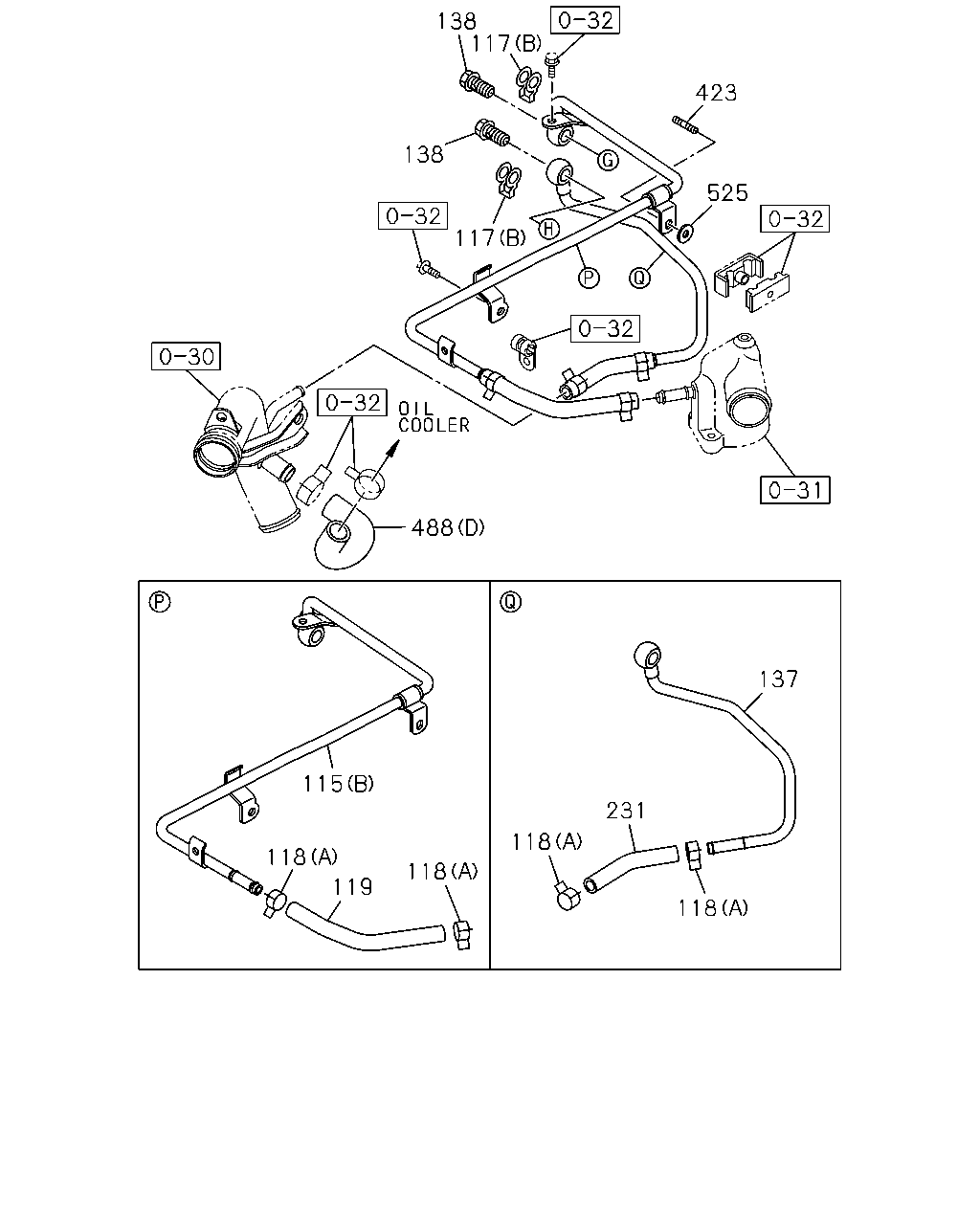

138 138 117 117 137 117 231 118 21 118 21 21 118 488 485 118 115 118 485 118 118 118 118 488 119 118 488

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1012-		●
21	03.358 BOLT; PIPE EURO3 SPECIFICATION(NT3) 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	1012-				●
21	03.358 BOLT; PIPE 03.162 (A) M6X20 FLANGE	0-28650-620-0	02	1	1012-		●
21	03.358 BOLT; PIPE EURO3 SPECIFICATION(NT3) 03.162 (A) M6X20 FLANGE	0-28650-620-0	02	1	1012-				●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (D)	8-97210-077-2	01	1	1012-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (A)	8-98113-333-0	01	1	1012-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION(NT2) (B)	8-98113-710-0	01	1	1012-				●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO3 SPECIFICATION(NT3) (C)	8-98113-709-0	01	1	1012-				●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 (C) ID=14.2 OD=19.2	1-09630-085-0	04	1	1012-1312	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (C) ID=14.2 OD=20.0	9-09571-414-0	02	1	1012-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (B) ID=12.6	8-97331-137-1	02	1	1012-		●		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97262-117-0	01	1	1012-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) 01.531 (A)	8-97262-117-0	01	1	1012-				●
118	03.342 CLIP; WATER HOSE VIETNAM EQUIPMENT(CL0) (A) ID=12.8	8-97944-125-0	04	1	1201-				●
118	03.342 CLIP; WATER HOSE 03.162 (C) ID=15.5	8-94221-519-0	02	1	1012-	●
118	03.342 CLIP; WATER HOSE 01.153 (A) ID=12.8	8-94367-943-0	04	1	1012-1112		●		●
118	03.342 CLIP; WATER HOSE 01.153 (A) ID=12.8	8-94367-943-0	04	1	1201-		●
118	03.342 CLIP; WATER HOSE EXC. VIETNAM EQUIPMENT(CL0) 01.153 (A) ID=12.8	8-94367-943-0	04	1	1201-				●
118	03.342 CLIP; WATER HOSE 03.278 (B) ID=22	8-97359-141-0	06	1	1012-		●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) 03.278 (B) ID=22	8-97359-141-0	06	1	1012-				●
119	03.342 HOSE; WATER,TURBOCHARGER	8-98113-336-0	01	1	1012-		●		●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97229-036-0	01	1	1012-	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97381-650-0	01	1	1012-		●		●
138	03.342 BOLT; EYE,WATER PIPE 01.531 M12X24 EYE-BOLT	1-09675-081-0	02	1	1012-		●		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	1012-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98030-402-0	01	1	1012-		●		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97212-155-0	01	1	1012-			●
485	01.097 PIPE; WATER EGR (A)	8-97381-651-0	01	1	1012-		●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (A)	8-97381-651-0	01	1	1012-				●
485	01.097 PIPE; WATER EGR (B)	8-97381-652-0	01	1	1012-		●
485	01.097 PIPE; WATER EGR EURO3 SPECIFICATION(NT3) (B)	8-97381-652-0	01	1	1012-				●
488	03.163 HOSE; RUBBER 01.540 (A) L=110 SERVICED BY L=3000	0-03566-300-0	01	1	1012-		●
488	03.163 HOSE; RUBBER EURO3 SPECIFICATION(NT3) 01.540 (A) L=110 SERVICED BY L=3000	0-03566-300-0	01	1	1012-				●
488	03.163 HOSE; RUBBER (B) L=120 SERVICED BY L=3000	0-03666-300-0	01	1	1012-		●
488	03.163 HOSE; RUBBER EURO3 SPECIFICATION(NT3) (B) L=120 SERVICED BY L=3000	0-03666-300-0	01	1	1012-				●
488	03.163 HOSE; RUBBER (C)	8-98015-118-0	01	1	1012-		●
488	03.163 HOSE; RUBBER EURO3 SPECIFICATION(NT3) (C)	8-98015-118-0	01	1	1012-				●
488	03.163 HOSE; RUBBER EURO2 SPECIFICATION(NT2) (D)	8-98066-091-0	01	1	1012-				●

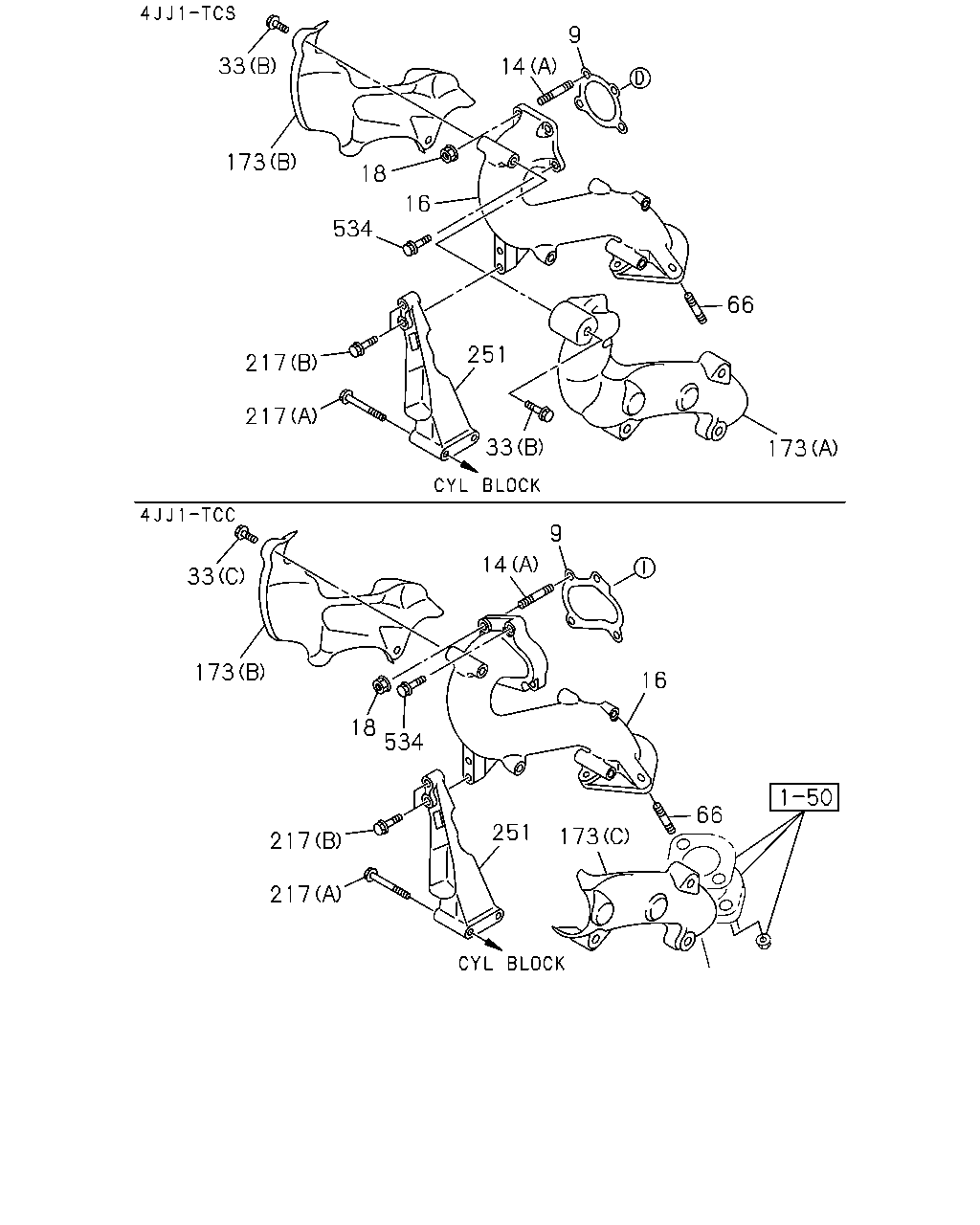

9 33 14 173 18 16 534 66 251 217 217 33 173 9 14 33 173 16 18 534 66 251 173 217 217

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98015-116-1	02	1	1012-1104				●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. VIETNAM EQUIPMENT(CL0)	8-98015-116-1	02	1	1105-				●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) VIETNAM EQUIPMENT(CL0)	8-98015-116-3	01	1	1105-				●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97039-777-1	01	1	1012-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 03.611	8-98011-532-0	01	1	1012-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97139-726-0	01	1	1012-			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (C) M8X94 L=108	8-97019-477-0	02	1	1012-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	1012-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1012-		●		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (D) M8X43 L=54	8-97378-067-0	02	1	1012-			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (E) M8X126 L=137	8-97378-069-0	02	1	1012-			●
16	03.609 ADAPTER; EXH PIPE	8-97178-487-3	01	1	1012-	●
16	03.609 ADAPTER; EXH PIPE	8-98147-897-1	01	1	1012-		●
16	03.609 ADAPTER; EXH PIPE	8-97192-332-0	01	1	1012-			●
16	03.609 ADAPTER; EXH PIPE	8-98012-735-4	01	1	1012-				●
18	03.613 NUT; EXH PIPE VIETNAM EQUIPMENT(CL0) 03.342 M8 FLANGE	8-97379-384-0	02	1	1105-				●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	02	1	1012-1104		●		●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	02	1	1105-		●
18	03.613 NUT; EXH PIPE EXC. VIETNAM EQUIPMENT(CL0) M8 FLANGE	8-97161-607-0	02	1	1105-				●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	1012-			●
33	03.342 BOLT; HEAT PROTECTOR 03.604 (D) M6X12 FLANGE	8-97108-669-0	04	1	1012-	●
33	03.342 BOLT; HEAT PROTECTOR 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	1012-		●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	1012-		●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (C) M8X12 FLANGE	0-28050-812-0	06	1	1012-				●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	1012-	●
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	1012-		●		●
66	03.342 STUD; EXH PIPE 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	1012-			●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (D)	8-97178-497-2	01	1	1012-	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (A)	8-98032-022-3	01	1	1012-		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (B)	8-98032-024-3	01	1	1012-		●		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (C)	8-98032-023-1	01	1	1012-				●
217	03.417 BOLT; BRKT 03.706 (A) M10X70 FLANGE	0-28051-070-0	02	1	1012-		●		●
217	03.417 BOLT; BRKT 03.604 (B) M10X30 FLANGE	8-98032-158-0	02	1	1012-		●		●
251	03.417 BRACKET; ADAPTER	8-98009-098-1	01	1	1012-		●		●
534	03.342 BOLT; TURBOCHARGER TO EXH PIPE 03.417 M8X23 FLANGE	8-97378-077-0	02	1	1012-		●
534	03.342 BOLT; TURBOCHARGER TO EXH PIPE M8X35 FLANGE	8-98053-224-0	02	1	1012-				●

138 117 423 138 525 117 488 137 115 231 118 118 118 119 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
115	03.342 PIPE; WATER,TURBOCHARGER OUT (D)	8-97210-077-2	01	1	1012-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (A)	8-98113-333-0	01	1	1012-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION(NT2) (B)	8-98113-710-0	01	1	1012-				●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO3 SPECIFICATION(NT3) (C)	8-98113-709-0	01	1	1012-				●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 (C) ID=14.2 OD=19.2	1-09630-085-0	04	1	1012-1312	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (C) ID=14.2 OD=20.0	9-09571-414-0	02	1	1012-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (B) ID=12.6	8-97331-137-1	02	1	1012-		●		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97262-117-0	01	1	1012-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) 01.531 (A)	8-97262-117-0	01	1	1012-				●
118	03.342 CLIP; WATER HOSE VIETNAM EQUIPMENT(CL0) (A) ID=12.8	8-97944-125-0	04	1	1201-				●
118	03.342 CLIP; WATER HOSE 03.162 (C) ID=15.5	8-94221-519-0	02	1	1012-	●
118	03.342 CLIP; WATER HOSE 01.153 (A) ID=12.8	8-94367-943-0	04	1	1012-1112		●		●
118	03.342 CLIP; WATER HOSE 01.153 (A) ID=12.8	8-94367-943-0	04	1	1201-		●
118	03.342 CLIP; WATER HOSE EXC. VIETNAM EQUIPMENT(CL0) 01.153 (A) ID=12.8	8-94367-943-0	04	1	1201-				●
118	03.342 CLIP; WATER HOSE 03.278 (B) ID=22	8-97359-141-0	06	1	1012-		●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) 03.278 (B) ID=22	8-97359-141-0	06	1	1012-				●
119	03.342 HOSE; WATER,TURBOCHARGER	8-98113-336-0	01	1	1012-		●		●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97229-036-0	01	1	1012-	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97381-650-0	01	1	1012-		●		●
138	03.342 BOLT; EYE,WATER PIPE 01.531 M12X24 EYE-BOLT	1-09675-081-0	02	1	1012-		●		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	1012-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98030-402-0	01	1	1012-		●		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97212-155-0	01	1	1012-			●
423	03.373 STUD; WATER PIPE 01.652 M6X20 L=28	0-41010-620-0	01	1	1012-			●
423	03.373 STUD; WATER PIPE EURO2 SPECIFICATION(NT2) 00.206 M6X16 L=25	0-41010-616-0	01	1	1012-				●
488	03.163 HOSE; RUBBER 01.540 (A) L=110 SERVICED BY L=3000	0-03566-300-0	01	1	1012-		●
488	03.163 HOSE; RUBBER EURO3 SPECIFICATION(NT3) 01.540 (A) L=110 SERVICED BY L=3000	0-03566-300-0	01	1	1012-				●
488	03.163 HOSE; RUBBER (B) L=120 SERVICED BY L=3000	0-03666-300-0	01	1	1012-		●
488	03.163 HOSE; RUBBER EURO3 SPECIFICATION(NT3) (B) L=120 SERVICED BY L=3000	0-03666-300-0	01	1	1012-				●
488	03.163 HOSE; RUBBER (C)	8-98015-118-0	01	1	1012-		●
488	03.163 HOSE; RUBBER EURO3 SPECIFICATION(NT3) (C)	8-98015-118-0	01	1	1012-				●
488	03.163 HOSE; RUBBER EURO2 SPECIFICATION(NT2) (D)	8-98066-091-0	01	1	1012-				●
525	03.373 PLATE; WATER,TURBO VIETNAM EQUIPMENT(CL0) ID=6.4 OD=18	0-91614-706-0	01	1	1105-				●
525	03.373 PLATE; WATER,TURBO EURO2 SPECIFICATION(NT2) 02.334 ID=6.4 OD=18	9-09164-706-0	01	1	1012-1104				●
525	03.373 PLATE; WATER,TURBO EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT(CL0) 02.334 ID=6.4 OD=18	9-09164-706-0	01	1	1105-				●

143 71 143 389 1 2 11 12 309 143 71 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97326-752-1	01	1	1012-	●
1	03.342 TURBOCHARGER ASM	8-97381-507-5	01	1	1012-		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97331-185-1	01	1	1012-			●
1	03.342 TURBOCHARGER ASM COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION(NT2) SEE FIG-NO 0-37 FOR COMPONENT.	8-98054-011-1	01	1	1012-1111				●
1	03.342 TURBOCHARGER ASM COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07) SEE FIG-NO 0-37 FOR COMPONENT.	8-98054-011-1	01	1	1112-				●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) EXC. COLOMBIA EQUIPMENT(CB7) SEE FIG-NO 0-37 FOR COMPONENT.	8-98097-686-1	01	1	1012-1409				●
1	03.342 TURBOCHARGER ASM VIETNAM EQUIPMENT(CL0) SEE FIG-NO 0-37 FOR COMPONENT.	8-98097-686-1	01	1	1410-				●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) EXC. COLOMBIA EQUIPMENT(CB7),VIETNAM EQUIPMENT(CL0) SEE FIG-NO 0-37 FOR COMPONENT.	8-98097-686-1	01	1	1410-				●
1	03.342 TURBOCHARGER ASM EURO3 SPECIFICATION(NT3) SEE FIG-NO 0-37 FOR COMPONENT.	8-98015-115-2	01	1	1012-1111				●
1	03.342 TURBOCHARGER ASM EURO3 SPECIFICATION(NT3) EXC. PERU EQUIPMENT(E07) SEE FIG-NO 0-37 FOR COMPONENT.	8-98015-115-2	01	1	1112-				●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD) VIETNAM EQUIPMENT(CL0)	8-97912-697-0	01	1	1105-				●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-94433-605-0	01	1	1012-1104		●		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-94433-605-0	01	1	1105-		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. VIETNAM EQUIPMENT(CL0)	8-94433-605-0	01	1	1105-				●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97315-266-0	01	1	1012-			●
11	03.342 NUT; TURBOCHARGER VIETNAM EQUIPMENT(CL0) M8 FLANGE	8-97379-384-0	02	1	1105-				●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	1012-1104		●		●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	1105-		●
11	03.342 NUT; TURBOCHARGER EXC. VIETNAM EQUIPMENT(CL0) 03.613 M8 FLANGE	8-97161-607-0	02	1	1105-				●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	1012-			●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	1012-		●		●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	1012-			●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (A)	8-98036-513-2	01	1	1012-		●		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B)	8-98159-280-1	01	1	1012-		●		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER EURO4 SPECIFICATION(NT4) (B)	8-98050-918-1	01	1	1012-		●		●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (C)	8-97217-911-3	01	1	1012-			●
71	03.417 HOSE; INLET PIPE TO TURBOCHARGER (D)	8-98069-636-0	01	1	1012-			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> ID=45-65	8-98133-348-0	04	1	1012-		●		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> ID=60-65	8-98096-418-0	04	1	1012-		●		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> 03.417 ID=40-50	8-98133-347-0	04	1	1012-			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 ID=44-60	8-94175-940-0	04	1	1012-			●
309	03.342 BOLT; TURBOCHARGER VIETNAM EQUIPMENT(CL0) 03.417 M8X28 FLANGE	8-98041-363-0	02	1	1105-				●
309	03.342 BOLT; TURBOCHARGER 03.417 M8X28 FLANGE	8-98043-528-0	02	1	1012-1104		●		●
309	03.342 BOLT; TURBOCHARGER 03.417 M8X28 FLANGE	8-98043-528-0	02	1	1105-		●
309	03.342 BOLT; TURBOCHARGER EXC. VIETNAM EQUIPMENT(CL0) 03.417 M8X28 FLANGE	8-98043-528-0	02	1	1105-				●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98038-996-1	01	1	1012-		●		●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC 03.417	8-97216-223-0	01	1	1012-			●

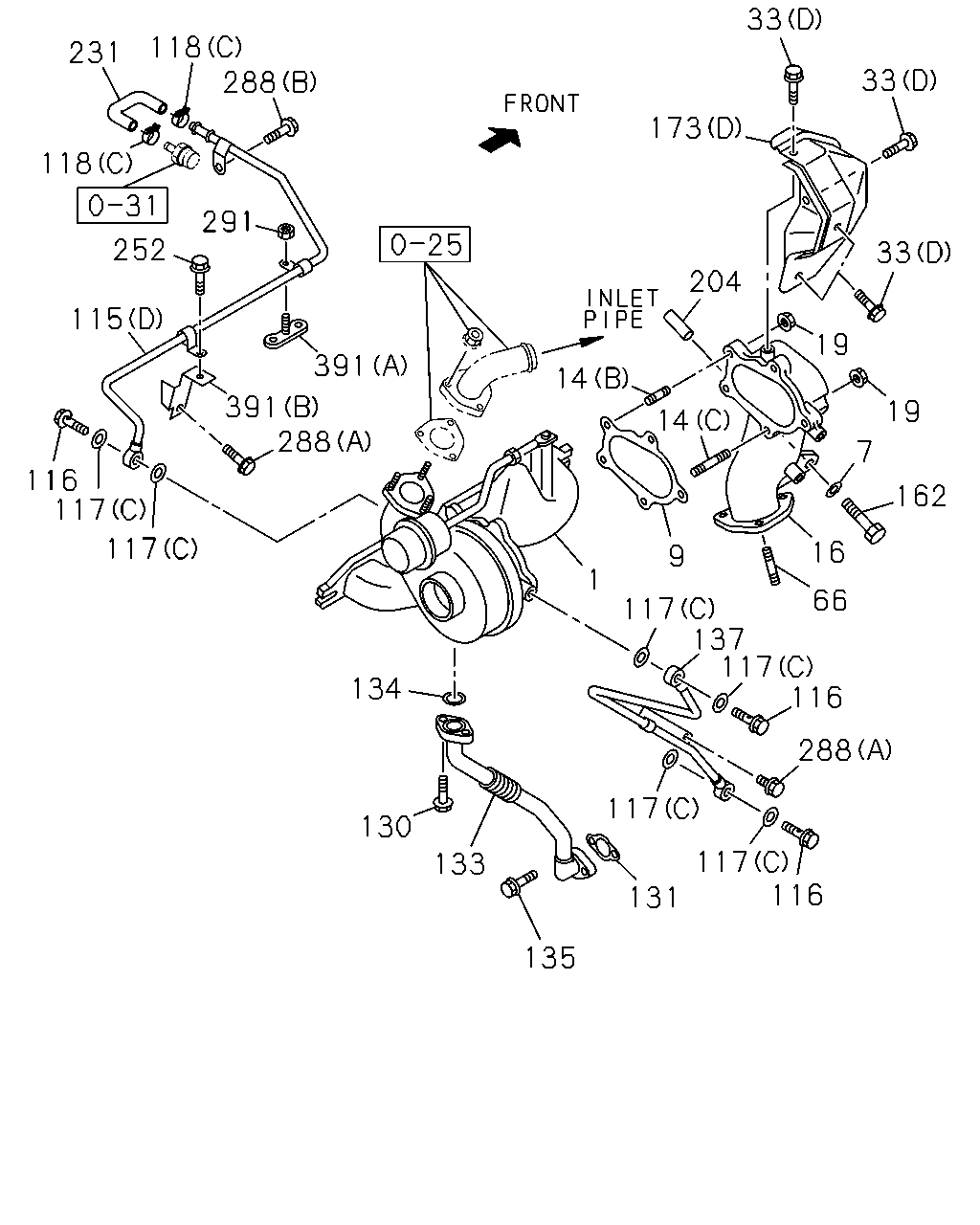

33 118 288 231 33 173 18 291 252 33 204 115 19 391 14 391 288 19 14 7 116 117 162 117 16 9 1 66 117 137 117 116 134 288 117 130 117 116 133 131 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97326-752-1	01	1	1012-	●
1	03.342 TURBOCHARGER ASM	8-97381-507-5	01	1	1012-		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97331-185-1	01	1	1012-			●
1	03.342 TURBOCHARGER ASM COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION(NT2) SEE FIG-NO 0-37 FOR COMPONENT.	8-98054-011-1	01	1	1012-1111				●
1	03.342 TURBOCHARGER ASM COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07) SEE FIG-NO 0-37 FOR COMPONENT.	8-98054-011-1	01	1	1112-				●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) EXC. COLOMBIA EQUIPMENT(CB7) SEE FIG-NO 0-37 FOR COMPONENT.	8-98097-686-1	01	1	1012-1409				●
1	03.342 TURBOCHARGER ASM VIETNAM EQUIPMENT(CL0) SEE FIG-NO 0-37 FOR COMPONENT.	8-98097-686-1	01	1	1410-				●
1	03.342 TURBOCHARGER ASM EURO2 SPECIFICATION(NT2) EXC. COLOMBIA EQUIPMENT(CB7),VIETNAM EQUIPMENT(CL0) SEE FIG-NO 0-37 FOR COMPONENT.	8-98097-686-1	01	1	1410-				●
1	03.342 TURBOCHARGER ASM EURO3 SPECIFICATION(NT3) SEE FIG-NO 0-37 FOR COMPONENT.	8-98015-115-2	01	1	1012-1111				●
1	03.342 TURBOCHARGER ASM EURO3 SPECIFICATION(NT3) EXC. PERU EQUIPMENT(E07) SEE FIG-NO 0-37 FOR COMPONENT.	8-98015-115-2	01	1	1112-				●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	1012-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98015-116-1	02	1	1012-1104				●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. VIETNAM EQUIPMENT(CL0)	8-98015-116-1	02	1	1105-				●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) VIETNAM EQUIPMENT(CL0)	8-98015-116-3	01	1	1105-				●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97039-777-1	01	1	1012-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD) 03.611	8-98011-532-0	01	1	1012-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97139-726-0	01	1	1012-			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (C) M8X94 L=108	8-97019-477-0	02	1	1012-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	1012-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 (A) M8X25 L=36	8-97378-062-0	02	1	1012-		●		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (D) M8X43 L=54	8-97378-067-0	02	1	1012-			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (E) M8X126 L=137	8-97378-069-0	02	1	1012-			●
16	03.609 ADAPTER; EXH PIPE	8-97178-487-3	01	1	1012-	●
16	03.609 ADAPTER; EXH PIPE	8-98147-897-1	01	1	1012-		●
16	03.609 ADAPTER; EXH PIPE	8-97192-332-0	01	1	1012-			●
16	03.609 ADAPTER; EXH PIPE	8-98012-735-4	01	1	1012-				●
18	03.613 NUT; EXH PIPE VIETNAM EQUIPMENT(CL0) 03.342 M8 FLANGE	8-97379-384-0	02	1	1105-				●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	02	1	1012-1104		●		●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	02	1	1105-		●
18	03.613 NUT; EXH PIPE EXC. VIETNAM EQUIPMENT(CL0) M8 FLANGE	8-97161-607-0	02	1	1105-				●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	1012-			●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	1012-	●
33	03.342 BOLT; HEAT PROTECTOR 03.604 (D) M6X12 FLANGE	8-97108-669-0	04	1	1012-	●
33	03.342 BOLT; HEAT PROTECTOR 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	1012-		●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	1012-		●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (C) M8X12 FLANGE	0-28050-812-0	06	1	1012-				●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	1012-	●
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	1012-		●		●
66	03.342 STUD; EXH PIPE 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	1012-			●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (D)	8-97210-077-2	01	1	1012-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (A)	8-98113-333-0	01	1	1012-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION(NT2) (B)	8-98113-710-0	01	1	1012-				●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EURO3 SPECIFICATION(NT3) (C)	8-98113-709-0	01	1	1012-				●
116	03.342 BOLT; WATER PIPE M14X30 EYE-BOLT	8-94455-144-0	03	1	1012-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 (C) ID=14.2 OD=19.2	1-09630-085-0	04	1	1012-1312	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (C) ID=14.2 OD=20.0	9-09571-414-0	02	1	1012-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (B) ID=12.6	8-97331-137-1	02	1	1012-		●		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97262-117-0	01	1	1012-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) 01.531 (A)	8-97262-117-0	01	1	1012-				●
118	03.342 CLIP; WATER HOSE VIETNAM EQUIPMENT(CL0) (A) ID=12.8	8-97944-125-0	04	1	1201-				●
118	03.342 CLIP; WATER HOSE 03.162 (C) ID=15.5	8-94221-519-0	02	1	1012-	●
118	03.342 CLIP; WATER HOSE 01.153 (A) ID=12.8	8-94367-943-0	04	1	1012-1112		●		●
118	03.342 CLIP; WATER HOSE 01.153 (A) ID=12.8	8-94367-943-0	04	1	1201-		●
118	03.342 CLIP; WATER HOSE EXC. VIETNAM EQUIPMENT(CL0) 01.153 (A) ID=12.8	8-94367-943-0	04	1	1201-				●
118	03.342 CLIP; WATER HOSE 03.278 (B) ID=22	8-97359-141-0	06	1	1012-		●
118	03.342 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) 03.278 (B) ID=22	8-97359-141-0	06	1	1012-				●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D M6X20 W/LK WASHER	0-50540-620-0	02	1	1012-	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	1012-	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-98172-659-0	01	1	1012-	●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	1012-	●
135	01.531 BOLT; OIL PIPE TO C/BL 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1012-	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97229-036-0	01	1	1012-	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97381-650-0	01	1	1012-		●		●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	1012-	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (D)	8-97178-497-2	01	1	1012-	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (A)	8-98032-022-3	01	1	1012-		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (B)	8-98032-024-3	01	1	1012-		●		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (C)	8-98032-023-1	01	1	1012-				●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	1012-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	1012-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98030-402-0	01	1	1012-		●		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97212-155-0	01	1	1012-			●
252	03.417 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1012-	●
288	03.342 BOLT; WATER PIPE CLIP 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1012-	●
288	03.342 BOLT; WATER PIPE CLIP 00.029 (B) M10X16 FLANGE	0-28151-016-0	01	1	1012-	●
291	03.374 NUT; PIPE TO BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●
391	03.342 BRACKET; WATER PIPE (A)	8-97210-078-0	01	1	1012-	●
391	03.342 BRACKET; WATER PIPE (B)	8-97221-061-0	01	1	1012-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
