◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51282 - NLR/NMR 55,85(LHD) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-32 - WATER PIPING; ENGINE ▶
0-32 — WATER PIPING; ENGINE (#79044) — 63 parça

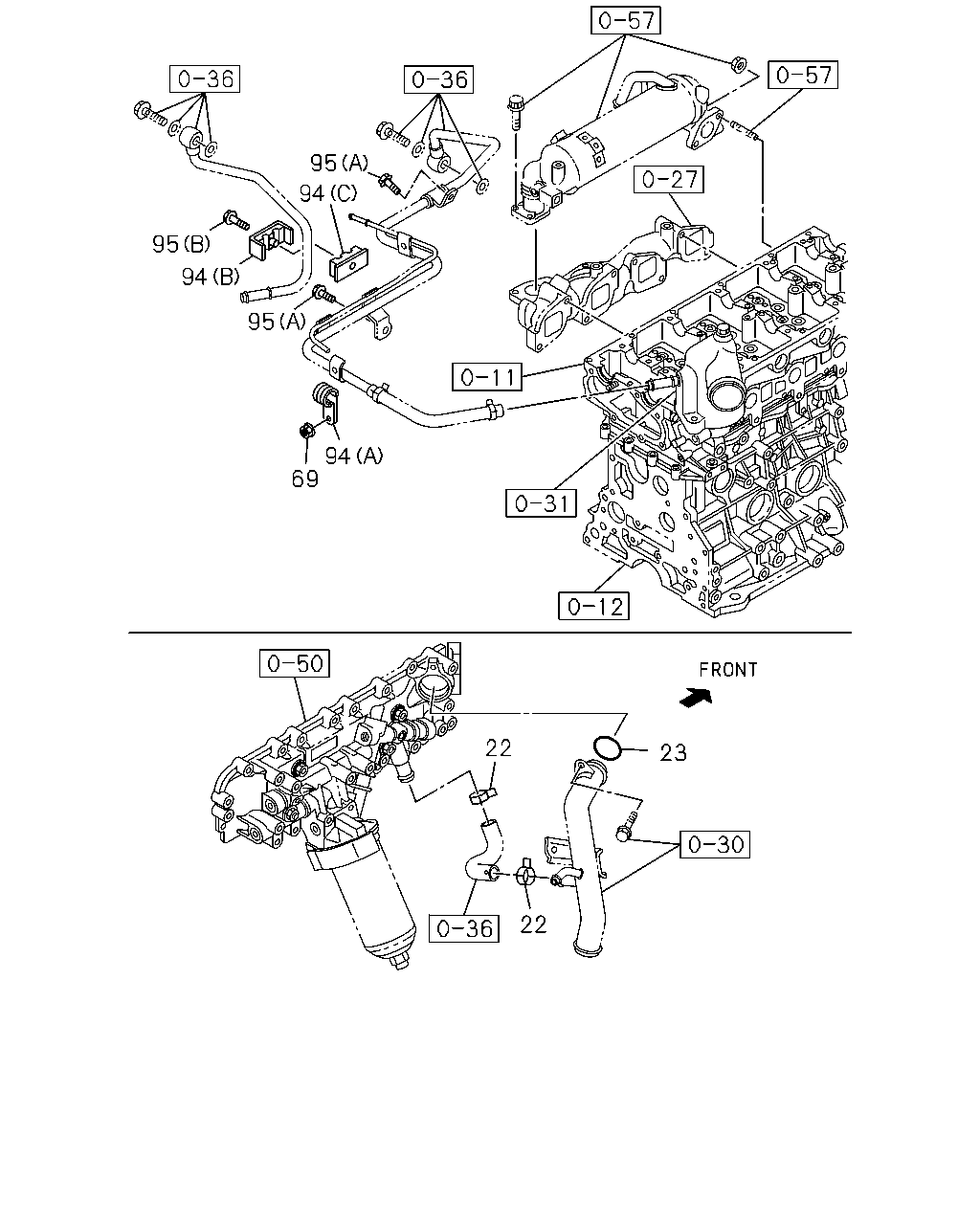

çizim 44474
95 94 95 94 95 94 69 22 23 22
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
22 01.153 CLIP; WATER HOSE
EURO2 SPECIFICATION(NT2) 03.278 ID=22 		8-97359-141-0 02 1 1012- ●
23 01.079 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE). 		0-95690-338-0 01 1 1012- ● ●
23 01.079 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94365-676-3 01 1 1012- ● ●
69 01.153 NUT; WATER PIPE
VIETNAM EQUIPMENT(CL0) 01.540 M6 FLANGE 		0-91180-206-0 02 1 1105- ●
69 01.153 NUT; WATER PIPE
01.540 M6 FLANGE 		0-91180-206-0 01 1 1012-1104 ● ●
69 01.153 NUT; WATER PIPE
EURO2 SPECIFICATION(NT2) 01.540 M6 FLANGE 		0-91180-206-0 01 1 1012-1104 ●
69 01.153 NUT; WATER PIPE
01.540 M6 FLANGE 		0-91180-206-0 01 1 1105- ●
69 01.153 NUT; WATER PIPE
EXC. VIETNAM EQUIPMENT(CL0) 01.540 M6 FLANGE 		0-91180-206-0 01 1 1105- ●
69 01.153 NUT; WATER PIPE
EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT(CL0) 01.540 M6 FLANGE 		0-91180-206-0 01 1 1105- ●
69 01.153 NUT; WATER PIPE
01.062 M6 FLANGE 		0-91180-106-0 01 1 1012- ●
94 01.153 CLIP; WATER PIPE
04.047 (A) ID=12 L=20 		1-09700-911-1 01 1 1012- ● ●
94 01.153 CLIP; WATER PIPE
01.531 (B) ID=7 & 9 L=25 		1-09701-228-3 01 1 1012- ● ●
94 01.153 CLIP; WATER PIPE
01.531 (C) ID=7 & 9 L=25 		1-09701-229-2 01 1 1012- ● ●
95 01.240 BOLT; CLIP
03.162 (A) M6X12 FLANGE 		0-28050-612-0 02 1 1012- ● ●
95 01.240 BOLT; CLIP
03.162 (B) M6X35 FLANGE 		0-28650-635-0 01 1 1012- ● ●

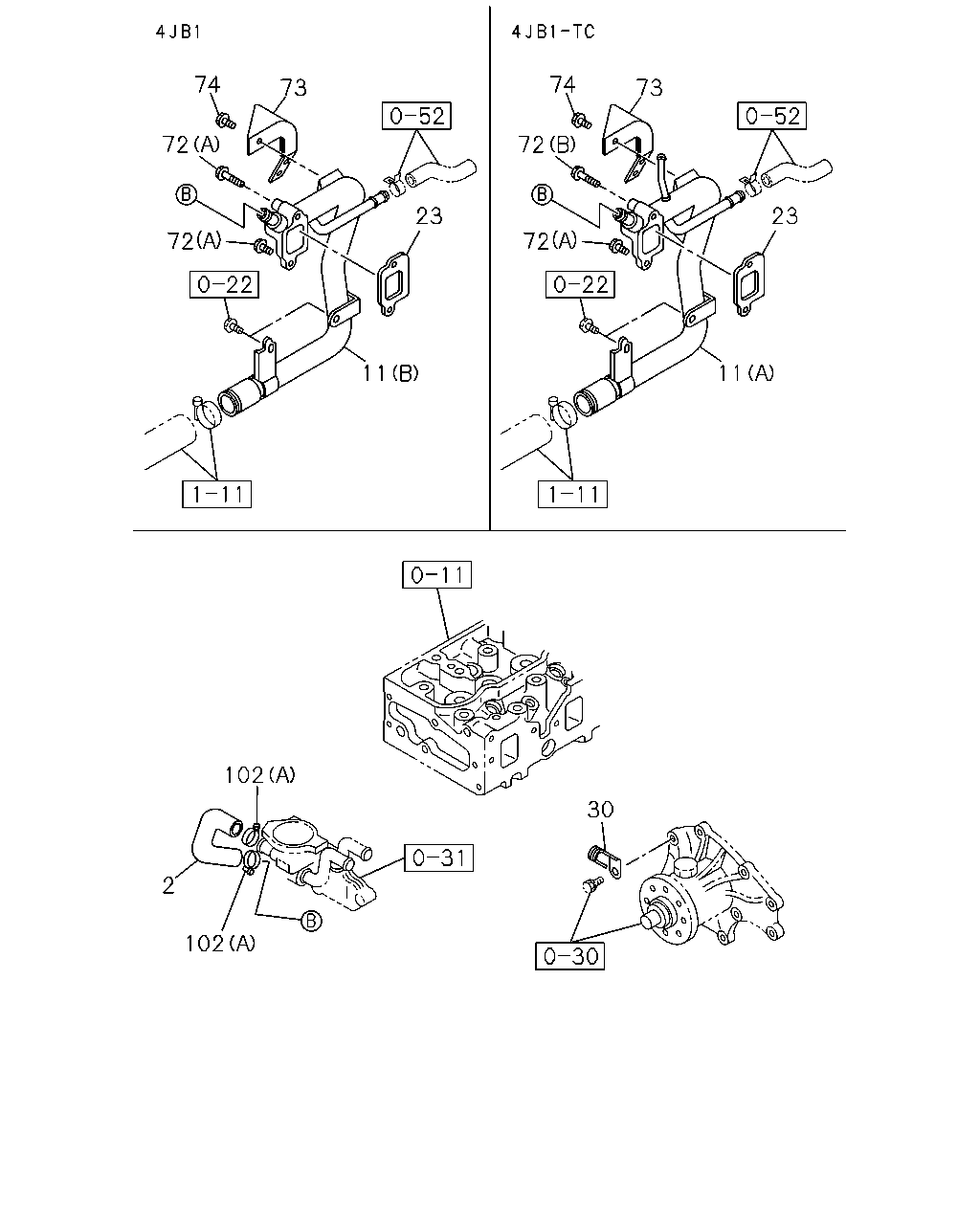

çizim 60895
74 74 73 73 72 72 23 23 72 72 11 11 102 30 2 102
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 01.097 HOSE; WATER,BY-PASS 8-97209-948-0 01 1 1012- ● ●
2 01.097 HOSE; WATER,BY-PASS 8-97037-464-0 01 1 1012- ● ●
11 01.097 PIPE; INL,WATER PUMP
(B) 		8-97264-243-0 01 1 1012- ●
11 01.097 PIPE; INL,WATER PUMP
(A) 		8-97213-400-2 01 1 1012- ●
23 01.079 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE). 		0-95690-338-0 01 1 1012- ● ●
23 01.079 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94365-676-3 01 1 1012- ● ●
30 01.150 CLIP; HARNESS
ID=12 		8-97367-983-1 01 1 1012- ● ●
72 00.206 BOLT; WATER PIPE
(A) M8X50 W/LK WASHER 		0-50540-850-0 02 1 1012- ●
72 00.206 BOLT; WATER PIPE
04.338 (A) M8X20 FLANGE 		0-28050-820-0 01 1 1012- ●
72 00.206 BOLT; WATER PIPE
03.704 (B) M8X45 W/LK WASHER 		0-50540-845-0 01 1 1012- ●
73 01.097 PROTECTOR; HEAT,WATER PIPE 8-97043-743-1 01 1 1012-1403 ● ●
73 01.097 PROTECTOR; HEAT,WATER PIPE 8-97520-577-0 01 1 1404- ● ●
74 01.097 BOLT; HEAT PROTECTOR FIX
M8X16 W/LK&PL WASHER 		0-50640-816-0 03 1 1012- ● ●
102 01.252 CLIP; WATER HOSE
01.153 (B) ID=12.8 		8-94367-943-0 04 1 1012- ●
102 01.252 CLIP; WATER HOSE
01.166 (A) ID=20.8 		8-94125-862-1 02 1 1012- ● ●

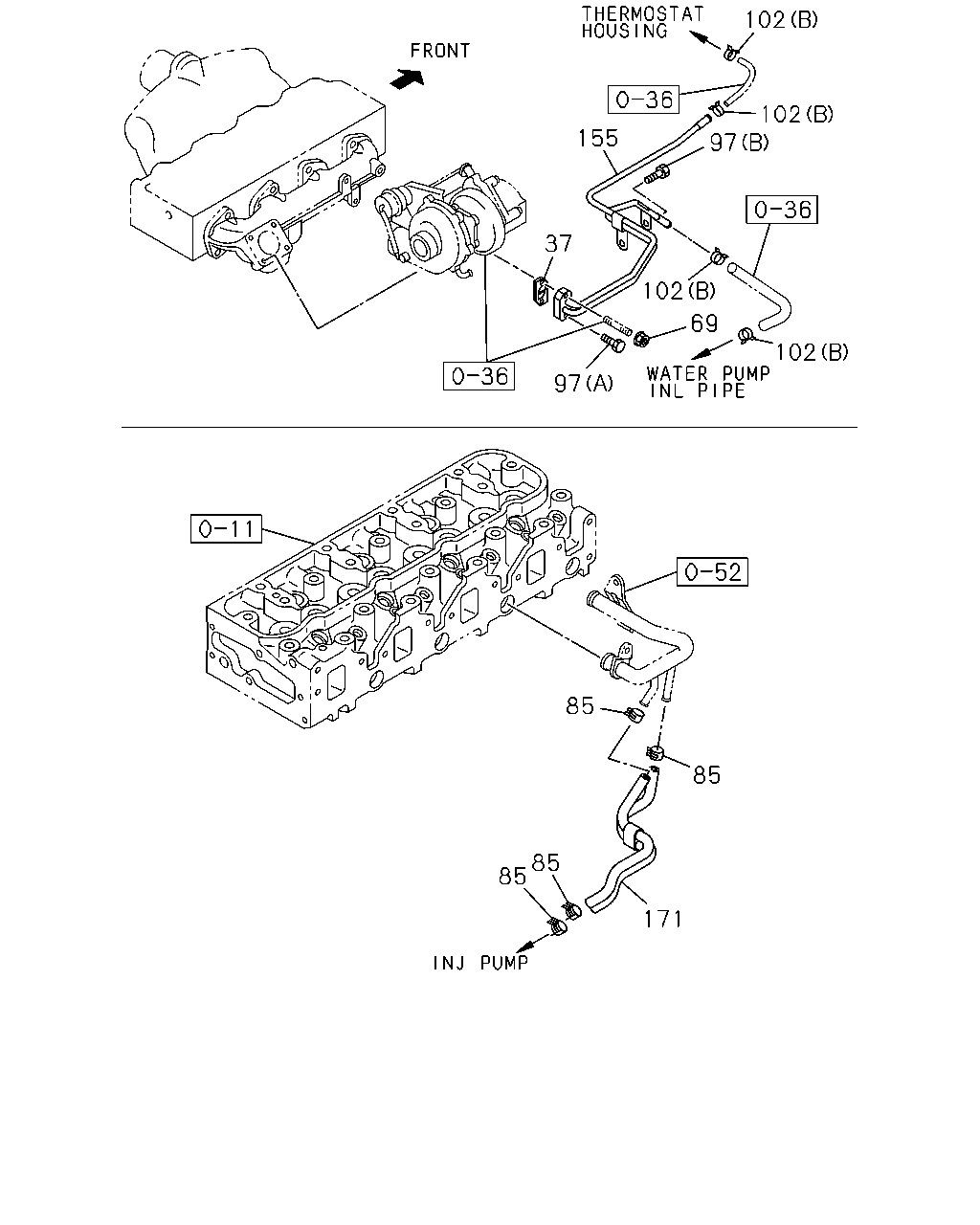

çizim 60979
102 102 97 155 37 102 69 102 97 85 85 85 85 171
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
37 01.242 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 03.374 		8-94321-135-1 01 1 1012- ●
69 01.153 NUT; WATER PIPE
VIETNAM EQUIPMENT(CL0) 01.540 M6 FLANGE 		0-91180-206-0 02 1 1105- ●
69 01.153 NUT; WATER PIPE
01.540 M6 FLANGE 		0-91180-206-0 01 1 1012-1104 ● ●
69 01.153 NUT; WATER PIPE
EURO2 SPECIFICATION(NT2) 01.540 M6 FLANGE 		0-91180-206-0 01 1 1012-1104 ●
69 01.153 NUT; WATER PIPE
01.540 M6 FLANGE 		0-91180-206-0 01 1 1105- ●
69 01.153 NUT; WATER PIPE
EXC. VIETNAM EQUIPMENT(CL0) 01.540 M6 FLANGE 		0-91180-206-0 01 1 1105- ●
69 01.153 NUT; WATER PIPE
EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT(CL0) 01.540 M6 FLANGE 		0-91180-206-0 01 1 1105- ●
69 01.153 NUT; WATER PIPE
01.062 M6 FLANGE 		0-91180-106-0 01 1 1012- ●
85 01.240 CLIP; RUBBER,WAX CSD
01.153 ID=12.8 		8-94367-943-0 04 1 1012- ●
97 04.866 BOLT; WATER PIPE
03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 1012- ●
97 04.866 BOLT; WATER PIPE
09.242 (A) M6X16 FLANGE 		0-28050-616-0 01 1 1012- ●
102 01.252 CLIP; WATER HOSE
01.153 (B) ID=12.8 		8-94367-943-0 04 1 1012- ●
102 01.252 CLIP; WATER HOSE
01.166 (A) ID=20.8 		8-94125-862-1 02 1 1012- ● ●
155 01.153 PIPE ASM; WATER 8-98169-766-0 01 1 1012- ●
171 01.240 HOSE; RUBBER,WAX CSD 8-97225-605-0 01 1 1012- ●

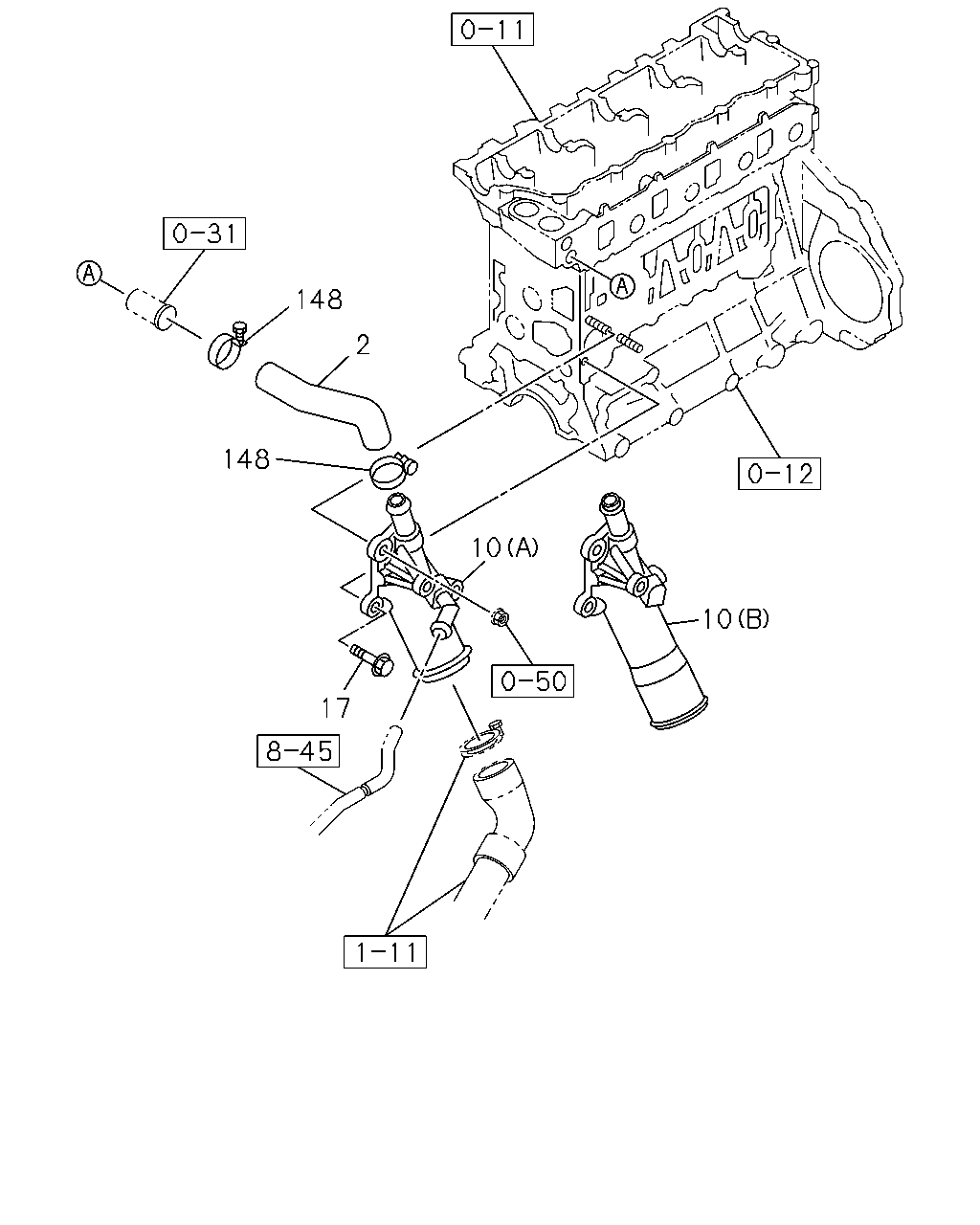

çizim 190830
148 2 148 10 10 17
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 01.097 HOSE; WATER,BY-PASS 8-97209-948-0 01 1 1012- ● ●
2 01.097 HOSE; WATER,BY-PASS 8-97037-464-0 01 1 1012- ● ●
10 01.153 PIPE; SUCTION
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98212-009-0 01 1 1203-1405 ● ●
10 01.153 PIPE; SUCTION
NLR SGL CAB(NM**SE) FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUD E COMPENSATOR(EE2),MANUAL STEERING<N51> (B) 		8-98212-009-0 01 1 1406- ●
10 01.153 PIPE; SUCTION
NMR SGL CAB(NM**SN) SAUDI ARABIA EQUIPMENT(GH3) FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> ANTI EROSION SPEC(7XK) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),MANUAL STEER ING<N51> (B) 		8-98212-009-0 01 1 1406- ●
10 01.153 PIPE; SUCTION
NMR SGL CAB(NM**SN) EXHAUST BRAKE<NF8> FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> EXC. COLOMBIA EQUIPMENT(CB7), AZERBAIJAN EQUIPMENT(CX0),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,PERU EQUIPMENT(E07),SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1) (B) 		8-98212-009-0 01 1 1406- ●
10 01.153 PIPE; SUCTION
(A) 		8-98166-992-0 01 1 1012-1202 ● ●
10 01.153 PIPE; SUCTION
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98166-992-0 01 1 1203-1405 ● ●
10 01.153 PIPE; SUCTION
NLR SGL CAB(NM**SE) HEATER & DEFROSTER(C41) FAST GLOW SYSTEM<KM6> EXC. HIGH ALTITUDE COMPENSATOR(EE2), MANUAL STEERING<N51> (A) 		8-98166-992-0 01 1 1406- ●
10 01.153 PIPE; SUCTION
NMR SGL CAB(NM**SN) HEATER & DEFROSTER(C41) SAUDI ARABIA EQUIPMENT(GH3) FAST GLOW SYSTEM<KM6> ANTI EROSION SPEC(7XK) EXC. HIGH ALTITUDE COMPENSATOR(EE2), EXHAUST BRAKE<NF8>,MANUAL STEERING<N51> (A) 		8-98166-992-0 01 1 1406- ●
10 01.153 PIPE; SUCTION
NMR SGL CAB(NM**SN) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(GH3) FAST GLOW SYSTEM<KM6> EXHAUST BRAKE<NF8> ANTI EROSION SPEC(7XK) EXC. HIGH ALTITUDE COMPENSATOR(EE2), MANUAL STEERING<N51> (A) 		8-98166-992-0 01 1 1406- ●
10 01.153 PIPE; SUCTION
NMR SGL CAB(NM**SN) HEATER & DEFROSTER(C41) HIGH ALTITUDE COMPENSATOR(EE2) SAUDI ARABIA EQUIPMENT(GH3) FAST GLOW SYSTEM<KM6> ANTI EROSION SPEC(7XK) EXC. MANUAL STEERING<N51> (A) 		8-98166-992-0 01 1 1406- ●
10 01.153 PIPE; SUCTION
NMR SGL CAB(NM**SN) AIR CONDITIONER MANUAL CONT(C60) FAST GLOW SYSTEM<KM6> EXHAUST BRAKE<NF8> EXC. COLOMBIA EQUIPMENT(CB7), AZERBAIJAN EQUIPMENT(CX0),HIGH ALTITUDE COMPE NSATOR(EE2),PERU EQUIPMENT(E07), SAUDIARABIA EQUIPMENT(GH3),CHILE EQUIPMEN T(KE1) (A) 		8-98166-992-0 01 1 1406- ●
10 01.153 PIPE; SUCTION
NMR SGL CAB(NM**SN) HEATER & DEFROSTER(C41) HIGH ALTITUDE COMPENSATOR(EE2) EXHAUST BRAKE<NF8> GLOW SYSTEM DELETE<7RK> EXC. COLOMBIA EQUIPMENT(CB7), AZERBAIJAN EQUIPMENT(CX0),PERU EQUIPMENT(E07) ,SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1) (A) 		8-98166-992-0 01 1 1406- ●
10 01.153 PIPE; SUCTION
NMR SGL CAB(NM**SN) HEATER & DEFROSTER(C41) FAST GLOW SYSTEM<KM6> EXHAUST BRAKE<NF8> EXC. COLOMBIA EQUIPMENT(CB7), AZERBAIJAN EQUIPMENT(CX0),PERU EQUIPMENT(E07) ,SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1) (A) 		8-98166-992-0 01 1 1406- ●
10 01.153 PIPE; SUCTION
NMR SGL CAB(NM**SN) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> GLOW SYSTEM DELETE<7RK> EXC. COLOMBIA EQUIPMENT(CB7), AZERBAIJAN EQUIPMENT(CX0),HIGH ALTITUDE COMPE NSATOR(EE2),PERU EQUIPMENT(E07), SAUDIARABIA EQUIPMENT(GH3),CHILE EQUIPMEN T(KE1) (A) 		8-98166-992-0 01 1 1406- ●
17 01.153 BOLT; SUCTION PIPE
03.415 M8X48 FLANGE 		8-94458-473-1 01 1 1012- ● ●
148 01.097 CLIP; BYPASS HOSE
03.417 ID=30 		9-09915-315-1 02 1 1012- ● ●
