0-27 — EXHAUST MANIFOLD (#79040) — 152 parça

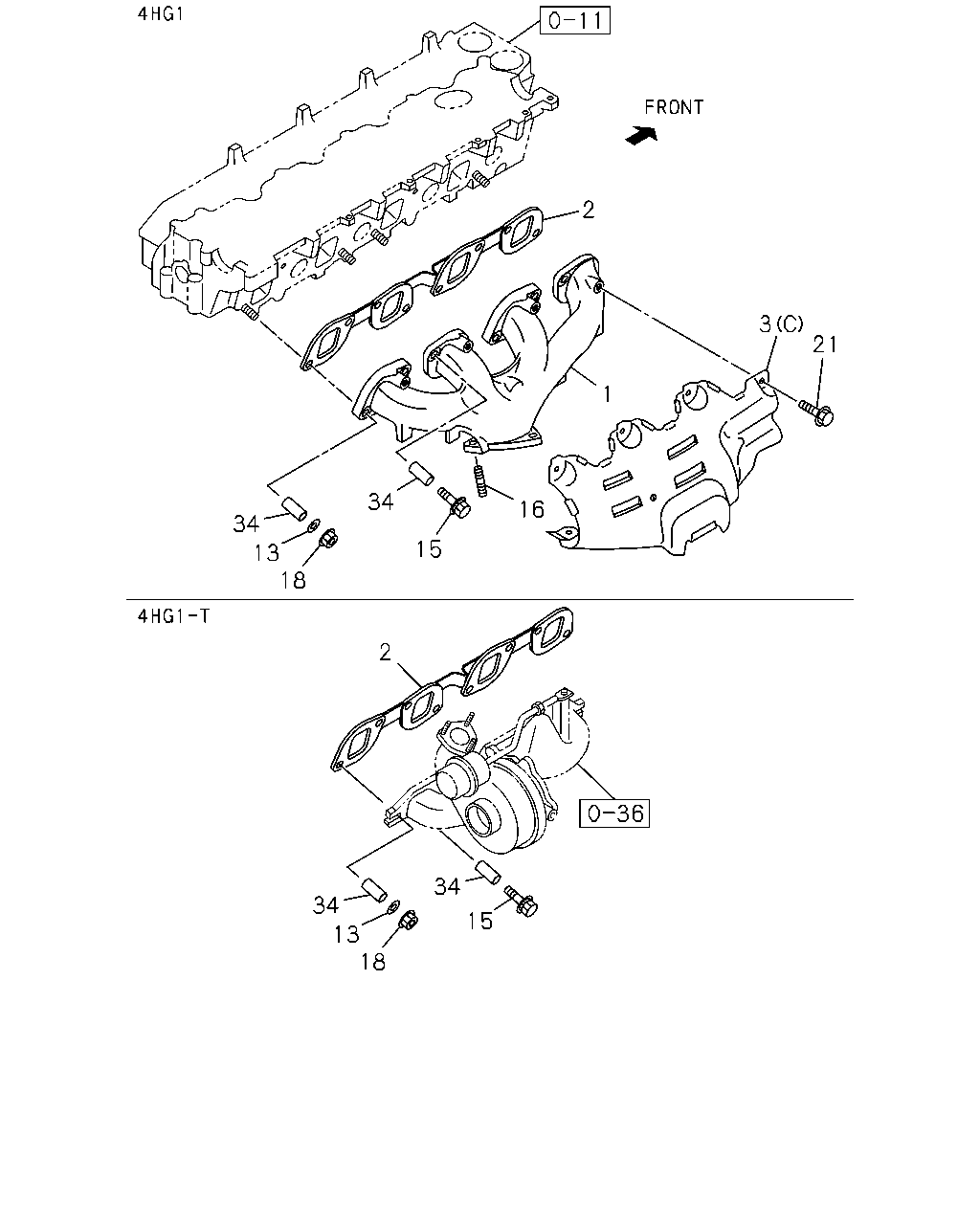

2 3 21 1 34 16 34 15 13 18 2 34 34 15 13 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.601 MANIFOLD; EXHAUST	8-97163-079-1	01	1	1012-	●
1	03.601 MANIFOLD; EXHAUST	8-98033-941-1	01	1	1012-		●	●
1	03.601 MANIFOLD; EXHAUST	8-97217-908-0	01	1	1012-				●
1	03.601 MANIFOLD; EXHAUST	8-97065-960-1	01	1	1012-					●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98215-752-0	01	1	1205-1312		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. VIETNAM EQUIPMENT(CL0)	8-98215-752-0	01	1	1205-1312			●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98229-782-0	01	1	1401-1404		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. VIETNAM EQUIPMENT(CL0)	8-98229-782-0	01	1	1401-1404			●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98229-782-0	01	1	1405-		●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97146-499-2	01	1	1012-	●					●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97356-028-2	01	1	1012-1204		●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD) VIETNAM EQUIPMENT(CL0)	8-97356-028-2	01	1	1205-1404			●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97350-317-2	01	1	1012-				●	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (C)	8-97096-424-1	01	1	1012-	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (A)	8-97381-503-4	01	1	1012-		●	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-98011-523-0	01	1	1012-		●
3	03.602 PROTECTOR; HEAT,EXH MANIF EURO3 SPECIFICATION(NT3) (B)	8-98011-523-0	01	1	1012-			●
3	03.602 PROTECTOR; HEAT,EXH MANIF (D)	8-97214-580-0	01	1	1012-				●
13	03.613 WASHER; LK,EXH MANIF 03.604 T=2.2	1-09556-015-0	02	1	1012-	●					●
15	03.604 BOLT; EXH MANIF M10X30 FLANGE	8-98032-158-0	04	1	1304-		●
15	03.604 BOLT; EXH MANIF EXC. VIETNAM EQUIPMENT(CL0) M10X30 FLANGE	8-98032-158-0	04	1	1304-			●
15	03.604 BOLT; EXH MANIF M10X60	8-97061-543-0	06	1	1012-	●					●
15	03.604 BOLT; EXH MANIF M8X35 W/PL WASHER & FLANGE	8-97131-597-1	06	1	1012-				●	●
16	03.604 STUD; EXH PIPE TO MANIF M10X38 L=53	8-97077-549-0	03	1	1012-	●
16	03.604 STUD; EXH PIPE TO MANIF 03.613 M10X45 L=60 PLATING	5-09302-008-1	04	1	1012-					●
18	03.604 NUT; EXH MANIF M10 FLANGE	8-97381-617-0	04	1	1304-		●
18	03.604 NUT; EXH MANIF EXC. VIETNAM EQUIPMENT(CL0) M10 FLANGE	8-97381-617-0	04	1	1304-			●
18	03.604 NUT; EXH MANIF 00.833 M10	0-91110-510-0	02	1	1012-	●					●
18	03.604 NUT; EXH MANIF M10 FLANGE	8-97381-617-0	08	1	1012-1303		●	●
18	03.604 NUT; EXH MANIF VIETNAM EQUIPMENT(CL0) M10 FLANGE	8-97381-617-0	08	1	1304-			●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	1012-				●	●
21	03.604 BOLT; HEAT PROTECTOR M6X12 FLANGE	8-97108-669-0	08	1	1012-	●
21	03.604 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	07	1	1012-		●
21	03.604 BOLT; HEAT PROTECTOR EURO3 SPECIFICATION(NT3) 02.343 M8X12 FLANGE	0-28050-812-0	07	1	1012-			●
21	03.604 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1012-				●
21	03.604 BOLT; HEAT PROTECTOR EURO2 SPECIFICATION(NT2) 02.343 M8X12 FLANGE	0-28050-812-0	04	1	1012-			●
34	03.603 COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	08	1	1012-	●					●

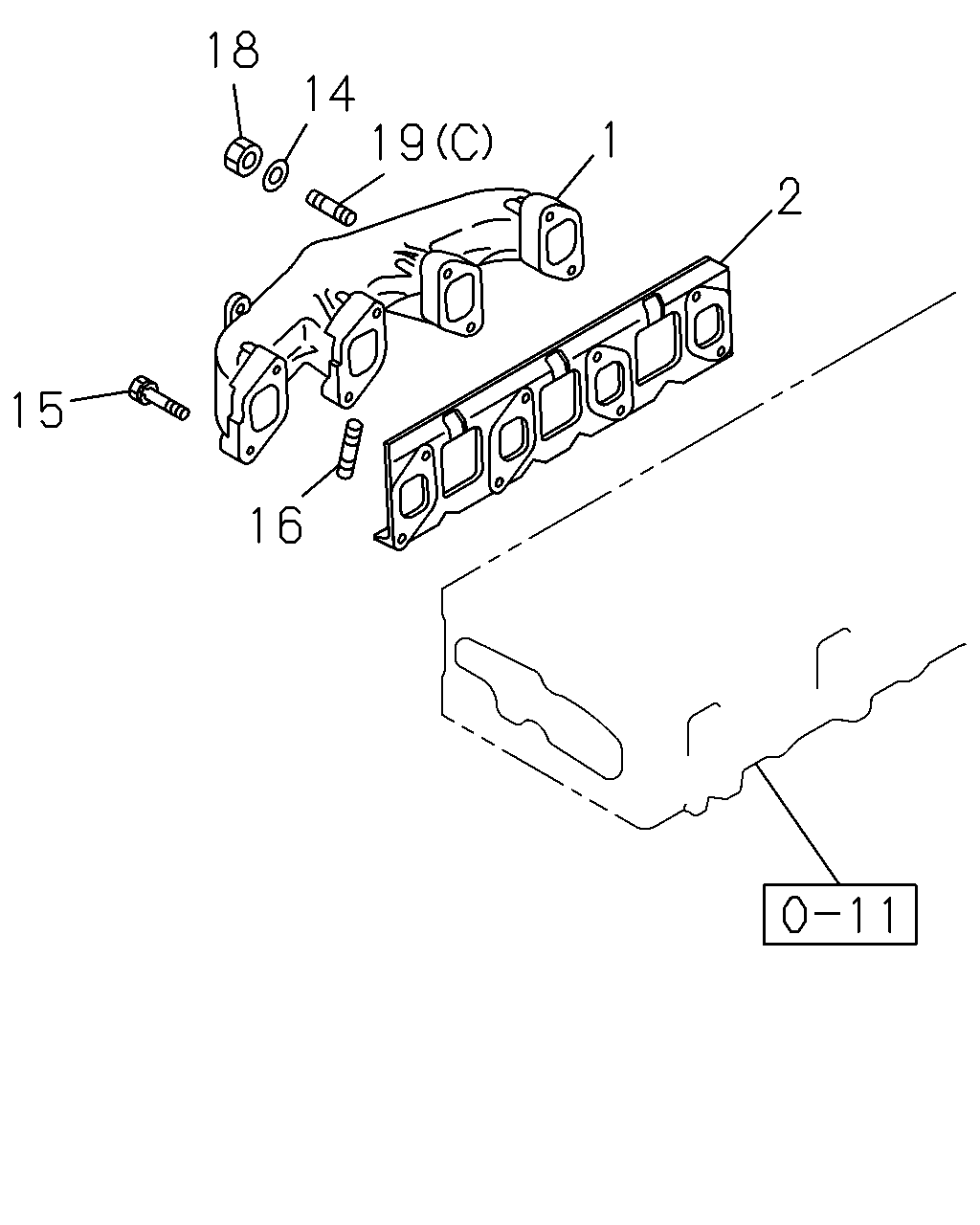

18 14 19 1 2 15 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.601 MANIFOLD; EXHAUST	8-97163-079-1	01	1	1012-	●
1	03.601 MANIFOLD; EXHAUST	8-98033-941-1	01	1	1012-		●	●
1	03.601 MANIFOLD; EXHAUST	8-97217-908-0	01	1	1012-				●
1	03.601 MANIFOLD; EXHAUST	8-97065-960-1	01	1	1012-					●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98215-752-0	01	1	1205-1312		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. VIETNAM EQUIPMENT(CL0)	8-98215-752-0	01	1	1205-1312			●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98229-782-0	01	1	1401-1404		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. VIETNAM EQUIPMENT(CL0)	8-98229-782-0	01	1	1401-1404			●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98229-782-0	01	1	1405-		●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97146-499-2	01	1	1012-	●					●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97356-028-2	01	1	1012-1204		●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD) VIETNAM EQUIPMENT(CL0)	8-97356-028-2	01	1	1205-1404			●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97350-317-2	01	1	1012-				●	●
14	03.604 WASHER; PL,EXH MANIF ID=8.5 OD=15 T=4	8-97257-914-0	02	1	1012-				●	●
15	03.604 BOLT; EXH MANIF M10X30 FLANGE	8-98032-158-0	04	1	1304-		●
15	03.604 BOLT; EXH MANIF EXC. VIETNAM EQUIPMENT(CL0) M10X30 FLANGE	8-98032-158-0	04	1	1304-			●
15	03.604 BOLT; EXH MANIF M10X60	8-97061-543-0	06	1	1012-	●					●
15	03.604 BOLT; EXH MANIF M8X35 W/PL WASHER & FLANGE	8-97131-597-1	06	1	1012-				●	●
16	03.604 STUD; EXH PIPE TO MANIF M10X38 L=53	8-97077-549-0	03	1	1012-	●
16	03.604 STUD; EXH PIPE TO MANIF 03.613 M10X45 L=60 PLATING	5-09302-008-1	04	1	1012-					●
18	03.604 NUT; EXH MANIF M10 FLANGE	8-97381-617-0	04	1	1304-		●
18	03.604 NUT; EXH MANIF EXC. VIETNAM EQUIPMENT(CL0) M10 FLANGE	8-97381-617-0	04	1	1304-			●
18	03.604 NUT; EXH MANIF 00.833 M10	0-91110-510-0	02	1	1012-	●					●
18	03.604 NUT; EXH MANIF M10 FLANGE	8-97381-617-0	08	1	1012-1303		●	●
18	03.604 NUT; EXH MANIF VIETNAM EQUIPMENT(CL0) M10 FLANGE	8-97381-617-0	08	1	1304-			●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	1012-				●	●
19	03.604 STUD; MANIF TO CYL HD VIETNAM EQUIPMENT(CL0) (B) M10X33 L=48	8-97379-383-0	04	1	1105-			●
19	03.604 STUD; MANIF TO CYL HD 03.275 (B) M10X33 L=48	8-97307-075-2	04	1	1012-1104		●	●
19	03.604 STUD; MANIF TO CYL HD 03.275 (B) M10X33 L=48	8-97307-075-2	04	1	1105-1303		●
19	03.604 STUD; MANIF TO CYL HD EXC. VIETNAM EQUIPMENT(CL0) 03.275 (B) M10X33 L=48	8-97307-075-2	04	1	1105-1303			●
19	03.604 STUD; MANIF TO CYL HD (A) M10X70 L=83	8-98048-446-0	04	1	1012-		●	●
19	03.604 STUD; MANIF TO CYL HD (C) M8X35 L=46	8-97378-065-0	02	1	1012-				●	●

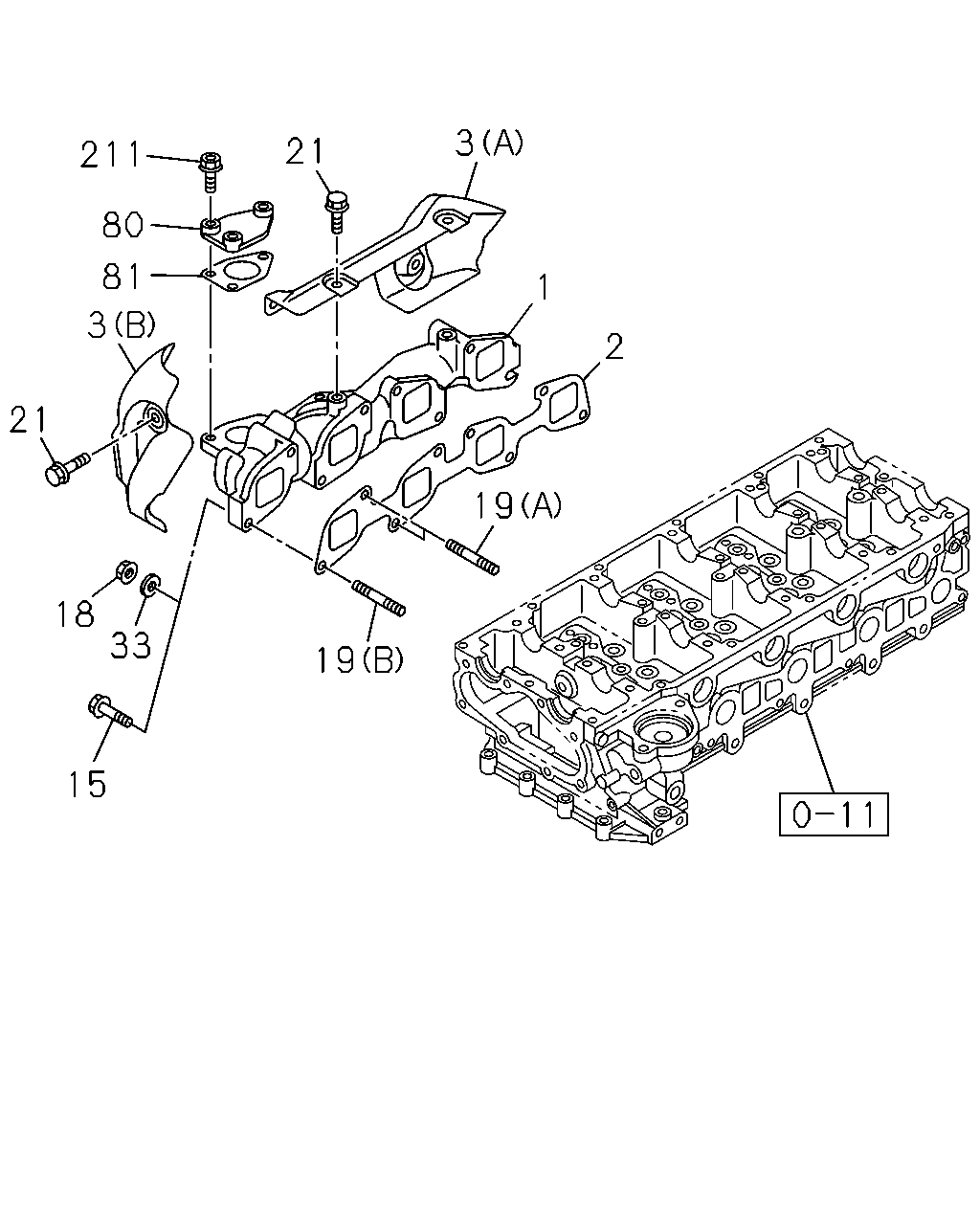

1 2 19 19 3 21 211 80 81 3 21 18 33 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.601 MANIFOLD; EXHAUST	8-97163-079-1	01	1	1012-	●
1	03.601 MANIFOLD; EXHAUST	8-98033-941-1	01	1	1012-		●	●
1	03.601 MANIFOLD; EXHAUST	8-97217-908-0	01	1	1012-				●
1	03.601 MANIFOLD; EXHAUST	8-97065-960-1	01	1	1012-					●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98215-752-0	01	1	1205-1312		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. VIETNAM EQUIPMENT(CL0)	8-98215-752-0	01	1	1205-1312			●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98229-782-0	01	1	1401-1404		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. VIETNAM EQUIPMENT(CL0)	8-98229-782-0	01	1	1401-1404			●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98229-782-0	01	1	1405-		●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97146-499-2	01	1	1012-	●					●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97356-028-2	01	1	1012-1204		●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD) VIETNAM EQUIPMENT(CL0)	8-97356-028-2	01	1	1205-1404			●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97350-317-2	01	1	1012-				●	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (C)	8-97096-424-1	01	1	1012-	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (A)	8-97381-503-4	01	1	1012-		●	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-98011-523-0	01	1	1012-		●
3	03.602 PROTECTOR; HEAT,EXH MANIF EURO3 SPECIFICATION(NT3) (B)	8-98011-523-0	01	1	1012-			●
3	03.602 PROTECTOR; HEAT,EXH MANIF (D)	8-97214-580-0	01	1	1012-				●
15	03.604 BOLT; EXH MANIF M10X30 FLANGE	8-98032-158-0	04	1	1304-		●
15	03.604 BOLT; EXH MANIF EXC. VIETNAM EQUIPMENT(CL0) M10X30 FLANGE	8-98032-158-0	04	1	1304-			●
15	03.604 BOLT; EXH MANIF M10X60	8-97061-543-0	06	1	1012-	●					●
15	03.604 BOLT; EXH MANIF M8X35 W/PL WASHER & FLANGE	8-97131-597-1	06	1	1012-				●	●
18	03.604 NUT; EXH MANIF M10 FLANGE	8-97381-617-0	04	1	1304-		●
18	03.604 NUT; EXH MANIF EXC. VIETNAM EQUIPMENT(CL0) M10 FLANGE	8-97381-617-0	04	1	1304-			●
18	03.604 NUT; EXH MANIF 00.833 M10	0-91110-510-0	02	1	1012-	●					●
18	03.604 NUT; EXH MANIF M10 FLANGE	8-97381-617-0	08	1	1012-1303		●	●
18	03.604 NUT; EXH MANIF VIETNAM EQUIPMENT(CL0) M10 FLANGE	8-97381-617-0	08	1	1304-			●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	1012-				●	●
19	03.604 STUD; MANIF TO CYL HD VIETNAM EQUIPMENT(CL0) (B) M10X33 L=48	8-97379-383-0	04	1	1105-			●
19	03.604 STUD; MANIF TO CYL HD 03.275 (B) M10X33 L=48	8-97307-075-2	04	1	1012-1104		●	●
19	03.604 STUD; MANIF TO CYL HD 03.275 (B) M10X33 L=48	8-97307-075-2	04	1	1105-1303		●
19	03.604 STUD; MANIF TO CYL HD EXC. VIETNAM EQUIPMENT(CL0) 03.275 (B) M10X33 L=48	8-97307-075-2	04	1	1105-1303			●
19	03.604 STUD; MANIF TO CYL HD (A) M10X70 L=83	8-98048-446-0	04	1	1012-		●	●
19	03.604 STUD; MANIF TO CYL HD (C) M8X35 L=46	8-97378-065-0	02	1	1012-				●	●
21	03.604 BOLT; HEAT PROTECTOR M6X12 FLANGE	8-97108-669-0	08	1	1012-	●
21	03.604 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	07	1	1012-		●
21	03.604 BOLT; HEAT PROTECTOR EURO3 SPECIFICATION(NT3) 02.343 M8X12 FLANGE	0-28050-812-0	07	1	1012-			●
21	03.604 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1012-				●
21	03.604 BOLT; HEAT PROTECTOR EURO2 SPECIFICATION(NT2) 02.343 M8X12 FLANGE	0-28050-812-0	04	1	1012-			●
33	03.604 WASHER; EXH MANIF 03.613 ID=10.5	5-09500-013-0	08	1	1012-		●	●
80	03.417 COVER; EXH MANIF EURO2 SPECIFICATION(NT2)	8-98056-984-0	01	1	1012-			●
81	03.270 GASKET; COVER EURO2 SPECIFICATION(NT2) 03.665	8-98017-551-0	01	1	1012-			●
211	03.604 BOLT; COVER EURO2 SPECIFICATION(NT2) 03.417 M8X23 FLANGE	8-97378-077-0	03	1	1012-			●

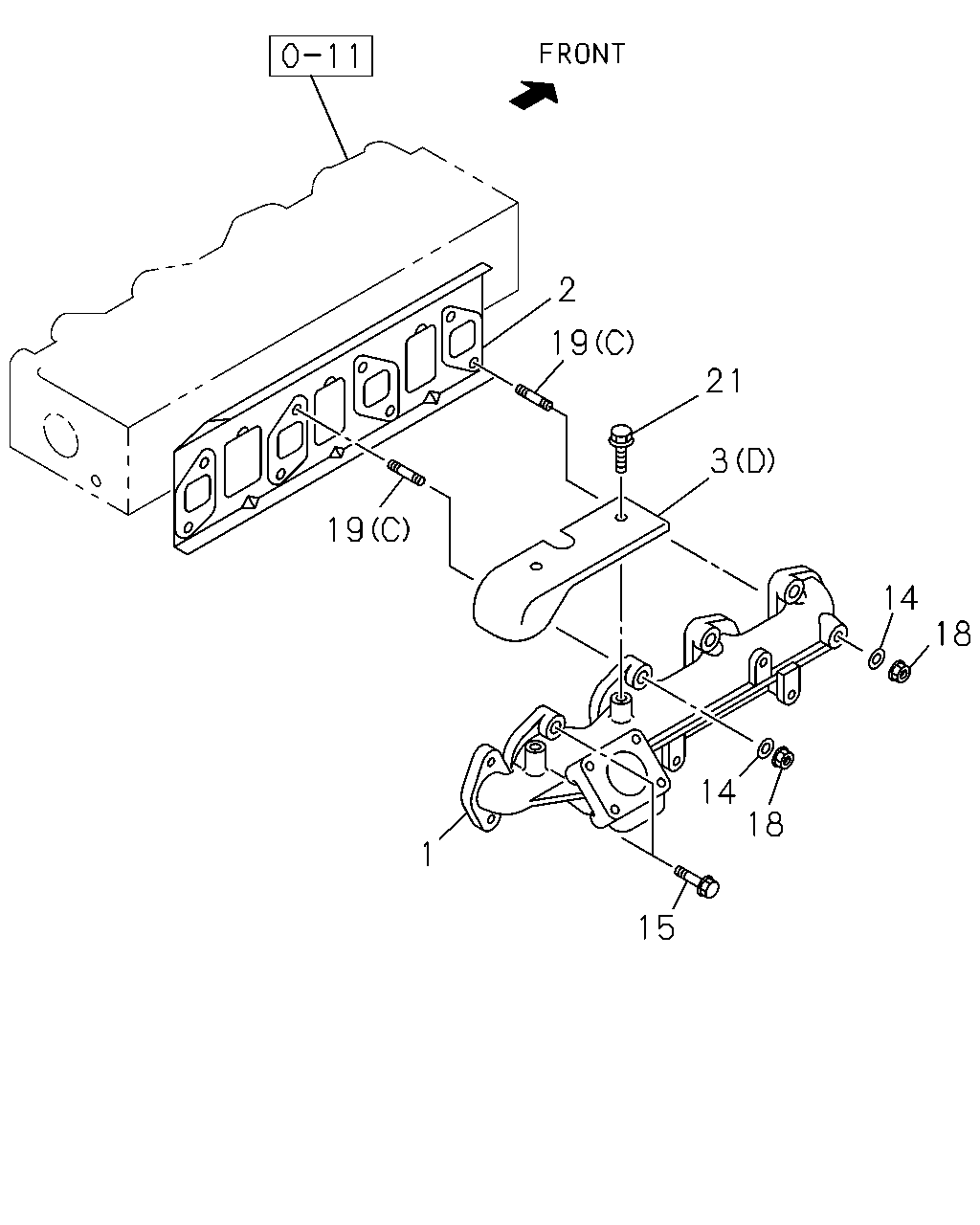

2 19 21 3 19 14 18 14 18 1 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.601 MANIFOLD; EXHAUST	8-97163-079-1	01	1	1012-	●
1	03.601 MANIFOLD; EXHAUST	8-98033-941-1	01	1	1012-		●	●
1	03.601 MANIFOLD; EXHAUST	8-97217-908-0	01	1	1012-				●
1	03.601 MANIFOLD; EXHAUST	8-97065-960-1	01	1	1012-					●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98215-752-0	01	1	1205-1312		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. VIETNAM EQUIPMENT(CL0)	8-98215-752-0	01	1	1205-1312			●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98229-782-0	01	1	1401-1404		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. VIETNAM EQUIPMENT(CL0)	8-98229-782-0	01	1	1401-1404			●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98229-782-0	01	1	1405-		●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97146-499-2	01	1	1012-	●					●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97356-028-2	01	1	1012-1204		●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD) VIETNAM EQUIPMENT(CL0)	8-97356-028-2	01	1	1205-1404			●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97350-317-2	01	1	1012-				●	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (C)	8-97096-424-1	01	1	1012-	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (A)	8-97381-503-4	01	1	1012-		●	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-98011-523-0	01	1	1012-		●
3	03.602 PROTECTOR; HEAT,EXH MANIF EURO3 SPECIFICATION(NT3) (B)	8-98011-523-0	01	1	1012-			●
3	03.602 PROTECTOR; HEAT,EXH MANIF (D)	8-97214-580-0	01	1	1012-				●
14	03.604 WASHER; PL,EXH MANIF ID=8.5 OD=15 T=4	8-97257-914-0	02	1	1012-				●	●
15	03.604 BOLT; EXH MANIF M10X30 FLANGE	8-98032-158-0	04	1	1304-		●
15	03.604 BOLT; EXH MANIF EXC. VIETNAM EQUIPMENT(CL0) M10X30 FLANGE	8-98032-158-0	04	1	1304-			●
15	03.604 BOLT; EXH MANIF M10X60	8-97061-543-0	06	1	1012-	●					●
15	03.604 BOLT; EXH MANIF M8X35 W/PL WASHER & FLANGE	8-97131-597-1	06	1	1012-				●	●
18	03.604 NUT; EXH MANIF M10 FLANGE	8-97381-617-0	04	1	1304-		●
18	03.604 NUT; EXH MANIF EXC. VIETNAM EQUIPMENT(CL0) M10 FLANGE	8-97381-617-0	04	1	1304-			●
18	03.604 NUT; EXH MANIF 00.833 M10	0-91110-510-0	02	1	1012-	●					●
18	03.604 NUT; EXH MANIF M10 FLANGE	8-97381-617-0	08	1	1012-1303		●	●
18	03.604 NUT; EXH MANIF VIETNAM EQUIPMENT(CL0) M10 FLANGE	8-97381-617-0	08	1	1304-			●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	1012-				●	●
19	03.604 STUD; MANIF TO CYL HD VIETNAM EQUIPMENT(CL0) (B) M10X33 L=48	8-97379-383-0	04	1	1105-			●
19	03.604 STUD; MANIF TO CYL HD 03.275 (B) M10X33 L=48	8-97307-075-2	04	1	1012-1104		●	●
19	03.604 STUD; MANIF TO CYL HD 03.275 (B) M10X33 L=48	8-97307-075-2	04	1	1105-1303		●
19	03.604 STUD; MANIF TO CYL HD EXC. VIETNAM EQUIPMENT(CL0) 03.275 (B) M10X33 L=48	8-97307-075-2	04	1	1105-1303			●
19	03.604 STUD; MANIF TO CYL HD (A) M10X70 L=83	8-98048-446-0	04	1	1012-		●	●
19	03.604 STUD; MANIF TO CYL HD (C) M8X35 L=46	8-97378-065-0	02	1	1012-				●	●
21	03.604 BOLT; HEAT PROTECTOR M6X12 FLANGE	8-97108-669-0	08	1	1012-	●
21	03.604 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	07	1	1012-		●
21	03.604 BOLT; HEAT PROTECTOR EURO3 SPECIFICATION(NT3) 02.343 M8X12 FLANGE	0-28050-812-0	07	1	1012-			●
21	03.604 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1012-				●
21	03.604 BOLT; HEAT PROTECTOR EURO2 SPECIFICATION(NT2) 02.343 M8X12 FLANGE	0-28050-812-0	04	1	1012-			●
