◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51282 - NLR/NMR 55,85(LHD) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-20 - TIMING GEAR CASE AND FLYWHEEL HOUSING ▶
0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#79037) — 265 parça

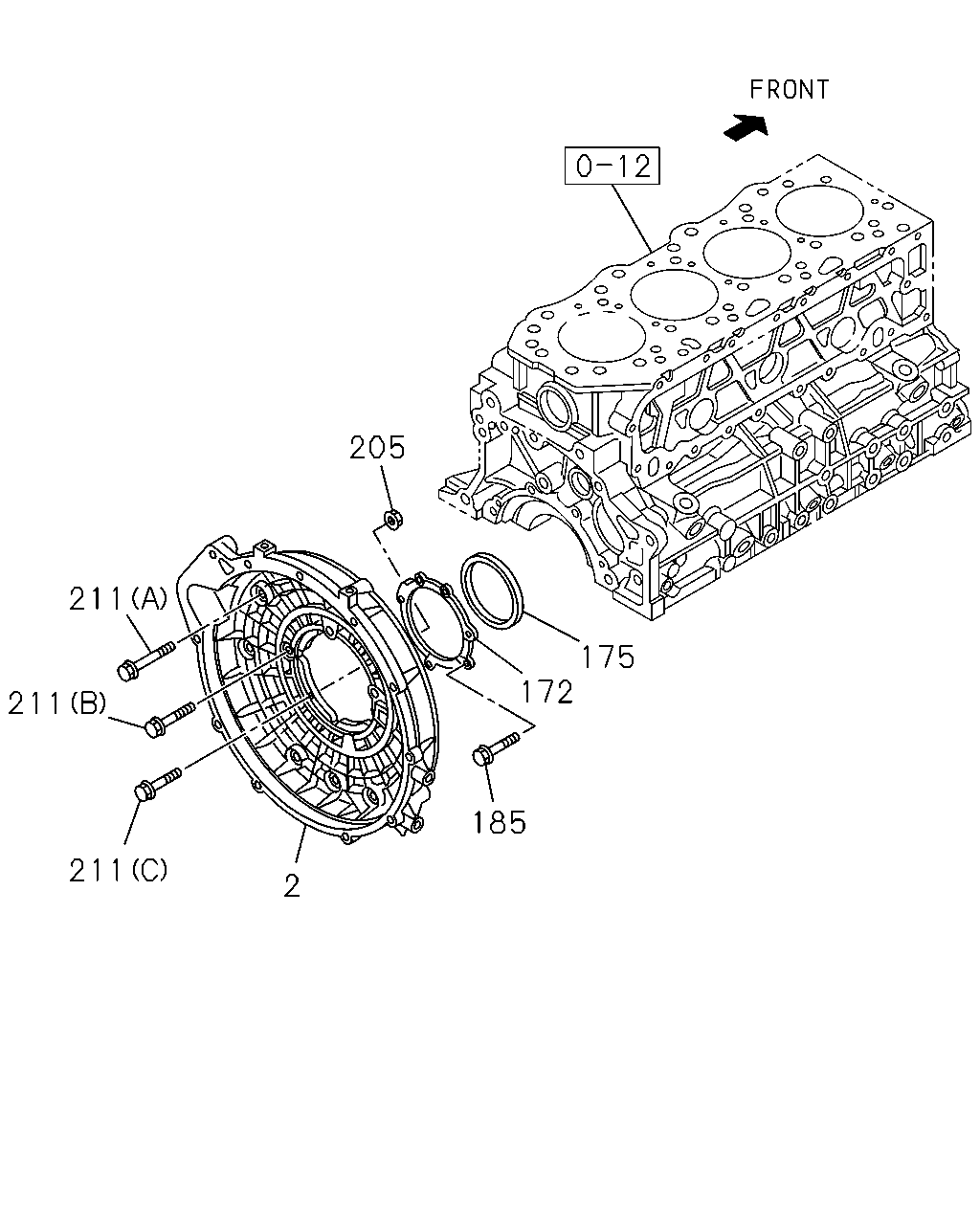

çizim 38229
205 211 175 172 211 185 211 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 00.683 HOUSING; FLYWHEEL 8-97364-899-6 01 1 1012- ● ●
2 00.683 HOUSING; FLYWHEEL 8-97381-492-3 01 1 1012-1310 ● ●
2 00.683 HOUSING; FLYWHEEL 8-98252-203-0 01 1 1311- ● ●
172 00.137 RETAINER; CR/SHF 8-97175-986-3 01 1 1012-1012 ● ●
172 00.137 RETAINER; CR/SHF 8-97379-826-0 01 1 1101- ● ●
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-97602-379-0 01 1 1012- ● ●
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118 		8-97071-561-1 01 1 1012- ● ● ● ●
185 00.727 BOLT; RET TO C/BL
06.216 M8X25 FLANGE 		0-28650-825-0 05 1 1012- ● ●
205 00.669 NUT; HSG
04.085 M10 FLANGE 		0-91180-210-0 01 1 1012- ● ●
211 00.669 BOLT; HSG
VIETNAM EQUIPMENT(CL0) 00.683 (B) M12X25 		8-97916-324-1 03 1 1201- ●
211 00.669 BOLT; HSG
(D) M8X20,M8X65 L=90 		8-97200-622-1 02 1 1102- ●
211 00.669 BOLT; HSG
MANUAL STEERING<N51> (F) M14X35 FLANGE 		0-28761-435-0 01 1 1012- ● ●
211 00.669 BOLT; HSG
00.029 (G) M10X40 FLANGE 		0-28751-040-0 01 1 1012- ● ●
211 00.669 BOLT; HSG
(F) M12X70 FLANGE, W/PL WASHER 		8-97114-779-0 09 1 1012-1102 ● ●
211 00.669 BOLT; HSG
(F) M12X70 FLANGE, W/PL WASHER 		8-98179-087-1 09 1 1103- ● ●
211 00.669 BOLT; HSG
(E) M12X30 FLANGE 		8-97135-419-0 01 1 1012- ● ●
211 00.669 BOLT; HSG
(D) M8X65 W/PL WASHER 		8-94388-781-0 02 1 1012- ●
211 00.669 BOLT; HSG
09.003 (A) M12X35 FLANGE 		0-28651-235-0 06 1 1012- ● ●
211 00.669 BOLT; HSG
00.683 (B) M12X25 		5-09000-227-0 03 1 1012-1112 ● ●
211 00.669 BOLT; HSG
00.683 (B) M12X25 		5-09000-227-0 03 1 1201- ●
211 00.669 BOLT; HSG
EXC. VIETNAM EQUIPMENT(CL0) 00.683 (B) M12X25 		5-09000-227-0 03 1 1201- ●
211 00.669 BOLT; HSG
00.862 (C) M10X43 		9-09606-535-0 01 1 1012- ● ●

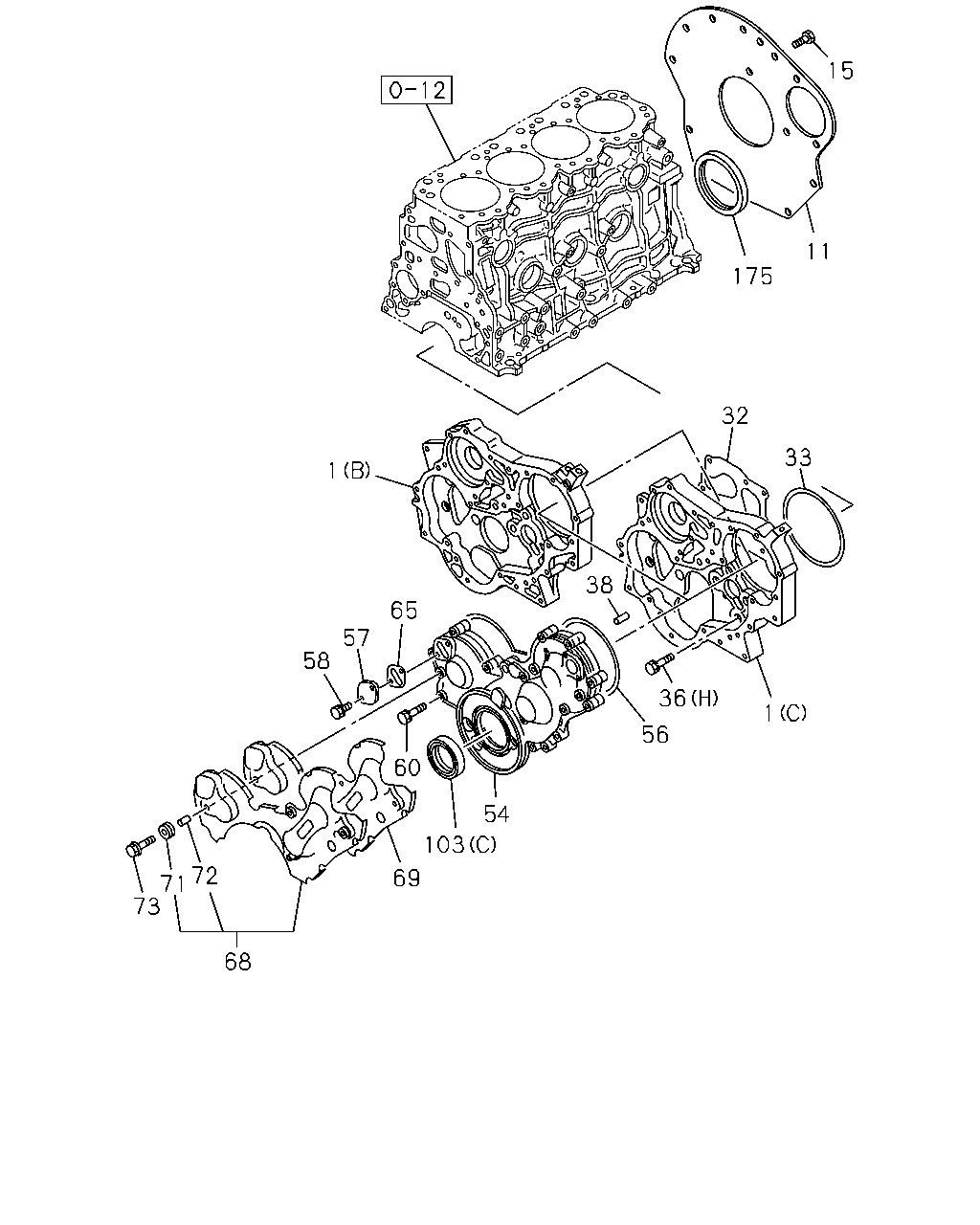

çizim 38609
15 11 175 32 33 1 38 65 57 58 36 1 56 60 54 103 72 71 73 69 68
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.206 CASE; TIMING GEAR
(A) 		8-97945-261-2 01 1 1012-1203 ● ●
1 00.206 CASE; TIMING GEAR
(A) 		8-98074-747-1 01 1 1204- ● ●
1 00.206 CASE; TIMING GEAR
(B) 		8-97219-001-4 01 1 1012- ●
1 00.206 CASE; TIMING GEAR
(C) 		8-97129-982-3 01 1 1012- ●
11 00.683 PLATE; RR,C/BL 8-94437-923-2 01 1 1012- ● ●
15 00.683 BOLT; RR PLATE TO C/BL
M12X25 		5-09000-227-0 03 1 1012- ● ●
32 00.207 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97312-221-2 01 1 1012- ● ●
32 00.207 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97129-427-1 01 1 1012- ● ●
33 00.207 GASKET; BRKT TO CASE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94109-707-0 01 1 1012- ● ●
36 00.206 BOLT; GEAR CASE
EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> 04.338 (A) M8X20 FLANGE 		0-28050-820-0 13 1 1012-1409 ●
36 00.206 BOLT; GEAR CASE
EURO2 SPECIFICATION(NT2) EXC. SAUDI ARABIA EQUIPMENT(GH3),KD PREPARATORY PACK<6HF> 04.338 (A) M8X20 FLANGE 		0-28050-820-0 13 1 1012-1409 ●
36 00.206 BOLT; GEAR CASE
VIETNAM EQUIPMENT(CL0) 04.338 (A) M8X20 FLANGE 		0-28050-820-0 13 1 1410- ●
36 00.206 BOLT; GEAR CASE
EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT(CL0),SAUDI ARABIA EQUIPMENT(GH3) 04.338 (A) M8X20 FLANGE 		0-28050-820-0 13 1 1410- ●
36 00.206 BOLT; GEAR CASE
02.343 (G) M8X16 FLANGE 		0-28050-816-0 01 1 1012- ● ●
36 00.206 BOLT; GEAR CASE
04.338 (A) M8X20 FLANGE 		0-28050-820-0 12 1 1012- ●
36 00.206 BOLT; GEAR CASE
EURO3 SPECIFICATION(NT3) 04.338 (A) M8X20 FLANGE 		0-28050-820-0 12 1 1012- ●
36 00.206 BOLT; GEAR CASE
EURO2 SPECIFICATION(NT2) SAUDI ARABIA EQUIPMENT(GH3) EXC. KD PREPARATORY PACK<6HF> 04.338 (A) M8X20 FLANGE 		0-28050-820-0 12 1 1012- ●
36 00.206 BOLT; GEAR CASE
03.162 (C) M8X35 FLANGE 		0-28050-835-0 01 1 1012- ● ●
36 00.206 BOLT; GEAR CASE
09.173 (F) M8X45 FLANGE 		0-28050-845-0 02 1 1012- ● ●
36 00.206 BOLT; GEAR CASE
04.686 (B) M8X60 FLANGE 		0-28050-860-0 01 1 1012- ● ●
36 00.206 BOLT; GEAR CASE
06.216 (D) M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
36 00.206 BOLT; GEAR CASE
03.403 (E) M8X30 FLANGE 		0-28650-830-0 03 1 1012- ● ●
36 00.206 BOLT; GEAR CASE
(H) M8X20 W/LK WASHER 		0-50540-820-0 06 1 1012- ● ●
36 00.206 BOLT; GEAR CASE
03.704 (H) M8X45 W/LK WASHER 		0-50540-845-0 02 1 1012- ● ●
38 00.685 PIN; GEAR CASE COVER
VIETNAM EQUIPMENT(CL0) 00.669 OD=10 L=20 		9-08151-020-0 02 1 1105- ●
38 00.685 PIN; GEAR CASE COVER
04.510 OD=10 L=20 		8-97135-423-0 02 1 1012-1104 ● ● ● ●
38 00.685 PIN; GEAR CASE COVER
04.510 OD=10 L=20 		8-97135-423-0 02 1 1105- ● ● ●
38 00.685 PIN; GEAR CASE COVER
EXC. VIETNAM EQUIPMENT(CL0) 04.510 OD=10 L=20 		8-97135-423-0 02 1 1105- ●
54 00.206 COVER; GEAR CASE
EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> EXC. PERU EQUIPMENT(E07) 		8-98012-960-2 01 1 1112- ●
54 00.206 COVER; GEAR CASE 8-98165-119-1 01 1 1012-1111 ● ●
54 00.206 COVER; GEAR CASE 8-98165-119-1 01 1 1112-1405 ●
54 00.206 COVER; GEAR CASE
EXC. PERU EQUIPMENT(E07) 		8-98165-119-1 01 1 1112-1405 ●
54 00.206 COVER; GEAR CASE 8-98253-700-1 01 1 1406-1409 ●
54 00.206 COVER; GEAR CASE
EXC. PERU EQUIPMENT(E07) 		8-98253-700-1 01 1 1406-1409 ●
54 00.206 COVER; GEAR CASE 8-98253-700-1 01 1 1410- ● ●
54 00.206 COVER; GEAR CASE 8-97231-214-1 01 1 1012- ● ●
56 00.207 GASKET; GEAR CASE TO COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97287-694-0 01 1 1012- ● ●
57 00.206 COVER; TIMING CHECK HOLE 5-11321-009-0 02 1 1012- ● ●
58 00.206 BOLT; CHECK HOLE COVER
03.162 M6X12 FLANGE 		0-28050-612-0 04 1 1012- ● ●
60 00.206 BOLT; COVER TO CASE
M8X30 FLANGE 		0-28050-830-0 08 1 1012- ● ●
60 00.206 BOLT; COVER TO CASE
M8X70 W/LK WASHER 		0-50540-870-0 06 1 1012- ● ●
60 00.206 BOLT; COVER TO CASE
M12X55 HEX SOCKET 		0-58331-255-0 01 1 1012- ● ●
60 00.206 BOLT; COVER TO CASE
01.252 M8X58 FLANGE 		8-94130-055-1 01 1 1012- ● ●
65 00.207 GASKET; COVER,TIMING CHECK HOLE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97118-698-1 02 1 1012- ● ●
68 00.206 COVER ASM; GEAR CASE COVER 8-98009-466-3 01 1 1012-1409 ●
68 00.206 COVER ASM; GEAR CASE COVER 8-98245-226-0 01 1 1410- ●
68 00.206 COVER ASM; GEAR CASE COVER 8-94155-721-1 01 1 1012- ● ●
69 00.206 SEAL; RUBBER,COVER TO COVER 8-94155-722-3 01 1 1012- ● ●
71 00.206 RUBBER; MTG,COVER 5-19389-002-0 04 1 1012- ● ●
72 00.206 BUSHING; SPACER,COVER TO COVER 5-19389-009-0 04 1 1012- ● ●
73 00.206 BOLT; COVER FIX
09.242 M6X16 FLANGE 		0-28050-616-0 04 1 1012- ● ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> EXC. PERU EQUIPMENT(E07) (A) 		8-97382-606-0 01 1 1112- ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> EXC. PERU EQUIPMENT(E07) (D) 		8-97386-601-0 01 1 1112- ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=109 OD=137 		8-97329-780-0 01 1 1012- ● ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-98158-110-0 01 1 1012- ● ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). (C) 		8-97351-704-0 01 1 1012- ● ●
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-97602-379-0 01 1 1012- ● ●
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118 		8-97071-561-1 01 1 1012- ● ● ● ●

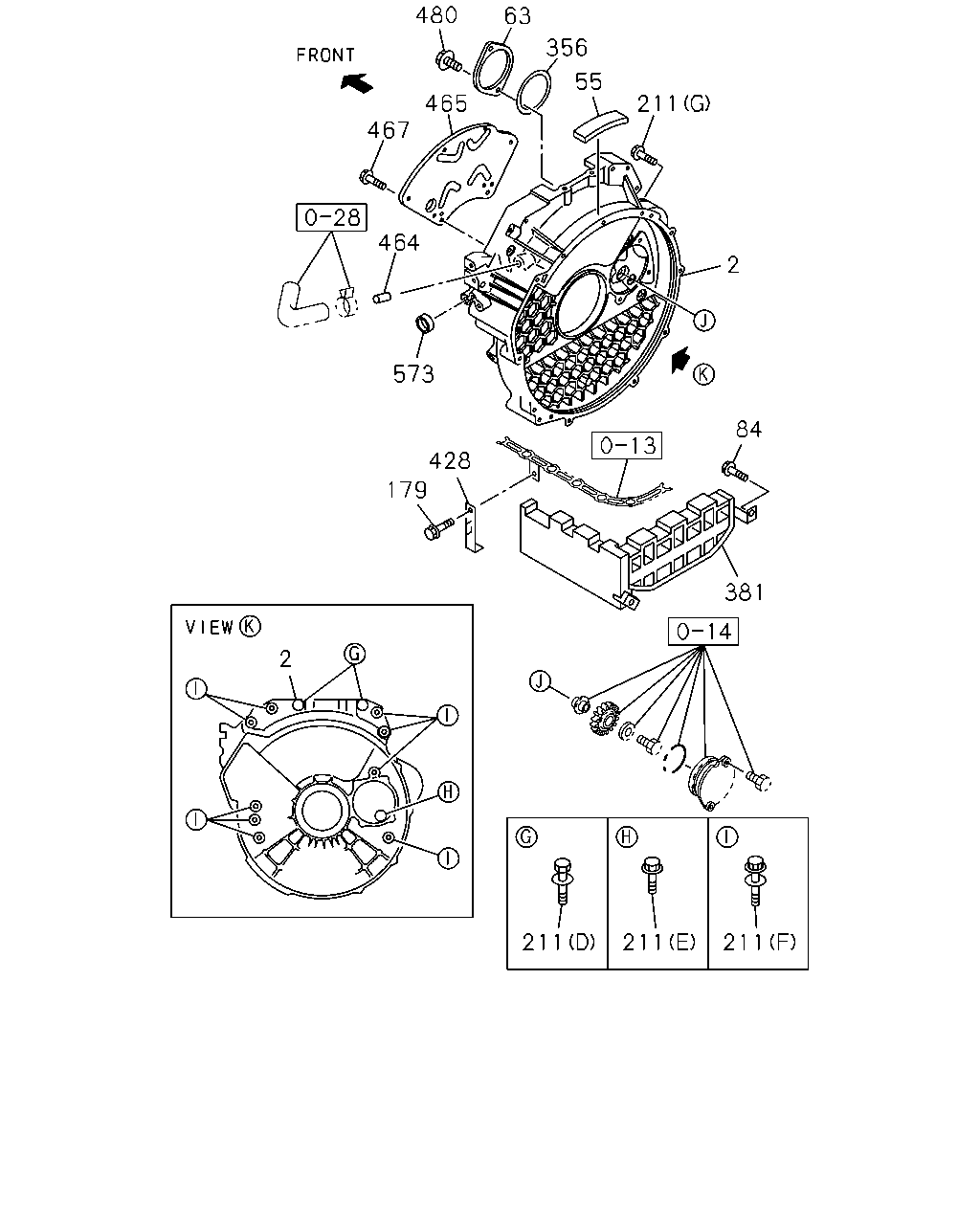

çizim 38742
480 63 356 55 465 211 467 464 2 573 84 428 179 381 2 211 211 211
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 00.683 HOUSING; FLYWHEEL 8-97364-899-6 01 1 1012- ● ●
2 00.683 HOUSING; FLYWHEEL 8-97381-492-3 01 1 1012-1310 ● ●
2 00.683 HOUSING; FLYWHEEL 8-98252-203-0 01 1 1311- ● ●
55 00.206 COVER; NOISE SHIELD
SAUDI ARABIA EQUIPMENT(GH3) 		8-97215-618-0 01 1 1012- ●
63 00.206 COVER; P/S
MANUAL STEERING<N51> 		8-97126-392-0 01 1 1012- ● ●
84 00.206 BOLT; SPACER
SAUDI ARABIA EQUIPMENT(GH3) 03.162 M12X20 FLANGE 		0-28151-220-0 02 1 1012- ●
84 00.206 BOLT; SPACER
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 1012-1204 ●
179 00.206 BOLT; BRKT
SAUDI ARABIA EQUIPMENT(GH3) 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1012- ●
211 00.669 BOLT; HSG
VIETNAM EQUIPMENT(CL0) 00.683 (B) M12X25 		8-97916-324-1 03 1 1201- ●
211 00.669 BOLT; HSG
(D) M8X20,M8X65 L=90 		8-97200-622-1 02 1 1102- ●
211 00.669 BOLT; HSG
MANUAL STEERING<N51> (F) M14X35 FLANGE 		0-28761-435-0 01 1 1012- ● ●
211 00.669 BOLT; HSG
00.029 (G) M10X40 FLANGE 		0-28751-040-0 01 1 1012- ● ●
211 00.669 BOLT; HSG
(F) M12X70 FLANGE, W/PL WASHER 		8-97114-779-0 09 1 1012-1102 ● ●
211 00.669 BOLT; HSG
(F) M12X70 FLANGE, W/PL WASHER 		8-98179-087-1 09 1 1103- ● ●
211 00.669 BOLT; HSG
(E) M12X30 FLANGE 		8-97135-419-0 01 1 1012- ● ●
211 00.669 BOLT; HSG
(D) M8X65 W/PL WASHER 		8-94388-781-0 02 1 1012- ●
211 00.669 BOLT; HSG
09.003 (A) M12X35 FLANGE 		0-28651-235-0 06 1 1012- ● ●
211 00.669 BOLT; HSG
00.683 (B) M12X25 		5-09000-227-0 03 1 1012-1112 ● ●
211 00.669 BOLT; HSG
00.683 (B) M12X25 		5-09000-227-0 03 1 1201- ●
211 00.669 BOLT; HSG
EXC. VIETNAM EQUIPMENT(CL0) 00.683 (B) M12X25 		5-09000-227-0 03 1 1201- ●
211 00.669 BOLT; HSG
00.862 (C) M10X43 		9-09606-535-0 01 1 1012- ● ●
356 00.207 GASKET; COVER
MANUAL STEERING<N51> 06.673 		8-97101-875-2 01 1 1012- ● ●
381 00.685 SPACER; FLYWHEEL HSG
SAUDI ARABIA EQUIPMENT(GH3) 01.428 		8-97224-867-2 01 1 1012- ●
428 00.206 BRACKET; SPACER
SAUDI ARABIA EQUIPMENT(GH3) 		8-97215-647-0 01 1 1012- ●
464 00.686 PIPE; PCV,FLYWHEEL HSG
00.669 		8-94373-246-3 01 1 1012- ● ●
465 00.686 PLATE; FLYWHEEL HSG 8-97363-824-1 01 1 1012- ● ●
467 00.686 BOLT; PLATE
06.321 M6X10 		8-98030-649-0 06 1 1012- ● ●
480 00.206 BOLT; COVER
MANUAL STEERING<N51> 00.780 M10X30 FLANGE 		0-28751-030-0 02 1 1012- ● ●
573 00.206 CUP; SEALING
00.034 OD=19 		8-94150-231-0 01 1 1012- ● ●

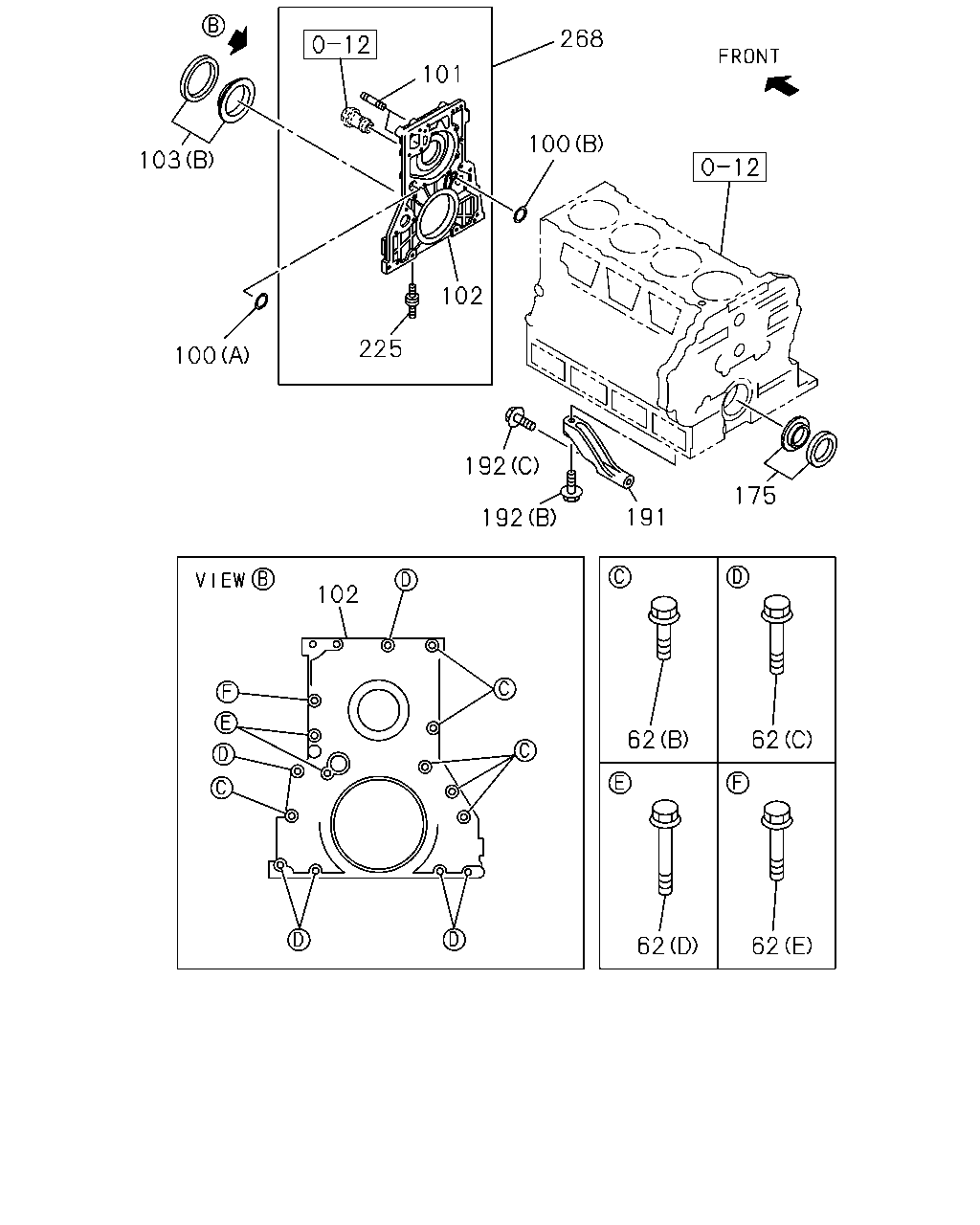

çizim 38779
268 101 100 103 102 225 100 192 175 191 192 102 62 62 62 62
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
62 00.206 BOLT; COVER
06.216 (B) M8X25 FLANGE 		0-28650-825-0 06 1 1012- ● ●
62 00.206 BOLT; COVER
03.403 (E) M8X30 FLANGE 		0-28650-830-0 01 1 1012- ● ●
62 00.206 BOLT; COVER
01.060 (C) M8X35 FLANGE 		0-28650-835-0 06 1 1012- ● ●
62 00.206 BOLT; COVER
01.097 (D) M8X65 FLANGE 		1-09044-072-1 02 1 1012- ● ●
62 00.206 BOLT; COVER
03.162 (A) M6X20 FLANGE 		0-28650-620-0 04 1 1012- ●
100 00.207 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1 		8-97028-748-1 01 1 1012- ● ●
100 00.207 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8 		9-09561-318-0 01 1 1012- ● ●
101 01.073 STUD; WATER PUMP
01.428 M8X18 L=30 		0-41010-818-0 01 1 1012- ● ●
101 01.073 STUD; WATER PUMP
00.206 M8X18 L=29 		8-97028-541-0 01 1 1012- ● ●
102 00.137 RETAINER; FRT 8-98039-932-2 01 1 1012- ●
102 00.137 RETAINER; FRT
EXC. ANTI EROSION SPEC(7XK) 		8-98039-932-2 01 1 1012- ●
102 00.137 RETAINER; FRT
ANTI EROSION SPEC(7XK) 		8-98081-351-1 01 1 1012- ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> EXC. PERU EQUIPMENT(E07) (A) 		8-97382-606-0 01 1 1112- ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> EXC. PERU EQUIPMENT(E07) (D) 		8-97386-601-0 01 1 1112- ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=109 OD=137 		8-97329-780-0 01 1 1012- ● ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-98158-110-0 01 1 1012- ● ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). (C) 		8-97351-704-0 01 1 1012- ● ●
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-97602-379-0 01 1 1012- ● ●
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118 		8-97071-561-1 01 1 1012- ● ● ● ●
191 00.669 STAY; FLYWHEEL HSG 8-97167-292-0 01 1 1107- ●
191 00.669 STAY; FLYWHEEL HSG
04.083 		8-97074-108-3 01 1 1012- ● ●
191 00.669 STAY; FLYWHEEL HSG
04.083 		8-97084-390-2 01 1 1012- ● ●
192 00.206 BOLT; STAY TO HSG
02.510 (B) M12X100 FLANGE 		0-28151-200-0 01 1 1107- ●
192 00.206 BOLT; STAY TO HSG
00.685 (C) M12X50 FLANGE 		0-28151-250-0 01 1 1107- ●
192 00.206 BOLT; STAY TO HSG
02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1012- ● ●
225 01.428 STUD; OIL PAN
M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 03 1 1012- ● ●
268 00.206 COVER; FRT 8-98039-931-2 01 1 1012- ●
268 00.206 COVER; FRT
EXC. ANTI EROSION SPEC(7XK) 		8-98039-931-2 01 1 1012- ●
268 00.206 COVER; FRT
ANTI EROSION SPEC(7XK) 		8-98079-080-1 01 1 1012- ●

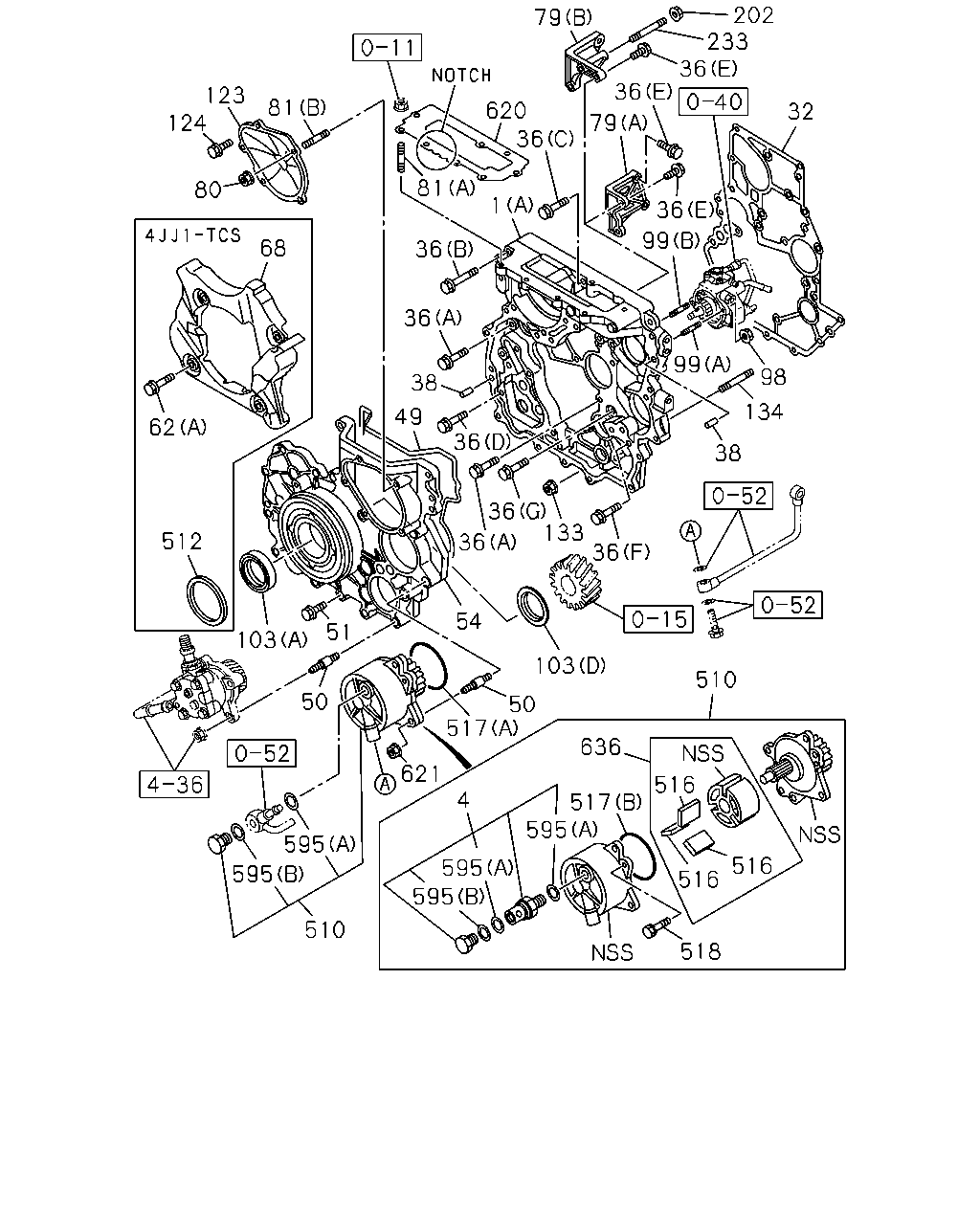

çizim 190822
123 124 80 68 62 512 103 50 595 595 510 595 595 4 595 518 516 516 516 517 636 621 517 50 103 510 36 54 51 36 36 133 38 134 98 99 36 49 38 36 36 99 36 32 202 233 36 79 36 81 620 79 81 36 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.206 CASE; TIMING GEAR
(A) 		8-97945-261-2 01 1 1012-1203 ● ●
1 00.206 CASE; TIMING GEAR
(A) 		8-98074-747-1 01 1 1204- ● ●
1 00.206 CASE; TIMING GEAR
(B) 		8-97219-001-4 01 1 1012- ●
1 00.206 CASE; TIMING GEAR
(C) 		8-97129-982-3 01 1 1012- ●
4 00.213 VALVE ASM; CHECK 8-98049-521-0 01 1 1012- ● ●
32 00.207 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97312-221-2 01 1 1012- ● ●
32 00.207 GASKET; GEAR CASE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97129-427-1 01 1 1012- ● ●
36 00.206 BOLT; GEAR CASE
EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> 04.338 (A) M8X20 FLANGE 		0-28050-820-0 13 1 1012-1409 ●
36 00.206 BOLT; GEAR CASE
EURO2 SPECIFICATION(NT2) EXC. SAUDI ARABIA EQUIPMENT(GH3),KD PREPARATORY PACK<6HF> 04.338 (A) M8X20 FLANGE 		0-28050-820-0 13 1 1012-1409 ●
36 00.206 BOLT; GEAR CASE
VIETNAM EQUIPMENT(CL0) 04.338 (A) M8X20 FLANGE 		0-28050-820-0 13 1 1410- ●
36 00.206 BOLT; GEAR CASE
EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT(CL0),SAUDI ARABIA EQUIPMENT(GH3) 04.338 (A) M8X20 FLANGE 		0-28050-820-0 13 1 1410- ●
36 00.206 BOLT; GEAR CASE
02.343 (G) M8X16 FLANGE 		0-28050-816-0 01 1 1012- ● ●
36 00.206 BOLT; GEAR CASE
04.338 (A) M8X20 FLANGE 		0-28050-820-0 12 1 1012- ●
36 00.206 BOLT; GEAR CASE
EURO3 SPECIFICATION(NT3) 04.338 (A) M8X20 FLANGE 		0-28050-820-0 12 1 1012- ●
36 00.206 BOLT; GEAR CASE
EURO2 SPECIFICATION(NT2) SAUDI ARABIA EQUIPMENT(GH3) EXC. KD PREPARATORY PACK<6HF> 04.338 (A) M8X20 FLANGE 		0-28050-820-0 12 1 1012- ●
36 00.206 BOLT; GEAR CASE
03.162 (C) M8X35 FLANGE 		0-28050-835-0 01 1 1012- ● ●
36 00.206 BOLT; GEAR CASE
09.173 (F) M8X45 FLANGE 		0-28050-845-0 02 1 1012- ● ●
36 00.206 BOLT; GEAR CASE
04.686 (B) M8X60 FLANGE 		0-28050-860-0 01 1 1012- ● ●
36 00.206 BOLT; GEAR CASE
06.216 (D) M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
36 00.206 BOLT; GEAR CASE
03.403 (E) M8X30 FLANGE 		0-28650-830-0 03 1 1012- ● ●
36 00.206 BOLT; GEAR CASE
(H) M8X20 W/LK WASHER 		0-50540-820-0 06 1 1012- ● ●
36 00.206 BOLT; GEAR CASE
03.704 (H) M8X45 W/LK WASHER 		0-50540-845-0 02 1 1012- ● ●
38 00.685 PIN; GEAR CASE COVER
VIETNAM EQUIPMENT(CL0) 00.669 OD=10 L=20 		9-08151-020-0 02 1 1105- ●
38 00.685 PIN; GEAR CASE COVER
04.510 OD=10 L=20 		8-97135-423-0 02 1 1012-1104 ● ● ● ●
38 00.685 PIN; GEAR CASE COVER
04.510 OD=10 L=20 		8-97135-423-0 02 1 1105- ● ● ●
38 00.685 PIN; GEAR CASE COVER
EXC. VIETNAM EQUIPMENT(CL0) 04.510 OD=10 L=20 		8-97135-423-0 02 1 1105- ●
49 00.206 GASKET; GEAR CASE TO COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97945-298-0 01 1 1012- ● ●
50 00.206 STUD
M8X27,M8X14 L=64.5 		8-97354-808-2 06 1 1012- ● ●
51 00.206 BOLT; GEAR CASE COVER 8-97354-697-1 14 1 1012- ● ●
54 00.206 COVER; GEAR CASE
EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> EXC. PERU EQUIPMENT(E07) 		8-98012-960-2 01 1 1112- ●
54 00.206 COVER; GEAR CASE 8-98165-119-1 01 1 1012-1111 ● ●
54 00.206 COVER; GEAR CASE 8-98165-119-1 01 1 1112-1405 ●
54 00.206 COVER; GEAR CASE
EXC. PERU EQUIPMENT(E07) 		8-98165-119-1 01 1 1112-1405 ●
54 00.206 COVER; GEAR CASE 8-98253-700-1 01 1 1406-1409 ●
54 00.206 COVER; GEAR CASE
EXC. PERU EQUIPMENT(E07) 		8-98253-700-1 01 1 1406-1409 ●
54 00.206 COVER; GEAR CASE 8-98253-700-1 01 1 1410- ● ●
54 00.206 COVER; GEAR CASE 8-97231-214-1 01 1 1012- ● ●
62 00.206 BOLT; COVER
06.216 (B) M8X25 FLANGE 		0-28650-825-0 06 1 1012- ● ●
62 00.206 BOLT; COVER
03.403 (E) M8X30 FLANGE 		0-28650-830-0 01 1 1012- ● ●
62 00.206 BOLT; COVER
01.060 (C) M8X35 FLANGE 		0-28650-835-0 06 1 1012- ● ●
62 00.206 BOLT; COVER
01.097 (D) M8X65 FLANGE 		1-09044-072-1 02 1 1012- ● ●
62 00.206 BOLT; COVER
03.162 (A) M6X20 FLANGE 		0-28650-620-0 04 1 1012- ●
68 00.206 COVER ASM; GEAR CASE COVER 8-98009-466-3 01 1 1012-1409 ●
68 00.206 COVER ASM; GEAR CASE COVER 8-98245-226-0 01 1 1410- ●
68 00.206 COVER ASM; GEAR CASE COVER 8-94155-721-1 01 1 1012- ● ●
79 00.219 BRACKET; GEAR CASE COVER
(A) 		8-97370-390-2 01 1 1012-1203 ● ●
79 00.219 BRACKET; GEAR CASE COVER
(B) 		8-98107-106-0 01 1 1204- ● ●
80 00.206 NUT; COVER
01.540 M6 FLANGE 		0-91180-206-0 02 1 1012- ● ●
81 00.206 STUD; GEAR CASE COVER FIX
(B) M6X16 L=25 		0-41010-616-0 02 1 1012- ● ●
81 00.206 STUD; GEAR CASE COVER FIX
00.413 (A) M8X30 L=48 		0-49140-830-0 02 1 1012- ● ●
98 00.206 NUT; STUD,INJ PUMP
01.540 M8 FLANGE 		0-91180-208-0 02 1 1012- ● ●
99 00.206 STUD; INJ PUMP
VIETNAM EQUIPMENT(CL0) 00.413 (A) M8X30 L=48 		0-49140-830-0 01 1 1105-1203 ●
99 00.206 STUD; INJ PUMP
VIETNAM EQUIPMENT(CL0) 00.413 (A) M8X30 L=48 		0-49140-830-0 02 1 1204- ●
99 00.206 STUD; INJ PUMP
VIETNAM EQUIPMENT(CL0) (B) M8X45 L=63 		0-49140-845-0 01 1 1105-1203 ●
99 00.206 STUD; INJ PUMP
(A) M8X30 L=41 		8-97369-449-0 01 1 1012-1104 ● ●
99 00.206 STUD; INJ PUMP
(A) M8X30 L=41 		8-97369-449-0 01 1 1105-1111 ●
99 00.206 STUD; INJ PUMP
EXC. VIETNAM EQUIPMENT(CL0) (A) M8X30 L=41 		8-97369-449-0 01 1 1105-1111 ●
99 00.206 STUD; INJ PUMP
NLR SGL CAB(NM**SE) EURO4 SPECIFICATION(NT4) (A) M8X30 L=41 		8-97369-449-0 01 1 1112-1203 ●
99 00.206 STUD; INJ PUMP
SGL CAB(NM**S*) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> EXC. PERU EQUIPMENT(E07) (A) M8X30 L=41 		8-97369-449-0 01 1 1112-1203 ●
99 00.206 STUD; INJ PUMP
NMR SGL CAB(NM**SN) SAUDI ARABIA EQUIPMENT(GH3) EURO2 SPECIFICATION(NT2) EXC. KD PREPARATORY PACK<6HF> (A) M8X30 L=41 		8-97369-449-0 01 1 1112-1203 ●
99 00.206 STUD; INJ PUMP
NLR DBL CAB(NM**WE) EXC. VIETNAM EQUIPMENT(CL0) (A) M8X30 L=41 		8-97369-449-0 01 1 1112-1203 ●
99 00.206 STUD; INJ PUMP
NMR DBL CAB(NM**WN) SAUDI ARABIA EQUIPMENT(GH3) EXC. KD PREPARATORY PACK<6HF> (A) M8X30 L=41 		8-97369-449-0 01 1 1112-1203 ●
99 00.206 STUD; INJ PUMP
SGL CAB(NM**S*) COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION(NT2) (A) M8X30 L=41 		8-97369-449-0 01 1 1112-1203 ●
99 00.206 STUD; INJ PUMP
NMR SGL CAB(NM**SN) EURO2 SPECIFICATION(NT2) EXC. COLOMBIA EQUIPMENT(CB7),VIETNAM EQUIPMENT(CL0),SAUDI ARABIA EQUIPMENT(GH3),KD PREPARATORY PACK<6HF> (A) M8X30 L=41 		8-97369-449-0 01 1 1112-1203 ●
99 00.206 STUD; INJ PUMP
NMR DBL CAB(NM**WN) EXC. VIETNAM EQUIPMENT(CL0),SAUDI ARABIA EQUIPMENT(GH3),KD PREPARATORY PAC K<6HF> (A) M8X30 L=41 		8-97369-449-0 01 1 1112-1203 ●
99 00.206 STUD; INJ PUMP
NLR SGL CAB(NM**SE) EURO2 SPECIFICATION(NT2) EXC. COLOMBIA EQUIPMENT(CB7),VIETNAM EQUIPMENT(CL0) (A) M8X30 L=41 		8-97369-449-0 01 1 1112-1203 ●
99 00.206 STUD; INJ PUMP
NMR SGL CAB(NM**SN) EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> EXC. COLOMBIA EQUIPMENT(CB7),VIETNAM EQUIPMENT(CL0) (A) M8X30 L=41 		8-97369-449-0 01 1 1112-1203 ●
99 00.206 STUD; INJ PUMP
NMR DBL CAB(NM**WN) KD PREPARATORY PACK<6HF> EXC. VIETNAM EQUIPMENT(CL0) (A) M8X30 L=41 		8-97369-449-0 01 1 1112-1203 ●
99 00.206 STUD; INJ PUMP
SGL CAB(NM**S*) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF> (A) M8X30 L=41 		8-97369-449-0 01 1 1112-1203 ●
99 00.206 STUD; INJ PUMP
(A) M8X30 L=41 		8-97369-449-0 02 1 1204- ●
99 00.206 STUD; INJ PUMP
EXC. VIETNAM EQUIPMENT(CL0) (A) M8X30 L=41 		8-97369-449-0 02 1 1204- ●
99 00.206 STUD; INJ PUMP
(B) M8X45 L=56 		8-97369-450-0 01 1 1012-1104 ● ●
99 00.206 STUD; INJ PUMP
(B) M8X45 L=56 		8-97369-450-0 01 1 1105-1111 ●
99 00.206 STUD; INJ PUMP
EXC. VIETNAM EQUIPMENT(CL0) (B) M8X45 L=56 		8-97369-450-0 01 1 1105-1111 ●
99 00.206 STUD; INJ PUMP
NLR SGL CAB(NM**SE) EURO4 SPECIFICATION(NT4) (B) M8X45 L=56 		8-97369-450-0 01 1 1112-1203 ●
99 00.206 STUD; INJ PUMP
SGL CAB(NM**S*) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> EXC. PERU EQUIPMENT(E07) (B) M8X45 L=56 		8-97369-450-0 01 1 1112-1203 ●
99 00.206 STUD; INJ PUMP
NMR SGL CAB(NM**SN) SAUDI ARABIA EQUIPMENT(GH3) EURO2 SPECIFICATION(NT2) EXC. KD PREPARATORY PACK<6HF> (B) M8X45 L=56 		8-97369-450-0 01 1 1112-1203 ●
99 00.206 STUD; INJ PUMP
NLR DBL CAB(NM**WE) EXC. VIETNAM EQUIPMENT(CL0) (B) M8X45 L=56 		8-97369-450-0 01 1 1112-1203 ●
99 00.206 STUD; INJ PUMP
NMR DBL CAB(NM**WN) SAUDI ARABIA EQUIPMENT(GH3) EXC. KD PREPARATORY PACK<6HF> (B) M8X45 L=56 		8-97369-450-0 01 1 1112-1203 ●
99 00.206 STUD; INJ PUMP
SGL CAB(NM**S*) COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION(NT2) (B) M8X45 L=56 		8-97369-450-0 01 1 1112-1203 ●
99 00.206 STUD; INJ PUMP
NMR SGL CAB(NM**SN) EURO2 SPECIFICATION(NT2) EXC. COLOMBIA EQUIPMENT(CB7),VIETNAM EQUIPMENT(CL0),SAUDI ARABIA EQUIPMENT(GH3),KD PREPARATORY PACK<6HF> (B) M8X45 L=56 		8-97369-450-0 01 1 1112-1203 ●
99 00.206 STUD; INJ PUMP
NMR DBL CAB(NM**WN) EXC. VIETNAM EQUIPMENT(CL0),SAUDI ARABIA EQUIPMENT(GH3),KD PREPARATORY PAC K<6HF> (B) M8X45 L=56 		8-97369-450-0 01 1 1112-1203 ●
99 00.206 STUD; INJ PUMP
NLR SGL CAB(NM**SE) EURO2 SPECIFICATION(NT2) EXC. COLOMBIA EQUIPMENT(CB7),VIETNAM EQUIPMENT(CL0) (B) M8X45 L=56 		8-97369-450-0 01 1 1112-1203 ●
99 00.206 STUD; INJ PUMP
NMR SGL CAB(NM**SN) EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> EXC. COLOMBIA EQUIPMENT(CB7),VIETNAM EQUIPMENT(CL0) (B) M8X45 L=56 		8-97369-450-0 01 1 1112-1203 ●
99 00.206 STUD; INJ PUMP
NMR DBL CAB(NM**WN) KD PREPARATORY PACK<6HF> EXC. VIETNAM EQUIPMENT(CL0) (B) M8X45 L=56 		8-97369-450-0 01 1 1112-1203 ●
99 00.206 STUD; INJ PUMP
SGL CAB(NM**S*) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF> (B) M8X45 L=56 		8-97369-450-0 01 1 1112-1203 ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> EXC. PERU EQUIPMENT(E07) (A) 		8-97382-606-0 01 1 1112- ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> EXC. PERU EQUIPMENT(E07) (D) 		8-97386-601-0 01 1 1112- ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=109 OD=137 		8-97329-780-0 01 1 1012- ● ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-98158-110-0 01 1 1012- ● ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). (C) 		8-97351-704-0 01 1 1012- ● ●
123 00.206 COVER; TIMING,LWR 8-98158-145-0 01 1 1012- ● ●
124 00.206 BOLT; TIMING COVER
09.242 M6X16 FLANGE 		0-28050-616-0 03 1 1012- ● ●
133 00.206 NUT; TIMING GEAR CASE
01.540 M8 FLANGE 		0-91180-208-0 02 1 1012- ● ●
134 00.669 STUD; TIMING GEAR CASE
02.510 M8X20 L=32 		0-41010-820-0 02 1 1012- ● ●
202 00.206 NUT; BRKT
01.540 M8 FLANGE 		0-91180-208-0 01 1 1204- ● ●
233 00.669 STUD; BRKT
VIETNAM EQUIPMENT(CL0) 03.275 M8X71 L=83 		8-97367-083-0 01 1 1204- ●
233 00.669 STUD; BRKT
03.275 M8X71 L=83 		8-98017-063-0 01 1 1204- ●
233 00.669 STUD; BRKT
EXC. VIETNAM EQUIPMENT(CL0) 03.275 M8X71 L=83 		8-98017-063-0 01 1 1204- ●
510 04.895 PUMP ASM; VACUUM 8-98241-234-0 01 1 1306-1311 ●
510 04.895 PUMP ASM; VACUUM 8-98251-764-0 01 1 1312- ● ●
510 04.895 PUMP ASM; VACUUM 8-98162-748-0 01 1 1012-1305 ● ●
510 04.895 PUMP ASM; VACUUM 8-98162-748-0 01 1 1306-1311 ●
512 04.895 RUBBER; SPACE 8-98165-120-0 01 1 1012-1012 ●
516 04.895 VANE; VAC PUMP 8-98051-275-0 03 1 1012- ● ●
517 04.895 GASKET; VAC PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-98244-022-0 01 1 1306-1311 ●
517 04.895 GASKET; VAC PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-98049-522-0 01 1 1012-1305 ● ●
517 04.895 GASKET; VAC PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-98049-522-0 01 1 1306-1311 ●
517 04.895 GASKET; VAC PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-98251-769-0 01 1 1312- ● ●
517 04.895 GASKET; VAC PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) 		9-09566-271-0 01 1 1012- ● ●
518 04.895 BOLT; VAC PUMP 8-98049-523-0 03 1 1012- ● ●
595 00.213 GASKET; VLV
(B) ID=12 		8-98018-518-0 01 1 1012- ● ●
595 00.213 GASKET; VLV
(A) ID=18 		8-98018-519-0 02 1 1012- ● ●
620 00.207 GASKET; GEAR CASE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.40 1-NOTCH 		8-97328-828-2 01 1 1012- ● ●
620 00.207 GASKET; GEAR CASE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.45 2-NOTCH 		8-97331-631-2 01 1 1012- ● ●
620 00.207 GASKET; GEAR CASE
ALSO INCLUDED IN GASKET SET(ENG. & HE AD) T=1.50 3-NOTCH 		8-97331-632-2 01 1 1012- ● ●
621 00.207 NUT; VAC PUMP
01.540 M8 FLANGE 		0-91180-208-0 03 1 1012- ● ●
636 00.206 ROTOR & VANE ASM; VAC PUMP 8-98049-520-0 01 1 1012- ● ●

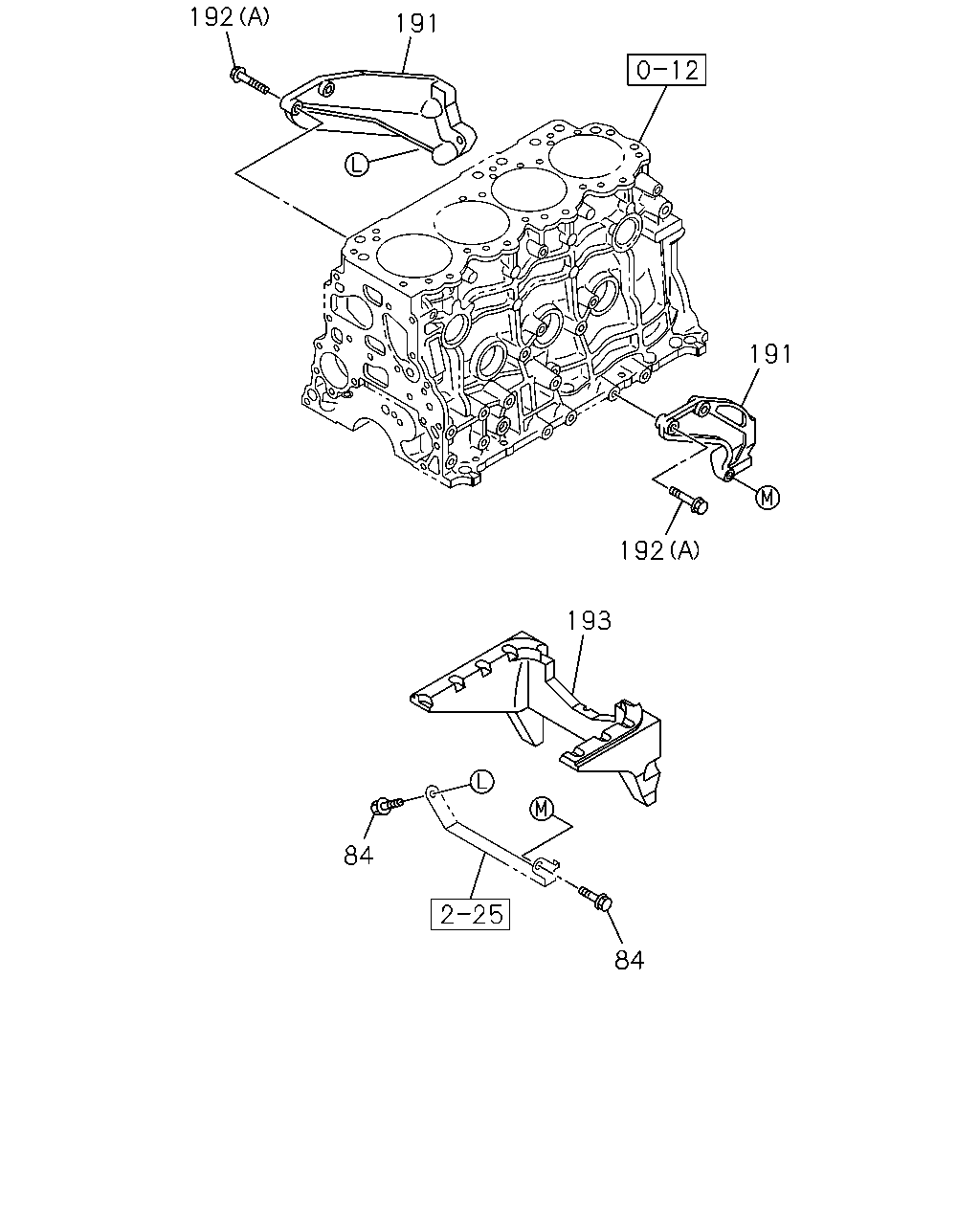

çizim 190823
192 191 191 192 193 84 84
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
84 00.206 BOLT; SPACER
SAUDI ARABIA EQUIPMENT(GH3) 03.162 M12X20 FLANGE 		0-28151-220-0 02 1 1012- ●
84 00.206 BOLT; SPACER
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 1012-1204 ●
191 00.669 STAY; FLYWHEEL HSG 8-97167-292-0 01 1 1107- ●
191 00.669 STAY; FLYWHEEL HSG
04.083 		8-97074-108-3 01 1 1012- ● ●
191 00.669 STAY; FLYWHEEL HSG
04.083 		8-97084-390-2 01 1 1012- ● ●
192 00.206 BOLT; STAY TO HSG
02.510 (B) M12X100 FLANGE 		0-28151-200-0 01 1 1107- ●
192 00.206 BOLT; STAY TO HSG
00.685 (C) M12X50 FLANGE 		0-28151-250-0 01 1 1107- ●
192 00.206 BOLT; STAY TO HSG
02.277 (A) M10X35 FLANGE 		0-28651-035-0 04 1 1012- ● ●
193 01.428 SPACER; STAY TO OIL,PAN
00.137 		8-97286-992-0 01 1 1012-1204 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
