Sayfa 0-14 - Isuzu EPC

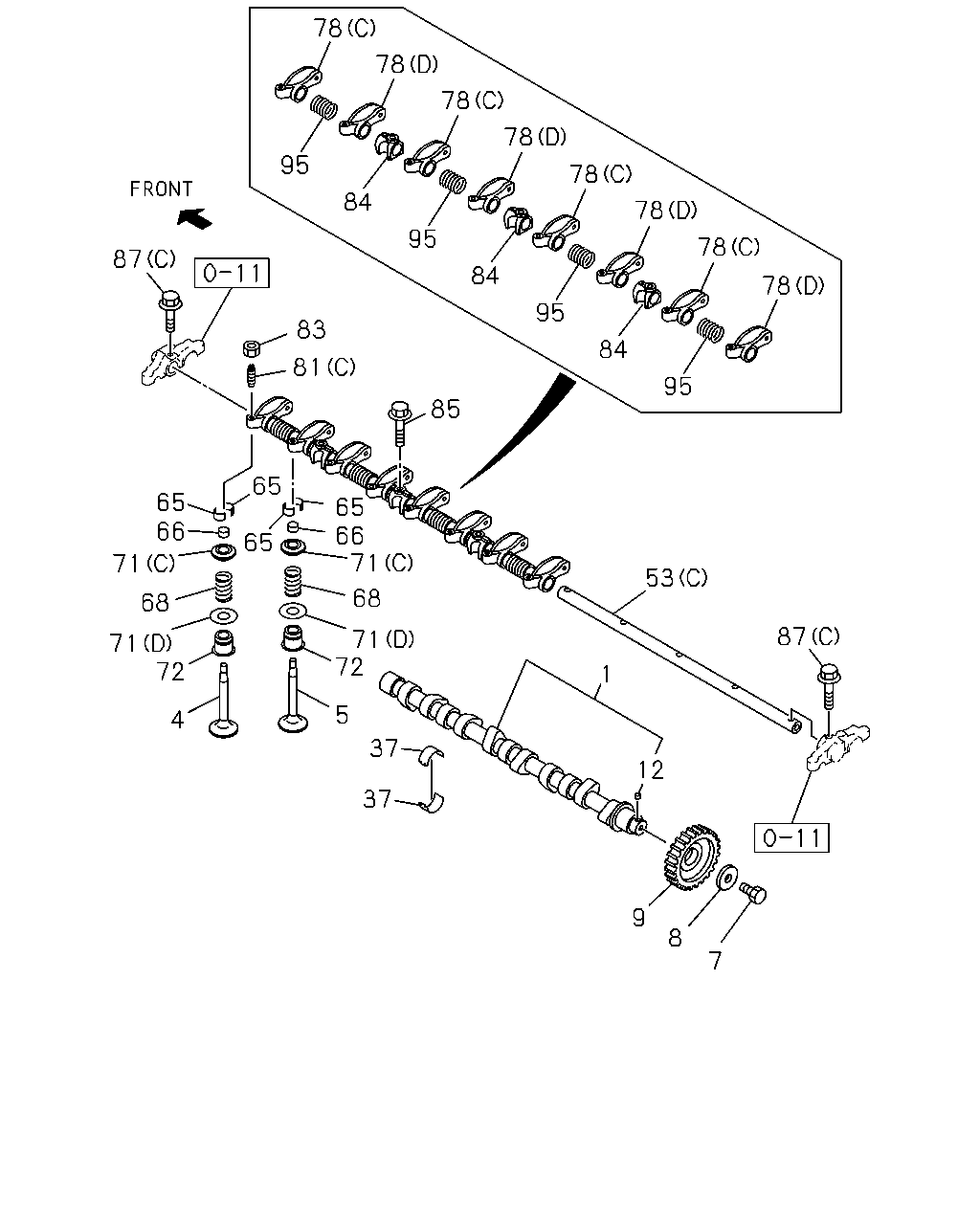

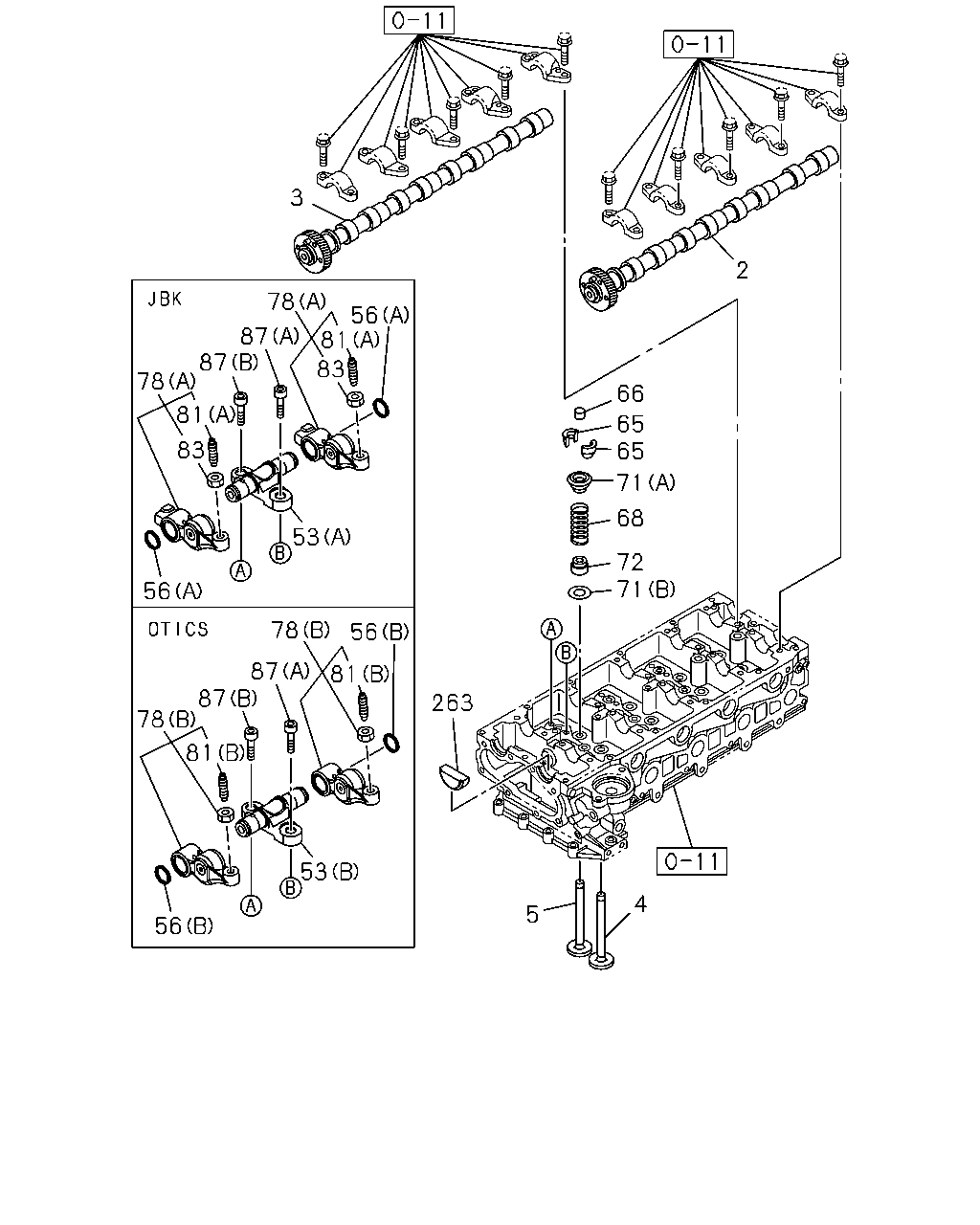

0-14 — CAMSHAFT AND VALVE (#79035) — 503 parça

3 78 87 56 81 87 78 83 53 56 83 81 2 66 71 65 68 65 72 71 263 4 5 56 53 56 81 78 87 87 78 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	00.519 CAMSHAFT; INL VIETNAM EQUIPMENT(CL0) TBKK	8-98182-902-1	01	1	1105-	●
2	00.519 CAMSHAFT; INL VIETNAM EQUIPMENT(CL0) IEMT	8-98186-004-1	01	1	1105-	●
2	00.519 CAMSHAFT; INL ISZ	8-98003-129-3	01	1	1012-1104	●	●
2	00.519 CAMSHAFT; INL ISZ	8-98003-129-4	01	1	1105-		●
2	00.519 CAMSHAFT; INL EXC. VIETNAM EQUIPMENT(CL0) ISZ	8-98003-129-4	01	1	1105-	●
3	00.519 CAMSHAFT; EXH VIETNAM EQUIPMENT(CL0) TBKK	8-98182-903-1	01	1	1105-	●
3	00.519 CAMSHAFT; EXH VIETNAM EQUIPMENT(CL0) IEMT	8-98186-005-1	01	1	1105-	●
3	00.519 CAMSHAFT; EXH ISZ	8-98003-130-3	01	1	1012-1104	●	●
3	00.519 CAMSHAFT; EXH ISZ	8-98003-130-4	01	1	1105-		●
3	00.519 CAMSHAFT; EXH EXC. VIETNAM EQUIPMENT(CL0) ISZ	8-98003-130-4	01	1	1105-	●
4	00.296 VALVE; INL VIETNAM EQUIPMENT(CL0)	8-97309-675-1	08	1	1105-	●
4	00.296 VALVE; INL	8-97171-398-0	04	1	1012-			●	●
4	00.296 VALVE; INL	8-98016-973-0	08	1	1012-1104	●	●
4	00.296 VALVE; INL	8-98016-973-0	08	1	1105-1501		●
4	00.296 VALVE; INL EXC. VIETNAM EQUIPMENT(CL0)	8-98016-973-0	08	1	1105-1501	●
4	00.296 VALVE; INL	8-98016-973-0	08	1	1502-	●	●
4	00.296 VALVE; INL	8-94464-921-2	04	1	1012-					●
4	00.296 VALVE; INL	8-94133-275-2	04	1	1012-						●
5	00.297 VALVE; EXH VIETNAM EQUIPMENT(CL0)	8-97309-677-1	08	1	1105-	●
5	00.297 VALVE; EXH	8-97171-399-0	04	1	1012-			●	●
5	00.297 VALVE; EXH	8-98016-974-1	08	1	1012-1104	●	●
5	00.297 VALVE; EXH	8-98016-974-1	08	1	1105-		●
5	00.297 VALVE; EXH EXC. VIETNAM EQUIPMENT(CL0)	8-98016-974-1	08	1	1105-	●
5	00.297 VALVE; EXH	8-94433-245-1	04	1	1012-1405					●
5	00.297 VALVE; EXH	8-98277-383-0	04	1	1406-					●
5	00.297 VALVE; EXH	8-94247-875-2	04	1	1012-						●
53	00.353 SHAFT; ROCKER ARM (C) JBK	8-97074-617-1	01	1	1012-			●	●
53	00.353 SHAFT; ROCKER ARM (C) KEIHIN SEIMITSU	8-97174-567-0	01	1	1012-			●	●
53	00.353 SHAFT; ROCKER ARM (B) INLET OTICS	8-97364-809-2	04	1	1012-1309	●	●
53	00.353 SHAFT; ROCKER ARM (B) INLET OTICS	8-97364-809-2	04	1	1310-1310		●
53	00.353 SHAFT; ROCKER ARM EXC. VIETNAM EQUIPMENT(CL0) (B) INLET OTICS	8-97364-809-2	04	1	1310-1310	●
53	00.353 SHAFT; ROCKER ARM (B) INLET OTICS	8-97364-809-2	04	1	1310-	●	●
53	00.353 SHAFT; ROCKER ARM (B) EXHAUST OTICS	8-97364-811-2	04	1	1012-1309	●	●
53	00.353 SHAFT; ROCKER ARM (B) EXHAUST OTICS	8-97364-811-2	04	1	1310-1310		●
53	00.353 SHAFT; ROCKER ARM EXC. VIETNAM EQUIPMENT(CL0) (B) EXHAUST OTICS	8-97364-811-2	04	1	1310-1310	●
53	00.353 SHAFT; ROCKER ARM (B) EXHAUST OTICS	8-97364-811-2	04	1	1310-	●	●
53	00.353 SHAFT; ROCKER ARM (A) INLET JBK	8-98025-071-1	04	1	1012-1104	●	●
53	00.353 SHAFT; ROCKER ARM (A) INLET JBK	8-98025-071-1	04	1	1105-		●
53	00.353 SHAFT; ROCKER ARM EXC. VIETNAM EQUIPMENT(CL0) (A) INLET JBK	8-98025-071-1	04	1	1105-	●
53	00.353 SHAFT; ROCKER ARM (A) EXHAUST JBK	8-98025-074-1	04	1	1012-1104	●	●
53	00.353 SHAFT; ROCKER ARM (A) EXHAUST JBK	8-98025-074-1	04	1	1105-		●
53	00.353 SHAFT; ROCKER ARM EXC. VIETNAM EQUIPMENT(CL0) (A) EXHAUST JBK	8-98025-074-1	04	1	1105-	●
53	00.353 SHAFT; ROCKER ARM (D)	8-97036-197-0	01	1	1012-					●	●
56	00.349 RING; SNAP,ROCKER ARM 00.353 (A)	8-98025-496-0	16	1	1012-1104	●	●
56	00.349 RING; SNAP,ROCKER ARM 00.353 (A)	8-98025-496-0	16	1	1105-		●
56	00.349 RING; SNAP,ROCKER ARM EXC. VIETNAM EQUIPMENT(CL0) 00.353 (A)	8-98025-496-0	16	1	1105-	●
56	00.349 RING; SNAP,ROCKER ARM (B)	8-98109-470-0	16	1	1012-1309	●	●
56	00.349 RING; SNAP,ROCKER ARM (B)	8-98109-470-0	16	1	1310-1310		●
56	00.349 RING; SNAP,ROCKER ARM EXC. VIETNAM EQUIPMENT(CL0) (B)	8-98109-470-0	16	1	1310-1310	●
56	00.349 RING; SNAP,ROCKER ARM (B)	8-98109-470-0	16	1	1310-	●	●
56	00.349 RING; SNAP,ROCKER ARM (C) ID=17.5	9-09180-019-0	02	1	1012-					●	●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	1012-			●	●
65	00.310 COLLAR; SPLIT	8-94239-501-0	32	1	1012-	●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	1012-					●	●
66	00.303 CAP; VLV STEM END	8-94396-015-2	08	1	1012-			●	●
66	00.303 CAP; VLV STEM END	8-98147-945-0	16	1	1012-	●	●
68	00.303 SPRING; VLV ID=28.5	8-97023-559-0	08	1	1012-			●	●
68	00.303 SPRING; VLV H=49 NATURAL	8-97311-669-0	08	1	1012-	●	●
68	00.303 SPRING; VLV H=57.5 MARK YELLOW	8-97311-675-1	08	1	1012-	●	●
68	00.303 SPRING; VLV H=48 NATURAL	8-94433-247-0	08	1	1012-					●	●
71	00.309 SEAT; SPR VIETNAM EQUIPMENT(CL0) (A) OD=29.5	8-97311-668-0	16	1	1105-	●
71	00.309 SEAT; SPR (C) OD=38	8-94385-029-2	08	1	1012-			●	●
71	00.309 SEAT; SPR (D) ID=14.3 OD=40	8-94399-526-1	08	1	1012-			●	●
71	00.309 SEAT; SPR (B) OD=31	8-97144-584-0	16	1	1012-	●	●
71	00.309 SEAT; SPR (A)	8-98017-067-0	16	1	1012-1104	●	●
71	00.309 SEAT; SPR (A)	8-98017-067-0	16	1	1105-		●
71	00.309 SEAT; SPR EXC. VIETNAM EQUIPMENT(CL0) (A)	8-98017-067-0	16	1	1105-	●
71	00.309 SEAT; SPR (F) OD=34	5-12563-001-0	08	1	1012-					●	●
71	00.309 SEAT; SPR (E) OD=32.8	8-94133-731-2	08	1	1012-					●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-94396-609-2	08	1	1012-			●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97328-647-0	16	1	1012-	●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97120-307-0	08	1	1012-					●	●
78	00.333 ARM; ROCKER (D) JBK	8-97014-258-2	04	1	1012-			●	●
78	00.333 ARM; ROCKER (C) JBK	8-97074-614-1	04	1	1012-			●	●
78	00.333 ARM; ROCKER (C) KEIHIN SEIMITSU	8-97174-562-0	04	1	1012-			●	●
78	00.333 ARM; ROCKER (D) KEIHIN SEIMITSU	8-97174-565-0	04	1	1012-			●	●
78	00.333 ARM; ROCKER 00.353 (A) JBK	8-98025-059-3	16	1	1012-1104	●	●
78	00.333 ARM; ROCKER 00.353 (A) JBK	8-98025-059-4	16	1	1105-		●
78	00.333 ARM; ROCKER EXC. VIETNAM EQUIPMENT(CL0) 00.353 (A) JBK	8-98025-059-4	16	1	1105-	●
78	00.333 ARM; ROCKER (B) OTICS	8-98029-537-5	16	1	1012-1309	●	●
78	00.333 ARM; ROCKER (B) OTICS	8-98029-537-6	16	1	1310-1310		●
78	00.333 ARM; ROCKER EXC. VIETNAM EQUIPMENT(CL0) (B) OTICS	8-98029-537-6	16	1	1310-1310	●
78	00.333 ARM; ROCKER (B) OTICS	8-98029-537-6	16	1	1310-	●	●
78	00.333 ARM; ROCKER (E)	8-94152-344-0	08	1	1012-					●	●
81	00.429 SCREW; ADJ,ROCKER ARM (C)	8-94367-526-2	16	1	1012-			●	●
81	00.429 SCREW; ADJ,ROCKER ARM (A) M8 L=22	8-98025-497-0	16	1	1012-1104	●	●
81	00.429 SCREW; ADJ,ROCKER ARM (A) M8 L=22	8-98025-497-0	16	1	1105-		●
81	00.429 SCREW; ADJ,ROCKER ARM EXC. VIETNAM EQUIPMENT(CL0) (A) M8 L=22	8-98025-497-0	16	1	1105-	●
81	00.429 SCREW; ADJ,ROCKER ARM (B) M8 L=22	8-98029-893-0	16	1	1012-1309	●	●
81	00.429 SCREW; ADJ,ROCKER ARM (B) M8 L=22	8-98029-893-0	16	1	1310-1310		●
81	00.429 SCREW; ADJ,ROCKER ARM EXC. VIETNAM EQUIPMENT(CL0) (B) M8 L=22	8-98029-893-0	16	1	1310-1310	●
81	00.429 SCREW; ADJ,ROCKER ARM (B) M8 L=22	8-98029-893-0	16	1	1310-	●	●
81	00.429 SCREW; ADJ,ROCKER ARM (D) M8 L=30	8-94152-283-1	08	1	1012-					●	●
83	00.787 NUT; ADJ SCREW,LK M10	0-91111-510-0	16	1	1012-			●	●
83	00.787 NUT; ADJ SCREW,LK 00.429 M8 FLANGE	9-09844-574-0	16	1	1012-1104	●	●
83	00.787 NUT; ADJ SCREW,LK 00.429 M8 FLANGE	9-09844-574-0	16	1	1105-		●
83	00.787 NUT; ADJ SCREW,LK EXC. VIETNAM EQUIPMENT(CL0) 00.429 M8 FLANGE	9-09844-574-0	16	1	1105-	●
83	00.787 NUT; ADJ SCREW,LK 00.777 M8	0-91111-508-0	08	1	1012-					●	●
87	00.349 BOLT; ROCKER SHAFT 03.162 (C) M8X35 FLANGE	0-28050-835-0	04	1	1012-			●	●
87	00.349 BOLT; ROCKER SHAFT (A) M8X25 HEX SOCKET	0-58330-825-0	08	1	1012-	●	●
87	00.349 BOLT; ROCKER SHAFT (B) M8X40 HEX SOCKET	0-58330-840-0	08	1	1012-	●	●
87	00.349 BOLT; ROCKER SHAFT (D) M10X60	8-94433-302-0	01	1	1012-					●	●
263	00.529 GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HE AD) VIETNAM EQUIPMENT(CL0)	8-97947-079-0	04	1	1105-	●
263	00.529 GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98101-472-0	04	1	1012-1104	●	●
263	00.529 GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98101-472-0	04	1	1105-1111		●
263	00.529 GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. VIETNAM EQUIPMENT(CL0)	8-98101-472-0	04	1	1105-1111	●
263	00.529 GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HE AD) NLR SGL CAB(NM**SE) EURO4 SPECIFICATION(NT4)	8-98101-472-0	04	1	1112-1204		●
263	00.529 GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HE AD) SGL CAB(NM*S) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> EXC. PERU EQUIPMENT(E07)	8-98101-472-0	04	1	1112-1204	●
263	00.529 GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HE AD) NMR SGL CAB(NM**SN) SAUDI ARABIA EQUIPMENT(GH3) EURO2 SPECIFICATION(NT2) EXC. KD PREPARATORY PACK<6HF>	8-98101-472-0	04	1	1112-1204	●
263	00.529 GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HE AD) NLR DBL CAB(NM**WE) EXC. VIETNAM EQUIPMENT(CL0)	8-98101-472-0	04	1	1112-1204	●
263	00.529 GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HE AD) NMR DBL CAB(NM**WN) SAUDI ARABIA EQUIPMENT(GH3) EXC. KD PREPARATORY PACK<6HF>	8-98101-472-0	04	1	1112-1204	●
263	00.529 GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HE AD) SGL CAB(NM*S) COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION(NT2)	8-98101-472-0	04	1	1112-1204	●
263	00.529 GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HE AD) NMR SGL CAB(NM**SN) EURO2 SPECIFICATION(NT2) EXC. COLOMBIA EQUIPMENT(CB7),VIETNAM EQUIPMENT(CL0),SAUDI ARABIA EQUIPMENT(GH3),KD PREPARATORY PACK<6HF>	8-98101-472-0	04	1	1112-1204	●
263	00.529 GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HE AD) NMR DBL CAB(NM**WN) EXC. VIETNAM EQUIPMENT(CL0),SAUDI ARABIA EQUIPMENT(GH3),KD PREPARATORY PAC K<6HF>	8-98101-472-0	04	1	1112-1204	●
263	00.529 GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HE AD) NLR SGL CAB(NM**SE) EURO2 SPECIFICATION(NT2) EXC. COLOMBIA EQUIPMENT(CB7),VIETNAM EQUIPMENT(CL0)	8-98101-472-0	04	1	1112-1204	●
263	00.529 GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HE AD) NMR SGL CAB(NM**SN) EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> EXC. COLOMBIA EQUIPMENT(CB7),VIETNAM EQUIPMENT(CL0)	8-98101-472-0	04	1	1112-1204	●
263	00.529 GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HE AD) NMR DBL CAB(NM**WN) KD PREPARATORY PACK<6HF> EXC. VIETNAM EQUIPMENT(CL0)	8-98101-472-0	04	1	1112-1204	●
263	00.529 GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HE AD) SGL CAB(NM*S) EURO3 SPECIFICATION(NT3) EXC. KD PREPARATORY PACK<6HF>	8-98101-472-0	04	1	1112-1204	●
263	00.529 GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-98216-269-0	04	1	1205-		●
263	00.529 GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HE AD) EXC. VIETNAM EQUIPMENT(CL0)	8-98216-269-0	04	1	1205-	●

112 206 101 102 112 107 111 206 107 111 101 107 101 111 206 117 112 107 112 111 102 105 223 224

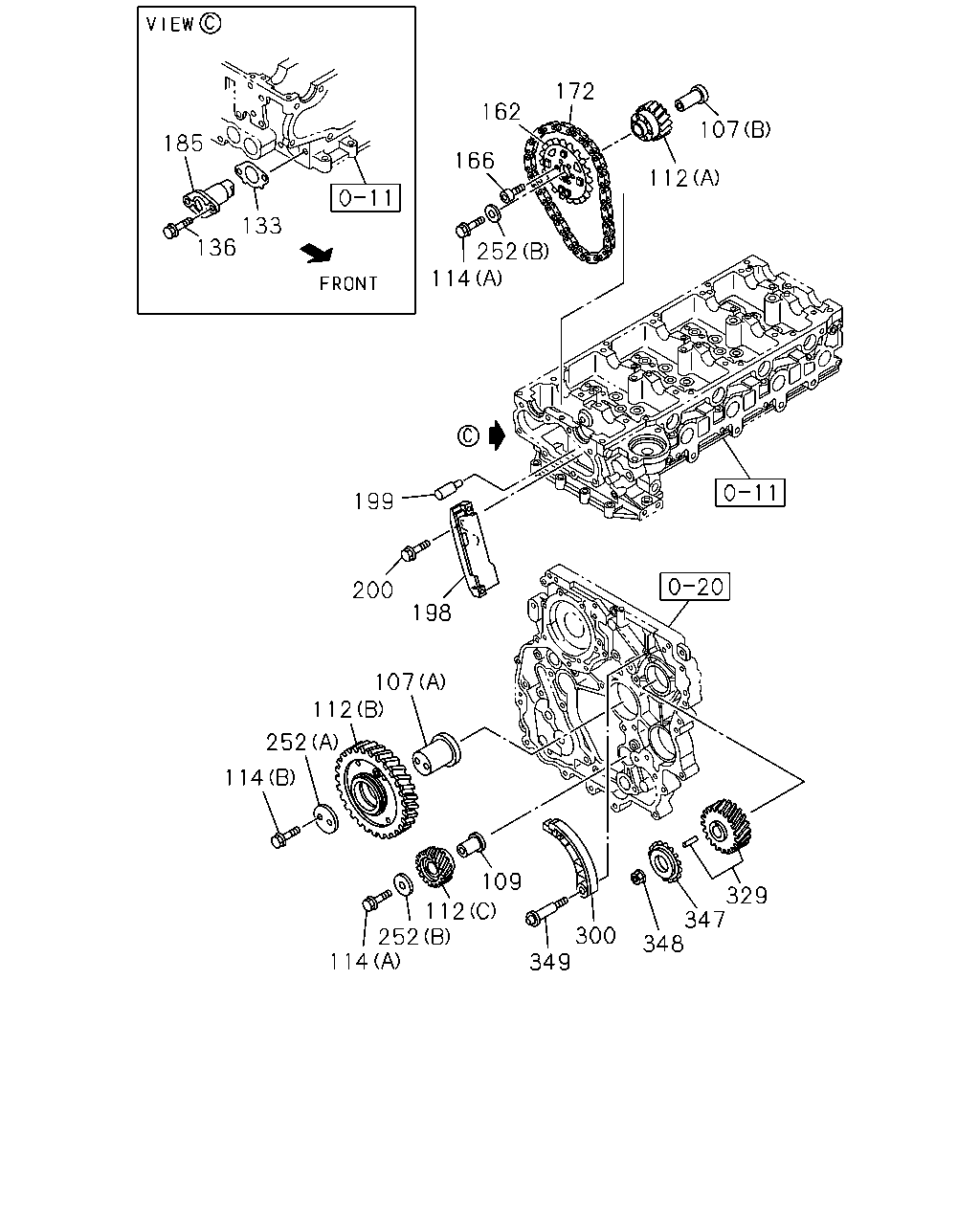

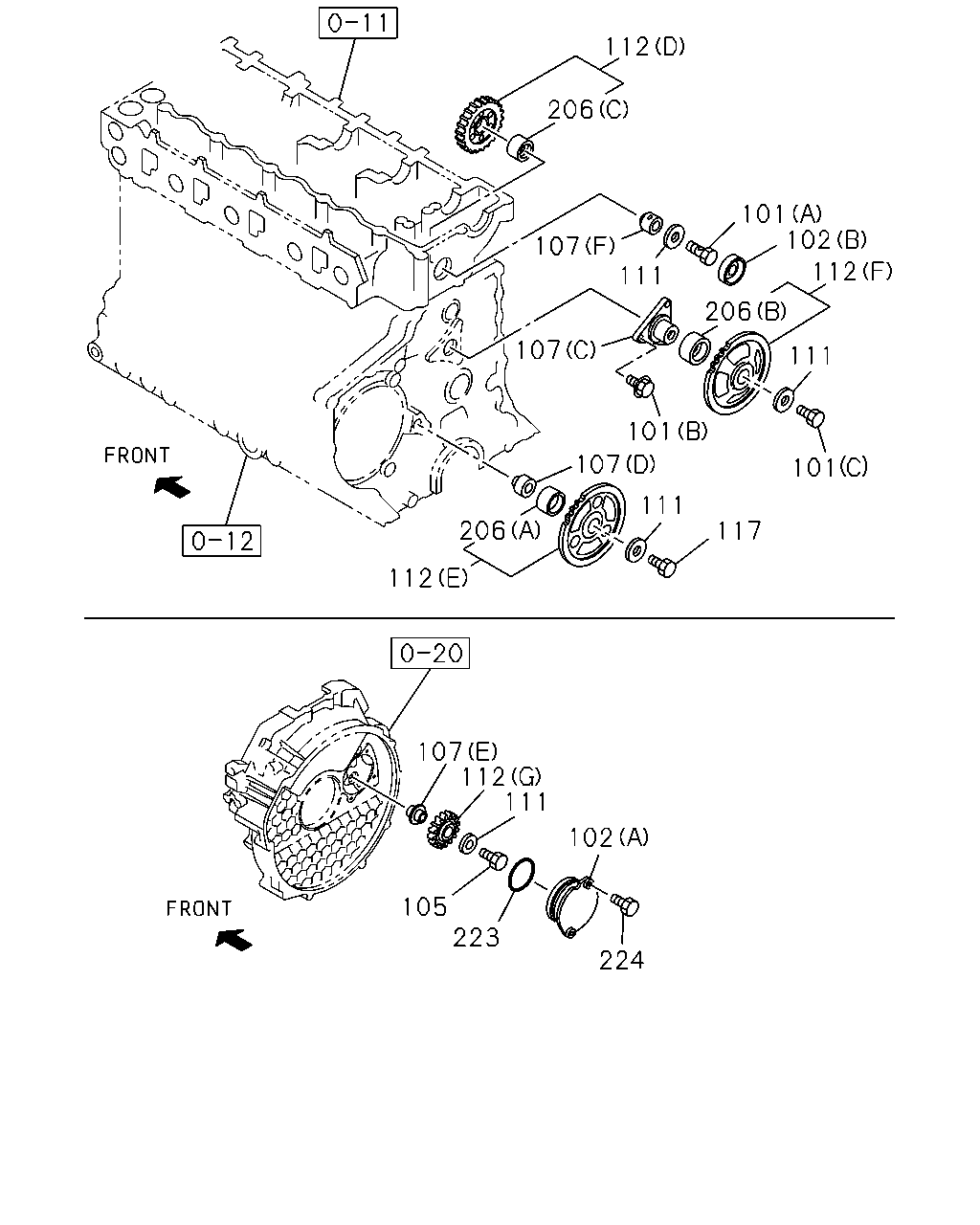

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
101	00.724 BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	1012-			●	●
101	00.724 BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	1012-			●	●
101	00.724 BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	1012-1310			●	●
101	00.724 BOLT; THRUST COLLAR (C) M14X25	0-23951-425-0	01	1	1311-			●	●
101	00.724 BOLT; THRUST COLLAR (D) M8X53 FLANGE	8-97223-999-0	02	1	1012-					●	●
102	00.724 COVER; IDLE GEAR (A)	8-94334-681-1	01	1	1012-			●	●
102	00.724 COVER; IDLE GEAR (B) OD=51	8-97096-826-0	01	1	1012-			●	●
105	00.724 BOLT; IDLE GEAR SHAFT EXC. MANUAL STEERING<N51> M14X60	0-16956-460-0	01	1	1012-			●	●
107	00.724 SHAFT; IDLE GEAR EXC. MANUAL STEERING<N51> (E)	8-94334-682-1	01	1	1012-			●	●
107	00.724 SHAFT; IDLE GEAR (F)	8-97186-398-1	01	1	1012-			●	●
107	00.724 SHAFT; IDLE GEAR (C)	8-97350-021-0	01	1	1012-			●	●
107	00.724 SHAFT; IDLE GEAR (D)	8-98060-780-0	01	1	1012-			●	●
107	00.724 SHAFT; IDLE GEAR (A)	8-97312-315-2	01	1	1012-	●	●
107	00.724 SHAFT; IDLE GEAR (B)	8-97312-322-1	01	1	1012-	●	●
107	00.724 SHAFT; IDLE GEAR (G)	8-97920-007-0	01	1	1012-					●
107	00.724 SHAFT; IDLE GEAR (G)	8-94139-758-1	01	1	1012-						●
111	00.724 COLLAR; THRUST,IDLE GEAR EXC. MANUAL STEERING<N51> ID=14.5 OD=46	8-97209-728-2	01	1	1012-			●	●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	03	1	1012-			●	●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-94141-937-1	01	1	1012-					●	●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-97912-650-0	01	1	1501-					●	●
112	00.724 GEAR; IDLE VIETNAM EQUIPMENT(CL0) (B) Z=80	8-98021-050-2	01	1	1105-	●
112	00.724 GEAR; IDLE VIETNAM EQUIPMENT(CL0) (C) Z=34	8-98021-052-1	01	1	1105-	●
112	00.724 GEAR; IDLE (F) Z=61	8-97094-546-2	01	1	1012-			●
112	00.724 GEAR; IDLE (D) Z=41	8-97112-607-1	01	1	1012-			●
112	00.724 GEAR; IDLE (E) Z=72-30	8-97227-074-0	01	1	1012-			●
112	00.724 GEAR; IDLE EXC. MANUAL STEERING<N51> (G) Z=34	8-97120-005-1	01	1	1012-			●	●
112	00.724 GEAR; IDLE (F) Z=122	8-97088-053-2	01	1	1012-				●
112	00.724 GEAR; IDLE (D) Z=82	8-97088-055-2	01	1	1012-				●
112	00.724 GEAR; IDLE (E) Z=72-60	8-97227-213-0	01	1	1012-				●
112	00.724 GEAR; IDLE (B) Z=80	8-97381-516-1	01	1	1012-1104	●	●
112	00.724 GEAR; IDLE (B) Z=80	8-97381-516-1	01	1	1105-1311		●
112	00.724 GEAR; IDLE EXC. VIETNAM EQUIPMENT(CL0) (B) Z=80	8-97381-516-1	01	1	1105-1311	●
112	00.724 GEAR; IDLE (B) Z=80	8-98232-105-1	01	1	1312-		●
112	00.724 GEAR; IDLE EXC. VIETNAM EQUIPMENT(CL0) (B) Z=80	8-98232-105-1	01	1	1312-	●
112	00.724 GEAR; IDLE (C) Z=34	8-97381-518-0	01	1	1012-1104	●	●
112	00.724 GEAR; IDLE (C) Z=34	8-97381-518-0	01	1	1105-		●
112	00.724 GEAR; IDLE EXC. VIETNAM EQUIPMENT(CL0) (C) Z=34	8-97381-518-0	01	1	1105-	●
112	00.724 GEAR; IDLE (A) Z=35	8-97381-520-3	01	1	1012-	●	●
112	00.724 GEAR; IDLE (H) Z=31	8-97229-601-0	01	1	1012-					●
112	00.724 GEAR; IDLE (H) Z=31	8-97164-773-0	01	1	1012-						●
117	00.662 BOLT; FLANGE M14X65 FLANGE	8-97113-167-0	01	1	1012-			●	●
206	00.724 BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	1-12528-006-0	01	1	1012-			●	●
206	00.724 BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-97606-768-0	01	1	1012-			●	●
206	00.724 BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-97606-770-0	01	1	1012-			●	●
223	00.724 GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-423-0	01	1	1012-			●	●
224	00.724 BOLT; COVER 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1012-			●	●

185 133 136 200 199 198 112 252 114 114 112 252 349 348 300 347 329 109 107 112 172 162 166 252 114 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
107	00.724 SHAFT; IDLE GEAR EXC. MANUAL STEERING<N51> (E)	8-94334-682-1	01	1	1012-			●	●
107	00.724 SHAFT; IDLE GEAR (F)	8-97186-398-1	01	1	1012-			●	●
107	00.724 SHAFT; IDLE GEAR (C)	8-97350-021-0	01	1	1012-			●	●
107	00.724 SHAFT; IDLE GEAR (D)	8-98060-780-0	01	1	1012-			●	●
107	00.724 SHAFT; IDLE GEAR (A)	8-97312-315-2	01	1	1012-	●	●
107	00.724 SHAFT; IDLE GEAR (B)	8-97312-322-1	01	1	1012-	●	●
107	00.724 SHAFT; IDLE GEAR (G)	8-97920-007-0	01	1	1012-					●
107	00.724 SHAFT; IDLE GEAR (G)	8-94139-758-1	01	1	1012-						●
109	00.724 SHAFT; IDLE GEAR	8-97312-319-1	01	1	1012-	●	●
109	00.724 SHAFT; IDLE GEAR	8-97218-780-0	01	1	1012-					●
109	00.724 SHAFT; IDLE GEAR	8-94109-913-1	01	1	1012-						●
112	00.724 GEAR; IDLE VIETNAM EQUIPMENT(CL0) (B) Z=80	8-98021-050-2	01	1	1105-	●
112	00.724 GEAR; IDLE VIETNAM EQUIPMENT(CL0) (C) Z=34	8-98021-052-1	01	1	1105-	●
112	00.724 GEAR; IDLE (F) Z=61	8-97094-546-2	01	1	1012-			●
112	00.724 GEAR; IDLE (D) Z=41	8-97112-607-1	01	1	1012-			●
112	00.724 GEAR; IDLE (E) Z=72-30	8-97227-074-0	01	1	1012-			●
112	00.724 GEAR; IDLE EXC. MANUAL STEERING<N51> (G) Z=34	8-97120-005-1	01	1	1012-			●	●
112	00.724 GEAR; IDLE (F) Z=122	8-97088-053-2	01	1	1012-				●
112	00.724 GEAR; IDLE (D) Z=82	8-97088-055-2	01	1	1012-				●
112	00.724 GEAR; IDLE (E) Z=72-60	8-97227-213-0	01	1	1012-				●
112	00.724 GEAR; IDLE (B) Z=80	8-97381-516-1	01	1	1012-1104	●	●
112	00.724 GEAR; IDLE (B) Z=80	8-97381-516-1	01	1	1105-1311		●
112	00.724 GEAR; IDLE EXC. VIETNAM EQUIPMENT(CL0) (B) Z=80	8-97381-516-1	01	1	1105-1311	●
112	00.724 GEAR; IDLE (B) Z=80	8-98232-105-1	01	1	1312-		●
112	00.724 GEAR; IDLE EXC. VIETNAM EQUIPMENT(CL0) (B) Z=80	8-98232-105-1	01	1	1312-	●
112	00.724 GEAR; IDLE (C) Z=34	8-97381-518-0	01	1	1012-1104	●	●
112	00.724 GEAR; IDLE (C) Z=34	8-97381-518-0	01	1	1105-		●
112	00.724 GEAR; IDLE EXC. VIETNAM EQUIPMENT(CL0) (C) Z=34	8-97381-518-0	01	1	1105-	●
112	00.724 GEAR; IDLE (A) Z=35	8-97381-520-3	01	1	1012-	●	●
112	00.724 GEAR; IDLE (H) Z=31	8-97229-601-0	01	1	1012-					●
112	00.724 GEAR; IDLE (H) Z=31	8-97164-773-0	01	1	1012-						●
114	00.724 BOLT; IDLE GEAR (B) M10X60 FLANGE	0-28061-060-0	02	1	1012-	●	●
114	00.724 BOLT; IDLE GEAR (A) M12X60 FLANGE	0-28161-260-0	02	1	1012-	●	●
133	00.356 GASKET; CHAIN TENSIONER ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97312-336-0	01	1	1012-	●	●
136	00.724 BOLT; TENSIONER 09.242 M6X16 FLANGE	0-28050-616-0	02	1	1012-	●	●
162	00.736 SPROCKET; IDLE	8-98193-179-0	01	1	1110-		●
162	00.736 SPROCKET; IDLE EXC. VIETNAM EQUIPMENT(CL0)	8-98193-179-0	01	1	1110-	●
162	00.736 SPROCKET; IDLE	8-97312-331-1	01	1	1012-1109	●	●
162	00.736 SPROCKET; IDLE VIETNAM EQUIPMENT(CL0)	8-97312-331-1	01	1	1110-	●
166	00.724 BOLT; SPROCKET TO LAYSHAFT M6X16 HEX SOCKET	0-58330-616-0	06	1	1012-	●	●
172	00.724 CHAIN; TIMING,CM/SHF VIETNAM EQUIPMENT(CL0)	8-98119-279-1	01	1	1105-	●
172	00.724 CHAIN; TIMING,CM/SHF	8-97945-067-0	01	1	1012-1104	●	●
172	00.724 CHAIN; TIMING,CM/SHF	8-97945-067-0	01	1	1105-		●
172	00.724 CHAIN; TIMING,CM/SHF EXC. VIETNAM EQUIPMENT(CL0)	8-97945-067-0	01	1	1105-	●
185	00.724 TENSIONER; CHAIN	8-98039-754-1	01	1	1012-	●	●
198	00.724 GUIDE; TIMING CHAIN VIETNAM EQUIPMENT(CL0)	8-98173-188-0	01	1	1201-	●
198	00.724 GUIDE; TIMING CHAIN	8-97945-069-0	01	1	1012-1112	●	●
198	00.724 GUIDE; TIMING CHAIN	8-97945-069-0	01	1	1201-		●
198	00.724 GUIDE; TIMING CHAIN EXC. VIETNAM EQUIPMENT(CL0)	8-97945-069-0	01	1	1201-	●
199	00.724 JET; OIL,TIMING CHAIN	8-97356-061-1	01	1	1012-	●	●
200	00.724 BOLT; CHAIN GUIDE,LWR 01.064 M8X20	1-09070-120-1	02	1	1012-	●	●
252	00.724 FLANGE; IDLE SHAFT VIETNAM EQUIPMENT(CL0) (A)	8-97312-316-1	01	1	1105-	●
252	00.724 FLANGE; IDLE SHAFT VIETNAM EQUIPMENT(CL0) (B)	8-97312-323-1	02	1	1105-	●
252	00.724 FLANGE; IDLE SHAFT (A)	8-98016-892-0	01	1	1012-1104	●	●
252	00.724 FLANGE; IDLE SHAFT (A)	8-98016-892-0	01	1	1105-		●
252	00.724 FLANGE; IDLE SHAFT EXC. VIETNAM EQUIPMENT(CL0) (A)	8-98016-892-0	01	1	1105-	●
252	00.724 FLANGE; IDLE SHAFT (B)	8-98016-893-0	02	1	1012-1104	●	●
252	00.724 FLANGE; IDLE SHAFT (B)	8-98016-893-0	02	1	1105-		●
252	00.724 FLANGE; IDLE SHAFT EXC. VIETNAM EQUIPMENT(CL0) (B)	8-98016-893-0	02	1	1105-	●
300	00.724 LEVER; TENSION,TIMING CHAIN VIETNAM EQUIPMENT(CL0)	8-98119-278-1	01	1	1105-	●
300	00.724 LEVER; TENSION,TIMING CHAIN	8-97945-070-0	01	1	1012-1104	●	●
300	00.724 LEVER; TENSION,TIMING CHAIN	8-97945-070-0	01	1	1105-		●
300	00.724 LEVER; TENSION,TIMING CHAIN EXC. VIETNAM EQUIPMENT(CL0)	8-97945-070-0	01	1	1105-	●
329	00.724 GEAR; INJ PUMP VIETNAM EQUIPMENT(CL0) Z=44	8-97312-298-3	01	1	1105-	●
329	00.724 GEAR; INJ PUMP Z=44	8-98017-539-1	01	1	1012-1104	●	●
329	00.724 GEAR; INJ PUMP Z=44	8-98017-539-1	01	1	1105-		●
329	00.724 GEAR; INJ PUMP EXC. VIETNAM EQUIPMENT(CL0) Z=44	8-98017-539-1	01	1	1105-	●
347	00.429 SPROCKET; I/PUMP	8-98210-266-0	01	1	1208-		●
347	00.429 SPROCKET; I/PUMP EXC. VIETNAM EQUIPMENT(CL0)	8-98210-266-0	01	1	1208-	●
347	00.429 SPROCKET; I/PUMP	8-97312-330-1	01	1	1012-1207	●	●
347	00.429 SPROCKET; I/PUMP VIETNAM EQUIPMENT(CL0)	8-97312-330-1	01	1	1208-	●
348	00.429 NUT; SPROCKET M14 FLANGE	8-97312-423-2	01	1	1012-	●	●
349	00.429 PIVOT; CHAIN LEVER	8-97312-328-0	01	1	1012-	●	●

78 78 78 78 95 78 84 78 95 78 87 84 78 95 83 84 81 95 85 65 66 71 65 65 66 65 71 53 68 68 87 71 72 71 72 1 5 4 37 12 37 9 8 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.519 CAMSHAFT	8-97077-829-0	01	1	1012-			●	●
1	00.519 CAMSHAFT	8-97287-657-1	01	1	1012-					●	●
4	00.296 VALVE; INL VIETNAM EQUIPMENT(CL0)	8-97309-675-1	08	1	1105-	●
4	00.296 VALVE; INL	8-97171-398-0	04	1	1012-			●	●
4	00.296 VALVE; INL	8-98016-973-0	08	1	1012-1104	●	●
4	00.296 VALVE; INL	8-98016-973-0	08	1	1105-1501		●
4	00.296 VALVE; INL EXC. VIETNAM EQUIPMENT(CL0)	8-98016-973-0	08	1	1105-1501	●
4	00.296 VALVE; INL	8-98016-973-0	08	1	1502-	●	●
4	00.296 VALVE; INL	8-94464-921-2	04	1	1012-					●
4	00.296 VALVE; INL	8-94133-275-2	04	1	1012-						●
5	00.297 VALVE; EXH VIETNAM EQUIPMENT(CL0)	8-97309-677-1	08	1	1105-	●
5	00.297 VALVE; EXH	8-97171-399-0	04	1	1012-			●	●
5	00.297 VALVE; EXH	8-98016-974-1	08	1	1012-1104	●	●
5	00.297 VALVE; EXH	8-98016-974-1	08	1	1105-		●
5	00.297 VALVE; EXH EXC. VIETNAM EQUIPMENT(CL0)	8-98016-974-1	08	1	1105-	●
5	00.297 VALVE; EXH	8-94433-245-1	04	1	1012-1405					●
5	00.297 VALVE; EXH	8-98277-383-0	04	1	1406-					●
5	00.297 VALVE; EXH	8-94247-875-2	04	1	1012-						●
7	00.738 BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	1012-			●	●
8	00.738 WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	1012-			●	●
9	00.736 GEAR; CM/SHF Z=35	8-97094-440-2	01	1	1012-			●
9	00.736 GEAR; CM/SHF Z=70 OD=208.6	8-97088-057-2	01	1	1012-				●
9	00.736 GEAR; CM/SHF Z=42	8-97229-594-2	01	1	1012-					●
9	00.736 GEAR; CM/SHF Z=42	8-97079-212-1	01	1	1012-						●
12	00.738 KEY; CAM GEAR SET OD=7 L=7.5	8-94399-487-0	01	1	1012-			●	●
37	00.539 METAL; CM/SHF B=16	8-97386-189-0	10	1	1012-			●	●
53	00.353 SHAFT; ROCKER ARM (C) JBK	8-97074-617-1	01	1	1012-			●	●
53	00.353 SHAFT; ROCKER ARM (C) KEIHIN SEIMITSU	8-97174-567-0	01	1	1012-			●	●
53	00.353 SHAFT; ROCKER ARM (B) INLET OTICS	8-97364-809-2	04	1	1012-1309	●	●
53	00.353 SHAFT; ROCKER ARM (B) INLET OTICS	8-97364-809-2	04	1	1310-1310		●
53	00.353 SHAFT; ROCKER ARM EXC. VIETNAM EQUIPMENT(CL0) (B) INLET OTICS	8-97364-809-2	04	1	1310-1310	●
53	00.353 SHAFT; ROCKER ARM (B) INLET OTICS	8-97364-809-2	04	1	1310-	●	●
53	00.353 SHAFT; ROCKER ARM (B) EXHAUST OTICS	8-97364-811-2	04	1	1012-1309	●	●
53	00.353 SHAFT; ROCKER ARM (B) EXHAUST OTICS	8-97364-811-2	04	1	1310-1310		●
53	00.353 SHAFT; ROCKER ARM EXC. VIETNAM EQUIPMENT(CL0) (B) EXHAUST OTICS	8-97364-811-2	04	1	1310-1310	●
53	00.353 SHAFT; ROCKER ARM (B) EXHAUST OTICS	8-97364-811-2	04	1	1310-	●	●
53	00.353 SHAFT; ROCKER ARM (A) INLET JBK	8-98025-071-1	04	1	1012-1104	●	●
53	00.353 SHAFT; ROCKER ARM (A) INLET JBK	8-98025-071-1	04	1	1105-		●
53	00.353 SHAFT; ROCKER ARM EXC. VIETNAM EQUIPMENT(CL0) (A) INLET JBK	8-98025-071-1	04	1	1105-	●
53	00.353 SHAFT; ROCKER ARM (A) EXHAUST JBK	8-98025-074-1	04	1	1012-1104	●	●
53	00.353 SHAFT; ROCKER ARM (A) EXHAUST JBK	8-98025-074-1	04	1	1105-		●
53	00.353 SHAFT; ROCKER ARM EXC. VIETNAM EQUIPMENT(CL0) (A) EXHAUST JBK	8-98025-074-1	04	1	1105-	●
53	00.353 SHAFT; ROCKER ARM (D)	8-97036-197-0	01	1	1012-					●	●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	1012-			●	●
65	00.310 COLLAR; SPLIT	8-94239-501-0	32	1	1012-	●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	1012-					●	●
66	00.303 CAP; VLV STEM END	8-94396-015-2	08	1	1012-			●	●
66	00.303 CAP; VLV STEM END	8-98147-945-0	16	1	1012-	●	●
68	00.303 SPRING; VLV ID=28.5	8-97023-559-0	08	1	1012-			●	●
68	00.303 SPRING; VLV H=49 NATURAL	8-97311-669-0	08	1	1012-	●	●
68	00.303 SPRING; VLV H=57.5 MARK YELLOW	8-97311-675-1	08	1	1012-	●	●
68	00.303 SPRING; VLV H=48 NATURAL	8-94433-247-0	08	1	1012-					●	●
71	00.309 SEAT; SPR VIETNAM EQUIPMENT(CL0) (A) OD=29.5	8-97311-668-0	16	1	1105-	●
71	00.309 SEAT; SPR (C) OD=38	8-94385-029-2	08	1	1012-			●	●
71	00.309 SEAT; SPR (D) ID=14.3 OD=40	8-94399-526-1	08	1	1012-			●	●
71	00.309 SEAT; SPR (B) OD=31	8-97144-584-0	16	1	1012-	●	●
71	00.309 SEAT; SPR (A)	8-98017-067-0	16	1	1012-1104	●	●
71	00.309 SEAT; SPR (A)	8-98017-067-0	16	1	1105-		●
71	00.309 SEAT; SPR EXC. VIETNAM EQUIPMENT(CL0) (A)	8-98017-067-0	16	1	1105-	●
71	00.309 SEAT; SPR (F) OD=34	5-12563-001-0	08	1	1012-					●	●
71	00.309 SEAT; SPR (E) OD=32.8	8-94133-731-2	08	1	1012-					●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-94396-609-2	08	1	1012-			●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97328-647-0	16	1	1012-	●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97120-307-0	08	1	1012-					●	●
78	00.333 ARM; ROCKER (D) JBK	8-97014-258-2	04	1	1012-			●	●
78	00.333 ARM; ROCKER (C) JBK	8-97074-614-1	04	1	1012-			●	●
78	00.333 ARM; ROCKER (C) KEIHIN SEIMITSU	8-97174-562-0	04	1	1012-			●	●
78	00.333 ARM; ROCKER (D) KEIHIN SEIMITSU	8-97174-565-0	04	1	1012-			●	●
78	00.333 ARM; ROCKER 00.353 (A) JBK	8-98025-059-3	16	1	1012-1104	●	●
78	00.333 ARM; ROCKER 00.353 (A) JBK	8-98025-059-4	16	1	1105-		●
78	00.333 ARM; ROCKER EXC. VIETNAM EQUIPMENT(CL0) 00.353 (A) JBK	8-98025-059-4	16	1	1105-	●
78	00.333 ARM; ROCKER (B) OTICS	8-98029-537-5	16	1	1012-1309	●	●
78	00.333 ARM; ROCKER (B) OTICS	8-98029-537-6	16	1	1310-1310		●
78	00.333 ARM; ROCKER EXC. VIETNAM EQUIPMENT(CL0) (B) OTICS	8-98029-537-6	16	1	1310-1310	●
78	00.333 ARM; ROCKER (B) OTICS	8-98029-537-6	16	1	1310-	●	●
78	00.333 ARM; ROCKER (E)	8-94152-344-0	08	1	1012-					●	●
81	00.429 SCREW; ADJ,ROCKER ARM (C)	8-94367-526-2	16	1	1012-			●	●
81	00.429 SCREW; ADJ,ROCKER ARM (A) M8 L=22	8-98025-497-0	16	1	1012-1104	●	●
81	00.429 SCREW; ADJ,ROCKER ARM (A) M8 L=22	8-98025-497-0	16	1	1105-		●
81	00.429 SCREW; ADJ,ROCKER ARM EXC. VIETNAM EQUIPMENT(CL0) (A) M8 L=22	8-98025-497-0	16	1	1105-	●
81	00.429 SCREW; ADJ,ROCKER ARM (B) M8 L=22	8-98029-893-0	16	1	1012-1309	●	●
81	00.429 SCREW; ADJ,ROCKER ARM (B) M8 L=22	8-98029-893-0	16	1	1310-1310		●
81	00.429 SCREW; ADJ,ROCKER ARM EXC. VIETNAM EQUIPMENT(CL0) (B) M8 L=22	8-98029-893-0	16	1	1310-1310	●
81	00.429 SCREW; ADJ,ROCKER ARM (B) M8 L=22	8-98029-893-0	16	1	1310-	●	●
81	00.429 SCREW; ADJ,ROCKER ARM (D) M8 L=30	8-94152-283-1	08	1	1012-					●	●
83	00.787 NUT; ADJ SCREW,LK M10	0-91111-510-0	16	1	1012-			●	●
83	00.787 NUT; ADJ SCREW,LK 00.429 M8 FLANGE	9-09844-574-0	16	1	1012-1104	●	●
83	00.787 NUT; ADJ SCREW,LK 00.429 M8 FLANGE	9-09844-574-0	16	1	1105-		●
83	00.787 NUT; ADJ SCREW,LK EXC. VIETNAM EQUIPMENT(CL0) 00.429 M8 FLANGE	9-09844-574-0	16	1	1105-	●
83	00.787 NUT; ADJ SCREW,LK 00.777 M8	0-91111-508-0	08	1	1012-					●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	1012-			●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER KEIHIN SEIMITSU	8-97174-568-0	03	1	1012-			●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	1012-					●	●
85	00.349 BOLT; BRKT JBK M10X62 FLANGE	8-94393-131-0	03	1	1012-			●	●
85	00.349 BOLT; BRKT KEIHIN SEIMITSU M10X62 FLANGE	8-97174-650-0	03	1	1012-			●	●
85	00.349 BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	1012-					●	●
87	00.349 BOLT; ROCKER SHAFT 03.162 (C) M8X35 FLANGE	0-28050-835-0	04	1	1012-			●	●
87	00.349 BOLT; ROCKER SHAFT (A) M8X25 HEX SOCKET	0-58330-825-0	08	1	1012-	●	●
87	00.349 BOLT; ROCKER SHAFT (B) M8X40 HEX SOCKET	0-58330-840-0	08	1	1012-	●	●
87	00.349 BOLT; ROCKER SHAFT (D) M10X60	8-94433-302-0	01	1	1012-					●	●
95	00.376 SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	1012-			●	●
95	00.376 SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	1012-			●	●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	1012-					●	●

55 87 65 65 86 71 85 68 86 72 81 83 71 78 88 53 54 95 84 56 55 78 9 45 89 5 44 4 14 44 1 10 107 112 109 104 111 101 305 106 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.519 CAMSHAFT	8-97077-829-0	01	1	1012-			●	●
1	00.519 CAMSHAFT	8-97287-657-1	01	1	1012-					●	●
4	00.296 VALVE; INL VIETNAM EQUIPMENT(CL0)	8-97309-675-1	08	1	1105-	●
4	00.296 VALVE; INL	8-97171-398-0	04	1	1012-			●	●
4	00.296 VALVE; INL	8-98016-973-0	08	1	1012-1104	●	●
4	00.296 VALVE; INL	8-98016-973-0	08	1	1105-1501		●
4	00.296 VALVE; INL EXC. VIETNAM EQUIPMENT(CL0)	8-98016-973-0	08	1	1105-1501	●
4	00.296 VALVE; INL	8-98016-973-0	08	1	1502-	●	●
4	00.296 VALVE; INL	8-94464-921-2	04	1	1012-					●
4	00.296 VALVE; INL	8-94133-275-2	04	1	1012-						●
5	00.297 VALVE; EXH VIETNAM EQUIPMENT(CL0)	8-97309-677-1	08	1	1105-	●
5	00.297 VALVE; EXH	8-97171-399-0	04	1	1012-			●	●
5	00.297 VALVE; EXH	8-98016-974-1	08	1	1012-1104	●	●
5	00.297 VALVE; EXH	8-98016-974-1	08	1	1105-		●
5	00.297 VALVE; EXH EXC. VIETNAM EQUIPMENT(CL0)	8-98016-974-1	08	1	1105-	●
5	00.297 VALVE; EXH	8-94433-245-1	04	1	1012-1405					●
5	00.297 VALVE; EXH	8-98277-383-0	04	1	1406-					●
5	00.297 VALVE; EXH	8-94247-875-2	04	1	1012-						●
9	00.736 GEAR; CM/SHF Z=35	8-97094-440-2	01	1	1012-			●
9	00.736 GEAR; CM/SHF Z=70 OD=208.6	8-97088-057-2	01	1	1012-				●
9	00.736 GEAR; CM/SHF Z=42	8-97229-594-2	01	1	1012-					●
9	00.736 GEAR; CM/SHF Z=42	8-97079-212-1	01	1	1012-						●
10	00.533 PLATE; THRUST	8-94110-480-1	01	1	1012-					●	●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	1012-					●	●
44	00.738 BOLT 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1012-					●	●
44	00.738 BOLT 00.533 (B) M12X47	8-94433-407-0	01	1	1012-					●	●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	1012-					●	●
53	00.353 SHAFT; ROCKER ARM (C) JBK	8-97074-617-1	01	1	1012-			●	●
53	00.353 SHAFT; ROCKER ARM (C) KEIHIN SEIMITSU	8-97174-567-0	01	1	1012-			●	●
53	00.353 SHAFT; ROCKER ARM (B) INLET OTICS	8-97364-809-2	04	1	1012-1309	●	●
53	00.353 SHAFT; ROCKER ARM (B) INLET OTICS	8-97364-809-2	04	1	1310-1310		●
53	00.353 SHAFT; ROCKER ARM EXC. VIETNAM EQUIPMENT(CL0) (B) INLET OTICS	8-97364-809-2	04	1	1310-1310	●
53	00.353 SHAFT; ROCKER ARM (B) INLET OTICS	8-97364-809-2	04	1	1310-	●	●
53	00.353 SHAFT; ROCKER ARM (B) EXHAUST OTICS	8-97364-811-2	04	1	1012-1309	●	●
53	00.353 SHAFT; ROCKER ARM (B) EXHAUST OTICS	8-97364-811-2	04	1	1310-1310		●
53	00.353 SHAFT; ROCKER ARM EXC. VIETNAM EQUIPMENT(CL0) (B) EXHAUST OTICS	8-97364-811-2	04	1	1310-1310	●
53	00.353 SHAFT; ROCKER ARM (B) EXHAUST OTICS	8-97364-811-2	04	1	1310-	●	●
53	00.353 SHAFT; ROCKER ARM (A) INLET JBK	8-98025-071-1	04	1	1012-1104	●	●
53	00.353 SHAFT; ROCKER ARM (A) INLET JBK	8-98025-071-1	04	1	1105-		●
53	00.353 SHAFT; ROCKER ARM EXC. VIETNAM EQUIPMENT(CL0) (A) INLET JBK	8-98025-071-1	04	1	1105-	●
53	00.353 SHAFT; ROCKER ARM (A) EXHAUST JBK	8-98025-074-1	04	1	1012-1104	●	●
53	00.353 SHAFT; ROCKER ARM (A) EXHAUST JBK	8-98025-074-1	04	1	1105-		●
53	00.353 SHAFT; ROCKER ARM EXC. VIETNAM EQUIPMENT(CL0) (A) EXHAUST JBK	8-98025-074-1	04	1	1105-	●
53	00.353 SHAFT; ROCKER ARM (D)	8-97036-197-0	01	1	1012-					●	●
54	00.349 WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	1012-					●	●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	1012-					●	●
56	00.349 RING; SNAP,ROCKER ARM 00.353 (A)	8-98025-496-0	16	1	1012-1104	●	●
56	00.349 RING; SNAP,ROCKER ARM 00.353 (A)	8-98025-496-0	16	1	1105-		●
56	00.349 RING; SNAP,ROCKER ARM EXC. VIETNAM EQUIPMENT(CL0) 00.353 (A)	8-98025-496-0	16	1	1105-	●
56	00.349 RING; SNAP,ROCKER ARM (B)	8-98109-470-0	16	1	1012-1309	●	●
56	00.349 RING; SNAP,ROCKER ARM (B)	8-98109-470-0	16	1	1310-1310		●
56	00.349 RING; SNAP,ROCKER ARM EXC. VIETNAM EQUIPMENT(CL0) (B)	8-98109-470-0	16	1	1310-1310	●
56	00.349 RING; SNAP,ROCKER ARM (B)	8-98109-470-0	16	1	1310-	●	●
56	00.349 RING; SNAP,ROCKER ARM (C) ID=17.5	9-09180-019-0	02	1	1012-					●	●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	1012-			●	●
65	00.310 COLLAR; SPLIT	8-94239-501-0	32	1	1012-	●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	1012-					●	●
68	00.303 SPRING; VLV ID=28.5	8-97023-559-0	08	1	1012-			●	●
68	00.303 SPRING; VLV H=49 NATURAL	8-97311-669-0	08	1	1012-	●	●
68	00.303 SPRING; VLV H=57.5 MARK YELLOW	8-97311-675-1	08	1	1012-	●	●
68	00.303 SPRING; VLV H=48 NATURAL	8-94433-247-0	08	1	1012-					●	●
71	00.309 SEAT; SPR VIETNAM EQUIPMENT(CL0) (A) OD=29.5	8-97311-668-0	16	1	1105-	●
71	00.309 SEAT; SPR (C) OD=38	8-94385-029-2	08	1	1012-			●	●
71	00.309 SEAT; SPR (D) ID=14.3 OD=40	8-94399-526-1	08	1	1012-			●	●
71	00.309 SEAT; SPR (B) OD=31	8-97144-584-0	16	1	1012-	●	●
71	00.309 SEAT; SPR (A)	8-98017-067-0	16	1	1012-1104	●	●
71	00.309 SEAT; SPR (A)	8-98017-067-0	16	1	1105-		●
71	00.309 SEAT; SPR EXC. VIETNAM EQUIPMENT(CL0) (A)	8-98017-067-0	16	1	1105-	●
71	00.309 SEAT; SPR (F) OD=34	5-12563-001-0	08	1	1012-					●	●
71	00.309 SEAT; SPR (E) OD=32.8	8-94133-731-2	08	1	1012-					●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-94396-609-2	08	1	1012-			●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97328-647-0	16	1	1012-	●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HE AD)	8-97120-307-0	08	1	1012-					●	●
78	00.333 ARM; ROCKER (D) JBK	8-97014-258-2	04	1	1012-			●	●
78	00.333 ARM; ROCKER (C) JBK	8-97074-614-1	04	1	1012-			●	●
78	00.333 ARM; ROCKER (C) KEIHIN SEIMITSU	8-97174-562-0	04	1	1012-			●	●
78	00.333 ARM; ROCKER (D) KEIHIN SEIMITSU	8-97174-565-0	04	1	1012-			●	●
78	00.333 ARM; ROCKER 00.353 (A) JBK	8-98025-059-3	16	1	1012-1104	●	●
78	00.333 ARM; ROCKER 00.353 (A) JBK	8-98025-059-4	16	1	1105-		●
78	00.333 ARM; ROCKER EXC. VIETNAM EQUIPMENT(CL0) 00.353 (A) JBK	8-98025-059-4	16	1	1105-	●
78	00.333 ARM; ROCKER (B) OTICS	8-98029-537-5	16	1	1012-1309	●	●
78	00.333 ARM; ROCKER (B) OTICS	8-98029-537-6	16	1	1310-1310		●
78	00.333 ARM; ROCKER EXC. VIETNAM EQUIPMENT(CL0) (B) OTICS	8-98029-537-6	16	1	1310-1310	●
78	00.333 ARM; ROCKER (B) OTICS	8-98029-537-6	16	1	1310-	●	●
78	00.333 ARM; ROCKER (E)	8-94152-344-0	08	1	1012-					●	●
81	00.429 SCREW; ADJ,ROCKER ARM (C)	8-94367-526-2	16	1	1012-			●	●
81	00.429 SCREW; ADJ,ROCKER ARM (A) M8 L=22	8-98025-497-0	16	1	1012-1104	●	●
81	00.429 SCREW; ADJ,ROCKER ARM (A) M8 L=22	8-98025-497-0	16	1	1105-		●
81	00.429 SCREW; ADJ,ROCKER ARM EXC. VIETNAM EQUIPMENT(CL0) (A) M8 L=22	8-98025-497-0	16	1	1105-	●
81	00.429 SCREW; ADJ,ROCKER ARM (B) M8 L=22	8-98029-893-0	16	1	1012-1309	●	●
81	00.429 SCREW; ADJ,ROCKER ARM (B) M8 L=22	8-98029-893-0	16	1	1310-1310		●
81	00.429 SCREW; ADJ,ROCKER ARM EXC. VIETNAM EQUIPMENT(CL0) (B) M8 L=22	8-98029-893-0	16	1	1310-1310	●
81	00.429 SCREW; ADJ,ROCKER ARM (B) M8 L=22	8-98029-893-0	16	1	1310-	●	●
81	00.429 SCREW; ADJ,ROCKER ARM (D) M8 L=30	8-94152-283-1	08	1	1012-					●	●
83	00.787 NUT; ADJ SCREW,LK M10	0-91111-510-0	16	1	1012-			●	●
83	00.787 NUT; ADJ SCREW,LK 00.429 M8 FLANGE	9-09844-574-0	16	1	1012-1104	●	●
83	00.787 NUT; ADJ SCREW,LK 00.429 M8 FLANGE	9-09844-574-0	16	1	1105-		●
83	00.787 NUT; ADJ SCREW,LK EXC. VIETNAM EQUIPMENT(CL0) 00.429 M8 FLANGE	9-09844-574-0	16	1	1105-	●
83	00.787 NUT; ADJ SCREW,LK 00.777 M8	0-91111-508-0	08	1	1012-					●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	1012-			●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER KEIHIN SEIMITSU	8-97174-568-0	03	1	1012-			●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	1012-					●	●
85	00.349 BOLT; BRKT JBK M10X62 FLANGE	8-94393-131-0	03	1	1012-			●	●
85	00.349 BOLT; BRKT KEIHIN SEIMITSU M10X62 FLANGE	8-97174-650-0	03	1	1012-			●	●
85	00.349 BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	1012-					●	●
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	1012-					●	●
87	00.349 BOLT; ROCKER SHAFT 03.162 (C) M8X35 FLANGE	0-28050-835-0	04	1	1012-			●	●
87	00.349 BOLT; ROCKER SHAFT (A) M8X25 HEX SOCKET	0-58330-825-0	08	1	1012-	●	●
87	00.349 BOLT; ROCKER SHAFT (B) M8X40 HEX SOCKET	0-58330-840-0	08	1	1012-	●	●
87	00.349 BOLT; ROCKER SHAFT (D) M10X60	8-94433-302-0	01	1	1012-					●	●
88	00.426 ROD; PUSH	8-97071-673-0	08	1	1012-					●	●
89	00.459 TAPPET; VLV	8-94438-305-1	08	1	1012-					●	●
95	00.376 SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	1012-			●	●
95	00.376 SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	1012-			●	●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	1012-					●	●
101	00.724 BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	1012-			●	●
101	00.724 BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	1012-			●	●
101	00.724 BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	1012-1310			●	●
101	00.724 BOLT; THRUST COLLAR (C) M14X25	0-23951-425-0	01	1	1311-			●	●
101	00.724 BOLT; THRUST COLLAR (D) M8X53 FLANGE	8-97223-999-0	02	1	1012-					●	●
104	00.724 BOLT; SHAFT IDLE	8-94109-706-1	01	1	1012-					●	●
106	00.724 WASHER; IDLE GEAR SHAFT 00.738 ID=13 OD=36	5-12519-002-1	01	1	1012-					●	●
107	00.724 SHAFT; IDLE GEAR EXC. MANUAL STEERING<N51> (E)	8-94334-682-1	01	1	1012-			●	●
107	00.724 SHAFT; IDLE GEAR (F)	8-97186-398-1	01	1	1012-			●	●
107	00.724 SHAFT; IDLE GEAR (C)	8-97350-021-0	01	1	1012-			●	●
107	00.724 SHAFT; IDLE GEAR (D)	8-98060-780-0	01	1	1012-			●	●
107	00.724 SHAFT; IDLE GEAR (A)	8-97312-315-2	01	1	1012-	●	●
107	00.724 SHAFT; IDLE GEAR (B)	8-97312-322-1	01	1	1012-	●	●
107	00.724 SHAFT; IDLE GEAR (G)	8-97920-007-0	01	1	1012-					●
107	00.724 SHAFT; IDLE GEAR (G)	8-94139-758-1	01	1	1012-						●
109	00.724 SHAFT; IDLE GEAR	8-97312-319-1	01	1	1012-	●	●
109	00.724 SHAFT; IDLE GEAR	8-97218-780-0	01	1	1012-					●
109	00.724 SHAFT; IDLE GEAR	8-94109-913-1	01	1	1012-						●
111	00.724 COLLAR; THRUST,IDLE GEAR EXC. MANUAL STEERING<N51> ID=14.5 OD=46	8-97209-728-2	01	1	1012-			●	●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	03	1	1012-			●	●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-94141-937-1	01	1	1012-					●	●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-97912-650-0	01	1	1501-					●	●
112	00.724 GEAR; IDLE VIETNAM EQUIPMENT(CL0) (B) Z=80	8-98021-050-2	01	1	1105-	●
112	00.724 GEAR; IDLE VIETNAM EQUIPMENT(CL0) (C) Z=34	8-98021-052-1	01	1	1105-	●
112	00.724 GEAR; IDLE (F) Z=61	8-97094-546-2	01	1	1012-			●
112	00.724 GEAR; IDLE (D) Z=41	8-97112-607-1	01	1	1012-			●
112	00.724 GEAR; IDLE (E) Z=72-30	8-97227-074-0	01	1	1012-			●
112	00.724 GEAR; IDLE EXC. MANUAL STEERING<N51> (G) Z=34	8-97120-005-1	01	1	1012-			●	●
112	00.724 GEAR; IDLE (F) Z=122	8-97088-053-2	01	1	1012-				●
112	00.724 GEAR; IDLE (D) Z=82	8-97088-055-2	01	1	1012-				●
112	00.724 GEAR; IDLE (E) Z=72-60	8-97227-213-0	01	1	1012-				●
112	00.724 GEAR; IDLE (B) Z=80	8-97381-516-1	01	1	1012-1104	●	●
112	00.724 GEAR; IDLE (B) Z=80	8-97381-516-1	01	1	1105-1311		●
112	00.724 GEAR; IDLE EXC. VIETNAM EQUIPMENT(CL0) (B) Z=80	8-97381-516-1	01	1	1105-1311	●
112	00.724 GEAR; IDLE (B) Z=80	8-98232-105-1	01	1	1312-		●
112	00.724 GEAR; IDLE EXC. VIETNAM EQUIPMENT(CL0) (B) Z=80	8-98232-105-1	01	1	1312-	●
112	00.724 GEAR; IDLE (C) Z=34	8-97381-518-0	01	1	1012-1104	●	●
112	00.724 GEAR; IDLE (C) Z=34	8-97381-518-0	01	1	1105-		●
112	00.724 GEAR; IDLE EXC. VIETNAM EQUIPMENT(CL0) (C) Z=34	8-97381-518-0	01	1	1105-	●
112	00.724 GEAR; IDLE (A) Z=35	8-97381-520-3	01	1	1012-	●	●
112	00.724 GEAR; IDLE (H) Z=31	8-97229-601-0	01	1	1012-					●
112	00.724 GEAR; IDLE (H) Z=31	8-97164-773-0	01	1	1012-						●
113	00.724 GEAR; IDLE Z=37	8-98140-217-0	01	1	1012-					●
113	00.724 GEAR; IDLE Z=37	8-94139-761-0	01	1	1012-						●
305	00.724 BEARING; IDLE GEAR	8-98140-110-0	01	1	1012-					●
305	00.724 BEARING; IDLE GEAR	8-94110-271-0	01	1	1012-						●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
