Sayfa 0-13 - Isuzu EPC

0-13 — OIL PAN AND LEVEL GAUGE (#79034) — 234 parça

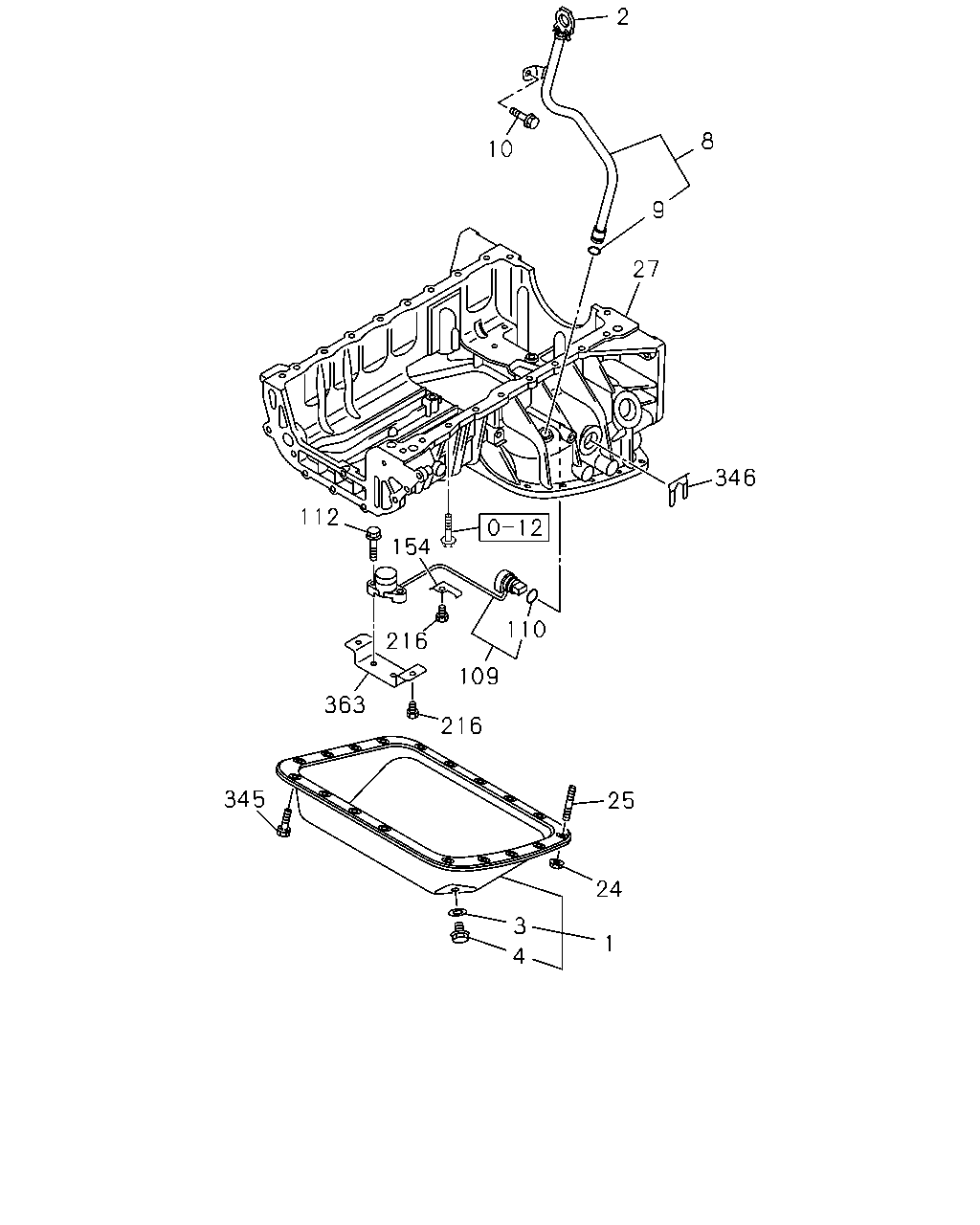

2 8 9 10 27 346 112 154 110 216 109 216 363 345 25 24 1 3 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.426 PAN ASM; OIL EXC. COLOMBIA EQUIPMENT(CB7),SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1)	8-98203-596-0	01	1	1203-1405	●	●
1	01.426 PAN ASM; OIL	8-98203-596-0	01	1	1406-	●
1	01.426 PAN ASM; OIL EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-98203-596-0	01	1	1406-		●
1	01.426 PAN ASM; OIL	8-97385-242-0	01	1	1012-1202	●	●
1	01.426 PAN ASM; OIL SAUDI ARABIA EQUIPMENT(GH3)	8-97385-242-0	01	1	1203-		●
1	01.426 PAN ASM; OIL	8-97383-067-3	01	1	1012-			●	●
1	01.426 PAN ASM; OIL	8-98000-123-0	01	1	1012-					●	●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	1012-	●	●
2	01.516 GAUGE; OIL LEVEL	8-98112-777-1	01	1	1012-			●	●
2	01.516 GAUGE; OIL LEVEL	8-97231-295-0	01	1	1012-					●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	1012-						●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	1012-	●	●	●	●	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	1012-	●	●	●	●	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97200-567-1	01	1	1012-	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97101-907-1	01	1	1012-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97381-490-3	01	1	1012-			●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97221-497-0	01	1	1012-					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97044-886-0	01	1	1012-						●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	01	1	1012-			●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	1012-1405	●	●			●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). NLR SGL CAB(NM**SE) GLOW SYSTEM DELETE<7RK> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUD E COMPENSATOR(EE2),MANUAL STEERING<N51> ID=11	5-09623-002-0	02	1	1406-	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). NLR SGL CAB(NM**SE) FAST GLOW SYSTEM<KM6> EXC. AIR CONDITIONER MANUAL CONT(C60) ,HIGH ALTITUDE COMPENSATOR(EE2), MANUAL STEERING<N51> ID=11	5-09623-002-0	02	1	1406-	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). NMR SGL CAB(NM**SN) SAUDI ARABIA EQUIPMENT(GH3) GLOW SYSTEM DELETE<7RK> ANTI EROSION SPEC(7XK) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUD E COMPENSATOR(EE2),EXHAUST BRAKE<NF8> ,MANUAL STEERING<N51> ID=11	5-09623-002-0	02	1	1406-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). NMR SGL CAB(NM**SN) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(GH3) FAST GLOW SYSTEM<KM6> EXHAUST BRAKE<NF8> ANTI EROSION SPEC(7XK) EXC. HIGH ALTITUDE COMPENSATOR(EE2), MANUAL STEERING<N51> ID=11	5-09623-002-0	02	1	1406-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). NMR SGL CAB(NM**SN) SAUDI ARABIA EQUIPMENT(GH3) FAST GLOW SYSTEM<KM6> ANTI EROSION SPEC(7XK) EXC. AIR CONDITIONER MANUAL CONT(C60) ,HIGH ALTITUDE COMPENSATOR(EE2), EXHAUST BRAKE<NF8>,MANUAL STEERING<N51> ID=11	5-09623-002-0	02	1	1406-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). NMR SGL CAB(NM**SN) SAUDI ARABIA EQUIPMENT(GH3) FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> EXHAUST BRAKE<NF8> ANTI EROSION SPEC(7XK) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUD E COMPENSATOR(EE2),MANUAL STEERING<N51> ID=11	5-09623-002-0	02	1	1406-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). NMR SGL CAB(NM**SN) HIGH ALTITUDE COMPENSATOR(EE2) SAUDI ARABIA EQUIPMENT(GH3) GLOW SYSTEM DELETE<7RK> ANTI EROSION SPEC(7XK) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),MANUAL STEER ING<N51> ID=11	5-09623-002-0	02	1	1406-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). NMR SGL CAB(NM**SN) HIGH ALTITUDE COMPENSATOR(EE2) SAUDI ARABIA EQUIPMENT(GH3) FAST GLOW SYSTEM<KM6> ANTI EROSION SPEC(7XK) EXC. AIR CONDITIONER MANUAL CONT(C60) ,MANUAL STEERING<N51> ID=11	5-09623-002-0	02	1	1406-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). NMR SGL CAB(NM**SN) AIR CONDITIONER MANUAL CONT(C60) FAST GLOW SYSTEM<KM6> EXHAUST BRAKE<NF8> EXC. COLOMBIA EQUIPMENT(CB7), AZERBAIJAN EQUIPMENT(CX0),HIGH ALTITUDE COMPE NSATOR(EE2),PERU EQUIPMENT(E07), SAUDIARABIA EQUIPMENT(GH3),CHILE EQUIPMEN T(KE1) ID=11	5-09623-002-0	02	1	1406-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). NMR SGL CAB(NM**SN) HEATER & DEFROSTER(C41) HIGH ALTITUDE COMPENSATOR(EE2) EXHAUST BRAKE<NF8> GLOW SYSTEM DELETE<7RK> EXC. COLOMBIA EQUIPMENT(CB7), AZERBAIJAN EQUIPMENT(CX0),PERU EQUIPMENT(E07) ,SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1) ID=11	5-09623-002-0	02	1	1406-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). NMR SGL CAB(NM**SN) HEATER & DEFROSTER(C41) FAST GLOW SYSTEM<KM6> EXHAUST BRAKE<NF8> EXC. COLOMBIA EQUIPMENT(CB7), AZERBAIJAN EQUIPMENT(CX0),PERU EQUIPMENT(E07) ,SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1) ID=11	5-09623-002-0	02	1	1406-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). NMR SGL CAB(NM**SN) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> GLOW SYSTEM DELETE<7RK> EXC. COLOMBIA EQUIPMENT(CB7), AZERBAIJAN EQUIPMENT(CX0),HIGH ALTITUDE COMPE NSATOR(EE2),PERU EQUIPMENT(E07), SAUDIARABIA EQUIPMENT(GH3),CHILE EQUIPMEN T(KE1) ID=11	5-09623-002-0	02	1	1406-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). NMR SGL CAB(NM**SN) EXHAUST BRAKE<NF8> FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> EXC. COLOMBIA EQUIPMENT(CB7), AZERBAIJAN EQUIPMENT(CX0),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,PERU EQUIPMENT(E07),SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1) ID=11	5-09623-002-0	02	1	1406-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). NLR SGL CAB(NM**SE) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) ID=11	5-09623-002-0	02	1	1406-					●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	1012-						●
10	01.516 BOLT; GUIDE TUBE 09.171 M10X110 FLANGE	0-28156-011-0	01	1	1012-	●
10	01.516 BOLT; GUIDE TUBE 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1012-		●
10	01.516 BOLT; GUIDE TUBE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1012-			●	●
24	01.453 NUT; OIL PAN 01.062 M8 FLANGE	0-91180-108-0	13	1	1012-	●	●
24	01.453 NUT; OIL PAN 01.540 M8 FLANGE	0-91180-208-0	02	1	1012-			●	●
25	01.453 STUD; OIL PAN 00.349 M8X20 L=31	8-97945-022-0	02	1	1406-			●
25	01.453 STUD; OIL PAN EXC. VIETNAM EQUIPMENT(CL0) 00.349 M8X20 L=31	8-97945-022-0	02	1	1406-				●
25	01.453 STUD; OIL PAN M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE	8-97190-391-0	01	1	1012-	●	●
25	01.453 STUD; OIL PAN 01.428 M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	09	1	1012-	●	●
25	01.453 STUD; OIL PAN M8X16 L=28	0-41010-816-0	02	1	1012-1405			●	●
25	01.453 STUD; OIL PAN VIETNAM EQUIPMENT(CL0) M8X16 L=28	0-41010-816-0	02	1	1406-				●
27	01.426 CRANKCASE	8-97381-483-6	01	1	1012-1105			●	●
27	01.426 CRANKCASE	8-97381-483-7	01	1	1106-1111			●
27	01.426 CRANKCASE EXC. VIETNAM EQUIPMENT(CL0)	8-97381-483-7	01	1	1106-1111				●
27	01.426 CRANKCASE	8-97381-483-7	01	1	1112-			●
27	01.426 CRANKCASE VIETNAM EQUIPMENT(CL0)	8-98191-052-0	01	1	1106-1111				●
27	01.426 CRANKCASE	8-98191-052-0	01	1	1112-				●
109	01.516 SWITCH; OIL LEVEL	8-97328-879-0	01	1	1012-1105			●	●
109	01.516 SWITCH; OIL LEVEL	8-97328-879-0	01	1	1106-1111			●
109	01.516 SWITCH; OIL LEVEL EXC. VIETNAM EQUIPMENT(CL0)	8-97328-879-0	01	1	1106-1111				●
109	01.516 SWITCH; OIL LEVEL	8-97328-879-0	01	1	1112-			●
110	01.456 GASKET; SW,OIL LEVEL	8-98048-191-0	01	1	1012-1105			●	●
110	01.456 GASKET; SW,OIL LEVEL	8-98048-191-0	01	1	1106-1111			●
110	01.456 GASKET; SW,OIL LEVEL EXC. VIETNAM EQUIPMENT(CL0)	8-98048-191-0	01	1	1106-1111				●
110	01.456 GASKET; SW,OIL LEVEL	8-98048-191-0	01	1	1112-			●
112	01.516 BOLT; SW,OIL LEVEL 03.680 M6X30 FLANGE	0-28650-630-0	02	1	1012-1105			●	●
112	01.516 BOLT; SW,OIL LEVEL 03.680 M6X30 FLANGE	0-28650-630-0	02	1	1106-1111			●
112	01.516 BOLT; SW,OIL LEVEL EXC. VIETNAM EQUIPMENT(CL0) 03.680 M6X30 FLANGE	0-28650-630-0	02	1	1106-1111				●
112	01.516 BOLT; SW,OIL LEVEL 03.680 M6X30 FLANGE	0-28650-630-0	02	1	1112-			●
154	01.428 BRACKET; CLIP,ENG HARNESS	8-97386-380-0	01	1	1012-1105			●	●
154	01.428 BRACKET; CLIP,ENG HARNESS	8-97386-380-0	01	1	1106-1111			●
154	01.428 BRACKET; CLIP,ENG HARNESS EXC. VIETNAM EQUIPMENT(CL0)	8-97386-380-0	01	1	1106-1111				●
154	01.428 BRACKET; CLIP,ENG HARNESS	8-97386-380-0	01	1	1112-			●
216	01.429 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	03	1	1012-1105			●	●
216	01.429 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	03	1	1106-1111			●
216	01.429 BOLT; BRKT EXC. VIETNAM EQUIPMENT(CL0) 02.343 M8X12 FLANGE	0-28050-812-0	03	1	1106-1111				●
216	01.429 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	03	1	1112-			●
345	01.516 BOLT; SENSOR,OIL LEVEL 02.343 M8X12 FLANGE	0-28050-812-0	17	1	1012-			●	●
346	01.516 CLIP; OIL LEVEL SW 04.047 ID=19.2	8-97211-011-0	01	1	1012-1105			●	●
346	01.516 CLIP; OIL LEVEL SW 04.047 ID=19.2	8-97211-011-0	01	1	1106-1111			●
346	01.516 CLIP; OIL LEVEL SW EXC. VIETNAM EQUIPMENT(CL0) 04.047 ID=19.2	8-97211-011-0	01	1	1106-1111				●
346	01.516 CLIP; OIL LEVEL SW 04.047 ID=19.2	8-97211-011-0	01	1	1112-			●
363	01.516 BRACKET; OIL LEVEL SW	8-97381-486-0	01	1	1012-1105			●	●
363	01.516 BRACKET; OIL LEVEL SW	8-97381-486-0	01	1	1106-1111			●
363	01.516 BRACKET; OIL LEVEL SW EXC. VIETNAM EQUIPMENT(CL0)	8-97381-486-0	01	1	1106-1111				●
363	01.516 BRACKET; OIL LEVEL SW	8-97381-486-0	01	1	1112-			●

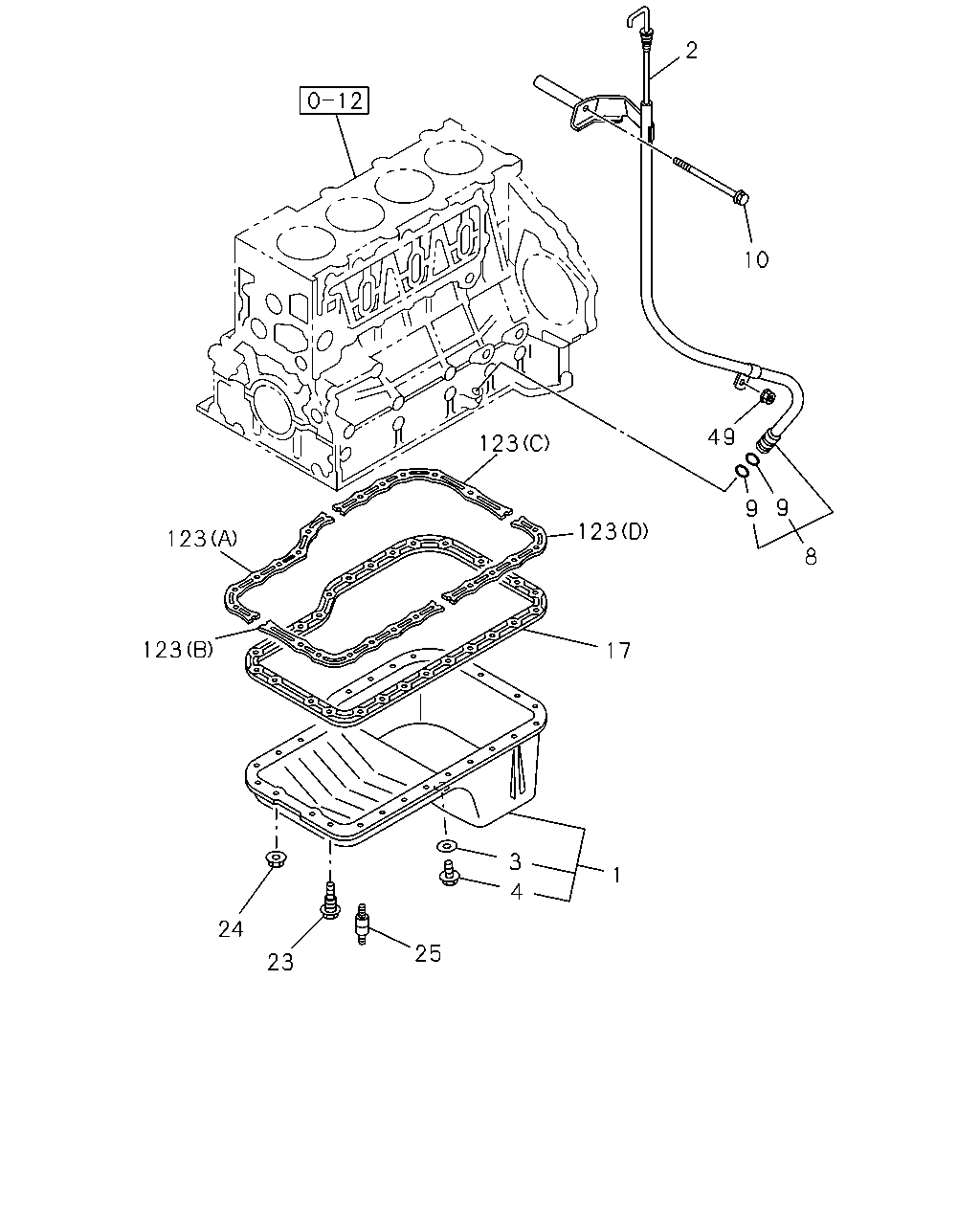

123 123 24 23 25 4 3 1 17 123 123 2 10 49 9 9 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.426 PAN ASM; OIL EXC. COLOMBIA EQUIPMENT(CB7),SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1)	8-98203-596-0	01	1	1203-1405	●	●
1	01.426 PAN ASM; OIL	8-98203-596-0	01	1	1406-	●
1	01.426 PAN ASM; OIL EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-98203-596-0	01	1	1406-		●
1	01.426 PAN ASM; OIL	8-97385-242-0	01	1	1012-1202	●	●
1	01.426 PAN ASM; OIL SAUDI ARABIA EQUIPMENT(GH3)	8-97385-242-0	01	1	1203-		●
1	01.426 PAN ASM; OIL	8-97383-067-3	01	1	1012-			●	●
1	01.426 PAN ASM; OIL	8-98000-123-0	01	1	1012-					●	●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	1012-	●	●
2	01.516 GAUGE; OIL LEVEL	8-98112-777-1	01	1	1012-			●	●
2	01.516 GAUGE; OIL LEVEL	8-97231-295-0	01	1	1012-					●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	1012-						●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	1012-	●	●	●	●	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	1012-	●	●	●	●	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97200-567-1	01	1	1012-	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97101-907-1	01	1	1012-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97381-490-3	01	1	1012-			●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97221-497-0	01	1	1012-					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97044-886-0	01	1	1012-						●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	01	1	1012-			●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	1012-1405	●	●			●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). NLR SGL CAB(NM**SE) GLOW SYSTEM DELETE<7RK> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUD E COMPENSATOR(EE2),MANUAL STEERING<N51> ID=11	5-09623-002-0	02	1	1406-	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). NLR SGL CAB(NM**SE) FAST GLOW SYSTEM<KM6> EXC. AIR CONDITIONER MANUAL CONT(C60) ,HIGH ALTITUDE COMPENSATOR(EE2), MANUAL STEERING<N51> ID=11	5-09623-002-0	02	1	1406-	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). NMR SGL CAB(NM**SN) SAUDI ARABIA EQUIPMENT(GH3) GLOW SYSTEM DELETE<7RK> ANTI EROSION SPEC(7XK) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUD E COMPENSATOR(EE2),EXHAUST BRAKE<NF8> ,MANUAL STEERING<N51> ID=11	5-09623-002-0	02	1	1406-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). NMR SGL CAB(NM**SN) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(GH3) FAST GLOW SYSTEM<KM6> EXHAUST BRAKE<NF8> ANTI EROSION SPEC(7XK) EXC. HIGH ALTITUDE COMPENSATOR(EE2), MANUAL STEERING<N51> ID=11	5-09623-002-0	02	1	1406-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). NMR SGL CAB(NM**SN) SAUDI ARABIA EQUIPMENT(GH3) FAST GLOW SYSTEM<KM6> ANTI EROSION SPEC(7XK) EXC. AIR CONDITIONER MANUAL CONT(C60) ,HIGH ALTITUDE COMPENSATOR(EE2), EXHAUST BRAKE<NF8>,MANUAL STEERING<N51> ID=11	5-09623-002-0	02	1	1406-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). NMR SGL CAB(NM**SN) SAUDI ARABIA EQUIPMENT(GH3) FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> EXHAUST BRAKE<NF8> ANTI EROSION SPEC(7XK) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUD E COMPENSATOR(EE2),MANUAL STEERING<N51> ID=11	5-09623-002-0	02	1	1406-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). NMR SGL CAB(NM**SN) HIGH ALTITUDE COMPENSATOR(EE2) SAUDI ARABIA EQUIPMENT(GH3) GLOW SYSTEM DELETE<7RK> ANTI EROSION SPEC(7XK) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),MANUAL STEER ING<N51> ID=11	5-09623-002-0	02	1	1406-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). NMR SGL CAB(NM**SN) HIGH ALTITUDE COMPENSATOR(EE2) SAUDI ARABIA EQUIPMENT(GH3) FAST GLOW SYSTEM<KM6> ANTI EROSION SPEC(7XK) EXC. AIR CONDITIONER MANUAL CONT(C60) ,MANUAL STEERING<N51> ID=11	5-09623-002-0	02	1	1406-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). NMR SGL CAB(NM**SN) AIR CONDITIONER MANUAL CONT(C60) FAST GLOW SYSTEM<KM6> EXHAUST BRAKE<NF8> EXC. COLOMBIA EQUIPMENT(CB7), AZERBAIJAN EQUIPMENT(CX0),HIGH ALTITUDE COMPE NSATOR(EE2),PERU EQUIPMENT(E07), SAUDIARABIA EQUIPMENT(GH3),CHILE EQUIPMEN T(KE1) ID=11	5-09623-002-0	02	1	1406-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). NMR SGL CAB(NM**SN) HEATER & DEFROSTER(C41) HIGH ALTITUDE COMPENSATOR(EE2) EXHAUST BRAKE<NF8> GLOW SYSTEM DELETE<7RK> EXC. COLOMBIA EQUIPMENT(CB7), AZERBAIJAN EQUIPMENT(CX0),PERU EQUIPMENT(E07) ,SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1) ID=11	5-09623-002-0	02	1	1406-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). NMR SGL CAB(NM**SN) HEATER & DEFROSTER(C41) FAST GLOW SYSTEM<KM6> EXHAUST BRAKE<NF8> EXC. COLOMBIA EQUIPMENT(CB7), AZERBAIJAN EQUIPMENT(CX0),PERU EQUIPMENT(E07) ,SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1) ID=11	5-09623-002-0	02	1	1406-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). NMR SGL CAB(NM**SN) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> GLOW SYSTEM DELETE<7RK> EXC. COLOMBIA EQUIPMENT(CB7), AZERBAIJAN EQUIPMENT(CX0),HIGH ALTITUDE COMPE NSATOR(EE2),PERU EQUIPMENT(E07), SAUDIARABIA EQUIPMENT(GH3),CHILE EQUIPMEN T(KE1) ID=11	5-09623-002-0	02	1	1406-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). NMR SGL CAB(NM**SN) EXHAUST BRAKE<NF8> FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> EXC. COLOMBIA EQUIPMENT(CB7), AZERBAIJAN EQUIPMENT(CX0),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,PERU EQUIPMENT(E07),SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1) ID=11	5-09623-002-0	02	1	1406-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). NLR SGL CAB(NM**SE) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) ID=11	5-09623-002-0	02	1	1406-					●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	1012-						●
10	01.516 BOLT; GUIDE TUBE 09.171 M10X110 FLANGE	0-28156-011-0	01	1	1012-	●
10	01.516 BOLT; GUIDE TUBE 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1012-		●
10	01.516 BOLT; GUIDE TUBE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1012-			●	●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97364-386-0	01	1	1012-	●	●
23	01.428 BOLT; OIL PAN M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	1012-	●	●
24	01.453 NUT; OIL PAN 01.062 M8 FLANGE	0-91180-108-0	13	1	1012-	●	●
24	01.453 NUT; OIL PAN 01.540 M8 FLANGE	0-91180-208-0	02	1	1012-			●	●
25	01.453 STUD; OIL PAN 00.349 M8X20 L=31	8-97945-022-0	02	1	1406-			●
25	01.453 STUD; OIL PAN EXC. VIETNAM EQUIPMENT(CL0) 00.349 M8X20 L=31	8-97945-022-0	02	1	1406-				●
25	01.453 STUD; OIL PAN M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE	8-97190-391-0	01	1	1012-	●	●
25	01.453 STUD; OIL PAN 01.428 M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	09	1	1012-	●	●
25	01.453 STUD; OIL PAN M8X16 L=28	0-41010-816-0	02	1	1012-1405			●	●
25	01.453 STUD; OIL PAN VIETNAM EQUIPMENT(CL0) M8X16 L=28	0-41010-816-0	02	1	1406-				●
49	01.516 NUT; GUIDE TUBE 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-	●
123	01.516 RUBBER; SEAL OIL SAUDI ARABIA EQUIPMENT(GH3) (D)	8-97212-596-0	01	1	1012-		●
123	01.516 RUBBER; SEAL OIL (A)	8-97186-988-0	01	1	1012-	●	●
123	01.516 RUBBER; SEAL OIL (B)	8-97186-994-0	01	1	1012-	●	●
123	01.516 RUBBER; SEAL OIL (C)	8-97186-998-0	01	1	1012-	●	●
123	01.516 RUBBER; SEAL OIL EXC. TURKEY EQUIPMENT(B11),COLOMBIA EQUIPMENT(CB7),SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1),VIETNAM EQUIPMENT(SGX) (D)	8-97187-000-0	01	1	1012-1106	●	●
123	01.516 RUBBER; SEAL OIL EXC. COLOMBIA EQUIPMENT(CB7),SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1) (D)	8-97187-000-0	01	1	1107-1405	●	●
123	01.516 RUBBER; SEAL OIL (D)	8-97187-000-0	01	1	1406-	●
123	01.516 RUBBER; SEAL OIL EXC. SAUDI ARABIA EQUIPMENT(GH3) (D)	8-97187-000-0	01	1	1406-		●

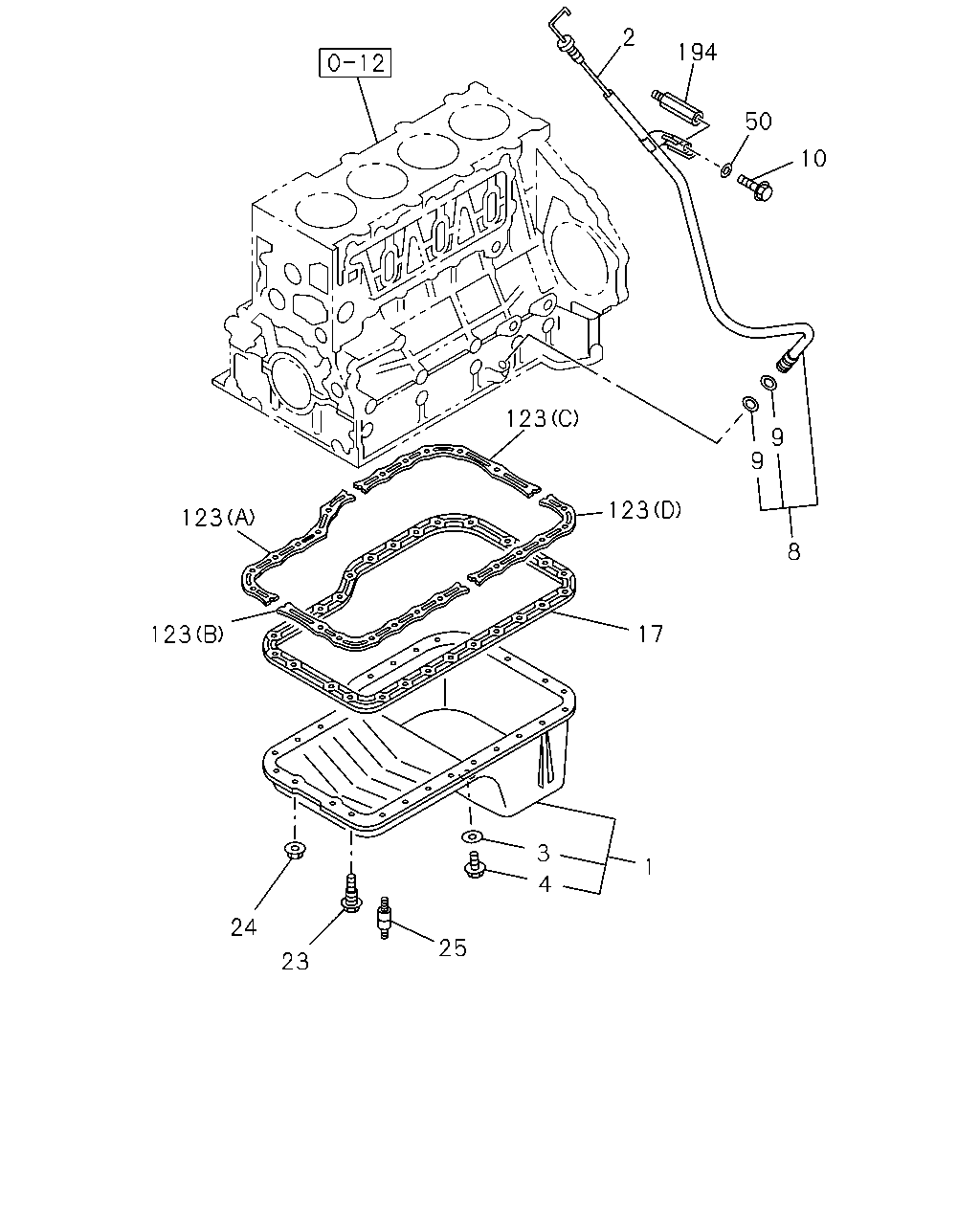

1 4 3 25 23 24 123 123 17 123 123 8 9 9 10 50 194 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.426 PAN ASM; OIL EXC. COLOMBIA EQUIPMENT(CB7),SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1)	8-98203-596-0	01	1	1203-1405	●	●
1	01.426 PAN ASM; OIL	8-98203-596-0	01	1	1406-	●
1	01.426 PAN ASM; OIL EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-98203-596-0	01	1	1406-		●
1	01.426 PAN ASM; OIL	8-97385-242-0	01	1	1012-1202	●	●
1	01.426 PAN ASM; OIL SAUDI ARABIA EQUIPMENT(GH3)	8-97385-242-0	01	1	1203-		●
1	01.426 PAN ASM; OIL	8-97383-067-3	01	1	1012-			●	●
1	01.426 PAN ASM; OIL	8-98000-123-0	01	1	1012-					●	●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	1012-	●	●
2	01.516 GAUGE; OIL LEVEL	8-98112-777-1	01	1	1012-			●	●
2	01.516 GAUGE; OIL LEVEL	8-97231-295-0	01	1	1012-					●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	1012-						●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	1012-	●	●	●	●	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	1012-	●	●	●	●	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97200-567-1	01	1	1012-	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97101-907-1	01	1	1012-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97381-490-3	01	1	1012-			●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97221-497-0	01	1	1012-					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97044-886-0	01	1	1012-						●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	01	1	1012-			●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	1012-1405	●	●			●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). NLR SGL CAB(NM**SE) GLOW SYSTEM DELETE<7RK> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUD E COMPENSATOR(EE2),MANUAL STEERING<N51> ID=11	5-09623-002-0	02	1	1406-	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). NLR SGL CAB(NM**SE) FAST GLOW SYSTEM<KM6> EXC. AIR CONDITIONER MANUAL CONT(C60) ,HIGH ALTITUDE COMPENSATOR(EE2), MANUAL STEERING<N51> ID=11	5-09623-002-0	02	1	1406-	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). NMR SGL CAB(NM**SN) SAUDI ARABIA EQUIPMENT(GH3) GLOW SYSTEM DELETE<7RK> ANTI EROSION SPEC(7XK) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUD E COMPENSATOR(EE2),EXHAUST BRAKE<NF8> ,MANUAL STEERING<N51> ID=11	5-09623-002-0	02	1	1406-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). NMR SGL CAB(NM**SN) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(GH3) FAST GLOW SYSTEM<KM6> EXHAUST BRAKE<NF8> ANTI EROSION SPEC(7XK) EXC. HIGH ALTITUDE COMPENSATOR(EE2), MANUAL STEERING<N51> ID=11	5-09623-002-0	02	1	1406-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). NMR SGL CAB(NM**SN) SAUDI ARABIA EQUIPMENT(GH3) FAST GLOW SYSTEM<KM6> ANTI EROSION SPEC(7XK) EXC. AIR CONDITIONER MANUAL CONT(C60) ,HIGH ALTITUDE COMPENSATOR(EE2), EXHAUST BRAKE<NF8>,MANUAL STEERING<N51> ID=11	5-09623-002-0	02	1	1406-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). NMR SGL CAB(NM**SN) SAUDI ARABIA EQUIPMENT(GH3) FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> EXHAUST BRAKE<NF8> ANTI EROSION SPEC(7XK) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUD E COMPENSATOR(EE2),MANUAL STEERING<N51> ID=11	5-09623-002-0	02	1	1406-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). NMR SGL CAB(NM**SN) HIGH ALTITUDE COMPENSATOR(EE2) SAUDI ARABIA EQUIPMENT(GH3) GLOW SYSTEM DELETE<7RK> ANTI EROSION SPEC(7XK) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),MANUAL STEER ING<N51> ID=11	5-09623-002-0	02	1	1406-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). NMR SGL CAB(NM**SN) HIGH ALTITUDE COMPENSATOR(EE2) SAUDI ARABIA EQUIPMENT(GH3) FAST GLOW SYSTEM<KM6> ANTI EROSION SPEC(7XK) EXC. AIR CONDITIONER MANUAL CONT(C60) ,MANUAL STEERING<N51> ID=11	5-09623-002-0	02	1	1406-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). NMR SGL CAB(NM**SN) AIR CONDITIONER MANUAL CONT(C60) FAST GLOW SYSTEM<KM6> EXHAUST BRAKE<NF8> EXC. COLOMBIA EQUIPMENT(CB7), AZERBAIJAN EQUIPMENT(CX0),HIGH ALTITUDE COMPE NSATOR(EE2),PERU EQUIPMENT(E07), SAUDIARABIA EQUIPMENT(GH3),CHILE EQUIPMEN T(KE1) ID=11	5-09623-002-0	02	1	1406-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). NMR SGL CAB(NM**SN) HEATER & DEFROSTER(C41) HIGH ALTITUDE COMPENSATOR(EE2) EXHAUST BRAKE<NF8> GLOW SYSTEM DELETE<7RK> EXC. COLOMBIA EQUIPMENT(CB7), AZERBAIJAN EQUIPMENT(CX0),PERU EQUIPMENT(E07) ,SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1) ID=11	5-09623-002-0	02	1	1406-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). NMR SGL CAB(NM**SN) HEATER & DEFROSTER(C41) FAST GLOW SYSTEM<KM6> EXHAUST BRAKE<NF8> EXC. COLOMBIA EQUIPMENT(CB7), AZERBAIJAN EQUIPMENT(CX0),PERU EQUIPMENT(E07) ,SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1) ID=11	5-09623-002-0	02	1	1406-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). NMR SGL CAB(NM**SN) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> GLOW SYSTEM DELETE<7RK> EXC. COLOMBIA EQUIPMENT(CB7), AZERBAIJAN EQUIPMENT(CX0),HIGH ALTITUDE COMPE NSATOR(EE2),PERU EQUIPMENT(E07), SAUDIARABIA EQUIPMENT(GH3),CHILE EQUIPMEN T(KE1) ID=11	5-09623-002-0	02	1	1406-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). NMR SGL CAB(NM**SN) EXHAUST BRAKE<NF8> FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> EXC. COLOMBIA EQUIPMENT(CB7), AZERBAIJAN EQUIPMENT(CX0),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,PERU EQUIPMENT(E07),SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1) ID=11	5-09623-002-0	02	1	1406-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). NLR SGL CAB(NM**SE) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) ID=11	5-09623-002-0	02	1	1406-					●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	1012-						●
10	01.516 BOLT; GUIDE TUBE 09.171 M10X110 FLANGE	0-28156-011-0	01	1	1012-	●
10	01.516 BOLT; GUIDE TUBE 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1012-		●
10	01.516 BOLT; GUIDE TUBE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1012-			●	●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97364-386-0	01	1	1012-	●	●
23	01.428 BOLT; OIL PAN M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	1012-	●	●
24	01.453 NUT; OIL PAN 01.062 M8 FLANGE	0-91180-108-0	13	1	1012-	●	●
24	01.453 NUT; OIL PAN 01.540 M8 FLANGE	0-91180-208-0	02	1	1012-			●	●
25	01.453 STUD; OIL PAN 00.349 M8X20 L=31	8-97945-022-0	02	1	1406-			●
25	01.453 STUD; OIL PAN EXC. VIETNAM EQUIPMENT(CL0) 00.349 M8X20 L=31	8-97945-022-0	02	1	1406-				●
25	01.453 STUD; OIL PAN M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE	8-97190-391-0	01	1	1012-	●	●
25	01.453 STUD; OIL PAN 01.428 M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	09	1	1012-	●	●
25	01.453 STUD; OIL PAN M8X16 L=28	0-41010-816-0	02	1	1012-1405			●	●
25	01.453 STUD; OIL PAN VIETNAM EQUIPMENT(CL0) M8X16 L=28	0-41010-816-0	02	1	1406-				●
50	01.516 WASHER; PL,GUIDE TUBE 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1012-		●
123	01.516 RUBBER; SEAL OIL SAUDI ARABIA EQUIPMENT(GH3) (D)	8-97212-596-0	01	1	1012-		●
123	01.516 RUBBER; SEAL OIL (A)	8-97186-988-0	01	1	1012-	●	●
123	01.516 RUBBER; SEAL OIL (B)	8-97186-994-0	01	1	1012-	●	●
123	01.516 RUBBER; SEAL OIL (C)	8-97186-998-0	01	1	1012-	●	●
123	01.516 RUBBER; SEAL OIL EXC. TURKEY EQUIPMENT(B11),COLOMBIA EQUIPMENT(CB7),SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1),VIETNAM EQUIPMENT(SGX) (D)	8-97187-000-0	01	1	1012-1106	●	●
123	01.516 RUBBER; SEAL OIL EXC. COLOMBIA EQUIPMENT(CB7),SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1) (D)	8-97187-000-0	01	1	1107-1405	●	●
123	01.516 RUBBER; SEAL OIL (D)	8-97187-000-0	01	1	1406-	●
123	01.516 RUBBER; SEAL OIL EXC. SAUDI ARABIA EQUIPMENT(GH3) (D)	8-97187-000-0	01	1	1406-		●
194	01.429 SPACER; GUIDE TUBE	8-97101-215-0	01	1	1012-		●

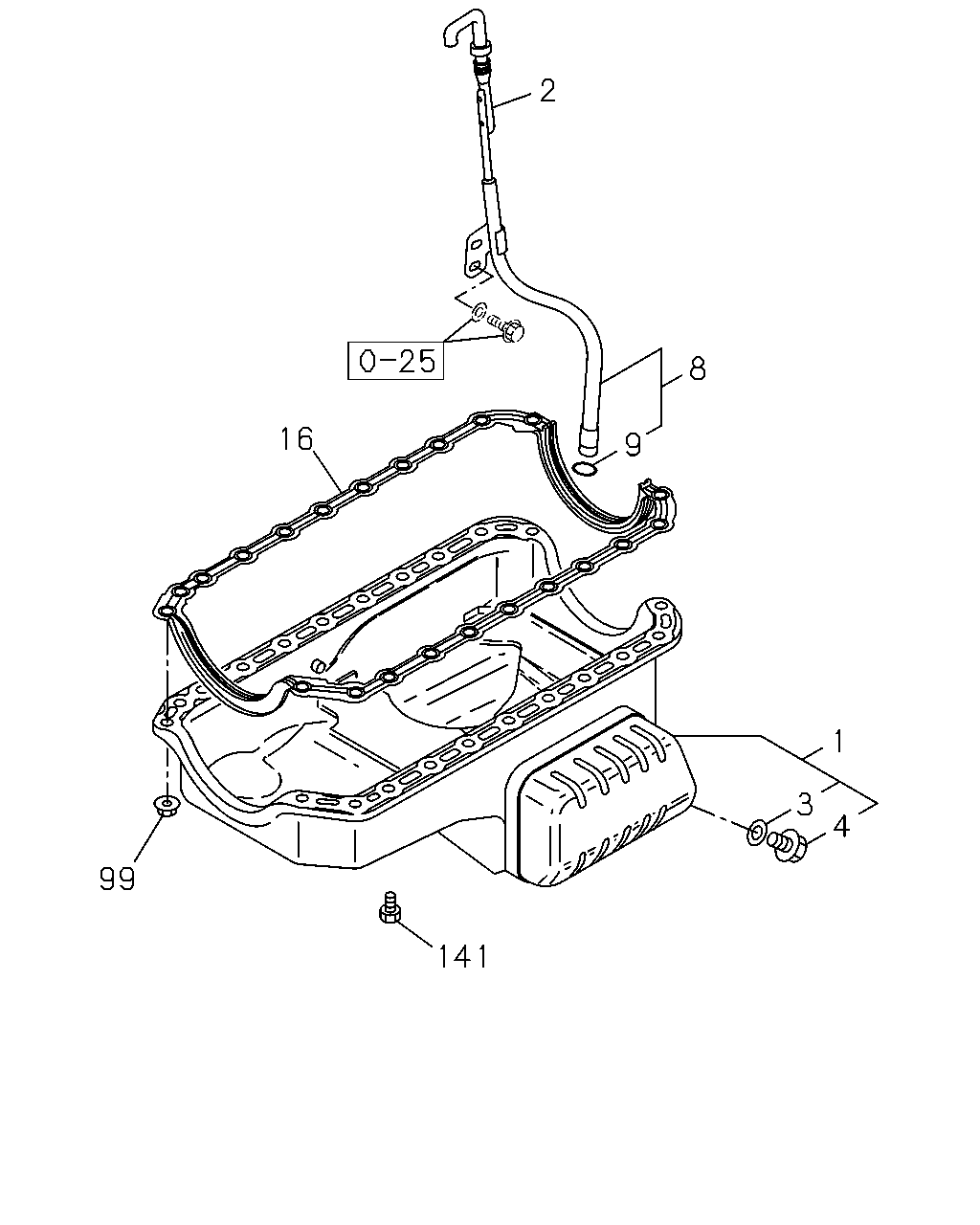

2 8 16 9 1 3 4 99 141

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.426 PAN ASM; OIL EXC. COLOMBIA EQUIPMENT(CB7),SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1)	8-98203-596-0	01	1	1203-1405	●	●
1	01.426 PAN ASM; OIL	8-98203-596-0	01	1	1406-	●
1	01.426 PAN ASM; OIL EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-98203-596-0	01	1	1406-		●
1	01.426 PAN ASM; OIL	8-97385-242-0	01	1	1012-1202	●	●
1	01.426 PAN ASM; OIL SAUDI ARABIA EQUIPMENT(GH3)	8-97385-242-0	01	1	1203-		●
1	01.426 PAN ASM; OIL	8-97383-067-3	01	1	1012-			●	●
1	01.426 PAN ASM; OIL	8-98000-123-0	01	1	1012-					●	●
2	01.516 GAUGE; OIL LEVEL	8-97094-460-2	01	1	1012-	●	●
2	01.516 GAUGE; OIL LEVEL	8-98112-777-1	01	1	1012-			●	●
2	01.516 GAUGE; OIL LEVEL	8-97231-295-0	01	1	1012-					●
2	01.516 GAUGE; OIL LEVEL	8-97092-924-0	01	1	1012-						●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	1012-	●	●	●	●	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	1012-	●	●	●	●	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97200-567-1	01	1	1012-	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97101-907-1	01	1	1012-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97381-490-3	01	1	1012-			●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97221-497-0	01	1	1012-					●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97044-886-0	01	1	1012-						●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	01	1	1012-			●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	1012-1405	●	●			●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). NLR SGL CAB(NM**SE) GLOW SYSTEM DELETE<7RK> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUD E COMPENSATOR(EE2),MANUAL STEERING<N51> ID=11	5-09623-002-0	02	1	1406-	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). NLR SGL CAB(NM**SE) FAST GLOW SYSTEM<KM6> EXC. AIR CONDITIONER MANUAL CONT(C60) ,HIGH ALTITUDE COMPENSATOR(EE2), MANUAL STEERING<N51> ID=11	5-09623-002-0	02	1	1406-	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). NMR SGL CAB(NM**SN) SAUDI ARABIA EQUIPMENT(GH3) GLOW SYSTEM DELETE<7RK> ANTI EROSION SPEC(7XK) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUD E COMPENSATOR(EE2),EXHAUST BRAKE<NF8> ,MANUAL STEERING<N51> ID=11	5-09623-002-0	02	1	1406-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). NMR SGL CAB(NM**SN) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(GH3) FAST GLOW SYSTEM<KM6> EXHAUST BRAKE<NF8> ANTI EROSION SPEC(7XK) EXC. HIGH ALTITUDE COMPENSATOR(EE2), MANUAL STEERING<N51> ID=11	5-09623-002-0	02	1	1406-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). NMR SGL CAB(NM**SN) SAUDI ARABIA EQUIPMENT(GH3) FAST GLOW SYSTEM<KM6> ANTI EROSION SPEC(7XK) EXC. AIR CONDITIONER MANUAL CONT(C60) ,HIGH ALTITUDE COMPENSATOR(EE2), EXHAUST BRAKE<NF8>,MANUAL STEERING<N51> ID=11	5-09623-002-0	02	1	1406-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). NMR SGL CAB(NM**SN) SAUDI ARABIA EQUIPMENT(GH3) FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> EXHAUST BRAKE<NF8> ANTI EROSION SPEC(7XK) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUD E COMPENSATOR(EE2),MANUAL STEERING<N51> ID=11	5-09623-002-0	02	1	1406-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). NMR SGL CAB(NM**SN) HIGH ALTITUDE COMPENSATOR(EE2) SAUDI ARABIA EQUIPMENT(GH3) GLOW SYSTEM DELETE<7RK> ANTI EROSION SPEC(7XK) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),MANUAL STEER ING<N51> ID=11	5-09623-002-0	02	1	1406-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). NMR SGL CAB(NM**SN) HIGH ALTITUDE COMPENSATOR(EE2) SAUDI ARABIA EQUIPMENT(GH3) FAST GLOW SYSTEM<KM6> ANTI EROSION SPEC(7XK) EXC. AIR CONDITIONER MANUAL CONT(C60) ,MANUAL STEERING<N51> ID=11	5-09623-002-0	02	1	1406-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). NMR SGL CAB(NM**SN) AIR CONDITIONER MANUAL CONT(C60) FAST GLOW SYSTEM<KM6> EXHAUST BRAKE<NF8> EXC. COLOMBIA EQUIPMENT(CB7), AZERBAIJAN EQUIPMENT(CX0),HIGH ALTITUDE COMPE NSATOR(EE2),PERU EQUIPMENT(E07), SAUDIARABIA EQUIPMENT(GH3),CHILE EQUIPMEN T(KE1) ID=11	5-09623-002-0	02	1	1406-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). NMR SGL CAB(NM**SN) HEATER & DEFROSTER(C41) HIGH ALTITUDE COMPENSATOR(EE2) EXHAUST BRAKE<NF8> GLOW SYSTEM DELETE<7RK> EXC. COLOMBIA EQUIPMENT(CB7), AZERBAIJAN EQUIPMENT(CX0),PERU EQUIPMENT(E07) ,SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1) ID=11	5-09623-002-0	02	1	1406-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). NMR SGL CAB(NM**SN) HEATER & DEFROSTER(C41) FAST GLOW SYSTEM<KM6> EXHAUST BRAKE<NF8> EXC. COLOMBIA EQUIPMENT(CB7), AZERBAIJAN EQUIPMENT(CX0),PERU EQUIPMENT(E07) ,SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1) ID=11	5-09623-002-0	02	1	1406-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). NMR SGL CAB(NM**SN) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> GLOW SYSTEM DELETE<7RK> EXC. COLOMBIA EQUIPMENT(CB7), AZERBAIJAN EQUIPMENT(CX0),HIGH ALTITUDE COMPE NSATOR(EE2),PERU EQUIPMENT(E07), SAUDIARABIA EQUIPMENT(GH3),CHILE EQUIPMEN T(KE1) ID=11	5-09623-002-0	02	1	1406-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). NMR SGL CAB(NM**SN) EXHAUST BRAKE<NF8> FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> EXC. COLOMBIA EQUIPMENT(CB7), AZERBAIJAN EQUIPMENT(CX0),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,PERU EQUIPMENT(E07),SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1) ID=11	5-09623-002-0	02	1	1406-		●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). NLR SGL CAB(NM**SE) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) ID=11	5-09623-002-0	02	1	1406-					●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	1012-						●
16	01.429 GASKET; OIL PAN TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97080-194-0	01	1	1012-					●	●
99	01.453 NUT; BRKT TO OIL PAN FIX 06.164 M8 FLANGE	5-09440-010-0	10	1	1012-					●	●
141	01.428 BOLT; BRKT TO OIL PAN FIX	8-94133-973-2	12	1	1012-					●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
