◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51282 - NLR/NMR 55,85(LHD) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-12 - CYLINDER BLOCK ▶
0-12 — CYLINDER BLOCK (#79033) — 332 parça

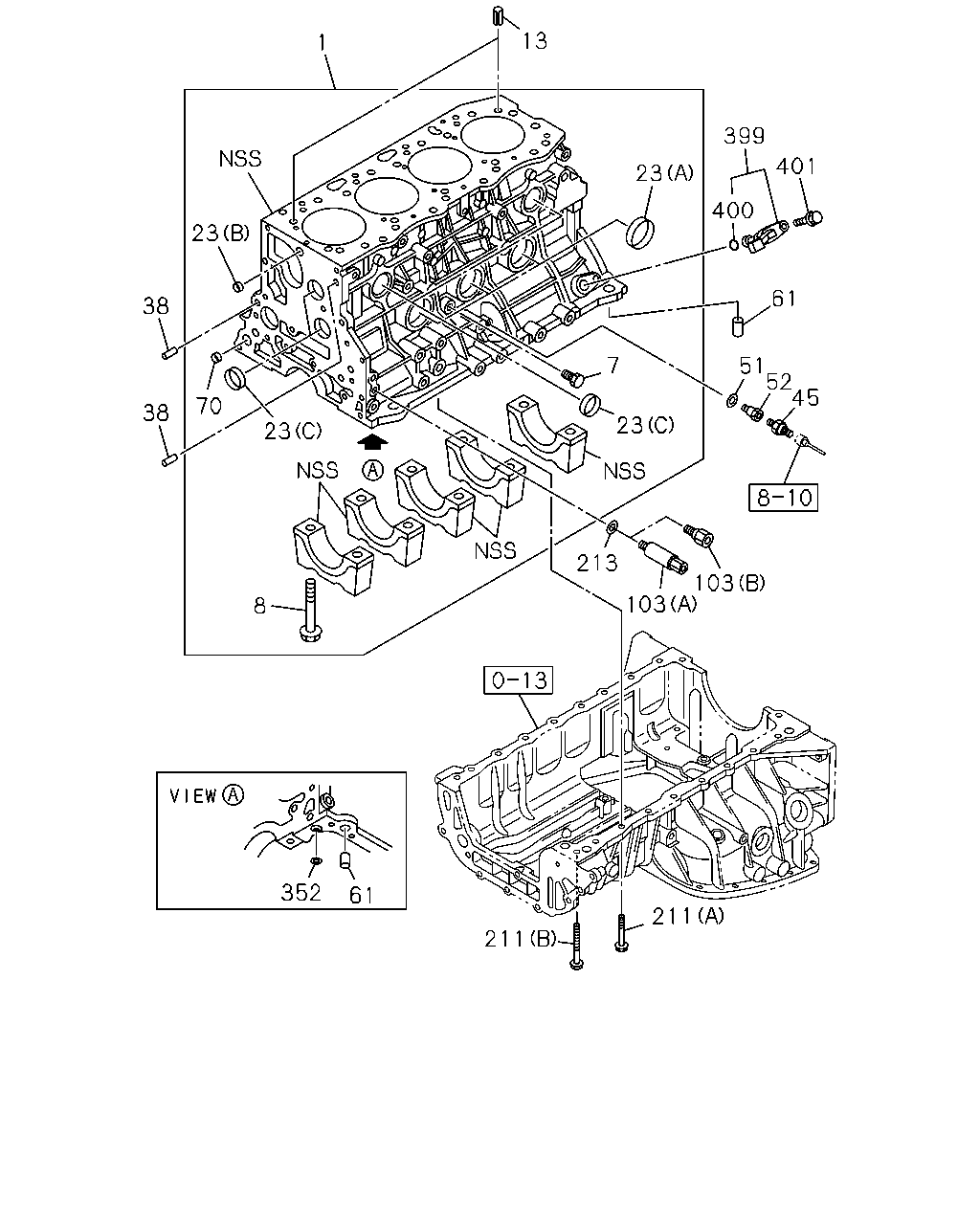

çizim 27802
45 52 51 61 401 400 399 23 7 23 103 103 213 211 211 61 352 8 70 23 38 38 23 1 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.033 BLOCK ASM; CYL
VIETNAM EQUIPMENT(CL0) 		8-98239-516-0 01 1 1305- ●
1 00.033 BLOCK ASM; CYL 8-98005-434-3 01 1 1012-1209 ●
1 00.033 BLOCK ASM; CYL 8-98204-534-0 01 1 1210- ●
1 00.033 BLOCK ASM; CYL 8-98005-433-3 01 1 1012-1209 ●
1 00.033 BLOCK ASM; CYL 8-98204-533-0 01 1 1210- ●
1 00.033 BLOCK ASM; CYL 8-97352-707-2 01 1 1012- ● ●
1 00.033 BLOCK ASM; CYL 8-97386-617-5 01 1 1012-1104 ● ●
1 00.033 BLOCK ASM; CYL 8-98240-635-1 01 1 1210- ●
1 00.033 BLOCK ASM; CYL
EXC. VIETNAM EQUIPMENT(CL0) 		8-98240-635-1 01 1 1210- ●
7 00.034 PLUG; WATER DRAIN
PT1/4 		9-09664-001-0 01 1 1410-1508 ●
7 00.034 PLUG; WATER DRAIN
EXC. VIETNAM EQUIPMENT(CL0) PT1/4 		9-09664-001-0 01 1 1410-1508 ●
7 00.034 PLUG; WATER DRAIN
M10X10 		8-97352-537-0 01 1 1012- ● ●
7 00.034 PLUG; WATER DRAIN
PT1/4 		9-09664-001-0 01 1 1012-1405 ● ●
7 00.034 PLUG; WATER DRAIN
PT1/4 		9-09664-001-0 01 1 1509- ● ●
7 00.034 PLUG; WATER DRAIN
PT1/4 		9-09664-001-0 01 1 1012- ● ●
8 00.056 BOLT; BRG CAP
M14X89 FLANGE 		8-94432-642-0 10 1 1012- ● ●
8 00.056 BOLT; BRG CAP
M14X89 FLANGE 		8-94432-642-0 10 1 1012- ● ●
13 00.293 DOWEL; C/BL TO HD
OD=18.15 		8-94399-688-1 02 1 1012- ● ●
13 00.293 DOWEL; C/BL TO HD
OD=14 		8-94453-344-0 02 1 1012- ● ● ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.293 (E) OD=25 		1-09600-016-0 01 1 1012- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(D) OD=36 		5-11219-018-0 02 1 1012- ● ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (B) OD=18 		5-11219-008-0 03 1 1012- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(C) OD=32 		5-11219-015-0 02 1 1012- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(A) OD=45 		8-97036-550-1 03 1 1012- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(D) OD=36 		5-11219-018-0 03 1 1012- ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (B) OD=18 		5-11219-008-0 02 1 1012- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(C) OD=32 		5-11219-015-0 04 1 1012- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(A) OD=45 		8-97036-550-1 03 1 1012- ● ● ● ●
38 00.206 PIN; TIMING GEAR CASE
VIETNAM EQUIPMENT(CL0) 00.669 OD=10 L=20 		9-08151-020-0 02 1 1105- ●
38 00.206 PIN; TIMING GEAR CASE
04.510 OD=10 L=20 		8-97135-423-0 02 1 1012-1104 ● ●
38 00.206 PIN; TIMING GEAR CASE
04.510 OD=10 L=20 		8-97135-423-0 02 1 1105- ●
38 00.206 PIN; TIMING GEAR CASE
EXC. VIETNAM EQUIPMENT(CL0) 04.510 OD=10 L=20 		8-97135-423-0 02 1 1105- ●
45 01.800 SWITCH; OIL PRESSURE 8-97176-230-0 01 1 1012- ● ●
51 01.803 GASKET; OIL PRESS WARNING SW,C/B
ALSO INCLUDED IN GASKET SET(ENGINE). VIETNAM EQUIPMENT(CL0) 		8-97912-498-0 01 1 1105- ●
51 01.803 GASKET; OIL PRESS WARNING SW,C/B
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94336-292-0 01 1 1012-1104 ● ● ● ●
51 01.803 GASKET; OIL PRESS WARNING SW,C/B
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94336-292-0 01 1 1105- ● ● ●
51 01.803 GASKET; OIL PRESS WARNING SW,C/B
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIETNAM EQUIPMENT(CL0) 		8-94336-292-0 01 1 1105- ●
52 01.803 NIPPLE; OIL PRESS WARNING SW,C/B 8-98089-872-0 01 1 1012-1501 ● ● ●
52 01.803 NIPPLE; OIL PRESS WARNING SW,C/B 8-94167-750-2 01 1 1502- ● ● ●
52 01.803 NIPPLE; OIL PRESS WARNING SW,C/B 8-94167-749-2 01 1 1012- ●
61 00.206 PIN; STRAIGHT
VIETNAM EQUIPMENT(CL0) 01.453 L=31 		8-97920-964-1 02 1 1105- ●
61 00.206 PIN; STRAIGHT
L=22 		8-94483-674-0 04 1 1012- ● ●
61 00.206 PIN; STRAIGHT
01.428 L=31 		9-09878-597-0 02 1 1012-1104 ● ●
61 00.206 PIN; STRAIGHT
01.428 L=31 		9-09878-597-0 02 1 1105- ●
61 00.206 PIN; STRAIGHT
EXC. VIETNAM EQUIPMENT(CL0) 01.428 L=31 		9-09878-597-0 02 1 1105- ●
61 00.206 PIN; STRAIGHT
04.510 OD=10 L=20 		8-97135-423-0 01 1 1012- ●
61 00.206 PIN; STRAIGHT
04.510 OD=10 L=20 		8-97135-423-0 02 1 1012- ●
70 00.034 CUP; SEALING,FRT & RR
OD=40 		8-97096-824-0 04 1 1012- ● ●
70 00.034 CUP; SEALING,FRT & RR
00.253 OD=16 		5-11129-006-0 06 1 1012- ● ●
70 00.034 CUP; SEALING,FRT & RR
00.253 OD=16 		5-11129-006-0 02 1 1012- ● ●
103 01.531 NIPPLE; OIL FEED
00.293 (B) 		8-94469-596-0 01 1 1301- ●
103 01.531 NIPPLE; OIL FEED
EXC. VIETNAM EQUIPMENT(CL0) 00.293 (B) 		8-94469-596-0 01 1 1301- ●
103 01.531 NIPPLE; OIL FEED
(A) 		8-97316-983-4 01 1 1012-1212 ● ●
103 01.531 NIPPLE; OIL FEED
VIETNAM EQUIPMENT(CL0) (A) 		8-97316-983-4 01 1 1301- ●
211 01.428 BOLT; CRANKCASE
(D) M10X82 		8-94399-553-2 17 1 1012- ● ●
211 01.428 BOLT; CRANKCASE
00.293 (C) M14X115 W/FLANGE 		8-97077-638-0 10 1 1012- ● ●
211 01.428 BOLT; CRANKCASE
06.216 (A) M8X25 FLANGE 		0-28650-825-0 19 1 1012- ● ●
211 01.428 BOLT; CRANKCASE
00.685 (B) M8X40 FLANGE 		0-28650-840-0 01 1 1012- ● ●
213 01.531 GASKET; NIPPLE,OIL FEED
08.955 ID=10.2 OD=16.0 		9-09571-410-0 01 1 1012- ● ●
352 01.429 GASKET; C/BL TO CRANKCASE
ALSO INCLUDED IN GASKET SET(ENGINE). 		9-09566-116-0 01 1 1012- ● ●
399 00.724 SENSOR; CRANKSHAFT POSITION
02.361 		8-97312-108-1 01 1 1012- ● ●
400 00.724 GASKET; CRANKSHAFT POSITION SENS
ID=14.2 OD=18.8 		8-97369-404-0 01 1 1012- ● ●
401 00.724 BOLT; SENSOR
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 1012- ● ●

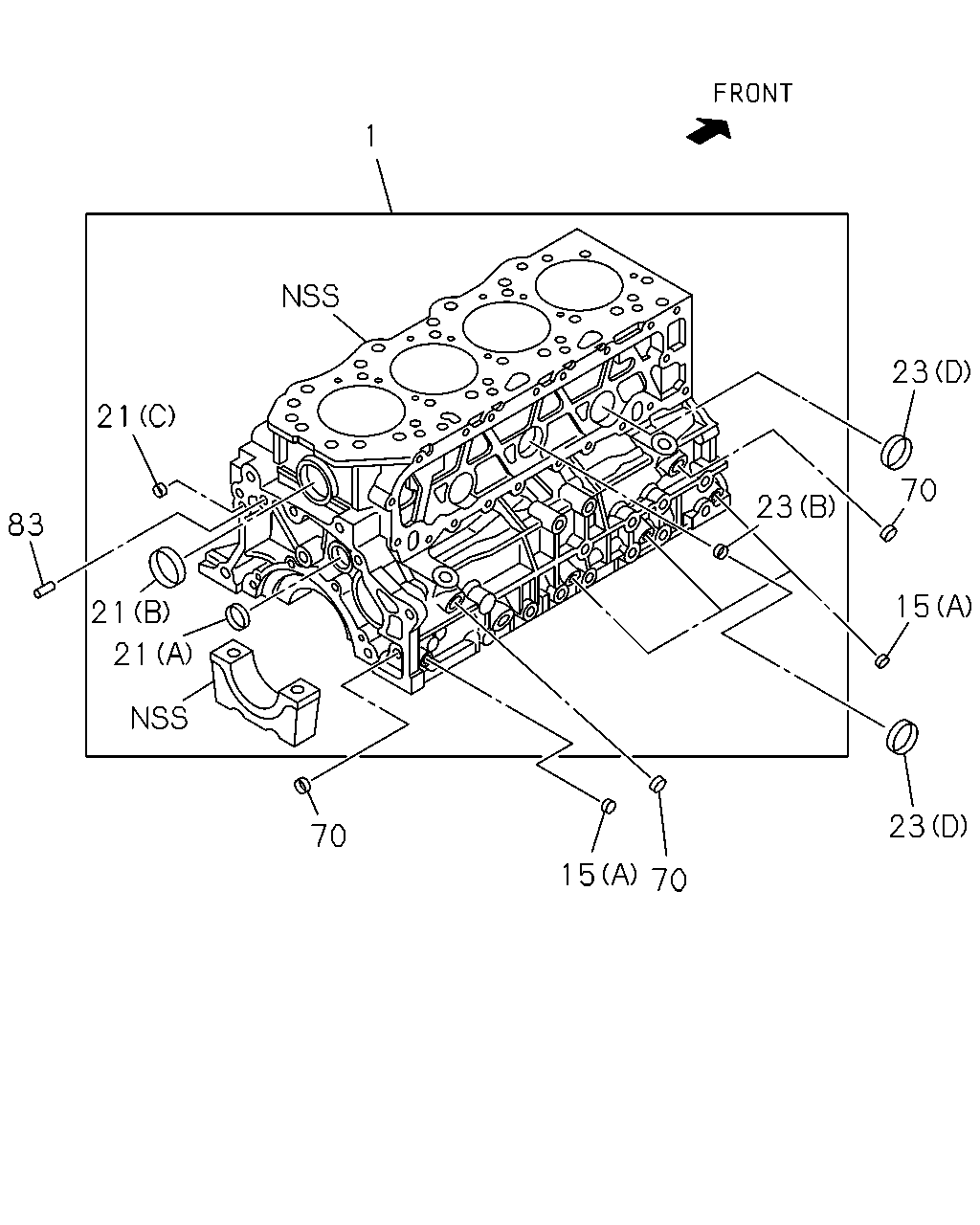

çizim 28791
1 23 21 70 23 83 15 21 21 23 70 15 70
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.033 BLOCK ASM; CYL
VIETNAM EQUIPMENT(CL0) 		8-98239-516-0 01 1 1305- ●
1 00.033 BLOCK ASM; CYL 8-98005-434-3 01 1 1012-1209 ●
1 00.033 BLOCK ASM; CYL 8-98204-534-0 01 1 1210- ●
1 00.033 BLOCK ASM; CYL 8-98005-433-3 01 1 1012-1209 ●
1 00.033 BLOCK ASM; CYL 8-98204-533-0 01 1 1210- ●
1 00.033 BLOCK ASM; CYL 8-97352-707-2 01 1 1012- ● ●
1 00.033 BLOCK ASM; CYL 8-97386-617-5 01 1 1012-1104 ● ●
1 00.033 BLOCK ASM; CYL 8-98240-635-1 01 1 1210- ●
1 00.033 BLOCK ASM; CYL
EXC. VIETNAM EQUIPMENT(CL0) 		8-98240-635-1 01 1 1210- ●
15 01.531 PLUG; OIL GALLERY
(A) PT1/8 		1-09605-050-0 04 1 1012- ● ●
15 01.531 PLUG; OIL GALLERY
(A) PT1/8 		1-09605-050-0 02 1 1012- ● ●
15 01.531 PLUG; OIL GALLERY
03.001 (B) M14X14 		8-94152-613-0 01 1 1012- ●
21 00.034 CUP; SEALING,RR
(A) OD=38 		5-11219-017-0 01 1 1012- ● ●
21 00.034 CUP; SEALING,RR
(B) OD=36 		5-11219-018-0 01 1 1012- ● ●
21 00.034 CUP; SEALING,RR
00.253 (C) OD=12.3 		5-09600-013-0 01 1 1012- ● ●
21 00.034 CUP; SEALING,RR
(A) OD=38 		5-11219-017-0 01 1 1012- ● ●
21 00.034 CUP; SEALING,RR
(B) OD=36 		5-11219-018-0 01 1 1012- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.293 (E) OD=25 		1-09600-016-0 01 1 1012- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(D) OD=36 		5-11219-018-0 02 1 1012- ● ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (B) OD=18 		5-11219-008-0 03 1 1012- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(C) OD=32 		5-11219-015-0 02 1 1012- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(A) OD=45 		8-97036-550-1 03 1 1012- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(D) OD=36 		5-11219-018-0 03 1 1012- ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (B) OD=18 		5-11219-008-0 02 1 1012- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(C) OD=32 		5-11219-015-0 04 1 1012- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(A) OD=45 		8-97036-550-1 03 1 1012- ● ● ● ●
70 00.034 CUP; SEALING,FRT & RR
OD=40 		8-97096-824-0 04 1 1012- ● ●
70 00.034 CUP; SEALING,FRT & RR
00.253 OD=16 		5-11129-006-0 06 1 1012- ● ●
70 00.034 CUP; SEALING,FRT & RR
00.253 OD=16 		5-11129-006-0 02 1 1012- ● ●
83 00.685 PIN; FLYWHEEL HSG
08.939 OD=10 L=32 		9-08161-032-0 01 1 1012- ● ●

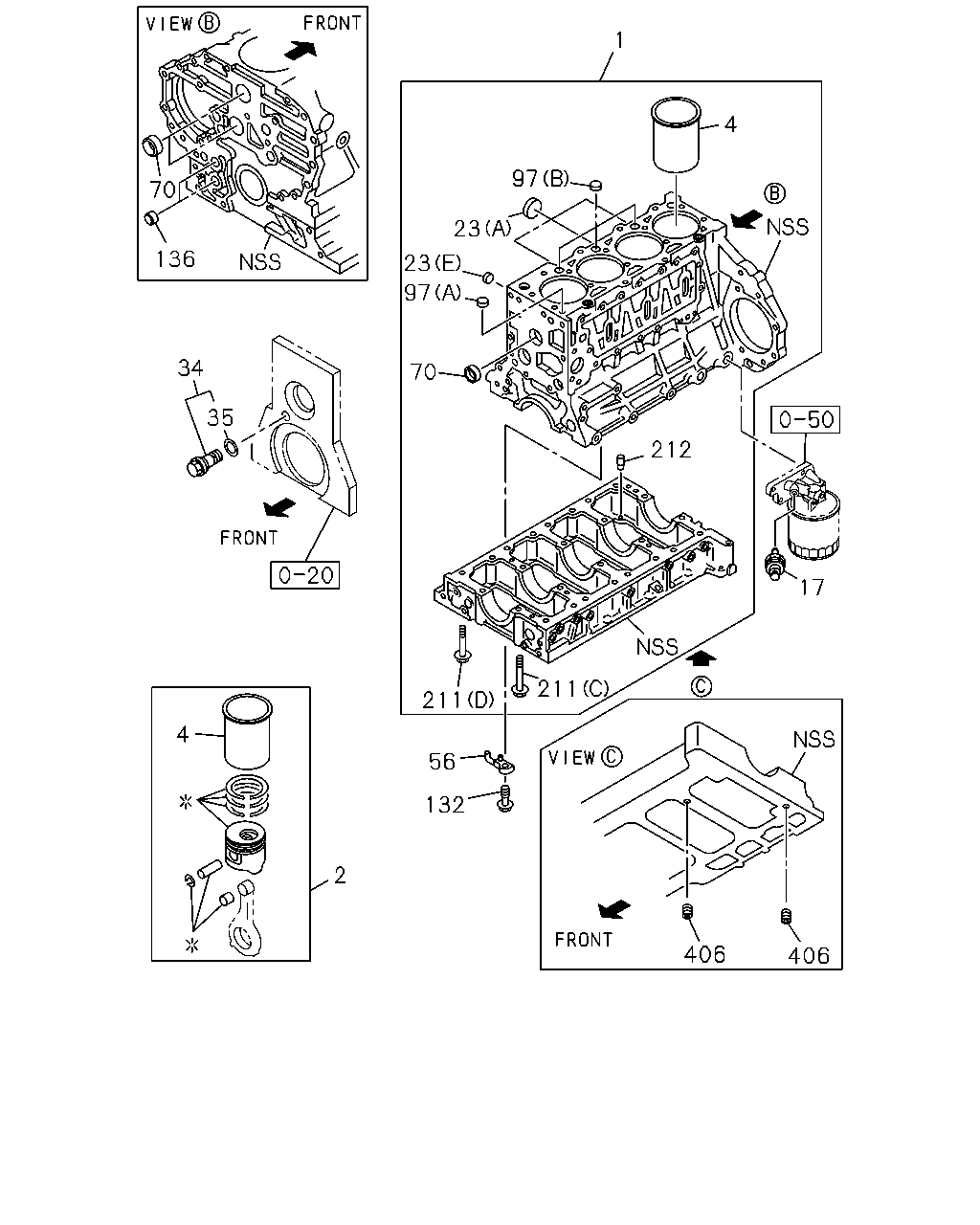

çizim 29667
136 70 34 35 4 2 56 132 211 211 406 406 17 212 4 1 97 23 23 97 70
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.033 BLOCK ASM; CYL
VIETNAM EQUIPMENT(CL0) 		8-98239-516-0 01 1 1305- ●
1 00.033 BLOCK ASM; CYL 8-98005-434-3 01 1 1012-1209 ●
1 00.033 BLOCK ASM; CYL 8-98204-534-0 01 1 1210- ●
1 00.033 BLOCK ASM; CYL 8-98005-433-3 01 1 1012-1209 ●
1 00.033 BLOCK ASM; CYL 8-98204-533-0 01 1 1210- ●
1 00.033 BLOCK ASM; CYL 8-97352-707-2 01 1 1012- ● ●
1 00.033 BLOCK ASM; CYL 8-97386-617-5 01 1 1012-1104 ● ●
1 00.033 BLOCK ASM; CYL 8-98240-635-1 01 1 1210- ●
1 00.033 BLOCK ASM; CYL
EXC. VIETNAM EQUIPMENT(CL0) 		8-98240-635-1 01 1 1210- ●
2 00.030 LINER SET; ENG CYL
OD GRADE=1X,ID GRADE=NON 		5-87814-834-5 04 1 1012-1112 ●
2 00.030 LINER SET; ENG CYL
OD GRADE=1X,ID GRADE=NON 		5-87816-317-0 04 1 1201- ●
2 00.030 LINER SET; ENG CYL
OD GRADE=3X,ID GRADE=NON 		5-87814-835-5 04 1 1012-1112 ●
2 00.030 LINER SET; ENG CYL
OD GRADE=3X,ID GRADE=NON 		5-87816-318-0 04 1 1201- ●
2 00.030 LINER SET; ENG CYL
GRADE=1X 		5-87814-836-5 04 1 1012-1112 ●
2 00.030 LINER SET; ENG CYL
GRADE=1X 		5-87816-321-0 04 1 1201- ●
2 00.030 LINER SET; ENG CYL
GRADE=3X 		5-87814-837-5 04 1 1012-1112 ●
2 00.030 LINER SET; ENG CYL
GRADE=3X 		5-87816-322-0 04 1 1201- ●
2 00.030 LINER SET; ENG CYL
GRADE=1 		5-87813-193-2 04 1 1012- ●
2 00.030 LINER SET; ENG CYL
GRADE=2 		5-87813-194-2 04 1 1012- ●
2 00.030 LINER SET; ENG CYL
GRADE=3 		5-87813-195-2 04 1 1012- ●
2 00.030 LINER SET; ENG CYL
GRADE=4 		5-87813-196-2 04 1 1012- ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=1 		5-87813-181-3 04 1 1012- ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=2 		5-87813-182-3 04 1 1012- ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=3 		5-87813-183-3 04 1 1012- ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=4 		5-87813-184-3 04 1 1012- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-98014-048-1 04 1 1012- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-98014-049-1 04 1 1012- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX 		8-97176-683-0 04 1 1012- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX 		8-97176-684-0 04 1 1012- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX 		8-97176-685-0 04 1 1012- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX 		8-97176-686-0 04 1 1012- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX 		8-97176-687-0 04 1 1012- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX 		8-97176-688-0 04 1 1012- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX 		8-97176-689-0 04 1 1012- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX 		8-97176-690-0 04 1 1012- ● ●
17 01.800 SWITCH; OIL PRESSURE 8-97072-947-0 01 1 1012- ●
17 01.800 SWITCH; OIL PRESSURE 8-97176-230-0 01 1 1012- ● ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.293 (E) OD=25 		1-09600-016-0 01 1 1012- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(D) OD=36 		5-11219-018-0 02 1 1012- ● ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (B) OD=18 		5-11219-008-0 03 1 1012- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(C) OD=32 		5-11219-015-0 02 1 1012- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(A) OD=45 		8-97036-550-1 03 1 1012- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(D) OD=36 		5-11219-018-0 03 1 1012- ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (B) OD=18 		5-11219-008-0 02 1 1012- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(C) OD=32 		5-11219-015-0 04 1 1012- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(A) OD=45 		8-97036-550-1 03 1 1012- ● ● ● ●
34 01.609 VALVE; OIL RELIEF
00.213 		8-97328-859-0 01 1 1012- ● ●
35 01.609 GASKET; RELIEF VLV
ID=23.3 		8-94173-412-0 01 1 1012- ● ●
56 01.519 JET; OIL,PISTON COOLING 8-97213-294-1 04 1 1012- ●
56 01.519 JET; OIL,PISTON COOLING 8-94370-579-1 04 1 1012- ●
70 00.034 CUP; SEALING,FRT & RR
OD=40 		8-97096-824-0 04 1 1012- ● ●
70 00.034 CUP; SEALING,FRT & RR
00.253 OD=16 		5-11129-006-0 06 1 1012- ● ●
70 00.034 CUP; SEALING,FRT & RR
00.253 OD=16 		5-11129-006-0 02 1 1012- ● ●
97 00.034 CUP; SEALING
00.253 (A) OD=16 		5-11129-006-0 01 1 1012- ● ●
97 00.034 CUP; SEALING
00.253 (B) OD=22 		8-97209-609-0 03 1 1012- ● ●
132 01.519 VALVE; CHECK,OIL
M10X18.5 		8-97329-618-0 04 1 1012- ● ●
136 01.639 BUSHING; DRIVE SHAFT,OIL PUMP 8-98091-566-0 02 1 1012- ● ●
211 01.428 BOLT; CRANKCASE
(D) M10X82 		8-94399-553-2 17 1 1012- ● ●
211 01.428 BOLT; CRANKCASE
00.293 (C) M14X115 W/FLANGE 		8-97077-638-0 10 1 1012- ● ●
211 01.428 BOLT; CRANKCASE
06.216 (A) M8X25 FLANGE 		0-28650-825-0 19 1 1012- ● ●
211 01.428 BOLT; CRANKCASE
00.685 (B) M8X40 FLANGE 		0-28650-840-0 01 1 1012- ● ●
212 01.428 PIN; CRANKCASE
04.510 OD=10 L=20 		8-97135-423-0 02 1 1012- ● ●
406 01.531 PLUG; CRANK CASE
01.073 PT3/8 		5-09605-005-0 02 1 1012- ● ●

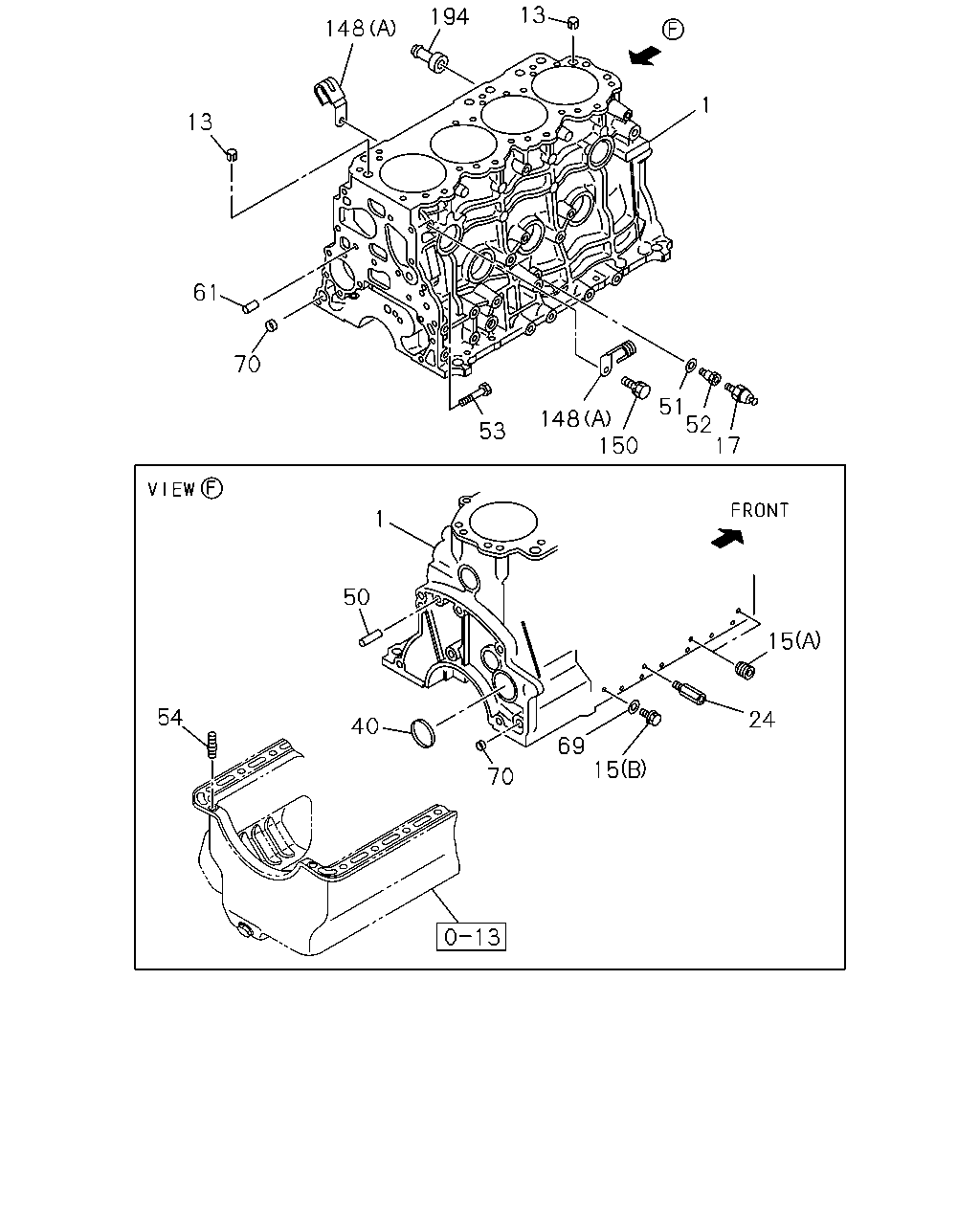

çizim 33012
13 194 148 1 13 61 70 51 52 17 148 150 53 1 50 15 54 24 40 69 15 70
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.033 BLOCK ASM; CYL
VIETNAM EQUIPMENT(CL0) 		8-98239-516-0 01 1 1305- ●
1 00.033 BLOCK ASM; CYL 8-98005-434-3 01 1 1012-1209 ●
1 00.033 BLOCK ASM; CYL 8-98204-534-0 01 1 1210- ●
1 00.033 BLOCK ASM; CYL 8-98005-433-3 01 1 1012-1209 ●
1 00.033 BLOCK ASM; CYL 8-98204-533-0 01 1 1210- ●
1 00.033 BLOCK ASM; CYL 8-97352-707-2 01 1 1012- ● ●
1 00.033 BLOCK ASM; CYL 8-97386-617-5 01 1 1012-1104 ● ●
1 00.033 BLOCK ASM; CYL 8-98240-635-1 01 1 1210- ●
1 00.033 BLOCK ASM; CYL
EXC. VIETNAM EQUIPMENT(CL0) 		8-98240-635-1 01 1 1210- ●
13 00.293 DOWEL; C/BL TO HD
OD=18.15 		8-94399-688-1 02 1 1012- ● ●
13 00.293 DOWEL; C/BL TO HD
OD=14 		8-94453-344-0 02 1 1012- ● ● ● ●
15 01.531 PLUG; OIL GALLERY
(A) PT1/8 		1-09605-050-0 04 1 1012- ● ●
15 01.531 PLUG; OIL GALLERY
(A) PT1/8 		1-09605-050-0 02 1 1012- ● ●
15 01.531 PLUG; OIL GALLERY
03.001 (B) M14X14 		8-94152-613-0 01 1 1012- ●
17 01.800 SWITCH; OIL PRESSURE 8-97072-947-0 01 1 1012- ●
17 01.800 SWITCH; OIL PRESSURE 8-97176-230-0 01 1 1012- ● ● ●
24 01.531 NIPPLE; OIL FEED,VAC PUMP 8-94443-670-1 01 1 1012- ● ●
40 00.034 CUP; SEALING,C/BL RR
00.253 OD=56 		8-94250-514-1 01 1 1012- ● ●
50 00.685 PIN; STRAIGHT,RR PLATE
08.939 OD=10 L=32 		9-08161-032-0 01 1 1012- ● ●
51 01.803 GASKET; OIL PRESS WARNING SW,C/B
ALSO INCLUDED IN GASKET SET(ENGINE). VIETNAM EQUIPMENT(CL0) 		8-97912-498-0 01 1 1105- ●
51 01.803 GASKET; OIL PRESS WARNING SW,C/B
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94336-292-0 01 1 1012-1104 ● ● ● ●
51 01.803 GASKET; OIL PRESS WARNING SW,C/B
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94336-292-0 01 1 1105- ● ● ●
51 01.803 GASKET; OIL PRESS WARNING SW,C/B
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIETNAM EQUIPMENT(CL0) 		8-94336-292-0 01 1 1105- ●
52 01.803 NIPPLE; OIL PRESS WARNING SW,C/B 8-98089-872-0 01 1 1012-1501 ● ● ●
52 01.803 NIPPLE; OIL PRESS WARNING SW,C/B 8-94167-750-2 01 1 1502- ● ● ●
52 01.803 NIPPLE; OIL PRESS WARNING SW,C/B 8-94167-749-2 01 1 1012- ●
53 00.862 BOLT; REAMER
00.683 M10X52 		9-09806-020-0 01 1 1012- ● ●
54 01.428 STUD; OIL PAN TO BLOCK 8-94133-974-2 10 1 1012- ● ●
61 00.206 PIN; STRAIGHT
VIETNAM EQUIPMENT(CL0) 01.453 L=31 		8-97920-964-1 02 1 1105- ●
61 00.206 PIN; STRAIGHT
L=22 		8-94483-674-0 04 1 1012- ● ●
61 00.206 PIN; STRAIGHT
01.428 L=31 		9-09878-597-0 02 1 1012-1104 ● ●
61 00.206 PIN; STRAIGHT
01.428 L=31 		9-09878-597-0 02 1 1105- ●
61 00.206 PIN; STRAIGHT
EXC. VIETNAM EQUIPMENT(CL0) 01.428 L=31 		9-09878-597-0 02 1 1105- ●
61 00.206 PIN; STRAIGHT
04.510 OD=10 L=20 		8-97135-423-0 01 1 1012- ●
61 00.206 PIN; STRAIGHT
04.510 OD=10 L=20 		8-97135-423-0 02 1 1012- ●
69 01.531 GASKET; PLUG,OIL GALLERY,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 1012- ●
70 00.034 CUP; SEALING,FRT & RR
OD=40 		8-97096-824-0 04 1 1012- ● ●
70 00.034 CUP; SEALING,FRT & RR
00.253 OD=16 		5-11129-006-0 06 1 1012- ● ●
70 00.034 CUP; SEALING,FRT & RR
00.253 OD=16 		5-11129-006-0 02 1 1012- ● ●
148 02.313 CLIP; HARNESS
04.930 (B) L=91 ID=8.5 		8-94329-956-0 01 1 1012-1304 ● ●
148 02.313 CLIP; HARNESS
04.930 (B) L=91 ID=8.5 		8-94329-956-0 01 1 1305- ●
148 02.313 CLIP; HARNESS
03.671 (A) ID=12 VINYL CHLORIDE 		8-97367-984-1 02 1 1012-1304 ● ●
148 02.313 CLIP; HARNESS
03.671 (A) ID=12 VINYL CHLORIDE 		8-97367-984-1 02 1 1305- ●
150 02.313 BOLT; CLIP
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1012-1304 ●
150 02.313 BOLT; CLIP
02.343 M8X12 FLANGE 		0-28050-812-0 03 1 1012- ●
194 00.439 PIPE; OIL DRAIN,C/BL 8-97137-781-0 01 1 1012- ●

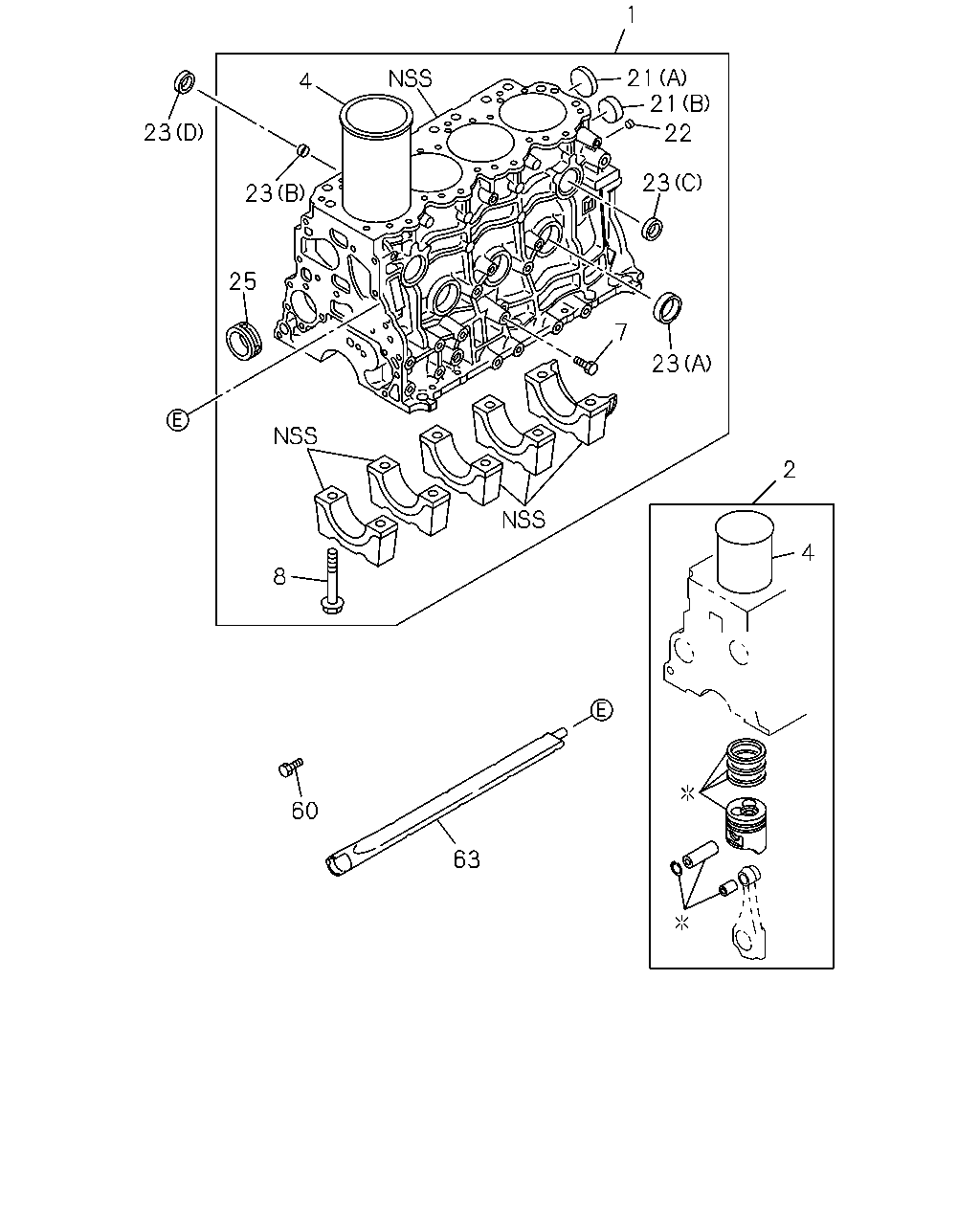

çizim 33035
23 23 25 8 60 63 4 2 23 7 23 22 21 21 1 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.033 BLOCK ASM; CYL
VIETNAM EQUIPMENT(CL0) 		8-98239-516-0 01 1 1305- ●
1 00.033 BLOCK ASM; CYL 8-98005-434-3 01 1 1012-1209 ●
1 00.033 BLOCK ASM; CYL 8-98204-534-0 01 1 1210- ●
1 00.033 BLOCK ASM; CYL 8-98005-433-3 01 1 1012-1209 ●
1 00.033 BLOCK ASM; CYL 8-98204-533-0 01 1 1210- ●
1 00.033 BLOCK ASM; CYL 8-97352-707-2 01 1 1012- ● ●
1 00.033 BLOCK ASM; CYL 8-97386-617-5 01 1 1012-1104 ● ●
1 00.033 BLOCK ASM; CYL 8-98240-635-1 01 1 1210- ●
1 00.033 BLOCK ASM; CYL
EXC. VIETNAM EQUIPMENT(CL0) 		8-98240-635-1 01 1 1210- ●
2 00.030 LINER SET; ENG CYL
OD GRADE=1X,ID GRADE=NON 		5-87814-834-5 04 1 1012-1112 ●
2 00.030 LINER SET; ENG CYL
OD GRADE=1X,ID GRADE=NON 		5-87816-317-0 04 1 1201- ●
2 00.030 LINER SET; ENG CYL
OD GRADE=3X,ID GRADE=NON 		5-87814-835-5 04 1 1012-1112 ●
2 00.030 LINER SET; ENG CYL
OD GRADE=3X,ID GRADE=NON 		5-87816-318-0 04 1 1201- ●
2 00.030 LINER SET; ENG CYL
GRADE=1X 		5-87814-836-5 04 1 1012-1112 ●
2 00.030 LINER SET; ENG CYL
GRADE=1X 		5-87816-321-0 04 1 1201- ●
2 00.030 LINER SET; ENG CYL
GRADE=3X 		5-87814-837-5 04 1 1012-1112 ●
2 00.030 LINER SET; ENG CYL
GRADE=3X 		5-87816-322-0 04 1 1201- ●
2 00.030 LINER SET; ENG CYL
GRADE=1 		5-87813-193-2 04 1 1012- ●
2 00.030 LINER SET; ENG CYL
GRADE=2 		5-87813-194-2 04 1 1012- ●
2 00.030 LINER SET; ENG CYL
GRADE=3 		5-87813-195-2 04 1 1012- ●
2 00.030 LINER SET; ENG CYL
GRADE=4 		5-87813-196-2 04 1 1012- ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=1 		5-87813-181-3 04 1 1012- ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=2 		5-87813-182-3 04 1 1012- ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=3 		5-87813-183-3 04 1 1012- ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=4 		5-87813-184-3 04 1 1012- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-98014-048-1 04 1 1012- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-98014-049-1 04 1 1012- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX 		8-97176-683-0 04 1 1012- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX 		8-97176-684-0 04 1 1012- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX 		8-97176-685-0 04 1 1012- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX 		8-97176-686-0 04 1 1012- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX 		8-97176-687-0 04 1 1012- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX 		8-97176-688-0 04 1 1012- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX 		8-97176-689-0 04 1 1012- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX 		8-97176-690-0 04 1 1012- ● ●
7 00.034 PLUG; WATER DRAIN
PT1/4 		9-09664-001-0 01 1 1410-1508 ●
7 00.034 PLUG; WATER DRAIN
EXC. VIETNAM EQUIPMENT(CL0) PT1/4 		9-09664-001-0 01 1 1410-1508 ●
7 00.034 PLUG; WATER DRAIN
M10X10 		8-97352-537-0 01 1 1012- ● ●
7 00.034 PLUG; WATER DRAIN
PT1/4 		9-09664-001-0 01 1 1012-1405 ● ●
7 00.034 PLUG; WATER DRAIN
PT1/4 		9-09664-001-0 01 1 1509- ● ●
7 00.034 PLUG; WATER DRAIN
PT1/4 		9-09664-001-0 01 1 1012- ● ●
8 00.056 BOLT; BRG CAP
M14X89 FLANGE 		8-94432-642-0 10 1 1012- ● ●
8 00.056 BOLT; BRG CAP
M14X89 FLANGE 		8-94432-642-0 10 1 1012- ● ●
21 00.034 CUP; SEALING,RR
(A) OD=38 		5-11219-017-0 01 1 1012- ● ●
21 00.034 CUP; SEALING,RR
(B) OD=36 		5-11219-018-0 01 1 1012- ● ●
21 00.034 CUP; SEALING,RR
00.253 (C) OD=12.3 		5-09600-013-0 01 1 1012- ● ●
21 00.034 CUP; SEALING,RR
(A) OD=38 		5-11219-017-0 01 1 1012- ● ●
21 00.034 CUP; SEALING,RR
(B) OD=36 		5-11219-018-0 01 1 1012- ● ●
22 00.034 CUP; SEALING,DUCT HOLE
00.253 OD=12.3 		5-09600-013-0 01 1 1012-1412 ● ●
22 00.034 CUP; SEALING,DUCT HOLE
00.253 OD=12.3 		5-09600-013-0 03 1 1501- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.293 (E) OD=25 		1-09600-016-0 01 1 1012- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(D) OD=36 		5-11219-018-0 02 1 1012- ● ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (B) OD=18 		5-11219-008-0 03 1 1012- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(C) OD=32 		5-11219-015-0 02 1 1012- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(A) OD=45 		8-97036-550-1 03 1 1012- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(D) OD=36 		5-11219-018-0 03 1 1012- ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (B) OD=18 		5-11219-008-0 02 1 1012- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(C) OD=32 		5-11219-015-0 04 1 1012- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(A) OD=45 		8-97036-550-1 03 1 1012- ● ● ● ●
25 00.539 METAL; CM/SHF
CENTER & REAR 		8-97378-147-0 02 1 1012- ● ●
25 00.539 METAL; CM/SHF
FRONT 		8-97378-148-0 01 1 1012- ● ●
60 01.531 BOLT; OIL JET
M16X12 		0-92002-416-0 01 1 1012- ●
63 01.153 DUCT; WATER,C/BL 8-94419-436-2 01 1 1012- ● ●

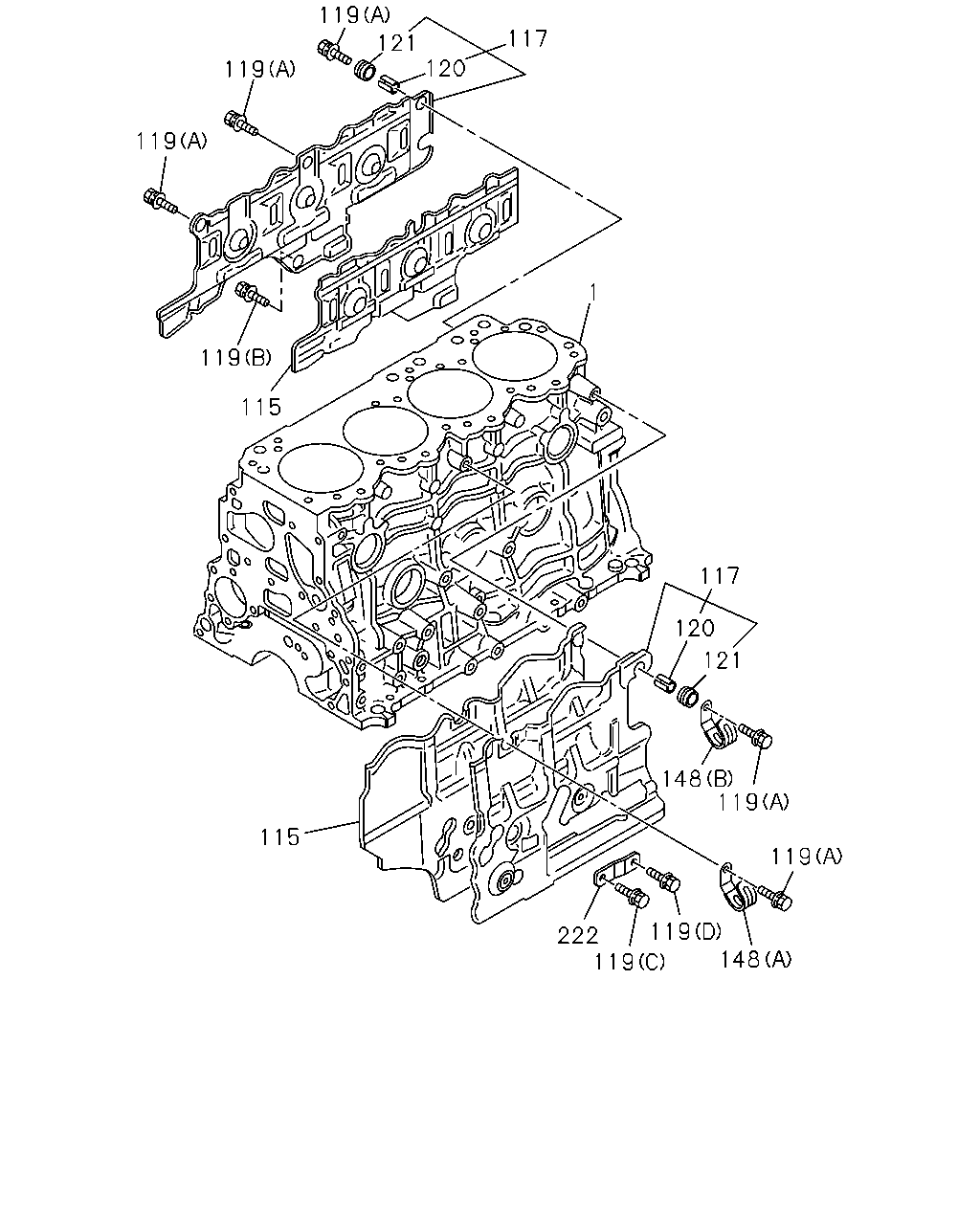

çizim 33038
119 121 117 120 119 119 1 119 115 117 120 121 148 119 115 119 119 148 222 119
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.033 BLOCK ASM; CYL
VIETNAM EQUIPMENT(CL0) 		8-98239-516-0 01 1 1305- ●
1 00.033 BLOCK ASM; CYL 8-98005-434-3 01 1 1012-1209 ●
1 00.033 BLOCK ASM; CYL 8-98204-534-0 01 1 1210- ●
1 00.033 BLOCK ASM; CYL 8-98005-433-3 01 1 1012-1209 ●
1 00.033 BLOCK ASM; CYL 8-98204-533-0 01 1 1210- ●
1 00.033 BLOCK ASM; CYL 8-97352-707-2 01 1 1012- ● ●
1 00.033 BLOCK ASM; CYL 8-97386-617-5 01 1 1012-1104 ● ●
1 00.033 BLOCK ASM; CYL 8-98240-635-1 01 1 1210- ●
1 00.033 BLOCK ASM; CYL
EXC. VIETNAM EQUIPMENT(CL0) 		8-98240-635-1 01 1 1210- ●
115 00.034 RUBBER; SPACE 8-97204-193-0 01 1 1012-1304 ●
115 00.034 RUBBER; SPACE 8-97204-194-0 01 1 1012-1304 ●
117 00.030 COVER ASM; C/BL
SAUDI ARABIA EQUIPMENT(GH3) 		8-97258-620-1 01 1 1012- ●
117 00.030 COVER ASM; C/BL 8-97020-126-0 01 1 1012-1304 ●
117 00.030 COVER ASM; C/BL 8-97204-191-1 01 1 1012-1304 ●
119 00.034 BOLT; COVER FIX
03.407 (C) M8X10 FLANGE 		0-28050-810-0 01 1 1012-1304 ●
119 00.034 BOLT; COVER FIX
(D) M10X20 W/LK WASHER 		0-50541-020-0 01 1 1012-1304 ●
119 00.034 BOLT; COVER FIX
(B) M10X28 		8-94329-952-1 01 1 1012-1304 ●
119 00.034 BOLT; COVER FIX
SAUDI ARABIA EQUIPMENT(GH3) (A) M8X22 W/LK&PL WASHER 		8-94329-953-1 05 1 1012-1304 ●
119 00.034 BOLT; COVER FIX
(A) M8X22 W/LK&PL WASHER 		8-94329-953-1 05 1 1012-1304 ●
120 00.034 BUSHING; MTG RUBBER
SAUDI ARABIA EQUIPMENT(GH3) OD=13 T=9.5 		8-94140-427-1 05 1 1012- ●
120 00.034 BUSHING; MTG RUBBER
OD=13 T=9.5 		8-94140-427-1 06 1 1012-1304 ●
121 00.034 RUBBER; MTG,COVER
SAUDI ARABIA EQUIPMENT(GH3) 		8-97315-987-0 05 1 1012- ●
121 00.034 RUBBER; MTG,COVER
OD=22 		8-94140-428-1 06 1 1012-1304 ●
148 02.313 CLIP; HARNESS
04.930 (B) L=91 ID=8.5 		8-94329-956-0 01 1 1012-1304 ● ●
148 02.313 CLIP; HARNESS
04.930 (B) L=91 ID=8.5 		8-94329-956-0 01 1 1305- ●
148 02.313 CLIP; HARNESS
03.671 (A) ID=12 VINYL CHLORIDE 		8-97367-984-1 02 1 1012-1304 ● ●
148 02.313 CLIP; HARNESS
03.671 (A) ID=12 VINYL CHLORIDE 		8-97367-984-1 02 1 1305- ●
222 00.340 BRACKET; COVER,C/BL 8-97209-129-0 01 1 1012-1304 ●

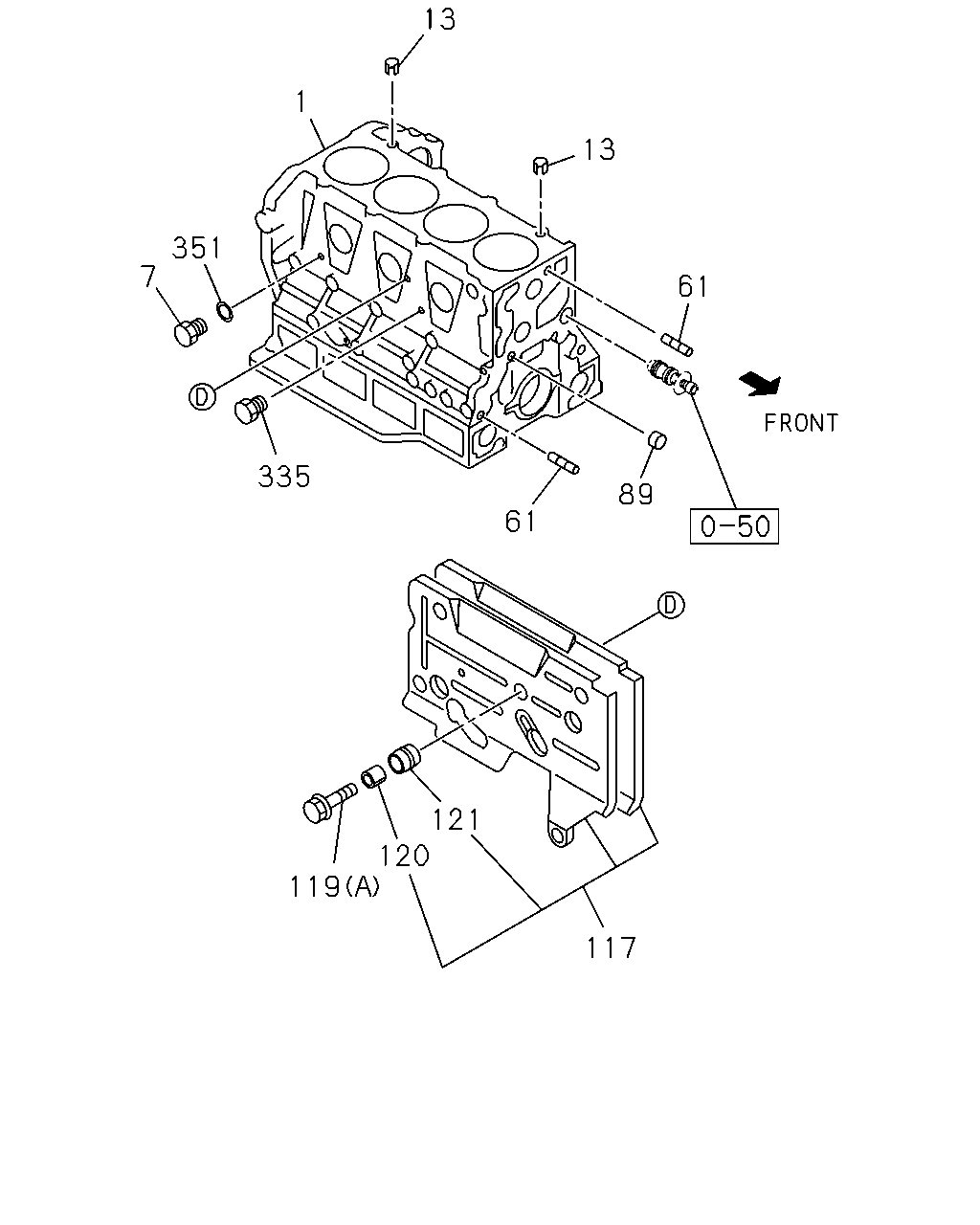

çizim 190815
1 13 13 61 89 61 335 351 7 119 121 120 117
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.033 BLOCK ASM; CYL
VIETNAM EQUIPMENT(CL0) 		8-98239-516-0 01 1 1305- ●
1 00.033 BLOCK ASM; CYL 8-98005-434-3 01 1 1012-1209 ●
1 00.033 BLOCK ASM; CYL 8-98204-534-0 01 1 1210- ●
1 00.033 BLOCK ASM; CYL 8-98005-433-3 01 1 1012-1209 ●
1 00.033 BLOCK ASM; CYL 8-98204-533-0 01 1 1210- ●
1 00.033 BLOCK ASM; CYL 8-97352-707-2 01 1 1012- ● ●
1 00.033 BLOCK ASM; CYL 8-97386-617-5 01 1 1012-1104 ● ●
1 00.033 BLOCK ASM; CYL 8-98240-635-1 01 1 1210- ●
1 00.033 BLOCK ASM; CYL
EXC. VIETNAM EQUIPMENT(CL0) 		8-98240-635-1 01 1 1210- ●
7 00.034 PLUG; WATER DRAIN
PT1/4 		9-09664-001-0 01 1 1410-1508 ●
7 00.034 PLUG; WATER DRAIN
EXC. VIETNAM EQUIPMENT(CL0) PT1/4 		9-09664-001-0 01 1 1410-1508 ●
7 00.034 PLUG; WATER DRAIN
M10X10 		8-97352-537-0 01 1 1012- ● ●
7 00.034 PLUG; WATER DRAIN
PT1/4 		9-09664-001-0 01 1 1012-1405 ● ●
7 00.034 PLUG; WATER DRAIN
PT1/4 		9-09664-001-0 01 1 1509- ● ●
7 00.034 PLUG; WATER DRAIN
PT1/4 		9-09664-001-0 01 1 1012- ● ●
13 00.293 DOWEL; C/BL TO HD
OD=18.15 		8-94399-688-1 02 1 1012- ● ●
13 00.293 DOWEL; C/BL TO HD
OD=14 		8-94453-344-0 02 1 1012- ● ● ● ●
61 00.206 PIN; STRAIGHT
VIETNAM EQUIPMENT(CL0) 01.453 L=31 		8-97920-964-1 02 1 1105- ●
61 00.206 PIN; STRAIGHT
L=22 		8-94483-674-0 04 1 1012- ● ●
61 00.206 PIN; STRAIGHT
01.428 L=31 		9-09878-597-0 02 1 1012-1104 ● ●
61 00.206 PIN; STRAIGHT
01.428 L=31 		9-09878-597-0 02 1 1105- ●
61 00.206 PIN; STRAIGHT
EXC. VIETNAM EQUIPMENT(CL0) 01.428 L=31 		9-09878-597-0 02 1 1105- ●
61 00.206 PIN; STRAIGHT
04.510 OD=10 L=20 		8-97135-423-0 01 1 1012- ●
61 00.206 PIN; STRAIGHT
04.510 OD=10 L=20 		8-97135-423-0 02 1 1012- ●
89 00.034 CUP; SEALING,OIL GALLERY
00.253 OD=20 		9-11129-128-0 03 1 1012- ● ●
117 00.030 COVER ASM; C/BL
SAUDI ARABIA EQUIPMENT(GH3) 		8-97258-620-1 01 1 1012- ●
117 00.030 COVER ASM; C/BL 8-97020-126-0 01 1 1012-1304 ●
117 00.030 COVER ASM; C/BL 8-97204-191-1 01 1 1012-1304 ●
119 00.034 BOLT; COVER FIX
03.407 (C) M8X10 FLANGE 		0-28050-810-0 01 1 1012-1304 ●
119 00.034 BOLT; COVER FIX
(D) M10X20 W/LK WASHER 		0-50541-020-0 01 1 1012-1304 ●
119 00.034 BOLT; COVER FIX
(B) M10X28 		8-94329-952-1 01 1 1012-1304 ●
119 00.034 BOLT; COVER FIX
SAUDI ARABIA EQUIPMENT(GH3) (A) M8X22 W/LK&PL WASHER 		8-94329-953-1 05 1 1012-1304 ●
119 00.034 BOLT; COVER FIX
(A) M8X22 W/LK&PL WASHER 		8-94329-953-1 05 1 1012-1304 ●
120 00.034 BUSHING; MTG RUBBER
SAUDI ARABIA EQUIPMENT(GH3) OD=13 T=9.5 		8-94140-427-1 05 1 1012- ●
120 00.034 BUSHING; MTG RUBBER
OD=13 T=9.5 		8-94140-427-1 06 1 1012-1304 ●
121 00.034 RUBBER; MTG,COVER
SAUDI ARABIA EQUIPMENT(GH3) 		8-97315-987-0 05 1 1012- ●
121 00.034 RUBBER; MTG,COVER
OD=22 		8-94140-428-1 06 1 1012-1304 ●
335 01.531 PLUG; C/BL,SIDE
M14X16.5 		8-97329-617-0 01 1 1012- ● ●
351 01.531 GASKET; COCK,WATER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 1012- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
