◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51282 - NLR/NMR 55,85(LHD) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-01 - PARTIAL ENGINE ▶
0-01 — PARTIAL ENGINE (#79029) — 36 parça

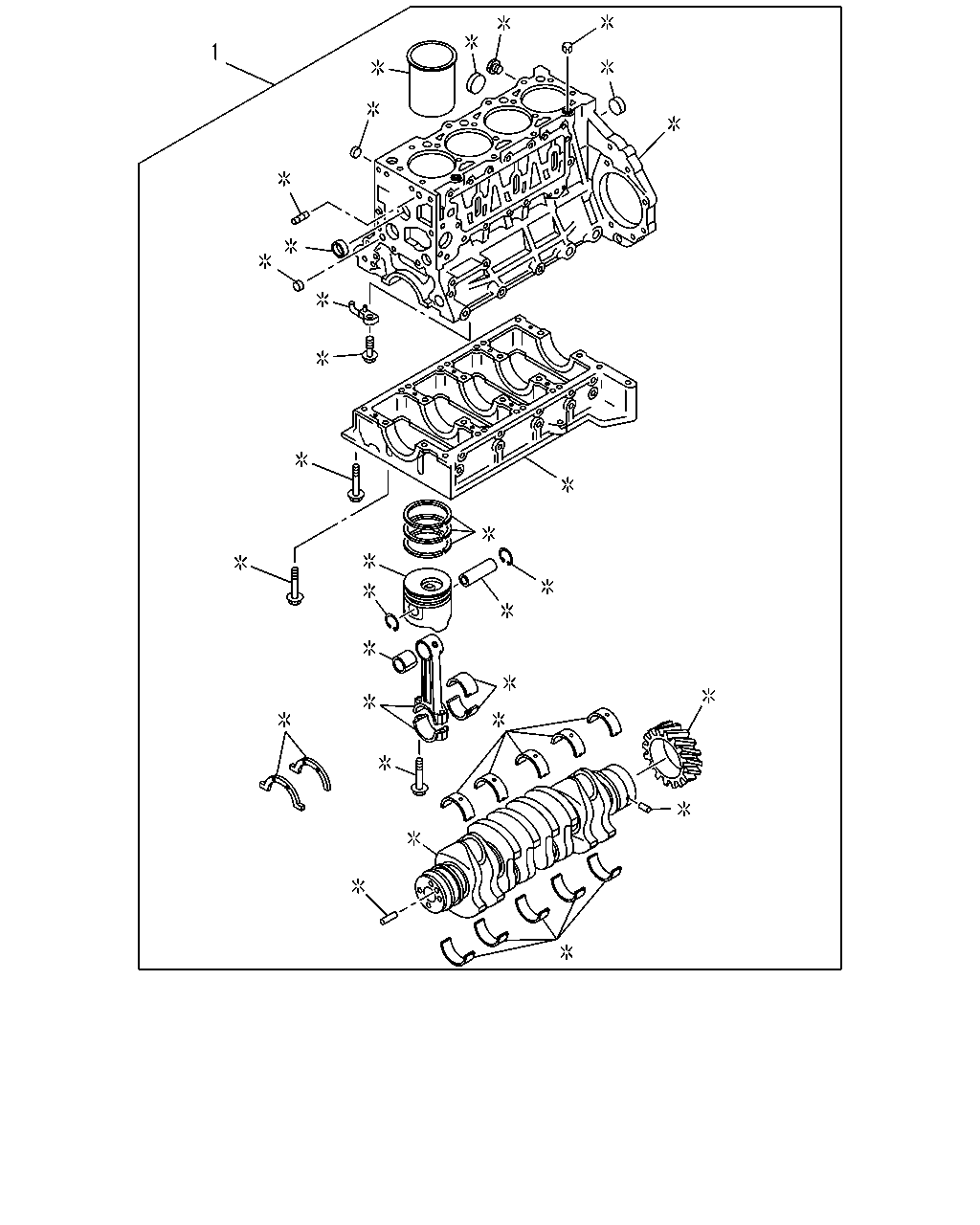

çizim 14883
1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.033 ENGINE ASM; PARTIAL
EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> EXC. PERU EQUIPMENT(E07) 		5-87310-924-9 01 1 1112- ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-087-3 01 1 1012-1112 ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-155-2 01 1 1201- ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-086-3 01 1 1012-1112 ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-157-2 01 1 1201- ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-111-1 01 1 1012-1104 ● ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-111-5 01 1 1105-1409 ●
1 00.033 ENGINE ASM; PARTIAL
EXC. VIETNAM EQUIPMENT(CL0) 		5-87311-111-5 01 1 1105-1409 ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-260-0 01 1 1410- ●
1 00.033 ENGINE ASM; PARTIAL
EXC. VIETNAM EQUIPMENT(CL0) 		5-87311-260-0 01 1 1410- ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-930-5 01 1 1012- ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-675-8 01 1 1012- ●

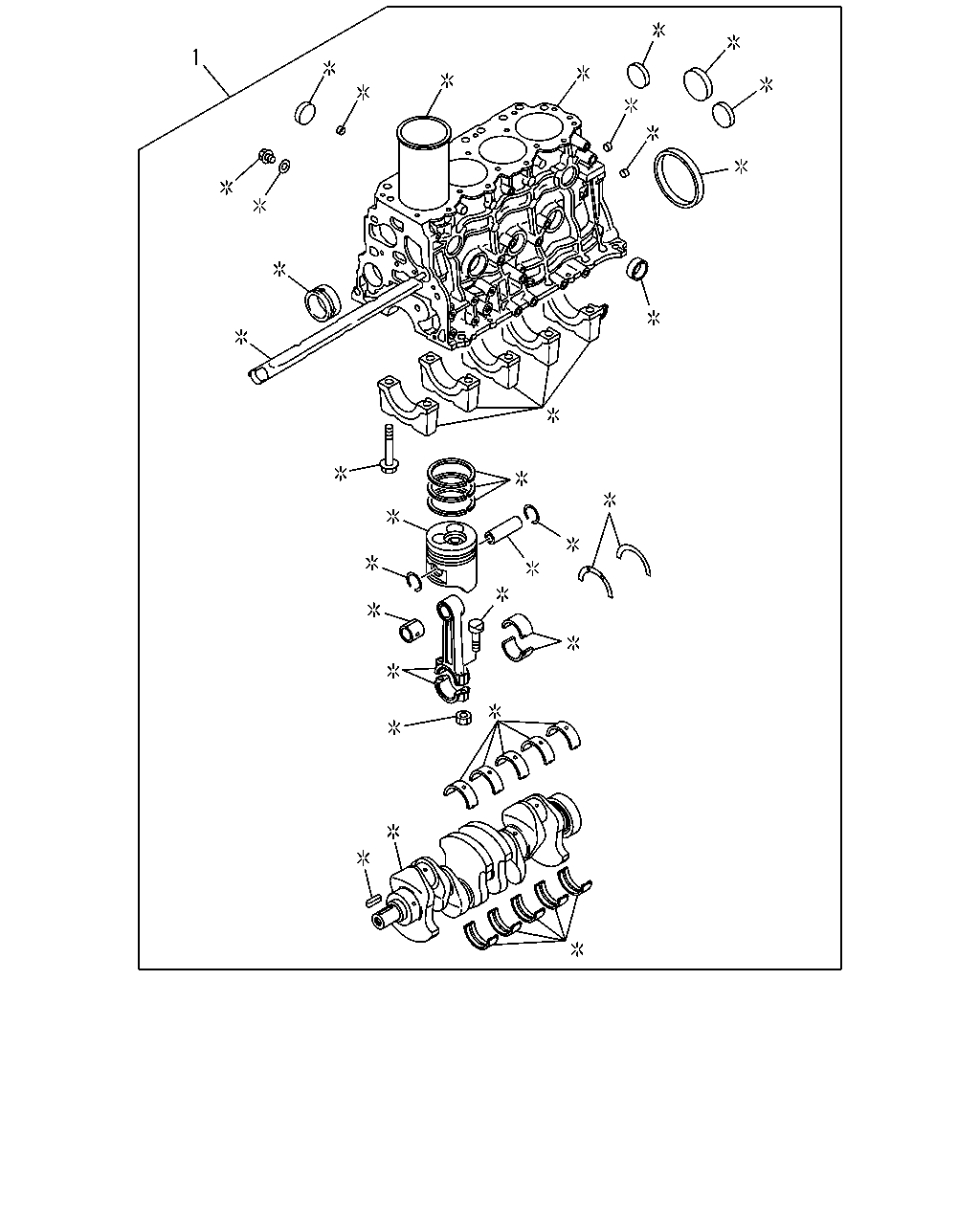

çizim 190813
1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.033 ENGINE ASM; PARTIAL
EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> EXC. PERU EQUIPMENT(E07) 		5-87310-924-9 01 1 1112- ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-087-3 01 1 1012-1112 ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-155-2 01 1 1201- ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-086-3 01 1 1012-1112 ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-157-2 01 1 1201- ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-111-1 01 1 1012-1104 ● ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-111-5 01 1 1105-1409 ●
1 00.033 ENGINE ASM; PARTIAL
EXC. VIETNAM EQUIPMENT(CL0) 		5-87311-111-5 01 1 1105-1409 ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-260-0 01 1 1410- ●
1 00.033 ENGINE ASM; PARTIAL
EXC. VIETNAM EQUIPMENT(CL0) 		5-87311-260-0 01 1 1410- ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-930-5 01 1 1012- ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-675-8 01 1 1012- ●

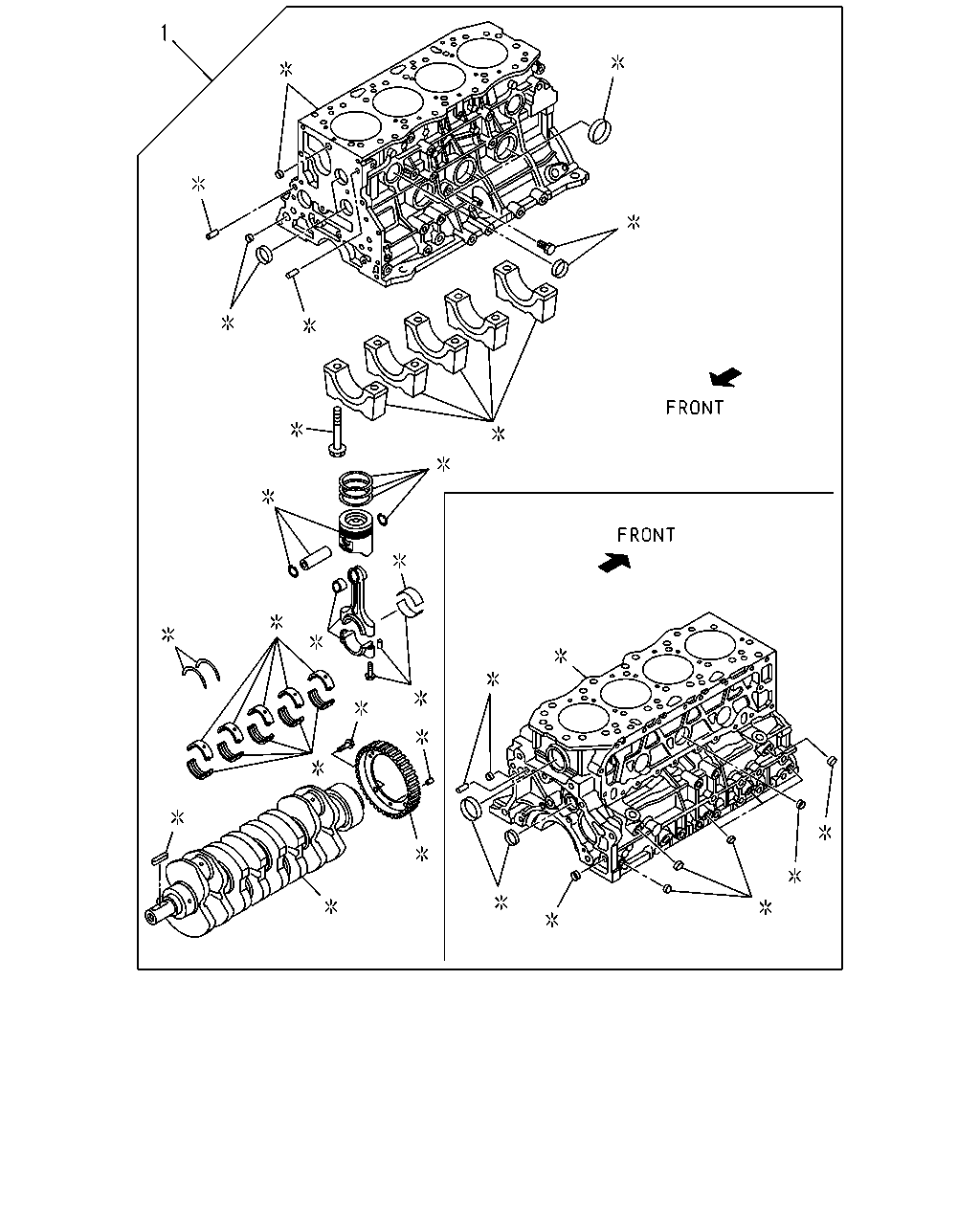

çizim 190814
1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.033 ENGINE ASM; PARTIAL
EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> EXC. PERU EQUIPMENT(E07) 		5-87310-924-9 01 1 1112- ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-087-3 01 1 1012-1112 ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-155-2 01 1 1201- ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-086-3 01 1 1012-1112 ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-157-2 01 1 1201- ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-111-1 01 1 1012-1104 ● ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-111-5 01 1 1105-1409 ●
1 00.033 ENGINE ASM; PARTIAL
EXC. VIETNAM EQUIPMENT(CL0) 		5-87311-111-5 01 1 1105-1409 ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-260-0 01 1 1410- ●
1 00.033 ENGINE ASM; PARTIAL
EXC. VIETNAM EQUIPMENT(CL0) 		5-87311-260-0 01 1 1410- ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-930-5 01 1 1012- ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-675-8 01 1 1012- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
