9-01 — TOOLS (#79028) — 70 parça

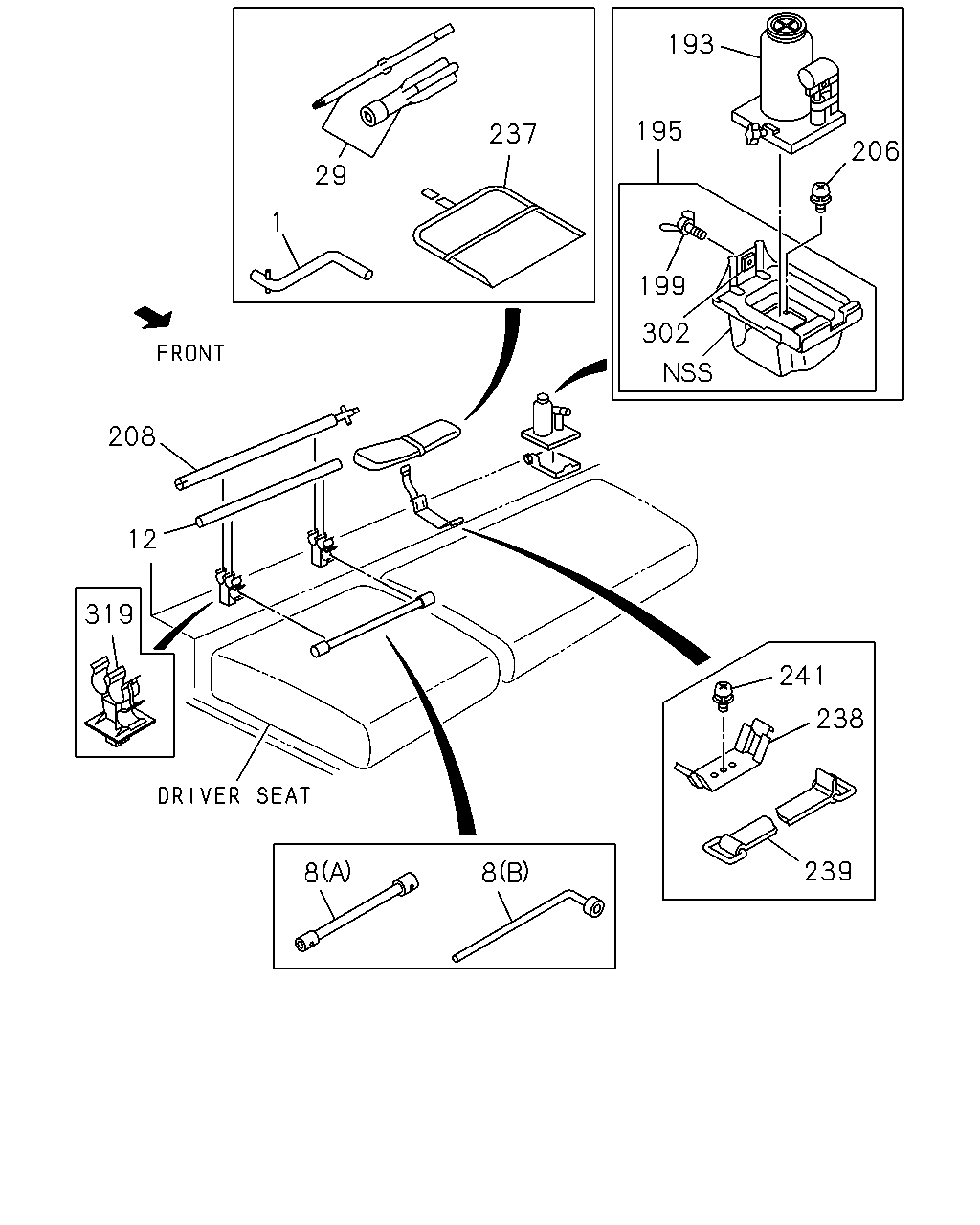

çizim 14494
193 195 237 206 29 1 199 302 208 12 319 241 238 239 8 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 07.629 HANDLE; SPARE TIRE CARRIER
IDN 		8-97218-985-0 01 1 0211- ● ●
8 08.821 WRENCH; WHEEL
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) (A) B=41X21 L=440 IDN 		1-85113-015-1 01 1 1105- ●
8 08.821 WRENCH; WHEEL
(B) B=23 L=300 		9-85113-935-0 01 1 0211-1404 ●
8 08.821 WRENCH; WHEEL
(B) B=23 L=300 		9-85113-935-0 01 1 1405- ●
8 08.821 WRENCH; WHEEL
MINI BUS CHASSIS(V4B) (B) B=23 L=300 		9-85113-935-0 01 1 1405- ●
8 08.821 WRENCH; WHEEL
(A) B=41X19 L=330 IDN 		8-94386-490-1 01 1 0211-1104 ●
8 08.821 WRENCH; WHEEL
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-115 (AQE),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR 177A(98H) (A) B=41X19 L=330 IDN 		8-94386-490-1 01 1 1105-1404 ●
8 08.821 WRENCH; WHEEL
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-115 (AQE),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 7-16-8 16X5.5F-115(94H) ,FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR 177A(98H) EXC. MINI BUS CHASSIS(V4B) (A) B=41X19 L=330 IDN 		8-94386-490-1 01 1 1405- ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
OD=25 L=590 IDN 		8-97332-988-0 01 1 0211-1001 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
08.820 OD=25 L=480 IDN 		1-85116-011-0 01 1 1002-1407 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 IDN 		8-98257-407-0 01 1 1408- ●
29 08.821 DRIVER; SCREW
<+>,<-> L=160 IDN 		8-94242-798-1 01 1 0211-1104 ● ●
29 08.821 DRIVER; SCREW
<+>,<-> L=160 IDN 		8-94242-798-1 01 1 1105- ● ●
193 08.820 JACK ASM
5TON 		8-97131-076-2 01 1 0211-0305 ●
193 08.820 JACK ASM
5TON IDN 		8-97371-124-0 01 1 0306-0805 ●
193 08.820 JACK ASM
5TON IDN 		8-98114-047-0 01 1 0806-1104 ●
193 08.820 JACK ASM
5TON IDN 		8-98114-047-0 01 1 1105-1405 ●
193 08.820 JACK ASM
REAR SPRING HEAVY DUTY<G50> VIN MODEL YEAR 2012(VZC) 5TON IDN 		8-98114-047-0 01 1 1105-1405 ●
193 08.820 JACK ASM
EXC. VIN MODEL YEAR 2014(VZE) 5TON IDN 		8-98114-047-0 01 1 1406- ●
193 08.820 JACK ASM
REAR SPRING HEAVY DUTY<G50> VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 5TON IDN 		8-98114-047-0 01 1 1406- ●
193 08.820 JACK ASM
4TON IDN 		8-97131-075-2 01 1 0211-0305 ●
193 08.820 JACK ASM
4TON IDN 		8-97371-123-0 01 1 0306-0504 ●
193 08.820 JACK ASM
4TON IDN 		8-98012-285-0 01 1 0505-1104 ●
193 08.820 JACK ASM
EXC. REAR SPRING HEAVY DUTY<G50>,VIN MODEL YEAR 2012(VZC) 4TON IDN 		8-98012-285-0 01 1 1105-1405 ●
193 08.820 JACK ASM
EXC. REAR SPRING HEAVY DUTY<G50>,VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE) ,VIN MODEL YEAR 2015(VZF) 4TON IDN 		8-98012-285-0 01 1 1406- ●
195 08.820 BRACKET; JACK 8-94262-068-3 01 1 0211-0805 ● ●
195 08.820 BRACKET; JACK 8-94262-068-3 01 1 0806-1104 ●
195 08.820 BRACKET; JACK
EXC. VIN MODEL YEAR 2012(VZC),HEAVY DUTY FRAME<6WB> 		8-94262-068-3 01 1 1105-1204 ●
195 08.820 BRACKET; JACK
EXC. VIN MODEL YEAR 2012(VZC) 		8-94262-068-3 01 1 1205-1405 ●
195 08.820 BRACKET; JACK
G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.5-6.0TON(RPU) VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 		8-94262-068-3 01 1 1406- ●
195 08.820 BRACKET; JACK
EXC. VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 		8-94262-068-3 01 1 1406- ●
195 08.820 BRACKET; JACK 8-94273-287-7 01 1 0806-1104 ●
195 08.820 BRACKET; JACK 8-94273-287-7 01 1 1105-1204 ●
195 08.820 BRACKET; JACK
VIN MODEL YEAR 2012(VZC) HEAVY DUTY FRAME<6WB> 		8-94273-287-7 01 1 1105-1204 ●
195 08.820 BRACKET; JACK 8-94273-287-7 01 1 1205-1405 ●
195 08.820 BRACKET; JACK
VIN MODEL YEAR 2012(VZC) 		8-94273-287-7 01 1 1205-1405 ●
195 08.820 BRACKET; JACK 8-94273-287-7 01 1 1406- ●
195 08.820 BRACKET; JACK
4HG1-T ENG(RDP) G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) 		8-94273-287-7 01 1 1406- ●
195 08.820 BRACKET; JACK
VIN MODEL YEAR 2012(VZC) 		8-94273-287-7 01 1 1406- ●
199 08.820 BOLT; JACK
M8X50 WING 		8-94279-136-0 01 1 0211-0805 ● ●
199 08.820 BOLT; JACK
M8X50 WING 		8-94279-136-0 01 1 0806-1104 ●
199 08.820 BOLT; JACK
EXC. VIN MODEL YEAR 2012(VZC),HEAVY DUTY FRAME<6WB> M8X50 WING 		8-94279-136-0 01 1 1105-1204 ●
199 08.820 BOLT; JACK
EXC. VIN MODEL YEAR 2012(VZC) M8X50 WING 		8-94279-136-0 01 1 1205-1405 ●
199 08.820 BOLT; JACK
G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.5-6.0TON(RPU) VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) M8X50 WING 		8-94279-136-0 01 1 1406- ●
199 08.820 BOLT; JACK
EXC. VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) M8X50 WING 		8-94279-136-0 01 1 1406- ●
199 08.820 BOLT; JACK
M8X30 WING 		8-94279-018-1 01 1 0806-1104 ●
199 08.820 BOLT; JACK
M8X30 WING 		8-94279-018-1 01 1 1105-1204 ●
199 08.820 BOLT; JACK
VIN MODEL YEAR 2012(VZC) HEAVY DUTY FRAME<6WB> M8X30 WING 		8-94279-018-1 01 1 1105-1204 ●
199 08.820 BOLT; JACK
M8X30 WING 		8-94279-018-1 01 1 1205-1405 ●
199 08.820 BOLT; JACK
VIN MODEL YEAR 2012(VZC) M8X30 WING 		8-94279-018-1 01 1 1205-1405 ●
199 08.820 BOLT; JACK
M8X30 WING 		8-94279-018-1 01 1 1406- ●
199 08.820 BOLT; JACK
4HG1-T ENG(RDP) G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) M8X30 WING 		8-94279-018-1 01 1 1406- ●
199 08.820 BOLT; JACK
VIN MODEL YEAR 2012(VZC) M8X30 WING 		8-94279-018-1 01 1 1406- ●
206 08.820 SCREW; OIL JACK BRKT
16.320 M6X20 W/LK&PL WASHER IDN 		8-94279-403-0 01 1 0211-0612 ● ●
206 08.820 SCREW; OIL JACK BRKT
16.570 M6X16 IDN 		0-38050-616-0 01 1 0701- ● ●
208 08.820 HANDLE; JACK
L=642 IDN 		8-97217-800-0 01 1 0211-1108 ● ●
208 08.820 HANDLE; JACK
L=642 IDN 		8-98181-477-0 01 1 1109- ● ●
237 08.821 BAG; TOOL
IDN 		8-97130-903-1 01 1 0211-1104 ● ●
237 08.821 BAG; TOOL
IDN 		8-97130-903-1 01 1 1105- ● ●
238 08.820 SUPPORT; TOOL BAG
IDN 		8-97994-977-0 01 1 0211- ● ●
239 08.820 BAND; TOOL BAG
L=100 IDN 		5-73997-026-1 01 1 0211- ● ●
241 08.820 SCREW; TOOL BAG SUPPORT
16.320 M6X20 W/LK&PL WASHER IDN 		8-94279-403-0 01 1 0211-0612 ● ●
241 08.820 SCREW; TOOL BAG SUPPORT
16.570 M6X16 IDN 		0-38050-616-0 01 1 0701- ● ●
302 08.820 NUT; JACK BRKT 8-94279-522-0 01 1 0211- ● ●
319 08.821 CLIP; TOOL BAR
IDN 		8-97853-077-2 02 1 0211- ● ●

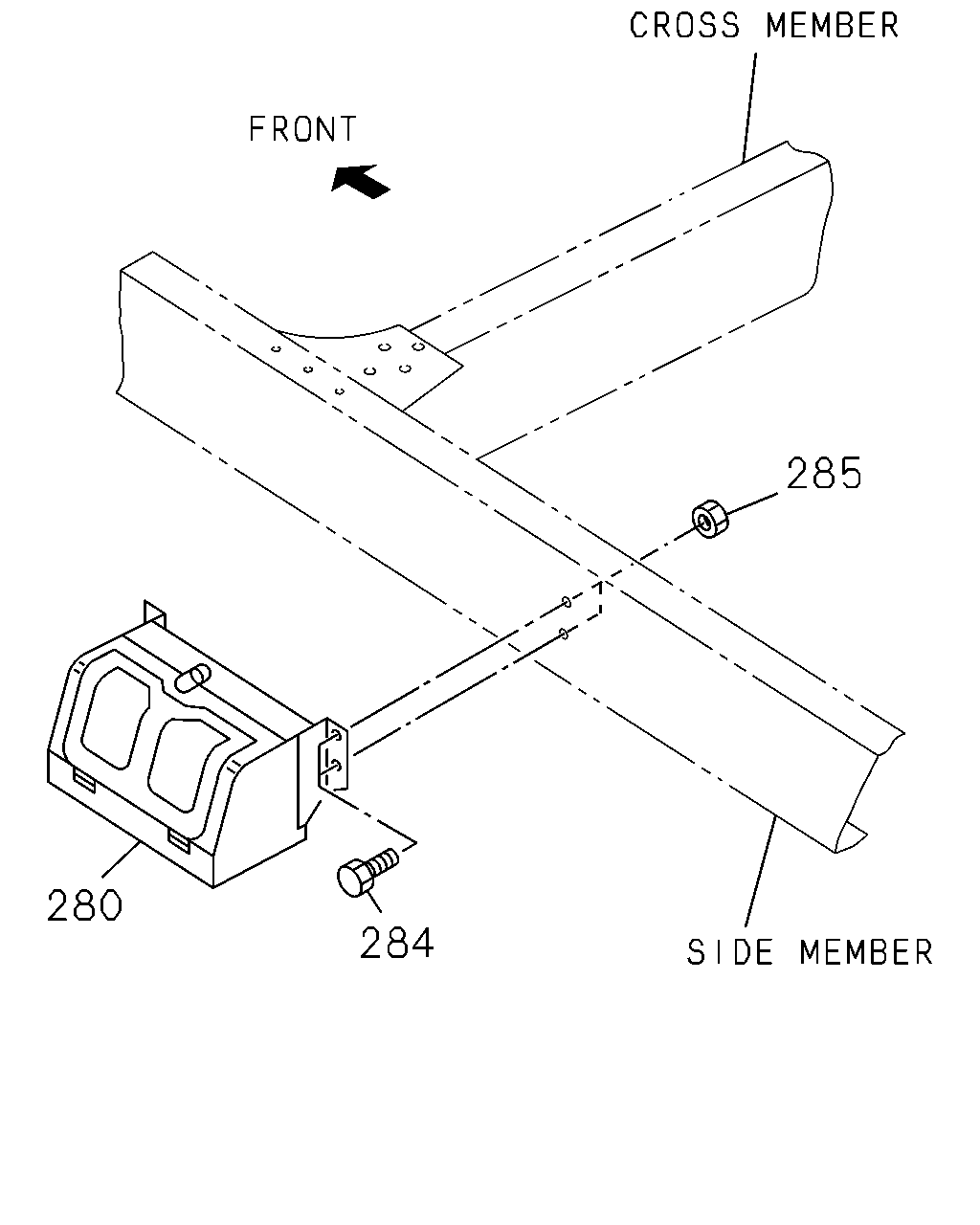

çizim 190689
285 280 284
BalonParca AdiParca NoAdetTipApplied Date A B
280 08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2> 		8-97222-496-0 01 1 0211- ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 02.559 M8X25 FLANGE IDN 		0-28680-825-0 04 1 0211-0512 ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 06.216 M8X25 FLANGE IDN 		0-28650-825-0 04 1 0601- ●
285 08.821 NUT; TOOL BOX
TOOL & STORAGE BOX<VK2> 07.633 M8 FLANGE 		0-91150-108-0 03 1 0211-0602 ●
285 08.821 NUT; TOOL BOX
TOOL & STORAGE BOX<VK2> 01.062 M8 FLANGE IDN 		0-91180-108-0 03 1 0603- ●
