◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51280 - NKR INDONESIA ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-65 - CONTROL LEVER; HEATER AND AIR CON ▶
8-65 — CONTROL LEVER; HEATER AND AIR CON (#79023) — 33 parça

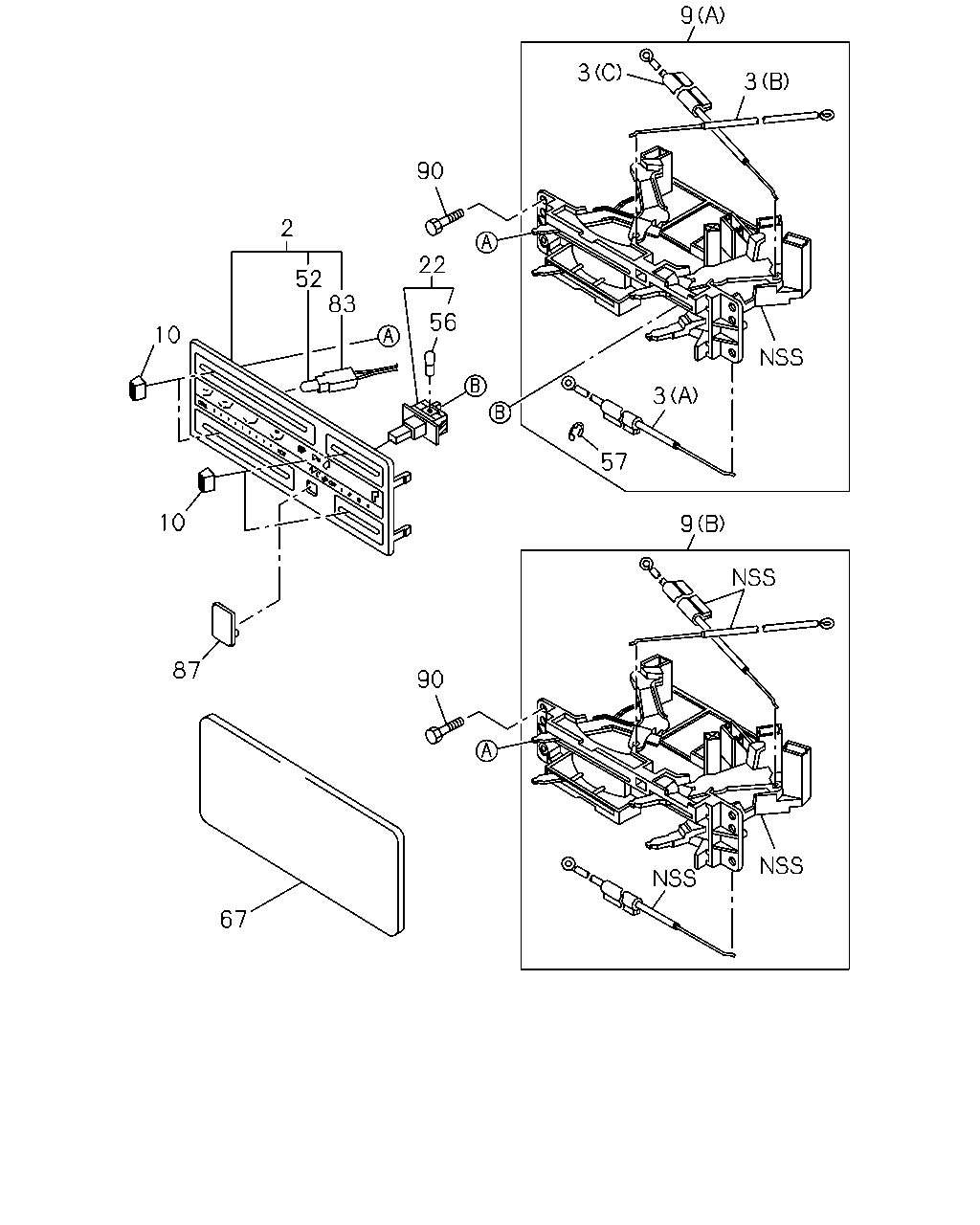

çizim 141161
9 3 3 90 2 22 52 83 56 10 3 57 10 9 87 90 67
BalonParca AdiParca NoAdetTipApplied Date A B
2 08.852 PANEL ASM; CONT,ILLUMINATION
IDN 		8-97048-331-2 01 1 0211-0609 ● ●
2 08.852 PANEL ASM; CONT,ILLUMINATION
VOLTAGE 24V<7AE> IDN 		8-97048-331-2 01 1 0610-0712 ●
2 08.852 PANEL ASM; CONT,ILLUMINATION
IDN 		8-97048-331-2 01 1 0610-0712 ●
2 08.852 PANEL ASM; CONT,ILLUMINATION
VOLTAGE 24V<7AE> IDN 		8-97048-331-2 01 1 0801- ● ●
2 08.852 PANEL ASM; CONT,ILLUMINATION
EXC. VOLTAGE 24V<7AE> 		8-97048-330-1 01 1 0610-0712 ●
2 08.852 PANEL ASM; CONT,ILLUMINATION
EXC. VOLTAGE 24V<7AE> 		8-97048-330-1 01 1 0801- ● ●
3 09.787 CABLE; HTR CONT LVR
AIR CONDITIONER MANUAL CONT(C60) (A) MIX 		8-97085-617-2 01 1 0211- ● ●
3 09.787 CABLE; HTR CONT LVR
(B) MODE IDN 		8-97085-618-1 01 1 0211-0507 ● ●
3 09.787 CABLE; HTR CONT LVR
EXC. FORGED AIR VENTILATION(C39) (B) MODE IDN 		8-97085-618-1 01 1 0508- ● ●
3 09.787 CABLE; HTR CONT LVR
(C) FRESH IDN 		8-97087-578-0 01 1 0211-0507 ● ●
3 09.787 CABLE; HTR CONT LVR
EXC. FORGED AIR VENTILATION(C39) (C) FRESH IDN 		8-97087-578-0 01 1 0508- ● ●
9 08.852 LEVER ASM; HTR & A/C CONT
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97048-456-4 01 1 0211- ● ●
9 08.852 LEVER ASM; HTR & A/C CONT
EXC. AIR CONDITIONER MANUAL CONT(C60) (A) IDN 		8-97069-832-0 01 1 0211-0507 ● ●
9 08.852 LEVER ASM; HTR & A/C CONT
EXC. FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (A) IDN 		8-97069-832-0 01 1 0508- ● ●
9 08.852 LEVER ASM; HTR & A/C CONT
FORGED AIR VENTILATION(C39) (B) IDN 		8-97381-197-0 01 1 0508- ● ●
10 08.852 KNOB; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) 		8-97114-430-0 04 1 0211- ● ●
10 08.852 KNOB; CONT LEVER
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97114-430-0 03 1 0211-0507 ● ●
10 08.852 KNOB; CONT LEVER
EXC. FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 		8-97114-430-0 03 1 0508- ● ●
10 08.852 KNOB; CONT LEVER
FORGED AIR VENTILATION(C39) 		8-97114-430-0 02 1 0508- ● ●
22 08.852 SWITCH; A/C,MAIN
AIR CONDITIONER MANUAL CONT(C60) 		8-97048-329-1 01 1 0211-0507 ● ●
52 08.991 BULB; PANEL ILLUMINATION
28V 65MA IDN 		8-97182-225-0 01 1 0211-0609 ● ●
52 08.991 BULB; PANEL ILLUMINATION
VOLTAGE 24V<7AE> 28V 65MA IDN 		8-97182-225-0 01 1 0610-0712 ●
52 08.991 BULB; PANEL ILLUMINATION
28V 65MA IDN 		8-97182-225-0 01 1 0610-0712 ●
52 08.991 BULB; PANEL ILLUMINATION
VOLTAGE 24V<7AE> 28V 65MA IDN 		8-97182-225-0 01 1 0801- ● ●
52 08.991 BULB; PANEL ILLUMINATION
EXC. VOLTAGE 24V<7AE> 14V 140MA 		8-97100-290-0 01 1 0610-0712 ●
52 08.991 BULB; PANEL ILLUMINATION
EXC. VOLTAGE 24V<7AE> 14V 140MA 		8-97100-290-0 01 1 0801- ● ●
56 08.991 BULB; SWITCH,A/C
AIR CONDITIONER MANUAL CONT(C60) 28V 33MA 		8-97182-224-0 01 1 0211-0507 ● ●
57 09.787 RING; SNAP,HTR CONT LVR
AIR CONDITIONER MANUAL CONT(C60) 		8-97262-535-0 01 1 0211- ● ●
67 08.849 CAP; BEZEL,CONT LEVER
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97071-228-0 01 1 0211-0304 ● ●
83 08.849 HARNESS; CONT PANEL 8-97308-566-0 01 1 0211- ● ●
87 08.849 CAP; A/C SWITCH
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97065-448-2 01 1 0211-0304 ● ●
90 08.849 BOLT; CONT PANEL
10.230 M6X16 W/LK&PL WASHER IDN 		8-94139-963-0 03 1 0211-1210 ● ●
90 08.849 BOLT; CONT PANEL
02.587 M6X19.5 W/LK&PL WASHER IDN 		8-97360-226-0 03 1 1211- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
