Sayfa 8-50 - Isuzu EPC

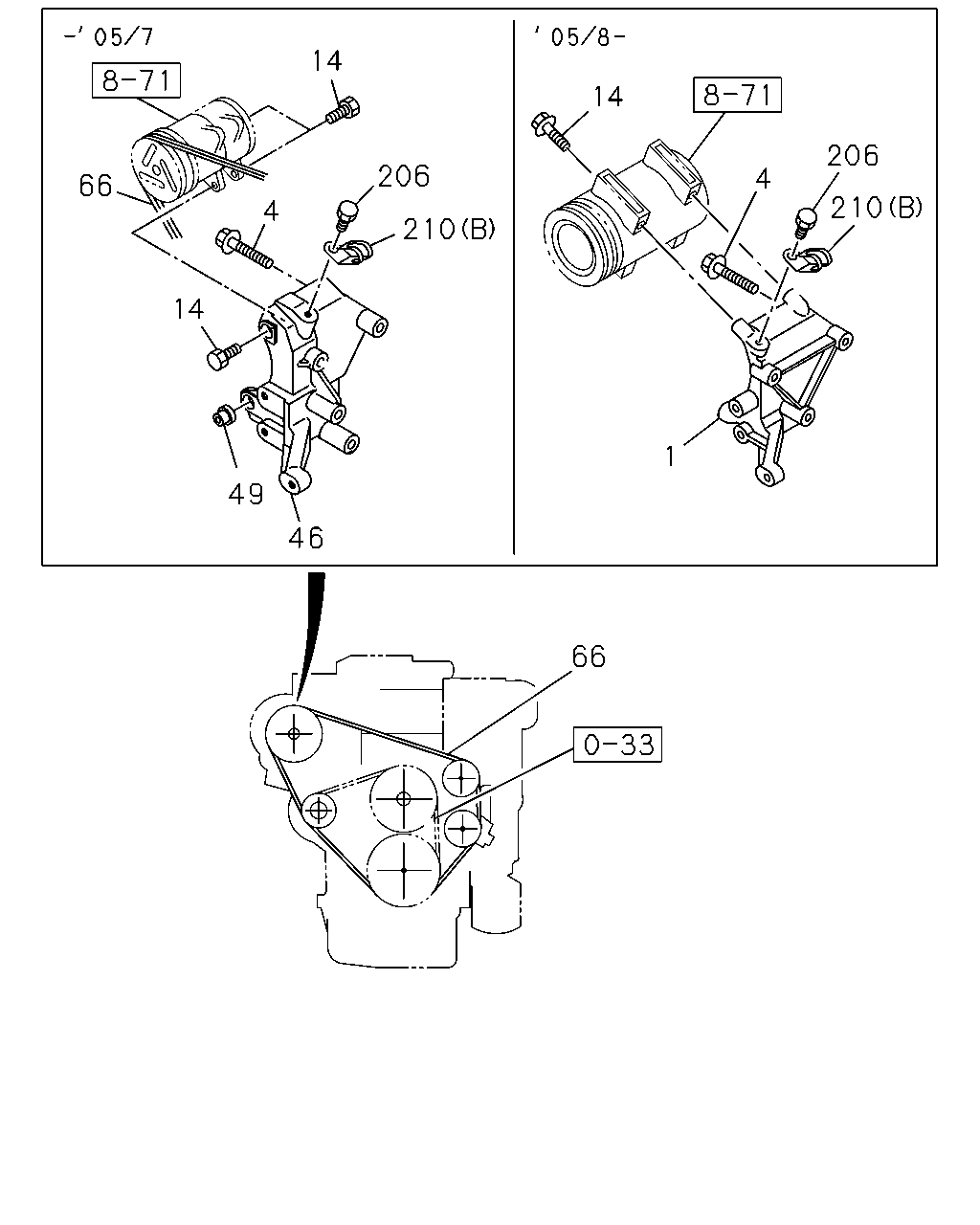

8-50 — AIR CONDITIONING SYSTEM; FRONT (#79021) — 153 parça

14 14 206 206 4 66 210 4 210 14 1 49 46 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	09.242 BRACKET; A/C 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60)	8-97305-489-0	01	1	0508-1006	●
1	09.242 BRACKET; A/C 4HG1 ENG(RJH),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60)	8-97305-489-0	01	1	0508-1006		●
1	09.242 BRACKET; A/C 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60)	8-97305-489-0	01	1	1007-	●
1	09.242 BRACKET; A/C 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60)	8-97305-489-0	01	1	1007-		●
4	09.171 BOLT; A/C CMPR BRKT 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.173 M10X90 FLANGE	0-28181-090-0	01	1	0211-0507	●	●
4	09.171 BOLT; A/C CMPR BRKT 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 01.516 M10X110 FLANGE	0-28186-011-0	01	1	0508-0512	●
4	09.171 BOLT; A/C CMPR BRKT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 01.516 M10X110 FLANGE	0-28186-011-0	01	1	0508-0512		●
4	09.171 BOLT; A/C CMPR BRKT 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) M10X110 FLANGE	0-28156-011-0	01	1	0601-1006	●
4	09.171 BOLT; A/C CMPR BRKT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) M10X110 FLANGE	0-28156-011-0	01	1	0601-1006		●
4	09.171 BOLT; A/C CMPR BRKT 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) M10X110 FLANGE	0-28156-011-0	01	1	1007-	●
4	09.171 BOLT; A/C CMPR BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) M10X110 FLANGE	0-28156-011-0	01	1	1007-		●
4	09.171 BOLT; A/C CMPR BRKT 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 00.683 M10X55 FLANGE	8-94399-863-1	02	1	0211-0507	●	●
4	09.171 BOLT; A/C CMPR BRKT 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 00.683 M10X55 FLANGE	8-94399-863-1	02	1	0508-0805	●
4	09.171 BOLT; A/C CMPR BRKT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 00.683 M10X55 FLANGE	8-94399-863-1	02	1	0508-0805		●
4	09.171 BOLT; A/C CMPR BRKT 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 00.683 M10X55 FLANGE	8-97365-449-0	02	1	0806-1006	●
4	09.171 BOLT; A/C CMPR BRKT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 00.683 M10X55 FLANGE	8-97365-449-0	02	1	0806-1006		●
4	09.171 BOLT; A/C CMPR BRKT 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 00.683 M10X55 FLANGE	8-97365-449-0	02	1	1007-	●
4	09.171 BOLT; A/C CMPR BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 00.683 M10X55 FLANGE	8-97365-449-0	02	1	1007-		●
14	09.171 BOLT; CMPR 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 03.708 M10X40	0-28281-040-0	04	1	0211-0507	●	●
14	09.171 BOLT; CMPR 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) M8X90 FLANGE	0-28080-890-0	04	1	0508-0512	●
14	09.171 BOLT; CMPR 4HG1 ENG(RJH),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) M8X90 FLANGE	0-28080-890-0	04	1	0508-0512		●
14	09.171 BOLT; CMPR 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 02.100 M8X90 FLANGE	0-28050-890-0	04	1	0601-1006	●
14	09.171 BOLT; CMPR 4HG1 ENG(RJH),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 02.100 M8X90 FLANGE	0-28050-890-0	04	1	0601-1006		●
14	09.171 BOLT; CMPR 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 02.100 M8X90 FLANGE	0-28050-890-0	04	1	1007-	●
14	09.171 BOLT; CMPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 02.100 M8X90 FLANGE	0-28050-890-0	04	1	1007-		●
46	09.171 BRACKET; CMPR 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97147-029-0	01	1	0211-0507	●	●
49	09.171 COLLAR; BRKT,CMPR 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97147-059-0	02	1	0211-0507	●	●
66	01.066 BELT; A/C CMPR 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-2	01	1	0211-0507	●	●
66	01.066 BELT; A/C CMPR 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-2	01	1	0508-1006	●
66	01.066 BELT; A/C CMPR 4HG1 ENG(RJH),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-2	01	1	0508-1006		●
66	01.066 BELT; A/C CMPR 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-3	01	1	1007-	●
66	01.066 BELT; A/C CMPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-3	01	1	1007-		●
66	01.066 BELT; A/C CMPR 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-097-0	01	1	0211-0507	●	●
66	01.066 BELT; A/C CMPR 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-097-0	01	1	0508-1006	●
66	01.066 BELT; A/C CMPR 4HG1 ENG(RJH),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-097-0	01	1	0508-1006		●
66	01.066 BELT; A/C CMPR 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-097-0	01	1	1007-	●
66	01.066 BELT; A/C CMPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-097-0	01	1	1007-		●
206	09.242 BOLT; CLIP BRKT 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.812 M6X12 FLANGE	0-28280-612-0	01	1	0211-0507	●	●
206	09.242 BOLT; CLIP BRKT 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 02.812 M6X12 FLANGE	0-28280-612-0	01	1	0508-0512	●
206	09.242 BOLT; CLIP BRKT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 02.812 M6X12 FLANGE	0-28280-612-0	01	1	0508-0512		●
206	09.242 BOLT; CLIP BRKT 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 09.216 M6X12 FLANGE	0-28250-612-0	01	1	0601-1006	●
206	09.242 BOLT; CLIP BRKT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 09.216 M6X12 FLANGE	0-28250-612-0	01	1	0601-1006		●
206	09.242 BOLT; CLIP BRKT 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 09.216 M6X12 FLANGE	0-28250-612-0	01	1	1007-	●
206	09.242 BOLT; CLIP BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 09.216 M6X12 FLANGE	0-28250-612-0	01	1	1007-		●
210	09.242 CLIP; HARNESS 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 00.446 (A) ID=12 B=14 ID=8.5 IDN	5-09700-350-0	01	1	0211-0303	●
210	09.242 CLIP; HARNESS 4HG1 ENG(RJH) EXC. AIR CONDITIONER MANUAL CONT(C60), EXHAUST BRAKE<NF8>,ENGINE POWER N-SPEC(7QV) 00.446 (A) ID=12 B=14 ID=8.5 IDN	5-09700-350-0	01	1	0211-0303		●
210	09.242 CLIP; HARNESS 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60) 00.446 (A) ID=12 B=14 ID=8.5 IDN	5-09700-350-0	01	1	0211-0303		●
210	09.242 CLIP; HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60), ENGINE POWER N-SPEC(7QV) 00.446 (A) ID=12 B=14 ID=8.5 IDN	5-09700-350-0	01	1	0211-0303		●
210	09.242 CLIP; HARNESS 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60) 00.446 (A) ID=12 B=14 ID=8.5 IDN	5-09700-350-0	01	1	0304-0507	●	●
210	09.242 CLIP; HARNESS 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 00.446 (A) ID=12 B=14 ID=8.5 IDN	5-09700-350-0	01	1	0304-0507	●
210	09.242 CLIP; HARNESS 4HG1 ENG(RJH) EXC. AIR CONDITIONER MANUAL CONT(C60), EXHAUST BRAKE<NF8>,ENGINE POWER N-SPEC(7QV) 00.446 (A) ID=12 B=14 ID=8.5 IDN	5-09700-350-0	01	1	0304-0507		●
210	09.242 CLIP; HARNESS 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60) 00.446 (A) ID=12 B=14 ID=8.5 IDN	5-09700-350-0	01	1	0304-0507		●
210	09.242 CLIP; HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60), ENGINE POWER N-SPEC(7QV) 00.446 (A) ID=12 B=14 ID=8.5 IDN	5-09700-350-0	01	1	0304-0507		●
210	09.242 CLIP; HARNESS 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 00.446 (A) ID=12 B=14 ID=8.5 IDN	5-09700-350-0	01	1	0508-0609	●
210	09.242 CLIP; HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 00.446 (A) ID=12 B=14 ID=8.5 IDN	5-09700-350-0	01	1	0508-0609		●
210	09.242 CLIP; HARNESS 4HF1-N ENG(RJZ) FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> GLOW SYSTEM DELETE<7RK> EXC. AIR CONDITIONER MANUAL CONT(C60) 00.446 (A) ID=12 B=14 ID=8.5 IDN	5-09700-350-0	01	1	0610-0712	●
210	09.242 CLIP; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 00.446 (A) ID=12 B=14 ID=8.5 IDN	5-09700-350-0	01	1	0610-0712		●
210	09.242 CLIP; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 00.446 (A) ID=12 B=14 ID=8.5 IDN	5-09700-350-0	01	1	0801-0801	●	●
210	09.242 CLIP; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.671 (A) ID=12 VINYL CHLORIDE IDN	8-97367-984-1	01	1	0802-	●	●
210	09.242 CLIP; HARNESS 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0211-0507	●	●
210	09.242 CLIP; HARNESS 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0508-1006	●
210	09.242 CLIP; HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0508-1006		●
210	09.242 CLIP; HARNESS 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	1007-	●
210	09.242 CLIP; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	1007-		●

66 25 316 316 25 26 30 27 34 29 31 33 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	09.180 PULLEY ASM; IDLER,CMPR 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE	8-97161-198-1	01	1	0211-0507	●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE	8-97161-198-1	01	1	0508-1006	●
25	09.180 PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE	8-97161-198-1	01	1	0508-1006		●
25	09.180 PULLEY ASM; IDLER,CMPR 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE	8-97161-198-1	01	1	1007-	●
25	09.180 PULLEY ASM; IDLER,CMPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE	8-97161-198-1	01	1	1007-		●
26	09.180 BRACKET; IDLE PULLEY,A/C 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97161-031-1	01	1	0211-0507	●	●
26	09.180 BRACKET; IDLE PULLEY,A/C 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60)	8-97161-031-1	01	1	0508-1006	●
26	09.180 BRACKET; IDLE PULLEY,A/C 4HG1 ENG(RJH),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60)	8-97161-031-1	01	1	0508-1006		●
26	09.180 BRACKET; IDLE PULLEY,A/C 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60)	8-97161-031-1	01	1	1007-	●
26	09.180 BRACKET; IDLE PULLEY,A/C 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60)	8-97161-031-1	01	1	1007-		●
27	09.180 PULLEY; IDLE,A/C 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97386-869-0	01	1	0211-0507	●	●
27	09.180 PULLEY; IDLE,A/C 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60)	8-97386-869-0	01	1	0508-1006	●
27	09.180 PULLEY; IDLE,A/C 4HG1 ENG(RJH),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60)	8-97386-869-0	01	1	0508-1006		●
27	09.180 PULLEY; IDLE,A/C 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60)	8-97386-869-0	01	1	1007-	●
27	09.180 PULLEY; IDLE,A/C 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60)	8-97386-869-0	01	1	1007-		●
29	09.181 COVER; DUST,IDLE PULLEY 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-114-0	01	1	0211-0507	●	●
29	09.181 COVER; DUST,IDLE PULLEY 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-114-0	01	1	0508-1006	●
29	09.181 COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-114-0	01	1	0508-1006		●
29	09.181 COVER; DUST,IDLE PULLEY 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-114-0	01	1	1007-	●
29	09.181 COVER; DUST,IDLE PULLEY 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97384-114-0	01	1	1007-		●
29	09.181 COVER; DUST,IDLE PULLEY 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97384-115-0	01	1	0211-0507	●	●
29	09.181 COVER; DUST,IDLE PULLEY 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97384-115-0	01	1	0508-1006	●
29	09.181 COVER; DUST,IDLE PULLEY 4HG1 ENG(RJH),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97384-115-0	01	1	0508-1006		●
29	09.181 COVER; DUST,IDLE PULLEY 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97384-115-0	01	1	1007-	●
29	09.181 COVER; DUST,IDLE PULLEY 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97384-115-0	01	1	1007-		●
30	09.181 COLLAR; IDLE PULLEY 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97384-117-0	01	1	0211-0507	●	●
30	09.181 COLLAR; IDLE PULLEY 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60)	8-97384-117-0	01	1	0508-1006	●
30	09.181 COLLAR; IDLE PULLEY 4HG1 ENG(RJH),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60)	8-97384-117-0	01	1	0508-1006		●
30	09.181 COLLAR; IDLE PULLEY 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60)	8-97384-117-0	01	1	1007-	●
30	09.181 COLLAR; IDLE PULLEY 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60)	8-97384-117-0	01	1	1007-		●
31	09.181 BOLT; ADJ,IDLE PULLEY 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97384-113-0	01	1	0211-0507	●	●
31	09.181 BOLT; ADJ,IDLE PULLEY 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60)	8-97384-113-0	01	1	0508-1006	●
31	09.181 BOLT; ADJ,IDLE PULLEY 4HG1 ENG(RJH),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60)	8-97384-113-0	01	1	0508-1006		●
31	09.181 BOLT; ADJ,IDLE PULLEY 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60)	8-97384-113-0	01	1	1007-	●
31	09.181 BOLT; ADJ,IDLE PULLEY 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60)	8-97384-113-0	01	1	1007-		●
33	09.181 NUT; IDLER PULLEY 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97384-118-0	01	1	0211-0507	●	●
33	09.181 NUT; IDLER PULLEY 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60)	8-97384-118-0	01	1	0508-1006	●
33	09.181 NUT; IDLER PULLEY 4HG1 ENG(RJH),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60)	8-97384-118-0	01	1	0508-1006		●
33	09.181 NUT; IDLER PULLEY 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60)	8-97384-118-0	01	1	1007-	●
33	09.181 NUT; IDLER PULLEY 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60)	8-97384-118-0	01	1	1007-		●
34	09.181 SHAFT; IDLE PULLEY 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97384-116-0	01	1	0211-0507	●	●
34	09.181 SHAFT; IDLE PULLEY 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60)	8-97384-116-0	01	1	0508-1006	●
34	09.181 SHAFT; IDLE PULLEY 4HG1 ENG(RJH),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60)	8-97384-116-0	01	1	0508-1006		●
34	09.181 SHAFT; IDLE PULLEY 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60)	8-97384-116-0	01	1	1007-	●
34	09.181 SHAFT; IDLE PULLEY 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60)	8-97384-116-0	01	1	1007-		●
66	01.066 BELT; A/C CMPR 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-2	01	1	0211-0507	●	●
66	01.066 BELT; A/C CMPR 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-2	01	1	0508-1006	●
66	01.066 BELT; A/C CMPR 4HG1 ENG(RJH),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-2	01	1	0508-1006		●
66	01.066 BELT; A/C CMPR 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-3	01	1	1007-	●
66	01.066 BELT; A/C CMPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-3	01	1	1007-		●
66	01.066 BELT; A/C CMPR 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-097-0	01	1	0211-0507	●	●
66	01.066 BELT; A/C CMPR 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-097-0	01	1	0508-1006	●
66	01.066 BELT; A/C CMPR 4HG1 ENG(RJH),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-097-0	01	1	0508-1006		●
66	01.066 BELT; A/C CMPR 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-097-0	01	1	1007-	●
66	01.066 BELT; A/C CMPR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-097-0	01	1	1007-		●
316	09.242 BOLT; BRKT FIX 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.780 M8X50 FLANGE	0-28080-850-0	01	1	0211-0507	●	●
316	09.242 BOLT; BRKT FIX 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 01.780 M8X50 FLANGE	0-28080-850-0	01	1	0508-0512	●
316	09.242 BOLT; BRKT FIX 4HG1 ENG(RJH),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 01.780 M8X50 FLANGE	0-28080-850-0	01	1	0508-0512		●
316	09.242 BOLT; BRKT FIX 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 00.386 M8X50 FLANGE	0-28050-850-0	01	1	0601-1006	●
316	09.242 BOLT; BRKT FIX 4HG1 ENG(RJH),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 00.386 M8X50 FLANGE	0-28050-850-0	01	1	0601-1006		●
316	09.242 BOLT; BRKT FIX 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 00.386 M8X50 FLANGE	0-28050-850-0	01	1	1007-	●
316	09.242 BOLT; BRKT FIX 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 00.386 M8X50 FLANGE	0-28050-850-0	01	1	1007-		●
316	09.242 BOLT; BRKT FIX 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 04.510 M10X65 FLANGE	8-94344-540-1	01	1	0211-0507	●	●
316	09.242 BOLT; BRKT FIX 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 04.510 M10X65 FLANGE	8-94344-540-1	01	1	0508-1006	●
316	09.242 BOLT; BRKT FIX 4HG1 ENG(RJH),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 04.510 M10X65 FLANGE	8-94344-540-1	01	1	0508-1006		●
316	09.242 BOLT; BRKT FIX 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 04.510 M10X65 FLANGE	8-94344-540-1	01	1	1007-	●
316	09.242 BOLT; BRKT FIX 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 04.510 M10X65 FLANGE	8-94344-540-1	01	1	1007-		●

78 210

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
78	09.211 BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60) 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0211-0507	●	●
78	09.211 BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0211-0507	●	●
210	09.242 CLIP; HARNESS 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 00.446 (A) ID=12 B=14 ID=8.5 IDN	5-09700-350-0	01	1	0211-0303	●
210	09.242 CLIP; HARNESS 4HG1 ENG(RJH) EXC. AIR CONDITIONER MANUAL CONT(C60), EXHAUST BRAKE<NF8>,ENGINE POWER N-SPEC(7QV) 00.446 (A) ID=12 B=14 ID=8.5 IDN	5-09700-350-0	01	1	0211-0303		●
210	09.242 CLIP; HARNESS 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60) 00.446 (A) ID=12 B=14 ID=8.5 IDN	5-09700-350-0	01	1	0211-0303		●
210	09.242 CLIP; HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60), ENGINE POWER N-SPEC(7QV) 00.446 (A) ID=12 B=14 ID=8.5 IDN	5-09700-350-0	01	1	0211-0303		●
210	09.242 CLIP; HARNESS 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60) 00.446 (A) ID=12 B=14 ID=8.5 IDN	5-09700-350-0	01	1	0304-0507	●	●
210	09.242 CLIP; HARNESS 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 00.446 (A) ID=12 B=14 ID=8.5 IDN	5-09700-350-0	01	1	0304-0507	●
210	09.242 CLIP; HARNESS 4HG1 ENG(RJH) EXC. AIR CONDITIONER MANUAL CONT(C60), EXHAUST BRAKE<NF8>,ENGINE POWER N-SPEC(7QV) 00.446 (A) ID=12 B=14 ID=8.5 IDN	5-09700-350-0	01	1	0304-0507		●
210	09.242 CLIP; HARNESS 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60) 00.446 (A) ID=12 B=14 ID=8.5 IDN	5-09700-350-0	01	1	0304-0507		●
210	09.242 CLIP; HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60), ENGINE POWER N-SPEC(7QV) 00.446 (A) ID=12 B=14 ID=8.5 IDN	5-09700-350-0	01	1	0304-0507		●
210	09.242 CLIP; HARNESS 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 00.446 (A) ID=12 B=14 ID=8.5 IDN	5-09700-350-0	01	1	0508-0609	●
210	09.242 CLIP; HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 00.446 (A) ID=12 B=14 ID=8.5 IDN	5-09700-350-0	01	1	0508-0609		●
210	09.242 CLIP; HARNESS 4HF1-N ENG(RJZ) FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> GLOW SYSTEM DELETE<7RK> EXC. AIR CONDITIONER MANUAL CONT(C60) 00.446 (A) ID=12 B=14 ID=8.5 IDN	5-09700-350-0	01	1	0610-0712	●
210	09.242 CLIP; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 00.446 (A) ID=12 B=14 ID=8.5 IDN	5-09700-350-0	01	1	0610-0712		●
210	09.242 CLIP; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 00.446 (A) ID=12 B=14 ID=8.5 IDN	5-09700-350-0	01	1	0801-0801	●	●
210	09.242 CLIP; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.671 (A) ID=12 VINYL CHLORIDE IDN	8-97367-984-1	01	1	0802-	●	●
210	09.242 CLIP; HARNESS 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0211-0507	●	●
210	09.242 CLIP; HARNESS 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0508-1006	●
210	09.242 CLIP; HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0508-1006		●
210	09.242 CLIP; HARNESS 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	1007-	●
210	09.242 CLIP; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	1007-		●
