8-40 — HEATER SYSTEM (#79019) — 85 parça

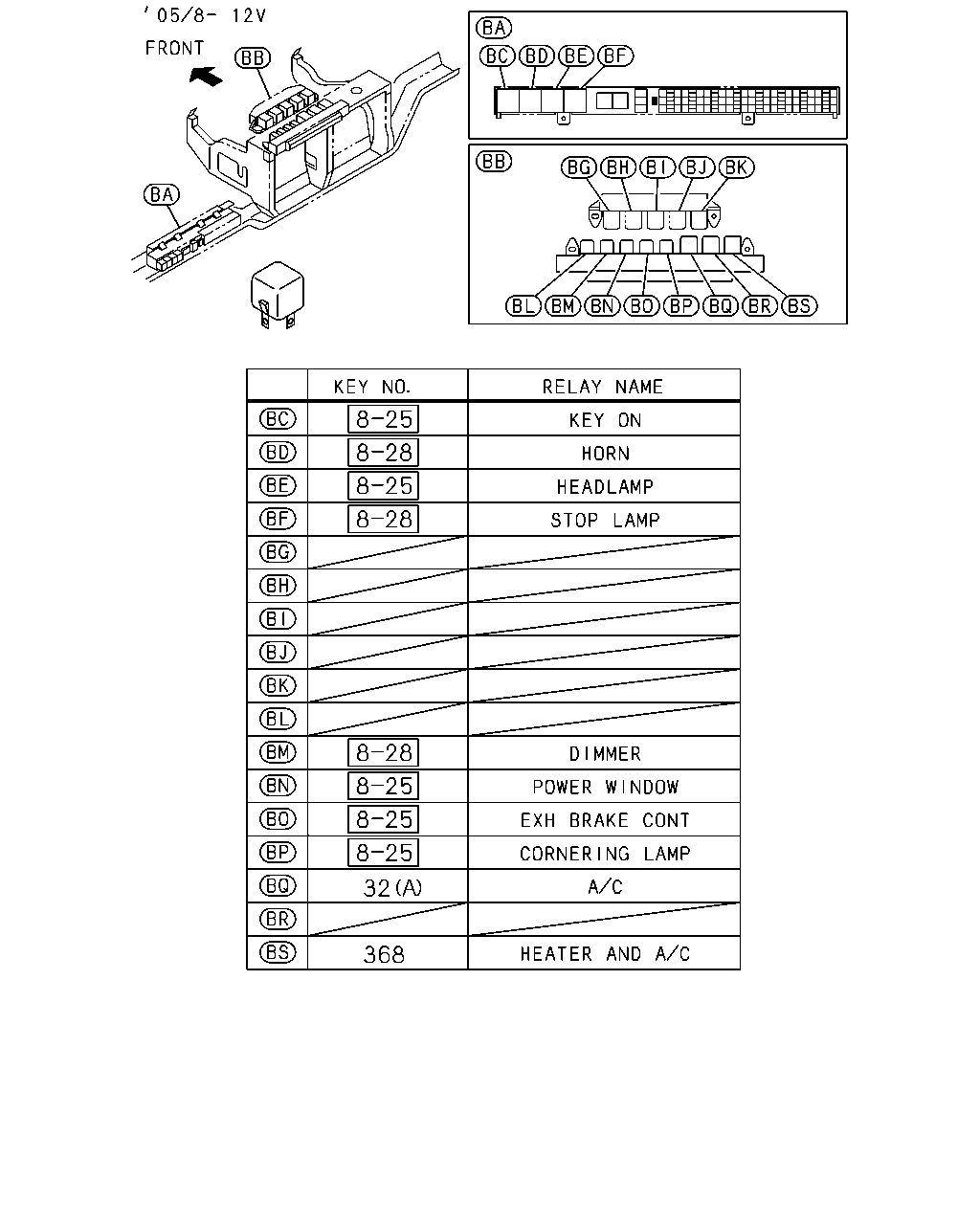

çizim 7495
32 368
BalonParca AdiParca NoAdetTipApplied Date A B
32 02.440 RELAY; A/C
AIR CONDITIONER MANUAL CONT(C60) 02.510 (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0609 ● ●
32 02.440 RELAY; A/C
AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> 02.510 (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0610-0712 ●
32 02.440 RELAY; A/C
AIR CONDITIONER MANUAL CONT(C60) 02.510 (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0610-0712 ●
32 02.440 RELAY; A/C
AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> 02.510 (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0801- ● ●
32 02.440 RELAY; A/C
AIR CONDITIONER MANUAL CONT(C60) EXC. VOLTAGE 24V<7AE> 08.852 (A) 12V 20A 		8-97060-926-1 01 1 0610-0712 ●
32 02.440 RELAY; A/C
AIR CONDITIONER MANUAL CONT(C60) EXC. VOLTAGE 24V<7AE> 08.852 (A) 12V 20A 		8-97060-926-1 01 1 0801- ● ●
368 09.277 RELAY; HEATER AND A/C
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0609 ● ●
368 09.277 RELAY; HEATER AND A/C
VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0610-0712 ●
368 09.277 RELAY; HEATER AND A/C
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0610-0712 ●
368 09.277 RELAY; HEATER AND A/C
VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0801- ● ●
368 09.277 RELAY; HEATER AND A/C
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0610-0712 ●
368 09.277 RELAY; HEATER AND A/C
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0801- ● ●

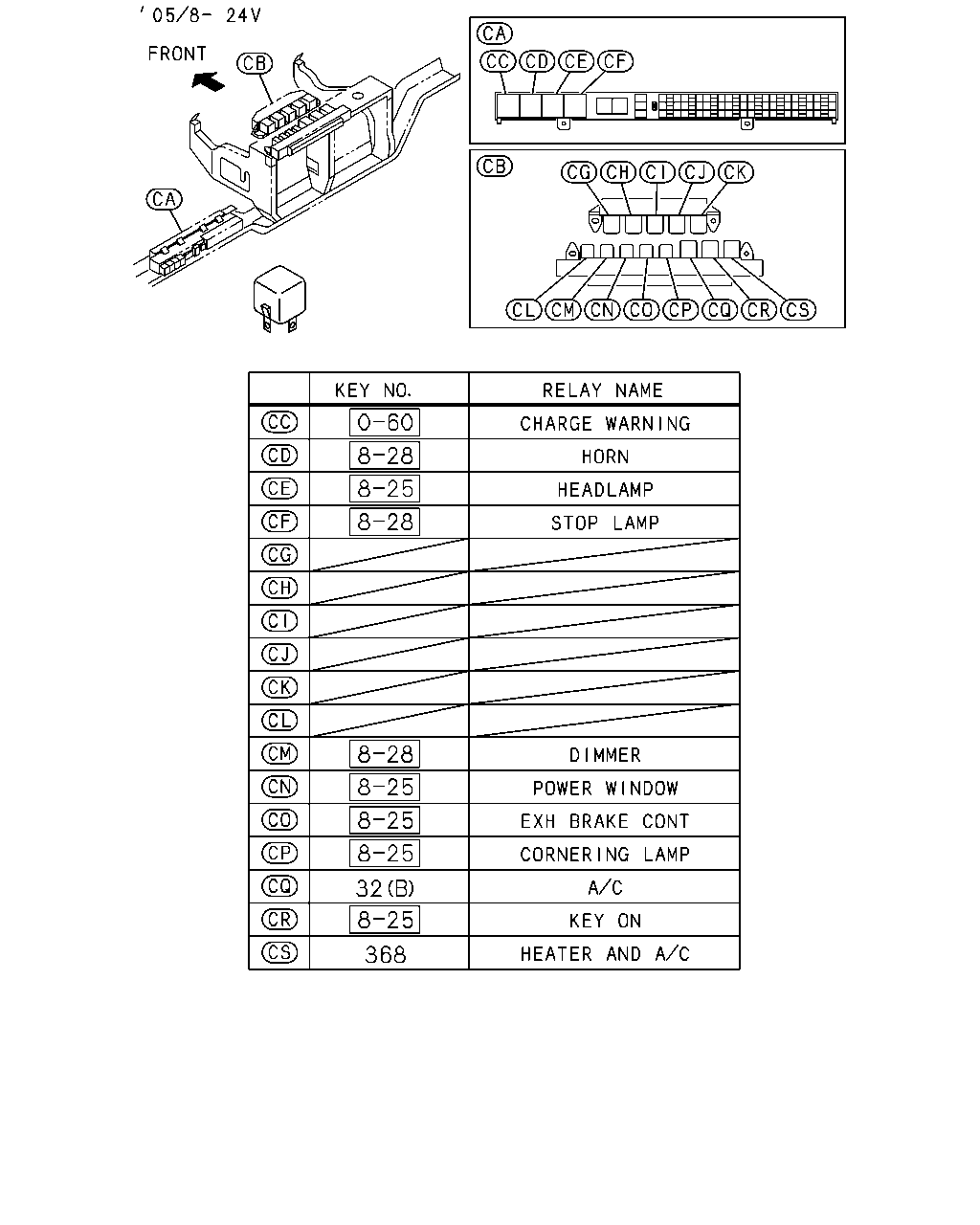

çizim 7496
32 368
BalonParca AdiParca NoAdetTipApplied Date A B
32 02.440 RELAY; A/C
AIR CONDITIONER MANUAL CONT(C60) 02.510 (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0609 ● ●
32 02.440 RELAY; A/C
AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> 02.510 (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0610-0712 ●
32 02.440 RELAY; A/C
AIR CONDITIONER MANUAL CONT(C60) 02.510 (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0610-0712 ●
32 02.440 RELAY; A/C
AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> 02.510 (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0801- ● ●
32 02.440 RELAY; A/C
AIR CONDITIONER MANUAL CONT(C60) EXC. VOLTAGE 24V<7AE> 08.852 (A) 12V 20A 		8-97060-926-1 01 1 0610-0712 ●
32 02.440 RELAY; A/C
AIR CONDITIONER MANUAL CONT(C60) EXC. VOLTAGE 24V<7AE> 08.852 (A) 12V 20A 		8-97060-926-1 01 1 0801- ● ●
368 09.277 RELAY; HEATER AND A/C
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0609 ● ●
368 09.277 RELAY; HEATER AND A/C
VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0610-0712 ●
368 09.277 RELAY; HEATER AND A/C
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0610-0712 ●
368 09.277 RELAY; HEATER AND A/C
VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0801- ● ●
368 09.277 RELAY; HEATER AND A/C
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0610-0712 ●
368 09.277 RELAY; HEATER AND A/C
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0801- ● ●

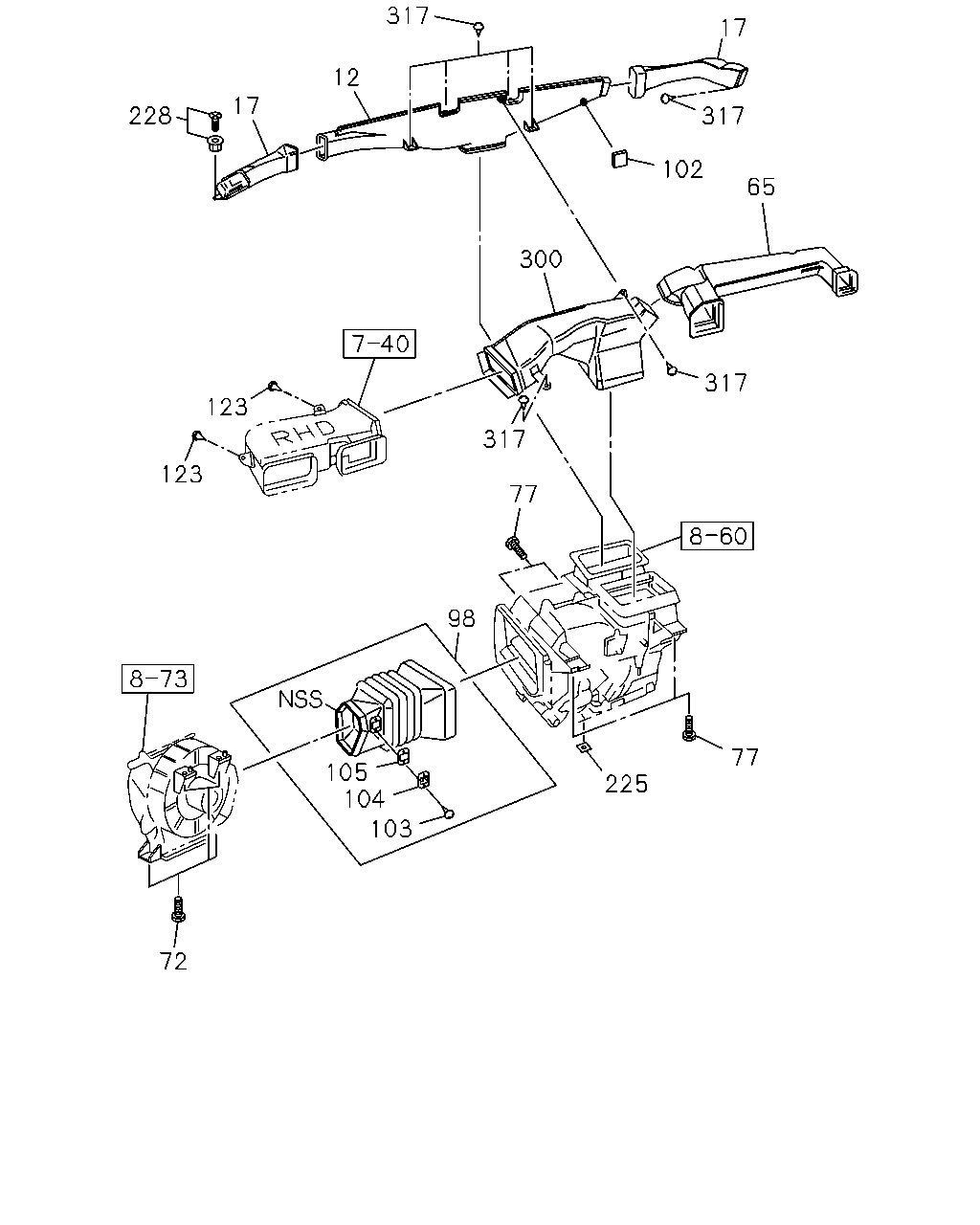

çizim 144015
317 17 12 17 228 317 102 65 300 317 123 317 123 77 98 77 105 104 225 103 72
BalonParca AdiParca NoAdetTipApplied Date A B
12 09.779 NOZZLE; DEFROSTER
IDN 		8-97251-627-0 01 1 0211-0507 ● ●
12 09.779 NOZZLE; DEFROSTER
EXC. FORGED AIR VENTILATION(C39) IDN 		8-97251-627-0 01 1 0508- ● ●
17 09.779 NOZZLE; DEFROSTER,SIDE
IDN 		8-97262-689-0 01 1 0211-0507 ● ●
17 09.779 NOZZLE; DEFROSTER,SIDE
EXC. FORGED AIR VENTILATION(C39) IDN 		8-97262-689-0 01 1 0508- ● ●
17 09.779 NOZZLE; DEFROSTER,SIDE
IDN 		8-97262-690-0 01 1 0211-0507 ● ●
17 09.779 NOZZLE; DEFROSTER,SIDE
EXC. FORGED AIR VENTILATION(C39) IDN 		8-97262-690-0 01 1 0508- ● ●
65 09.786 DUCT; VENT,DRIVER SIDE
IDN 		8-97262-686-0 01 1 0211- ● ●
72 08.857 BOLT; BLOWER UNIT
04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0211-0512 ● ●
72 08.857 BOLT; BLOWER UNIT
03.162 M6X20 FLANGE IDN 		0-28650-620-0 02 1 0601- ● ●
72 08.857 BOLT; BLOWER UNIT
M8X35 		8-97103-452-0 02 1 0211- ● ●
77 08.845 BOLT; HTR UNIT
04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0211-0512 ● ●
77 08.845 BOLT; HTR UNIT
03.162 M6X20 FLANGE IDN 		0-28650-620-0 02 1 0601- ● ●
77 08.845 BOLT; HTR UNIT
M8X25 		8-97103-451-0 02 1 0211- ● ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97262-796-0 01 1 0211-0507 ● ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97358-596-0 01 1 0508-0609 ● ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
VOLTAGE 24V<7AE> EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97358-596-0 01 1 0610-0712 ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97358-596-0 01 1 0610-0712 ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
VOLTAGE 24V<7AE> EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97358-596-0 01 1 0801- ● ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60), VOLTAGE 24V<7AE> 		8-97358-595-0 01 1 0610-0712 ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60), VOLTAGE 24V<7AE> 		8-97358-595-0 01 1 0801- ● ●
102 09.262 LINING; HTR DUCT
IDN 		8-97145-038-0 01 1 0211-0507 ● ●
102 09.262 LINING; HTR DUCT
EXC. FORGED AIR VENTILATION(C39) IDN 		8-97145-038-0 01 1 0508- ● ●
103 08.855 SCREW; TAPPING,RESISTOR FIX
EXC. AIR CONDITIONER MANUAL CONT(C60) 09.789 M4X16 TAPPING 		1-83579-114-0 02 1 0211- ● ●
104 08.855 RESISTOR; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97358-389-0 01 1 0508-0609 ● ●
104 08.855 RESISTOR; HTR DUCT
VOLTAGE 24V<7AE> EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97358-389-0 01 1 0610-0712 ●
104 08.855 RESISTOR; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97358-389-0 01 1 0610-0712 ●
104 08.855 RESISTOR; HTR DUCT
VOLTAGE 24V<7AE> EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97358-389-0 01 1 0801- ● ●
104 08.855 RESISTOR; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONT(C60) 09.277 		8-97234-546-0 01 1 0211-0507 ● ●
104 08.855 RESISTOR; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONT(C60), VOLTAGE 24V<7AE> 		8-97357-912-0 01 1 0610-0712 ●
104 08.855 RESISTOR; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONT(C60), VOLTAGE 24V<7AE> 		8-97357-912-0 01 1 0801- ● ●
105 08.856 PLATE; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97020-761-0 01 1 0211- ● ●
123 09.786 SCREW; DUCT
09.264 M5X12 W/PL WASHER IDN 		8-97147-069-0 02 1 0211-0507 ● ●
123 09.786 SCREW; DUCT
FORGED AIR VENTILATION(C39) 09.264 M5X12 W/PL WASHER IDN 		8-97147-069-0 01 1 0508-0612 ● ●
123 09.786 SCREW; DUCT
FORGED AIR VENTILATION(C39) 04.681 T25 M5X12 TAPPING HEXALOBULAR IDN 		0-72180-512-0 01 1 0701- ● ●
123 09.786 SCREW; DUCT
EXC. FORGED AIR VENTILATION(C39) 09.264 M5X12 W/PL WASHER IDN 		8-97147-069-0 02 1 0508-0612 ● ●
123 09.786 SCREW; DUCT
EXC. FORGED AIR VENTILATION(C39) 04.681 T25 M5X12 TAPPING HEXALOBULAR IDN 		0-72180-512-0 02 1 0701- ● ●
225 08.845 SEAL; WATER
IDN 		8-97856-616-0 04 1 0211- ● ●
228 09.780 CLIP; DEFROSTER
12.934 D=5.8 SCREW & GROMMET NYLON IDN 		8-94242-150-0 01 1 0211-0507 ● ●
228 09.780 CLIP; DEFROSTER
EXC. FORGED AIR VENTILATION(C39) 12.934 D=5.8 SCREW & GROMMET NYLON IDN 		8-94242-150-0 01 1 0508- ● ●
300 09.264 DUCT; VENT,CENTER
IDN 		8-97262-687-0 01 1 0211- ● ●
317 09.264 SCREW; DEFROSTER NOZZLE
M5X12 W/PL WASHER IDN 		8-97147-069-0 05 1 0211-0507 ● ●
317 09.264 SCREW; DEFROSTER NOZZLE
EXC. FORGED AIR VENTILATION(C39) M5X12 W/PL WASHER IDN 		8-97147-069-0 05 1 0508-0612 ● ●
317 09.264 SCREW; DEFROSTER NOZZLE
EXC. FORGED AIR VENTILATION(C39) 04.681 T25 M5X12 TAPPING HEXALOBULAR IDN 		0-72180-512-0 05 1 0701- ● ●

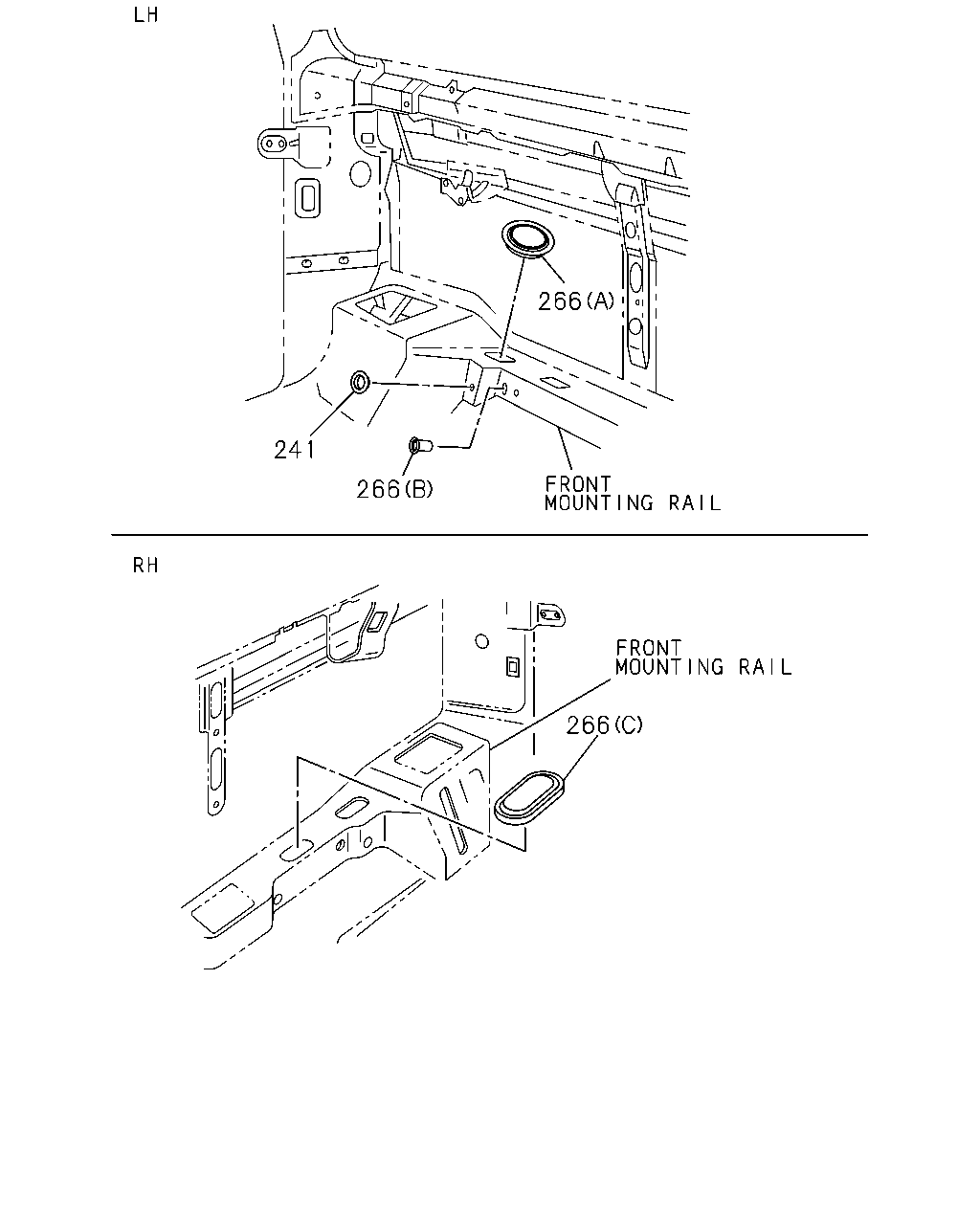

çizim 147972
266 241 266 266
BalonParca AdiParca NoAdetTipApplied Date A B
241 16.550 PLUG; RUBBER,EVAP DRAIN HOLE
EXC. AIR CONDITIONER MANUAL CONT(C60) IDN 		8-97037-392-0 01 1 0211- ● ●
266 08.845 PLUG; HTR HOLE
EXC. AIR CONDITIONER MANUAL CONT(C60) (A) H=78 B=37 IDN 		8-97036-019-0 01 1 0211- ● ●
266 08.845 PLUG; HTR HOLE
EXC. AIR CONDITIONER MANUAL CONT(C60) (C) H=69.5 B=29.5 IDN 		8-97036-020-0 01 1 0211- ● ●
266 08.845 PLUG; HTR HOLE
EXC. AIR CONDITIONER MANUAL CONT(C60) 09.211 (B) OD=13 IDN 		9-09756-019-0 01 1 0211- ● ●
çizim 190684
368 32
BalonParca AdiParca NoAdetTipApplied Date A B
32 02.440 RELAY; A/C
AIR CONDITIONER MANUAL CONT(C60) 02.510 (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0609 ● ●
32 02.440 RELAY; A/C
AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> 02.510 (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0610-0712 ●
32 02.440 RELAY; A/C
AIR CONDITIONER MANUAL CONT(C60) 02.510 (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0610-0712 ●
32 02.440 RELAY; A/C
AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> 02.510 (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0801- ● ●
32 02.440 RELAY; A/C
AIR CONDITIONER MANUAL CONT(C60) EXC. VOLTAGE 24V<7AE> 08.852 (A) 12V 20A 		8-97060-926-1 01 1 0610-0712 ●
32 02.440 RELAY; A/C
AIR CONDITIONER MANUAL CONT(C60) EXC. VOLTAGE 24V<7AE> 08.852 (A) 12V 20A 		8-97060-926-1 01 1 0801- ● ●
368 09.277 RELAY; HEATER AND A/C
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0609 ● ●
368 09.277 RELAY; HEATER AND A/C
VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0610-0712 ●
368 09.277 RELAY; HEATER AND A/C
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0610-0712 ●
368 09.277 RELAY; HEATER AND A/C
VOLTAGE 24V<7AE> 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0801- ● ●
368 09.277 RELAY; HEATER AND A/C
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0610-0712 ●
368 09.277 RELAY; HEATER AND A/C
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 0801- ● ●
çizim 190686
371 370
BalonParca AdiParca NoAdetTipApplied Date A B
370 08.866 PLATE; BAFFLE,BLOWER UNIT 8-97856-129-2 01 1 0211- ● ●
371 08.866 FASTENER; BAFFLE PLATE
12.934 D=5.8 SCREW & GROMMET NYLON IDN 		8-94242-150-0 01 1 0211- ● ●
