8-28 — CHASSIS ELECTRICAL (#79018) — 151 parça

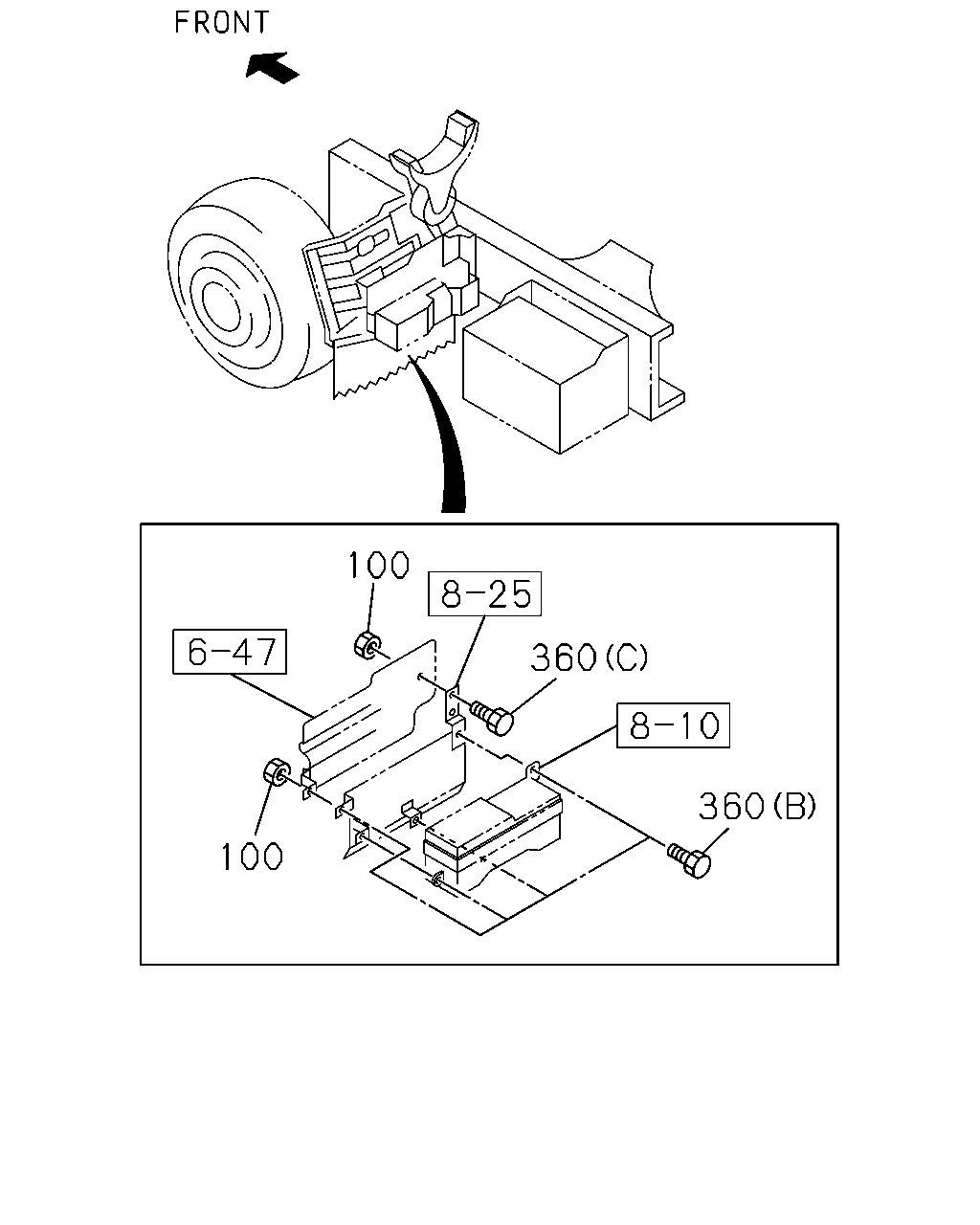

çizim 143818
100 360 360 100
BalonParca AdiParca NoAdetTipApplied Date A B
100 09.277 NUT; RELAY BOX COVER
4HG1 ENG(RJH),4HF1-S ENG(RLS) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0211-0507 ● ●
100 09.277 NUT; RELAY BOX COVER
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0508-0602 ● ●
100 09.277 NUT; RELAY BOX COVER
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 M8 FLANGE IDN 		0-91180-108-0 02 1 0603-0609 ● ●
100 09.277 NUT; RELAY BOX COVER
4JB1-TC ENG(RDT) 01.062 M8 FLANGE IDN 		0-91180-108-0 03 1 0610-0712 ●
100 09.277 NUT; RELAY BOX COVER
4JB1-TC ENG(RDT) 01.062 M8 FLANGE IDN 		0-91180-108-0 03 1 0801-1404 ● ●
100 09.277 NUT; RELAY BOX COVER
4JB1-TC ENG(RDT) 01.062 M8 FLANGE IDN 		0-91180-108-0 03 1 1405- ● ●
100 09.277 NUT; RELAY BOX COVER
4HG1-T ENG(RDP) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS(V4B) 01.062 M8 FLANGE IDN 		0-91180-108-0 03 1 1405- ●
100 09.277 NUT; RELAY BOX COVER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 M8 FLANGE IDN 		0-91180-108-0 02 1 0610-1404 ● ●
100 09.277 NUT; RELAY BOX COVER
4HF1-N ENG(RJZ) 01.062 M8 FLANGE IDN 		0-91180-108-0 02 1 1405- ●
100 09.277 NUT; RELAY BOX COVER
4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) 01.062 M8 FLANGE IDN 		0-91180-108-0 02 1 1405- ●
100 09.277 NUT; RELAY BOX COVER
4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) 01.062 M8 FLANGE IDN 		0-91180-108-0 02 1 1405- ●
100 09.277 NUT; RELAY BOX COVER
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 M8 FLANGE IDN 		0-91180-108-0 02 1 1405- ●
360 02.483 BOLT; RELAY BOX
4HG1 ENG(RJH),4HF1-S ENG(RLS) 01.062 (C) M8X16 FLANGE 		0-28080-816-0 01 1 0211-0507 ● ●
360 02.483 BOLT; RELAY BOX
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 (C) M8X16 FLANGE 		0-28080-816-0 01 1 0508-0512 ● ●
360 02.483 BOLT; RELAY BOX
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 01 1 0601-0609 ● ●
360 02.483 BOLT; RELAY BOX
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 01 1 0610-1404 ● ●
360 02.483 BOLT; RELAY BOX
4HF1-N ENG(RJZ) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 01 1 1405- ●
360 02.483 BOLT; RELAY BOX
4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 01 1 1405- ●
360 02.483 BOLT; RELAY BOX
4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 01 1 1405- ●
360 02.483 BOLT; RELAY BOX
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 01 1 1405- ●
360 02.483 BOLT; RELAY BOX
02.559 (B) M8X25 FLANGE IDN 		0-28680-825-0 03 1 0211-0512 ● ●
360 02.483 BOLT; RELAY BOX
06.216 (B) M8X25 FLANGE IDN 		0-28650-825-0 03 1 0601- ● ●
360 02.483 BOLT; RELAY BOX
10.230 (A) M6X16 W/LK&PL WASHER IDN 		8-94139-963-0 04 1 0211-0507 ● ●
360 02.483 BOLT; RELAY BOX
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 10.230 (A) M6X16 W/LK&PL WASHER IDN 		8-94139-963-0 02 1 0508-0609 ● ●
360 02.483 BOLT; RELAY BOX
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 10.230 (A) M6X16 W/LK&PL WASHER IDN 		8-94139-963-0 02 1 0610-0712 ●
360 02.483 BOLT; RELAY BOX
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 10.230 (A) M6X16 W/LK&PL WASHER IDN 		8-94139-963-0 02 1 0610-0712 ●
360 02.483 BOLT; RELAY BOX
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 10.230 (A) M6X16 W/LK&PL WASHER IDN 		8-94139-963-0 02 1 0801-1210 ●
360 02.483 BOLT; RELAY BOX
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 10.230 (A) M6X16 W/LK&PL WASHER IDN 		8-94139-963-0 02 1 0801-1210 ●
360 02.483 BOLT; RELAY BOX
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 02.587 (A) M6X19.5 W/LK&PL WASHER IDN 		8-97360-226-0 02 1 1211- ●
360 02.483 BOLT; RELAY BOX
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.587 (A) M6X19.5 W/LK&PL WASHER IDN 		8-97360-226-0 02 1 1211- ●

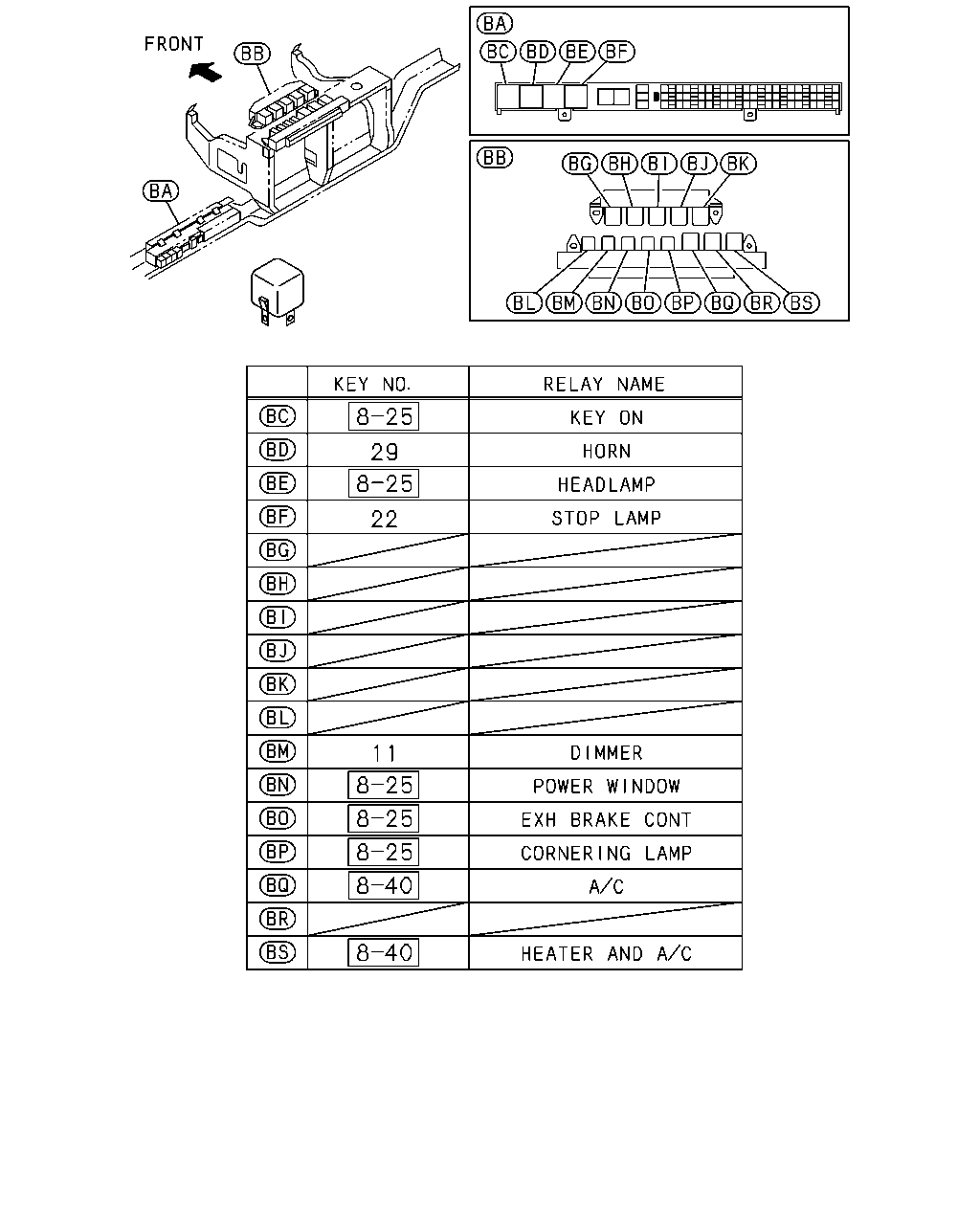

çizim 143869
29 22 11
BalonParca AdiParca NoAdetTipApplied Date A B
11 02.485 RELAY; DIMMER
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0507 ● ●
11 02.485 RELAY; DIMMER
08.852 24V 10A PANASONIC IDN 		8-97173-035-1 01 1 0508-0609 ● ●
11 02.485 RELAY; DIMMER
VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC IDN 		8-97173-035-1 01 1 0610-0712 ●
11 02.485 RELAY; DIMMER
08.852 24V 10A PANASONIC IDN 		8-97173-035-1 01 1 0610-0712 ●
11 02.485 RELAY; DIMMER
VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC IDN 		8-97173-035-1 01 1 0801- ● ●
11 02.485 RELAY; DIMMER
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A IDN 		8-97173-037-1 01 1 0610-0712 ●
11 02.485 RELAY; DIMMER
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A IDN 		8-97173-037-1 01 1 0801- ● ●
22 02.679 RELAY; STOP LAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0507 ● ●
22 02.679 RELAY; STOP LAMP
08.852 24V 10A PANASONIC IDN 		8-97173-035-1 01 1 0508-0609 ● ●
22 02.679 RELAY; STOP LAMP
VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC IDN 		8-97173-035-1 01 1 0610-0712 ●
22 02.679 RELAY; STOP LAMP
08.852 24V 10A PANASONIC IDN 		8-97173-035-1 01 1 0610-0712 ●
22 02.679 RELAY; STOP LAMP
VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC IDN 		8-97173-035-1 01 1 0801- ● ●
22 02.679 RELAY; STOP LAMP
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A IDN 		8-97173-037-1 01 1 0610-0712 ●
22 02.679 RELAY; STOP LAMP
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A IDN 		8-97173-037-1 01 1 0801- ● ●
29 02.815 RELAY; HORN
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0507 ● ●
29 02.815 RELAY; HORN
08.852 24V 10A PANASONIC IDN 		8-97173-035-1 01 1 0508-0609 ● ●
29 02.815 RELAY; HORN
VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC IDN 		8-97173-035-1 01 1 0610-0712 ●
29 02.815 RELAY; HORN
08.852 24V 10A PANASONIC IDN 		8-97173-035-1 01 1 0610-0712 ●
29 02.815 RELAY; HORN
VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC IDN 		8-97173-035-1 01 1 0801- ● ●
29 02.815 RELAY; HORN
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A IDN 		8-97173-037-1 01 1 0610-0712 ●
29 02.815 RELAY; HORN
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A IDN 		8-97173-037-1 01 1 0801- ● ●
çizim 144024
361 45 44 46
BalonParca AdiParca NoAdetTipApplied Date A B
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN(U05) IDN 		8-97211-741-2 01 1 0211-0609 ● ●
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN(U05) VOLTAGE 24V<7AE> IDN 		8-97211-741-2 01 1 0610-0712 ●
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN(U05) IDN 		8-97211-741-2 01 1 0610-0712 ●
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN(U05) VOLTAGE 24V<7AE> IDN 		8-97211-741-2 01 1 0801- ● ●
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN(U05) EXC. VOLTAGE 24V<7AE> IDN 		8-97211-743-2 01 1 0610-0712 ●
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN(U05) EXC. VOLTAGE 24V<7AE> IDN 		8-97211-743-2 01 1 0801- ● ●
45 02.810 HORN; LOW NOTE
SINGLE HEAVY DUTY HORN(6HG) IDN 		8-97109-364-1 01 1 0211-0609 ● ●
45 02.810 HORN; LOW NOTE
SINGLE HEAVY DUTY HORN(6HG) VOLTAGE 24V<7AE> IDN 		8-97109-364-1 01 1 0610-0712 ●
45 02.810 HORN; LOW NOTE
SINGLE HEAVY DUTY HORN(6HG) IDN 		8-97109-364-1 01 1 0610-0712 ●
45 02.810 HORN; LOW NOTE
SINGLE HEAVY DUTY HORN(6HG) VOLTAGE 24V<7AE> IDN 		8-97109-364-1 01 1 0801- ● ●
45 02.810 HORN; LOW NOTE
EXC. SINGLE HEAVY DUTY HORN(6HG) IDN 		8-97211-740-2 01 1 0211-0609 ● ●
45 02.810 HORN; LOW NOTE
VOLTAGE 24V<7AE> EXC. SINGLE HEAVY DUTY HORN(6HG) IDN 		8-97211-740-2 01 1 0610-0712 ●
45 02.810 HORN; LOW NOTE
EXC. SINGLE HEAVY DUTY HORN(6HG) IDN 		8-97211-740-2 01 1 0610-0712 ●
45 02.810 HORN; LOW NOTE
VOLTAGE 24V<7AE> EXC. SINGLE HEAVY DUTY HORN(6HG) IDN 		8-97211-740-2 01 1 0801- ● ●
45 02.810 HORN; LOW NOTE
SINGLE HEAVY DUTY HORN(6HG) EXC. VOLTAGE 24V<7AE> 		8-97109-362-1 01 1 0610-0712 ●
45 02.810 HORN; LOW NOTE
SINGLE HEAVY DUTY HORN(6HG) EXC. VOLTAGE 24V<7AE> 		8-97109-362-1 01 1 0801- ● ●
45 02.810 HORN; LOW NOTE
EXC. SINGLE HEAVY DUTY HORN(6HG),VOLTAGE 24V<7AE> IDN 		8-97211-744-2 01 1 0610-0712 ●
45 02.810 HORN; LOW NOTE
EXC. SINGLE HEAVY DUTY HORN(6HG),VOLTAGE 24V<7AE> IDN 		8-97211-744-2 01 1 0801- ● ●
46 02.812 BOLT; HORN TO BODY
DUAL TONE HORN(U05) 02.559 M8X20 W/LK&PL WASHER IDN 		8-97086-825-0 02 1 0211-1004 ● ●
46 02.812 BOLT; HORN TO BODY
DUAL TONE HORN(U05) 02.343 M8X18.5 W/PL WASHER IDN 		8-98141-255-0 02 1 1005- ● ●
46 02.812 BOLT; HORN TO BODY
EXC. DUAL TONE HORN(U05) 02.559 M8X20 W/LK&PL WASHER IDN 		8-97086-825-0 01 1 0211-1004 ● ●
46 02.812 BOLT; HORN TO BODY
EXC. DUAL TONE HORN(U05) 02.343 M8X18.5 W/PL WASHER IDN 		8-98141-255-0 01 1 1005- ● ●
361 02.559 BOLT; CONNECTOR
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0211-1210 ● ●
361 02.559 BOLT; CONNECTOR
02.587 M6X19.5 W/LK&PL WASHER IDN 		8-97360-226-0 01 1 1211- ● ●

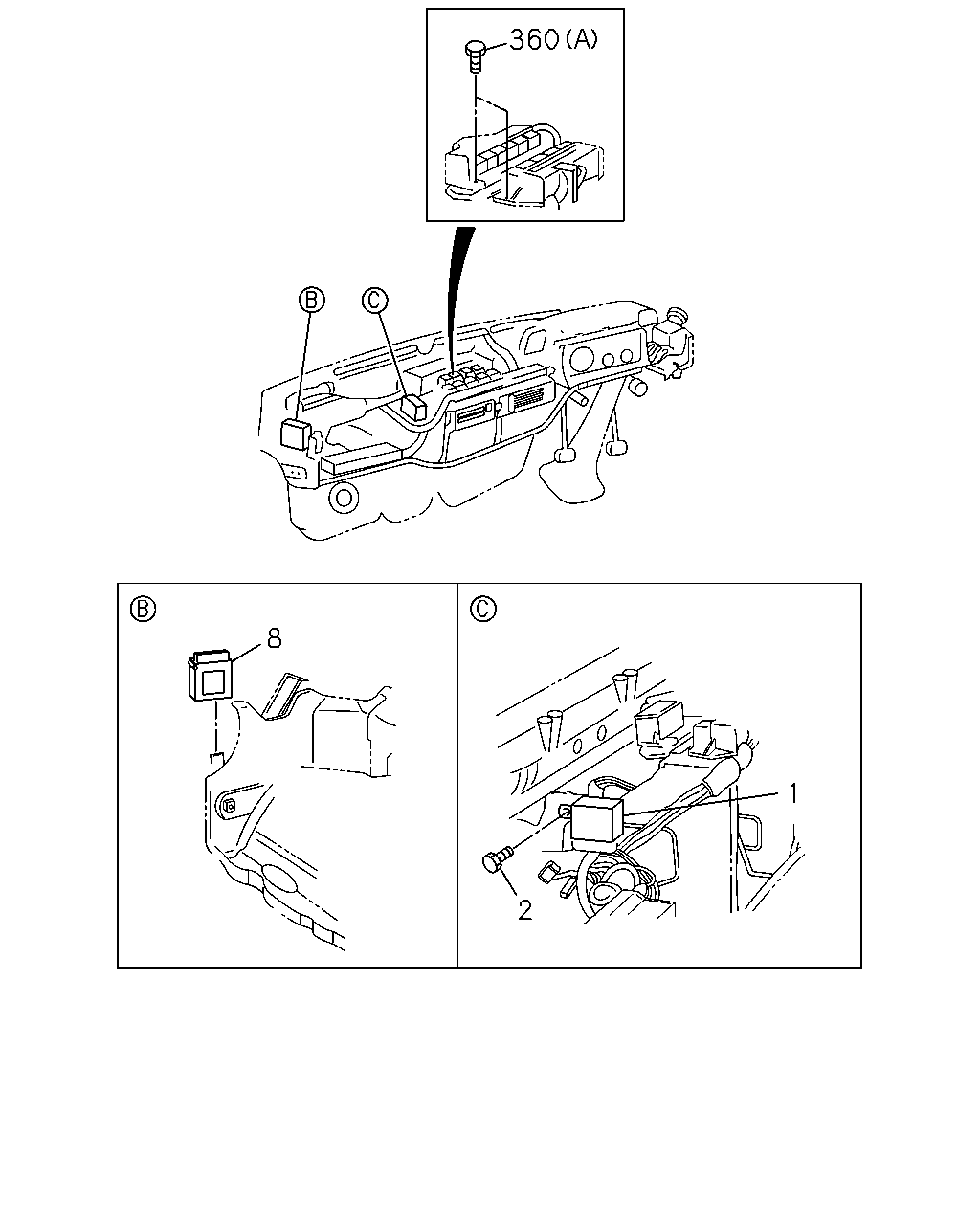

çizim 190683
360 8 1 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.575 UNIT; FLASHER 8-97086-508-1 01 1 0211-0211 ● ●
1 02.575 UNIT; FLASHER 8-97360-084-1 01 1 0212-0609 ● ●
1 02.575 UNIT; FLASHER
VOLTAGE 24V<7AE> 		8-97360-084-1 01 1 0610-0712 ●
1 02.575 UNIT; FLASHER 8-97360-084-1 01 1 0610-0712 ●
1 02.575 UNIT; FLASHER
VOLTAGE 24V<7AE> 		8-97360-084-1 01 1 0801- ● ●
1 02.575 UNIT; FLASHER
EXC. VOLTAGE 24V<7AE> IDN 		8-97228-398-0 01 1 0610-0712 ●
1 02.575 UNIT; FLASHER
EXC. VOLTAGE 24V<7AE> IDN 		8-97228-398-0 01 1 0801- ● ●
2 02.892 BOLT; FLASHER UNIT
10.230 M6X16 W/LK&PL WASHER IDN 		8-94139-963-0 01 1 0211-1210 ● ●
2 02.892 BOLT; FLASHER UNIT
02.587 M6X19.5 W/LK&PL WASHER IDN 		8-97360-226-0 01 1 1211- ● ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> 		8-97184-233-0 01 1 0211-0301 ● ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> 		8-97363-983-0 01 1 0302-0609 ● ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> VOLTAGE 24V<7AE> 		8-97363-983-0 01 1 0610-0712 ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> 		8-97363-983-0 01 1 0610-0712 ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> VOLTAGE 24V<7AE> 		8-97363-983-0 01 1 0801- ● ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> EXC. VOLTAGE 24V<7AE> 		8-97363-984-0 01 1 0610-0712 ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> EXC. VOLTAGE 24V<7AE> 		8-97363-984-0 01 1 0801- ● ●
360 02.483 BOLT; RELAY BOX
4HG1 ENG(RJH),4HF1-S ENG(RLS) 01.062 (C) M8X16 FLANGE 		0-28080-816-0 01 1 0211-0507 ● ●
360 02.483 BOLT; RELAY BOX
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 (C) M8X16 FLANGE 		0-28080-816-0 01 1 0508-0512 ● ●
360 02.483 BOLT; RELAY BOX
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 01 1 0601-0609 ● ●
360 02.483 BOLT; RELAY BOX
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 01 1 0610-1404 ● ●
360 02.483 BOLT; RELAY BOX
4HF1-N ENG(RJZ) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 01 1 1405- ●
360 02.483 BOLT; RELAY BOX
4HG1-T ENG(RDP) G.V.W. 5.5-6.0TON(RPU) MINI BUS CHASSIS(V4B) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 01 1 1405- ●
360 02.483 BOLT; RELAY BOX
4HG1-T ENG(RDP) EXC. MINI BUS CHASSIS(V4B) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 01 1 1405- ●
360 02.483 BOLT; RELAY BOX
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.343 (C) M8X16 FLANGE 		0-28050-816-0 01 1 1405- ●
360 02.483 BOLT; RELAY BOX
02.559 (B) M8X25 FLANGE IDN 		0-28680-825-0 03 1 0211-0512 ● ●
360 02.483 BOLT; RELAY BOX
06.216 (B) M8X25 FLANGE IDN 		0-28650-825-0 03 1 0601- ● ●
360 02.483 BOLT; RELAY BOX
10.230 (A) M6X16 W/LK&PL WASHER IDN 		8-94139-963-0 04 1 0211-0507 ● ●
360 02.483 BOLT; RELAY BOX
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 10.230 (A) M6X16 W/LK&PL WASHER IDN 		8-94139-963-0 02 1 0508-0609 ● ●
360 02.483 BOLT; RELAY BOX
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 10.230 (A) M6X16 W/LK&PL WASHER IDN 		8-94139-963-0 02 1 0610-0712 ●
360 02.483 BOLT; RELAY BOX
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 10.230 (A) M6X16 W/LK&PL WASHER IDN 		8-94139-963-0 02 1 0610-0712 ●
360 02.483 BOLT; RELAY BOX
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 10.230 (A) M6X16 W/LK&PL WASHER IDN 		8-94139-963-0 02 1 0801-1210 ●
360 02.483 BOLT; RELAY BOX
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 10.230 (A) M6X16 W/LK&PL WASHER IDN 		8-94139-963-0 02 1 0801-1210 ●
360 02.483 BOLT; RELAY BOX
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 02.587 (A) M6X19.5 W/LK&PL WASHER IDN 		8-97360-226-0 02 1 1211- ●
360 02.483 BOLT; RELAY BOX
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.587 (A) M6X19.5 W/LK&PL WASHER IDN 		8-97360-226-0 02 1 1211- ●
çizim 190687
22 11 29
BalonParca AdiParca NoAdetTipApplied Date A B
11 02.485 RELAY; DIMMER
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0507 ● ●
11 02.485 RELAY; DIMMER
08.852 24V 10A PANASONIC IDN 		8-97173-035-1 01 1 0508-0609 ● ●
11 02.485 RELAY; DIMMER
VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC IDN 		8-97173-035-1 01 1 0610-0712 ●
11 02.485 RELAY; DIMMER
08.852 24V 10A PANASONIC IDN 		8-97173-035-1 01 1 0610-0712 ●
11 02.485 RELAY; DIMMER
VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC IDN 		8-97173-035-1 01 1 0801- ● ●
11 02.485 RELAY; DIMMER
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A IDN 		8-97173-037-1 01 1 0610-0712 ●
11 02.485 RELAY; DIMMER
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A IDN 		8-97173-037-1 01 1 0801- ● ●
22 02.679 RELAY; STOP LAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0507 ● ●
22 02.679 RELAY; STOP LAMP
08.852 24V 10A PANASONIC IDN 		8-97173-035-1 01 1 0508-0609 ● ●
22 02.679 RELAY; STOP LAMP
VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC IDN 		8-97173-035-1 01 1 0610-0712 ●
22 02.679 RELAY; STOP LAMP
08.852 24V 10A PANASONIC IDN 		8-97173-035-1 01 1 0610-0712 ●
22 02.679 RELAY; STOP LAMP
VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC IDN 		8-97173-035-1 01 1 0801- ● ●
22 02.679 RELAY; STOP LAMP
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A IDN 		8-97173-037-1 01 1 0610-0712 ●
22 02.679 RELAY; STOP LAMP
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A IDN 		8-97173-037-1 01 1 0801- ● ●
29 02.815 RELAY; HORN
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0507 ● ●
29 02.815 RELAY; HORN
08.852 24V 10A PANASONIC IDN 		8-97173-035-1 01 1 0508-0609 ● ●
29 02.815 RELAY; HORN
VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC IDN 		8-97173-035-1 01 1 0610-0712 ●
29 02.815 RELAY; HORN
08.852 24V 10A PANASONIC IDN 		8-97173-035-1 01 1 0610-0712 ●
29 02.815 RELAY; HORN
VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC IDN 		8-97173-035-1 01 1 0801- ● ●
29 02.815 RELAY; HORN
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A IDN 		8-97173-037-1 01 1 0610-0712 ●
29 02.815 RELAY; HORN
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A IDN 		8-97173-037-1 01 1 0801- ● ●

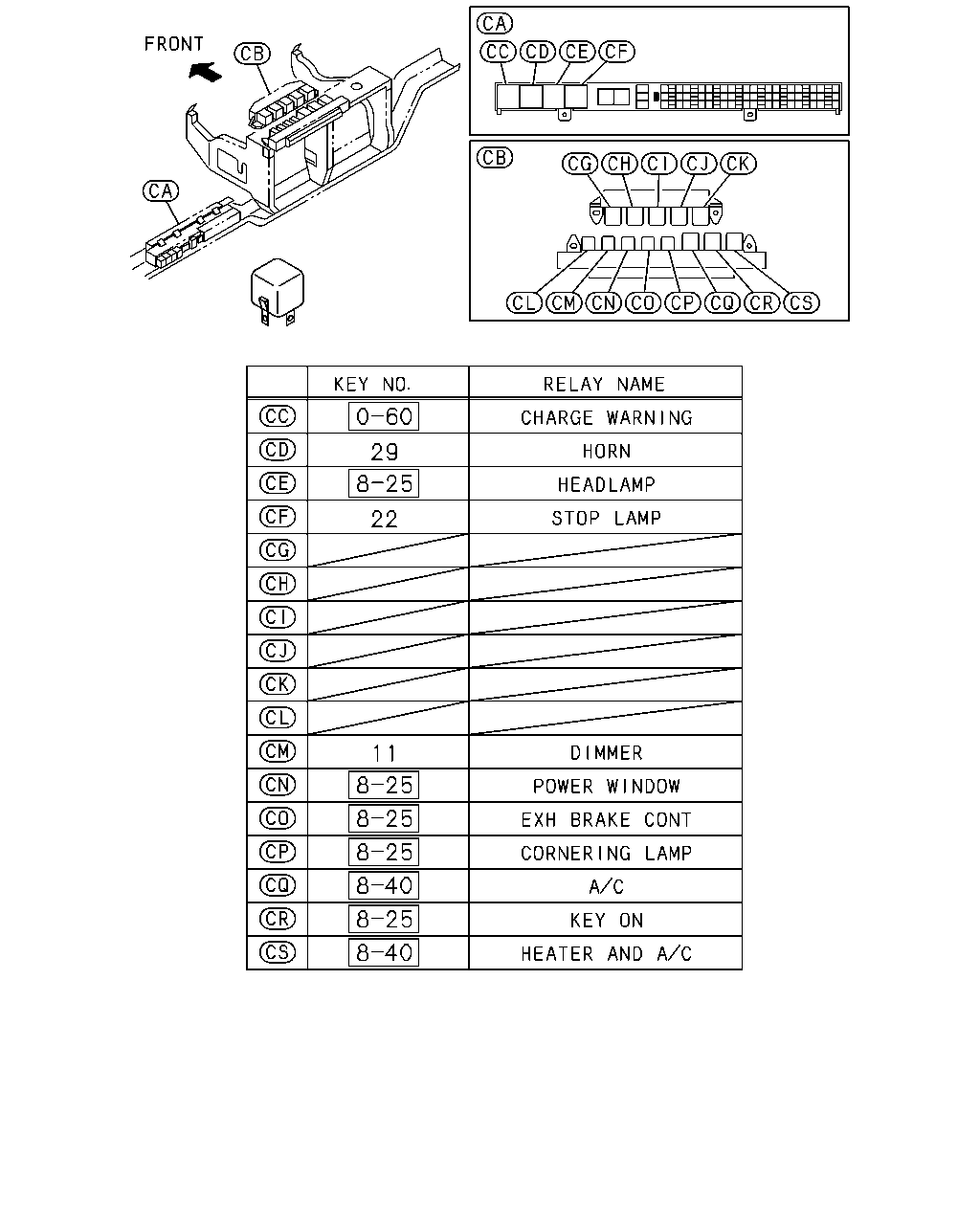

çizim 190763
29 22 11
BalonParca AdiParca NoAdetTipApplied Date A B
11 02.485 RELAY; DIMMER
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0507 ● ●
11 02.485 RELAY; DIMMER
08.852 24V 10A PANASONIC IDN 		8-97173-035-1 01 1 0508-0609 ● ●
11 02.485 RELAY; DIMMER
VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC IDN 		8-97173-035-1 01 1 0610-0712 ●
11 02.485 RELAY; DIMMER
08.852 24V 10A PANASONIC IDN 		8-97173-035-1 01 1 0610-0712 ●
11 02.485 RELAY; DIMMER
VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC IDN 		8-97173-035-1 01 1 0801- ● ●
11 02.485 RELAY; DIMMER
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A IDN 		8-97173-037-1 01 1 0610-0712 ●
11 02.485 RELAY; DIMMER
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A IDN 		8-97173-037-1 01 1 0801- ● ●
22 02.679 RELAY; STOP LAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0507 ● ●
22 02.679 RELAY; STOP LAMP
08.852 24V 10A PANASONIC IDN 		8-97173-035-1 01 1 0508-0609 ● ●
22 02.679 RELAY; STOP LAMP
VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC IDN 		8-97173-035-1 01 1 0610-0712 ●
22 02.679 RELAY; STOP LAMP
08.852 24V 10A PANASONIC IDN 		8-97173-035-1 01 1 0610-0712 ●
22 02.679 RELAY; STOP LAMP
VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC IDN 		8-97173-035-1 01 1 0801- ● ●
22 02.679 RELAY; STOP LAMP
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A IDN 		8-97173-037-1 01 1 0610-0712 ●
22 02.679 RELAY; STOP LAMP
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A IDN 		8-97173-037-1 01 1 0801- ● ●
29 02.815 RELAY; HORN
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0507 ● ●
29 02.815 RELAY; HORN
08.852 24V 10A PANASONIC IDN 		8-97173-035-1 01 1 0508-0609 ● ●
29 02.815 RELAY; HORN
VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC IDN 		8-97173-035-1 01 1 0610-0712 ●
29 02.815 RELAY; HORN
08.852 24V 10A PANASONIC IDN 		8-97173-035-1 01 1 0610-0712 ●
29 02.815 RELAY; HORN
VOLTAGE 24V<7AE> 08.852 24V 10A PANASONIC IDN 		8-97173-035-1 01 1 0801- ● ●
29 02.815 RELAY; HORN
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A IDN 		8-97173-037-1 01 1 0610-0712 ●
29 02.815 RELAY; HORN
EXC. VOLTAGE 24V<7AE> 02.510 12V 20A IDN 		8-97173-037-1 01 1 0801- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
