◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51280 - NKR INDONESIA ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#79017) — 77 parça

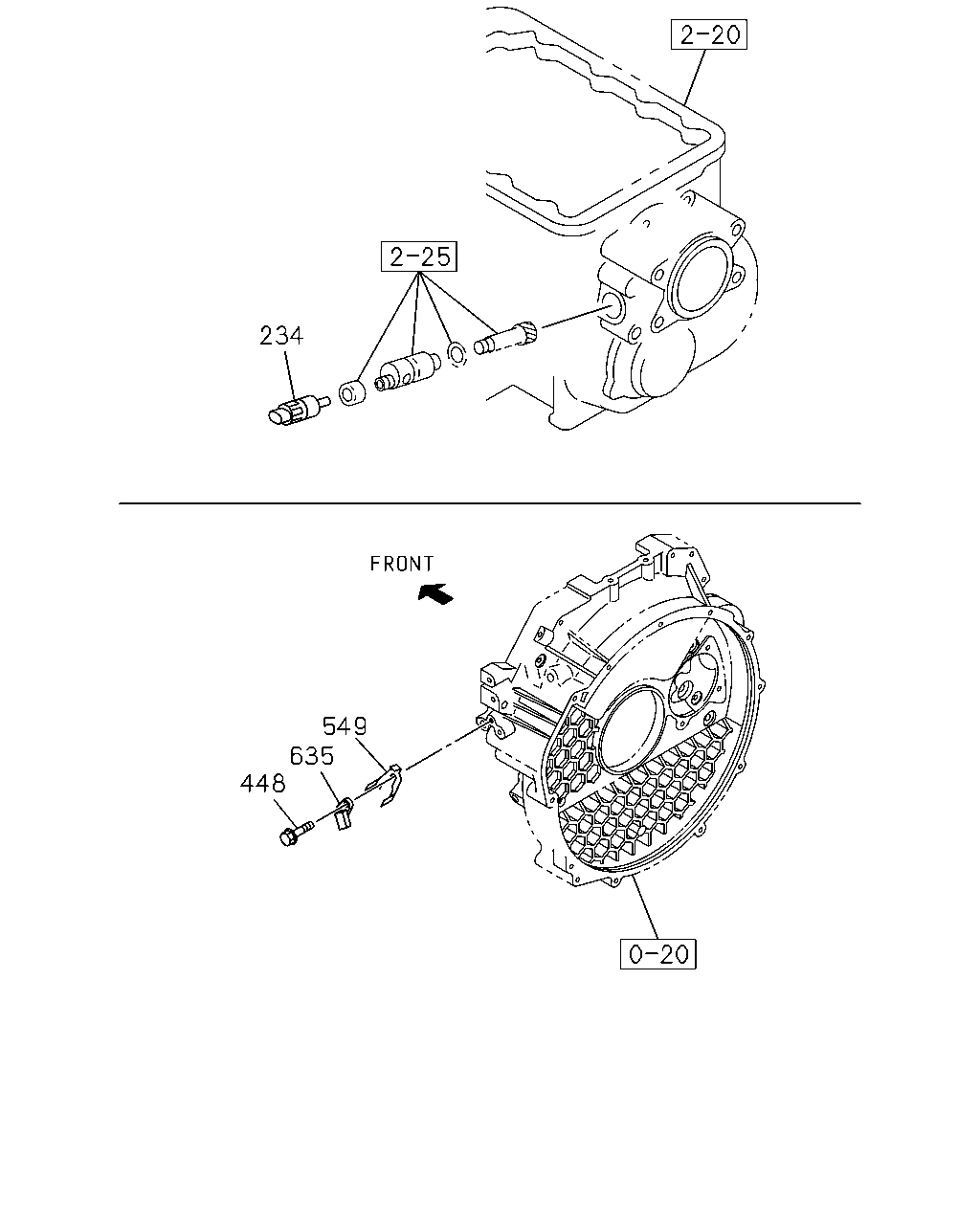

çizim 138063
234 549 635 448
BalonParca AdiParca NoAdetTipApplied Date A B
234 03.682 SENSOR; VEHICLE SPD
4 PULSE ALUMINUM 		8-97256-525-0 01 1 0211- ● ●
448 02.500 BOLT; SENSOR
4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 00.738 M6X16 FLANGE 		0-28080-616-0 01 1 0211-0303 ●
448 02.500 BOLT; SENSOR
4HG1 ENG(RJH) EXC. AIR CONDITIONER MANUAL CONT(C60), EXHAUST BRAKE<NF8>,ENGINE POWER N-SPEC(7QV) 00.738 M6X16 FLANGE 		0-28080-616-0 01 1 0211-0303 ●
448 02.500 BOLT; SENSOR
4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60) 00.738 M6X16 FLANGE 		0-28080-616-0 01 1 0211-0303 ●
448 02.500 BOLT; SENSOR
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60), ENGINE POWER N-SPEC(7QV) 00.738 M6X16 FLANGE 		0-28080-616-0 01 1 0211-0303 ●
448 02.500 BOLT; SENSOR
4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60) 00.738 M6X16 FLANGE 		0-28080-616-0 01 1 0304-0507 ● ●
448 02.500 BOLT; SENSOR
4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 00.738 M6X16 FLANGE 		0-28080-616-0 01 1 0304-0507 ●
448 02.500 BOLT; SENSOR
4HG1 ENG(RJH) EXC. AIR CONDITIONER MANUAL CONT(C60), EXHAUST BRAKE<NF8>,ENGINE POWER N-SPEC(7QV) 00.738 M6X16 FLANGE 		0-28080-616-0 01 1 0304-0507 ●
448 02.500 BOLT; SENSOR
4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60) 00.738 M6X16 FLANGE 		0-28080-616-0 01 1 0304-0507 ●
448 02.500 BOLT; SENSOR
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60), ENGINE POWER N-SPEC(7QV) 00.738 M6X16 FLANGE 		0-28080-616-0 01 1 0304-0507 ●
448 02.500 BOLT; SENSOR
4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 00.738 M6X16 FLANGE 		0-28080-616-0 01 1 0508-0512 ●
448 02.500 BOLT; SENSOR
4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 00.738 M6X16 FLANGE 		0-28080-616-0 01 1 0508-0512 ●
448 02.500 BOLT; SENSOR
4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 09.242 M6X16 FLANGE IDN 		0-28050-616-0 01 1 0601-0609 ●
448 02.500 BOLT; SENSOR
4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 09.242 M6X16 FLANGE IDN 		0-28050-616-0 01 1 0601-0609 ●
448 02.500 BOLT; SENSOR
4HF1-N ENG(RJZ) FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> GLOW SYSTEM DELETE<7RK> EXC. AIR CONDITIONER MANUAL CONT(C60) 09.242 M6X16 FLANGE IDN 		0-28050-616-0 01 1 0610-0712 ●
448 02.500 BOLT; SENSOR
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 09.242 M6X16 FLANGE IDN 		0-28050-616-0 01 1 0610-0712 ●
448 02.500 BOLT; SENSOR
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 09.242 M6X16 FLANGE IDN 		0-28050-616-0 01 1 0801- ● ●
549 02.510 SHEET
4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 09.743 		8-97161-633-2 01 1 0211-0303 ●
549 02.510 SHEET
4HG1 ENG(RJH) EXC. AIR CONDITIONER MANUAL CONT(C60), EXHAUST BRAKE<NF8>,ENGINE POWER N-SPEC(7QV) 09.743 		8-97161-633-2 01 1 0211-0303 ●
549 02.510 SHEET
4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60) 09.743 		8-97161-633-2 01 1 0211-0303 ●
549 02.510 SHEET
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60), ENGINE POWER N-SPEC(7QV) 09.743 		8-97161-633-2 01 1 0211-0303 ●
549 02.510 SHEET
4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60) 09.743 		8-97161-633-2 01 1 0304-0507 ● ●
549 02.510 SHEET
4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 09.743 		8-97161-633-2 01 1 0304-0507 ●
549 02.510 SHEET
4HG1 ENG(RJH) EXC. AIR CONDITIONER MANUAL CONT(C60), EXHAUST BRAKE<NF8>,ENGINE POWER N-SPEC(7QV) 09.743 		8-97161-633-2 01 1 0304-0507 ●
549 02.510 SHEET
4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60) 09.743 		8-97161-633-2 01 1 0304-0507 ●
549 02.510 SHEET
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60), ENGINE POWER N-SPEC(7QV) 09.743 		8-97161-633-2 01 1 0304-0507 ●
549 02.510 SHEET
4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 09.743 		8-97161-633-2 01 1 0508-0609 ●
549 02.510 SHEET
4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 09.743 		8-97161-633-2 01 1 0508-0609 ●
549 02.510 SHEET
4HF1-N ENG(RJZ) FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> GLOW SYSTEM DELETE<7RK> EXC. AIR CONDITIONER MANUAL CONT(C60) 09.743 		8-97161-633-2 01 1 0610-0712 ●
549 02.510 SHEET
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 09.743 		8-97161-633-2 01 1 0610-0712 ●
549 02.510 SHEET
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 09.743 		8-97161-633-2 01 1 0801- ● ●
635 09.750 SENSOR; TACHOMETER
4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) CALSONIC KANSEI 		8-97163-104-0 01 1 0211-0303 ●
635 09.750 SENSOR; TACHOMETER
4HG1 ENG(RJH) EXC. AIR CONDITIONER MANUAL CONT(C60), EXHAUST BRAKE<NF8>,ENGINE POWER N-SPEC(7QV) CALSONIC KANSEI 		8-97163-104-0 01 1 0211-0303 ●
635 09.750 SENSOR; TACHOMETER
4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60) CALSONIC KANSEI 		8-97163-104-0 01 1 0211-0303 ●
635 09.750 SENSOR; TACHOMETER
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60), ENGINE POWER N-SPEC(7QV) CALSONIC KANSEI 		8-97163-104-0 01 1 0211-0303 ●
635 09.750 SENSOR; TACHOMETER
4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60) CALSONIC KANSEI 		8-97163-104-0 01 1 0304-0507 ● ●
635 09.750 SENSOR; TACHOMETER
4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) CALSONIC KANSEI 		8-97163-104-0 01 1 0304-0507 ●
635 09.750 SENSOR; TACHOMETER
4HG1 ENG(RJH) EXC. AIR CONDITIONER MANUAL CONT(C60), EXHAUST BRAKE<NF8>,ENGINE POWER N-SPEC(7QV) CALSONIC KANSEI 		8-97163-104-0 01 1 0304-0507 ●
635 09.750 SENSOR; TACHOMETER
4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60) CALSONIC KANSEI 		8-97163-104-0 01 1 0304-0507 ●
635 09.750 SENSOR; TACHOMETER
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60), ENGINE POWER N-SPEC(7QV) CALSONIC KANSEI 		8-97163-104-0 01 1 0304-0507 ●
635 09.750 SENSOR; TACHOMETER
4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) CALSONIC KANSEI 		8-97163-104-0 01 1 0508-0609 ●
635 09.750 SENSOR; TACHOMETER
4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) CALSONIC KANSEI 		8-97163-104-0 01 1 0508-0609 ●
635 09.750 SENSOR; TACHOMETER
4HF1-N ENG(RJZ) FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> GLOW SYSTEM DELETE<7RK> EXC. AIR CONDITIONER MANUAL CONT(C60) CALSONIC KANSEI 		8-97163-104-0 01 1 0610-0712 ●
635 09.750 SENSOR; TACHOMETER
4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) CALSONIC KANSEI 		8-97163-104-0 01 1 0610-0712 ●
635 09.750 SENSOR; TACHOMETER
4HF1-N ENG(RJZ) FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> GLOW SYSTEM DELETE<7RK> EXC. AIR CONDITIONER MANUAL CONT(C60) CALSONIC KANSEI 		8-97163-104-0 01 1 0801- ●
635 09.750 SENSOR; TACHOMETER
4HG1 ENG(RJH),4HF1-N ENG(RJZ) FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> GLOW SYSTEM DELETE<7RK> EXC. AIR CONDITIONER MANUAL CONT(C60) CALSONIC KANSEI 		8-97163-104-0 01 1 0801- ●
635 09.750 SENSOR; TACHOMETER
4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) YAZAKI 		8-97214-325-0 01 1 0610-0712 ●
635 09.750 SENSOR; TACHOMETER
4HG1-T ENG(RDP) GLOW SYSTEM DELETE<7RK> YAZAKI 		8-97214-325-0 01 1 0801-1003 ●
635 09.750 SENSOR; TACHOMETER
4HG1-T ENG(RDP) YAZAKI 		8-97214-325-0 01 1 1004- ●

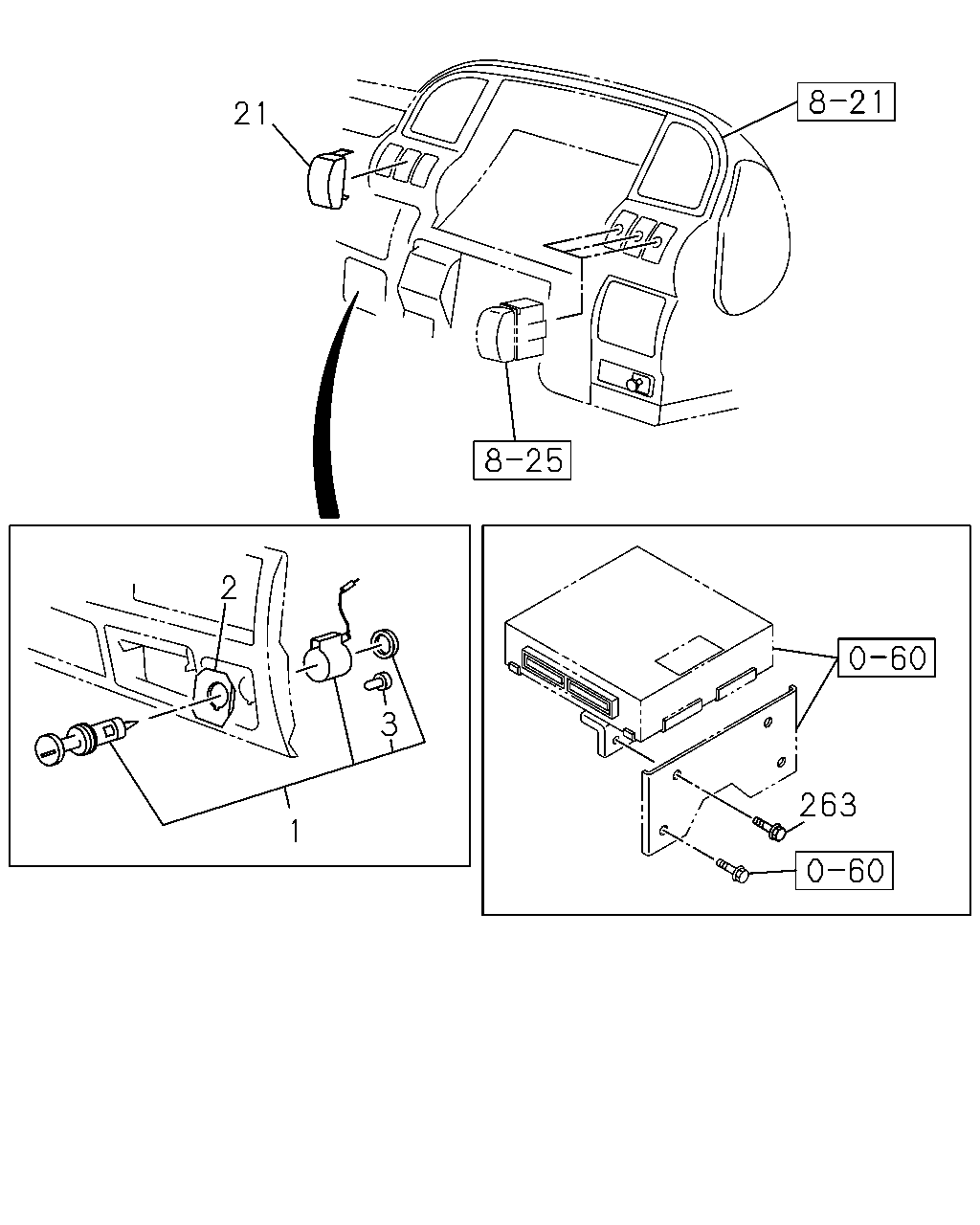

çizim 138533
21 2 3 263 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.709 LIGHTER; CIGAR
IDN 		8-97320-325-0 01 1 0211-0609 ● ●
1 09.709 LIGHTER; CIGAR
VOLTAGE 24V<7AE> IDN 		8-97320-325-0 01 1 0610-0712 ●
1 09.709 LIGHTER; CIGAR
IDN 		8-97320-325-0 01 1 0610-0712 ●
1 09.709 LIGHTER; CIGAR
VOLTAGE 24V<7AE> IDN 		8-97320-325-0 01 1 0801- ● ●
1 09.709 LIGHTER; CIGAR
EXC. VOLTAGE 24V<7AE> IDN 		8-97320-322-0 01 1 0610-0712 ●
1 09.709 LIGHTER; CIGAR
EXC. VOLTAGE 24V<7AE> IDN 		8-97320-322-0 01 1 0801- ● ●
2 09.709 BEZEL; CIGAR LIGHTER 8-97853-159-1 01 1 0211-0706 ● ●
2 09.709 BEZEL; CIGAR LIGHTER 8-98091-060-0 01 1 0707- ● ●
3 08.991 BULB; CIGAR LIGHTER
28V 1.8W IDN 		8-97173-159-0 01 1 0211-0609 ● ●
3 08.991 BULB; CIGAR LIGHTER
VOLTAGE 24V<7AE> 28V 1.8W IDN 		8-97173-159-0 01 1 0610-0712 ●
3 08.991 BULB; CIGAR LIGHTER
28V 1.8W IDN 		8-97173-159-0 01 1 0610-0712 ●
3 08.991 BULB; CIGAR LIGHTER
VOLTAGE 24V<7AE> 28V 1.8W IDN 		8-97173-159-0 01 1 0801- ● ●
3 08.991 BULB; CIGAR LIGHTER
EXC. VOLTAGE 24V<7AE> 14V 1.4W IDN 		8-97173-160-0 01 1 0610-0712 ●
3 08.991 BULB; CIGAR LIGHTER
EXC. VOLTAGE 24V<7AE> 14V 1.4W IDN 		8-97173-160-0 01 1 0801- ● ●
21 09.744 COVER; HOLE
IDN 		8-97136-694-0 02 1 0211-0507 ● ●
21 09.744 COVER; HOLE
4HG1 ENG(RJH),4HF1-S ENG(RLS) IDN 		8-97136-694-0 01 1 0211-0507 ● ●
21 09.744 COVER; HOLE
IDN 		8-97136-694-0 01 1 0508-0609 ● ●
21 09.744 COVER; HOLE
4HF1-N ENG(RJZ) IDN 		8-97136-694-0 01 1 0508-0609 ●
21 09.744 COVER; HOLE
4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN 		8-97136-694-0 01 1 0508-0609 ●
21 09.744 COVER; HOLE
IDN 		8-97136-694-0 01 1 0610-0712 ● ●
21 09.744 COVER; HOLE
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) IDN 		8-97136-694-0 01 1 0610-0712 ●
21 09.744 COVER; HOLE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN 		8-97136-694-0 01 1 0610-0712 ●
21 09.744 COVER; HOLE
IDN 		8-97136-694-0 01 1 0801- ● ●
21 09.744 COVER; HOLE
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) IDN 		8-97136-694-0 01 1 0801- ●
21 09.744 COVER; HOLE
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN 		8-97136-694-0 01 1 0801- ●
263 04.115 BOLT; CONT UNIT
4HG1-T ENG(RDP) M6X20 FLANGE 		0-28250-620-0 02 1 0610-1404 ●
263 04.115 BOLT; CONT UNIT
4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2014(VZE) M6X20 FLANGE 		0-28250-620-0 02 1 1405-1405 ●
263 04.115 BOLT; CONT UNIT
4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015(VZF) M6X20 FLANGE 		0-28250-620-0 02 1 1406- ●
