◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51280 - NKR INDONESIA ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#79015) — 322 parça

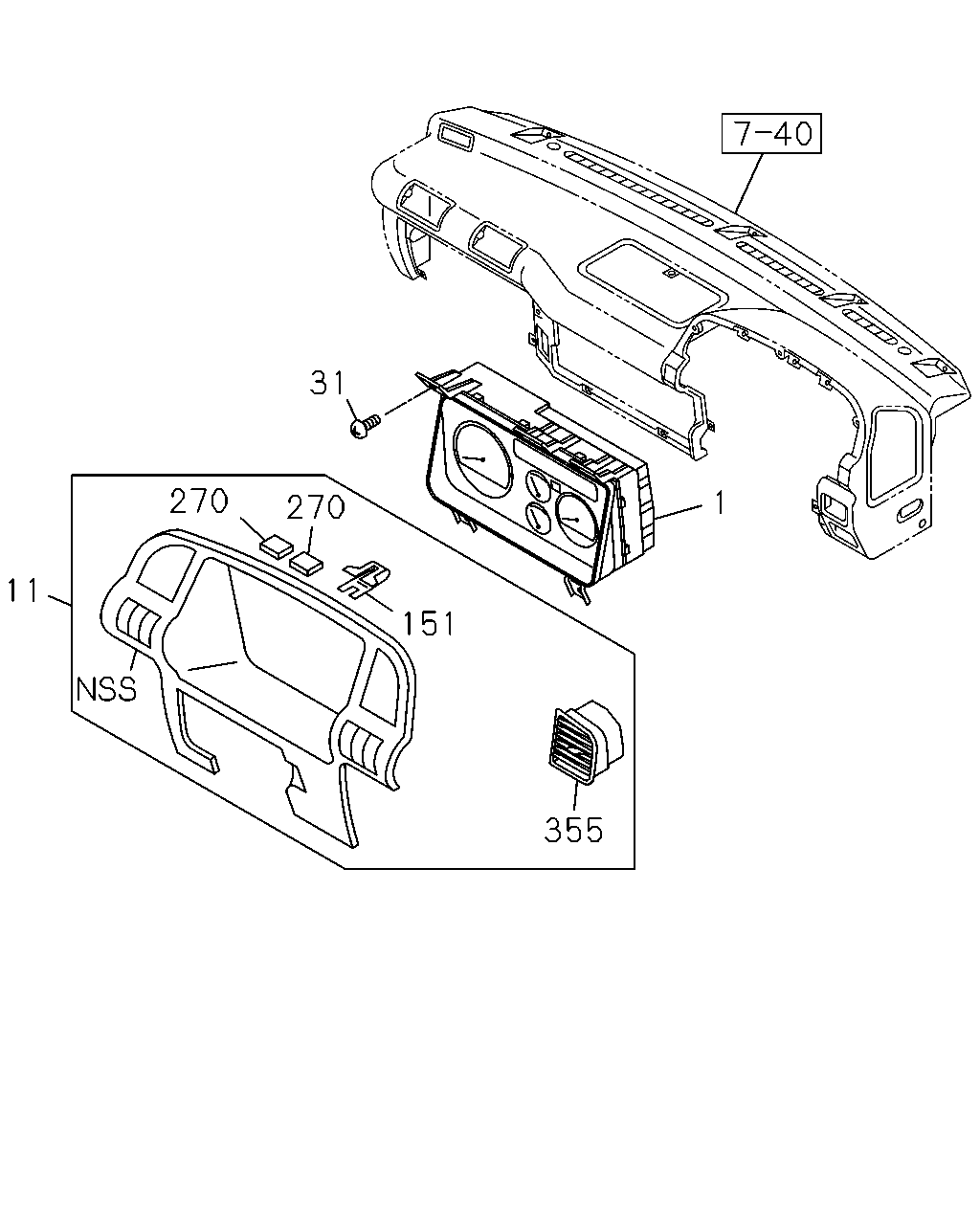

çizim 137754
31 270 1 270 11 151 355
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.735 METER COMPL; CLUSTER
4JB1-TC ENG(RDT) PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16> 		8-98179-891-1 01 1 1207- ● ●
1 09.735 METER COMPL; CLUSTER
4JB1-TC ENG(RDT) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97381-294-1 01 1 1207- ● ●
1 09.735 METER COMPL; CLUSTER
4HF1-N ENG(RJZ) PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16> 		8-98179-899-1 01 1 1207- ● ●
1 09.735 METER COMPL; CLUSTER
4HF1-N ENG(RJZ) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97383-491-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97383-491-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16> 		8-98179-901-1 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-98000-849-1 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97170-596-2 01 1 0211-0507 ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97383-490-0 01 1 0508-1206 ● ●
1 09.735 METER COMPL; CLUSTER
4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> 		8-97383-490-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> 		8-97383-490-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) 		8-98000-850-1 01 1 0610-1206 ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> 		8-98000-850-1 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4JB1-TC ENG(RDT) 		8-97381-293-0 01 1 0610-0712 ●
1 09.735 METER COMPL; CLUSTER
4JB1-TC ENG(RDT) 		8-97381-293-0 01 1 0801-1206 ● ●
1 09.735 METER COMPL; CLUSTER
4JB1-TC ENG(RDT) EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> 		8-97381-293-0 01 1 1207- ● ●
11 09.743 CLUSTER ASM; METER
BLACK IDN 		8-97195-964-2 01 1 0211- ● ●
31 09.761 SCREW; METER,INST PANEL
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0211-1210 ● ●
31 09.761 SCREW; METER,INST PANEL
02.587 M6X19.5 W/LK&PL WASHER IDN 		8-97360-226-0 05 1 1211- ● ●
151 09.747 CLIP; METER CLUSTER
IDN 		8-97217-066-0 14 1 0211-0211 ● ●
151 09.747 CLIP; METER CLUSTER
IDN 		8-97217-066-0 07 1 0211- ● ●
270 09.743 CUSHION; METER CLUSTER
6X30 T=2 IDN 		8-94270-378-1 04 1 0211-0211 ● ●
270 09.743 CUSHION; METER CLUSTER
6X30 T=2 IDN 		8-94270-378-1 02 1 0211- ● ●
270 09.743 CUSHION; METER CLUSTER
16.085 15X30 T=5 IDN 		8-94270-366-2 01 1 0401- ● ●
355 09.748 GRILLE; VENT
BLACK IDN 		8-97195-966-1 02 1 0211-0211 ● ●
355 09.748 GRILLE; VENT
BLACK IDN 		8-97195-966-1 01 1 0211- ● ●
355 09.748 GRILLE; VENT
BLACK IDN 		8-97195-967-1 02 1 0211-0211 ● ●
355 09.748 GRILLE; VENT
BLACK IDN 		8-97195-967-1 01 1 0211- ● ●

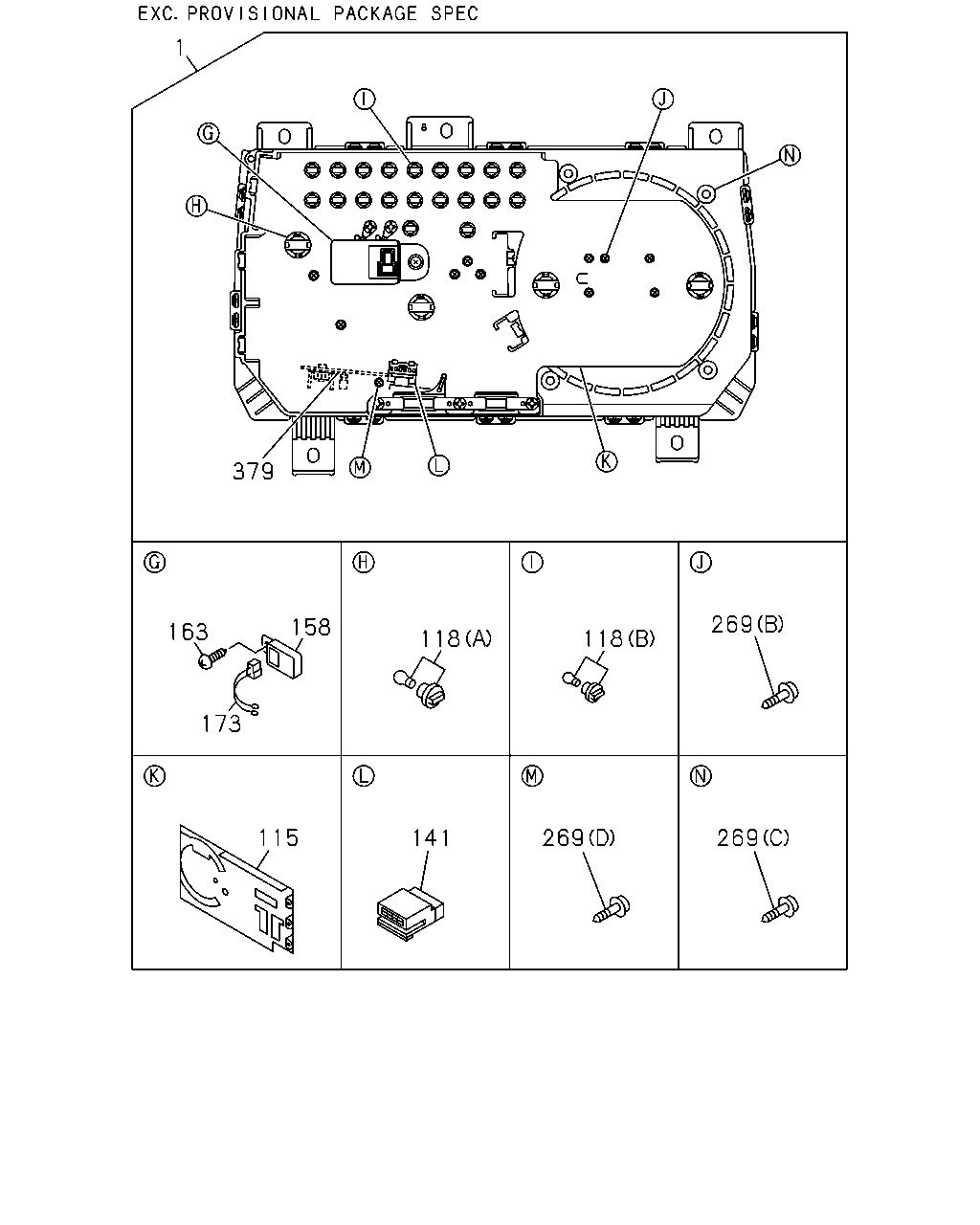

çizim 137763
1 163 158 118 173 118 269 269 269 141 115 379
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.735 METER COMPL; CLUSTER
4JB1-TC ENG(RDT) PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16> 		8-98179-891-1 01 1 1207- ● ●
1 09.735 METER COMPL; CLUSTER
4JB1-TC ENG(RDT) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97381-294-1 01 1 1207- ● ●
1 09.735 METER COMPL; CLUSTER
4HF1-N ENG(RJZ) PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16> 		8-98179-899-1 01 1 1207- ● ●
1 09.735 METER COMPL; CLUSTER
4HF1-N ENG(RJZ) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97383-491-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97383-491-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16> 		8-98179-901-1 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-98000-849-1 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97170-596-2 01 1 0211-0507 ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97383-490-0 01 1 0508-1206 ● ●
1 09.735 METER COMPL; CLUSTER
4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> 		8-97383-490-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> 		8-97383-490-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) 		8-98000-850-1 01 1 0610-1206 ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> 		8-98000-850-1 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4JB1-TC ENG(RDT) 		8-97381-293-0 01 1 0610-0712 ●
1 09.735 METER COMPL; CLUSTER
4JB1-TC ENG(RDT) 		8-97381-293-0 01 1 0801-1206 ● ●
1 09.735 METER COMPL; CLUSTER
4JB1-TC ENG(RDT) EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> 		8-97381-293-0 01 1 1207- ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JB1-TC ENG(RDT) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97185-506-0 01 1 1207- ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4HF1-N ENG(RJZ) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97185-507-0 01 1 1207- ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4HG1 ENG(RJH),4HF1-N ENG(RJZ) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97185-507-0 01 1 1207- ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4HG1-T ENG(RDP) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97210-311-0 01 1 1207- ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97185-489-0 01 1 0211-0507 ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97185-489-0 01 1 0508-0609 ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97185-489-0 01 1 0610-1206 ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> 		8-97185-489-0 01 1 1207- ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JB1-TC ENG(RDT) 		8-97185-499-0 01 1 0610-0712 ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JB1-TC ENG(RDT) 		8-97185-499-0 01 1 0801-1206 ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JB1-TC ENG(RDT) EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> 		8-97185-499-0 01 1 1207- ● ●
118 08.991 BULB; CLUSTER METER
4JB1-TC ENG(RDT) EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> (B) 12V SOCKET COLOR BLACK 		8-97185-536-0 09 1 1207- ● ●
118 08.991 BULB; CLUSTER METER
4HG1 ENG(RJH),4HF1-S ENG(RLS) (A) 24V SOCKET COLOR DARK BROWN 		8-97185-538-0 04 1 0211-0507 ● ●
118 08.991 BULB; CLUSTER METER
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) 24V SOCKET COLOR DARK BROWN 		8-97185-538-0 04 1 0508-0609 ● ●
118 08.991 BULB; CLUSTER METER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) 24V SOCKET COLOR DARK BROWN 		8-97185-538-0 04 1 0610-1206 ● ●
118 08.991 BULB; CLUSTER METER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 24V SOCKET COLOR DARK BROWN 		8-97185-538-0 04 1 1207- ● ●
118 08.991 BULB; CLUSTER METER
4HG1 ENG(RJH),4HF1-S ENG(RLS) (B) 24V SOCKET COLOR DARK BROWN 		8-97185-539-0 09 1 0211-0507 ● ●
118 08.991 BULB; CLUSTER METER
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) 24V SOCKET COLOR DARK BROWN 		8-97185-539-0 10 1 0508-1206 ● ●
118 08.991 BULB; CLUSTER METER
4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) 24V SOCKET COLOR DARK BROWN 		8-97185-539-0 10 1 1207- ● ●
118 08.991 BULB; CLUSTER METER
4HG1 ENG(RJH),4HF1-S ENG(RLS) (B) 24V SOCKET COLOR REDDISH BROWN 		8-97185-540-0 02 1 0211-0507 ● ●
118 08.991 BULB; CLUSTER METER
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) 24V SOCKET COLOR REDDISH BROWN 		8-97185-540-0 02 1 0508-0609 ● ●
118 08.991 BULB; CLUSTER METER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) 24V SOCKET COLOR REDDISH BROWN 		8-97185-540-0 02 1 0610-1206 ● ●
118 08.991 BULB; CLUSTER METER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) 24V SOCKET COLOR REDDISH BROWN 		8-97185-540-0 02 1 1207- ● ●
118 08.991 BULB; CLUSTER METER
4HG1-T ENG(RDP) (B) 24V SOCKET COLOR DARK BROWN 		8-97185-539-0 11 1 0610-1206 ●
118 08.991 BULB; CLUSTER METER
4HG1-T ENG(RDP) EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) 24V SOCKET COLOR DARK BROWN 		8-97185-539-0 11 1 1207- ●
118 08.991 BULB; CLUSTER METER
4JB1-TC ENG(RDT) (A) 12V SOCKET COLOR BLACK 		8-97185-535-0 04 1 0610-0712 ●
118 08.991 BULB; CLUSTER METER
4JB1-TC ENG(RDT) (A) 12V SOCKET COLOR BLACK 		8-97185-535-0 04 1 0801-1206 ● ●
118 08.991 BULB; CLUSTER METER
4JB1-TC ENG(RDT) EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 12V SOCKET COLOR BLACK 		8-97185-535-0 04 1 1207- ● ●
118 08.991 BULB; CLUSTER METER
4JB1-TC ENG(RDT) (B) 12V SOCKET COLOR BLACK 		8-97185-536-0 09 1 0610-0712 ●
118 08.991 BULB; CLUSTER METER
4JB1-TC ENG(RDT) (B) 12V SOCKET COLOR BLACK 		8-97185-536-0 09 1 0801-1206 ● ●
118 08.991 BULB; CLUSTER METER
4JB1-TC ENG(RDT) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) 12V SOCKET COLOR BLACK 		8-97185-536-0 10 1 1207- ● ●
118 08.991 BULB; CLUSTER METER
4JB1-TC ENG(RDT) (B) 12V SOCKET COLOR BLUE 		8-97185-537-0 02 1 0610-0712 ●
118 08.991 BULB; CLUSTER METER
4JB1-TC ENG(RDT) (B) 12V SOCKET COLOR BLUE 		8-97185-537-0 02 1 0801-1206 ● ●
118 08.991 BULB; CLUSTER METER
4JB1-TC ENG(RDT) EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) 12V SOCKET COLOR BLUE 		8-97185-537-0 02 1 1207- ● ●
141 09.744 CONNECTOR; CLUSTER METER
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97185-513-0 01 1 0211-0507 ● ●
141 09.744 CONNECTOR; CLUSTER METER
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97185-513-0 01 1 0508-0609 ● ●
141 09.744 CONNECTOR; CLUSTER METER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97185-513-0 01 1 0610-1206 ● ●
141 09.744 CONNECTOR; CLUSTER METER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97185-513-0 01 1 1207- ● ●
158 09.765 BUZZER; VAC WARNING
4HG1 ENG(RJH),4HF1-S ENG(RLS) 24V 		8-97185-519-0 01 1 0211-0507 ● ●
158 09.765 BUZZER; VAC WARNING
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 24V 		8-97185-519-0 01 1 0508-0609 ● ●
158 09.765 BUZZER; VAC WARNING
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 24V 		8-97185-519-0 01 1 0610-1206 ● ●
158 09.765 BUZZER; VAC WARNING
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC> 24V 		8-97185-519-0 01 1 1207- ● ●
158 09.765 BUZZER; VAC WARNING
4JB1-TC ENG(RDT) 12V 		8-97185-520-0 01 1 0610-0712 ●
158 09.765 BUZZER; VAC WARNING
4JB1-TC ENG(RDT) 12V 		8-97185-520-0 01 1 0801-1206 ● ●
158 09.765 BUZZER; VAC WARNING
4JB1-TC ENG(RDT) EXC. PROVISIONAL PACKAGE SPEC<BCC> 12V 		8-97185-520-0 01 1 1207- ● ●
163 08.977 SCREW; BUZZER
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97185-527-0 01 1 0211-0507 ● ●
163 08.977 SCREW; BUZZER
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97185-527-0 01 1 0508-0609 ● ●
163 08.977 SCREW; BUZZER
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 		8-97185-527-0 01 1 0610-0712 ●
163 08.977 SCREW; BUZZER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97185-527-0 01 1 0610-0712 ●
163 08.977 SCREW; BUZZER
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 		8-97185-527-0 01 1 0801-1206 ●
163 08.977 SCREW; BUZZER
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97185-527-0 01 1 0801-1206 ●
163 08.977 SCREW; BUZZER
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97185-527-0 01 1 1207- ●
163 08.977 SCREW; BUZZER
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97185-527-0 01 1 1207- ●
173 09.744 WIRE; LEAD
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97185-643-0 01 1 0211-0507 ● ●
173 09.744 WIRE; LEAD
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97185-643-0 01 1 0508-0609 ● ●
173 09.744 WIRE; LEAD
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 		8-97185-643-0 01 1 0610-0712 ●
173 09.744 WIRE; LEAD
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97185-643-0 01 1 0610-0712 ●
173 09.744 WIRE; LEAD
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 		8-97185-643-0 01 1 0801-1206 ●
173 09.744 WIRE; LEAD
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97185-643-0 01 1 0801-1206 ●
173 09.744 WIRE; LEAD
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97185-643-0 01 1 1207- ●
173 09.744 WIRE; LEAD
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97185-643-0 01 1 1207- ●
269 09.743 SCREW; METER CLUSTER
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> (B) 		8-97185-524-0 07 1 1207- ●
269 09.743 SCREW; METER CLUSTER
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> (B) 		8-97185-524-0 07 1 1207- ●
269 09.743 SCREW; METER CLUSTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) (D) 		8-97185-523-0 01 1 0211-0507 ● ●
269 09.743 SCREW; METER CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (D) 		8-97185-523-0 01 1 0508-0609 ● ●
269 09.743 SCREW; METER CLUSTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (D) 		8-97185-523-0 01 1 0610-1206 ● ●
269 09.743 SCREW; METER CLUSTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC> (D) 		8-97185-523-0 01 1 1207- ● ●
269 09.743 SCREW; METER CLUSTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) (B) 		8-97185-524-0 07 1 0211-0507 ● ●
269 09.743 SCREW; METER CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) 		8-97185-524-0 07 1 0508-0609 ● ●

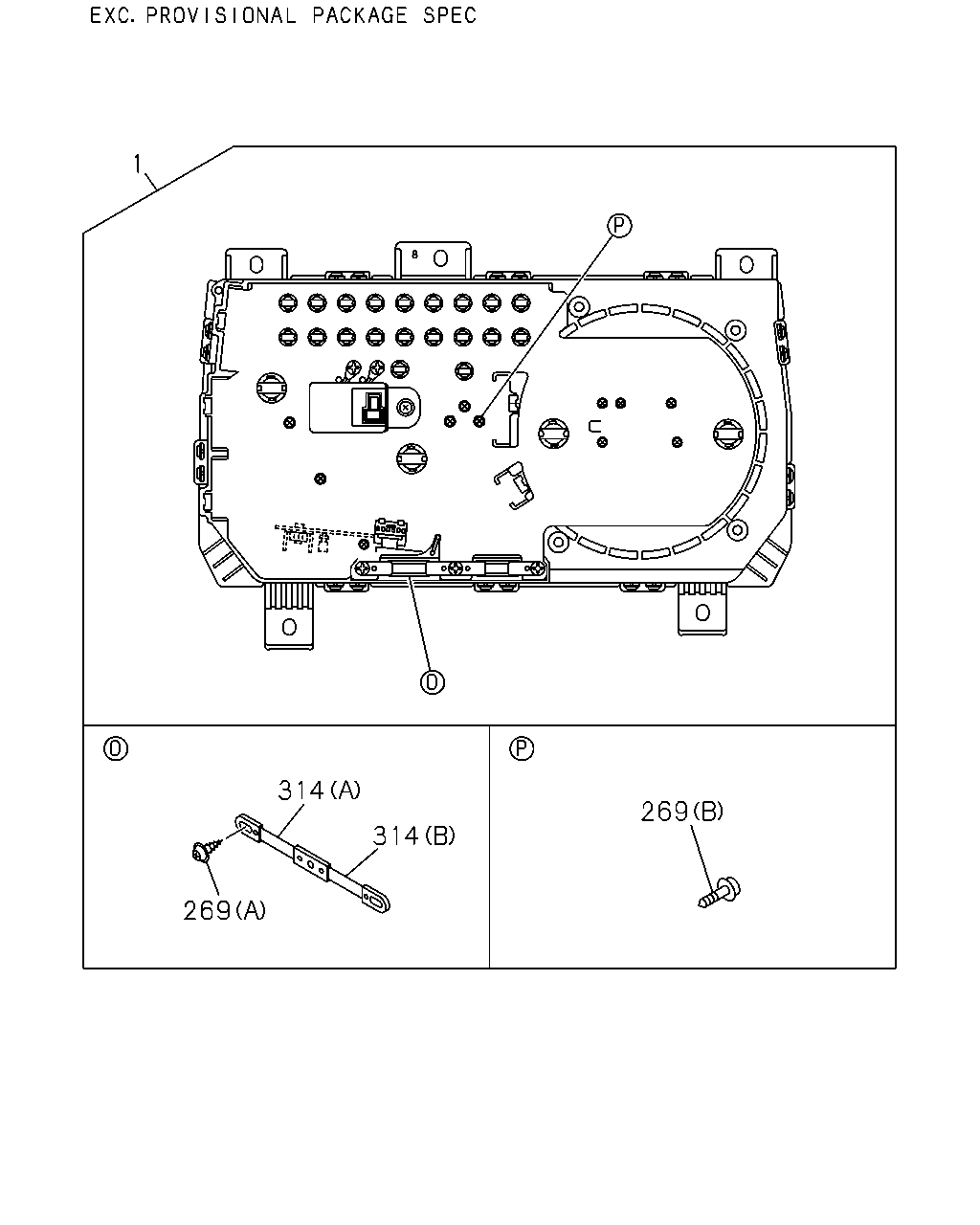

269 09.743 SCREW; METER CLUSTER
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (B) 		8-97185-524-0 07 1 0610-0712 ●
269 09.743 SCREW; METER CLUSTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) 		8-97185-524-0 07 1 0610-0712 ●
269 09.743 SCREW; METER CLUSTER
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (B) 		8-97185-524-0 07 1 0801-1206 ●
269 09.743 SCREW; METER CLUSTER
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) 		8-97185-524-0 07 1 0801-1206 ●
269 09.743 SCREW; METER CLUSTER
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) 		8-97185-524-0 08 1 1207- ●
269 09.743 SCREW; METER CLUSTER
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) 		8-97185-524-0 08 1 1207- ●
269 09.743 SCREW; METER CLUSTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) (C) 		8-97185-525-0 06 1 0211-0507 ● ●
269 09.743 SCREW; METER CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (C) 		8-97185-525-0 06 1 0508-0609 ● ●
269 09.743 SCREW; METER CLUSTER
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (C) 		8-97185-525-0 06 1 0610-0712 ●
269 09.743 SCREW; METER CLUSTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (C) 		8-97185-525-0 06 1 0610-0712 ●
269 09.743 SCREW; METER CLUSTER
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (C) 		8-97185-525-0 06 1 0801-1206 ●
269 09.743 SCREW; METER CLUSTER
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (C) 		8-97185-525-0 06 1 0801-1206 ●
269 09.743 SCREW; METER CLUSTER
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC> (C) 		8-97185-525-0 06 1 1207- ●
269 09.743 SCREW; METER CLUSTER
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC> (C) 		8-97185-525-0 06 1 1207- ●
269 09.743 SCREW; METER CLUSTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) (A) 		8-97185-528-0 05 1 0211-0507 ● ●
269 09.743 SCREW; METER CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) 		8-97185-528-0 05 1 0508-0609 ● ●
269 09.743 SCREW; METER CLUSTER
4JB1-TC ENG(RDT) (A) 		8-97185-528-0 02 1 0610-0712 ●
269 09.743 SCREW; METER CLUSTER
4JB1-TC ENG(RDT) (A) 		8-97185-528-0 02 1 0801-1206 ● ●
269 09.743 SCREW; METER CLUSTER
4JB1-TC ENG(RDT) EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 		8-97185-528-0 02 1 1207- ● ●
269 09.743 SCREW; METER CLUSTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) 		8-97185-528-0 05 1 0610-1206 ● ●
269 09.743 SCREW; METER CLUSTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 		8-97185-528-0 05 1 1207- ● ●
379 09.744 CIRCUIT; DROP
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97185-512-0 01 1 0211-0507 ● ●
379 09.744 CIRCUIT; DROP
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97185-512-0 01 1 0508-0609 ● ●
379 09.744 CIRCUIT; DROP
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97185-512-0 01 1 0610-1206 ● ●
379 09.744 CIRCUIT; DROP
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97185-512-0 01 1 1207- ● ●

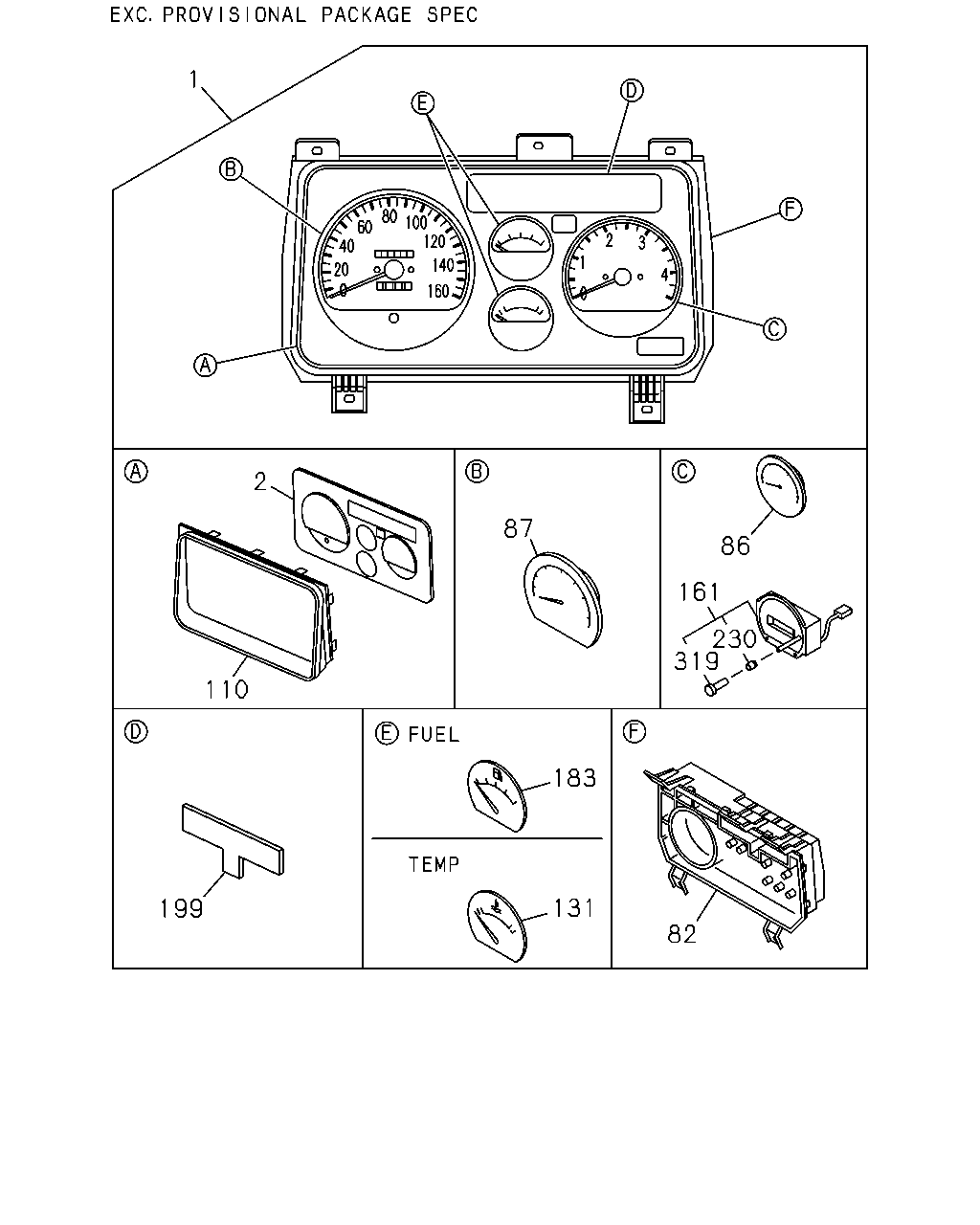

çizim 137855
1 2 110 87 86 161 230 319 183 82 131 199
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.735 METER COMPL; CLUSTER
4JB1-TC ENG(RDT) PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16> 		8-98179-891-1 01 1 1207- ● ●
1 09.735 METER COMPL; CLUSTER
4JB1-TC ENG(RDT) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97381-294-1 01 1 1207- ● ●
1 09.735 METER COMPL; CLUSTER
4HF1-N ENG(RJZ) PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16> 		8-98179-899-1 01 1 1207- ● ●
1 09.735 METER COMPL; CLUSTER
4HF1-N ENG(RJZ) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97383-491-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97383-491-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16> 		8-98179-901-1 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-98000-849-1 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97170-596-2 01 1 0211-0507 ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97383-490-0 01 1 0508-1206 ● ●
1 09.735 METER COMPL; CLUSTER
4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> 		8-97383-490-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> 		8-97383-490-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) 		8-98000-850-1 01 1 0610-1206 ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> 		8-98000-850-1 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4JB1-TC ENG(RDT) 		8-97381-293-0 01 1 0610-0712 ●
1 09.735 METER COMPL; CLUSTER
4JB1-TC ENG(RDT) 		8-97381-293-0 01 1 0801-1206 ● ●
1 09.735 METER COMPL; CLUSTER
4JB1-TC ENG(RDT) EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> 		8-97381-293-0 01 1 1207- ● ●
2 09.735 PANEL; CLUSTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97185-443-0 01 1 0211-0507 ● ●
2 09.735 PANEL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97185-443-0 01 1 0508-0609 ● ●
2 09.735 PANEL; CLUSTER
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 		8-97185-443-0 01 1 0610-0712 ●
2 09.735 PANEL; CLUSTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97185-443-0 01 1 0610-0712 ●
2 09.735 PANEL; CLUSTER
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 		8-97185-443-0 01 1 0801-1206 ●
2 09.735 PANEL; CLUSTER
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97185-443-0 01 1 0801-1206 ●
2 09.735 PANEL; CLUSTER
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97185-443-0 01 1 1207- ●
2 09.735 PANEL; CLUSTER
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97185-443-0 01 1 1207- ●
82 09.743 CASE ASM; CLUSTER METER
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97185-448-0 01 1 0211-0507 ● ●
82 09.743 CASE ASM; CLUSTER METER
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97185-448-0 01 1 0508-0609 ● ●
82 09.743 CASE ASM; CLUSTER METER
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 		8-97185-448-0 01 1 0610-0712 ●
82 09.743 CASE ASM; CLUSTER METER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97185-448-0 01 1 0610-0712 ●
82 09.743 CASE ASM; CLUSTER METER
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 		8-97185-448-0 01 1 0801-1206 ●
82 09.743 CASE ASM; CLUSTER METER
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97185-448-0 01 1 0801-1206 ●
82 09.743 CASE ASM; CLUSTER METER
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97185-448-0 01 1 1207- ●
82 09.743 CASE ASM; CLUSTER METER
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97185-448-0 01 1 1207- ●
86 09.750 TACHOMETER; CLUSTER METER
4JB1-TC ENG(RDT) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-98002-111-0 01 1 1207- ● ●
86 09.750 TACHOMETER; CLUSTER METER
4HF1-N ENG(RJZ) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-98002-112-0 01 1 1207- ●
86 09.750 TACHOMETER; CLUSTER METER
4HG1 ENG(RJH),4HF1-N ENG(RJZ) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-98002-112-0 01 1 1207- ●
86 09.750 TACHOMETER; CLUSTER METER
4HG1-T ENG(RDP) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-98002-115-0 01 1 1207- ●
87 09.761 SPEEDOMETER
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97185-457-0 01 1 0211-0507 ● ●
87 09.761 SPEEDOMETER
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-98002-108-0 01 1 0508-0609 ● ●
87 09.761 SPEEDOMETER
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 		8-98002-108-0 01 1 0610-0712 ●
87 09.761 SPEEDOMETER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-98002-108-0 01 1 0610-0712 ●
87 09.761 SPEEDOMETER
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 		8-98002-108-0 01 1 0801-1206 ●
87 09.761 SPEEDOMETER
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-98002-108-0 01 1 0801-1206 ●
87 09.761 SPEEDOMETER
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-98002-108-0 01 1 1207- ●
87 09.761 SPEEDOMETER
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-98002-108-0 01 1 1207- ●
110 09.748 GLASS; CLUSTER METER
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16> 		8-98203-825-0 01 1 1207- ●
110 09.748 GLASS; CLUSTER METER
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16> 		8-98203-825-0 01 1 1207- ●
110 09.748 GLASS; CLUSTER METER
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97185-452-0 01 1 1207- ●
110 09.748 GLASS; CLUSTER METER
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97185-452-0 01 1 1207- ●
110 09.748 GLASS; CLUSTER METER
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97185-451-0 01 1 0211-0507 ● ●
110 09.748 GLASS; CLUSTER METER
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97185-451-0 01 1 0508-0609 ● ●
110 09.748 GLASS; CLUSTER METER
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 		8-97185-451-0 01 1 0610-0712 ●
110 09.748 GLASS; CLUSTER METER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97185-451-0 01 1 0610-0712 ●
110 09.748 GLASS; CLUSTER METER
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 		8-97185-451-0 01 1 0801-1206 ●
110 09.748 GLASS; CLUSTER METER
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97185-451-0 01 1 0801-1206 ●
110 09.748 GLASS; CLUSTER METER
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> 		8-97185-451-0 01 1 1207- ●
110 09.748 GLASS; CLUSTER METER
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> 		8-97185-451-0 01 1 1207- ●
131 01.148 GAUGE; TEMP,CLUSTER METER
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97185-475-0 01 1 0211-0507 ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-98002-121-0 01 1 0508-0609 ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-98002-121-0 01 1 0610-1206 ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-98002-121-0 01 1 1207- ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
4JB1-TC ENG(RDT) 		8-98002-122-0 01 1 0610-0712 ●
131 01.148 GAUGE; TEMP,CLUSTER METER
4JB1-TC ENG(RDT) 		8-98002-122-0 01 1 0801-1206 ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
4JB1-TC ENG(RDT) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-98002-122-0 01 1 1207- ● ●
161 09.772 CLOCK; CLUSTER METER
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97185-462-0 01 1 0211-0507 ● ●
161 09.772 CLOCK; CLUSTER METER
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-98002-110-0 01 1 0508-0609 ● ●
161 09.772 CLOCK; CLUSTER METER
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 		8-98002-110-0 01 1 0610-0712 ●
161 09.772 CLOCK; CLUSTER METER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-98002-110-0 01 1 0610-0712 ●
161 09.772 CLOCK; CLUSTER METER
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 		8-98002-110-0 01 1 0801-1206 ●
161 09.772 CLOCK; CLUSTER METER
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-98002-110-0 01 1 0801-1206 ●
161 09.772 CLOCK; CLUSTER METER
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> 		8-98002-110-0 01 1 1207- ●
161 09.772 CLOCK; CLUSTER METER
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> 		8-98002-110-0 01 1 1207- ●
183 03.107 GAUGE; FUEL
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97185-473-0 01 1 0211-0507 ● ●
183 03.107 GAUGE; FUEL
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-98002-118-0 01 1 0508-0609 ● ●
183 03.107 GAUGE; FUEL
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 		8-98002-118-0 01 1 0610-0712 ●
183 03.107 GAUGE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-98002-118-0 01 1 0610-0712 ●
183 03.107 GAUGE; FUEL
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 		8-98002-118-0 01 1 0801-1206 ●
183 03.107 GAUGE; FUEL
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-98002-118-0 01 1 0801-1206 ●
183 03.107 GAUGE; FUEL
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-98002-118-0 01 1 1207- ●
183 03.107 GAUGE; FUEL
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-98002-118-0 01 1 1207- ●
199 09.772 LENS; WARNING LAMP
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97185-481-0 01 1 0211-0507 ● ●
199 09.772 LENS; WARNING LAMP
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-98002-124-0 01 1 0508-0609 ● ●
199 09.772 LENS; WARNING LAMP
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 		8-98002-124-0 01 1 0610-0712 ●
199 09.772 LENS; WARNING LAMP
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-98002-124-0 01 1 0610-0712 ●
199 09.772 LENS; WARNING LAMP
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 		8-98002-124-0 01 1 0801-1206 ●
199 09.772 LENS; WARNING LAMP
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-98002-124-0 01 1 0801-1206 ●
199 09.772 LENS; WARNING LAMP
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-98002-124-0 01 1 1207- ●
199 09.772 LENS; WARNING LAMP
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-98002-124-0 01 1 1207- ●
230 09.772 KNOB; DIGITAL CLOCK,SUB METER
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97185-644-0 01 1 0211-0507 ● ●
230 09.772 KNOB; DIGITAL CLOCK,SUB METER
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97185-644-0 01 1 0508-0609 ● ●
230 09.772 KNOB; DIGITAL CLOCK,SUB METER
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 		8-97185-644-0 01 1 0610-0712 ●
230 09.772 KNOB; DIGITAL CLOCK,SUB METER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97185-644-0 01 1 0610-0712 ●
230 09.772 KNOB; DIGITAL CLOCK,SUB METER
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 		8-97185-644-0 01 1 0801-1206 ●
230 09.772 KNOB; DIGITAL CLOCK,SUB METER
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97185-644-0 01 1 0801-1206 ●
230 09.772 KNOB; DIGITAL CLOCK,SUB METER
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> 		8-97185-644-0 01 1 1207- ●
230 09.772 KNOB; DIGITAL CLOCK,SUB METER
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> 		8-97185-644-0 01 1 1207- ●
319 09.744 SCREW; KNOB,CLUSTER METER
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97185-522-0 01 1 0211-0507 ● ●
319 09.744 SCREW; KNOB,CLUSTER METER
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97185-522-0 01 1 0508-0609 ● ●
319 09.744 SCREW; KNOB,CLUSTER METER
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 		8-97185-522-0 01 1 0610-0712 ●
319 09.744 SCREW; KNOB,CLUSTER METER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97185-522-0 01 1 0610-0712 ●
319 09.744 SCREW; KNOB,CLUSTER METER
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 		8-97185-522-0 01 1 0801-1206 ●
319 09.744 SCREW; KNOB,CLUSTER METER
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97185-522-0 01 1 0801-1206 ●
319 09.744 SCREW; KNOB,CLUSTER METER
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> 		8-97185-522-0 01 1 1207- ●
319 09.744 SCREW; KNOB,CLUSTER METER
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> 		8-97185-522-0 01 1 1207- ●
çizim 137860
1 314 314 269 269
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.735 METER COMPL; CLUSTER
4JB1-TC ENG(RDT) PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16> 		8-98179-891-1 01 1 1207- ● ●
1 09.735 METER COMPL; CLUSTER
4JB1-TC ENG(RDT) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97381-294-1 01 1 1207- ● ●
1 09.735 METER COMPL; CLUSTER
4HF1-N ENG(RJZ) PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16> 		8-98179-899-1 01 1 1207- ● ●
1 09.735 METER COMPL; CLUSTER
4HF1-N ENG(RJZ) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97383-491-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97383-491-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16> 		8-98179-901-1 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-98000-849-1 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97170-596-2 01 1 0211-0507 ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97383-490-0 01 1 0508-1206 ● ●
1 09.735 METER COMPL; CLUSTER
4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> 		8-97383-490-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> 		8-97383-490-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) 		8-98000-850-1 01 1 0610-1206 ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> 		8-98000-850-1 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4JB1-TC ENG(RDT) 		8-97381-293-0 01 1 0610-0712 ●
1 09.735 METER COMPL; CLUSTER
4JB1-TC ENG(RDT) 		8-97381-293-0 01 1 0801-1206 ● ●
1 09.735 METER COMPL; CLUSTER
4JB1-TC ENG(RDT) EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> 		8-97381-293-0 01 1 1207- ● ●
269 09.743 SCREW; METER CLUSTER
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> (B) 		8-97185-524-0 07 1 1207- ●
269 09.743 SCREW; METER CLUSTER
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> (B) 		8-97185-524-0 07 1 1207- ●
269 09.743 SCREW; METER CLUSTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) (D) 		8-97185-523-0 01 1 0211-0507 ● ●
269 09.743 SCREW; METER CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (D) 		8-97185-523-0 01 1 0508-0609 ● ●
269 09.743 SCREW; METER CLUSTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (D) 		8-97185-523-0 01 1 0610-1206 ● ●
269 09.743 SCREW; METER CLUSTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC> (D) 		8-97185-523-0 01 1 1207- ● ●
269 09.743 SCREW; METER CLUSTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) (B) 		8-97185-524-0 07 1 0211-0507 ● ●
269 09.743 SCREW; METER CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) 		8-97185-524-0 07 1 0508-0609 ● ●
269 09.743 SCREW; METER CLUSTER
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (B) 		8-97185-524-0 07 1 0610-0712 ●
269 09.743 SCREW; METER CLUSTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) 		8-97185-524-0 07 1 0610-0712 ●
269 09.743 SCREW; METER CLUSTER
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (B) 		8-97185-524-0 07 1 0801-1206 ●
269 09.743 SCREW; METER CLUSTER
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) 		8-97185-524-0 07 1 0801-1206 ●
269 09.743 SCREW; METER CLUSTER
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) 		8-97185-524-0 08 1 1207- ●
269 09.743 SCREW; METER CLUSTER
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) 		8-97185-524-0 08 1 1207- ●
269 09.743 SCREW; METER CLUSTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) (C) 		8-97185-525-0 06 1 0211-0507 ● ●
269 09.743 SCREW; METER CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (C) 		8-97185-525-0 06 1 0508-0609 ● ●
269 09.743 SCREW; METER CLUSTER
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (C) 		8-97185-525-0 06 1 0610-0712 ●
269 09.743 SCREW; METER CLUSTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (C) 		8-97185-525-0 06 1 0610-0712 ●
269 09.743 SCREW; METER CLUSTER
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (C) 		8-97185-525-0 06 1 0801-1206 ●
269 09.743 SCREW; METER CLUSTER
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (C) 		8-97185-525-0 06 1 0801-1206 ●
269 09.743 SCREW; METER CLUSTER
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC> (C) 		8-97185-525-0 06 1 1207- ●
269 09.743 SCREW; METER CLUSTER
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC> (C) 		8-97185-525-0 06 1 1207- ●
269 09.743 SCREW; METER CLUSTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) (A) 		8-97185-528-0 05 1 0211-0507 ● ●
269 09.743 SCREW; METER CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) 		8-97185-528-0 05 1 0508-0609 ● ●
269 09.743 SCREW; METER CLUSTER
4JB1-TC ENG(RDT) (A) 		8-97185-528-0 02 1 0610-0712 ●
269 09.743 SCREW; METER CLUSTER
4JB1-TC ENG(RDT) (A) 		8-97185-528-0 02 1 0801-1206 ● ●
269 09.743 SCREW; METER CLUSTER
4JB1-TC ENG(RDT) EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 		8-97185-528-0 02 1 1207- ● ●
269 09.743 SCREW; METER CLUSTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) 		8-97185-528-0 05 1 0610-1206 ● ●
269 09.743 SCREW; METER CLUSTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 		8-97185-528-0 05 1 1207- ● ●
314 09.765 RESISTOR; COMB METER,CLUSTER MET
4HG1 ENG(RJH),4HF1-S ENG(RLS) (A) 		8-97185-515-0 01 1 0211-0507 ● ●
314 09.765 RESISTOR; COMB METER,CLUSTER MET
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) 		8-97185-515-0 01 1 0508-0609 ● ●
314 09.765 RESISTOR; COMB METER,CLUSTER MET
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) 		8-97185-515-0 01 1 0610-1206 ● ●
314 09.765 RESISTOR; COMB METER,CLUSTER MET
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 		8-97185-515-0 01 1 1207- ● ●
314 09.765 RESISTOR; COMB METER,CLUSTER MET
4HG1 ENG(RJH),4HF1-S ENG(RLS) (B) 		8-97185-516-0 01 1 0211-0507 ● ●
314 09.765 RESISTOR; COMB METER,CLUSTER MET
4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) 		8-97185-516-0 01 1 0508-0609 ● ●
314 09.765 RESISTOR; COMB METER,CLUSTER MET
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) 		8-97185-516-0 01 1 0610-1206 ● ●
314 09.765 RESISTOR; COMB METER,CLUSTER MET
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) 		8-97185-516-0 01 1 1207- ● ●

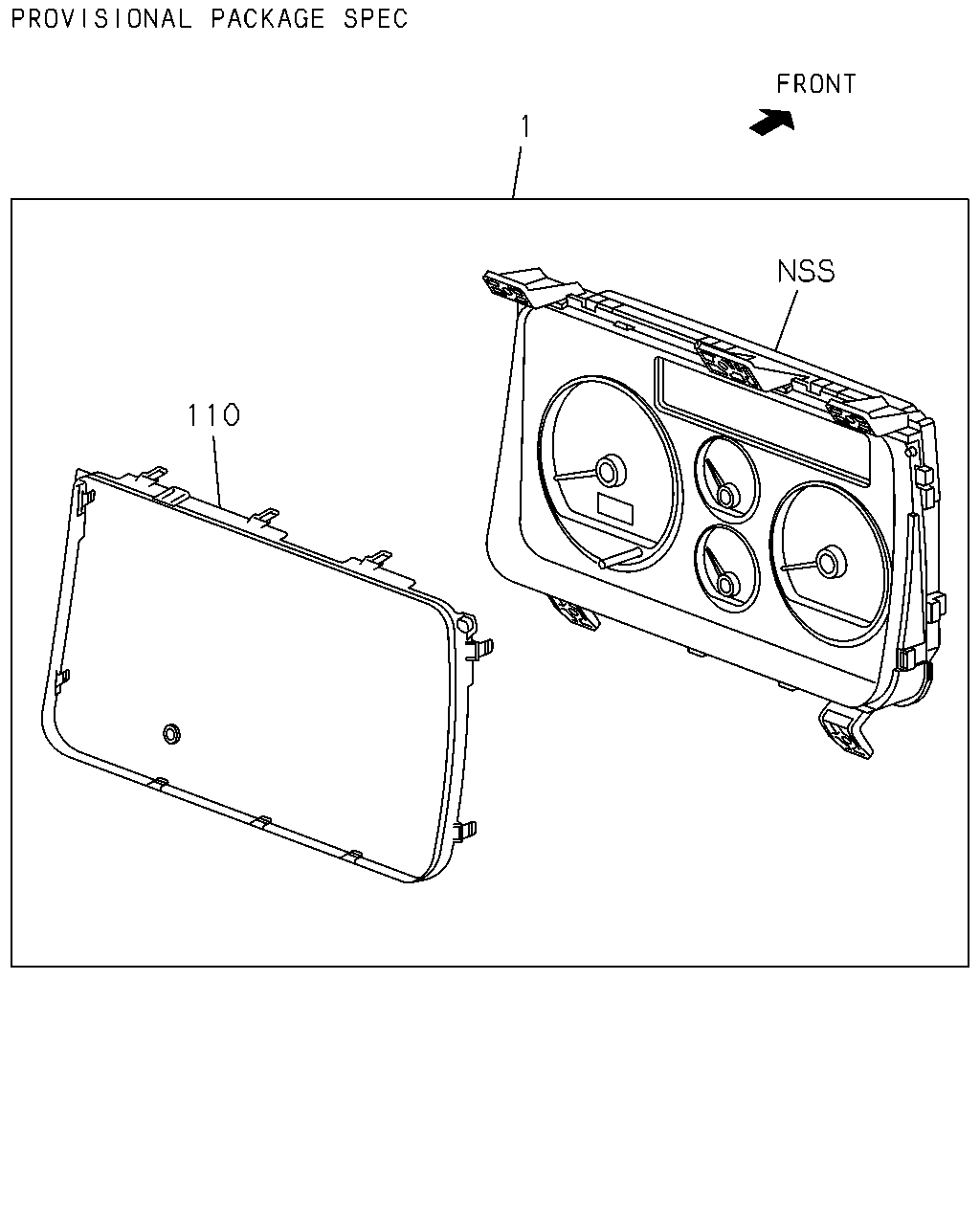

çizim 286551
1 110
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.735 METER COMPL; CLUSTER
4JB1-TC ENG(RDT) PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16> 		8-98179-891-1 01 1 1207- ● ●
1 09.735 METER COMPL; CLUSTER
4JB1-TC ENG(RDT) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97381-294-1 01 1 1207- ● ●
1 09.735 METER COMPL; CLUSTER
4HF1-N ENG(RJZ) PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16> 		8-98179-899-1 01 1 1207- ● ●
1 09.735 METER COMPL; CLUSTER
4HF1-N ENG(RJZ) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97383-491-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97383-491-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16> 		8-98179-901-1 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-98000-849-1 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97170-596-2 01 1 0211-0507 ● ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97383-490-0 01 1 0508-1206 ● ●
1 09.735 METER COMPL; CLUSTER
4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> 		8-97383-490-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> 		8-97383-490-0 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) 		8-98000-850-1 01 1 0610-1206 ●
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> 		8-98000-850-1 01 1 1207- ●
1 09.735 METER COMPL; CLUSTER
4JB1-TC ENG(RDT) 		8-97381-293-0 01 1 0610-0712 ●
1 09.735 METER COMPL; CLUSTER
4JB1-TC ENG(RDT) 		8-97381-293-0 01 1 0801-1206 ● ●
1 09.735 METER COMPL; CLUSTER
4JB1-TC ENG(RDT) EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> 		8-97381-293-0 01 1 1207- ● ●
110 09.748 GLASS; CLUSTER METER
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16> 		8-98203-825-0 01 1 1207- ●
110 09.748 GLASS; CLUSTER METER
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) PROVISIONAL PACKAGE SPEC<BCC> TACHOMETER<U16> 		8-98203-825-0 01 1 1207- ●
110 09.748 GLASS; CLUSTER METER
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97185-452-0 01 1 1207- ●
110 09.748 GLASS; CLUSTER METER
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) TACHOMETER<U16> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97185-452-0 01 1 1207- ●
110 09.748 GLASS; CLUSTER METER
4HG1 ENG(RJH),4HF1-S ENG(RLS) 		8-97185-451-0 01 1 0211-0507 ● ●
110 09.748 GLASS; CLUSTER METER
4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97185-451-0 01 1 0508-0609 ● ●
110 09.748 GLASS; CLUSTER METER
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 		8-97185-451-0 01 1 0610-0712 ●
110 09.748 GLASS; CLUSTER METER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97185-451-0 01 1 0610-0712 ●
110 09.748 GLASS; CLUSTER METER
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 		8-97185-451-0 01 1 0801-1206 ●
110 09.748 GLASS; CLUSTER METER
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 		8-97185-451-0 01 1 0801-1206 ●
110 09.748 GLASS; CLUSTER METER
4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> 		8-97185-451-0 01 1 1207- ●
110 09.748 GLASS; CLUSTER METER
4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXC. PROVISIONAL PACKAGE SPEC<BCC>, TACHOMETER<U16> 		8-97185-451-0 01 1 1207- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
