Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#79014) — 623 parça

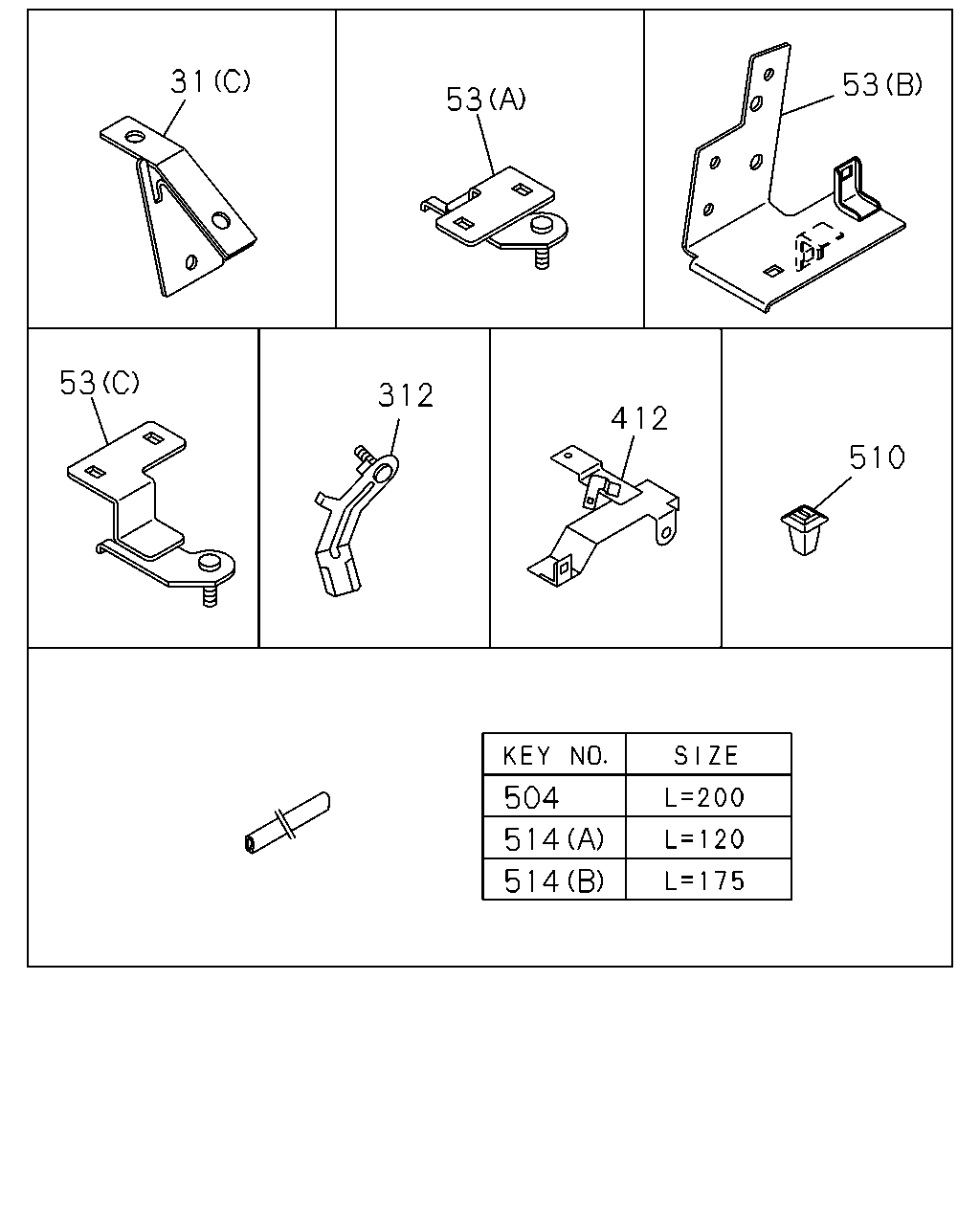

31 53 53 53 312 412 510 504 514 514

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HG1 ENG(RJH),4HF1-S ENG(RLS) (C)	8-97357-142-0	03	1	0211-0211	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HG1 ENG(RJH),4HF1-S ENG(RLS) (C)	8-97362-859-0	03	1	0211-0507	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (C)	8-97362-859-0	03	1	0508-0609	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (C)	8-97362-859-0	03	1	0610-	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1-TC ENG(RDT) (A) L=20 IDN	8-94165-263-1	01	1	0610-0712	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1-TC ENG(RDT) (A) L=20 IDN	8-94165-263-1	01	1	0801-	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1-TC ENG(RDT) (B) IDN	8-97077-845-0	02	1	0610-0712	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1-TC ENG(RDT) (B) IDN	8-97077-845-0	02	1	0801-	●	●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) (B)	8-97357-140-0	01	1	0211-0507	●	●
53	02.483 BRACKET; HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B)	8-97357-140-0	01	1	0508-0609	●	●
53	02.483 BRACKET; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B)	8-97357-140-0	01	1	0610-1401	●	●
53	02.483 BRACKET; HARNESS 4HF1-N ENG(RJZ) (B)	8-97357-140-0	01	1	1402-	●
53	02.483 BRACKET; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B)	8-97357-140-0	01	1	1402-		●
53	02.483 BRACKET; HARNESS 4JB1-TC ENG(RDT) SPECIAL PACKAGE<7BB> (B)	8-97357-140-0	01	1	1402-		●
53	02.483 BRACKET; HARNESS (C)	8-98003-047-0	01	1	0508-	●
53	02.483 BRACKET; HARNESS (A) IDN	8-98003-046-0	01	1	0508-		●
312	02.559 BRACKET; CLIP HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS)	8-97018-095-3	01	1	0211-0507	●	●
312	02.559 BRACKET; CLIP HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-97018-095-3	01	1	0508-0609	●	●
312	02.559 BRACKET; CLIP HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-97018-095-3	01	1	0610-	●	●
412	02.559 BRACKET; HARNESS,TRANS	8-97324-451-1	01	1	0211-0211	●	●
412	02.559 BRACKET; HARNESS,TRANS M/T MYY5T(RSM)	8-97324-451-1	01	1	0212-	●	●
504	02.559 PROTECTOR; HARNESS 04.785 L=200	8-97096-423-0	01	1	0211-	●	●
510	02.559 GROMMET; SCREW 04.931 H=15 IDN	8-94463-268-1	04	1	0211-	●	●
514	02.559 FINISHER; HARNESS 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015(VZF) (A) L=290 SERVICED BY L=500	1-79937-746-0	01	1	1509-		●
514	02.559 FINISHER; HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) 16.550 (A) L=120 SERVICED BY L=2040	1-71997-513-1	02	1	0211-0507	●	●
514	02.559 FINISHER; HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) L=120 SERVICED BY L=500	1-79937-746-0	02	1	0508-0609	●	●
514	02.559 FINISHER; HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (A) L=120 SERVICED BY L=500	1-79937-746-0	02	1	0610-0712	●
514	02.559 FINISHER; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) L=120 SERVICED BY L=500	1-79937-746-0	02	1	0610-0712		●
514	02.559 FINISHER; HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (A) L=120 SERVICED BY L=500	1-79937-746-0	02	1	0801-	●
514	02.559 FINISHER; HARNESS 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) L=120 SERVICED BY L=500	1-79937-746-0	02	1	0801-		●
514	02.559 FINISHER; HARNESS 16.550 (A) L=120 SERVICED BY L=2040	1-71997-513-1	01	1	0211-0507	●	●
514	02.559 FINISHER; HARNESS (A) L=120 SERVICED BY L=500	1-79937-746-0	01	1	0508-1508	●	●
514	02.559 FINISHER; HARNESS (A) L=120 SERVICED BY L=500	1-79937-746-0	01	1	1509-	●	●
514	02.559 FINISHER; HARNESS 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015(VZF) (A) L=120 SERVICED BY L=500	1-79937-746-0	01	1	1509-		●
514	02.559 FINISHER; HARNESS 16.550 (B) L=175 SERVICED BY L=2040	1-71997-513-1	01	1	0211-0507	●	●
514	02.559 FINISHER; HARNESS (B) L=175 SERVICED BY L=500	1-79937-746-0	01	1	0508-	●	●

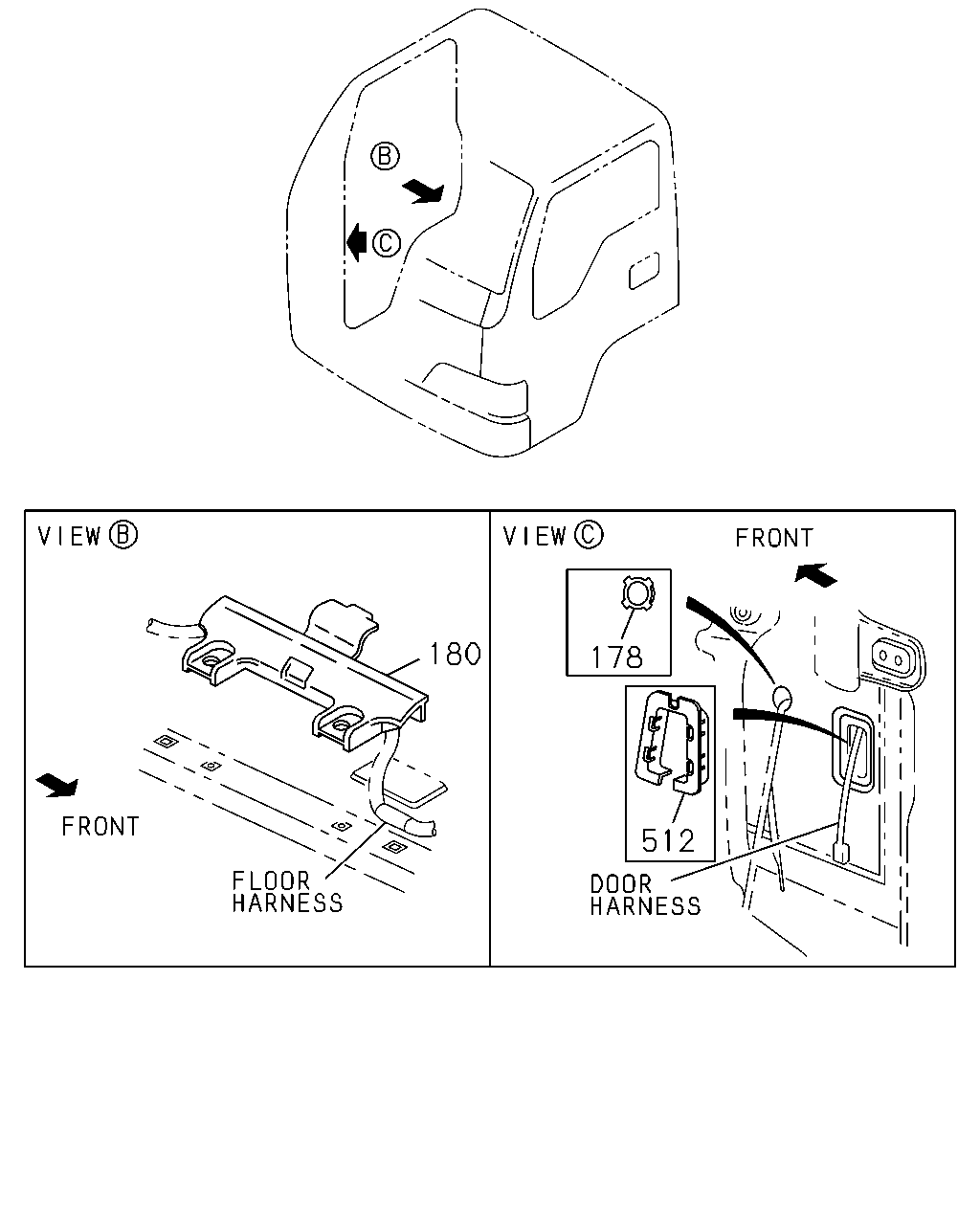

180 178 512

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
178	02.559 GROMMET; HARNESS ID=47 IDN	8-94279-735-0	01	1	0211-	●	●
180	02.559 COVER; HARNESS IDN	8-97856-130-4	02	1	0211-	●	●
512	02.559 PROTECTOR; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> IDN	8-97072-950-0	02	1	0211-0609	●	●
512	02.559 PROTECTOR; HARNESS POWER WINDOW FRT DOOR<A32> IDN	8-97072-950-0	02	1	0211-0609	●	●
512	02.559 PROTECTOR; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) IDN	8-97072-950-0	02	1	0211-0609	●	●
512	02.559 PROTECTOR; HARNESS RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32> IDN	8-97072-950-0	02	1	0211-0609	●	●
512	02.559 PROTECTOR; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> IDN	8-97072-950-0	02	1	0610-0712	●	●
512	02.559 PROTECTOR; HARNESS POWER WINDOW FRT DOOR<A32> IDN	8-97072-950-0	02	1	0610-0712	●	●
512	02.559 PROTECTOR; HARNESS RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32> IDN	8-97072-950-0	02	1	0610-0712	●	●
512	02.559 PROTECTOR; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADI O AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) IDN	8-97072-950-0	02	1	0610-0712	●
512	02.559 PROTECTOR; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) IDN	8-97072-950-0	02	1	0610-0712		●
512	02.559 PROTECTOR; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> IDN	8-97072-950-0	02	1	0801-	●	●
512	02.559 PROTECTOR; HARNESS POWER WINDOW FRT DOOR<A32> IDN	8-97072-950-0	02	1	0801-	●	●
512	02.559 PROTECTOR; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADI O AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) IDN	8-97072-950-0	02	1	0801-	●	●
512	02.559 PROTECTOR; HARNESS RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32> IDN	8-97072-950-0	02	1	0801-	●	●

139 38 38 150 358 8 38 466 386 377 377 386 159 159 139 511 511 219 294 515 219 469 294 519

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	02.559 BOLT; BRKT,CONNECTOR 08.225 M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0211-1210	●	●
8	02.559 BOLT; BRKT,CONNECTOR 02.587 M6X19.5 W/LK&PL WASHER IDN	8-97360-226-0	02	1	1211-	●	●
38	02.559 BOLT; CLIP,HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) 02.334 (A) M6X25 FLANGE IDN	0-28680-625-0	01	1	0211-0305	●	●
38	02.559 BOLT; CLIP,HARNESS 02.334 (A) M6X25 FLANGE IDN	0-28680-625-0	02	1	0211-0512	●	●
38	02.559 BOLT; CLIP,HARNESS 00.685 (B) M6X25 FLANGE IDN	0-28650-625-0	02	1	0601-	●	●
38	02.559 BOLT; CLIP,HARNESS (A) M8X25 FLANGE IDN	0-28680-825-0	01	1	0211-0512	●	●
38	02.559 BOLT; CLIP,HARNESS 06.216 (B) M8X25 FLANGE IDN	0-28650-825-0	01	1	0601-	●	●
38	02.559 BOLT; CLIP,HARNESS 4JB1-TC ENG(RDT) 03.162 (C) M6X20 FLANGE IDN	0-28650-620-0	01	1	0610-0712	●
38	02.559 BOLT; CLIP,HARNESS 4JB1-TC ENG(RDT) 03.162 (C) M6X20 FLANGE IDN	0-28650-620-0	01	1	0801-	●	●
139	02.559 BOLT; BRKT 4HG1 ENG(RJH),4HF1-S ENG(RLS) 01.062 (A) M8X16 FLANGE	0-28080-816-0	03	1	0211-0507	●	●
139	02.559 BOLT; BRKT 01.062 (A) M8X16 FLANGE	0-28080-816-0	03	1	0508-0512	●	●
139	02.559 BOLT; BRKT 02.343 (A) M8X16 FLANGE	0-28050-816-0	03	1	0601-	●	●
139	02.559 BOLT; BRKT 4HG1 ENG(RJH),4HF1-S ENG(RLS) (B)	8-97028-451-3	01	1	0211-0507	●	●
139	02.559 BOLT; BRKT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B)	8-97028-451-3	01	1	0508-0609	●	●
139	02.559 BOLT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B)	8-97028-451-3	01	1	0610-1401	●	●
139	02.559 BOLT; BRKT 4HF1-N ENG(RJZ) (B)	8-97028-451-3	01	1	1402-	●
139	02.559 BOLT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B)	8-97028-451-3	01	1	1402-		●
139	02.559 BOLT; BRKT 4JB1-TC ENG(RDT) SPECIAL PACKAGE<7BB> (B)	8-97028-451-3	01	1	1402-		●
150	02.343 BOLT; CLIP 4JB1-TC ENG(RDT) M8X12 FLANGE	0-28050-812-0	01	1	0610-0712	●
150	02.343 BOLT; CLIP 4JB1-TC ENG(RDT) M8X12 FLANGE	0-28050-812-0	01	1	0801-	●	●
159	02.559 BOLT; GRAND ENG ELEC 02.343 (A) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0211-1004	●	●
159	02.559 BOLT; GRAND ENG ELEC 02.343 (B) M8X24 W/PL WASHER	8-98141-256-1	01	1	1005-	●	●
219	02.559 NUT 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0211-0305	●	●
219	02.559 NUT 4HF1-S ENG(RLS) 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0211-0305	●
219	02.559 NUT 4HG1 ENG(RJH),4HF1-S ENG(RLS) 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0211-0305		●
219	02.559 NUT 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0306-0507	●	●
219	02.559 NUT 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	0508-0602	●	●
219	02.559 NUT 01.062 (B) M6 FLANGE IDN	0-91180-106-0	02	1	0603-	●	●
219	02.559 NUT 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	0211-0507	●	●
219	02.559 NUT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0508-0602	●	●
219	02.559 NUT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 (B) M6 FLANGE IDN	0-91180-106-0	01	1	0603-0609	●	●
219	02.559 NUT 4JB1-TC ENG(RDT) 01.062 (B) M6 FLANGE IDN	0-91180-106-0	01	1	0610-0712	●
219	02.559 NUT 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 01.062 (B) M6 FLANGE IDN	0-91180-106-0	01	1	0610-0712	●
219	02.559 NUT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 (B) M6 FLANGE IDN	0-91180-106-0	01	1	0610-0712		●
219	02.559 NUT 4JB1-TC ENG(RDT) 01.062 (B) M6 FLANGE IDN	0-91180-106-0	01	1	0801-	●	●
219	02.559 NUT 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 01.062 (B) M6 FLANGE IDN	0-91180-106-0	01	1	0801-	●
219	02.559 NUT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 (B) M6 FLANGE IDN	0-91180-106-0	01	1	0801-		●
219	02.559 NUT 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0211-0602	●	●
219	02.559 NUT 01.062 (A) M8 FLANGE IDN	0-91180-108-0	01	1	0603-	●	●
294	02.559 NUT 04.785 (B) M10 FLANGE	0-91150-110-0	01	1	0211-0211	●	●
294	02.559 NUT M/T MYY5T(RSM) 04.785 (B) M10 FLANGE	0-91150-110-0	01	1	0212-0602	●	●
294	02.559 NUT M/T MYY5T(RSM) 03.162 (B) M10 FLANGE IDN	0-91180-110-0	01	1	0603-	●	●
294	02.559 NUT 4HG1 ENG(RJH),4HF1-S ENG(RLS) 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0211-0306	●	●
294	02.559 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0307-0507	●	●
294	02.559 NUT 4HF1-S ENG(RLS) 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0307-0507	●
294	02.559 NUT 4HG1 ENG(RJH),4HF1-S ENG(RLS) 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0307-0507		●
294	02.559 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0508-0602	●	●
294	02.559 NUT 4HF1-N ENG(RJZ) 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0508-0602	●
294	02.559 NUT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0508-0602		●
294	02.559 NUT 01.062 (A) M6 FLANGE IDN	0-91180-106-0	01	1	0603-0609	●	●
294	02.559 NUT 4HF1-N ENG(RJZ) 01.062 (A) M6 FLANGE IDN	0-91180-106-0	01	1	0603-0609	●
294	02.559 NUT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 (A) M6 FLANGE IDN	0-91180-106-0	01	1	0603-0609		●
294	02.559 NUT 01.062 (A) M6 FLANGE IDN	0-91180-106-0	01	1	0610-	●	●
294	02.559 NUT 4HF1-N ENG(RJZ) 01.062 (A) M6 FLANGE IDN	0-91180-106-0	01	1	0610-	●
294	02.559 NUT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 (A) M6 FLANGE IDN	0-91180-106-0	01	1	0610-		●
358	02.480 BOLT; EARTH 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 08.900 M8X12 FLANGE IDN	0-28080-812-0	01	1	0211-0303	●
358	02.480 BOLT; EARTH 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60) 08.900 M8X12 FLANGE IDN	0-28080-812-0	01	1	0211-0303		●
358	02.480 BOLT; EARTH 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60) 08.900 M8X12 FLANGE IDN	0-28080-812-0	01	1	0304-0507	●
358	02.480 BOLT; EARTH 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 08.900 M8X12 FLANGE IDN	0-28080-812-0	01	1	0304-0507	●
358	02.480 BOLT; EARTH 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> POWER STEERING<N40> ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60) 08.900 M8X12 FLANGE IDN	0-28080-812-0	01	1	0304-0507		●
358	02.480 BOLT; EARTH 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60) 08.900 M8X12 FLANGE IDN	0-28080-812-0	01	1	0304-0507		●
358	02.480 BOLT; EARTH 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 08.900 M8X12 FLANGE IDN	0-28080-812-0	01	1	0508-0512	●	●
358	02.480 BOLT; EARTH 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-0609	●	●
358	02.480 BOLT; EARTH 4HF1-N ENG(RJZ) FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> GLOW SYSTEM DELETE<7RK> EXC. AIR CONDITIONER MANUAL CONT(C60) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0610-0712	●
358	02.480 BOLT; EARTH 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0610-0712		●
358	02.480 BOLT; EARTH 4HF1-N ENG(RJZ) FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> GLOW SYSTEM DELETE<7RK> EXC. AIR CONDITIONER MANUAL CONT(C60) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0801-	●	●
377	02.559 BOLT; CAB EARTH (A) M8X20 W/LK&PL WASHER IDN	8-97086-825-0	01	1	0211-1004	●	●
377	02.559 BOLT; CAB EARTH 02.343 (B) M8X18.5 W/PL WASHER IDN	8-98141-255-0	01	1	1005-	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (A) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	0211-0507	●	●
386	02.559 BOLT; GRAND HARNESS (B) M8X20 W/LK&PL WASHER IDN	8-97086-825-0	01	1	0508-0509	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (A) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	0510-	●	●
466	02.483 BOLT; HEAT PROTECTOR 4HG1 ENG(RJH),4HF1-S ENG(RLS) 02.183 M8X35 FLANGE	0-28680-835-0	01	1	0211-0507	●	●
466	02.483 BOLT; HEAT PROTECTOR 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.183 M8X35 FLANGE	0-28680-835-0	01	1	0508-0512	●	●
466	02.483 BOLT; HEAT PROTECTOR 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.060 M8X35 FLANGE	0-28650-835-0	01	1	0601-0609	●	●
466	02.483 BOLT; HEAT PROTECTOR 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 01.060 M8X35 FLANGE	0-28650-835-0	01	1	0610-0712	●
466	02.483 BOLT; HEAT PROTECTOR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.060 M8X35 FLANGE	0-28650-835-0	01	1	0610-0712		●
466	02.483 BOLT; HEAT PROTECTOR 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 01.060 M8X35 FLANGE	0-28650-835-0	01	1	0801-	●
466	02.483 BOLT; HEAT PROTECTOR 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.060 M8X35 FLANGE	0-28650-835-0	01	1	0801-		●
469	02.559 NUT; PROTECTOR 4HG1 ENG(RJH),4HF1-S ENG(RLS) 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0507	●	●
469	02.559 NUT; PROTECTOR 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 07.633 M8 FLANGE	0-91150-108-0	01	1	0508-0602	●	●
469	02.559 NUT; PROTECTOR 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0603-0609	●	●
469	02.559 NUT; PROTECTOR 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0610-0712	●
469	02.559 NUT; PROTECTOR 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0610-0712		●
469	02.559 NUT; PROTECTOR 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0801-	●
469	02.559 NUT; PROTECTOR 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0801-		●
511	02.559 SCREW; HARNESS COVER 08.845 (A) M5X14 TAPPING W/PL WASHER IDN	0-74110-514-0	04	1	0211-0604	●	●
511	02.559 SCREW; HARNESS COVER 16.800 (A) M5X14 TAPPING W/PL WASHER IDN	0-74160-514-0	04	1	0605-0702	●	●
511	02.559 SCREW; HARNESS COVER 04.681 (B) T25 M5X12 TAPPING HEXALOBULAR IDN	0-72180-512-0	04	1	0703-	●	●
515	02.559 NUT; BRKT 4HG1 ENG(RJH),4HF1-S ENG(RLS) 04.594 M6 FLANGE	0-91150-106-0	02	1	0211-0507	●	●
515	02.559 NUT; BRKT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 04.594 M6 FLANGE	0-91150-106-0	02	1	0508-0602	●	●
515	02.559 NUT; BRKT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 M6 FLANGE IDN	0-91180-106-0	02	1	0603-0609	●	●
515	02.559 NUT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.062 M6 FLANGE IDN	0-91180-106-0	02	1	0610-	●	●
515	02.559 NUT; BRKT 04.594 M6 FLANGE	0-91150-106-0	01	1	0508-0602	●	●
515	02.559 NUT; BRKT 01.062 M6 FLANGE IDN	0-91180-106-0	01	1	0603-	●	●
519	02.559 NUT; EARTH CABLE 4JB1-TC ENG(RDT) 02.042 M12 FLANGE IDN	0-91180-112-0	01	1	0610-0712	●
519	02.559 NUT; EARTH CABLE 4JB1-TC ENG(RDT) 02.042 M12 FLANGE IDN	0-91180-112-0	01	1	0801-	●	●

14 16 48 162 483 488 14 16 205 16 142 483 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	02.559 CLIP; BAND,HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 03.162 (B) L=140 IDN	5-09707-031-1	01	1	0211-0507		●
14	02.559 CLIP; BAND,HARNESS 03.430 (A) L=200 IDN	8-94464-835-0	01	1	0211-	●	●
14	02.559 CLIP; BAND,HARNESS 4JB1-TC ENG(RDT) 03.162 (B) L=140 IDN	5-09707-031-1	01	1	0610-0712	●
14	02.559 CLIP; BAND,HARNESS 4JB1-TC ENG(RDT) 03.162 (B) L=140 IDN	5-09707-031-1	01	1	0801-	●	●
16	02.559 CLIP; HARNESS 4JB1-TC ENG(RDT) SPECIAL PACKAGE<7BB> 02.343 (G) ID=10 & 16 IDN	8-94413-325-0	01	1	1402-1405	●	●
16	02.559 CLIP; HARNESS 4HG1-T ENG(RDP) VIN MODEL YEAR 2012(VZC) SPECIAL PACKAGE<7BB> 02.343 (G) ID=10 & 16 IDN	8-94413-325-0	01	1	1402-1405		●
16	02.559 CLIP; HARNESS 4JB1-TC ENG(RDT) SPECIAL PACKAGE<7BB> 02.343 (G) ID=10 & 16 IDN	8-94413-325-0	01	1	1406-	●	●
16	02.559 CLIP; HARNESS 4HG1-T ENG(RDP) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) SPECIAL PACKAGE<7BB> 02.343 (G) ID=10 & 16 IDN	8-94413-325-0	01	1	1406-		●
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADI O AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (B) L=155 IDN	8-97173-307-0	04	1	1011-1405	●	●
16	02.559 CLIP; HARNESS RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32> (B) L=155 IDN	8-97173-307-0	04	1	1011-1405	●	●
16	02.559 CLIP; HARNESS EXC. POWER WINDOW FRT DOOR<A32> (C) L=100 IDN	8-94327-067-1	04	1	0211-	●	●
16	02.559 CLIP; HARNESS EXC. POWER WINDOW FRT DOOR<A32> (B) L=155 IDN	8-97173-307-0	04	1	0211-1009	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (B) L=155 IDN	8-97173-307-0	05	1	1010-1010	●	●
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADI O AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (B) L=155 IDN	8-97173-307-0	05	1	1010-1010	●	●
16	02.559 CLIP; HARNESS RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32> (B) L=155 IDN	8-97173-307-0	05	1	1010-1010	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (B) L=155 IDN	8-97173-307-0	05	1	1010-1010	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 IDN	8-97173-307-0	06	1	1011-1405	●	●
16	02.559 CLIP; HARNESS EXC. POWER WINDOW FRT DOOR<A32> (B) L=155 IDN	8-97173-307-0	04	1	1406-	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (B) L=155 IDN	8-97173-307-0	05	1	0211-1009	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (B) L=155 IDN	8-97173-307-0	05	1	0211-1009	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (B) L=155 IDN	8-97173-307-0	06	1	1010-1010	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (B) L=155 IDN	8-97173-307-0	05	1	1011-1405	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (B) L=155 IDN	8-97173-307-0	05	1	1011-1405	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4> (B) L=155 IDN	8-97173-307-0	05	1	1011-1405	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (B) L=155 IDN	8-97173-307-0	05	1	1406-	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (B) L=155 IDN	8-97173-307-0	05	1	1406-	●	●
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47 IDN	5-09700-319-0	07	1	0211-	●
16	02.559 CLIP; HARNESS (F) L=135 IDN	1-09987-143-1	02	1	0211-	●	●
16	02.559 CLIP; HARNESS 16.065 (E) 1 SET=5 PIECE	1-09987-214-0	02	1	0211-	●	●
16	02.559 CLIP; HARNESS 02.343 (G) ID=10 & 16 IDN	8-94413-325-0	02	1	0211-	●	●
16	02.559 CLIP; HARNESS 01.166 (H) ID=22 & 22 IDN	8-94464-837-0	01	1	0211-	●	●
16	02.559 CLIP; HARNESS (I) ID=15-32 IDN	8-97174-404-0	02	1	0211-	●	●
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) L=140 IDN	5-09707-031-1	01	1	0211-1403	●	●
16	02.559 CLIP; HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) 01.240 (D) ID=14 L=47 IDN	5-09700-319-0	09	1	0211-0507		●
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47 IDN	5-09700-319-0	09	1	0508-		●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) SPECIAL PACKAGE<7BB> 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	02	1	1411-	●	●
48	02.559 CLIP; FRAME HARNESS VIN MODEL YEAR 2012(VZC) (P) T=4.5 & 9	8-97371-947-0	01	1	1202-1404		●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE) EXC. MINI BUS CHASSIS(V4B) (P) T=4.5 & 9	8-97371-947-0	01	1	1405-1405		●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) EXC. MINI BUS CHASSIS(V4B) (P) T=4.5 & 9	8-97371-947-0	01	1	1406-		●
48	02.559 CLIP; FRAME HARNESS VIN MODEL YEAR 2012(VZC) (Q) T=10.5 IDN	8-97371-950-0	01	1	1202-1404		●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE) EXC. MINI BUS CHASSIS(V4B) (Q) T=10.5 IDN	8-97371-950-0	01	1	1405-1405		●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2014(VZE) EXC. MINI BUS CHASSIS(V4B) (Q) T=10.5 IDN	8-97371-950-0	01	1	1405-1405		●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) EXC. MINI BUS CHASSIS(V4B) (Q) T=10.5 IDN	8-97371-950-0	01	1	1406-		●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) EXC. MINI BUS CHASSIS(V4B) (Q) T=10.5 IDN	8-97371-950-0	01	1	1406-		●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) (K) ID=20	8-94169-650-0	01	1	0211-0305	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) (J) ID=33 L=63	1-09700-807-0	06	1	0211-0507	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (J) ID=33 L=63	1-09700-807-0	06	1	0508-0609	●	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (J) ID=33 L=63	1-09700-807-0	06	1	0610-0712	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (J) ID=33 L=63	1-09700-807-0	06	1	0610-0712		●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (J) ID=33 L=63	1-09700-807-0	06	1	0801-	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (J) ID=33 L=63	1-09700-807-0	06	1	0801-		●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	03	1	0211-0507	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (G) ID=30 W/STUD	8-97078-642-2	01	1	0508-0609	●	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (G) ID=30 W/STUD	8-97078-642-2	01	1	0610-0712	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (G) ID=30 W/STUD	8-97078-642-2	01	1	0610-0712		●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (G) ID=30 W/STUD	8-97078-642-2	01	1	0801-	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (G) ID=30 W/STUD	8-97078-642-2	01	1	0801-		●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	04	1	0211-0507	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	01	1	0508-0609	●	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	02	1	0610-0712	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	02	1	0801-1201	●	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	01	1	1202-1401	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	01	1	1202-1401		●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	01	1	1402-1405	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) VIN MODEL YEAR 2012(VZC) SPECIAL PACKAGE<7BB> EXC. HEAVY DUTY FRAME<6WB> 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	01	1	1402-1405		●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	01	1	1402-1405		●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	01	1	1406-	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) SPECIAL PACKAGE<7BB> EXC. HEAVY DUTY FRAME<6WB> 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	01	1	1406-		●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	01	1	1406-		●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) (M) ID=20	5-09700-321-0	01	1	0211-0507	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	04	1	0508-0609	●	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	03	1	0610-0712	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	03	1	0801-	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) 03.162 (A) L=140 IDN	5-09707-031-1	01	1	0211-0507	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.162 (A) L=140 IDN	5-09707-031-1	01	1	0508-0609	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.162 (A) L=140 IDN	5-09707-031-1	01	1	0610-	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) 02.525 (I) T=4.5 & 9 IDN	5-09709-023-0	01	1	0211-0507	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.525 (I) T=4.5 & 9 IDN	5-09709-023-0	01	1	0508-0609	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.525 (I) T=4.5 & 9 IDN	5-09709-023-0	01	1	0610-	●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.240 (E) T=5.5 IDN	5-09709-047-0	01	1	0211-0507	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 01.240 (E) T=5.5 IDN	5-09709-047-0	01	1	0211-0507	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> 01.240 (E) T=5.5 IDN	5-09709-047-0	01	1	0508-0609	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 01.240 (E) T=5.5 IDN	5-09709-047-0	01	1	0508-0609	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) 01.240 (E) T=5.5 IDN	5-09709-047-0	01	1	0610-0712	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> 01.240 (E) T=5.5 IDN	5-09709-047-0	01	1	0610-0712	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 01.240 (E) T=5.5 IDN	5-09709-047-0	01	1	0610-0712	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) 01.240 (E) T=5.5 IDN	5-09709-047-0	01	1	0801-	●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> 01.240 (E) T=5.5 IDN	5-09709-047-0	01	1	0801-	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 01.240 (E) T=5.5 IDN	5-09709-047-0	01	1	0801-	●
48	02.559 CLIP; FRAME HARNESS (O) ID=31 L=30	1-09700-969-0	01	1	0211-	●	●
48	02.559 CLIP; FRAME HARNESS (D) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0211-	●	●
48	02.559 CLIP; FRAME HARNESS (N) ID=9	8-97063-874-0	01	1	0211-	●	●
48	02.559 CLIP; FRAME HARNESS (G) ID=30 W/STUD	8-97078-642-2	01	1	0211-0507	●	●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 13 IDN	5-09709-096-0	01	1	0508-	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (F) T=9.2 IDN	5-09709-013-0	01	1	0211-0507		●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> (F) T=9.2 IDN	5-09709-013-0	01	1	0508-0609		●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> (F) T=9.2 IDN	5-09709-013-0	01	1	0508-0609		●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> (F) T=9.2 IDN	5-09709-013-0	01	1	0610-		●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> (F) T=9.2 IDN	5-09709-013-0	01	1	0610-		●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	01	1	0610-1201	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	04	1	0610-	●	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) (L) ID=19 H=70 L=25 IDN	1-09700-773-0	01	1	0610-0712	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) (L) ID=19 H=70 L=25 IDN	1-09700-773-0	01	1	0801-	●	●
48	02.559 CLIP; FRAME HARNESS M/T MSB5M(RM5) 04.785 (C) ID=9.6 IDN	8-94147-870-0	01	1	0610-0712	●
48	02.559 CLIP; FRAME HARNESS M/T MSB5M(RM5) 04.785 (C) ID=9.6 IDN	8-94147-870-0	01	1	0801-	●	●
142	02.559 CLIP; HARNESS,ENG M/T MYY5T(RSM) L=170.3	1-09987-182-0	01	1	0211-0507	●	●
142	02.559 CLIP; HARNESS,ENG 4HG1 ENG(RJH),4HF1-N ENG(RJZ) L=170.3	1-09987-182-0	01	1	0508-0609	●	●
142	02.559 CLIP; HARNESS,ENG 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) L=170.3	1-09987-182-0	01	1	0610-	●	●
162	02.559 CLIP; SW HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) 03.162 L=140 IDN	5-09707-031-1	01	1	0211-0507	●	●
205	02.559 CLIP; BACK LAMP HARNESS L=135 IDN	1-09987-143-1	01	1	0211-0211	●	●
205	02.559 CLIP; BACK LAMP HARNESS M/T MYY5T(RSM) L=135 IDN	1-09987-143-1	01	1	0212-	●	●
483	02.559 CLIP; ENG HARNESS 4HG1-T ENG(RDP) GLOW SYSTEM DELETE<7RK> VIN MODEL YEAR 2015(VZF) 03.162 (B) L=140 IDN	5-09707-031-1	03	1	1410-		●
483	02.559 CLIP; ENG HARNESS 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140 IDN	5-09707-031-1	02	1	0310-0507	●
483	02.559 CLIP; ENG HARNESS 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140 IDN	5-09707-031-1	02	1	0310-0507	●
483	02.559 CLIP; ENG HARNESS 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> POWER STEERING<N40> ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140 IDN	5-09707-031-1	02	1	0310-0507		●
483	02.559 CLIP; ENG HARNESS 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140 IDN	5-09707-031-1	02	1	0310-0507		●
483	02.559 CLIP; ENG HARNESS 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140 IDN	5-09707-031-1	02	1	0508-0609	●	●
483	02.559 CLIP; ENG HARNESS 4HF1-N ENG(RJZ) FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> GLOW SYSTEM DELETE<7RK> EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140 IDN	5-09707-031-1	02	1	0610-0712	●
483	02.559 CLIP; ENG HARNESS 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140 IDN	5-09707-031-1	02	1	0610-0712		●
483	02.559 CLIP; ENG HARNESS 4HF1-N ENG(RJZ) FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> GLOW SYSTEM DELETE<7RK> EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140 IDN	5-09707-031-1	02	1	0801-	●	●
483	02.559 CLIP; ENG HARNESS 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60), ENGINE POWER N-SPEC(7QV) 03.162 (B) L=140 IDN	5-09707-031-1	01	1	0310-0507		●
483	02.559 CLIP; ENG HARNESS 4HG1 ENG(RJH) EXC. AIR CONDITIONER MANUAL CONT(C60), EXHAUST BRAKE<NF8>,ENGINE POWER N-SPEC(7QV) 03.162 (B) L=140 IDN	5-09707-031-1	01	1	0310-0507		●
483	02.559 CLIP; ENG HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60), ENGINE POWER N-SPEC(7QV) 03.162 (B) L=140 IDN	5-09707-031-1	01	1	0310-0507		●
483	02.559 CLIP; ENG HARNESS 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140 IDN	5-09707-031-1	01	1	0508-0609		●
483	02.559 CLIP; ENG HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.162 (B) L=140 IDN	5-09707-031-1	01	1	0610-1409		●
483	02.559 CLIP; ENG HARNESS 4HG1 ENG(RJH) 03.162 (B) L=140 IDN	5-09707-031-1	01	1	1410-		●
483	02.559 CLIP; ENG HARNESS 4HG1-T ENG(RDP) GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015(VZF) 03.162 (B) L=140 IDN	5-09707-031-1	01	1	1410-		●
483	02.559 CLIP; ENG HARNESS 4HG1-T ENG(RDP) FAST GLOW SYSTEM<KM6> 03.162 (B) L=140 IDN	5-09707-031-1	01	1	1410-		●
483	02.559 CLIP; ENG HARNESS 4JB1-TC ENG(RDT) (C) ID=11 L=20	0-95235-035-0	01	1	0610-0712	●
483	02.559 CLIP; ENG HARNESS 4JB1-TC ENG(RDT) (C) ID=11 L=20	0-95235-035-0	01	1	0801-	●	●
483	02.559 CLIP; ENG HARNESS 4JB1-TC ENG(RDT) 04.342 (A) L=197	1-83574-032-0	01	1	0610-0712	●
483	02.559 CLIP; ENG HARNESS 4JB1-TC ENG(RDT) 04.342 (A) L=197	1-83574-032-0	01	1	0801-	●	●
488	02.559 CLIP; CABLE,TRAILER L=250 IDN	5-09707-030-1	01	1	0211-	●	●

48 48 16 48 52 48 48 48 48 48 48 48 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	02.559 CLIP; HARNESS 4JB1-TC ENG(RDT) SPECIAL PACKAGE<7BB> 02.343 (G) ID=10 & 16 IDN	8-94413-325-0	01	1	1402-1405	●	●
16	02.559 CLIP; HARNESS 4HG1-T ENG(RDP) VIN MODEL YEAR 2012(VZC) SPECIAL PACKAGE<7BB> 02.343 (G) ID=10 & 16 IDN	8-94413-325-0	01	1	1402-1405		●
16	02.559 CLIP; HARNESS 4JB1-TC ENG(RDT) SPECIAL PACKAGE<7BB> 02.343 (G) ID=10 & 16 IDN	8-94413-325-0	01	1	1406-	●	●
16	02.559 CLIP; HARNESS 4HG1-T ENG(RDP) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) SPECIAL PACKAGE<7BB> 02.343 (G) ID=10 & 16 IDN	8-94413-325-0	01	1	1406-		●
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADI O AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (B) L=155 IDN	8-97173-307-0	04	1	1011-1405	●	●
16	02.559 CLIP; HARNESS RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32> (B) L=155 IDN	8-97173-307-0	04	1	1011-1405	●	●
16	02.559 CLIP; HARNESS EXC. POWER WINDOW FRT DOOR<A32> (C) L=100 IDN	8-94327-067-1	04	1	0211-	●	●
16	02.559 CLIP; HARNESS EXC. POWER WINDOW FRT DOOR<A32> (B) L=155 IDN	8-97173-307-0	04	1	0211-1009	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (B) L=155 IDN	8-97173-307-0	05	1	1010-1010	●	●
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADI O AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (B) L=155 IDN	8-97173-307-0	05	1	1010-1010	●	●
16	02.559 CLIP; HARNESS RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32> (B) L=155 IDN	8-97173-307-0	05	1	1010-1010	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (B) L=155 IDN	8-97173-307-0	05	1	1010-1010	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 IDN	8-97173-307-0	06	1	1011-1405	●	●
16	02.559 CLIP; HARNESS EXC. POWER WINDOW FRT DOOR<A32> (B) L=155 IDN	8-97173-307-0	04	1	1406-	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (B) L=155 IDN	8-97173-307-0	05	1	0211-1009	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (B) L=155 IDN	8-97173-307-0	05	1	0211-1009	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (B) L=155 IDN	8-97173-307-0	06	1	1010-1010	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (B) L=155 IDN	8-97173-307-0	05	1	1011-1405	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (B) L=155 IDN	8-97173-307-0	05	1	1011-1405	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4> (B) L=155 IDN	8-97173-307-0	05	1	1011-1405	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (B) L=155 IDN	8-97173-307-0	05	1	1406-	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (B) L=155 IDN	8-97173-307-0	05	1	1406-	●	●
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47 IDN	5-09700-319-0	07	1	0211-	●
16	02.559 CLIP; HARNESS (F) L=135 IDN	1-09987-143-1	02	1	0211-	●	●
16	02.559 CLIP; HARNESS 16.065 (E) 1 SET=5 PIECE	1-09987-214-0	02	1	0211-	●	●
16	02.559 CLIP; HARNESS 02.343 (G) ID=10 & 16 IDN	8-94413-325-0	02	1	0211-	●	●
16	02.559 CLIP; HARNESS 01.166 (H) ID=22 & 22 IDN	8-94464-837-0	01	1	0211-	●	●
16	02.559 CLIP; HARNESS (I) ID=15-32 IDN	8-97174-404-0	02	1	0211-	●	●
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) L=140 IDN	5-09707-031-1	01	1	0211-1403	●	●
16	02.559 CLIP; HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) 01.240 (D) ID=14 L=47 IDN	5-09700-319-0	09	1	0211-0507		●
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47 IDN	5-09700-319-0	09	1	0508-		●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) SPECIAL PACKAGE<7BB> 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	02	1	1411-	●	●
48	02.559 CLIP; FRAME HARNESS VIN MODEL YEAR 2012(VZC) (P) T=4.5 & 9	8-97371-947-0	01	1	1202-1404		●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE) EXC. MINI BUS CHASSIS(V4B) (P) T=4.5 & 9	8-97371-947-0	01	1	1405-1405		●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) EXC. MINI BUS CHASSIS(V4B) (P) T=4.5 & 9	8-97371-947-0	01	1	1406-		●
48	02.559 CLIP; FRAME HARNESS VIN MODEL YEAR 2012(VZC) (Q) T=10.5 IDN	8-97371-950-0	01	1	1202-1404		●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE) EXC. MINI BUS CHASSIS(V4B) (Q) T=10.5 IDN	8-97371-950-0	01	1	1405-1405		●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2014(VZE) EXC. MINI BUS CHASSIS(V4B) (Q) T=10.5 IDN	8-97371-950-0	01	1	1405-1405		●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) EXC. MINI BUS CHASSIS(V4B) (Q) T=10.5 IDN	8-97371-950-0	01	1	1406-		●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) EXC. MINI BUS CHASSIS(V4B) (Q) T=10.5 IDN	8-97371-950-0	01	1	1406-		●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) (K) ID=20	8-94169-650-0	01	1	0211-0305	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) (J) ID=33 L=63	1-09700-807-0	06	1	0211-0507	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (J) ID=33 L=63	1-09700-807-0	06	1	0508-0609	●	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (J) ID=33 L=63	1-09700-807-0	06	1	0610-0712	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (J) ID=33 L=63	1-09700-807-0	06	1	0610-0712		●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (J) ID=33 L=63	1-09700-807-0	06	1	0801-	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (J) ID=33 L=63	1-09700-807-0	06	1	0801-		●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	03	1	0211-0507	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (G) ID=30 W/STUD	8-97078-642-2	01	1	0508-0609	●	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (G) ID=30 W/STUD	8-97078-642-2	01	1	0610-0712	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (G) ID=30 W/STUD	8-97078-642-2	01	1	0610-0712		●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (G) ID=30 W/STUD	8-97078-642-2	01	1	0801-	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (G) ID=30 W/STUD	8-97078-642-2	01	1	0801-		●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	04	1	0211-0507	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	01	1	0508-0609	●	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	02	1	0610-0712	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	02	1	0801-1201	●	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	01	1	1202-1401	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	01	1	1202-1401		●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	01	1	1402-1405	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) VIN MODEL YEAR 2012(VZC) SPECIAL PACKAGE<7BB> EXC. HEAVY DUTY FRAME<6WB> 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	01	1	1402-1405		●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	01	1	1402-1405		●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	01	1	1406-	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) SPECIAL PACKAGE<7BB> EXC. HEAVY DUTY FRAME<6WB> 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	01	1	1406-		●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	01	1	1406-		●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) (M) ID=20	5-09700-321-0	01	1	0211-0507	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	04	1	0508-0609	●	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	03	1	0610-0712	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	03	1	0801-	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) 03.162 (A) L=140 IDN	5-09707-031-1	01	1	0211-0507	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.162 (A) L=140 IDN	5-09707-031-1	01	1	0508-0609	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.162 (A) L=140 IDN	5-09707-031-1	01	1	0610-	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) 02.525 (I) T=4.5 & 9 IDN	5-09709-023-0	01	1	0211-0507	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.525 (I) T=4.5 & 9 IDN	5-09709-023-0	01	1	0508-0609	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.525 (I) T=4.5 & 9 IDN	5-09709-023-0	01	1	0610-	●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.240 (E) T=5.5 IDN	5-09709-047-0	01	1	0211-0507	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 01.240 (E) T=5.5 IDN	5-09709-047-0	01	1	0211-0507	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> 01.240 (E) T=5.5 IDN	5-09709-047-0	01	1	0508-0609	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 01.240 (E) T=5.5 IDN	5-09709-047-0	01	1	0508-0609	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) 01.240 (E) T=5.5 IDN	5-09709-047-0	01	1	0610-0712	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> 01.240 (E) T=5.5 IDN	5-09709-047-0	01	1	0610-0712	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 01.240 (E) T=5.5 IDN	5-09709-047-0	01	1	0610-0712	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) 01.240 (E) T=5.5 IDN	5-09709-047-0	01	1	0801-	●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> 01.240 (E) T=5.5 IDN	5-09709-047-0	01	1	0801-	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 01.240 (E) T=5.5 IDN	5-09709-047-0	01	1	0801-	●
48	02.559 CLIP; FRAME HARNESS (O) ID=31 L=30	1-09700-969-0	01	1	0211-	●	●
48	02.559 CLIP; FRAME HARNESS (D) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0211-	●	●
48	02.559 CLIP; FRAME HARNESS (N) ID=9	8-97063-874-0	01	1	0211-	●	●
48	02.559 CLIP; FRAME HARNESS (G) ID=30 W/STUD	8-97078-642-2	01	1	0211-0507	●	●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 13 IDN	5-09709-096-0	01	1	0508-	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (F) T=9.2 IDN	5-09709-013-0	01	1	0211-0507		●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> (F) T=9.2 IDN	5-09709-013-0	01	1	0508-0609		●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> (F) T=9.2 IDN	5-09709-013-0	01	1	0508-0609		●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> (F) T=9.2 IDN	5-09709-013-0	01	1	0610-		●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> (F) T=9.2 IDN	5-09709-013-0	01	1	0610-		●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	01	1	0610-1201	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	04	1	0610-	●	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) (L) ID=19 H=70 L=25 IDN	1-09700-773-0	01	1	0610-0712	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) (L) ID=19 H=70 L=25 IDN	1-09700-773-0	01	1	0801-	●	●
48	02.559 CLIP; FRAME HARNESS M/T MSB5M(RM5) 04.785 (C) ID=9.6 IDN	8-94147-870-0	01	1	0610-0712	●
48	02.559 CLIP; FRAME HARNESS M/T MSB5M(RM5) 04.785 (C) ID=9.6 IDN	8-94147-870-0	01	1	0801-	●	●
52	02.559 CLIP; HARNESS TO BRKT 01.240 ID=14 L=47 IDN	5-09700-319-0	01	1	0211-		●

483 48 48 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) SPECIAL PACKAGE<7BB> 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	02	1	1411-	●	●
48	02.559 CLIP; FRAME HARNESS VIN MODEL YEAR 2012(VZC) (P) T=4.5 & 9	8-97371-947-0	01	1	1202-1404		●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE) EXC. MINI BUS CHASSIS(V4B) (P) T=4.5 & 9	8-97371-947-0	01	1	1405-1405		●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) EXC. MINI BUS CHASSIS(V4B) (P) T=4.5 & 9	8-97371-947-0	01	1	1406-		●
48	02.559 CLIP; FRAME HARNESS VIN MODEL YEAR 2012(VZC) (Q) T=10.5 IDN	8-97371-950-0	01	1	1202-1404		●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE) EXC. MINI BUS CHASSIS(V4B) (Q) T=10.5 IDN	8-97371-950-0	01	1	1405-1405		●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2014(VZE) EXC. MINI BUS CHASSIS(V4B) (Q) T=10.5 IDN	8-97371-950-0	01	1	1405-1405		●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) EXC. MINI BUS CHASSIS(V4B) (Q) T=10.5 IDN	8-97371-950-0	01	1	1406-		●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) EXC. MINI BUS CHASSIS(V4B) (Q) T=10.5 IDN	8-97371-950-0	01	1	1406-		●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) (K) ID=20	8-94169-650-0	01	1	0211-0305	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) (J) ID=33 L=63	1-09700-807-0	06	1	0211-0507	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (J) ID=33 L=63	1-09700-807-0	06	1	0508-0609	●	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (J) ID=33 L=63	1-09700-807-0	06	1	0610-0712	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (J) ID=33 L=63	1-09700-807-0	06	1	0610-0712		●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (J) ID=33 L=63	1-09700-807-0	06	1	0801-	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (J) ID=33 L=63	1-09700-807-0	06	1	0801-		●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	03	1	0211-0507	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (G) ID=30 W/STUD	8-97078-642-2	01	1	0508-0609	●	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (G) ID=30 W/STUD	8-97078-642-2	01	1	0610-0712	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (G) ID=30 W/STUD	8-97078-642-2	01	1	0610-0712		●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (G) ID=30 W/STUD	8-97078-642-2	01	1	0801-	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (G) ID=30 W/STUD	8-97078-642-2	01	1	0801-		●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	04	1	0211-0507	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	01	1	0508-0609	●	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	02	1	0610-0712	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	02	1	0801-1201	●	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	01	1	1202-1401	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	01	1	1202-1401		●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	01	1	1402-1405	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) VIN MODEL YEAR 2012(VZC) SPECIAL PACKAGE<7BB> EXC. HEAVY DUTY FRAME<6WB> 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	01	1	1402-1405		●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	01	1	1402-1405		●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	01	1	1406-	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) SPECIAL PACKAGE<7BB> EXC. HEAVY DUTY FRAME<6WB> 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	01	1	1406-		●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	01	1	1406-		●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) (M) ID=20	5-09700-321-0	01	1	0211-0507	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	04	1	0508-0609	●	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	03	1	0610-0712	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	03	1	0801-	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) 03.162 (A) L=140 IDN	5-09707-031-1	01	1	0211-0507	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.162 (A) L=140 IDN	5-09707-031-1	01	1	0508-0609	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.162 (A) L=140 IDN	5-09707-031-1	01	1	0610-	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) 02.525 (I) T=4.5 & 9 IDN	5-09709-023-0	01	1	0211-0507	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.525 (I) T=4.5 & 9 IDN	5-09709-023-0	01	1	0508-0609	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.525 (I) T=4.5 & 9 IDN	5-09709-023-0	01	1	0610-	●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.240 (E) T=5.5 IDN	5-09709-047-0	01	1	0211-0507	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 01.240 (E) T=5.5 IDN	5-09709-047-0	01	1	0211-0507	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> 01.240 (E) T=5.5 IDN	5-09709-047-0	01	1	0508-0609	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 01.240 (E) T=5.5 IDN	5-09709-047-0	01	1	0508-0609	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) 01.240 (E) T=5.5 IDN	5-09709-047-0	01	1	0610-0712	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> 01.240 (E) T=5.5 IDN	5-09709-047-0	01	1	0610-0712	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 01.240 (E) T=5.5 IDN	5-09709-047-0	01	1	0610-0712	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) 01.240 (E) T=5.5 IDN	5-09709-047-0	01	1	0801-	●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> 01.240 (E) T=5.5 IDN	5-09709-047-0	01	1	0801-	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 01.240 (E) T=5.5 IDN	5-09709-047-0	01	1	0801-	●
48	02.559 CLIP; FRAME HARNESS (O) ID=31 L=30	1-09700-969-0	01	1	0211-	●	●
48	02.559 CLIP; FRAME HARNESS (D) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0211-	●	●
48	02.559 CLIP; FRAME HARNESS (N) ID=9	8-97063-874-0	01	1	0211-	●	●
48	02.559 CLIP; FRAME HARNESS (G) ID=30 W/STUD	8-97078-642-2	01	1	0211-0507	●	●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 13 IDN	5-09709-096-0	01	1	0508-	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (F) T=9.2 IDN	5-09709-013-0	01	1	0211-0507		●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> (F) T=9.2 IDN	5-09709-013-0	01	1	0508-0609		●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> (F) T=9.2 IDN	5-09709-013-0	01	1	0508-0609		●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> (F) T=9.2 IDN	5-09709-013-0	01	1	0610-		●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> (F) T=9.2 IDN	5-09709-013-0	01	1	0610-		●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	01	1	0610-1201	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	04	1	0610-	●	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) (L) ID=19 H=70 L=25 IDN	1-09700-773-0	01	1	0610-0712	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) (L) ID=19 H=70 L=25 IDN	1-09700-773-0	01	1	0801-	●	●
48	02.559 CLIP; FRAME HARNESS M/T MSB5M(RM5) 04.785 (C) ID=9.6 IDN	8-94147-870-0	01	1	0610-0712	●
48	02.559 CLIP; FRAME HARNESS M/T MSB5M(RM5) 04.785 (C) ID=9.6 IDN	8-94147-870-0	01	1	0801-	●	●
483	02.559 CLIP; ENG HARNESS 4HG1-T ENG(RDP) GLOW SYSTEM DELETE<7RK> VIN MODEL YEAR 2015(VZF) 03.162 (B) L=140 IDN	5-09707-031-1	03	1	1410-		●
483	02.559 CLIP; ENG HARNESS 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140 IDN	5-09707-031-1	02	1	0310-0507	●
483	02.559 CLIP; ENG HARNESS 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140 IDN	5-09707-031-1	02	1	0310-0507	●
483	02.559 CLIP; ENG HARNESS 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> POWER STEERING<N40> ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140 IDN	5-09707-031-1	02	1	0310-0507		●
483	02.559 CLIP; ENG HARNESS 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140 IDN	5-09707-031-1	02	1	0310-0507		●
483	02.559 CLIP; ENG HARNESS 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140 IDN	5-09707-031-1	02	1	0508-0609	●	●
483	02.559 CLIP; ENG HARNESS 4HF1-N ENG(RJZ) FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> GLOW SYSTEM DELETE<7RK> EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140 IDN	5-09707-031-1	02	1	0610-0712	●
483	02.559 CLIP; ENG HARNESS 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140 IDN	5-09707-031-1	02	1	0610-0712		●
483	02.559 CLIP; ENG HARNESS 4HF1-N ENG(RJZ) FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> GLOW SYSTEM DELETE<7RK> EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140 IDN	5-09707-031-1	02	1	0801-	●	●
483	02.559 CLIP; ENG HARNESS 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60), ENGINE POWER N-SPEC(7QV) 03.162 (B) L=140 IDN	5-09707-031-1	01	1	0310-0507		●
483	02.559 CLIP; ENG HARNESS 4HG1 ENG(RJH) EXC. AIR CONDITIONER MANUAL CONT(C60), EXHAUST BRAKE<NF8>,ENGINE POWER N-SPEC(7QV) 03.162 (B) L=140 IDN	5-09707-031-1	01	1	0310-0507		●
483	02.559 CLIP; ENG HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60), ENGINE POWER N-SPEC(7QV) 03.162 (B) L=140 IDN	5-09707-031-1	01	1	0310-0507		●
483	02.559 CLIP; ENG HARNESS 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140 IDN	5-09707-031-1	01	1	0508-0609		●
483	02.559 CLIP; ENG HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.162 (B) L=140 IDN	5-09707-031-1	01	1	0610-1409		●
483	02.559 CLIP; ENG HARNESS 4HG1 ENG(RJH) 03.162 (B) L=140 IDN	5-09707-031-1	01	1	1410-		●
483	02.559 CLIP; ENG HARNESS 4HG1-T ENG(RDP) GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015(VZF) 03.162 (B) L=140 IDN	5-09707-031-1	01	1	1410-		●
483	02.559 CLIP; ENG HARNESS 4HG1-T ENG(RDP) FAST GLOW SYSTEM<KM6> 03.162 (B) L=140 IDN	5-09707-031-1	01	1	1410-		●
483	02.559 CLIP; ENG HARNESS 4JB1-TC ENG(RDT) (C) ID=11 L=20	0-95235-035-0	01	1	0610-0712	●
483	02.559 CLIP; ENG HARNESS 4JB1-TC ENG(RDT) (C) ID=11 L=20	0-95235-035-0	01	1	0801-	●	●
483	02.559 CLIP; ENG HARNESS 4JB1-TC ENG(RDT) 04.342 (A) L=197	1-83574-032-0	01	1	0610-0712	●
483	02.559 CLIP; ENG HARNESS 4JB1-TC ENG(RDT) 04.342 (A) L=197	1-83574-032-0	01	1	0801-	●	●

31 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HG1 ENG(RJH),4HF1-S ENG(RLS) (C)	8-97357-142-0	03	1	0211-0211	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HG1 ENG(RJH),4HF1-S ENG(RLS) (C)	8-97362-859-0	03	1	0211-0507	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (C)	8-97362-859-0	03	1	0508-0609	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (C)	8-97362-859-0	03	1	0610-	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1-TC ENG(RDT) (A) L=20 IDN	8-94165-263-1	01	1	0610-0712	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1-TC ENG(RDT) (A) L=20 IDN	8-94165-263-1	01	1	0801-	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1-TC ENG(RDT) (B) IDN	8-97077-845-0	02	1	0610-0712	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JB1-TC ENG(RDT) (B) IDN	8-97077-845-0	02	1	0801-	●	●

16 16 183

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	02.559 CLIP; HARNESS 4JB1-TC ENG(RDT) SPECIAL PACKAGE<7BB> 02.343 (G) ID=10 & 16 IDN	8-94413-325-0	01	1	1402-1405	●	●
16	02.559 CLIP; HARNESS 4HG1-T ENG(RDP) VIN MODEL YEAR 2012(VZC) SPECIAL PACKAGE<7BB> 02.343 (G) ID=10 & 16 IDN	8-94413-325-0	01	1	1402-1405		●
16	02.559 CLIP; HARNESS 4JB1-TC ENG(RDT) SPECIAL PACKAGE<7BB> 02.343 (G) ID=10 & 16 IDN	8-94413-325-0	01	1	1406-	●	●
16	02.559 CLIP; HARNESS 4HG1-T ENG(RDP) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) SPECIAL PACKAGE<7BB> 02.343 (G) ID=10 & 16 IDN	8-94413-325-0	01	1	1406-		●
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADI O AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (B) L=155 IDN	8-97173-307-0	04	1	1011-1405	●	●
16	02.559 CLIP; HARNESS RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32> (B) L=155 IDN	8-97173-307-0	04	1	1011-1405	●	●
16	02.559 CLIP; HARNESS EXC. POWER WINDOW FRT DOOR<A32> (C) L=100 IDN	8-94327-067-1	04	1	0211-	●	●
16	02.559 CLIP; HARNESS EXC. POWER WINDOW FRT DOOR<A32> (B) L=155 IDN	8-97173-307-0	04	1	0211-1009	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (B) L=155 IDN	8-97173-307-0	05	1	1010-1010	●	●
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADI O AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (B) L=155 IDN	8-97173-307-0	05	1	1010-1010	●	●
16	02.559 CLIP; HARNESS RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32> (B) L=155 IDN	8-97173-307-0	05	1	1010-1010	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (B) L=155 IDN	8-97173-307-0	05	1	1010-1010	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 IDN	8-97173-307-0	06	1	1011-1405	●	●
16	02.559 CLIP; HARNESS EXC. POWER WINDOW FRT DOOR<A32> (B) L=155 IDN	8-97173-307-0	04	1	1406-	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (B) L=155 IDN	8-97173-307-0	05	1	0211-1009	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (B) L=155 IDN	8-97173-307-0	05	1	0211-1009	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (B) L=155 IDN	8-97173-307-0	06	1	1010-1010	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (B) L=155 IDN	8-97173-307-0	05	1	1011-1405	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (B) L=155 IDN	8-97173-307-0	05	1	1011-1405	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4> (B) L=155 IDN	8-97173-307-0	05	1	1011-1405	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (B) L=155 IDN	8-97173-307-0	05	1	1406-	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (B) L=155 IDN	8-97173-307-0	05	1	1406-	●	●
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47 IDN	5-09700-319-0	07	1	0211-	●
16	02.559 CLIP; HARNESS (F) L=135 IDN	1-09987-143-1	02	1	0211-	●	●
16	02.559 CLIP; HARNESS 16.065 (E) 1 SET=5 PIECE	1-09987-214-0	02	1	0211-	●	●
16	02.559 CLIP; HARNESS 02.343 (G) ID=10 & 16 IDN	8-94413-325-0	02	1	0211-	●	●
16	02.559 CLIP; HARNESS 01.166 (H) ID=22 & 22 IDN	8-94464-837-0	01	1	0211-	●	●
16	02.559 CLIP; HARNESS (I) ID=15-32 IDN	8-97174-404-0	02	1	0211-	●	●
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) L=140 IDN	5-09707-031-1	01	1	0211-1403	●	●
16	02.559 CLIP; HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) 01.240 (D) ID=14 L=47 IDN	5-09700-319-0	09	1	0211-0507		●
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47 IDN	5-09700-319-0	09	1	0508-		●
183	02.559 CLIP; CONNECTOR 4HG1 ENG(RJH),4HF1-S ENG(RLS) 02.480 ID=10.5 & 4.8	8-97019-966-0	01	1	0211-0301	●	●

264 16 16 264 48 464 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	02.559 CLIP; HARNESS 4JB1-TC ENG(RDT) SPECIAL PACKAGE<7BB> 02.343 (G) ID=10 & 16 IDN	8-94413-325-0	01	1	1402-1405	●	●
16	02.559 CLIP; HARNESS 4HG1-T ENG(RDP) VIN MODEL YEAR 2012(VZC) SPECIAL PACKAGE<7BB> 02.343 (G) ID=10 & 16 IDN	8-94413-325-0	01	1	1402-1405		●
16	02.559 CLIP; HARNESS 4JB1-TC ENG(RDT) SPECIAL PACKAGE<7BB> 02.343 (G) ID=10 & 16 IDN	8-94413-325-0	01	1	1406-	●	●
16	02.559 CLIP; HARNESS 4HG1-T ENG(RDP) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) SPECIAL PACKAGE<7BB> 02.343 (G) ID=10 & 16 IDN	8-94413-325-0	01	1	1406-		●
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADI O AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (B) L=155 IDN	8-97173-307-0	04	1	1011-1405	●	●
16	02.559 CLIP; HARNESS RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32> (B) L=155 IDN	8-97173-307-0	04	1	1011-1405	●	●
16	02.559 CLIP; HARNESS EXC. POWER WINDOW FRT DOOR<A32> (C) L=100 IDN	8-94327-067-1	04	1	0211-	●	●
16	02.559 CLIP; HARNESS EXC. POWER WINDOW FRT DOOR<A32> (B) L=155 IDN	8-97173-307-0	04	1	0211-1009	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (B) L=155 IDN	8-97173-307-0	05	1	1010-1010	●	●
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADI O AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (B) L=155 IDN	8-97173-307-0	05	1	1010-1010	●	●
16	02.559 CLIP; HARNESS RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32> (B) L=155 IDN	8-97173-307-0	05	1	1010-1010	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (B) L=155 IDN	8-97173-307-0	05	1	1010-1010	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 IDN	8-97173-307-0	06	1	1011-1405	●	●
16	02.559 CLIP; HARNESS EXC. POWER WINDOW FRT DOOR<A32> (B) L=155 IDN	8-97173-307-0	04	1	1406-	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (B) L=155 IDN	8-97173-307-0	05	1	0211-1009	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (B) L=155 IDN	8-97173-307-0	05	1	0211-1009	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (B) L=155 IDN	8-97173-307-0	06	1	1010-1010	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (B) L=155 IDN	8-97173-307-0	05	1	1011-1405	●	●
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (B) L=155 IDN	8-97173-307-0	05	1	1011-1405	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4> (B) L=155 IDN	8-97173-307-0	05	1	1011-1405	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (B) L=155 IDN	8-97173-307-0	05	1	1406-	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (B) L=155 IDN	8-97173-307-0	05	1	1406-	●	●
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47 IDN	5-09700-319-0	07	1	0211-	●
16	02.559 CLIP; HARNESS (F) L=135 IDN	1-09987-143-1	02	1	0211-	●	●
16	02.559 CLIP; HARNESS 16.065 (E) 1 SET=5 PIECE	1-09987-214-0	02	1	0211-	●	●
16	02.559 CLIP; HARNESS 02.343 (G) ID=10 & 16 IDN	8-94413-325-0	02	1	0211-	●	●
16	02.559 CLIP; HARNESS 01.166 (H) ID=22 & 22 IDN	8-94464-837-0	01	1	0211-	●	●
16	02.559 CLIP; HARNESS (I) ID=15-32 IDN	8-97174-404-0	02	1	0211-	●	●
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) L=140 IDN	5-09707-031-1	01	1	0211-1403	●	●
16	02.559 CLIP; HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) 01.240 (D) ID=14 L=47 IDN	5-09700-319-0	09	1	0211-0507		●
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47 IDN	5-09700-319-0	09	1	0508-		●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) SPECIAL PACKAGE<7BB> 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	02	1	1411-	●	●
48	02.559 CLIP; FRAME HARNESS VIN MODEL YEAR 2012(VZC) (P) T=4.5 & 9	8-97371-947-0	01	1	1202-1404		●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE) EXC. MINI BUS CHASSIS(V4B) (P) T=4.5 & 9	8-97371-947-0	01	1	1405-1405		●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) EXC. MINI BUS CHASSIS(V4B) (P) T=4.5 & 9	8-97371-947-0	01	1	1406-		●
48	02.559 CLIP; FRAME HARNESS VIN MODEL YEAR 2012(VZC) (Q) T=10.5 IDN	8-97371-950-0	01	1	1202-1404		●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE) EXC. MINI BUS CHASSIS(V4B) (Q) T=10.5 IDN	8-97371-950-0	01	1	1405-1405		●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2014(VZE) EXC. MINI BUS CHASSIS(V4B) (Q) T=10.5 IDN	8-97371-950-0	01	1	1405-1405		●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) EXC. MINI BUS CHASSIS(V4B) (Q) T=10.5 IDN	8-97371-950-0	01	1	1406-		●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) G.V.W. 6.5-7.0TON(RPW) VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) EXC. MINI BUS CHASSIS(V4B) (Q) T=10.5 IDN	8-97371-950-0	01	1	1406-		●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) (K) ID=20	8-94169-650-0	01	1	0211-0305	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) (J) ID=33 L=63	1-09700-807-0	06	1	0211-0507	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (J) ID=33 L=63	1-09700-807-0	06	1	0508-0609	●	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (J) ID=33 L=63	1-09700-807-0	06	1	0610-0712	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (J) ID=33 L=63	1-09700-807-0	06	1	0610-0712		●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (J) ID=33 L=63	1-09700-807-0	06	1	0801-	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (J) ID=33 L=63	1-09700-807-0	06	1	0801-		●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	03	1	0211-0507	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (G) ID=30 W/STUD	8-97078-642-2	01	1	0508-0609	●	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (G) ID=30 W/STUD	8-97078-642-2	01	1	0610-0712	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (G) ID=30 W/STUD	8-97078-642-2	01	1	0610-0712		●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (G) ID=30 W/STUD	8-97078-642-2	01	1	0801-	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (G) ID=30 W/STUD	8-97078-642-2	01	1	0801-		●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	04	1	0211-0507	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	01	1	0508-0609	●	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	02	1	0610-0712	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	02	1	0801-1201	●	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	01	1	1202-1401	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	01	1	1202-1401		●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	01	1	1402-1405	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) VIN MODEL YEAR 2012(VZC) SPECIAL PACKAGE<7BB> EXC. HEAVY DUTY FRAME<6WB> 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	01	1	1402-1405		●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	01	1	1402-1405		●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	01	1	1406-	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) VIN MODEL YEAR 2012(VZC),VIN MODEL YEAR 2014(VZE),VIN MODEL YEAR 2015(VZF) SPECIAL PACKAGE<7BB> EXC. HEAVY DUTY FRAME<6WB> 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	01	1	1406-		●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	01	1	1406-		●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) (M) ID=20	5-09700-321-0	01	1	0211-0507	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	04	1	0508-0609	●	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	03	1	0610-0712	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	03	1	0801-	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) 03.162 (A) L=140 IDN	5-09707-031-1	01	1	0211-0507	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.162 (A) L=140 IDN	5-09707-031-1	01	1	0508-0609	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 03.162 (A) L=140 IDN	5-09707-031-1	01	1	0610-	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) 02.525 (I) T=4.5 & 9 IDN	5-09709-023-0	01	1	0211-0507	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.525 (I) T=4.5 & 9 IDN	5-09709-023-0	01	1	0508-0609	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.525 (I) T=4.5 & 9 IDN	5-09709-023-0	01	1	0610-	●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.240 (E) T=5.5 IDN	5-09709-047-0	01	1	0211-0507	●
48	02.559 CLIP; FRAME HARNESS 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 01.240 (E) T=5.5 IDN	5-09709-047-0	01	1	0211-0507	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> 01.240 (E) T=5.5 IDN	5-09709-047-0	01	1	0508-0609	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 01.240 (E) T=5.5 IDN	5-09709-047-0	01	1	0508-0609	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) 01.240 (E) T=5.5 IDN	5-09709-047-0	01	1	0610-0712	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> 01.240 (E) T=5.5 IDN	5-09709-047-0	01	1	0610-0712	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 01.240 (E) T=5.5 IDN	5-09709-047-0	01	1	0610-0712	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) 01.240 (E) T=5.5 IDN	5-09709-047-0	01	1	0801-	●	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> 01.240 (E) T=5.5 IDN	5-09709-047-0	01	1	0801-	●
48	02.559 CLIP; FRAME HARNESS 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> 01.240 (E) T=5.5 IDN	5-09709-047-0	01	1	0801-	●
48	02.559 CLIP; FRAME HARNESS (O) ID=31 L=30	1-09700-969-0	01	1	0211-	●	●
48	02.559 CLIP; FRAME HARNESS (D) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0211-	●	●
48	02.559 CLIP; FRAME HARNESS (N) ID=9	8-97063-874-0	01	1	0211-	●	●
48	02.559 CLIP; FRAME HARNESS (G) ID=30 W/STUD	8-97078-642-2	01	1	0211-0507	●	●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 13 IDN	5-09709-096-0	01	1	0508-	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (F) T=9.2 IDN	5-09709-013-0	01	1	0211-0507		●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> (F) T=9.2 IDN	5-09709-013-0	01	1	0508-0609		●
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> (F) T=9.2 IDN	5-09709-013-0	01	1	0508-0609		●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> (F) T=9.2 IDN	5-09709-013-0	01	1	0610-		●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> (F) T=9.2 IDN	5-09709-013-0	01	1	0610-		●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	01	1	0610-1201	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 01.240 (H) ID=14 L=47 IDN	5-09700-319-0	04	1	0610-	●	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) (L) ID=19 H=70 L=25 IDN	1-09700-773-0	01	1	0610-0712	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) (L) ID=19 H=70 L=25 IDN	1-09700-773-0	01	1	0801-	●	●
48	02.559 CLIP; FRAME HARNESS M/T MSB5M(RM5) 04.785 (C) ID=9.6 IDN	8-94147-870-0	01	1	0610-0712	●
48	02.559 CLIP; FRAME HARNESS M/T MSB5M(RM5) 04.785 (C) ID=9.6 IDN	8-94147-870-0	01	1	0801-	●	●
264	02.559 CLIP; HARNESS,HEADLAMP 02.343 (A) ID=10 & 16 IDN	8-94413-325-0	03	1	0211-0404	●	●
264	02.559 CLIP; HARNESS,HEADLAMP 02.343 (A) ID=10 & 16 IDN	8-94413-325-0	02	1	0405-0507	●	●
264	02.559 CLIP; HARNESS,HEADLAMP 02.694 (B) ID=6 & 10-13	8-97069-515-0	01	1	0405-	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) 02.559 ID=6.5	8-94257-639-0	01	1	0211-0507	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.559 ID=6.5	8-94257-639-0	01	1	0508-0609	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 02.559 ID=6.5	8-94257-639-0	01	1	0610-0712	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.559 ID=6.5	8-94257-639-0	01	1	0610-0712		●
464	02.525 CLIP; SEDIMENTER HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 02.559 ID=6.5	8-94257-639-0	01	1	0801-	●
464	02.525 CLIP; SEDIMENTER HARNESS 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.559 ID=6.5	8-94257-639-0	01	1	0801-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
