Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#79013) — 578 parça

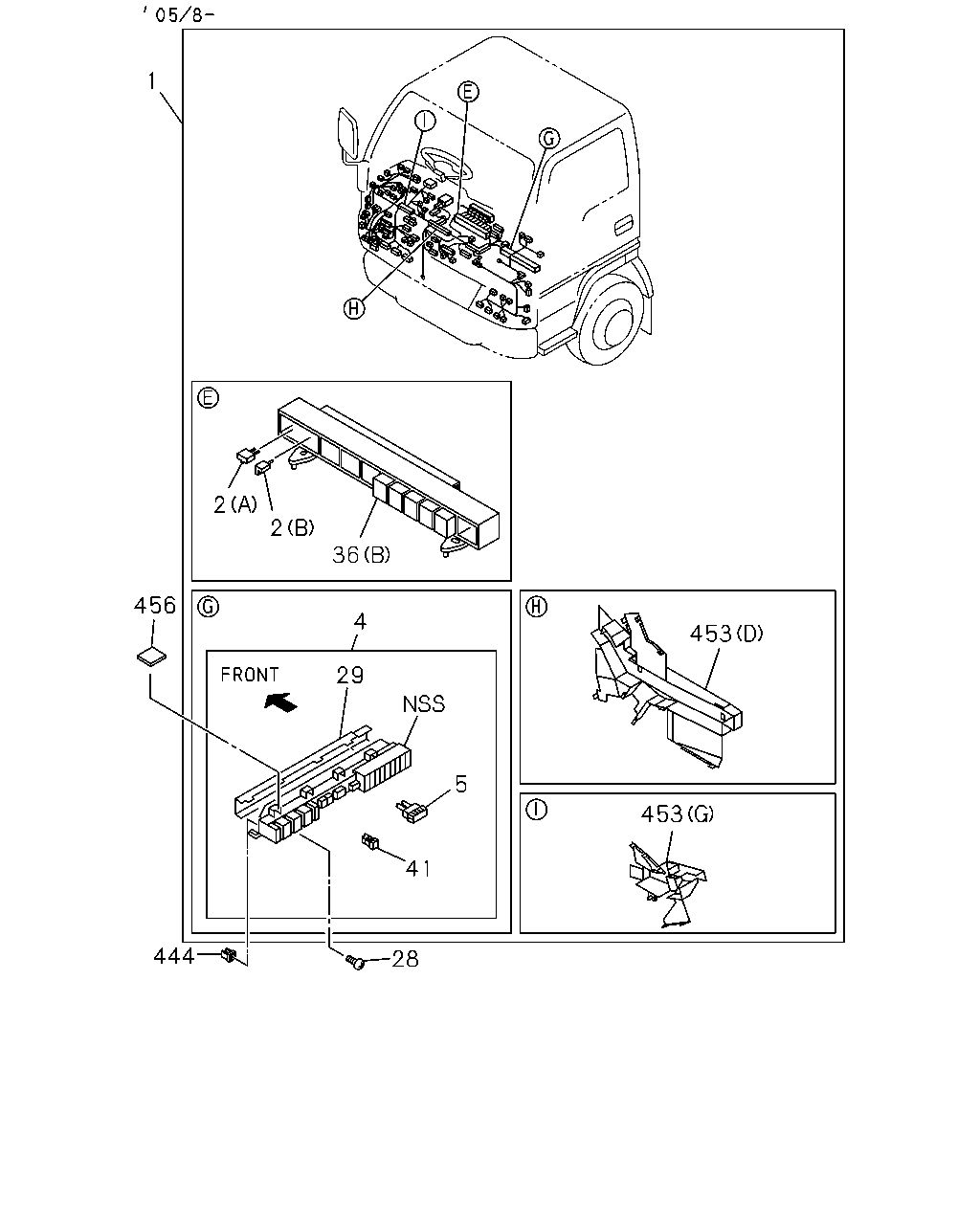

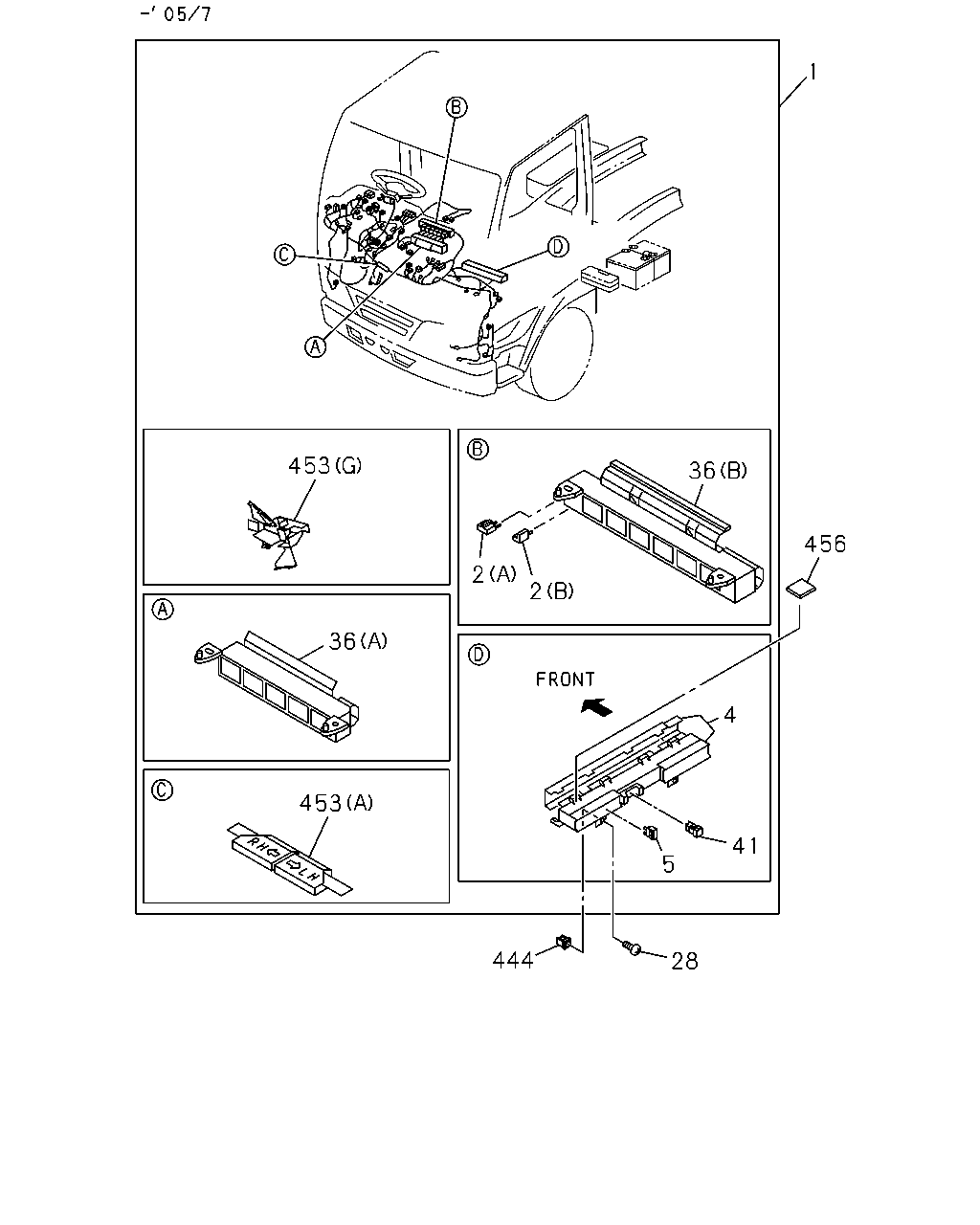

1 2 2 36 456 4 453 29 5 453 41 444 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

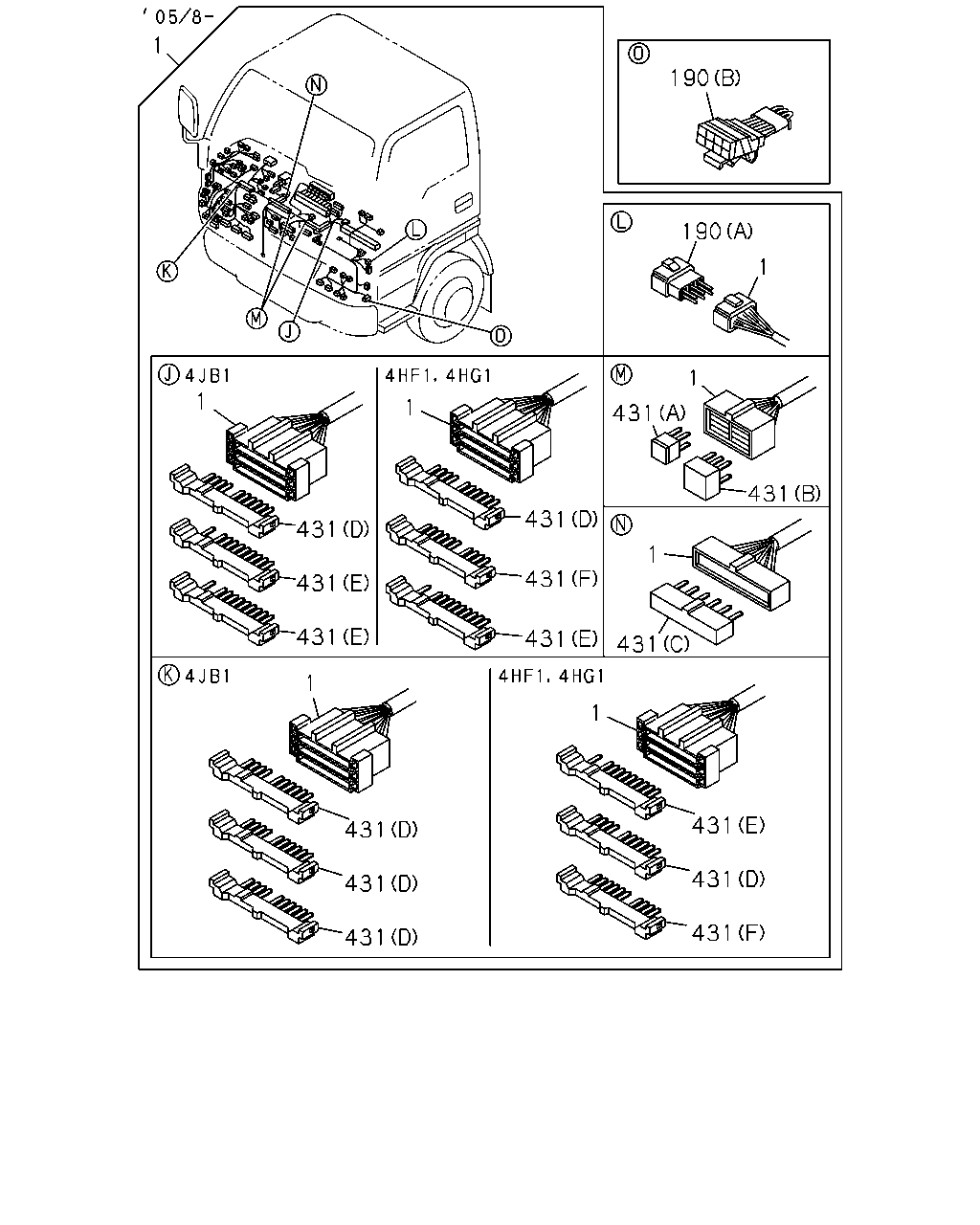

1	02.480 HARNESS; CAB 4HG1-T ENG(RDP) VIN MODEL YEAR 2014(VZE) IDN	8-98272-818-0	01	1	1405-1405	●
1	02.480 HARNESS; CAB 4HG1-T ENG(RDP) VIN MODEL YEAR 2015(VZF) IDN	8-98272-818-0	01	1	1406-	●
1	02.480 HARNESS; CAB 4JB1-TC ENG(RDT) PROVISIONAL PACKAGE SPEC<BCC> IDN	8-98217-083-0	01	1	1207-	●	●
1	02.480 HARNESS; CAB 4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> IDN	8-98217-089-0	01	1	1207-1404	●
1	02.480 HARNESS; CAB 4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> EXC. VIN MODEL YEAR 2014(VZE) IDN	8-98217-089-0	01	1	1405-1405	●
1	02.480 HARNESS; CAB 4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> EXC. VIN MODEL YEAR 2015(VZF) IDN	8-98217-089-0	01	1	1406-	●
1	02.480 HARNESS; CAB 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) IDN	8-97309-086-2	01	1	0211-0507	●
1	02.480 HARNESS; CAB 4HF1-S ENG(RLS) IDN	8-97309-087-2	01	1	0211-0507		●
1	02.480 HARNESS; CAB 4HG1 ENG(RJH),4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) IDN	8-97309-087-2	01	1	0211-0507	●
1	02.480 HARNESS; CAB 4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97383-606-2	01	1	0508-	●	●
1	02.480 HARNESS; CAB 4HG1-T ENG(RDP) IDN	8-98051-181-1	01	1	0610-1206	●
1	02.480 HARNESS; CAB 4HG1-T ENG(RDP) EXC. PROVISIONAL PACKAGE SPEC<BCC> IDN	8-98051-181-1	01	1	1207-1404	●
1	02.480 HARNESS; CAB 4HG1-T ENG(RDP) EXC. PROVISIONAL PACKAGE SPEC<BCC>,VIN MODEL YEAR 2014(VZE) IDN	8-98051-181-1	01	1	1405-1405	●
1	02.480 HARNESS; CAB 4HG1-T ENG(RDP) EXC. PROVISIONAL PACKAGE SPEC<BCC>,VIN MODEL YEAR 2015(VZF) IDN	8-98051-181-1	01	1	1406-	●
1	02.480 HARNESS; CAB 4JB1-TC ENG(RDT) IDN	8-98051-180-0	01	1	0610-0712		●
1	02.480 HARNESS; CAB 4JB1-TC ENG(RDT) IDN	8-98051-180-0	01	1	0801-1206	●	●
1	02.480 HARNESS; CAB 4JB1-TC ENG(RDT) EXC. PROVISIONAL PACKAGE SPEC<BCC> IDN	8-98051-180-0	01	1	1207-	●	●
2	02.483 DIODE; CABLE HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) (B) BLACK 2P-1.5A IDN	8-94422-639-1	AR	1	0211-0507	●	●
2	02.483 DIODE; CABLE HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) BLACK 2P-1.5A IDN	8-94422-639-1	AR	1	0508-0609	●	●
2	02.483 DIODE; CABLE HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (B) BLACK 2P-1.5A IDN	8-94422-639-1	AR	1	0610-0712		●
2	02.483 DIODE; CABLE HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) BLACK 2P-1.5A IDN	8-94422-639-1	AR	1	0610-0712	●
2	02.483 DIODE; CABLE HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (B) BLACK 2P-1.5A IDN	8-94422-639-1	AR	1	0801-		●
2	02.483 DIODE; CABLE HARNESS 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) BLACK 2P-1.5A IDN	8-94422-639-1	AR	1	0801-	●
2	02.483 DIODE; CABLE HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) (A) BLACK 3P-1.5A IDN	8-94422-640-1	AR	1	0211-0507	●	●
2	02.483 DIODE; CABLE HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) BLACK 3P-1.5A IDN	8-94422-640-1	AR	1	0508-0609	●	●
2	02.483 DIODE; CABLE HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (A) BLACK 3P-1.5A IDN	8-94422-640-1	AR	1	0610-0712		●
2	02.483 DIODE; CABLE HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) BLACK 3P-1.5A IDN	8-94422-640-1	AR	1	0610-0712	●
2	02.483 DIODE; CABLE HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (A) BLACK 3P-1.5A IDN	8-94422-640-1	AR	1	0801-		●
2	02.483 DIODE; CABLE HARNESS 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) BLACK 3P-1.5A IDN	8-94422-640-1	AR	1	0801-	●
4	02.483 BOX ASM; FUSE,HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) IDN	8-97214-415-0	01	1	0211-0507	●	●
4	02.483 BOX ASM; FUSE,HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97187-921-1	01	1	0508-0609	●	●
4	02.483 BOX ASM; FUSE,HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) IDN	8-97187-921-1	01	1	0610-0712		●
4	02.483 BOX ASM; FUSE,HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97187-921-1	01	1	0610-0712	●
4	02.483 BOX ASM; FUSE,HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) IDN	8-97187-921-1	01	1	0801-		●
4	02.483 BOX ASM; FUSE,HARNESS 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97187-921-1	01	1	0801-	●
5	02.485 FUSE; FACIA HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) 08.965 10A RED IDN	5-82516-002-0	AR	1	0211-0507	●	●
5	02.485 FUSE; FACIA HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 08.965 10A MINI RED IDN	8-97062-022-0	AR	1	0508-1404	●	●
5	02.485 FUSE; FACIA HARNESS 4HF1-N ENG(RJZ) 08.965 10A MINI RED IDN	8-97062-022-0	AR	1	1405-1405		●
5	02.485 FUSE; FACIA HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 08.965 10A MINI RED IDN	8-97062-022-0	AR	1	1405-1405	●
5	02.485 FUSE; FACIA HARNESS 4HG1-T ENG(RDP) VIN MODEL YEAR 2014(VZE) 08.965 10A MINI RED IDN	8-97062-022-0	AR	1	1405-1405	●
5	02.485 FUSE; FACIA HARNESS 4HF1-N ENG(RJZ) 08.965 10A MINI RED IDN	8-97062-022-0	12	1	1406-		●
5	02.485 FUSE; FACIA HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 08.965 10A MINI RED IDN	8-97062-022-0	12	1	1406-	●
5	02.485 FUSE; FACIA HARNESS 4HG1-T ENG(RDP) VIN MODEL YEAR 2015(VZF) 08.965 10A MINI RED IDN	8-97062-022-0	12	1	1406-	●
5	02.485 FUSE; FACIA HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) 08.965 15A BLUE	5-82516-003-0	AR	1	0211-0507	●	●
5	02.485 FUSE; FACIA HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 08.965 15A MINI BLUE IDN	8-97062-023-0	AR	1	0508-0609	●	●
5	02.485 FUSE; FACIA HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 08.965 15A MINI BLUE IDN	8-97062-023-0	AR	1	0610-0712		●
5	02.485 FUSE; FACIA HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 08.965 15A MINI BLUE IDN	8-97062-023-0	AR	1	0610-0712	●
5	02.485 FUSE; FACIA HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 08.965 15A MINI BLUE IDN	8-97062-023-0	AR	1	0801-		●
5	02.485 FUSE; FACIA HARNESS 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 08.965 15A MINI BLUE IDN	8-97062-023-0	AR	1	0801-	●
5	02.485 FUSE; FACIA HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 08.965 20A MINI YELLOW IDN	8-97062-024-0	AR	1	0508-0609	●	●
5	02.485 FUSE; FACIA HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 08.965 20A MINI YELLOW IDN	8-97062-024-0	AR	1	0610-	●	●
5	02.485 FUSE; FACIA HARNESS 4HG1-T ENG(RDP) 08.965 10A MINI RED IDN	8-97062-022-0	AR	1	0610-1404	●
5	02.485 FUSE; FACIA HARNESS 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2014(VZE) 08.965 10A MINI RED IDN	8-97062-022-0	AR	1	1405-1405	●
5	02.485 FUSE; FACIA HARNESS 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015(VZF) 08.965 10A MINI RED IDN	8-97062-022-0	13	1	1406-	●
5	02.485 FUSE; FACIA HARNESS 4JB1-TC ENG(RDT) 08.965 10A MINI RED IDN	8-97062-022-0	AR	1	0610-0712		●
5	02.485 FUSE; FACIA HARNESS 4JB1-TC ENG(RDT) 08.965 10A MINI RED IDN	8-97062-022-0	AR	1	0801-	●	●
5	02.485 FUSE; FACIA HARNESS 4JB1-TC ENG(RDT) 08.965 30A PINK IDN	8-97183-643-0	AR	1	0610-0712		●
5	02.485 FUSE; FACIA HARNESS 4JB1-TC ENG(RDT) 08.965 30A PINK IDN	8-97183-643-0	AR	1	0801-	●	●
28	02.483 SCREW; FUSE BOX 16.802 M5X16 TAPPING W/PL WASHER IDN	0-74310-516-0	02	1	0211-0604	●	●
28	02.483 SCREW; FUSE BOX 03.885 M5X16 TAPPING W/PL WASHER IDN	0-74360-516-0	02	1	0605-0612	●	●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0701-1101	●	●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1102-1212	●	●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-	●	●
29	02.483 COVER; FUSE BOX 4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97074-955-0	01	1	0508-0609	●	●
29	02.483 COVER; FUSE BOX 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) IDN	8-97074-955-0	01	1	0610-0712		●
29	02.483 COVER; FUSE BOX 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97074-955-0	01	1	0610-0712	●
29	02.483 COVER; FUSE BOX 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) IDN	8-97074-955-0	01	1	0801-		●
29	02.483 COVER; FUSE BOX 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97074-955-0	01	1	0801-	●
36	02.530 BOX; RELAY 4HG1 ENG(RJH),4HF1-S ENG(RLS) (A) IDN	8-97087-640-1	01	1	0211-0507	●	●
36	02.530 BOX; RELAY 4HG1 ENG(RJH),4HF1-S ENG(RLS) (B) IDN	8-97087-639-1	01	1	0211-0507	●	●
36	02.530 BOX; RELAY 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) IDN	8-97187-918-1	01	1	0508-0609	●	●
36	02.530 BOX; RELAY 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (B) IDN	8-97187-918-1	01	1	0610-0712		●
36	02.530 BOX; RELAY 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) IDN	8-97187-918-1	01	1	0610-0712	●
36	02.530 BOX; RELAY 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (B) IDN	8-97187-918-1	01	1	0801-		●
36	02.530 BOX; RELAY 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) IDN	8-97187-918-1	01	1	0801-	●
41	08.821 PULLER; FUSE 4HG1 ENG(RJH),4HF1-S ENG(RLS) 02.483 L=25.3 B=11.5	8-94121-482-0	01	1	0211-0507	●	●
41	08.821 PULLER; FUSE 4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97103-388-0	01	1	0508-0609	●	●
41	08.821 PULLER; FUSE 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) IDN	8-97103-388-0	01	1	0610-0712		●
41	08.821 PULLER; FUSE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97103-388-0	01	1	0610-0712	●
41	08.821 PULLER; FUSE 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) IDN	8-97103-388-0	01	1	0801-		●
41	08.821 PULLER; FUSE 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97103-388-0	01	1	0801-	●
444	02.483 GROMMET; SCREW,FUSE BOX 01.269 D=8.6X7.7 L=7.5 IDN	8-94279-078-0	02	1	0211-	●	●

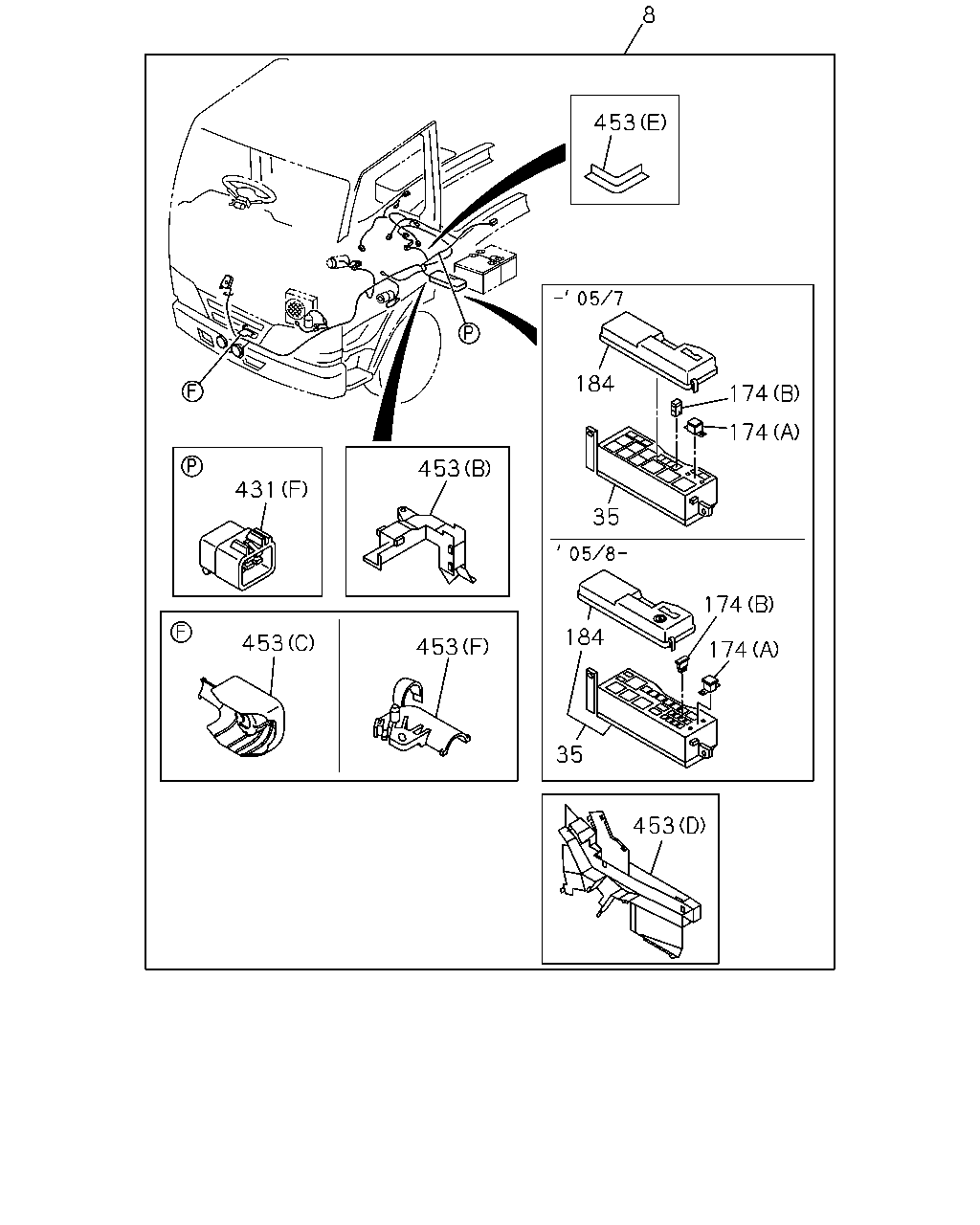

453	02.483 PROTECTOR; HARNESS (F)	8-97093-668-1	01	1	0211-0303	●	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) (F)	8-97093-668-1	01	1	0304-0507	●	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (F)	8-97093-668-1	01	1	0508-0609	●	●
453	02.483 PROTECTOR; HARNESS (F)	8-97093-668-1	01	1	0610-1404	●	●
453	02.483 PROTECTOR; HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (F)	8-97093-668-1	01	1	1405-1405		●
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP) VIN MODEL YEAR 2014(VZE) (F)	8-97093-668-1	01	1	1405-1405	●
453	02.483 PROTECTOR; HARNESS 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (F)	8-97093-668-1	01	1	1405-1405	●
453	02.483 PROTECTOR; HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (F)	8-97093-668-1	01	1	1406-		●
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP) VIN MODEL YEAR 2015(VZF) (F)	8-97093-668-1	01	1	1406-	●
453	02.483 PROTECTOR; HARNESS 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (F)	8-97093-668-1	01	1	1406-	●
453	02.483 PROTECTOR; HARNESS (B) IDN	8-97120-589-0	01	1	0211-0303	●	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) (B) IDN	8-97120-589-0	01	1	0304-0507	●	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) IDN	8-97120-589-0	01	1	0508-0609	●	●
453	02.483 PROTECTOR; HARNESS (B) IDN	8-97120-589-0	01	1	0610-	●	●
453	02.483 PROTECTOR; HARNESS (E) IDN	8-94417-716-0	01	1	0212-0303	●	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) (E) IDN	8-94417-716-0	01	1	0304-0507	●	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (E) IDN	8-94417-716-0	01	1	0508-0609	●	●
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (E) IDN	8-94417-716-0	01	1	0610-	●	●
453	02.483 PROTECTOR; HARNESS (C) IDN	8-94482-169-0	01	1	0212-0303	●	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) (C) IDN	8-94482-169-0	01	1	0304-0507	●	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (C) IDN	8-94482-169-0	01	1	0508-0609	●	●
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (C) IDN	8-94482-169-0	01	1	0610-	●	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) (E) IDN	8-94452-553-0	01	1	0211-0507	●	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (E) IDN	8-94452-553-0	01	1	0508-0609	●	●
453	02.483 PROTECTOR; HARNESS 4JB1-TC ENG(RDT) (E) IDN	8-94452-553-0	02	1	0610-0712		●
453	02.483 PROTECTOR; HARNESS 4JB1-TC ENG(RDT) (E) IDN	8-94452-553-0	02	1	0801-1206	●	●
453	02.483 PROTECTOR; HARNESS (E) IDN	8-94452-553-0	01	1	1207-	●	●
453	02.483 PROTECTOR; HARNESS 4JB1-TC ENG(RDT) (E) IDN	8-94452-553-0	01	1	1207-	●	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) (D)	8-97259-730-2	01	1	0211-0507	●	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (D)	8-97259-730-3	01	1	0508-0609	●	●
453	02.483 PROTECTOR; HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (D)	8-97259-730-3	01	1	0610-0712		●
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (D)	8-97259-730-3	01	1	0610-0712	●
453	02.483 PROTECTOR; HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (D)	8-97259-730-3	01	1	0801-		●
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (D)	8-97259-730-3	01	1	0801-	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) (G)	8-97259-731-2	01	1	0211-0507	●	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (G)	8-97259-731-2	01	1	0508-0609	●	●
453	02.483 PROTECTOR; HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (G)	8-97259-731-2	01	1	0610-0712		●
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (G)	8-97259-731-2	01	1	0610-0712	●
453	02.483 PROTECTOR; HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (G)	8-97259-731-2	01	1	0801-		●
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (G)	8-97259-731-2	01	1	0801-	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) (A)	8-97262-956-3	01	1	0211-0507	●	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A)	8-97262-956-3	01	1	0508-0609	●	●
453	02.483 PROTECTOR; HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (A)	8-97262-956-3	01	1	0610-0712		●
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A)	8-97262-956-3	01	1	0610-0712	●
453	02.483 PROTECTOR; HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (A)	8-97262-956-3	01	1	0801-		●
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A)	8-97262-956-3	01	1	0801-	●
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (E) IDN	8-94452-553-0	01	1	0610-1206	●	●
456	02.483 CUSHION; FUSE BOX 16.085 15X30 T=5 IDN	8-94270-366-2	01	1	0211-	●	●

1 453 36 456 2 2 36 4 453 41 5 444 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	02.480 HARNESS; CAB 4HG1-T ENG(RDP) VIN MODEL YEAR 2014(VZE) IDN	8-98272-818-0	01	1	1405-1405	●
1	02.480 HARNESS; CAB 4HG1-T ENG(RDP) VIN MODEL YEAR 2015(VZF) IDN	8-98272-818-0	01	1	1406-	●
1	02.480 HARNESS; CAB 4JB1-TC ENG(RDT) PROVISIONAL PACKAGE SPEC<BCC> IDN	8-98217-083-0	01	1	1207-	●	●
1	02.480 HARNESS; CAB 4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> IDN	8-98217-089-0	01	1	1207-1404	●
1	02.480 HARNESS; CAB 4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> EXC. VIN MODEL YEAR 2014(VZE) IDN	8-98217-089-0	01	1	1405-1405	●
1	02.480 HARNESS; CAB 4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> EXC. VIN MODEL YEAR 2015(VZF) IDN	8-98217-089-0	01	1	1406-	●
1	02.480 HARNESS; CAB 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) IDN	8-97309-086-2	01	1	0211-0507	●
1	02.480 HARNESS; CAB 4HF1-S ENG(RLS) IDN	8-97309-087-2	01	1	0211-0507		●
1	02.480 HARNESS; CAB 4HG1 ENG(RJH),4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) IDN	8-97309-087-2	01	1	0211-0507	●
1	02.480 HARNESS; CAB 4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97383-606-2	01	1	0508-	●	●
1	02.480 HARNESS; CAB 4HG1-T ENG(RDP) IDN	8-98051-181-1	01	1	0610-1206	●
1	02.480 HARNESS; CAB 4HG1-T ENG(RDP) EXC. PROVISIONAL PACKAGE SPEC<BCC> IDN	8-98051-181-1	01	1	1207-1404	●
1	02.480 HARNESS; CAB 4HG1-T ENG(RDP) EXC. PROVISIONAL PACKAGE SPEC<BCC>,VIN MODEL YEAR 2014(VZE) IDN	8-98051-181-1	01	1	1405-1405	●
1	02.480 HARNESS; CAB 4HG1-T ENG(RDP) EXC. PROVISIONAL PACKAGE SPEC<BCC>,VIN MODEL YEAR 2015(VZF) IDN	8-98051-181-1	01	1	1406-	●
1	02.480 HARNESS; CAB 4JB1-TC ENG(RDT) IDN	8-98051-180-0	01	1	0610-0712		●
1	02.480 HARNESS; CAB 4JB1-TC ENG(RDT) IDN	8-98051-180-0	01	1	0801-1206	●	●
1	02.480 HARNESS; CAB 4JB1-TC ENG(RDT) EXC. PROVISIONAL PACKAGE SPEC<BCC> IDN	8-98051-180-0	01	1	1207-	●	●
2	02.483 DIODE; CABLE HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) (B) BLACK 2P-1.5A IDN	8-94422-639-1	AR	1	0211-0507	●	●
2	02.483 DIODE; CABLE HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) BLACK 2P-1.5A IDN	8-94422-639-1	AR	1	0508-0609	●	●
2	02.483 DIODE; CABLE HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (B) BLACK 2P-1.5A IDN	8-94422-639-1	AR	1	0610-0712		●
2	02.483 DIODE; CABLE HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) BLACK 2P-1.5A IDN	8-94422-639-1	AR	1	0610-0712	●
2	02.483 DIODE; CABLE HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (B) BLACK 2P-1.5A IDN	8-94422-639-1	AR	1	0801-		●
2	02.483 DIODE; CABLE HARNESS 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) BLACK 2P-1.5A IDN	8-94422-639-1	AR	1	0801-	●
2	02.483 DIODE; CABLE HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) (A) BLACK 3P-1.5A IDN	8-94422-640-1	AR	1	0211-0507	●	●
2	02.483 DIODE; CABLE HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) BLACK 3P-1.5A IDN	8-94422-640-1	AR	1	0508-0609	●	●
2	02.483 DIODE; CABLE HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (A) BLACK 3P-1.5A IDN	8-94422-640-1	AR	1	0610-0712		●
2	02.483 DIODE; CABLE HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) BLACK 3P-1.5A IDN	8-94422-640-1	AR	1	0610-0712	●
2	02.483 DIODE; CABLE HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (A) BLACK 3P-1.5A IDN	8-94422-640-1	AR	1	0801-		●
2	02.483 DIODE; CABLE HARNESS 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) BLACK 3P-1.5A IDN	8-94422-640-1	AR	1	0801-	●
4	02.483 BOX ASM; FUSE,HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) IDN	8-97214-415-0	01	1	0211-0507	●	●
4	02.483 BOX ASM; FUSE,HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97187-921-1	01	1	0508-0609	●	●
4	02.483 BOX ASM; FUSE,HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) IDN	8-97187-921-1	01	1	0610-0712		●
4	02.483 BOX ASM; FUSE,HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97187-921-1	01	1	0610-0712	●
4	02.483 BOX ASM; FUSE,HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) IDN	8-97187-921-1	01	1	0801-		●
4	02.483 BOX ASM; FUSE,HARNESS 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97187-921-1	01	1	0801-	●
5	02.485 FUSE; FACIA HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) 08.965 10A RED IDN	5-82516-002-0	AR	1	0211-0507	●	●
5	02.485 FUSE; FACIA HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 08.965 10A MINI RED IDN	8-97062-022-0	AR	1	0508-1404	●	●
5	02.485 FUSE; FACIA HARNESS 4HF1-N ENG(RJZ) 08.965 10A MINI RED IDN	8-97062-022-0	AR	1	1405-1405		●
5	02.485 FUSE; FACIA HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 08.965 10A MINI RED IDN	8-97062-022-0	AR	1	1405-1405	●
5	02.485 FUSE; FACIA HARNESS 4HG1-T ENG(RDP) VIN MODEL YEAR 2014(VZE) 08.965 10A MINI RED IDN	8-97062-022-0	AR	1	1405-1405	●
5	02.485 FUSE; FACIA HARNESS 4HF1-N ENG(RJZ) 08.965 10A MINI RED IDN	8-97062-022-0	12	1	1406-		●
5	02.485 FUSE; FACIA HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 08.965 10A MINI RED IDN	8-97062-022-0	12	1	1406-	●
5	02.485 FUSE; FACIA HARNESS 4HG1-T ENG(RDP) VIN MODEL YEAR 2015(VZF) 08.965 10A MINI RED IDN	8-97062-022-0	12	1	1406-	●
5	02.485 FUSE; FACIA HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) 08.965 15A BLUE	5-82516-003-0	AR	1	0211-0507	●	●
5	02.485 FUSE; FACIA HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 08.965 15A MINI BLUE IDN	8-97062-023-0	AR	1	0508-0609	●	●
5	02.485 FUSE; FACIA HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 08.965 15A MINI BLUE IDN	8-97062-023-0	AR	1	0610-0712		●
5	02.485 FUSE; FACIA HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 08.965 15A MINI BLUE IDN	8-97062-023-0	AR	1	0610-0712	●
5	02.485 FUSE; FACIA HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) 08.965 15A MINI BLUE IDN	8-97062-023-0	AR	1	0801-		●
5	02.485 FUSE; FACIA HARNESS 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 08.965 15A MINI BLUE IDN	8-97062-023-0	AR	1	0801-	●
5	02.485 FUSE; FACIA HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 08.965 20A MINI YELLOW IDN	8-97062-024-0	AR	1	0508-0609	●	●
5	02.485 FUSE; FACIA HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 08.965 20A MINI YELLOW IDN	8-97062-024-0	AR	1	0610-	●	●
5	02.485 FUSE; FACIA HARNESS 4HG1-T ENG(RDP) 08.965 10A MINI RED IDN	8-97062-022-0	AR	1	0610-1404	●
5	02.485 FUSE; FACIA HARNESS 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2014(VZE) 08.965 10A MINI RED IDN	8-97062-022-0	AR	1	1405-1405	●
5	02.485 FUSE; FACIA HARNESS 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015(VZF) 08.965 10A MINI RED IDN	8-97062-022-0	13	1	1406-	●
5	02.485 FUSE; FACIA HARNESS 4JB1-TC ENG(RDT) 08.965 10A MINI RED IDN	8-97062-022-0	AR	1	0610-0712		●
5	02.485 FUSE; FACIA HARNESS 4JB1-TC ENG(RDT) 08.965 10A MINI RED IDN	8-97062-022-0	AR	1	0801-	●	●
5	02.485 FUSE; FACIA HARNESS 4JB1-TC ENG(RDT) 08.965 30A PINK IDN	8-97183-643-0	AR	1	0610-0712		●
5	02.485 FUSE; FACIA HARNESS 4JB1-TC ENG(RDT) 08.965 30A PINK IDN	8-97183-643-0	AR	1	0801-	●	●
28	02.483 SCREW; FUSE BOX 16.802 M5X16 TAPPING W/PL WASHER IDN	0-74310-516-0	02	1	0211-0604	●	●
28	02.483 SCREW; FUSE BOX 03.885 M5X16 TAPPING W/PL WASHER IDN	0-74360-516-0	02	1	0605-0612	●	●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0701-1101	●	●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1102-1212	●	●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-	●	●
36	02.530 BOX; RELAY 4HG1 ENG(RJH),4HF1-S ENG(RLS) (A) IDN	8-97087-640-1	01	1	0211-0507	●	●
36	02.530 BOX; RELAY 4HG1 ENG(RJH),4HF1-S ENG(RLS) (B) IDN	8-97087-639-1	01	1	0211-0507	●	●
36	02.530 BOX; RELAY 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) IDN	8-97187-918-1	01	1	0508-0609	●	●
36	02.530 BOX; RELAY 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (B) IDN	8-97187-918-1	01	1	0610-0712		●
36	02.530 BOX; RELAY 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) IDN	8-97187-918-1	01	1	0610-0712	●
36	02.530 BOX; RELAY 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (B) IDN	8-97187-918-1	01	1	0801-		●
36	02.530 BOX; RELAY 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) IDN	8-97187-918-1	01	1	0801-	●
41	08.821 PULLER; FUSE 4HG1 ENG(RJH),4HF1-S ENG(RLS) 02.483 L=25.3 B=11.5	8-94121-482-0	01	1	0211-0507	●	●
41	08.821 PULLER; FUSE 4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97103-388-0	01	1	0508-0609	●	●
41	08.821 PULLER; FUSE 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) IDN	8-97103-388-0	01	1	0610-0712		●
41	08.821 PULLER; FUSE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97103-388-0	01	1	0610-0712	●
41	08.821 PULLER; FUSE 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) IDN	8-97103-388-0	01	1	0801-		●
41	08.821 PULLER; FUSE 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97103-388-0	01	1	0801-	●
444	02.483 GROMMET; SCREW,FUSE BOX 01.269 D=8.6X7.7 L=7.5 IDN	8-94279-078-0	02	1	0211-	●	●
453	02.483 PROTECTOR; HARNESS (F)	8-97093-668-1	01	1	0211-0303	●	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) (F)	8-97093-668-1	01	1	0304-0507	●	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (F)	8-97093-668-1	01	1	0508-0609	●	●
453	02.483 PROTECTOR; HARNESS (F)	8-97093-668-1	01	1	0610-1404	●	●
453	02.483 PROTECTOR; HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (F)	8-97093-668-1	01	1	1405-1405		●
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP) VIN MODEL YEAR 2014(VZE) (F)	8-97093-668-1	01	1	1405-1405	●
453	02.483 PROTECTOR; HARNESS 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (F)	8-97093-668-1	01	1	1405-1405	●
453	02.483 PROTECTOR; HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (F)	8-97093-668-1	01	1	1406-		●
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP) VIN MODEL YEAR 2015(VZF) (F)	8-97093-668-1	01	1	1406-	●
453	02.483 PROTECTOR; HARNESS 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (F)	8-97093-668-1	01	1	1406-	●
453	02.483 PROTECTOR; HARNESS (B) IDN	8-97120-589-0	01	1	0211-0303	●	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) (B) IDN	8-97120-589-0	01	1	0304-0507	●	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) IDN	8-97120-589-0	01	1	0508-0609	●	●
453	02.483 PROTECTOR; HARNESS (B) IDN	8-97120-589-0	01	1	0610-	●	●
453	02.483 PROTECTOR; HARNESS (E) IDN	8-94417-716-0	01	1	0212-0303	●	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) (E) IDN	8-94417-716-0	01	1	0304-0507	●	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (E) IDN	8-94417-716-0	01	1	0508-0609	●	●
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (E) IDN	8-94417-716-0	01	1	0610-	●	●
453	02.483 PROTECTOR; HARNESS (C) IDN	8-94482-169-0	01	1	0212-0303	●	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) (C) IDN	8-94482-169-0	01	1	0304-0507	●	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (C) IDN	8-94482-169-0	01	1	0508-0609	●	●
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (C) IDN	8-94482-169-0	01	1	0610-	●	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) (E) IDN	8-94452-553-0	01	1	0211-0507	●	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (E) IDN	8-94452-553-0	01	1	0508-0609	●	●
453	02.483 PROTECTOR; HARNESS 4JB1-TC ENG(RDT) (E) IDN	8-94452-553-0	02	1	0610-0712		●
453	02.483 PROTECTOR; HARNESS 4JB1-TC ENG(RDT) (E) IDN	8-94452-553-0	02	1	0801-1206	●	●
453	02.483 PROTECTOR; HARNESS (E) IDN	8-94452-553-0	01	1	1207-	●	●
453	02.483 PROTECTOR; HARNESS 4JB1-TC ENG(RDT) (E) IDN	8-94452-553-0	01	1	1207-	●	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) (D)	8-97259-730-2	01	1	0211-0507	●	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (D)	8-97259-730-3	01	1	0508-0609	●	●
453	02.483 PROTECTOR; HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (D)	8-97259-730-3	01	1	0610-0712		●
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (D)	8-97259-730-3	01	1	0610-0712	●
453	02.483 PROTECTOR; HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (D)	8-97259-730-3	01	1	0801-		●
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (D)	8-97259-730-3	01	1	0801-	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) (G)	8-97259-731-2	01	1	0211-0507	●	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (G)	8-97259-731-2	01	1	0508-0609	●	●
453	02.483 PROTECTOR; HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (G)	8-97259-731-2	01	1	0610-0712		●
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (G)	8-97259-731-2	01	1	0610-0712	●
453	02.483 PROTECTOR; HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (G)	8-97259-731-2	01	1	0801-		●
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (G)	8-97259-731-2	01	1	0801-	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) (A)	8-97262-956-3	01	1	0211-0507	●	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A)	8-97262-956-3	01	1	0508-0609	●	●
453	02.483 PROTECTOR; HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (A)	8-97262-956-3	01	1	0610-0712		●
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A)	8-97262-956-3	01	1	0610-0712	●
453	02.483 PROTECTOR; HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (A)	8-97262-956-3	01	1	0801-		●
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A)	8-97262-956-3	01	1	0801-	●
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (E) IDN	8-94452-553-0	01	1	0610-1206	●	●
456	02.483 CUSHION; FUSE BOX 16.085 15X30 T=5 IDN	8-94270-366-2	01	1	0211-	●	●

1 190 190 1 1 1 1 431 431 431 431 1 431 431 431 431 431 1 1 431 431 431 431 431 431

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	02.480 HARNESS; CAB 4HG1-T ENG(RDP) VIN MODEL YEAR 2014(VZE) IDN	8-98272-818-0	01	1	1405-1405	●
1	02.480 HARNESS; CAB 4HG1-T ENG(RDP) VIN MODEL YEAR 2015(VZF) IDN	8-98272-818-0	01	1	1406-	●
1	02.480 HARNESS; CAB 4JB1-TC ENG(RDT) PROVISIONAL PACKAGE SPEC<BCC> IDN	8-98217-083-0	01	1	1207-	●	●
1	02.480 HARNESS; CAB 4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> IDN	8-98217-089-0	01	1	1207-1404	●
1	02.480 HARNESS; CAB 4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> EXC. VIN MODEL YEAR 2014(VZE) IDN	8-98217-089-0	01	1	1405-1405	●
1	02.480 HARNESS; CAB 4HG1-T ENG(RDP) PROVISIONAL PACKAGE SPEC<BCC> EXC. VIN MODEL YEAR 2015(VZF) IDN	8-98217-089-0	01	1	1406-	●
1	02.480 HARNESS; CAB 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) IDN	8-97309-086-2	01	1	0211-0507	●
1	02.480 HARNESS; CAB 4HF1-S ENG(RLS) IDN	8-97309-087-2	01	1	0211-0507		●
1	02.480 HARNESS; CAB 4HG1 ENG(RJH),4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) IDN	8-97309-087-2	01	1	0211-0507	●
1	02.480 HARNESS; CAB 4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97383-606-2	01	1	0508-	●	●
1	02.480 HARNESS; CAB 4HG1-T ENG(RDP) IDN	8-98051-181-1	01	1	0610-1206	●
1	02.480 HARNESS; CAB 4HG1-T ENG(RDP) EXC. PROVISIONAL PACKAGE SPEC<BCC> IDN	8-98051-181-1	01	1	1207-1404	●
1	02.480 HARNESS; CAB 4HG1-T ENG(RDP) EXC. PROVISIONAL PACKAGE SPEC<BCC>,VIN MODEL YEAR 2014(VZE) IDN	8-98051-181-1	01	1	1405-1405	●
1	02.480 HARNESS; CAB 4HG1-T ENG(RDP) EXC. PROVISIONAL PACKAGE SPEC<BCC>,VIN MODEL YEAR 2015(VZF) IDN	8-98051-181-1	01	1	1406-	●
1	02.480 HARNESS; CAB 4JB1-TC ENG(RDT) IDN	8-98051-180-0	01	1	0610-0712		●
1	02.480 HARNESS; CAB 4JB1-TC ENG(RDT) IDN	8-98051-180-0	01	1	0801-1206	●	●
1	02.480 HARNESS; CAB 4JB1-TC ENG(RDT) EXC. PROVISIONAL PACKAGE SPEC<BCC> IDN	8-98051-180-0	01	1	1207-	●	●
190	02.559 CONNECTOR; SHORT CIRCUIT EXC. INTERMITTENT WIPER<C13> (B)	8-98036-238-0	01	1	0607-	●	●
190	02.559 CONNECTOR; SHORT CIRCUIT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A)	5-82690-411-0	01	1	0508-	●	●
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (D) 10P GREEN IDN	1-82699-599-0	02	1	0508-1404	●	●
431	02.530 CONNECTOR; JOINT 4HF1-N ENG(RJZ) (D) 10P GREEN IDN	1-82699-599-0	02	1	1405-1405		●
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (D) 10P GREEN IDN	1-82699-599-0	02	1	1405-1405	●
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP) VIN MODEL YEAR 2014(VZE) (D) 10P GREEN IDN	1-82699-599-0	02	1	1405-1405	●
431	02.530 CONNECTOR; JOINT 4HF1-N ENG(RJZ) (D) 10P GREEN IDN	1-82699-599-0	02	1	1406-		●
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (D) 10P GREEN IDN	1-82699-599-0	02	1	1406-	●
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP) VIN MODEL YEAR 2015(VZF) (D) 10P GREEN IDN	1-82699-599-0	02	1	1406-	●
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (C) 6P	1-82691-206-0	01	1	0508-0609	●	●
431	02.530 CONNECTOR; JOINT 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (C) 6P	1-82691-206-0	01	1	0610-0712		●
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (C) 6P	1-82691-206-0	01	1	0610-0712	●
431	02.530 CONNECTOR; JOINT 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (C) 6P	1-82691-206-0	01	1	0801-		●
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (C) 6P	1-82691-206-0	01	1	0801-	●
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (F) 10P BLUE IDN	1-82699-598-0	02	1	0508-0609	●	●
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (F) 10P BLUE IDN	1-82699-598-0	02	1	0610-	●	●
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (E) 10P BROWN IDN	1-82699-601-0	02	1	0508-0609	●	●
431	02.530 CONNECTOR; JOINT 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (E) 10P BROWN IDN	1-82699-601-0	02	1	0610-0712		●
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (E) 10P BROWN IDN	1-82699-601-0	02	1	0610-0712	●
431	02.530 CONNECTOR; JOINT 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (E) 10P BROWN IDN	1-82699-601-0	02	1	0801-1404		●
431	02.530 CONNECTOR; JOINT 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (E) 10P BROWN IDN	1-82699-601-0	02	1	0801-1404	●
431	02.530 CONNECTOR; JOINT 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (E) 10P BROWN IDN	1-82699-601-0	02	1	1405-1405		●
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP) VIN MODEL YEAR 2014(VZE) (E) 10P BROWN IDN	1-82699-601-0	02	1	1405-1405	●
431	02.530 CONNECTOR; JOINT 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (E) 10P BROWN IDN	1-82699-601-0	02	1	1405-1405	●
431	02.530 CONNECTOR; JOINT 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (E) 10P BROWN IDN	1-82699-601-0	02	1	1406-		●
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP) VIN MODEL YEAR 2015(VZF) (E) 10P BROWN IDN	1-82699-601-0	02	1	1406-	●
431	02.530 CONNECTOR; JOINT 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (E) 10P BROWN IDN	1-82699-601-0	02	1	1406-	●
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) 4P	8-97077-939-0	01	1	0508-0609	●	●
431	02.530 CONNECTOR; JOINT 4JB1-TC ENG(RDT) (A) 4P	8-97077-939-0	02	1	0610-0712		●
431	02.530 CONNECTOR; JOINT 4JB1-TC ENG(RDT) (A) 4P	8-97077-939-0	02	1	0801-	●	●
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) 6P	8-97077-941-0	01	1	0508-0609	●	●
431	02.530 CONNECTOR; JOINT 4JB1-TC ENG(RDT) (B) 6P	8-97077-941-0	02	1	0610-0712		●
431	02.530 CONNECTOR; JOINT 4JB1-TC ENG(RDT) (B) 6P	8-97077-941-0	02	1	0801-	●	●
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP) (D) 10P GREEN IDN	1-82699-599-0	03	1	0610-1404	●
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2014(VZE) (D) 10P GREEN IDN	1-82699-599-0	03	1	1405-1405	●
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015(VZF) (D) 10P GREEN IDN	1-82699-599-0	03	1	1406-	●
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP) (E) 10P BROWN IDN	1-82699-601-0	03	1	0610-1404	●
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2014(VZE) (E) 10P BROWN IDN	1-82699-601-0	03	1	1405-1405	●
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015(VZF) (E) 10P BROWN IDN	1-82699-601-0	03	1	1406-	●
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP) (F) 6P	8-97381-428-0	01	1	0610-1404	●
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2014(VZE) (F) 6P	8-97381-428-0	01	1	1405-1405	●
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015(VZF) (F) 6P	8-97381-428-0	01	1	1406-	●
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) 4P	8-97077-939-0	01	1	0610-0612	●	●
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) 4P	8-97077-939-0	01	1	0701-1404	●	●
431	02.530 CONNECTOR; JOINT 4HF1-N ENG(RJZ) (A) 4P	8-97077-939-0	01	1	1405-1405		●
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) 4P	8-97077-939-0	01	1	1405-1405	●
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP) VIN MODEL YEAR 2014(VZE) (A) 4P	8-97077-939-0	01	1	1405-1405	●
431	02.530 CONNECTOR; JOINT 4HF1-N ENG(RJZ) (A) 4P	8-97077-939-0	01	1	1406-		●
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) 4P	8-97077-939-0	01	1	1406-	●
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP) VIN MODEL YEAR 2015(VZF) (A) 4P	8-97077-939-0	01	1	1406-	●
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) 6P	8-97077-941-0	01	1	0610-0612	●	●
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) 6P	8-97077-941-0	01	1	0701-1404	●	●
431	02.530 CONNECTOR; JOINT 4HF1-N ENG(RJZ) (B) 6P	8-97077-941-0	01	1	1405-1405		●
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) 6P	8-97077-941-0	01	1	1405-1405	●
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP) VIN MODEL YEAR 2014(VZE) (B) 6P	8-97077-941-0	01	1	1405-1405	●
431	02.530 CONNECTOR; JOINT 4HF1-N ENG(RJZ) (B) 6P	8-97077-941-0	01	1	1406-		●
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) 6P	8-97077-941-0	01	1	1406-	●
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP) VIN MODEL YEAR 2015(VZF) (B) 6P	8-97077-941-0	01	1	1406-	●
431	02.530 CONNECTOR; JOINT 4JB1-TC ENG(RDT) (D) 10P GREEN IDN	1-82699-599-0	04	1	0610-0712		●
431	02.530 CONNECTOR; JOINT 4JB1-TC ENG(RDT) (D) 10P GREEN IDN	1-82699-599-0	04	1	0801-	●	●

8 453 184 174 174 453 431 35 174 184 453 453 174 35 453

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

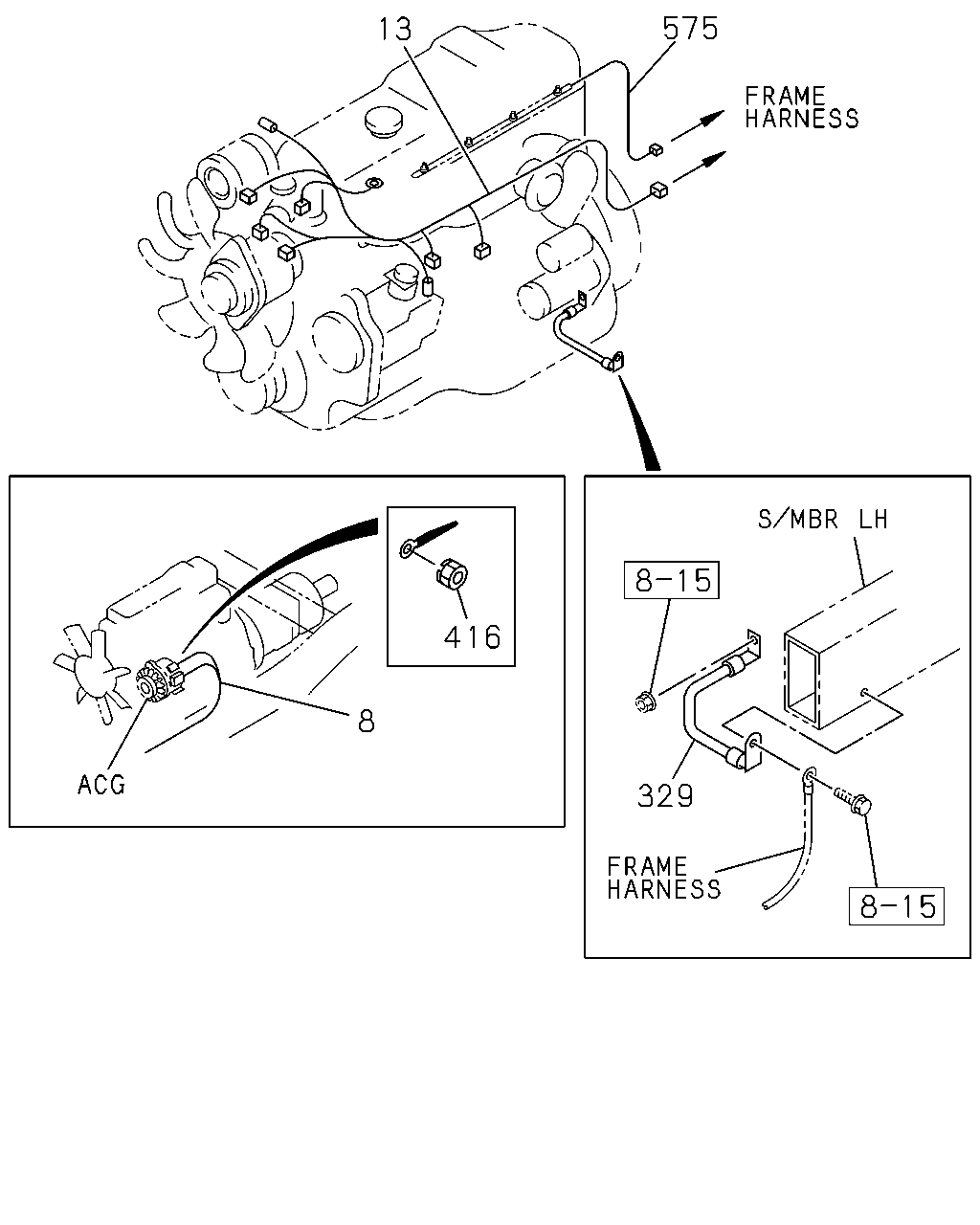

8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH),4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) IDN	8-97350-724-1	01	1	0211-0303	●
8	02.480 HARNESS; FRAME,FRT 4HF1-S ENG(RLS) IDN	8-97364-887-1	01	1	0304-0507		●
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH),4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) IDN	8-97364-887-1	01	1	0304-0507	●
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97383-594-0	01	1	0508-1404	●	●
8	02.480 HARNESS; FRAME,FRT 4HF1-N ENG(RJZ) IDN	8-97383-594-0	01	1	1405-1405		●
8	02.480 HARNESS; FRAME,FRT 4HG1-T ENG(RDP) VIN MODEL YEAR 2014(VZE) IDN	8-97383-594-0	01	1	1405-1405	●
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97383-594-0	01	1	1405-1405	●
8	02.480 HARNESS; FRAME,FRT 4HF1-N ENG(RJZ) IDN	8-97383-594-0	01	1	1406-		●
8	02.480 HARNESS; FRAME,FRT 4HG1-T ENG(RDP) VIN MODEL YEAR 2015(VZF) IDN	8-97383-594-0	01	1	1406-	●
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97383-594-0	01	1	1406-	●
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) IDN	8-97350-722-1	01	1	0211-0303	●
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) IDN	8-97364-886-1	01	1	0304-0507	●
8	02.480 HARNESS; FRAME,FRT 4HG1-T ENG(RDP) IDN	8-98051-182-0	01	1	0610-1404	●
8	02.480 HARNESS; FRAME,FRT 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2014(VZE) IDN	8-98051-182-0	01	1	1405-1405	●
8	02.480 HARNESS; FRAME,FRT 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015(VZF) IDN	8-98051-182-0	01	1	1406-	●
8	02.480 HARNESS; FRAME,FRT 4JB1-TC ENG(RDT) IDN	8-98005-344-0	01	1	0610-0712		●
8	02.480 HARNESS; FRAME,FRT 4JB1-TC ENG(RDT) IDN	8-98005-344-0	01	1	0801-	●	●
35	02.530 BOX; RELAY & FUSE	8-97063-150-1	01	1	0211-0303	●	●
35	02.530 BOX; RELAY & FUSE 4HG1 ENG(RJH),4HF1-S ENG(RLS)	8-97063-150-1	01	1	0304-0507	●	●
35	02.530 BOX; RELAY & FUSE 4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97377-739-0	01	1	0508-0609	●	●
35	02.530 BOX; RELAY & FUSE IDN	8-97377-739-0	01	1	0610-	●	●
174	08.965 FUSE; SLOW BLOW (A) 60A YELLOW IDN	8-94388-303-1	01	1	0211-0303	●	●
174	08.965 FUSE; SLOW BLOW 4HG1 ENG(RJH),4HF1-S ENG(RLS) (A) 60A YELLOW IDN	8-94388-303-1	01	1	0304-0507	●	●
174	08.965 FUSE; SLOW BLOW 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) 100A BLUE	8-94388-306-0	01	1	0508-0609	●	●
174	08.965 FUSE; SLOW BLOW (A) 100A BLUE	8-94388-306-0	01	1	0610-	●	●
174	08.965 FUSE; SLOW BLOW 02.483 (B) 60A YELLOW	8-94468-664-0	01	1	0211-0303	●	●
174	08.965 FUSE; SLOW BLOW 4HG1 ENG(RJH),4HF1-S ENG(RLS) 02.483 (B) 60A YELLOW	8-94468-664-0	01	1	0304-0507	●	●
174	08.965 FUSE; SLOW BLOW 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) 30A PINK IDN	8-97183-643-0	01	1	0508-0609	●	●
174	08.965 FUSE; SLOW BLOW (B) 30A PINK IDN	8-97183-643-0	01	1	0610-	●	●
174	08.965 FUSE; SLOW BLOW 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) 40A GREEN IDN	8-97183-644-0	01	1	0508-0609	●	●
174	08.965 FUSE; SLOW BLOW 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) 40A GREEN IDN	8-97183-644-0	01	1	0610-	●	●
174	08.965 FUSE; SLOW BLOW 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) 60A YELLOW IDN	8-97219-407-0	01	1	0508-0609	●	●
174	08.965 FUSE; SLOW BLOW 4JB1-TC ENG(RDT) (B) 60A YELLOW IDN	8-97219-407-0	02	1	0610-0712		●
174	08.965 FUSE; SLOW BLOW 4JB1-TC ENG(RDT) (B) 60A YELLOW IDN	8-97219-407-0	02	1	0801-	●	●
174	08.965 FUSE; SLOW BLOW 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) 60A YELLOW IDN	8-97219-407-0	01	1	0610-	●	●
174	08.965 FUSE; SLOW BLOW 4JB1-TC ENG(RDT) (B) 50A RED IDN	8-97183-645-0	01	1	0610-0712		●
174	08.965 FUSE; SLOW BLOW 4JB1-TC ENG(RDT) (B) 50A RED IDN	8-97183-645-0	01	1	0801-	●	●
184	02.559 COVER; RELAY & FUSE BOX	8-97063-152-1	01	1	0211-0303	●	●
184	02.559 COVER; RELAY & FUSE BOX 4HG1 ENG(RJH),4HF1-S ENG(RLS)	8-97063-152-1	01	1	0304-0507	●	●
184	02.559 COVER; RELAY & FUSE BOX 4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97377-741-0	01	1	0508-0609	●	●
184	02.559 COVER; RELAY & FUSE BOX IDN	8-97377-741-0	01	1	0610-	●	●
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (D) 10P GREEN IDN	1-82699-599-0	02	1	0508-1404	●	●
431	02.530 CONNECTOR; JOINT 4HF1-N ENG(RJZ) (D) 10P GREEN IDN	1-82699-599-0	02	1	1405-1405		●
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (D) 10P GREEN IDN	1-82699-599-0	02	1	1405-1405	●
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP) VIN MODEL YEAR 2014(VZE) (D) 10P GREEN IDN	1-82699-599-0	02	1	1405-1405	●
431	02.530 CONNECTOR; JOINT 4HF1-N ENG(RJZ) (D) 10P GREEN IDN	1-82699-599-0	02	1	1406-		●
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (D) 10P GREEN IDN	1-82699-599-0	02	1	1406-	●
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP) VIN MODEL YEAR 2015(VZF) (D) 10P GREEN IDN	1-82699-599-0	02	1	1406-	●
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (C) 6P	1-82691-206-0	01	1	0508-0609	●	●
431	02.530 CONNECTOR; JOINT 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (C) 6P	1-82691-206-0	01	1	0610-0712		●
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (C) 6P	1-82691-206-0	01	1	0610-0712	●
431	02.530 CONNECTOR; JOINT 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (C) 6P	1-82691-206-0	01	1	0801-		●
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (C) 6P	1-82691-206-0	01	1	0801-	●
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (F) 10P BLUE IDN	1-82699-598-0	02	1	0508-0609	●	●
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (F) 10P BLUE IDN	1-82699-598-0	02	1	0610-	●	●
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (E) 10P BROWN IDN	1-82699-601-0	02	1	0508-0609	●	●
431	02.530 CONNECTOR; JOINT 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (E) 10P BROWN IDN	1-82699-601-0	02	1	0610-0712		●
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (E) 10P BROWN IDN	1-82699-601-0	02	1	0610-0712	●
431	02.530 CONNECTOR; JOINT 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (E) 10P BROWN IDN	1-82699-601-0	02	1	0801-1404		●
431	02.530 CONNECTOR; JOINT 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (E) 10P BROWN IDN	1-82699-601-0	02	1	0801-1404	●
431	02.530 CONNECTOR; JOINT 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (E) 10P BROWN IDN	1-82699-601-0	02	1	1405-1405		●
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP) VIN MODEL YEAR 2014(VZE) (E) 10P BROWN IDN	1-82699-601-0	02	1	1405-1405	●
431	02.530 CONNECTOR; JOINT 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (E) 10P BROWN IDN	1-82699-601-0	02	1	1405-1405	●
431	02.530 CONNECTOR; JOINT 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (E) 10P BROWN IDN	1-82699-601-0	02	1	1406-		●
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP) VIN MODEL YEAR 2015(VZF) (E) 10P BROWN IDN	1-82699-601-0	02	1	1406-	●
431	02.530 CONNECTOR; JOINT 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (E) 10P BROWN IDN	1-82699-601-0	02	1	1406-	●
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) 4P	8-97077-939-0	01	1	0508-0609	●	●
431	02.530 CONNECTOR; JOINT 4JB1-TC ENG(RDT) (A) 4P	8-97077-939-0	02	1	0610-0712		●
431	02.530 CONNECTOR; JOINT 4JB1-TC ENG(RDT) (A) 4P	8-97077-939-0	02	1	0801-	●	●
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) 6P	8-97077-941-0	01	1	0508-0609	●	●
431	02.530 CONNECTOR; JOINT 4JB1-TC ENG(RDT) (B) 6P	8-97077-941-0	02	1	0610-0712		●
431	02.530 CONNECTOR; JOINT 4JB1-TC ENG(RDT) (B) 6P	8-97077-941-0	02	1	0801-	●	●
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP) (D) 10P GREEN IDN	1-82699-599-0	03	1	0610-1404	●
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2014(VZE) (D) 10P GREEN IDN	1-82699-599-0	03	1	1405-1405	●
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015(VZF) (D) 10P GREEN IDN	1-82699-599-0	03	1	1406-	●
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP) (E) 10P BROWN IDN	1-82699-601-0	03	1	0610-1404	●
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2014(VZE) (E) 10P BROWN IDN	1-82699-601-0	03	1	1405-1405	●
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015(VZF) (E) 10P BROWN IDN	1-82699-601-0	03	1	1406-	●
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP) (F) 6P	8-97381-428-0	01	1	0610-1404	●
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2014(VZE) (F) 6P	8-97381-428-0	01	1	1405-1405	●
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015(VZF) (F) 6P	8-97381-428-0	01	1	1406-	●
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) 4P	8-97077-939-0	01	1	0610-0612	●	●
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) 4P	8-97077-939-0	01	1	0701-1404	●	●
431	02.530 CONNECTOR; JOINT 4HF1-N ENG(RJZ) (A) 4P	8-97077-939-0	01	1	1405-1405		●
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) 4P	8-97077-939-0	01	1	1405-1405	●
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP) VIN MODEL YEAR 2014(VZE) (A) 4P	8-97077-939-0	01	1	1405-1405	●
431	02.530 CONNECTOR; JOINT 4HF1-N ENG(RJZ) (A) 4P	8-97077-939-0	01	1	1406-		●
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A) 4P	8-97077-939-0	01	1	1406-	●
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP) VIN MODEL YEAR 2015(VZF) (A) 4P	8-97077-939-0	01	1	1406-	●
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) 6P	8-97077-941-0	01	1	0610-0612	●	●
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) 6P	8-97077-941-0	01	1	0701-1404	●	●
431	02.530 CONNECTOR; JOINT 4HF1-N ENG(RJZ) (B) 6P	8-97077-941-0	01	1	1405-1405		●
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) 6P	8-97077-941-0	01	1	1405-1405	●
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP) VIN MODEL YEAR 2014(VZE) (B) 6P	8-97077-941-0	01	1	1405-1405	●
431	02.530 CONNECTOR; JOINT 4HF1-N ENG(RJZ) (B) 6P	8-97077-941-0	01	1	1406-		●
431	02.530 CONNECTOR; JOINT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) 6P	8-97077-941-0	01	1	1406-	●
431	02.530 CONNECTOR; JOINT 4HG1-T ENG(RDP) VIN MODEL YEAR 2015(VZF) (B) 6P	8-97077-941-0	01	1	1406-	●
431	02.530 CONNECTOR; JOINT 4JB1-TC ENG(RDT) (D) 10P GREEN IDN	1-82699-599-0	04	1	0610-0712		●
431	02.530 CONNECTOR; JOINT 4JB1-TC ENG(RDT) (D) 10P GREEN IDN	1-82699-599-0	04	1	0801-	●	●
453	02.483 PROTECTOR; HARNESS (F)	8-97093-668-1	01	1	0211-0303	●	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) (F)	8-97093-668-1	01	1	0304-0507	●	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (F)	8-97093-668-1	01	1	0508-0609	●	●
453	02.483 PROTECTOR; HARNESS (F)	8-97093-668-1	01	1	0610-1404	●	●
453	02.483 PROTECTOR; HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (F)	8-97093-668-1	01	1	1405-1405		●
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP) VIN MODEL YEAR 2014(VZE) (F)	8-97093-668-1	01	1	1405-1405	●
453	02.483 PROTECTOR; HARNESS 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (F)	8-97093-668-1	01	1	1405-1405	●
453	02.483 PROTECTOR; HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (F)	8-97093-668-1	01	1	1406-		●
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP) VIN MODEL YEAR 2015(VZF) (F)	8-97093-668-1	01	1	1406-	●
453	02.483 PROTECTOR; HARNESS 4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (F)	8-97093-668-1	01	1	1406-	●
453	02.483 PROTECTOR; HARNESS (B) IDN	8-97120-589-0	01	1	0211-0303	●	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) (B) IDN	8-97120-589-0	01	1	0304-0507	●	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (B) IDN	8-97120-589-0	01	1	0508-0609	●	●
453	02.483 PROTECTOR; HARNESS (B) IDN	8-97120-589-0	01	1	0610-	●	●
453	02.483 PROTECTOR; HARNESS (E) IDN	8-94417-716-0	01	1	0212-0303	●	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) (E) IDN	8-94417-716-0	01	1	0304-0507	●	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (E) IDN	8-94417-716-0	01	1	0508-0609	●	●
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (E) IDN	8-94417-716-0	01	1	0610-	●	●
453	02.483 PROTECTOR; HARNESS (C) IDN	8-94482-169-0	01	1	0212-0303	●	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) (C) IDN	8-94482-169-0	01	1	0304-0507	●	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (C) IDN	8-94482-169-0	01	1	0508-0609	●	●
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (C) IDN	8-94482-169-0	01	1	0610-	●	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) (E) IDN	8-94452-553-0	01	1	0211-0507	●	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (E) IDN	8-94452-553-0	01	1	0508-0609	●	●
453	02.483 PROTECTOR; HARNESS 4JB1-TC ENG(RDT) (E) IDN	8-94452-553-0	02	1	0610-0712		●
453	02.483 PROTECTOR; HARNESS 4JB1-TC ENG(RDT) (E) IDN	8-94452-553-0	02	1	0801-1206	●	●
453	02.483 PROTECTOR; HARNESS (E) IDN	8-94452-553-0	01	1	1207-	●	●
453	02.483 PROTECTOR; HARNESS 4JB1-TC ENG(RDT) (E) IDN	8-94452-553-0	01	1	1207-	●	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) (D)	8-97259-730-2	01	1	0211-0507	●	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (D)	8-97259-730-3	01	1	0508-0609	●	●
453	02.483 PROTECTOR; HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (D)	8-97259-730-3	01	1	0610-0712		●
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (D)	8-97259-730-3	01	1	0610-0712	●
453	02.483 PROTECTOR; HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (D)	8-97259-730-3	01	1	0801-		●
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (D)	8-97259-730-3	01	1	0801-	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) (G)	8-97259-731-2	01	1	0211-0507	●	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (G)	8-97259-731-2	01	1	0508-0609	●	●
453	02.483 PROTECTOR; HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (G)	8-97259-731-2	01	1	0610-0712		●
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (G)	8-97259-731-2	01	1	0610-0712	●
453	02.483 PROTECTOR; HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (G)	8-97259-731-2	01	1	0801-		●
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (G)	8-97259-731-2	01	1	0801-	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH),4HF1-S ENG(RLS) (A)	8-97262-956-3	01	1	0211-0507	●	●
453	02.483 PROTECTOR; HARNESS 4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A)	8-97262-956-3	01	1	0508-0609	●	●
453	02.483 PROTECTOR; HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (A)	8-97262-956-3	01	1	0610-0712		●
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A)	8-97262-956-3	01	1	0610-0712	●
453	02.483 PROTECTOR; HARNESS 4JB1-TC ENG(RDT),4HF1-N ENG(RJZ) (A)	8-97262-956-3	01	1	0801-		●
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP),4JB1-TC ENG(RDT),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (A)	8-97262-956-3	01	1	0801-	●
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) (E) IDN	8-94452-553-0	01	1	0610-1206	●	●

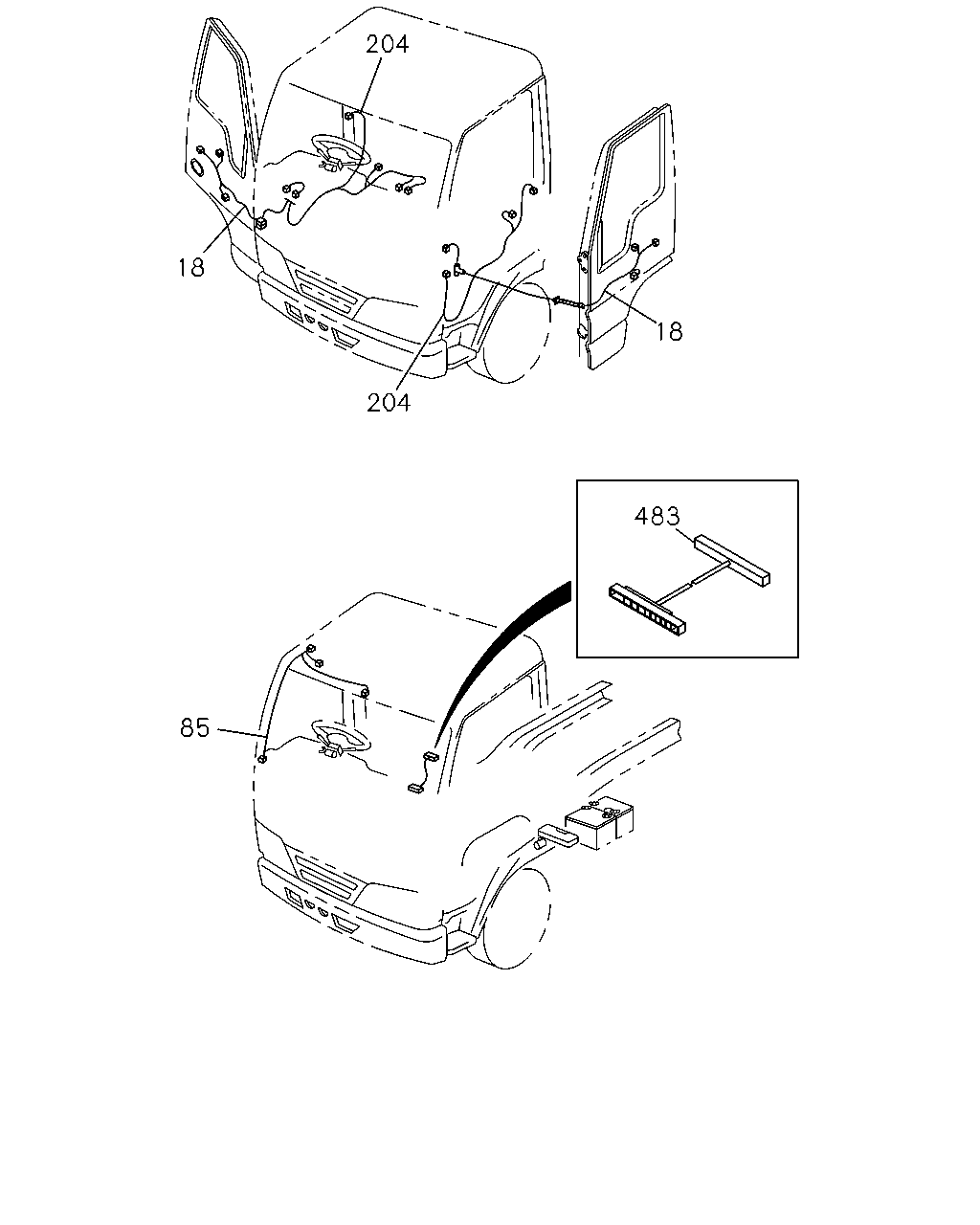

204 18 18 204 483 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4>	8-97226-669-0	01	1	1011-1405	●	●
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32>	8-97226-669-0	01	1	1406-	●	●
18	02.480 HARNESS; DOOR ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32>,RADIO AM W/AMPLIFIER(RS2),RADI O AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) IDN	8-97226-671-1	01	1	1011-1405	●	●
18	02.480 HARNESS; DOOR RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRTDOOR<A32> IDN	8-97226-671-1	01	1	1011-1405	●	●
18	02.480 HARNESS; DOOR EXC. POWER WINDOW FRT DOOR<A32> IDN	8-97226-671-1	01	1	1406-	●	●
18	02.480 HARNESS; DOOR EXC. POWER WINDOW FRT DOOR<A32> IDN	8-97105-571-1	01	1	0211-	●	●
18	02.480 HARNESS; DOOR EXC. POWER WINDOW FRT DOOR<A32> IDN	8-97226-671-1	01	1	0211-1009	●	●
18	02.480 HARNESS; DOOR EXC. POWER WINDOW FRT DOOR<A32>	8-98166-819-0	01	1	1010-1010	●	●
18	02.480 HARNESS; DOOR AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>	8-98166-819-0	01	1	1011-1405	●	●
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32>	8-97185-142-1	01	1	0211-	●	●
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32>	8-97226-669-0	01	1	0211-1009	●	●
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32>	8-98166-820-0	01	1	1010-1010	●	●
18	02.480 HARNESS; DOOR AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32>	8-98166-820-0	01	1	1011-1405	●	●
85	06.495 HARNESS; ROOM LAMP IDN	8-97164-610-2	01	1	0211-0302	●	●
85	06.495 HARNESS; ROOM LAMP IDN	8-97364-158-0	01	1	0303-	●	●
204	02.559 HARNESS; CABLE,FLOOR	8-97162-629-2	01	1	0211-0302	●	●
204	02.559 HARNESS; CABLE,FLOOR IDN	8-97364-140-0	01	1	0303-	●	●
483	02.480 HARNESS; EXT,RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ)	8-97383-850-0	01	1	0508-	●	●
483	02.480 HARNESS; EXT,RADIO RADIO AM W/AMPLIFIER(RS2)	8-97373-419-0	01	1	0610-0712		●
483	02.480 HARNESS; EXT,RADIO RADIO AM W/AMPLIFIER(RS2)	8-97373-419-0	01	1	0801-	●	●

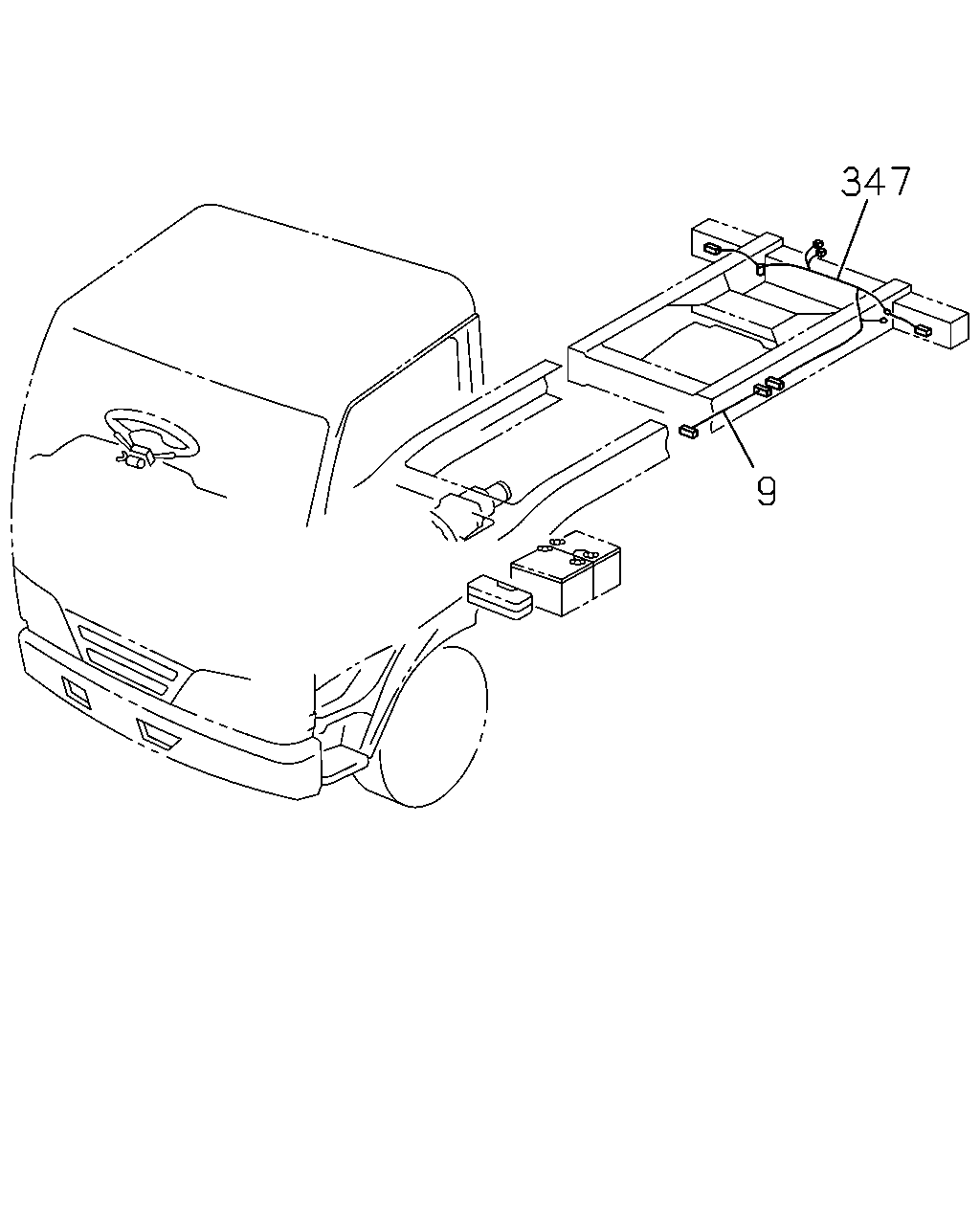

347 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	02.480 HARNESS; FRAME,RR IDN	8-97381-162-1	01	1	0508-		●
9	02.480 HARNESS; FRAME,RR IDN	8-97381-164-1	01	1	0508-	●
347	02.480 HARNESS; CABLE,RR BODY IDN	8-97213-566-0	01	1	0211-0302	●	●
347	02.480 HARNESS; CABLE,RR BODY IDN	8-97364-151-0	01	1	0303-	●	●

575 13 416 8 329

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH),4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) IDN	8-97350-724-1	01	1	0211-0303	●
8	02.480 HARNESS; FRAME,FRT 4HF1-S ENG(RLS) IDN	8-97364-887-1	01	1	0304-0507		●
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH),4HF1-S ENG(RLS) ENGINE POWER N-SPEC(7QV) IDN	8-97364-887-1	01	1	0304-0507	●
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97383-594-0	01	1	0508-1404	●	●
8	02.480 HARNESS; FRAME,FRT 4HF1-N ENG(RJZ) IDN	8-97383-594-0	01	1	1405-1405		●
8	02.480 HARNESS; FRAME,FRT 4HG1-T ENG(RDP) VIN MODEL YEAR 2014(VZE) IDN	8-97383-594-0	01	1	1405-1405	●
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97383-594-0	01	1	1405-1405	●
8	02.480 HARNESS; FRAME,FRT 4HF1-N ENG(RJZ) IDN	8-97383-594-0	01	1	1406-		●
8	02.480 HARNESS; FRAME,FRT 4HG1-T ENG(RDP) VIN MODEL YEAR 2015(VZF) IDN	8-97383-594-0	01	1	1406-	●
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH),4HF1-N ENG(RJZ) IDN	8-97383-594-0	01	1	1406-	●
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) IDN	8-97350-722-1	01	1	0211-0303	●
8	02.480 HARNESS; FRAME,FRT 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) IDN	8-97364-886-1	01	1	0304-0507	●
8	02.480 HARNESS; FRAME,FRT 4HG1-T ENG(RDP) IDN	8-98051-182-0	01	1	0610-1404	●
8	02.480 HARNESS; FRAME,FRT 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2014(VZE) IDN	8-98051-182-0	01	1	1405-1405	●
8	02.480 HARNESS; FRAME,FRT 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015(VZF) IDN	8-98051-182-0	01	1	1406-	●
8	02.480 HARNESS; FRAME,FRT 4JB1-TC ENG(RDT) IDN	8-98005-344-0	01	1	0610-0712		●
8	02.480 HARNESS; FRAME,FRT 4JB1-TC ENG(RDT) IDN	8-98005-344-0	01	1	0801-	●	●
13	02.525 HARNESS; ENG 4HG1-T ENG(RDP) GLOW SYSTEM DELETE<7RK> VIN MODEL YEAR 2015(VZF)	8-98298-790-0	01	1	1411-	●
13	02.525 HARNESS; ENG 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97356-991-0	01	1	0211-0302		●
13	02.525 HARNESS; ENG 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97356-991-0	01	1	0211-0302	●
13	02.525 HARNESS; ENG 4HG1 ENG(RJH) EXC. AIR CONDITIONER MANUAL CONT(C60), ENGINE POWER N-SPEC(7QV)	8-97356-991-0	01	1	0211-0302	●
13	02.525 HARNESS; ENG 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97356-991-0	01	1	0303-0303		●
13	02.525 HARNESS; ENG 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97356-991-0	01	1	0303-0303	●
13	02.525 HARNESS; ENG 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97356-991-0	01	1	0304-0507		●
13	02.525 HARNESS; ENG 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97356-991-0	01	1	0304-0507		●
13	02.525 HARNESS; ENG 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> POWER STEERING<N40> ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97356-991-0	01	1	0304-0507	●
13	02.525 HARNESS; ENG 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97356-991-0	01	1	0304-0507	●
13	02.525 HARNESS; ENG 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97356-991-0	01	1	0508-0609	●	●
13	02.525 HARNESS; ENG 4HF1-N ENG(RJZ) FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> GLOW SYSTEM DELETE<7RK> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97356-991-0	01	1	0610-0712		●
13	02.525 HARNESS; ENG 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97356-991-0	01	1	0610-0712	●
13	02.525 HARNESS; ENG 4HF1-N ENG(RJZ) FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> GLOW SYSTEM DELETE<7RK> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97356-991-0	01	1	0801-	●	●
13	02.525 HARNESS; ENG 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60), ENGINE POWER N-SPEC(7QV)	8-97356-988-0	01	1	0211-0302	●
13	02.525 HARNESS; ENG 4HG1 ENG(RJH) EXC. AIR CONDITIONER MANUAL CONT(C60), EXHAUST BRAKE<NF8>,ENGINE POWER N-SPEC(7QV)	8-97356-988-0	01	1	0303-0303	●
13	02.525 HARNESS; ENG 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60), ENGINE POWER N-SPEC(7QV)	8-97356-988-0	01	1	0303-0303	●
13	02.525 HARNESS; ENG 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60), ENGINE POWER N-SPEC(7QV)	8-97356-988-0	01	1	0304-0507	●
13	02.525 HARNESS; ENG 4HG1 ENG(RJH) EXC. AIR CONDITIONER MANUAL CONT(C60), EXHAUST BRAKE<NF8>,ENGINE POWER N-SPEC(7QV)	8-97356-988-0	01	1	0304-0507	●
13	02.525 HARNESS; ENG 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60), ENGINE POWER N-SPEC(7QV)	8-97356-988-0	01	1	0304-0507	●
13	02.525 HARNESS; ENG 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97356-988-1	01	1	0508-0712	●
13	02.525 HARNESS; ENG 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> GLOW SYSTEM DELETE<7RK> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97356-988-1	01	1	0801-1404	●
13	02.525 HARNESS; ENG 4HG1 ENG(RJH)	8-97356-988-1	01	1	1405-1405	●
13	02.525 HARNESS; ENG 4HG1-T ENG(RDP) GLOW SYSTEM DELETE<7RK> VIN MODEL YEAR 2014(VZE)	8-97356-988-1	01	1	1405-1405	●
13	02.525 HARNESS; ENG 4HG1 ENG(RJH)	8-97356-988-1	01	1	1406-1410	●
13	02.525 HARNESS; ENG 4HG1-T ENG(RDP) GLOW SYSTEM DELETE<7RK> VIN MODEL YEAR 2015(VZF)	8-97356-988-1	01	1	1406-1410	●
13	02.525 HARNESS; ENG 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> GLOW SYSTEM DELETE<7RK> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97356-988-1	01	1	1411-	●
13	02.525 HARNESS; ENG 4JB1-TC ENG(RDT) IDN	8-97218-750-1	01	1	0610-0712		●
13	02.525 HARNESS; ENG 4JB1-TC ENG(RDT) IDN	8-97218-750-1	01	1	0801-	●	●
13	02.525 HARNESS; ENG 4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97360-784-1	01	1	0610-0712	●
13	02.525 HARNESS; ENG 4HG1-T ENG(RDP) GLOW SYSTEM DELETE<7RK>	8-97360-784-1	01	1	0801-1302	●
13	02.525 HARNESS; ENG 4HG1-T ENG(RDP) GLOW SYSTEM DELETE<7RK>	8-98211-412-0	01	1	1303-1404	●
13	02.525 HARNESS; ENG 4HG1-T ENG(RDP) GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2014(VZE)	8-98211-412-0	01	1	1405-1405	●
13	02.525 HARNESS; ENG 4HG1-T ENG(RDP) GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015(VZF)	8-98211-412-0	01	1	1406-	●
13	02.525 HARNESS; ENG 4HG1-T ENG(RDP) FAST GLOW SYSTEM<KM6>	8-97360-767-1	01	1	1004-	●
329	02.480 CABLE; ENG TO FRAME 4HG1-T ENG(RDP) GLOW SYSTEM DELETE<7RK>	8-97520-927-0	01	1	1506-	●
329	02.480 CABLE; ENG TO FRAME 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97177-383-0	01	1	0211-0303		●
329	02.480 CABLE; ENG TO FRAME 4HG1 ENG(RJH) EXC. AIR CONDITIONER MANUAL CONT(C60), EXHAUST BRAKE<NF8>,ENGINE POWER N-SPEC(7QV)	8-97177-383-0	01	1	0211-0303	●
329	02.480 CABLE; ENG TO FRAME 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97177-383-0	01	1	0211-0303	●
329	02.480 CABLE; ENG TO FRAME 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60), ENGINE POWER N-SPEC(7QV)	8-97177-383-0	01	1	0211-0303	●
329	02.480 CABLE; ENG TO FRAME 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97177-383-0	01	1	0304-0507	●	●
329	02.480 CABLE; ENG TO FRAME 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97177-383-0	01	1	0304-0507		●
329	02.480 CABLE; ENG TO FRAME 4HG1 ENG(RJH) EXC. AIR CONDITIONER MANUAL CONT(C60), EXHAUST BRAKE<NF8>,ENGINE POWER N-SPEC(7QV)	8-97177-383-0	01	1	0304-0507	●
329	02.480 CABLE; ENG TO FRAME 4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> ENGINE POWER N-SPEC(7QV) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97177-383-0	01	1	0304-0507	●
329	02.480 CABLE; ENG TO FRAME 4HG1 ENG(RJH),4HF1-S ENG(RLS) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60), ENGINE POWER N-SPEC(7QV)	8-97177-383-0	01	1	0304-0507	●
329	02.480 CABLE; ENG TO FRAME 4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97177-383-0	01	1	0508-0609		●
329	02.480 CABLE; ENG TO FRAME 4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97177-383-0	01	1	0508-0609	●
329	02.480 CABLE; ENG TO FRAME 4HF1-N ENG(RJZ) FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> GLOW SYSTEM DELETE<7RK> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97177-383-0	01	1	0610-0712		●
329	02.480 CABLE; ENG TO FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97177-383-0	01	1	0610-0712	●
329	02.480 CABLE; ENG TO FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-97177-383-0	01	1	0801-1505	●	●
329	02.480 CABLE; ENG TO FRAME 4HG1 ENG(RJH),4HF1-N ENG(RJZ)	8-97177-383-0	01	1	1506-	●	●
329	02.480 CABLE; ENG TO FRAME 4HG1-T ENG(RDP) EXC. GLOW SYSTEM DELETE<7RK>	8-97177-383-0	01	1	1506-	●
329	02.480 CABLE; ENG TO FRAME 4JB1-TC ENG(RDT) IDN	8-97260-486-1	01	1	0610-0712		●
329	02.480 CABLE; ENG TO FRAME 4JB1-TC ENG(RDT) IDN	8-97260-486-1	01	1	0801-	●	●
416	02.559 NUT; TERMINAL 4HG1 ENG(RJH),4HF1-S ENG(RLS) 02.343 M6 W/LK WASHER	8-94424-179-0	01	1	0211-0507	●	●
416	02.559 NUT; TERMINAL 4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.343 M6 W/LK WASHER	8-94424-179-0	01	1	0508-0609	●	●
416	02.559 NUT; TERMINAL 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ) 02.343 M6 W/LK WASHER	8-94424-179-0	01	1	0610-	●	●
575	02.525 HARNESS; GLOW PLUG 4JB1-TC ENG(RDT) IDN	8-97212-328-0	01	1	0610-0712		●
575	02.525 HARNESS; GLOW PLUG 4JB1-TC ENG(RDT) IDN	8-97212-328-0	01	1	0801-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
